USER MANUAL KRF-V5100D KENWOOD

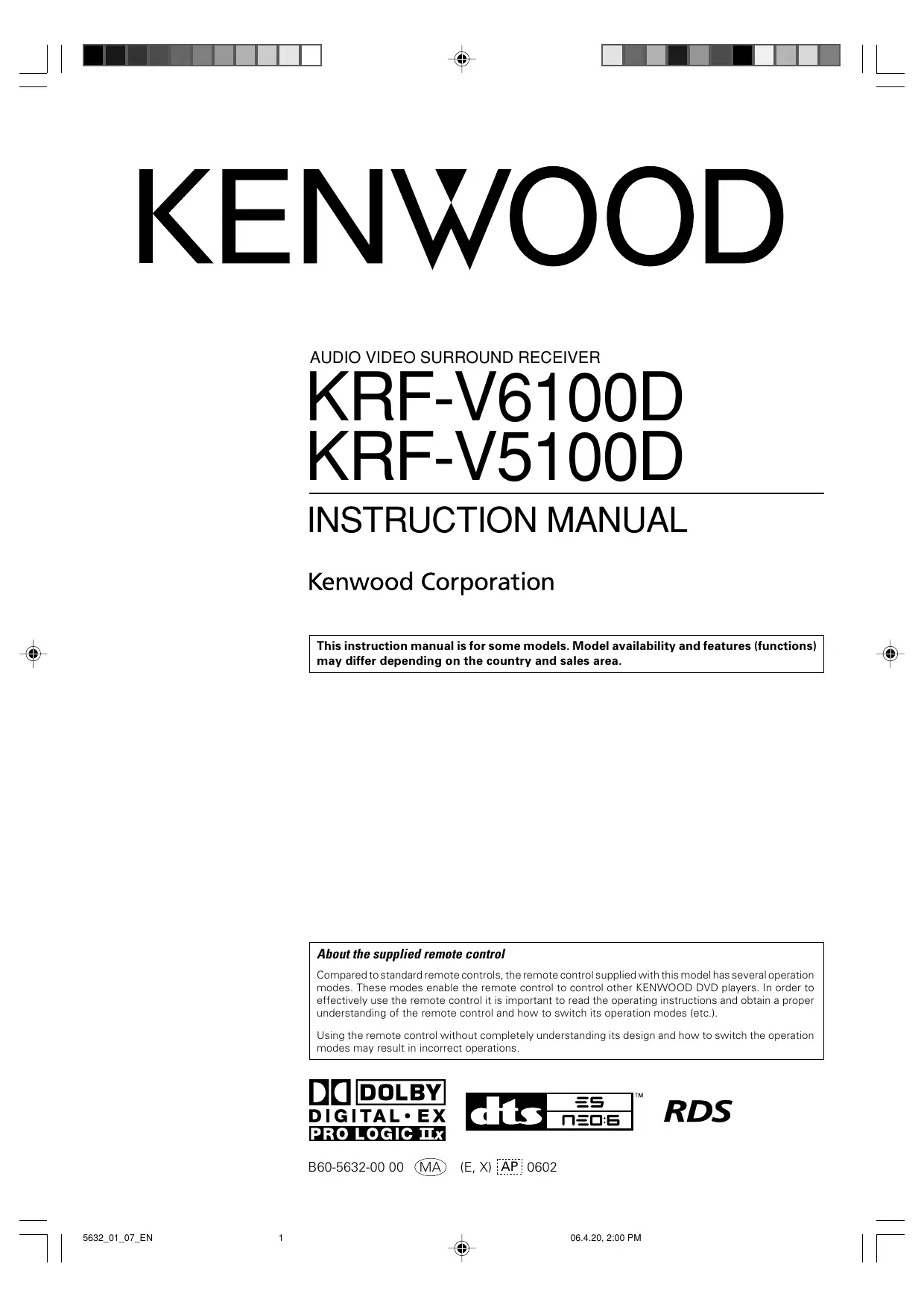

”] | 5632_01_07_EN AUDIO VIDEO SURROUND RECEIVER KRF-V6100D KRF-V5100D INSTRUCTION MANUAL Kenwood Corporation

This instruction manual is for some models. Model availability and features (functions) may differ depending on the country and sales area.

About the supplied remote control

Compared to standardremote controls, the remote control supplied with this model has several operation modes. These modes enable the remote control to control other KENWOOD DVD players. In order to effectively use the remote control it is important to read the operating instructions and obtain a proper understanding of the remote control and how to switch its operation modes (etc.}.

Using the remote control without completely understanding its design and how to switch the operation modes may result in incorrect operations.

DIGITAL:EX RDS B60-5632-00 00 (MA) (E, x) EP: 0602

”] | 5632_01_07_EN 2

Before applying power

À\ Caution : Read this page carefully to ensure safe operation.

Units are designed for operation as follows.

Australia … Europe and UK.

. AC 240 V only AC 230 V only

Unpack the unit carefully and make sure that all the accessories are

Information on Disposal of Old Electrical and Electronic Equipment (applicable for EU countries that have adopted separate waste collection systems)

Products withthe symbol (crossed-outwheeled binicannot be disposed as household waste Old electrical and electronic equipment should be recycled ata facility capable of handling these items and their waste am byproducts. Contact your local authority for details in locating a recycle facility nearest to you. Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on our health and the environment

TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

Remote control unit {1}

RC-RO630E Hany accessories are missing, orifthe unitis damaged or fails to operate, notify your dealer immediately. If the unit was shipped to you directly, notify your shipper immediately. Kenwood recommends that you retain the original carton and packing materials in case you need to move or ship the unit in the future

Keep this manual handy for future reference.

How to use this manual

This manual is divided into four sections, Preparations, Operations, Remote Control, and Additional Information:

Shows you how to connect your audio and video components to this model and prepare the surround processor.

Since this model works with all of your audio and video components, we will guide you in setting up your system to be as easy as possible.

Operations Shows you how to operate the various functions available on this model.

Shows you how to operate other components using the remote control, as well as a detailed explanation of all remote control operations. Once you have setup the remote control, you'll be able to operate both this model and your KENWOOD DVD player using the remote control supplied with this model.

Additional Information

Shows you additional information such as “In case of difficulty" {troubleshooting) and “Specifications”

Memory back up function

Please note that the following items will be deleted from the unit's memory if the power cord is disconnected from the AC outlet for approximately 1 day.

06.4.20, 2:00 PM IMPORTANT SAFETY INSTRUCTIONS

ÂÀ\ Caution: Read this page carefully to ensure safe operation.

Read Instructions -Allthe safety and operating instructions should be read before the product is operated.

Retain Instructions — The safety and operating instructions should be retained for future reference

Heed Warnings — Al warnings on the product and in the operating instructions should be adhered to.

Follow Instructions — Al operating and use instructions should be followed

1. Cleaning — Unplug this product from the wall outlet be- fore cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

2. Attachments - Do not use attachments not recom- mended by the product manufacturer as they may cause hazards.

3. Water and Moisture — This product shall not be exposed &o dripping and splashing - for example, near a bath tub, wash bowi, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like. Do not place an object con- aining liquid, such as à flower vase, on the appliance

4. Accessories — Do not place this product on an unstable cart, stand, tripod, racket, or table. The product may fall causing serious injury to à child or adult, and serious damage tothe product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer. Any mounting of the product should follow the manufactures instructions, and should use a mounting accessory recommended by the manufacturer.

A product and cart combination should be moved with care. Quick stops, excessive force,

and uneven surfaces may cause the product and

cart combination to overturn.

5. Ventilation — Slots and openings in the cabinet are pro- vided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these open- ings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a buiftin installation such as a bookcase or rack unless proper ventilation is provided or the manufacturers instructions have been adhered to.

6. Power Sources - This product should be operated only from the type of power source indicated on the product. If vou are not sure of the type of power supply to your home, consult your product dealer or local power company.

7. CAUTION - Polarization - This product may be equipped with a polarized altenating-current line plug (a plug having one blade wider than the other). This plug wil fit into the power outlet only one way. This is a safety feature. lf you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electri- cian to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

8. Power Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular at- tention to cords at plugs, convenience receptacles, and the point where they exit from the product.

9. Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused or long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and powerline surges. 10.Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

11.0bject and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any Kind on the product.

”] | 5632_01_07_EN 3

12.Servicing — Do not attempt to service this product your- self as opening or removing covers may expose you to dan- gerous voltage or other hazards. Refer all servicing to quali- fied service personnel 13.Damage Requiring Service — Unplug this product from the wall outlet and refer servicing to qualified service person- nel under the following conditions a] When the power-supply cord or plug is damaged, b} If liquid has been spilled, or objects have fallen into the product, c] lfthe product has been exposed to rain or water, dj If the product does not operate normally by following the operating instructions. el K the product has been dropped or damaged in any way, and f)_ When the product exhibits a distinct change in per- formance — this indicates a need for service g} lf an abnormal smell or smoke is detected. 14.Replacement Parts — When replacement parts are re- quired, be sure the service technician has used replacement parts specified by the manufacturer or have the same char- acteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. 15.Safety Check — Upon completion of any service or re- pairs to this product, ask the service technician to perform Safety checks to determine that the product is in proper op- erating condition.

16.Wall or Ceiling Mounting — This product should be mounted to a wall or ceiling only as recommended by the manufacturer.

17.Heat — This product should be situated away from heat sources such as radiators, heat registers, stoves, or other products that produce heat. Do not place a flaming object, Such as a candle or lantern, or near the product.

18. Power Lines — An outside antenna system should not be located in the vicinity of overhead power lines or other elec- ric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power Ines or circuits as contact with them might be fatal 19. Outdoor Antenna Grounding - f an outside antenna or cable system is connected to the product, be sure the an- tenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the leactin wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode

EXAMPLE OF ANTENNA — GROUNDING AS PER NATIONAL ELECTRICAL CODE Lauren

(NEC ART 250, PART NEC - NATIONAL ELECTRICAL CODE Notes 1. (tem 7 is not required except for grounded or polarized equipment.

2. Item 19 complies with UL in the U.S.A. 3e

06.4.20, 2:00 PM Before applying power

Caution : Read the pages marked /\ carefully to ensure safe operation.

À\ Before applying power

A Safety precautions Unpacking How to use this manual

ZÀ\ IMPORTANT SAFETY INSTRUCTIONS Preparing the remote control Special features

Names and functions of parts Main unit Remote control unit

Setting up the system Connecting a DVD player (6-channel input) …… 9 Connecting audio components 10 Connecting video components mn Connecting video components (COMPONENT ” VIDEO) (KRF-V6100D only} 12 Preparations Digital connections 13 Connecting the speakers 14 Connecting the terminals 15 Connecting the antennas 15 Preparing for surround sound .16 Speaker settings 16 Normal playback Preparing for playback 19 Listening to a source component 19 Adjusting the sound 20 Recording Recording audio (analog sources) 21 Recording video 21 Recording audio (digital sources) 21 Listening to radio broadcasts Tuning (non-RDS] radio stations 22 Using RDS (Radio Data System) 22 Operations Presetting radio stations manually 23 Receiving preset stations 23 Receiving preset stations in order (P.CALL) … 24 Using the RDS DISP. (Display} key 24 Presetting RDS stations {RDS AUTO MEMORY) 25 Tuning by Program TYpe (PTY search) 25 Ambience effects Surround modes Surround play DVD 6-channel playback 29 Convenient functions 30 Basicremote control operations for KENWOOD Bari DVD players . 32 Control DVD player operation keys 32 In case of difficulty. Additional

Information Â\ Specifications (For Europe) . À Specifications (For Australia)

Preparing the remote control

Loading the batteries

© Insert the batteries.

+ Insert two AAAssize (R03) batteries as indicated by the polarity markings.

When the STANDBY indicator is lit, the power turns ON when you press the (DRECEIVER key on the remote control unit. When the power comes ON, press the key you want to operate.

+ When pressing more than one remote control key successively, press the keys securely by leaving an interval of 1 second or more between keys

1. The supplied batteries may have shorter lives than ordinary batteries due to use during operation checks.

2.When the remote-controllable distance gets shorter than before, replace both batteries with new ones.

8. Placing the remote sensor in direct sunlight, or in direct light from a high frequency fluorescent lamp may cause à malfunction. In such a case, change the location of the system installation to prevent malfunction

06.4.20, 2:00 PM Before applying power

True home theater sound This model incorporates a wide variety of surround modes to bring you maximum enjoyment from your video software. Select a surround mode according to your equipment or the software you are going to play an enjoy! 06

Dolby Digital and Dolby Digital EX The Dolby Digital mode lets you enjoy full digital surround from software processed in the Dolby Digital format. Dolby Digital provides up to 5.1 channels of independent digital audio for better sound quality and more powerful presence than conventional Dolby Surround. As for Dolby Digital EX, it creates six ful-bandwidth output channels from the 5.1 channel sources. This is done using a matrix decoder that derives three surround channels from the two in the original recording. For best result, Dolby Digital EX should be used with movie soundtracks recorded with Dolby Digital Surround EX.

Dolby Pro Logic IIx and Dolby Pro Logic II Dolby Pro Logic II, whilst totally compatible with its predecessor Pro Logic, provides greater advantages in surround sound. lt allows user to enjoy the conventional stereo or Dolby Surround with a convincing “5.1 like" presentation. Pro Logic II offers special features for controlling the overall spatial, dimensionality and frontal sound field imaging. Pro Logic II produces an impressive surround sound from video software marked Deere) and three-dimensional space from music CD. When listening to music, you will be able to enjoy the experience of sheer STEREO surround sound

Dolby Pro Logic IIx enhanced Dolby Pro Logic Il's features.

Itcreates 6.1 channel and 7.1 channel surround sound from stereo or 5.1 channel signals. This feature provides you an astonishing ambience effect which makes you feel you are surrounded by natural sound Especially 7.1 channel surround sound can produce real back sound from Surround Back speakers

DTS and DTS-ES DTS (Digital Theater System] is à 5.1 channel digital audio format that provides five full-spectrum channels and one low-frequency (subwoofer) channel for unprecedented clarity, optimum channel separation and a {wide) dynamic range.

DTS-ES (Extended Surround) presents 6.1 channels surround system with additional Surround back channel which evolved from the conventional 5.1 channels surround system. DTS-ES format that was recorded in DVD, CD or LD comprises of two modes. DTS-ES Discrete 6.1 produces the discrete surroundback which is completely independent and DTS-ES Matrix 6.1 produces the surround back which synthesized within the leftand right surround channels using matrix technology. DTS- ES has perfect compatibility with the conventional 5.1 channels surround system. 6.1 channels surround with an additional surround back presents amore natural presence andsurroundeffects by increasingthe impression of the sound image from back:

Important When a DTS disc is played on a CD, LD or DVD player, noise may be output from the analog output. It is recommended that you connect the digital output of the player to the digital input of this unit

Neo:Bis a new technology which was developed by DTS. It can produce high grade 6 channels surround with an astonishing fidelity from 2 channels content. Neo:6 has 2 modes, "CINEMA" mode is for movie playback and “MUSIC” mode is for music playback.

”] | 5632_01_07_EN 5

The DSP (Digital Signal Processor) used for this model incorporates a variety of high quality adjustable sound fields, like “ARENA, “JAZZ CLUB”, "THEATER", “STADIUM” and “DISCO”. It is compatible with almost any kind of program source.

If you own a DVD player equipped with 6-channel output, this model allows you to obtain the full surround sound impact of DVD source material featuring multi-channel encoding. Since the source signals are digital and each channel is input independently, the resulting ambience is far superior to what can be achieved with conventional surround sound systems.

ACTIVE EQ ACTIVE EQ mode will produce a more dynamic sound quality in any condition. You can enjoy a more impressive sound effect when ACTIVE EQ is turned on

IR (InfraRed) remote control

In addition to the basic receiver operations, this IR remote control supplied can also control KENWOOD DVD players directly without using the DVD Special features

RDS (Radio Data System) tuner

This modelis equippedwith an RDS tuner that provides severalconvenient tuning functions: RDS Auto Memory, to automatically preset up to 40 RDS stations broadcasting different programs: station name display, to show you the name of the current broadcast station; and PTY search to let you tune stations by program type.

PTY (Program TYpe) search

Tune the stations by specifying the type of program you want to hear.

*The Input channel indicators light up to indicate the channels con. tained in the input signal. The “S” indicator lights when the surround component consists of à single channel

© POWER ON/OFF key Use to turn the main power ON/OFF

© ON/STANDBY 6 key -c Use to switch the power ON/STANDBY when the POWER is turned ON STANDBY indicator

© DIMMER key Use to select the REC MODE.

© SOUND key © AUTO/MONO key Use to adjust the sound quality and the Use to change “TAPE" indication to * MD" ambience effects. -59 @ MULTI CONTROL knob Use to select the auto tuning mode Use to control a variety of settings. © MEMORY key © INPUT SELECTOR knob Use to store radio stations in the preset Use to select the input sources. memory. © VOLUME CONTROL knob @ SETUP key -[ © PHONES jack Use to select the speakers’ settings etc. Use for headphone listening © MUTE key -2

© LISTEN MODE key Use to select the listening mode © Surround LED (light-emitting diode) indicators ACTIVE EQ mode LED indicator Lo] Lights when this model is in the ACTIVE EQ mode DTS mode LED indicator -C Lights when this model is in the DTS mode. DOLBY DIGITAL mode LED indicator -[2] Lights when this model is in the Dolby Digital mode

® SPEAKERS ON/OFF key Use to temporarily mute the sound Use to turn the speakers ON/OFF. @ ACTIVE EQ key Use to select ACTIVE EQ setting @ INPUT MODE key Use to switch between full auto, digital and analog inputs. @ BAND key Use to select the broadcast band

While the standby indicator is lit, a small amount of power is supplied to the system to back up the memory. This is called standby mode. Under the condition, the system can be tumed ON by the remote control unit

Names and functions of parts

+ Some keys can be used for operating KENWOOD DVD players by pressing the CD/DVD or DVD/6CH key beforehand.

© Input Selector keys (TUNER, CD/DVD, MD/TAPE, VIDEO 1, VIDEO 2, DVD/6CH, AUX) -5e Use to select the input sources. © Numeric keys Use to operate the DVD player Use to call up preset stations © LISTEN MODE key Use to select the listening mode. © ACTIVE EQ key -20 Use to select ACTIVE EQ setting © 2/V/</> keys ENTER key TOP MENU key MENU key RETURN key ON SCREEN key Use to operate the DVD player @ukey Use to operate the DVD player BAND key Use to select the broadcast band. > key Use to operate the DVD player AUTO/MONO key Use to select the auto tuning mode mkey Use to operate the DVD player © P.CALLH4/»>1 keys Use to call preset channel. Use to operate the DVD player © BASS BOOST key Use to select the maximum adjustment settin the low frequency range. LOUDNESS key -G à Use to switch the status of LOUDNESS LA © © RECEIVER key 6 Use to turn this model on and off. © © DVD key Use to turn on the DVD player on and off © SETUP key Use to select the speakers’ settings etc. Use to operate the DVD player @ TONE key Use to switch the status of TONE control & SOUND key - Use to adjust the sound quality and ambience eff © DIMMER key Use to adjust the brightness of the display. Use to operate the DVD player @ MULTI CONTROL A/V keys Use to control a variety of settings. © VOLUME /V keys Use to adjust volume setting, © MUTE key Use to temporarily mute the sound © TUNING <>» keys Use to select the radio station. Use to operate the DVD player © RDS DISP. key Use for RDS function PTY key Use for PTY search DISC SEL. key DISC SKIP key AUDIO key SUBTITLE key ANGLE key REPEAT key Use to operate the DVD player

06.4.20, 2:00 PM Setting up the system

Make connections as shown in the following pages. When connecting the related system components, be sure to refer to the instruction manuals supplied with the components you are connecting.

Do not connect the power cord to a wall outlet until all connections are completed.

Notes 1. Be sure toinsert all connection cords securely. their connections are imperfect, the sound may not be produced or there will be noise interference

Be sure to remove the power cord from the AC outlet before plugging or unplugging any connection cords. Plugging/unplugging connection cords without disconnecting the power cord can cause malfunctions and may damage the unit

Do not connect power cords from components whose power consumption is larger than what is indicated on the AC outlet at the rear of this unit.

Audio connections are made using RCA pin cords. These cables transfer stereo audio signal in an “analog” form. This means the audio signal corresponds to the actual audio of two channels. These cables usually have 2 plugs at each end, red for the right channel and white for the left channel. These cables are usually packed together with the source unit, or are available at your local electronics retailer

Microcomputer malfunction lf operation is not possible or an erroneous display appears, even though all connections have been made properly, reset the micracomputer by referring to “In case of difficulty" Gi)

À CAUTION Install the equipment so that the power outlet is easily accessible and, in case of emergency, immediately unplug the power cord from the power outlet.

The power in this equipment will not be completely cut off from the AC wall outlet when the main switch is tumed OFF

”] | 5632_08_15 EN 8

CD/DVD”, “VIDEOZ" and “DVD/6CH" inputs each include jacks for digital audio input and analog audio input

After completing connections and turning on this model, follow the steps below!

LISTEN MODE INPUT SELECTOR INPUT MODE

© Use the INPUT SELECTOR knob to select “CD/DVD”, “VIDEO2*, “DVD/6CH”.

@ Press the INPUT MODE key. Each press switches the setting as follows:

In DTS play mode D F-AUTO (digital input, analog input) 2 D-MANUAL (digital input)

In CD/DVD, VIDEOZ, DVD/6CH play mode D F-AUTO (digital input, analog input} 2 D-MANUAL (digital input) CH INPT (DVD/6CH input) * ANALOG {analog input} + “6CH INPT” setting can be switched only when the input selector is set to “DVD/6CH"

Digital input: Select this setting to play digital signals from a DVD, CD, or LD player

Analog input: Select this setting to play analog signals from a cassette deck, VCR, or record player.

In “F-AUTO” (full auto) mode (AUTO DETECT and DIGITAL indicators light upl, this model detects the digital or analog input signals automatically. Priority is given to digital signal during input mode selection. This model will select the inputmode and listening mode automatically during playback to match the type of input signal (Dolby Digital, PCM, DTS j and the speaker setting. The initial factory setting is full auto

To keep this model set to the currently selected listening mode, use the INPUT MODE key to select “D-MANUAL" (digital manual). However, even when this setting is selected, there may be cases in which the listening mode is selected automatically to match à Dolby Digital source signal depending on the combination of listening mode and source digital

In D-MANUAL mode, if the audio reproduction stops in the middle due to change in the input signals etc, press the LISTEN MODE key. If the INPUT MODE key is pressed quickiy, sound may not be produced. Press the INPUT MODE key again

06.4.20, 2:00 PM CN) Sn 7 |

Setting up the system

Connecting a DVD player (6-channel input)

If you have connected a DVD player to this model with digital connection, be sure to read the “Input mode settings"

Setting up the system

Connecting audio components

Cassette deck or MD recorder

+ Do not place any objects impairing heat radiation onto the top of the unit

Top panel : 50 cm Side panel : 10 em

Be sure to adhere to the following, or proper ventilation will be blocked causing damage or fire hazard.

+ Leave some space around the unit (from the largest outside dimension including projection) equal to or greater than, shown below.

2:00 PM Setting up the system

Connecting video components

About the S-VIDEO jacks

Use the S-VIDEO jacks to make connections to video components with S-VIDEO IN/OUT jacks.

+ If you use the S-VIDEO iacks toconnect your video playback components, be sure to use the S-VIDEO iacks when connecting Your monitor and video recording components

* DVD IN input jack is used for either CD/DVD input or DVD/ 6CH input.

IN Monitor TV Video IN S I Audio IN En Video OUT Video deck Audio OUT DVD player or LD player

Video OUT Prey Prey Audio OUT A video component with digital audio outputs should be connected to the VIDEO 2 jacks.

06.4.20, 2:00 PM FT Setting up the system

Connecting video components (COMPONENT VIDEO) (KRF-V6100D only)

you have connected the receiver to a video component with COMPONENT jacks, you can get a better picture quality than by connecting tothe S-VIDEO jacks

* DVD IN input jack is used for either CD/DVD input or DVD/ 6CH input.

| When connecting the TV to the COMPONENT jacks, be sure to connect all the other components to the COMPONENT jacks. |

”] | 5632_08_15 EN 12 06.4.20, 2:00 PM | [

Setting up the system

The digital in jacks can accept DTS, Dolby Digital, or PCM signals. Connect components capable of outputting DTS, Dolby Digital, or standard PCM (CD) format digital signals.

If you have connected any digital components to this model, be sure to read the “Input mode settings” section carefully

COAXIAL DIGITAL OUT. (AUDIO)

Component with DTS, Dolby !, or PCM COAXIAL COAXIAL DIGITAL OUT DIGITAL OÙT Connect the video signal and analog {AUDIO) audio signals to the VIDEO 2 jacks {See “Connecting video components") RF digital demodulator =

(Commercially available)

DOLBY DIGITAL RF OÙT (AUDIO)

To connect an LD player with a DIGITAL RF OUT, connect the LD player to the RF digital demodulator (Commercially available). Next, connect the DIGITAL OUT jacks of the demodulator to the DIGITAL IN jacks of this model. Connect the video signal and analog audio signals to the VIDEO 2 jacks. (See “Conne

”] | 5632_08_15 EN 13

Setting up the system

Connecting the speakers

Front Speakers Right Left

KRF-V6100D only When using both Surround Back Left and Right speakers,

SURR BACK R a at speaker settings. Gt When connecting à single (LE) . Surround Back speaker SPEAKERS I through a power amplifier to \ PRE OUT SURR BACK L/ Li SURR BACK jack, connect it = as above and select 668 "SPEAKER" at speaker set coco tings @ FE | — € E (3) @ DORE |

When connecting a Surround Back speaker to this terminal

lect “SPEAKER" at speaker

To make sure that each speaker has been connected properly, pay attention to the test tone from each speaker. Refer to “I Adjust the speaker volume level.".

”] | 5632_08_15 EN 14

Setting up the system

Connecting the terminals

© Strip coating. © Push the lever.

+ Never short circuit the + and - speaker cords. + If the left and right speakers are connected inversely or the speaker cords are connected with reversed polarity, the sound will be unnatural with ambiguous acoustic imaging. Be sure to connect the speakers correctiy.

After confirming the speaker impedance indications printed on the rear panel of this model, connect speakers with matching impedance ratings. Using speakers with à rated impedance other than that indicated on the rear panel of this model could result in malfunctions or damage to the speakers or this model

 speaker Listening position /surruna speaker * Surround * Surlound Back Left Back Right ssker speaker *Suround

“For Surround Back speaker, you may place either two Surround Back speakers (Surround Back Left speaker and Surround Back Right speaker) for 7.1 channel surround sound system or one Surround Back speaker for 6.1 channel surround sound system:

Front speakers: Place the left and right speakers at each side of your

TV. Angle the speakers towards the listening area to enhance the

Center speaker: Place the center speaker on the center betweenthe

front left and right speakers. Tilt the speaker upward or down-ward

So that it is directly facing the listening area.

Surround speakers: Place the surround speakers as highas possible,

either directiy to the sides of the listening area or else slightly behind

the listeningarea. Adjust the angles so that these speakers are facing

directly towards the listeners

Subwoofer: Usually, place the subwoofer in the front center position

in the listening room, near one of the front speakers. (Since the

subwoofer has less directivity than other speakers, it can be placed

almost in any position that can offer the best low frequency

reproduction according ta the room layout.)

Surround Back speaker/s: Place the surround back speaker behind

the listening position, at the same height as the left and right surround

+ Although the ideal surround system consists of all the speakers listed above, if you don't have a center speaker or a subwoofer, you can divide those signals between the available speakers in the speaker settings steps to obtain the best possible surround

reproduction from the speakers you have available. -5

”] | 5632_08_15 EN 15

Connecting the antennas

The broadcast reception cannot be made unless the antennas are connected. Connect the antennas correctly as instructed below

Place the supplied loop antenna as far as possible from the receiver, TV set, speaker cords and power cord, and adjust the direction for best reception.

AM antenna terminal connections © Push lever. © Insert cord. © Release lever. : 4 æ À

RTS ST FM indoor antenna

The supplied indoor antenna is for temporary use only. For stable signal reception we recommend using an outdoor antenna. Disconnect the indoor antenna when you connect one outdoors.

FM antenna terminal connections Insert cord.

LA FM outdoor antenna

Lead the 750 coaxial cable connected to the FM outdoor antennainto the room and connect it to the FM 750 terminal

(2 Attach to the stand

adapte } AM loop antenna (Commercially = J

To enable you to obtain optimum enjoyment from this model's listening modes, make sure to complete the speaker settings (Subwoofer, Front, Center, Surround and Surround Back speakers) as described below

ONSSTANDBY& MULTI CONTROL ET GRECEIVER Lo0o =| — 0 (290 <e— SETUP % (@) Boo,

MULTI æ fe : an] CONTROL av | [eoccce OO!» où nn =

ssl POWER ON/OFF SETUP E Turn on the power to this model by pressing POWER ON/OFF and ON/STANDBY 6 or © RECEIVER key.

If you want to use the remote control unit, press the TUNER, MD/TAPE, VIDEO 1, VIDEO 2 or AUX key on the remote control unit to set it to the receiver control mode.

A initiate the setup mode. © Press the SETUP key. © Use the MULTI CONTROL knob or MULTI CONTROL A /V keys for the following displays. D SP SETUP ) TESTTONE DISTANCE LFE LVL ) EXIT

The flow of the SETUP is as follows:

es [SP SETUP }—/[TESTTONE} —{DISTANCE }-—[LFE LEVEL — 1 EXIT pu

EASY SET] [Custom TO] [MANUAL]

L ROOM TYPE Subwoofer L LEFT c 4 4 POSITION Front R Q CENTER + RS 4 + Center RB R RIGHT Ü LB 4 D Surround LS RS RIGHT SURR sw + Surround Back RB RIGHT BACK SURR 4 4 Subwoofer Re-mix LB LEFT BACK SURR 4 LS LEFT SURR

4 SW SUBWOOFER {KRF-V6100D only)

+ If you have selected "SPEAKER” as the Surround Back setting, *RB"/ "RIGHT BACK SURR” and “LB"/ "LEFT BACK SURR" are not appeared but "BS" /“BACK SURR" is appeared on the display.

E Select the setup method.

© Select “SP SETUP” and press the SETUP key to select the speaker setup method.

© Use the MULTICONTROL knob or MULTI CONTROL 1/V keys to select “EASY SET“ or “CUSTOM and press the SETUP key again.

D EASY SET : Select for the simplified speaker setup according only to the rom type and listening position. After this, continue the procedure from step Æ.

D CUSTOM : Select to set up the speakers according to the speaker system in use. Speaker setup is required every time after the speaker system is changed. When the setting CUSTOM" is selected, the procedure skips to step E (When the “CUSTOM” has been selected) £

”] | 5632 16 25 EN 16

E Wien the “EASY SET” has been selected. The speaker system can be complete by simply selecting the room type and listening position. The audio will be corrected automati- cally according to the characteristics of the KENWOOD speaker system in use. + The speaker setup of each models is shown as below: KRF-V6100D: 6.1ch surround system KRF-V5100D: 5.1ch surround system

© Use the MULTI CONTROL knob or MULTI CONTROL /V keys to select the room type and press the SETUP key. + “ROOM TYPE” is displayed by scrolling, and then the current setup is displayed

@ SMALL RE ORRET @® LARGE 3m (10-38) <— 3 3 :| & [EE] & LE 12m? 24m° 35m°

(SMALL ) (MEDIUM ) (LARGE )

“indicated sizes are based on an average situation.

© Use the MULTI CONTROL knob or MULTI CONTROL 1/V keys to select the listening position and press the SETUP key. n + "POSITION" is displayed by scrolling, and then the current © setup is displayed

Select a listening position:

D FRONT [ œnteR [D EE U] 3) REAR FRONT Eû/ CENTER) di REAR ho | &/ 6 [ss]

© Setup is complete when the “EXIT” indication appears.

© Press the SETUP key to exit the SETUP mode.

The speaker setup with “EASY SET” may not be appropriate with certain speaker systems or listening environment. In this case, use “CUSTOM” for the speaker setup

Continued to next page

06.4.20, 2:00 PM | [

Preparing for surround sound

E Wien the “CUSTOM” has been selected. © For general speaker setting, usethe MULTICONTROL knob or MULTI CONTROL 4/7 keys to select “CUSTOM” and press the SETUP key again. + The Subwoofer setting indication “SUBW ON” appears

@ Use the MULTI CONTROL knob or MULTI CONTROL A/7 keys to select the appropriate Subwoofer setting.

Ê > SUBW ON : Subwoofer setting mode to this model is ON 2 SUBW OFF : Subwoofer setting mode to this model is OFF.

+ The initial setting is *SUBW ON”

+ When the setting “SUBW OFF” is selected, the Front speakers are automatically set to "FRNT LARG" and the procedure skips to step © Before step @, press the SETUP key to accept the setting

+ When Subwoofer output soundis required, select “FRNTNML"

© Press the SETUP key to accept the setting. + The Front speakers setting indication “FRNT LARG” appears.

© Use the MULTI CONTROL knob or MULTI CONTROL A/7 keys to select the appropriate Front speakers setting.

: Large Front speakers are connected to this model.

>) FRNT NML (normal) : Average size Front speakers are

connected to this model.

[ D FRNT LRG (large)

+For “FRNT LRG" selection, no sound will be heard from Subwoofer speaker even when it is set to ON. However, if you select “SW RE-MIX ON” when Subwoofer is selected, you will be able to hear sound from the Subwoofer When in STEREO mode, the sound goes directly to Front speaker

© Press the SETUP key to accept the setting. + The Center speaker setting indication “CNTR NML" appears.

© Use the MULTI CONTROL knob or MULTI CONTROL A/V keys to select the appropriate Center speaker setting.

If you have selected “LRG” as the Front speakers setting: © CNTR NML (normal) : An average size Center speaker is connected to this model. 2 CNTR LRG large) : À large Center speaker is connected to this model. : Center speaker setting mode to this model is OFF.

D CNTR OFF If you have selected “NML” as the Front speakers setting: © CNTR NML (normal) : An average size Center speaker is C connected to this model. : Center speaker setting mode to this model is OFF.

@ Press the SETUP key again to accept the setting. «The Surround speaker setting indication “SURR NML” appears.

”] | 5632 16 25 EN 17

© Use the MULTI CONTROL knob or MULTICONTROL /V keys to select the appropriate Surround speaker setting.

If you have selected “LRG” as the Center speaker setting:

D SURR NML (normal): Average size Surround speakers are connected to this model.

: Large Surround speakers are connected to this model.

: Surround speaker setting mode to this model is OFF.

D SURR OFF H you have selected other than “LRG” as the Center speaker setting: D SURR NML (normal): Average size Surround speakers are C connected to this model : Surround speaker setting mode to this model is OFF.

+ When the setting “SURR OFF" is selected, the procedure skips to step @.

© Press the SETUP key to accept the setting. + The Surround Back speaker setting indication “BS" appears.

© Use the MULTI CONTROL knob or MULTI CONTROL 4/V keys to select the appropriate Surround Back speaker setting.

you have selected “LRG” as the Surround speaker setting:

D BS NML (normal) : Average size Surround Back speaker is connected to this model.

: Large Surround Back speaker is connected to this model.

: Surround Back speaker setting mode to this model is OFF.

L@ Bs OFF If you have selected “NML” as the Surround speaker setting:

æ D BS NML (normal) : Average size Surround Back speaker is connected to this model.

: Surround Back speaker setting mode to this model is OFF.

If you have selected “NML* or “LRG” as the Surround Back speaker setting:

D SPEAKER : Surround Back signal will be output from SURROUND BACK speaker terminal and PRE OUT SURR BACK L/SURR BACK jack as monaural

+ @ PRE OUT : Surround Back signals will be out put from PRE OUT SURR BACK L/SURR BACK and PRE OUT SURR BACK R jacks as stereo

® Press the SETUP key again to accept the setting. + The Subwoofer re-mix setting indication “SW RE-MIX" scrolls across the display.

+ lf Subwoofer is turned OFF, Subwoofer re-mix setting is not visible.

@ Use the MULTI CONTROL knob or MULTI CONTROL A/7 keys to select the appropriate Subwoofer re-mix setting.

à RMX OF Subwoofer re-mix set mode to this model is ON Subwoofer re-mix set mode to this model is OFF.

@ Press the SETUP key to accept the setting.

Continued to next page

06.4.20, 2:00 PM LE Preparing for surround sound

G Adjust the speaker volume level. From your usual listening position, adjust the volume levels. The volume levels from each speaker should be the same.

+ In step B and E, indications appear only for the selected channels of the speakers that require adjusting,

© Press the SETUP key to begin TEST TONE. + This model enters the speaker volume level adjustment mode:

The selection of AUTO/MANUAL TEST TONE is done by the MULTI CONTROL knob or MULTI CONTROL A/V keys.

@ Press the SETUP key again to select either “AUTO” or “MANUAL”. Use the MULTI CONTROL knob or MULTICONTROL A/V keys to adjust the volume level of the test tone output from the speaker channel to be adjusted. For “AUTO” selection, the testtoneis heardfrom the speakers in the following sequence for 2 seconds each:

[LT STARS AB LS LS - SW —

+ lf you change the volume level settings for the speakers while listening to music, the settings referred to on this page are also changed 5)

+ If any of the speaker is set as OFF during SP SETUP, the TEST TONE adjustment for the speaker will be skipped

+ If you have selected “SPEAKER" as the Surround Back setting, “RB" and "LB" are not appeared but "BS” is appeared on the display.

© Press the SETUP key. + The test tone is turned off. This model enters the mode for inputting the distance to the speakers

© For “MANUAL" selection, press the SETUP key each time to select the speaker channel.

Input the distance to the speakers.

© Selectthe “DISTANCE” from the setup displays and press the SETUP key again.

© Measure the distance from the listening position to each of

Jot down the distance to each of the speakers:

Distance to Front Left speaker (L) : ____ feet (meters| Distance to Center speaker (CI __ feet (meters) Distance to Front Right speaker (R] _ : ___ feet (meters| Distance to Surround Right (RS) feet (meters) Distance to Surround Back Right (RBI: ___ feet (meters| Distance to Surround Back (BS] feet (meters) Distance to Surround Back Left (LB) : __ feet (metersi Distance to Surround Left (LS) __ feet (meters) Distance to Subwoofer (SW) feet (meters)

+ If you have selected “SPEAKER” as the Surround Back setting, “RB"/ "RIGHT BACK SURR" and “LB"/ "LEFT BACK SURR” are not appeared but "BS" /*BACK SURR" is appeared on the display.

© Use the MULTICONTROL knob or MULTI CONTROL /Y keys to select the distance to the Front speakers.

Indication in feet Indication in meters

«The allowable setting range is 1 to 30 feet (0.3m to 9.0mi, adjustable in 1 foot (0.3m) increments

© Press the SETUP key to accept the settings.

© Repeat steps © and © to input the distance for each of the speakers.

EAdjust the LFE LEVEL (Low Frequency Effects level)

© Select the “LFE LVL” from the setup displays and press the SETUP key again.

© Use the MULTICONTROL knob or MULTI CONTROL /Y keys to adjust the LFE LEVEL.

+ The LFE LEVEL is adjusted from OdB to —10dB in 1dB step decrements.

© Press the SETUP key to accept the setting.

© Setup is complete when the “EXIT” in

+ The speakers you have selected should appear on the display. Confirm that all the speakers have been correctly selected

© Press the SETUP key to exit the SETUP mode.

Input level adjustment (analog sources only)

the input level of an analog source signal is too high, the CLIP indicator will blink to indicate the source signal. Adjust the input level

© Use the INPUT SELECTOR knob to selectthe source of which the input level you want to adjust.

+ You can store à separate input level for each input source

© Press the SOUND key repeatedly until the “INPUT” indication appears.

+ The input level may be adjusted to any one of three settings: OdB, -3dB, and -6dB. (The initial setting is OdB.)

© Press the SOUND key again to return to the input indication.

06.4.20, 2:00 PM Normal playback

Preparing for playback

Some preparatory steps are needed before starting playback

SPEAKERS ON/OFF ON/STANDBY d De) Tlooose :OQ]0 ES RS EE |

POWER AUTO/MONO INPUT SELECTOR ON/OFF Turning on this model

© Turn on the power to the related components.

© Turn on the power to this model by pressing the POWER ON/ OFF and ON/STANDBY 6 key.

Selecting the input mode If you have selected a component connected to the CD/DVD, VIDEO2,

DVD/6CH INPUT jacks, make sure that the input mode setting is correct for the type of audio signal to be used

Selecting MD/TAPE Select the source name corresponding to the component connected to the MD/TAPE jacks. The initial factory setting is “ TAPE”. To change the source to “MD”, follow the steps below:

© Use the INPUT SELECTOR knob to select “TAPE".

© Hold down the AUTO/MONO key for more than 2 seconds.

+ The source indication changes to "MD" + To return to the original indication, repeat procedure @.

Setting the speaker status

The speaker indicator lights up

ET Press the SPEAKERS ON/OFF key to switch the speaker on or off.

”] | 5632 16 25 EN 19

Listening to a source component

Use the INPUT SELECTOR knob or keys to select the source you want to listen to.

The input sources change as shown belowr

Tuner (FM/AM broadcast reception) “CD/DVD”

E Start playback from the selected source.

Adjusting the sound Adjusting the Loudness mode (remote control only) SPEAKERS ON/OFF VOLUME CONTROL You can adjust the Loudness function which controls the low volume ACTIVE EQ settings to maintain the music's richness. The adjustment can be made

lmimimr l_ MUTE LOUDNESS — | BASS BOOST —4>l

Adjusting the Tone (remote control only)

You can adjust the sound quality when this model is in the PCM stereo and analog stereo mode

© Press the TONE key to select the Tone mode.

© Use the MULTI CONTROL knob or MULTI CONTROL A/V keys to select “TONE ON” or “TONE OFF”.

© When in “TONE ON" selection, press the TONE key for the following displays. BASS : Select this to adjust the low frequency range TREB : Select this to adjust the high frequency range

© Use the MULTI CONTROL knob or MULTI CONTROL A/V keys to adjust the sound quality.

+ The bass and treble levels are adjustable from —10 to +10 in 2 step increments.

+ When the ACTIVE EQ mode is set to ON, set it to OFF and then control the TONE setting

One-touch low frequency emphasis (Bass Boost) {remote control only)

You can adjust the sound quality when this model is in the PCM stereo and analog stereo modes.

Press the BASS BOOST key.

+ Press the key once to select the maximum (+10) low frequency emphasis setting

+ TONE will automatically be turned ON

+ This key does not function when this model is in the sound quality or ambience effects adjustment mode. x s

+ When the ACTIVE EQ mode is set to ON, set it to OFF and then control the BASS BOOST setting,

Switching back to the previous setting Press the BASS BOOST key again.

when this model is in the PCM stereo and analog stereo mode

Press the LOUDNESS key to turn the Loudness setting ON. To cancel

Press the LOUDNESS key againso thatthe “LOUDNESS” indicator goes off.

Muting the sound The MUTE key lets you mute the sound of the speakers

Press the MUTE key again so that the “MUTE" indicator goes off. + MUTE ON can also be deactivated by tuning the VOLUME CONTROL knob {or pressing the VOLUME A/V keys)

You can enjoy a more impressive sound effect when ACTIVE EQ is turned ON during Dolby Digital and DTS playback and, when in PCM and analog stereo mode. Press the ACTIVE EQ key for the following selections: @ ACTIVE EQ MUSIC _ : Effective when listening to music.

(The ACTIVE EQ LED indicator lights up.) @ ACTIVE EQ CINEMA : Effective when watching a movie

{The ACTIVE EQ LED indicator lights up.) : Effective when watching TV.

{The ACTIVE EQ LED indicator lights up.) 2 The ACTIVE EQ function is tumed OFF.

(The ACTIVE EQ LED indicator goes off.)

+ ACTIVE EQ function will not be available when REC MODE, AUTO TUNING or PRESET MEMORY is ON and during 96kHz LPCM playback.

Listening with headphones

© Press the SPEAKERS ON/OFF key so that the speaker indicator goes off.

Make sure the SP indicator is tumed OFF.

CT °1f you turn off all of the speakers when in surround mode, the surround mode will be canceledas well resultingin stereo playback

© Connect headphones to the PHONES jack.

© Use the VOLUME CONTROL knob or VOLUME A/7 keys to adjust the volume.

INPUT SELECTOR Recording a music source

© Use the INPUT SELECTOR knob to select the source [other than “MD/TAPE”) you want to record.

© Set the MD or TAPE recorder to record.

© Start playback, then start recording.

© Use the INPUT SELECTOR knob to select the video source (other than “VIDEO1”) you want to record.

© Set the video deck connected to VIDEO 1 to record. + Select the REC MODE to record a digital input source.

© Start playback, then start recording. + Recording may not be normal for some video software. This is due to the copy guard condition

Recording audio (digital sources)

Switch on the REC mode to record a digital input source

Usually use the A-REC (Auto-Record) mode to record audio input sources. When the digital mode changes during recording in the A-REC mode, the audio input source may be interrupted momentarily.

Recording music in A-REC or M-REC mode

© Set the MD or TAPE recorder to record.

”] | 5632 16 25 EN 21

© Press andholdthe DIMMER key for more than 2 seconds to select the A-REC or M-REC mode during digital input.

D Rec mode off_: The digital input record mode is switched off

2 A-REC mode _: The digital input signals (DTS, Dolby Digital, or PCM) are identified automatically and converted into stereo signals that are ready for recording

5 M-REC mode _: The input signal type at the moment this mode is selected is held throughout this mode.

+ When the M-REC mode is selected, the digital input signal is converted to stereo signals (down-mix]}. But once the digital signal is changed to other signal, no signal is output.

+ When the A-REC mode is selected, the digital input signal is converted to stereo signals even if the digital signal is changed

© Start playback, then start recording. + If the audio reproduction stops in the middle due to change in the input signals, etc., press the DIMMER key,

06.4.20, 2:00 PM Listening to radio broadcasts

This model can store up to 40 stations in the memory and recall them by one-touch operation

Radio stations can be classified into RDS (Radio Data System) stations and other stations. To listen to or store RDS stations in the preset memory see “Using RDS (Radio Data System)"

Tuning (non-RDS) radio stations

Buse the INPUT SELECTOR knob or TUNER key to select the tuner.

Buse the BAND key to select the desired broadcast band.

“AM or “FM indicator

Each press switches the band appears in the display

) AM Buse the AUTO/MONO key to selectthe desiredtuning method.

Each press switches the tuning method as follows: > AUTO lit (auto tuning) 2 AUTO not lit (manual tuning}

"AUTO" indicator lights up in the display. Fe 0 © F É3

+ Normally, set to “AUTO” (auto tuning). Ifthe radio waves are weak and there is a lot of interference, switch to manual tuning. (With manual tuning, stereo broadcasts will be received in monaural.)

Buse the MULTI CONTROL knob or MULTI CONTROL A/V keys, or TUNING «4 /»> keys to select the station.

“ST." lights when a broadcast is being received in stereo.

“TUNED” is displayed when a station is received.

Auto tuning : The next station is tuned automatically. Manual tuning : Turn the knob (press the key) to select the desired station 22: 5632 16 25 EN 2

Using RDS (Radio Data System)

RDS is a system that transmits useful information (in the form of digital data) for FM broadcasts along with the broadcast signal. Tuners and receivers designed for RDS reception can extract the information from the broadcast signal for use with various functions, such as automatic display of the station name

PTY (Program TYpe Identification) Search -& Automatically tunes to a station that is currently broadcasting the specified program type (genre)

PS (Program Service Name) Display Automatically displays the station name transmitted by the RDS station.

RDS AUTO MEMORY function Automatically selects and stores up to 40 RDS stations in the preset memory.

Iffewer than 40 RDS stations have been storedinthe presetmemory, regular FM stations will be stored in the remaining places.

Displays the radio text data transmitted by some RDS stations when vou press the RDS DISP. (Display) key. There is “NO RT" display ifno text data is transmitted.

The “RDS” indicator lights up when an RDS broadcast (signal) is received

Some functions and function names may differ for certain countries and areas.

Before using a function utilizing the RDS, be sure to perform the RDS Auto Memory operation by referring to the description in “Presetting RDS stations (RDS AUTO MEMORY)" -

Listening to radio broadcasts

Presetting radio stations manually

The RDS auto memory function assigns preset numbers to RDS stations starting from preset number “1”. Therefore, be sure to execute the RDS auto memory function before using the following operations to manually store AM stations and other FM stations, and RDS stations. See "Presetting RDS stations (RDS AUTO MEMORY)"

Tune to the station you want to store.

ÆPress the MEMORY key while receiving the station. Blinks for 20 seconds

Ce M F Proceed to step E within 20 seconds. {If more than 20 seconds elapse, press the MEMORY key again.)

Receiving preset stations

Press the TUNER key to select tuner as the source.

BEnterthe number ofthe preset station you want to receive (up to 40”). Press the Numeric keys in the followi For “15”, press For “20”, press

+ 1f you make a mistake entering a two digit number, press the +10 key repeatedly to return to the original display and start again

El Use the MULTI CONTROL knob or MULTI CONTROL A/V keys to select one of the station presets (1 — 40).

Press the MEMORY key again to confirm the setting.

+ Repeat steps F1, &, @, and E to store as many stations as necessary.

+ Ifyou store a station at a previously used preset, the previous station will be replaced by the new one.

06.4.20, 2:00 PM Listening to radio broadcasts

Receiving preset stations in order (p.cALL)

Press the TUNER key to select tuner as the source.

Buse the P.CALL«@/»»: keys to select the desired station.

+ Each time you press the key, another preset station is received in order.

Pressing the P.CALL »>1 does the following: c* —+ 02 03—..—+ 788-8240

Pressing the P.CALL &« does the followin.

Holding down the P.CALL »>1 or 14 key, lets you ski the presets, receiving each preset station at 0.5 second i

Each press switches the display mode as follows:

© PS (Program Service name) display: The station name is displayed automatically when an RDS broadcast is received. If no PS data was sent, “NO PS” is displayed

@ RT (Radio Text) display: Text data accompanying the RDS broadcast scrolls across the display. “NO RT" or “RT----" is displayed if the current RDS station does not provide RT data

© Frequency display: Displays the frequency of the current station

06.4.20, 2:00 PM Listening to radio broadcasts

Presetting RDS stations (RDS AUTO MEMORY)

This function automatically stores up to 40 RDS stations in the preset memory. In order to use the PTY function, the RDS stations must be stored in the preset memory using the RDS AUTO MEMORY function.

Press the PTY key to activate the PTY search mode.

When an RDS broadcast is received, the program type is shown on

the display. Ifno PTY data is available, or if the station is not an RDS MEMORY station, “NONE” is displayed 6 ÆWüile the “PTY” indicator is lit, use the MULTI CONTROL o knob or MULTI CONTROL A/ keys, or TUNING 4 / >> es |ce keys to select the program type of your choice. o | oogsot =) Im) BAND — INPUT SELECTOR Program type table Program Type Name Display [Program Iype Name Display Pop Must. POP {Weainer WEATHER Rock Muse ROCK M [Finance FINANCE Muse the INPUT SELECTOR knob to select the tuner. Essy Music EASYM —_JOnidrens Progem CHILDREN Lan Css USE — LIGHT M [Soc ANS SOTTAL Serious Classical Muse — CIASSICS [Aston RELIGION Buse the BAND key to set the broadcast band to “FM Der NOTE Pons FRET News REXE rever TRAVEL EPress and hold the MEMORY key for more than 2 seconds. Cure Mers LE TE SRE TIGE INFO Dazz USE JAZZ Spor SPORT [Country Muse COUNTRY CT] EGUEO EDUCATE — [National Music RATONRT Drama DRAMR [oies Muse DLDIES Tuure CULTURE —— [FOK Muse FOLK M Science SCIENCE —_[Documentary DOCUMENT Varied Speo VARIED

+ After a few minutes, up to 40 RDS stations are preset in order from channel “01”

+ Stations already stored in the preset memory may be replaced by RDS stations. (Le., Ifthe RDS AUTO MEMORY function detects 15 RDS stations, the stations currently preset at numbers 01-15 will be replaced by the RDS stations.)

Tuning by Program TYpe (PTY search)

This function lets you set the tuner to automatically search for stations which are currently broadcasting the type of program (genre) you want to listen to.

“NO PROG" is displayed if this operation is attempted before performing the RDS Auto Memory operation.

ÆPress the PTY key to start searching.

EXAMPLE: Searching for a Rock Music broadcast.

Display while searching.

Blinks Program type name display

Display when a station is received Goes out

Under certain receiving conditions, it may take more than 1 minute to complete the search.

+ Execute the RDS auto memory procedure. + Set the broadcast band to FM. + Tune to an RDS station

Station name display

No sound is heard while "PT is blinking

If the desired program type cannot be found, “NO PROG" is displayed, then after several seconds the display returns to the original display.

To select another program type Repeat steps 0, El and El.

06.4.20, 2:00 PM Ambience effects

This model is equipped with listening modes that allow you to enjoy an enhanced sonic ambience with a variety of video sources. In order to obtain the optimum effect from the surround modes, make sure to input the proper speaker settings beforehand

Surround modes The below speaker placements are for 5.1 channel surround sound The below speaker placements are for 6.1 channel surround sound system which are; system which are; Dolby Digital Dolby Digital EX + Dolby Pro Logic 11 °DTS-ES °DTS *NEO:6 DSP + DVD 6-channel

BS No Surround Back speaker With Surround Back speaker

The below speaker placements are for 7.1 channel surround sound L Front Left speaker

+ Dolby Pro Logic IIx sw Subwoofer c Center speaker R Front Right speaker LS Surround Left speaker

TV] SCREEN RS Surround Right speaker BS Surround Back speaker > (swCc ) LB Surround Back Left speaker

RB Surround Back Right speaker Manufactured under license from Dolby Laboratories. "Dolby", “Pro Logic”, “Surround EX" and the double-D symbol are trademarks of

Dolby Laboratories. LS RS] “DTS","DTS-ES Extended « Surround” and “Neo:6" are S (a

trademarks of Digital Theater Systems, Inc:

_ _ Note LB RB LFE = Low Frequency Effects. This channel delivers separate non-

directional bass signals to the subwoofer for more dynamic deep With Surround Back Left and Right speakers bass sound effects.

| 5632 26 32 EN 26 é 06.4.20, 2:01 PM »)

Dolby Digital The Dolby Digital surround format lets you enjoy up to 5.1 channels of digital surround sound from Dolby Digital program sources {such

2 Laserdisc or DVD software marked DOI }. Compared with previous Dolby surround, Dolby Digital provides even better sound quality, greater spatial accuracy, and improved dynamic range.

Although a full set of speakers (front left, right, and center, surround left and right, and a subwoofer is required for true 5.1 channel Dolby. Digital surround sound, this model lets you enjoy Dolby Digital (and Dolby Surround) program sources, even if you connect only the front speakers

Dolby Digital EX Dolby Digital EX is an extension of Dolby Digital technology, Dolby Digital EX creates six ful-bandwidth output channels from 6.1- channel sources. This is done using a matrix decoder that derives three surround channels from the two in the original recording. This is achieved by using three different surround signals, surround left, surround right, and surround back, each driving its own array of speakers. Think of it as adding a center channel for the rear speakers, which give more diffuse and natural surround effect, even if you wanted the ability to completely encircle the audience with sound, positioning sound effects exactly where they would be heard in real life. For best results, Dolby Digital EX should be used with movie soundtracks recorded with Dolby Digital Surround EX which contain a digital lag that will automatically activate this feature. However, for titles released prior to late 2001, this feature has to be activated manually.

Although a full set of speakers (front left, right, and center, surround left and right, surround back and a subwoofer] is required for true 6.1 channel Dolby Digital Surround EX sound, this model lets you enjoy Dolby Digital (and Dolby Surround) program sources, even if you connect only the front speakers

Although only Dolby Digital soundtracks incorporate a separate low frequency channel, connecting a subwoofer will also improve deep bass performance in the other surround modes.

Dolby Digital has a "1" or LFE channel The indication "LFE" appears in the display when a signal is being input for this channel -G)

Dolby Pro Logic 1x and Dolby Pro Logic II Dolby Pro Logic II was designed specifically to provide a new sense of spatiality, directionality and articulation of sounds from Dolby Surround encoded sources (such as video and Laserdisc software marked DOswsmusl). This is achieved with an intelligent, built feedback logic design, à matrix surround decoding and the decoding of stereo, full bandwidth surround outputs

Dolby Pro Logic IIx enhanced Dolby Pro Logic Il's features. Itcreates 6.1 channel and 7.1 channel surround sound from stereo or 5.1 channel signals. This feature provides you anastonishingambience effect which makes you feel you are surrounded by natural sound. Especially 7.1 channel surround sound can produce real back sound from Surround Back speakers.

The Pro Logic IIx modes programmed int this model are “MOVIE”, “MUSIC” and “GAME”. The Pro Logic II modes programmed into this model are "MOVIE", "MUSIC", “GAME” and “PRO LOGIC" The “MOVIE” mode has preset characteristics to produce a calibrated, high-level surround sound playback while the “MUSIC” mode has user-adjustable characteristics to offer the three optional controls, like “Dimension”, “Center Width” and Panorama” modes to allow optimization of the soundfields as desired. The “Dimension” control allows the user to gradually adjust the soundfield either towards the front or towards the rear; the “Center Width” control allows various adjustmentofthe left-center-right speakers’ balance; the “Panorama” mode extends the front stereo image toinclude the surroundspeakers for an exciting “wraparound” effect with side wall imaging.

The “GAME” mode provides surrounded and exciting sound when you enjoy game or TV. Especially in Pro Logic IIx "GAME" mode, base sound not only from Front and Center but also from Surround channel is added to Subwoofer. This provides even more dynamic surround effects.

DTS-ES DTS-ES (Digital Theater System-Extended Surround) presents 6.1 channels surround system with additional Surround Back channel which evolved from the conventional 5.1 channels surround system. DTS-ES format that was recorded in DVD, CD or LD comprises of two modes. DTS-ES Discrete 6.1 produces the discrete surround back which is completely independent and DTS-ES Matrix 6.1 produces the surroundback which synthesisedwithin the left and right surround channels using matrix technology. DTS-ES has perfect compatibility with the conventional 5.1 channels surround system. 6.1 channels surround with an additional surround back presents a more natural presence and surround effects by increasing the impression of the sound image from back. Programs which are recorded using DTS-ES technology consist of information flags which will be able to control the Discrete and Matrix mode. Thus, it can automatically select the best matched mode

Neo:6 is a new technology which was developed by DTS. It can produce high grade 6 channels surround with an astonishing fidelity from 2 channels content. Neo:6 has 2 modes, "CINEMA" mode is for movie playback and “MUSIC” mode is for music playback

DTS has à ".1” or LFE channel The indication "LFE" appears in the display when a signal is being input for this channel el

DTS The DTS multi-channel audio format is available on CD, LD and DVD software. DTS is a strictly digital format and cannot be decoded inside most CD, LD or DVD players. For this reason, if you attempt tolisten to DTS encoded software through the analog output of your new CD, LD or DVD player, you will experience digital noise in most cases. This noise can be quite loud if the analog output is connected directly to a high power amplification system. Proper measures for playing the digital output as described below should be taken to avoid this situation. To enjoy DTS Digital Surround playback, an external 5.1 channel DTS Digital Surround decoder system or an amplifier with a builtin DTS Digital Surround decoder must be connected to the digital output (S/P DIF, AES/EBU or TosLink) of a CD, LD or DVD player

All models are incorporated with the DTS decoder.

DTS has à ".1” or LFE channel The indication "LFE" appears in the display when a signal is being input for this channel el

The DSP mode lets you add the atmosphere of a live concert or hall to almost any type of program source. These modes are particularly effective when used with stereo program sources, like CD, television, and FM radio. You might enjoy trying the ARENA, JAZZ CLUB, THEATER, STADIUM or DISCO mode the next time you watch a concert or sporting event!

DSP stands for Digital Signal Processor.

The way a sound is heard in an actual environment depends on a variety of different factors. One ofthe mostimportantis reverberation {the act of decaying elements of sound echoing in various places) The DSP modes produce the feeling of presence by using the DSP to create reverberation, without spailingthe sound quality of the original signal

Using a DVD player or the like equipped with six (5.1) output channels and this model, you can enjoy multi-channel encoded DVD source material in all its splendor. Since the source signals are digital and each channel is input independently, the resulting sound quality, sense of spaciousness, and dynamic range are superb,

The indication “6CH INPUT” appears in the display during DVD 6- channel mode selection.

”] | 563226 32 EN 27

064.20, 2:01 PM Ambience effects

The DTS compatible models can reproduce a CD, DVD, or LD carrying the DTS mark.

Dolby Digital can be used when playing DVD or LD software bearing the DfGa mark and Dolby Digital format digital broadcast (etc.}

Dolby Pro Logic can be used when playing video, DVD, or LD software bearing the DOEersmus) mark.

ee) s e =lise :0 a : = | =] INPUT MODE INPUT SELECTOR Input Selector —] LISTEN MODE — ® Preparations

+ Turn ON related components.

+ Complete “Preparing for surround sound" (speaker settings). -[16]

+ Use the INPUT SELECTOR knob or Input Selector keys to select the component you wish to play back with surround sound

+ Use the INPUT MODE key to select the input mode (analog or digital) for the source you wish to playback

+ Noise willbe produced when a DTS source is playedby selecting the analog input.

Start playing the video software. EPress the LISTEN MODE key to select the listening mode.

Thelistening mode settings are stored separately for eachinput. Ifthe input mode is set to full auto (*AUTO DETECT" lights), this model selects the optimal listening mode automatically based on the type of input signal and the speaker settings.

Each press of the LISTEN MODE key switches the setting as listed.

The listening mode settings are different depending on the type of input signal.

Dolby Digital Surround EX compliant dise : Dolby Digital Surround EX compliant disc contains identification signals. When you choose FULL AUTO during “Input mode settings" , this amplifier detects the identification signals and change the Listen mode to the DOLBY DIGITAL EX (Dolby Digital Surround EX mode) automatically.

But sometimes we find some discs which are Dolby Digital Surround EX compliant disc but it does not contain the identification signals. 1f you find the notice like “Surround EX" on the label of disc or package, you can choose DOLBY DIGITAL EX, then you can enjoy Dolby Digital Surround EX sound

0 STEREO When you select DOLBY DIGITAL “DOLBY DIGITAL" will scroll from right to left.

CRE Whenthe DTS or DTS-ES (matrix, discrete or bitstream) signal is input: {The DTS LED indicator lights up.)

TS-ES MATRIX 6.1: DTS - ES MATRIX 6.1 channel surround {The DTS-ES and MATRIX 6.1 indicators light up.) DTS-ES DISCRETE 6.1channel surround (The DTS-ES and DISCRETE 6.1 indicators light up.) : DTS 5.1 channel surround {The DTS indicator lights up.) : DTS + NEO:6 surround CINEMA mode. {The DTS and NEO:6 indicators light up.} : Normal stereo playback

TS-ES DISCRETE 6.1 :

When the analog signal or the digital signal (except for Dolby

: Pro Logic IIx surround MOVIE mode {The PRO LOGIC indicator lights up.)

: Pro Logic IIx surround GAME mode: {The PRO LOGIC indicator lights up.)

: NEO:6 surround CINEMA mode: {The NEO:6 indicator lights up.)

: NEO:6 surround MUSIC mode. {The NEO:6 indicator lights up.)

Continued to next page

+ Dolby Digital or DTS signal having more channels than the maximum number of playback channels available using this model's current settings is input, downmixing is performed to match the number of available channels.

+ Depending on the type of the signal or speaker setting, some listening modes cannot be selected

+ When playback is started, the sound may be cut or interrupted before the input source is confirmed as Dolby Digital.

+ To enjoy Dolby Digital surround (as well as all the other listening modes) from à single component, be sure to use a Dolby Digital compatible source component

DVD 6-channel playback

Using a DVD player or the like equipped with six (5.1) output channels and this model, you can enjoy surround sound playback

Connecting a DVD player which can decode the surround signal itself is also acceptable

INPUT MODE INPUT SELECTOR SE — DVD/6CH Preparations + Connect your DVD player to the DVD/6CH INPUT jacks of this © model.

+ Turn on all other components that will be used + Complete "Preparing for surround sound"

Select “DVD/6CH” as the input source.

A Select “6CH INPT” by pressing the INPUT MODE key.

Start playback of the DVD software.

+ Itis not possible to adjust the volume level or sound quality (SETUP, SOUND, LISTEN MODE, ACTIVE EQ and TONE keys will not be functional) of the channels separately when this model is in the 6CH INPUT mode. Adjust the volume with the controls of the DVD player.

For the powered subwoofer, you can adjust the volume of the subwoofer using the subwoofer's own volume control

064.20, 2:01 PM Ambience effects

Adjusting the sound You can make further adjustments to the sound while listening to playback in the surround mode.

© Press the SOUND key until the desired item appears in the à display.

Each time you press the button, the menu changes as follows: Note that some items are not displayed depending on speaker settings and listening mode.

D € (Center speaker level adjustment}*

2 RS (Surround Right speaker level adjustment}*

2 RB (Surround Back Right speaker level adjustment}*

® BS (Surround Back speaker level adjustment}* {KRF-V6100D only)

© LB (Surround Back Left speaker level adjustment}"

© LS (Surround Left speaker level adjustment}*

D SW (Subwoofer level adjustment}*

® INPUT (input level adjustment - analog mode only) [if]

® NIGHT (midnight mode ON/OFF - Dolby Digital and DTS mode only)

PANORAMA (panorama mode ON/OFF)**

DIMENSION (dimension adjustment)**

CENTER WIDTH (center width adjustment)**

* The adjustment is only temporary for the current input selection. The value will return automatically ta the original setup value when the power is turned on/off or when the input selection is changed

** Pro Logic IIx MUSIC mode and Pro Logic 11 MUSIC mode only.

+1f you have selected "SPEAKER" as the Surround Back setting, “RB” and "LB" are not appeared but “BS" is appeared on the display.

@ Use the MULTI CONTROL knob or MULTI CONTROL A/V keys to adjust the setting as desired.

”] | 563226 32 EN 30

Midnight mode (Dolby Digital and DTS mode only)

When watching movies at night, you might not be able to raise the volume as loud as normal. Midnight mode compresses the dynamic range of previously specified heavy sound passage of the Dolby Digital andDTS mode soundtrack (ike scenes with sudden increases in volume) to minimize the difference in volume between the scenes with heavy sound passage and scenes with normal sound passage. This makes it easy to hear all of the sound track, even when listening at low volumes

© Press the SOUND key repeatediy until “NIGHT” appears on the display. + This can be selected only if “CD/DVD”, “DVD/6CH" or “VIDEO2" is selected as the source and the listen mode is set to “DOLBY DIGITAL" or “DTS"

© Use the MULTI CONTROL knob or MULTI CONTROL A/Y keys to select the ON or OFF se!

+ Some Dolby Digital or DTS software may not be compatible with the Midnight mode

Panorama mode (Pro Logic 1x MUSIC mode and Pro Logic II MUSIC mode only)

When listening to musie, you will be able to enjoy the “wraparound” sound effect when you adjust the panorama mode.

© Press the SOUND key repeatedly until “PANORAMA” appears on the display.

+ The "PANORAMA" setting indication Scrolls across the display “PANORAMA” will be scrolled from right ta left.

© Use the MULTI CONTROL knob or MULTI CONTROL A/V keys to select the ON or OFF setting.

D ON: PANORAMA mode is ON D OFF : PANORAMA mode is OFF.

064.20, 2:01 PM Ambience effects

Dimension mode (Pro Logic 11x MUSIC mode and Pro Logic II MUSIC mode only)

When listening to music with certain recordings, you will also be able to achieve à suitable balance from all the speakers by adjusting the dimension mode

© Press the SOUND key repeatediy until “DIMENSION” appears on the display. + The "DIMENSION" indication scrolls across the display.

© Use the MULTI CONTROL knob or MULTI CONTROL A/V keys to adjust the soundfield towards the rear or the front.

Soundfield is adjusted towards the front.

Soundfield is in neutral position.

Soundfield is adjusted towards the rear.

Center Width mode (Pro Logic IIx MUSIC mode and Pro LogicII MUSIC mode only) EN Center Width adjustment allows you to enjoy an enhanced sound when L4 listening to music through center image from only center speaker, or left

and right speakers or various combinations adjustments:

© Press the SOUND key repeatediy until “CENTER WIDTH” appears on the display.

+ The “CENTER WIDTH" indication scrolls across the display. + When the center speaker is switched OFF, this mode will not be effective

@ Use the MULTI CONTROL knob or MULTI CONTROL 4/ Ÿ keys to adjust the left-center-right output.

Center image will be heard from Center speaker only. C 5 &;

Center image will be heard from Left and Right speakers only.

+ When in other positions, center image from Center speaker, Left and Right speakers can be heard simultaneously with various combinations.

”] | 563226 32 EN s1

Display dimmer adjustment

The dimmer function lets you select the brighiness of this model's display. You might find this useful if you darken your room to watch movies or listen to music.

If you want to use the remote control unit, press the TUNER, MD/TAPE, VIDEO 1, VIDEO 2 or AUX key on the remote control unit to set it to the receiver control mode.

Each time you press the DIMMER key, the display brightness changes amongthe three available settings. Selectthebrightness level you find most pleasing.

This model is compatible with the 96kHz LPCM playback. To play a 96kHz DVD, set the listen mode to “STEREO"

+ In F-AUTO input mode, the listen mode will automatically be STEREO. + When in D-MANUAL input mode (listen mode is not STEREO), "FS 96kHz” will appear in the display and no sound can be heard from the speakers. Press the LISTEN MODE key (the listen mode changes to the STEREO mode) to output sound from the speakers.

Basic remote control operations for KENWOOD DVD players

DVD player operation keys The remote control of this unit can control KENWOOD DVD players directly without using the remote control supplied with the DVD player

DV-4900, DV-4070B, DV-2070, DV-203, DVF-9010, DVF-K7010, DVF-5010, DVF-R9030, DVF-R7030, DVF-3530, DV-402, DV-5900, DV-5700, DVF-R9050, DVF-J6050, DV-505, DV-503, DV-502, DVF-3550, DVF-3050, DVF-R4050, DVF-605, DV-6050, DVF-R5060, DVF-3060, DVF-3060K, DV-705, DVF-R5070 ,DVF-3070, DVF-3080, DVF-N7080, DVF-8100, DVF-3200, DVF-3250 and DVF-3300.

How to operate the DVD player with the remote control 1. Press the @ DVD key to turn the DVD player on. 2. Press the CD/DVD key or DVD/6CH key to operate the functions of the DVD player 3. Press each key for DVD player operation. Refer to the operation manual of the DVD players for the detailed operating instructions. {To return to the receiver operation mode, press other Input Selector key.}

DVD player operation keys You can perform these basic operations using the keys described below when connected to KENWOOD DVD player

6 TUNER __ cODV _MOMAPE RECENER MDEO 1 _ vez ovoee Au DVD © SET UP © Ÿ Numeric keys d DIMMER TOP MENU LSTENNODE ACTIVE EG MULTI CONTROL — MENU ENTER A(Cursor f) V(Cursor ©(Cursor =+) <(Cursor <=) RETURN 2 #4} — ON SCREEN 1 (Pause) (> Play) m (Stop) « (Search) »»> (Search) H@@ (Skip) vo »>1 (SKIP) nosnooë unes EF ÆT eff PSCSEL O00C ST DISC SKIP AUDIO Cp Cp bo ST REPEAT SUBTITLE | | ANGLE

In case of difficulty

Resetting the Microcomputer

The microcomputer may malfunction (unit cannot be operated, or shows an erroneous display) if the power cord is unplugged while the power is ON, or due to some other external factor. If this happens, execute the following procedure to reset the microcomputer and return the unit to its normal operating

With the power cord plugged in, turn the POWER ON/OFF key OFF. Then, wi! STANDBY key, press the POWER ON/OFF key.

le holding down the ON/

+ Please note that resetting the microcomputer will clear the contents of the memory and return the unit to the state it was in when it left

No sound from the speakers.

+ The speaker cords are disconnected

+ VOLUME is set to the minimum position + MUTE is ON + The SPEAKERS switches are set to OFF.

+ Connect it properly referring to Connecting the speakers” ol

+ Adjust the volume to a proper level.

+ Set the SPEAKERS switch to ON.

The standby not output.

cator blinks and sound is

+ Speaker cords are short-circuited

*Turn the power off, eliminate the short- cireuiting, then turn on the power again

Soundis notoutputfrom one ofthe speakers.

+ The speaker cord is disconnected

+ The speaker is not set up correctly

+ Connect it properly referring to “Connecting the speakers" Ga + Set it up properly referring to “Speaker settings" jé)

Sound is not output from the surround speakers and/or the center speaker, or their sound is very soft.

+ The surround speaker cords and/or the center speaker cord is disconnected + The speaker is not set up correctly

+ A surround mode has not been activated. + The surround and/or center volume controls are set to the minimum level

+ Connect it properly referring to “Connecting the speakers" ol + Set it up properly referring to “Speaker settings" sl + Select a surround mode + Adjust the speaker levels using the test tone.

When playing a Dolby Digital source signal using a DVD player, the sound is cut off soon after it starts.

«There are many possible causes for this problem, depending on the type of DVD player used

+ Set the input mode to digital manual before starting playback of the Dolby Digital source

No sound is produced during playback from à DVD player.

+ The input mode is set to digital manual

+ Press the INPUT MODE key to select to full auto mode al

A video source cannot be recorded normally.

+ The software is copy-guarded

+ Copy-guarded video software cannot be recorded.

Radio stations cannot be received.

+ No antenna is connected.

+ The broadcast band is not set properly.

+ The frequency of the desired station is not tuned

+ Connect an antenna + Set the broadcast band properly. + Tune the frequency of the desired station.

+ Noise due to ignition of an automobile

+ Noise due to interference from an electric appliance. + Noise due to a nearby TV set

* Install the outdoor antenna away from the road! + Turn off the power to the appliance

+ Install this model farther away from the TV.

À station which was preset cannot be received by pressing the corresponding numeric key.

+ The preset station belongs to a frequency that cannot be received

+ The preset memory was cleared because the power cord had been unplugged for a long period of time

+ Preset a station with a receivable frequency.

+ Preset the station again.

”] | 5632_33-36 EN 33

In case of difficulty

Remote control operation is not possible.

+ The remote control is set to the DVD player operation mode

+ Batteries are exhausted

+ The remote control unit is too far away from the main system, controlling angle is too large, or there is an obstacle between this model and the remote

+ The remote control has not been changed to the operation mode for the KENWOOD DVD player you wish to control.

+ Press any of the Input Selector keys to select the appropriate operation mode.

+ Replace with new batteries.

+ Operate the remote control unit within the controllable range. -&

+ Press the CD/DVD or DVD/6CHkey toactivate the operation mode for the component you want to control before operation. -0

Maintenance of the unit

When the front panel or case becomes dirty, wipe with a soft, dry cloth. Do not use thinner, benzine, alcohol, etc. for these agents may

In regard to contact cleaner Do not use contact cleaners because it could cause a malfunction. Be

specially careful not to use contact cleaners containing oil, for they may deform the plastic component

”] | 5632_33-36 EN 34

À\ Caution: Read this page carefully to ensure safe operation.

Rated power output during STEREO operation DIN/IEC (63 Hz - 12.5 kHz, 0.7% T.H.D., at 6 Q)

100 W + 100 W Effective power output during STEREO operation RMS(1 kHz, 10% THD., at 6 Q) . 120W+120W Effective power output during SURROUND operation FRONT {1 kHz, 0.7 % T.HD. at 6 Q one channel driven) {1 kHz, 10 % T.H.D. at 6 Q one channel driven) . CENTER

100 W + 100 W 120 W + 120 W

{1 kHz, 0.7 % T.H.D. at 6 Q one channel driven) .100 W {1 kHz, 10 % T.H.D. at 6 Q one channel driven) . .120 W SURROUND

{1 kHz, 0.7 % T.H.D. at 6 Q one channel driven) … 100 W + 100 W {1 kHz, 10 % T.H.D. at 6 Q one channel driven) … 120 W + 120 W SURROUND BACK (KRF-V6100D)

{1 kHz, 0.7 % T.H.D. at 6 Q one channel driven) .100 W

{1 kHz, 10 % T.H.D. at 6 Q one channel driven) . .120 W Total harmonie distortion . Frequency response (IHF'66) CD/DVD Signal to noise ratio (IHF'66) CD/DVD Input sensitivity / impedance CD/DVD, AUX, MD/TAPE, VIDEO 1, VIDEO 2 DVD/6CH INPUT Output level / imped: MD/TAPE REC PRE OUT (SUBWOOFER) PRE OUT (SURROUND BACK Tone control BASS. . 210 dB (at 100 Hz) TREBLE. L 210 dB (at 10 kHz) Loudness contro VOLUME at -30 dB level

0.05 % (1 kHz, 50 W, 6 0)

FM tuner section 87.5 MHz - 108.0 MHz

Frequency response (3 , -3.0 dB AM tuner section Tuning frequency range 531 kHz - 1,602 kHz

280 W - less than 0.9 W

1. KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice 2. The full performance may not be exhibited in an extremely cold location (under a water-freezing temperature)

064.20, 2:01 PM LE Specifications (For Australia)

À\ Caution: Read this page carefully to ensure safe operation.

AUDIO section Rated power output during STEREO operation

100 watts per channel minimum RMS, both channels drive, at8 from 40 Hz to 20 kHz with no more than 0.7% total harmonic distortion. (FTC)

DIN/IEC (63 kHz - 12.5kHz, 0.7% T.H.D., at 8 Q)

100 W + 100 W Effective power output during STEREO operation RMS (1 kHz, 10 % TH.D. at 8 Q) Effective power output during SURI FRONT {1 kHz, 0.7% T.H.D. at 80 one channel {1 kHz, 10% T.HD. at 8Q one channel driven) CENTER {1 kHz, 0.7% T.H.D. at 80 one channel driven) . {1 kHz, 10% T.H.D. at 80 one channel driven) SURROUND {1 kHz, 0.7% T.H.D. at 80 one channel drive) {1 kHz, 10% T.HD. at 80 one channel driven) SURROUND BACK (KRF-V6100D) {1 kHz, 0.7 % T.H.D. at 8 Q one channel driven) 100 W {1 kHz, 10 % T.H.D. at 8 Q one channel driven) . 120W Total harmonic distortion . 0.05% (1 kHz, 50 w, 80)

Frequency response (IHF'66) . 20 Hz - 70 kHz, +0 dB, -3.0 dB

- 210 dB (at 100 Hz) - 210 dB (at 10 kHz)

Tuning frequency range ty (MONO)

1.6 uV (75 Q)/ 15.2 dBf (75 kHz DEV. SINAD 30 dB)

87.5 MHz - 108.0 MHz

0.5% (71.2 dBf input) 0.7% (71.2 dBf input)

Frequency response (80 Hz - 15kHz), +0.5 dB, -3.0 dB AM tuner section

S/N 20dB) . Signal to noise ratio 0% mod, 1 mV inputi 50 dB (60 dBpV EMF input)

280W . less than 1.3 W

Weight (Net) . 7.8 kg (17.2 1b)

1. KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice 2. The full performance may not be exhibited in an extremely cold location (under a water-freezing temperature)

For your records Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your dealer for information or service on this product.
