SR58SIDE4PHD - Computer Case Tripp Lite - Free user manual and instructions

Product Type	Side Panel Kit for Open Frame Racks
Compatibility	Tripp Lite SmartRack 4-Post Heavy-Duty Open Frame Racks
Material	Heavy-duty steel
Color	Black
Installation Method	Attaches to rack frame with included hardware
Included Hardware	M10 acorn nuts, M10 flat washers, M6x12 Phillips head screws
Required Tools	Phillips head screwdriver, 16 mm open end wrench
Optional Accessory	Caster kit (model SRCASTER), side panels
Warranty	5-year limited warranty
Product Registration	Register at www.tripplite.com/warranty for extended support
Country of Origin	USA (manufactured in Chicago, IL)
Safety Warning	Do not install equipment without stabilizing the rack; use assistance
Maintenance	Tighten all acorn nuts firmly after assembly; inspect periodically

Frequently Asked Questions - SR58SIDE4PHD Tripp Lite

What is the Tripp Lite SR58SIDE4PHD?

The SR58SIDE4PHD is a side panel kit designed for Tripp Lite SmartRack 4-Post Heavy-Duty Open Frame Racks. It provides additional side protection and is sold separately.

Which rack models are compatible with this side panel?

This side panel is compatible with Tripp Lite SmartRack 4-Post Open Frame Racks, including models SR4POST48HD, SR4POST50HD, SR4POST52HD, and SR4POST58HD.

How do I install the side panel?

First, ensure the rack is fully assembled and stable. Then, attach the side panel using the included hardware (M10 acorn nuts, flat washers, and M6x12 Phillips head screws). Tighten the nuts firmly with a 16 mm open end wrench.

Can I install the side panel after equipment is mounted?

It is recommended to install side panels before mounting equipment for easier access. However, if equipment is already installed, ensure the rack is stable and follow the same attachment procedure.

What tools are needed for installation?

You will need a Phillips head screwdriver and a 16 mm open end wrench (both user-supplied).

Is a caster kit required for mobility?

No, the caster kit (model SRCASTER) is optional and sold separately. The side panel itself does not include casters. If you add casters, install them before mounting equipment.

What is the warranty for this product?

The Tripp Lite SR58SIDE4PHD comes with a 5-year limited warranty against defects in material and workmanship. Register the product at www.tripplite.com/warranty for full coverage.

How do I clean and maintain the side panel?

Wipe with a dry cloth to remove dust. Do not use abrasive cleaners. Periodically check that all screws and nuts are tight to ensure stability.

Can I use this side panel with other brands?

It is designed specifically for Tripp Lite SmartRack 4-Post Open Frame Racks. Use with other brands is not recommended and may not fit properly.

Where can I find the full assembly instructions?

The user manual for the rack and side panel is available for free download in PDF format from Tripp Lite's website or from notice-facile.com. It includes detailed step-by-step instructions with diagrams.

USER MANUAL SR58SIDE4PHD Tripp Lite

Assembly Instructions

SmartRack® 4-Post

Heavy-Duty Open Frame Racks

Models: SR4POST48HD, SR4POST50HD, SR4POST52HD, SR4POST58HD

Technical line drawing of a rectangular metal frame structure with bolt holes and internal ribs (no text or symbols)

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind.

You could also win an ISOBAR6ULTRA surge protector—a \$50 value!

www.tripplite.com/warranty

Manufacturing Excellence.

Parts List

Technical line drawings of five different mechanical components or mounting brackets, shown from different angles (no text or symbols present)

ABCDEF

Front Upright Rear Upright Top Flange Base Flange Horizontal Beam PDU Bracket

x2

x2

x2

x2

x4

x2

GHI

M10 Acorn Nut M10 Flat Washer M6x12 Phillips Head Screw

x16

x16

x4

SRCASTER Kit (Optional, Sold Separately)

JKL

M6x16mm Hex Head Screw

M

M6 Hex Nut M6 Flat Washer Caster

x16

x16

x32

x4

Required tools (User Supplied):

• Phillips Head Screwdriver
• 16 mm Open End Wrench

WARNING: The rack enclosure is extremely heavy. Do not attempt to unpack, move, assemble or install the enclosure without assistance. Until it has been properly assembled and stabilized, the enclosure is prone to tipping and could cause property damage and/or personal injury. Use extreme caution when assembling the enclosure. Do not attempt to install equipment without first stabilizing the enclosure.

step

1

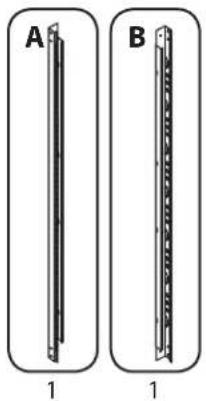

Lay out parts on the floor or a stable work surface and assemble as shown.

Two vertical cylindrical objects labeled A and B, each with a textured surface and a numbered label 1 below (no text or symbols on the objects themselves)

Technical line drawing of a rectangular frame with internal components and an inset close-up showing internal structure (no text or symbols)

step

2

Attach the washers and acorn nuts, but leave them loose. This will allow the unit to flex later in the assembly process.

Technical line drawing of a structural frame with mounting brackets and bolt holes (no text or symbols)

step

Attach the washers and acorn nuts, but leave them loose.

2

4

4

Technical line drawing of a structural frame with two vertical supports and a central support beam, showing alignment and assembly details (no text or symbols)

step

2

Technical line drawing of a structural frame assembly with mounting brackets and a magnified inset showing internal components (no text or symbols)

step

5

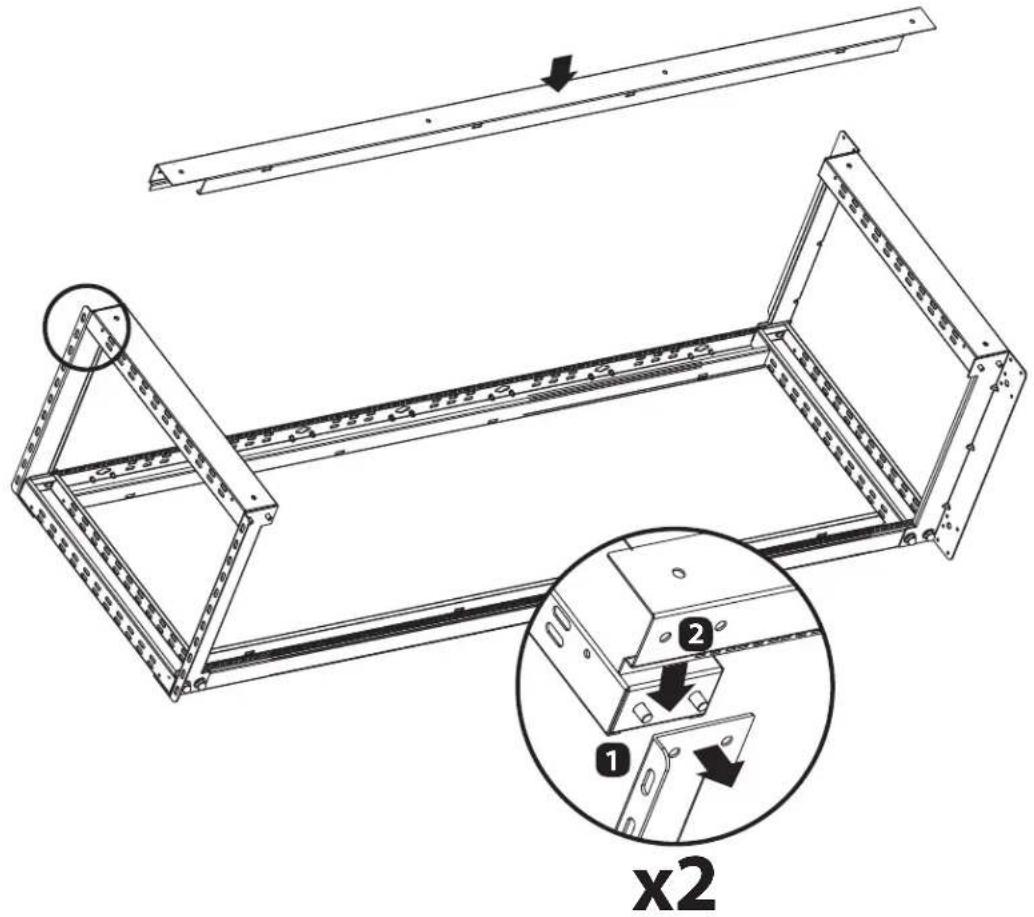

Lay rear upright on the unit. Pull apart the base flange and horizontal beam 1. Align the holes at the end of the upright with the studs in the horizontal beam and push the upright onto the beam 2. Push the base flange and horizontal beam back together.

Two vertical diagrams labeled A and B, each showing a rod or wire inside a larger frame (no text or symbols present)

Repeat this process for the other end of the upright.

step

6

Attach the washers and acorn nuts, but leave them loose.

4

4

Technical line drawing of a structural frame with mounting holes and internal ribs (no text or symbols)

Repeat steps 5 & 6 to attach front upright.

step

Using an open end wrench (user-supplied), tighten all acorn nuts firmly. Place the rack upright on a level surface and confirm it's stable.

Technical line drawing of a mechanical frame structure with a wrench and dimension label 'x16' (no text or symbols on the diagram itself)

step

(Optional)

Attach PDU Brackets

2

4

step

(Optional)

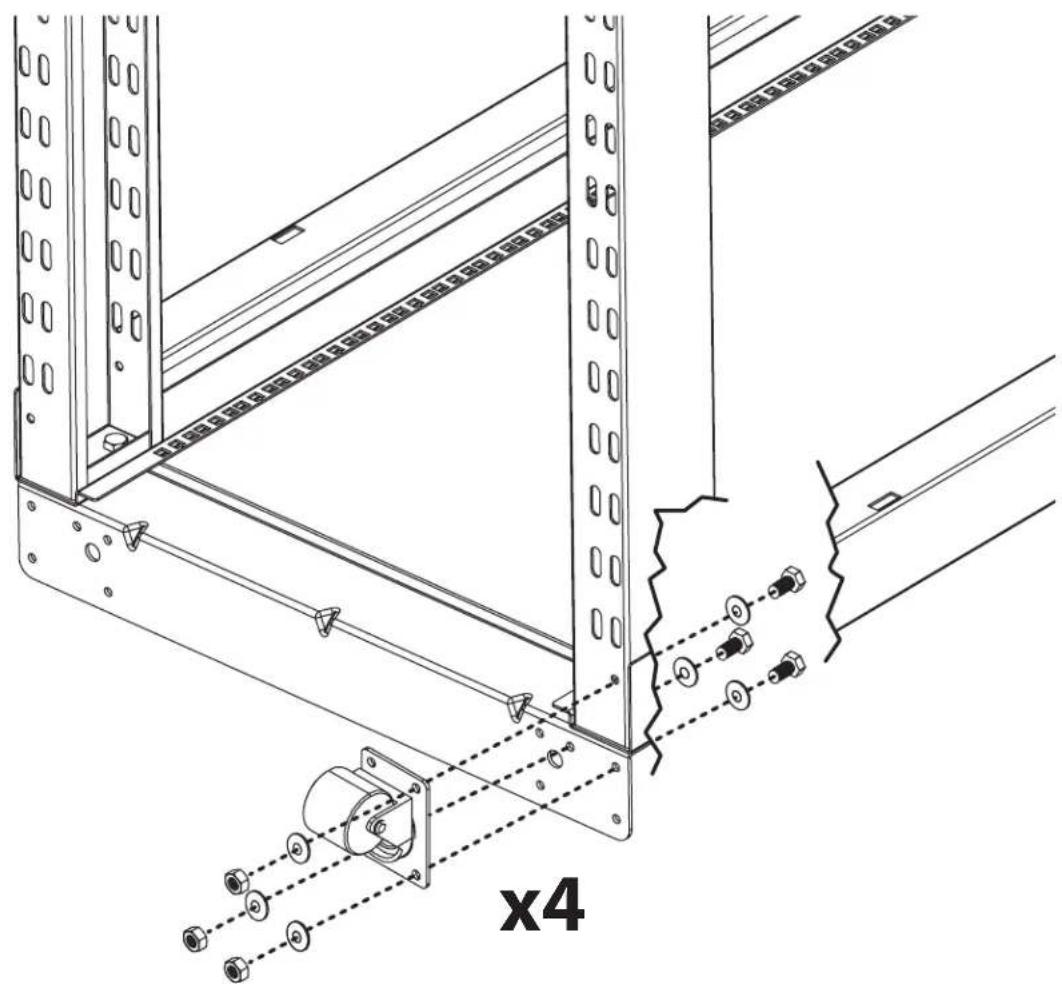

Attach Casters

Warning: Do not attempt to install casters while equipment is installed in the rack.

Note:

Installation requires

Tripp Lite's Heavy-

Duty Rolling Caster

Kit (model SRCASTER, sold separately)

16

16

32

4

Technical line drawing of a mechanical assembly with mounting brackets and fasteners (no text or symbols)

Configuration 1 Configuration 2

Technical line drawing of a door mechanism with circular components and a stand (no text or symbols)

Technical line drawing of a door mechanism with wheels and a stand (no text or symbols)

step

(Optional)

Attach Side Panels (sold separately)

Warranty and Product Registration

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Product Registration

Visit www.tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!* * No purchase necessary. Void where prohibited. Some restrictions apply. See Web site for details.

Tripp Lite follows a policy of continuous improvement. Product specifications are subject to change without notice.

Manufacturing Excellence.

1111 West 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

14 08-120·933384_revA
