Product Type	Canister Vacuum Cleaner
Brand	LG
Model	VK77104R
Color	Red
Dimensions (W x D x H)	Approx. 320 x 260 x 220 mm
Weight	Approx. 4.5 kg
Power Supply	230 V, 50 Hz
Power Consumption	1600 W
Dust Capacity	1.5 L
Filter Type	HEPA 13 washable filter
Cord Length	5 m
Cleaning Radius	8 m
Noise Level	75 dB(A)
Suction Control	Variable suction power with electronic control
Attachments Included	Crevice tool, upholstery brush, combination brush
Bagless System	Yes, with easy-empty dust container
Maintenance	Washable filter, empty dust container after each use
Safety Features	Automatic switch-off on overheating

Frequently Asked Questions - VK77104R LG

How do I empty the dust container?

Press the release button on the container and empty it into a trash bin. Rinse the container with water if needed and let it dry completely before reinserting.

How often should I clean the filter?

Clean the HEPA filter at least every 3 months. Wash it under running water and let it air dry for 24 hours. Never use a dryer.

The vacuum cleaner loses suction. What should I do?

Check if the dust container is full, the filter is clogged, or the hose is blocked. Clean or replace the filter and unclog the hose.

Can I use the vacuum cleaner on hardwood floors?

Yes, the vacuum comes with a combination brush suitable for hard floors. Ensure the brush is set to the correct position to avoid scratches.

What is the warranty period for the LG VK77104R?

The standard warranty is 2 years. Register your product on LG's website to activate warranty.

Is the vacuum bagless?

Yes, it is a bagless model with a transparent dust container so you can see when it needs emptying.

How do I replace the HEPA filter?

Remove the filter cover, take out the old filter, and insert a new one (part number: ADFT123). Ensure it is properly seated.

What attachments are included?

The vacuum includes a crevice tool, upholstery brush, and combination floor brush.

Why does the vacuum turn off suddenly?

The vacuum has an auto shut-off feature to prevent overheating. Let it cool for 30 minutes before restarting.

Where can I download the user manual?

You can download the manual from LG's official support website by entering the model number VK77104R. It is also available on notice-facile.com.

USER MANUAL VK77104R LG

Model	VK7710*R*
Language	English/Ukrainian/Russian /Kazakhstan
Page	32	Color(cover/body)	1/1
Material Size(Migh)80g			150×220(mm)
Date	2012.04.14	Designer	Zhanglu
Part No	MFL67234217	Description	Owners Manual

Chage Record

No.	Date	Change content	ECO No.		Designer	Confirm
1
2
3
4
5
6
7
8
9

OWNER'S MANUAL

This information contains important instructions for the safe use and maintenance of the vacuum cleaner. Especially, please read all of the information on page 7-10 for your safety. Please keep this manual in an easily accessible place and refer to it anytime.

ПЫЛЕСОС С ЦИКЛОННЫМ ФИЛЬТРОМ НОВОГО ТИПА

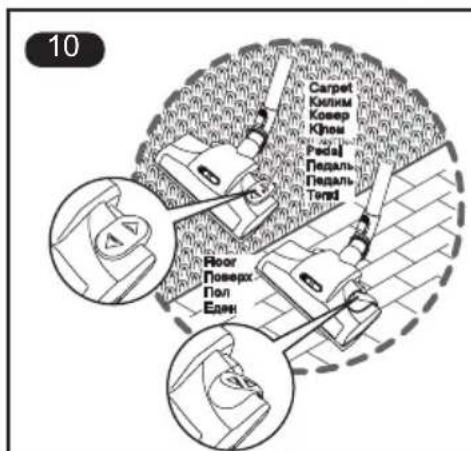

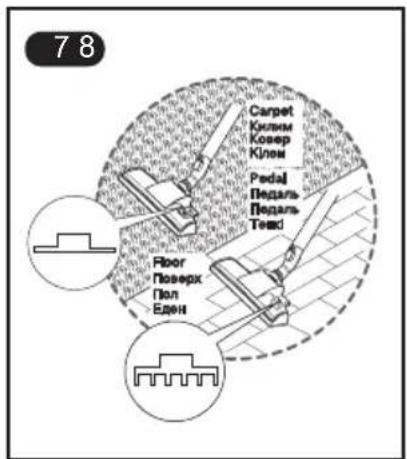

Accessory (Depend on model)

Illustration of a hand using a cable to lift a car seatbelt, with arrows indicating motion (no text or symbols)

Line drawing of a vacuum cleaner with a magnified inset showing blade and handle details (no text or symbols)

Line drawing of a hand cleaning a tiled floor with a mop, enclosed in a dashed circle (no text or symbols)

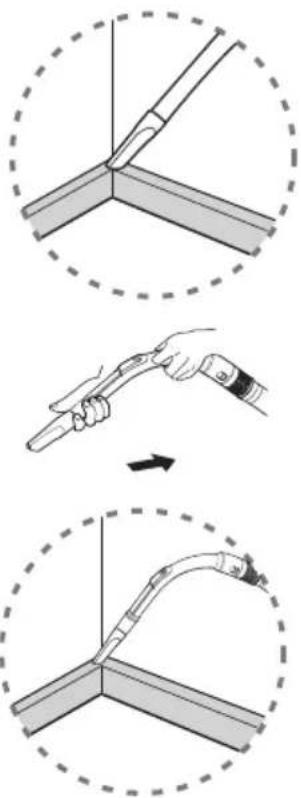

Cleaning All Floor nozzle

Illustration of a hand holding a tool with a downward arrow indicating a process (no text or symbols present)

• Open the cover by pulling the hook.
  • Відкрийте кришку натягненням крюка.
• Откройте кожух, потянув за крюк.
  • Лигекті тартып , какпакты ашңыз
• Clean the hole and brush of the nozzle.
  • Чистьте діру і щітку насадки.
• Прочистите отверстие и щетку насадки.
• Кылшактың санлаударын және шөткісін тазалаңыз.

11

Diagram showing a robotic arm with a cylindrical component inserted, enclosed in a dashed circle (no text or symbols)

12

Technical line drawing of a mechanical clamp or bracket component (no text or symbols)

Diagram of a vacuum cleaner with arrows indicating motion direction (no text or symbols)

Hand holding a mechanical component with a handle, no visible text or symbols

Line drawing of a mechanical device with three blades and a base (no text or symbols)

IMPORTANT SAFETY INSTRUCTIONS

Read and follow all instructions before using your vacuum cleaner to prevent the risk of fire, electric shock, personal injury, or damage when using the vacuum cleaner. This guide do not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand. This appliance complies with the following ECDirectives:-2006/95/EC Low Voltage Directive-2004/108/EC EMC Directive.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "WARNING" or "CAUTION." These words mean:

WARNING

This symbol will alert you to hazards or unsafe practices which could cause serious bodily harm or death.

CAUTION

This symbol will alert you to hazards or unsafe practices which could cause bodily injury or property damage.

WARNING

• Do not use the vacuum cleaner if the power cord or plug is damaged or faulty.
  If the power cord is damaged, it must be replaced by an approved LG Electronics Service Agent to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Disconnect electrical supply before servicing or cleaning the unit or when cleaner is not in use.
  Failure to do so could result in electrical shock or personal injury.
• Do not vacuum liquid, blade, gesso, substances, or small particles like cement, burning or smoking such as cigarettes, or hot ashes in cleaning.
• Do not vacuum flammable or explosive substances such as gasoline, benzene, thinners, propane (liquids or gases).

The fumes from these substances can create a fire hazard or explosion. Doing so could result in death or personal injury.

- Do not handle plug or vacuum cleaner with wet hands.

Doing so could result in death or electrical shock.

- Do not unplug by pulling on cord.

Doing so could result in product damage or electrical shock. To unplug, grasp the plug, not the cord.

- Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.

Failure to do so could result in electrical shock or personal injury.

- Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away from heated surfaces.

Failure to do so could result in electrical shock or personal injury or fire or product damage.

- Do not allow to be used as toy. Close attention is necessary when used by or near children.

Personal injury or product damage could result.

- Do not use vacuum cleaner if it has been under water.

Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.

- Do not continue to vacuum if any parts appear missing or damaged.

Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.

- Do not use an extension cord with this vacuum cleaner

Fire hazard or product damage could result.

• Using proper voltage.

Using improper voltage may result in damage to the motor and possible injury to the user. Proper voltage is listed on the bottom of vacuum cleaner.

- Turn off all controls before unplugging.

Failure to do so could result in electrical shock or personal injury.

- Do not change the plug in any way.

Failure to do so could result in electrical shock or personal injury or product damage. Doing so result in death. If plug does not fit, contact a qualified electrician to install the proper outlet.

• Repairs to electrical appliances may only be performed by qualified service engineers.

Improper repairs may lead to serious hazards for the user.

- Do not plug in if control knob is not in OFF position.

Personal injury or product damage could result. (Depending on model)

WARNING

- Keep children away and beware of obstructions when rewinding the cord to prevent personal injury.

The cord moves rapidly when rewinding. (Depending on model)

- The hose contains electrical wires. Do not use it if it is damaged, cut or punctured. Failure to do so could result in death,or electrical shock. (Depending on model)

CAUTION

• Do not put any objects into openings. Failure to do so could result in product damage.
• Do not use with any opening blocked: keep free of dust, lint, hair, and anything that may reduce air flow.

Failure to do so could result in product damage.

- Do not use vacuum cleaner without dust tank and/or filters in place.

Failure to do so could result in product damage.

- Do not use vacuum cleaner to pick up sharp hard objects, small toys, pins, paper clips, etc.

They may damage the cleaner or dust bin.

- Store the vacuum cleaner indoors.

Put the vacuum cleaner away after use to prevent tripping over it.

- Only use parts produced or recommended by LG Electronics Service Agents.

Failure to do so could result in product damage.

- Use only as described in this manual. Use only with LG recommended or approved attachments and accessories.

Failure to do so could result in personal injury or product damage.

• To avoid personal injury and to prevent the machine from falling when cleaning stairs, always place it at the bottom of stairs.

Failure to do so could result in personal injury or product damage.

• Use accessory nozzles in sofa mode. Failure to do so could result in product damage.
• Make sure the filters (exhaust filter and motor safety filter) are completely dry before replacing in the machine.

Failure to do so could result in product damage.

- Do not dry the filter in an oven or microwave.

Failure to do so could result in fire hazard.

- Do not dry the filter in a clothes dryer.

Failure to do so could result in fire hazard.

- Do not dry near an open flame.

Failure to do so could result in fire hazard.

• Always clean the dust bin after vacuuming carpet cleaners or fresheners, powders and fine dust.

These products clog the filters, reduce airflow and can cause damage to the cleaner. Failure to clean the dust bin could cause permanent damage to the cleaner. (Depending on model)

- Don 't grasp the tank handle when you are moving the vacuum cleaner.

The vacuum cleaner's body may fall when separating tank and body. Personal injury or product damage could result. You should grasp the carrier handle when you aremoving the vacuum cleaner. (Depending on model)

- If after emptying the dust tank the indicator light is on(red), clean the dust tank.

Failure to do so could result in product damage. (Depending on model)

CAUTION

Thermal protector :

This vacuum cleaner has a special thermostat that protects the vacuum cleaner in case of motor overheating. If the vacuum cleaner suddenly shuts off, turn off the switch and unplug the vacuum cleaner. Check the vacuum cleaner for possible source of overheating such as a full dust tank, a blocked hose or clogged filter. If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum cleaner. After the 30 minute period, plug the vacuum cleaner back in and turn on the switch.

ЗАХОДИ БЕЗПЕКИ

Assembling vacuum cleaner

Carpet and floor nozzle (1)

Push the nozzle into the telescopic pipe.

Telescopic pipe (2)

• Push telescopic pipe firmly into hose handle
• Grasp the spring latch to expand.
• Pull out the pipe to desired length.

Connecting the hose to the vacuum cleaner Monter (3)

Push the fitting pipe on the flexible hose into the attachment point on the vacuum cleaner. To remove the flexible hose from the vacuum cleaner, press the button situated on the fitting pipe, then pull the fitting pipe out of the vacuum cleaner.

Operating vacuum cleaner

How to operate (4)

• Pull out the power cord to the desired length and plug into the socket.
• Place the control knob of the hose handle to the required position.
  • To turn off, slide control knob to OFF position.
• Press the cord reel button to rewind the power cord after use.

Park mode (5)

• To store during vacuuming, for example to move a small piece of furniture or a rug, use park mode to support the flexible hose and nozzle.
• Slide the hook on the nozzle into the slot on the side of vacuum cleaner.

Storage (6)

• When you have switched off and unplugged the vacuum cleaner, press the cord reel button to automatically rewind the cord.
• You can store your vacuum cleaner in a vertical position by sliding the hook on the nozzle into the slot on the underside of the vacuum cleaner.

Using carpet and floor nozzle

Carpet and floor nozzle (Depend on model) (7)

• The 2 position nozzle

This is equipped with a pedal which allows you to alter its position according to the type of floor to be cleaned.

Hard floor position (tiles, parquet floors...). Press on the pedal to lower the brush.

Carpet or rug position.

Press on the pedal to lift the brush up.

Angle Nozzle for Device Protection (Depend on model) (8)

- You can perform cleaning at any place like corner or crevice since revolution of the suction hole is free.

Hard Floor Nozzle (Depend on model) (9)

• Efficient cleaning of hard floors (wood, linoleum, etc)

Using All Floor nozzle and mini turbine nozzle

All Floor nozzle (Depend on model) (10)

• The 2 position nozzle

This is equipped with a pedal which allows you to alter its position according to the type of floor to be cleaned.

- Carpet or rug position

Press the pedal (△), then brush will rotate

- Hard floor position

Press the pedal ( ), then brush will stop rotating.

Cleaning All Floor nozzle

• Open the cover by pulling the hook.
• Clean the hole and brush of the nozzle.

Mini turbine nozzle (Depend on model) (11)

• Mini turbine is used for stairs and other hard to reach places.
• To clean the mini turbine nozzle, remove the nozzle cover:

Remove 2 screws on the bottom and take mini turbine nozzle cover off as shown.

- Frequently clean and remove hair, string, and lint build-up in the brush area.

Failure to do so could damage to mini turbine nozzle.

User's guide for turbine nozzle

Turbine Nozzle (Depend on model) (12)

• Cleaning turbine brush nozzle.
• Press the button on the rear side of the nozzle to separate the air cover.
• Use the dusting brush & crevice tool to vacuum clean the brush and fan.

Using accessory nozzles(Depend on model)

Upholstery nozzle (13)

Upholstery nozzle is for vacuuming upholstery, mattresses etc.

Dusting brush (14)

Dusting brush is for vacuuming picture frames, furniture frames, books and other irregular surfaces.

Crevice tool (15)

Crevice tool is for vacuuming in those normally hard to reachh places such as reaching cobwebs or between the cushions of a sofa.

Emptying dust tank

Cleaning the dust "tank" (16)

• Open the tank cap.
• Wash both parts with soft material.

Gently rinse both parts under a cold running tap.

Gently rinse both parts separately under a cold running tap until the water runs clear.

Do not use detergent or a washing machine or dishwasher.

Do not push the cover open button when you carry the vacuum cleaner. If the cover opens, it is easy to detach the dust tank from the vacuum cleaner.

Cleaning dust tank (17)

• Open cover with pushing button and pull out dust tank.
• Raise dust tank cap.
• Dry fully in shade so that moisture is entirely removed.

If suction power decreases after cleaning dust tank, clean air filter and motor safety filter. → Next page.

Cleaning air filter and motor safety filter (18)

If suction power is decreased after cleaning dust tank, clean air filter and motor safety filter.

Air filter and motor safety filter are located at the center of vacuum cleaner in the above figure.

• Open the air filter cover by pulling the air filter cover lever and take out air filter.
• Separate the parts.
• Wash air filter and motor safety filter with water.
• Do not wash filters with hot water.
• Dry fully in shade so that moisture is entirely removed.
  • Air filter and motor safety filter should be cleaned in the above case.

If filters are damaged, do not use them. In this cases, contact LG Electronics Service Agent.

Cleaning exhaust filter (19)

• The exhaust filter is a reusable HEPA filter.
• To change the exhaust filter, remove the filter cover on the body by release hook.
• Pull out the exhaust filter.
• Dust off filter. (Do not wash filter with water)
• The exhaust filter should be cleaned at least once a year.

What to do if your vacuum cleaner does not work?

Check that the vacuum cleaner is plugged in correctly and that the electrical socket is working.

What to do when suction performance decreases?

• Turn off the vacuum cleaner and unplug it,
• Check the telescopic pipe, flexible hose and cleaning tool for blockages or obstructions.
• Check that the dust tank is not full. Empty if necessary.
• Check that the exhaust filter is not clogged. Clean the exhaust filter if necessary.
• Check that the air filter is not clogged. Clean the air filter if necessary.

Як використовувати

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.
