510 A Big Wheeler - Lawn mower GUDE - Free user manual and instructions

Product Type	Wheeled Gas Lawn Mower
Brand	Güde
Model	510 A Big Wheeler
Engine	4-stroke gasoline engine, 510 cc
Power	Approx. 6.5 HP (4.8 kW)
Cutting Width	510 mm
Cutting Height	Centrally adjustable, 25-75 mm
Cutting System	Rotary steel blade
Wheel Type	Large rear wheels (Big Wheeler) for better maneuverability
Wheel Diameter	Front: 200 mm, Rear: 280 mm
Grass Catcher Capacity	70 liters
Drive Type	Self-propelled, variable speed
Starting	Recoil starter
Fuel Tank	Approx. 1.5 liters
Engine Oil	SAE 30 oil (provided)
Weight	Approx. 38 kg
Dimensions (L x W x H)	850 x 580 x 450 mm
Noise Level	96 dB(A) (hearing protection recommended)
Hand-arm vibration	4.5 m/s²
Main Functions	Mowing, collecting, mulching (optional kit)
Maintenance and Cleaning	Clean after each use, change oil regularly, sharpen blade
Safety	Blade brake, safety handle (engine stop when released), protective guard
Spare Parts and Repairability	Blade, belt, spark plug, air filter available
General Information	2-year warranty, user manual included

Frequently Asked Questions - 510 A Big Wheeler GUDE

How to start the Güde 510 A Big Wheeler lawn mower?

Make sure the tank has gasoline and the engine is filled with oil. Open the fuel valve, set the choke to 'Closed', pull the starter handle until the engine starts, then open the choke.

What engine oil to use for the Güde 510 A lawn mower?

Use high-quality SAE 30 oil for 4-stroke engines. Capacity is approximately 0.6 liters. Check level before each use.

How to adjust the cutting height?

The cutting height is centrally adjusted using a lever. Turn the lever to choose between positions 1 (25 mm) to 7 (75 mm).

What to do if the lawn mower does not start?

Check oil and gasoline level, spark plug (clean or replace), air filter (clean), and make sure the safety handle is fully pressed.

How to maintain the cutting blade?

Disconnect the spark plug, tilt the mower on the side opposite the air filter, remove the blade with a 17 mm wrench. Sharpen it with a file or replace it if damaged.

Can I use the lawn mower without the grass catcher?

Yes, the mower can operate without the catcher with rear discharge. Use the provided deflector to avoid debris. For mulching, install the appropriate kit (optional).

What type of gasoline to use?

Use unleaded gasoline with an octane rating of at least 95. Do not use oil-gasoline mixture as the engine is 4-stroke.

How often to change the engine oil?

Change the oil every 50 hours of use or at least once per season. Drain while warm for optimal flow.

The lawn mower vibrates abnormally, what to do?

Stop the engine immediately. Check that the blade is well balanced and not damaged. Tighten the blade bolt properly. If the problem persists, consult a professional.

How to store the lawn mower in winter?

Drain the gasoline tank and run the engine until it stops. Change the oil, clean the mower, and store it in a dry, frost-free place.

USER MANUAL 510 A Big Wheeler GUDE

Big Wheeler

510 A

95345;95346

561 S-Plus

95350

561 Trike

95355

ENGLISH Please read the instructions carefully before starting the machine.

English TECHNICAL DATA | SPECIFIED CONDITIONS OF USE | SAFETY INSTRUCTIONS | MAINTENANCE | GUARANTEE | EC-DECLARATION OF CONFORMITY ____ 26

Français CARACTÉRISTIqUES TECHNIqUES | UTILISATION CONFORME à LA DESTINATION | CONSIGNES DE SÉCURITÉ | ENTRETIEN | GARANTIE | DÉCLARATION DE CONFORMITÉ CE ____ 33

Service international 87

LIEFERUMFANG | DELIVERED ITEMS | ARTICLES DÉLIVRÉS | VOLUME DELLA FORNITURA |

LEVERINGSOMVANG | ObjEM DODáVKY | ROzSAH DODáVKY | SzáLLíTáSI TERjEDELEM |

ObSEG DObAVE | OPSEG ISPORUKE | ОБЕМ НА ДОСТАВКАТА | VOLUMUL LIVRĂRII |

OPSEG ISPORUKE | TESLIMAT KAPSAMI | zAKRES DOSTAWY

561Trike 561 S-Plus

561Trike

DE Montage

GB Assembly

FR Montage

IT Montaggio

NL Montage

CZ Montáž

SK Montáž

HU Szerelés

SI Montaža

HR Montaža

BG Монтаж

RO Montaj

BA Montaža

1

2-5

DE Inbetriebnahme

GB Starting-up the machine

FR mise en service

GB Cutting instructions

FR Consignes de tonte

GB Cleaning / Maintenance

FR Nettoyage / Entretien

DE Montage

GB Assembly

FR Montage

IT Montaggio

NL Montage

CZ Montáž

SK Montáž

HU Szerelés

SI Montaža

HR Montaža

BG Монтаж

RO Montaj

BA Montaža

1	DE Montage	SI Montaža
	GB Assembly	HR Montaža
	FR Montage	BG Монтаж
	IT Montaggio	RO Montaj
	NL Montage	BA Montaža
	CZ Montáž
	SK Montáž
	HU Szerelés

DE	Montage	SI	Montaža
GB	Assembly	HR	Montaža
FR	Montage	BG	MONTAK
IT	Montaggio	RO	Montaj
NL	Montage	BA	Montaža
CZ	Montáž
SK	Montáž
HU	Szerelés

561Trike

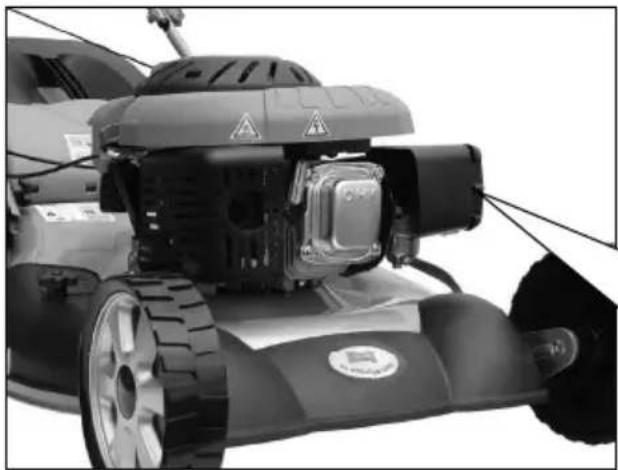

DE Ölstand kontrollieren

GB Oil level inspection

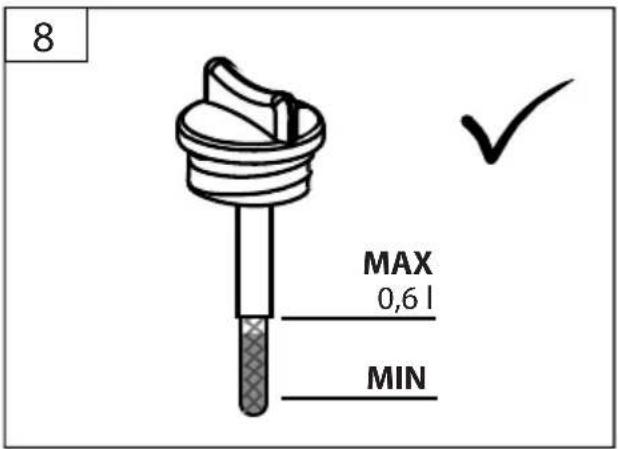

GB Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary. Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary.

DE Ölstand kontrollieren

GB Oil level inspection

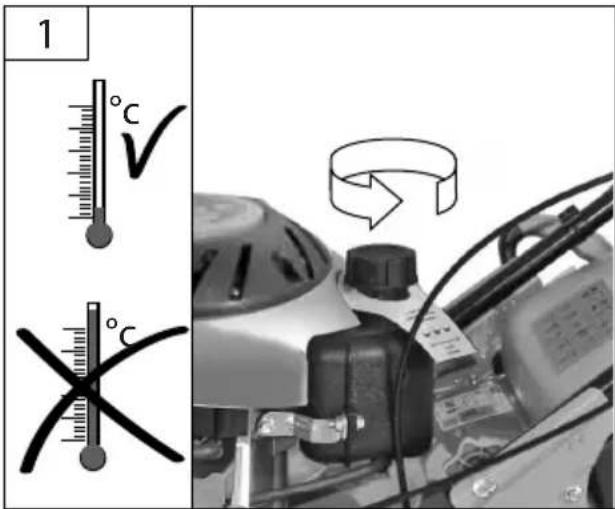

	DE	Tanken	SI	Dolivanje goriva
	GB	Fuel tank fi lling	HR	Dopunjavanje goriva
	FR	Ravitaillement	BG	Зареждане
	IT	Rabbocco	RO	Alimentarea cu combustibil
	NL	Tanken	BA	Dopunjavanje goriva
	CZ	Tankování
	SK	Tankovanie
	HU	Tankolás

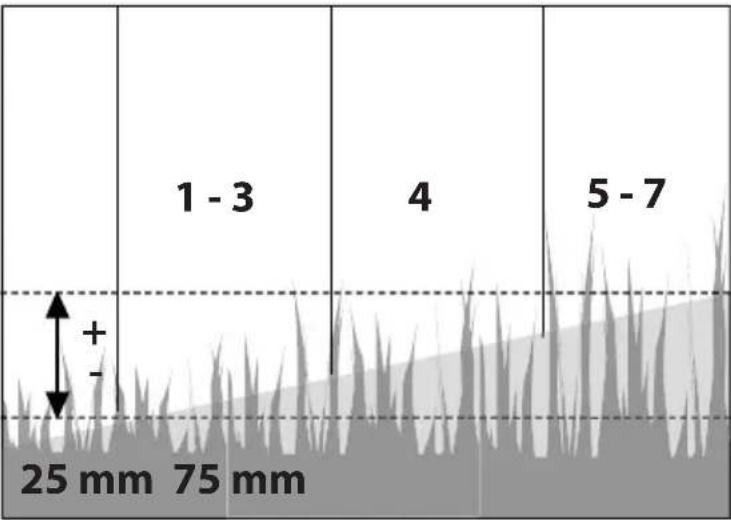

GB Cutting height setting

DE Mähen - MulchenGB mow - mulchingFR tondre - paillageIT falciare - pacciamaturaNL maaien - mulchingCZ sekat - mulčováníSK kosiť - mulčovanieHU szénaboglya - talajtakarás

SI kosite - mulčenjeHR kositi - zagrtanje biljakaBG koся - наторяванeRO cosi - mulcireBA kositi - zagrtanje biljaka

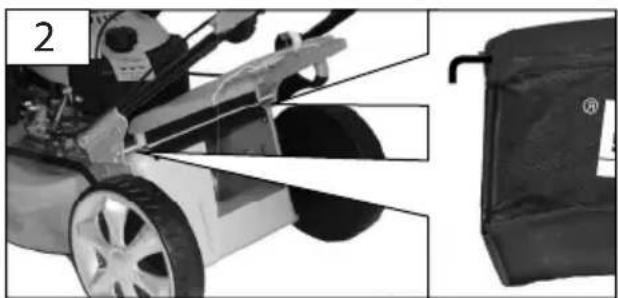

DE Mähen - Sammeln

GB mow - collect

FR tondre - collecter

2

DE Mähen - AuswerfenGB mow - ejectFR tondre - éjecterIT falciare - espellereNL maaien - uitwerpenCZ sekat - vyhnatSK kosit' - vyhnat'HU szénaboglya - kiadása

SI kosite - izmetHR kositi - izbacitiBG koся - изхвърлямRO cosi - evacuaBA kositi - izbaciti

561 S-Plus 561Trike

DE Mähanweisungen
SI Napotki za košnjo
GB Cutting instructions
HR Upute za sječenje
FR Consignes de tonte
BG Инструкции за сечене
IT Istruzioni per taglio
RO Instructiuni pentru cosit
NL Aanwijzingen voor het maaien
BA Upute za sječenje
CZ Pokyny k sečení
SK Pokyny na kosenie
HU Utasítás kaszáláshoz

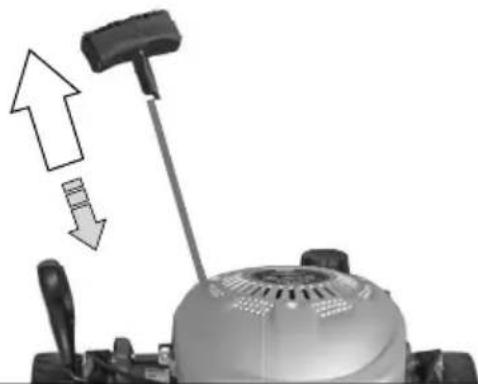

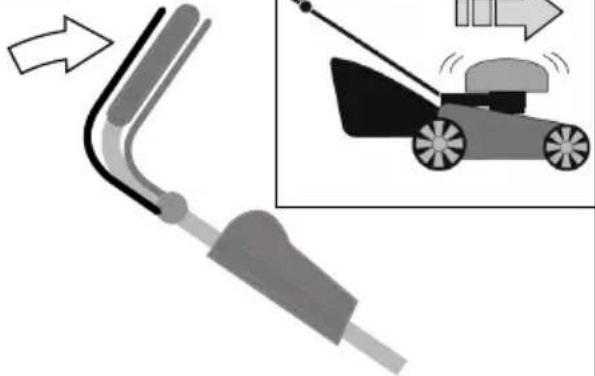

	DE	Betrieb	SI	Delovanje
	GB	Operation	HR	Rad
	FR	Fonctionnement	BG	Páboṭa
	IT	Esercizio	RO	Funcționare
	NL	Gebruik	BA	Rad
	CZ	Provoz
	SK	Prevádzka
	HU	Üzemeltetés

561 Trike 561 S-Plus

1

2

3

STOP

DE

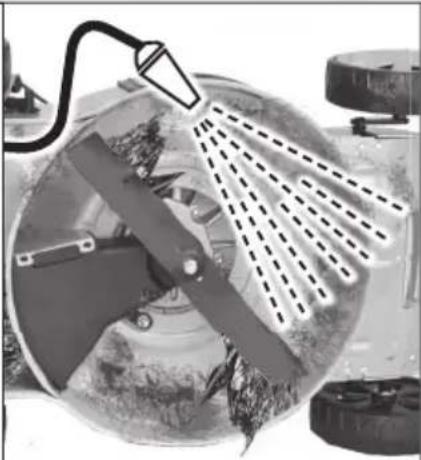

GB Cleaning / Maintenance

2

max. 30°

3

4

5	DE Reinigung / Wartung	SI Čiščenje / Vzdrževanje
	GB Cleaning / Maintenance	HR Čiščenje / Održavanje
	FR Nettoyage / Entretien	BG Чистене / Поддръжка
	IT Pulizia / Manutenzione	RO Curățare / Întreținere
	NL Schoonmaken / Onderhoud	BA Čiščenje / Održavanje
	CZ Čištění / Údržba
	SK Čistenie / Údrzba
	HU Tisztítás / Karbantartás

DE Zündkerze

GB Spark plug

5

DE ÖlwechselGB Oil changeFR Remplacement d'huileIT Cambio dell'olioNL OlieverversingCZ Výměna olejeSK Výmena olejaHU Olajcsere

SI Menjava oljaHR Zamjena uljaBG Смяна на маслотоRO Înlocuirea uleiuluiBA Zamjena ulja

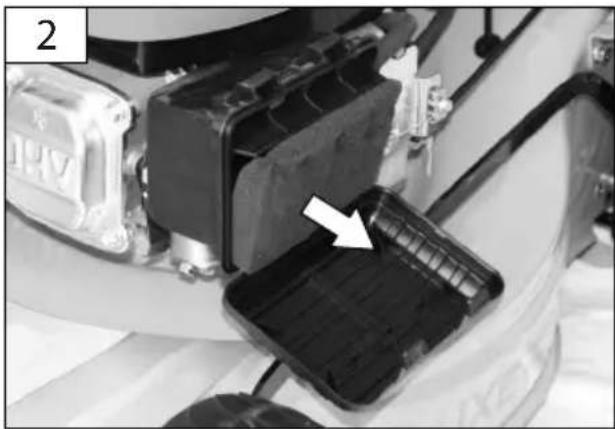

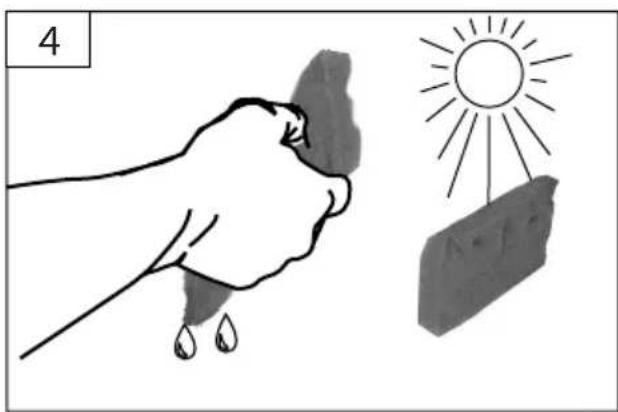

DE Luftfilter
SI Zračni fi lter
GB Air filter
HR Zračni fi ltar
FR Filtre à air
BG Въздушен филтър
IT Filtro d'aria
RO Filtru de aer
NL Luchtfi Iter
BA Zračni fi ltar
CZ Vzduchový fi ltr
SK Vzduchový fi Iter
HU Levegőszűrő

5

5	DE	Bowdenzüge	SI	Vžigalna vrvica
	GB	Bowden cables	HR	Startno uže
	FR	Câbles Bowden	BG	бовденови въженца
	IT	Funicelle Bowden	RO	Cabluri Bowden
	NL	Bowdentrekken	BA	Startno uže
	CZ	bovdenová lanka
	SK	bovdenové lanká
	HU	bowden kábel

DE	Der Motor startet nicht	CZ	Motor nestartuje	BG	Мотора не стартира
GB	The motor does not start	SK	Motor neštartuje	RO	Motorul nu porneşte
FR	Le moteur ne démarre pas	HU	A motor nem startol	BA	Motor se ne pali
IT	Motore non parte	SI	Motor ne vžge
NL	De motor start niet	HR	Motor se ne pali

DE	Automatischer Vorschub funktioniert nicht	NL	Automatische aandrijving werkt niet	SI	Avtomatsko vozite ne deluje
GB	Automatic feed is not working	CZ	Automatický posuv nepracuje	HR	Automatsko voziti ne radi
FR	Alimentation automatique ne fonctionne pas	SK	Automatický posuv nepracuje	BG	Автоматично карам не работи
IT	Alimentazione automatica non funziona	HU	Automatikus takarmány nem működik	RO	Furaje automată nu este de lucru
				BA	Automatsko voziti ne radi

Technische Daten

97/68/EG & 2004/26/EC

Weight....36 kg....38 kg....38 kg

Dimensions....1600 x 550 x 1000 mm..... 1600 x 560 x 950 mm ..... 1520 x 580 x 1000 mm

Noise and Vibration Information

Sound pressure level L_pA¹⁾ 83,5dB (A) 84,7 dB (A) 84,7 dB (A)

Sound power level L_WA⁽¹⁾ .....96 dB (A).....98 dB (A).....98 dB (A)

Wear ear protectors!

Vibration emission value a_h²⁾ 6,9 m/s ² 8,9 m/s ² 8,9 m/s ²

¹⁾ Uncertainty K=3 dB (A), ²⁾ Uncertainty K=1,5 m/s ²

Warning: The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet.

The vibration emission level may be used to compare one tool with another.

It may be used for a preliminary assessment of exposure.

An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Read and understand the operating instructions before using the appliance. Familiarise with the

control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

In case of any doubts about connection and operation refer please to our customer center

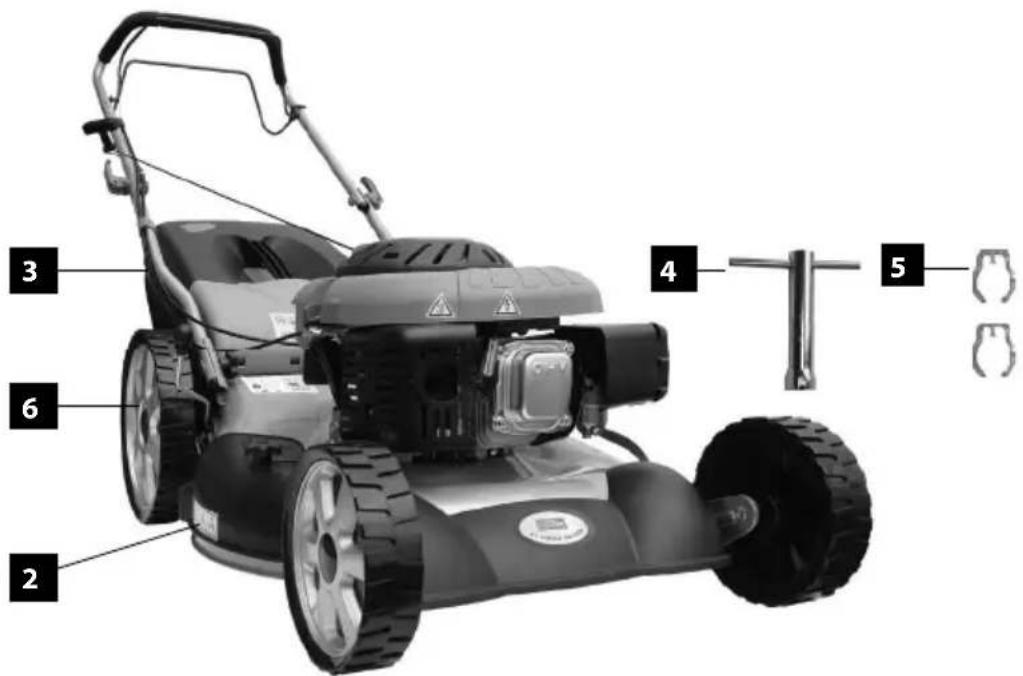

delivered items

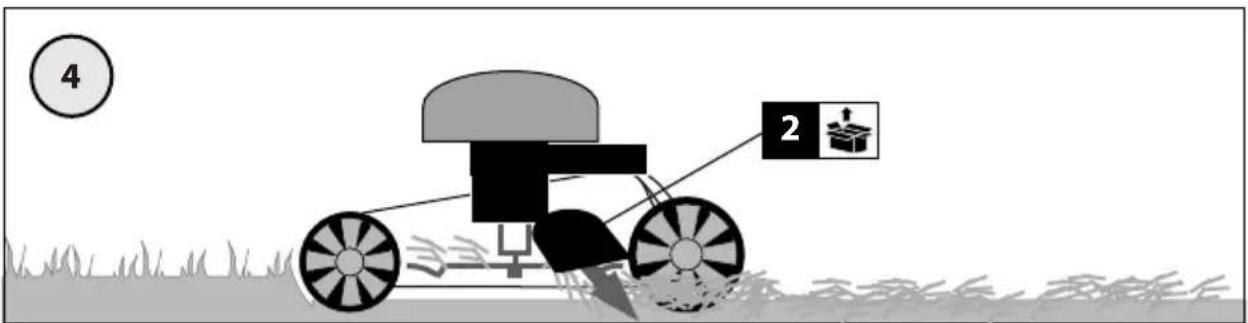

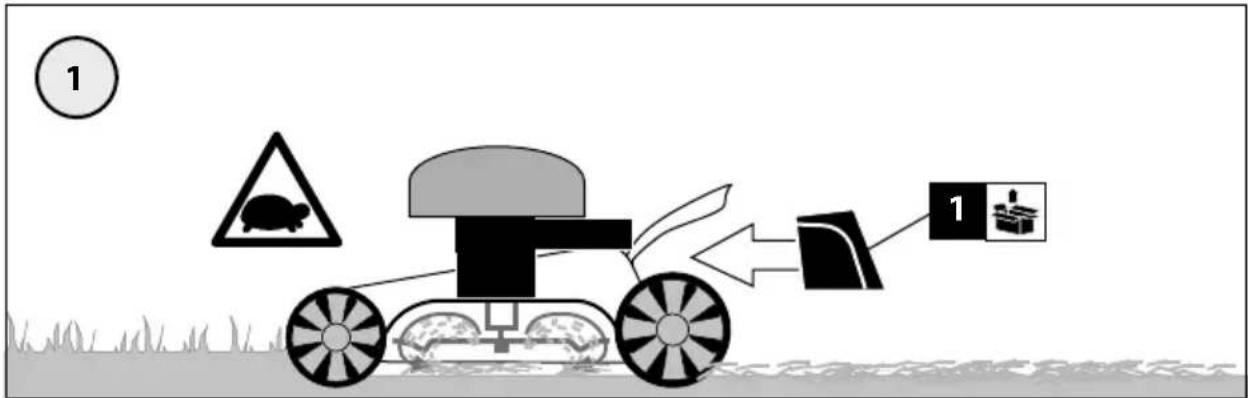

1 Mulching wedge

2 Side ejection

3 Collection bag

4 Spark plug wrench

5 Bowden clamps

Specified Conditions Of Use

The mower has been designed for cutting grass and grass areas with a maximum climb of 20° in private gardens around the house and in garden colonies.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

⚠️ Use the appliance only outside, never use it in confined and bad ventilated areas.

The mower must not be used for cutting bushes, hedges and thickets, for cutting and mulching creepers or lawns on roofs or in balcony boxes. The mower must also not be used as a crusher for mulching tree cuttings and hedges or levelling any terrain roughness.

Requirements for operating staff

The operating staff must carefully read the Operating Instructions before using the appliance.

This device is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or without the necessary lack experience or knowledge unless they are supervised by a person who is responsible for their safety or were instructed by that person in how to use the device.

Qualifi cation: Apart from the detailed instructions by a professional, no special qualifi cation is necessary for appliance using.

Minimum age: Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

Local regulations may stipulate the minimum age of the user.

Training: Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

Emergency procedure

Danger of injury!

Never put your hands and feet near the rotating parts. Keep a distance from the ejection opening at all times.

Danger of burns!

Some parts of the appliance get too hot when the appliance is operated. Do not touch any hot parts, e.g. engine and muffl er.

Conduct a fi rst-aid procedure adequate to the injury and summon qualifi ed medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a fi rst-aid kit. It is essential to replace any used material in the fi rst-aid kit immediately after it has been used. If you seek help, state the following pieces of information:

1. Accident site
2. Accident type
3. Number of injured persons
4. Injury type(s)

Symbols

Caution!

Read the Operating Instructions

Wear ear protectors! Wear eye protective goggles!

Caution - hot surface! Danger of burns!

Warning against bounced subjects

Keep distance of persons! Observe to keep out of dangerous zone

Switch the engine off and remove the socket plug before any work on the engine.

Keep a sufficient distance from the cutting knife when operating the appliance.

Risk of explosion Refuel the engine only when switched off.

Risk of poisoning! Use the appliance only outside, never use it in confined and bad ventilated areas.

Prohibited smoking and open fire using.

Any damaged or disposed devices must be delivered to appropriate collection centres. Batteries, oil, and similar substances must not enter the environment.

Protect against humidity

This side up

Safety Instructions

WARNING

Read all safety warnings and all instructions, including those given in the accompanying brochure.

Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference.

Keep children and other persons including animals in a safe distance when using the appliance. Minimum safe distance is 5 m.

Wear personal protective equipment.

Wear solid shoes and long trousers. Never use the appliance when barefooted or in light sandals.

Wear protective gloves if necessary.

Use the appliance in broad daylight or in a well-lit environment.

Check carefully the terrain where the appliance is being used and remove any items that could get caught and be thrown away.

⚠️ Fuel is highly flammable.

Keep the fuel in suitable containers only.

The appliance may only be refuelled outdoors and not near open fire or burning cigarettes.

Refuel before starting the appliance. If the engine is running or still hot, it must not be refuelled or the tank cover opened.

Make sure the fuel does not overflow. If the fuel overflows, the engine must not be started. Remove any dirt from the appliance and prevent any attempt at ignition until fuel fumes have evaporated.

The engine must necessarily be filled with engine oil before being put into operation for the first time.

Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary.

Carry out a visual inspection before any use to make sure the appliance, especially the cutting tools, fastening parts and the entire cutting unit are not damaged.

⚠️ Check all screw and plug-in connections and protective equipment if fi rm and tightened properly and whether all moving parts are running smooth whenever the appliance is to be put into operation.

The protective equipment on the appliance is strictly prohibited to be disassembled, changed, used in conflict with the designation and it is prohibited to attach any protective equipment of other manufacturers.

The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.

Do not start the engine before your feet are in a safe distance from the cutting tools.

Do not incline the appliance when being started.

Do not start the appliance when you are standing in front of the ejection opening.

Make sure your posture is safe, especially on slopes. Do not cut on too steep slopes. Be particularly careful when changing travelling direction on slopes.

Pay maximum attention when turning around and pulling the appliance to you.

Switch the mower off whenever carrying or inclining it or when being outside a grass area. Wait until all rotating parts have stopped.

If an undesirable item is encountered or the appliance starts vibrating, the appliance must be switched off and the socket plug removed. Check whether the appliance is not damaged. Repair any damage.

Switch the appliance immediately off after finishing your work.

Do not store the appliance in enclosed places just after being switched off but let it cool down outdoors instead.

Never store the appliance with petrol in the tank inside a building where petrol fumes may potentially get in touch with open fire or sparks.

When the appliance is not going to be used for a long time, store it with an empty tank.

Replace any defective muffler.

Do not change the controlled engine setting and do not rev the engine up.

Maintenance

Switch the engine off and remove the socket plug before any work on the engine. Wait until all rotating parts have stopped and

the appliance has cooled down.

Keep the appliance, especially the tank and engine, clean at all times. Clean the ejection opening and cover at regular intervals.

Apply environment-friendly oil to all moving parts.

Check the collection bag at regular intervals for any wear and aging.

Refer all servicing to qualified service personnel.

Use only original accessories and original spare parts.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

Guarantee

Guarantee claims as per guarantee card attached.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference:

Serial No.:

Art. No:

Year of production:

EC-Declaration of Conformity

GÜDE GmbH & Co. KG

Birkichstrasse 6, 74549 Wolpertshausen

Deutschland

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives. In case of any change to the appliance not discussed with us the Declaration expires.

Petrol Lawnmower

510 A, 561 S-Plus, 561 Trike

Appropriate EU Directives

2006/42/EG

2004/108/EG

2000/14/EG & 2005/88/EG

97/68/EG & 2004/26/EC

Harmonised standards used

EN 836:1997 +A1+A2+A3

EN ISO 14982:2009

Method of compliance assessment.:

2000/14/EG - Annex V

Guaranteed sound power level L

510 A 96 dB(A)

561 S-Plus 98 dB(A)

561 Trike 98 dB(A)

Wolpertshausen, 2011-10-17 Helmut Arnold Managing Director

Technical documentation Joachim Bürkle

TÜV Rheinland LGA Products GmbH

Inspection and maintenance plan

Regular servicing period Before		any start-up	After 1 month	After 3 months	After 6 months	After 12 months	After 24 months
			5 Hours of operation	25 Hours of operation	50 Hours of operation	100 Hours of operation	250 Hours of operation
Engine oil (15W-40)	Inspection	√
	Change		√		√
Air filter Inspection		√
					√
Spark plug Inspection Clean						√
							√

Provide appropriate servicing upon the earlier of the following: in the given month or after the specified hours of operation have expired.

Defects searching

Defect	Causes	Measure
The motor does not start	Start-Stop lever has not been pressed Press the Start-Stop lever
	Choke has not been used Use the choke
	Lack of fuel Add some fuel
	Bowden cables are too long Adjust the Bowden cables using the coupling nut.
	Wrong fuel, storing without petrol tank being drained	Drain the fuel tank and carburettor.Add fresh petrol.
	Sooted spark plug (carbon residues on electrodes), electrodes distance too big	Clean the spark plug, check the plug thermal value, possibly change the plug, set the electrodes distance to 0.6-0.7 mm
	The spark plug is wet from petrol (oversaturated engine).	Dry the spark plug out and refit it.
Grass is not collected	Blocked channelFull collection bagToo wet grass	Clean the ejection channelEmpty the collection bagCut in dry weather
Automatic feed is not working	Bowden cables are too long Adjust the Bowden cables using the coupling nut.

97/68/EG & 2004/26/EC

97/68/EG & 2004/26/EC

97/68/EG & 2004/26/EC

97/68/EG & 2004/26/EC

97/68/EG & 2004/26/EC

97/68/EG & 2004/26/EC

97/68/EG & 2004/26/EC

97/68/EG & 2004/26/EC

97/68/EG & 2004/26/EC

97/68/EG & 2004/26/EC

Norme armonizate aplicate.

EN 836:1997 +A1+A2+A3

EN ISO 14982:2009

97/68/EG & 2004/26/EC

Primenjeni harmonizovani standardi

EN 836:1997 +A1+A2+A3

EN ISO 14982:2009

Kolarov Technologic O.O.D.

Jordan Bogdar 4

BG-8800 Sliven

Tel: [phone]

Fax: [phone]

GÜDE GmbH & Co. KG

Birkichstrasse 6

74549 Wolpertshausen

Deutschland
