USER MANUAL 2770 AA SKIL

Illustration of a SKIL electric drill with black and gray body (no text or symbols on the device itself)

ME77

GB ORIGINAL INSTRUCTIONS 6
F NOTICE ORIGINALE 9
D ORIGINALBETRIEBSANLEITUNG 13
NL ORIGINELE GEBRUIKSAANWIJZING 17
S BRUKSANVISNING | ORIGINAL 21
DK ORIGINAL BRUGSANVISNING 24
N ORIGINAL BRUKSANVISNING 28
FIN ALKUPERÄISET OHJEET 31
E MANUAL ORIGINAL 35
P MANUAL ORIGINAL 39
I ISTRUZIONI ORIGINALI 43
H EREDETI HASZNÁLATI UTASÍTÁS 47
CZ PŮVODNÍM NÁVODEM K POUŽÍVÁNÍ 51
TR ORIJINAL İŞLETME TALİMATI 54
PL INSTRUKCJA ORYGINALNA 58
RU ПОДЛИННИК РУКОВОДСТВА ПО ЭКСПЛУАТАЦИИ

UA ОРИГІНАЛЬНА ІНСТРУКЦІЯ З ЕКСПЛУАТАЦІЇ 67
GR ΠΡΩΤΟΥΠΟ ΟΔΗΓΙΩΝ ΧΡΗΣΗΣ 71
RO INSTRUCTIUNI DE FOLOSIRE ORIGINALE 76
BG ОРИГИНАЛНО РЪКОВОДСТВО ЗА ЕКСПЛОАТАЦИЯ 79
SK PÔVODNÝ NÁVOD NA POUŽITIE 84
HR ORIGINALNE UPUTE ZA RAD 88
SRB ORIGINALNO UPUTSTVO ZA RAD 91
SLO IZVIRNA NAVODILA 95
EST ALGUPÄRANE KASUTUSJUHEND 98
LV ORIGINĀLĀ LIETOŠANAS PAMĀCĪBA 102
LT ORIGINALI INSTRUKCIJA 106
AR دليل الاستعمال 115
④ RAHENMAI AUSLI 113

62

www.skileurope.com

1 2770 7,2 Volt 0,7 kg EPTA 01/2003 n₀ 0-220/ 720/min 3 hours 10 mm Fe 6 mm 6 mm 0,6- 6,35 mm

2 J EEHGKF SKIL L D A B C

Diagram showing seven numbered steps of a recycling or waste management process, including person reading, house with left arrow, square, and trash bin marked with 'Li'.

⑧ STOP

⑨ SKIL

11 NOT STANDARD INCLUDED

12 G 7 1 H 40.00 5 6 7 +

13 J HIGH SPEED HIGH POWER

14

K

30-100% 0-30%

Simple line drawing of a computer mouse with a highlighted screen and directional arrows (no text or symbols)

15

NOT INCLUDED

16

SKIL 17

Diagram illustrating the working principle of a handheld device with screwdriver, battery pack, and battery casing components.

GB

Cordless drill/driver 2770

INTRODUCTION

• This tool is intended for drilling in wood, metal and plastic; tools with electronic speed control and left/right rotation are also suitable for screwdriving and thread cutting
• Read and save this instruction manual ③

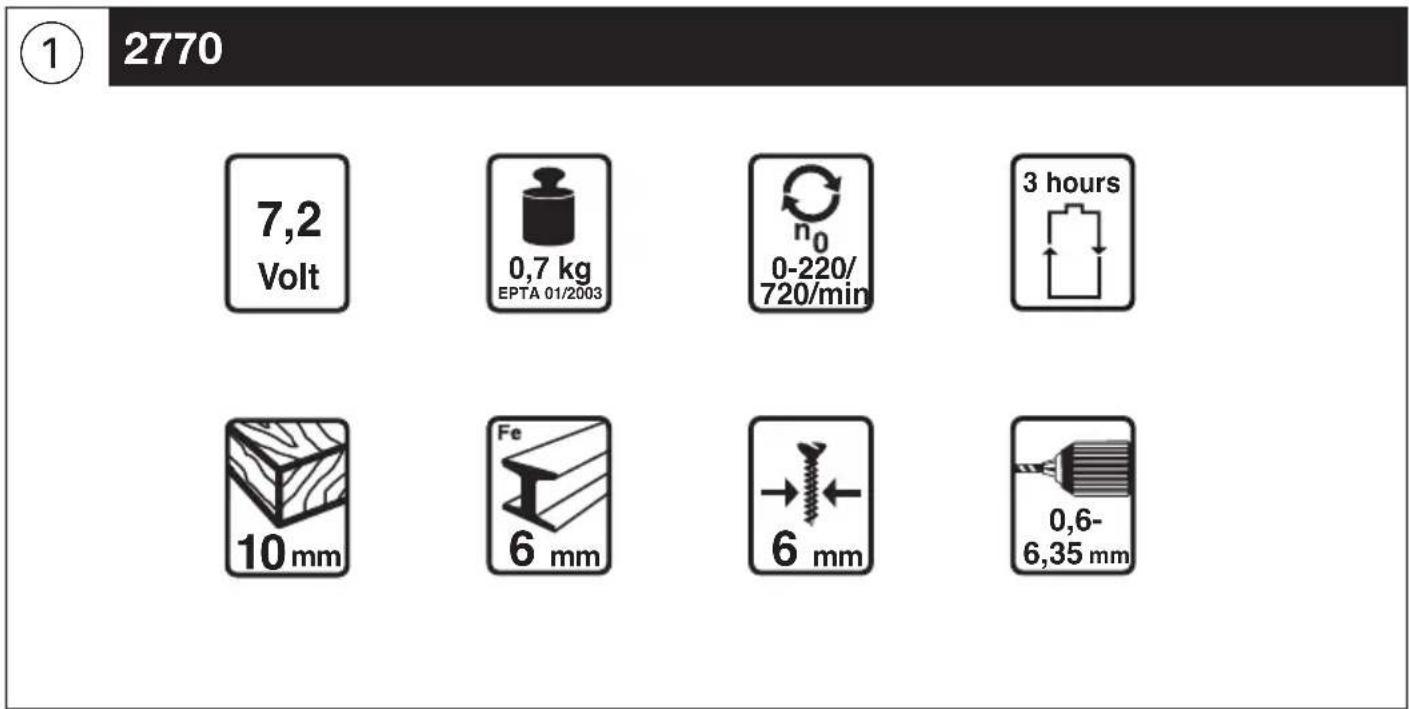

TECHNICAL SPECIFICATIONS ①

Max. torque for hard screwdriving application according to ISO 5393: 14 Nm

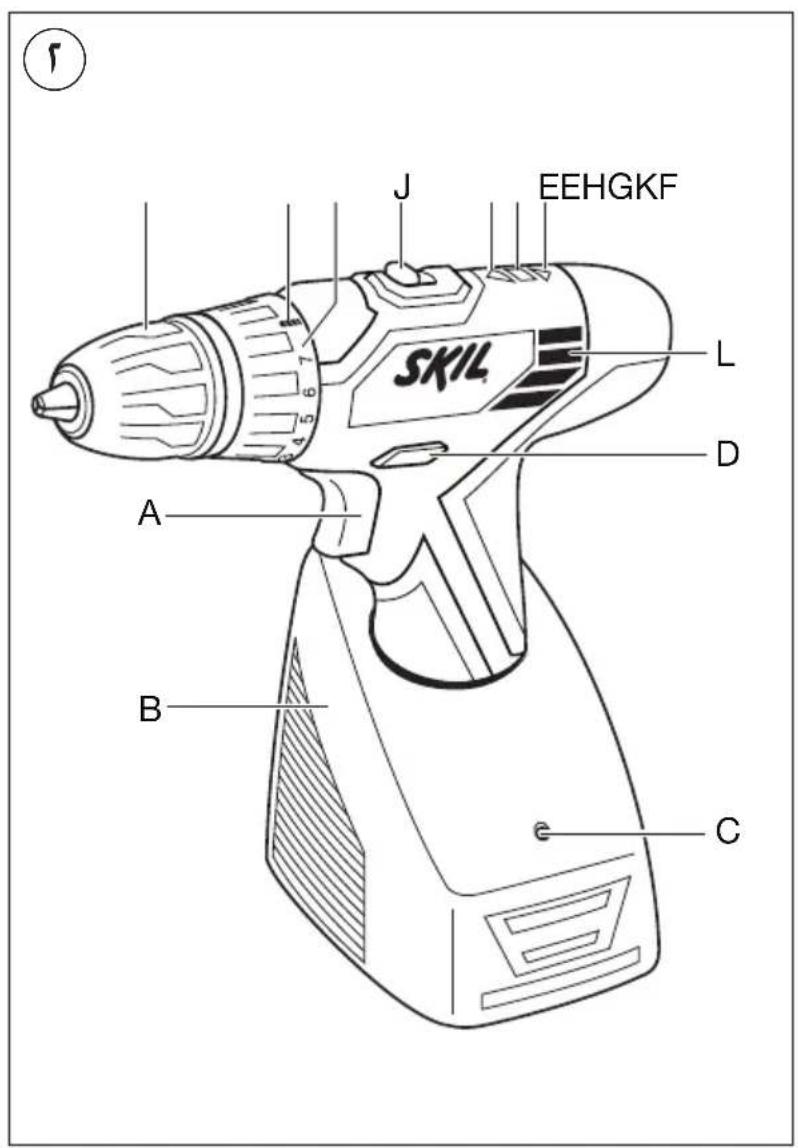

TOOL ELEMENTS ②

A Switch for on/off and speed control
B Charger
C Light (charger)
D Switch for changing direction of rotation
E Indicator of selected direction of rotation
F Keyless chuck
G Ring for torque control
H Lock-position (clutch)
J Gear selector
K Low battery level indicator
L Ventilation slots

SAFETY

GENERAL SAFETY INSTRUCTIONS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet.
Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use an earth leakage circuit breaker. Use of an earth leakage circuit breaker reduces the risk of electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) BATTERY TOOL USE AND CARE

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

6) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

SAFETY INSTRUCTIONS FOR CORDLESS DRILL/DRIVERS

- Avoid damage that can be caused by screws, nails and other elements in your workpiece; remove them before you start working

- Always check that the supply voltage is the same as the voltage indicated on the nameplate of the charger (chargers with a rating of 230V or 240V can also be connected to a 220V supply)

- In case of electrical or mechanical malfunction, immediately switch off the tool or unplug charger from power source

- SKIL can assure flawless functioning of the tool only when original accessories are used

- Use only accessories with an allowable speed matching at least the highest no-load speed of the tool

• The tool/charger is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the tool/charger by a person responsible for their safety
• Ensure that children do not play with the tool/charger
• Secure the workpiece (a workpiece clamped with clamping devices or in a vice is held more securely than by hand)
• Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory or fastener may contact hidden wiring or its own cord (cutting accessory and fasteners contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock)
• Use suitable detectors to find hidden utility lines or call the local utility company for assistance (contact with electric lines can lead to fire or electrical shock; damaging a gas line can result in an explosion; penetrating a water pipe will cause property damage or an electrical shock)
• Do not work materials containing asbestos (asbestos is considered carcinogenic)
• Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful (contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or bystanders); wear a dust mask and work with a dust extraction device when connectable
• Certain kinds of dust are classified as carcinogenic (such as oak and beech dust) especially in conjunction with additives for wood conditioning; wear a dust mask and work with a dust extraction device when connectable
• Follow the dust-related national requirements for the materials you want to work with
• Ensure that switch D ② is in the middle (locking) position before making any adjustments or changing accessories as well as when carrying or storing the tool

CHARGING/BATTERIES

• Charge battery only with the charger that is supplied with the tool
• Do not touch the contacts in the charger
• Do not expose tool/charger to rain
• Do not charge battery in damp or wet environments
• Store tool/charger in locations where temperature will not exceed 45°C or drop below 0°C
• Do not use char ger when damaged; take it to one of the officially registered SKIL Service Stations for a safety check
• Do not use char ger when cord or plug is damaged; cord or plug should be replaced immediately at one of the officially registered SKIL Service Stations
• Do not disassemble charger or tool
• Explanation of symbols on charger

③ Read the instruction manual before use
④ Only use the charger indoors
⑤ Double insulation (no earth wire required)
⑥ Do not dispose of the charger together with household waste material

⑦ Do not dispose of the battery together with household waste material

WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):

• Do not connect the blue (= neutral) or brown (= live) wire in the cord of the charger to the earth terminal of the plug
• If for any reason the old plug is cut off the cord of the charger, it must be disposed of safely and not left unattended

USE

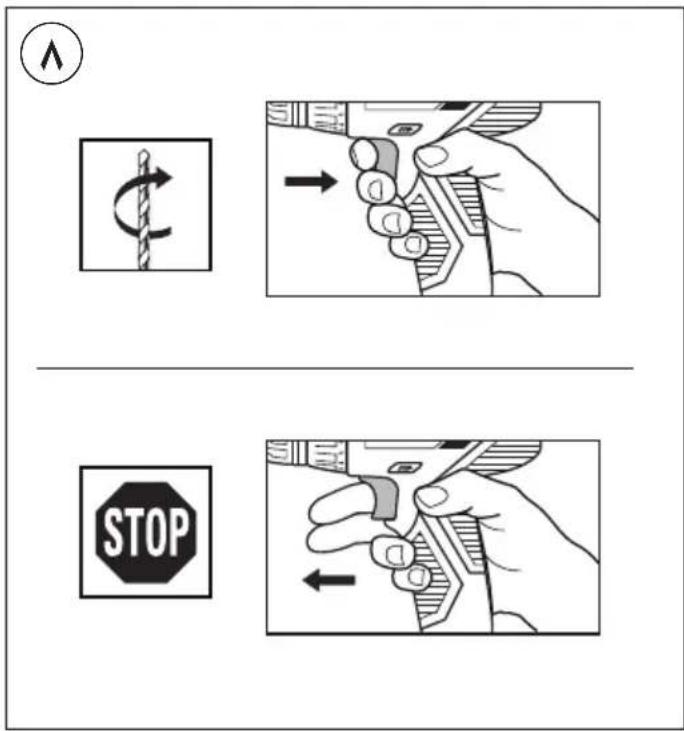

• On/Off ⑧

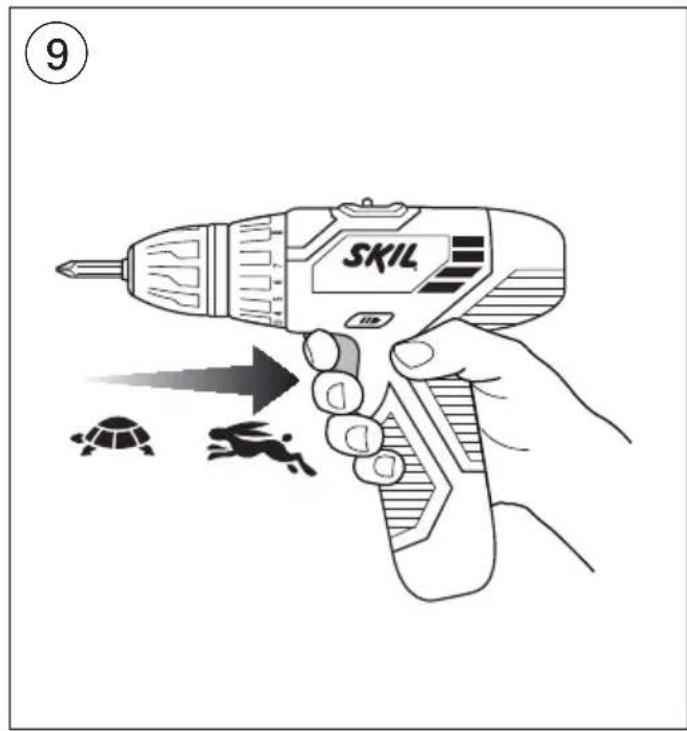

  • Speed control for smooth starting ⑨
• Charging battery ②

! a lithium-ion battery that is new or has not been used for a longer period does not develop its full capacity until after approximately 3 charging/discharging cycles

• plug char ger into power source
• light C will turn on GREEN indicating that the charger is ready for operation
• insert tool into charger
• light C/K will turn RED indicating that the battery is being charged
• after 3 hours the battery is fully charged and charging automatically stops (indicator K turns off)
• if the tool is used only briefly, the charging time can be very short
• unplug the char ger when the battery is fully charged IMPORTANT:

- if light C does not turn RED after inserting tool into charger, this may mean that the battery is too cold or too hot; when the battery temperature returns to between 0°C and 45°C, the charger will automatically begin charging

- the lithium-ion battery can be charged at any time (interrupting the charging procedure does not damage the battery)

- while charging, the charger and the battery may become warm to touch; this is normal and does not indicate a problem

- do not charge at temperatures below 0^ C and over 45^ C; this will seriously damage the battery as well as the charger

- when the lithium-ion battery is empty, the tool is switched off automatically

! do not continue to press the on/off switch after the tool is switched off automatically; battery may be damaged

- Changing direction of rotation ⑩

- indicator E shows the selected direction of rotation

- when not properly set in left/right position, switch A ② cannot be activated

! change direction of rotation only when tool is at a complete standstill

- Changing bits ⑪

• insert the bit as deep as possible in the chuck
  ! do not use bits with a damaged shank
  ! only use sharp bits

- Torque control (VariTorque) ^12

• output tor que will increase as clutch ring G is rotated from 1 to 7; position H will lock up the clutch to permit drilling or driving heavy duty work
• when turning in a screw, first try VariTorque position 1 and increase until the desired depth has been reached

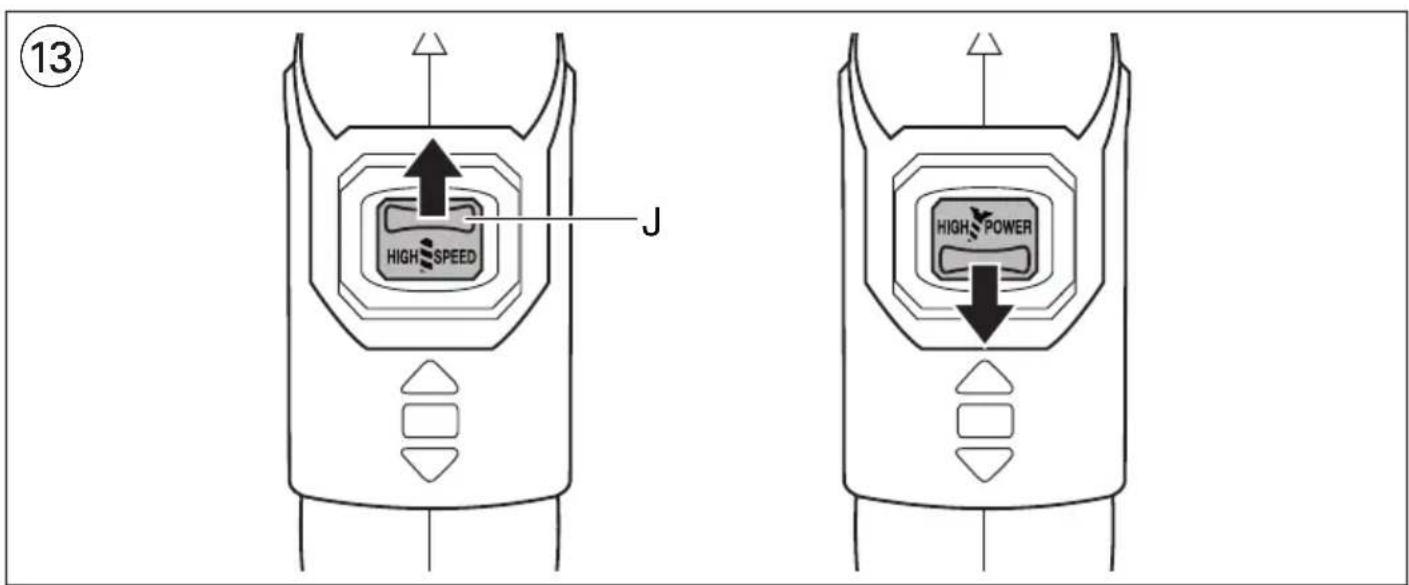

• Mechanical gear selection ⑬

• set selector J to desir ed speed
  ! actuate the gear selector while tool is running slowly

HIGH POWER

• high tor que
• for screwdriving and drilling large diameters
• for tapping thread

HIGH SPEED

• lower tor que
• for drilling small diameters

- Low battery level indicator ⑭

When battery level is low, indicator K lights on

• Mounting charger on the wall ⑮
• Holding and guiding the tool

! while working, always hold the tool at the grey-coloured grip area(s) ⑯

• keep ventilation slots L ② uncovered
• do not apply too much pressure on the tool; let the tool do the work for you

APPLICATION ADVICE

- When drilling ferrous metals

• pre-drill a smaller hole, when a large hole is required
• lubricate drill bit occasionally with oil
• When turning in a screw at/near the cross cut end or an edge of wood, pre-drill a hole in order to avoid cracking of the wood
• For an optimal use of the tool a steady pressure on the screw is required, especially while removing
• When screwdriving in hard wood one should pre-drill a hole

MAINTENANCE / SERVICE

- Keep tool and charger clean

! unplug charger from power source before cleaning

- clean char ging contacts in charger with alcohol or contact cleaner

- If the tool/charger should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools

- send the tool or charger undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skileurope.com)

ENVIRONMENT

- Do not dispose of electric tools, accessories and packaging together with household waste material (only for EU countries)

• in observance of European Directive 2002/96/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility
• symbol ⑥ will remind you of this when the need for disposing occurs

- The battery must be kept separate from the natural environment and should not be disposed of as normal domestic waste (symbol ⑦ will remind you of this when the need for disposing occurs)

- Removing/disposing of batteries ⑰

! only remove the batteries if they are completely empty

- protect battery terminals with heavy tape to prevent short-circuit

- dispose of the batteries at an official collection point for batteries

! batteries may explode when disposed of in fire, so do not burn battery for any reason

CE DECLARATION OF CONFORMITY

- We declare under our sole responsibility that this product is in conformity with the following standards or standardized documents: EN 60335, EN 60745, EN 55014, in accordance with the provisions of the directives 2006/95/EC, 2004/108/EC, 2006/42/EC

• Technical file at: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL

Arno van der Kloot

Jan Trommelen

Vice President

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

04.05.2010

NOISE/VIBRATION

- Measured in accordance with EN 60745 the sound pressure level of this tool is <70 dB(A) (standard deviation: 3 dB) and the vibration <2,5 m/s ^2 (hand-arm method; uncertainty K = 1.5 m/s ^2 )

- The vibration emission level has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

- using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level

- the times when the tool is switched of f or when it is running but not actually doing the job, may significantly reduce the exposure level

! protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

F

Perceuse/visseuse sans fil 2770

INTRODUCTION

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

04.05.2010

BRUIT/VIBRATION

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

04.05.2010

GERÄUSCH/VIBRATION

HOOG TOERENTAL (HIGH SPEED)

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 04.05.2010

GELUID/VIBRATIE

HÖG HASTIGHET (HIGH SPEED)

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 04.05.2010

LJUD/VIBRATION

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 04.05.2010

ST∅J/VIBRATION

1) SIKKERHET PÅ ARBEIDSPLASSEN

H∅Y HASTIGHET (HIGH SPEED)

VEDLIKEHOLD / SERVICE

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 04.05.2010

ST∅Y/VIBRASJON

Operations & Engineering

Jan Trommelen

Approval Manager

Handwritten signature and handwritten symbol on a document or form

SKIL Europe BV, 4825 BD Breda, NL

04.05.2010

MELU/TÄRINÄ

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

04.05.2010

RUIDOS/VIBRACIONES

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 04.05.2010

RUÍDO/VIBRAÇÕES

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 04.05.2010

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 04.05.2010

ZAJ/REZGÉS

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 04.05.2010

HLUČNOSTI/VIBRACÍ

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 04.05.2010

GÜRÜLTÜ/TİTREŞIM

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 04.05.2010

HAŁASU/WIBRACJE

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 04.05.2010

ШУМНОСТИ/ВИБРАЦИИ

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 04.05.2010

ШУМ/ВІБРАЦІЯ

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 04.05.2010

ΘΟΡΥΒΟ/ΚΡΑΔΑΣΜΟΥΣ

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 04.05.2010

ZGOMOT/VIBRATII

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 04.05.2010

ШУМ/ВИБРАЦИИ

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 04.05.2010

HLUKU/VIBRÁCIÁCH

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 04.05.2010

BUCI/VIBRACIJAMA

• Mjereno prema EN 60745 prag zvučnog tlaka ovog električnog alata iznosi <70 dB(A) (standardna devijacija: 3 dB) a vibracija <2,5 m/s² (postupkom na šaci-ruci; nesigurnost K = 1,5 m/s²)

• Razina emitiranja vibracija izmjerena je sukladno normiranom testu danom u EN 60745; ona se može koristiti za usporedbu jedne alatke s drugom, te preliminarnu procjenu izloženosti vibracijama pri uporabi alatke za navedene namjene

• uporaba ove alatke za druge namjene ili s drugim ili slabo održavanim nastavcima, može u značajnoj mjeri uvećati razinu izloženosti

• vrijeme tokom kojega je alatka isključena, ili je uključena ali se njome ne radi, može značajno umanjiti razinu izloženosti

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

04.05.2010

BUKA/VIBRACIJE

- Mereno u skladu sa EN 60745 nivo pritiska zvuka ovog alata iznosi <70 dB(A) (normalno odstupanje: 3 dB) a vibracija <2,5 m/s² (mereno metodom na šaci-ruci; nesigurnost K = 1,5 m/s²)

• Nivo emisije vibracija izmeren je u skladu sa standardizovanim testom datim u EN 60745; on se može koristiti za upoređenje jedne alatke sa drugom, kao i za preliminarnu procenu izloženosti vibracijama pri korišćenju ove alatke za pomenute namene
• korišćenje alatke u drugačije svrhe ili sa drugačijim ili slabo održavanim nastavcima može značajno povećati nivo izloženosti
• vreme kada je alatka isključena ili kada je uključena, ali se njome ne radi, može značajno smanjiti nivo izloženosti
  ! zaštitite se od posledica vibracija održavanjem alatke i njenih nastavaka, održavajući Vaše ruke toplim i organizovanjem Vaših radnih obrazaca

SLO

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 04.05.2010

HRUP/VIBRACIJA

ÜLDISED OHUTUSJUHISED

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 04.05.2010

MÜRA/VIBRATSIOON

APKALPOŠANA / APKOPE

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 04.05.2010

TROKSNIS/VIBRĀCIJA

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 04.05.2010

TRIUKŠMINGUMAS/VIBRACIJA

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

04.05.2010

صدالارعتاشات

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

04.05.2010

الضوضاء/الاهتاز

NOT INCLUDED

17 19 SKIL

NOT STANDARD INCLUDED

G 7 1 H 40.00 5 6 7 +

HIGH SPEED J HIGH POWER

Diagram illustrating three-step safety instruction: clockwise rotation, hand holding a device, and stop sign with directional arrows.

SKIL 9

2770 7,2 Volt 0,7 kg EPTA 01/2003 n₀ 0-220/ 720/min 3 hours 10 mm Fe 6 mm 6 mm 0,6- 6,35 mm

J EEHGKF L SKIL D A B C

Five labeled diagrams showing different types of waste management symbols: recycling, person reading, house with left arrow, square, trash bin marked with X, and Li symbol.

Illustration of a SKIL electric drill with black and gray body (no text or symbols on the device itself)
