USER MANUAL Celan GT 502 HECO

At the end of the product's useful life, please dispose of it at appropriate collection points provided in your country.

Congratulations on your fine new loudspeakers and thank you very much for choosing HECO! You have made an excellent choice. The high-quality speakers produced by HECO are renowned all over the work. Please study the instructions and information below carefully before using your new loudspeakers.

GENERAL INFORMATION ABOUT CONNECTING YOUR HECO Celan GT LOUDSPEAKERS

Please always use a good quality loudspeaker connection cable from an audio dealer. To prevent impairment of sound quality, we recommend cables with cross-sections of at least 2.5 mm^2 for lengths up to 3 m and at least 4 mm^2 for lengths above 3 m.

Always turn off the amplifier or receiver before connecting or disconnecting loudspeaker cables. Place the loudspeakers in their planned positions and cut the cables to the right length. The cables for both channels should always be exactly the same length.

Strip 10 – 15 mm of insulation from the ends of the cables. Twist the ends – this is much better than them with solder – insert them in the terminals and tighten the terminal screws firmly (fig. 1). Loudspea cables with CE-compliant banana or single-pin plugs (4 mm) or forked fittings can also be used.

For good sound it is imperative that the cables must be connected in such a way that the speakers are "in phase". This means that the black negative terminals on the speakers (-) must be connected to the negative (-) terminals on the amplifier, the red positive (+) speaker terminals to the positive (+) amplifier terminals. To make this easier one wire of most speaker cables is marked with a coloured strip or a rid in the insulation.

Before switching on the system double-check all your connections and make sure that the terminal scre are tight and that there are no short circuits caused by stray wire filaments – this could cause serious damage to your amplifier!

HECO CELAN GT - BI-WIRING AND BI-AMPING

Connector panel on the Heco Celan GT loudspeakers:

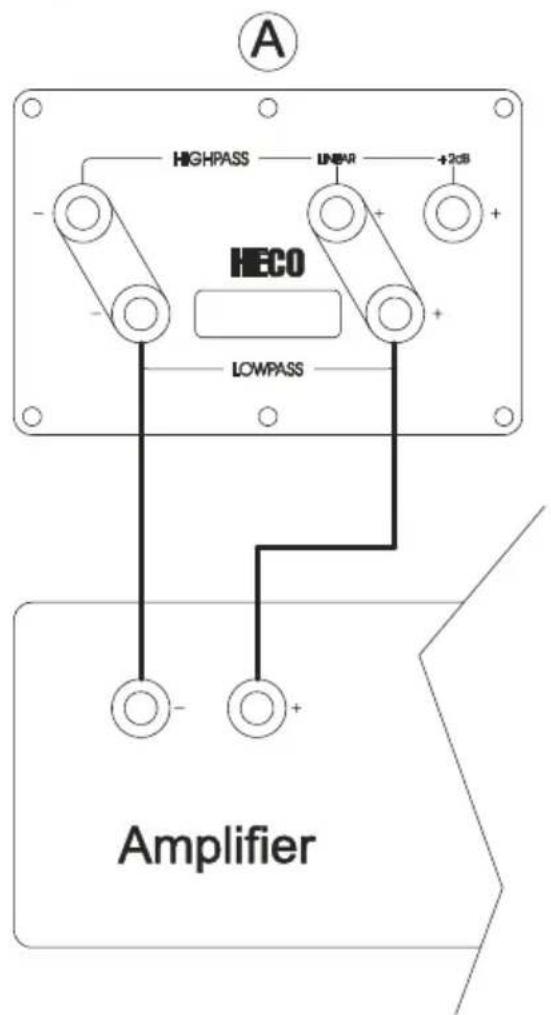

The connector panels on the Celan GT speakers are equipped with 5 terminal screws, enabling bi-wiring/bi-amping in addition to conventional connection to an amplifier. The upper terminals are connected to the treble and mid-treble side of the crossover and the lower terminals to the bass side. An addition connector terminal enables a 2dB treble boost option.

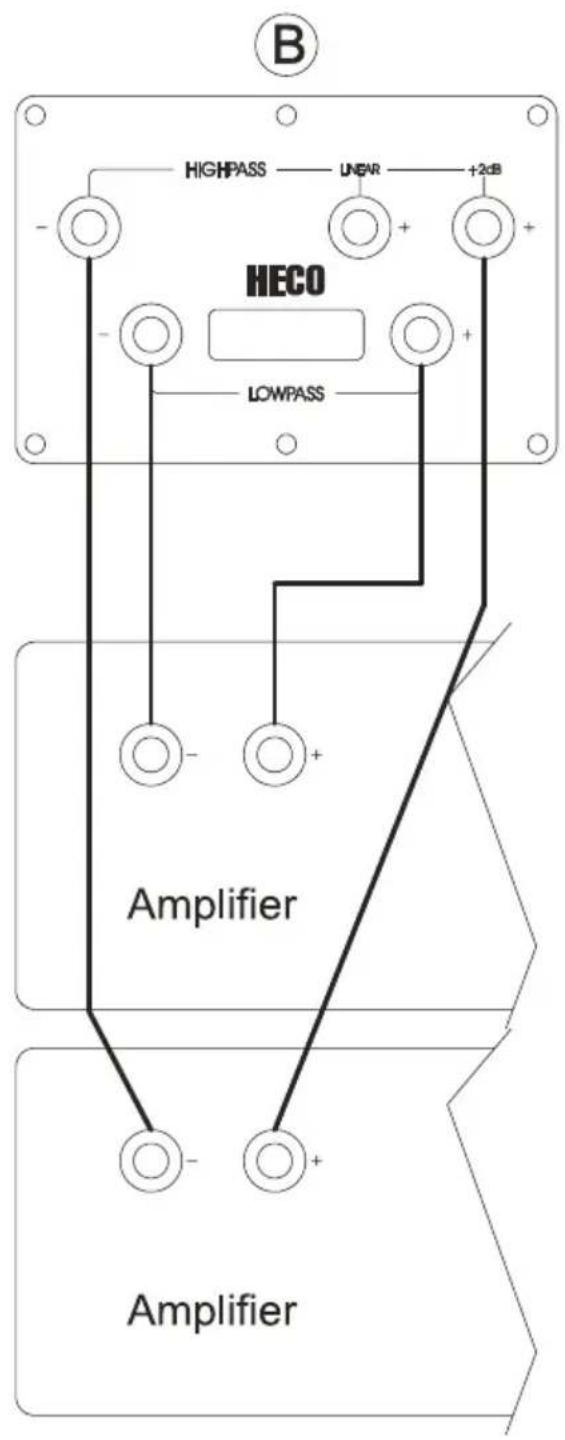

Bi-wiring means using separate cables to carry the high and low audio frequencies. Bi-amping takes this idea one step further and uses separate power amplifiers as well as separate cables for high and low frequencies. Bi-amping in particular produces an additional improvement in sound reproduction quality.

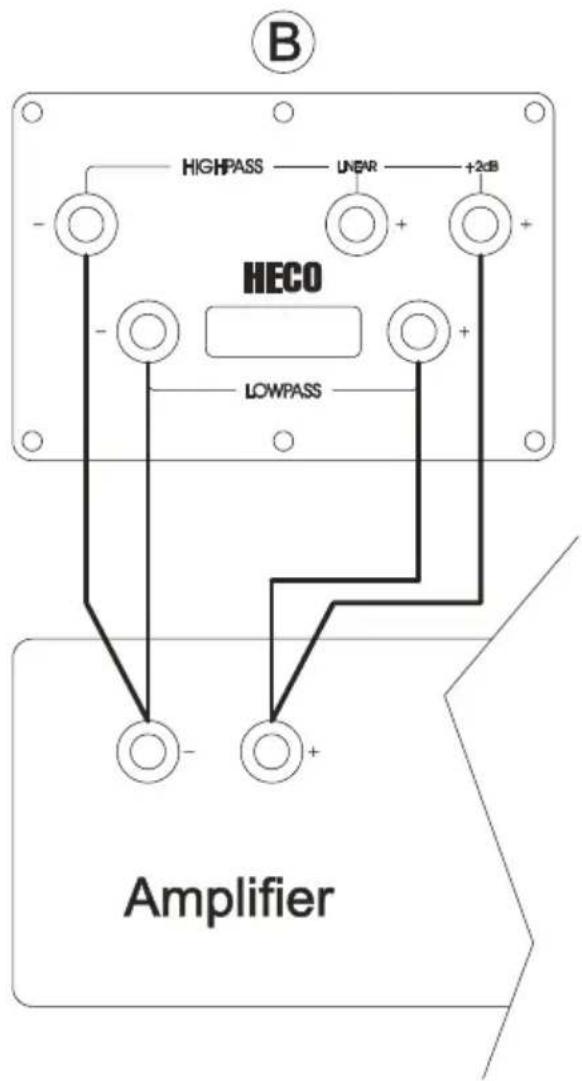

For conventional connections, metal bridges are installed as standard to make the +2dB treble adjustment active. The bridge can be switched to the linear setting by unscrewing the corresponding terminals. (Fig. The terminals have to be removed for bi-wiring and bi-amping mode. Fig. 3 and fig. 4 show the connection to the amplifier(s).

The right treble setting depends on the room, the positioning of the speakers and, of course, personal taste. The +2dB setting is recommended for rooms with heavy upholstered furniture and curtains, for example, which have a muffling effect.

THE HECO CELAN GT 302, 502, 702 AND 902 IN STEREO MODE

In the ideal configuration the speakers and the listening position should form an equilateral triangle. When the left and right speakers are the same distance from the listening position their sound arrives at the time, resulting in a harmonious, natural music reproduction.

There should be a clear line of sight between the loudspeakers and the listening position. Any sound-absorbing or reflecting obstacles in the path will distort the sound. When you install the loudspeakers the following distances should be maintained:

Celan GT 502, 702, 902: at least 20 cm away from the rear wall and at least 30 cm from the side wa. This will prevent excessive emphasis of the bass range.

Celan GT 302: shelf loudspeakers should also be as free-standing as possible, the distance to the side and rear to walls and items should be at least 10 cm, the tweeters should be located at ear height.

You should use the supplied spikes when setting the speakers up. This isolates them from the supporti surface, preventing unpleasant resonance effects. You can choose between metal and hard rubber spike for the standing speakers, while the enclosed hard rubber spikes are used for the shelf speakers. The spikes are screwed into the threaded bushes on the bottom of the speaker.

The HECO Celan GT loudspeakers are ideal for use with the Celan GT Sub 322A active subwoofer. Fi 5 shows a method of connection. Please also refer to the subwoofer's and your amplifier's operating instructions.

HECO CELAN GT 302, 502, 702 AND 902 AS A FRONT OR REAR LOUDSPEAKER

The front loudspeakers are positioned at ear height on the left and right as equidistant from the televisi as possible. The rear loudspeakers are placed at ear height or a little above on the left and right beside or better behind the listening position.

Celan GT 302: if possible, the cross-over frequency for the front and rear channels should be adjusted approximately 80 Hz in the AV receiver's set-up.

Otherwise all the recommendations made in the previous chapter also apply.

HECO CELAN GT CENTER 42

The Celan GT Center 42 loudspeaker visually and acoustically ideally matches the other Celan GT models. The loudspeaker is placed immediately on or under the television set.

Otherwise please adhere to the general recommendations outlined in the previous chapters.

HECO CELAN GT SUB 322A

The Celan GT Sub 322A active subwoofer visually and acoustically ideally matches the other loudspeakers in the Celan GT series. Please refer to the separate operating instructions supplied with this product.

CONNECTING TO AN AV RECEIVER

Figs. 6 and 7 show two different methods of connecting to AV receivers.

Fig. 6: AV receiver without subwoofer output.

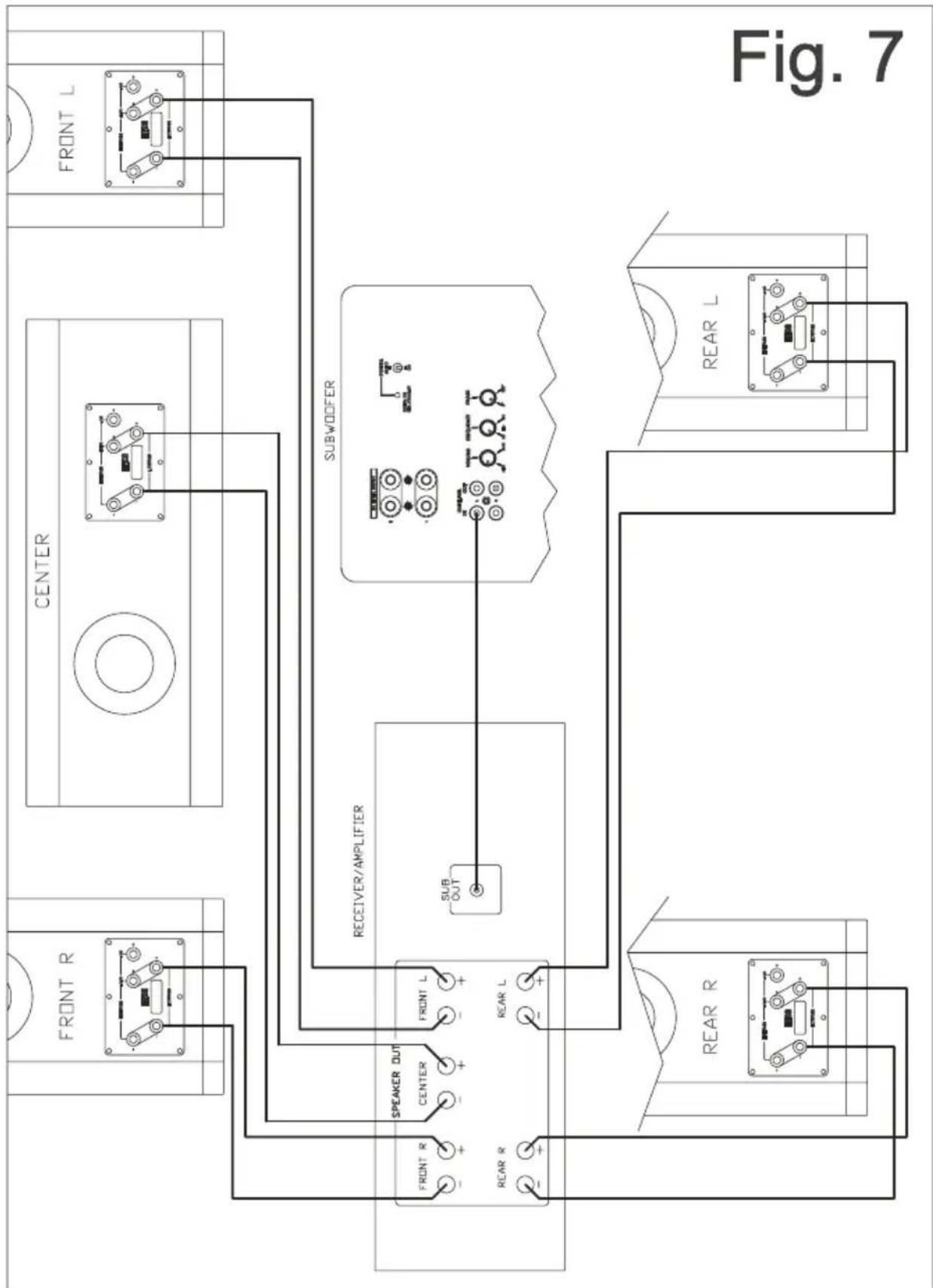

Fig. 7: AV receiver with subwoofer output.

HOW TO AVOID DAMAGE TO YOUR VALUABLE SPEAKERS

All HECO loudspeakers are designed and built for optimum sound reproduction with the tone controls in the central position – i.e. with “linear” amplifier output. Turning up the bass and treble controls too far delivers more power to the woofers and/or tweeters, and at high volumes this can actually destroy the speaker units!

If the output of your amplifier is significantly higher than the rated power handling capacity of your speaker extremely high volumes can physically destroy your speakers. This doesn't actually happen often but you should be aware that it is possible.

Weak amplifiers with low output ratings can actually be more dangerous for your speakers at medium volumes because weak amplifiers may overload much faster than powerful ones and this causes measurable and audible distortion, which is extremely dangerous to your loudspeakers.

Always turn the volume down immediately as soon as you hear distortion! If you like listening to loud n make sure that your amplifier can deliver at least as much power as the speakers' power-handling ratio

Amplifiers, tuners and CD players can all produce inaudible high-frequency signals – and this doesn't or apply to cheap products. If your tweeters fail at low or medium volumes you should have a qualified technician check your system components for dangerous inaudible signals.

MAINTENANCE

The lacquered surface is best cleaned with a mild household cleaner. On no account use furniture polis or similar products on these surfaces. Please also do not use a microfiber cloth as this may damage the surface.

SPECIFICATIONS

Celan GT 902 Celan GT 702

Configuration: 3-way bass reflex 3-way bass reflex

Power-handling capacity: 280 / 450 W 220 / 350 W

Impedance: 4 - 8 ohms 4 - 8 ohms

Frequency response: 20 - 50 000 Hz 22 - 50 000 Hz

Recommended amplifier output: 30 - 450 W 30 - 350 W

Efficiency (1W/1m): 93 dB 92 dB

Dimensions (WxHxD): 277 x 1205 x 445 mm 230 x 1145 x 395 mm

Accessory: 4 adjustable spikes 4 adjustable spikes

Celan GT 502 Celan GT 302

Configuration: 2 12 -way bass reflex 2-way bass reflex

Power-handling capacity: 180 / 300 W 100 / 160 W

Impedance: 4 - 8 ohms 4 - 8 ohms

Frequency response: 24 - 50 000 Hz 30 - 50 000 Hz

Recommended amplifier output: 30 - 300 W 30 - 160 W

Efficiency (1W/1m): 91 dB 90 dB

Dimensions (WxHxD): 230 x 1035 x 395 mm 230 x 380 x 360 mm

Accessory: 4 adjustable spikes

Celan GT Center 42

Configuration: 2-way bass reflex

Power-handling capacity: 120 / 180 W

Impedance: 4 - 8 ohms

Frequency response: 30 - 50 000 Hz

Recommended amplifier output: 30 - 180 W

Efficiency (1W/1m): 90 dB

Dimensions (WxHxD): 570 x 205 x 360 mm

SUBJECT TO TECHNICAL CHANGE.
