AT265 - Kitchen accessory KENWOOD - Free user manual and instructions

Product type	Centrifugal juicer
Brand	KENWOOD
Model	AT265
Power supply	Via Kenwood mixer (speed 3 recommended)
Maximum load capacity	500 g of fruits or vegetables
Main material	Plastic
Package contents	Pusher, lid, filter, pulp container, base, beaker, beaker holder
Main functions	Extraction of juice from fruits and vegetables, pulp separation
Operating speed	Position 3 on the mixer
Safety	Sharp blades at the bottom of the filter; do not use if the filter is damaged; use only the provided pusher; unplug before cleaning or disassembly
Maintenance and cleaning	Clean immediately after use; brush the filter; other parts are dishwasher safe (top rack, short cycle); wipe the base with a damp cloth
Spare parts and repairability	Filter, pusher, lid, pulp container, beaker, beaker holder; contact Kenwood after-sales service
Usage precautions	Peel citrus and hard-skinned fruits; remove pits; do not exceed 500 g; empty containers regularly
Juice storage tips	Drink immediately or store in the refrigerator with a few drops of lemon
Number of pages in the manual	62

Frequently Asked Questions - AT265 KENWOOD

How to assemble the AT265 juicer?

Place the pulp container on the base and turn clockwise until it clicks into place. Install the filter, then the lid aligning the marks. Attach the beaker holder and the beaker. Finally, mount the accessory on the mixer by turning clockwise.

What speed to use for juicing?

Use speed 3 on the Kenwood electric mixer.

How to clean the juicer filter?

Clean the filter with a soft brush. It is recommended to wash it immediately after use to prevent residue from drying.

What are the important safety precautions?

Never use if the filter is damaged. The blades are sharp – handle with care. Use only the provided pusher. Unplug before cleaning or removing items blocking the feed tube.

What is the maximum capacity of fruits per load?

The maximum quantity of fruits or vegetables that can be juiced at once is 500 grams.

What to do if the juicer vibrates excessively?

Turn off the appliance and remove the accumulated pulp in the filter. Vibration is often due to uneven pulp distribution.

Can I wash the parts in the dishwasher?

Yes, parts other than the base and filter can be washed in the top rack of the dishwasher, preferably with a short low-temperature cycle.

How to store prepared juice?

Drink the juice immediately to get the most vitamins. If you need to store it, place it in the refrigerator adding a few drops of lemon juice to extend its freshness.

Which types of fruits and vegetables require preparation before juicing?

Remove pits from stone fruits. Peel hard-skinned fruits (melons, pineapples, cucumbers). For citrus fruits, remove the white pith to avoid bitterness.

Where to find spare parts for the AT265?

Contact the retailer where you purchased the appliance or Kenwood after-sales service to obtain spare parts such as the filter, pusher, or pulp container.

USER MANUAL AT265 KENWOOD

Line drawing of a mechanical device with a cylindrical top and two buckets (no text or symbols)

AT265

English 2 - 4

Nederlands 5 - 7

Français 8 - 11

Deutsch 12 - 14

Italiano 15 - 18

Português 19 - 21

Español 22 - 24

Dansk 25 - 27

Svenska 28 - 30

Norsk 31 - 33

Suomi 34 - 36

Türkçe 37 - 39

Česky 40 - 42

Magyar 43 - 45

Polski 46 - 48

Русский 49 - 52

Ελληνικά 53 - 56

عربي 90 - ۷۵

Line drawing of a kitchen mixer with a cup and side bowl, showing no text or symbols

Use the centrifugal juicer for extracting juice from fruit and vegetables.

before using your Kenwood attachment

• Read these instructions carefully and retain for future reference.
• Remove all packaging and any labels.

safety

- Do not use the juicer if the filter is damaged.

- The cutting blades on the base of the filter are very sharp, take care when handling and cleaning the filter.

- Only use the pusher supplied. Never put your fingers in the feed tube. Unplug before unblocking the feed tube.

- Before removing the lid, switch off and wait for the filter to stop.

- Switch off and unplug: - before fitting or removing parts - before cleaning - after use.

- Never use a damaged machine. Get it checked or repaired: see ‘service’.

- Never use an unauthorised attachment.

- Never leave the machine on unattended.

- Don't touch moving parts.

- This machine will be damaged and may cause injury if the interlock mechanism is subjected to excessive force.

- Do not use the lid to operate the attachment, always use the on/off speed control.

- Should excessive vibration occur when using this attachment, either adjust the speed or stop the machine, unplug and clear any blockage.

- Do not let infirm people use the appliance without supervision.

- Do not let children use or play with the appliance.

- Only use the appliance for its intended domestic use. Kenwood will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

before using for the first time

1 Wash the parts: see 'Cleaning'.

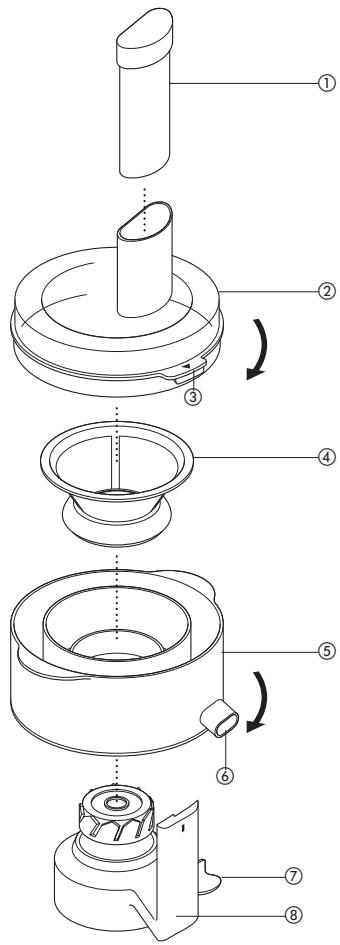

key

① pusher
② lid
③ lid interlock tab
④ filter
⑤ pulp container
⑥ juice outlet
⑦ pulp container release lever
⑧ base unit

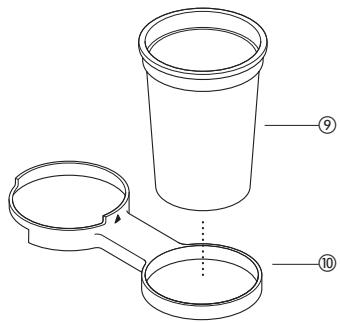

⑨ beaker
⑩ beaker holder

to use your centrifugal juicer

preparing food

• Remove stones (plums, peaches, cherries etc).
• Remove tough skins (melons, pineapples, cucumbers, potatoes etc).
• Soft-skinned and other foods just need washing (apples, pears, carrots, radishes, lettuce, cabbage, parsley, spinach, grapes, strawberries, celery etc).
• Citrus peel - Peel and remove the white pith, otherwise the juice may be bitter. For best results we recommend using the citrus juice attachment which is available separately.
• Remove high speed outlet cover before assembling unit.

assembly and use

1 Place the pulp container onto the base unit and turn clockwise until it locks into position. When correctly fitted the spout should be located over the pulp container release lever.

2 Fit the filter and push firmly into position.

3 Fit the lid into the pulp container with the interlock tab next to the arm of the base unit. Then turn clockwise until the interlock tab on the lid fits into the groove in the upright arm of the base unit. When correctly fitted the markings should align ▼.

4 Place the beaker holder onto the underside of the attachment – the arrow on the beaker holder should be pointing upwards and aligned with the spout and pulp container release lever.

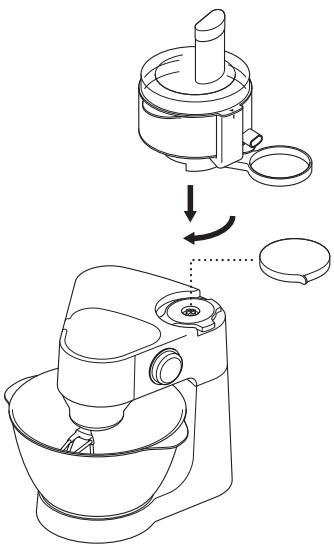

5 Whilst holding the beaker holder in place, fit the attachment to the mixer by placing the spout over the corner of the high speed outlet and then turn clockwise to lock into position.

6 Move the beaker holder towards the back of the mixer and then fit the beaker. Swivel the holder into position so that the beaker is located underneath the juice outlet.

7 Cut the food to fit the feed tube.

8 Switch to speed 3, then place the food into the feed tube. Push the food down evenly with the pusher - never put your fingers in the feed tube.

9 Switch off and unplug.

10 Refit the high speed outlet cover after use.

To dismantle the juicer reverse the assembly procedure but press the pulp container release lever in order to remove the pulp container from base unit.

- Alternatively if you want to juice a large quantity of fruit or vegetables and just want to empty the beaker and pulp container carry out the following procedure:-

1 Switch off and unplug the mixer.

2 Unlock the attachment lid and lift off.

3 Lift out the filter,

4 Swivel the beaker holder to the side, lift off the beaker and empty.

5 Press the pulp container release lever and rotate the pulp container anti-clockwise and lift off.

6 Empty the pulp container of waste.

7 Re-assemble the unit.

important

- If the juicer starts to vibrate, switch off and empty the pulp from the filter. (The juicer vibrates if the pulp becomes unevenly distributed).

- Maximum capacity that can be processed at one time is 500g of fruit or vegetables.

- Some very hard foods may make your attachment slow down or stop. If this happens switch off and unblock the filter.

- Switch off and empty the pulp and juice containers regularly during use.

hints

- Insert soft food slowly to get the most juice.

- Vitamins disappear - the sooner you drink your juice, the more vitamins you'll get.

- If you need to store the juice for a few hours put it in the fridge. It will keep better if you add a few drops of lemon juice.

- Don't drink more than three 230mls (8 fl.oz.) glasses of juice a day unless you're used to it.

- Dilute juice for children with an equal amount of water.

• Juice from dark green (broccoli, spinach etc) or dark red (beetroot, red cabbage etc) vegetables is extremely strong, so always dilute it.
• Fruit juice is high in Fructose (fruit sugar), so people with diabetes or low blood sugar should avoid drinking too much.

cleaning

● Always switch off and unplug before removing attachment from mixer.
- Dismantle the attachment fully before cleaning.
- For easier cleaning always wash the parts immediately after use.
- Never let the base unit get wet.
- Some foods, eg carrot, will discolour the plastic. Rubbing with a cloth dipped in vegetable oil helps remove discolouring.

base unit

- Wipe with a damp cloth, then dry.

filter

- Clean using a soft brush.

- Check the filter regularly for signs of damage. Do not use if the filter is damaged. Refer to "service"

other parts

- Wash, then dry. Alternatively they can be washed on the top rack of your dishwasher. A short low temperature programme is recommended.

service

- If the cord is damaged it must, for safety reasons, be replaced by KENWOOD or an authorised KENWOOD repairer.

If you need help with:

• using your machine or
● servicing or repairs (in or out of guarantee)

☐ call Kenwood customer care on 023 9239 2333. Have your model number ready - it's on the underside of your machine.

• spares and attachments

call 0870 2413653. other countries

- Contact the shop where you bought your machine.
