USER MANUAL MCH-2 Klarstein

Line drawing of a portable air conditioner unit with wheels and ventilation grille (no text or symbols)

Technical diagram of a refrigerator with labeled parts, showing front and side views with numbered labels.

A- Frontblende

B- Gri

C-Seitenplae

WARNING: To reduce the risk of fire, electrical shock, or injury to person:

1. The product is for household use only.

2. Connect the appliance to single-phase AC supply of the voltage specified on the rating label.

3. Always turn the product to the OFF position and unplug it from the electrical outlet when not in use.

4. Extreme caution is necessary when the appliance is near children, invalids or elderly person.

5. Do not run cord under carpeting and do not cover cord with throw rugs, runners or the like. Arrange cord away from traffic area and where it will not be tripped over.

6. Do not operate the appliance with a damaged cord or plug, or after the unit malfunctions, has been dropped, or damaged in any manner.

7. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person to avoid a hazard.

8. Use the appliance in a well-ventilated area. While using, distance of no less than 20cm should be kept away from wall or corner to ensure the air intakes or exhaust openings should not be blocked unexpectedly. The unit must not be located immediately below or besides a curtain or the likes.

9. Do not insert or allow fingers or any other objects into grill to avoid a mechanical danger when in use. Do not block air intakes or exhaust openings in any manner.

10. Adequate clean water should be put into the tank within the water level limits as shown by the water level indicator. Make sure that you DO NOT add water whilst the power is on.

11. If you want to move the product whilst water is in the tank, unplug it and push it slowly and very lightly on the side of the unit to avoid water spillage. The best method would be to drain the unit using the valve at the bottom of the unit.

12. Please keep the ice crystals box provided away from children, as it is a chemical based substance that is harmful if swallowed. Also make sure that the ice pack is not placed in direct sunshine. The ice crystal can be used over 5 years. When scrapping the appliance, follow the regulations concerning the disposal of ice crystals.

13. Use the appliance on flat, dry floor only.

14. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

15. Children should be supervised to ensure that they do not play with the appliance.

SAVE THESE INSTRUCTIONS

SPECIFICATIONS

Model No	ACO-MCH2
Rated Voltage & Frequency	220-240V~50/60Hz
Rated Power	65W
Capacity of water tank	8.0L
Water consumption	1.0L/h

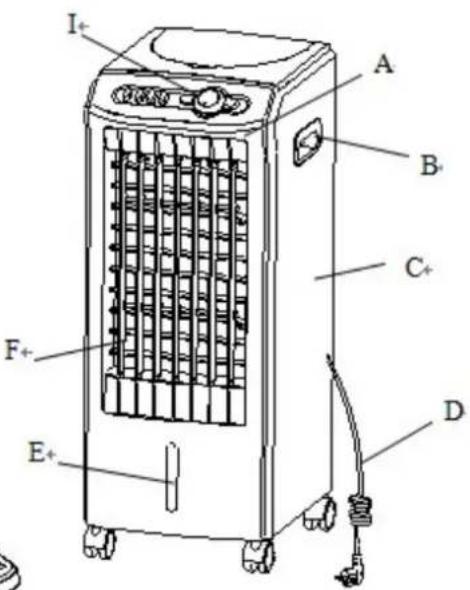

STRUCTURE AND PARTS

J+ H G K L+ M N+ O+ P+

I+ A B- C+ D E+ F+

A-Front cover

B-Handle

C-Side cover

D-Power cord & plug

E-Water indicator window

F-Swing Levers

G-Honeycomb Iter

H-Dust-proof bracket

I-Buons

J-Top panel

K-Knob

L-Back cover

M-Cord bobbin

N-Water tank

O-Castor wheels

P- Ice crystals box

OPERATION PANEL

LG04-11C

OFF

HIGH

MED LOW

MED LOW

TIMER

COOL VANE

INSTRUCTIONS FOR USE

1. When using the appliance, make sure that it is on a flat and stable surface. Damage may occur if it is placed on an incline or decline, and put the ice box into water tank:

1. Rotate the Small knob updown 3. Add the water from here into water 4. Put ices into ice 5. Put the ice box also into 2. Pull out the water tank

1. Insert

the plug directly into a standard AC socket-outlet. Be sure plug fits tightly into outlet.

1. Turn the timer knob to ON position
2. Press the LO/MI/HI button to set the desired fan speed (Low/ Medium/High).
3. If you want to enlarge blast area in your room, press the VANE button, the fan will blast your room in large scope. To stop oscillating, just press the VANE button again. Moving the horizontal louvers either up or down can make further wind direction enhancements.
4. Cool button

NOTE: The function of Cool can be set only under the fan operating.

1) Before operating the unit in Cool mode, make sure that water tank is properly fixed. Then proceed to add clean water into the water tank. While adding the water, make sure that you keep an eye on the water level indicator to make sure that you do not OVER or UNDER FILL the unit. Press the button Cool after you have added the water and the unit should commence to blow cooler air.

1. Timer knob can set 0-120 minute

2) If you find that the air after Step 1) is still not cool enough, you can add additional ice block into the water tank or ice basket directly by drawing out the water tank. Be sure not to exceed the water tank capacity otherwise damage to the unit or electric shock may occur.

Note: Before using the Ice Block, firstly you must remove the lid from Ice Block box and add clean water into the Ice Block box until reach the water level scale, then turn the lid back to the Ice Block box and wait for 15 minutes; secondly you should place it in your refrigerator and let the Ice Block freeze for 1 to 2 hours.

3) You may complete pull out water tank, then replace water in the water tank or clean water tank

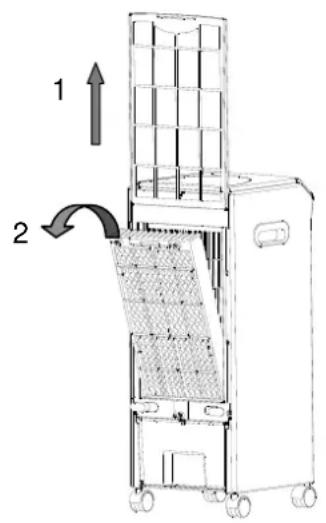

1. How to knock down the dust-proof bracket and honeycomb filter

1 2

1. pull out the dust-proof bracket

2. rotate the knobs outwards like left image

3. To turn off the unit just press the button OFF.

4. To completely shut the unit off, turn all the controls to OFF, and remove plug from the socket-outlet.

MAINTENANCE

1. Always remove the plug from the socket-outlet and allow the fan blower to stop acting before clean it.
2. Clean the external surfaces of the unit with a soft damp (not dripping wet) cloth.

WARNING:

Do not immerse the unit in water.

Do not use any cleaning chemicals such as detergents and abrasives.

Do not allow the interior (special for the PCB) to get wet as this could create a hazard.

1. After extended periods of use, be sure to replace the water in the tank with fresh clean water at least weekly. Also remember to clean the filter by unscrewing the filter and removing the filter cradle. It should be cleaned in a mild soapy solution and then left to dry before replacing the filter.

2. When the unit is not in use, make sure that it is unplugged from the wall socket, water is drained thoroughly and it is placed back into its original box for storage until later use.

3. In case of malfunction or doubt, do not try to repair the fan yourself, it may result in a fire hazard or electric shock.

NOTICE

If the machine is turned off from cool wind function, before the cleaning, please keep it work under normal wind for 5 minutes in order to dry the wet curtain.

To make optimal use of the machine to maintain and extend the lift of the machine, be sure to maintain with the instructions required by the following:

Clean the wet curtain Once every two weeks

Clean the water box Once every two weeks

Clean the filter plate Once every week

Clean the filter sponge Once every two weeks

Note: Make sure to cut the power when cleaning, if the environment is not good (for example, too much dust, poor water quality) the cleaning frequency must be increased!

75×45

Environment

Symbol of a trash bin crossed with a diagonal line and a horizontal line, no text or labels present.

Meaning of crossed -out wheeled dustbin:

Do not dispose of electrical appliances as unsorted municipal waste, use separate collecon facilities.

Contact you local government for informaon regarding the collecon systems available.

If electrical appliances are disposed of in landlls or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.

When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals at least free of charge.
