USER MANUAL 1613 AA SKIL

Illustration of a handheld metal tool with a coiled wire and handle (no text or symbols)

GB ORIGINAL INSTRUCTIONS 6
F NOTICE ORIGINALE 8
D ORIGINALBETRIEBSANLEITUNG 11
NL ORIGINELE GEBRUIKSAANWIJZING 14
S BRUKSANVISNING I ORIGINAL 16
DK ORIGINAL BRUGSANVISNING 19
N ORIGINAL BRUKSANVISNING 21
FIN ALKUPERÄISET OHJEET 24
E MANUAL ORIGINAL 26
P MANUAL ORIGINAL 29
I ISTRUZIONI ORIGINALI 32
H EREDETI HASZNÁLATI UTASÍTÁS 34
CZ PŮVODNÍM NÁVODEM K POUŽÍVÁNÍ 37
TR ORİJINAL İŞLETME TALİMATI 40
PL INSTRUKCJA ORYGINALNA 42
RU ПОДЛИННИК РУКОВОДСТВА ПО ЭКСПЛУАТАЦИИ 45

UA ОРИГІНАЛЬНА ІНСТРУКЦІЯ З ЕКСПЛУАТАЦІЇ 48
GR ΠΡΩΤΟΥΠΟ ΟΔΗΓΙΩΝ ΧΡΗΣΗΣ 51
RO INSTRUCTIUNI DE FOLOSIRE ORIGINALE 54
BG ОРИГИНАЛНО РЪКОВОДСТВО ЗА ЕКСПЛОАТАЦИЯ 57
SK PÔVODNÝ NÁVOD NA POUŽITIE 60
HR ORIGINALNE UPUTE ZA RAD 63
SRB ORIGINALNO UPUTSTVO ZA RAD 65
SLO IZVIRNA NAVODILA 68
EST ALGUPÄRANE KASUTUSJUHEND 70
LV ORIGINĀLĀ LIETOŠANAS PAMĀCĪBA 73
LT ORIGINALI INSTRUKCIJA 75
МК ИЗВОРНО УПАТСТВО ЗА РАБОТА 78
AL UDHËZIMET ORIGJINALE 81
AR دليل الاستعمال 87
④ RAHENMAI AUSLI 86

www.skil.com

① 1613

②

Technical diagram of a hairdryer with labeled parts including wrench, hose, and ear components

Icon showing a person reading a book inside a circle, with number 3 in the top-left corner (no text or symbols on the icon itself)

④

⑤

Simple line drawing of a person wearing headphones inside a square frame (no text or symbols)

⑦ STOP

⑨ C 2 3 ⑩ 1 2 1 D (PUSH)

11

F1 F2

22 22 22 22 1000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Line drawing of a mechanical device with a rotating handle and coiled spring (no text or symbols)

⑬ 13

ACCESSORIES → WWW.SKIL.COM

GB

Mixer

1613

INTRODUCTION

• This electronic mixer is intended for easily and simply mixing substances
• With various mixing paddles a variety of substances (different sorts of cement blends, construction glues, paints, levelling compounds, finishing and dry mortar, etc.) can be mixed
• The recommended blending volume depends on the type and state of the substance to be mixed, and the type of paddle used
  • This tool is not intended for professional use
• Read and save this instruction manual ③

TECHNICAL DATA ①

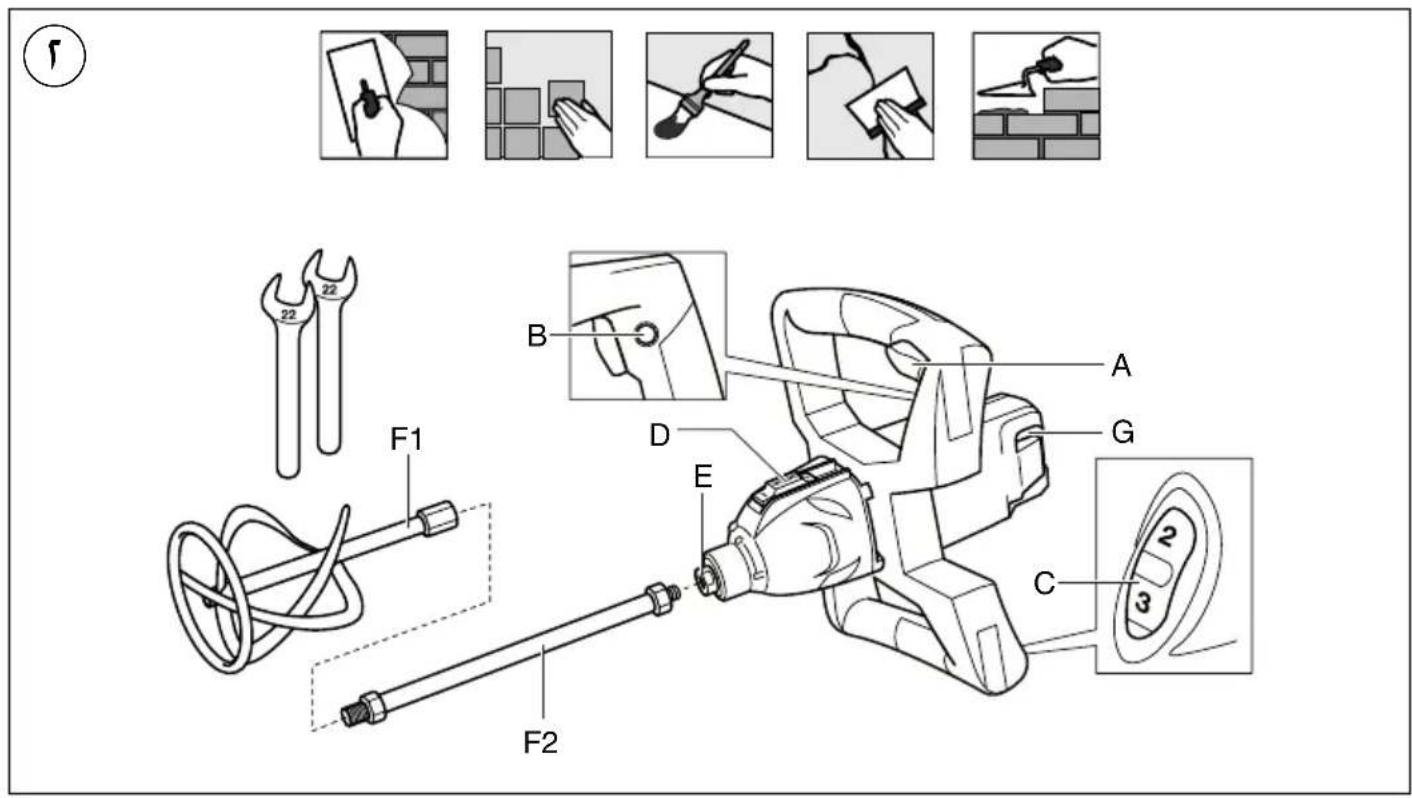

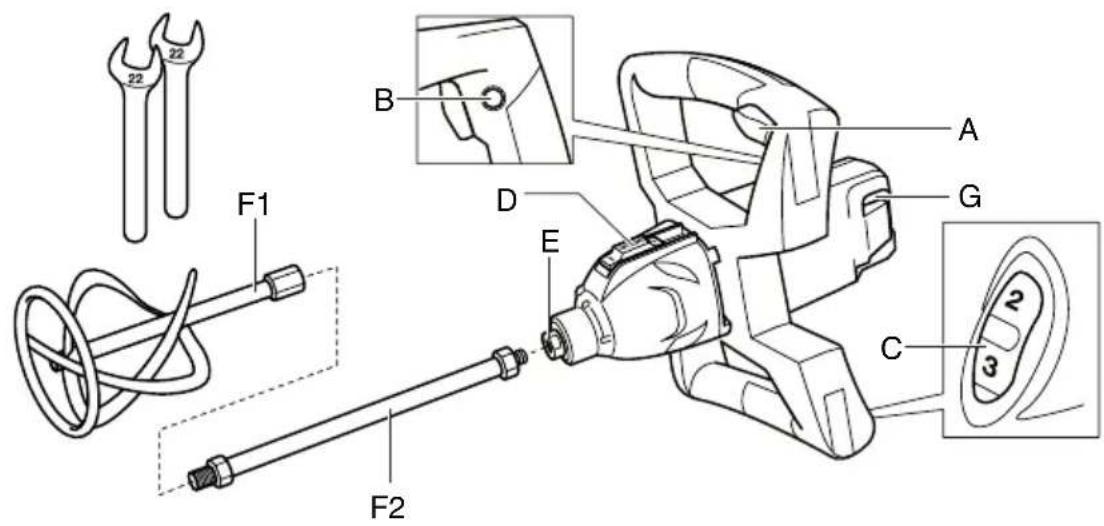

TOOL ELEMENTS ②

A Switch for on/off
B Button for switch locking
C Wheel for maximum speed control
D Gear selector
E Spindle
F Mixing paddle
G Ventilation slots

SAFETY

GENERAL SAFETY INSTRUCTIONS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use an earth leakage circuit breaker. Use of an earth leakage circuit breaker reduces the risk of electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

SAFETY INSTRUCTIONS FOR MIXERS

• Always check that the supply voltage is the same as the voltage indicated on the nameplate of the tool
• Never use the tool in or near an explosive atmosphere
• Never mix combustible substances
• Never reach with your hand or any other object into the mixing container during mixing
• Wear protective gloves ④, a dust mask ⑤, close-fitting clothes and sturdy shoes
• The noise level when working can exceed 85 dB(A); wear ear protection ⑥
• SKIL can assure flawless functioning of the tool only when original accessories are used
  • Always disconnect plug from power source before making any adjustment or changing any accessory WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):
• Do not connect the blue (= neutral) or brown (= live) wire in the cord of this tool to the earth terminal of the plug
• If for any reason the old plug is cut off the cord of this tool, it must be disposed of safely and not left unattended

USE

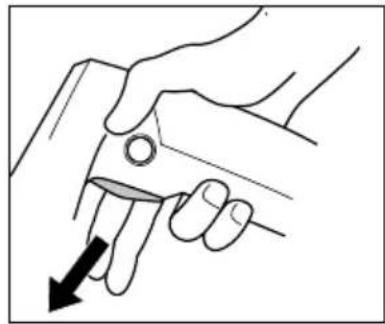

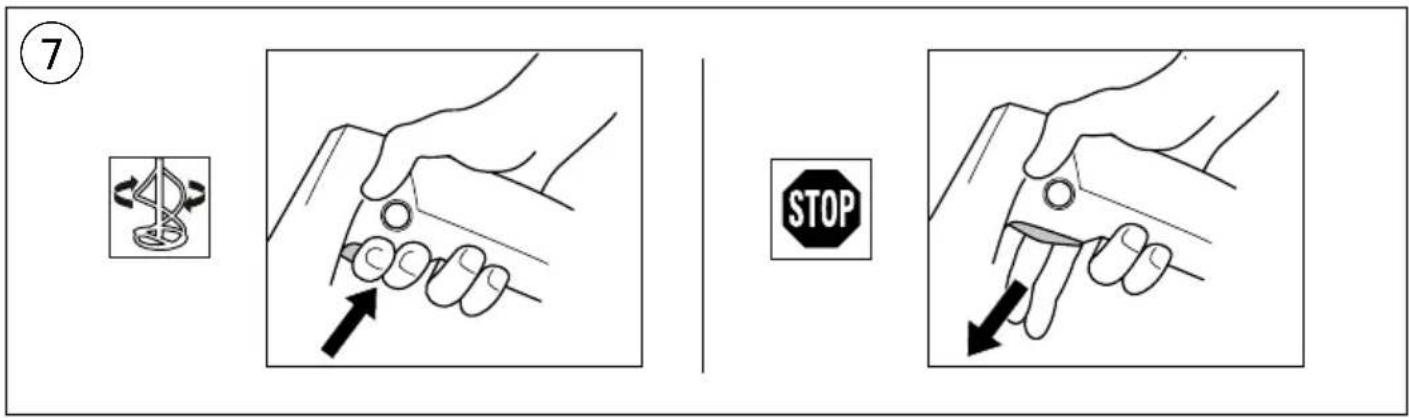

• On/off ⑦

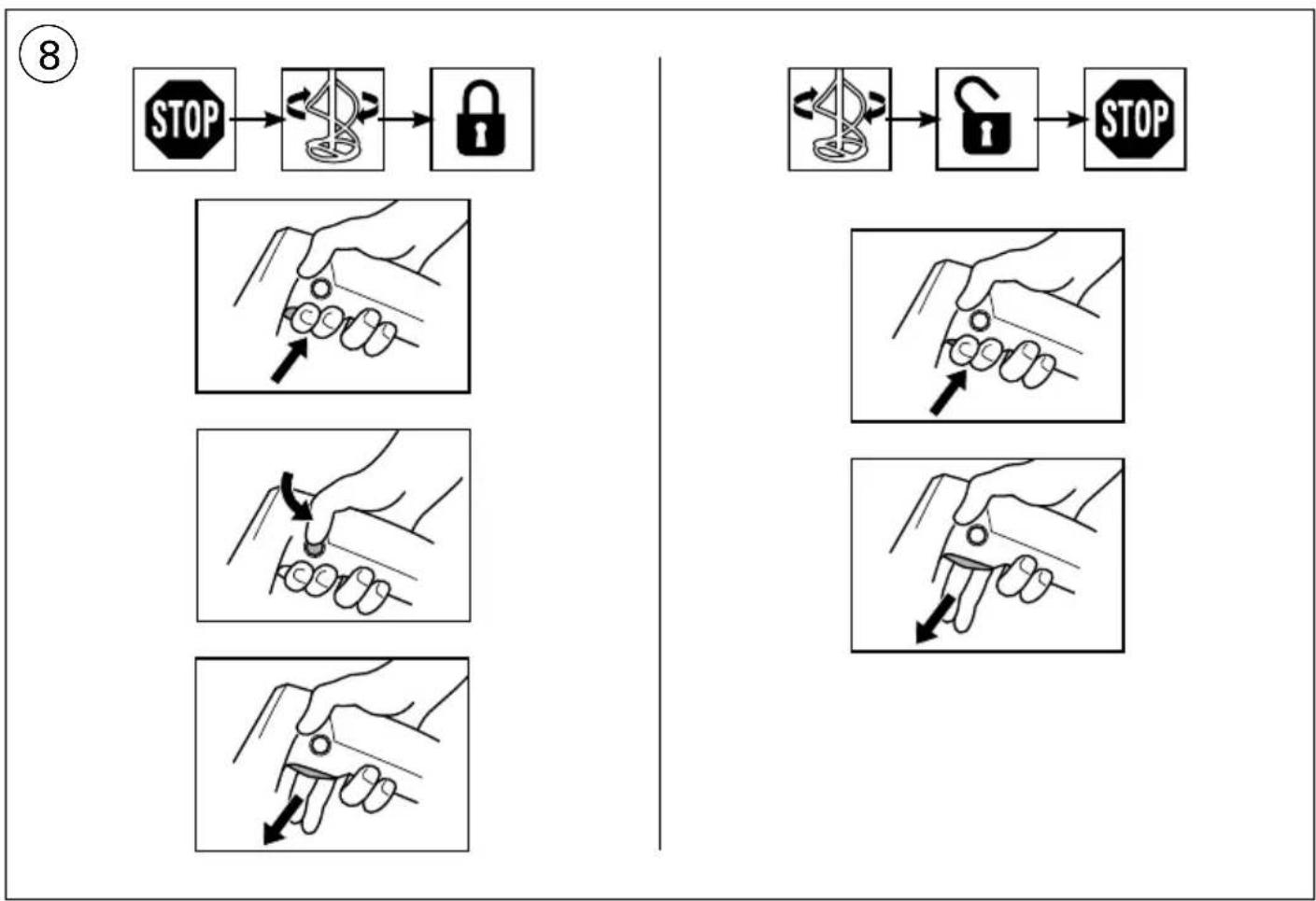

• Switch locking for continuous use ⑧

! be aware of the forces that occur as a result of jamming; hold the tool firmly with both hands and take a secure stance

• Maximum speed control ⑨

With wheel C the maximum speed can be adjusted from low to high (1-8+MAX)

• switch on the tool
• lock the switch
• turn wheel C to select maximum speed

- Mechanical gear selection ⑩

• set selector D to desired speed
  ! actuate the gear selector only when tool is switched off

1 = LOW SPEED

• high torque
• for mixing high-density substances
  2 = HIGH SPEED
• lower torque
• for mixing liquid substances

- Operating the tool

! ensure that the tool is switched off

• mount mixing paddle F onto spindle E as illustrated ⑪
• connect plug to power source
• ensure the mixing container is securely positioned on the floor
• dip the mixing paddle into the substance to be mixed
• set wheel C ② in position "1"
• switch on the tool
• gradually increase the mixing speed by turning wheel C ② to the desired maximum speed (so that the substance will not splash around)

! switch the tool off only when the mixing paddle is in the mixing container

• Electronic soft-start

Ensures reaching the maximum speed smoothly without a sudden impact when tool is switched on

• Electronic constant speed

Keeps the speed at a constant level as the load increases

• Electronic overload protection

• reduces the mixing speed automatically in case the tool is overloaded for a longer period of time
• release switch A ② briefly for returning to normal working speed

- Holding and guiding the tool ⑫

! while working, always hold the tool at the grey-coloured grip area(s)
! always hold the tool firmly with both hands

MAINTENANCE / SERVICE

• This tool is not intended for professional use
- Always keep tool and cord clean (especially the ventilation slots)

• always clean the mixer and functional parts after your mixing work
• clean the tool with a dry, soft cloth (do not use cleaning agents or solvents)
• clean ventilation slots G ② regularly with a brush or compressed air

! disconnect the plug before cleaning

• AUTO-STOP Carbon brushes

• this tool is equipped with carbon brushes which pop up automatically when worn, thus preventing the motor from being damaged
• when the tool stops unexpectedly, send it to your dealer or the nearest SKIL service-station for having the brushes replaced

- If the tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools

- send the tool undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skil.com)

ENVIRONMENT

- Do not dispose of electric tools, accessories and packaging together with household waste material (only for EU countries)

• in observance of European Directive 2012/19/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility
• symbol ⑬ will remind you of this when the need for disposing occurs

DECLARATION OF CONFORMITY C€

• We declare under our sole responsibility that the product described under “Technical data” is in conformity with the following standards or standardization documents: EN 60745, EN 61000, EN 55014, in accordance with the provisions of the directives 2004/108/EC, 2006/42/EC, 2011/65/EU
  • Technical file at: SKIL Europe BV (PT-SEU/ENG1), 4825 BD Breda, NL

• Measured in accordance with EN 60745 the sound pressure level of this tool is 85 dB(A) and the sound power level 96 dB(A) (standard deviation: 3 dB), and the vibration <2.5 m/s ^2 (hand-arm method; uncertainty K = 1.5 m/s ^2 )
• The vibration emission level has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

- using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level

- the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

! protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns
