USER MANUAL TB 7930 GRUNDIG

A B C D E F 132 G H I I CRUNDIG

DEUTSCH 4-15

ENGLISH 16-26

FRANÇAIS 27-37

ITALIANO 38-48

PORTUGUÊS 49-59

ESPAÑOL 60-70

POLSKI 71-81

ČESKY 82-92

MAGYAR 93-103

TÜRKÇE 104-114

ΕΛΛΗΝΙΚΑ115-125

SAFETY

Please note the following instructions when using the appliance:

■ This appliance is intended for domestic use only.
■ This appliance is designed solely for cleaning and caring for human teeth. All other uses are expressly prohibited.
■ Do not use if the appliance, attachments or the power cord on the charging unit is visibly damaged.
If the power cord from the charging unit is damaged, it must be replaced by the manufacturer, its service centre or a similarly qualified person to prevent danger arising.
■ When the appliance is being charged, on no account should it or the charging unit come into contact with water or any other liquid.
- Keep the appliance out of direct sunlight, excessive heat and open flames.

■ Do not drop the appliance.
- Keep the appliance out of the reach of children.
The appliance may not be used by the following people, including children: those with limited physical, sensory or mental capabilities and also those with a lack of experience and knowledge. This does not apply to the latter if they were instructed in the use of the appliance or if they use it under the supervision of a person responsible for safety. Children should always be supervised to ensure that they do not play with the appliance.
■ Do not open the appliance under any circumstances. No warranty claims are accepted for damage caused by improper handling.

OVERVIEW

Dear customer,

Congratulations on the purchase of your TB 7930 sonic electric toothbrush.

Read the following user notes carefully to ensure you can enjoy your quality product from Grundig for many years to come.

Special features

• Two different speed settings »High« (fast), »Low« (slow) and a »Massage« setting.
• 2 minute timer: after 2 minutes the appliance switches off for approx. 3 seconds and then starts again. After five timer cycles the appliance switches off automatically.
• Two brush heads and three additional attachments for special cleaning (tongue cleaner, gum massage attachment and brush for gaps between the teeth).

Using in the bathroom

Your toothbrush has a waterproof handle, is electrically safe and can be used in the bathroom without hesitation.

Oral hygiene

Careful oral hygiene is essential for maintaining healthy, beautiful teeth.

Daily intensive oral hygiene can prevent tooth decay, gum disease, inflammation of the gums and bad breath.

Cleaning

The sonic electric toothbrush removes plaque more precisely and effectively than conventional manual toothbrushes due to the high speed of the brushing movements on the surface of the teeth.

Discolouration of the teeth from coffee, tea or tobacco can be removed in a natural way. Teeth, tongue and gums can be cleaned and cared for carefully.

OVERVIEW

Intensity

You can set the intensity of the cleaning at 3 levels (high, low, massage).

The extensive accessories provide you with excellent conditions for personal oral hygiene.

Brushing time

The recommended time for brushing is 2 minutes. The timer then stops the function automatically.

Accessories

1 Tongue cleaner

The tongue cleaner freshens your breath as it removes the bacteria from the tongue which create bad breath. You can use it every day before or after brushing your teeth and also with mouthwash.

Set the appliance to a low speed, so you have more control over the cleaning.

2 Interdental cleaner

The interdental cleaner cleans effectively between the teeth and helps to improve oral hygiene. This should be done before you clean your teeth.

Set the appliance to a low speed, so you have more control over the cleaning.

3 Gum massage attachment

The gum massage attachment stimulates the gums with sonic vibrations.

It is best to use this attachment after brushing your teeth.

Note

■ The rounded Dupont® bristles on the brush head, tongue cleaner and the interdental cleaner enable you to clean your teeth perfectly and also protect your gums!

OVERVIEW

Contents and operating controls

See the illustrations on page 2.

A Normal attachment for brushing teeth.
B »I« switches between two speed settings and the massage setting.
c » switches the appliance on and off.
D »High Low Massage« LED for the »High« (red), »Low« (green) and the »Massage« (orange) settings.
»CHARGE« LED: lights up red when charging and green when it is fully charged.
F Charging unit and appliance holder with power cord.
G Storage container for brushing and cleaning attachments (with lid).
H Bracket for mounting the charging unit on the wall.
Two brush heads with medium bristles.

Accessories

1 Attachment for tongue cleaning.
2 Brush head for between the teeth.
3 Attachment for gum massaging.

A responsible approach!

GRUNDIG focuses on contractually agreed social working conditions with fair wages

for both internal employees and suppliers, as well as on the efficient use of raw materials with continual waste reduction of several tonnes of plastic each year – and availability of at least 5 years for all accessories.

For a future worth living. For a good reason. Grundig.

POWER SUPPLY

Mounting the charging unit on the wall

1 Remove the bracket of the charging unit (on the back of the appliance) and fasten the screws provided onto the wall.
2 Guide the power cord of the charging unit through the recess on the right side of the charging unit.
3 Position the charging unit onto the bracket at the top and slide down.

Charging

Check that the mains voltage on the type plate of the charging unit (on the bottom) corresponds to your local mains supply.

1 Put the toothbrush in the charging unit F
2 Plug the charging unit into the wall socket.
- The »CHARGE« LED on the appliance lights up red.
- Once the appliance is fully charged, the »CHARGE« LED lights up green.

Notes

• Charge the batteries fully before you use the appliance for the first time. When the appliance is fully charged, the »CHARGE« display lights up green.
  ■ The ambient temperature should be between 5 °C and 40 °C.
  ■ When the batteries are fully charged, they then provide approx. 60 minutes of cordless operation. This means, brushing your teeth for 2 minutes, 2 times a day for 2 weeks.
  ■ The charging process ends automatically once the batteries are fully charged. We recommend keeping the appliance in the charging unit so that it is available fully charged at all times.

OPERATION

Switching on and off

1 Press »◀« to switch on the appliance.
2 Press »◀« to switch off the appliance.

Selecting the speed

1 Select the speed level (»High«
= fast or »Low« = slow or the »Massage« setting) with »I«.
- LED »High«: red.
- LED »Low«: green.
- LED »Massage«: orange.

The 2 minute timer

Regardless of the speed setting selected, after 2 minutes the appliance switches off for approx. 3 seconds and then starts again. After five timer cycles the appliance switches off automatically.

Changing the attachments

1 Remove the current attachment from the holder.
2 Take the other attachment out of the storage holder 📄 the charging unit.
3 Press the attachment with the opening down onto the holder on the appliance until it clicks.

Notes

■ The mounting pin on the appliance is designed in a way that prevents you from attaching a new attachment incorrectly.
■ Replace the brush head when the bristles become bent and distorted. We recommend you to do this every 3 months.

DENTAL CARE

General information

1 Brush your teeth:

• in the morning after breakfast
• after mealtimes - and after snacking
• in the evening before bed for at least 2 minutes.

2 Rinse the brush under running water for a few seconds until it is thoroughly moist.

Close-up of a mechanical component with fluid flow, no visible text or symbols

Note

■ Rinse your mouth out with water before brushing your teeth.
3 Put your regular toothpaste on the brush.

Brushing your teeth – step by step

1 Before switching on, position the bristles (medium) of the brush head at an angle of 45^ onto the gum line so that the longer bristles reach between the teeth.
2 Tilt the handle slightly so that the bristles are resting at an angle on the gum line.

Illustration of a dental tool interacting with teeth (no text or symbols visible)

Note

■ Cleaning the area between the teeth and gums is extremely important.
3 Hold the handle loosely in your fingers and switch the appliance on with »◀«.

DENTAL CARE

4 Gently move the vibrating brush head in small circles to allow the longer bristles to get to the gaps between the teeth. After a few seconds, move to the next section and repeat the circular movements again for a few seconds.

Notes

■ Continue in the same way for all the teeth within the 2 minutes to thoroughly remove plaque.

■ The toothbrush works best if you apply slight pressure when brushing and continue with the circular movements at the same time.

The tilted brush head and the narrow neck make it easier to reach the molars at the back and the surface of the teeth inside the mouth. Hold the toothbrush so that you have as much brush contact to the teeth as possible.

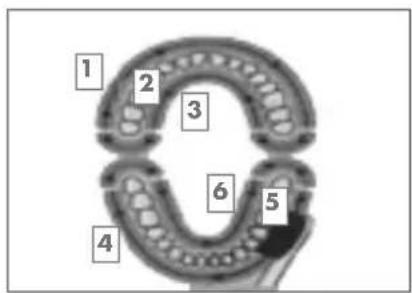

5 To ensure that all your teeth are cleaned evenly, the mouth can be divided into six sections:

1	Exterior upper jaw
2	Chewing surface upper jaw
3	Interior upper jaw
4	Exterior lower jaw
5	Chewing surface lower jaw
6	Interior lower jaw

1 2 3 4 5 6

6 Clean the tongue with the tooth-brush switched on or off and using the tongue cleaner provided. Apply slight pressure on the brush and scrape it forwards from the back - then rinse out.

DENTAL CARE

Note

In some cases you might experience a tickling or tingling sensation when using an electric sonic toothbrush for the first time. This sensation gradually subsides once you have got used to the sonic toothbrush.
7 Rinse your mouth out with water after brushing.
8 Rinse the bristles under running water after brushing to remove any remaining toothpaste. Dry the bristles. Leave the toothbrush to dry for a few seconds.

Close-up of a mechanical component with fluid flowing from a nozzle (no visible text or symbols)

Notes

■ We recommend using dental floss before you brush your teeth.
■ We also recommend using Meridol mouth wash.

INFORMATION

Environmental note

This product has been made from high-quality parts and materials which can be re-used and recycled.

Therefore, do not dispose of the product along with normal household waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. This is indicated by this symbol on the product, in the operating manual and on the packaging.

Simple line drawing of a trash bin with no text or symbols

Please find out about collection points operated by your local authority.

Help protect the environment by recycling used products.

Technical data

This product conforms to the European directives 2004/108/EC,

2006/95/EC and 2009/125/EC.

Power supply

Charging unit: 100-240 V\~, 50/60 Hz, 1W

Appliance: nickel metal hydride battery 2.4 V

Ni-MH

Technical and design modifications are reserved.

INFORMATION

Spare parts

Replacement brush heads (4) and attachments (3) are available for your toothbrush at:

• the customer hot line
• in the Internet at www.grundig.de/sonic or www.grundig.com/sonic
• the local dealer

Note

■ The rounded Dupont® bristles on the brush head, tongue cleaner and the interdental cleaner correspond to the requirements of the German LFGB (Food and Feed Code).

FOR A GOOD REASON

GRUNDIG

SONIC TOOTHBRUSH

CLEAN WHITE PLUS

3 IN 1

TB 7930
