USER MANUAL RGA 250 INDESIT

Line drawing of a mechanical component with a knob and two circular holes (no text or symbols)

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas

Illustration of a hand pulling a rack with arrows indicating direction (no text or symbols)

Fig. 1

Diagram of a door handle assembly with arrows indicating movement (no text or symbols)

Fig. 2

Per congelare bene

Line drawing of a hand holding a small object near a window (no text or symbols)

Fig. 3 Fig. 4

Line drawing of a hand holding a mechanical component (no text or symbols)

Safety - a good habit to get into.

ATTENTION

Read your manual carefully since it contains instructions which will ensure safe installation, use and maintenance of your appliance.

Your Refrigerator is built to International safety standards (EN60) ans has been awarded the European approval mark (IMQ) for compliance with UK electrical safety requirements. It also meets the EC standards on the prevention and elimination of radio interference (EC directive 87/308 - 02.06.89).

1. This appliance must not be installed outdoors - not even in an area protected by a roof. It is extremely dangerous to leave it exposed to rain or storms.
2. It must only be used by adults and exclusively to refrigerate and freeze foodstuffs, following the instructions for use contained in this manual.
3. Do not ever touch or handle the appliance with bare feet or with wet hands or feet.
4. It is highly recommended that you do not use extension cords or multiple socket adapters. If the refrigerator is installed between cabinets, make sure that the cord is not bent or dangerously pinched or compressed.

5. Never pull on the cord or the refrigerator to remove the plug from the wall socket - this is very dangerous.

6. Never touch the cooling components within the appliance, especially with wet hands because this could result in injury. Never put ice cubes just removed from the freezer into your mouth because they could stick to your mouth and cause burns.

7. Never clean or perform maintenance on the appliance without first removing the plug from the socket; in fact, turning the knob for adjusting the temperature to the ●setting is not sufficient to eliminate all electrical contact with the mains.
8. Before having your old refrigerator picked up for disposal, remove or make inoperable any locking devices to prevent children who might play in or around the appliance from being locked inside.
9. Before calling for service/assistance in the case of malfunction, consult the chapter entitled "Is There a Problem? to determine whether it is possible to eliminate the problem. do not try to repair the problem by trying to access the internal components of the appliance.
10. If the power supply cord must be replaced, please contact one of our Customer Service Centers. In some cases, the connections are made using special terminals and in others a special tool must be used to access the connections.

Installation

To ensure that the appliance operates properly and to reduce energy consumption, it is important that the appliance is installed correctly.

Ventilation

The compressor and condenser generate heat and, therefore, need to be ventilated properly. Rooms with less than perfect ventilation are not very suited for installation of the appliance. Therefore, it should be installed in a room with an opening (window or French window) that provide the appropriate amount of air re-circulation. It is also important that the room not be too humid.

During installation, make sure not to cover or obstruct the grates that allow for proper ventilation of the appliance.

For proper ventilation of the appliance, you must leave:

- a space of at least 10 cm between the top part and any cabinets above it;

- a space of at least 5 cm between the sides of the appliance and any adjacent cabinets/walls.

Away from Heat

Avoid positioning the appliance in a place where it is directly exposed to sunlight or near an oven, cook top or the like.

Level

The appliance must be level. If the floor is not level, the adjustable feet located in front can be used to level the appliance.

Electrical Connection and Earthing

Before proceeding with the electrical connection, make sure that the voltage indicated on the rating plate, located at the bottom left near the vegetable crisper, corresponds to the mains voltage in your home and that the socket is fitted with a standard earthing wire in accordance with safety standards for 46/90 systems. If the socket is not fitted with an earthing wire, the manufacturer will not be held liability for any damages and or injuries arising out of the use of the appliance. Do not use multiple sockets or adapters.

Insufficient power?

The electrical socket must be able to handle the maximum power load of the appliance, which is indicated on the rating plate located at the bottom left next to the vegetable crisper.

Before making the electrical connection ...

After the appliance has been delivered, place it in the vertical upright position and wait at least 3 hours before inserting the plug into the socket in order to ensure that it functions properly.

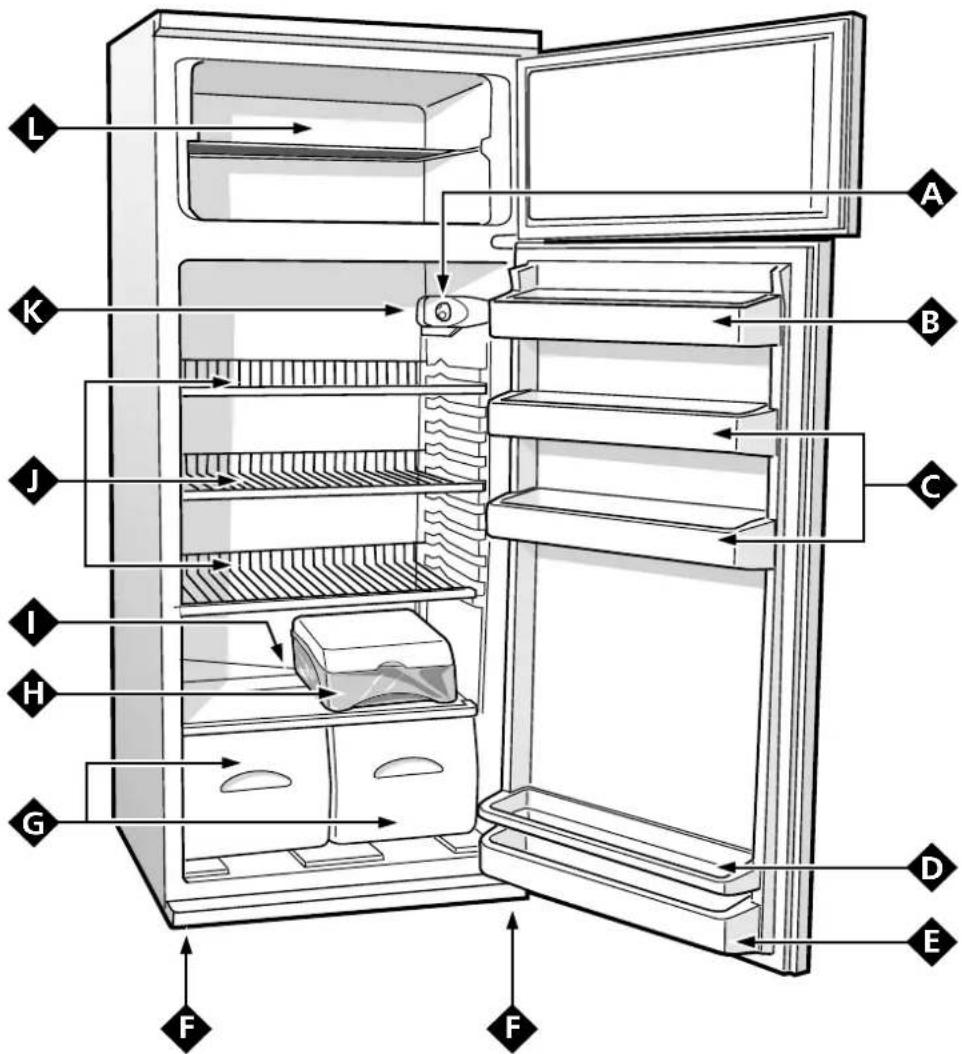

A closer look

Temperature regulation knob

Use this knob to regulate the temperature of the refrigerator. The following settings are available:

- refrigerator OFF;

1 minimum cold temperature;

5 maximum cold temperature

Diagram of a dial indicator with three numbered positions (no text or symbols)

Fruit and vegetable drawers

Meat/cheese storage box

Drainage system for defrost water

Removable height adjustable shelves

Light

Compartment for storing frozen foods, freezing fresh foods and making ice

Removable shelf with egg compartment

Removable door shelf for food products

Removable shelf-rail

Door shelf for large bottles with rail

Adjustable feet

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas

How to Start the Appliance

NOTICE

After the appliance has been delivered, stand it in the upright position and wait approximately 3 hours before connecting it to the electrical outlet to guarantee that it operates properly.

Before placing foodstuffs in the refrigerator or freezer, clean the interior well with warm water and baking soda.

After putting the plug in the socket, make sure that the light is on inside the appliance and then turn the thermostat knob (A) to the "3" setting. After a few hours have passed, you can place fresh food in the refrigerator compartment and frozen foods into the freezer.

How to use the refrigerator compartment...

The thermostat automatically regulates the temperature inside the appliance

1 = less cold
5 = colder

It is recommended that a medium setting be used.

To increase the amount of space, optimize arrangement and improve appearance, this appliance has a “cooling area” located within the back panel of the refrigerator compartment. When the appliance is operating, this panel may be covered with frost or droplets of water depending on whether the compressor is operating or not at a given time. Do not be

concerned about this! The refrigerator is operating normally.

If the thermostat knob is positioned on higher settings while the refrigerator is heavily filled and the ambient temperature high, the appliance may run continuously, resulting in the formation of frost on the back cooling area. This will lead to an increase in energy consumption.

To avoid this situation, just turn the thermostat knob to a lower setting so that the appliance defrosts automatically.

Storing Food in the Refrigerator Compartment
Food Storage Time Location in the Refrigerator

Wrapped meat and cleaned fish(use plastic wrap or pack in plastic bags)	2 or 3 days	On the shelf above the vegetable crisper(Which is the coldest area)
Fresh cheese 3 or 4 days		On the shelf above the vegetable crisper(Which is the coldest area)
Eggs 1 month in special egg rack on door
Butter' margarine On any shelf
Cooked or precooked food(placer in air-tight containers and when cool store in refrigerator)	3 or 4 days On any shelf
Sausages' salami' sandwich meats in general' fresh pasta' custards' puddings' chocolates' cream pastries' bread' dry pastries' red tomatoes	3 or 4 days On any shelf
Bottled products' milk' drinks' yoghurt On special door shelves:		*
Fruits and legumes in vegetable crisper

What Not to Store in the Refrigerator

Garlic (transmits odour), onions and leeks.

Bananas (they will turn black).

Citrus fruits.

Potatoes and root vegetables (store in dark, dry places).

* For storing large bottles use the shelf with the rail which can be placed on any shef.

- Within the refrigerator compartment, the air circulates naturally, with the colder air falling because it is heavier. This is the reason why meat and cheeses should be placed above the vegetable crisper.

- Please follow our instructions carefully on maximum storage time: any food, even the freshest, will not remain edible for any extended amount of time.

- Contrary to popular belief, cooked foods do not store any longer than raw food.

- Do not place liquids in containers without covering them because this will lead to an increase in the level of moisture within the refrigerator, causing the formation of frost.

- Be careful not to place containers (plastic or glass), food or other objects in direct contact with the cooling area of the back wall of the refrigerator. This could harm the food, increase energy consumption and facilitate the formation of condensate (on food, containers, etc.).

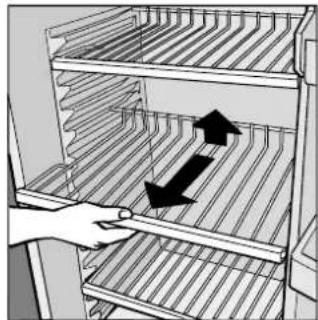

- The refrigerator compartment is equipped with convenient, removable shelves (Fig. 1) which can be adjusted for height using the shelf guides. This allows you to place even large containers and foodstuffs in the refrigerator.

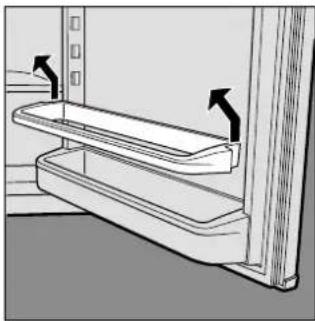

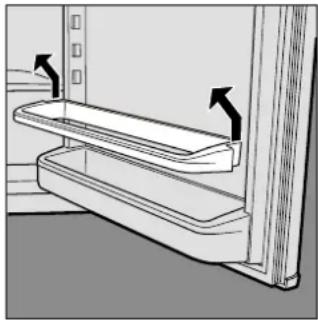

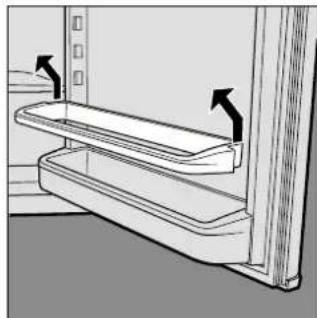

- The rail (item "D") is removable (Fig. 2), and, therefore, it can be positioned on any shelf depending on your particular needs.

Diagram of a hand opening a refrigerator with arrows indicating airflow direction (no text or symbols)

Fig. 1

Diagram of a door handle mechanism with arrows indicating movement (no text or symbols)

Fig. 2

Freezing Foods Properly

- For the preparation of food to be frozen, please consult a specialized manual.

- Food that has be thawed, even partially, must not be re-frozen: you must cook it in order to consume it (within 24 hours) or to freeze it once again.

- Fresh foods that you intend to freeze must not be placed in contact with those that are already frozen or those that have been fast-frozen. Rather, they must placed atop the grate in the freezer compartment, in contact with the walls of the compartment (back or side) if possible. Please keep in mind that proper conservation of frozen foods depends on the speed with which they are frozen.

- During the freezing process, avoid opening the door of the freezer.

- The maximum daily quantity of food that can be frozen is indicated on the rating plate located to the left of the vegetable crisper.

- In order to freeze and then thaw foods optimally, it is recommended that you divide food into small portions so that they freeze quickly and uniformly. The packages should be clearly marked with the content and the date they were frozen.

- Do not open the freezer door in the event of a power failure or malfunction. This precaution will slow the rise in temperature within the compartment. If the door is not opened, frozen and fast-frozen foods will remain in their current state for approximately 9-14 hours.

- Do not place full bottles in the freezer: they could easily burst because all liquids increase in volume when they freeze.

- Fill the ice cube trays about 3/4 full.

- If the ambient temperature remains below 14^ C for an extended period of time, the temperature needed for extended storage of food in the freezer will not be reached, resulting in reduced storage life of the food.

Tips on Saving Energy

- Install the Appliance Properly

In other words, away from sources of heat and direct sunlight, in a well ventilated room complying with the minimum distances indicated in the paragraph entitled, "Installation/Ventilation."

- Use the Right Temperature Setting

A setting which is too cold increases energy consumption.

- Do not Overfill

To conserve food properly, the cold air must circulate freely within the refrigerator. If it is overfilled, this will prevent proper air circulation, forcing the compressor to work continuously.

- Close the Doors

Open your refrigerator as little as possible because each time you do so you loose much of the cold air. To raise the temperature to the proper level again, the motor must work for a long time, consuming energy.

- Keep an Eye on the Seals

Keep the seals clean and make sure that they adhere well to the door. This alone will ensure that no cold air escapes.

- No Hot Foods

A hot pot or pan placed in the refrigerator immediately raises the temperature several degrees. Let hot cookware and food cool to ambient temperature before placing them in the refrigerator.

- Defrost the Freezer

Check the thickness of the frost on the walls of the freezer and immediately defrost it if the layer of frost is too thick. (see the section entitled, "Keeping your Appliance in Shape").

Caring for Your Appliance

Defrosting

Do not use mechanical devices or other tools to speed up the defrosting process, unless they have been recommended by the manufacturer.

How to Defrost the Refrigerator

This appliance defrosts automatically and the water is channeled to the back toward the drain installed for this purpose (fig. 3). Here, the heat produced by the compressor will make it evaporate. The only thing you must do is to periodically check and clean the hole of the drain, which is located behind the vegetable crispers, so that the water drains properly.

How to Defrost the Freezer

- Every so often, remove the frost with the scraper provided with the appliance (do not use knives or metal objects).

- If the frost is more than 15 mm thick, the freezer must be defrosted.

Proceed as follows: turn the thermostat knob (A) to the setting ● Then wrap all the frozen and fast-frozen food in newspaper, placing it either in the refrigerator or in a cool place. Leave the freezer door open so that the frost thaws completely. You can speed this process by placing containers of warm water in the compartment.

Cleaning and Special Maintenance

Before cleaning the refrigerator, remove the plug from the socket.

- The materials used to build your appliance are hygienic and do not transmit odors. However, to preserve this quality of your appliance, the food stored in it must be well closed and covered to prevent spills which could stain it and cause unpleasant odors.

• Only water and baking soda. To clean both the interior and exterior, use a sponge with warm water and baking soda, which is, among other things, a good disinfectant. If you do not have any in the house, you can use a neutral soap.
• What not to use. Never use abrasives, bleach or ammonia. Solvents and similar products are strictly prohibited.
• All the removable part should be taken out and allowed to soak in hot water and dishwashing soap. Rinse and dry them well before putting them back in the refrigerator.
• And the back? This is where dust builds up, causing problems with the appliance. Use a long adapter on your vacuum, at a medium power setting, to remove it. Be delicate!
• When the appliance is not used for a long time. If you decide not to use the appliance (during the summer), it must cleaned and the doors left open to prevent the formation of mold and unpleasant odors.

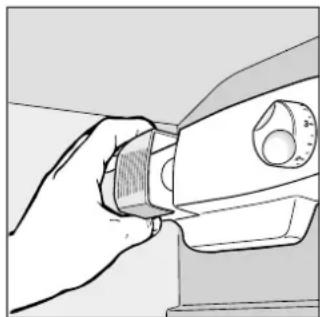

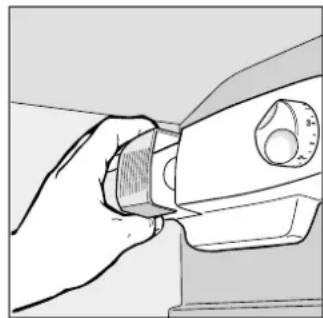

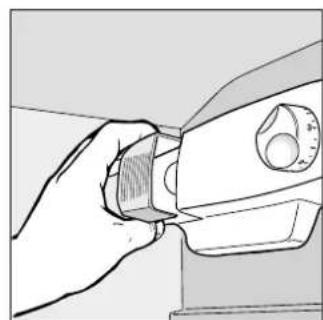

• How to replace the refrigerator lamp. The lamp is located on the pack part of the thermostat knob box. When replacing the lamp, unplug the appliance from the electrical socket, unscrew the burned out lamp and replace it with another following the steps illustrated in figure 4. Make sure that the wattage is not greater than 15W.

Line drawing of a hand holding a small object near a window (no text or symbols)

Line drawing of a hand holding a mechanical component with no visible text or symbols

Fig' 3 Fig' 4

Is There a Problem?

The refrigerator does not function.

Have you checked whether:

• The main switch for the electricity to the apartment or home has been turned off;
• The plug is properly inserted in the outlet;
• The outlet is adequate; try inserting the plug into another outlet in the room.

The refrigerator and the freezer do not cool properly.

Have you checked whether:

• The doors do not close well or the seals are faulty;
• The doors are left open too long;
- The thermostat knob is not on the proper setting;
- The refrigerator or freezer is overfilled.

The food in the refrigerator becomes too cold.

Have you checked whether:

• The thermostat knob is on the proper setting;
• The food is in contact with the back wall - which is the coldest part.

The motor runs continuously.

Have you checked whether

• The doors are not closed well or have remained open too long;
  • The ambient temperature is too high;
• The thermostat knob is not on the proper setting.

The appliance makes too much noise.

The gas refrigerant produces a slight noise even when the compressor is not running (this is not a defect).

Have you checked whether:

• The refrigerator is level.
- The appliance was installed between cabinets or objects that vibrate and make noise.

There is water on the bottom of the refrigerator.

Have you checked whether:

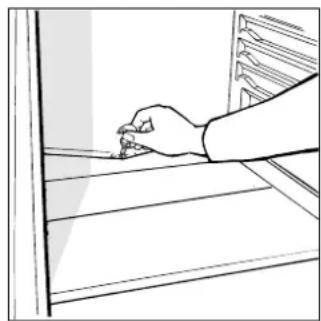

- The hole for draining the water from the frost is clogged (see fig. 3).

If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service Centre and inform them of: the type of problem, the abbreviation of the model name (Mod.) and the relative numbers (S/N) written on the rating plate located at the bottom left next to the vegetable crisper (see examples in the figures below).

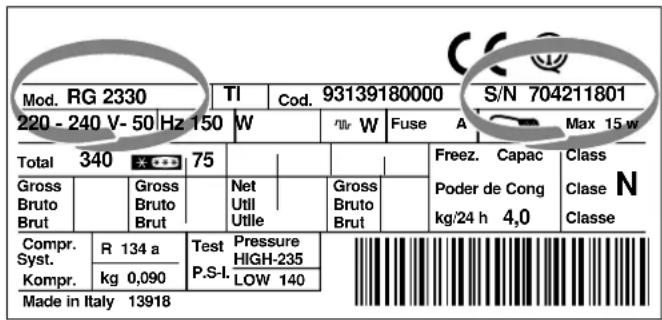

Mod. RG 2330 TI Cod. 93139180000 S/N 704211801 220 - 240 V- 50 Hz 150 W W Fuse A Max 15 w Total 340 75 Gross Bruto Brut Gross Bruto Brut Net Util Utile Gross Bruto Brut Freez. Capac Poder de Cong kg/24 h 4,0 Class N Classe Compr. R 134 a Test Pressure Syst. HIGH-235 Kompr. LOW 140 kg 0,090 Made in Italy 13918

RG 1145 | WEU 47133980001 MADE IN ITALY S/N 704045585 VOL. BRUT GROSS VOL. 135 I. VOL. BRUTO cu. fl. REFRIGERATEUR A Q FRIGOR cu. fl. SYSTEME A COMPRESSION R134 A SYSTEM K REFRIGERATEUR 0,080 SISTEMA FRIGORIFICO kg. POUVOIR DE CONGEL. kg/24h FUSE LINK 220-240 HZ W CLASSE FREEZING CAPACITY V ~ 50 110 CLASS PODER DE CONGELACION

Never call on unauthorized technicians and always refuse spare parts which are not originals.

Line drawing of a mechanical knob or dial with no text or symbols

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas

Illustration of a hand pulling a ladder inside a refrigerator (no text or symbols)

Fig. 1

Diagram of a door handle mechanism with arrows indicating movement (no text or symbols)

Fig. 2

Pour bien congeler

- Attention aux joints

Line drawing of a hand holding a small object near a window (no text or symbols)

Fig. 3

Line drawing of a hand holding a tool, no text or symbols present

Fig. 4

Diagram of a mechanical knob with adjustment arrows and circular indicators (no text or symbols)

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas

Illustration of a hand placing a tray into a refrigerator with arrows indicating motion (no text or symbols)

Afb. 1

Diagram of a door handle assembly with arrows indicating movement or force (no text or symbols)

Afb. 2

Invriezen

Line drawing of a hand holding a small object near a window (no text or symbols)

Afb. 3

Line drawing of a hand holding a mechanical component with no visible text or symbols

Afb. 4

Er is een probleem
