USER MANUAL Spirit TopLine 8120 Schulthess

Instructions for the use of professional washing machines

Follow the safety instructions!

Only use appliance after first reading these instructions!

Produkte-Nr. 8120.1

Product No.

Line drawing of a washing machine with front panel and side door (no text or symbols)

WA08 E

SCHULTHESS

SCHULTHESS

EC Declaration of conformity

Manufacturer: Schulthess Maschinen AG

Address: Landstrasse 37 CH-8633 Wolfhausen

Hereby declares that the washing machines:

Type:	Spirit BaseLine 7110	Spirit TopLine 7620	Spirit TopLine 8120
Prod. No. 711	0.1...X 7620.1...X	8120.1...X

- are in conformity with the relevant provisions of the

Machinery Directive 2006/42/EC

- are in conformity with the provisions of the following other EC-Directives

Electromagnetic compatibility 2004/108/EC

Wolfhausen, December 2009 Schulthess Maschinen AG

Ch. Daneffel H.-P. Caderas Manager Research & Development Product Manager

SCHULTHESS

Directive Machines 2006/42/CE

We are pleased that you have chosen a Schulthess washing machine.

Your new washing machine is the result of many years of development work. The highest quality requirements, both in development and manufacture, guarantee a long lifetime.

Its design meets all the current and future demands of modern laundry care. It offers you a varied and individual choice of programmes.

With its extremely efficient use of water, energy and detergent, it helps to reduce the pollution of our environment and ensures you the maximum possible efficiency in the operation of your washer.

Please read these instructions carefully to enable you to use all the possibilities and advantages of your new washing machine.

Please note in particular the chapter «Safety information» and the enclosed guarantee and customer services booklet.

We hope you will be very happy with your new Schulthess machine.

Your

Line drawing of a hand inserting a drawer into a file (no text or symbols)

Line drawing of a hand inserting a device into a machine (no text or symbols visible)

Line drawing of a drawer with an open drawer containing internal compartments (no text or symbols)

Diagram of a refrigerator interior showing door, seat, and drawer with labeled dimensions in millimeters

Line drawing of a hand inserting a circular component into a ring, with no text or symbols present.

Line drawing of a hand inserting a drawer into a drawer with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a faucet spraying water onto a storage tray, with no text or symbols present.

Line drawing of a mechanical assembly with a downward arrow indicating process (no text or symbols)

Line drawing of a drawer with an arrow indicating direction (no text or symbols)

Diagram of a faucet spraying water onto two buckets (no text or symbols)

Diagram of two mechanical components with arrows indicating motion or force direction (no text or symbols)

Notentleerung

Simple line drawing of a curved arrow pointing to a square object with an arrow, no text or symbols present

Simple line drawing of a ceiling-mounted device with a circular base and directional arrows, no text or symbols present.

Diagram showing two views of a door switch mechanism with directional arrows (no text or symbols)

Line drawing of a faucet with a threaded screw and handle (no text or symbols)

Diagram of a piping connection setup with a valve and fittings (no text or symbols)

Mechanical assembly diagram showing two stages of a device with arrows indicating motion direction (no text or symbols)

Mechanical assembly diagram showing two components with downward arrows indicating motion (no text or symbols)

Waste disposal advice

▶ Packaging from your new machine 34
▶ Disposal of your old machine 34

Safety information 34/35

How to wash correctly and environmentally friendly

▶ Water hardness 36
▶ Detergents 36/37
▶ Stain removal 37
▶ Washing tips 37

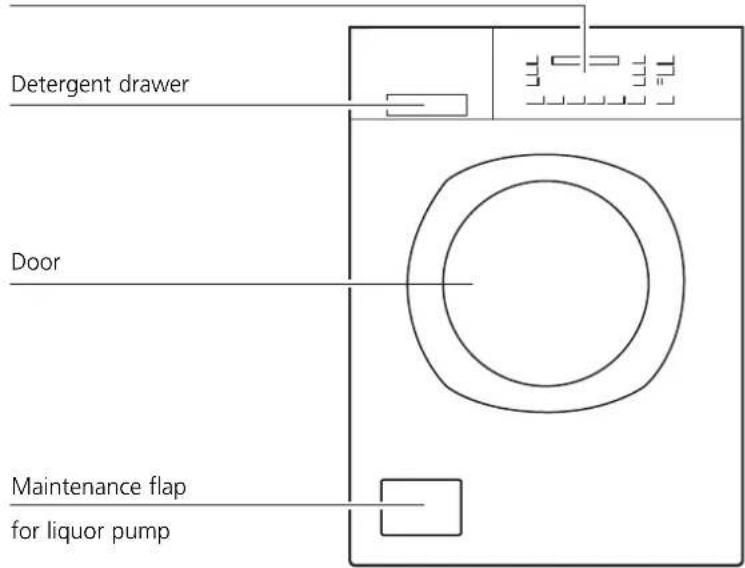

Machine description

▶ Control and display area 38

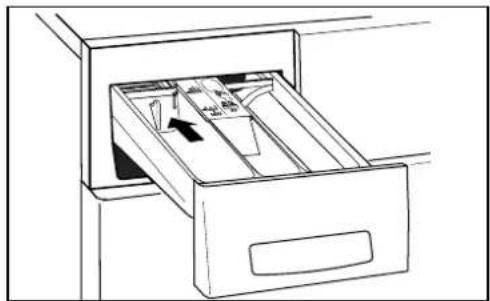

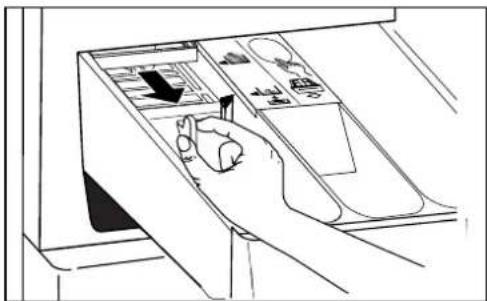

▶ Detergent drawer 39

First-time use

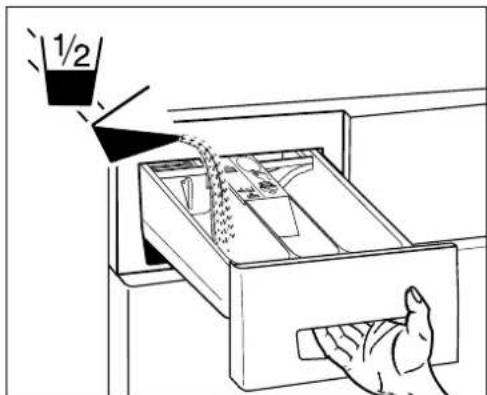

▶ First wash cycle 39

Washing

▶ Standard programmes 40
▶ Particular programmes 40
▶ Special programmes 41/44
▶ Washing

▷ Preparation 45
▷ Opening the loading door 45

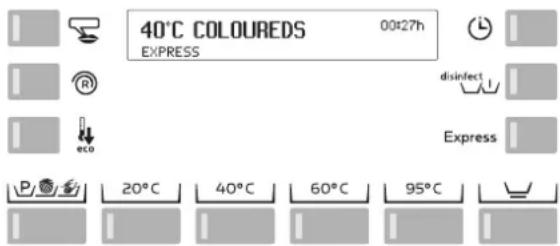

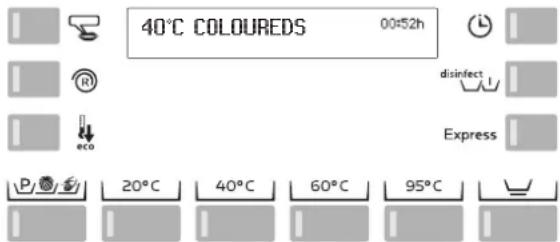

▷ Selecting the wash programme 45
▷ Selecting additional programmes 45
▷ Selecting additional functions 45
▷ Adding laundry
▷ Closing the door 45
▷ Adding the detergent 45
▷ Starting the programme 46

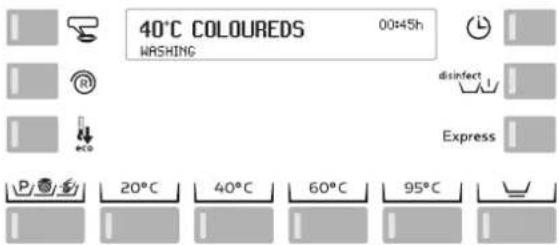

▷ Programme time/programme status 46
▷ Changing the programme before starting 46
▷ Cancelling the programme 46
▷ Ending the programme with rinsing stop 46
▷ Programme end 46
▷ Removing the laundry
▷ Switching off the machine 46

▶ Additional programmes

▷ Express programme 47
▷ Gentle programme for easy care fabrics 47
▷ Prewash 47
▷ Disinfection

▶ Additional functions

▷ Start time preselect 47
▷ Reducing the temperature 47
▷ Spin speed 47
▷ Rinsing stop 48
▷ Quick wash 48

▶ Special programmes

▷ Wool 48
▷ Hand wash 48
▷ Delicates 48
▷ Silk 48
▷ Shirts/Blouses 48
▷ Curtains 48
▷ Nappies 48
▷ Impregnation 48/49
▷ autoClean 49
▷ Spin 49

▶ profiClean programmes

▷ Selecting profiClean programme 49
▷ Selecting additional functions 49
▷ Adding laundry/Closing the door 49
Programme Set «profiClean» 49
▷ Disinfection 49

Basic settings

▷ Additional rinse 50
▷ Water level when washing 50
▷ Water level when rinsing 50
▷ Spin speed reduction 50
▷ Time 50
▷ Language 50

▶ Extended basic settings

▷ Skincare function 50
▷ Child lock 50
▷ Rinsing stop 50
▷ Load metering 51
▷ Memory function 51
▷ Soap wash programme 51
▷ Soak programme 51
▷ Cool down function 51
▷ Loosening up t programme end 51
▷ Wash time reduction 51
▷ LCD Brightness 51
▷ LCD Contrast 51
▷ Summer noise level 51
▷ Standby function 51
▷ Optical interface 52
▷ Reduced mains power 52
▷ Wash Programme Set 52
▷ Default language 52
▷ Door opening at programme end 52
▷ Start time preselect 52
▷ Information for testing institutes and users 52

Cleaning and Maintenance

▶ Cleaning the machine 53

▷ Descaling the machine 53

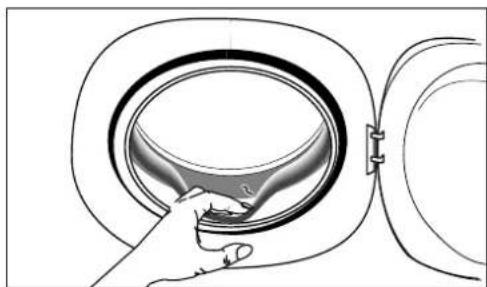

▷ Cleaning the drum 53

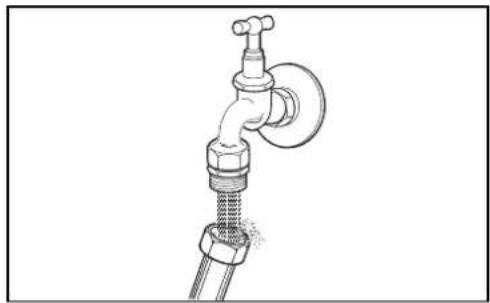

▷ Water supply hose 53
▷ Frost protection 53

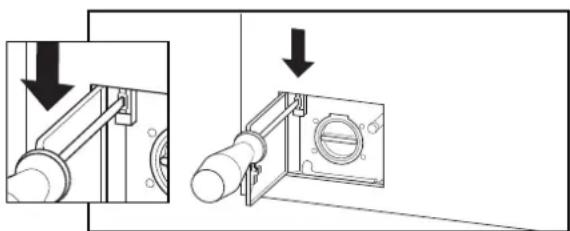

▷ Emptying the drain pump 53
▷ Emptying the water supply hose 53

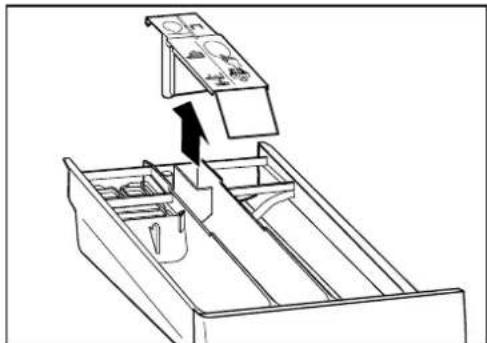

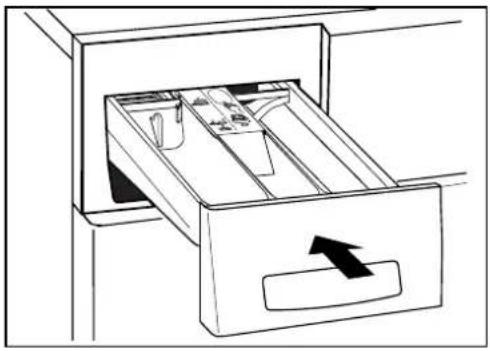

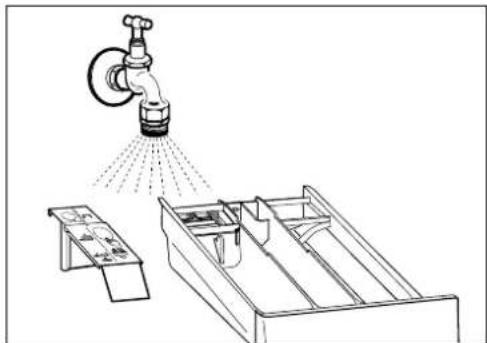

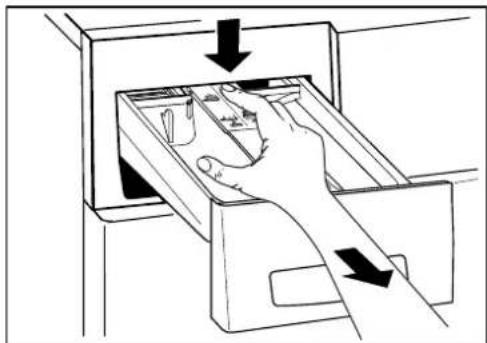

▷ Cleaning the detergent drawer 53/54

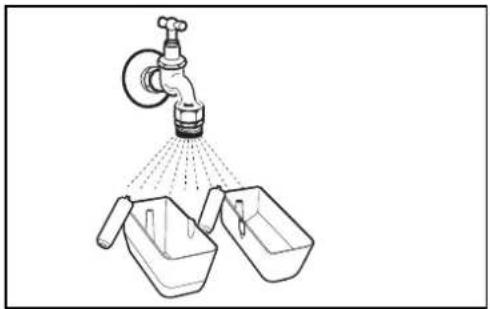

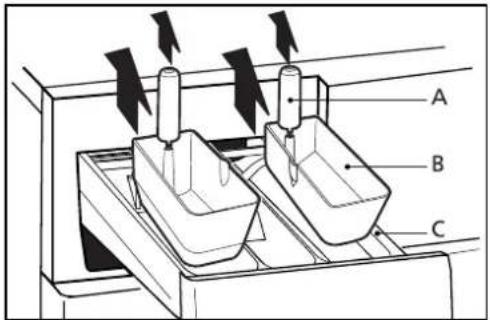

▷ Cleaning the liquid containers 54

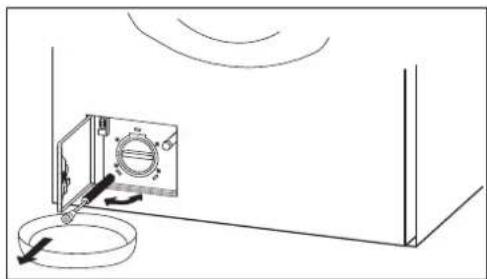

▷ Emergency emptying 54

▶ Cleaning the filter in the water inlet 55

Wash-Card

▶ Insert Wash-Card 55
▶ Storing wash programmes 55
▶ Remove the Wash-Card 55
▶ Selecting special programmes 55
▶ Additional functions 55

Problems

▶ Error messages on the display 56
▶ Troubleshooting 57/58

Customer Services

▶ Product- and Serial no. 59

Warranty subscription 59

⚠️ Safety information and warnings

indicates work steps which must be executed one after the other
- enumerations, general useful hints

Waste Disposal Advice

Packaging from your new machine

Dispose of all packaging materials properly.

⚠️ Packaging materials are not toys.

Processing and reuse saves raw materials and reduces waste volumes.

The packaging can be returned to the retailer or supplier. All packaging materials used are environmentally friendly and reusable. All card is made of 80-100% recycled paper.

Wood is not chemically treated. Films are made of polyethylene (PE), banding is made of polypropylene (PP).

These materials are pure hydrocarbon compounds and are recyclable.

Disposal of your old machine

⚠️ Worn out machines should be made unusable:

After unplugging the machine or after an electrician has removed the connection, cut through and remove the mains cable. Destroy or remove the door lock so that playing children cannot become locked in and put their lives at risk.

Components from your old machine must not be reused. The old machine contains valuable materials which should be sent for recycling.

Please ensure that your old machine is disposed of properly.

Please do not keep your old machine and under no circumstances dispose of it in your normal waste.

Additional information on the recycling of this product can be obtained from your commune, your waste disposal contractor or the shop in which you bought the product. In this way you can help to ensure environmentally friendly disposal and/or recycling methods.

Safety Information

This machine meets the stringent safety regulations for electronic devices. It is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. Please observe the safety instructions in these operating instructions and the appurtenant mounting instructions.

General safety information:

Do not stand on the machine.
Do not sit, lean or support yourself on the loading door. (danger of tipping!)
Under no circumstances spray the machine with water or clean it with a steam cleaner.
Do not immerse the aqua-stop valve in water: Electric shock hazard.
If the machine is not needed for a longer period of time, turn off the tap and disconnect it from the power supply.
⚠️ Touch the power plug with dry hands only. Only pull the plug, do not pull the cable.
⚠️ Repair work may only be executed by qualified and trained personnel and defective components may only be replaced with original spare parts by Schulthess. Inexpert repairs can cause considerable damage and risk to the user. Modifications to the appliance are only admissible after consultation with the manufacturer.
If the mains lead to this device becomes damaged, it must be replaced with a special lead available from the manufacturer or the manufacturer's customer service.
Detergents and laundry care agents must be kept out of children's reach. Store laundry detergents, aids and other additives in a dry, cool place, as clumpy detergent can lead to functional problems.

In case of doubt, ask Customer Service or a dealer.

Observe before start-up:

Read the enclosed documents carefully before using your washer-extractor. They contain important information on the installation, use and safety of the machine. Keep the documents safe for other users or subsequent owners.
⚠️ Remove the transport-securing device and store it in a safe place.
Have the machine installed according to the mounting instructions by qualified and trained personnel. If the machine is to be placed on a plinth, it must be mounted according to the installation instructions, otherwise this involves danger of tipping or falling.
Do not connect an appliance which displays visible damage.
You must use a new hose kit to connect the device to the water supply. Old hose kits should not be reused. Check the hose kit at regular intervals to ensure it can be changed in time to prevent water damage.

Check that the pump cover is inserted and fastened securely. Otherwise water can leak from the machine and cause a slipping or scalding hazard.
When operating the washing machine at 2000 m above sea level, it is absolutely imperative to activate the temperature limiter to prevent the water from boiling (see service instructions or ask the customer service and/or retailer).

Observe when washing:

The machine is exclusively intended for washing or wet cleaning and spinning of all fabrics bearing a care label indicating their suitability for these methods.
Do not leave children unattended near the machine and do not let them play with it, especially during the waiting phase of start time preselection. If required activate child lock (see chapter «Extended basic settings»).
⚠️ Keep pets away from the machine.
If there is a puddle on the floor near the machine (hose rupture, leakage or similar), wipe it dry and eliminate the cause (see chapter «Problems»), otherwise slipping hazard.
Do no place any objects on the top cover of the machine: They might slip off and fall to the floor during the spinning process.
Only use detergents, washing agents and other additives, which are intended for use in household washing machines: softeners, colouring and bleaching agents, starch, etc. Only add laundry starch in the final rinse (conditioner), because there is a risk of explosion at other stages of the wash.
Under no circumstances use any solvent-based detergents in the washing machine. Textiles which contain inflammable chemicals, solvent-based detergents, must be rinsed well in clear water by hand before washing. There is a risk that parts of the machine could be damaged and poisonous vapour released. There is also a risk of fire and explosion.
Before starting a wash programme make sure that there is no foreign body in the drum and the detergent drawer (coins, nails, paper clips, etc.).
When closing the door, make sure not to pinch your fingers.
When washing at high temperatures, do not touch the hot loading window (danger of burns).
Never loosen the pump cover or open the door during an active wash programme, as this might cause a scalding hazard and/or a hazard of personal injury due to the rotating drum.
⚠️ Please observe that after interrupting a wash programme, the laundry may still be very hot: Burn hazard. Only remove cooled laundry from the drum.

Observe at the end of the programme:

Do not reach into the spinning drum.
⚠️ Turn off the tap and switch off the power.
If the main switch (on the building side) is turned off without closing the water tap, the overflow protection installed in the machine is ineffective.

When transporting your machine:

⚠️ Fit the transport securing device.
⚠️ Take care when transporting the machine! (risk of injury!) Do not lift the machine by the fittings on the front!

General safety information:

Do not stand on the machine.
Do not sit, lean or support yourself on the loading door. (danger of tipping!)
Under no circumstances spray the machine with water or clean it with a steam cleaner.
Do not immerse the aqua-stop valve in water: Electric shock hazard.
If the machine is not needed for a longer period of time, turn off the tap and disconnect it from the power supply.
⚠️ Touch the power plug with dry hands only. Only pull the plug, do not pull the cable.
⚠️ Repair work may only be executed by qualified and trained personnel and defective components may only be replaced with original spare parts by Schulthess. Inexpert repairs can cause considerable damage and risk to the user. Modifications to the appliance are only admissible after consultation with the manufacturer.
If the mains lead to this device becomes damaged, it must be replaced with a special lead available from the manufacturer or the manufacturer's customer service.
Detergents and laundry care agents must be kept out of children's reach. Store laundry detergents, aids and other additives in a dry, cool place, as clumpy detergent can lead to functional problems.

In case of doubt, ask Customer Service or a dealer.

How to wash correctly and environmentally friendly

Water hardness

Water hardness plays an essential role in washing and it is divided in the following groups:

French hardness	German hardness
^	^

soft 0 - 15 0 - 8

medium 15 - 25 8 - 14

hard > 25 > 14

If you do not know it, ask your local government.

Detergents

You can use all powder, compact (concentrated), tablet and liquid detergents commonly available for use in automatic washing machines.

Use the right detergent for the type and colour of your fabrics:

● Strong detergent for whites
- Coloured detergent for coloureds
● Gentle detergent for synthetics, viscose and microfibre
- Wool detergent for wool, silk and outerwear

Detergent dosing

Good washing results can only be obtained with correct dosing. Follow the dosing recommendations on the laundry packaging. Bear in mind that the dosing quantities given on the packaging refer to full drum loads. For smaller wash loads reduce the dosing quantity (with automatic load metering follow display recommendations).

Rule of thumb: If during the washing a foam layer of the approximate thickness of 2cm above the washing liquid and/or laundry surface is detected, the dosing quantity has not been selected properly.

The correct detergent quantity is dependent on

● the water hardness:

If this is unknown, check with your local water supplier. Adjust the detergent dose according to the hardness (see above).

● the degree of soiling:

lightly soiled

No visible soiling or stains, the clothing has only absorbed body odour for example.
Reduce the quantity of detergent in accordance with the recommended dose.
Wash these fabrics in the express programme.

normal soiling

Visible soiling and a few faint stains.
Normal dosing as per the dosing recommendation.
Wash these fabrics in the standard programme.

heavily soiled

Clearly visible soiling and stains. Increased dosing as per the dosing recommendation. Pre-treat or soak stains if necessary, pre-wash fabrics or wash in the «sanaPlus» programme.

● the quantity of laundry:

With a half-full drum, reduce the quantity of detergent by one third.

Please note:

● Insufficient detergent

• only becomes apparent after repeated underdosing
• causes the laundry to become grey or not properly clean
• causes the laundry to become hard (board-like)
• may cause grey-brown greasy spots to form on the laundry
• may lead to calcified heating elements

- Excess detergent results in

• poorer washing results
• foaming over of the detergent and breakdowns
• higher water consumption and costs
• increased washing programme length
• unnecessary environmental pollution

Liquid detergent and start time preselection

Use the divider for liquid detergent in the detergent drawer or use dosing aids such as dosing balls or bags supplied with the detergent.

When using start time preselection, use a dosing ball for liquid detergent

If poured directly into the detergent drawer, liquid detergent slowly runs out and thickens.

If this happens several times, it can lead to blockages due to detergent deposits.

Remove the dosing ball at the end of the programme!

Soap-based detergents

Your washing machine has a special programme for washing with soap-based detergents, which you can select in the basic programme settings (see chapter «Extended basic settings»).

Because soap does not contain anything to prevent lime-scale, you should only use it with soft or medium-hard water, together with a separate water softener.

Otherwise, limescale and soap residue can build up in the machine, which will be deposited on laundry in the form of grease spots or as limescale on the heating element.

Water softeners

Special water softening aids can be used in the water hardness ranges «medium» and «hard». Follow the instructions on the packaging! In this case add the detergent according to hardness range «soft». First add the detergent, then softener in the same chamber. In this way the agents will be washed in better.

Soaking agents

Add to chamber I of the detergent drawer.

Choose soaking programme (see chapter «Extended basic settings»).

Fabric softener, fabric conditioner

Add to chamber Do not exceed the max. volume of 200 ml otherwise the fabric conditioner will flow out through the overflow. Before adding thick fabric softener add water and stir to ensure that it is free of lumps so that the siphon does not get blocked.

Bleach, stain removal salt

Powder bleaches and stain removal safts can be also used for fabrics with bleachable spots. First fill the detergent and then the bleach powder or stain removal salt in chamber II. In this way the agents will be washed in better.

Impregnating agent

The clothes are impregnated evenly and durably by adding impregnating agent to the washing machine.

Breathable all-weather clothing such as GoreTex or SympaTex must only be treated with the specifically designated impregnating agent. Otherwise you risk blocking the breathing membranes.

Stain removal

If possible, stains should be removed or at least pretreated immediately, as long as they are fresh, before washing the laundry in the washing machine.

Stains which have already dried, in particular in sun light, are much more difficult to remove, if this is possible at all. Try water, soap (curd soap) and prewashing agents. Dab it on, slightly rub it in and let it soak, then rinse the textile. In this way it is possible to completely or almost completely remove many typical household stains like gravy, coffee, chocolate, wine, fat, oil, fruit juices, blood, etc. Attention: Stains which have not been pretreated may be fix in the textiles during the wash process. Then it will be almost impossible to remove them or only by means of a strong bleaching agent.

It may sometimes be necessary to pretreat, wash or soak textiles several times in order to remove tenacious and dried stains.

Washing tips

Sorting the laundry

Follow the care symbols in the fabrics.

Laundry marked with the following care symbol may not be washed in the machine:

- do not wash

Sort the laundry by fabric type and degree of soiling.

Sort the laundry by colour. Wash whites and coloureds separately, otherwise white laundry will become grey. Do not wash new coloureds with other laundry due to the risk of discoloration!

Knitwear made wholly or partly from wool must also be labelled «non-felting» or «machine washable», otherwise there is a risk of felting during the washing process.

▶ Remove foreign bodies such as safety pins, paper clips, coins etc from the laundry.
▶ Brush out sand from the pockets and turn-ups.
▶ Close zips, hooks, eyelets and Velcro closures.
▶ Button up duvet covers and pillowcases and tie fabric belts and apron strings together.

Washing tips

▶ Do not exceed the maximum loading
quantities. This is because overfilling detracts from the washing result and may lead to fabric damage.
▶ Wash particularly delicate laundry, such as pantyhose or net curtains, or small items of laundry such as socks or handkerchiefs in a net laundry bag or pillowcase.
▶ Turn trousers, knitwear or knitted fabrics, e.g. jerseys, T-shirts, sweatshirts inside out.
▶ Check that brassieres are machine washable.

Wash brassieres with stiffeners in a fine-mesh laundry bag because of the risk of the wires becoming detached in the wash and falling through the drum perforations with resultant damage.

Textiles with metal reinforcements can damage the components of the machine and must not be washed in the washing machine.

● Dispense with a pre-wash for normally soiled laundry and save water, energy, detergent and time.

Control and display area

16 9 8 7 disinfect 11 Express 10 12 15 14 PC 17 Spirit topLine 8120 P/20°C 40°C 60°C 95°C 1 2 3 4 5 6 13 Start 18

Programmes

1 Special and profiClean programmes
2 Coloureds 20°C
3 Coloureds 40°C
4 Coloureds 60°C
5 Boil wash 95°C

Additional functions

6 Gentle programme for easy care fabrics
7 Washing temperature
8 Spin speed / Rinsing stop
9 Select-language
10 Express programme
11 Disinfection/Prewash
12 Pre-set starting time
13 Programme start
14 Open door
15 Quick wash

Displays

16 Display

Interfaces

17 SCS-Schulthess Control System (PC-Interface)
18 Slot for Cash-Card, Wash-Card (Option)

Control and display area

Detergent drawer Door Maintenance flap for liquor pump

Detergent Drawer

Line drawing of a hand inserting a drawer into a file (no text or symbols)

▶ Pull out the detergent drawer until it reaches the stop. Add detergent or conditioner to sections I, II or ✉:

Section I: Detergent for prewash and soaking.

Section II: Detergent for the main wash, bleach, modular detergent, starch, water softener for soap programme.

Section Conditioning additives for the last rinse, e.g. fabric softener.

Line drawing of a hand inserting a device into a drawer (no text or symbols)

The divider in section II can be moved for different types and quantities of detergent. If you use small quantities of washing powder, e.g. compact detergent:

▶ Pull the divider forward. The arrow on the divider points to the symbol ▲

Line drawing of a drawer with an open drawer containing internal compartments (no text or symbols)

If you use large quantities of washing powder or tablets:

▶ Push the divider all the way back (supplied in this position).

The arrow on the divider points to the symbol

Diagram of a refrigerator interior showing door, seat, and drawer with labeled dimensions in millimeters

If you use liquid detergent:

▶ Pull the divider forward to the stop and press it down. The arrow on the divider points to the symbol ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≈ ≉

Note

Use a dosing ball for liquid detergents for washing programmes using the time preselect, placing it inside the drum with the laundry.

First-time use

Install the machine according to the installation instructions.

First wash cycle (without laundry)

Run the first wash cycle without laundry, to remove any water remaining from the manufacturing process.

1. Check that the transport packaging on the rear of the machine has been removed (see installation instructions).

2. Turn on the water supply.

1/2

1. Pull out the detergent drawer until it reaches its stop.

2. Add half a scoop of all purpose detergent to section II (on the left). Do not use gentle or wool detergent, because it will produce too much foam.

3. Select the washing programme «Coloureds 60°C»

4. Press the start button. The programme should start.

5. After the end of the programme, the machine is ready for use.

Standard programmes

Care symbol	max. washing load	Always check the care symbols on the fabricsFabric / Wash Type	Programme selection button	Approx. duration minutes	Approx. water cons. litre	Approx. power cons. kWh
	3,5 kg	Easy care laundry 20°C	20°C + √	50 / 35* 69	0,3
	3,5 kg	Easy care laundry 40°C	40°C + √	51 / 36* 69	0,65
	3,5 kg	Easy care cotton or non-iron mixed fibres, outerwear, shirts, blouses	60°C + √	62 / 43* 69	1,26
	3,5 kg	Easy care laundry 60°C	95°C + √	70 / 55* 69	2,1
	7 kg	Coloureds 20°C	20°C	51 / 26* 62	0,3
	7 kg	Coloureds 40°C	40°C	52 / 27* 62	0,65
	7 kg	Coloured cotton, linen	60°C	62 / 36* 62	1,26
	7 kg	Coloured cotton, linenBed linen, aprons, jeans, towels, underwear	95°C	77 / 53* 62	2,6

* Express programme length, press the «Express» button after selecting the programme. Reduces wash time as well as electricity and water consumption.

Particular programmes
Separate rinse

► Coton, linen	40°C + Start ➔	34
► Easy care mixed fibres	60°C + ➕ +Start ➔	30
► Delicates	3x ➕ ➕ + Start ➔	23

Separate conditioning, starching

► Coton, linen	40^ + Start + +	16
► Easy care mixed fibres	60^ + \# + Start +	18
► Delicates	3/∅/∅ + Start +	17

Special programmes

Care symbol	max. washing load	Always check the care symbols on the fabricsFabric / Wash Type	Programme selection button	Approx. duration minutes	Approx. water cons. litre	Approx. power cons. kWh
	2,3 kg Wool 30°C► Wool mark stating «non-felting» or «machine washable»► Machine washable fabrics made of or containing wool		1x [P/8/6]	39 / 27* 52	0,3
	2,3 kg Hand wash 20°C► Fabrics made of hand washable wool or wool mixture		2x [P/8/6]	38 52	0,3
30 - 40	2,8 kg Delicates 40°C► Particularly sensitive textiles made of cotton or mixed textiles, synthetics► Curtains, dresses, blouses, skirts		3x [P/8/6]	51 / 30* 59	0,8
	1,4 kg Silk 30°C► H and washable textiles, which don't contain wool		4x [P/8/6]	44 57	0,35
60	3,5 kg Shirts, Blouses 60°C► Shirts and blouses made of cotton or mixed fibres		5x [P/8/6]	64 72	1,2
40	2,8 kg Curtains 40°C► Curtains which are declared as machine washable		6x [P/8/6]	62 95	1,0
95	7 kg Nappies 95°C with pre-rinsing and pre-washing► White and colourfast cotton► The detergent for prewash must only be filled in compartment I after water inflow for pre-rinsing.		7x [P/8/6]	115 129	3,3
40	2 kg Impregnation 40°C► For after treatment of leisure clothing and table ware, in order to achieve a water and dirt repellent outfit. Adhere to dosage instructions in chapter «Special programmes»		8x [P/8/6]	60 22	0,5
	without laundry autoClean 70°C► The drum and detergent tank are cleaned		9x [P/8/6]	26 48	1,1
	7 kg Spin► Spin only		10x [P/8/6]	9	-0,05

* Express programme length, press the «Express» button after selecting the programme. Reduces wash time as well as electricity and water consumption.

profiClean programmes «Gastronomy»

Care symbol	max. washing load	Always check the care symbols on the fabricsFabric / Wash Type	Programme selection button	Approx. duration minutes	Approx. water cons. litre	Approx. power cons. kWh
	3,5 kg Table linen 60°C▶ Pre-washing connectibleTable cloths and napkins made of cotton, linen and mixed fibres.		1x [P/●/●]	5773	4159	0,91,2
	7 kg Bed linen 60°CBed linen made of cotton or mixed fibres		2x [P/●/●]	63 63	1,3
	7 kg Towelling 60°CTowelling made of cotton		3x [P/●/●]	68 93	1,6
	7 kg Kitchen linen 95°C with pre-washingMixed fibres		4x [P/●/●]	93	109	3
	7 kg Kitchen linen intensive 95°C with pre-rinsing and pre-washingMixed fibres		5x [P/●/●]	106 139	3
	7 kg Flour stained linen 40°C with pre-rinsingFlour-stained linen made of cotton or mixed fibres		6x [P/●/●]	68 95	0,7
	7 kg Finishing, coldFor conditioning, starching or impregnating laundryPour the liquid hydrophobic finishing agent into compartment I (max. 3dl) and compartment II (max. 2dl)		7x [P/●/●]	17 18	0,03

profiClean programmes «Gastronomy»

Care symbol	max. washing load	Always check the care symbols on the fabricsFabric / Wash Type	Programme selection button	Approx. duration minutes	Approx. water cons. litre	Approx. power cons. kWh
	7 kg Coloureds-Disinfection 60°C with pre-washingWashing is chemothermically disinfected in the main wash(20 mins. at 60°C and linen to water ratio 5:1 regarding the max. quantity of washing)		8x P/∅	103 134	3,1
	2,1 kg Duvets, Pillows 60°C with pre-rinsingAdditional pre-washing connectibleDuvets and pillows with feathers, down, synthetics or natural hair filling		9x P/∅	7990	8390	0,81,0
	7 kg Mops 60°C with pre-rinsingMops made of cotton, mixed textiles or microfibres		10x P/∅	70 109	2,1

profiClean programmes «Homes»

Care symbol	max. washing load	Always check the care symbols on the fabricsFabric / Wash Type	Programme selection button	Approx. duration minutes	Approx. water cons. litre	Approx. power cons. kWh
	2,1 kg Duvets, Pillows 60°C with pre-rinsingAdditional pre-washing connectibleDuvets and pillows with feathers, down, synthetics or natural hair filling		1xP/∅/∅	7990	8390	0,81,0
	2,5 kg Blankets 40°C with pre-washingFor washable wool blankets (bedspreads)		2xP/∅/∅	66 75 1,1
	7 kg Mops 60°C with pre-rinsingFor mops made of microfibres or mixed fibres		3xP/∅/∅	70 109	2,1
	7 kg Incontinence linen 70°C with pre-rinsing and pre-washingFor incontinence linen made of cotton or mixed fibresThe detergent for prewash must only be filled in compartment I after water inflow for pre-rinsing.		4xP/∅/∅	110 158	2,4
	3,5 kg Outerwear-Disinfection 40°C with pre-washingWashing is chemothermically disinfected in the main wash(20 mins. at 40°C and linen to water ratio 5:1 regarding the max. quantity of washing)		5xP/∅/∅	82 94 1,1
	7 kg Coloureds-Disinfection 60°C with pre-washingWashing is chemothermically disinfected in the main wash(20 mins. at 60°C and linen to water ratio 5:1 regarding the max. quantity of washing)		6xP/∅/∅	103 134	3,1
	7 kg Mops-Disinfection 60°C with pre-rinsingMops are chemothermically disinfected in the main wash(20 mins. at 60°C and linen to water ratio 5:1 regarding the max. quantity of washing)		7xP/∅/∅	103 130	2,9
	7 kg Boil wash-Disinfection 95°C with pre-washingWashing is thermal disinfected in the main wash(15 mins. at 85°C and linen to water ratio 5:1 regarding the max. quantity of washing)		8xP/∅/∅	117 130	4,4
	7 kg Coloureds -Disinfection 60°C (Covers Procedure)Washing is chemothermically disinfected(20 mins. at 60°C and linen to water ratio 5:1 regarding the max. quantity of washing)		9xP/∅/∅	87 99 2,6
	7 kg Boil wash-Disinfection 95°C ( Covers Procedure)Washing is thermal disinfected(15 mins. at 85°C and linen to water ratio 5:1 regarding the max. quantity of washing)		10xP/∅/∅	103 99 3,9

profiClean programmes «Commercial company»

Care symbol	max. washing load	Always check the care symbols on the fabricsFabric / Wash Type	Programme selection button	Approx. duration minutes	Approx. water cons. litre	Approx. power cons. kWh
	7 kg Overdresses 95°C with pre-rinsing and pre-washingFor overdresses made of cotton or mixed fibres► The detergent for prewash must only be filled in compartment I after water inflow for pre-rinsing		1x [P/3/6]	120 153	3,8
	3,5 kg Shawls 30°CLightly soiled shawls made of synthetics or mixed fibres		2x [P/3/6]	37 49 0,3
	7 kg Coloureds-Disinfection 60°C with pre-washingWashing is chemothermically disinfected in the main wash(20 mins. at 60°C and linen to water ratio 5:1 regarding the max. quantity of washing)		3x [P/3/6]	103 134	3,1
	7 kg Hand towels, express 40°CFor lightly soiled hand towels		4x [P/3/6]	47 77 0,8
	7 kg Hand towels 60°CBadly soiled towels made of cotton		5x [P/3/6]	68 93 1,6
	3,5 kg Workwear 60°C with pre-washingFor workwear made of mixed fibres or cotton		6x [P/3/6]	63 71 1,0
	7 kg Butcher's linen 95°C with 2x pre-rinsing and pre-washingFor butcher's linen made of cottonor mixed fibres► The detergent for prewash must only be filled in compartment I after water inflow for pre-rinsing		7x [P/3/6]	117 152	3,1
	7 kg Mops 60°C with pre-rinsingMops made of cotton, mixed textiles or microfibres		8x [P/3/6]	70 109	2,1
	7 kg Flour stained linen 40°C with pre-rinsingFor flour-stained and grease-stained linen made of cotton or mixed fibres► The detergent for prewash must only be filled in compartment I after water inflow for pre-rinsing		9x [P/3/6]	98 125	3,0
	2 kg Impregnation 40°CFor after treatment of leisure clothing and table ware, in order to achieve a water and dirt repellent outfit.Adhere to dosage instructions in chapter «Special programmes»		10x [P/3/6]	60 22 0,5

profiClean programmes «Facility cleaner»

Care symbol	max. washing load	Always check the care symbols on the fabricsFabric / Wash Type	Programme selection button	Approx. duration minutes	Approx. water cons. litre	Approx. power cons. kWh
	7 kg Mops 60°C with pre-rinsingMops made of cotton, mixed textiles or microfibres		1x P/∅/∅	70 109	2,1
	7 kg Mops-Disinfection 40°C with pre-rinsingMops are chemothermically disinfected in the main wash(20 mins. at 40°C and linen to water ratio 5:1 regarding the max. quantity of washing		2x P/∅/∅	86 130	1,7
	7 kg Mops-Disinfection 60°C with pre-rinsingMops are chemothermically disinfected in the main wash(20 mins. at 60°C and linen to water ratio 5:1 regarding the max. quantity of washing		3x P/∅/∅	103 130	2,9
	7 kg Mops-Disinfection 70°C with pre-rinsingMops are chemothermically disinfected in the main wash(10 mins. at 70°C and linen to water ratio 5:1 regarding the max. quantity of washing		4x P/∅/∅	100 130	3,3
	7 kg Mops-Disinfection 95°C with pre-rinsingMops are thermal disinfected in the main wash(15 mins. at 85°C and linen to water ratio 5:1 regarding the max. quantity of washing)		5x P/∅/∅	116 130	4,2

profiClean programmes «Facility cleaner»

Care symbol	max. washing load	Always check the care symbols on the fabricsFabric / Wash Type	Programme selection button	Approx. duration minutes	Approx. water cons. litre	Approx. power cons. kWh
	3,5 kg	Wiping cloths 60°C with pre-rinsingWiping cloths made of cotton, mixed textiles or microfibres	6x	69 89 1,9
	3,5 kg	Pet discs 30°C with pre-rinsingFor pet discs will low water absorption	7x	52 89 0,6
	3,5 kg	Polishing discs 60°C with pre-rinsingFor floor polishing pads or polishing discs made of microfibres	8x	70 89 1,8
	2,8 kg	Curtains 40°C with pre-rinsingCurtains which are declared as machine washable	9x	62 95 1,0
	without laundry	autoClean 70°C► The drum and detergent tank are cleaned	10x	26 48 1,1

Consumption values

The consumption values and programme durations given are approximate values which were determined under standard conditions. Fluctuations of up to 10 % are possible.

Reduced mains connection

On machines with reduced mains connection, the programme times will be extended accordingly.

Hot water supply

In the case of washing machines with a hot water supply, the following points should be noted:

The max. permissible hot water temperature is 70^ C.

• For pre-wash, delicates programmes and programmes ≤ 30°C only cold water is used.
• In the temperature range ≥ 40^ , the water is mixed automatically to the programmed washing temperature.
• In the case or textiles soiled with blood or proteins, select a programme with pre-wash so that the stains will be washed out below 30°C to ensure that they cannot become fixed to the fabric at higher temperatures in the main washing cycle.

Washing

Preparation

Check that:

▶ the pump cover is screwed on.
(see chapter «Cleaning and Maintenance»)
▶ the mains plug or the wall switch is turned on.
▶ the water tap is turned on.

The machine is ready for use when all pilot lamps are flashing or are switched off in standby mode.

Opening the loading door

▶ Press the «Open door» button.
● The loading door springs open.
▶ Note: The loading door only springs open if the main power supply is switched on.

Selecting the wash programme

P 20°C 40°C 60°C 95°C

▶ Press the programme button
● The control light for the selected programme lights up.
● The display shows the wash temperature, the selected programme and the programme duration.

Selecting additional programmes

40°C COLOUREDS 00*27h EXPRESS disinfect Express eco 20°C 40°C 60°C 95°C

▶ Press the desired selector button (see chapter «Additional programmes»).
- The text for the selected additional programme appears on the display.

Select additional functions

40°C COLOUREDS 00:52h disinfect Express P 20°C 40°C 60°C 95°C

After selecting the programme, the control light for the additional functions that can be selected if required will flash.

▶ Press desired function button(s). (See chapter «Additional Functions»).

• The control light(s) for the selected function(s) will light up.
• The new programme values such as time and spin speed will be displayed.

Adding laundry

▶ Place the laundry loosely in the drum, small and large pieces mixed together.

Closing the door

▶ Close the door by pushing it until the lock audibly engages.
▶ Ensure that no items of laundry are trapped between the door and the rubber seal.

If the door is not closed, a safety switch prevents the machine from starting.

Adding the detergent

Dose the detergent according to the chapter «Detergent drawer»

Close the detergent drawer carefully after dosing until you feel it look.

▶ Risk of water damage!

Starting the programme

- Lightly press the Start button. - The pilot lamp illuminates and the programme runs through automatically.

With child lock activated:

▶ Hold down the Quick wash button and actuate the Start button.

Programme time / programme status

40°C COLOURED5 WASHING 00:45h disinfect Express 20°C 40°C 60°C 95°C

The individual programme steps and remaining time are displayed during the washing programme.

Changing the programme before starting

▶ Lightly press the desired programme button once again.
▶ Select additional programmes.
▶ Select any additional functions that may be needed.

Cancelling the programme

Cancel the programme by repeatedly pressing the «Quick wash» button until «Open door» is displayed.

With child lock activated:

▶ Hold down the start button while selecting a new programme.

When restarting the programme:

▶ Repeat the detergent addition.

Ending the programme with rinsing stop

You have selected the additional rinsing stop function. The laundry will be held in the last rinse water. The display will show «Rinsing stop». You have 2 options for ending the programme:

The laundry can be spun

▶ If the spin speed was not changed when the programme was selected, this can be done using the selection button for the spin speed
▶ Press the start button.
● The water will be pumped out and the laundry spun.

The laundry can be removed dripping wet

▶ Press the Quick Wash button twice.
● The rinse water is pumped out.
▶ By pressing the button, the spin can be ended early to be kind to your laundry (e.g. curtains).

With child lock activated:

▶ Hold the start button down at the same time.

Programme end

The programme end is shown by the time 00:00h and the words «Open door».

Tumbling the washing

The tumbling phase at the end of the programme lasts 5 minutes (excluding especially gentle wash programmes such as wool, e.g.) and prevents creasing the laundry.

Removing the laundry

● During the loosening up phase:
(Drum is still turning / Time indicator 00:00h)
Press the Quick Wash button once. (Halt programme)

Press the door open button and remove the laundry.

• At the end of the loosening-up phase:
  Press the door opening button and
  ▶ remove the laundry.

Remove any foreign objects (e.g. paperclips) from the drum and rubber seal!

Otherwise there is a risk of rust!

Diagram of a hand inserting a ring into a circular housing with a cable (no text or symbols)

Leave the loading door ajar to allow the machine dry out.

Switching off the machine

▶ Close the water taps
▶ Switch off the main switch (on the building side)

Additional programmes

Alongside the various standard wash programmes, your machine offers you the opportunity to design your own programmes.

By selecting one or more additional programmes, you can tailor your wash programme to the specifics of your laundry.

▶ You also have the opportunity to tailor your machine to your needs by changing the basic settings (see chapter «Basic settings»).

Express programme

Express programme for lightly soiled fabrics. Reduces the washing time.

For small loads of washing or light soiling, reduce the amount of detergent used according to the recommended dosage.

Gentle programme for easy care fabrics

For easy care and particularly sensitive fabrics made of cotton, mixed fibres, synthetics.

Prewash

For particularly heavily soiled laundry, bad stains or occupational laundry (e.g. blood or oil stains, nappies). The wash temperature is 30^ C. Add 14 of the detergent to section I.

Caution: There is no prewash on wool programmes to protect the fibres.

Disinfection

This programme is for heavily soiled fabrics, especially those with bleachable stains (e.g. fruit, coffee, tea, red wine).

The Disinfection programme can be activated for boil wash and coloureds, but also for easy care fabrics. This will increase wash time. See «Disinfection» in the chapter «profiClean programmes».

● This will increase wash time.

Hint

• The programmes «Express», «Prewash» and «Disinfection» exclude each other, this means that only one of these additional programmes can be selected.
• Switch off the main switch (on the building side).

Additional functions

▶ Selecting additional functions: see chapter «Washing/Selecting additional functions».

Start time preselect

By pressing the «Pre-set starting time» button one or more times, the programme start time can be delayed by up to 100 hours.

This makes it possible to take advantage of cheaper nighttime electricity, for example. The start time and consequently also the end time of a programme can be tailored to your individual lifestyle.

The start time and the anticipated programme end time are shown on the display.

The preselected time starts when the start button is pressed.

When the start time is reached, the selected programme starts automatically. The current programme duration will be displayed.

Note

• The start time preselect only works if no soaking programme has been selected (see also chapter «Extended basic settings/ Soaking programme»).
• In the event of a power cut, the current time is saved. The duration of the power cut is not taken into account.

Reducing the temperature

▶ Pressing the «Washing Temperature» button several times reduces the wash temperature in 10°C stages (15°C stages above 80°C).

The new temperature will be displayed. It can also be changed during the first two minutes of the programme. The lower temperature is compensated by an extension of the post-wash time, which achieves the same result for less energy.

Spin speed

This function is used to select a lower spin speed or a rinse stop for a more gentle treatment of the laundry, for example with delicate laundry (see next section). Without spin speed reduction the laundry will be spun at normal spin speed. This is always dependent on the programme chosen.

A single press on this button causes the pre-selected spin speed to be shown in the digital display.

Repeatedly pressing the button causes the spin speed to be reduced. The slowest possible spin speed is 200 rpm. The spin speed can also be changed while a programme is operating but not during the spin cycle however.

Money-saving tip

If the laundry is to be dried in a tumble dryer, select a high spin speed since well-drained laundry needs much less energy and time for machine drying.

Rinsing stop

The «Rinsing stop» function is used to avoid creasing of sensitive fabrics. The laundry is held in the last rinse water.

Select rinsing stop by reducing the spin speed until you see «Rinsing stop» on the display.

You can end the programme by draining the laundry without spinning or by spinning (see chapter «Washing/Ending the programme with rinsing stop»).

Quick wash

The programme can be shortened or aborted by pressing the Quick wash button.

▶ See chapter «Washing/ Cancelling the programme»).

This button can also be used to select special programmes.

▶ See «Particular programmes» in the chapter «Washing».

Special programmes

Your washing machine also offers you 10 special programmes. A further 10 programmes can be added with the use of a Wash-Card.

Selecting special programmes

▶ One of the special programmes can be selected by pressing this button several times.

● The control light comes on.

- The display shows the wash temperature, the special programme and the programme duration.

Selecting additional functions

Setting the additional functions temperature reduction, spin speed reduction, start time preselect and rinse hold is the same as for other programmes (see chapter «Additional functions»).

Adding laundry / Closing the door

This functions are the same as the standard programme (see chapter «Washing»).

Wool 30°C

▶ Machine washable fabrics made of wool or wool mix, with wool mark label «non felting» or «Mashine washable».

Hand wash 20°C

▶ Fabrics made of hand washable wool or wool mixtures.

Delicates 40°C

▶ Especially sensitive fabrics made of cotton or mixed fibres, synthetics
▶ Curtains, dresses, blouses, skirts
For light soiled delicate fabrics use the programme «Delicates Express».

Silk 30°C

▶ Hand-washable fabrics which do not contain wool.
Fine stockings and bras should be washed in a laundry bag.

Shirts/ Blouses 60°C

▶ Depending on the level of soiling pre-treat collar and cuffs. Hang up non-iron shirts after washing and let them dry in the air. In this way there will generally be no need for ironing.

Curtains 40°C

▶ Mixed fibre fabrics and Synthetics.
Wash programme with high water level for wash and rinse and low speed spin.
▶ When washing curtains, place metal rings or plastic hooks in a laundry net or bag (cushion cover).

Older curtains are often very bleached by the sun and no longer very resistant. Machine washing can therefore cause slight damage.

To prevent creasing at the end of the programme, it is advisable to use the rinse stop function.

Nappies 95°C

▶ White and colourfast cotton.
- In this programme the laundry will first be pre-rinsed with cold water. Subsequently fill the detergent into sections I and II, then prewash will be started at 60°C and main wash at 95°C.

Impregnation 40°C °C

This programme is suitable for the simple and efficient impregnation of sports and leisure clothing, e.g. tracksuits, down jackets and winter clothing.

The special process ensures even and lasting impregnation.

Microfibre fabrics, GoreTex and SympaTex

should only be treated with special impregnation products designed for them. If ordinary impregnation products are used, there is a risk that the breathable membranes will be blocked.

Pre-treatment: the clothing to be impregnated must be washed thoroughly first.

▶ Pull out the detergent drawer until it reaches the stop. Place the additional liquid containers in section I and II of the detergent drawer.

3,2 dl 1,6 dl

▶ Add liquid detergent to section I with 160 ml spirit vinegar - the vinegar is used to prepare the laundry for impregnation.
▶ Fill the liquid container in section II of the drawer with 320 ml of the impregnation product, or according to the product manufacturer's instructions.
▶ Close the detergent drawer carefully. If the drawer is closed too quickly it is possible that the impregnation product and the spirit vinegar will enter the washing machine together. In this case, impregnation will be impossible.

Autoclean 70°C

▶ without laundry and detergent

The drum and detergent tank are cleaned at 70^ C and subsequently rinsed.

Spin

▶ For spinning fabrics (without rinsing).
▶ The spin speed settings can be altered using the additional function 📐.

Please note the spin speed! (See chapter «Basic Settings/Spin speed reduction»)

profiClean programmes

Your washing machine also offers you another 40 special programmes.

These wash programmes are summarised in four groups of ten programmes:

• Gastronomy
  • Homes
• Commercial company
• Facility cleaner

▶ Depending on the location where the washing machine is used one of these groups can be selected with the extended basic settings (see chapter «Basic Settings/Extended basic settings)

Selecting profiClean programme

▶ Press this button repeatedly to select one of the special programmes.
In each case only the ten wash programmes for the selected programme group will be displayed.
● The control light is illuminated.
● The display shows the wash temperature, the special programme and the programme time.

Selecting additional functions

The setting for the additional functions - temperature reduction, spin speed reduction and rinse hold - is the same as for the other programmes (see chapter «Additional functions»).

Adding laundry / Closing the door

This functions are the same as the standard programme (see chapter «Washing»).

Programme Set «profiClean»

▶ see chapter «Washing/ Programme survey»

Disinfection

The disinfection programmes facilitate the automatic dosing of liquid disinfectants on reaching the disinfecting temperature (via dosing pumps; see separate «Operation Manual for Individual Programming and Liquid Detergent Dosing», no. 751005).

If disinfectant powder is used, this is to be put in the main wash section II prior to the start of the programme.

The disinfection programme works under the following conditions:

	Disinfection Quantity of lye duration in min. in litres
40°C ColouredsThermo chemically 20 35
60°C ColouredsThermo chemically 20 35
95°C Boil washThermal 15 (>85°C) 35
40°C Easy careThermo chemically 20 17,5
60°C Easy careThermo chemically 20 17,5
95°C Easy careThermal 15 (>85°C) 17,5
70°C MopsThermo chemically 10 (>70°C) 35

▶ The listed disinfectants are to be used.

Basic Settings

The machine has basic settings from the factory. It can be adapted to the user's individual needs either when first used or later using the following functions.

The basic settings can only be changed if no wash programme is running. To change a basic setting, it is first necessary to hold the programme button pressed and then press the quick wash button. The corresponding function is shown on the digital display. The display changes when the quick wash button is pressed repeatedly with the programme button held down.

Example:

Function switched off

Function switched on

Additional rinse (ex factory OFF)

To improve the rinse results in soft water areas or for allergy sufferers, switch on the extra rinse.

Water level when washing (ex factory NORMAL)

If the function is set to «increased», the water level is higher during washing.

Water level when rinsing (ex factory NORMAL)

If the function is set to «increased», the water level is higher during rinsing.

Spin speed reduction (ex factory OFF)

Wash programmes Spin speed in rpm

Off Level 1 Level 2reduction reduction

Boil / Coloured wash 1500 1200 1000

Easy care wash 800 800 600

Delicates 600 600 400

Wool / Hand wash 800 600 400

Time (the clock is not set ex factory)

The hours can be set using the button and the minutes using the button.

Language (ex factory GERMAN)

To change language press repeatedly the select-language button 📋 or press

This setting is temporarily valid for the selected programme and reverts back to the default language a few minutes after completion of the programme.

(See «Extended basic settings/Default language»)

Extended basic settings

▶ By pressing these three buttons at the same time, the display shows the extended basic settings.
▶ Repeatedly pressing the button shows the possible settings.
▶ Pressing the button allows the settings to be changed.
▶ Pressing the button interrupts the display of the settings.

Skincare function (ex factory OFF)

Select «Extended basic settings»!

If the skincare function is switched on, two extra rinses are added to each wash programme. These additional rinses can prevent skin allergies.

Child lock (ex factory OFF)

Select «Extended basic settings»!

The child lock is to prevent accidental starting, changing or deletion of a programme by small children.

Operating the machine with the child lock switched on:

Hold the start button down and press the fast forward button.

Rinsing stop (ex factory INDIVIDUAL)

Select «Extended basic settings»!

If this function is switched on, all easy care, fine wash or shirt programmes automatically add a rinsing stop.

Load metering (Option / ex factory ON)

Select «Extended basic settings»!

With the load metering switched on, the weight of the loaded laundry is shown on the display.

To ensure that load metering functions properly, the wash program must first be selected with the machine door open and then the laundry must be loaded.

If the weight of the loaded laundry is smaller than half the admissible wash weight, the wash time will be shortened.

⚠️ Please observe the hint on the display regarding the reduction of the detergent quantity in case of smaller laundry weights: The doses 1/2, 2/3, 1/1 (full) refer to the quantities stated by the detergent manufacturer.

The load metering is not active for disinfection programmes.

Memory function (ex factoryOFF)

Select «Extended basic settings»!

If the memory function is switched on, the selected temperature and spin additional functions are saved for each programme. If the same programme is selected again, the stored values are automatically used. The values can then be altered.

With switched on memory button function, the special programme last used is stored and appears again as first on the display when next pressing the button. Following this, the consecutive programmes can then be selected through repeatedly pressing the button.

This way, a frequently used special programme can be called up with only one press of the button.

When the function is switched off, the programme to appear will always be the first programme in this programme group.

The same applies to the profiClean programmes.

Soap wash programme (ex factoryOFF)

Select «Extended basic settings»!

When this programme is switched on, an extra rinse is added.

Soak programme (ex factory OFF)

Select «Extended basic settings»!

When this programme is switched on:

soaking time of up to 12 hours.

▶ After the programme is selected by pressing the time preselect additional function button, set the desired soaking time.

● The soaking time set or remaining is displayed until the programme starts (1h -12h).

▶ The soaking time starts when the start button is pressed.

▶ Soaking can be interrupted and the wash programme started by pressing the Quick Wash button.

Note:

▶ Add soaking detergent directly to the drum.

(Detergent dosing see chapter «Detergents and care additives/Detergent dosing»).)

▶ The soaking programme must be reprogrammed for each wash.

▶ The current soaking time is stored in the event of a power cut. The duration of the power cut is not taken into account.

Cool down function (ex factoryOFF)

Select «Extended basic settings»!

Detergent solution cooling: When the detergent solution cooling function is switched on, boiling water is cooled with cold water at the end of the washing process.

This helps to prevent damage to older drains.

This cooling always takes place in the easy care programme, irrespective of this setting. This helps to prevent creases.

Loosening up at programme end (ex factoryON)

Select «Extended basic settings»!

When this function is selected, the laundry is tumbled for 5 minutes at the end of the programme.

Wash time reduction (ex factory ON)

Select «Extended basic settings»!

When this function is switched off, the boil, coloureds and easy care programmes are longer.

LCD Brightness (ex factory220)

Select «Extended basic settings»!

The button can be used to alter the brightness or type on the display.

LCD Contrast (ex factory 26)

Select «Extended basic settings»!

The button can be used to alter the contrast on the display.

Summer noise level (ex factory VOLUME 2)

Select «Extended basic settings»!

With the Alarm setting switched on, a signal sounds at regular intervals at the end of the programme.

The level can be adjusted in 3 levels using the button.

Off

Noise level 1

Noise level 2

Noise level 3

Standby function (ex factoryON)

Select «Extended basic settings»!

When the standby function is switched on, the controls switch off when wash programme is running or laundry weighing is carried out in energy saving mode.

All displays are dark.

Optical interface (ex factoryOFF)

Select «Extended basic settings»!

If the optical interface (SCS) is switched on, customer services can communicate with the machine by PC.

Reduced mains power (ex factoryOFF)

Select «Extended basic settings»!

If the mains voltage is reduced, the programme times will be extended accordingly.

Off = 400 V 2N \~ 4,4 kW / 10 AT

On = 230 V 1N \~ 2,5 kW / 13 AT

On = 230 V 1N \~ 2,1 kW / 10 AT

Wash Programme Set (ex factory WITHOUT)

Select «Extended basic settings»!

Use button to select which wash programme set shall appear when button is pressed.

Special programmes

If the selected setting is «WITHOUT», the special programmes are enabled.

profiClean Programmes

For access to the profiClean programmes select one of the following wash programme sets:

GASTRONOMY

HOMES

COMM COMPANY

FACILITY CLEANER

Note

The special programmes are overlapped by the additional offer of the profiClean programmes. They will reappear, if you return to the setting «WITHOUT».

Default language (ex factory GERMAN)

Select «Extended basic settings»!

If another language is temporarily selected via the buttons and 4 minutes after programme end, in standby mode or after a long standstill, the setting reverts back to the default language.

Door opening at programme end (ex factoryOFF)

Select «Extended basic settings»!

If this function is switched on, the door will open automatically at the end of the programme.

Start time preselect (ex factory 24 HOURS)

Select «Extended basic settings»!

The maximum adjustable range of the start time delay can be reset from 24 hours to 100 hours.

Information for testing institutes and users

In the goods declaration this washing extractor is awarded the best grade A according to the energy-label classification on the basis of the standard programmes EN 60456 in the washing effectiveness class. However, standard wash programmes which were especially developed for the Swiss consumers' needs were pre-set at the factory, as on the basis of today's wearing and washing habits, modern textiles can be washed with shorter programmes.

You can, however, set the standard programme times according to the energy label via the extended basic settings by setting the parameter Wash time reduction to OFF.

● The machine is now generally set to the longer wash times according to the energy label.

Standard programme pursuant to EN 60456

Cotton 60°C: 136 Min / 62 l / 1,26 kWh

Cleaning and Maintenance

Cleaning the machine

⚠ Ensure that the power supply is switched off before any cleaning, care or maintenance work.
Under no circumstances spray the machine with water or clean it with a steam cleaner.
Do not use solvents! These substances can damage parts of the machine, produce poisonous vapour and carry the risk of explosion.

Casings and control areas should only be cleaned with soap or a commercially available, solvent-free, non-abrasive cleaning product.

The side walls of machines with a chrome steel finish should not be cleaned with chrome steel cleaner under any circumstances.

Descaling the machine

If the correct amounts of detergent are used, descaling is no longer necessary in general.

Descalers contain acids, can attack parts of the machine and cause discolouration of laundry. If you do, however, wish to descale the machine, follow the manufacturer's instructions on the packet. Limescale formation depends largely on the hardness of the water. To avoid water damage, we recommend having this checked by a specialist after around 5 years of fault-free operation.

Cleaning the drum

Rust marks caused by metal parts standing still for lengthy periods can be removed with a chlorine-free cleaning product (look at the description of the ingredients on the pack).

⚠️ Never use steel wool!

Water supply hose

Only for machines without Aquastop. To avoid water damage, we recommend having this checked by a specialist after around 5 years of fault-free operation.

Frost protection

If the machine is in a room susceptible to frost, all residual water must be removed from the detergent pump and water supply and drain hoses immediately after use.

Emptying the drain pump

See chapter «Emergency emptying».

Emptying the water supply hose

● Turn off the water supply
- Screw off the hose at the tap, let the water run into a bowl.
- Screw the hose back onto the tap.

Cleaning the detergent drawer

1. Pull the detergent drawer out until it stops.
2. Press down in the middle of the softener section cover, and pull the drawer all the way out.

Line drawing of a hand inserting a device into a drawer with arrows indicating direction (no text or symbols)

1. Remove the divider.

Technical line drawing of a mechanical assembly with a component being inserted (no text or symbols)

1. Clean the chambers and insert under running water.

Diagram showing a faucet spraying water onto a storage tray, with no text or symbols present.

1. Replace the divider in the detergent drawer.

Line drawing of a mechanical assembly with a downward arrow indicating process (no text or symbols)

1. Replace the drawer in the machine.

Line drawing of a drawer with an arrow indicating direction (no text or symbols)

Cleaning the liquid containers

1. Pull the detergent drawer out until it stops.
2. Remove the liquid container (B) from the detergent drawer (C).
3. Pull the siphon (A) out of the liquid container.

A B C

1. Clean the liquid container and siphon under running water.

Diagram of a faucet spraying water onto two buckets (no text or symbols)

1. Remove any dirt, e.g. detergent residue with a suitable cleaning device, e.g. nylon brush.
2. Replace the siphon in the liquid container. If required, replace it in the detergent drawer.

Diagram of two mechanical components with arrows indicating motion or force direction (no text or symbols)

Emergency emptying

Emergency emptying is necessary if:

• The error message «CHECK DRAIN» appears.
  ● The pump is blocked by a foreign body (e.g. buttons, paper clip, fluff) and the water cannot be pumped out.

Up to 20 litres can flow from a blocked pump. Have a bucket ready.

Risk of scalding! Allow hot detergent solution to cool.

Emptying procedure

1. ⚠️ Switch off the mains power supply
2. Open the maintenance flap by pressing on the recess

Simple line drawing of a room with a square and curved arrows indicating motion (no text or symbols)

1. Take out the drainage hose, pull out the plug, let the water run into a vessel. If necessary, repeat the procedure several times.

Simple line drawing of a mechanical device with rotating components and an arc, no text or symbols present

1. Unscrew the pump cover.

Diagram showing two mechanical components with directional arrows indicating rotation or movement, including a knob and dial.

1. Remove foreign bodies and deposits of fluff. Clean the pump interior. It must be possible to rotate the pump impellers.
2. Screw on the pump cover.
3. Close the drainage hose.
4. Close the maintenance flap.
5. Switch the mains power back on.
6. Select a washing programme and as soon as the water inlet stops, select programme end with the Quick Wash button.

This procedure prevents detergent from flowing unused into the drainage system at the next wash.

Cleaning the filter in the water inlet

The filter in the water inlet must be cleaned if no water or insufficient water flows into the appliance when the tap is turned on. The error message «CHECK WATER SUPPLY» is displayed.

The filter are located in the threaded hose coupling on the water tap and at the back of the machine.

Cleaning procedure

1. Turn the water tap off.
2. Select a programme, start it and after approx. 20 seconds select «Programme end» with the fast run button. As a result, the water pressure in the inlet hose can be reduced.
3. Switch off the mains power supply.
4. Unscrew the hose from the water tap and rinse out the filter under running water.

Line drawing of a faucet with a valve and threaded base (no text or symbols)

1. Connect the hose again.
2. Unscrew the hose only from the back of the machine.
3. Pull out filter using a pair of flat-nose pliers. Clean and reinsert it.

Diagram of a pipe connection setup with hoses and a valve (no text or labels)

1. Connect the hose again.
2. Turn the water tap on and make sure that no water escapes.
3. Turn the water tap off.

Wash-Card

Insert Wash-Card

Insert the WashCard holding the desired programmes with the ▲ symbol upwards. The wash programmes stored on the card are shown on the display.

SXX ÷ SXX

STORE USING S KEY

SXX = Special programmes Nos. 11÷20

Storing wash programmes

The special programmes are stored by pressing the button.
▶ The message «WASHCARD STORED» appears.

Remove the Wash-Card

The Wash-Card is not required for washing

Selecting special programmes

(see chapter «Special programmes»)

▶ After pressing the button 10 times, the first of 10 possible Wash programmes appears.
▶ Pressing the button again displays the remaining Wash-Card programmes.

Additional functions

It is not possible to reduce the wash temperature or spin speed on Wash-Card programmes.

It is not possible to activate the rinse stop function by de-selection of the spin speed on Wash-Card programmes.

Problems

⚠️ Repairs, alterations or intervention on electronic equipment should only be carried out by qualified specialists. Inexpert repairs can cause considerable damage and risk to the user.

Only original spare parts should be used for repairs.

Please find below minor faults which you can rectify yourself.

Error messages on the display

If the following error messages are displayed, the programme can be restarted by pressing the start button once the error has been rectified.

«CHILD LOCK ACTIVE»

▶ Hold the «Quick wash» button down and press the start button.

«PLEASE CLOSE DOOR»

▶ Push the door closed until the lock catches properly.

«CHECK WATER SUPPLY»

▶ Turn on the tap and start again.

▶ Filter in water supply is blocked: Clean the filter, see chapter «Cleaning and Maintenance/Cleaning the filter in the water inlet».

«CHECK DRAIN»

▶ Check whether the drainage hose is blocked.
▶ Foreign bodies block the drain pump: clean pump according to chapter «Cleaning and Maintenance/Emergency emptying».
The water drain provided by the customer is blocked: Carry out an emergency discharge according to chapter «Cleaning and Maintenance» and clean the drain siphon (built-in siphon).
▶ The position of the drain hose is too high. The maximum pumping height is 1m above ground.

▶ Excessive imbalance. Laundry not spun.
▶ Press the Start button and then the «Quick wash» button to end the wash programme.
▶ Open the door and redistribute the load.
▶ Repeat the spin cycle with the separate spin programme.

General information:

- Avoid loading the drum with one single heavy item. Wash large and small laundry together.

«FOAM PROG. EXTEND»

• The washing machine has detected foam and taken adequate measures. The spinning cycle of the laundry could be completed.
• In future, please reduce the detergent quantity.

«FOAM, PROG. CANCEL»

▶ Due to extremely intensive foaming, the washing machine could not complete the spinning cycle and the wash programme had to be aborted.
▶ Repeat the wash programme without adding any detergent.
▶ In future, please reduce the detergent quantity (if required use washing powder instead of liquid detergent).

«WATER LEVEL TOO HIGH»

• Too much foam in the washing machine, spinning has not been effected. There are two possibilities to solve the problem:
  a) Press the «Start» button and then interrupt the programme by pressing the «Quick Wash» button several times until the display «Open door» appears. Mix approx. 30 ml conditioner and approx. 1 litre water. Start the previously selected wash programme (it may take several minutes until the machine is released for the selection of a new programme). After the water supply has been completed, switch forward immediately to «Conditioning» by pressing the «Quick wash» button and add the conditioner-water mixture into section I of the detergent drawer. The programme should now end as usually and the spinning process should take place. Afterwards repeat the desired programme, however without any detergent.

or

b) Press the «Start» button and then interrupt the programme by pressing the «Quick wash» button several times until the display «Open door» appears. Wait for approx. 1 hour and start the previously selected wash programme, move forward immediately to «spinning» using the «Quick Wash» button. Usually the laundry will be spun. If not, repeat the procedure including waiting for 1 hour. Afterwards repeat the desired programme, however without any detergent.
The maximum admissible water level is reached. Wait until the water has been pumped out completely and press the start button. The programme will continue.

«WATER IS BEING PUMPED OUT»

● Too much water is in the washing machine. Water is pumped off to the set level.
- If you see a lot of foam in the door glass, this means that too much foam is in the washing machine. To eliminate this problem proceed as for the error message

«Water level too high».

- In future, please reduce the detergent quantity.

«MAINS SUPPLY BLOCKED»

• In the case of electrically-heated machines, the appliance may be shut down by external energy management systems at times of peak power loads.
  ● The mains supply inhibition will only cause a stop of programme during the heating phase.
• In this condition all operating buttons are blocked except for the Quick wash button, and the time remaining display is stopped. The control light for the start button lights up.
  ● The programme steps Rinsing, Conditioning and Spinning will be executed in spite of the inhibited mains supply.
• When the mains blocking is ended, the washing programme is resumed automatically and the display reactivated. The heating is switched back on after a 15-second delay.

«POWER FAIL., REPEAT PROG.»

- With disinfection programmes the programme will stop after a power failure.

To guarantee disinfection the programme must be started anew from the very start.

«PLEASE START AGAIN»

• If the door was closed subsequently, the start button must be pressed again.
• After a power failure you must press the start button to continue the programme.

If the appliance shows a function fault F - -:

▶ Stop the programme with the Quick Wash button and select a new programme.

In the event of repeated error messages:

▶ Disconnect the electricity for approx. 1 minute and then switch on again. (Withdraw the mains plug or switch off the main building switch.)

▶ The machine is ready to operate once again when the programme pilot lamps flash.

▶ Select a new programme.

If the error message still appears:

▶ Make a note of the error message

▶ Switch off the water tap and withdraw the mains plug or switch off the main building switch.

▶ Inform Customer Service.

Troubleshooting

Other minor faults, which you can rectify yourself.

Machine operation

Display is dark:

▶ The machine is in standby mode. No error. To operate the machine press any key.

The machine cannot be switched on, display remains dark even after pressing a key:

▶ Check whether the mains power is switched on at the wall and the plug is in.

▶ Check whether all the fuses are intact or the safety switch has tripped.

▶ Mains blockage, generally at noon. Operate the machine after the mains blockage has ended.

The machine does not start:

▶ The start button has not been pressed.

▶ Start time preselect has been set. Only starts at the preselected start time.

Loading door cannot be opened:

▶ Programme not yet finished.

▶ «Rinsing stop» selected. No error; see chapter «Washing/Ending the programme with rinsing stop»

▶ Mains blockage or appliance defect: see below.

Open the door in the event of a power failure or machine defect as follows:

Check that the drum is standing still.

▶ Turn off the water tap!

▶ Switch off the mains power supply.

▶ Carry out emergency emptying (see chapter «Cleaning and Maintenance»).

▶ Pull on the door opener (Emergency opener).

Machine with drain pump:

Mechanical assembly diagram showing two components with downward arrows indicating motion (no text or symbols)

Machine with drain valve:

Mechanical assembly diagram showing two components with downward arrows indicating motion (no text or symbols)

- The door will open.

Drum lighting does not work:

(Option)

The electric light bulb is defective. For safety reasons the lamp must only be replaced by the customer service or a qualified specialist.

Washing and washing result

Detergent residue in the detergent drawer:

▶ Damp or clumpy detergent: Dry the detergent drawer before adding detergent. Use dosing aids for compact or liquid detergents. Add the detergent to the dosing aid and put it in the drum with the laundry.

● The divider for liquid detergent has been pressed down: Move the divider to the position for powder detergent

- Viscous conditioner will remain in the ✕ compartment. Remedy: Dilute the viscous conditioner with approx.

100ml water and fill it in the compartment. Attention: Do not exceed the mark «max». If required, clean the conditioner compartment cover and the siphon (see chapter «Cleaning and Maintenance»).

Water not visible during wash:

- No error! The water is below the visible level in the machine.

Laundry does not get clean:

▶ Laundry was soiled more heavily than expected.
▶ Stain removal before washing.
▶ Select the maximum permitted temperature for the fabric.
▶ Select a stronger wash programme.
▶ Dose detergent sufficiently according to the manufacturer's data.

Detergent residue on the washing:

This is not due to poor rinse performance of your washing machine, but insoluble residues found in a few phosphate-free detergents, which tend to be deposited as pale specks on laundry.
▶ Remedy: dry and brush off or repeat the whole rinse process immediately. Use liquid detergent and wash programmes with a higher water level (Easy care).

Activate the extra rinse function.

Grey residue (soap scum) on the washing:

▶ The normal amount of detergent is not always sufficient for soiling from ointments, fats or oils, increase the amount for the next wash.

Remedy: select the maximum permitted temperature for the fabrics.

Grey stains on the washing:

These stains may be caused by cosmetics or fabric softener and may have appeared on the laundry outside the machine before washing.

Remedy: some stains can be washed out after soaking in liquid detergent.

The laundry is hard and/or like a board:

▶ If the laundry is dried in the air after washing, use a conditioner for the next wash. Or dry the laundry in a tumble drier.

Drum and tank are dirty (e.g. scraps of paper, oil):

▶ Tissues or similar objects have not been removed from the laundry before washing. Clean drum and tank with the wash programme «autoClean» (without laundry and detergent).

Laundry smells unpleasant (e.g. of sweat or rottenness):

▶ Laundry has been washed too long at only a low temperature and contains too many odour-producing germs. Wash laundry from time to time at 60^ C and/or the maximum admissible temperature, best with a general-purpose detergent (with bleaching agent). For washing at 20/30^ C use a special detergent which is active at low temperatures.

Odour accumulation in the machine:

▶ Odour-producing germs have accumulated in the washing machine or in the drain. Remedy: Clean the machine and drain from time to time by means of the wash programme «autoClean» (without laundry and detergent!).

Laundry mats (pilling):

▶ Delicates such as wool can mat due to the high mechanical load. Use a gentle special programme in the future suited for delicates.

Tear and hole formation, fibre wear of the laundry:

▶ Before washing remove foreign bodies from the laundry.
▶ Close zip fasteners and hooks before washing.
▶ Wash delicate laundry in a laundry net.
▶ Normal wear and/or mechanical damage of the textiles, which had already existed before washing.

Foam and leakage

Foam is visible after the last rinse:

- Some detergents tend to produce more foam, which does not affect the rinse results.

Too much foam is visible in the door glass during washing, foam fills the entire drum:

▶ Detergent dose too high. Too much foam deteriorates the washing effect. Remedy: Mix approx. 20ml conditioner with 12 liter water and add it into section II of the detergent drawer. If required, repeat the process. Reduce detergent dose in the future.

Foam leaks from the detergent drawer during washing or rinsing:

▶ Detergent dose too high. Remedy: Mix approx. 20ml conditioner with 12 liter water and add it into section II of the detergent drawer. If required, repeat the process. Reduce detergent dose in the future.

Foam leaks from the detergent drawer during spinning:

▶ Foam leaks from the detergent drawer during spinning. Interrupt programme by means of the «Quick Wash» button. To eliminate this problem proceed as for the error message «Water level too high».
▶ In future, please reduce the detergent quantity (if

required use washing powder instead of liquid detergent).

Machine leaks, puddles and/or water stains form on the floor:

▶ Detergent dose too high. Reduce detergent dose in the future.
▶ Check whether the supply and drain hose connections are watertight and have been effected properly.

Spinning and noise

Pump noise:

- No malfunction! Intake noise and «Emptying» noise (i.e. when the tank is sucked empty) by the detergent solution pump is normal.

Repeated spinning:

● The imbalance control system detected an imbalance and is rectifying the imbalance by spinning repeatedly.

Poor spin result:

- The imbalance control system has detected an imbalance that it was unable to rectify. With underloads or critical laundry pieces such as bath mats, the laundry is insufficiently distributed. The spin speed is reduced depending on the load and imbalance, safeguarding the appliance against being overstressed.

Loud noise and «machine movements» during spinning:

▶ The transport securing devices have not been removed. See the information in the Setting-up Instructions!
▶ Machine feet were not locked when setting-up the machine. Relevel the machine with a spirit level and securely lock the feet as described in the Installation Instructions.

Programme duration extended:

● The machine has recognised foam and implemented remedy. No error.
● The machine has recognised imbalance and implemented remedy. No error
- The machine has recognised excessive soiling and/or too turbid rinse water and has extended the programme. No error.

Customer Services

Before you call customer services, check whether you can rectify the problem yourself (see chapter «Problems»).

If advice is required, costs may be incurred if a service technician is required, even during the guarantee period.

The guarantee does not cover faults caused by improper use and by blocked filtres or foreign bodies.

If you cannot rectify a problem yourself, unplug the machine or switch it off at the wall, turn off the tap and call customer services.

Dial the central customer services number (see back cover).

You will be automatically connected to the customer services branch for your region.

Give customer services the F—— error message and the product and serial numbers. You will find this information on the type label inside the opened door.

Note the numbers for your machine here:

Product No.:

Serial No.:

Warranty subscription

After the normal warranty period of 2 years has expired, it is possible to extend the warranty by means of a warranty subscription as desired. We are happy to send you the requested documents. Please observe the enclosed guarantee and customer services booklet.

SCHULTHESS
