USER MANUAL DO7264S DOMO

Exterior view of a beige vacuum cleaner with black handle and mesh grille (no text or symbols visible)

DO7263-64-65S

PRODUCT OF LINEA 2000

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The warranty will only be valid if the warranty application has been completed by the dealer at the time of purchase. All parts, which are subject to wear, are excluded from the warranty.

CONDICIONES DE GARANTÍA

Type nr. of appliance DO/264S

RECYCLAGE-INFORMATIE

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

RECYCLING INFORMATIONEN

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat package ecologically.

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

MONTAGE

Close-up of a white vacuum cleaner with a coiled tube and a black arrow pointing to the handle (no text or symbols visible)

Telescopische buis

Illustration of a hand holding a flexible hose with a coiled tube, labeled with number 123 (no text or symbols on the diagram itself)

12

Illustration of a hand holding a syringe with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical device with a circular head and lever, no text or symbols present

Accessoires

Interior view of a white disposable air conditioner with labeled parts (1 and 2), showing internal components without any text or symbols.

Close-up of a mechanical component with a close-up view showing a detail (no text or symbols)

GEBRUIK

Technical line drawing of a mechanical component with labeled parts A and B (no text or symbols beyond labels)

ONDERHOUD

Close-up of a beige electronic device with a mesh grille and three ports, no visible text or symbols.

Exterior view of a beige and black electronic device with a grid display, alongside a gray plastic component (no text or symbols visible)

PRÉCAUTIONS

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

MONTAGE

Close-up of a white vacuum cleaner with a coiled tube inserted, showing its handle and base (no text or symbols visible)

Tube télescopique

Illustration of hands holding a flexible hose with a coiled tube, no text or symbols present

Illustration of a hand holding a syringe with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical device with a circular head and lever, no text or symbols present

Accessoires

Interior view of a vacuum cleaner with labeled parts (1 and 2), showing internal components without any text or symbols.

Close-up of a black plastic clip holding a small object, with an arrow pointing to it (no text or symbols visible)

UTILISATION

Close-up of a car's front grille with numbered labels pointing to different zones

Technical line drawing of a mechanical component with labeled parts A and B (no text or symbols beyond labels)

ENTRETIEN

Close-up of a beige electric heater with a mesh grille and two side buttons (no visible text or symbols)

Exterior view of a beige and black electronic device next to a gray grid-patterned component (no text or symbols visible)

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

MONTAGE

Close-up of a white office chair with a coiled cable and a black handle, no visible text or symbols

Teleskoprohr

Illustration of hands holding a flexible hose with a coiled tube, no text or symbols present

Illustration of a hand holding a syringe with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical device with a circular head and lever, no text or symbols present

Zubehör

Interior view of a mechanical device showing internal components with numbered labels (1 and 2), no visible text or symbols beyond labels.

Two-step diagram showing a mechanical component being inserted into a vertical rod, with an arrow pointing to the part and a numbered label (3) in the corner.

BENUTZUNG

Diagram of a vehicle's front grille with numbered labels pointing to different sections

Technical line drawing of a mechanical component with labeled parts A and B (no text or symbols beyond labels)

Close-up of a beige computer mouse with a circular head and handle, showing a curved grip and a black base (no text or symbols visible)

Close-up of a beige square electronic device with a circular hole, mounted on a black tray (no visible text or symbols)

Close-up of a black plastic fan component with an arrow pointing to it, inside a white container (no text or symbols visible)

Close-up of a beige electric heater with a mesh grille and two side buttons (no visible text or symbols)

Two electronic devices: a beige portable device with a grid and a gray perforated base (no visible text or symbols)

SAFETY INSTRUCTIONS

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision.

Keep the appliance out of reach of children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings
• Farms
• Hotel or motel rooms and other surroundings with a residential character
• Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

WHEN USING AN ELECTRICAL APPLIANCE, SEVERAL BASIC PRECAUTIONS SHOULD BE CONSIDERED. READ AND FOLLOW ALL INSTRUCTIONS IN THIS MANUAL TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK OR INJURIES.

• Do not leave the vacuum cleaner unattended when the plug is still plugged in. Unplug the vacuum cleaner when it is not in use and before carrying out any maintenance or cleaning.
• Do not use the appliance outdoors or on wet surfaces. Keep the appliance away from heat sources.
• Only use the vacuum cleaner as described in this instruction manual.
• Only use accessories that have been recommended by the manufacturer.
• This appliance is not a toy. Strict supervision is necessary when the vacuum cleaner is being used near children.
• Do not use the appliance when the cord or plug has been damaged. If the vacuum cleaner does not seem to function properly or if it has been dropped, damaged, left outside or dropped in water, take your appliance to a service center.
• Do not carry the appliance by the cord, do not use the cord as a handle, do not close a door on the cord or do not wrap the cord around sharp edges or corners. Do not run the vacuum cleaner over the cord. Keep the cord away from hot surfaces.
• Do not pull the plug out of the socket by pulling the cord. Always pull the plug itself.
• Do not use the appliance or the plug with wet hands.
• Do not put any objects into the openings of the vacuum cleaner. Do not use the vacuum cleaner when an opening

is blocked. Keep the openings in the appliance free of dust, lint, hair and other objects that may reduce the air flow.

• Immediately switch off the vacuum cleaner when the air supply, the floor brush or the telescopic tube is blocked. Remove the objects that cause the blockage before turning your vacuum cleaner back on.
• Keep hair, loose clothes, fingers and other body parts away from any openings and moving parts.
• Switch off the appliance before removing the plug from the socket.
• Be extra careful when cleaning stairs.
• Never use the vacuum cleaner to pick up any combustible or inflammable liquids like gasoline, or do not use the appliance in places where such substances might be present.
• Remove large and sharp objects from the floor before vacuuming it to prevent possible damage.
• Hold the plug while rewinding the cord onto the cord reel. Do not let the plug whip back and forth during rewinding.
• Unplug the appliance before connecting the hose.
• Do not pick up any burning or smoking objects, like cigarettes, matches or hot ashes.
• Do not use the vacuum cleaner without dust bag and/or filter.

SAVE THESE INSTRUCTIONS

PARTS

1. Floor nozzle
2. Button to pull out or retract brushes
3. Slide button to set length of tube
4. Telescopic tube
5. Hose
6. Connection for hose
7. Handle

8. Handle lid dust bag compartment

9. Storage space for 2 accessories

10. Full dust bag indicator
11. Button for automatic cord rewinding
12. Button to set the suction power
13. On/off button
14. HEPA filter underneath grid
15. Dust bag: 3.5l
16. Dust bag frame

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

ASSEMBLY

Always unplug the vacuum cleaner before (dis)assembling any parts.

Hose

Assembly: Put the hose into the hose connection in the vacuum cleaner. Push the hose in until it clicks into place.

Disassembly: Unplug the vacuum cleaner. Push the ribbed release buttons to pull the hose out of the hose connection.

Close-up of a white vacuum cleaner with a coiled cable and handle, no visible text or symbols

Telescopic tube

1. Put the handle of the hose into the telescopic tube.
2. Set the telescopic tube to the desired length. To do this, push the slide button forward and pull out the bottom part of the tube to make it longer. Release the slide button and let the tube snap into place.
3. Attach the floor nozzle to the telescopic tube by firmly sliding the tube into the nozzle.

Line drawing of a hand holding a flexible hose with a coiled tube, labeled with number 123 (no text or symbols on the diagram itself)

Illustration of a hand holding a syringe with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical device with a circular head and lever, no text or symbols present

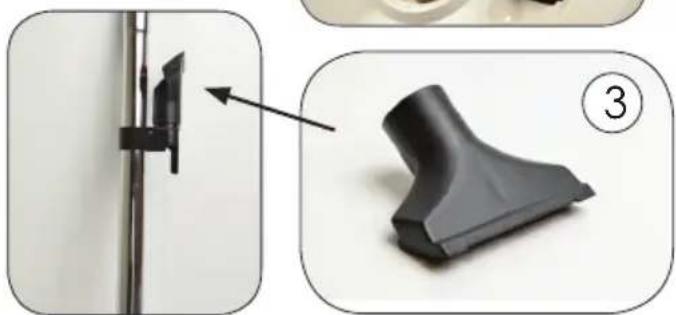

Accessories

The vacuum cleaner comes with 2 accessories that can be stored in the storage space inside the vacuum cleaner itself.

1. Crevice nozzle: for hard to reach areas like radiators, crevices, corners, in between pillows,...

2. Dust brush: for furniture, shelves,...

Extra accessory

1. Small floor nozzle

Interior view of a car air purifier with labeled parts (1 and 2), showing internal components like nozzle, hose, and vent (no text or symbols beyond labels)

Close-up of a mechanical component with a close-up view showing a pin and a close-up of its base (no text or symbols visible)

USE

1. Unwind the cord to a substantial length and plug in the vacuum cleaner. The yellow label on the cord indicates the maximum length (6m) of the cord, that should not be exceeded.

2. To turn the vacuum cleaner on and off, press the foot pedal with the Ⓐ symbol.

3. To set the suction power, slide the suction power button to the left or right in between the MIN and MAX indicators. For delicate materials it is best to use the minimum power level, a medium power is recommended for mattresses, furniture and carpets and the maximum power level should be used for tiles, wood and other hard floors.

4. When you want to clean hard floors, make sure that the brushes in the floor nozzle are down.

5. When you want to clean carpet, make sure that the brushes in the floor nozzle are retracted.

6. When you have finished vacuuming, unplug the vacuum cleaner and automatically rewind the cord by pressing the foot pedal with the 🎨 symbol. Make sure that the plug does not whip back and forth while rewinding the cord, by guiding the cord with your hand. This to prevent possible damage.

Diagram of a car's front grille with numbered labels pointing to different zones

Technical line drawing of a handheld device with labeled parts A and B (no text or symbols beyond labels)

MAINTENANCE

Check the hose, dust bag and filter regularly. Empty the hose when it is clogged, replace the dust bag when it is full and clean the filter when it is dirty.

Disposable dust bags and filters

The dust bag and the motor filter play a very important roll in the efficiency of the vacuum cleaner. The purpose of the dust bag is to capture dirt, but at the same time the filter needs to be porous enough to allow air to pass through. If the bag or motor filter get clogged, no air can pass through the cleaner and no cleaning can take place regardless of how powerful the unit is.

To keep the cleaner operating at maximum efficiency, change the dust bag frequently and clean the filter when needed. Some fine particles can restrict the air flow very quickly and will decrease the performance even before the bag appears to be full. For that reason, the bag and filter may need to be changed more often when vacuuming carpet fresheners or cleaners, powder, plaster dust or similar fine substances.

Replacing the dust bag and cleaning the motor filter

Be sure to turn off and unplug the vacuum cleaner before replacing the dust bag or cleaning the filter. Never vacuum without the dust bag or filter in place.

1. Turn off and unplug the vacuum cleaner.

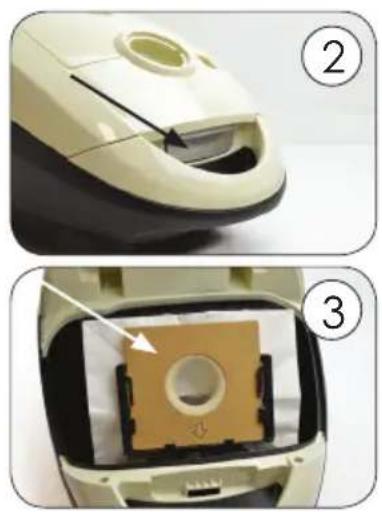

2. Remove the hose from the hose connection and open the dust bag compartment by pushing the handle upwards and lifting the lid.

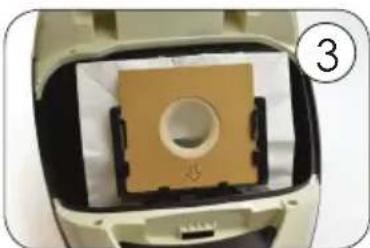

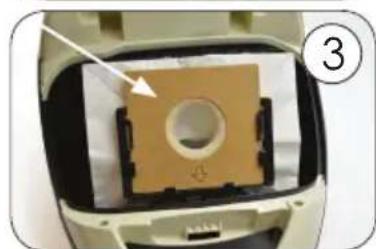

3. Slide the dust bag out of the frame and remove the dust bag from the dust bag compartment.

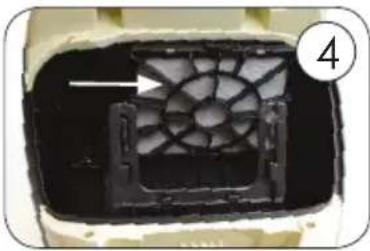

4. If at this point you want to clean the motor filter, take out the filter in its frame by pressing the frame down a bit. Remove the filter from its plastic frame by pulling apart the front and back side of the frame at the top. Clean the filter by rinsing it under warm water. Let the filter dry completely before reinstalling it. Reinstall

Two-step diagram showing a white vacuum cleaner's internal structure, with numbered annotations (② and ③) indicating different states or components.

the filter before placing the dust bag into the dust bag compartment.

1. Slide a new dust bag (3.51) in the dust bag frame.

2. Close the dust bag compartment and push the lid back into place. The spring on the dust bag frame will make sure that the opening of the dust bag is pushed into the right position when closing the lid.

Close-up of a mechanical component with a fan-like structure inside, no visible text or symbols

Cleaning the air filter or HEPA filter

The exhaust air filter or HEPA filter cleans the air a final time before it leaves the vacuum cleaner. This filter and the grid that covers the filter should be cleaned regularly. You can clean the filter as follows:

1. Turn off and unplug the vacuum cleaner. Always pull the plug itself, never pull the cord.
2. Open the grid that covers the filter by lifting up the two clips on the grid, one by one. The filter is visible when the grid is removed.
3. Take out the filter.
4. Rinse the filter under cold water and let it dry completely.
5. Put the filter back into place or replace the filter by a new one. Make sure that the filter is placed properly.
6. Seal with the grid. Make sure that the grid clicks into place.

Close-up of a beige electric shaver with a mesh grille and three black arrows pointing to its side (no text or symbols visible)

Two electronic devices: a beige portable device with control panel and a gray grid-patterned base (no visible text or symbols)

PRECAUCIONES IMPORTANTES

Labeled diagram of a vacuum cleaner with numbered parts for identification

MONTAJE

Close-up of a white vacuum cleaner with a coiled cable inserted, showing its handle and socket (no text or symbols visible)

Tubo telescópico

Line drawing of a hand holding a flexible hose with a coiled tube, no text or symbols present

Illustration of a syringe being held with a hand, showing motion direction (no text or symbols)

Simple line drawing of a medical or laboratory procedure showing a needle inserted into a device (no text or symbols)

Accesorios

Interior view of a car air conditioner unit showing internal components and labeled parts (no text or symbols beyond labels)

Close-up of a mechanical component with a close-up view showing a part being inserted (no text or symbols visible)

Uso

Close-up of a car's front grille with numbered labels pointing to different zones.

Technical line drawing of a mechanical component with labeled parts A and B (no text or symbols beyond labels)

MANTENIMIENTO

Close-up of a white computer mouse with a circular head and handle, labeled with number 2 (no text or symbols on the mouse itself)

Close-up of a device interior with a square component and a white arrow pointing to it, no visible text or symbols.

Close-up of a black plastic fan component with an arrow pointing to it, enclosed in a rectangular opening (no text or symbols visible)

Close-up of a white electric shaver with mesh grille and black arrows pointing to ports (no visible text or symbols)

Two electronic devices: a beige and black device with a grid display and a gray grid-patterned base (no visible text or symbols)

DÜLEŽITÉ

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

PŘÍSLUŠENSTVÍ

Illustration of a hand holding a flexible hose with a coiled tube, labeled with number 123 (no text or symbols on the diagram itself)

Illustration of a hand holding a measuring tape with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical device with a circular head and lever, no text or symbols present

Příslušenství

Interior view of a mechanical device showing internal components (no text or symbols visible)

Close-up of a black plastic clip holding a cylindrical object, with an arrow pointing to the component and a numbered label (3) in the corner.

POUŽITÍ

Close-up of a car's front grille and side door, labeled with numbers 2, 3, and 6 (no text or symbols beyond labels)

Technical line drawing of a mechanical component with labeled parts A and B (no text or symbols beyond labels)

ÚDRŽBA

Close-up of a white disposable vacuum cleaner with a circular handle and black base, labeled with number 2 (no text or symbols on the device itself)

Close-up of a beige electronic device with a square component and circular housing, labeled with number 3 (no text or symbols on the device itself)

Close-up of a mechanical component with a mesh fan and black housing, no visible text or symbols

Close-up of a white portable electric heater with a mesh grille and three buttons, no visible text or symbols.

Exterior view of a portable electronic device with a grid-patterned base and a black-and-white casing (no text or symbols visible)
