USER MANUAL DO7249S DOMO

Black and white photo of a compact vacuum cleaner with coiled hose (no visible text or symbols)

DO7248S / DO7249S

PRODUCT OF LINEA 2000

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The warranty will only be valid if the warranty application has been completed by the dealer at the time of purchase. All parts, which are subject to wear, are excluded from the warranty.

ZÁRUKA

RECYCLAGE-INFORMATIE

Symbol of a trash bin crossed with no visible text or labels

RECYCLING INFORMATIONEN

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not

be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat package ecologically.

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

INFORMACE O RECYKLACI ODPADU

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

Technical diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

Accessoires

Close-up of a black rubber hose component with textured handle and bulb (no text or symbols visible)

Black T-shaped mechanical component with a circular label '2' in the top-left corner (no other text or symbols)

DE STOFZUIGER IN MEKAAR ZETTEN

Close-up of a black rubber hose connecting a metallic device (no visible text or symbols)

Montage van de telescopische buis

Illustration of hands holding a flexible hose with a coiled tube, no text or symbols present

Illustration of hands holding a ruler with an arrow indicating measurement direction (no text or symbols)

Diagram of a hand tool interacting with a device, showing an arrow indicating motion (no text or symbols present)

HET TOESTEL GEBRUIKEN

Starten

Close-up of a button with a circular icon and letter '1' on a dark surface, labeled 'A' in the corner (no other text or symbols)

Stofzuigen

Technical diagram of a vacuum cleaner with labeled parts 1 and 2

Stoppen

Close-up of a metallic button with a circular mark and a curved arrow symbol, labeled 'B' in the top-left corner (no other text or symbols)

ONDERHOUD

Interior view of a black air fryer with a plastic housing and cloth inside (no text or symbols visible)

Close-up of a mechanical component with a grid-patterned grille and mounting brackets (no visible text or symbols)

Close-up of a black mesh filter or air vent component with grid pattern (no text or symbols visible)

Labeled diagram of a vacuum cleaner with numbered parts for identification

Technical diagram of a mechanical device with numbered parts labeled 12, 13, and 14

Accessoires

Close-up of a black rubber hose component with textured bristles (no text or symbols visible)

Black T-shaped object with a cylindrical top, shown in a simple view (no text or symbols visible)

ASSEMBLAGE DE L'ASPIRATEUR

Montage du tuyau

Close-up of a black threaded cable inserted into a metallic device (no visible text or symbols)

Illustration of hands holding a flexible hose with coiled tubing (no text or symbols)

Illustration of a hand holding a syringe with an arrow indicating motion (no text or symbols)

Diagram of a hand tool applying material to a mechanical component, no text or symbols present

UTILISER L'APPAREIL

Démarrage

Close-up of a black button with a white circular icon and the letter '1' on its side, labeled 'A' in the corner (no other text or symbols visible)

Aspirer

Technical diagram of a handheld device with labeled parts 1 and 2

Arrêt

Close-up of a metallic mechanical knob with a circular button and a small circular symbol, labeled 'B' in the corner (no readable text or symbols beyond label)

ENTRETIEN

Interior view of a black air fryer with a plastic lid and cloth inside (no text or symbols visible)

Close-up of a mechanical component with a grid-patterned grille and mounting brackets (no visible text or symbols)

Close-up of a black mesh filter or filter component with grid pattern and curved edge (no text or symbols visible)

Technical diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

Zubehör

Close-up of a black hairdryer tool with textured handle and circular head (no text or symbols visible)

Black T-shaped object with a cylindrical protrusion, labeled with number 2 in the corner (no text or symbols on the object itself)

DEN STAUBSAUGER ZUSAMMENBAUEN

Close-up of a black rubber hose connecting a metallic device (no visible text or symbols)

Montage des Teleskoprohres

Illustration of hands holding a flexible hose with a coiled tube, no text or symbols present

Illustration of a hand holding a syringe with an arrow indicating motion (no text or symbols)

Diagram of a hand tool interacting with a device, showing an arrow indicating motion (no text or symbols present)

Close-up of a black mechanical knob with a white circular button labeled 'I' and a letter 'A' below (no additional text or symbols)

Staubsaugen

Technical diagram of a vacuum cleaner with labeled parts 1 and 2

Stoppen

Close-up of a metallic mechanical knob with a circular button and a small symbol, labeled 'B' in the corner (no readable text or symbols beyond label)

WARTUNG

Interior view of a black air fryer with a partially open lid showing internal components (no text or symbols visible)

Close-up of a vehicle's front grille with grid pattern (no text or symbols visible)

Close-up of a black rectangular filter or mesh device with grid pattern and curved edge (no text or symbols visible)

IMPORTANT SAFETY INSTRUCTIONS

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and that they know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision.

Keep the appliance out of reach of children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings
• Farms
• Hotel or motel rooms and other surroundings with a residential character
• Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

Respect these guidelines in order to reduce the risk of fire, electric shock or injuries:

1. Do not leave the vacuum cleaner when the appliance is plugged in. Unplug the vacuum cleaner when not in use and before maintenance.
2. Do not use outdoors or on wet surfaces to reduce the risk of electric shock.
3. Only use the vacuum cleaner as described in this manual. Also, only use the parts and attachments that are recommended by the manufacturer.
4. Do not use the appliance when the cord or the plug is damaged. If the vacuum cleaner is not working as it should, if it has been dropped, damaged, left outdoors or dropped into water, take it to a service center.
5. Be careful with the cord. Do not pull the cord, carry the vacuum cleaner by the cord, use the cord as a handle, close a door on the cord or pull the cord around sharp edges or corners. Do not run the vacuum cleaner over the cord. Also keep the cord away from heated surfaces.

6. Do not unplug by pulling the cord. To unplug, grasp the plug, not the cord.

7. Do not handle the plug or the vacuum cleaner with wet hands.

8. Do not put any objects into openings. Do not use the vacuum cleaner if any openings are blocked. Keep free from dust, lint, hair and anything that may reduce the air flow.
9. Keep hair, loose clothing, fingers and other body parts away from openings and moving parts.
10. Turn off all controls before unplugging.
11. Be extra careful when cleaning stairs.
12. Do not use to pick up flammable or combustible liquids, such as gasoline or do not use in areas where these liquids may be present.
13. Hold the plug when rewinding the cord onto the cord reel. Do not allow the plug to whip when rewinding.
14. Unplug before connecting the hose.
15. Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.

16. Do not use without a dust bag and/or filter in place.

17. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

Sound pressure level detected: 70\~80dB (no limit)

SAVE THESE INSTRUCTIONS

ATTENTION!

• Switch off the vacuum cleaner immediately if the air intakes, the floor brushes or the telescopic tube become blocked. Remove the substances that cause the blockage before switching on the vacuum cleaner again.
• Never use the vacuum cleaner in the immediate proximity of hot bodies and do not suck up hot objects such as cigarette ends or ashes.
• Only place the plug into the socket if your hands are dry.
• Remove large or sharp objects from the floor before you start vacuuming in order to avoid any possible damage.
• Do not pull the cord when you pull the plug out of the socket.

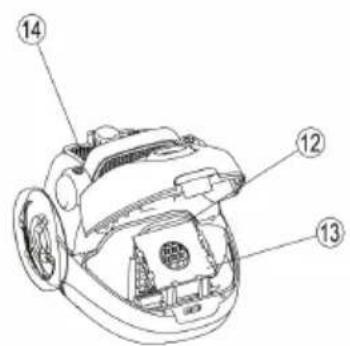

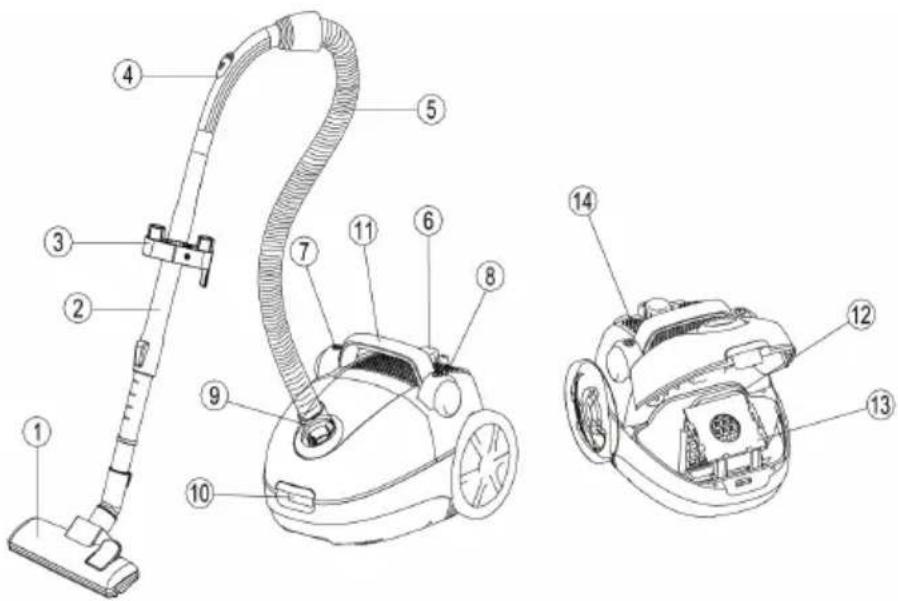

PARTS AND EQUIPMENT

1. Floor nozzle
2. Telescopic tube
3. Storage clip
4. Air slide
5. Flexible hose
6. Suction power regulator
7. Automatic cord rewinder button
8. On/off button
9. Flexible hose connection
10. Bag compartment latch
11. Carrying handle
12. Motor filter
13. Dust bag (disposable)
14. HEPA filter grill

Technical diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

Accessoires

1. Crevice tool with dust brush
2. Small floor nozzle

Close-up of a black hairbrush connector (no text or symbols visible)

Black T-shaped plastic object with a cylindrical top (no text or symbols visible)

ASSEMBLING THE VACUUM CLEANER

Assembling the hose

1. Insert the end of the hose with the black sleeve into the air intake opening.
2. Push the hose until it locks into place.

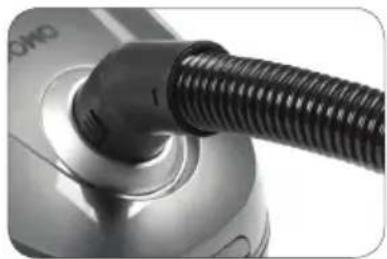

Disassembling the hose

1. Pull the plug out of the socket.
2. Press the ribbed sides of the black sleeve at the end of the hose.
3. Remove the hose from the opening.

Close-up of a black flexible hose connecting a metallic device (no visible text or symbols)

Assembling the telescopic tube

1. Remove the tube from the hand grip by pulling them apart.
2. Set the tube to the correct length. To do this, push the slide forwards and pull out the lower part of the tube until you have reached the required length. Then let go of the slide and let it snap into place.
3. Attach the floor nozzle to the tube.
4. Put the hand grip back into the tube.

Illustration of hands holding a flexible hose with a coiled tube, no text or symbols present

Illustration of a hand holding a syringe with an arrow indicating motion (no text or symbols)

Diagram of a hand tool interacting with a device, showing an arrow indicating motion (no text or symbols present)

USING THE APPLIANCE

Getting started

Before using the vacuum cleaner, first roll out a sufficient length of the electric cord and plug it in. The yellow mark on the cord indicates the maximum length, that must not be exceeded. To switch on the vacuum cleaner press the on/off button (A) with your foot.

Close-up of a black mechanical button with a white circular icon and letter 'J' on the left, labeled 'A' in the corner (no other text or symbols visible)

Vacuuming

With the suction power regulator you can choose the suction power as you require it. We recommend to use the minimum suction power for vacuuming delicate materials. The medium power is best for mattresses, furniture and carpets. Select the maximum power for tiles, wood and other robust floors.

Also the floor nozzle has two different settings:

1. For hard floors like tiles and wood, extend the brush bar by pressing the button into setting 1.

2. For carpets, retract the brush bar by pressing the button into setting 2.

Technical diagram of a vacuum cleaner with labeled parts 1 and 2

Shutting down

Switch off the vacuum cleaner by pressing the on/off button. Pull the plug out of the socket. To rewind the cord, press the rewinding button (B) with one hand while you guide the cord with your other hand to ensure that the plug does not whip causing damage. To store the vacuum cleaner you can slide the floor nozzle with the tube and hose into the special slot at the back of the appliance.

Close-up of a metallic mechanical knob with a circular emblem on the knob (no text or symbols visible)

MAINTENANCE

The instructions in this manual serve as a guideline for routine maintenance. Check the hose, dust bag and filter often. Clear a clogged hose, replace the dust bag when it is full and clean the motor filter when dirty.

Disposable dust bags and filters

The dust bag and the motor filter play a very important roll in the efficiency of the vacuum cleaner. The purpose of the dust bag is to trap dirt, but at the same time the filter needs to be porous enough to allow air to pass through. If the bag or motor filter get clogged, no air can pass through the cleaner and no cleaning can take place regardless of how powerful the unit is.

To keep the cleaner operating at maximum efficiency, change the dust bag

frequently and clean the filter when needed. Some fine particles can restrict the air flow very quickly and will decrease the performance even before the bag appears to be full. For that reason, the bag and filter may need to be changed more often when vacuuming carpet fresheners or cleaners, powder, plaster dust or similar fine substances.

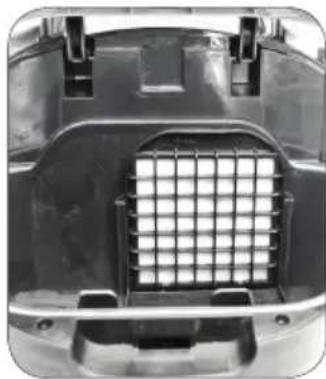

Replacing the dust bag

Remember: switch off and unplug the vacuum cleaner before you replace the dust bag or clean the motor filter. Never vacuum without the dust bag or filter.

1. Switch off and unplug the vacuum cleaner.

2. Open the dust bag compartment by pushing the latch upwards with your fingers and lifting the lid.

3. Take the dust bag frame and lift the dust bag out of the compartment by taking the dust bag frame out of its slot.

4. Remove the dust bag from the frame and slide in a new dust bag (2l) into the frame.

5. Take out the motor filter and clean it if it is dirty by rinsing it under warm water. Let the filter dry before reinstalling it.

6. Put the dust bag frame back into the dust bag compartment by sliding the frame into its slot at the front of the compartment.

Interior view of a black air fryer with a plastic lid and cloth inside (no text or symbols visible)

Close-up of a mechanical component with a grid-patterned grille and mounting brackets (no visible text or symbols)

1. Close the dust bag compartment and push the lid back into place.

Cleaning the exhaust air filter or HEPA filter

The exhaust air filter or HEPA filter cleans the air a final time before it leaves the vacuum cleaner. You can clean the filter as follows:

1. Switch off and unplug the vacuum cleaner. Always pull the plug itself, never pull the cord.

2. Open the grill of the filter. The filter is visible when the grill has been removed.

3. Rinse the filter under cold running water and let it dry.

4. Put the filter back into place or replace the filter by a new one.

5. Close the grill to seal.

Close-up of a black rectangular filter or mesh device with grid pattern and a curved handle (no text or symbols visible)

DŮLEŽITÉ

Technical diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

PŘÍSLUŠENSTVÍ

Close-up of a black mechanical component with textured ends and a cylindrical shaft (no visible text or symbols)

Black T-shaped plastic component with a cylindrical top (no text or symbols visible)

MONTÁŽ HADICE

Close-up of a black rubber hose connecting a metallic device (no visible text or symbols)

MONTÁŽ TELESKOPICKÉ TRUBICE

Illustration of hands holding a flexible hose with a coiled tube, no text or symbols present

Illustration of hands holding a ruler with an arrow indicating measurement direction (no text or symbols)

Diagram of a medical or laboratory procedure showing a tool interacting with a device (no text or symbols present)

ZAPNUTÍ

Close-up of a black button with a white circular icon and letter 'A' label (no readable text or symbols beyond the label)

NASTAVENÍ PODLAHOVÉ HUBICE

Technical diagram of a handheld device with labeled parts 1 and 2

VYPNUTÍ

Close-up of a metallic knob with a circular button, labeled 'B' in the corner (no other text or symbols visible)

VÝMĚNA SÁČKU

Interior view of a black air fryer with a plastic inner component, showing internal tissue and casing (no text or symbols visible)

Close-up of a vehicle's front panel showing a grid-patterned grille (no text or symbols visible)

VÝMĚNA FILTRŮ

Close-up of a black rectangular filter or mesh device with grid pattern and curved edge (no text or symbols visible)
