USER MANUAL PLA5215 ZYXEL

KEEP THIS GUIDE FOR FUTURE REFERENCE.

Note: This guide is a reference for a series of products. Therefore some features or options in this guide may not be available in your product.

Screenshots and graphics in this book may differ slightly from your product due to differences in your product firmware or your computer operating system. Every effort has been made to ensure that the information in this manual is accurate.

Related Documentation

- Quick Start Guide

The Quick Start Guide is designed to help you get up and running right away. It contains information on making your hardware connections.

Table of Contents

Table of Contents ....3

Part I: User's Guide .... 5

Chapter 1 Introducing the PLA ....6

1.1 Overview ......6
1.2 LEDs 7
1.3 Standby Mode (Power Saving Mode) 9
1.4 Ways to Manage the PLA 9
1.5 Expand Your Network with the PLA 9
1.6 Security 10
1.6.1 Passwords 10
1.6.2 Setting Up Security 11
1.7 Multiple Networks ...... 11

Chapter 2 The RESET/ENCRYPT Button....12

2.1 RESET/ENCRYPT Button Overview 12
2.2 Adding Devices to a Powerline Network 12
2.3 Removing a Device from a Powerline Network 14
2.4 Multiple Separate Powerline Networks ....15
2.5 PLAs With One Combination RESET/ENCRYPT Button 15
2.6 PLAs with Separate RESET and ENCRYPT Buttons 16
2.6.1 ENCRYPT Button Behavior 16
2.6.2 RESET Button Behavior ....17

Part II: Technical Reference....18

Chapter 3 Installing the Utility....19

3.1 Windows 19
3.1.1 System Requirements ...... 19

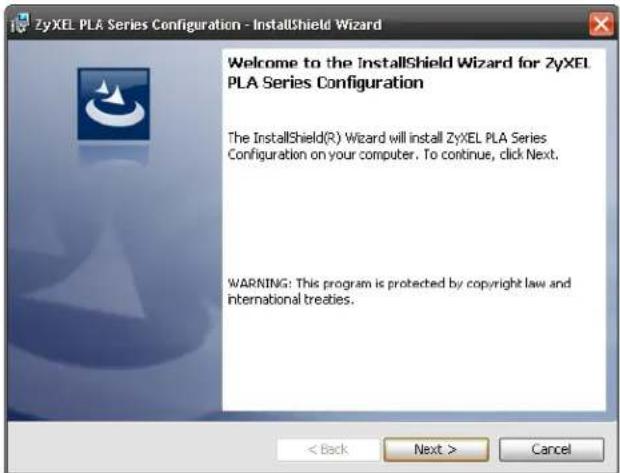

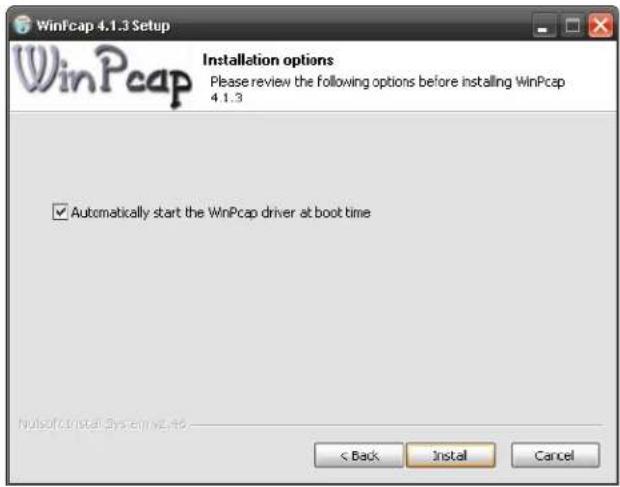

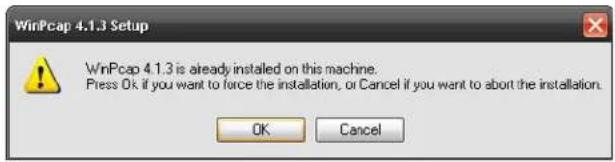

3.1.2 Installing the Utility 19
3.2 Macintosh (Mac) 25
3.2.1 Supported OSs 25

3.2.2 Installing the Utility 25

Chapter 4

The Configuration Utility....28

4.1 Overview ......28
4.1.1 Powerline Network Security 28
4.1.2 Device Access Key (DAK) 29
4.2 Starting the Configuration Utility 29

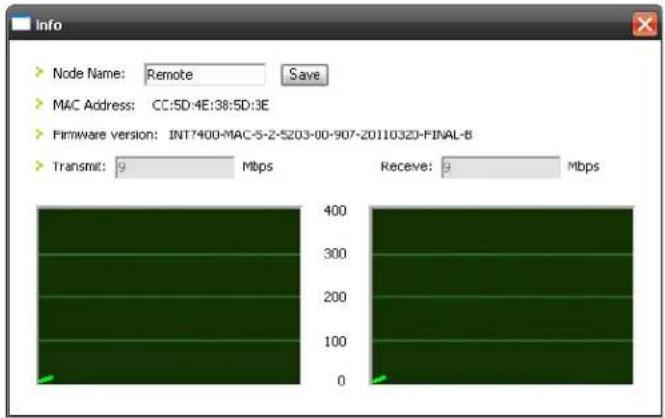

4.3 Network Info Screen 29
4.3.1 Icon View .... 30
4.3.2 List View .... 31
4.4 Configuration Screen 32
4.5 Advanced Screen 34
4.6 About Screen 36

Chapter 5

Powerline Network Setup Tutorial....38

5.1 Overview ...... 38
5.2 Important Terms ....38
5.3 Accessing Your Powerline Adapter .... 39
5.4 Adding a Powerline Adapter ...... 39
5.5 Setting Up a New Network with a New Adapter 41
5.6 Splitting a Network into Two Networks ....43
5.7 Troubleshooting 45

Chapter 6

Troubleshooting....46

6.1 Power and Light Problems ....46
6.2 Configuration Utility Problems ....47
6.3 Powerline Problems ....48
6.4 RESET/ENCRYPT Button Problems 48

Appendix A Customer Support 50

Appendix B Legal Information....56

Index 59

PART I

User's Guide

Introducing the PLA

1.1 Overview

This chapter introduces the main applications and features of your ZyXEL HomePlug AV compliant powerline adapter, which is called "PLA" in this guide. The following generic icon is used to represent all PLA models.

In this User's Guide the electrical wiring network is referred to as the "powerline network". The HomePlug AV standard specifies how network devices communicate using standard electrical wiring.

This User's Guide covers the following models:

Table 1 PLA Comparison Table 1

PORT/FEATURE	PLA4101	PLA4111	PLA4201	PLA4201 V2	PLA5205	PLA5215
One 10/100 Base-T Ethernet port	√	√	√	√
One Gigabit Ethernet port					√	√
AC Pass-Through		√				√
Reset/Encrypt Button	√	√	√	√
Reset Button					√	√
Encrypt Button					√	√
Maximum PHY Rate over Powerline	200 Mbps 200 Mbps 500 Mbps 500 Mbps 600 Mbps 600 Mbps

Table 2 PLA Comparison Table 2

PORT/FEATURE PLA5206 PLA5405
One 10/100 Base-T Ethernet port
One Gigabit Ethernet port	√	√
AC Pass-Through
Reset/Encrypt Button	√	√
Reset Button
Encrypt Button
Maximum PHY Rate over Powerline	1000 Mbps	200 Mbps

Note: In this guide RESET/ ENCRYPT refers to the ENCRYPT button in PLAs that have separate RESET and ENCRYPT buttons.

You can directly plug an electrical device (such as a router or computer) into PLAs with an AC power pass-through socket to supply power to the device.

There are two types of hardware for each of the PLA4101 and PLA4201 v2 models:

• One has an Ethernet port on the top and a power plug at the bottom of the rear panel.
• One has an Ethernet port on the bottom and a power plug at the top of the rear panel.

The power plug varies depending on your region.

1.2 LEDs

The following sections describes the lights on the PLA.

The following figure is the front panel of the PLA. Use the lights to determine if the PLA is behaving normally or if there are some problems on your powerline network.

Figure 1 PLA Lights

Three icons: three rectangular boxes with a power symbol, one house icon with a battery symbol, and one square box with Chinese character '單' (square)

The following table describes the behavior of the lights on the PLA.

Table 3 LEDs: 200 Mbps Models

LIGHTS	ICON	COLOR	STATUS	DESCRIPTION
POWER Green	On The	PLA is on and	d receiving power.	It also indicates a successful connection using the RESET/ENCRYPT button.
			Blinking It indicates the PLA is trying to connect with another device using the ENCRYPT function.The Power LED blinks when it is in standby mode. Refer to Section 1.3 on page 9 for details on this feature.
			Off The PLA is not receiving power.
HomePlug Green [DOTA]	The PLA detects	PLA detects	powerline adapter. The data transfer rate is greater than 40 Mbps.
	Amber The Red	PLA detects and	another powerline adapter. The data transfer rate is between 12~40 Mbps.
			other powerline adapter. The data transfer rate is between 0~12 Mbps.
	Green/ Amber/ Red	Blinking	The PLA is communicating with another powerline adapter. Data is being transmitted and/or received.
		Off The HomePlug port does not detect another powerline adapter.
ETHERNET	[DSDH]	Green	On	The ETHERNET port is on and ready and the PLA detects a device connected to it.
			Blinking The	PLA is communicating with a networking device connected to it.
			Off The PLA	does not detect any devices connected to its ETHERNET port.

Table 4 LEDs: 500 / 600 / 1000 / 1200 Mbps Models

LIGHTS	ICON	COLOR	STATUS	DESCRIPTION
POWER		Green On	The PLA is on	and receiving power.It also indicates a successful connection using the RESET/ENCRYPT button.
			Blinking It	indicates the PLA is trying to connect with another device using the ENCRYPT function.The Power LED blinks when it is in standby mode. Refer to Section 1.3 on page 9 for details on this feature.
			Off The PLA	is not receiving power.
HomePlug Green [C252]	The PLA detects	PLA detects	PLA detects	powerline adapter. The data transfer rate is greater than 80 Mbps.
	Amber The			another powerline adapter. The data transfer rate is between 20~80 Mbps.
	Red The PLA		A detects an	other powerline adapter. The data transfer rate is between 0~20 Mbps.
	Green/Amber/Red	Blinking		The PLA is communicating with another powerline adapter.Data is being transmitted and/or received.
		Off The HomePlug port does not detect another powerline adapter.
ETHERNET		Green	On	The ETHERNET port is on and ready and the PLA detects a device connected to it.
			Blinking The	PLA is communicating with a networking device connected to it.
			Off The PLA	does not detect any devices connected to its ETHERNET port.

1.3 Standby Mode (Power Saving Mode)

Your PLA is a certified green product. It goes into standby mode when there is no Ethernet connection.

When you plug the PLA into an electric socket, it waits for an Ethernet connection. When no connection is detected after sixty (60) seconds, the Power LED blinks indicating that it is going into standby mode.

The same process occurs when you disconnect the PLA from a previously working Ethernet connection. Sixty (60) seconds after disconnecting the Ethernet cable, the PLA's power LED blinks signalling that it is going into standby mode.

The Ethernet and HomePlug LEDs are turned off in standby mode.

While in standby mode, you cannot use the RESET/ ENCRYPT button. To enable the RESET/ ENCRYPT button again, you have to connect the PLA's Ethernet cable to a computer/notebook or modem/router first. The PLA wakes up from standby mode and you can start using the RESET/ ENCRYPT button.

1.4 Ways to Manage the PLA

Use the RESET/ ENCRYPT button to add powerline devices to your powerline network if they have this button. See Chapter 2 on page 12 for instructions on using the ENCRYPT feature.

Use the ZyXEL PLA Series Configuration utility (or utility, for short) to manage the PLA. See Chapter 3 on page 19 for instructions on installing the utility.

1.5 Expand Your Network with the PLA

The PLA plugs into an ordinary power outlet to easily extend a cable or DSL broadband connection or existing Ethernet (LAN) network to any other electrical outlet in any room of a house, all without the need for any new cabling. Devices can securely communicate with each other at high data transfer rates. The PLA uses 128-bit Advanced Encryption Standard (AES) to ensure safe transfer of information.

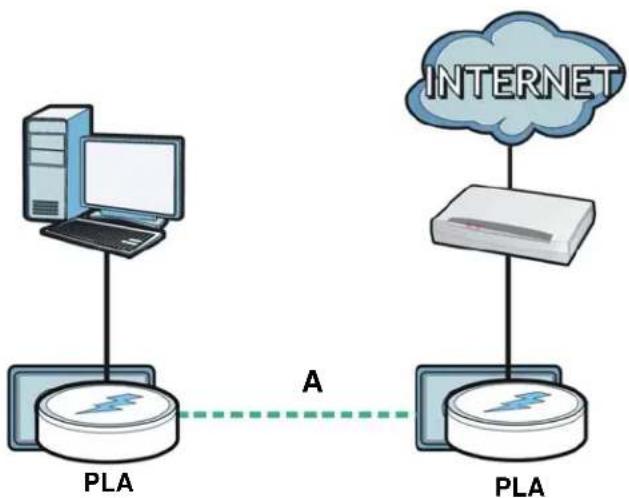

Figure 2 Expand Your Network with the PLA

Connect your PLA to an Internet gateway such as a modem and plug it into an ordinary power outlet in your home. Plug a second PLA into another power outlet and connect a computer to the PLA for Internet access. Your network can be further expanded by plugging additional PLAs into other outlets in your home and connecting other computers or network devices (for example, a printer) to them.

Refer to your Quick Start Guide for hardware connection information.

1.6 Security

Since your powerline network may extend outside your premises, it is important to set up security on your PLA.

1.6.1 Passwords

You use two types of passwords in the HomePlug AV powerline network. The following table describes the differences between the passwords.

Table 5 Password Summary

PASSWORD DESCRIPTION
Network Name	All powerline adapters that follow the HomePlug AV standard are shipped with the same powerline network name “HomePlugAV”. Change the network name via the ZyXEL PLA Series Configuration utility or RESET/ ENCRYPT button to create a private network. See Section 4.4 on page 32.
DAK (Data Access Key) Password	In order to manage the powerline adapters on your powerline network you must enter the adapters’ DAK password in the ZyXEL PLA Series Configuration utility. This password is printed on the powerline adapter itself.You don’t need to add the password for the powerline adapter directly connected to the computer running the configuration utility (local powerline adapter), you only have to add the remote powerline adapters’ passwords (those on your circuit, but not directly connected to your computer).

1.6.2 Setting Up Security

The ENCRYPT feature automatically sets up security on your powerline network. Use this feature if your powerline devices have the RESET/ ENCRYPT button.

Alternatively, use the ZyXEL PLA Series Configuration utility to set up security on the PLA. Although the PLA is a “plug-and-play” network expanding solution there are several reasons for enabling security on the powerline network in your home.

1 It's easy and only requires you to change a network name.

2 It's a good idea to ensure privacy of your communication. When you use the PLA and other powerline adapters, the electrical wiring in your home becomes an extension of your Ethernet network. Your network traffic flows freely within the electrical circuit of your home and is bounded in most cases by a power meter.

Without security (encryption) your information is accessible to anyone using a powerline adapter on the same electrical circuit. In some cases, a circuit can be shared by more than one household.

To prevent compromising your network security, you can create a private network. A private network uses a secret password (Network Name) to make sure that only permitted powerline adapters can communicate in your network. See Section 4.4 on page 32 for information on setting up a private network.

3 You may need to change the Network Name to create multiple powerline networks. See the next section for more information on how to set up a multiple network.

1.7 Multiple Networks

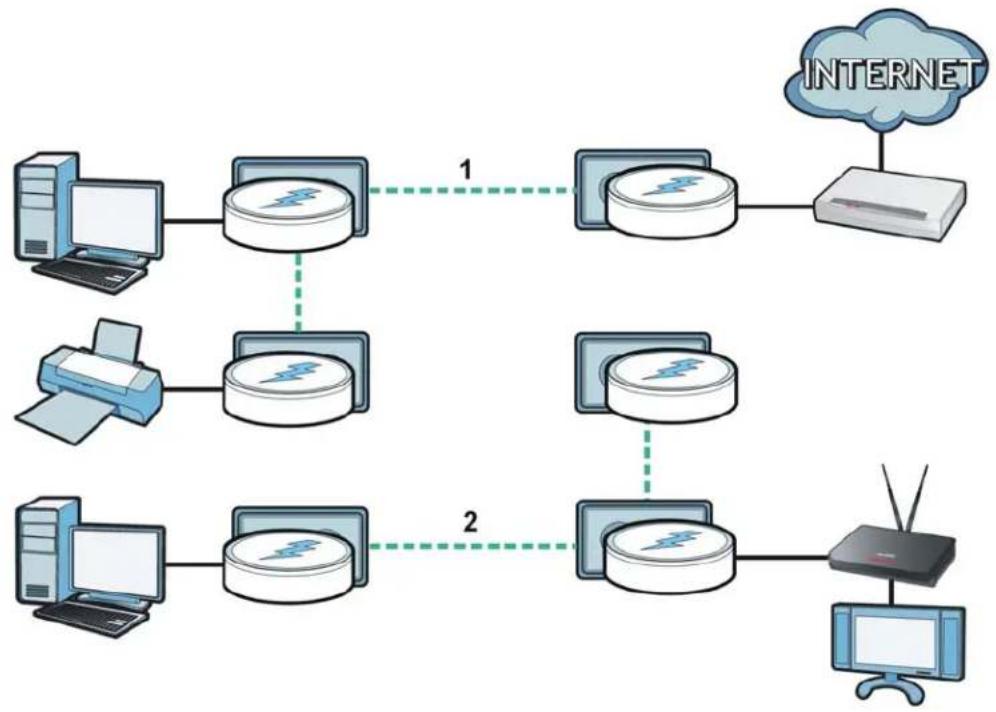

Multiple powerline networks can coexist on a single powerline circuit. You might want to implement multiple powerline networks in a small office environment where you have two separate Ethernet networks.

1 Connect one powerline adapter to a router or switch on the first Ethernet network and assign a Network Name (for example "Password1") to this powerline adapter. Add additional powerline adapters to your network by plugging them into your powerline outlets and assigning them "Password1". This completes the configuration of your first powerline network.

2 Connect another powerline adapter to a router or switch on the second Ethernet network and assign a different Network Name (for example "Password2") to this powerline adapter. Again, add additional powerline adapters and assign them "Password2".

You now have two private networks on your powerline circuit. Information is not shared between the two networks as only powerline adapters with the same Network Name can communicate with each other.

The RESET/ENCRYPT Button

Use the RESET/ ENCRYPT button to automatically set up a secure powerline connection between your powerline devices.

Note: In this guide RESET/ ENCRYPT refers to the ENCRYPT button in PLAs that have separate RESET and ENCRYPT buttons.

2.1 RESET/ENCRYPT Button Overview

The RESET/ ENCRYPT button allows you to set up a secure powerline connection with other HomePlug AV compliant powerline devices which also support the ENCRYPT feature. No other powerline setting changes are required to connect.

You can use the RESET/ ENCRYPT button to:

• set up a new powerline network.
• separate an existing powerline network into multiple networks.
• reset the PLA to the factory defaults.

2.2 Adding Devices to a Powerline Network

You can connect a number of PLAs on a powerline network, but you can use the RESET/ ENCRYPT button on only two PLAs at a time.

Place a powerline device close to another powerline device so you have time to set up each one. After you set up the first powerline device, you have 120 seconds to set up the second powerline device.

Note: Your PLA must be connected to a networking equipment for the RESET/ ENCRYPT button to work. Refer to Section 1.3 on page 9 for more details.

Follow the steps below to set up your HomePlug AV Network:

1 Press the RESET/ ENCRYPT button at the side of your powerline device for 0.5 to 3 seconds. The power ( )light will blink as the powerline device tries to set up a connection with a new random network name.

Figure 3 ENCRYPT Connection Procedure

Note: The RESET/ ENCRYPT button's location varies for each Powerline model.
Note: Check the lights on the two powerline devices. The power ( ) and HomePlug ( ) lights should be on while the devices are connecting. Wait for about two minutes while your powerline devices connect.

If the power ( ⏻ ) light does not blink when you press RESET/ ENCRYPT, you have probably pressed the RESET/ ENCRYPT button for too long. Try again, pressing the RESET/ ENCRYPT button for 0.5 to 3 seconds.

If the HomePlug (▲lights on both powerline devices do not light up, the powerline devices are not connected. Repeat step 1 in this section. If that doesn't work, see the Troubleshooting in Section 6.4 on page 48 for suggestions.

2 To add more powerline devices to your network, use any powerline device (A or B) you have connected to set up a connection with the powerline devices you want to connect (C and D).
3 Press the RESET/ ENCRYPT button on both powerline devices (A and C, or B and C) for 0.5 to 3 seconds to add powerline device C. This must be done within 2 minutes (120 seconds) of pressing the RESET/ ENCRYPT button on the PLA.
4 Press the RESET/ ENCRYPT button on both powerline devices (A and D, B and D or C and D) for 0.5 to 3 seconds to add powerline device D. This must be done within 2 minutes (120 seconds) of pressing the RESET/ ENCRYPT button on the PLA.

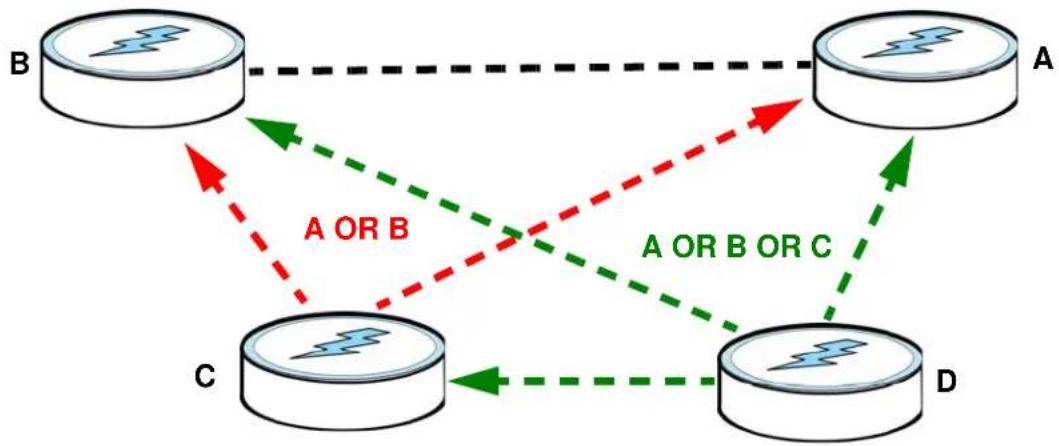

Figure 4 Adding More Powerline Adapters to Your Network

This sets up your powerline network between your powerline devices.

2.3 Removing a Device from a Powerline Network

Suppose you want to remove PLAs (C) and (D) from the following powerline network.

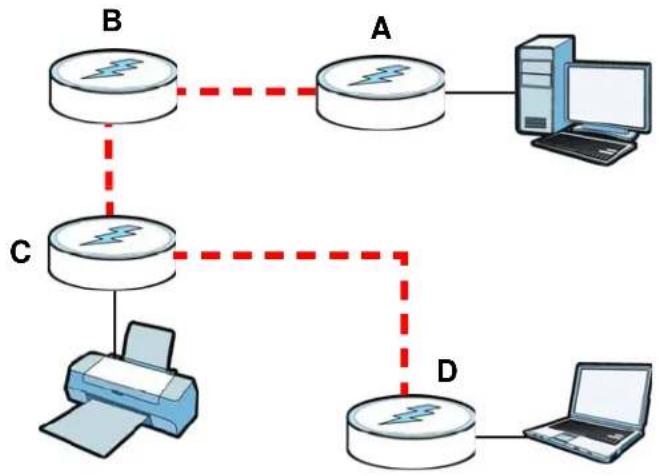

Figure 5 Removing Devices From an Existing Powerline Network

1 Press the RESET/ ENCRYPT button on powerline device C for 5 to 8 seconds and then release it. This disconnects C from the current network.
2 Press the RESET/ ENCRYPT button on powerline device D for 5 to 8 seconds and then release it. This disconnects D from the current network.

2.4 Multiple Separate Powerline Networks

You can use the RESET/ ENCRYPT button to create multiple separate powerline networks. Use the RESET/ ENCRYPT button on only two PLAs at a time.

1 Press the RESET/ ENCRYPT button on powerline devices E and F for 0.5 to 3 seconds. This must be done within 2 minutes (120 seconds) of pressing the RESET/ ENCRYPT button on the first PLA.
2 Wait for about one minute while powerline devices E and F connect.
3 Now pair two different PLAs. Press the RESET/ ENCRYPT button on powerline devices G and H for 0.5 to 3 seconds and within two minutes of each other.
4 Wait for about one minute while powerline devices G and H connect.
5 When the power (⏻) and HomePlug (⏻) lights shine steadily, the devices are connected.

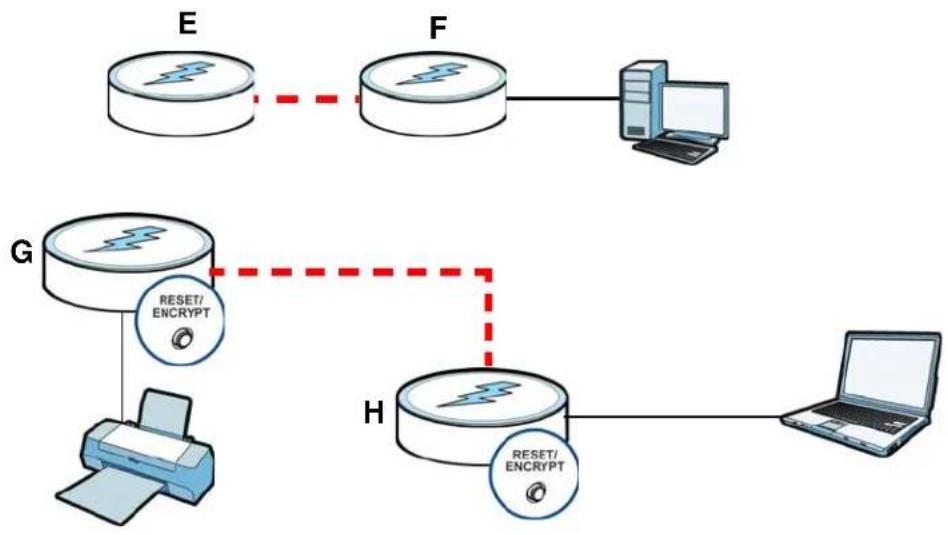

Figure 6 Two Separate Powerline Networks

If the HomePlug ( lights on both powerline devices do not light up, the powerline devices are not connected. Repeat the connection process, making certain you press the RESET/ ENCRYPT buttons for the correct time and within two minutes of each other. If that does not work see Section 6.4 on page 48 for suggestions.

2.5 PLAs With One Combination RESET/ENCRYPT Button

Refer to Table 1 on page 6 to see which models have a combination RESET / ENCRYPT button.

The following table summarizes the actions that occur when the RESET/ ENCRYPT button is pressed for specific lengths of time.

Table 6 RESET/ ENCRYPT

TIME ACTION POWER LIGHT BEHAVIOR			HOMEPLUG LIGHT BEHAVIOR
0.5 to 3 seconds	Create a powerline network with a new random network name.Join an existing powerline network by sharing the same network name as other devices on the network.	The power (light blinks until the device is connected. This may take a minute.	The HomePlug (light turns on if your device is connected to another powerline device or a powerline network.
5 to 8 seconds	Remove the device from any network it is associated with and its network name assumes a random value.	The power (light blinks and then shines steadily.	The HomePlug (light turns off when it disconnects from the powerline network.
10 to 15 seconds	Clear all user-entered configuration information and return the device to its factory defaults.	The power (light blinks and then shines steadily.	The HomePlug (light turns off when it disconnects from the powerline network.

Note: The network name is unknown when you use the RESET/ ENCRYPT button.

2.6 PLAs with Separate RESET and ENCRYPT Buttons

Refer to Table 1 on page 6 to see which models have separate RESET and ENCRYPT buttons.

2.6.1 ENCRYPT Button Behavior

The following table summarizes the actions that occur when the ENCRYPT button is pressed for specific lengths of time.

Table 7 ENCRYPT

TIME ACTION POWER LIGHT BEHAVIOR			HOMEPLUG LIGHT BEHAVIOR
less than 3 seconds	Create a powerline network with a new random network name.Join an existing powerline network by sharing the same network name as other devices on the network.	The power ( Light blinks until the device is connected. This may take a minute.	The HomePlug ( Light turns on if your device is connected to another powerline device or a powerline network.
more than 10 seconds	Remove the device from any network it is associated with and its network name assumes a random value.	The power ( Light blinks and then shines steadily.	The HomePlug ( Light blinks red one time and then turns off when it disconnects from the powerline network.

2.6.2 RESET Button Behavior

Use a pointed device such as a pin to reset the Network Name back to default HomePlugAV.

Table 8 RESET Button

TIME ACTION POWER LIGHT BEHAVIOR			HOMEPLUG LIGHT BEHAVIOR
1 to 3 seconds	Clear all user-entered configuration information and return the device to its factory defaults.	The power (light blinks and then shines steadily.	The HomePlug (light turns off when it disconnects from the powerline network.

See Troubleshooting in Chapter 6 on page 48 for suggestions on problems with the RESET/ENCRYPT button and the lights.

PART II

Technical Reference

Installing the Utility

This chapter guides you through the installation of the configuration utility for your PLA.

3.1 Windows

This section uses the Windows XP screens as an example to show you how to install the Windows vesion of the ZyXEL PLA Series Configuration utility.

3.1.1 System Requirements

At the time of writing, the ZyXEL PLA Series Configuration utility is compatible with:

• Windows XP (32-bit version)
• Windows XP (64-bit version)
• Windows Vista (32-bit version)
• Windows Vista (64-bit version)
• Windows 7 (32-bit version)
• Windows 7 (64-bit version)
  • Windows 8 (32-bit version)
• Windows 8 (64-bit version)

Note: To check for your Windows operating system version, right-click on My Computer > Properties. You should see this information in the General tab.

Microsoft's .NET Framework version 4 and WinPcap 4.1.3 software are necessary for the installation of the ZyXEL PLA Series Configuration utility. The utility automatically installs WinPcap 4.1.3 and .NET Framework version 4 on all supported operating systems (if it's not already installed on your computer).

3.1.2 Installing the Utility

Follow the steps below to install WinPcap 4.1.3, .NET Framework version 4 and the ZyXEL PLA Series Configuration utility on your computer.

1 Insert the included CD into your computer's CD-ROM drive. The setup utility runs automatically. Alternatively this can also be done manually by double clicking the setup.exe file on the CD. If WinPcap 4.1.3 is already installed on your computer, the following screen appears. Click Cancel and go to step 5.

WinPcap 4.1.3 Setup WinPcap 4.1.3 is already installed on this machine. Press Ok if you want to force the installation, or Cancel if you want to abort the installation. OK Cancel

Otherwise, the WinPcap setup wizard runs automatically. Click Next to continue.

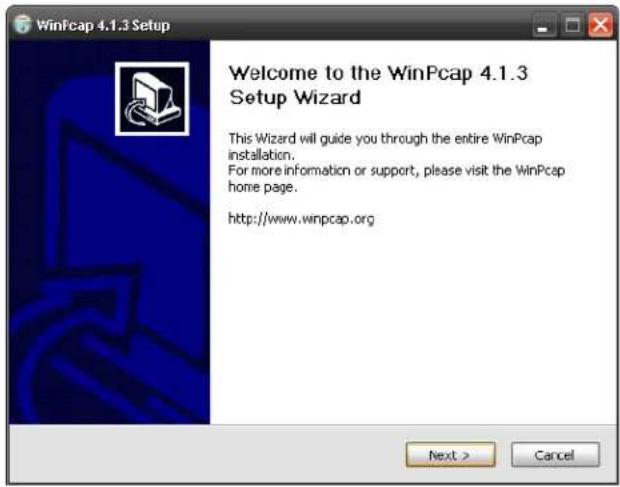

WinPcap 4.1.3 Setup Welcome to the WinPcap 4.1.3 Setup Wizard This Wizard will guide you through the entire WinPcap installation. For more information or support, please visit the WinPcap home page. http://www.winpcap.org Next > Cancel

2 Review the license agreement, and click I Agree to proceed.

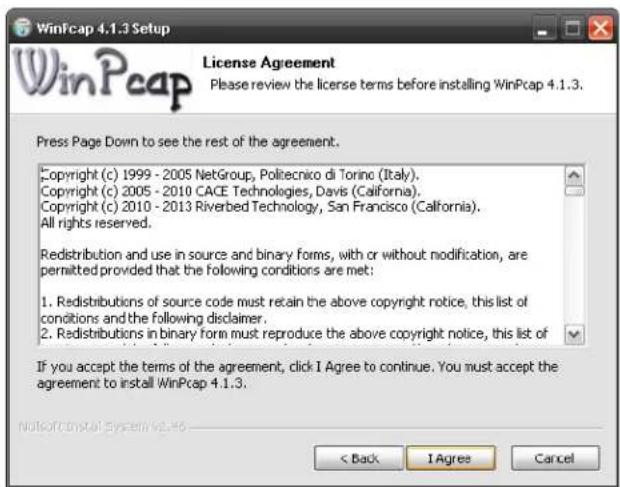

WinPcap 4.1.3 Setup License Agreement Please review the license terms before installing WinPcap 4.1.3. Press Page Down to see the rest of the agreement. Copyright (c) 1999 - 2005 NetGroup, Politecnico di Torino (Italy). Copyright (c) 2005 - 2010 CACE Technologies, Davis (California). Copyright (c) 2010 - 2013 Riverbed Technology, San Francisco (California). All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. 2. Redistributions in binary form must reproduce the above copyright notice, this list of If you accept the terms of the agreement, click I Agree to continue. You must accept the agreement to install WinPcap 4.1.3. < Back I Agree Cancel

3 Select Automatically start the WinPcap driver at boot time if you want to start WinPcap automatically when the computer boots. Click Install to install WinPcap.

WinPcap 4.1.3 Setup Installation options Please review the following options before installing WinPcap 4.1.3 ✓ Automatically start the WinPcap driver at boot time < Back Install Cancel

4 Select I want to manually reboot later, and click Finish to exit the wizard.

WinPcap 4.1.3 Setup Completing the WinPcap 4.1.3 Setup Wizard An old version of WinPcap was present on the system. You should reboot the system in order for the new version to work properly. ○ Reboot now ● I want to manually reboot later < Back Finish Cancel

5 A prompt appears asking you to install the .NET Framework version 4. Review Microsoft's License Agreement, select I have read and accept the license terms. and click Intall to proceed.

Note: If you already have .NET Framework version 4 installed on your computer this step can be skipped.

.NET Framework 4 Setup Please accept the license terms to continue. MICROSOFT SOFTWARE ✓ I have read and accept the license terms. Download size estimate: 0 MB Download time estimates: Dial-Up: 0 minutes Broadband: 0 minutes Yes, send information about my setup experiences to Microsoft Corporation. For more information, read the Data Collection Policy. Install Cancel

6 The next screen allows you to see the progress of the installation.

Microsoft .NET Framework 4 Setup Installation Progress Please wait while the .NET Framework is being installed. File security verification: All files were verified successfully. Installation progress: Installing .NET Framework 4 Client Profile Cancel

7 Click Finish to close the window.

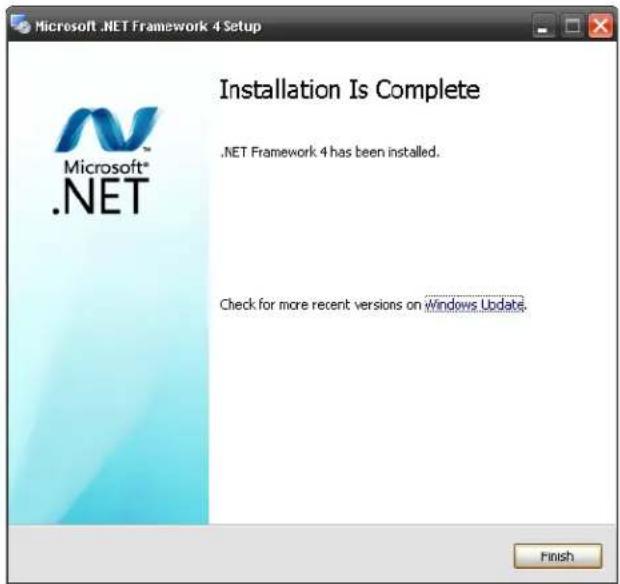

Microsoft .NET Framework 4 Setup Installation Is Complete .NET Framework 4 has been installed. Check for more recent versions on windows Update. Finish

8 The utility installation wizard runs automatically. Click Yes or Next to continue through the initial screen. Click Cancel only if you want to abort the installation.

ZyXEL PLA Series Configuration - InstallShield Wizard Welcome to the InstallShield Wizard for ZyXEL PLA Series Configuration The InstallShield(R) Wizard will install ZyXEL PLA Series Configuration on your computer. To continue, click Next. WARNING: This program is protected by copyright law and international treaties. < Back Next > Cancel

9 Click Install to install the utility to the default folder.

Figure 7 Install Destination Folder

ZyxEL PLA Series Configuration - InstallShield Wizard Ready to Install the Program The wizard is ready to begin installation. If you want to review or change any of your installation settings, click Back. Click Cancel to exit the wizard. Current Settings: Setup Type: Typical Destination Folder: C:\Program Files\ZyxEL Communications Corp.\ZyxEL PLA Series Configuration\ User Information: Name: ZyxEL Company: ZyxEL InstallShield < Back Install Cancel

10 The screen shows you the progress of the installation.

Figure 8 Utility Installation Process

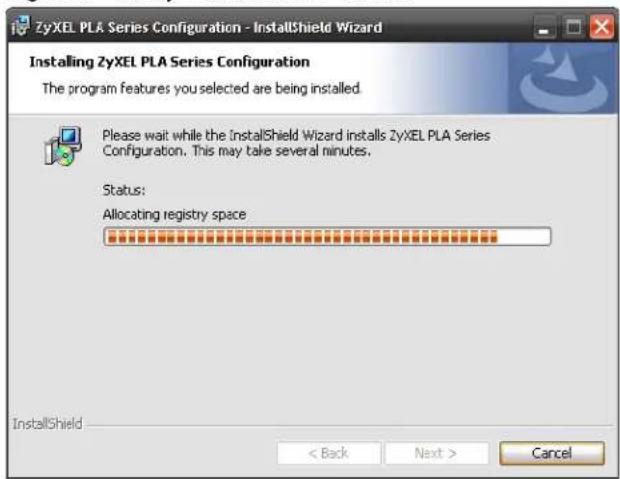

ZyxEL PLA Series Configuration - InstallShield Wizard Installing ZyxEL PLA Series Configuration The program features you selected are being installed. Please wait while the InstallShield Wizard installs ZyxEL PLA Series Configuration. This may take several minutes. Status: Allocating registry space InstallShield < Back Next > Cancel

11 Click Finish to exit the wizard.

Figure 9 Installation Complete

ZyXEL PLA Series Configuration - InstallShield Wizard InstallShield Wizard Completed The InstallShield Wizard has successfully installed ZyXEL PLA Series Configuration. Click Finish to exit the wizard. < Back Finish Cancel

Note: You may be asked to restart your computer when the installation is complete. Click "Yes" to restart your computer. If you select "No, I will restart my computer later", you will not be able to launch the utility until after a restart of your computer.

3.2 Macintosh (Mac)

This section uses the Mac OS X 10.8 screens as an example to show you how to install the Mac version of the ZyXEL PLA Series Configuration utility.

3.2.1 Supported OSs

At the time of writing, the following Mac operating systems support the ZyXEL PLA Series Configuration utility:

• Mac OS X 10.6
• Mac OS X 10.7
• Mac OS X 10.8

3.2.2 Installing the Utility

Follow the steps below to install the ZyXEL PLA Series Configuration utility on your Mac computer.

1 Insert the included CD into your computer's CD-ROM drive.
2 Double-click the PLA Utility 1.0.0.mpkg file on the CD to run the installation program. When it opens, follow the on-screen instructions.

3 Click Install to install the utility to the default folder, or click Change Install Location ... to specify a different location on your computer.

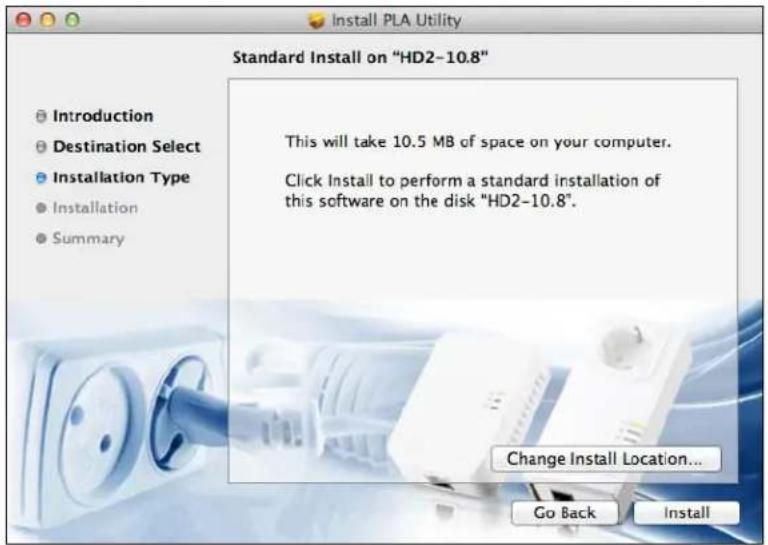

Install PLA Utility Standard Install on "HD2-10.8" Introduction Destination Select Installation Type Installation Summary This will take 10.5 MB of space on your computer. Click Install to perform a standard installation of this software on the disk "HD2-10.8". Change Install Location... Go Back Install

4 When the installation is finished, a screen appears to confirm the PLA Series Configuration Utility has been successfully installed to your computer. Click Close.

Install PLA Utility The installation was completed successfully. Introduction Destination Select Installation Type Installation Summary The installation was successful. The software was installed. Go Back Close

5 After installing the utility, you can find the utility icon in your Applications folder.

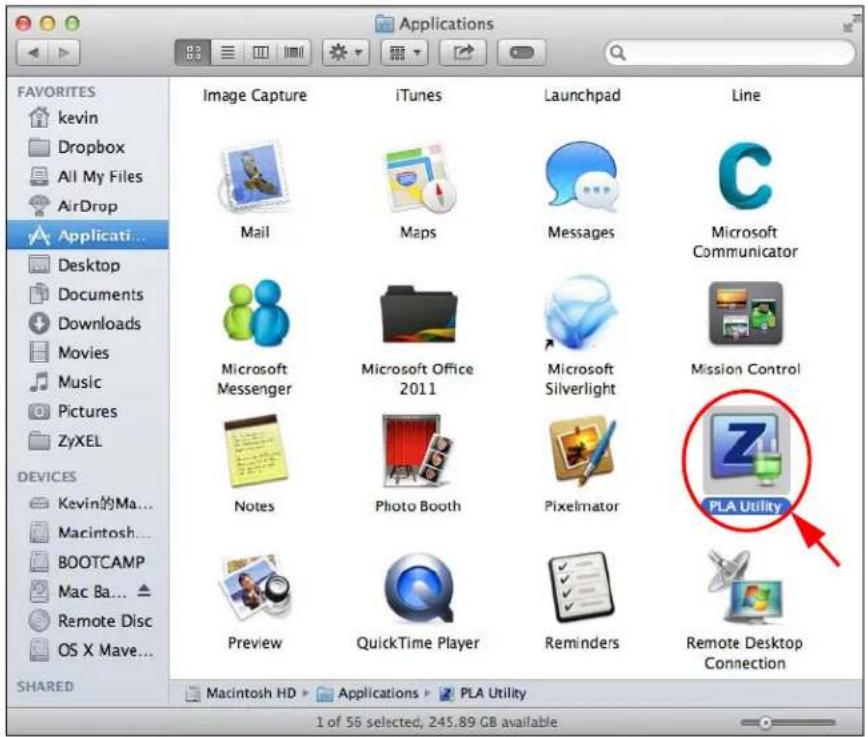

Applications FAVORITES kevin Dropbox All My Files AirDrop Applicati... Desktop Documents Downloads Movies Music Pictures ZyXEL DEVICES Kevin的Ma... Macintosh... BOOTCAMP Mac Ba... Remote Disc OS X Mave... SHARED Image Capture iTunes Launchpad Line Mail Maps Messages Microsoft Communicator Microsoft Messenger Microsoft Office 2011 Microsoft Silverlight Mission Control Notes Photo Booth Pixelmator Z PLA Utility Preview QuickTime Player Reminders Remote Desktop Connection Macintosh HD > Applications > PLA Utility 1 of 56 selected, 245.89 GB available

If you are running Mac OS X 10.7 or later, you can also see the utility icon in the Launchpad screen.

The Configuration Utility

4.1 Overview

This chapter shows you how to use the ZyXEL PLA Series Configuration utility (or utility) to secure, manage and set up Quality of Service (QoS) on your powerline network.

The PLA is designed as a plug-and-play network expanding solution. This means that once you complete your hardware connections, the PLAs in your network (without additional configuration) are able to communicate with each other by sending and receiving information over your home's electrical wiring (A).

Figure 10 Example Network Setup

All HomePlug AV compliant powerline adapters within range can join your network. The range varies depending on the quality of your home's wiring.

See Section 4.1.1 on page 28 for more information on enhancing your powerline network security.

Note: It is recommended to use the ZyXEL PLA Series Configuration with PLA5206 independently.

4.1.1 Powerline Network Security

When the PLAs communicate with each other, they use encryption to protect the information that is sent in the powerline network. Encryption is like a secret code. If you do not know the secret code, you cannot understand the message. The HomePlug AV standard uses 128-bit AES (Advanced Encryption Standard) to safely transmit data between powerline adapters.

For the powerline adapters to communicate with each other they all need to use the same network name. This network name allows the powerline adapters to understand the encrypted information sent in the powerline network.

By default the PLAs are all configured with the network name HomePlugAV, this allows you to simply plug the devices in and not worry about setting up security. If you want to enhance the security on your powerline network, you can change the network name on the powerline adapters you want to allow to communicate in your powerline network.

4.1.2 Device Access Key (DAK)

In order to manage the powerline adapters on your powerline network you must enter the adapters' password in the ZyXEL PLA Series Configuration utility. This password is called the DAK (Device Access Key) password. This password is printed on the powerline adapter itself.

You don't need to enter the DAK password for the powerline adapter directly connected to the computer running the utility (local powerline adapter), you only have to add the remote powerline adapters' passwords (those in your powerline network, but not directly connected to your computer).

4.2 Starting the Configuration Utility

In Windows, to launch the ZyXEL PLA Series Configuration utility simply double click on the utility icon on your desktop.

Figure 11 ZyXEL PLA Series Configuration Utility Icon (Windows)

ZoXEL PLA Series Utility

Alternatively, start the utility by browsing to it from the start menu. Click Start > Programs > ZyXEL PLA Series Configuration > PLA Series Configuration.

In Mac OS X, open the Applications folder and double-click the PLA Utility icon.

Figure 12 ZyXEL PLA Series Configuration Utility Icon (Mac)

4.3 Network Info Screen

Use the Network Info screen to see the rates at which a specific PLA is communicating with other powerline adapters on your powerline network.

You can select to view the connection status represented by icons ( ) review transmission/receiving rates in a list ( ) list

4.3.1 Icon View

Use the up/down arrow or just click a device icon at the left side to select a powerline adapter in your network. The screen shows you the network connection status of the selected device. Click Refresh to update the screen immediately.

Figure 13 Network Info Screen (Icon)

ZyXEL PLA Series Configuration ZyXEL Network Info Configuration Advanced Powerline Ethernet Adapter PLA SERIES Network Information @icon List Local Info Remote Remote Info Remote Refresh (C) Copyright 2013 by ZyXEL Communications Corp.

The connection status icon ( .il, or ) indicates the current data rate of the powerline adapter, and is equivalent to the HomePlug LED. See Chapter 1 on page 7 for more information.

In this mode, you can click a device's Info button to open a screen, where you can change the device's descriptive name that displays in this screen and view it's MAC address and firmware version. The Info screen also shows you how fast the selected powerline adapter sent information to or receive information from this device. For example, if the Local powerline adapter is selected, a Remote powerline adapter's Info screen also displays the rates of transmission from the powerline adapter connected to the computer running the configuration utility to all the Remote powerline adapters.

Figure 14 Network Info Screen (Icon) > Info

Info Node Name: Remote Save MAC Address: CC:5D:4E:38:5D:3E Firmware version: INT7400-MAC-5-2-5203-00-907-20110320-FINAL-B Transmit: 9 Mbps Receive: 9 Mbps 400 300 200 100 0

4.3.2 List View

Figure 15 Network Info Screen (List)

ZyXEL PLA Series Configuration ZyXEL Network Info Configuration Advanced Network Information Adapter: Broadcom NetXbreme Gigabit Ethernet Driver Central coordinator MAC: EC:43:F6:C8:F6:F3 EC:43:F6:C8:F6:F3 - Local Site MAC Address Transmit Rate (Mbps) Receive Rate (Mbps) Remote CC:5D:4E:38:5D:3E 9 9 (C) Copyright 2013 by ZyXEL Communications Corp.

The following table describes the labels in this screen.

Table 9 Network Info Screen (List)

LABEL DESCRIPTION
Adapter	This field identifies which powerline network information is displayed. Different powerline networks are identified by the Ethernet interface (network card) connected directly to the PLA. Typically there is only one connection, however, if your computer has two network cards and both are connected to a PLA, then you have two powerline networks.
Central Coordinator MAC	The Central Coordinator of the powerline network is the powerline adapter which keeps track of which devices are part of the network as well as synchronizes communication within the powerline network. If the Central Coordinator is removed from the powerline network then another powerline adapter takes its place. This field displays the MAC address of the PLA which is the Central Coordinator of the powerline network. The powerline adapters in your powerline network automatically select the Central Coordinator.
Select a powerline adapter from the drop-down box.The information provided in the following table reflects transmission rate information about the powerline adapters which communicate in your powerline network.The powerline adapters listed in this table are all the powerline adapters in your powerline network except the selected powerline adapter. In other words, if theLocalpowerline adapteris selected, then this table will display the rates of transmission fromthe powerline adapter connected to the computer running the configuration utility to all theRemotepowerline adapters.
Site This field displays:Local, if it is the PLA directly connected to the computer running the configuration utility.Remote, if it is a PLA in your powerline network but not directly connected to the computer running the configuration utility.
MAC Address	This field displays the MAC address of your powerline adapter. The MAC address of your powerline adapter can be found by looking at the label on your device. It consists of six pairs of hexadecimal characters (hexadecimal characters are “0-9” and “a-f”). In the case of the PLA, this label is on the bottom of the device.
Transmit Rate (Mbps)	This field displays how fast information is sent from the selected powerline adapter to this powerline adapter. The rate is given in the following format: “application data transmission rate / raw data transmission rate”. Application data reflects more accurately how fast devices are transmitting application relevant traffic (for example Internet Protocol (IP) traffic). Raw data refers to the whole payload of the packets transmitted across the powerline network.
Receive Rate (Mbps)	This field displays how fast information is received from the selected powerline adapter to this powerline adapter. The rate is given in the following format: “application data transmission rate / raw data transmission rate”. Application data reflects more accurately how fast devices are transmitting application relevant traffic (for example Internet Protocol (IP) traffic). Raw data refers to the whole payload of the packets transmitted across the powerline network.

4.4 Configuration Screen

Use the Configuration screen to see which devices are recognized by your powerline network, to configure your PLA and to set up a secure powerline network by changing the powerline network name. This screen opens up when you launch the utility.

Figure 16 Configuration Screen

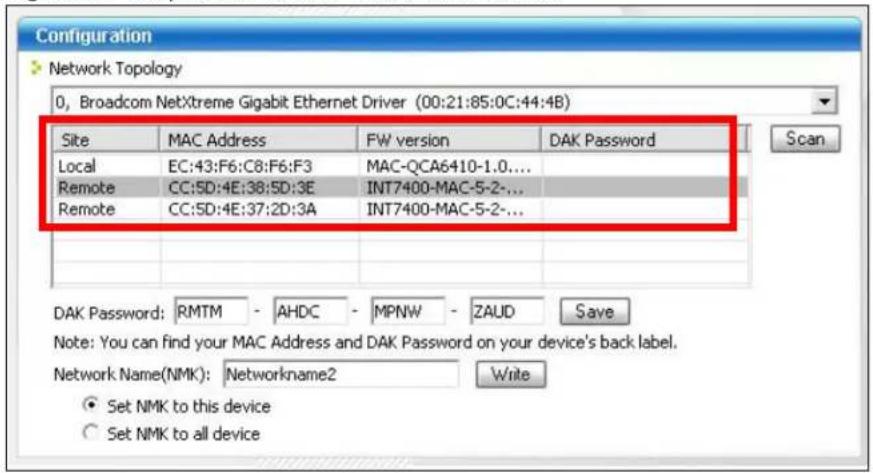

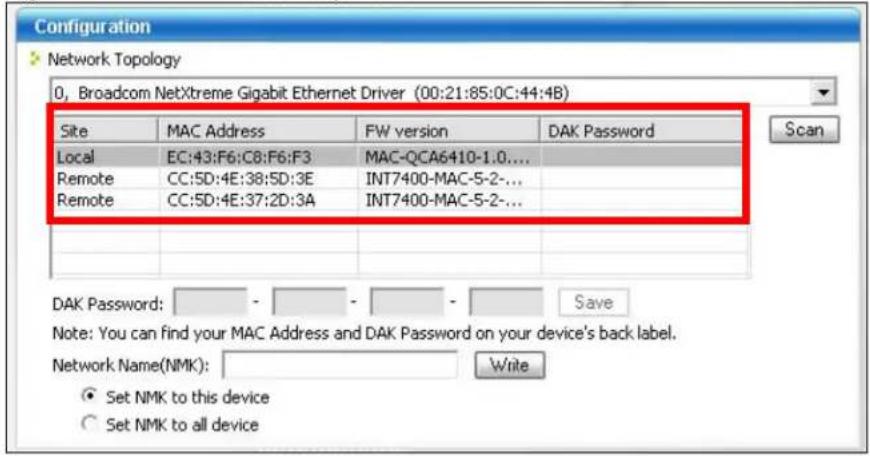

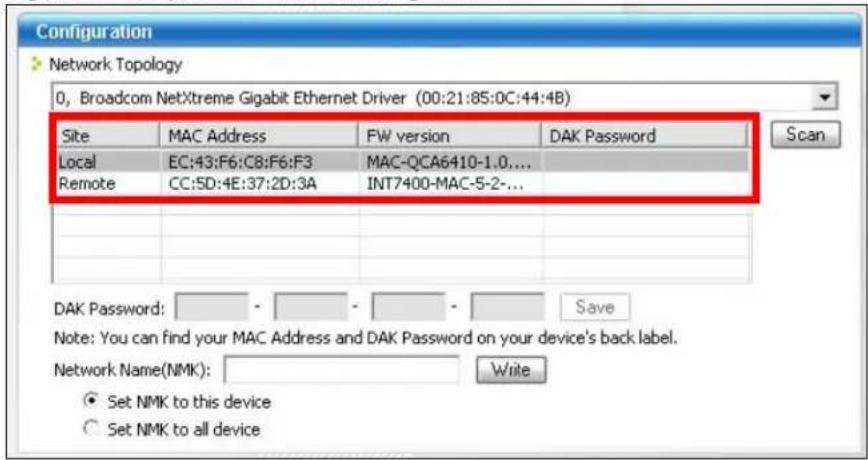

ZyXEL PLA Series Configuration ZyXEL Network Info Configuration Advanced Configuration Network Topology 0, Broadcom NetXtreme Gigabit Ethernet Driver (00:21:85:0C:44:4B) Site MAC Address FW version DAK Password Scan Local EC:43:F6:C0:F6:F3 MAC-QCA6410-1.0... Remote CC:5D:4E:38:5D:3E(INT7400-MAC-5-2-... RMTM-AHDC-MPNW-Z... DAK Password: - Note: You can find your MAC Address and DAK Password on your device's back label. Network Name(NMK): .Write Set NMK to this device Set NMK to all device © Copyright 2012 by ZyXEL Communications Corp.

The following table describes the labels in this screen.

Table 10 Configuration Screen

LABEL DESCRIPTION
Network Topology	Use this to select which powerline network information is displayed. Different powerline networks are identified by the Ethernet interface (network card) connected directly to the PLA. Typically there is only one connection, however, if your computer has two network cards and both are connected to a powerline device then you have two powerline networks.
The fields described below are used to identify the powerline adapters recognized on the powerline network. The configuration utility automatically updates this information every 10 seconds. Note: Only devices which share the same network name are displayed in this table.
Site This field displaysLocal, if it is identifying the powerline adapter directly connected to the computer running the configuration utility.Remote, if it is a powerline adapter in your powerline network but not directly connected to the computer running the configuration utility.
MAC Address	This is a read-only field which shows the MAC address of the powerline adapter you are configuring. You can find the MAC address of your PLA displayed on a sticker on the bottom of your device.
FW version	This is a read-only field which shows the firmware version of the powerline adapter in your network.
DAK Password	This is a read-only field which shows the DAK (Device Access Key) password of the remote powerline adapter.
Scan	Click Scan to refresh the information in the table (immediately).
DAK Password	DAK (Device Access Key) password is used to verify that you are authorized to perform changes on a remote device. You can find the DAK password printed on a sticker on the bottom of your PLA.Select the remote powerline adapter you want to manage by clicking the MAC address which corresponds to it in theMAC Addresscolumn. Enter theDAK Passwordvalue and clickSave.Note: You must enter the DAK Password value exactly as it is printed on the label (all caps and with dashes “-”).

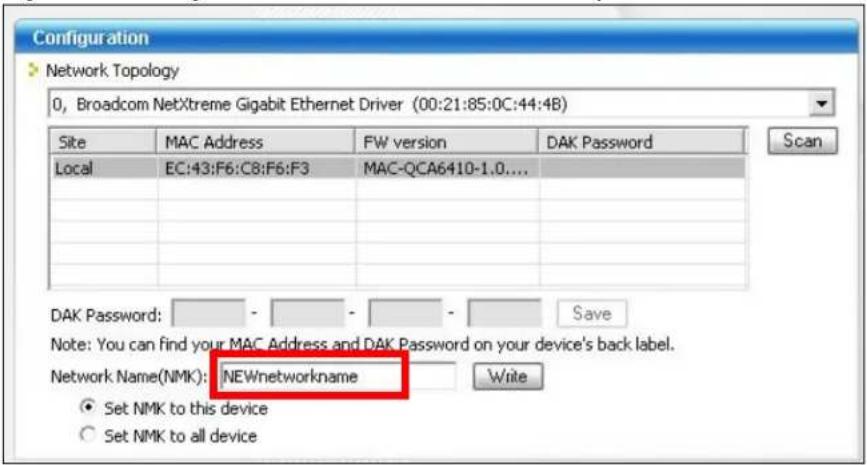

Network Name(NMK)	The default network name (sometimes called a network password or network membership key (NMK)) of the PLA is “HomePlugAV”. HomePlug compatible devices use the same network name to recognize and communicate with each other over the powerline network. If you change the network name of one device on the network, it will no longer be recognized as part of that network.If you change the network name, make sure you change the network name for all of the powerline adapters that you want to be part of your powerline network.The network name can be from 8 to 64 characters in length, using “A”~“Z”, “a”~“z”, “0”~“9”; spaces are not allowed.
Set NMK to this device	Select this to apply the NMK (entered in the field above) as the network name for the powerline adapter directly connected to the computer running the configuration utility.
Set NMK to all devices	Select this to apply the NMK (entered in the field above) as the network name for all powerline adapter detected by the utility.
Write	Click this to apply your changes. The newNetwork Nameis applied to the selected powerline adapter.Note: You must enter the correct DAK password for the selected remote powerline adapter before you can make changes to it.

4.5 Advanced Screen

You can configure the powerline adapters on your network to give priority to network traffic depending on its importance. When you set the priority of a powerline adapter, you set how quickly messages FROM your powerline adapter are sent in your powerline network. Transmissions TO your powerline adapter do not receive any priority.

For example, if you have a file server on your home network to deliver music and movie files to computers in your home, you should set the priority of the powerline adapter connected to this server to Medium. If video traffic is delivered too slowly, quality problems may occur.

On the other hand, a powerline adapter attached to a printer should have a low priority setting since the slow delivery of messages will not affect the print job.

Similarly, if you want to prioritize any downloads from the Internet, set the priority on the powerline adapter attached to your Internet gateway to High.

Allocate priority settings based on application type as follows.

Table 11 Priority Settings

PRIORITY LEVEL APPLICATION
High Voice Application
Medium Video and Audio Applications
Normal Data Applications
Low Data Applications

The figure below shows an example powerline home network connected to the Internet.

• Device A is a printer and does not handle traffic with high importance, so the powerline adapter connected to it can be set to low priority.
• Device B is a file server, delivering audio or movie files to other users on the network. The powerline adapter attached to it should have a medium setting.
• Device C, a home computer which connects to the Internet, can receive a normal priority setting as it usually sends simple requests for data. For example, when you surf the Internet, your computer sends requests to open web pages.
• Device D is a modem attached to the Internet. It should receive a high priority setting if you want faster downloading through your network.
• Although device E receives audio or movie files, it does not send a lot of traffic, so the powerline adaptor attached to it can be set to a low priority.

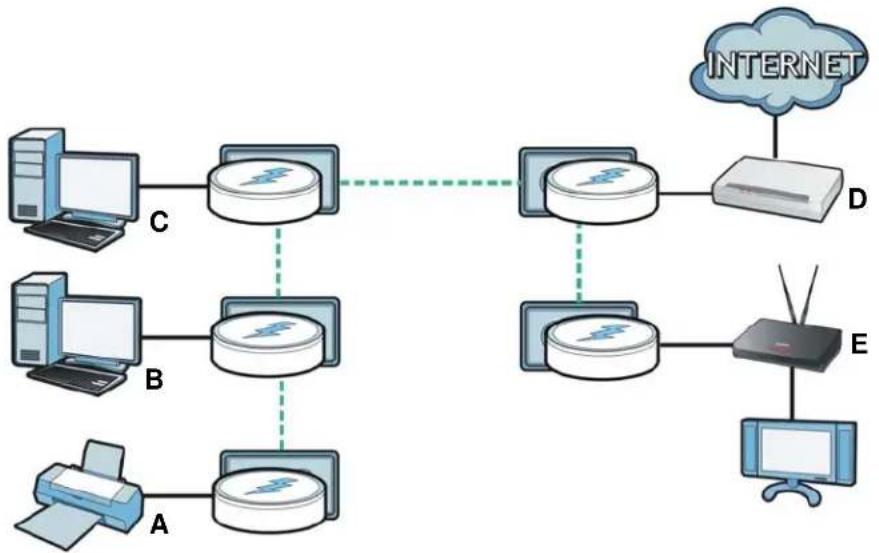

Figure 17 Priority Settings
Use this screen to configure priority settings for traffic from the powerline adapters on your network.

Figure 18 Advanced Screen

ZyXEL PLA Series Configuration ZyXEL Network Info Configuration Advanced Advanced Adapter: Broadcom NetXtreme Gigabit Ethernet Driver Priority: Normal Save Site MAC Address Local EC:43:F6:C8:F5:F3 Remote CC:5D:4E:38:5D:3E Standby mode enable: On Off Save © Copyright 2013 by ZyXEL Communications Corp.

The following table describes the labels in this screen.

Table 12 Advanced Screen

LABEL DESCRIPTION
Adapter	This field identifies which powerline network information is displayed. Different powerline networks are identified by the Ethernet interface (network card) on your computer which is connected directly to a powerline adapter. Typically there is only one connection. However, if your computer has two network cards and both are connected to a powerline adapter, then you have two powerline networks.
Priority	Select a priority setting from the drop-down box for traffic FROM your selected device. The options, in order of importance, areHigh, Medium, Normaland Low.
Site This field displays:Local, if it is the PLA directly connected to the computer running the configuration utility.Remote, if it is a powerline adapter in your powerline network but not directly connected to the computer running the configuration utility.
MAC Address	This is a read-only field which shows the MAC address of the powerline adapter you are configuring. You can find the MAC address of your PLA displayed on a sticker on the bottom of your device.
Standby mode enable	SelectOnto have the selected powerline adapter(s) go into standby mode when there is no Ethernet connection. Otherwise, selectOffto have the adapter(s) never go into standby mode.
Save	Click this to apply your changes. The newPrioritysetting is applied to the selected powerline adapter.

4.6 About Screen

Use the About screen to view information regarding the configuration utility version of the PLA you are connected to. Click the icon in the top right corner of the utility to view the About screen.

Figure 19 About Screen

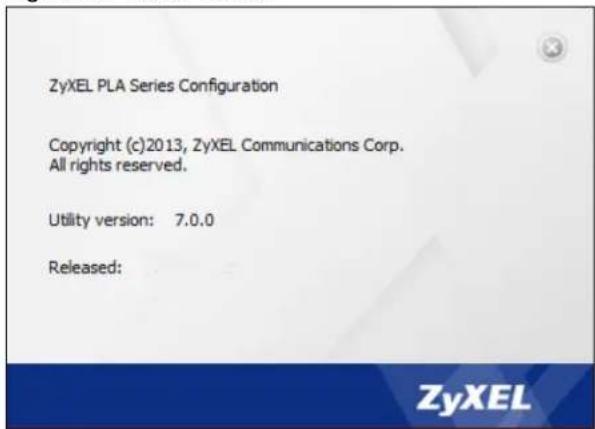

ZyXEL PLA Series Configuration Copyright (c)2013, ZyXEL Communications Corp. All rights reserved. Utility version: 7.0.0 Released:

The following table describes the labels in this screen.

Table 13 About Screen

LABEL DESCRIPTION
Utility version This	field displays the software version of the configuration utility.
Released This field	displays the date when the utility was released.
Close	Click the button in upper right corner to close the About window.

Powerline Network Setup Tutorial

5.1 Overview

Use this tutorial to expand your existing powerline network.

After setting up your first home powerline network (instructions for that are in the Quick Start Guide for your ZyXEL powerline adapter) you may want to extend the network or create a new one by adding additional powerline adapters. This tutorial shows you the following.

• How to start up your new powerline adapter. You need to do this before you can begin the next sections.
• How to make your existing powerline network bigger by adding new powerline adapters.
• How to make a new network separate from your existing network with new powerline adapters.
• How to make a new, separate powerline network with the powerline adapters you have.

The tutorial uses the ZyXEL PLA Series Configuration utility to set up your powerline adapter.

If you haven't already installed the utility, see Chapter 3 on page 19 for instructions. If you do not have the CD with the utility, the utility software is also available for download at www.zyxel.com. Navigate to the powerline products section of the ZyXEL website to find this software. Follow the instructions provided by the software to install it on your computer.

See the product specifications in the User's Guide for a list of hardware and software compatible with the utility.

Note: The PLA in this tutorial is an example only. Your powerline adapter may be different.

5.2 Important Terms

Network Name The network	work name allows a powerline adapter to connect with other powerline adapters that have the same network name. It provides security for your powerline network. The network name uses English letters or numbers, from 8 to 64 characters long, with no spaces allowed.
DAK Password DAK = Device Access Key.The DAK Password lets you access the powerline adapter. You can find the DAK Password on a label on your powerline device.

5.3 Accessing Your Powerline Adapter

1 Plug the powerline adapter you want to add to your network into a power socket and, if needed, switch the power socket on.

Figure 20 Plug Your Powerline Adapter into a Power Socket

Illustration of a server or network device with a lightning bolt symbol on its surface, labeled 'PLA' (no text or symbols on the device itself)

1

2 Connect the powerline adapter to your computer.

3 Use a LAN or Ethernet cable (shown below) to connect the LAN or Ethernet port on your adapter to the same kind of port on your computer.

Figure 21 Connect Your Powerline Adapter to a Computer

Diagram showing network connection with router, cable, and terminal interface components labeled 2, 3, and a highlighted device.

4 Open the ZyXEL PLA Series Configuration utility on your computer. See Section 4.2 on page 29 for how to launch the utility.

5 You are now ready to extend your powerline network or set up a second network.

• See Section 5.4 on page 39 to add a new powerline adapter to your network.
• See Section 5.5 on page 41 to set up a second network with your new adapters.
• See Section 5.6 on page 43 to set up a second network with your existing adapters.

5.4 Adding a Powerline Adapter

This section shows you how to add a new powerline adapter to expand your existing network.

The figure below shows the family computer with Internet access on a powerline network. Expand the network by adding a new powerline adapter connected to a printer.

Figure 22 Add a Printer to Your Powerline Network

Illustration of a printer connected to a router (no text or symbols present)

Note: You do not need to know the network name of the new adapter to add it to your network.

1 Connect your computer to the powerline adapter you want to add to your network and open the ZyXEL PLA Series Configuration utility (see Section 5.3 on page 39).
2 Go to the Configuration screen. On this screen in the Site column your new powerline adapter should appear as Local (A). Check the Local adapter's MAC address (B). It should match the MAC address listed on the label on the back of your powerline adapter.

Figure 23 Adding a New Adapter

Configuration Network Topology 0, Broadcom NetXtreme Gigabit Ethernet Driver (00:21:85:0C:44:4B) Site MAC Address WW version DAK Password Scan Local C:43:F6:C8:F6:F3 MAC-QCA6410-1.0.... A B Save DAK Password: -Save Note: You can find your MAC Address and DAK Password on your device's back label. Network Name(NMK): Write ● Set NMK to this device ○ Set NMK to all device

3 Select your adapter by selecting Local and type the network name for your existing network in the Network Name field (C).

Figure 24 Adding an Adapter to an Existing Network

Configuration Network Topology 0, Broadcom NetXtreme Gigabit Ethernet Driver (00:21:85:0C:44:4B) Site MAC Address WW version DAK Password Local EC:43:F6:C8:F6:F3 MAC-QCA6410-1.0.... DAK Password: - - - Save Note: You can find your MAC Address and DAK Password on your device's back label. Network Name(NMK):networkname Write ● Set NMK to this device ○ Set NMK to all device C

4 Click Write and click OK on the pop-up.

Figure 25 Network Name Pop-up

PLA Utility Set Network Name (NMK) succeeded Please press scan button for update of network. OK

5 Your new adapter will now have the same Network Name as your existing network and so has now joined your existing network.
6 Connect the adapter to the device you want to add to the network, for example, your Internet refrigerator in the kitchen.
7 Plug the adapter's power cord into a power outlet and, if required, switch the power outlet on.
8 Repeat this procedure for all additional powerline adapters that you want to add to your existing or new powerline network.

5.5 Setting Up a New Network with a New Adapter

This section shows you how to use your new powerline adapters to set up a new powerline network separate to your existing network.

The figure below shows two powerline networks in a house. The first network (1) shows the home computer connected to a printer and access to the Internet. The second network (2) has no Internet access but with a media adapter such as the ZyXEL DMA-1100P you can use your TV to watch movies and play games which are stored on a computer.

Figure 26 Add New Adapters to Make a Second Network

1 Connect your new powerline adapter and open the configuration utility as shown in Section 5.5 on page 41. The screen shown below appears.
2 Type a Network Name that is different from the Network Name for your existing network. Make sure you use the same new Network Name for all new adapters you want to add to your new network.

Figure 27 Making a New Network with the New Adapter

Configuration > Network Topology 0, Broadcom NetXtreme Gigabit Ethernet Driver (00:21:85:0C:44:4B) Site MAC Address WW version DAK Password Scan Local EC:43:F6:C8:F6:F3 MAC-QCA6410-1.0.... DAK Password: - - - Save Note: You can find your MAC Address and DAK Password on your device's back label. Network Name(NMK): NEWnetworkname Write ● Set NMK to this device ○ Set NMK to all device

3 After you have set up a new network, you are ready to connect each powerline adapter on your new network to devices, for example, a computer or a games console.

5.6 Splitting a Network into Two Networks

This section shows you how to split your existing network into two networks. This is useful if you want to set up a second powerline network in your home, for example, in your study connecting a laptop and printer. See Figure 26 on page 42 for an example.

To set up your existing powerline network you had to set each powerline adapter with the same network name. To create a second (separate) powerline network, configure the PLAs you want to add to the second network with a new network name.

1 Connect a powerline adapter to your computer and open the ZyXEL PLA Series Configuration utility (see Section 5.3 on page 39).

2 The utility should open to the configuration tab as shown below. A list of powerline adapters on your network displays. These adapters all have the same network name as the adapter you are connected to. The adapter you are connected to will appear as Local in this table. All others are listed as Remote.

Figure 28 Local/Remote Adapters on a Powerline Network

Configuration Network Topology 0, Broadcom NetXtreme Gigabit Ethernet Driver (00:21:85:0C:44:4B) Site MAC Address WFW version DAK Password Scan Local EC:43:F6:C8:F6:F3 MAC-QCA6410-1.0.... Remote CC:SD:4E:38:SD:3E(INT7400-MAC-5-2-... Remote CC:SD:4E:37:2D:3A(INT7400-MAC-5-2-... DAK Password: Save Note: You can find your MAC Address and DAK Password on your device's back label. Network Name(NMK): .Write Set NMK to this device Set NMK to all device

3 To set up a new powerline network, type the DAK Password and change the Network Name on all powerline adapters you wish to add to your network.

• Look for the DAK Password on a label on your powerline adapter. The DAK Password lets you access the adapter.
• Select the Remote adapter you want to add (A) and type the DAK Password in the DAK Password field (B).
• Then type the new network name in the Network Name field (C).

Figure 29 Adding an Adapter to Your New Network

Configuration Network Topology 0, Broadcom NetXtreme Gigabit Ethernet Driver (00:21:85:0C:44:4B) Site MAC Address WW version DAK Password Scan Local EC:43:E6:C8:E6:E3 MAC:0CA6410-1.0 Remote CC:5D:4E:38:5D:3E(INT7400-MAC-5-2-... Remote CC:5D:4E:37:2D:3A(INT7400-MAC-5-2-... A DAK Password: RMTM - AHDC - MPNW - ZAUD Save B Note: You can find your MAC Address and DAK Password on your device's back label. Network Name(NMK): Networkname2 Set NMK to this device Set NMK to all device Write C

4 Click Save.

- If you do not type the DAK password or type it incorrectly the following pop-up appears. Click OK and type the DAK Password correctly in the DAK Password field.

Figure 30 Incorrect DAK or No DAK

- If you have correctly entered the DAK Password, click OK on the pop-up.

Figure 31 Correct DAK

5 The adapter will disappear from the table of your existing network.

Figure 32 Adapters on Your Existing Network

Configuration Network Topology 0, Broadcom NetXtreme Gigabit Ethernet Driver (00:21:85:0C:44:4B) Site MAC Address FW version DAK Password Local EC:43:F6:C8:F6:F3 MAC-QCA6410-1.0.... Remote CC:5D:4E:37:2D:3A(INT7400-MAC-5-2-... DAK Password: Save Note: You can find your MAC Address and DAK Password on your device's back label. Network Name(NMK): Write Set NMK to this device Set NMK to all device

6 Go back to step 3 in this section to set the same, new Network Name for all remote adapters you want to add to your new network.
7 Check you have added the adapters correctly by changing the network name for the local adapter. All adapters with the new Network Name now appear in the list of adapters on your network. These adapters are now part of your new network.

Figure 33 Adapters on a New Powerline Network

Configuration Network Topology 0, Broadcom NetXtreme Gigabit Ethernet Driver (00:21:85:0C:44:4B) Site MAC Address WW version DAK Password Local EC:43:F6:C8:F6:F3 MAC-QCA6410-1.0.... Remote CC:SD:4E:38:5D:3E(INT7400-MAC-5-2-... Remote CC:SD:4E:37:2D:3A(INT7400-MAC-5-2-... DAK Password: RMTM - AHDC - MPNW - ZAUD Save Note: You can find your MAC Address and DAK Password on your device's back label. Network Name(NMK): Networkname2.Write Set NMK to this device Set NMK to all device

- If you want to access any of your new powerline networks using the ZyXEL PLA Series Configuration utility, change the Network Name on your local adapter to the network name for the network you want to access. The adapters on that network will then display in the adapter table, allowing you to select and configure each one.

5.7 Troubleshooting

The HomePlug (▲) LED (light) should light up on your adapter when it successfully connects to other adapters on your network. If it does not, try the following measures.

• Make sure the adapter is plugged in to a power socket and the power socket is turned on.
• Check you have entered the correct network name for your network.
• Check your powerline adapter is connected to the same electrical circuit as other powerline adapters on your network.

This chapter offers some suggestions to solve problems you might encounter.

6.1 Power and Light Problems

The PLA does not turn on. None of the lights turn on.

1 Disconnect and re-connect the PLA.

2 Remove the powerline adapter from the outlet. Then connect an electrical device that you know works into the same power outlet. This checks the status of the power outlet.

3 If the problem continues, contact the vendor.

The ETHERNET light does not turn on.

1 Check the hardware connections. See the Quick Start Guide.

2 Inspect your cables for damage. Contact the vendor to replace any damaged cables.

3 Check the Ethernet adapter on your computer and make sure it's enabled and working properly.

4 If the PLA is connected to an Ethernet switch or router, make sure the device is working correctly, and that the LAN network is working and configured correctly as well.

The HomePlug light does not turn on.

1 Use the ZyXEL PLA Series Configuration utility to detect all other HomePlug devices on your powerline network. Make sure that the network name (sometimes called the network password) is the same on all of your powerline adapters. See Section 4.4 on page 32 for instructions on changing the network name.
2 Check the DAK password and MAC address for all powerline adapters are typed correctly in the utility. See Section 4.4 on page 32 for instructions on checking the DAK and MAC address.

3 Make sure that all your powerline adapters are HomePlug AV compliant. Check the package it came in or ask your vendor. This PLA can not detect earlier versions of HomePlug powerline adapters such as HomePlug 1.0 or 1.0.1. (Although they can coexist on the same electrical wiring without interfering with each other.)
4 Make sure that the powerline adapters on your network are all on the same electrical wiring. Connect another powerline adapter into an outlet close to your PLA's power outlet. They are probably now on the same electrical wiring. Check the HomePlug() light. If it now lights up your powerline adapter was probably previously on separate electrical wiring. Ask an electrician for more information on the electrical wiring in your building.
5 Make sure that you do not have a power meter between powerline adapters. Powerline signals cannot pass this.

The POWER and HomePlug light blink at the same time.

- You have pressed the RESET/ ENCRYPT button for more than three seconds. Try setting up a connection again, this time pressing the RESET/ ENCRYPT buttons on both devices for less than three seconds.

6.2 Configuration Utility Problems

The ZyXEL PLA Series Configuration utility displays an error during installation.

- Make sure your computer is using the supported operating system. See Section 3.1.1 on page 19 and/or Section 3.2.1 on page 25 for more information.

The ZyXEL PLA Series Configuration utility does not display all or any of my devices.

• Inspect the LEDs on your PLA and make sure that the ETHERNET and HomePlug LEDs are on or blinking. See Section 1.2 on page 7 for troubleshooting LED related problems.
• Check you are using the latest version utility. Earlier version utilities cannot communicate with PLAs using the latest firmware. If you do not have the latest utility, download it from the ZyXEL website.
• If you are running another tool such as the Firmware Detection Tool, the utility will not detect your local device.
• If your computer has more than one network interface card (NIC), make sure you select the right NIC to which the PLA is connected in the utility's Configuration screen.

6.3 Powerline Problems

The signal on my powerline network is weak.

1 Your powerline adapters may be connected to electrical surge protectors. Connect them to standard power outlets.
2 Your powerline adapters may be located close to large appliances such as refrigerators or air-conditioners that cause interference with the powerline signal. Move the adapters further away from such appliances to reduce interference.
3 Your powerline adapters may be placed close to electrical devices such as electrical insect-killers which produce radio waves. These may interfere with the powerline signals. Move the adapters further away from such electrical devices.
4 Your wiring may be old and/or low quality or with a long wiring path.

6.4 RESET/ENCRYPT Button Problems

This section applies only to PLAs with the RESET/ ENCRYPT button. In this guide RESET/ ENCRYPT refers to the ENCRYPT button in PLAs that have separate RESET and ENCRYPT buttons. Refer to Table 1 on page 6 to see which models have separate RESET and ENCRYPT buttons.

The HomePlug light is already on, but I haven't pressed the RESET/ENCRYPT button yet.

Your device has already connected to another powerline device. Press the RESET/ ENCRYPT button for 5 to 8 seconds to release the connection.

The POWER light does not blink when I press the RESET/ ENCRYPT button.

• Check the device is on.
• Press the RESET/ ENCRYPT button again, making certain you have pressed the button for 0.5 to 3 seconds.
• The POWER light on some powerline devices do not blink as part of the ENCRYPT process. Check your powerline device is a PLA.
• For PLA, you cannot use the RESET/ ENCRYPT button when it is in standby mode. Connect the PLA to a computer/router then try again.

The POWER light blinks two times quickly then pauses, before repeating.

The ENCRYPT process has failed. Press the RESET/ ENCRYPT button on both devices for 5 to 8 seconds, then try to reconnect.

The POWER lights on both devices blink when I press the RESET/ENCRYPT buttons, but the HomePlug light does not turn on.

• Ensure you have pressed the RESET/ ENCRYPT button on both devices.
• Wait for about a minute while the devices set up a connection.
• If that does not work, try again with both devices connected to a power strip next to each other. If they now connect, then the devices were not on the same electrical circuit before.

The POWER lights on both devices blink, then many lights blink and the HomePlug light blinks red.

Do not worry, the connection process is proceeding normally.

The POWER lights on both devices finished blinking, but only one device's HomePlug light is on.

One device may have connected to a third powerline device. To check device A is connected to device B and not another device, disconnect device B from its power source. Device A's HomePlug (▲) light will turn off if the connection is with Device B. Press the RESET/ ENCRYPT button on both devices for 5 to 8 seconds, then try to reconnect, pressing the RESET/ ENCRYPT button for 0.5 to 3 seconds on both devices.

I pressed the RESET/ENCRYPT button for 5 to 8 seconds, but the HomePlug light is still on.

The HomePlug light is on, indicating it is still connected to another powerline device. Try again, pressing the RESET/ ENCRYPT button for 5 to 8 seconds.

Customer Support

In the event of problems that cannot be solved by using this manual, you should contact your vendor. If you cannot contact your vendor, then contact a ZyXEL office for the region in which you bought the device. Regional websites are listed below (see also http://www.zyxel.com/about_zyxel/zyxel_worldwide.shtml). Please have the following information ready when you contact an office.

Required Information

• Product model and serial number.
• Warranty Information.
• Date that you received your device.
• Brief description of the problem and the steps you took to solve it.

Corporate Headquarters (Worldwide)

Taiwan

• ZyXEL Communications Corporation
- http://www.zyxel.com

Asia

China

• ZyXEL Communications (Shanghai) Corp.
ZyXEL Communications (Beijing) Corp. ZyXEL Communications (Tianjin) Corp.
- http://www.zyxel.cn

India

• ZyXEL Technology India Pvt Ltd
- http://www.zyxel.in

Kazakhstan

• Z y X E L K a z a k h s t a n
- http://www.zyxel.kz

Korea

• ZyXEL Korea Corp.
- http://www.zyxel.kr

Malaysia

• ZyXEL Malaysia Sdn Bhd.
- http://www.zyxel.com.my

Pakistan

• ZyXEL Pakistan (Pvt.) Ltd.
- http://www.zyxel.com.pk

Philippines

• ZyXEL Philippines
• http://www.zyxel.com.ph

Singapore

• ZyXEL Singapore Pte Ltd.
- http://www.zyxel.com.sg

Taiwan

• ZyXEL Communications Corporation
- http://www.zyxel.com

Thailand

• ZyXEL Thailand Co., Ltd
- http://www.zyxel.co.th

Vietnam

• ZyXEL Communications Corporation-Vietnam Office
- http://www.zyxel.com/vn/vi

Europe

Austria

• ZyXEL Lithuania
• http://www.zyxel.com/lt/lt/homepage.shtml

Netherlands

• Z y X E L Ben e l u x
- http://www.zyxel.nl

Norway

• ZyXEL Communications
- http://www.zyxel.no

Poland

• ZyXEL Communications Poland
- http://www.zyxel.pl

Romania

• Z y X E L R o m a n i a
- http://www.zyxel.com/ro/ro

Russia

• ZyXEL Russia
• http://www.zyxel.ru

Slovakia

• ZyXEL Communications Czech s.r.o. organizacna zlozka
- http://www.zyxel.sk

Spain

• Z y X E L S p a i n
- http://www.zyxel.es

Sweden

• ZyXEL Communications
- http://www.zyxel.se

Switzerland

• Studerus AG
- http://www.zyxel.ch/

Turkey

• Z y X E L T u r k e y A . S .
- http://www.zyxel.com.tr

UK

• ZyXEL Communications UK Ltd.
- http://www.zyxel.co.uk

Ukraine

• Z y X E L U k r a i n e
- http://www.ua.zyxel.com

Latin America

Argentina

• ZyXEL Communication Corporation
- http://www.zyxel.com/ec/es/

Ecuador

• ZyXEL Communication Corporation
- http://www.zyxel.com/ec/es/

Middle East

Egypt

• ZyXEL Communication Corporation
- http://www.zyxel.com/homepage.shtml

Middle East

• ZyXEL Communication Corporation
- http://www.zyxel.com/homepage.shtml

North America

USA

• ZyXEL Communications, Inc. - North America Headquarters
- http://www.us.zyxel.com/

Oceania

Australia

• ZyXEL Communications Corporation
- http://www.zyxel.com/au/en/

Africa

South Africa

• Nology (Pty) Ltd.
• http://www.zyxel.co.za

Legal Information

Copyright

Copyright © 2014 by ZyXEL Communications Corporation.

The contents of this publication may not be reproduced in any part or as a whole, transcribed, stored in a retrieval system, translated into any language, or transmitted in any form or by any means, electronic, mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without the prior written permission of ZyXEL Communications Corporation.

Published by ZyXEL Communications Corporation. All rights reserved.

Disclaimers

ZyXEL does not assume any liability arising out of the application or use of any products, or software described herein. Neither does it convey any license under its patent rights nor the patent rights of others. ZyXEL further reserves the right to make changes in any products described herein without notice. This publication is subject to change without notice.

Trademarks

Trademarks mentioned in this publication are used for identification purposes only and may be properties of their respective owners.

Certifications

Federal Communications Commission (FCC) Interference Statement

The device complies with Part 15 of FCC rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired operations.

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this device does cause harmful interference to radio/television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1 Reorient or relocate the receiving antenna.
2 Increase the separation between the equipment and the receiver.
3 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4 Consult the dealer or an experienced radio/TV technician for help.

CE-Konformität

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This Class B digital apparatus complies with Canadian ICES-003.

Viewing Certifications

Go to http://www.zyxel.com to view this product's documentation and certifications.

ZyXEL Limited Warranty

ZyXEL warrants to the original end user (purchaser) that this product is free from any defects in material or workmanship for a specific period (the Warranty Period) from the date of purchase. The Warranty Period varies by region. Check with your vendor and/or the authorized ZyXEL local

distributor for details about the Warranty Period of this product. During the warranty period, and upon proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials, ZyXEL will, at its discretion, repair or replace the defective products or components without charge for either parts or labor, and to whatever extent it shall deem necessary to restore the product or components to proper operating condition. Any replacement will consist of a new or re-manufactured functionally equivalent product of equal or higher value, and will be solely at the discretion of ZyXEL. This warranty shall not apply if the product has been modified, misused, tampered with, damaged by an act of God, or subjected to abnormal working conditions.

Note

Repair or replacement, as provided under this warranty, is the exclusive remedy of the purchaser. This warranty is in lieu of all other warranties, express or implied, including any implied warranty of merchantability or fitness for a particular use or purpose. ZyXEL shall in no event be held liable for indirect or consequential damages of any kind to the purchaser.

To obtain the services of this warranty, contact your vendor. You may also refer to the warranty policy for the region in which you bought the device at http://www.zyxel.com/web/support_warranty_info.php.

Registration

Register your product online to receive e-mail notices of firmware upgrades and information at www.zyxel.com for global products, or at www.us.zyxel.com for North American products.

Safety Warnings

• Do NOT use this product near water, for example, in a wet basement or near a swimming pool.
• Do NOT expose your device to dampness, dust or corrosive liquids.
• Do NOT store things on the device.
• Do NOT install, use, or service this device during a thunderstorm. There is a remote risk of electric shock from lightning.
• Connect ONLY suitable accessories to the device.
• Do NOT open the device or unit. Opening or removing covers can expose you to dangerous high voltage points or other risks. ONLY qualified service personnel should service or disassemble this device. Please contact your vendor for further information. Make sure to connect the cables to the correct ports.
• Place connecting cables carefully so that no one will step on them or stumble over them.
  • Always disconnect all cables from this device before servicing or disassembling.
• Use ONLY an appropriate power source for your device.
• Connect the powerline adapter to the right supply voltage (for example, 110V AC in North America or 230V AC in Europe).
• Do NOT allow anything to rest on the powerline adapter and do NOT place the product where anyone can walk on the powerline adapter.
• Do NOT use the device if the powerline adapter is damaged as it might cause electrocution.
• If the powerline adapter is damaged, remove it from the power outlet.
• Do NOT attempt to repair the powerline adapter. Contact your local vendor to order a new one.
• Do not use the device outside, and make sure all the connections are indoors. There is a remote risk of electric shock from lightning.
• Do NOT obstruct the device ventilation slots, as insufficient airflow may harm your device.
• If you wall mount your device, make sure that no electrical lines, gas or water pipes will be damaged.
  • This power unit is intended to be correctly orientated in a vertical or floor mount position.
• You must plug in the PLA vertically, so that the ventilation holes are not facing up or down.

Your product is marked with this symbol, which is known as the WEEE mark. WEEE stands for Waste Electronics and Electrical Equipment. It means that used electrical and electronic products should not be mixed with general waste. Used electrical and electronic equipment should be treated separately.

Index

A

about screen 36

AC Pass-Through 6

Advanced Encryption Standard, see AES 9

AES 10, 28

AES (Advanced Encryption Standard) 9

applications 6

ENCRYPT Button 16

Encrypt Button 6

encryption 9, 28

F

FCC interference statement 56

C

certifications 56

notices 57

viewing 57

configuration screen 32

configuration utility 9

connections overview 10

contact information 50

copyright 56

customer support 50

G

Guide

Quick Start 2

H

HomePlug AV standard 6

D

DAK 10, 28, 33

DAK (Data Access Password) 10

Data Access Key 10

Data Access Password, see DAK 10

disclaimer 56

documentation

related 2

|

installation

procedure 19, 25

InstallShield wizard 23

introduction 6

L

LED 46

ETHERNET 8

HomePlug 8

POWER 7,8

local vs. remote adapter 33

E

electrical and cable wiring 28

electrical circuit boundaries 28

M

MAC address 33

management

multiple networks 11

overview 28

managing the device

using the utility

maximum PHY rate 6

multiple networks 11

N

network example 28

network information 29

Network Name 10

network name 16

0

other documentation 2

P

pass-through 6

passwords 28, 33, 34

types of 10

PHY Rate 6

PLA Comparison 6

plug-and-play 28

power pass-through 6

Powerline Network

Adding Devices 12

Creating multiple networks 15

Removing Devices 14

priority settings 34

application type 35

priority levels 36

private network 10

problems and solutions 46

product registration 58

Q

Quick Start Guide 2

R

receive rate 29

registration

product 58

related documentation 2

RESET Button 17

Reset Button 6

RESET/ENCRYPT Button

Combination 15

Manage 9

Separate 16

s

security 10, 11, 28

passwords 10

standby mode (power saving mode) 9

starting the utility 29

T

trademarks 56

transfer rates 9

transmit rate 29

troubleshooting 46

U

utility 9

launching 29

W

warranty 57

note 58

Z

ZyXEL PLA Series Configuration 28
