Important safety information

Important! In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

- Please read the instruction book before this appliance.

General safety

• It is dangerous to alter the specifications or attempt to modify this product in any way.
• This appliance is not intended for use by persons (including children) with reduced physical and sensory conditions or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Make sure that small children and pets do not climb inside the drum. To avoid this, please check into the drum before using.
• Any objects such as coins, safety pins, nails, screws, stones or any other hard, sharp material can cause extensive damage and must not be placed into the machine.

- In order to avoid danger of fires caused by excessive drying, do not use appliance to dry the following items: Cushions, quilts etc. (these items accumulate heat).

- Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

- Always unplug the appliance after use, cleaning and maintenance.

- Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Centre. Always insist on genuine spare parts.

- Items that have been soiled with substances such as cooking oil acetone, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

- Danger of explosion: Never tumble dry items that have been in contact with inflammable solvents (petrol, methylated spirits, dry cleaning fluid and the like). As these substances are volatile, they could cause an explosion. Only tumble dry items washed with water.

- Risk of fire: items that have been spotted or soaked with vegetable or cooking oil constitute a fire hazard and should not be placed in the tumble dryer.

• If you have washed your laundry with stain remover you must execute an extra rinse cycle before loading your tumble dryer.
• Please make sure that no gas lighters or matches have accidentally been left in pockets of garments incase they are loaded into appliance

Warning!

- Risk of fire! Never stop a tumble dry before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

- Lint must not be allowed to accumulate around the tumble dryer.

• Risk of electric shock! Do not spray down the appliance with jets of water.
• The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that items will not be damaged.
• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
• Ensure you have good ventilation in the installation room to avoid the back flow of gases into the room from appliances burning other fuels, including open fires.

Installation

• This appliance is heavy. Care should be taken when moving it.
• When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the Service Centre.
• All packaging must be removed before use. Serious damage can occur to the product and to property if this is not adhered to. See relevant section in the user manual.
• Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

• If the machine is situated on a carpeted floor, please adjust the feet in order to allow air to circulate freely under the appliance.

• After having installed the appliance, check that it is not pressing or standing on its electrical supply cable.

• If the tumble dryer is placed on top of a washing machine, it is compulsory to use the stacking kit (optional accessory).

Use

• This appliance is designed for domestic use. It must not be used for purposes other than those for which it was designed.
• Only wash fabrics which are designed to be machine dried. Follow the instructions on each garment label.
• Do not dry unwashed items in the tumble dryer.
• Do not overload the appliance. See the relevant section in the user manual.
• Clothes which are dripping wet should not be placed in the dryer.
• Garments which have been in contact with volatile petroleum products should not be machine dried. If volatile cleaning fluids are used, care should be taken to ensure that the fluid is removed from the garment before placing in the machine.
• Never pull the power supply cable to remove the plug from the socket; always take hold of the plug itself.
• Never use the tumble dryer if the power supply cable, the control panel, the working surface or the base are damaged so that the inside of the tumble dryer is accessible.
• Fabric softeners, or similar products should be used as specified by the fabric softener instructions.
• Caution - hot surface : Do not touch the door light cover surface when the light is switched on. (Only dryers equipped with internal drum light)

Child safety

• This machine is not intended for use by young children or infirm persons without supervision.
• Children often do not recognise the hazards associated with electrical appliances. Chil-

dren should be supervised to ensure that they do not play with the appliance.

Warning!

- Danger of suffocation! The packaging components (e.g. plastic film, polystyr-

ene) can be dangerous to children - Keep them out of children's reach.

• Keep all detergents in a safe place out of children's reach.
• Make sure that children or pets do not climb inside the drum.

Environment

Recycle the materials with the symbol ⚙ Put the packaging in applicable containers to recycle it.

Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol ✗ with the household waste. Return the product to your local recycling facility or contact your municipal office.

Old appliance

Warning!

Remove mains plug from socket when you have no further use for the machine. Cut off mains cable and dispose of together with plug. Destroy loading door hook. Children cannot then lock themselves in the machine and put their lives at risk.

Packaging material

The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities.

Environmental tips

• In the dryer, laundry becomes fluffy and soft. Fabric softeners are not therefore needed when washing.
• Your dryer will function most economically if you:
  – always keep the ventilation slots on the base of the dryer unobstructed;
• use the loading volumes specified in the programme overview;
• ensure you have good ventilation in the installation room;
  – clean the micro-fine filter and fine strainer after each drying cycle;
  – spin the laundry well before drying.

Energy consumption depends on spinning speed set in washing machine. Higher mixing speed - lower energy consumption.

Installation

Important! The appliance must be moved in vertical position for transport.

Appliance positioning

• It is recommended that, for your convenience, the machine is positioned close to your washing machine.
• The tumble dryer must be installed in a clean place, where dirt does not build up.

• Air must be able to circulate freely all round the appliance. Do not obstruct the front ventilation grille or the air intake grilles at the back of the machine.

• To keep vibration and noise to a minimum when the dryer is in use, it should be placed on a firm, level surface.

• Once in its permanent operating position, check that the dryer is absolutely level with the aid of a spirit level. If it is not, raise or lower the feet until it is.
• The feet must never be removed. Do not restrict the floor clearance through deeppile carpets, strips of wood or similar. This might cause heat built-up which would interfere with the operation of the appliance.

Important!

• The hot air emitted by the tumble dryer can reach temperatures of up to 60°C. The appliance must therefore not be installed on floors which are not resistant to high temperatures.
• When operating the tumble dryer, the room temperature must not be lower than +5°C and higher than +35°C, as it may affect the performance of the appliance.
• Should the appliance be moved, it must be transported vertically.
• The appliance must not be installed behind the lockable door, a sliding door a door with a hinge on the opposite side to that of the appliance in such a way that a full opening of the dryer is restricted.

Removing transport safety packaging

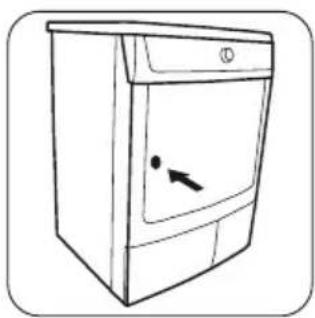

Caution! Before use all parts of the transport packaging must be removed.

Line drawing of a simple kitchen sink with a door and handle (no text or symbols)

Illustration of a hand using a tool to clean or inspect a circular object with a grid pattern (no text or symbols visible)

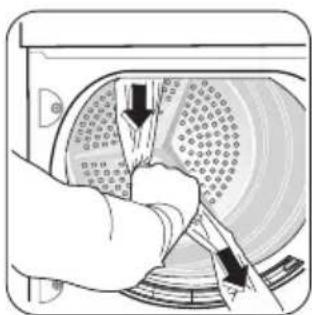

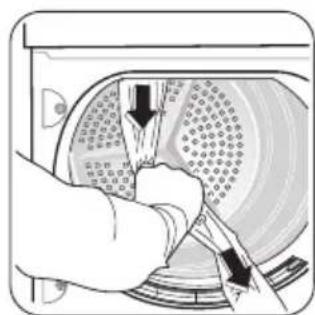

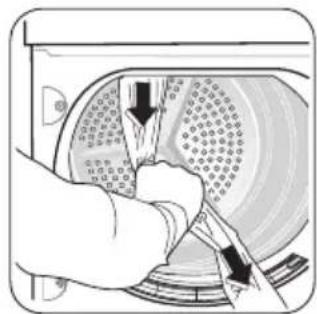

1. Open loading door 2. Pull off adhesive strips from inside machine on top of drum.

Diagram of a mechanical joint or connector with directional arrows and a black arrow indicating force or direction (no text or symbols present)

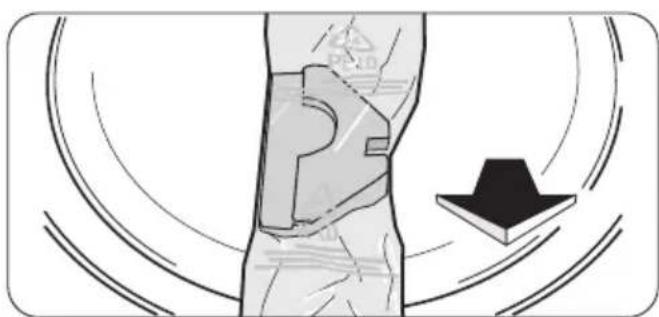

1. Remove foil hose and polystyrene padding from the machine.

Electrical connection

Details on mains voltage, type of current and the fuses required should be taken from the type plate. The type plate is fitted near the loading aperture (see "Product description" chapter).

Warning! The manufacturer declines any responsibility for damage or injury through re to comply with the above safety autions.

Should the appliance power supply cable need to be replaced, this must be carried out by our Service Center.

Warning! The power supply cable must be accessible after installing the machine.

Door reversal

To make it easier to load or unload the laundry, the door can be reversed.

Warning! The door must only be reversed by an authorised service engineer.

Please contact your local Service Force Centre. The engineer will carry out the door reversal at your cost.

Special accessories

- stack kit

Available from your Service Force Centre or your specialist dealer

These intermediate installation kits can be used to arrange the dryer and an washing machine (60 cm wide, front loaded) as a space-saving washer/dryer stack. The washing machine is at the bottom and the dryer is at the top.

Read carefully the instructions supplied with the kit.

- drain kit

Available from your Service Force Centre or your specialist dealer

Installation kit for direct draining of condensate into a basin, siphon, gully, etc. The condensate tank then no longer has to be drained, it must however remain in its intended position in the machine.

Read carefully the instructions supplied with the kit.

- pedestal with the drawer

Available from your Service Force Centre or your specialist dealer

To situate the dryer in optimal high and have some additional space to store (e.g. laundry).

Read carefully the instructions supplied with the kit.

Product description

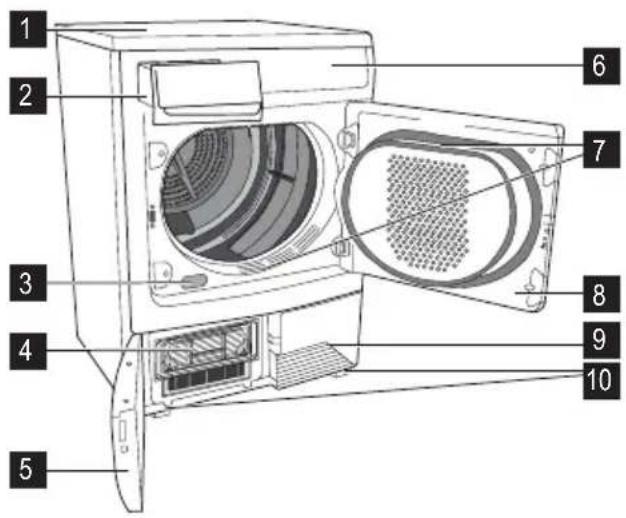

Description of the appliance

Labeled diagram of a washing machine with numbered parts for identification

1 Worktop
2 Water reservoir
3 Rating Plate
4 Heat exchanger
5 Heat exchanger door
6 Control panel
7 Fluff filters
8 Loading door
9 Ventilation grille
10 Adjustable feet

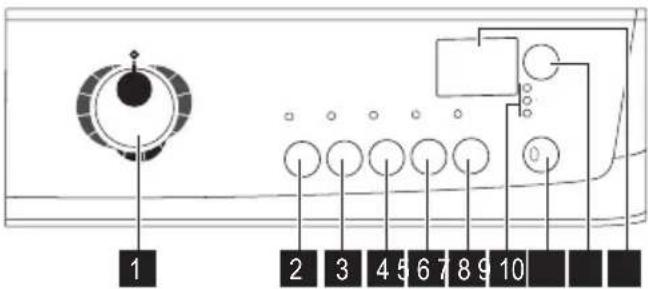

Control panel

1 2 3 4 5 6 7 8 9 10

8 Start/Pauze (Start/Pause) button

9 Startuitstel (Delay Start) button

10 Display

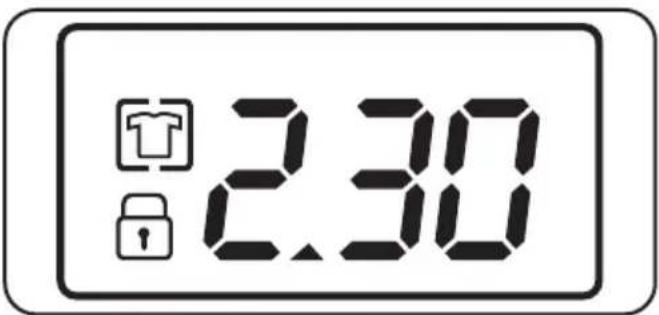

What is shown in the display

2.30

1 Programme knob and ○ OFF switch
2 Lage temp. (Delicate) button
3 Lang anti-kreuk (Long anticrease) button
4 Kort (Quick) button
5 Zoemer (Buzzer) button
6 Tijd (Time) button
7 Function status led

• Condensor (Condenser) light
• ● Filter (Filters) light
  Waterreservoir (Water Reservoir) light

SYMBOL DESCRIPTION

2.30	Time to end (time of time pro-gramm, time of start delay)
	Child lock
	Anticrease guard phase
Err	Error, wrong selection

Before first use

In order to remove any residues which may have been produced during production, wipe the dry-er drum with a damp cloth or carry out a brief drying cycle (30 MIN) with damp cloths in the machine.

1. Turn the programme knob to Tijd (Time).
2. Press the Start/Pauze (Start/Pause) button.

Programme chart

Programmes	max. load (weight when dry)	Additional functions/options Application/properties	Care mark
Katoen (Cotton)Extra droog (Extra Dry)	7 kg	all1) except Tijd (Time)	Thorough drying of thick or multi-layered fabrics, e.g. terry tow-elling items, bathrobes.
Katoen (Cotton)Sterkdroog (Strong Dry)	7 kg all	except Tijd (Time)	Thorough drying of thick or multi-layered fabrics, e.g. terry tow-elling items, bathrobes.
Katoen (Cotton)Kastdroog (Storage Dry) 2)	7 kg all	except Tijd (Time)	Thorough drying of fabrics of even thicknesses, e.g. terry tow-elling items, knitwear, towels.
Katoen (Cotton)Strijkdroog+(Damp) 2)	7 kg all	except Tijd (Time)	For thin textiles which are still to be ironed, e.g. knitted items, cotton shirts.
Katoen (Cotton)Strijkdroog (Iron Dry) 2)	7 kg all	except Tijd (Time)	For thin fabrics which are also to be ironed, e.g. knitwear, cotton shirts.
Synthetisch (Syn-thetics) Extra droog (Extra Dry)	3 kg all	except Tijd (Time)	Thorough drying of thick or multi-layered fabrics, e.g. pullovers, bedding, table linen.
Synthetisch (Syn-thetics) Kastdroog (Storage Dry) 2)	3 kg all	except Tijd (Time)	For thin fabrics which are not ir-oned, e.g. easy care shirts, table linen, baby clothes, socks, linge-rie with bones or wires.

Programmes	max. load (weight when dry)	Additional functions/options Application/properties	Care mark
Synthetisch (Synthetics) Strijkdroog (Iron Dry)	3 kg all except Tijd (Time)	For thin fabrics which are also to be ironed, e.g. knitwear, cotton shirts.
Mix (Mixed) 3 kg		Lage temp. (Delicate)4), Lang anti-kreuk (Long anticrease), Zoemer (Buzzer), Startuitstel (Delay Start)	For drying cotton and synthetic fabrics, uses low temperature.
Tijd (Time) 7 kg		Lage temp. (Delicate), Lang anti-kreuk (Long anticrease), Zoemer (Buzzer), Startuitstel (Delay Start) Tijd (Time)	For further drying of individual items of laundry.
Jeans 7 kg		Lage temp. (Delicate), Lang anti-kreuk (Long anticrease), Zoemer (Buzzer), Startuitstel (Delay Start)	For leisure clothing, such as jeans, sweat-shirts, etc., of different material thicknesses (e.g. at the neck, cuffs and seams).
Anti-kreuk (Easy Iron)	1 kg (or 5 shirts)	Lage temp. (Delicate), Lang anti-kreuk (Long anticrease), Zoemer (Buzzer), Startuitstel (Delay Start)	Special program with anti-crease mechanism for easy care fabrics such shirts and blouses; for minimum ironing effort. The results depends on the type of fabric and its finish. Place fabrics in the dryer straight after spinning; once dried, immediately remove fabrics and place on a clothes hanger.
Baby	2 kg	Lage temp. (Delicate), Lang anti-kreuk (Long anticrease), Zoemer (Buzzer), Startuitstel (Delay Start)	Baby cycle is a special pro-gramme for jumpers to be dried “ready to wear”.
Opfrissen (Refresh)	1 kg Zoemer (Buzzer)		For refreshing or gently cleaning textiles with commercially available dry cleaning products.

1) The Lage temp. (Delicate) cannot be selected with Kort (Quick)
2) In accordance with IEC61121
3) select Lage temp. (Delicate) option
4) auto

Sorting laundry

- Sort by fabric type:

• Cotton/linen for programmes in Katoen (Cotton) programme group.
• Mixtures and synthetics for programmes in Synthetica (Synthetics) programme group.

- Sort by care label: The care labels mean:

Drying in the tumble dryer possible in principle

Drying at normal temperature

Drying at reduced temperature

Drying in the tumble dryer not possible

Important! Do not place in the appliance any wet laundry which is not specified on the care label as being suitable for tumble-drying.

This appliance can be used for all wet laundry items which are labelled as suitable for tumble-drying.

• Do not dry new, coloured textiles together with light-coloured laundry items. Textile colours may bleed.
• Do not dry cotton jersey and knitwear with the Extra droog (Extra Dry) programme. Items may shrink!

Preparing laundry

- To avoid laundry becoming tangled: close zips, button up duvet covers and tie loose ties or ribbons (e.g. of aprons).

Daily use

Switching machine on

Turn the programme selector to any programme. The machine switches on.

• Empty pockets. Remove metal items (paper clips, safety pins, etc).
• Turn items with double-layered fabrics inside out (e.g. with cotton-lined anoraks, the cotton layer should be outermost). These fabrics will then dry better.

Important! Do not overload the appliance.

Observe max. loading volume.

Laundry weights

Type of laundry Weight
Bathrobe 1200 g
Napkin 100 g
Quilt cover 700 g
Sheet 500 g
Pillow case 200 g
Tablecloth 250 g
Towelling towel 200 g
Tea cloth 100 g
Night dress 200 g
Ladies' briefs 100 g
Man's work shirt 600 g
Man's work shirt 200 g
Man's pyjamas	500 g
Blouse 100 g
Men's underpants	100 g

Operating

5

Lage temp. (Delicate)

gentle drying with reduced heat of sensitive fabrics and temperature-sensitive textiles (e.g. acrylic, viscose) marked on care label with:

Lang anti-kreuk (Long anticrease)

prolongs the anti-crease phase to 90 mins in total. The laundry remains relaxed and free of creases.

Kort (Quick)

By pressing this button the drying time is reduced in all Katoen (Cotton) and Synthetica (Synthetics) programmes.

Zoemer (Buzzer)

audible confirmation of:

• cycle end
• anti-crease phase start and end
• cycle interruption
• error

Tijd (Time)

after setting the Tijd (Time) programme. You can select a programme duration from 20 mins to 2 hrs in 10-minute steps.

Startuitstel (Delay Start)

allows to delay the start of a drying programme from minimum of 30 min. to maximum of 20 hours. Press the Startuitstel (Delay Start) button repeatedly until the desired delay start is shown on the display

Setting child lock

The child lock can be set to prevent a programme being accidentally started or a programme in operation being accidentally changed. The child lock function locks all buttons and the programme selector. The child lock can be activated or deactivated by holding down the Lage temp. (Delicate) and Lang anti-kreuk (Long anticrease) buttons simultaneously for 5 seconds.

• Before programme is started: Appliance cannot be used
• After programme is started: Programme in operation cannot be changed

The icon ☐ appears in the display to indicate that the child safety device is activated.

The child safety device is not deactivated once the programme comes to an end.

If you want to set a new programme, you must first deactivate the child safety device.

Starting the programme

Press the Start/Pauze (Start/Pause) button. The programme starts.

The programme progress is shown by elapsing dry time on the LCD.

Changing programme

To change a programme which is running, first cancel it by turning the programme selector dial to ○. Select the new programme and press the Start/Pauze (Start/Pause) button.

The programme can no longer be changed directly once the programme has started. If nevertheless there is an attempt to change the programme on the programme knob, the programme progress display and the maintenance indicators flash. If an option button (excluding the Zoemer (Buzzer) button) is pressed, Err appears on the display. The drying programme is not however affected by this (laundry protection).

Drying cycle complete / removing laundry

Once the drying cycle is complete, the display shows the anti-crease icon and flashing as well as warning lamps: Filter and Water-reservoir (Water Reservoir). If the Zoemer (Buzzer) button has been pressed, an acoustic signal sounds intermittently for about one minute.

The drying cycles are automatically followed by an anti-crease phase which lasts around 30 minutes. The drum rotates at intervals during this phase. This keeps the laundry loose and free of creases. The laundry can be removed at any time during the anti-crease phase. (The laundry should be taken out towards the end of the anti-crease phase at the latest to prevent creases from forming.)

1. Open door.
2. Before removing the laundry, remove fluff from the micro-fine filter. It is best to use a

damphand for this purpose. (See "Cleaning and maintenance" chapter.)

1. Remove laundry.
2. Turn the programme selector to off.
3. Close the door.

Cleaning and maintenance

Cleaning fluff filters

The filters collect all the fluff which accumulates during drying. To ensure that the dryer works perfectly, the fluff filters (fine filters and fluff filters) must be cleaned after each drying cycle.

Caution! Never operate the dryer without fluff filters or with damaged or blocked fluff filters.

Line drawing of a door handle with a circular inset showing a sunburst symbol (no text or labels)

Diagram of a washing machine with labeled parts I and II, showing internal components and casing structure.

Diagram of a fan or vent system with a pressure gauge and fan blade (no text or symbols)

Diagram of a mechanical component with labeled parts and an arrow indicating direction (no readable text or symbols)

Illustration of a hand holding a glass with a funnel above, no text or symbols present

Close-up of a mechanical component with a circular top and arrow indicator (no text or symbols)

Diagram of a mechanical component with a textured center and mounting bracket (no text or symbols)

Illustration of two hands using a tool to cut or hold a rectangular object, with a diagonal line above (no text or symbols)

Technical illustration of a mechanical component with a grid pattern and mounting bracket (no text or symbols)

Clean the door seal

Wipe the door seal with a damp cloth immediately after the drying cycle has finished.

Emptying the water reservoir

Empty the water reservoir after every drying cycle.

After each use

• Clean the filters.
• Empty the water reservoir.

Line drawing of a door handle with a circular inset showing three circles and a starburst symbol (no text or labels)

Caution! The condensed water is not suitable for drinking or for preparing foodstuffs.

If the programme has been interrupted as a result of the water reservoir being full:

Press the Start/Pauze (Start/Pause) button to continue the drying cycle.

Cleaning condenser

Line drawing of a door handle with a circular indicator showing three circles (no text or symbols)

Important!

• Never operate the dryer without condenser.
• Clogged condenser cause higher energy consumption (drying cycle elongation) and dryer damage.
• Do not use sharp objects to clean.

Cleaning the drum

Caution! Do not use abrasives or steel wool to clean the drum.

Lime in the water or cleaning agents may form a barely visible lining on the inside of

the drum. The degree to which the laundry has been dried is then no longer detected reliably. The laundry is damper than expected when removed from the appliance.

Use a standard domestic cleaner (e.g. vinegar-based cleaner) to wipe down the inside of the drum and drum ribs.

Clean control panel and housing

Caution! Do not use furniture cleaners or aggressive cleaning agents to clean the mine.

Use a damp cloth to wipe down the control panel and housing.

What to do if ...

Troubleshooting by yourself

Problem1)	Possible cause Remedy
Dryer does not work.	Dryer not connected to mains supply.	Plug in at mains socket. Check fuse in fuse box (domestic installation).
	Loading door opened. Close loading door
	The Start/Pauze (Start/Pause) button not pressed.	Press the Start/Pauze (Start/Pause) button.
Unsatisfactory drying results.	Incorrect programme set.	Set suitable programme.2)
	Fluff filters clogged.	Clean fluff filters.3)
	Heat exchanger clogged.	Clean heat exchanger.3)
	Max. loading exceeded. Respect max. loading volume.
	Covered ventilation grill. Uncover ventilation grill in base area.
	Residue inside the drum. Clean the drum inside.
	High water hardness.	Set suitable water hardness4).
Loading door does not close	Filters not locked in place.	Install fine filter and/or snap course filter into place.
Err (Error) on the LCD.5)	Attempt to change parameters after start of the programme.	Turn the dryer off and on. Set requested pa-rameters.
No drum light	Programme selector in OFF position.	Turn it to DRUM LIGHT (if available) or to any programme.
	Defective light bulb. Replace light bulb (see next section).
Abnormally elapsing time on the LCD5)	Time to end is calculated on the basis of: type, volume and dampness of laundry.	Automatic process; this is not a machine fault.
Programme in-active	Full water reservoir.	Empty water reservoir^3) , press Start/Pauze (Start/Pause) button.
Drying cycle to short	Small laundry volume./Too dry laundry for selected programme.	Select time programme or higher drying level (e.g. Extra droog (Extra Dry)).
Drying cycle to long 6)	Fluff filters clogged. Clean fluff filters.
	To high loading volume. Respect max. loading volume.
	Laundry insufficiently spun. Spun adequately the laundry.
	Particularly high room temperature - no machine fault.	Lower the room temperature if possible.

1) In case of error message on the LCD (e.g. E51- only dryers with the LCD): Switch the dryer off and on. Set programme. Press the Start/Pauze (Start/Pause) button. Does not work? - inform local service and quote the error code.
2) follow program recommendation - see Programme overview chapter
3) see Care and cleaningchapter
4) see Machine settings chapter
5) only dryers with the LCD
6) Note: After around 5 hours the drying cycle ends automatically (see Drying cycle complete section).

Technical data

Dimensions (mm) Width / Height / Depth 85 x 60 x 58 cm
Max. depth(with the appliance door open)	1090 mm
Max. width(with the appliance door open)	950 mm
Electrical connection Voltage 230 V
Frequency 50 Hz
Fuse 16 A
Total power 2350 W
Drum volume 108 l
Weight of the appliance 40 kg
Laundry: max. weight 7 kg
Type of use	Household
Ambient temperature Min.	5 °C
Max. 35 °C
Energy consumption 1)	kWh/cycle 4,16 kWh
Annual energy consumption 2)	504 kWh
Energy efficiency class	B
Power consumption	Left-on mode	0,40 W

1) With reference to EN 61121. 7 kg of cotton and a spin speed at 1000 rpm.
2) Energy consumption per year in kWh, based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used (REGULATION (EU) No 392/2012).

Machine settings

Setting Implementation
Zoemer (Buzzer) permanent off	1. Turn the programme selector to any programme.2. Press simultaneously theKort(Quick)andLang anti-kreuk(Long anticrease)buttons and hold down for approx. 5 seconds.3. The buzzer is by default always off.
Water hardnessWater contains, a variable quantity of limestone and mineral salts of which quantities vary according to geographical locations thus varying its conductivity values.Relevant variations of the conductivity of the water compared to those prefixed by the factory could slightly influence the residual humidity of the laundry at the end of the cycle. Your dryer allows you to regulate the sensitivity of the drying sensor based on conductivity values of the water.	1. Turn the programme selector to any programme.2. Press simultaneously theKort(Quick)andStart/Pauze(Start/Pause)buttons and hold down for approx. 5 seconds. The current setting is on the display:- [0] low conductivity <300 micro S/cm- [0]= medium conductivity 300-600 micro S/cm- [0]= high conductivity >600 micro S/cm3. Press theStart/Pauze(Start/Pause)button sequentially until you set desired level.4. To memorize setting press simultaneously the theKort(Quick)andStart/Pauze(Start/Pause)buttons or turn knob toOoff position

Hints for test institutes

Parameters possible to checked by the Test Institutes:

• Energy consumption (corrected with final humidity) during the cupboard dry cotton cycle with nominal load.
• Energy consumption (corrected with final humidity) during the cupboard dry cotton cycle with half load.
• Final humidity (during cupboard dry cotton, iron dry cotton and cupboard dry easy care)

- Condensation efficiency (corrected with final humidity) during cupboard dry cotton cycle with nominal and half load All the cycles have to be checked in accordance with EN 61121 (Tumble dryers for household use – Methods for measuring the performance).

Sommaire

Line drawing of a washing machine with a door and pushpin (no text or symbols)

Close-up of hands operating a circular device with a grid pattern and directional arrows (no text or symbols visible)

Diagram of a mechanical joint or bracket with motion lines and a black arrow indicating direction (no text or symbols)

Labeled diagram of a washing machine with numbered parts for identification

Plan de travail

Bac d'eau

Plaque signalétique

Condenseur

Line drawing of a door handle with a circular icon containing a starburst symbol (no text or labels)

Diagram of a washing machine with labeled parts I and II, showing internal components and housing structure.

Diagram of a fan or vent system with directional arrows indicating flow or movement (no text or symbols present)

Diagram of a mechanical component with labeled parts and an arrow indicating direction (no readable text or symbols)

Illustration of a hand holding a laboratory glassware device with a funnel and tubing (no text or symbols)

Diagram of a circular device with a black arrow pointing to its top surface, no text or symbols present.

Diagram of a mounted air vent or fan device with a control panel and ventilation grille (no text or symbols)

Illustration of two hands using a tool to lift a block, no text or symbols present

Diagram of a mounted air vent or fan device with a grid pattern and mounting bracket (no text or symbols)

Line drawing of a door handle with a circular inset showing three circular holes and a starburst symbol (no text or labels)

Line drawing of a door handle with a circular inset showing three circles and a starburst symbol (no text or labels)

Important

Diagram of a refrigerator interior with doors open and a warning symbol (no text or labels)

Line drawing of a washing machine with a door and arrow indicator (no text or symbols)

Illustration of hands operating a circular device with a grid pattern and directional arrows (no text or symbols)

Diagram of a mechanical joint or clamping mechanism with directional arrows and a warning symbol (no readable text or labels)

Labeled diagram of a washing machine with numbered parts for identification

Line drawing of a door handle with a circular icon containing a starburst symbol (no text or labels)

Diagram of a washing machine with labeled parts I and II, showing internal components and casing layout.

Diagram of a fan or vent system with a circular indicator and labeled components (no readable text or symbols)

Diagram of a mechanical component with an arrow indicating direction, no visible text or symbols

Illustration of a hand holding a tool with a faucet above, no text or symbols present

Close-up of a mechanical component with a circular top and arrow indicator (no text or symbols)

Diagram of a mechanical component with a central housing and upward arrow, no visible text or symbols

Illustration of two hands using a tool to lift a block, no text or symbols present

Diagram of a mounted air vent or fan device with a label '7' and a circled number '11' (no text or symbols on the device itself)

Line drawing of a door handle with a circular inset showing three circles and a starburst symbol (no text or labels)

Line drawing of a door handle with a circular indicator showing three circles (no text or symbols)

Wichtig!

Architectural cross-section diagram of a multi-level building with structural elements (no text or labels)

www.zanussi.com/shop
