Please read this user manual first!

Dear Customer,

Thank you for preferring an Arcelik product. We hope that your product which has been manufactured with high quality and technology will give you the best results. We advise you to read through this manual and the other accompanying documentation carefully before using your product and keep it for future reference. If you transfer the product to someone else, give its manual as well. Pay attention to all details and warnings specified in the user manual and follow the instructions given therein.

Remember that this user manual is also applicable for several other models. Differences between models will be identified in the manual.

Explanation of symbols

Throughout this user manual the following symbols are used:

	Important information or useful hints about usage.
	Warning for hazardous situations with regard to life and property.
	Warning against electric shock.
	Warning against hot surfaces.
	Warning against fire hazard.

Packaging of the product is made of recyclable materials pursuant to our national environment legislation.

Do not dispose of the packaging wastes with the domestic waste or other wastes, discard them to the dedicated collection points designated by the local authorities.

TABLE OF CONTENTS

1 Important instructions for safety and environment 36

1.1 General safety.....36
1.1.1 Electrical safety....36
1.1.2 Product safety....36
1.2 Intended use ....37
1.3 Children's safety 38
1.4 Compliance with the WEEE Directive and Disposing of the Waste Product: .....38
1.5 Compliance with RoHS Directive: .....38
1.6 Package information .....38

2 Your Dryer 39

2.1 Overview....39
2.2 Scope of Delivery .....40
2.3 Technical Specifications .....41

3 Installation 42

3.1 Appropriate installation location .....42
3.2 Removing the transportation safety assembly 42
3.3 Under counter installation .....43
3.4 Mounting over a washing machine . . . .43

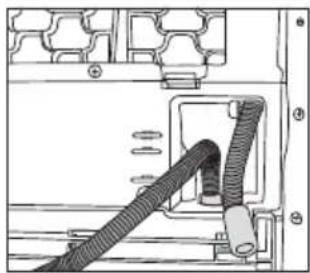

3.5 Connecting to the drain .....43
3.6 Adjusting the feet .....44
3.7 Electrical connection.....44
3.8 Transportation of the product .....44
3.9Warnings related to sound.....45

4 Preparation 46

4.1 Laundry suitable for drying in the machine....46
4.2 Preparing clothes to be dried.....46
4.3 Things to be done for energy saving . . .46
4.4 First use 47

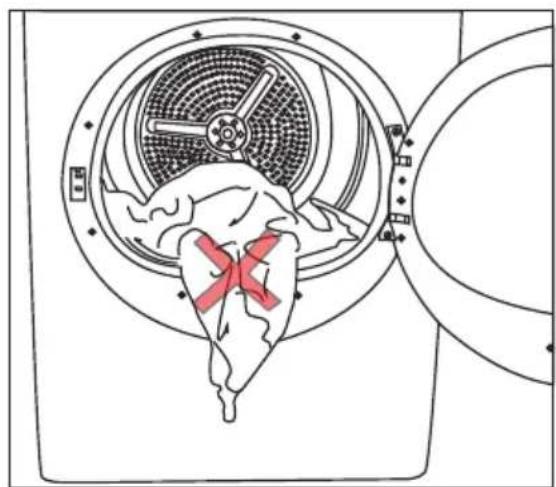

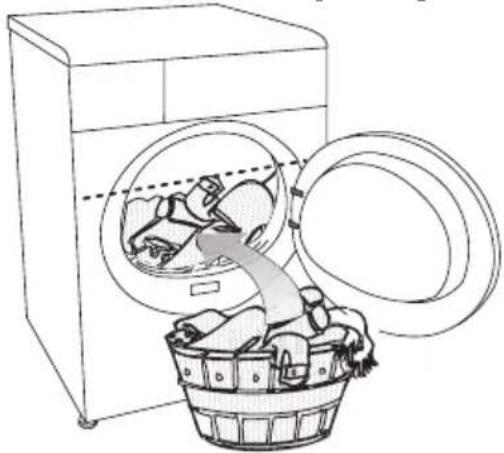

4.5 Correct load capacity .....47
4.6 Loading the laundry . . . . . . . . . . . . . . . . . . . . . . . . . 48

5 Operating the product 49

5.1 Control panel 49

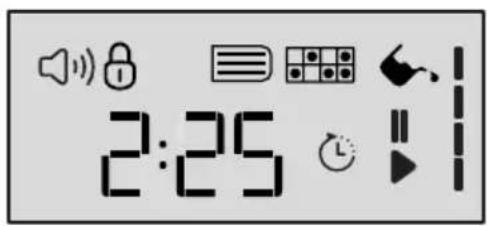

5.2 Display Symbols 49
5.3 Preparing the machine .....50
5.4 Programme selection .....50
5.5 Main programmes .....50
5.6 Additional programmes .....50

5.7 Auxiliary functions....53
5.8 Warning symbols .....53
5.9 Starting the programme .....54
5.10 Child Lock 54
5.11 Changing the programme after it has started 54
5.12 Canceling the programme .....55
5.13 End of programme .....55

6 Easy use 56

6.1 Preparing the machine .....56
6.2 Programme selection .....56
6.3 Auxiliary functions.....56
6.4 Starting the programme .....56
6.5 End of programme .....56

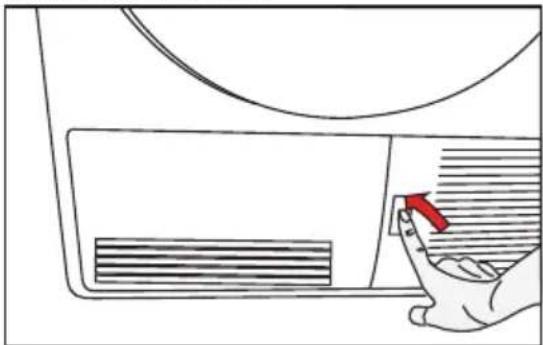

7 Maintenance and cleaning 57

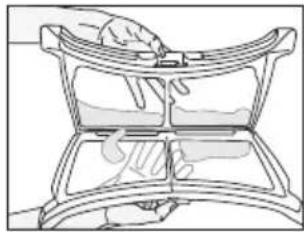

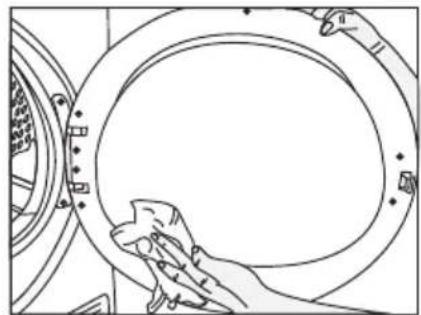

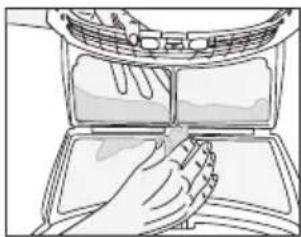

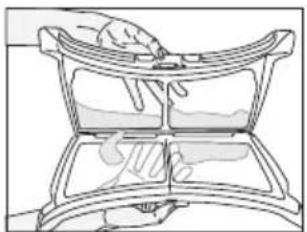

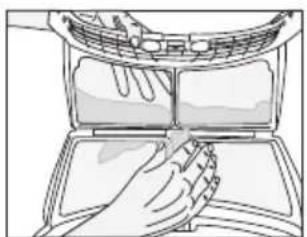

7.1 Lint Filter / Loading Door Inner Surface 57

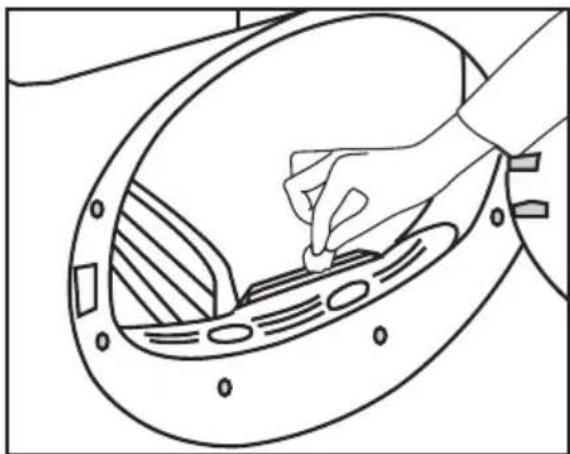

7.2 Cleaning the sensors .....57
7.3 Draining the water tank. . . . . . . . . . . . . . . . . . . . 58

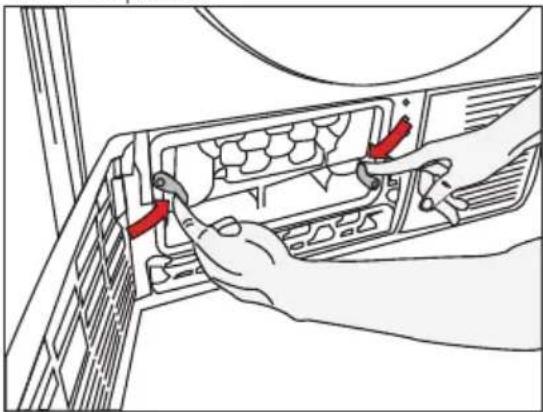

7.4 Cleaning the filter drawer 58
7.5 Cleaning the evaporator....60

8 Troubleshooting 61

1 Important instructions for safety and environment

This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty.

1.1 General safety

This product can be used by the children at the age of 8 and over and the persons with physical, sensory or mental disorders or unlearned or inexperienced people as long as they are attended by a person who will be responsible for their safety or who will instruct them accordingly about use of the product. Children should not tamper with the machine. Cleaning and user maintenance works should not be carried out by the children unless they are attended by someone.
■ Never place the product on a carpet-covered floor; otherwise, lack of airflow beneath the machine will cause electrical parts to overheat. This will cause problems with your product.
■ Always have the installation and repairing procedures carried out by the Authorized Service Agent. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.

1.1.1 Electrical safety

If the product is faulty, it must not be operated unless it is repaired by an authorized service agent! There is the risk of electric shock!
This product is designed to resume operating in the event of a power recovery following a power cut. If you want to cancel an ongoing program, look at the section titled "Canceling a Program".
■ Connect the product to an earthed outlet protected by a 16 ampere fuse. Have the grounding installation performed by a qualified electrician. Our company shall

not be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations.

■ Unplug the product when it is not in use.
■ Never wash the product by spreading or pouring water onto it! There is the risk of electric shock!
■ Never touch the plug with wet hands! Never unplug by pulling on the cable, always pull out by grabbing the plug.
■ Unplug the machine from the mains during installation, maintenance, cleaning and repair works.
If the power cord of the machine is damaged, in order to avoid the danger, it should be replaced by the manufacturer, an after sales service agent or an equally qualified personnel (preferably an electrician) or a person to be designated by the importer.
- Do not use extension cords, multi-plugs or adaptors to connect the dryer to power supply in order to decrease the risk of fire and electric shock.
■ Power cable plug must be within easy reach after installation.

1.1.2 Product safety

• Do not connect the air exit of the product to the chimney holes which are used for the exhaust fumes of the devices operating with gas or other types of fuel.
• You must provide enough ventilation in order to prevent gases exiting from devices operating with other types of fuels including the naked flame from accumulating in the room due to the back fire effect.
• Items cleaned or washed with gasoline/diesel, dry-laundry solvents and other combustible or explosive materials as well as the items that are contaminated or spotted with such materials should not

Important instructions for safety and environment

be dried in the product since they emit flammable or explosive vapor.

• Do not dry the laundry cleaned with industrial chemicals in the dryer.
  ■ Underwear that contains metal reinforcements should not be dried in the dryer. Dryer can get damaged if metal reinforcements come loose and break off during drying.

- Do not reach into the machine when the drum is spinning.

- The final step of the drying programme, namely the cool-down step is performed without applying heat to ensure that the laundry items are kept at a temperature that will not damage them. If you open the loading door before the cool-down step completes, hot vapor will come out.

■ Never stop the dryer before the programme completes. If you must do this, remove all laundry quickly and lay them out to a suitable place to dissipate the heat.

■ Always clean the lint filter before or after each loading. Never operate the dryer without the lint filter installed.

- Clean inside and exhaust duct of the product regularly. Do not allow fiber, dust and dirt accumulation around the exhaust exit and at adjacent areas.

■ Do not dry unwashed items in the dryer.

- Items soiled with cooking oils, acetone, alcohol, fuel oil, kerosene, stain removers, turpentine, paraffin and paraffin removers must be washed in hot water with plenty of detergent before being dried in the dryer.

- Garments or pillows bolstered with rubber foam (latex foam), shower bonnets, water resistant textiles, materials with rubber reinforcement and rubber foam pads should not be dried in the dryer.

■ Do not use fabric softeners and anti-static

products unless they are recommended by the manufacturers of the relevant product.

• Use softeners, anti-static products, etc. in accordance with the instructions of their manufacturers.
• Do not install the product behind a door with a lock, sliding door or a hinged door which can strike the product.
• Do not install or leave the dryer in places where it will be exposed to outdoor conditions.
• Your product can be operated at temperatures between +5°C and +35°C. If the operating conditions fall outside of this range, operation of the product will be adversely affected and it can get damaged.
  ■ Remove the loading door of the drying compartment before decommissioning or disposing of the product.
• Check all garments before loading into the machine and make sure that there is no any lighters, coins, metal pieces, needles, and etc. in their pockets or on them.
  ■ Make sure that the pets do not enter into the product. Check the drum of the product before using it.
• Do not lean on the loading door when it is open. The product may tip over.
• When your machine is not in use or when you unload the laundry after completion of drying process, the machine will be turned off automatic ally after 10 minutes.

1.2 Intended use

This product has been designed for domestic use. It is not designed for commercial purposes and should not be used for other purposes.
■ Use the product only for drying the textile that are marked accordingly.
■ Manufacturer denies any liability for the damages arising from misuse or faulty

Important instructions for safety and environment

handling of the product.

- The service life of your product is 10 years. During this period, original spare parts will be available to operate the appliance properly.

1.3 Children's safety

• Packaging materials are dangerous to children. Keep packaging materials in a safe place out of the reach of the children.
• Electrical products are dangerous for the children. Keep children away from the product when it is operating. Do not let them tamper with the product. Activate the child-proof lock in order to prevent the children to tamper with the machine.
• Do not forget to close the loading door when leaving the room where the product is located.

1.4 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been

manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1.5 Compliance with RoHS Directive:

■ The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.6 Package information

- Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Your Dryer

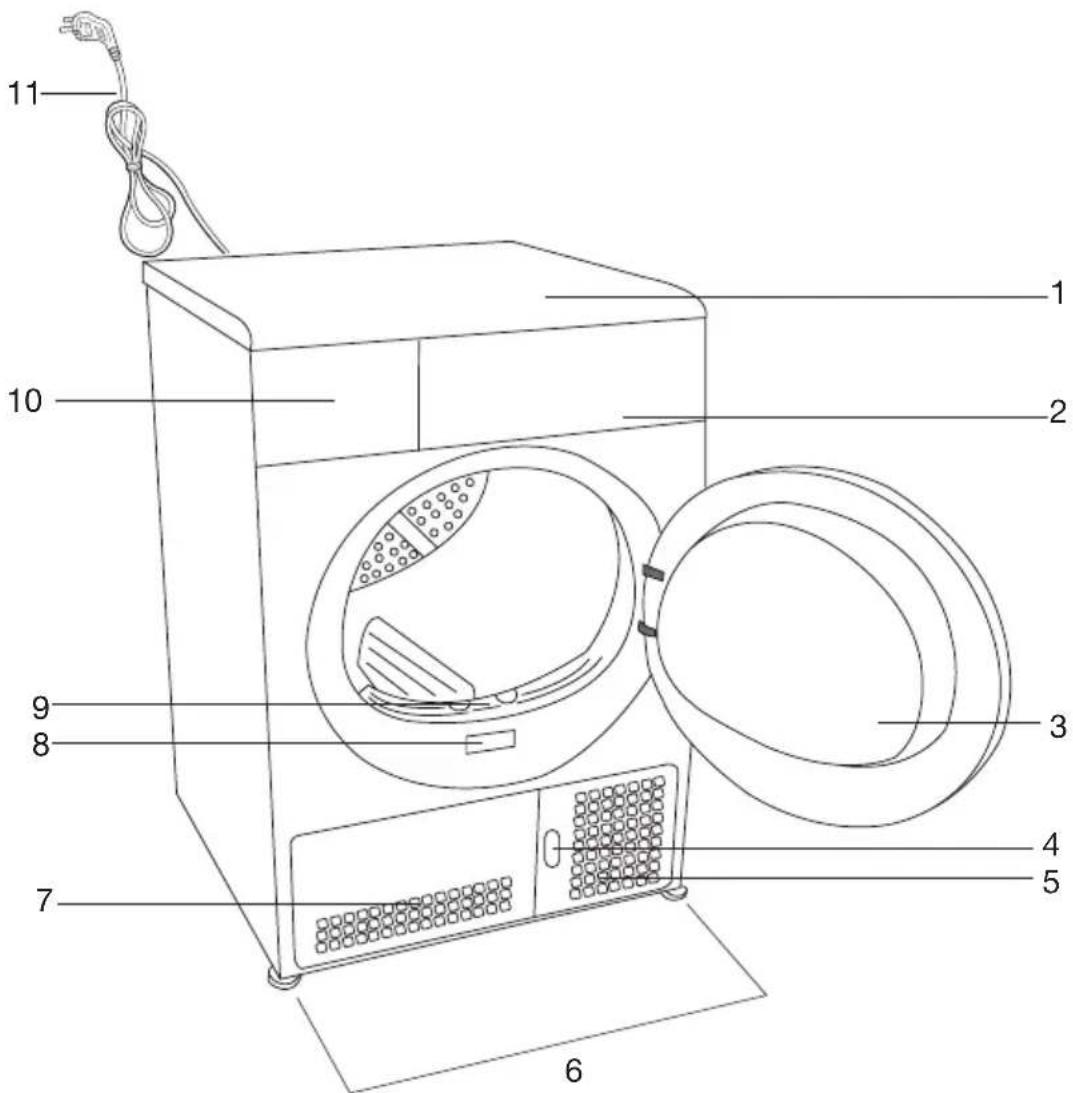

2.1 Overview

Diagram of a washing machine with numbered parts for identification

1. Top panel
2. Control panel
3. Loading door
4. Kick plate opening button
5. Ventilation grids
6. Adjustable feet
7. Kick plate
8. Type label
9. Lint filter
10. Water tank drawer
11. Power cord

Your Dryer

2.2 Scope of Delivery

Diagram showing three labeled objects: a coiled cable, a shaded rectangular object, and an open book.

1. Water drain hose *
2. Filter drawer sponge*
3. User Manual
   *It can be supplied with your machine depending on its model.

Your Dryer

2.3 Technical Specifications

EN

Height (adjustable) 84.6 cm
Width 59.5 cm
Depth 53 cm
Capacity (max.) 7 kg
Weight (net) 38,5 kg
Voltage	See type labelRated power input
Model code

Type label is located behind the loading door.

i	Technical specifications of this appliance may be modified without notice to improve the quality of the product.
i	Figures in this manual are schematic and may not match the product exactly.
i	Values stated on the machine labels or in the documentation accompanying it are obtained in laboratory in accordance with the relevant standards. Depending on operational and environmental conditions of the appliance, values may vary.

3 Installation

Refer to the nearest Authorized Service Agent for installation of the product. To make the product ready for use, make sure that the electricity and water drainage systems are appropriate by reading the information/instructions given in the user manual before calling the Authorized Service Agent. If they are not, call a qualified technician and plumber to have any necessary arrangements carried out.

Preparation of the product's location as well as the electrical, clean water and waste water installations is under customer's responsibility.

CAUTION: Installation and electrical connections of the product must be performed by the Authorized Service Agent. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.

CAUTION: Prior to installation, visually check if the product has any defects on it. If so, do not have it installed. Damaged products cause risks for your safety.

3.1 Appropriate installation location

• Install the product on a stable and level surface.
  ■ Dryer is heavy. Do not move it by yourself.
• Operate your product in a well ventilated, dust-free environment.
• Do not block the air ducts in front of and under the product with materials such as long pile rugs, wooden blocks and bands.
• Do not install the product behind a door with a lock, sliding door or a hinged door which can strike the product.
  ■ Once the product is installed, it should stay at the same place where its connections have been made. When installing the product, make sure that the rear wall of it does not touch anywhere

(tap, socket, etc.). Also pay attention to select an installation location which you will not be required to change afterwards.

- Place the product at least 1.5 cm away from the edges of other furniture.

CAUTION: Do not place the product on top of the power cord.

3.2 Removing the transportation safety assembly

CAUTION: Remove the transportation safety assembly before using the product for the first time.

1. Open the loading door.
2. There is a nylon bag inside the drum that contains a piece of styrofoam. Hold it from its section marked with XX XX.
3. Pull the nylon towards yourself and remove the transportation safety assembly.

Line drawing of a hand inserting a small object into a circular device (no text or symbols)

CAUTION: Check that no part of the transportation safety assembly remains inside the drum.

3.3 Under counter installation

- This product can be installed under a counter if the height of the counter is sufficient.

CAUTION: While using the under counter dryer, never operate the dryer without under counter installation part.

Dryer Depth 60	cm 54 cm
Stock number of under-bench installation part	2979700200	2973600200

- Leave at least 3 cm of space around the sides and the rear wall of the product when installing it under a counter or in a cupboard.

3.4 Mounting over a washing machine

• A fixing device should be used between the two machines when installing the dryer above a washing machine. The fixing device (2977200100 white/2977200400 grey) must be installed by the Authorized Service Agent.
  ■ Total weight of the washing machine and the dryer -with full load- when they are placed on top of each other reaches to approx. 180 kilograms. Place the products on a solid floor that has sufficient load carrying capacity!

3.5 Connecting to the drain

In products equipped with condenser unit, water accumulates in the water tank during the drying cycle. You should drain accumulated water after each drying cycle.

You can directly drain accumulated water through the water drain hose supplied with the product instead of periodically draining the water collected in the water tank.

Technical line drawing of a mechanical component with internal channels and mounting brackets (no text or symbols)

Technical diagram of a computer monitor with coiled cable and ventilation slots (no text or labels)

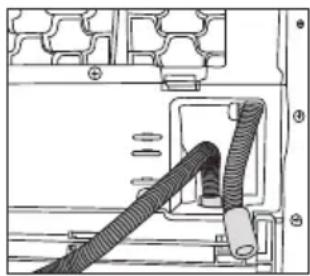

Connecting the water drain hose

1. Pull hose in the product by hand in order to disconnect it from where it is connected. Do not use any tools to remove the hose.
2. Connect one end of the drain hose supplied separately with the product to the connection point from where you removed the hose of the product in previous step.
3. Connect the other end of the drain hose directly to the wastewater drain or to the washbasin.

Installation

	CAUTION: Hose must be fixed in every type of connection. Your house will be flooded if the hose comes loose during water discharge.
	Attach the water drain hose to a height of maximum 80 cm.
	Make sure that the water drain hose is not stepped on, twisted or bent between the drain and the machine.

3.6 Adjusting the feet

In order to ensure that the product operates more silently and vibration-free, it must stand level and balanced on its feet. Balance the machine by adjusting the feet. Turn the feet to left or right until the machine stands level and firmly.

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

CAUTION: Never unscrew the adjustable feet from their housings.

3.7 Electrical connection

Connect the product to a grounded outlet protected by a fuse complying with the values in the “Technical specifications” table. Our company shall not be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations.

■ Connection must comply with national regulations.
■ Power cable plug must be within easy reach after installation.
- The voltage and allowed fuse or breaker protection are specified in the "Technical specifications" section. If the current of the fuse is less than 16 Amperes, please have a qualified electrician install a 16 Ampere fuse.

■ The specified voltage must be equal to your mains voltage.
- Do not make connections via extension cables or multi-plugs.
■ The main fuse and switches must have a contact distance of minimum 3 mm.

CAUTION: If the product is faulty, it must not be operated unless it is repaired! There is the risk of electric shock!

3.8 Transportation of the product

1. Unplug the product before transporting it.
2. Remove the water drain (if any) and chimney connections.
3. Drain the water in the product completely.

4 Preparation

4.1 Laundry suitable for drying in the machine

■ Always obey the instructions given on the garment tags. Dry only the laundry having a label stating that they are suitable for drying in a dryer and make sure that you select the appropriate programme.

LAUNDRY DRYING SYMBOLS

Drying Symbols

Suitable for dryer

No Iron

Sensitive / Delicate dry

-Do not dry with dryer

-Do not dry

Do not dry-clean

DRYING

Drying Settings

At any temperature

At high temperature

At medium temperature

At low temperature

Without heating

Hang to dry

Lay to dry

Hang wet to dry

Lay in shadow to dry

Dry-clearable

Iron -

IRON

Dry or Steam

Iron at high temperature

Iron at medium temperature

Iron at low temperature

Do not iron

Iron without steam

Maximum temperature

200 °C 150

°C 110

°C

4.2 Preparing clothes to be dried

• Check all garments before loading into the machine and make sure that there is no any lighters, coins, metal pieces, needles, and etc. in their pockets or on them.
  ■ Laundry may be tangled after washing. Separate the laundry items before placing them into the dryer.
• Sort the laundry according to their types and thicknesses. Dry the same type of laundry together. For instance, thin kitchen towel and table cloths get dry earlier than the thick bath towels.

Laundry must be spun at the highest spin speed that the washing machine allows on basis of the fabric type.

4.3 Things to be done for energy saving

Following information will help you use the product in an ecological and energy-efficient manner.

• Operate the product at a capacity suitable for the program you have selected and pay attention not to overload.
• Spin your laundry at the highest speed possible when washing them. Thus, the drying time is shortened and energy consumption is reduced.

Preparation

■ Dry the same type of laundry together.
■ Follow the instructions in the user manual for programme selection.
- Leave sufficient clearance at the front and rear side of the dryer for air circulation. Do not block the ventilation grills at the front side of the product.
- Do not open the loading door of the machine during drying unless necessary. If you must certainly open the loading door, do not to keep it open for a long time.
■ Do not add new (wet) laundry during drying.
- Lint and fiber released from the laundry to the air during the drying cycle are collected in the Lint Filter. Clean the lint filter before or after each drying cycle.
■ Clean the filter drawer regularly either when the Filter Drawer Cleaning warning symbol appears or after every 5 drying cycles.
■ Ventilate the room, where the dryer is located, well during drying.

4.4 First use

Before starting to use the product, make sure that all preparations are in place pursuant to the instructions in sections "Important Safety Instructions" and "Installation".

4.5 Correct load capacity

Line drawing of a washing machine with clothes being lifted by a basket (no text or symbols)

Follow the instructions in the "Programme selection and consumption table". Do not load more than the capacity values stated in the table.

It is not recommended to load the dryer with laundry exceeding the level indicated in the figure. Drying performance will degrade when the machine is overloaded. Furthermore, dryer and the laundry can get damaged.

Following weights are given as examples.

Home articles	Approximate weights (g)
Cotton quit covers (double)	1500
Cotton quit covers (single)	1000
Bed sheets (double) 500
Bed sheets (single) 350
Large tablecloths 700
Small tablecloths 250
Tea napkins 100
Bath towels 700
Hand towels 350
Garments	Approximate weights (g)
Blouses 150
Cotton shirts	300
Shirts	200
Cotton dresses	500
Dresses	350
Jeans	700
Handkerchiefs (10 pieces)	100
T-Shirts	125

Preparation

4.6 Loading the laundry

1. Open the loading door.

2. Place the laundry in the machine without compressing.

3. Push the loading door to close.

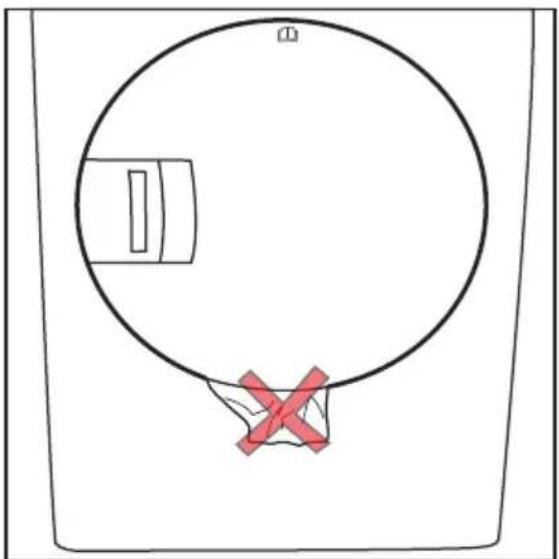

CAUTION: Ensure that no items are caught in the door.

Diagram of a device with a central fan and red X marks, no text or symbols present

Simple line drawing of a circular object with a red X mark at the bottom, no text or symbols present.

5 Selecting a program and operating your machine

5.1 Control panel

1 2 3 12 8 7 6 5 4

1. On/Off/Cancel button
2. Program number indicator
3. Display
4. Start/Pause button
5. Time delaying selection button
6. Audio warning level button/child-proof lock
7. Timer programmes selection button
8. Program knob

5.2 Display Symbols

2:25

2:25 Remaining time indicator* Filter Drawer Cleaning warning symbol Filter cleaning warning symbol Audio warning Symbol Child Lock warning symbol Water Tank warning symbol End Time Symbol Start / Pause symbol Programme progress bar

*Time that appears on display indicates the remaining time until the end of the programme and changes according to the dampness level of the laundry and model of the dryer.

Operating the product

Preparing the machine

1. Plug in the machine.
2. Place the laundry in the machine.
3. Press the on/off/cancel button for 1 second (long).
4. When your machine is operated for the first time, it starts with the declaration programme (wardrobe dryness for cottons).

Pressing the On/Off/Cancel

button does not mean that the programme has started. Press Start / Pause button to start the program.

Programme selection

1. Decide the appropriate programme from the table below which includes drying levels.

2. Select the desired programme with the Programme Selection knob.

Extra Dry	Only the cotton laundry is dried at normal temperature. Thick and multi layered laundry (towels, linens, jeans and etc.) are dried in a way that they do not require ironing before being placed in the wardrobe.
Cupboard Dry	Normal laundry (tablecloths, underwear and etc.) are dried in a way that they do not require ironing before being placed in the wardrobe.
Cupoard Dry Plus	Normal laundry (E.g.: tablecloths, underwear) are dried in a way that they do not require ironing before placing in the wardrobe. However, they are dried more when compared to the Wardrobe Dry option.

Iron Dry

Normal laundry (shirts, dresses and etc.) are dried ready to be ironed.

For further programme details, see, "Programme selection and consumption table".

Main programmes

Depending on the fabric type, the following main programmes are available:

- Cottons

Dry durable laundry with this programme. Dries at normal temperature. It is recommended to use for your cotton items (bed sheets, quilt covers, towels, bathrobes, etc.).

■ Synthetics

Dry less durable laundry with this programme. Recommended for synthetics.

Additional programmes

For special cases, following additional programmes are available in the machine.

Additional programs may differ according to the features of your machine.

- Mini 35

You can use this programme to dry your cotton laundry that you have spun at high speeds in your washing machine. This programme dries 2 kg cotton laundry (3 Shirts / 5 T-shirts) in 35 minutes.

To obtain better results from your dryer, your laundry must be washed at suitable programmes and spun at the recommended spin speeds in the washing machine.

Operating the product

Shirts

This programme dries the shirts more sensitively and creases them less and thus, helps to iron them more easily.

There may be a little moisture on the shirts at the end of the programme. We recommend you not to leave the shirts in the dryer.

- Jeans

Use this programme to dry your jeans that are spun at high speeds in the washing machine.

- Mixed

Use this programme to dry non-pigmenting synthetic and cotton laundry items together.

- Sportswear

Use this programme to dry together the synthetic and cotton laundry items and the laundry items made of mixed fabrics.

Mini

This programme is used to dry cottons and synthetics daily, and lasts for 65 minutes.

- Shirt 15'

Use this programme to make 2 shirts ready for ironing in 15 minutes.

- Delicates

You can dry your highly delicate laundry (silk blouses, fine underwear, etc.) that are suitable for drying or laundry which is advised to be hand-washed at a lower temperature.

It is recommended to use a cloth bag to avoid certain delicate garments and laundry from getting creased or damaged. Take your laundry immediately out of the dryer and hang them after the programme ends in order to prevent them being creased.

■ Refresh

Only ventilation is performed for 10 minutes without blowing hot air. You can air the clothes that have been kept at closed environments for a long time and deodorize unpleasant odors thanks to this programme.

- Timer programmes

You can select one of the 10 min., 20 min., 30 min., 40 min., 50 min., 60 min., 80 min., 100 min., 120 min., 140 min. and 160 min. timer programmes to achieve the desired final drying level at low temperatures.

With this programme, the machine dries for the time selected regardless of the dryness level.

Operating the product

Programme selection and consumption table
EN

Programs		Capacity (kg)	Spin speed in washing machine (rpm)	Approximate amount of remaining humidity	Drying time (minutes)
Cottons / Coloreds
	Extra dry 7 1000 % 60 124
	Cupboard dry 7 1000 % 60 116
	Iron dry 7 1000 % 60 90
Mini 35' 2 1200 %50 35
Shirt 1.5 1200 %50 40
Jeans		4 1200 %50 80
Shirt 15'		0.5	1200	%60	15
Sport 4 1000 %60 92
Mini		4 1200 %50 65
Delicates		1.75 600	%40 40
Synthetics
	Cupboard dry	3.5	800	% 40 45
Energy consumption values
Programs		Capacity (kg)	Spin speed in washing machine (rpm)	Approximate amount of remaining humidity	Energy consumption value kWh
Cottons linen cupboard dry*		7	1000	% 60	4.17
Cottons iron dry 7 1000 % 60		3.25
Synthetics cupboard dry		3.5	800	% 40	1.42

* : Energy Label standard programme (EN 61121:2012) All values given in the table have been determined according to EN 61121:2012 Standard. These values may deviate from the values in the table according to the laundry type, laundry spin speed, environmental conditions and voltage fluctuations.

Operating the product

5.7 Auxiliary functions Audio Warning

The machine will give an audio warning when the programme comes to an end. Use the Audio Warning Level button to adjust the sound level.

You can change the sound level either before the programme starts or while the programme is in progress.

2:25

Anti-creasing

A 2-hour anti creasing program to prevent laundry from creasing will be activated if you do not take the laundry out after the program has come to an end. This programme rotates the laundry in 10-minute intervals to prevent creasing.

5.8 Warning symbols

Warning symbols may differ according to the model of your machine.

Lint filter cleaning

When the programme is completed, a warning symbol will appear to remind that the filter needs to be cleaned.

If the Filter Cleaning symbol flashes continuously, refer to "Troubleshooting" section.

For further programme details, see, "Programme selection and consumption table".

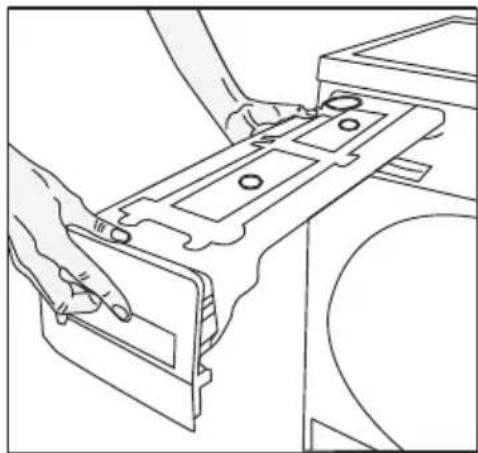

Water tank

When the programme is completed, a warning symbol will appear to remind that the water tank needs to be drained. If the water tank becomes full while the programme is running, the warning symbol will start to flash and machine will pause. Drain the water in the water tank and press Start / Pause button to resume the programme. The warning symbol turns off and the programme resumes operating.

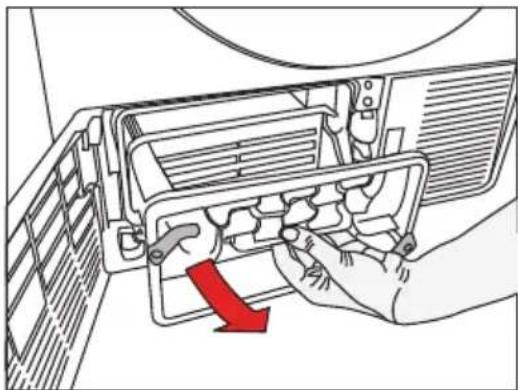

Cleaning the condenser

Warning symbol flashes with certain intervals to remind that the condenser needs to be cleaned.

End Time Setting

End Time Setting function allows you to delay the ending time of the programme up to 24 hours.

1. Open the loading door and put the laundry in.
2. Select the drying programme, spin speed and, if required, the auxiliary functions.
3. Press End Time Setting selection button to set the desired End Time Setting symbol lights up on the display.(When the button is pressed and hold, End Time proceeds uninterruptedly).
4. Press Start/Pause button. End Time Setting starts to count down. The ":" in the middle of the displayed End Time Setting will start to flash.

Operating the product

Additional laundry may be loaded / taken out during the End Time period. At the end of the End Time countdown process, End Time symbol disappears, drying process starts and the programme duration is displayed. The time on the display is the total of normal drying time and delay time.

Changing the Delay Time

If you want to change the time during countdown:

1. Press On/Off/Cancel button for 3 seconds to cancel the programme. Restart the machine and repeat the End Time procedure for the desired time.
2. When your machine is operated for the first time, it starts with the declaration programme (wardrobe dryness for cottons).

Canceling End Time function

If you want to cancel the Time Delay countdown and start the programme immediately:

1. Press On/Off/Cancel button for 3 seconds to cancel the programme.
2. Press On/Off/Cancel button to start the programme you have previously selected.

5.9 Starting the programme

Press Start/Pause button to start the program.

Start symbol will light up to indicate that the programme has started and ":" symbol in the middle of the remaining time will keep flashing.

5.10 Child Lock

Machine is equipped with a Childproof Lock which prevents interfering with the current programme flow by pressing any button. All buttons except the On/Off/Cancel button on the control panel are deactivated when the Child-proof Lock is active.

In order to activate the Child Lock, press Audio Warning and Child Lock button for 3

seconds.

To start a new programme after the current programme is over or to interrupt the current programme, the Child Lock should be deactivated. Press the same button for 3 seconds again to deactivate the Child Lock.

Lock symbol will appear on the display when the Child-proof Lock is activated.

2:25

Child Lock is deactivated when the machine is switched off and on with On/Off/Cancel button.

■ When the Child-proof Lock is activated:
■ Display symbols will not change even if the position of Programme Selection knob is changed while the machine is running or in halt.

5.11 Changing the programme after it has started

After the machine starts, you can change the selected programme and dry your laundry in a different programme.

1. If you want to select Extra Dry programme instead of Iron Dry programme, press and hold the Start / Pause button for 1 second to stop the programme.
2. Select Extra Dry programme by turning the Programme Selection knob.
3. Press the Start/Pause button to start the program.

Operating the product

Adding / removing laundry in Pause mode

In order to add or take out laundry after the drying programme has started:

1. Press Start/Pause button to switch the machine to Pause mode. Drying process will stop.
2. While in Pause mode, open the loading door, add or take out laundry and close the loading door.
3. Press the Start/Pause button to start the program.

Any laundry added after the drying process has started may cause the clothes that are already dried in the machine intermingle with wet clothes and the result will be wet laundry after the drying process is over.

You may repeat laundry adding or removing process as many times as you desire during drying. However, this process will increase the programme time and energy consumption since the drying process will be interrupted repeatedly. Therefore, it is recommended to add laundry before the drying programme has started.

If you select a new programme by turning the Programme Selection knob while your machine is in Pause mode, then the current program is aborted and new programme information is displayed.

CAUTION: Do not touch the inner surface of the drum when adding or taking out laundry while a programme is running. Surfaces of the drum are hot.

5.12 Canceling the programme

If you want to stop drying and cancel the programme for any reason after the machine has started to run, press and hold the On/Off/Cancel button for 3 seconds.

CAUTION: As the inside of the machine will be excessively hot when you cancel the program while the machine is running, activate the ventilation program to cool it down.

End of programme

Lint Filter Cleaning and Water Tank warning symbols light up in the programme follow-up indicator when the programme comes to an end. The loading door can be opened and the machine becomes ready for a second cycle.

Press On/Off/Cancel button to switch off the machine.

2-hour Anti-creasing program will be activated if the laundry is not taken out after the program has come to an end.

Clean the lint filter after each drying. (See "Lint Filter and Loading Door Inner Surface")

Drain the water tank after each drying cycle. (See "Draining the water tank")

■

6 Easy use

6.1 Preparing the machine

1. Plug in the machine.
2. Place the laundry in the machine.
3. Press the on/off/cancel button for 1 second (long).
4. When your machine is operated for the first time, it starts with the declaration programme (wardrobe dryness for cottons).

6.2 Programme selection

1. Decide the appropriate programme from the table below which includes drying levels.
2. Select the desired programme with the Programme Selection knob.

6.3 Auxiliary functions Auxiliary functions

Audio Warning

The machine will give an audio warning when the programme comes to an end. Use the Audio Warning Level button to adjust the sound level.

Anti-creasing

A 2-hour anti creasing program to prevent laundry from creasing will be activated if you do not take the laundry out after the program has come to an end. This programme rotates the laundry in 10-minute intervals to prevent creasing.

6.4 Starting the programme

Press Start/Pause button to start the program.

Start symbol will light up to indicate that the programme has started and “:” symbol in the middle of the remaining time will keep flashing.

6.5 Canceling the programme

If you want to stop drying and cancel the programme for any reason after the machine has started to run, press and hold the On/Off/Cancel button for 3 seconds.

6.6 End of programme

Lint Filter Cleaning and Water Tank warning symbols light up in the programme follow-up indicator when the programme comes to an end. The loading door can be opened and the machine becomes ready for a second cycle.

Press On/Off/Cancel button to switch off the machine.

6.7 Child Lock

Machine is equipped with a Childproof Lock which prevents interfering with the current programme flow by pressing any button. All buttons except the On/Off/Cancel button on the control panel are deactivated when the Child-proof Lock is active.

In order to activate the Child Lock, press Audio Warning and Child Lock button for 3 seconds.

To start a new programme after the current programme is over or to interrupt the current programme, the Child Lock should be deactivated. Press the same button for 3 seconds again to deactivate the Child Lock.

7 Maintenance and cleaning

Service life of the product extends and frequently faced problems decrease if cleaned at regular intervals.

CAUTION: Unplug the product from the mains during any maintenance and cleaning works (control panel, body, etc.).

7.1 Lint Filter / Loading Door Inner Surface

Lint and fiber released from the laundry to the air during the drying cycle are collected in the Lint Filter.

Such fiber and lint are generally formed during wearing and washing.

CAUTION: Always clean the lint filter and the inner surfaces of the loading door after each drying process.

You can clean the lint filter housing with a vacuum cleaner.

To clean the lint filter:

1. Open the loading door.

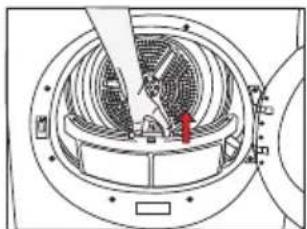

2. Remove the lint filter by pulling it up and open the lint filter.
3. Clean lint, fiber, and cotton raveling by hand or with a soft piece of cloth.
4. Close the lint filter and place it back into its housing.

Technical line drawing of a mechanical fan or vent assembly (no text or symbols visible)

Illustration of hands holding a cylindrical object with red arrows indicating force or movement (no text or symbols)

Line drawing of a hand pressing down on a curved mechanical component (no text or symbols)

Illustration of hands cleaning a car interior with a hooded top panel (no text or symbols)

A layer can build up on the filter pores that can cause clogging of the filter after using the machine for a while. Wash the lint filter with warm water to remove the layer that builds up on the lint filter surface. Dry the lint filter completely before reinstalling it.

Line drawing of a hand using a tool to clean or remove a device from a tray (no text or symbols)

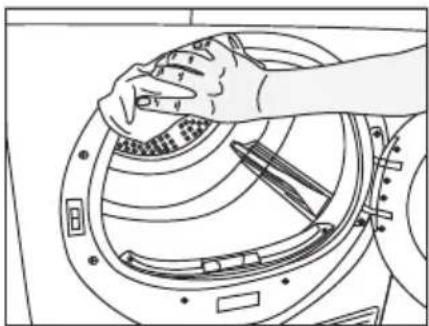

Clean the entire inner surface of the loading door and loading door gasket.

Line drawing of hands cleaning a circular object with a cloth (no text or symbols)

Line drawing of a hand using a tool to clean or adjust the interior space of a washing machine (no text or symbols)

7.2 Cleaning the sensors

There are dampness sensors in the machine that detect whether the laundry is dry or not. To clean the sensors:

1. Open the loading door of the machine.
2. Allow the machine to cool down if it is still hot due to the drying process.
3. Wipe the metal surfaces of the sensor with a soft cloth, dampened with vinegar and dry them.

Maintenance and cleaning

	Clean metal surfaces of the sensors 4 times a year.
	Do not use metal tools when cleaning metal surfaces of the sensors.
	CAUTION: Never use solvents, cleaning agents or similar substances for cleaning due to the risk of fire and explosion!

Line drawing of a hand inserting a small object into a circular device component (no text or symbols)

7.3 Draining the water tank

Dampness of the laundry is removed and condensed during drying process and the water that arise accumulates in the water tank. Drain the water tank after each drying cycle.

CAUTION: Condensed water is not drinkable!

CAUTION: Never remove the water tank when the program is running!

If you forget to drain the water tank, the machine will stop during the subsequent drying cycles when the water tank is full and the Water Tank warning symbol will flash. If this is the case, drain the water tank and press Start / Pause button to resume the drying cycle.

To drain the water tank:

1. Pull the drawer and remove the water tank carefully.

Line drawing of hands installing or adjusting a mechanical component on a device (no text or symbols visible)

1. Drain the water in the tank.

Line drawing of a hand holding a mechanical device with a tool, no text or symbols present

1. If there is lint accumulation in the funnel of the water tank, clean it under running water.

2. Place the water tank into its seat.

7.4 For the condenser;

Hot and humid air in the condenser is cooled with the cold air from the room. Thus, the humid air circulating in your dryer is condensed and then pumped into the tank.

i Clean the condenser after every 30 drying cycles or once a month.

Maintenance and cleaning

To clean the condenser:

1. If a drying process has been carried out, open the door of the machine and wait until it cools down.

Line drawing of a hand holding a red arrow pointing to a window or panel, with no visible text or symbols.

1. Unlock the 2 condenser locks after opening the kick plate.

Illustration of hands installing or adjusting a computer drive panel (no text or symbols visible)

1. Pull out the condenser.

Diagram of a hand inserting a device into a rack, with a red arrow indicating the direction (no text or symbols present)

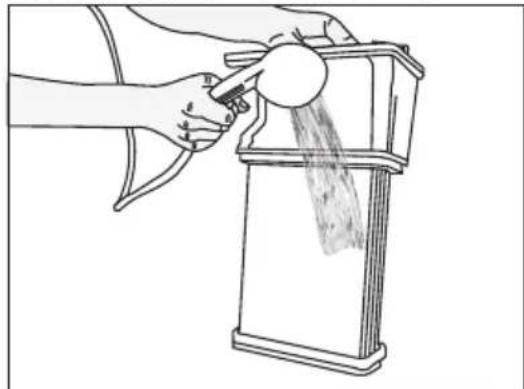

1. Clean the condenser by applying pressurized water with a shower armature and wait until the water drains.

Line drawing of a hand pouring liquid into a container (no text or symbols)

1. Place the condenser in its housing. Fasten the 2 locks and make sure that they are seated securely.

Diagram of a hand inserting a component into a rack, with a red arrow indicating the direction (no text or symbols present)

1. Close the kick plate cover.

Illustration of a hand pressing down on a device panel with a red arrow indicating the button (no text or symbols present)

8 Troubleshooting

Drying process takes too much time.

• Pores of the lint filter are clogged. >>> Wash the lint filter with warm water.
• Condenser may be clogged. >>> Clean the Condenser.
• Ventilation grids on the front side of the machine are blocked. >>> Remove the objects (if any) that block ventilation in front of the ventilation grids.
• Ventilation may not be sufficient since the room where the machine is installed is very small. >>> Open the door and window of the room to avoid the room temperature increase too much.
  ■ Lime deposit has built up on the dampness sensor. >>> Clean the dampness sensor.
  Excessive laundry might have been loaded in. >>> Do not load the dryer in excess.
  ■ Laundry might not be spun sufficiently. >>> Spin your laundry at a higher speed in your washing machine.

Laundry comes out wet at the end of drying.

After drying, the hot clothes feel damper than their actual dampness level.

A programme suitable for the laundry type might have not been used.>>> Check the garment tag and select a programme suitable for the fabric type or use the timer programmes additionally.
■ Pores of the lint filter are clogged. >>> Wash the lint filter with warm water.
- Condenser may be clogged. >>> Clean the Condenser.
Excessive laundry might have been loaded in. >>> Do not load the dryer in excess.
■ Laundry might not be spun sufficiently. >>> Spin your laundry at a higher speed in your washing machine.

Dryer does not switch on or the programme does not start. Dryer does not start when it is set.

It might have not been plugged in. >>> Make sure that the machine is plugged in.

The loading door is ajar. >>> Make sure that the loading door is closed securely.

- Programme is not selected or the Start / Pause button is not pressed. >>> Make sure that the programme is selected and the machine is not in Pause mode.

■ "Childproof lock" might have been activated. >>> Deactivate the Childproof Lock.

Programme is interrupted without any cause.

The loading door might not be closed securely. >>> Make sure that the loading door is closed securely.
A power failure might have occurred. >>> Press Start / Pause button to start the program.
■ Water tank may be full. >>> Drain the water tank.

Laundry has shrunk, become felted or deteriorated.

A programme suitable for the laundry type might have not been used. >>> Check the garment tag and select a programme suitable for the fabric type.

Troubleshooting

Drum lighting does not turn on. (On models with lamp)

Dryer might not be switched on with the On / Off / Cancel button. >>> Make sure that the dryer is switched on.Bulb may have blown. >>> Call Authorized Service Agent to have the lamp replaced.

Filter Cleaning warning symbol light is on.

Lint filter is not cleaned. >>> Clean the lint filter.

Lint Filter Cleaning symbol is flashing.

Filter housing is clogged with lints. >>> Clean the lint filter housing.A deposit has built up on the lint filter pores that may cause clogging. >>> Wash the lint filter with warm water.Condenser may be clogged. >>> Clean the Condenser.

Water leaks from the loading door

Lint has accumulated on the inner surfaces of the loading door and on the surfaces of the loading door gasket. >>> Clean the inner surfaces of the loading door and the surfaces of the loading door gasket.

Loading door opens spontaneously.

The loading door might not be closed securely. >>> Push the loading door to close until you hear a locking sound.

Water Tank warning symbol is on/flashing.

Water tank may be full. >>> Drain the water tank.Water draining hose might be bent. >>> If the product is connected directly to a wastewater drain, check the water drain hose.

Condenser cleaning warning symbol is flashing.

Condenser might have not been cleaned. >>> Clean the Condenser.

CAUTION: If you cannot eliminate the problem although you follow the instructions in this section, consult your dealer or the Authorized Service Agent. Never try to repair a nonfunctional product yourself.
