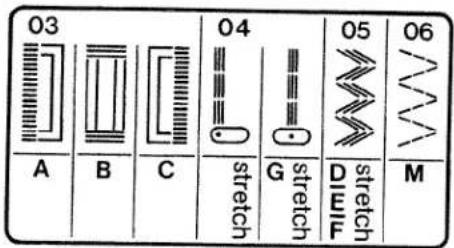

itch program chart 11

straight-stitch needle position 26-29

retch stitches 14

read cutter 16

read tensions....9

double shooting 10

per threading 24, 25

lity stitches 5

lity/stretch stitch combinations 16

ending 17

rk support 6

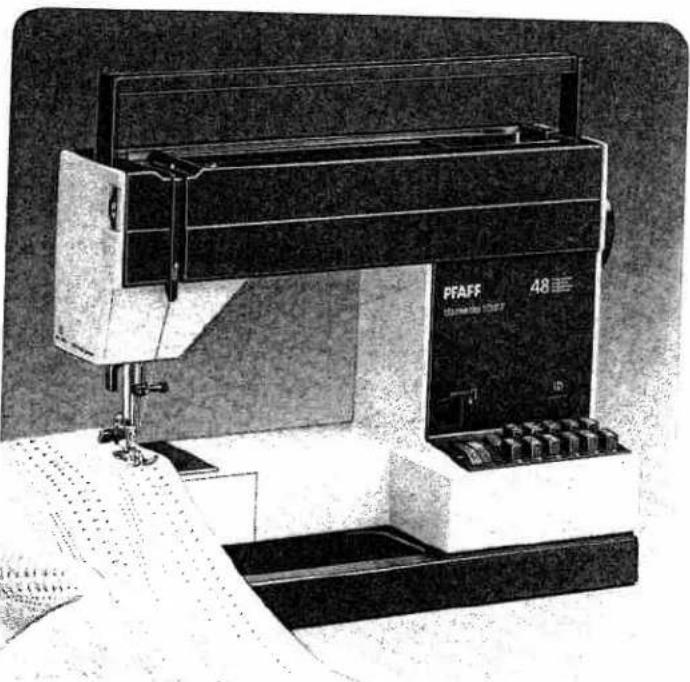

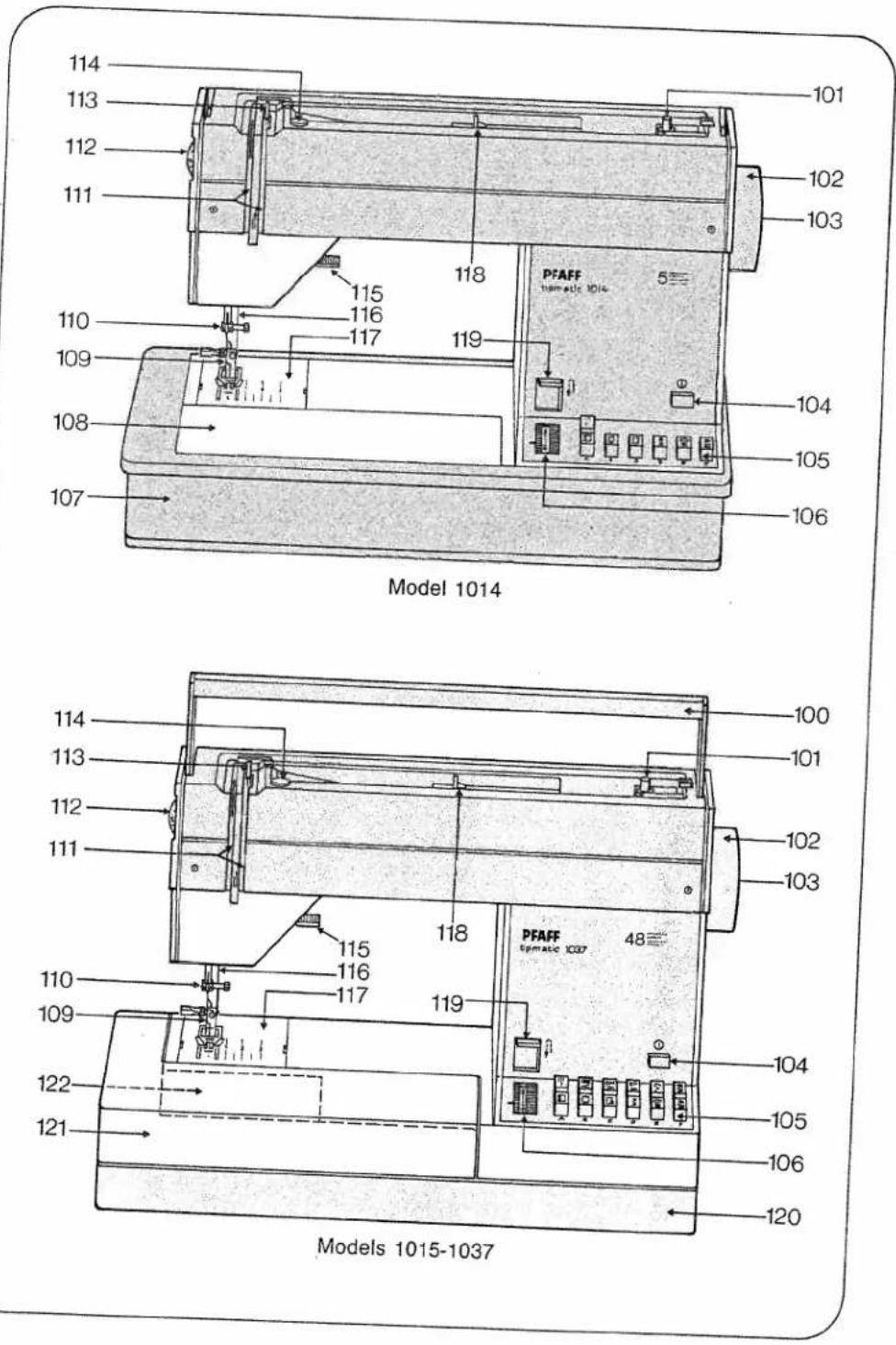

Parts of your sewing machine

100 Carrying handle

101 Bobbin winder

102 Hand wheel

103 Stop motion knob

104 Master switch

105 Finger tip stitch buttons

106 Stitch length control

107 Machine base

108 Cover, enclosing hook

109 Sewing foot holder with sewing foot

110 Needle holder with set screw

111 Threading slots

112 Needle thread tension

113 Take-up lever

114 Thread retainer stud

115 Presser bar lifter

116 Presser bar with thread cutter

117 Needle plate

18 Spool holder with unreeling disc

19 Reverse-feed control

120 Base plate

121 Detachable work support with accessory compartment

22 Free arm cover, enclosing sewing hook

Some safety rules

1. Be careful when sewing that your fingers will not be injured by the needle.
2. Make sure you pull out the power cord plug whenever you want to change needle, sewing foot, bobbin or needle plate, when you clean and oil the machine, or when you have to interrupt sewing and leave the machine for a while.
3. Be sure to use only a 15-watt light bulb in the sewing lamp.

IMPORTANT

Valid for United Kingdom only

The wires in this mains lead are coloured in accordance with the following code:

Blue: Neutral

Brown: Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured marking identifying the terminals in your plug, proceed as follows: The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

Please note:

When a 13-ampere plug is used a 3-ampere fuse has to be fitted.

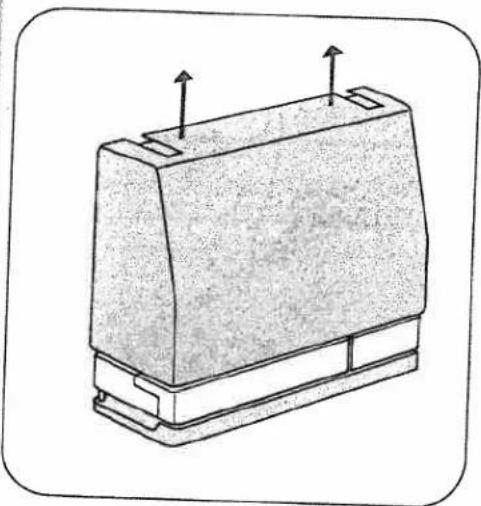

Removing the carrying case cover

To lift off the carrying case cover, fold the handle to the rear, as indicated by an arrow.

Then lift the cover off.

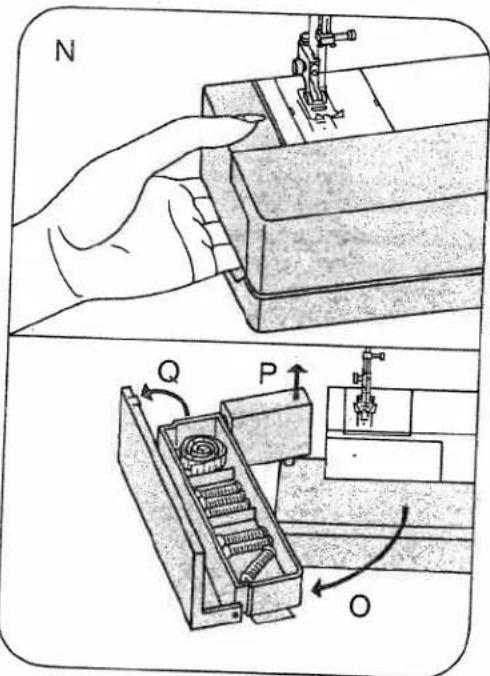

Removing and opening the detachable work support (1015-1037)

Reach under the detachable work support with your left hand (N), swing it out toward the left (O), and lift it out (P). Then open its lid (Q).

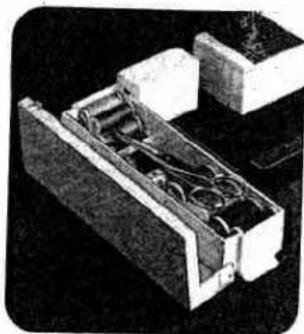

The accessory box is used to put away sewing feet, thread and other accessories.

Line drawing of a rectangular box with a handle and arrow indicating compression (no text or symbols)

N Q P O

Technical line drawing of a rectangular electronic component with two mounting holes and a base (no text or symbols)

Model 1014 on sewing cabinet (not ill.) Model 1014 can be placed on a sewing cabinet. For this reason, this machine has two holes at the back.

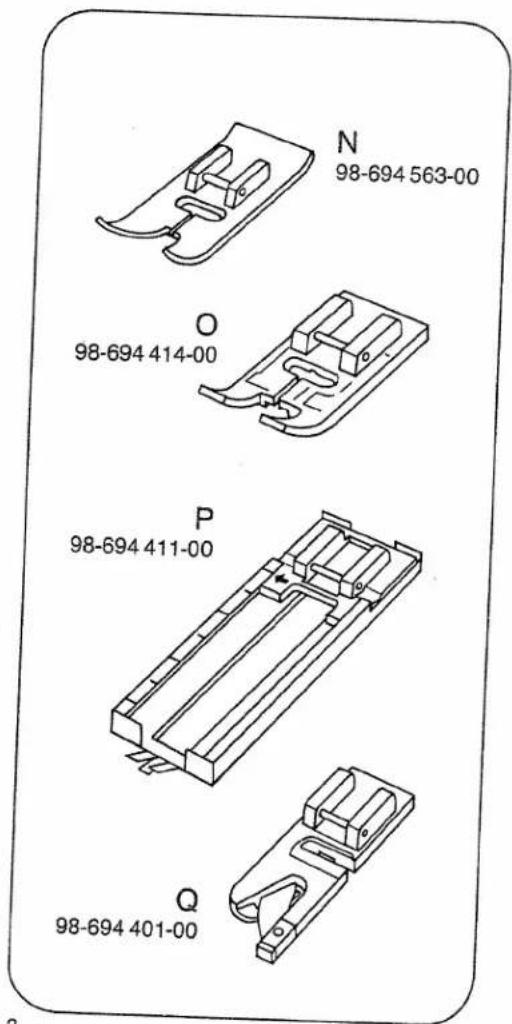

Sewing feet

N Standard sewing foot
O Clear-view foot

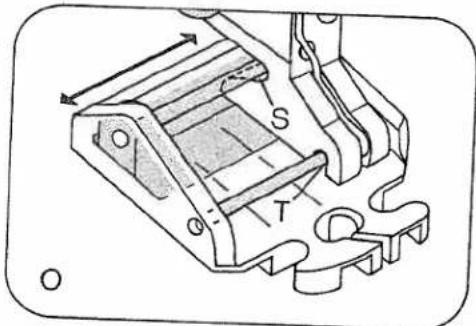

P Buttonhole foot
Q Hemmer foot

R Zipper foot
S Blindstitch foot
T Darning foot
U Edge guide

N 98-694 563-00 O 98-694 414-00 P 98-694 411-00 Q 98-694 401-00

R 98-694 404-00 S 98-694 407-00 T 93-035 960-91 U 98-802 422-00

Electrical connection

Take the foot control out of the machine. Push plug O into the machine socket and plug P into the wall outlet. Press master switch 104. Your machine is now ready for sewing.

When you put the machine away, the foot control is placed in the machine again as shown in the illustration (N).

Foot control

Place the foot control under the table. Press down the pedal, and the machine starts sewing. The more the pedal is depressed, the faster the machine runs.

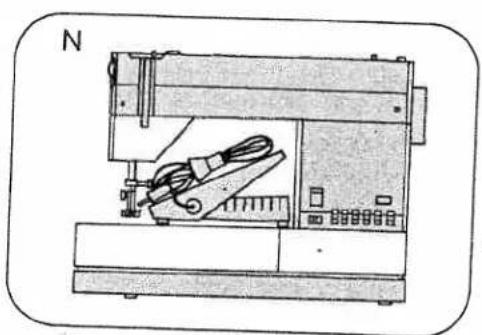

Electronic foot control

Slide R on the electronic foot control serves to reduce the top speed of the machine to half. The full piercing power of the needle is always retained, regardless of sewing speed.

Position ▶ = half the top speed Position ◀◀◀ = full top speed

Technical line drawing of a mechanical device with a coiled cable and labeled 'N' (no text or symbols on the device itself)

Diagram showing electrical connection with labeled components including a plug, socket, and circuit board

104 R O

Placing spool of thread on pin

Load thread reel with diagonal cut for end of thread facing to right.

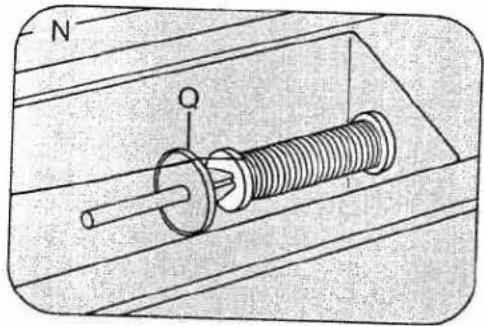

N Small spools of thread: use small or medium unreeling disc. Push the spool of thread onto the spool pin and place unreeling disc Q in front of the spool.

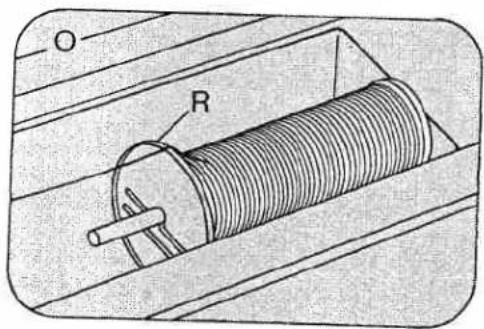

O Large spools of thread: use large unreeling disc. Push the spool of thread onto the spool pin and place unreeling disc R in front of the spool.

P Second spool holder: It is included in the accessories and is intended for bobbin winding and for two-needle sewing. Swing backwards the carrying handle and fit the

spool holder on the machine at the right.

Then push a spool of thread onto the spool holder.

Upper threading

For threading, both the needle and the take-up lever must be in their "up" position. Raise the sewing foot. Pull the thread from the spool and draw it into slot N (to the left of guide O), from below into slot P and take-up lever 113.

Then draw it back into slot P and into the right thread guide Q on the needle holder. For two-needle sewing, draw one thread into the slot to the left of guide O and the

Diagram of a solenoid inside a magnetic field, showing coil and shaft (no text or labels)

O R

P A

113 N O 5 N P Q

®

other to the right of the guide. One of the threads is then pulled into the right thread guide, the other into the left thread guide on the needle holder.

Threading the needle

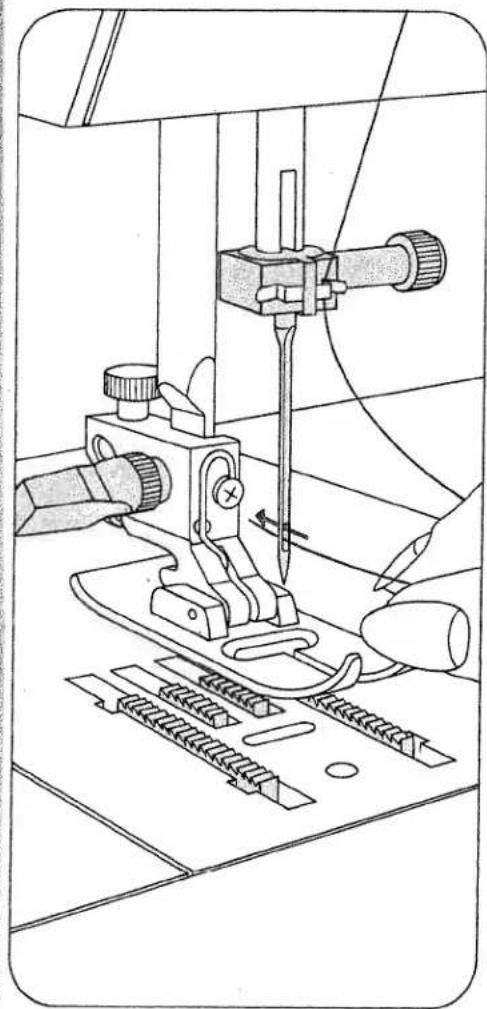

Thread the needle from front to back.

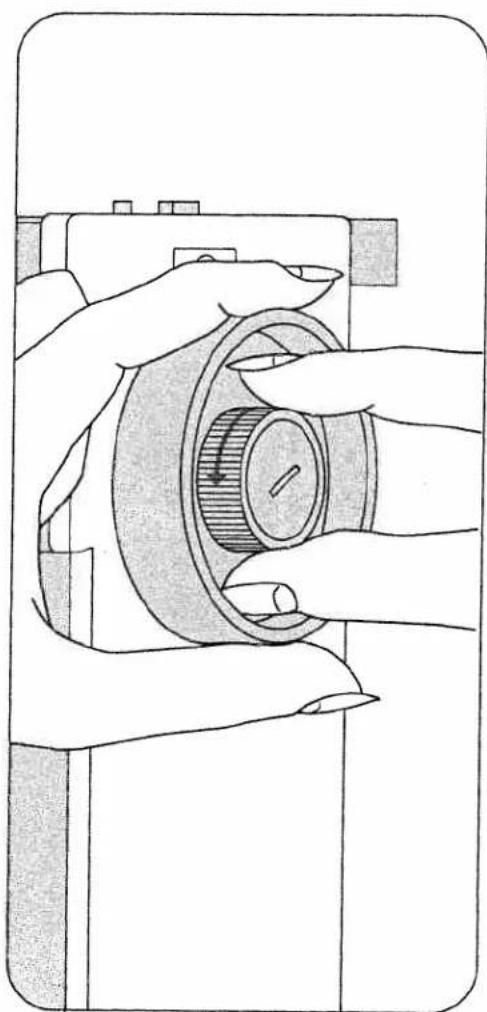

Disengaging the sewing mechanism Before you start winding the bobbin, disengage the sewing mechanism. Hold the hand wheel steady and turn the stop motion knob toward you. After bobbin winding, tighten the knob again by turning it away from you.

Line drawing of a sewing machine with needle, handle, and clasp (no text or symbols)

Line drawing of hands operating a mechanical component with a gear-like mechanism (no text or symbols)

Winding

Disengage the sewing mechanism (page 5). Fit a second spool holder to the machine and place a spool of thread on it. Place a bobbin on spindle 101 so that pin O enters slot N. Pull the thread from the spool and draw it through guide P and around thread retainer stud 114.

Then pull the thread toward the bobbin winder and wind a few turns of thread on the bobbin. Push the bobbin toward the right, press down the foot control pedal and wind the bobbin. The bobbin winder stops automatically when the bobbin is full. Push the full bobbin toward the left and take it out. Cut the thread.

P 114 101 N O

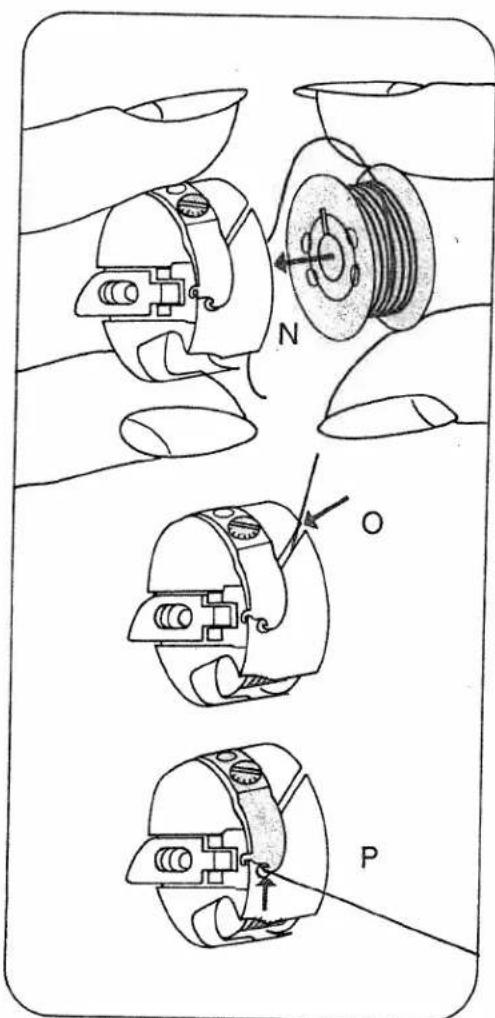

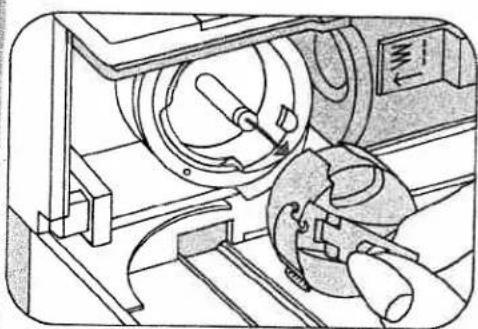

Removing bobbin case and bobbin Remove cover 108 or open free arm cover 122. Pull out latch N, then lift out the bobbin case, release the latch and take out the bobbin. The bobbin cannot fall out as long as you keep latch N pulled out.

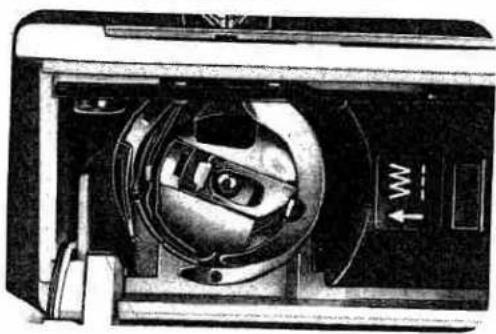

Inserting the bobbin Insert the filled bobbin into the bobbin case so that the thread unreels toward the back (N). Then draw the thread into slot O and under the spring into eye P.

108 122

Technical illustration of a hand operating a mechanical device with labeled component 'N' (no text or symbols beyond basic labels)

Technical line drawing of a mechanical device with gears and adjustment knobs (no text or symbols)

Technical diagram illustrating mechanical assembly steps with labeled components N, O, and P

Inserting the bobbin case

Pull up latch P and push the bobbin case onto stud O as far as it will go. Cutout N must point upwards. Release the latch. Stud O and latch P must be flush.

Replace cover 108 or close free arm cover 122.

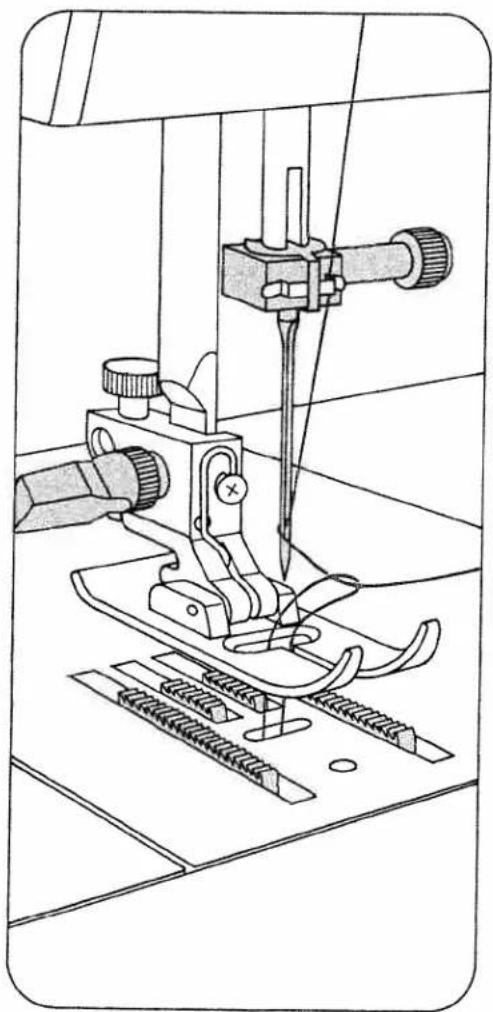

Drawing up the bobbin thread

Hold the needle thread a little taut. Turn hand wheel 102 toward you until the needle moves down and up again and the take-up lever is up. Pull the bobbin thread out of the needle hole and lay both threads toward the left and back under the sewing foot.

Technical diagram showing mechanical assembly with labeled parts N and P, including a circular component and hand tool.

8

Line drawing of a sewing machine needle and fabric (no text or symbols)

Presser bar lifter

Lever 115 has four positions:

N = The sewing foot is raised. (Before you remove the work, turn the hand wheel toward you to raise the needle and the take-up lever.)

O = The sewing foot is raised further for inserting extra-thick materials.

P = Darning position for darning foot only. Lower the presser bar lifter and at the same time push it back slightly until it enters notch R at the bottom of its slot.

Q = The sewing foot is lowered for sewing.

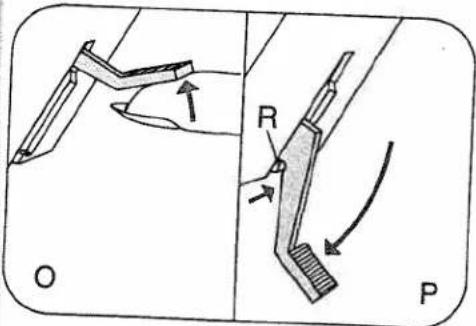

Thread cutter

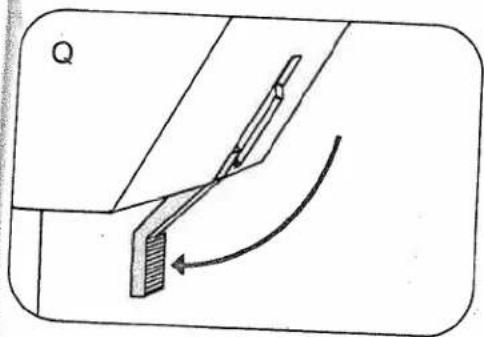

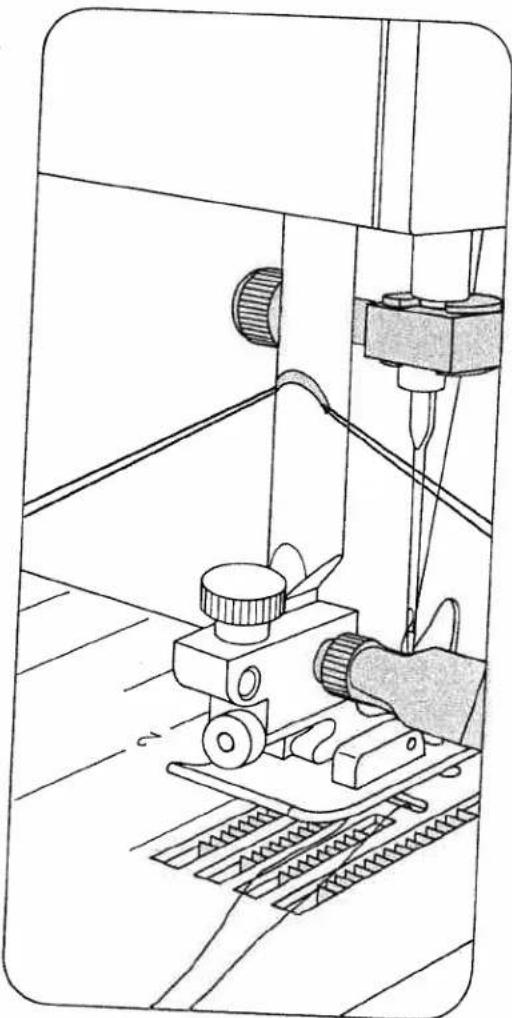

The thread cutter is an oblique slot located at the back of the presser bar. Raise the sewing foot. Pull the work out of the machine toward the back. Draw the threads into the cutter slot and pull them downwards to cut them.

N R 115

O R P

Diagram of a mechanical or electrical component with curved arrows indicating motion or force direction (no text or symbols)

Technical line drawing of a sewing machine with a hand operating the base (no text or symbols)

Upper tension 112

N = Setting mark. The normal tension setting is in the white range between 3 and 5. The higher the number, the tighter the tension.

Lower tension

O = Regulating screw. Turn it left for a looser tension, or right for a tighter tension.
P = Both tensions are correct.
Q = Upper tension too loose or lower tension too tight.
R = Lower tension too loose or upper tension too tight.

The correct lower tension

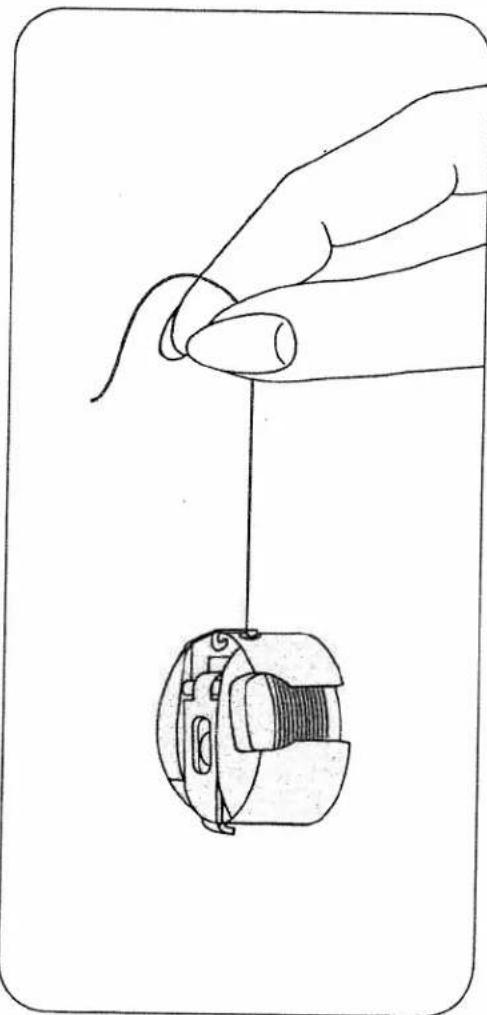

Let the bobbin case with a full bobbin hang down freely by the thread. It must not slide down by its own weight, but should gradually move downwards when you jerk your hand upwards lightly.

Once the lower tension has been set correctly, only the upper thread tension should be adjusted.

Technical diagram of an electric motor showing magnetic needle and coil with labeled component 'N'

Technical line drawing of a mechanical component with no visible text or symbols

P Q R

Line drawing of a hand holding a small mechanical component, no text or symbols present

Regulating the stitch length

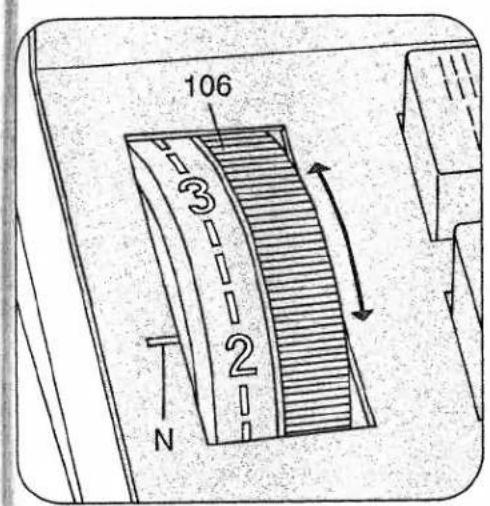

The numbers on stitch length control 106 indicate the stitch length in millimeters. On Models 1014 and 1015 the stitch length ranges from 0 to 4 mm, on Models 1019 to 1037 from 0 to 6 mm.

Turn the control so that the number indicating the stitch length chosen is opposite mark N.

Fig. O shows how to set the stitch length control for sewing stretch stitches (red stitch symbols on push buttons).

Reverse sewing

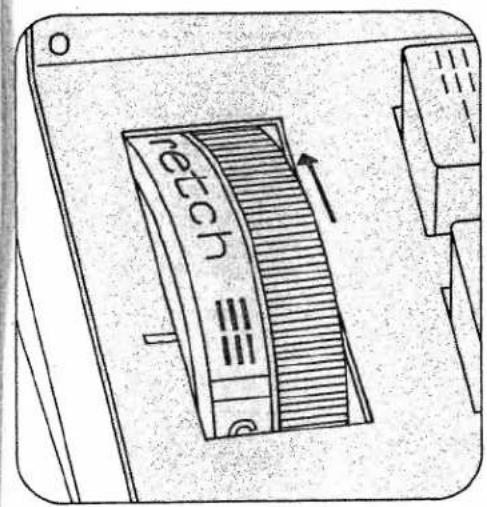

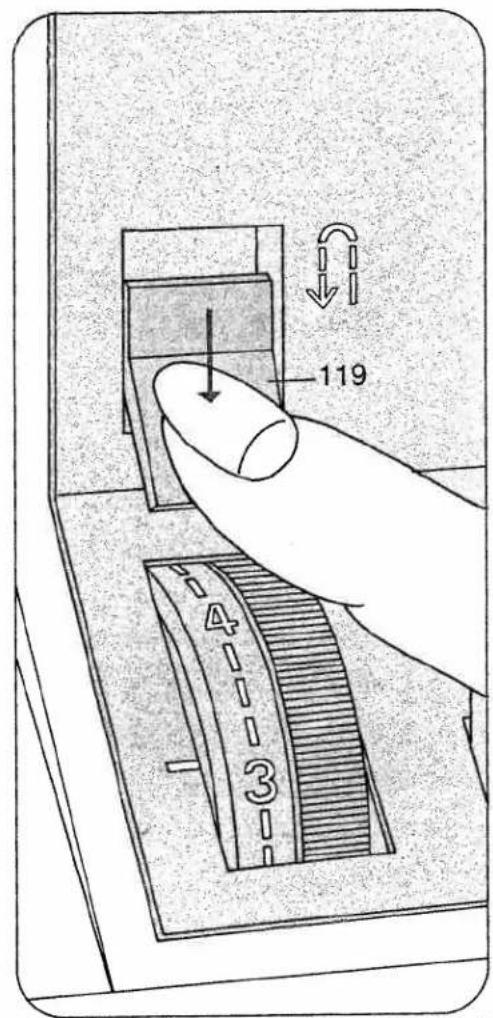

Press button 119. As long as you keep this button depressed, the machine sews backwards.

106 3 2 N

119 4 3

fetch III III

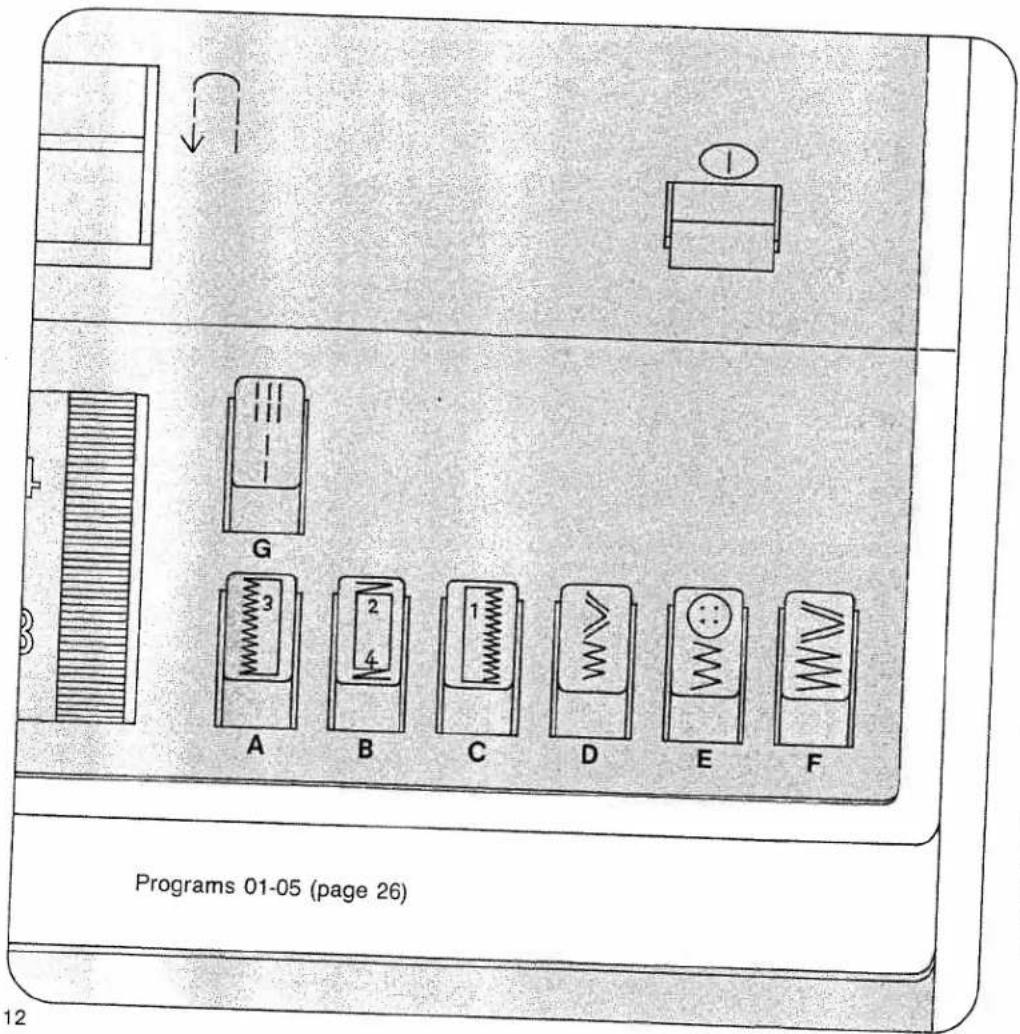

Finger-tip controls on Models 1014 and 1015

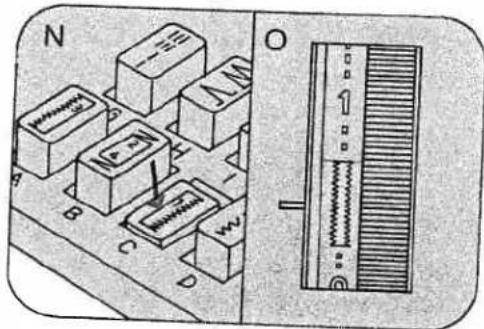

A, B, C; Buttons for buttonholing Button B is also used as clearing button for releasing the pushed buttons and for setting the left needle position (see page 17).
D Elastic triple zigzag stitch, 2 mm 2-mm zigzag stitch
E Elastic triple zigzag stitch, 3.5 mm 3.5-mm zigzag stitch
F Elastic triple zigzag stitch, 5.0 mm 5-mm zigzag stitch
G Elastic triple straight stitch Straight stitch

Programs 01-05 (page 26)

Finger-tip controls on Model 1019

A, B, C; Buttons for buttonholing

Button B is also used as clearing button for releasing the pushed buttons and for setting the left needle position (see page 17).

D Elastic triple zigzag stitch, 2 mm 2-mm zigzag stich
E Elastic triple zigzag stitch, 3.5 mm 3.5-mm zigzag stitch
F Elastic triple zigzag stitch, 5 mm 5-mm zigzag stitch
G Elastic triple straight stitch Straight stitch
M Honeycomb stitch Elastic stitch

Programs 01-15 (pages 26 & 27)

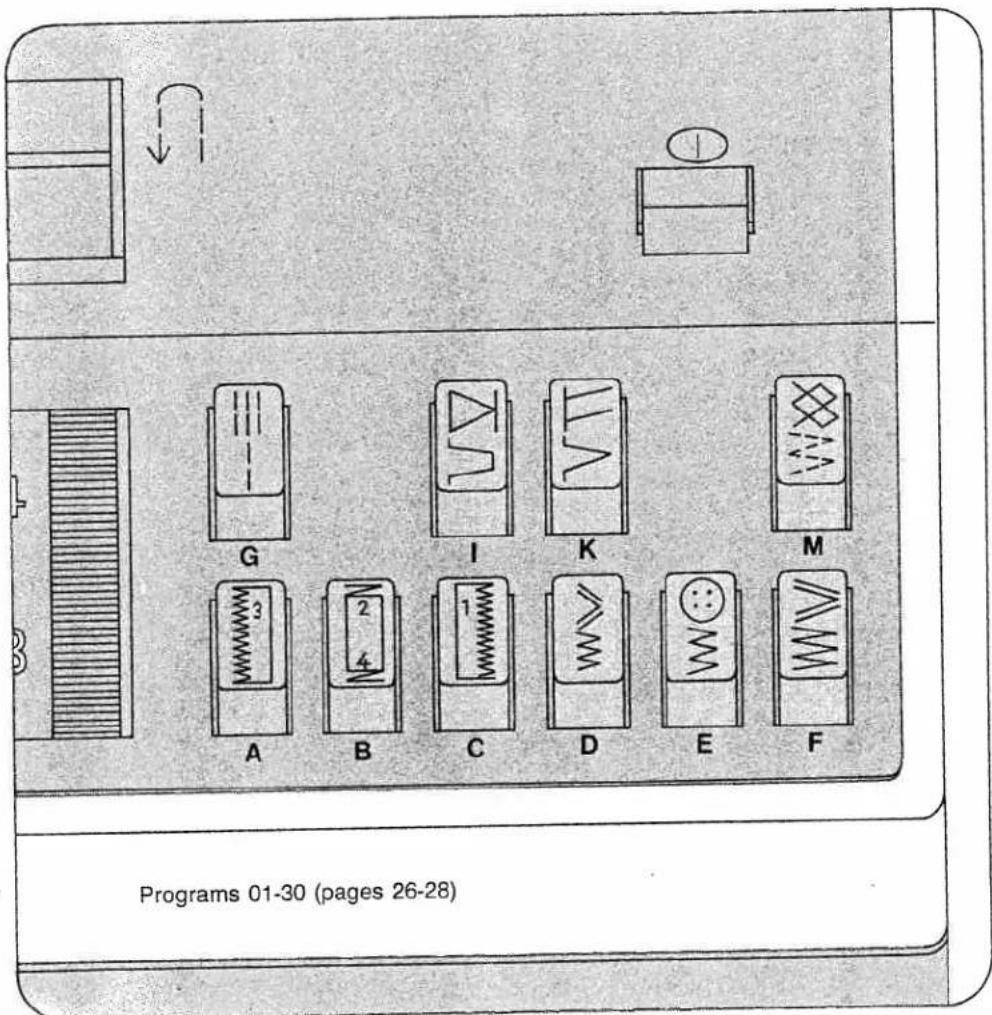

Finger-tip controls on Model 1035

A, B, C; Buttons for buttonholing

Button B is also used as clearing button for releasing the pushed buttons and for setting the left needle position (see page 17).

D Elastic triple zigzag stitch, 2 mm 2-mm zigzag stitch
E Elastic triple zigzag stitch, 3.5 mm 3.5-mm zigzag stitch
F Elastic triple zigzag stitch, 5 mm 5-mm zigzag stitch

G Elastic triple straight stitch Straight stitch
I Closed overlock stitch Joining stitch
K Overlock stitch Shell-edge stitch
M Honeycomb stitch Elastic stitch

Programs 01-30 (pages 26-28)

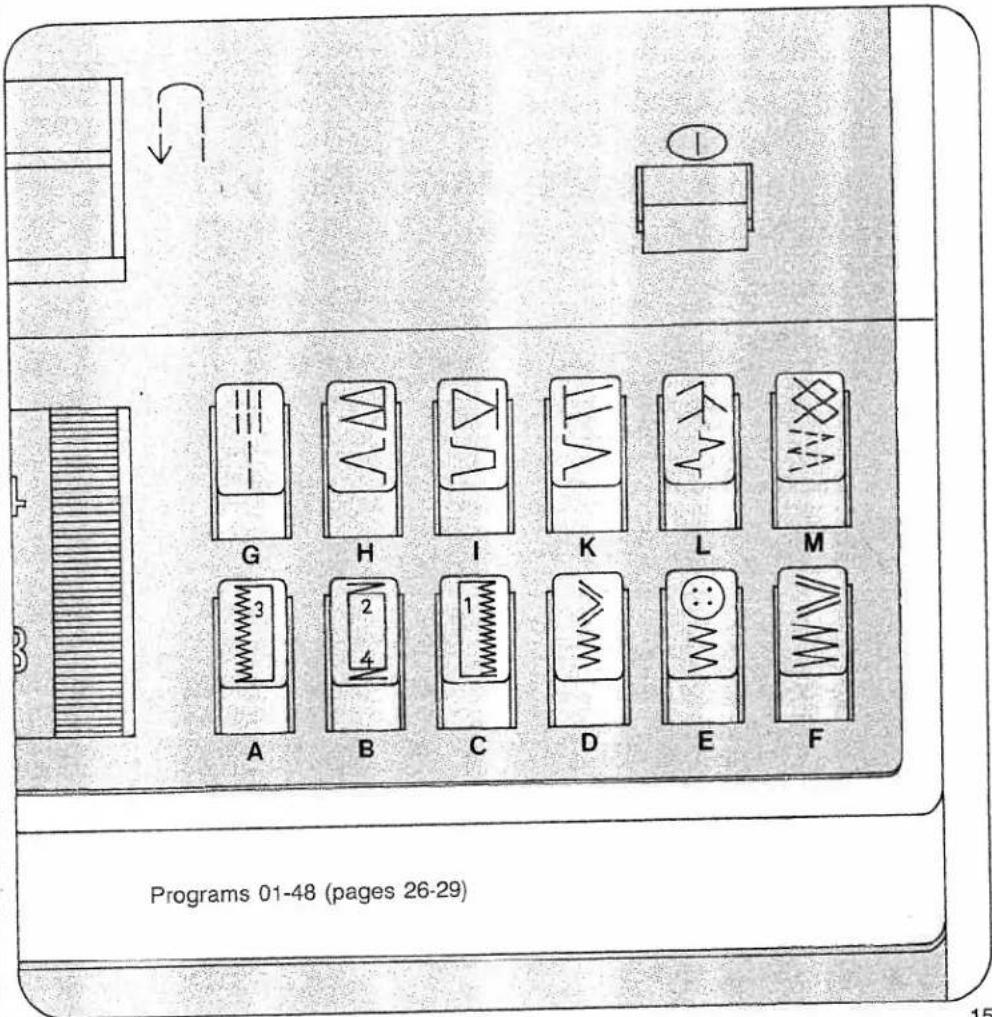

Finger-tip controls on Model 1037

A. B. C: Buttons for buttonholing

Button B is also used as clearing button for releasing the pushed buttons and for setting the left needle position (see page 17).

D Elastic triple zigzag stitch, 2 mm 2-mm zigzag stitch
E Elastic triple zigzag stitch, 3.5 mm 3.5-mm zigzag stitch
F Elastic triple zigzag stitch, 5 mm 5-mm zigzag stitch
G Elastic triple straight stitch Straight stitch

H Pullover stitch Blindstitch

I Closed overlock stitch Joining stitch
K Overlock stitch Shell-edge stitch
L Feather stitch Elastic decorative stitch
M Honeycomb stitch Elastic stitch

Programs 01-48 (pages 26-29)

Selecting utility stitches

(white symbols)

Push the desired button and turn the stitch length control to the number indicating the desired stitch length between 1 and 4 or 1 and 6.

All zigzag, utility and stretch stitches are halved in width when button G is pressed too.

All stitches and stitch combinations are listed in the stitch program chart on pages 26-29. This chart also contains possible applications.

Selecting stretch stitches

(red symbols)

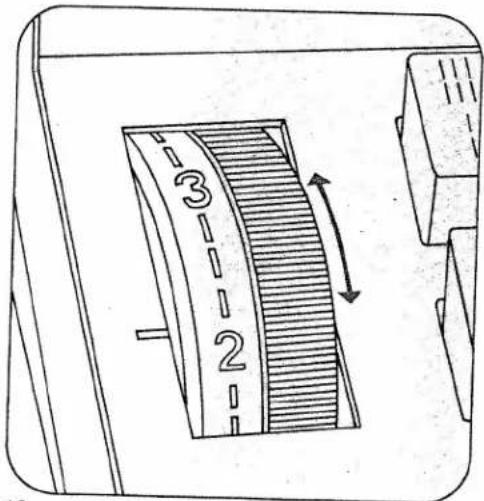

Push the desired button and turn the stitch length control as far as it will go (red symbol).

Hand pressing down on a mechanical component with no visible text or symbols

Hand placing a component into a storage tray with blocks and a downward arrow (no text or symbols)

3 2

retch

Utility-and-stretch-stitch combinations The various stitch combinations are shown in the chart and at the end of this booklet, together with sewing instructions. For example, if you want to sew an elastic blindstitch, push buttons M and F, select a stitch length between 1 and 4.

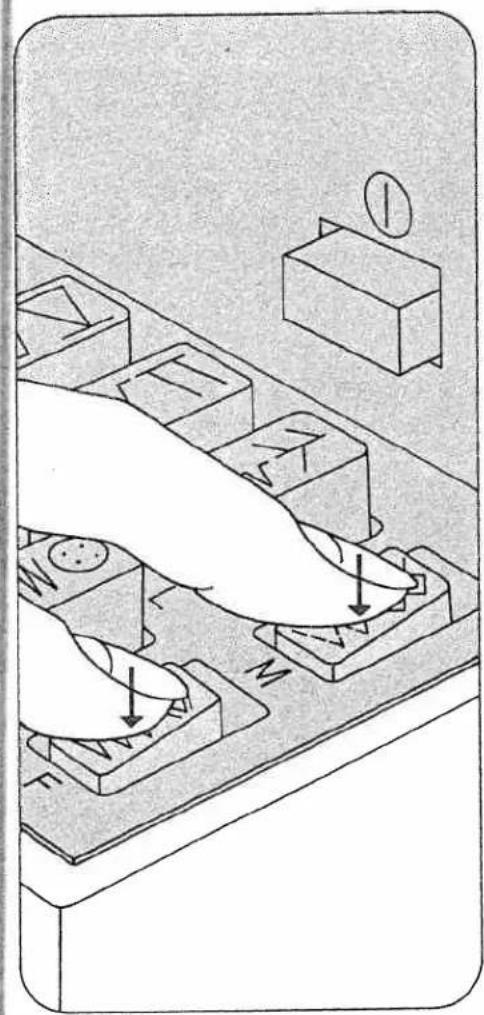

Selecting the needle position for straight stitching

Left needle position: push button B. Central needle position: push button G. Right needle position (on Model 1037): push buttons H and I.

Diagram illustrating a hand pressing down on a computer keyboard with magnetic symbols and a magnified view showing the digit '1'.

2 4 B

Simple line drawing of a rectangular object with a vertical dashed line and a labeled rectangular block marked 'G' (no text or symbols beyond the label)

H + I

Dropping the machine feed

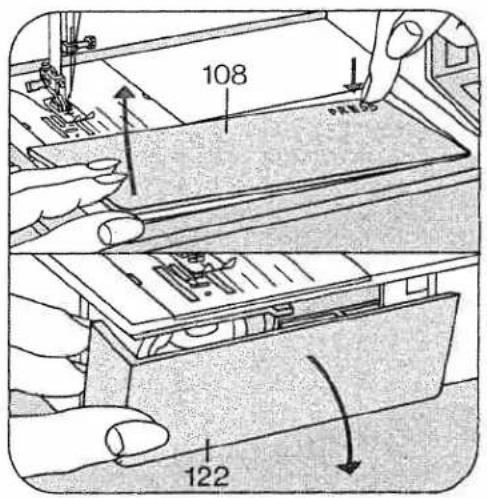

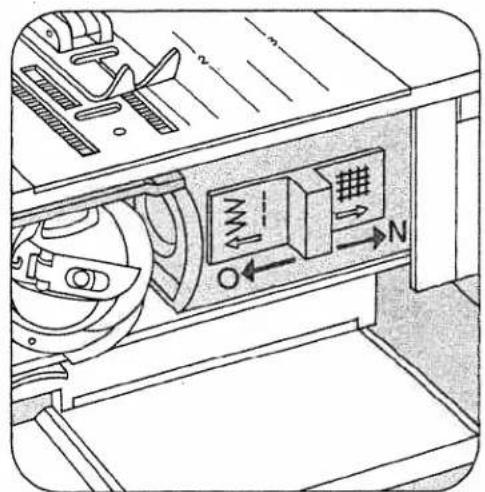

Remove cover 108 or free arm cover 122. Open free arm cover 122. Push the drop-feed control toward N. The feed dog is dropped for embroidering, darning, basting etc.

For sewing, push the drop-feed control toward O.

Replace cover 108 or close free arm cover. 122.

Changing the needle

Raise the needle bar. Then hold the needle, loosen screw N and pull the needle out downwards. Insert a new System 130/705 H needle (with the flat side of its shank facing toward the back) and push it up as far as it will go. Then tighten screw N.

Twin needles with a needle distance of 1.4 mm may be used for zigzag and utility-stitch sewing.

108 122

Technical line drawing of a sewing machine with needle and screw mechanism (no text or symbols)

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

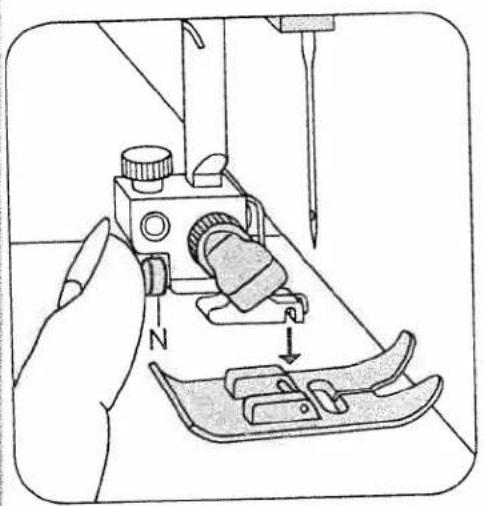

Changing the sewing foot To release the sewing foot push the red button N. When attaching a sewing foot make sure stud O enters slot P. Place the sewing foot under the sewing foot holder and hold it in place with your left hand.

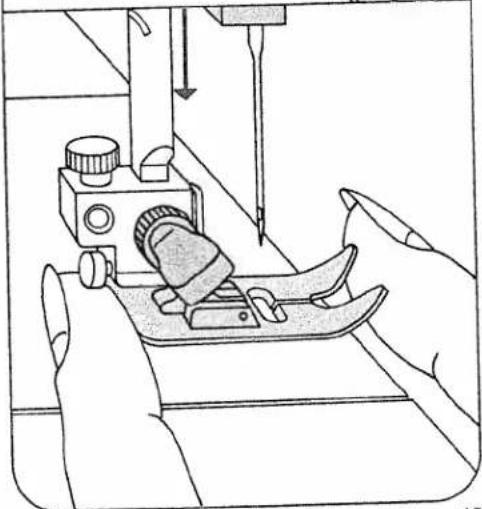

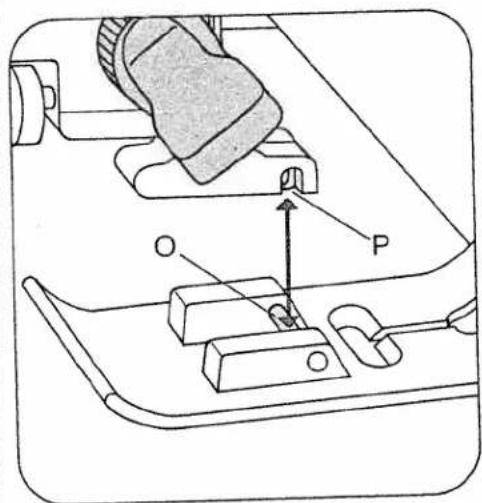

Lower presser bar lifter 115 and at the same time reposition the sewing foot so that stud O fits in slot P. Hole R and screw Q are used for attaching an edge guide and the darning foot. Screw S serves to secure the sewing foot holder on the presser bar.

Line drawing of a sewing machine needle and fabric being adjusted, showing the mechanism (no text or symbols)

Q R S

Technical diagram showing mechanical assembly with labeled parts O and P, including a highlighted section with an arrow indicating direction.

Line drawing of a sewing machine with hands operating it (no text or symbols)

Special sewing feet

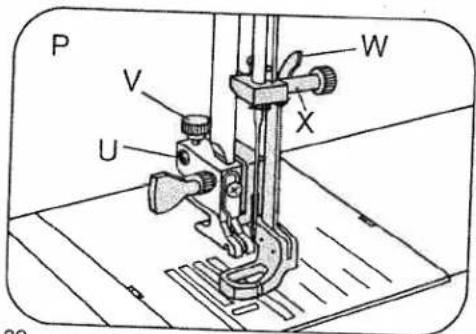

N Blindstitch foot. Blindstitch guide R is adjusted by turning screw Q.
O Zipper foot. First insert its rear pin into groove S then push its front pin into groove T. The zipper foot can be adjusted sideways for stitching along the right or left zipper chain.

P Darning foot. Raise the needle bar. Push bracket W toward the back and hold it there. Insert the pin of the foot in hole U and attach the foot so that it rests against its stop. Release bracket W so that it bears against screw X. Tighten screw V.

Buttonhole settings

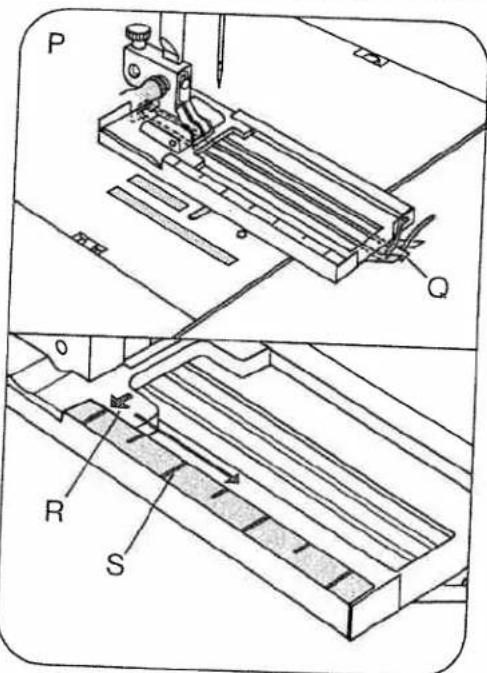

Regulate the stitch density in the buttonhole range of the stitch length control (O). Press button C (N). Attach the buttonhole foot. Set the upper tension at 3 in the buttonhole range. Insert the filler cord as follows (P): Place it over the rear lug of the foot, pull it taut and clamp it in front lug Q. As you sew, arrow R moves along scale S. This serves to determine the buttonhole length.

Use a thin thread for sewing buttonholes.

Mechanical diagram showing a pipe connection with labeled parts (N, P, Q) and directional arrows indicating motion or force (no text or symbols beyond labels)

N O

S T O

P Q R S

P V U W X 20

Sewing buttonholes

Pull the bottom of the buttonhole foot forward as far as it will go.

1 Sew first buttonhole seam. Raise the needle.
2 Push button B and keep it depressed until the machine has sewn 4 to 6 bar-tacking stitches. Raise the needle. Then release the button.
3 Push button A. Sew the second button-hole seam the same length as the first. Raise the needle.

4 Push button B and keep it depressed until the machine has sewn 4 to 6 bar-tacking stitches. Raise the needle. Then release the button.
5 Sew a few tying stitches. Remove the fabric, pull the filler cord taut and trim.
6 Cut the buttonhole open.

1 C 2 3 A B

4 2 4 B 5 6

Changing the light bulb

Switch off the machine and pull out the power cord plug. Close the hinged top cover and swing up the carrying handle.

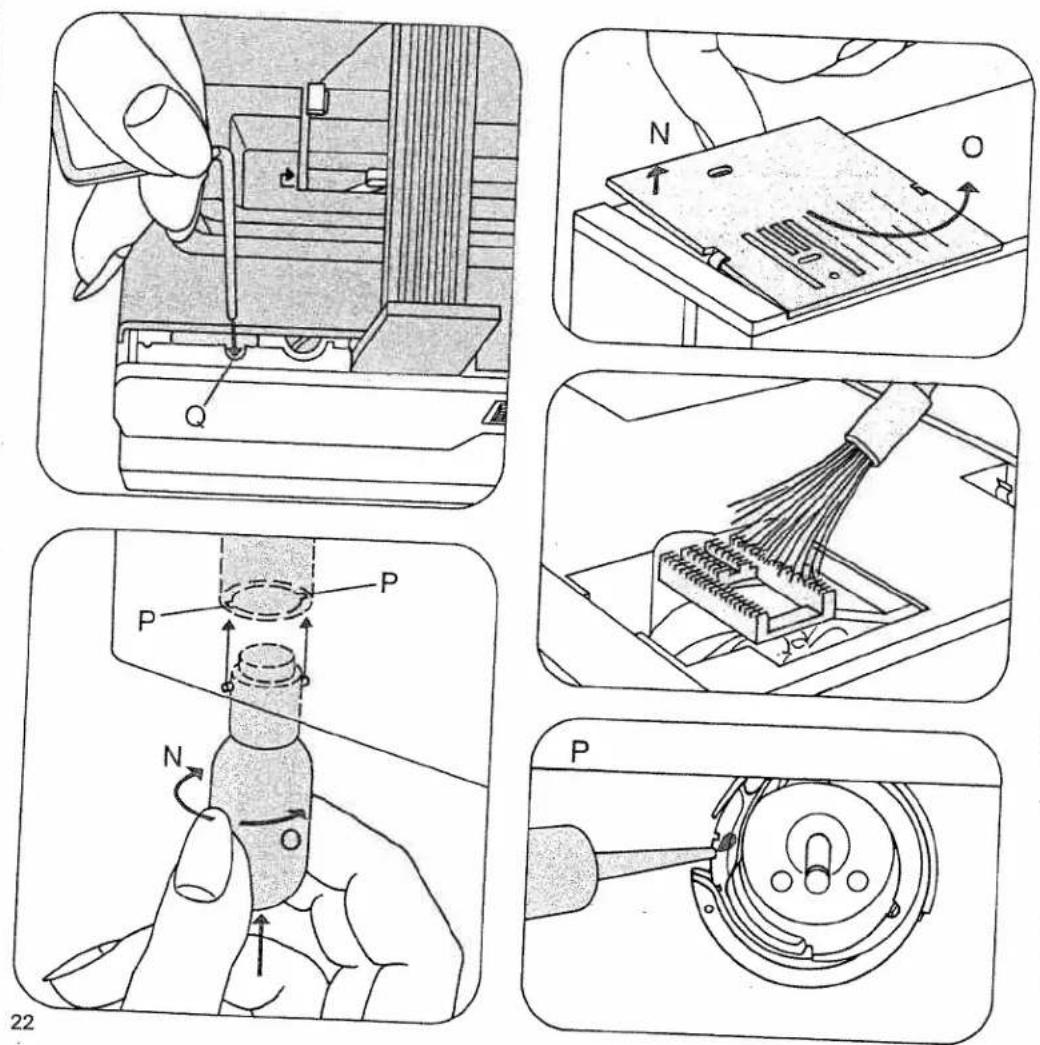

Take the edge guide out of the accessory box and insert it into the slot between face cover and housing and into cutout Q in the machine. Push the lamp housing down with the edge guide and hold it there. The light bulb can now be exchanged.

Push the light bulb up, turn it toward N and take it out. Insert the new bulb so that its pins slide in slots P. Push it up and turn it toward O.

Let the lamp housing resume its original position and pull out the edge guide.

Cleaning and oiling

Tilt needle plate 117 up at the back (N) and take it out (O). Clean the machine feed and the parts in the vicinity of the sewing hook with a soft brush.

Do not oil the machine because it requires no maintenance. All you have to do is put a drop of oil in the hook raceway now and then, as shown in the illustration below.

Special accessories

Special accessories The special accessories listed below are intended for special sewing jobs. They can be obtained from your dealer.

Accessory	Part No.	Sewing Operation
Appliqué foot	93-035 920-91	For appliqué work
Cording setconsisting of:		For cording work(Needle size 80,for fine cordingneedle size 70)
Cording foot, 5 grooves(twin needle with 1.8-2.5 mm needle gauge)	93-035 950-91
Cording foot, 7 grooves(twin needle with 1.4-1.8 mm needle gauge)	93-035 953-91
Cording blade (2 ea.)	93-035 952-45
Fringe sewing foot	93-035 943-91	For sewing fringes and for basting
Straight-stitch foot	98-694 803-00	For topstitching andsewing very delicateand soft fabrics (silk jersey, etc.)
Felling foot, 4.5 mm		For felled seams
Felling foot, 6.5 mm
Shirring foot	93-035 998-91	For shirring valances
Single-needle cording foot	93-035 915-91	For single-needle cording
Eyeletting plate	93-035 946-45	For eyeletting
Overlock foot	98-620 404-00	For finishing raw edges or for joining elasticfabrics and simultaneonsiy overcasting theiredges
Hemmer foot (rolled edge), 2 mm	98-694 804-00	For hemming edges with zigzag stitches
Teflon foot	98-694 801-00	For sewing plastic materials

Trouble shooting

Cause:

1. Machine skips stitches

Needle not inserted correctly.

Wrong needle used.

Machine threaded improperly.

Needle too thin for thread used.

2. Needle thread breaks

For any of above reasons.

Thread tension too strong.

Poor-quality or knotty thread used, or thread that has become too dry by excessive storage.

3. Needle breaks

Needle not pushed up as far as it will go.

Needle bent.

Needle too thin or too thick.

Needle bent and strikes needle plate because work is pushed or pulled.

Bobbin case improperly inserted.

Remedy:

Push needle up as far as it will go, its flat shank side facing toward the back. Insert system 130/705 H' needle.

Insert new needle.

Check threading.

Select needle according to Needle and Thread Chart.

See par. 1 above.

Regulate thread tensions.

Used only good-quality thread.

Insert new needle and push it up as far as it will go.

Insert new needle.

See Needle and Thread Chart.

Let machine feed the work alone

Only guide the material lightly.

When inserting the bobbin case, push it in as far as it will go.

Cause:

Remedy:

4. Seam is not uniform

Tension out of adjustment.

Check upper and lower tensions.

Thread too thick, knotty or hard.

Use first-class thread only.

Bobbin thread wound unevenly.

During bobbin winding, do not hold thread in hand, but pass it through the bobbin tension stud.

Kinks appear on top and bottom of material.

Thread machine properly and check both tensions.

5. Machine feeds irregularly or not at all

Lint has accumulated between tooth rows of feed dog.

Remove needle plate and clean out lint.

Feed dog dropped. (Drop-feed control is at right.)

Flick drop-feed control to the left.

6. Machine runs with difficulty

Thread ends in hook raceway.

Remove thread ends and put a drop of oil into hook raceway.

7. Fundamental rules

Never run a threaded machine unless there is a piece of fabric under the sewing foot. If you have to leave the machine, even for a short while, be sure to switch off the master switch. This is particularly important when children are around.

Stitch program chart

Listed in this chart are the stitch program number, the corresponding stitch and, in the lower half, the buttons to be pressed to sew this seam pattern. For all stitch programs marked "stretch", turn the stitch length control toward "stretch" as far as it will go.

01 G H I 02 D D E E F

03 A B C 04 stretch G 05 stretch DIEIF 06 M

No.	Stitch	Application
01	Straight stitch	All ordinary sewing operations and 6-mm fancy stitching operations on Models 1019-1037.
02	Zigzag stitch	Edge finishing, appliqué work, inserting lace, button sewing and satin stitching, embroidering, darning etc.
03	Buttonholes	Buttonholes without turning the fabric.Just push the buttons and the buttonhole is finished.The stitch density can be regulated.
04	Elastic triple straight stitch	Seams exposed to great stress which stretch under stress.
05	Elastic triple zigzag stitch	Flat, elastic reinforcing seams, as well as sewing and mending corsetry.
06	Elastic stitch	Inserting patches and darning rips on elastic fabrics.
07	Elastic ornamental stitch* 1019/1035 M+D	Inserting patches and darning rips on elastic materials or sewing ornamental seams on elastic fabrics.
08	Crown stitch	An ornamental seam, e. g. on night gowns.
09	Elastic blindstitch	Hemming elastic fabrics with invisible stitches.
10	Scallop stitch	For decorating handkerchiefs, for instance.

For all other programs, select the stitch length as desired. The individual stitch programs and their application are described in more detail in the table below.

07	08	09	10	11	12	13
L	M	M	M	M stretch	M stretch	M stretch
*	E	F	G		D

14	15	16	17	18	19	20
M stretch F	M stretch G	I	I D	I F	I G	K

No.	Stitch	Application
11	Honeycomb stitch	Sewing on elastic threads or covering seams on terry cloth.
12	Joint stitch	A durable ornamental joining seam.
13	Florentine stitch, narrow	For decorating hems, e. g. on bed linen.
14	Florentine stitch, wide	Ornamental seams, e. g. on bed linen.
15	Houndstooth stitch	Ornamental seams, e. g. on table linen.
16	Lampshade stitch, wide	Classical ornamental seam on all plain fabrics.
17	Viennese stitch, narrow	Ornamental seams, e. g. on napkins.
18	Viennese stitch, wide	Ornamental seams, e. g. on table cloths.
19	Lampshade stitch, narrow	Classical ornamental seam on plain fabrics.
20	Shell-edge stitch, wide	Effective edge finish on dainty fabrics.

27

Sewing machine models and stitch programs:

1014 and 1015 from 01 to 05

1019 from 01 to 15

1035 from 01 to 30

1037 from 01 to 48

21	22	23	24	25	26	27
K	K	I stretch	I F stretch	I G stretch	I K stretch	K stretch

28

29 K stretch D

30 (K) G

31 K M

32 HHD

33 LD

No.	Stitch	Application
21	Elastic edge stitch	Finishing edges that do not fray much.
22	Shell-edge stitch, narrow	Ornamental seams, e. g. on girls' dresses.
23	Closed overlock stitch, wide	Covering folded fabric edges with a fancy seam.
24	Pennant stitch	Decorative joining seam and sewing on borders.
25	Closed overlock stitch, narrow	Sewing on dainty lace.
26	Turkish stitch	Topstitching patches.
27	Overlock stitch, wide	Elastic assembly and edge finishing seams on knitted fabrics.
28	Peacock stitch	Festive ornamental seam, e. g. on table linen.
29	Overlock stitch, narrow	Dainty border ornamentation.
30	Knurl stitch	Ornamental seam on light clothing.
31	Blindstitch, wide	Hemming heavier fabrics with invisible stitches.
32	Blindstitch, narrow	Hemming lightweight fabrics with invisible stitches.
33	Peak stitch	A dainty ornamental seam, e. g. on ladies' handkerchiefs.
34	Mound stitch	Ornamental seam, e. g. on children's napkins.

35	36	37	38	39	40	41
L	L	H stretch	H stretch	H stretch	L stretch	L stretch
F			D stretch

42	43	44	45	46	47	48
stretch	stretch	stretch	stretch	stretch	stretch	stretch
L	L	L	L	LE	LG	LM
F	I	K	K	I	K	K

No.	Stitch	Application
35	Viennese stitch, narrow	Ornamental seams, e. g. on table linen.
36	Lampshade stitch, narrow	Classical ornamental seam on plain fabrics.
37	Pullover stitch, wide	Elastic edge finishing seams on jersey fabrics.
38	Pullover stitch, medium	Elastic edge finishing seams on polo shirt fabrics.
39	Pullover stitch, narrow	Elastic edge finishing seams on lightweight jersey crepe.
40	Feather stitch	Decorative cover seams, e. g. on aprons.
41	Dutch stitch	Ornamental seam, e. g. on kitchen textiles.
42	Snail stitch	Ornamental seam, e. g. for bath room utensils.
43	Loom stitch	Ornamental seam, e. g. for country-look dresses.
44	Diagonal stitch	Ornamental seam, e. g. for plain-look, modern dresses.
45	Trellis stitch	Ornamental seam, e. g. for airy ladies' dresses.
46	Twig stitch	Ornamental seam, e. g. for hiking wear.
47	Border stitch	Ornamental seam, e. g. for border ornamentations on pockets.
48	Triangular stitch	Ornamental seam, e. g. for children's night dresses.

Subject to alterations in design. No. 22706 1082
