IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic safety precautions should always be followed, including the following:

Read all instructions before using this household sewing machine.

DANGER - To reduce the risk of electric shock:

• A sewing machine should never be left unattended when plugged in. Always unplug this sewing machine from the electric outlet immediately after using and before cleaning.
  • Always unplug before relamping. Replace bulb with same type rated 12V, 5 Watt.

WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons:

• This sewing machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the sewing machine by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the sewing machine.
• Use this sewing machine only for its intended use as described in this manual. Use only attachments recommended by the manufacturer as contained in this manual.
• Never operate this sewing machine if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the sewing machine to the nearest authorised dealer or service center for examination, repair, electrical or mechanical adjustment.
• Never operate the sewing machine with any air openings blocked. Keep ventilation openings of the Sewing machine and foot controller free from the accumulation of lint, dust, and loose cloth.
• Keep fingers away from all moving parts. Special care is required around the sewing machine needle.
  • Always use the proper needle plate. The wrong plate can cause the needle to break.
• Do not use bent needles.
• Do not pull or push fabric while stitching. It may deflect the needle causing it to break.
• Wear safety glasses.
• Switch the sewing machine off ("0") when making any adjustment in the needle area, such as threading needle, changing needle, threading bobbin, or changing presser foot, etc.
• Always unplug the sewing machine from the electrical outlet when removing covers, lubricating, or when making any other user servicing adjustments mentioned in the instruction manual.
• Never drop or insert any object into any opening.
• Do not use outdoors.
• Do not operate where aerosol (spray) products are being used or where oxygen is being administrated.
• To disconnect, turn all controls to the off ("0") position, then remove plug from outlet.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Hold plug when rewinding into cord reel. Do not allow plug to whip when rewinding.

SAVE THESE INSTRUCTIONS

Congratulations on purchasing your new GrandQuilter™!

Your GrandQuilter™ is so easy to use and will, together with your imagination, create wonderful quilts. Please spend some time reading these operating instructions as it is a great way to learn the machine and also to make full use of its features.

Your PFAFF® dealer will be at your service with any help or advice you need.

We wish you many enjoyable hours of sewing and quilting!

VSM Group AB

Some fabrics have excess dye which can cause discoloration on other fabric but also on your sewing machine. This discoloring may be very diffi cult or impossible to remove.

Fleece and denim fabric especially in red and blue often contains a lot excess dye.

If you suspect that your fabric/ready to wear garment contains a lot of excess dye, always pre-wash it before sewing/embroidering to avoid discoloring.

Table of contents

1. Introduction

Machine overview 4

Standard accessories 6

Extra accessories 7

Needle chart

2. Operating your

GrandQuilter™

Carrying handle 10

Soft cover

Electrical connection 11

Connecting the foot control 11

Controlling sewing speed 12

Foot control

Speed control slide 12

Bobbin winding button 13

Thread cutter 13

Needle Up/Down 13

Stitch length dial 14

Reverse lever

Presser foot lifter 14

Pressure dial

Knee lift

Changing the presser foot 16

Changing the needle 16

Attaching the darning plate 17

Placing a thread spool on the spool pin

Placing a thread cone on the spool pin

Bobbin winding 18

Inserting a bobbin 19

Inserting a bobbin into the hook

To remove the bobbin case and bobbin

Threading the machine 21

Needle threader 23

Bringing up the bobbin thread 24

Balancing the thread tension 25

Attaching the extension table 26

3. Getting started

Getting started to sew 28

Turning a corner 29

Using the Fabric guide 29

How to use the Free-motion foot 30

Quilting 31

Stitch-in-the-ditch 31

Free-motion stippling 32

4. Maintenance and ^14 troubleshooting

Cleaning the hook 15 and feed dogs 34

15 Oiling the machine 35

Changing the light bulb 36

Troubleshooting 37

Index 39

17

17

20

20

Introduction

Machine Overview

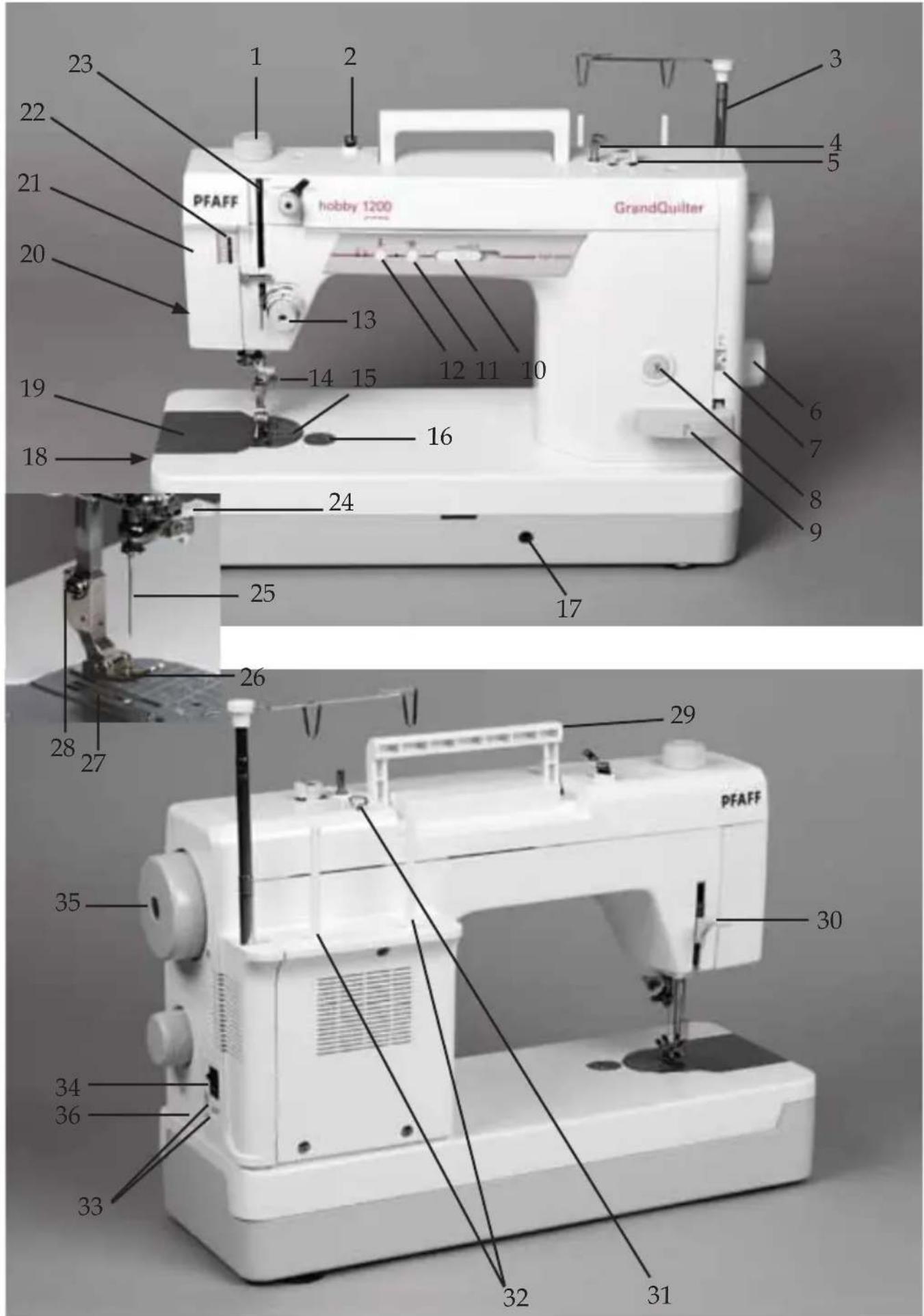

PFAFF hobby 1200 GrandQuilter 1 2 3 4 5 23 22 21 20 13 14 15 12 11 10 19 18 16 24 25 17 6 7 8 9 26 28 27 29 35 30 34 36 33 32 31

Machine Overview

1. Pressure dial
2. Bobbin winding tension disk
3. Thread stand
4. Bobbin winder spindle
5. Bobbin winder stop
6. Stitch length dial
7. Stitch length indicator
8. Thread cutter button
9. Reverse lever
10. Speed control slide
11. Bobbin winding button
12. Needle Up/Down button
13. Thread tension dial
14. Needle clamp screw
15. Needle plate
16. Attachments holes
17. Knee lift socket
18. Bobbin case cover
19. Hook cover plate
20. Thread cutter
21. Face cover
22. Pressure indicator
23. Take-up lever
24. Needle threader
25. Needle
26. Presser foot
27. Feed dogs
28. Set-screw
29. Carrying handle
30. Presser foot lifter
    31.Thread guide for bobbin winding
31. Spool pins
32. Machine sockets
33. Power switch

34. Handwheel

35. Socket for optional automatic thread cutter

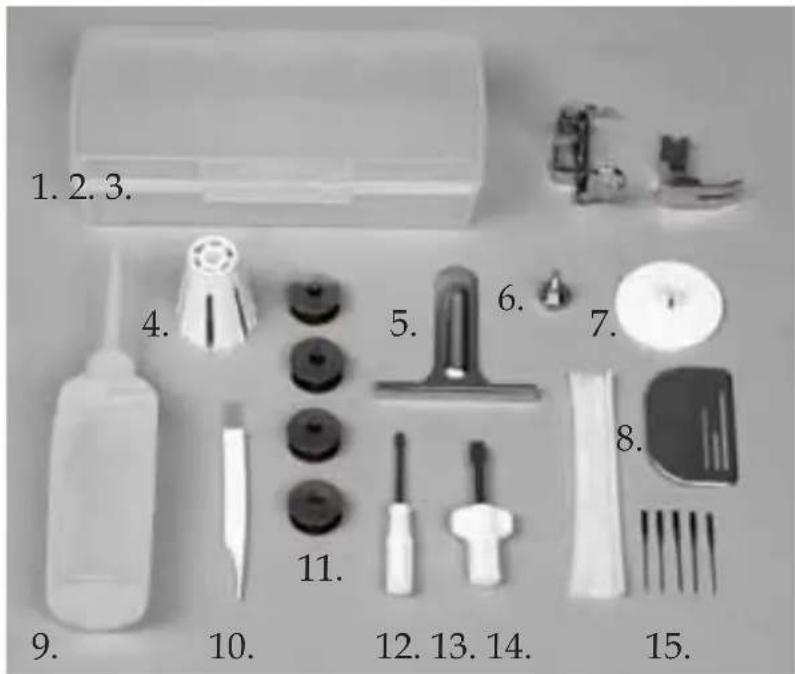

Standard accessories

1. Accessory box
2. Free-motion foot
3. Standard foot
4. Spool holder
5. Fabric guide
6. Screw for the fabric guide
7. Spool cap
8. Darning plate
9. Oil
10. Lint brush
11. Bobbins
12. Small screwdriver
13. Large screwdriver
14. Net
15. Needles
16. Soft cover
17. Knee lift
18. Foot control

Black-and-white photo of electronic devices including a flat case, a charging device, and a cord-like structure (no visible text or symbols)

1. Extension table

White plastic electronic component with a slot, labeled '19.' (no other text or symbols)

Extra accessories

Close-up of a metallic connector component with a V-shaped notch (no text or symbols visible)

Leather foot

Article no: 416 04 81-01

Close-up of a metallic sewing machine component (no visible text or symbols)

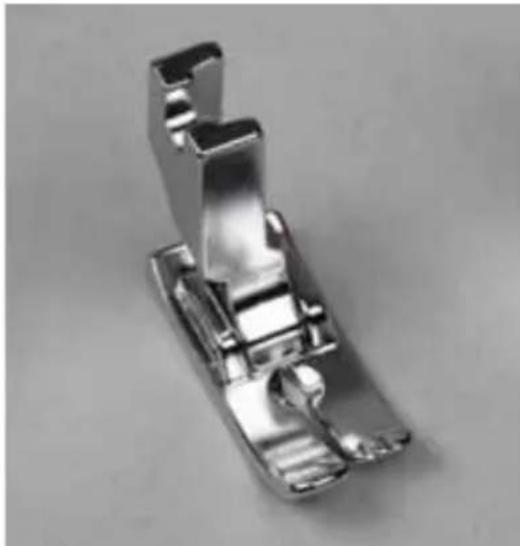

Silk foot

Article no: 416 04 83-01

Metal mechanical component with a stepped base and mounting bracket (no visible text or symbols)

Rolled hem foot

Article no:416 04 85-01

Close-up of a metallic mechanical component with a lever handle (no visible text or symbols)

Zipper foot

Article no: 416 04 82-01

Cross-sectional view of a mechanical device showing internal components (no text or symbols visible)

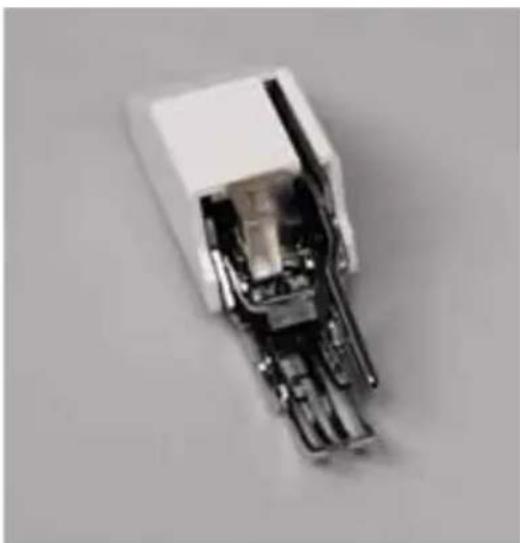

Walking foot

Article no: 416 04 84-01

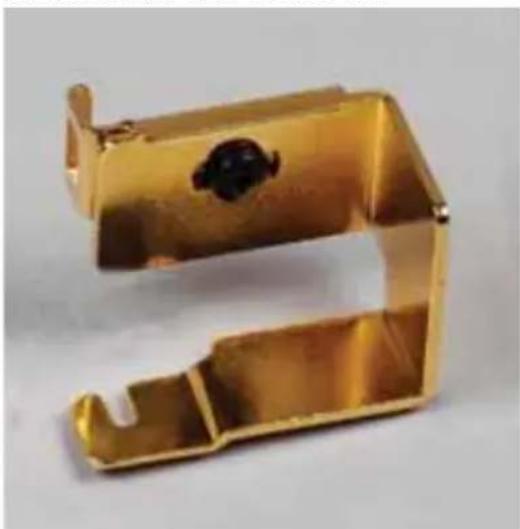

Golden metal bracket component with a small black hole on top (no text or symbols visible)

Velvetfoot

Article no: 416 04 86-01

Needle chart

Fabrics Thread Needle			(HL x 5) size
Light weight	Crepe de chine, Voile, Lawn, Organdy, Georgette, Tricot	Fine silk, fi ne cotton, fi ne synthetic or covered polyester	9 or 11
Medium weight	Linens, Cotton, Pique, Serge, Double Knits, Percale	50 silk, 50 to 80 cotton, 50 to 60 Synthetic, cotton covered polyester	11 or 14
Heavy weight	Denim, Tweed, Gabardine, Coating, Drapery and Upholstery Fabric	50 silk, 40 to 50 Cotton, 40 to 50 Synthetic, Cotton Covered Polyester	14, 16 or 18

Operating your

GrandQuilter™

Gardrobe machine with purple fabric and blue patterned fabric being sewn by a sewing machine (no visible text or symbols)

Carrying handle

Lift up the carrying handle of the sewing machine from behind.

Close-up of a sewing machine labeled 'hobby 1200 Grand' with control knobs and buttons (no readable text beyond branding)

Soft cover

The soft cover, which is part of the basic equipment, protects your sewing machine from dust and damage while transporting.

Stack of papers or documents with a blank cover, no visible text or symbols

B A C

Close-up of a white electronic device with attached cables and a black rectangular device (no visible text or symbols)

Electrical connection

⚠️ Before connecting to the power supply, make sure the voltage shown on the machine conforms to your electrical power. Always turn the power off and unplug the sewing machine from the electrical outlet when the machine is not in use.

Connect the lead cord between the socket of the sewing machine (A) and the wall outlet.

For the USA and Canada:

This sewing machine has a polarized plug (one blade wider than the other). To reduce the risk of electric shock, this plug is intended to fi t in a polarized outlet only one way. If the plug does not fi t fully in the outlet, reverse the plug. If it still does not fi t, contact a qualifi ed electrician to install the proper outlet.

DO NOT modify the plug in any way!

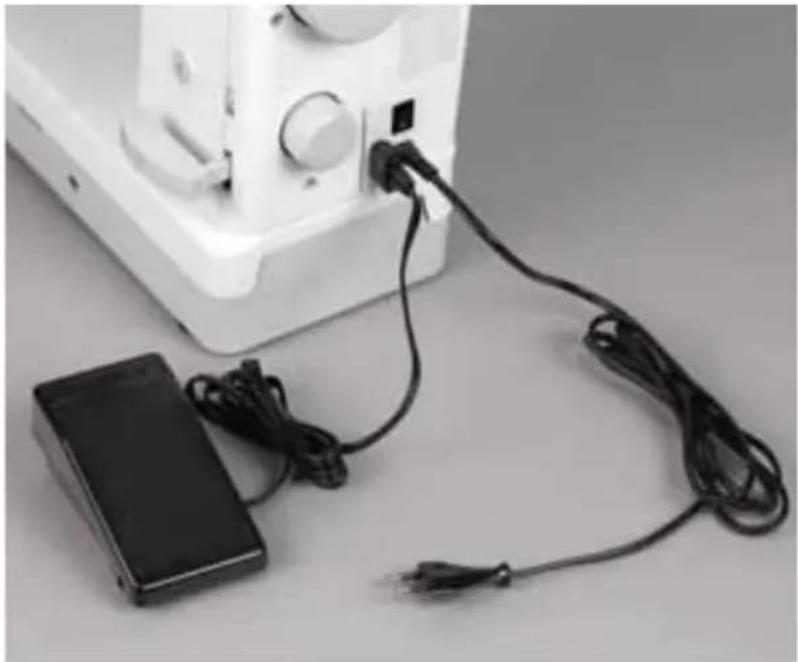

Connecting the foot control

⚠️ Switch off the main switch.

Connect the plug of the foot control (B) to the connection socket of the sewing machine.

Turn on the power switch (C).

Controlling sewing speed

You can control the sewing speed on your machine in two ways; with your foot control and with the speed control slide on your sewing machine.

Foot control

On your GrandQuilter ^™ you can control the sewing speed by using your foot control. The harder you press the foot control, the faster the machine runs.

If you press the foot control to the bottom, the machine runs at the maximum speed set by the speed control slide.

Note: Make sure you have the right type of foot control for your machine. Foot Control model YC-485 is used for the GrandQuilter™.

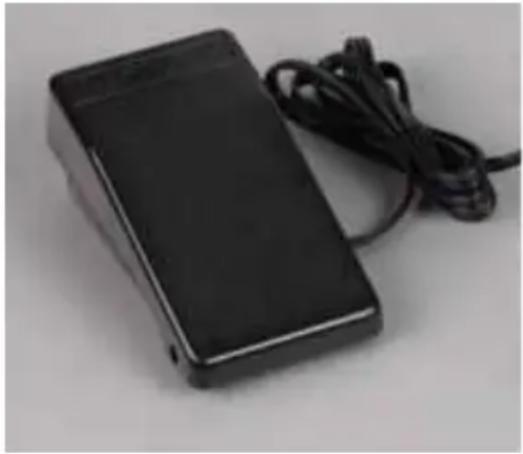

Black rectangular electronic device with a coiled cable, placed on a plain surface (no visible text or symbols)

Speed control slide

With the speed control slide on your GrandQuilter™, you can change the sewing speed to suit your needs. For instance when making freehand quilt designs/stippling, lower the the sewing speed to avoid jump stitches.

To raise the sewing speed, slide the bar to the right.

To lower the sewing speed, slide the bar to the left.

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Bobbin winding button

Press the bobbin winding button on your GrandQuilter ^™ to wind the bobbin. The light beside the button will light up while you are winding the bobbin. When the bobbin is full, the GrandQuilter ^™ will automatically stop and the bobbin light will be turned off.

Note: With your GrandQuilter™ you can wind the bobbin while sewing.

Close-up of a circular button with a black 'X' symbol and scissors icon, no text or numbers visible.

Thread Cutter

The thread cutter button on your GrandQuilter™ helps you trim the top and bobbin thread while sewing.

After trimming the threads you can continue sewing without having to pull the bobbin thread to the top.

Note: If you are using a thread thicker than 30, use the thread cutter on the face cover. You cannot use the footcontrol or the Needle Up/Down while you are trimming the threads.

Pure electrical circuit lines without any symbols

Needle Up/Down

The Needle Up/Down function on your GrandQuilter ^™ is useful when you are turning a corner on your quilt. Press the Needle Up/Down button to bring the needle bar up or down. When the needle is down the red indicator next to the button will light up. When the needle is up the green indicator will light up.

Pure electrical circuit lines without any symbols

Your GrandQuilter ^TM will stop with the needle up or down depending on which light is switched on. After using the Thread Cutter your GrandQuilter ^TM will always stop with the needle in the up position.

Stitch length dial

The stitch length can be adjusted on your GrandQuilter ^™ by turning the stitch length dial located on the side of your machine. The stitch length can be adjusted from 0 to 6 mm. On the front of the machine there is an indicator showing the stitch length.

Close-up of a mechanical component with a cylindrical knob and adjustment knob (no visible text or symbols)

Reverse lever

Sewing in reverse will help you to secure the beginning and end of seams. When you press the reverse lever downwards, the machine will sew in reverse. The machine will only sew in reverse as long as the reverse lever is pressed down.

Close-up of a gray cylindrical object with a curved arrow and circular base, no visible text or symbols.

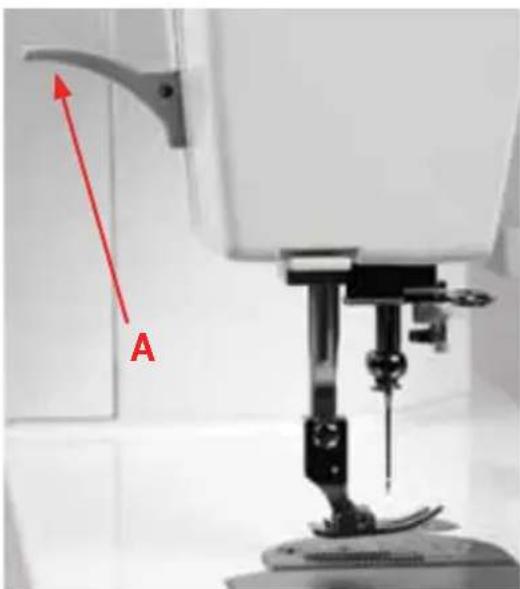

Presser foot lifter

You can raise or lower the presser foot by raising or lowering the presser foot lifter (A). You can also raise the foot higher than the normal up position to help you place thick material under the foot.

Close-up of a sewing machine with a red arrow and label 'A' pointing to the side panel (no readable text or symbols beyond label)

PFAFF

Pressure dial

Turn the pressure dial to adjust the pressure of the presser foot when sewing on different thicknesses of fabric.

For heavy fabrics or when sewing on several layers of fabric, you should raise the pressure. When sewing on thin fabric you should lower the pressure. For regular sewing set the pressure to 3.

Note: Do not reduce the pressure lower than "0".

Exterior view of a white sewing machine (PFASF) with attached metal hook, placed on a wooden workbench with an inset showing a small mechanical component labeled 'A' (no text or symbols on the machine itself)

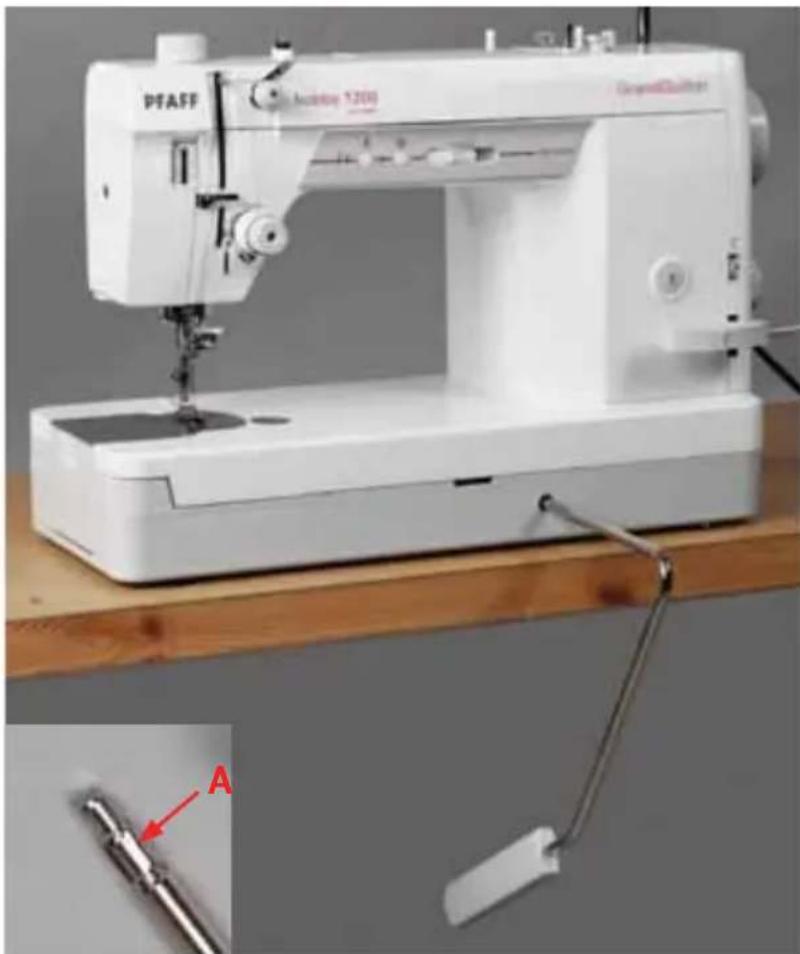

Knee lift

Your GrandQuilter™ is provided with a kneelifter for regulating the presser foot height. It is especially useful when you need both of your hands to guide the fabric.

1. Insert the kneelift by matching the ribs on the knee lift (A) with the notches in the kneelifter socket.
2. Push the kneelift with your knee sideways to raise and lower the presserfoot.

To remove the kneelift, pull it gently out of the hole.

Note: Avoid touching the knee lift while sewing, as the fabric will not be fed smoothly.

Changing the presser foot

Switch off the main switch and unplug the

machine.

1. Raise the presser foot lifter. Loosen the setscrew (A) with the large screwdriver.
2. Choose the proper foot and insert it from the bottom.
3. Tighten the setscrew with a large screwdriver to secure the foot.

Close-up of a sewing machine needle with labeled point A (no text or symbols beyond label)

Changing the needle

tch off the main switch and unplug the line.

1. Lower the presser foot.
2. Using the large screwdriver, turn the needle clamp screw counter-clockwise.
3. Loosen the screw and remove the needle from the needle clamp (B).
4. Insert a new needle into the needle clamp (B). Make sure that the fl at side is to the right. Push the needle as far as it will go and then thighten the clamp screw (C) firmly.

Close-up of hands operating a sewing machine with labeled parts B and C, showing mechanical components and tool path.

Note: Use an HL x 5 needle.

To check for a good needle

Put the fl at side of the needle onto something fl at (needle plate, glass etc.).

The gap between the needle and the fl at surface should be consistent.

Never use a blunt needle. A damaged needle can cause permanent snaps or runs in knits, fi ne silks and silklike fabrics.

Close-up of a hand holding a small metallic object, possibly a nail or tool, against a plain background (no text or symbols visible)

Note: Check the needle frequently for barbed or blunted points.

Close-up of a sewing machine needle stitching a metal sheet on a circular base, with red annotation arrow and letter A pointing to the part (no text or symbols on the machine itself)

Attaching the darning plate

If you want to feed the fabric manually, for instance when stippling, you should use the darning plate (A) that has been provided with your GrandQuilter™.

To attach the darning plate you should start by raising the presser foot lifter. Raise the needle to its highest position by pressing the Needle Up/Down button twice.

⚠️ Switch off the main switch and unplug the machine.

Remove the two set screws and remove the standard needle plate. Put the darning plate in place and secure it with the two set screws.

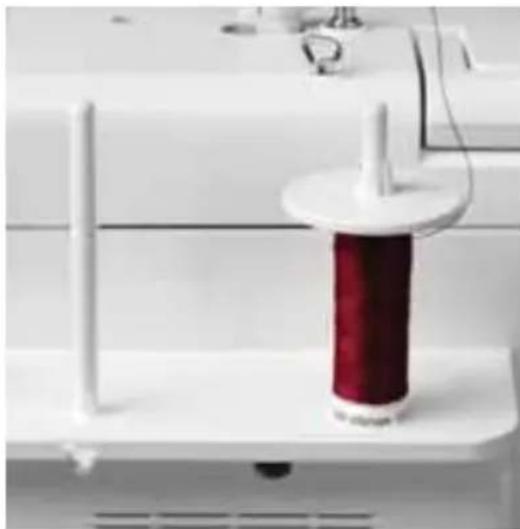

Placing a thread spool on the spool pin

Place a spool of thread on the spool pin and put a large spool cap firmly against the spool. The thread should come off the spool as shown in the picture.

Close-up of a sewing machine with a red thread spool and metal frame (no visible text or symbols)

Close-up of a sewing machine needle with a red thread spool and a black handle, labeled 'B' with an arrow (no text or symbols on the main subject)

Placing a thread cone on the spool pin

If you are using a large thread cone, use a spool holder to hold the cone in place. Put the spool holder (B) on the spool pin, then place the thread cone on the spool holder.

Note: If the spool is wobbly when sewing, cover the thread cone with the net that comes with the machine.

A C B bby 1200 Gran

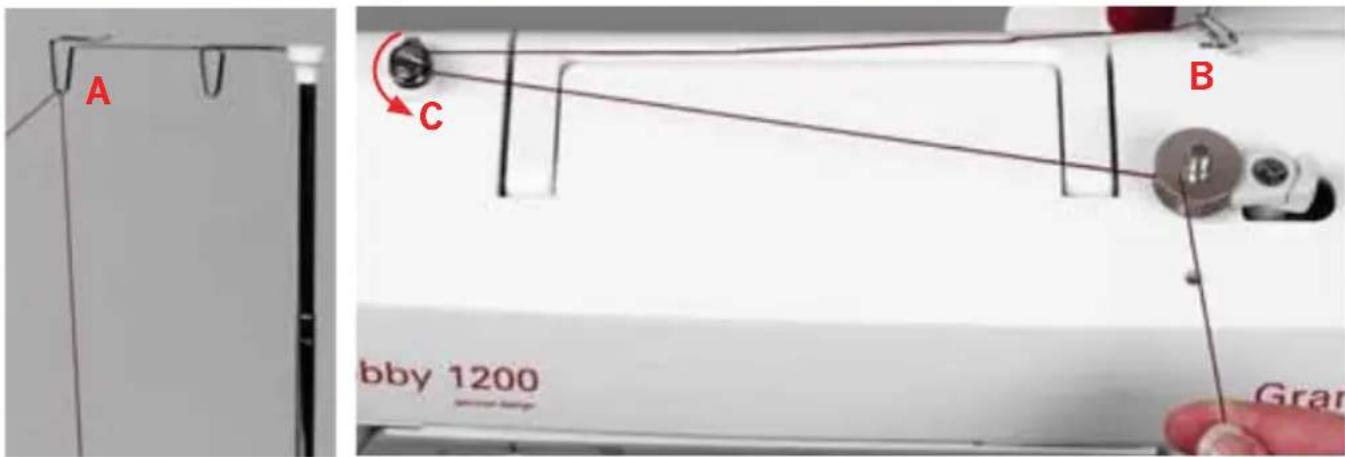

Bobbin winding

1. Pull the thread stand up as far as it will go and turn it around until it clicks into position.
2. Pass the thread through the guide (A) on the thread stand from behind.
3. Pass the thread through the second thread guide (B).
4. Pass the thread under the bobbin winding tension disk (C).
5. Thread through the hole (D) in the bobbin from the inside to the outside. Place the bobbin on the bobbin winder spindle by matching the hole on the bobbin with the spring on the bobbin winder spindle (E).

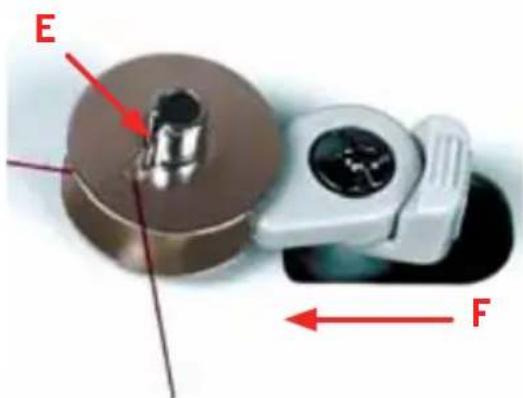

6. Push the bobbin winder stop to the left (F).
7. Hold the end of the thread and press the bobbin winding button. Press the bobbin winding button again to stop the bobbin when it has made several turns, and cut the thread close to the hole in the bobbin.
8. Press the bobbin winding button again. The machine will stop automatically when the bobbin is full and the bobbin winder stop will return to the original position.

D

E F

Two small mechanical components: a red circular brush head with a metallic knob and a white plastic clamp, both placed on a black base (no text or symbols visible)

1. Cut the thread with scissors. Remove the bobbin from the bobbin winder spindle.

Note: This machine has an exclusive motor for bobbin winding, which allows you to wind a bobbin while sewing.

Close-up of a metallic cylindrical mechanical component with red directional arrows indicating motion or force, labeled A and B (no text or symbols beyond labels)

Inserting a bobbin

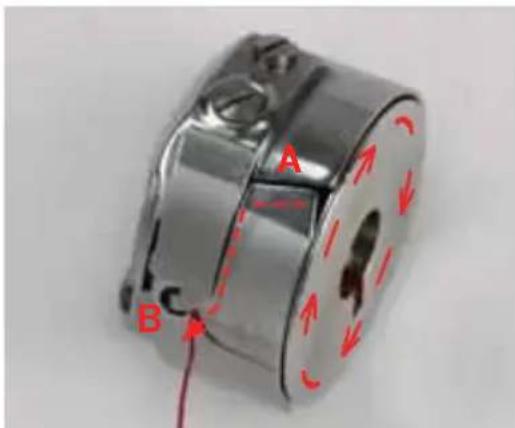

1. Place a bobbin in the bobbin case making sure the thread winds clockwise.
2. Draw the thread through the slit (A) of the bobbin case.
3. Continue to draw the thread under the tension spring and through the opening (B).
4. Pull about 4'' (10cm) of thread.

Inserting a bobbin into the hook

Switch off the main switch nplug the machine.

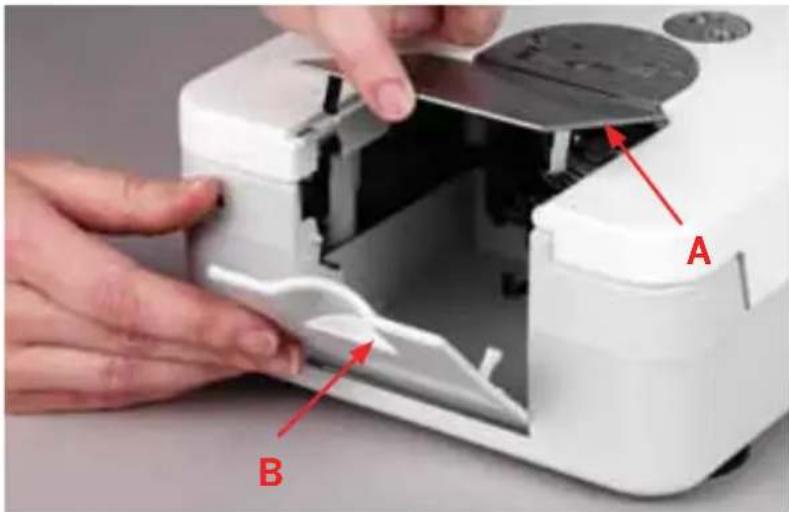

1. Lift the hook cover plate (A) up and remove it. Open the bobbin case cover (B).

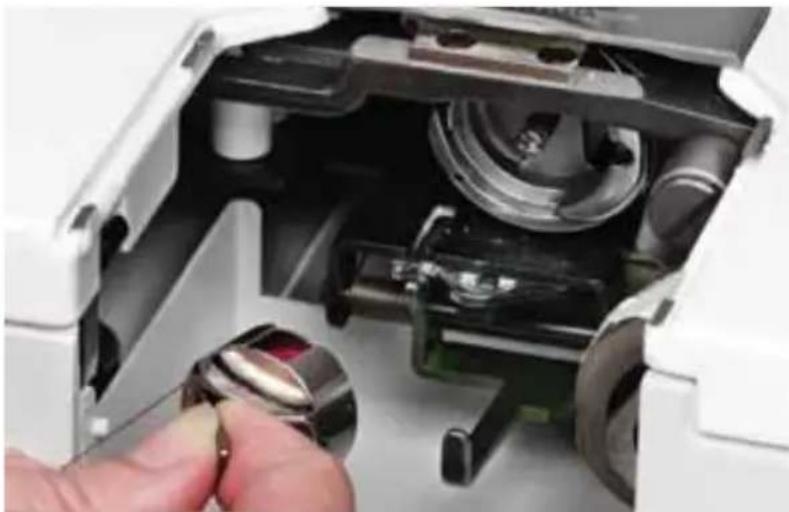

2. Holding the latch on the bobbin case (see picture), position the bobbin case into the hook aligning the slot with the rib. The bobbin case should lock into place when the latch is released.
3. Close the bobbin case cover and the hook cover plate.

To remove bobbin case and bobbin

Switch off the main switch nplug the machine.

1. Raise the needle and presser foot. Lift the hook cover plate (A) up and remove it. Open the bobbin case cover (B).
2. Take the bobbin case out of the hook by pulling the latch and taking the bobbin case straight out of the hook.
3. To remove the bobbin, release the latch, and the bobbin will be released from the bobbin case.

A B

Close-up of a hand inserting a small metallic component into a mechanical device (no visible text or symbols)

A

PFAFF hobb B

Close-up of a white industrial control switch with red motion lines, no visible text or symbols

Threading the machine

1. Raise the presser foot lifter. Press the Needle Up/Down button twice to raise the needle to its highest position.

⚠️ Switch off the main switch and unplug the machine.

1. Place a thread spool on the spool pin.
2. Pass the thread through the guide on the thread guide bar (A) from the behind.
3. Pass the thread through the thread guide (B), then draw the thread between the pre-tenison disks (C).

Note: The standard pre-tension dial setting is for the screw head to sinks about 4 mm (1/8" to 3/16").

If you find that the thread is too loose while sewing, you can pass the thread through all three holes in the guide plate.

Operating your GrandQuilter™

1. Holding the thread with both hands, draw the thread down and around the tension dial from right to left.

2. Pull the thread up to insert it between the tension disks (F) and pass it over the tail of the check spring. Pull the thread down over the loop of the check spring (G).

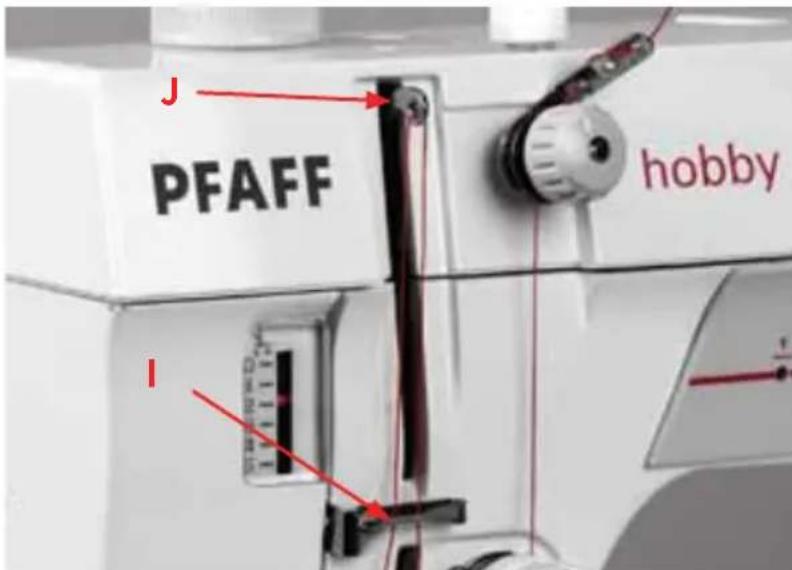

3. Draw the thread under the thread guide (H) and through the second thread guide (I). Pass the thread through the eye of the take-up lever (J).

4. Pass the thread through the thread guide (I) again.

5. Slip the thread into the thread guide (K).

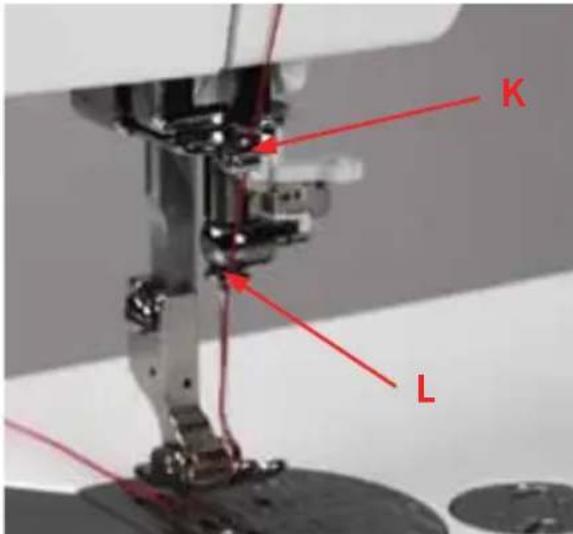

6. Draw the thread down to the needle bar thread guide (L), then pass the thread through the needle eye.

F G 7 5 3 1 2 H

PFAFF hobby

K L

Close-up of a sewing machine needle stitching fabric, with a hand operating the needle (no visible text or symbols)

Needle threader

To make threading the needle easier and quicker you have been provided with a needle threader.

1. Lower the presser foot. Press the needle Up/Down button twice to raise the needle to its highest position.

⚠️ Switch off the main switch and unplug the machine.

1. Move the needle threader completely downwards and turn it towards the needle so that the small hook goes through the needle eye from the right.

A B

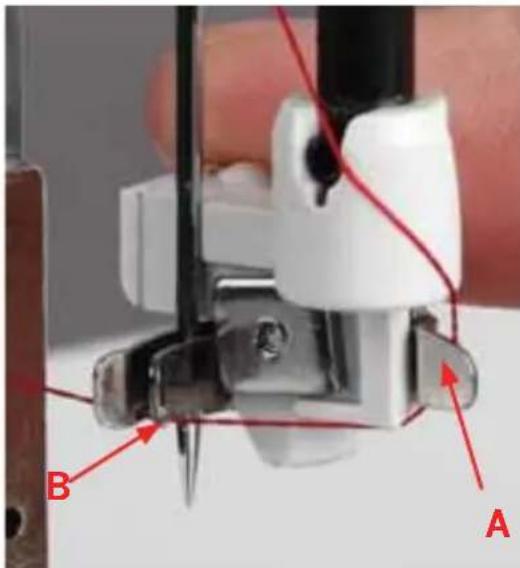

1. Pull the thread from behind around the guide (A) and under the hook (B).

2. Hold the end of the thread with your hand while pulling up the thread lightly.

Technical diagram showing hands operating a sewing machine with red directional arrows indicating motion or movement, and a magnified circular detail showing the thread pattern.

1. Turn the knob (see picture). This will draw a thread loop through the needle. Release the threader knob slowly and then pull the thread loop to the right.

Note: When using the threads below the needle threader may not work.

Needle size	Thread size
9/70	12, 20, 30, 40, 50, 60
11/80	12, 20, 30
14/100	12, 16, 20, 30
16/100	12, 20, 30

Bringing up the bobbin thread

1. Hold the thread with your left hand.
2. Turn the switch on. Press the Needle Up/Down button twice to pick up the bobbin thread.

Simple diagram with a circle and two red arrows pointing downward (no text or symbols)

Switch off the main switch and unplug the ine.

1. Bring the bobbin thread up by pulling the needle thread.
2. Pull 4" (10cm) of both threads back and under the presser foot.

Close-up of a sewing machine needle stitching fabric, no visible text or symbols

Close-up of a mechanical device with a cylindrical component and red wires, no visible text or symbols

Balancing the Thread Tension

The thread tension should be adjusted depending on the sewing materials, layers of fabric and sewing method. To ensure perfect sewing results, the thread tension must be perfectly tuned. Set the required thread tension with the thread tension dial.

Diagram of a mechanical component with multiple rectangular blocks and red curved elements, no text or symbols present.

Balanced tension:

The ideal straight stitch has threads locked between two layers of fabric, as shown in the picture.

Pure diagram of a coiled spring or solenoid without any text, numbers, or symbols

Thread tension is too tight:

If the needle thread tension is too high the threads are interlaced above the top fabric. Loosen the needle thread tension by turning the dial to the left.

Pure diagram of a mechanical or structural component with no text, numbers, or symbols

Thread tension is too loose

If the needle thread tension is too low the threads are interlaced below the lower fabric. Tighten the needle thread tension by turning the dial to the right.

Attaching the extension table

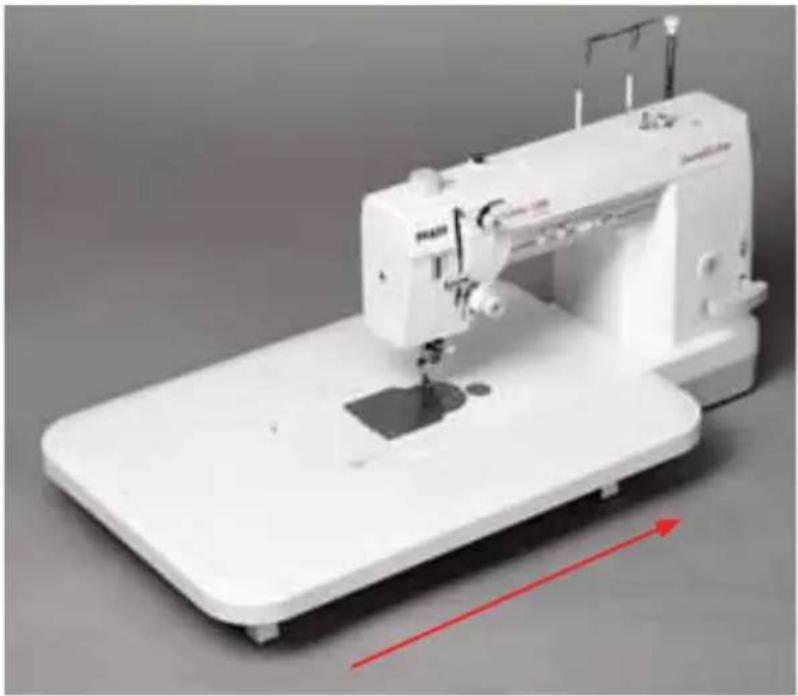

Your GrandQuilter™ has been provided with an extension table to make it easier for you to work with large pieces of fabric.

On the underside of the extension table there are four table legs. Pull them all up to support the table.

Turn the table around and slide the extension table in the direction of the arrow in the picture, onto the machine.

Note : There is small door on the extension table which makes it possible for you to change the bobbin thread without having to remove the table. You can also store the knee lifter on the backside of the extension table.

White sewing machine with red directional arrows indicating movement or force (no visible text or symbols)

Top-down view of a transparent plastic mechanical component with internal cutouts and mounting holes (no text or symbols visible)

Getting started

Blue and white patterned quilt with geometric designs, placed on wooden trays with a teacup (no text or symbols visible)

Getting started to sew

Before you start to sew, try test stitching with the same thread and with the same type of fabric.

1. Raise the presser foot and place the fabric under the foot.
2. Lower the needle into the fabric.
3. Lower the presser foot and pull the threads towards the back.
4. Set the speed control slide to slow until you get used to the speed. Press down on the foot control.
5. Gently guide the fabric along the seam guide letting the fabric feed by itself.
6. Check the sewing result and adjust the needle thread tension if needed.

Note: To lock the beginning of the seam, sew a few stitches forward, then sew a few stitches in reverse, then sew forward again. You can also pull the bobbin thread to bring the needle thread to the wrong side of the fabric. Tie the threads together. Trim the remaining threads.

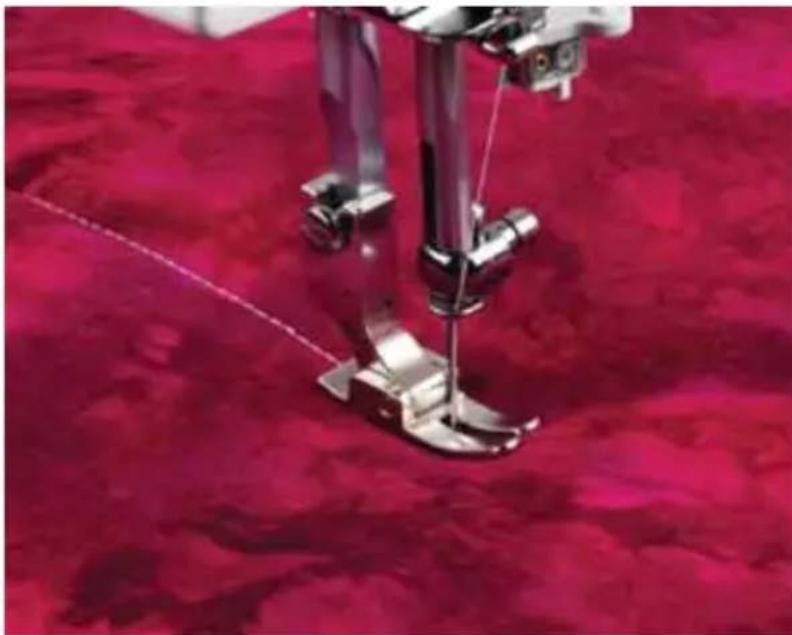

Close-up of a sewing machine needle stitching red fabric, no visible text or symbols

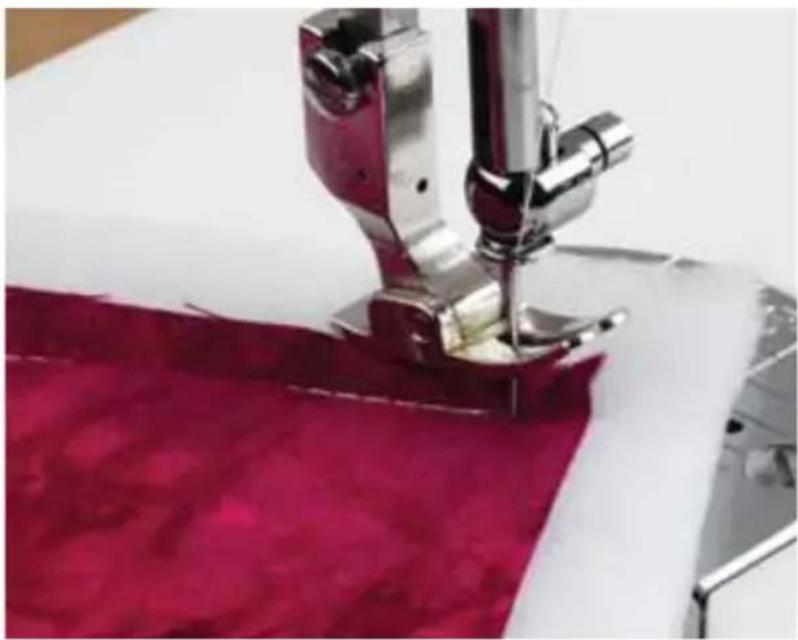

Close-up of a sewing machine needle stitching red fabric, no visible text or symbols

Turning a corner

1. Stop the machine a few stitches before the end of the seam.

2. Press the Needle Up/Down button a few times until the needle falls on the end of the seam.

3. Raise the presser foot.

4. Pivot the fabric around the needle to change the sewing direction.

5. Lower the presser foot and continue sewing in the new direction.

Close-up of a sewing machine needle stitching a red fabric, no visible text or symbols

Using the Fabric Guide

1. Attach the fabric guide to the attachment hole with the screw.

2. Adjust the position of the fabric guide and tighten the screw.

3. Place the fabric with its edge against the fabric guide.

4. Lower the presser foot and start to sew.

How to use the Free-motion foot

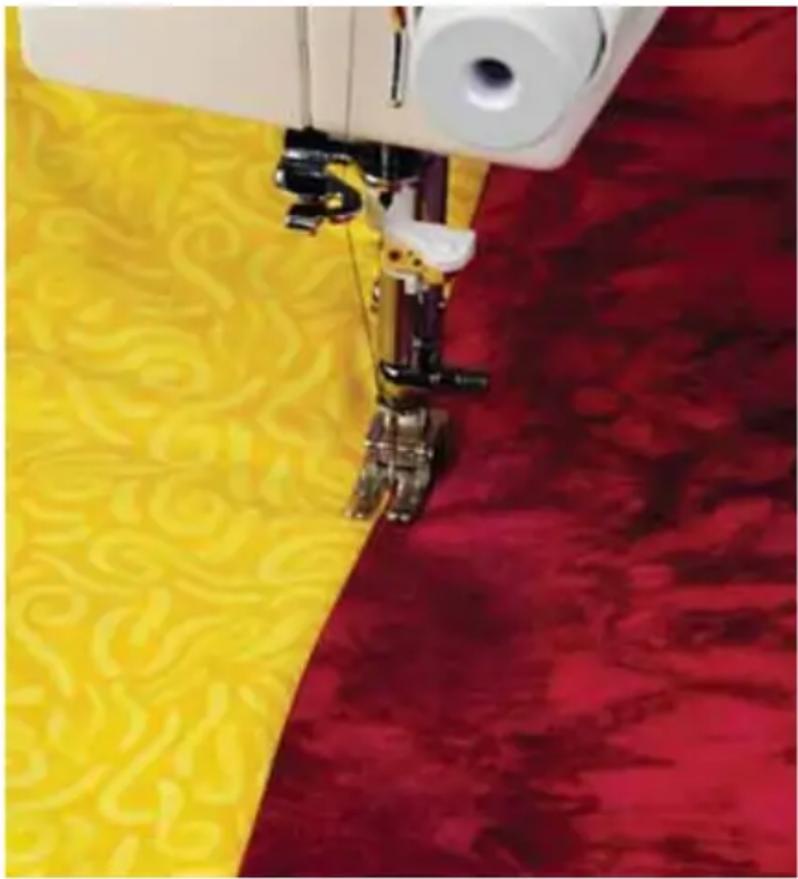

The Free-motion foot can be used when stippling or freehand quilting your quilt.

1. Replace the standard needle plate with the darning plate (A).
2. Attach the Free-motion foot to the presser bar with the lever over the needle clamp.
3. When using this foot, set the speed to the lowest to avoid jumpstitches.
4. Start to sew. Always test sew on a piece scrap fabric.

Close-up of a sewing machine needle stitching a metal sheet, with a red arrow and label 'A' pointing to the base (no text or symbols on the machine itself)

Close-up of a sewing machine needle stitching yellow and red fabric (no text or symbols visible)

Quilting

Quilting is a traditional technique. A quilt consists of three layers, two layers of fabric with a layer of batting sandwiched between.

Stitch-in-the-Ditch

One way to hold the quilt top, batting and backing all together is using the "Stitch-in-the-Ditch" method of quilting. Stitching-in-the-ditch means stitching in the seams in the quilt blocks.

• Prepare your quilt by pin basting through all layers with safety pins - starting from the center of your quilt and working outward. Place a pin about every 6 - 8 inches (15 - 20 cm).
• To begin quilting, start sewing from the middle of the quilt and continue out. Starting from the center and sewing outward will help keep layers in place. Plan which seams you will actually stitch in. This stitching will not only hold the quilt together it will also create the pattern on the quilt back. You do not need to follow every seam in the quilt, sew every 3 – 4 inches to keep the quilt in place. Of course you can sew more to create a more decorative pattern for the back.

Note: Always test sew on scrap fabric before starting to sew to make sure your stitching is proper before you start quilting your piece.

Free-motion Stippling

Free-motion Stippling not only keeps the top, batting and backing together, but it also adds texture and interest to your quilt.

• Replace the standard needle plate with the darning plate.
• Attach the extension table to your sewing machine.
• Attach the Free-motion foot.
• Prepare your quilt by pin basting through all layers with safety pins - starting from the center of your quilt and working outward. Place a pin about every 10 - 12 inches (25 - 30 cm).

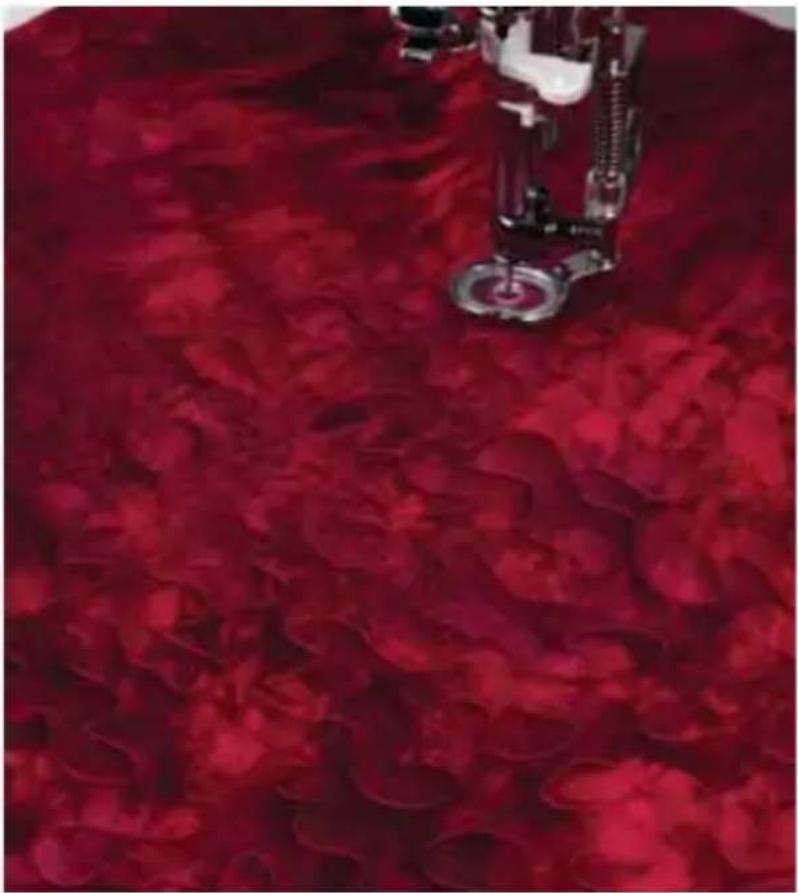

Close-up of a sewing machine stitching a red fabric background (no text or symbols visible)

• Practice stippling on scraps of fabric and batting. When the feed dogs are covered, you move the fabric to determine the stitch length. Sewing with a constant speed will help to keep the stitches even. You should also lower the speed control slide in order to help make the stitches even.
• Begin near the center of your quilt. Take one stitch and pull the bobbin thread to the top of the quilt. Take a few stitches right next to one another to secure the threads. Now move the quilt so that your stitching creates scrolls and swirls. The stitching should not cross itself – but travel in swivling stitches all over the quilt.

Maintenance and troubleshooting

Cleaning the hook and feed dogs

Switch off the main switch unplug the machine.

1. Remove the needle and presser foot.

2. Remove the hook cover plate (A) and open the bobbin case cover (B).

3. Loosen the setscrews (C) and remove the needle plate.

Close-up of hands installing or adjusting a device with labeled parts A and B, showing mechanical components and assembly.

Close-up of a sewing machine needle being adjusted, showing the needle inserted into a mechanical component (no text or symbols visible)

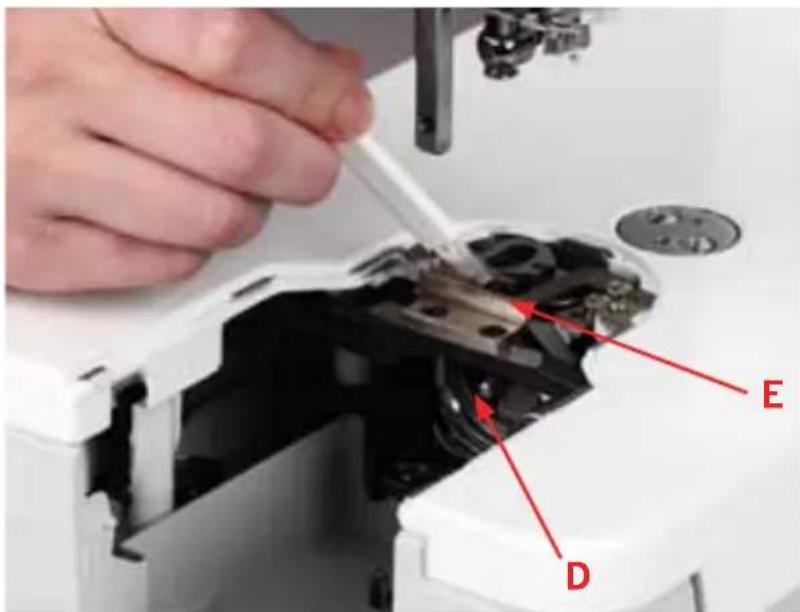

1. Clean the hook (D) and feed dogs (E) with the lint brush.
2. After cleaning the machine, attach the needle plate, needle and presser foot.

Close-up of a sewing machine needle stitching a mechanical component, with labeled parts D and E indicating specific parts.

PFAFF Hobby 1206 GrandQuilter A

Oiling the machine

⚠️ Switch off the main switch and unplug the machine.

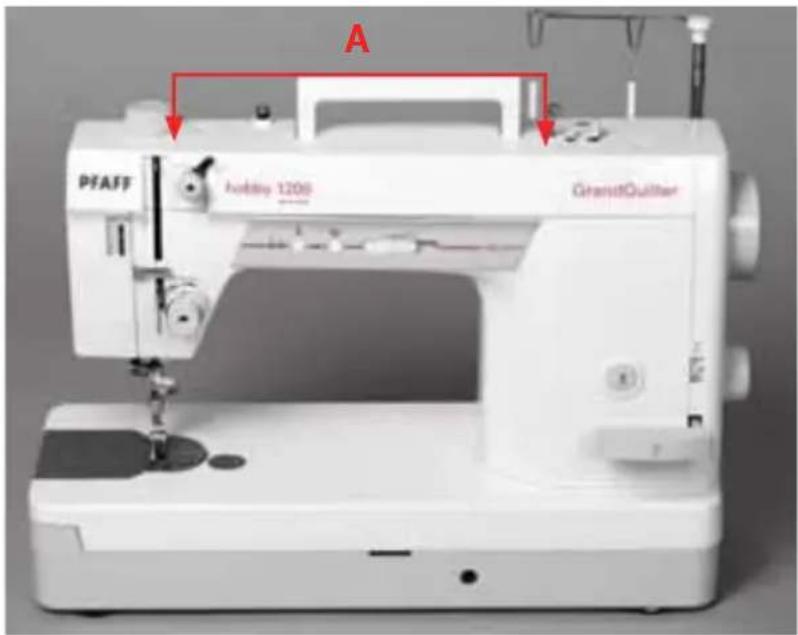

Add two or three drops of oil in the places shown (A), (B) and (C). You should only use the MO 70 sewing machine oil for your GrandQuilter™.

If you use the machine frequently you should oil the machine once a day.

Use a soft, dry cloth to remove excess oil.

B C

When you oil the hook race (B), remove the bobbin case from the hook.

After oiling, sew on a piece of scrap fabric to absorb excess oil.

Changing the light bulb

Switch off the main switch.

If you have used the machine, wait for the lamp to cool before touching it.

Removal:

Remove the setscrew (A).

Remove the face cover (B).

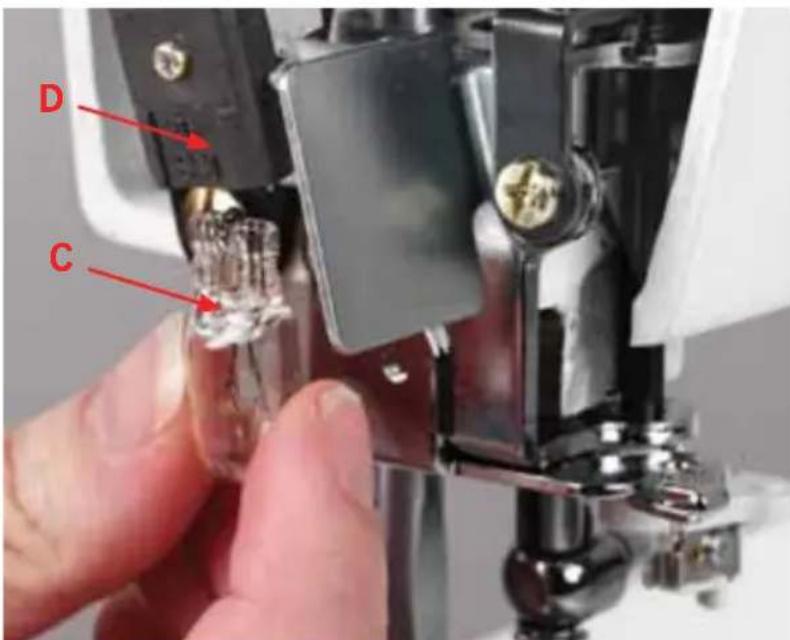

Pull out the light bulb (C) from the lamp socket (D).

Insertion:

Insert a new light bulb into the opening of the socket (D).

Attach the face cover (B) with the setscrew.

Note: Replace the bulb with the same type, rated 12 V, 5 W.

PFAFF B A

D C

Troubleshooting

The needle thread breaks.

The needle thread is not threaded properly. Page 21-23

The needle thread tension is too tight. Page 25

The needle is bent or blunt. Page 16

The needle is incorrectly inserted. Page 16

The needle thread and the bobbin thread are not set under the presser foot when starting sewing. Page 24

The threads were not pulled to the rear after sewing. Page 24

The thread is too heavy or too fine for the needle. Page 8

The bobbin thread breaks

The bobbin thread is not threaded properly in the bobbin page 19 holder.

Lint has collected in the bobbin holder. Page 34

The bobbin is damaged and does not turn smoothly. Change the bobbin

The needle breaks

The needle is incorrectly inserted, bent or blunt. Page 16

The needle clamp screw is loose. Page 16

The threads were not pulled to the rear after sewing. Page 24

The needle is too fine for the fabric being used. Page 8

The needle and/or threads are not suitable for the work Page 8 being sewn.

The machine skips stitches

The needle is incorrectly inserted, bent or blunt. Page 16

The needle thread is not threaded properly. Page 21-23

A poor quality needle is used. Change the needle

The needle thread tension is too tight. Page 25

The needle and/or fabrics are not suitable for the work being sewn. Page 8

Seam puckering

The needle thread is not threaded properly. Page 21-23

The needle is too heavy for the fabric being sewn. Page 8

The stitch length is too long for the fabric. Page 14

The needle thread tension is too tight. Page 25

The cloth is not fed smoothly

The feed dog is packed with lint. Page 34

The stitches are too fine. Page 14

Loops on the seams

The needle thread tension is too loose. Page 25

The needle is too thick or too fine for the fabric. Page 8

The machine does not sew or run

The machine is not plugged in. Page 11

Thread has been caught in the hook race. Page 34

The machine is noisy

Thread has been caught in the hook race. Page 34

Lint has built up in the hook race or bobbin holder. Page 34

The machine needs oiling. Page 35

Important notes: Before changing presser foot and needle you must turn the main switch off. Do not attempt to sew without fabric under the presser foot.

When leaving the machine, even for only a short time, switch off the main switch.

This is important if there are any children nearby.

Index

A

Accessories 6-7

Accessories box 6

Attaching the darning plate 17

Attaching the extension table 26

Attaching the knee lift 15

B

Balancing the thread tension 25

Bobbin 6, 13, 18-20

Bobbin case 19-20

Bobbin winding 13, 18-19

Bobbin winding button 13

Bobbin case cover 20

Bringing up the bobbin thread 24

Brush 6,34

Bulb 36

C

Carrying handle 10

Changing the light bulb 36

Changing the needle 16

Changing the presser foot 16

Cleaning the hook and feed dogs 34

Connecting the foot control 11

D

Darning plate 17,30

E

Electrical connection 11

Extension table 26

Extra accessories 7

F

Feed dogs 17,34

Foot control 11-12

Free-motion foot 6,30

Free-motion stippling 32

G

Getting started to sew 28

H

Hook 20,34-35

Hook cover plate 4-5, 20, 34

I

Inserting a bobbin 19

Inserting a bobbin into the hook 20

K

Knee lift 15,26

L

Leather foot 7

Light bulb 36

M

Machine overview 4-5

Maintenance 33

Main switch 4-5, 11, 16-17, 20-21, 23-24, 34-36

N

Needle 4-6,

Needle chart 8

Needle plate 4-5, 16

Needle size 8

Needle treader 23

Needle Up/Down 13

O

Oil 6,35

Oiling the machine 35

Overview

P

Placing a tread cone on the spool pin 17

Pressure dial 15

Presser foot 4-5, 16

Presser foot lift 14

Problems and solutions 37-38

Q

Quilting 31

R

Raise presser foot 14, 15

Remove the bobbin case and bobbin 20

Reverse lever 14

Revers sewing 14

Rolled hem foot 7

S

Sewing speed 8 12

Silk foot 7

Soft cover 10

Speed control slide 12

Spool pin 4-5,17

Spool cap 6,17

Standard accessories 6

Stippling 32

Stitch balance 25

Stitch-in-the-ditch 31

Stich length 14

^4-5 Stitch length dial 14

T

Thread cone 6,17

Thread cutter 4-5,13

Thread guide 4-5, 18-19, 21-22

Thread spool 17

Thread tension 21-22, 25

Threading the machine 21-22

Troubleshooting 37-38

Turning a corner 13,29

U

Using the Fabric guide 29

V

Velvet foot 7

W

Walking foot 7

Z

Zipper foot 7

We reserve the right to change the machine equipment and assortment of accessories without prior notice, or make modifications to the performance or design.

Such modifi cations, however, will always be to the benefit of the user and the product.

Intellectual Property

PFAFF and GRANDQUILTER are trademarks of KSIN Luxembourg II, S.ar.l.

All trademarks are used under license by VSM Group AB.

Simple line drawing of a trash bin with two crossed lines and a black bar below (no text or symbols)

Please note that on disposal, this product must be safely recycled in accordance with relevant National legislation relating to electrical/electronic products. If in doubt please contact your retailer for guidance.
