USER MANUAL PTR2500 MAKITA

Technical line drawing of a mechanical tool or device with a coiled spring and lever mechanism (no text or symbols)

Important:

Read this instruction manual thoroughly before using the Pole Hedge Trimmer and follow the safety regulations carefully. Be sure to keep this instruction manual for future reference.

Important:

Thank you very much for choosing the MAKITA Pole Hedge Trimmer. We are pleased to offer you a product that is the result of an extensive development program and many years of knowledge and experience. To safely obtain the best possible results from your MAKITA Pole Hedge Trimmer, please read this manual thoroughly before using the machine, and follow all instructions given herein to assure proper operation of the MAKITA Pole Hedge Trimmer.

Table of Contents Page

Symbols 2

Safety instructions 3\~6

Specifications 7

Parts Breakdown 8

Connecting the trimmer unit to the pole 9

Attaching the handle 9

Using the shoulder strap 9

Fuel/refueling 10

Precautions before starting the engine 11

Starting the engine 11

Stopping the engine 12

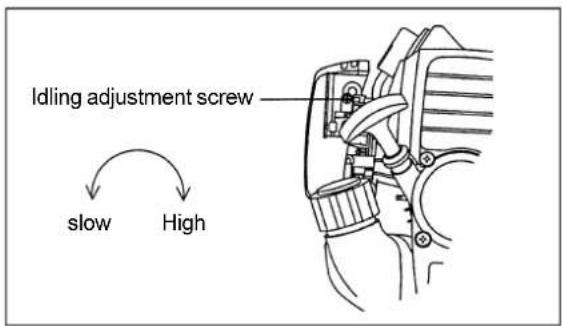

Checking and adjusting the idling speed 12

Operating the Pole Hedge Trimmer 13\~14

Maintenance 14\~16

Storage 17

Maintenance schedule 17

Troubleshooting 17

SYMBOLS

Please note the following symbols when reading this instruction manual

WARNING/DANGER

Before usage, carefully read and fully understand the instructions in this manual

PROHIBITION

No smoking

No naked flame

Wear protective shoes

Wear protective gloves

Keep working area clear of persons and pets

Wear a protective helmet and eye and ear protection

Beware of pinching

Beware of electrical lines, risk of electrical shock

Gasoline/oil mixture

Engine manual-start

Emergency stop

First aid

Recyclable

ON/START

OFF/STOP

CE-mark

SAFETY INSTRUCTIONS

General Instructions

• Before usage, carefully read this manual and thoroughly familiarize yourself with how to correctly handle the pole hedge trimmer. THIS EQUIPMENT CAN CAUSE SERIOUS INJURY IF USED IMPROPERLY!
• Always provide detailed instructions on how to correctly use the pole hedge trimmer when lending the equipment to another person. Make sure that the instruction manual is handed over together with the pole hedge trimmer.
• First-time users should ask their dealer for basic instructions on the correct handling of the pole hedge trimmer.
• Store this manual in a location where it is easily accessible for quick reference.
• Do not allow persons under the age of 18 to operate the pole hedge trimmer. Individuals over 16 years old, however, may use the pole hedge trimmer for training purposes if under the constant supervision of an adult familiar with the operation of the pole hedge trimmer.
• Always use the pole hedge trimmer with the utmost care and attention.
• Serious injury may result if the pole hedge trimmer is used in the following circumstances. Do not use the pole hedge trimmer:

- When feeling tired or ill.

• After consumption of alcohol and/or medication.
- At night or in poor lighting conditions.
• During pregnancy.

Intended use

- This pole hedge trimmer has been designed for the sole purpose of trimming hedges and bushes with a maximum branch diameter of 6 mm. Do not use the trimmer for any other purposes.

Personal protective equipment

• Clothes worn should be functional and tight-fitting without restricting movement. Do not wear clothing or jewelry that could get entangled in underbrush or in the machine.
• For adequate protection against injuries to head, eyes, feet, hands, as well as hearing impairment, the following protective equipment and clothing must be used when working with the pole hedge trimmer.

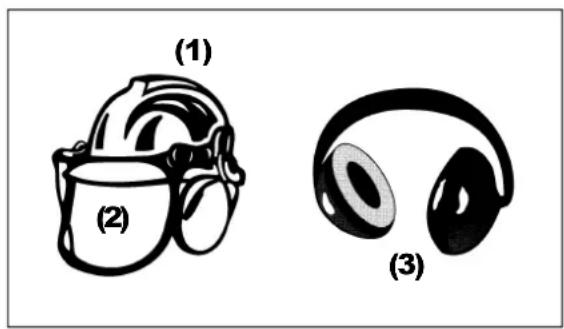

• To prevent injury to the head or the eyes, always wear a protective helmet (1) with goggles or a visor (2).
• To avoid hearing impairment, wear adequate ear defenders (3) at all times.
• Use of a well-fitting work overalls (4) is strongly recommended.
• Always wear rugged, leather working gloves (5) when operating the pole hedge trimmer.
• When using the pole hedge trimmer, always wear sturdy shoes (6) with a non-slip sole. Special work shoes ensure good footing and protect against injury.

Abstract black-and-white illustration of a wine bottle crossed with a knife, accompanied by small bottles (no text or symbols)

(1)

Simple line drawing of a helmet with label (2) and no text or symbols beyond the number

(3)

Illustration of a person in military-style uniform and cap, standing with one hand extended (no text or symbols)

(4)

(5)(6)

Starting the Pole Hedge Trimmer

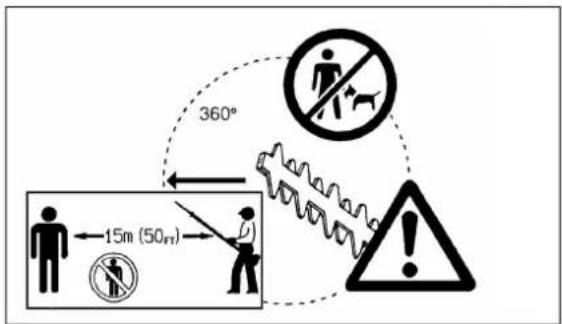

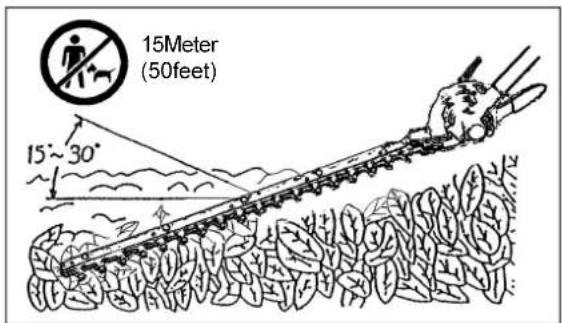

• At all times allow a 15-meter diameter safety zone around the working area. Make sure that all persons (in particular children) and/or animals remain outside this zone. In general, avoid using the hedge trimmer whenever people (in particular children) are nearby.
• Before starting the Pole Hedge Trimmer, always make sure that the machine is in safe operational condition.

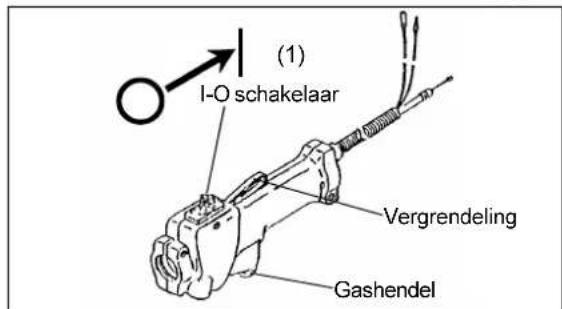

• Check the operation of the throttle lever safety mechanism. The lock-off lever should have a smooth and easy action. Make sure that the lock-off lever functions properly. Check that the handles are clean and dry and test the STOP switch to ensure that it is functioning properly.

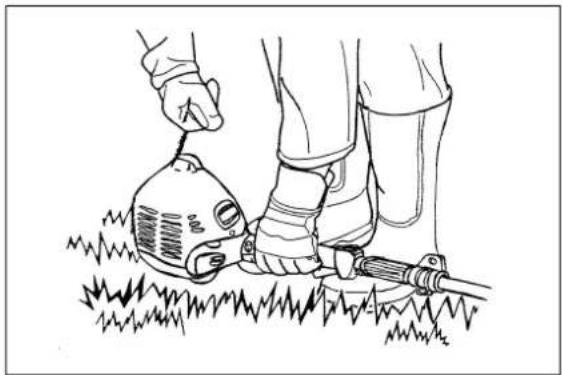

Always start the pole hedge trimmer in accordance with the directions provided in this instruction manual.

Follow the instructions below to start the pole hedge trimmer

• Start the pole hedge trimmer only after the machine has been completely assembled and all accessory parts have been attached.
• Before starting the engine, make sure that cutter blades are not obstructed by any foreign objects such as stones, branches, etc.
• Stop the engine immediately if engine problems occur.
• When operating the pole hedge trimmer, always maintain a firm grip on both handles. Wrap your fingers tightly around each handle, cradling the handle between thumb and forefinger. To keep the pole hedge trimmer under control at all times, avoid changing your grip during operation. Make sure that the control handles are in good condition and free of moisture, mud, oil or grease.

Always ensure secure and well-balanced footing

• Only use the pole hedge trimmer outdoors.
• Always stop the engine immediately and discontinue operation if engine trouble occurs or if the machine starts making unusual noise.
• Exhaust fumes are poisonous. Never operate the machine in an enclosed room or tunnel without ventilation (risk of suffocation and gas poisoning). Note that carbon monoxide is an odorless gas. Always make sure that areas where the engine is operated are adequately ventilated.
• Stop the engine when resting, or when the pole hedge trimmer is left unattended. Place the machine in a safe location and make sure that no combustible material is nearby.

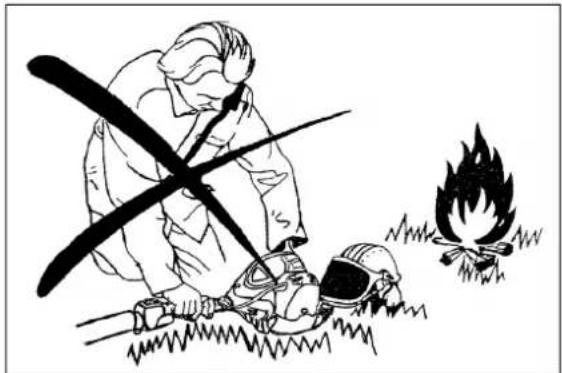

- Never place a hot hedge trimmer onto dry grass or combustible material.

- To reduce the risk of fire, keep the engine and muffler free of debris, leaves or excessive lubricant.

- Never operate the engine if the muffler is malfunctioning.

- Turn off the engine before transportation.

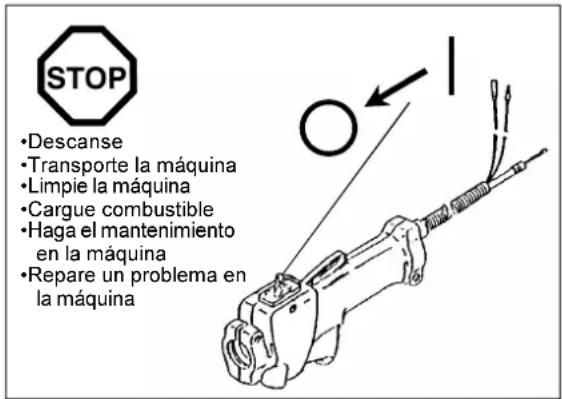

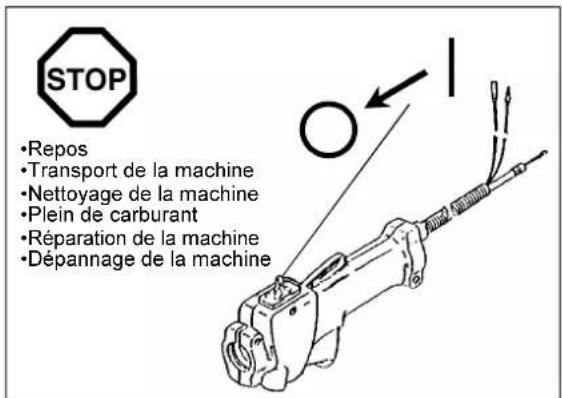

- Always stop the engine in the following circumstances. When: •Resting

• Transporting the machine
• Cleaning the machine
  •Refueling the machine
  •Performing maintenance on the machine
  •Fixing a problem with the machine

- When transporting the machine in a vehicle, always securely attach the pole hedge trimmer to avoid leakage of residual fuel.

- Always empty the fuel tank before transporting the pole hedge trimmer in a vehicle.

- When unloading the machine from a vehicle, take extra care not to drop the pole hedge trimmer to the ground, as this may seriously damage the fuel tank.

- Except in an emergency, never drop the pole hedge trimmer as this may seriously damage the machine.

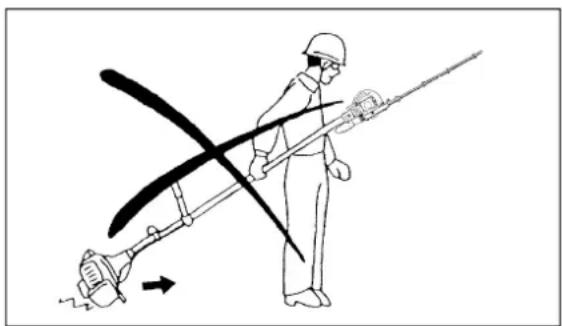

- When transporting the pole hedge trimmer, always lift the machine completely off of the ground. Never drag the engine across the ground as this may damage the fuel tank and possibly cause a fire.

- Always use the cutter cover provided to protect and secure the cutting section of the pole hedge trimmer during transportation and storage.

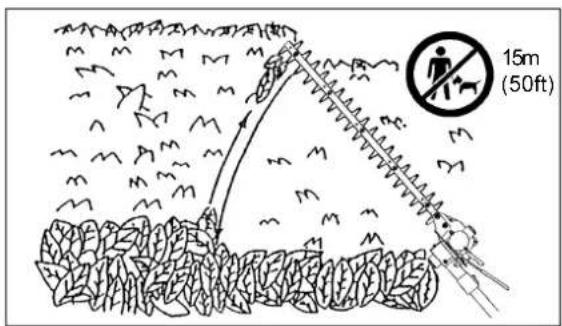

360° 15m (50ft) No pedestrian crossing Warning !

Line drawing of a person using a power tool on grass, no text or symbols present

STOP •Resting •Transporting the machine •Cleaning the machine •Refueling the machine •Performing maintenance on the machine •Fixing a problem with the machine

Illustration of a person using a manual power tool to lift a blade, with an arrow indicating motion (no text or symbols)

Refueling

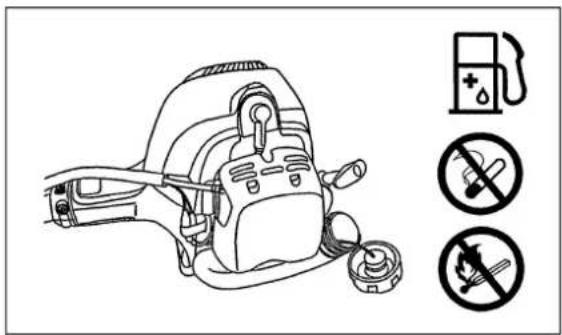

• Before refueling, stop the engine.

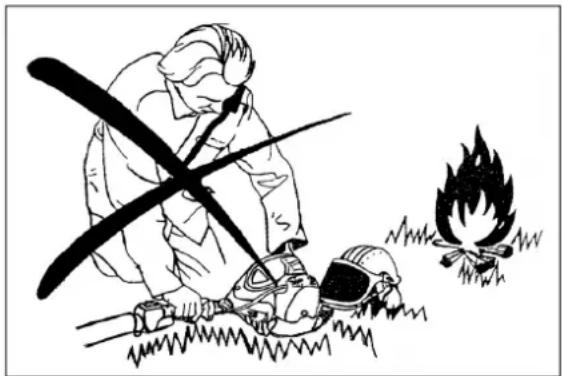

• Never refuel near naked flames
• Do not smoke when refueling.
• Always allow sufficient time for the engine to cool down before refueling.
• Take care not to let your skin come into contact with petroleum products. Do not inhale gasoline fumes and always wear protective gloves when refueling. Change and clean protective wear at regular intervals.
• Take extra care to avoid spilling gasoline and oil in order to avoid contamination of the ground (environmental protection). If gasoline or oil has been spilled onto the hedge trimmer, immediately wipe the surface of the hedge trimmer with a rag. To avoid spontaneous combustion, allow wet rags to dry sufficiently before discarding them into an appropriate, covered container.
• Make sure that no fuel comes in contact with your clothing. Change fuel-contaminated clothing immediately (fire hazard).

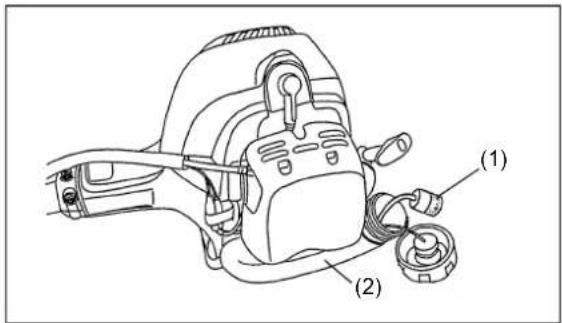

• Close the fuel tank and tighten the fuel tank cap securely. To restart the engine, transfer the pole hedge trimmer to a location at least 3 meters away from the place of refueling.
• Check the fuel tank cap at regular intervals to make sure that the cap is securely fastened.

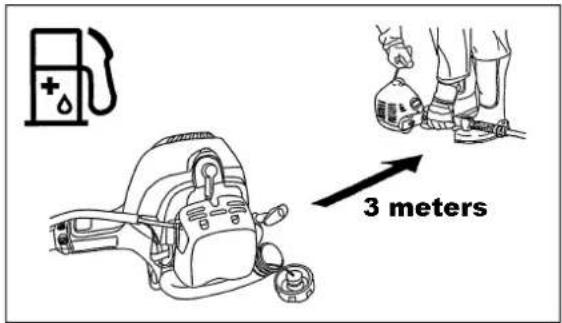

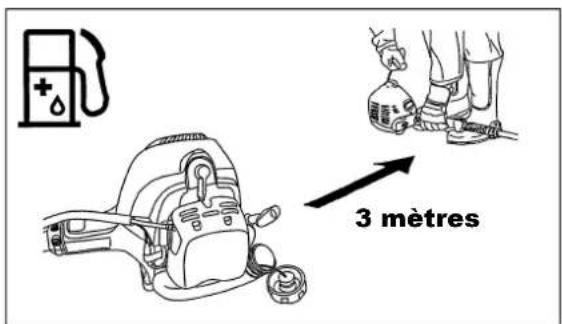

• Never refuel the machine in an enclosed room. Fuel vapors accumulate at ground level (risk of explosion).
• Store fuel in appropriate containers only, and make sure that stored fuel is out of the reach of children.
• To prevent damage to fuel lines and engine parts, avoid using gasoline that contains ethanol or methanol (types of alcohol) when mixing gasoline with two-stroke engine oil.

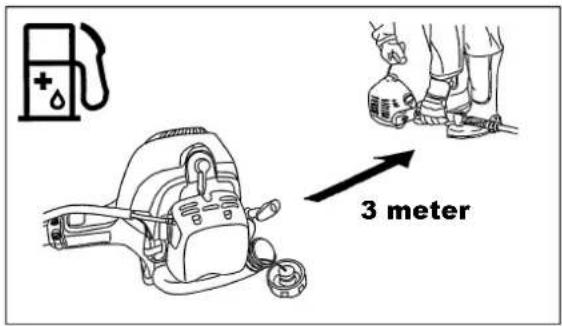

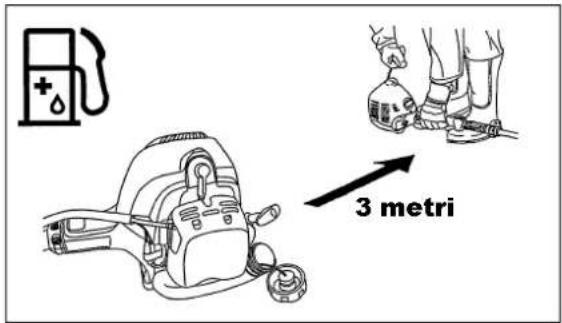

Diagram showing car seatbelt with fuel pump and three prohibition symbols for electric shock hazard

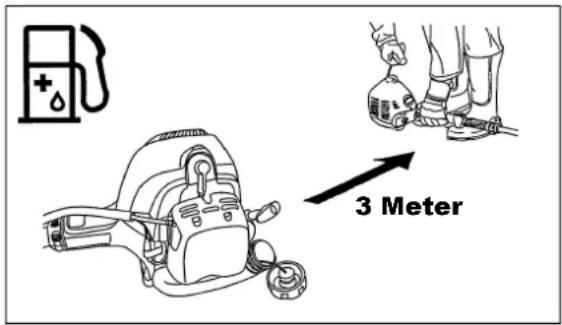

3 meters

Operation

• During operation, hold the pole hedge trimmer with both hands at all times.
• Only use the pole hedge trimmer in good light and visibility conditions. Beware of slippery and wet areas (ice and snow) during the cold season (danger of slipping), and always ensure secure footing.
• Never use the pole hedge trimmer while standing on an unstable surface or a steep slope.
• Never use the pole hedge trimmer while standing on a ladder.
• Never climb a tree to use the pole hedge trimmer from the tree.
• To avoid stumbling or falling over objects, never walk backwards when working with the pole hedge trimmer.
• Always stop the engine before cleaning or servicing the machine. Also, refrain from replacing parts before the engine has been stopped.
• Do not operate the pole hedge trimmer if the cutting unit is damaged or worn.

Warning symbol image with exclamation mark inside a triangle

Illustration of a person in protective gear using a tool to cut a fire with smoke nearby (no text or symbols)

Maintenance instructions

• Always do your utmost to keep pollution and noise emissions as low as possible when operating the pole hedge trimmer. Pay special attention to correct adjustment of the carburetor.
• Clean the hedge trimmer at regular intervals and periodically check whether all nuts and bolts are securely tightened.
• Never service or store the pole hedge trimmer in the vicinity of naked flames, sparks, etc.

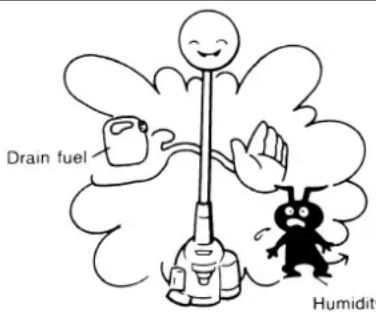

• Empty the fuel tank before storage, and always store the pole hedge trimmer in a well-ventilated locked room. Make sure the pole hedge trimmer is out of children's reach at all times.
• To prevent further damage and/or personal injury, refrain from repairing a malfunctioning pole hedge trimmer if not qualified to do so. For repairs always contact your dealer or an authorized service agent.

Do not attempt to modify or remodel the pole hedge trimmer as this may affect operation safety.

Maintenance work that can be performed by the user is limited to the activities described in this instruction manual. Any other procedures are to be executed by an authorized service agent.

Use only genuine spare parts and accessories supplied by MAKITA via authorized service centers.

Use of unauthorized accessories and tools may increase the risk of accident and injury. MAKITA accepts no liability whatsoever for accidents or damage resulting from the use of unauthorized accessories and parts.

First aid

As a precaution for the occurrence of an accident, make sure that a fully stocked first aid kit is ready at hand.

Replace any items taken from the first aid kit as soon as possible.

When asking for help in the case of an emergency, give the following information:

• Place of accident
  • What happened
  • Number of injured people
• Extent of injuries
• Your name

Packaging

The pole hedge trimmer is delivered in a protective cardboard box to prevent damage during shipping. Cardboard is a basic raw material that can be reused and recycled (waste paper recycling).

Black square with a white cross symbol in the center (no text or numbers)

EC-DECLARATION OF CONFORMITY

Model; PTR2500

We declare under our sole responsibility that this product is in compliance with the following standards of standardized documents, ISO11806, EN774, ISO11680, EN55012 in accordance with Council Directives, 89/392/EEC, amended 98/37/EEC, 93/68/EEC, 89/336/EEC, amended 92/31/EEC.

Measured Sound Power: 106 dB

Guarantee Sound Power: 108 dB

These sound power levels wear measured in accordance with Council Directive, 2000/14/EC.

Conformity assessment procedure: Annex V.

CE2007

Tomoyasu Kato
Director

Responsible Manufacturer:

Makita Corporation.

3-11-8, Sumiyoshi-cho, Anjo, Aichi, JAPAN

Authorized Representative in Europe:

Makita International Europe Ltd.

Michigan Drive, Tongwell, Milton kynes, Bucks MK15 8JD, ENGLAND

TECHNICAL DATA : PTR2500

Model			PTR2500
			Loop handle and Grip handle
Dimensions (L x W x H) mm 2400 x 350 x 220
Mass kg			6.1
Volume (fuel tank) L 0.65
Cutting length mm 535
Engine displacement cm^3 24.5
Maximum engine performance 0.75 kW at 7000 min			-1
Engine speed min -1At recommended max, spindle speed			10,000
Fuel consumption kg/h 0.54
Specific fuel consumption g/kWh 735
Idling speed min^-1			3000
Clutch engagement speed min^-1			4100
Carburetor type(Diaphragm carburetor)			WALBRO WYJ
Ignition system type			Solid state ignition
Spark plug type			NGK BMR7A

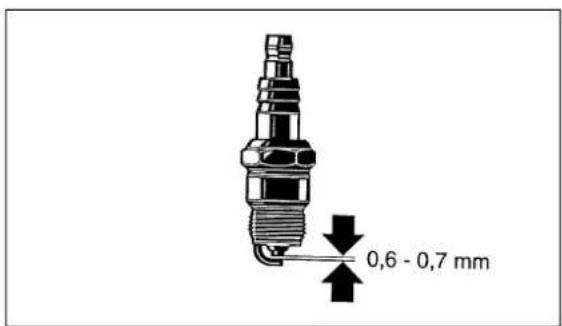

Electrode gap mm 0.6-0.7
Vibration per ISO7916	Right handle (rear grip)	Idling m/s^2	3.63
		Racing m/s^2	8.01
	Left handle (handle)	Idling m/s^2	7.24
		Racing m/s^2	12.00
	Left handle (front grip)	Idling m/s^2	4.74
		Racing m/s^2	8.44
Vibration per ISO11680	Right handle (rear grip)	Idling m/s^2	4.41
		Racing m/s^2	7.81
	Left handle (handle)	Idling m/s^2	11.76
		Racing m/s^2	13.65
	Left handle (front grip)	Idling m/s^2	4.36
		Racing m/s^2	8.23
Sound pressure level average		ISO7917 dB (A) 90.0
Sound power level average		ISO10884 dB (A)	102.8
Mixture ratio (Fuel: MAKITA 2-stroke oil)			50:1
Gear ratio			1/4

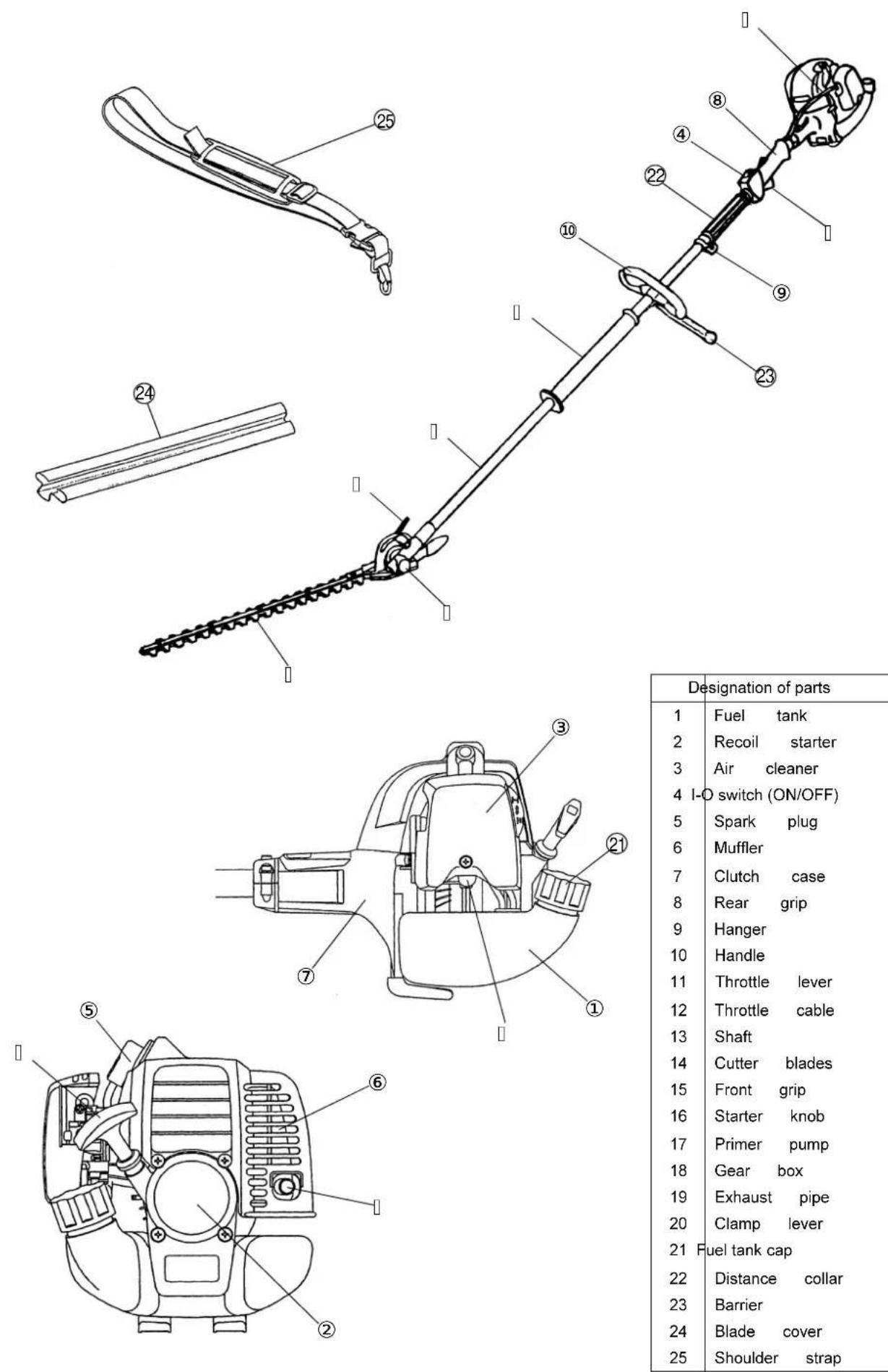

DESIGNATION OF PARTS

Designation of parts
1	Fuel tank
2	Recoil starter
3	Air cleaner

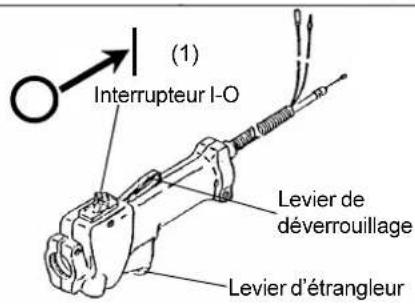

4 I-O switch (ON/OFF)
5	Spark plug
6	Muffler
7	Clutch case
8	Rear grip
9	Hanger
10	Handle
11	Throttle lever
12	Throttle cable
13	Shaft
14	Cutter blades
15	Front grip
16	Starter knob
17	Primer pump
18	Gear box
19	Exhaust pipe
20	Clamp lever
21 Fuel tank cap
22	Distance collar
23	Barrier
24	Blade cover
25	Shoulder strap

CONNECTING THE TRIMMER UNIT TO THE POLE

Important:

Make sure that the engine is turned off, and remove the spark plug cap before assembling the pole hedge trimmer.

Wear protective gloves!

Secure blades with the blade cover provided when connecting the trimmer unit to the pole.

- Loosen the M5x10 screw and M5x25 bolt.

- Insert shaft into gear case

NOTE: Make sure that the shaft is completely inserted into the gear case (approx. 40mm/1.57").

If you are having trouble inserting the shaft, manually rotate the drive axle a little and try again.

- Confirm that the shaft is properly inserted and then tighten the M5x10 screw and the M5x25 bolt.

ATTACHING THE HANDLE

• Attach the protective barrier together with the handle so that the barrier juts out to the left as viewed from the operating position.
• Make sure not to set the handle too close to the control grip (use the distance collar provided for this purpose).

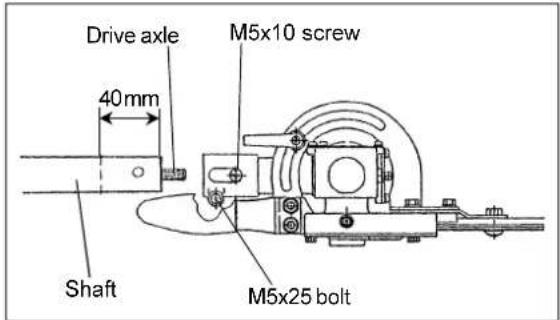

Drive axle 40mm M5x10 screw Shaft M5x25 bolt

to engine

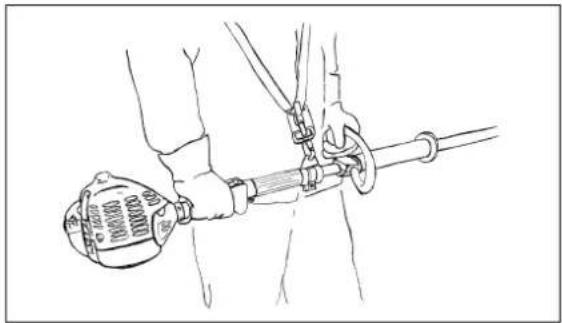

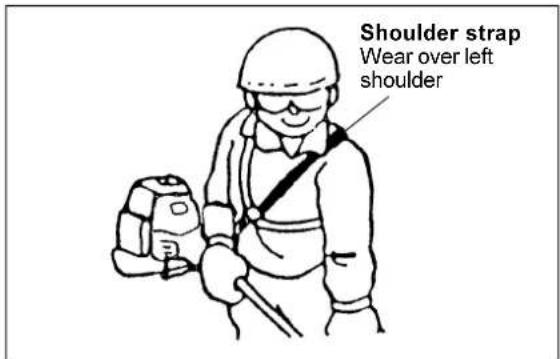

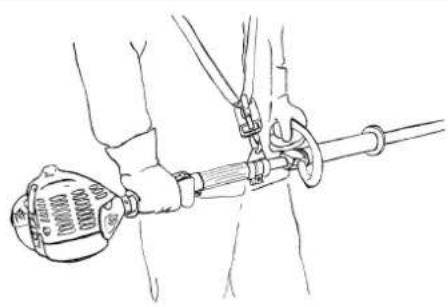

How to wear the shoulder strap

• Wear the shoulder strap over the left shoulder.
• Keep the pole hedge trimmer unit on the right hand side of the body.
• Attach the strap to the fitting provided on the pole hedge trimmer and adjust the length of the strap to attain a comfortable working position.

Shoulder strap Wear over left shoulder

Detachment

- In an emergency, push the notches (1) at both sides, and you can detach the machine from you. Be extremely careful to maintain control of the machine at this time. Do not allow the machine to be deflected toward you or anyone in the work vicinity.

WARNING: Failure to maintain complete control of the machine at all could result in serious bodily injury or DEATH.

(1) Hanger

FUEL|REFUELING

Gasoline/oil mixture

• The engine of the pole hedge trimmer is a highly efficient two-stroke engine that runs on a mixture of gasoline and two-stroke engine oil. The engine is designed to use regular unleaded gasoline with a min. octane value of 91 ROZ. If such gasoline is not obtainable, instead use gasoline with the highest octane value available. This will not cause any damage to the engine, but may result in poor engine performance. Similar results are to be expected when leaded gasoline is used. To obtain optimal engine performance, and for the sake of human health and the environment, where possible use unleaded fuel.
• Two-stroke engine oil (quality grade: TSC-3) must be added to the gasoline in order to lubricate the engine. The engine has been designed to use environment-friendly MAKITA 2-stroke oil, which is to be mixed at a ratio of 50:1. This specially developed oil ensures prolonged engine service life and reliable engine performance with an absolute minimum of exhaust gas emissions. It is imperative to strictly observe the 50:1 mixture (Gasoline/MAKITA 2-stroke oil), as reliable performance of the pole hedge trimmer cannot be guaranteed otherwise.
• Correct gasoline/oil mixture:

Mix 50 parts gasoline with 1 part MAKITA 2-stroke engine oil (see also table on the right).

NOTE: When preparing the gasoline/oil mixture, first mix all of the amount of oil required with half the amount of gasoline required. Add the remaining gasoline and shake the mixture well before replenishing the tank. Do not add more oil then prescribed. If too much oil is added this will produce additional combustion residue, thus polluting the environment and clogging the muffler and the cylinder exhaust channel. In addition, overall fuel consumption will also increase and poorer engine performance is to be expected.

Handling of petroleum products

Always handle fuel with the utmost care and attention. Since fuel contains substances similar to solvents, refueling must be done outdoors or in well-ventilated areas. Do not inhale gasoline fumes and avoid any skin contact with gasoline or oil. Human skin will dry out if in contact with petroleum over an extended period of time. This may result in various skin diseases and allergic reactions.

Gasoline or oil coming into contact with the eyes can cause severe eye irritation. Should gasoline or oil come into contact with your eyes, immediately rinse your eyes with large amounts of clean water. Do not hesitate to see a doctor if irritation persists.

Warning symbol with exclamation mark inside a triangle

Observe the Safety Instructions on page 5

GasolineOil	+
1000mL(1L)5000mL(5L)10000mL(10L)		20mL100mL200mL

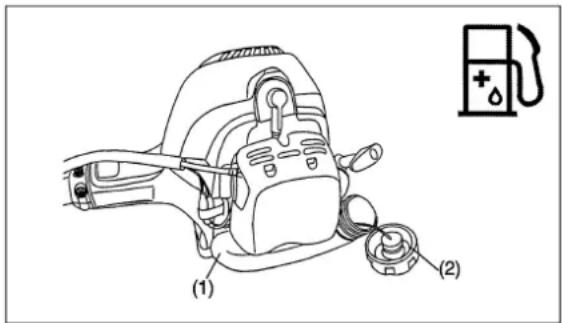

Refueling

The engine must be switched off.

• Thoroughly clean the area around the fuel filler cap (2), to prevent dirt from getting into the fuel tank (1).
• Unscrew the fuel filler cap (2) and fill the tank with fuel.
• Tightly screw on the fuel filler cap (2).
• Clean screw fuel filler cap (2) and tank after refueling.

Fuel storage

• Fuel deteriorates if stored over an extended period of time.
• Purchase only the amount of fuel to be used over a 4-week period.
• Use only approved petroleum-storage containers.

(1) (2)

PRECAUTIONS BEFORE STARTING THE ENGINE

• At all times allow a 15-meter diameter safety zone around the working area. Make sure that all persons (in particular children) and/or animals remain outside this zone.
• Before using the pole hedge trimmer, make sure that the machine is in safe operational condition. Make sure that the cutter blades are not damaged, and check the throttle lever for easy action. Confirm that the cutter blades are not in motion when the engine is idling. If the machine is not operating normally, contact your dealer to have the machine adjusted. Make sure that the handles are clean and dry, and test whether the I-O switch is functioning properly. Start the engine only in accordance with the instructions given in this manual. Do not use any other methods to start the pole hedge trimmer (see, "Starting the Engine").
• Start the engine of the pole hedge trimmer only after having read and fully understood the instructions. Never attempt to start a pole hedge trimmer that has not been fully assembled. Serious injury may result otherwise.
• Before starting the engine, always make sure that the cutter blades are not obstructed by stones, branches or any other solid objects.
• Check the working area for wires, cord, glass or other foreign objects that could get caught in the cutter blades.
• Electrical shock: Be aware of all electrical lines in the vicinity. Check the entire work area for the presence of power lines and electrical fences before starting to work.

360° 15m (50m)

Safety warning sign showing lightning symbol and pole with directional arrows indicating shock hazard

STARTING THE ENGINE

If the machine has just been refueled, move at least 3 meters away from the location where the pole hedge trimmer was refueled. Place the pole hedge trimmer on a reasonably clean spot on level ground, and make sure that the cutter blades are not in contact with the ground or any other solid objects.

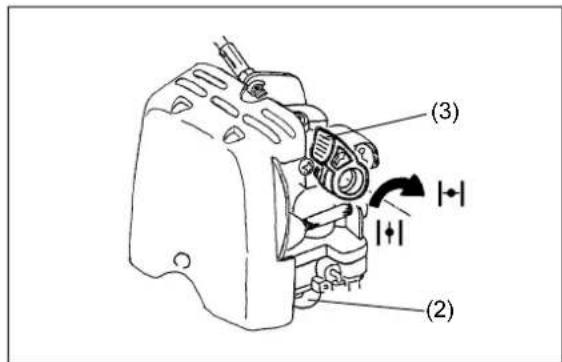

Cold start (cold engine / engine was stopped for more than 5 minutes / after refueling)

1. Move the I-O switch to the "I" position (1).
2. Push the primer pump (2) repeatedly (7 to 10 times) until fuel enters the bulb of pump.
3. Move the choke lever (3) into the "N" (vertical) position.

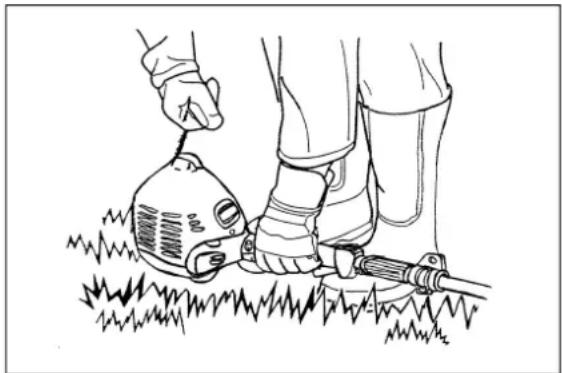

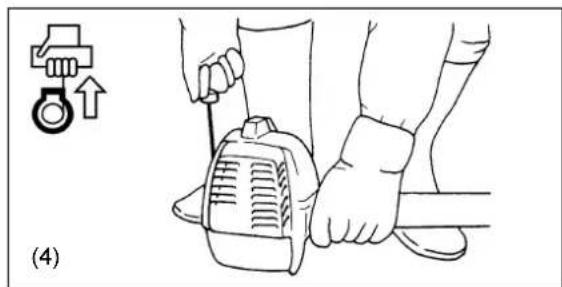

4. With one hand hold the engine firmly on the ground (4).
5. Pull the starter cord for approx. 10\~15 cm until resistance can be felt.
6. Pull firmly (repeatedly if necessary) on the cord until the engine starts.
7. Return choke lever to position "11" after the engine has started. Note that the choke lever returns automatically when the throttle lever is operated. Squeeze the throttle lever together with the lock-off lever.
8. Warm up the engine at a moderate speed for approx. 1\~2 minutes.
9. After the engine is warm the engine runs evenly and transition from low speed to high speed is smooth and without interruption.

Note: Pulling the starter rope repeatedly with the choke in "☐" position results in excessive fuel intake, which can make it difficult for the engine to start. In the case of excessive fuel intake, remove the spark plug and pull the starter rope slowly to remove excess fuel. Dry the spark plug electrode and replace the spark plug.

(1) I-O switch Lock-off lever Throttle lever

(2) (3)

Warm start (immediate restart after engine-stop)

Do not operate the choke (3) when restarting the engine immediately after stoppage. If the engine does not start, execute steps 1\~8 as described above (cold start).

Note: Do not release the starter knob immediately after pulling the starter rope, but guide the knob back to its original position.

Illustration of a hand using a sewing machine to lift a person's arm (no text or symbols present)

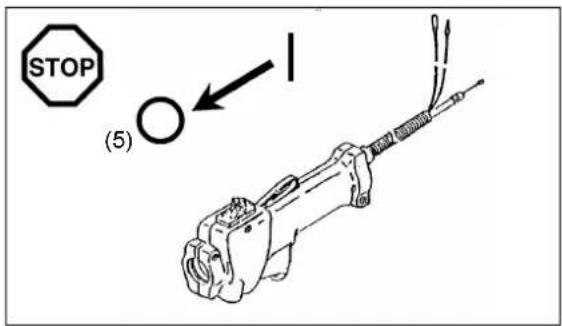

STOPPING THE ENGINE

1. Release the throttle lever.
2. Push the I-O switch to the "O" position (5) to stop the engine.

STOP (5) I

CHECKING AND ADJUSTING THE IDLING SPEED

The cutter blades of the pole hedge trimmer should not move when the throttle lever is released.

- The correct idling speed is 3000 min^-1 . If necessary, adjust the idling speed using the idling adjustment screw (reduce revs until the cutter blades do not move anymore).

•Turn screw clockwise: Idling speed increases
- Turn screw counter-clockwise: Idling speed decreases.
Allow an adequate difference between the idling rate and the rate at which the clutch engages (reduce idling speed further if necessary). Should the cutter blades still move in spite of accurate idling speed settings, consult your nearest authorized service agent.
•The clutch should engage at a minimum rate of 4000 min ^-1
- Check that the STOP switch, the lock-off lever and the throttle lever are all functioning properly.

Idling adjustment screw slow High

• When working with the pole hedge trimmer, firmly grasp the handles with both hands.
• Do not touch the cutter blade portion of the pole hedge trimmer during operation, or when the engine is running.
• Take extra care not to inhale exhaust gases when working with the pole hedge trimmer. Never operate the pole hedge trimmer in an enclosed room or an area with insufficient ventilation (risk of suffocation and gas poisoning). Note that carbon monoxide is an odorless gas that is, it cannot be detected by the sense of smell.
• Always wear adequate protective wear before starting to work with the pole hedge trimmer.
• Stop the engine immediately if the muffler is not functioning properly.
• Only use the pole hedge trimmer in good light and visibility conditions.
• Do not operate the pole hedge trimmer in darkness or fog. Beware of slippery and wet areas (ice and snow) during the cold season (danger of slipping), and always ensure secure footing.
• Never use the pole hedge trimmer while standing on an unstable surface or a steep slope.
• Never use the pole hedge trimmer while standing on a ladder.
• Never climb a tree to use the pole hedge trimmer from the tree.
• Continuously check the working area for wires, cord, glass or other foreign objects that could get caught in the cutter blades.
• Confirm that the cutter blades are in rapid motion before starting to cut.
• Always grip the pole hedge trimmer with both hands and maintain a firm grip when working with the machine.
• To assure optimal control over the pole hedge trimmer, always completely wrap your hands around the handles (use your thumb for counter pressure) and apply a firm grip on the handles.
• Note that the cutter blades will remain in motion for up to two seconds after the throttle lever has been released.
• Do not cut with the pole hedge trimmer at low engine speed.
• The speed of the cutter blades cannot be adjusted properly with the throttle lever when the engine is running at low speed.

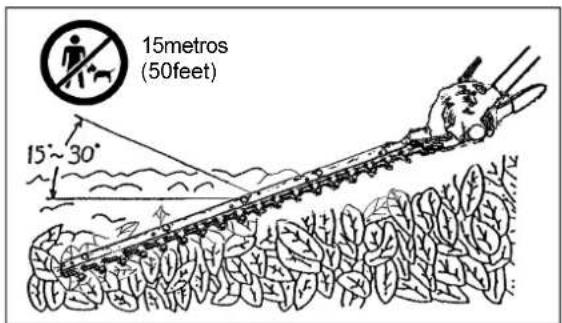

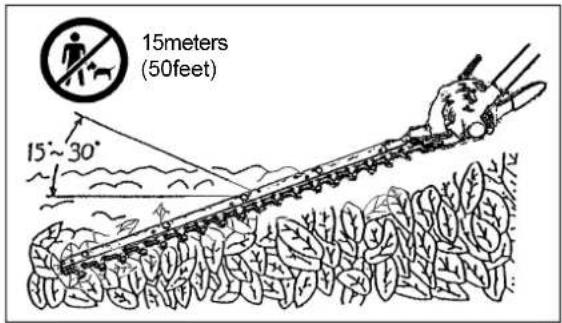

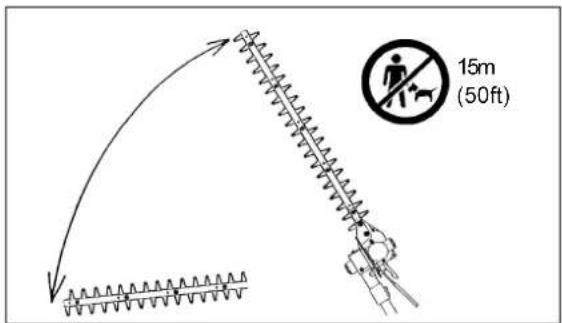

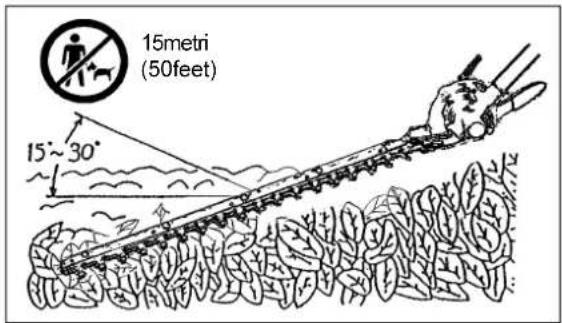

• To trim the top surface of a hedge, first align the cutting tool at an angle of 15^ 30^ in the cutting direction and keep the pole hedge trimmer in a horizontal position. Then start trimming the hedge using a swinging movement, much like drawing circle segments with the hedge trimmer shaft.

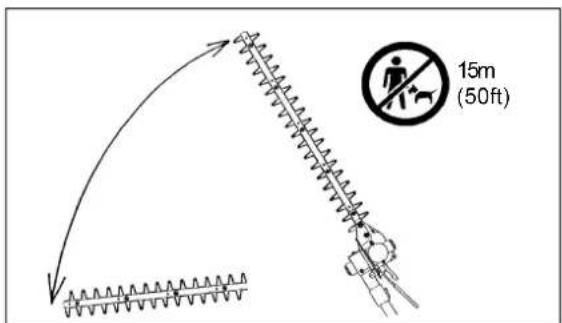

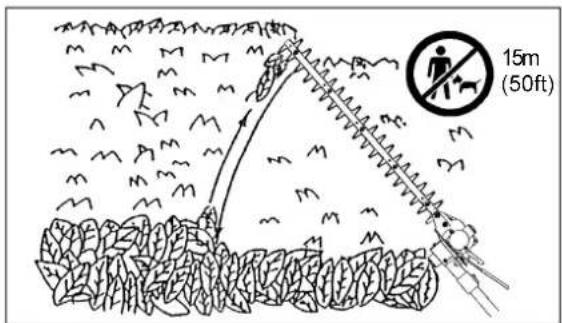

• To trim the sides of a hedge, align the blades parallel to the surface to be cut and start trimming with semi-circular upward (down-up) movements.
• Pay attention when trimming a hedge that has grown along a fence. Be especially careful not to allow the cutter blades from coming into contact with solid matter such as a metal fence. Cutting into solid matter such as metal, stone, concrete or thick wood may damage the blades and/or cause overall breakdown of the machine.
• Do not use the pole hedge trimmer over an extended period of time. As a general rule, for every 50 minutes of operation take a 10-20 minutes rest.
• If the cutter blades come into contact with stones or other solid objects, stop the engine immediately and check the blades for damage. Replace the blades if damaged.
• If the pole hedge cutter develops a problem during operation (strange noises, vibration, etc.), immediately stop the engine. Do not use the machine again until the problem has been recognized and solved.
• Always do your utmost to keep pollution and noise emissions as low as possible when operating the pole hedge trimmer. Pay special attention to correct carburetor adjustment and accurate gasoline/oil mixture.
• If thick branches get jammed in the cutter blades, immediately stop the engine, lay the equipment on the ground and remove the obstruction. Check the blades for damage before using the machine again.

Illustration of four different footwear and accessories: headphones, gloves, and boots (no text or symbols)

Line drawing of a person using a sword to grip a metal rod (no text or symbols)

15meters (50feet) 15°~30°

15m (50ft)

15m (50ft)

Adjustment of cutting angle

1. Stop the pole hedge trimmer engine and lay the machine on the ground.
2. To adjust the angle of the cutter unit, loosen the clamp lever located at the top of the cutter unit by turning it counter-clockwise.
3. Adjust the angle of the cutter unit and turn the clamp lever clockwise to secure.
4. The cutter unit can be adjusted anywhere between 45^ and 90^ .

Note:

• Do not adjust the cutter unit while the pole hedge trimmer is in an upright position.
• Move the I-O switch to the "O" position and lay the pole hedge trimmer flat on the ground to adjust the cutting angle.
• Always secure the blades with the blade cover provided before adjusting cutting angle.

Tighten Loosen Clamp lever

MAINTENANCE

• Before performing any maintenance work on the pole hedge cutter (blade cleaning, etc.), always stop the engine and wait until the engine has cooled down. As an additional safety precaution, also remove the spark plug cap.
• Do not try to straighten or weld a bent or broken cutting blade. Always replace damaged blades.
• Stop the engine at regular intervals to check the cutter blades for possible damage (perform a tapping-resonance test to detect hard-to-see hairline cracks). Always make sure that the teeth of the blades are sharp.
• Clean the pole hedge trimmer at regular intervals. During cleaning also check that all screws, nuts and bolts are well tightened.
• To reduce the risk of fire, never service or store the pole hedge trimmer in the vicinity of open fires.
• Always wear rugged protective gloves when handling the cutter blades.
• Contact your dealer for replacement cutter blades.

Sharpening the blade

If the cutting blades have become blunt and cutting performance is poor, have the blades sharpened by an authorized service agent.

Blade adjustments

Extended use of the pole hedge trimmer will gradually wear down the blades. Readjust the blades if cutting performance deteriorates noticeably. For adjustment of the blades follow the instructions below.

1. Release nut ①.
2. Tighten screw ② lightly until resistance is felt. Then turn the screw in the opposite direction for a quarter or half turn.
3. Hold screw ② in place with a screwdriver and tighten nut ①.
4. After adjustment lubricate the blades with a thin film of light oil.
5. Start the engine and pull the throttle lever several times to set the blades in motion. Continue for approx. one minute.
6. Stop the engine and wait until the blades come to a standstill. Cautiously touch the blades with your bare hand. Adjustment is correct if the blades are warm, but not too hot to touch. If the blades are too hot to be touched, release screw ② for another quarter to half a turn and repeat steps 5\~6 to confirm proper adjustment.

NOTE: Always stop the engine and remove the spark plug cap before adjusting the blades!

The blades have grooves around the truss screws ②. Always keep these grooves clean so that they can be inspected for possible damage.

① Hexagonal U-nut ② Truss screw ③ Flat washer ④ Blunt extension ⑤ Blade guide ⑥ Upper blade ⑦ Lower blade

Cleaning the air cleaner - Every 8 hours (daily)

• Remove the air cleaner cover.
• Remove the sponge element. Wash the sponge element in lukewarm water and allow to dry completely.
• Replace the cleaned and dried sponge element and then replace the air cleaner cover.

Note: Clean the air cleaner on a daily basis. A clogged air cleaner may make it difficult or impossible to start and/or accelerate the engine.

Screw Air cleaner cover Element

Checking the spark plug - Every 8 hours (daily)

• Only use the universal wrench provided to remove and replace the spark plug.
• The spark plug gap should be 0.6\~0.7 mm. Adjust the spark plug gap if it is too wide or too narrow. Clean or replace the spark plug if contaminated and/or clogged with carbon residue. Always replace with the same type of spark plug.

0,6 - 0,7 mm

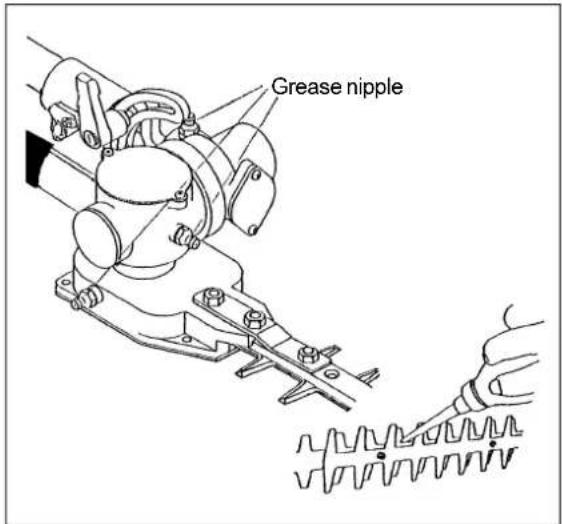

Adding grease and lubricant

- The gearbox of the pole hedge trimmer should be greased every 20 working hours. Add approx. 10cc of lubricant (Shell Alvania No. 3 or equivalent) to the gearbox via the grease nipples. (Some grease will emerge from the head of the gearbox (located at the base of the blade) when the pole hedge trimmer is set in motion the first time after greasing. Use this as a rough indicator for the amount of grease to supply.)

Note: Observe greasing intervals and the amount of grease to be supplied. Mechanical parts of the pole hedge trimmer may be damaged if grease is not supplied at the prescribed intervals or if an insufficient amount of grease is added.

Grease nipple

Fuel tank filter

• The inside of the fuel tank is equipped with a filter (1) that cleans the fuel before it enters the carburetor.
• Visually check the filter at regular intervals. To do so, use a piece of wire formed into a hook and draw the filter out of the tank (2). Replace the filter if it is hardened, clogged up, or excessively contaminated.
• Inadequate fuel supply as a result of a deteriorated fuel filter may result in poor engine performance. In order to ensure that the required amount of fuel enters the carburetor, replace the fuel filter whenever in doubt of its condition.

(1) (2)

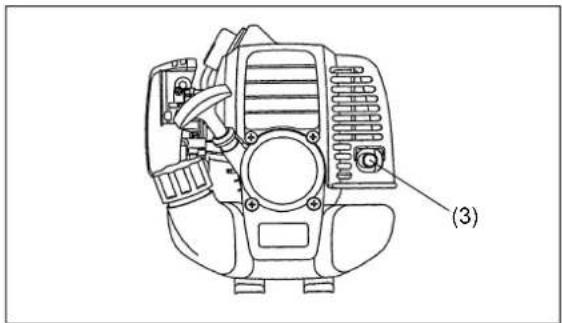

Cleaning the muffler outlet

• Check the condition of the muffler outlet (3) at regular intervals.
• Use a suitable tool to remove excessive carbon residue that accumulates around the muffler outlet. Take special care to prevent removed carbon residue from entering engine parts.

Cleaning the spark arrester

• The spark arrester should be cleaned every 50 working hours.
• Have the spark arrester cleaned at your dealership or by an authorized service agent.

For all maintenance work not mentioned in this instruction manual, please contact your dealership or an authorized service agent.

Technical line drawing of a mechanical device with labeled component (3), no readable text or symbols present.

Daily inspection and maintenance

To ensure a long service life of your pole hedge trimmer, perform the following inspections and maintenance on a daily basis.

• Always check for loose or missing parts before starting operation. Pay special attention to the cutting unit and make sure that the cutter blade lock screws are well tightened.
• Check for clogging of the cooling air passages and the cooling fins of the cylinder before starting operation. Clean if necessary.
• Each day after using the pole hedge trimmer perform the following.
• Clean the outside of the pole hedge trimmer; check for damage and loose parts.
• Clean the air filter. Clean the filter several times a day if working in extremely dusty conditions.
• Check the cutter blades for damage. Make sure that the blades are securely mounted.

STORAGE

If the pole hedge trimmer is to be stored for an extended period of time, proceed as follows:

• Drain all fuel from the tank and carburetor.
• Remove the spark plug and add a few drops of two-stroke oil through the spark plug hole. Gently pull out the starter rope to ensure that the oil is evenly distributed inside the engine. Replace and tighten the spark plug.
• Clean the entire pole hedge trimmer and apply a thin layer of oil to the metallic surfaces of the machine. Secure and protect the blades with the blade cover provided. Store the pole hedge trimmer in location that is free of humidity.

Drain fuel Humidity

MAINTENANCE SCHEDULE

General	EngineScrews, nuts, bolts	Check general condition and safetyVisually check for damageConfirm that screws, nuts and bolts are secure
After refueling	Throttle leverLock-off leverSTOP switch	Check functioningCheck functioningCheck functioning
Daily	Air filterCooling air ductCutting toolIdling	CleanCleanCheck for damage, confirm sharpConfirm that the cutter blades are not in motion
Every 20 hours Gearbox Add	grease
Weekly	Spark plugMuffler	Check, replace if necessaryCheck, clean outlet if necessary
Quarter annually	Fuel filterFuel tank	Clean or replace, if necessaryClean inside
Before extended storage	Fuel tankCarburetor	Drain tankKeep engine running until fuel runs out

TROUBLESHOOTING

Problem	System	Observation	Cause
Engine does not start or difficulty starting	Ignition Ignition spark switch in OFF-position, broken wire, defective		supply or compression system, mechanical defect
No ignition spark STOP Fuel supply Fuel available	Wrong choke setting, defective carburetor, fuel filter		spark plug or connector, defective ignition module
			contaminated, broken or bent fuel hose
Compression Inside engine	Defective cylinder gasket, damaged		crankshaft seals, defective piston and/or cylinder rings
Outside engine	Loose spark plug
	Mechanical	Starter not functional	Defective starter spring, mechanical defect inside engine
Warm start problems	Fuel available	Ignition functioning	Carburetor contaminated (have carburetor cleaned)
Engine starts but stalls immediately	Fuel supply Fuel available	Incorrect idling adjustment, carburetor or fuel filter contaminated
	Defective fuel tank vent, broken fuel hose, defective		STOP switch (loose contact, etc.)
Poor performance	Several systems may be affected simultaneously	Engine idling	Contaminated air filter, carburetor contaminated, clogged muffler, clogged cylinder exhaust duct

French

Abstract black-and-white illustration of wine bottles and a crossed arrow, no text or symbols present

(1)

Illustration of a helmet with a label (2) on the cup, no text or symbols present.

(3)

Illustration of a person in military-style uniform and cap, standing with one hand extended (no text or symbols)

(4)

(5)

(6)

Line drawing of a person using a tool on grass, no text or symbols present

Illustration of a worker using a manual power tool to lift a blade, with an arrow indicating motion (no text or symbols)

Ravitaillement

Diagram of an electric vehicle fuel pump with safety symbols for fuel, no smoking, and no exhaust

3 mètres

Fonctionnement

Warning symbol image with exclamation mark inside a triangle

Illustration of a person using a crosshair to clean a campfire, with a campfire nearby (no text or symbols)

Simple black-and-white cross symbol on black background (no text or numbers)

DECLARATION DE CONFORMITE CE

Modèle : PTR2500

Michigan Drive, Tongwell, Milton Keynes, Bucks MK15 8JD, ENGLAND

Warning symbol with exclamation mark inside a triangle

360° 15m (50m)

Safety warning sign showing lightning bolt symbol and pole with directional arrows indicating shock hazard

Illustration of a hand using a medical device to lift a patient's arm (no text or symbols present)

ARRÊT DU MOTEUR

STOP (5) I

VÉRIFICATION ET RÉGLAGE DE LA VITESSE DE MARCHE À VIDE

Illustration of four different footwear and accessories: headphones, gloves, and boots (no text or symbols)

Line drawing of a person using a sword to grip a metal rod (no text or symbols)

15mètres (50feet) 15°~30°

15m (50ft)

15m (50ft)

Technical line drawing of a mechanical device with labeled component (3), no readable text or symbols beyond label

Two black-and-white warning symbols: a book icon with an open mouth and a triangular warning sign with an exclamation mark (no text or numbers present)

Black-and-white illustration of a wine bottle and two crossed blades, with no visible text or symbols.

Illustration of three abstract 3D shapes: a helmet with two eyes, a helmet with a mouth, and a helmet with a pair of eyes (no text or symbols)

Illustration of a person in camouflage uniform, two handbags, and a boot (no text or symbols)

360° 15m (50mm)

Line drawing of a person using a tool on grass, no text or symbols present

Illustration of a person using a power tool to lift a blade, with an arrow indicating motion (no text or symbols)

Auftanken

Diagram showing a car air conditioner unit with fuel pump and three prohibition symbols for no smoking.

3 Meter

Warning symbol image with exclamation mark inside a triangle

Illustration of a person in protective gear using a tool to cut a fire with a campfire nearby (no text or symbols)

Black square with a white cross symbol in the center (no text or numbers)

Michigan Drive, Tongwell, Milton Keynes, Bucks MK15 8JD, ENGLAND

Warning symbol image with exclamation mark inside triangle

360° 15m (50m)

Safety warning sign showing lightning symbol and pole with directional arrows indicating shock hazard

MOTOR STARTEN

Illustration of a hand using a tool to lift a seatbelt, with an inset showing the mechanical component (no text or symbols)

MOTOR ABSTELLEN

STOP (5) I

Illustration of four different types of clothing: headphones, gloves, and shoes (no text or symbols)

Line drawing of a person using a sprocket to lift a stick (no text or symbols)

15Meter (50feet) 15°~30°

15m (50ft)

15m (50ft)

Technical diagram of a mechanical assembly with numbered components and a close-up view of the main component.

Technical line drawing of a mechanical device with labeled component (3), no readable text or symbols beyond label

Abstract black-and-white illustration of wine bottles and a stylized pen (no text or symbols)

(1)

Simple line drawing of a helmet with label (2) and no text or symbols beyond the number

(3)

Illustration of a person in full-body attire with short hair and gloves (no text or symbols)

(4)

(5)(6)

Line drawing of a person using a handheld tool on grass, no text or symbols present

Illustration of a person using a power tool to lift a blade, with motion arrows indicating direction (no text or symbols)

Diagram showing car seatbelt with fuel pump and three prohibition symbols for electric shock hazard

3 metri

Durante il lavoro

Warning symbol image with exclamation mark inside a triangle

Illustration of a person in protective gear using a tool to cut a fire with smoke nearby (no text or symbols)

Black square with a white cross symbol in the center (no text or numbers)

3-11-8, Sumiyoshi-cho, Anjo, Aichi, GIAPPONE

Michigan Drive, Tongwell, Milton Keynes, Bucks MK15 8JD, INGHILTERRA

DATI TECNICI : PTR2500

Warning symbol image with exclamation mark inside triangle

360° 15m (50m)

Safety warning sign showing lightning bolt symbol and pole with directional arrows indicating shock hazard

Illustration of a hand holding a device with an upward arrow, no text or symbols present

ARRESTO DEL MOTORE

STOP (5) I

CONTROLLO E REGOLAZIONE DEL MINIMO

Illustration of four different types of clothing: headphones, gloves, and shoes (no text or symbols)

Line drawing of a person using a sword to grip a helmet (no text or symbols)

15metri (50feet) 15°~30°

15m (50ft)

15m (50ft)

Technical line drawing of a mechanical device with labeled component (3), no readable text or symbols beyond label

Abstract black-and-white graphic with stylized shapes resembling bottles and a curved arrow (no text or symbols)

(1)

Illustration of a helmet with label (2) and abstract patterns (no text or symbols)

(3)

Illustration of a person in military-style uniform and cap, standing with one hand extended (no text or symbols)

(4)

(5)(6)

360° 15m (50ft)

Line drawing of a person using a power tool on grass, no text or symbols present

Illustration of a worker using a power tool to lift a blade, with an arrow indicating motion (no text or symbols)

Tanken

Diagram showing a car fuel pump with three prohibition symbols: fuel, no cleaner, and no tool.

3 meter

Bediening

Warning symbol image with exclamation mark inside a triangle

Illustration of a person in protective gear using a tool to cut a fire with smoke nearby (no text or symbols)

Simple black-and-white cross symbol on black background (no text or numbers)

EU-CONFORMITEITSVERKLARING

Model; PTR2500

CE2007

Tomoyasu Kato
Director

Michigan Drive, Tongwell, Milton Keynes, Bucks MK15 8JD, ENGELAND

Warning symbol with exclamation mark inside a triangle

360° 15m (50m)

Safety warning sign showing lightning symbol and pole with directional arrows indicating electrical hazard

(1) I-O schakelaar Vergrendeling Gashendel

(3) (2)

Illustration of a hand using a power tool to lift a device, with an inset showing the switch symbol (no text or labels present)

STOPPEN VAN DE MOTOR

STOP (5) I

CONTROLEREN EN AFSTELLEN VAN HET STATIONAIRE TOERENTAL

Illustration of four different winter sports equipment: headphones, gloves, and shoes (no text or symbols)

Line drawing of a person using a sprocket to lift a rope, no text or symbols present

15meter (50feet) 15°~30°

15m (50ft)

15m (50ft)

Technical line drawing of a mechanical device with labeled component (3), no readable text or symbols present.

Black and white illustration of wine bottles and a knife crossed out (no text or symbols)

(1)

Simple line drawing of a helmet and bucket (no text or symbols)

(3)

Illustration of a person in military-style uniform and cap, standing with one hand extended (no text or symbols)

(4)

(5)(6)

360° 15m (50ft)

Line drawing of a person using a power tool on grass, no text or symbols present

Illustration of a person using a long-handled tool to lift a blade, with an arrow indicating motion (no text or symbols)

Carga de combustible

Diagram showing a car seatbelt with fuel pump and three prohibition symbols for electric shock hazard

3 metros

Warning symbol image with exclamation mark inside a triangle

Illustration of a person in protective gear using a tool to cut a fire with smoke nearby (no text or symbols)

Simple black-and-white cross symbol on black background (no text or numbers)

CE2007

Tomoyasu Kato
Director

Fabricante responsable:

Makita Corporation.

Warning symbol image with exclamation mark inside triangle

360° 15m (50ft)

Safety warning sign showing lightning symbol and pole with directional arrows indicating shock hazard

ARRANQUE DEL MOTOR

Illustration of a hand holding a small electric shaver with a mechanical component, no text or symbols present

PARADA DEL MOTOR

STOP (5) I

Illustration of four different types of outdoor gear and footwear: headphones, gloves, and boots (no text or symbols)

Line drawing of a person using a sledge tool to lift a stick (no text or symbols present)

15metros (50feet) 15°~30°

15m (50ft)

15m (50ft)

engrasadores

Technical line drawing of a mechanical device with labeled component (3), no readable text or symbols beyond label

3-11-8, Sumiyoshi-cho,

Anjo, Aichi 446-8502, Japan
