USER MANUAL MT60 INVENTUM

Close-up of a silver handheld electronic device with a digital display showing temperature and time (no readable text or symbols beyond branding)

VOORHOOFDTHERMOMETER

STIRNTHERMOMETER

THERMOMÈTRE FRONTAL

FOREHEAD THERMOMETER

CE 0344

Close-up of a silver remote control with a circular dial and a pointer, no visible text or symbols

Close-up of a handheld device with a circular button and a pointer, no visible text or symbols

Close-up of a handheld device with a circular dial and pointer, no visible text or symbols

Instruction Manual Inventum forehead thermometer, MT60.

Read the instruction manual carefully before use and keep the instructions in a safe place for future reference.

EXPLANATION SYMBOLS

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Device classification type BF

Please read the instructions for use!

SAFETY INSTRUCTIONS

• Read the instruction manual carefully and completely before using the appliance and keep them for later use.
• This device is a sensitive electronic device. Please treat it carefully and do not expose it to any to mechanical impacts.
• Do not expose the thermometer to direct sunlight.
• The device should be in the room in which the measurement is made for at least 30 minutes before use.
• The thermometer is NOT waterproof. For this reason, avoid direct contact with water or other liquids.
• Clean the measuring tip after each use with a soft cloth moistened with disinfectant.
• Check before each use that the lens is intact. If it is damaged, please contact the dealer or service address.

• The thermometer was constructed for practical use, but cannot replace a visit to the doctor.
  • This instrument is not intended for commercial or clinical use.

• The device is intended only for the purpose given in these directions for use.

• Repairs must be carried out only by authorised service agents. Otherwise the guarantee becomes void.
• Store the thermometer in its case out of the reach of children.
• The forehead thermometer is designed to measure human forehead temperatures only. DO NOT USE IT to measure the body temperature in the rectal region, under the arms, in the mouth or other areas.
• The following may affect the accuracy of measurements: increased sweat production on the forehead; medications which cause constriction of the blood vessels; irritation of the skin.
• Avoid touching the sensor tip of the device so that the accuracy of measurements is not affected by warming of the sensor casing.
• Never immerse the thermometer in water or any other liquid.
  • This device complies with EU Directive 93/42 EEC.
  • This device complies with ASTM E 1965-98.
• If you have further questions about using our devices, please contact your dealer.

INSTRUCTIONS FOR USE

What you should know about using this thermometer

Before using a forehead thermometer the following should be noted:

- This thermometer is suitable for measuring the temperature of the body only on the forehead.

The physiological temperature ranges are:

- the forehead temperature, measured with a forehead thermometer: 35.8 to 37.6°C

Tip: Temperatures measured with different thermometers cannot be compared with one another. Tell your doctor or take into account when diagnosing yourself what thermometer you used in what part of the body to measure the temperature.

• The temperature of a healthy person is also influenced by the following factors:
• The person's individual metabolism.
• Age (body temperature is higher in babies and small children and falls with increasing age. Greater temperature fluctuations occur in

children faster and more often.)

• Clothing.
• The outside temperature.
• The time of day (Body temperature is lower in the morning and rises as the day goes on.)
• Preceding physical and, to a lesser extent, mental activity.

Tip: Measuring the temperature gives a figure that provides information about a person's current temperature. If you are unsure about interpreting the results or if the result is abnormal (e.g. fever), you should consult your family doctor. This also applies to small changes in temperature, if there are other symptoms of illness, such as agitation, severe sweating, flushed skin, high pulse rate, tendency to collapse etc.

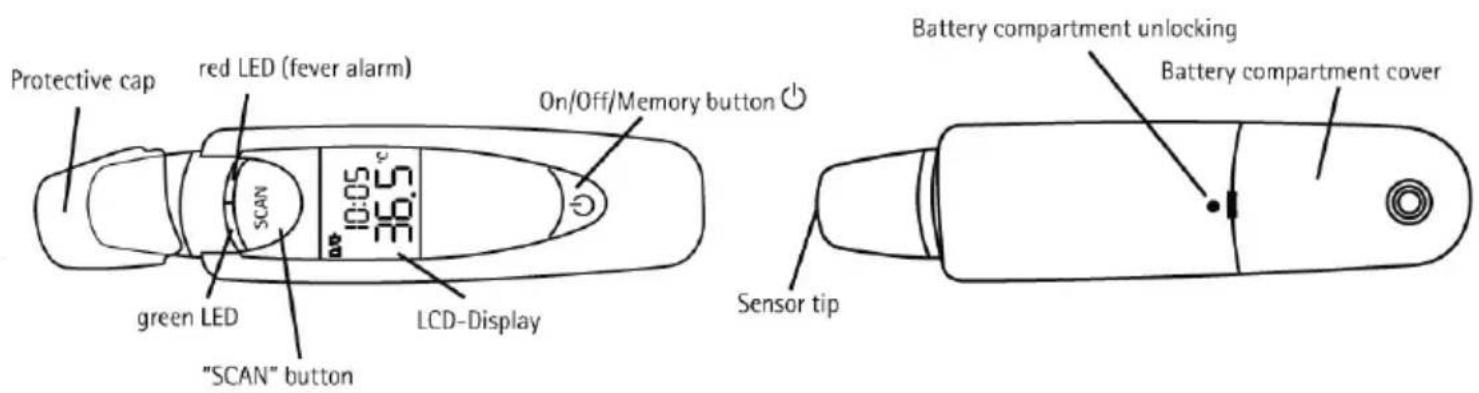

Outside view and functions

Front side

Protective cap red LED (fever alarm) SCAN green LED "SCAN" button LCD-Display On/Off/Memory button Battery compartment unlocking Battery compartment cover Sensor tip

Rear side

Functions

This infrared thermometer is for measuring

• temperature at a person's forehead,
• surface temperature of objects and liquids,
• ambient temperatures.

The thermometer also offers additional functionalities:

• 9 memory locations for simple plotting of changes in temperature,
• date and time, also with all stored temperatures measured,
• optical and acoustic fever alarm at temperatures over 37,5°C,
• switchable to °C and °F.

Operation

Remove the protective cap and switch on the thermometer with the " button. After a short self-test and two short beep tones, the thermometer is ready for forehead temperature measurement.

Setting time and date

With the thermometer switched on, hold the "①" button depressed for 5 seconds. As soon as the "SET" symbol appears in the display, you can use the "SCAN" button to set in turn the 12 or 24 hour mode, hour, minute, year, month and day ("24" appears in the display for the 24-hour mode). Confirm the values set in each case with the "②" button.

Batteries

The type 3V CR2032 battery is already fitted and depending on usage has a life of around 3000 measurements. When the battery gets weak, the battery warning symbol appears. It is still possible to measure the temperature. Battery must be replaced. When the battery symbol flashes the battery must be exchanged by sliding the battery compartment cover off to the rear. Remove the spent battery as shown in the adjacent picture. Insert a new battery of the same type with the positive pole at the top. Close the battery compartment cover again.

Close-up of a silver remote control with a dial and antenna (no visible text or symbols)

Used batteries should not go into domestic refuse. You are legally obliged to dispose of the batteries correctly. Dispose of them through your electrical dealer or local recycling centre.

Note: you will find these symbols on batteries containing toxic substances: Pb = battery contains lead, Cd = battery contains cadmium, Hg = battery contains mercury. The battery in this device does not contain toxic substances.

During use

Always ensure that the sensor is clean and undamaged. Switch on the thermometer with the "button."

Forehead measurement

After a short self-test and two short beeps, the thermometer is ready for measuring the temperature at the forehead/temple. The infrared thermometer is in 'forehead thermometer'. This is indicated by the symbol 😊

Note that

• the thermometer must have been at least 30 minutes in the room in which the measurement is made,
• the measuring result may be falsified by physical activity, fundamentally increased sweat formation on the forehead, consumption of vasoconstrictive medications and skin irritations.
• the forehead or temple must be free of sweat and cosmetics.

Apply the thermometer to the left or right tempe and press the "SCAN" button. Move the thermometer to and over the temple.

During the measurement you can hear short beeps signalling that the thermometer has found a new maximum temperature. The end of the measuring time is signalled with a long beep. Release the "SCAN" button. You can now read off the temperature measured. The LED is also illuminated according to the test result: a green LED indicates that body temperature is within the normal range, but a red LED lights up with measured values over 37,5°C, i.e. it is a fever alarm.

The measurement normally takes from 5 to 8 seconds, but can take up to 30 seconds.

The thermometer signals with two short beeps and a no longer flashing forehead symbol that the thermometer is ready for a new measurement.

Saving the temperatures measured

The temperature last measured, i.e. only the last temperature of a series measured, is saved automatically as soon as the thermometer is switched off. There are 9 memory locations available for this.

You can call up the last temperature measured with the “☐” button. The date and time are also shown. The LED dous not support any requests for stored measured values. If you continue to hold down the “☐” button, you will enter a special measuring mode, in which the thermometer will not make a correct measurement. In this event, allow the thermometer to switch off automatically after about 1 minute and then switch on again.

Surface temperatures

When you want to measure surface temperatures with this infrared thermometer, you must change to the "SCAN" mode. With the thermometer switched on (standard forehead thermometer mode) keep ther "☐" button depressed and at the same time press the "SCAN" button. This mode is indicated with the 🔔 symbol. If you keep the "SCAN" button depressed, the surface temperature measured is continuously displayed. You can apply the sensor tip directly to the surface to be measured or measure at close range (do not immerse in liquids). Note that the temperature displayed is the surface temperature measured but not adjusted. It cannot be compared with the forehead temperature.

Ambient temperature

After the measurement, the thermometer automatically switches to standby mode after about 1 minute, but only if the time has been set. This mode is identified by the 🔔 symbol and the ambient temperature is shown continuously. If you want to use the thermometer to measure the ambient temperature, it should be positioned so that the measurement is not influenced by solar radiation or other influences such as cold draughts from air-conditioning systems. In addition to the ambient temperature, which is updated once every minute, the date and time are displayed alternately.

Changing the temperature unit

You can display the temperature in degrees Celsius (°C) or degrees Fahrenheit (°F). With the thermometer switched off or in standby mode, select the unit by holding down the "SCAN" button and at the same time pressing the "①" button. Keep the two buttons depressed until the temperature unit changes. All stored temperatures are displayed in the temperature unit.

Trouble shooting

Error message	Problem Solution
Er 1	Autotest in progress, device not yeast ready for. Wait until the forehead symbol no longer flashes.
Er2	Large fluctuation in ambient temperature. Store the device for at least 30 minutes in the room where the measurement will be taken. The ambient temperature must be between 10^ and 40^ ( 50^ , 104^ ).
Er3	Ambient temperature below 10^ or above 40^ ( <50^ , >104^ )
Er5-9	Device no longer functioning correctly. Take out battery for approx. 1 minute and insert again. If the error message is repeated, consult your dealer or customer service.
Hi	(1) Forehead thermometer mode: the temperature measured is higher than 42,2^ ( 108^ ).(2) SCAN mode: the temperature measured is higher than 80^ ( 176^ ).	Operate the thermometer only between the specified temperature ranges. If necessary, clean the sensor tip. In the event of a repeated error message, contact your dealer or customer service.
Lo	(1) Mode thermomètre frontal: la température mesurée est inférieure à 34^ ( 93,2F ).(2) Mode SCAN: la température mesurée est inférieure à -22^ ( -7,6^ ).	Operate the thermometer only between the specified temperature ranges. If necessary, clean the sensor tip. In the event of a repeated error message, contact your dealer or customer service.
	Autotest not successful. Insert new battery.

CARE & CLEANING

Clean the sensor tip after every use. Use a clean cloth or cotton bud that can be moistened with disinfectant, alcohol or warm water.

To clean the entire device, use a soft cloth slightly moistened with a mild soapy solution. Water must never get into the device. If water gets into the

device, remove the battery immediately. Only use the device again when it is completely dry. Do not use any harsh cleaning agents.

Never immerse the device in water. Always store the thermometer with the cap on in order to protect the sensor.

The device must not be stored or used at too high or low a temperature or humidity (see technical specifications), in sunlight, in association with an

electrical current or in dusty locations. Otherwise, inaccuracies can occur. If prolonged storage is intended, you should remove the battery.

Technical Specifications

Note: When the device is used outside the specifications, perfect functioning cannot be guaranteed. We reserve the right to make technical changes to improve and develop the product.

Measurement range Forehead thermometer mode: 34°C - 42,2°C (93,2°F - 108°F)

SCAN mode: -22^ - 80^ (-7,6^ - 176^)

Laboratory measurement precision Forehead thermometer mode: ±0,3°C (±0,5°F) from 34°C to 42,2°C (93,2°F - 108°F)

SCAN mode: ±0,3°C (±0,5°F) from -22°C to 42,2°C (71,6°F - 108°F)

±2°C (±4°F) from >42,2°C <22°C (>71,6°F - <108°F)

Interval between 2 measurements At least 5 seconds

Measurement units ° Celsius (°C) or °Fahrenheit (°F)

Ambient operating conditions 10°C to 40°C (50°F - 104°F) with a relative humidity of 95% (non-condensing).

Storage conditions -20°C to 50°C (-4°F - 122°F) with a relative humidity of up to 95% (non-condensing).

Dimensions 34 x 145 x 28 mm

Weight 57 g, including battery

Battery 1 lithium battery (type 3V CR2032)

Memory For 9 measurements

GUARANTEE & SERVICE

• This product is guaranteed for a period of 2 years from the date of purchase against mechanical and electrical defect.

• Guarantee can only be given if proof of purchase (e.g. till receipt) can be shown. Therefore keep it in a safe place. The guarantee period starts at date of purchase.
  • Guarantee is not valid in case of:

• normal wear;

• damage through misuse use or when the instructions were not followed correctly;
• lack of maintenance;
• not following the operation- and safety instructions;
• incompetent montage or repairs made by yourself or others;
• using accessories and spare parts which are not suitable for the appliance; for assessment by our technical department.

• The guarantee is not valid for:

- batteries; for assessment by our technical department.

Return the appliance, including proof of purchase and description of the complaint, stamped to:

Inventum Holland BV

Generatorstraat 17

3903 LH VEENENDAAL

The Netherlands

or to:

new E.T.P. bvba

Passtraat 121

9100 Sint Niklaas

BELGIUM

• Pack it carefully (preferably in the original carton). Ensure unit is clean.
• Enclose your name and address and quote model number MT60 on all correspondence.

When the guarantee is no longer valid or when the period of guarantee has passed, we will charge any costs that flow out of an assessment and/or repairing.

On request we will supply a statement before repairing. Without requesting a statement, we assume that you, by sending the appliance, automatically order to repair the appliance.

A guarantee period of two months is valid for repairs done by our technical department and the used spare parts, counting from the repairdate. When a malfunction occurs within this period which directly flows out of the repairs and the used spare parts, the consumer has the right of repairs without any costs.

Inventum Holland BV
