Model name HDC-571E

5.0 Mega Pixel High Resolution
2.48" full color TFT LCD Display
4x Digital Zoom

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Note:

This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the FCC rules.

Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Notice

If static electricity or electromagnetism causes data transfer to discontinue midway (fail), restart the application or disconnect and connect the communication cable (USB, etc.) again.

READ THIS FIRST

Trademark Information

■ Microsoft® and Windows® are U.S. registered trademarks of Microsoft Corporation.
■ Pentium ^® is a registered trademark of Intel Corporation.
■ Macintosh is a trademark of Apple Computer, Inc.
■ SD ^TM is a trademark.
■ Other names and products may be trademarks or registered trademarks of their respective owners.

Product Information

■ Product design and specifications are subject to change without notice. This includes primary product specifications, software, software drivers, and user's manual. This User Manual is a general reference guide for the product.
The product and accessories that come with your camera may be different from those described in this manual. This is due to the fact that different retailers often specify slightly different product inclusions and accessories to suit their market requirements, customer demographics, and geographical preferences. Products very often vary between retailers especially with accessories such as batteries, chargers, memory cards, cables, pouches, and language support. Occasionally a retailer will specify a unique product color, appearance, and internal memory capacity. Contact your dealer for precise product definition and included accessories.
■ The illustrations in this manual are for the purpose of explanation and may differ from the actual design of your camera.
■ The manufacturer assumes no liability for any errors or discrepancies in this user manual.

SAFETY INSTRUCTIONS

Read and understand all Warnings and Cautions before using this product.

Warnings

If foreign objects or water have entered the camera, turn the power off and remove the batteries.

Continued use might cause fire or electric shock. Consult the store of purchase.

If the camera has fallen or its case has been damaged, turn the power off and remove the batteries.

Continued use might cause fire or electric shock. Consult the store of purchase.

Do not disassemble, change or repair the camera.

This might cause fire or electric shock. For repair or internal inspection, ask the store of purchase.

Do not use the camera in areas near water.

This might cause fire or electric shock. Take special care during rain, snow, on the beach, or near the shore.

Do not place the camera on inclined or unstable surfaces.

This might cause the camera to fall or tilt over, causing damage.

Keep the batteries out of the reach of children.

Swallowing the batteries might cause poisoning. If the batteries are accidentally swallowed, immediately consult a physician.

Do not use the camera while you are walking, driving or riding a motorcycle.

This might cause you to fall over or result in traffic accident.

Cautions

Load the batteries paying careful attention to the polarity (+ or −) of the terminals.

Loading the batteries with their polarities inverted might cause fire and injury, or damage to the surrounding areas due to the battery rupturing or leaking.

Do not fire the flash close to anyone's eyes.

This might cause damage to the person's eyesight.

Do not subject the LCD monitor to impact.

This might damage the glass on the screen or cause the internal fluid to leak. If the internal fluid enters your eyes or comes into contact with your body or clothes, rinse with fresh water. If the internal fluid has entered your eyes, consult a physician to receive treatment.

A camera is a precision instrument. Do not drop it, strike it or use excessive force when handling the camera.

This might cause damage to the camera.

Do not use the camera in humid, steamy, smoky, or dusty places.

This might cause fire or electric shock.

Do not remove the batteries immediately after a long period of continuous use.

The batteries become hot during use. Touching a hot battery might cause burns.

Do not wrap the camera or place it in cloth or blankets.

This might cause heat to build up and deform the case, resulting in fire. Use the camera in a well-ventilated place.

Do not leave the camera in places where the temperature may rise significantly, such as inside a car.

This might adversely affect the case or the parts inside, resulting in fire.

Before you move the camera, disconnect cords and cables.

Failure to do this might damage cords and cables, resulting in fire and electric shock.

Notes on Battery Usage

When you use the batteries, carefully read and strictly observe the Safety Instructions and the notes described below:

■ Use only the specified batteries.
- Avoid extremely cold environments as low temperatures can shorten the battery life and reduce camera performance.
- When you are using new rechargeable batteries or rechargeable batteries that have not been used for an extended period of time (the batteries that passed the expiry date are exception), it may affect the number of images that can be captured. Therefore, to maximize their performance and lifetime, we recommend that you fully charge the batteries and discharge them for at least one complete cycle before use.
■ The batteries may feel warm after a long period of continuous use of the camera or the flash. This is normal and not a malfunction.
■ The camera may feel warm after a long period of continuous use. This is normal and not a malfunction.
If the batteries are not to be used for a long period of time, remove them from the camera to prevent leakage or corrosion and store them after no battery power is left. Stored for a long time in a fully charged condition, their performance may be impaired.
■ Always keep the battery terminals clean.
■ There is a risk of explosion if the batteries are replaced by an incorrect type.
■ Dispose of used batteries according to the recycle instructions.
We recommend charging the rechargeable batteries for 8 hours before the camera's first use.
■ Never use batteries of different types (together) or mix old and new batteries.
■ Never use manganese batteries.

CONTENTS

7 INTRODUCTION

7 Overview

7 Package Contents

8 GETTING TO KNOW YOUR CAMERA

8 Front View

9 R e a r V i e w

10 LCD Monitor Display

12 GETTING STARTED

12 Preparation

13 Turning the Power On/Off

13 LED Indicators

14 Choosing the Language

14 Formatting the Memory Card or Internal Memory

15 CAPTURE MODE

15 Capturing Images

15 Using the Zoom Function

16 Setting Focus

17 Setting the Scene Mode

18 Adjusting the Exposure (EV Compensation)

19 VIDEO MODE

19 Recording Video Clips

20 Playing Back Video Clips

21 PLAYBACK MODE

21 Playing Back Still Images

22 Thumbnail Display

22 Slideshow Display

23 Protecting Images

24 DPOF Settings

25 Erasing Images

26 MENU OPTIONS

26 Capture Menu

28 Video Menu

29 Playback Menu

30 Setup Menu

32 TRANSFERRING FILES TO YOUR COMPUTER

32 Downloading Your Files

33 EDITING SOFTWARE INSTALLATION

34 USING THE CAMERA AS A PC CAMERA

34 Install the PC camera driver

35 SPECIFICATIONS

36 APPENDIX

36 Possible Number of Shots

37 Troubleshooting

38 Connecting to a PictBridge Compliant Printer

INTRODUCTION

Overview

Congratulations on your purchase of the new digital camera.

Capturing high-quality digital images is fast and easy with this state-of-the-art smart camera. Equipped with a 5.0-megapixel sensor, this camera is capable of capturing images with a resolution of up to 2560 x 1920 pixels.

Package Contents

Carefully unpack your camera and ensure that you have the following items:

Common Product Components:

■ Digital Camera
■ User's manual
■ Software CD-ROM
USB cable
■ Camera strap
■ Camera pouch
■ 2 x AAA size batteries

Common (Optional) Accessories:

■ SD/SDHC memory card

■ Accessories and components may vary by retailer.

GETTING TO KNOW YOUR CAMERA

Front View

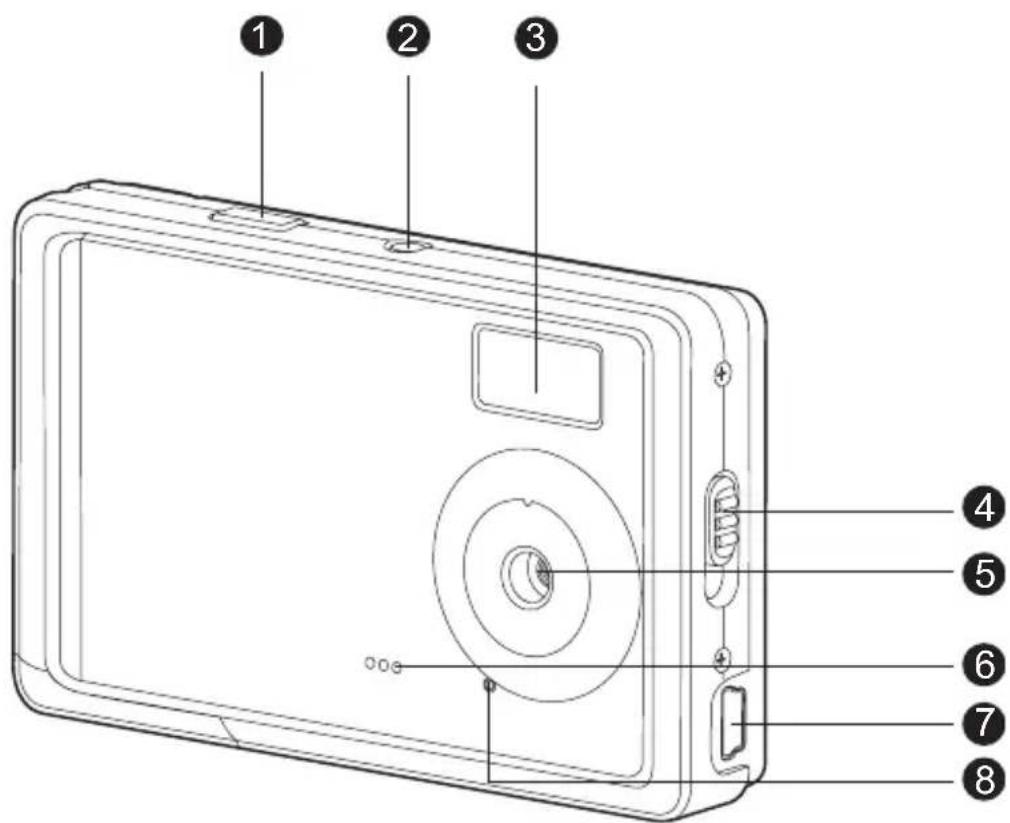

Diagram of a digital camera with numbered parts labeled 1 through 8

1. Shutter button
2. Power button
3. Flash

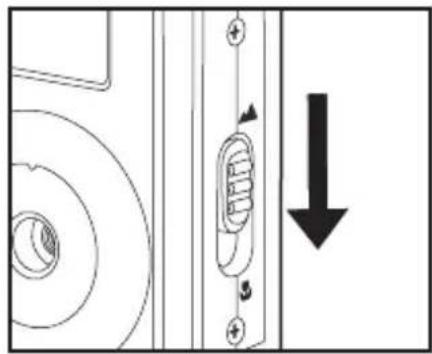

4. Focus switch
   Normal mode
   Macro mode
5. Lens
6. Beeper
7. USB connector
8. Self-timer LED

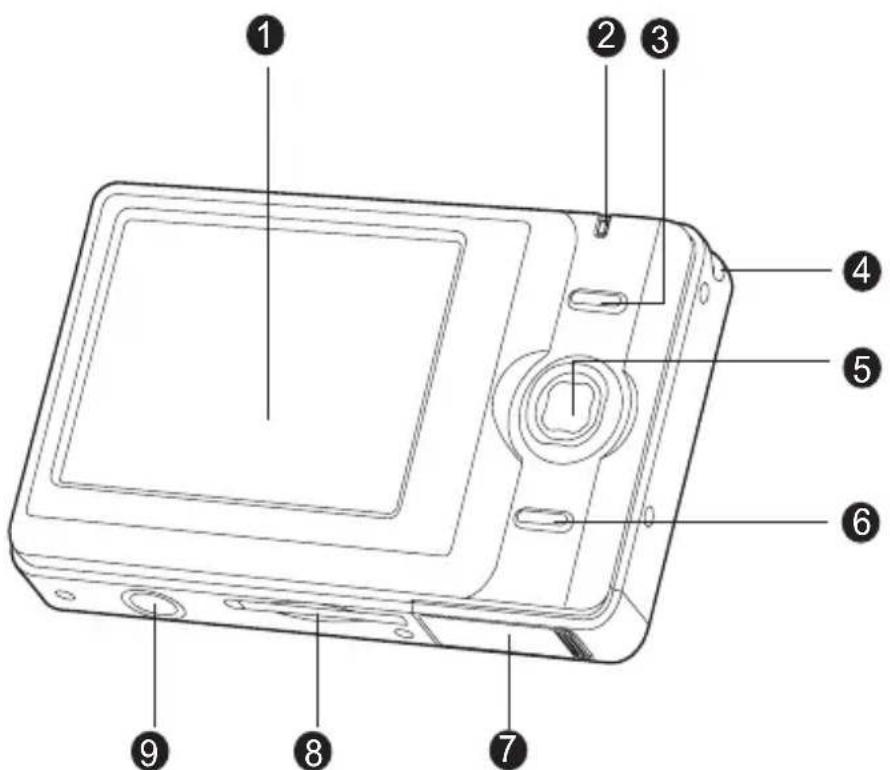

Rear View

Labeled diagram of a digital camera with numbered parts for identification

1. LCD monitor
2. Status LED
3. OK OK button

Digital Zoom button

1. Strap holder
2. 4-way control button

Up button

MENU

Menu button

Right button

Flash button

Down button

MODE

Mode button

Left button

Self-timer button

1. Playback button

2. Battery cover

3. SD/SDHC memory card slot
4. Tripod socket

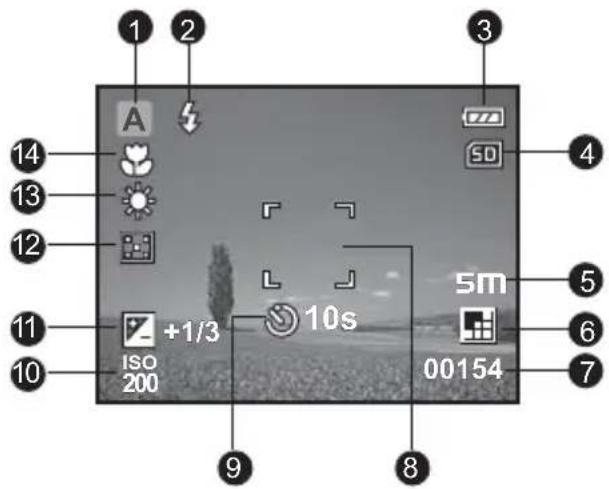

LCD Monitor Display

1. Mode indication

[ ] Auto Mode
[ ]Sport Mode
[]Night Mode
[ ] Portrait Mode
[ ] Landscape Mode
[ ]Backlight Mode

1. Flash mode

[ ] Auto Flash
[ ] Forced Flash
[ ]Flash Off

1. Battery condition

[ ]Full battery power
[ ] Medium battery power
[ ] Low battery power
[ ] No battery power

1. Storage media

[ ]Internal memory (no card)
[ ]SD/SDHC memory card

1. Image size resolution

[iom]3648 x 2736 (FW interpolation)
[8m]3264 x 2448 (FW interpolation)
[5m]2560 x 1920
[3m]2048 x 1536
[I.3m]1280 x 960
[VGA] 640 x 480

1. Image quality

[虫] Fine
[ ] Standard
[ ] Economy

1. Available number of shots

2. Main focus area

3. Self-timer icon

[10s] 10 sec.

[∅2s] 2 sec.

1 2 3 4 14 13 12 11 10 ISO 200 +1/3 10s 5m 00154 5 6 7 9 8

1. ISO

[ISO AUTO]	A	u	t	o
[ISO 100]	1	0	0
[ISO 200]	2	0	0

1. [+] Exposure compensation

2. Metering

[ ]Average

[ - ] S p o t

1. W.Balance

[Blank] Auto
[]Daylight
[ ] Cloudy
[]Tungsten
[ ] Fluorescent

14.Focus setting

[Blank] Normal

[ ] M a c r o

Video mode [▶]

1. Mode icon
2. Available recording time
3. Main focus area
4. Battery condition
5. Storage media
6. Video resolution
7. Exposure compensation
8. W. Balance
9. Focus setting

1 2 3 4 59:59 SD VGA +1/3 6 7 8 9

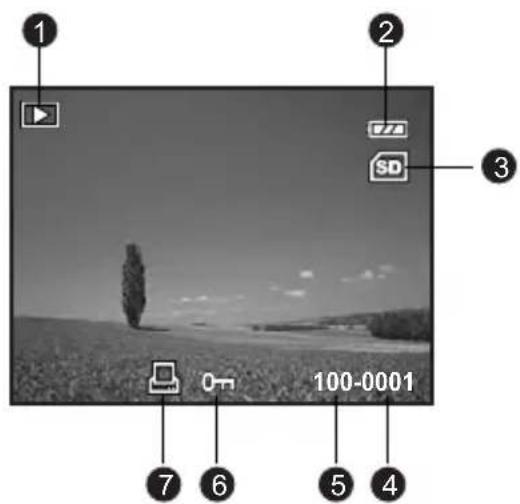

Playback mode [▶] - Still image playback

1. Play mode
2. Battery condition
3. Storage media
4. File number
5. Folder number
6. Protect icon
7. DPOF icon

1 2 3 0-1 100-0001 4 5 6 7

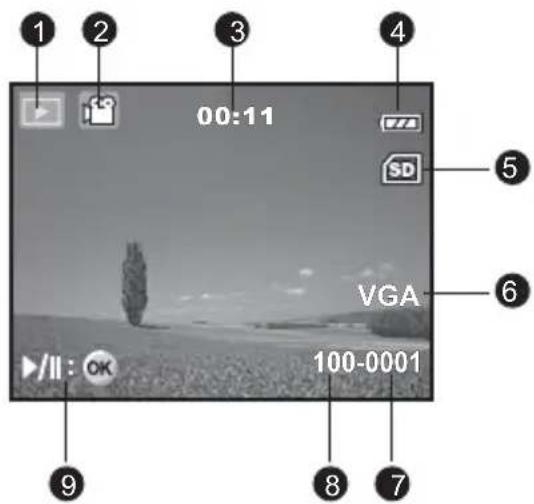

Playback mode [▶] - Video playback

1. Play mode
2. Mode icon
3. Total recorded time
4. Battery condition
5. Storage media
6. Video resolution
7. File number
8. Folder number
9. Playback indicator

00:11 VGA 100-0001

GETTING STARTED

Preparation

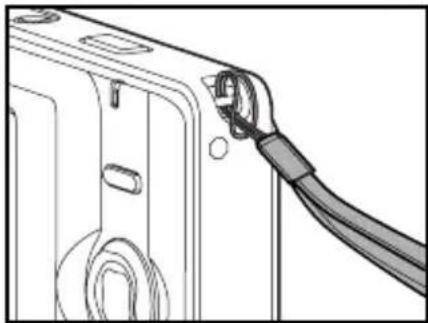

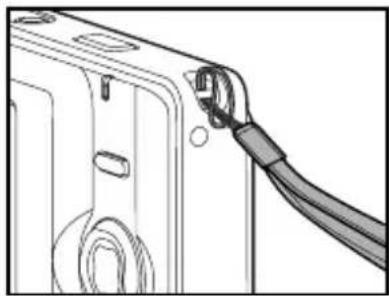

1. Attach the camera strap.
2. Open the battery cover.

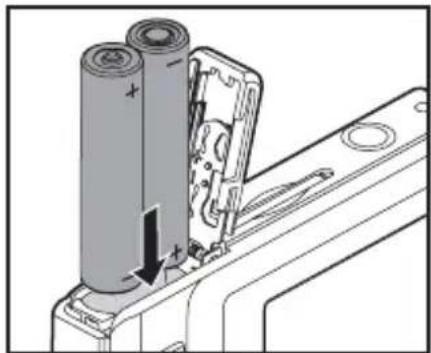

3. Load the batteries with correct orientation as shown.

4. Close the battery cover and make sure it is locked securely.

5. Insert an SD/SDHC memory card (Optional).

The camera has 16MB internal memory (13.5MB available for image storage), but you can load an SD/SDHC memory card (SDHC memory card up to 4GB) to expand the camera's memory capacity.
■ Be sure to format the memory card with this camera before its initial usage.

Line drawing of a device's cable being inserted into a housing (no text or symbols)

Technical illustration of a battery assembly with two cylindrical components and a housing (no text or symbols)

Technical diagram showing a mechanical assembly with a vertical panel and a downward arrow indicating a cut or force (no text or symbols present)

To prevent valuable data from being accidentally erased from an SD/SDHC memory card, you can slide the write protect tab (on the side of the SD/SDHC memory card) to "LOCK".
■ To save, edit, or erase data on an SD/SDHC memory card, you must unlock the card.
■ To prevent damaging of an SD/SDHC memory card, be sure to turn off the power when inserting or removing the SD/SDHC memory card. If inserting or removing the SD/SDHC memory card with the power on, the
■ Be careful not to drop the batteries when opening or closing the battery cover.

LOCK Write-protect tab ↓ LOCK Write-protection state

Turning the Power On/Off

Load the batteries and insert an SD/SDHC memory card before starting.

■ Press the POWER button until the digital still camera turns on.
■ To turn the power off, press the POWER button again.

Illustration of a hand pressing down on a smartphone screen with a downward arrow (no text or symbols)

The power is turned off automatically when the camera has not been operated for a fixed period of time. To resume the operation condition, turn the power on again. Refer to section in this manual titled "Auto Off" in the Setup Menu for further details.

LED Indicators

Indicators State Description/Activity
LED indicator Solid green The digital camera is powering up.
LED indicator Solid green The digital camera is ready to record images (or movies).
LED indicator Blinking green Reading/Writing files.
LED indicator Blinking green Charging the flash.
Self-timer indicator Blinking red The self-timer function is activated.

Choosing the Language

Specify in which language menus and messages are to be displayed on the LCD monitor.

1. Press the MENU button.

2. Select [Setup] menu with the ▶ button.

3. Select [Language] with the ▲ / ▼ buttons, and press the OK button.

■ The Language setting screen will be displayed.

1. Select the displayed language with the ▲ / ▼ buttons, and press the OK button.

■ The setting will be stored.

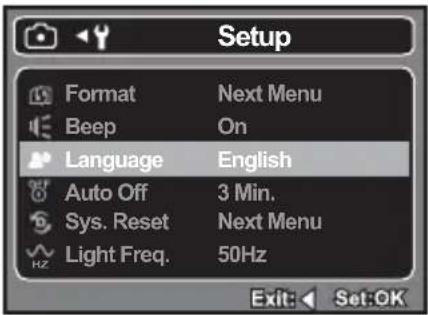

Setup Format Next Menu Beep On Language English Auto Off 3 Min. Sys. Reset Next Menu Light Freq. 50Hz Exit: Set:OK

Formatting the Memory Card or Internal Memory

This utility formats the internal memory (or memory card) and erases all stored images and data.

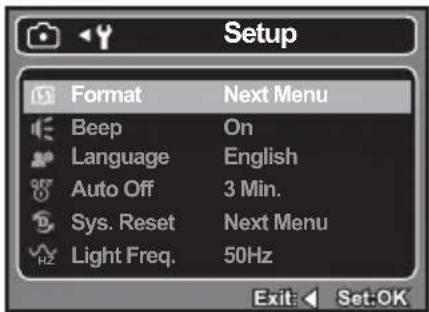

1. Press the MENU button

2. Select [Setup] menu with the ▶ button.

3. Select [Format] with the ▲ / ▼ buttons, and press the OK button.

4. Select [Execute] with the ▲ / ▼ buttons, and press the OK button.

■ To cancel formatting, select [Cancel] and press the OK button.

Setup Format Next Menu Beep On Language English Auto Off 3 Min. Sys. Reset Next Menu Light Freq. 50Hz Exit: Set:OK

Format • Cancel Execute Exit: ← Set:OK

CAPTURE MODE

Capturing Images

Your camera is equipped with a 2.48" full color LTPS-TFT LCD monitor to help you compose images, playback recorded images/video clips or adjust menu settings.

1. Press the Power button to turn the power on.
2. Compose the image on the monitor screen so that the main subject is within the focus frame.
3. Press the shutter button to capture the image.

Using the Zoom Function

This camera is equipped with 4x digital zoom. You can enlarge the subjects by pressing the OK / 🔒 button. A useful feature as it is, however, the more the image is magnified, the grainer the image may become.

To capture a zoomed image, perform the following steps:

1. Press the Power button to turn the power on.

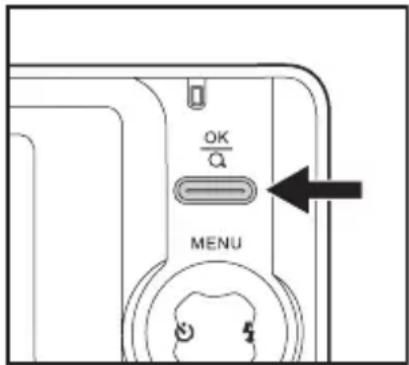

2. To activate the digital zoom, press the OK / button.
   ■ The status of digital magnification is displayed on the LCD monitor.
3. Compose your scene and press the shutter button to capture the image.

OK Q MENU

■ The digital magnification ranges from 1.0x to 4.0x.
■ As you record video clips, the zoom function cannot be activated.

Setting Focus

Images can be captured by sliding the focus switch to set the focus modes: [ ] macro or [ ] normal mode.

1. Press the Power button to turn the power on.
2. Slide the focus switch to your desired focus mode.
3. Compose your scene and press the shutter button.

The table below will help you choose the appropriate focus mode:

Pure mechanical diagram showing a valve mechanism with no text or symbols

Focus mode Description
Normal This	mode is suitable for scenery and portrait shooting.
Macro Select	macro to capture close-up images. When the lens is zoomed to its widest position you may focus objects as close as 60 cm.

Setting the Scene Mode

You can select the scene mode according to the shooting scene. There are 6 available modes in this scene mode.

[ ] Auto: Select this mode to adjust point-and-shoot action.
[ ]Sport: Select this mode when you want to photograph fast-moving subjects.
[]Night: Select this mode when you want to capture dark scenes such as night views.
[ ] Portrait: Select this mode when you want to capture an image that makes the person stand out against a defocused (blurred) background.
[ ] landscape: Select this mode to capture an image with infinity focus, hard sharpness and high saturation.
[ ] Backlight: Select this mode when you want to capture images as the light comes from behind the object.

1. Press the MENU button.

■ The [Capture] menu is displayed.

1. Select [Scene Mode] with the ▲ / ▼ buttons, then press the OK button.
2. Select the desired scene mode with the ▲ / ▼ buttons, then press the OK button.
3. To exit from the menu, press the ◀ button.

Capture Size 5M Quality Fine Scene Mode Auto EV +0.0 Metering Average W. Balance Auto Exit: Set:OK

Scene Mode • Auto Sport Night Portrait Landscape Backlight Exit Set:OK

Adjusting the Exposure (EV Compensation)

You can manually adjust the exposure determined by the digital camera. Use this mode when the proper exposure cannot be obtained, for example, when the contrast (different between light and dark) between the subject and the background is extremely large. The EV compensation value can be set in the range from -2.0EV to +2.0EV.

1. Press the MENU button.

■ The [Capture] or [Video] menu is displayed.

1. Select [EV] with the ▲ / ▼ buttons, then press the OK button.

2. Use ▲ or ▼ to set the range of EV compensation value from -2.0EV to +2.0EV, then press the OK button.

3. To exit from the menu, press the ◀ button.

Capture Size 5M Quality Fine Scene Mode Auto EV +0.0 Metering Average W. Balance Auto Exit Set OK

EV +0.0 Exit: Set:OK

Ex.: In Camera Mode

Effective Subjects and Set Values

+(positive) compensation - (negative) compensation		Backlight correction (+1/3 EV, fixed)
* Printed matter with black text on whitish paper.* Backlighting.* Bright scenes or strong reflected light such as ski slopes.* When the sky accounts for a large area on the screen.	* People illuminated by a spotlight, in particular, against dark background.* Printed matter with white text on blackish paper.* Weak reflecting bodies such as evergreen trees or darkish leaves	* When the background is bright and the subject is dark.* When subjects (people) have a light source such as the sun to their backs.

VIDEO MODE

Recording Video Clips

This mode allows you to record video clips at a resolution of VGA (640 x 480) / QVGA (320 x 240) pixels.

1. Press the MODE button to set the camera mode to [ ]
2. Compose the image.
3. Press the shutter button.

■ The recording of the video clip will start.
- Pressing the shutter button one more time will end the recording of the video clip.
■ The recording time depends on the storage size and the subject of the image to be recorded.

59:59 SD VGA +1/3

■ When recording a video clip, the flash cannot be used.
If the write speed of your SD/SDHC memory card is not fast enough for recording video clips in the currently selected size, the video recording will stop. In this case, select a video size lower than the current one.

Playing Back Video Clips

You can play back recorded video clips on the camera.

1. Press the [] button.

■ The last image appears on the screen.

1. Select the desired video clip with the ◀ / ▶ buttons.

2. Press the OK button.

■ A press of the ▶ / ◀ buttons during playback allows fast forward play / fast reverse play.

■ To stop video playback, press the ▼ button.

This stops playback and returns to the start of the video clip.

■ To pause video playback, press the OK button.

This pauses video playback.

To cancel pause, press the OK button again.

Black-and-white outdoor scene with a lone tree on a hillside, no visible text or symbols

■ Video clips cannot be displayed rotated or enlarged.
This camera does not have a built-in speaker so that you can not play back sound with the camera. To play the video clip back on your computer, you may use either Windows Media Player or Apple "Quick Time Player".
■ Quick Time basic player is available free of charge, compatible with Mac and Windows-computers and can be downloaded from the Apple web site at www.apple.com. For help using Quick Time Player usage, please refer to the Quick Time on-line help for more information.

PLAYBACK MODE

Playing Back Still Images

You can play back the still images on the LCD monitor.

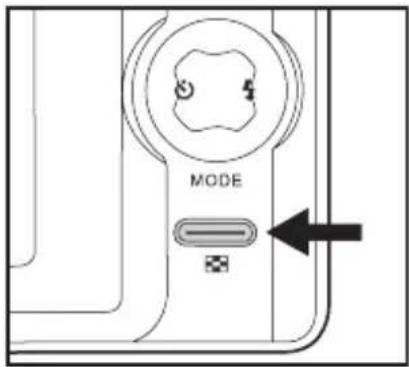

1. Press the [] button.

■ The last image appears on the screen.

1. The images can be displayed in reverse or forward sequence with the ◀ / ▶ buttons.

■ To view the previous image, press the ◀ button.
■ To view the next image, press the ▶ button.

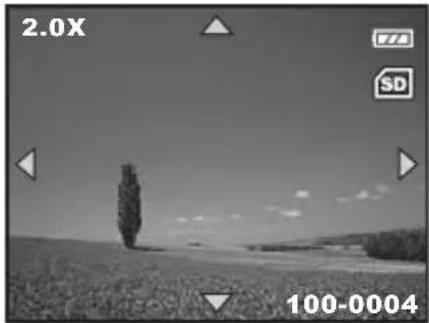

1. Press the OK / O button to adjust the zoom ratio. The magnification factor is displayed on the LCD monitor.

2. To view different portion of the images, press the ▲ / ▼ / ◀ / ▶ button to adjust the display area.

MODE

Black-and-white landscape photo of a lone figure standing on a path under a clear sky, with no visible text or symbols.

■ An [] icon is displayed with the video data.
■ The magnification factors range from 1x to 4x (within 4 stages: 1.0x, 2.0x, 3.0x, and 4.0x).

Thumbnail Display

This function allows you to view 9 thumbnail images on the LCD monitor simultaneously so you may search for a particular image.

1. Press the [] button.

■ The last recorded image appears on the LCD monitor.

1. Press the MENU button.

■ The playback menu is displayed.

1. Select [Thumbnail] with the ▲ / ▼ buttons, then press the OK button.

■ Nine thumbnail images are displayed simultaneously.

■ For recorded video clips, the [ ]video mode icon will be displayed.

Grid of black-and-white photos including urban landscapes, city skyline, and family scenes (no text or symbols)

1. Use the ▲ / ▼ / ◀ / ▶ button to move the cursor to select the image to be displayed at regular size.

2. Press the OK button to display the selected image on full screen.

Slideshow Display

The slideshow function enables you to playback your still images automatically in order one image at a time.

1. Press the [] button..

2. Press the MENU button.

■ The playback menu is displayed.

1. Select [Slide Show] with the ▲ / ▼ buttons, then press the OK button.

2. Select the desired interval time with the ▲ / ▼ buttons, and press the OK button.

■ The slideshow starts.

1. To stop the slide show during playback, press the OK button.

■ The image is displayed on screen when you press the OK button.

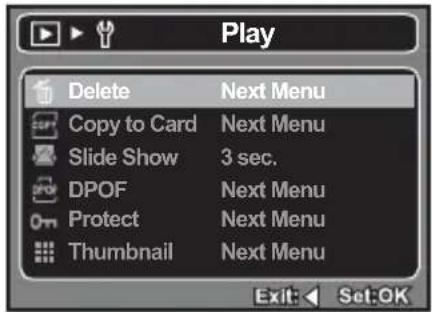

Play Delete Copy to Card Slide Show DPOF Protect Thumbnail Next Menu Next Menu 3 sec. 5 sec. 10 sec. Next Menu Exit: Set:OK

■ The Auto Off function does not operate during slide show.
■ All still images in the folder are automatically played back.
■ Video files are displayed first frame image, and they are not played back.

Protecting Images

Set the data to read-only to prevent images from being erased by mistake.

1. Press the [] button.
2. Select the image that you want to protect with the ◀ / ▶ buttons.
3. Press the MENU button.
4. Select [Protect] with the ▲ / ▼ buttons, and press the OK button.
5. Select [Single], [All], or [Select] with the ▲ / ▼ buttons, and press the OK button.

■ [Single]: Protects the selected image or the last image.
■ [All]: Protects all of the images.
■ [Select]: Select the image you want to protect in thumbnail mode.

1. Select [Lock] with the ▲ / ▼ buttons, and press the OK button.

■ Protection is applied to the image and the camera returns to the previous menu mode.
■ The protect icon [○] is displayed with protected images.
■ When [All] has been selected, [o-n] is displayed with all the images.

Canceling the Protection

To cancel protection for only one image, display the image on which you want to remove the image protection.

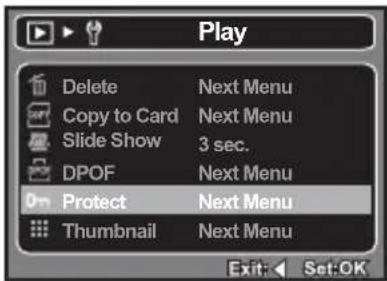

Play Delete Next Menu Copy to Card Next Menu Slide Show 3 sec. DPOF Next Menu Protect Next Menu Thumbnail Next Menu Exit: Set:OK

On Protect • Single All Select Exit. < Set OK

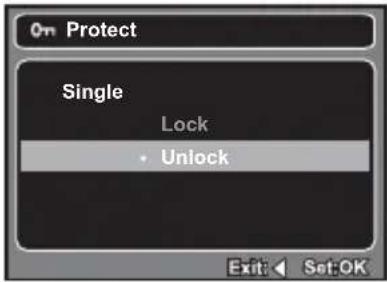

On Protect Single Lock • Unlock Exit: < Set:OK

1. Select [Protect] with the ▲ / ▼ buttons from the playback menu, and press the OK button.
2. Select [Single], [All], or [Select] with the ▲ / ▼ buttons, and press the OK button.
3. Select [Unlock] with the ▲ / ▼ buttons, and press the OK button.

■ The removal of image protection is executed and the camera returns to the previous menu mode.

■ Formatting an SD/SDHC memory card or internal memory overrides protection, and erases all images regardless of their protected status.

DPOF Settings

DPOF is the abbreviation for Digital Print Order Format, which allows you to embed printing information on your memory card. You can select the images to be printed and how many prints to make with the DPOF menu in the camera and insert the memory card to the card compatible printer. When the printer starts printing, it will read the embedded information on the memory card and print the specified images.

1. Press the [ ]!button.
2. Select the image that you want to set DPOF with the e / f buttons.
3. Press the MENU button.
4. Select [DPOF] with the c / d buttons, and press the OK button.

■ The DPOF setting screen is displayed.

1. Select [Single] or [All] with the c / d buttons, and press the OK button.

■ [Single]: Sets DPOF for each individual image.
■ [All]: Sets DPOF for all images at once.

1. Select [Print Num] with the c / d buttons, and press the OK button.

■ This displays the number of prints setting screen.

1. Set the number of prints with the c / d buttons, and press the OK button.

■ You can set up to 99 prints for each image.
This creates a file containing the DPOF information, and when the operation is finished, the screen returns to the playback mode.
■ The DPOF icon [☐] is displayed on each image that has set up DPOF settings.

Delete Next Menu

Copy to Card Next Menu

Slide Show 3 sec.

Protect Next Menu

Thumbnail Next Menu

All

Erasing Images

Érasing single image / Érasing all images

1. Press the [] button.
   ■ The last image will be displayed on the screen.
2. Select the image you want to erase with the ◀ / ▶ buttons.
3. Press the MENU button.
4. Select [Delete] with the ▲ / ▼ buttons and press the OK button.
5. Select [Single], [All], or [Select] with the ▲ / ▼ buttons, and press the OK button.

■ [Single]: Erases the selected image or the last image.
■ [All]: Erases all of the images except for the protected images.
■ [Select]: Select the image you want to erase in thumbnail mode.

1. Select [Execute] with the ▲ / ▼ buttons, and press the OK button.

■ To not erase, select [Cancel], and press the OK button.

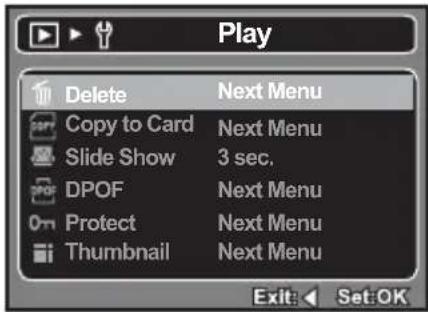

Play Delete Next Menu Copy to Card Next Menu Slide Show 3 sec. DPOF Next Menu Protect Next Menu Thumbnail Next Menu Exit: Set:OK

Delete • Single All Select Exit◀ Set:OK

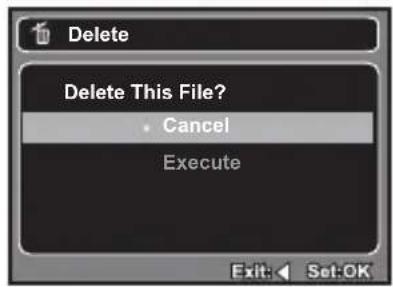

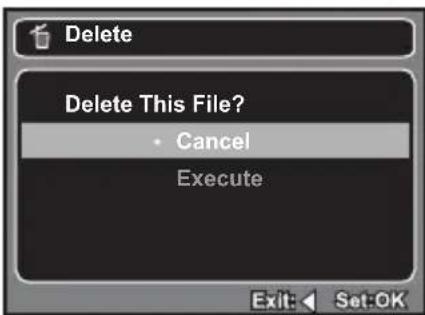

Delete Delete This File? • Cancel Execute Exit: Set:OK

■ Deleting an image will not affect sequential image numbering. For example, if you delete image number 240, the next captured image will be numbered 241 even though 240 no longer exists. In other words, an image-number is retired when an image is deleted and will not be reused or reassigned to another subsequently captured image.

MENU OPTIONS

Capture Menu

This menu is for the basic settings to be used when capturing still images.

Capture Size 5M Quality Fine Scene Mode Auto EV +0.0 Metering Average W. Balance Auto Exit: Set:OK

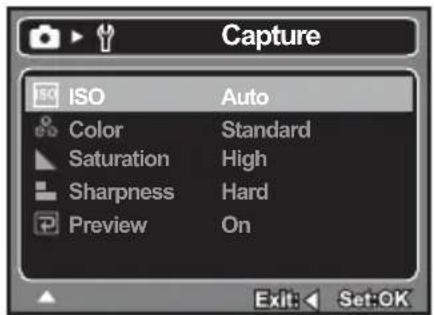

Capture ISO Auto Color Standard Saturation High Sharpness Hard Preview On Exit: Set:OK

1. Press the MODE button to set the camera mode to Camera.
2. Press the MENU button.
3. Select the desired option item with the ▲ / ▼ buttons, and press the OK button to enter its respective menu.
4. Select the desired setting with the ▲ / ▼ buttons, and press the OK button.
5. To exit from the menu, press the ◀ button.

Size

This sets the size of the image that will be captured.

* [IOM] 10M (3648 x 2736 pixels) (FW interpolation)
* [8m] 8M (3264 x 2448 pixels) (FW interpolation)
* [5m] 5M (2560 x 1920 pixels)
* [3m] 3M (2048 x 1536 pixels)
* [l3m] 1.3M (1280 x 960 pixels)
* [VGA] VGA (640 x 480 pixels)

Quality

This sets the quality (compression) at which the image is captured.

* [ ] Fine
* [ ] Standard
* [ ] Economy

Scene Mode

Refer to section in this manual titled "Setting the Scene Mode" for further details.

EV

Refer to section in this manual titled “Adjusting the Exposure (EV Compensation)” for further details.

Metering

This sets the metering method for calculating the exposure.

* [☐] Average: The entire area of the screen is measured, and the exposure is calculated.
* [☐] Spot: A very small portion of the center of the screen is measured, and the exposure is calculated.

W. Balance

This sets the white balance for a variety of lighting conditions and permits images to be captured that approach the conditions that are seen by the human eye.

* [ Blank ] Auto
* [ ] Daylight
* [ ] Cloudy
* [ ] tungsten
* [ ] Fluorescent

ISO

This sets the sensitivity for capturing images. When the sensitivity is raised (and the ISO figure is increased), photography will become possible even in dark locations, but the more pixelated (grainier) the image will appear.

* Auto / 100 / 200

Color

This sets the color of the image that will be captured.

* Standard / Vivid / Sepia / B&W

Saturation

This sets the saturation of the image that will be captured.

* High / Normal / Low

Sharpness

This sets the sharpness of the image that will be captured.

* Hard / Normal / Soft

Preview

This sets the preview interval when displaying the captured image on the screen immediately after the image is captured.

* On / Off

Video Menu

This menu is for the basic settings to be used when recording video clips.

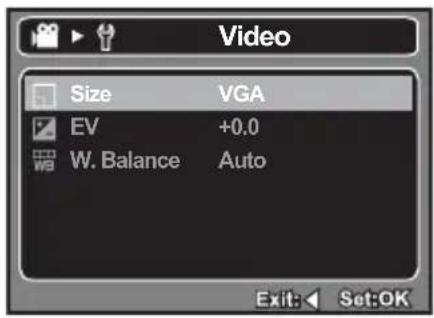

Video Size VGA EV +0.0 W. Balance Auto Exit: Set:OK

1. Press the MODE button to set the camera mode to [ ]
2. Press the MENU button.
3. Select the desired option item with the ▲ / ▼ buttons, and press the OK button to enter its respective menu.
4. Select the desired setting with the ▲ / ▼ buttons, and press the OK button.
5. To exit from the menu, press the ◀ button.

Size

This sets the size of the video clip that will be captured.

* [VGA] 640 x 480
* [QVGA] 320 x 240

EV

Refer to section in this manual titled “Adjusting the Exposure (EV Compensation)” for further details.

W. Balance

Refer to section in this manual titled "W. Balance" in Capture Menu for further details.

Playback Menu

In the [ ] mode, choose which settings are to be used for playback.

Play Delete Next Menu Copy to Card Next Menu Slide Show 3 sec. DPOF Next Menu Protect Next Menu Thumbnail Next Menu Exit: Set:OK

1. Press the [] button.
2. Press the MENU button.
3. Select the desired option item with the ▲ / ▼ buttons, and press the OK button to enter its respective menu.
4. Select the desired setting with the ▲ / ▼ buttons, and press the OK button.
5. To exit from the menu, press the ◀ button.

Delete

Refer to section in this manual titled "Erasing Images" for further details.

Copy to Card

Allows you to copy your files from the camera's internal memory to an SD/SDHC memory card. Of course, you can only do this if you have a memory card installed and some files in internal memory.

* Cancel / Execute

Slide Show

Refer to section in this manual titled "Slideshow Display" for further details.

DPOF

Refer to section in this manual titled "DPOF Settings" for further details.

Protect

Refer to section in this manual titled "Protecting Images" for further details.

Thumbnail

Refer to section in this manual titled "Thumbnail Display" for further details.

Setup Menu

Set your camera's operating environment.

Setup Format Next Menu Beep On Language English Auto Off 3 Min. Sys. Reset Next Menu Light Freq. 50Hz Exit: Set:OK

1. Press the MENU button.
2. Select the [Setup] menu with the ▶ button.
3. Select the desired option item with the ▲ / ▼ buttons, and press the OK button to enter its respective menu.
4. Select the desired setting with the ▲ / ▼ buttons, and press the OK button.
5. To exit from the menu, press the ◀ button.

Format

Refer to section in this manual titled "Formatting the Memory Card or Internal Memory" for further details.

Beep

This sets whether or not to mute the camera sound each time you press the camera's buttons.

* On / Off

Language

Refer to section in this manual titled "Choosing the Language" for further details.

Auto Off

If no operation is performed for a specific period of time, the power to the camera is automatically turned off. This feature is useful for reducing battery usage.

1 Min. / 3 Min. / 5 Min. / Off

Sys. Reset

This returns all basic settings to the camera's default settings.

* Cancel / Execute

Light Freq.

The function allows to change the light frequency of environment to 60Hz or 50Hz.

[60Hz]: the light frequency of environment is 60Hz

[50Hz]: the light frequency of environment is 50Hz

TRANSFERRING FILES TO YOUR COMPUTER

System Requirement

Windows Macintosh
■ Pentium 166 MHz or higher■ Windows 2000/XP/Vista■ 128MB RAM■ 128MB hard disk space■ CD-ROM drive■ Available USB port	■ PowerPC G3/G4/G5■ OS 9.0 or later■ 128MB RAM■ 128MB hard disk space■ CD-ROM drive■ Available USB port

Downloading Your Files

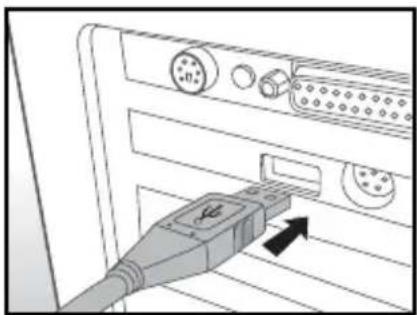

1. Connect one end of the USB cable to an available USB port on your computer.
2. Connect the other end of the USB cable to the USB terminal on the camera.
3. Select [PC] using the ▲ / ▼ buttons, and press the OK button.

4. From the Windows desktop, double click on "My Computer".

5. Look for a new "removable disk" icon.

Illustration of a USB cable connector inserted into a rack-mounted panel (no text or symbols visible)

This “removable disk” is actually the memory (or memory card) in your camera. Typically, the camera will be assigned drive letter “e” or higher.

1. Double click on the removable disk and locate the DCIM folder.

2. Double click on the DCIM folder to open it to find more folders.

- Your recorded images and video clips will be inside these folders.

1. Copy & Paste or Drag-N-Drop image and video files to a folder on your computer.

Mac users: Double-click the "untitled" or "unlabeled" disk drive icon on your desktop. iPhoto may automatically launch.

■ Formatting the internal memory or SD/SDHC memory card by computer (via USB connection) as NTFS file system, the stored data will be automatically deleted by the camera.
■ Do not format the internal memory or SD/SDHC memory card as NTFS file system.

EDITING SOFTWARE INSTALLATION

MediaOne Gallery SE - makes it the easiest way to manage and share your digital life with family & friends. The intuitive thumbnail library automatically organizes, updates and sorts files for the most natural way to browse your multimedia collection.

To install software:

1. Insert the CD-ROM that came with the camera into your CD-ROM drive.
   The welcome screen appears.
2. Click the respective software name.
   Follow the on-screen instructions to complete the installation.

■ For more information about the operation of the software, refer to its respective help documentation.
For Windows 2000/XP/Vista users, please make sure to install and use the software in "Administrator" mode.
■ The software is not supported on the Mac.

USING THE CAMERA AS A PC CAMERA

Your camera can act as a PC camera, which allows you to videoconference with business associates, or have a real-time conversation with friends or family. To use the camera for videoconferencing, your computer system must include the items as below:

■ Microphone
Sound card
■ Speakers or headphones
■ Network or Internet connection

Install the PC camera driver

The PC-camera driver included in the CD-ROM is exclusively for Windows. The PC camera function is not supported for Mac platforms.

1. Insert the enclosed CD-ROM into your CD-ROM drive.
2. Follow the on-screen instructions to complete the installation.
3. After the driver installation is completed, restart your computer.

SPECIFICATIONS

Item Description
Image sensor 1/2.5°	CMOS sensor
Effective pixels 5.0	Mega pixels
Image resolution10M: 3648 x 2736 (FW interpolation),8M: 3264 x 2448 (FW interpolation),5M: 2560 x 1920, 3M: 2048 x 1536,1.3M: 1280 x 960, VGA: 640 x 480VGA: 640 x 480 (24 fps), QVGA: 320 x 240 (30 fps)
Recording media 16MB internal memory (13.5MB available for image storage)Supports SD/SDHC memory card (up to 4GB) (optional)
File format Image format: JPEG; video format: Motion JPEG
Lens F-no.: 3	Focus Length: 6.47 mm (equivalent to 39mm on a 35mm camera)
Focus range Macro: 60 ~ 145 cmNormal: 145 ~ infinity
Shutter speed 1 - 1/1000 sec.
LCD monitor 2.48" full color LTPS-TFT LCD (153.6K pixels)
Self-timer 10 sec delay, 2 sec delay
Exposure compensation	-2.0EV~ +2.0EV (in 1/3EV increments)
White balance Auto, Daylight, Cloudy, Tungsten, Fluorescent
ISO Auto, 100, 200
Interface USB connector
Power 2 x AAA size batteries
Dimensions	Approx. 90 x 55 x 18 mm (without protruding parts)
Weight	Approx. 82g (without batteries and memory card)

* Design and specifications are subject to change without notice.

APPENDIX

Possible Number of Shots

■ Possible number of shots (still image)

The table shows the approximate shots that you can capture at each setting based on the capacity of the internal memory and the SD/SDHC memory card.

Size Quality	Internal Memory	SD/SDHC memory card capacity
		64MB 128MB 256MB 512MB 1GB 2GB							4GB SDHC
10m3648 x 2736(FW interpolation)	Fine	3 21 43 88 178 333 667			1336
	Standard	5 35 72 145 293 547 1097 2196
	Economy	9 55 112 227 456 852 1707 3416
8m3264 x 2448(FW interpolation)	Fine	3 23 48 98 198 370 741			1485
	Standard	6 39 80 162 326 608 1219 2440
	Economy	10 61 125 252 507 947 1897 3796
5m2560 x 1920	Fine	4 28 57 117 235 440 883 1767
	Standard	8 46 95 193 388 724 1451 2904
	Economy	13 73 149 301 604 1128 2258 4518
3m2048 x 1536	Fine	7 44 91 183 369 689 1380 2762
	Standard	13 73 150 302 607 1133 2268 4539
	Economy	21 115 234 471 945 1763 3529 7061
13m1280 x 960	Fine	21 115 234 472 946 1766 3535 7073
	Standard	35 190 386 776 1556 2902 5808 11621
	Economy	55 297 601 1207 2421 4515 9036 18078
VGA640 x 480	Fine	88 466 941 1891 3790 7068 14144 28297
	Standard	145 766 1547 3107 6228 11612 23238 46489
	Economy	226 1193 2407 4834 9689 18064 36148 72317

■ Possible recording time / sec (video clip)

Size	Internal Memory	SD/SDHC memory card capacity
		64MB	128MB	256MB	512MB	1GB	2GB	4GB SDHC
VGA 640 x 480	00:14	01:04	02:12	04:27	08:58	18:00	36:05:00	01:01:12
QVGA 320 x 240	00:26	02:08	04:21	08:48	17:41	35:27:00	01:11:00	02:22:00

■ The above data shows the standard testing results. The actual capacity varies according to the shooting conditions and settings.

Troubleshooting

Refer to the symptoms and solutions listed below before sending the camera for repairs. If the problem persists, contact your local reseller or service center.

Symptom Cause		Solutions / Corrective Actions
The power does not come on.	The batteries are not loaded.	Load the batteries correctly.
	The batteries are exhausted.	Replace with a new set of batteries.
The batteries or camera feels warm.	Long period of continuous use of the camera or the flash.
The start-up screen blinks after powering up.	The rechargeable batteries have reached their effective life.	Replace with a new set of rechargeable batteries.
Even if I press the shutter button, the camera does not shoot.	The shutter button is not pressed all the way down.	Press the shutter button all the way down.
	The internal memory or memory card does not have any free capacity.	Insert a new memory card, or delete unwanted files.
	The flash is charging. Wait until the status LED turns green.
	The memory card is write-protected.	Remove the write-protection.
The camera cannot focus.	The lens is dirty. Wipe clean with a soft, dry cloth or lens paper.
	The distance to the subject is smaller than the effective range.	Get your subject within the effective focus range.
Files cannot be deleted.	The file is protected. Cancel protection.
	The memory card is write-protected.	Remove the write-protection.
Cannot download images.	The free space on the hard disk in your computer may be insufficient.	Check whether the hard disk has a space for running Windows, and if the drive for loading image files has a capacity at least that of the memory card inserted in the camera.

Connecting to a PictBridge Compliant Printer

Read this section if the model you purchased is included with the PictBridge functions. If a printer that supports PictBridge is available, images can be printed by connecting the digital still camera directly to the PictBridge-compatible printer without using a computer.

Connecting the camera to the printer

1. Connect one end of the USB cable to your camera.
2. Connect the other end of the USB cable to the USB port on the printer.
3. Select [Printer] with the ▲ / ▼ buttons, and press the OK button.

Printing images

When the camera is properly connected to a Pict-Bridge compliant printer and set to [Printer], the PictBridge menu is displayed on the monitor.

1. Select the item you want to configure with the ▲ / ▼ buttons, and press the OK button.

■ [Images]: Select whether you want to print specific image or all images. You may also select printing number for specific image.
■ [Size]: Select the desired paper size according to the printer type.
■ [Layout]: Select the desired printing layout according to the printer type.
■ [Print]: After all settings are configured, select this item to start printing.

1. If you select [Images] in the previous step, the figure shown on the right hand side will appear. Select [Select], [All] with the ▲ / ▼ buttons, and press the OK button.

■ [Select]: Select to print one specific image.
■ [All]: Select to print all images.

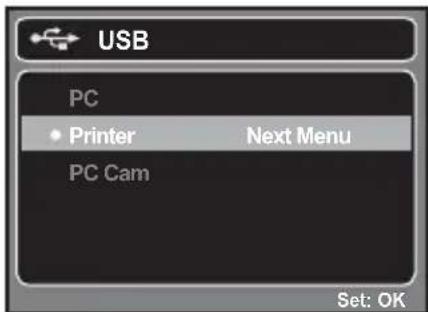

USB PC • Printer Next Menu PC Cam Set: OK

PictBridge Images Next Menu Size Default Layout Default Print Set: OK

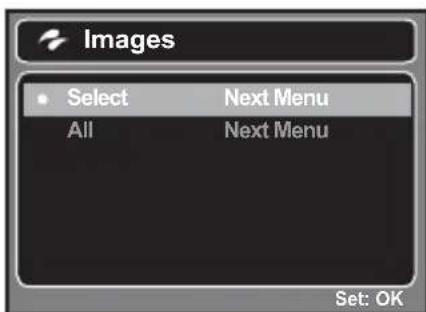

Images • Select Next Menu All Next Menu Set: OK

1. If you select [Select] in the previous step, the figure shown on the right hand side will appear.

■ Select the image that you want to print with the ◀ / ▶ buttons.
■ Select the [Print Num] (up to 99) with the ▲ / ▼ buttons.
■ After selecting the desired image and printing number, press the OK button to confirm.

Select Print Num 00 100-0001 Set: OK

1. Select [Print] with the ▲ / ▼ buttons, and press the OK button to start printing.

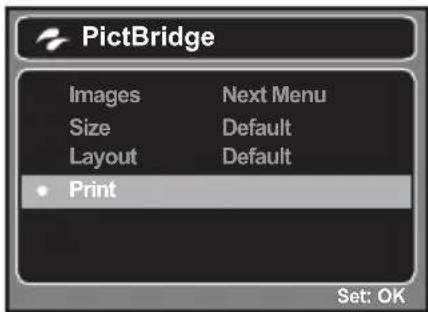

PictBridge Images Next Menu Size Default Layout Default • Print Set: OK

1. The printing starts and the figure shown on the right hand side appears.

■ The [COMPLETE] will be displayed temporarily, reminding you that the printing procedure is finished.
■ If a print error is detected, the [PRINT ERROR] will be displayed.

PictBridge PRINTING...

■ The image printing may be failed if the power to the camera is cut off.

This Quick Start Guide is only for quick reference. For more details on advanced functions, you can refer to your user's manual.

Helpline Number:08704460806

GETTING TO KNOW YOUR CAMERA

Front View

Diagram of a digital camera with numbered parts labeled 1 through 8

1. Shutter button
2. Power button
3. Flash
4. Focus switch

[ ] N o r m a l m o d e [ ] macro mode

1. Lens
2. Beeper
3. USB connector
4. Self-timer LED

Rear View

Labeled diagram of a digital camera with numbered parts for identification

1. LCD monitor
2. Status LED
3. OK OK button
   Digital Zoom button
4. Strap holder

1. 4-way control button

Up button

MENU

Menu button

Right button

Flash button

Down button

MODE

Mode button

Left button

Self-timer button

1. Playback button

2. Battery cover

3. SD/SDHC memory card slot

4. Tripod socket

GETTING STARTED

Preparation

1. Attach the camera strap.
2. Open the battery cover.
3. Load the batteries with correct orientation as shown.
4. Close the battery cover and make sure it is locked securely.
5. Insert an SD/SDHC memory card (Optional).

The camera has 16MB internal memory (13.5MB available for image storage), but you can load an SD/SDHC memory card (SDHC memory card up to 4GB) to expand the camera's memory capacity.

■ Be sure to format the memory card with this camera before its initial usage.

Line drawing of a device panel with a cable inserted, showing no text or symbols

Diagram of a battery assembly with two cylindrical components and a mechanical bracket (no text or symbols)

Technical diagram showing a mechanical assembly with a highlighted component and mounting holes (no text or symbols)

Turning the Power On/Off

Load the battery and insert an SD/SDHC memory card before starting.

■ Press the POWER button until the digital still camera turns on.

■ To turn the power off, press the POWER button again.

Illustration of a hand pressing down on a smartphone screen with a downward arrow (no text or symbols)

Capturing Images

Your camera is equipped with a 2.48" full color LTPS-TFT LCD monitor to help you compose images, playback recorded images/video clips or adjust menu settings.

1. Press the Power button to turn the power on.
2. Compose the image on the monitor screen so that the main subject is within the focus frame.
3. Press the shutter button to capture the image.

Setting the Scene Mode

You can select the scene mode according to the shooting scene. There are 6 available modes in this scene mode.

[ ] Auto: Select this mode to adjust point-and-shoot action.
[ Sport: Select this mode when you want to photograph fast-moving subjects.
[]Night: Select this mode when you want to capture dark scenes such as night views.
[ ] Portrait: Select this mode when you want to capture an image that makes the person stand out against a defocused (blurred) background.
[ ] Landscape: Select this mode to capture an image with infinity focus, hard sharpness and high saturation.
[ ]Backlight: Select this mode when you want to capture images as the light comes from behind the object.

1. Press the MENU button.

■ The [Capture] menu is displayed.

1. Select [Scene Mode] with the ▲ / ▼ buttons, then press the OK button.
2. Select the desired scene mode with the ▲ / ▼ buttons, then press the OK button.
3. To exit from the menu, press the ◀ button.

Recording Video Clips

This mode allows you to record video clips at a resolution of VGA (640 x 480) / QVGA (320 x 240) pixels.

1. Press the MODE button to set the camera mode to [ ]
2. Compose the image.
3. Press the shutter button.

■ The recording of the video clip will start.
■ Pressing the shutter button one more time will end the recording of the video clip.
■ The recording time depends on the storage size and the subject of the image to be recorded.

59:59 SD VGA +1/3

Playing Back Video Clips

You can play back recorded video clips on the camera.

1. Press the [] button.
   ■ The last image appears on the screen.
2. Select the desired video clip with the ◀ / ▶ buttons.
3. Press the OK button.

■ A press of the ▶ / ◀ buttons during playback allows fast forward play / fast reverse play.
■ To stop video playback, press the ▼ button. This stops playback and returns to the start of the video clip.
■ To pause video playback, press the OK button. This pauses video playback.

To cancel pause, press the OK button again.

Black-and-white landscape photo showing a lone tree on a hillside, with no visible text or symbols in the main scene.

Playing Back Still Images

You can play back the still images on the LCD monitor.

1. Press the [] button.

■ The last image appears on the screen.

1. The images can be displayed in reverse or forward sequence with the ◀ / ▶ buttons.

■ To view the previous image, press the ◀ button.

■ To view the next image, press the ▶ button.

1. Press the OK / button to adjust the zoom ratio. The magnification factor is displayed on the LCD monitor.

2. To view different portion of the images, press the ▲ / ▼ / ◀ / ▶ button to adjust the display area.

MODE

Black-and-white photo of a lone tree standing in a grassy field under a clear sky, with no visible text or symbols.

Erasing Images

Érasing single image / Érasing all images

1. Press the [] button.
   ■ The last image will be displayed on the screen.
2. Select the image you want to erase with the ◀ / ▶ buttons.
3. Press the MENU button.
4. Select [Delete] with the ▲ / ▼ buttons and press the OK button.
5. Select [Single], [All], or [Select] with the ▲ / ▼ buttons, and press the OK button.

■ [Single]: Erases the selected image or the last image.
■ [All]: Erases all of the images except for the protected images.
■ [Select]: Select the image you want to erase in thumbnail mode.

1. Select [Execute] with the ▲ / ▼ buttons, and press the OK button.

■ To not erase, select [Cancel], and press the OK button.

Play Delete Next Menu Copy to Card Next Menu Slide Show 3 sec. DPOF Next Menu Protect Next Menu Thumbnail Next Menu Exit: Set:OK

Delete • Single All Select Exit: < Set:OK

Delete Delete This File? • Cancel Execute Exit: < Set:OK

TRANSFERRING FILES TO YOUR COMPUTER

System Requirement

Windows Macintosh
■ Pentium 166 MHz or higher■ Windows 2000/XP/Vista■ 128MB RAM■ 128MB hard disk space■ CD-ROM drive■ Available USB port	■ PowerPC G3/G4/G5■ OS 9.0 or later■ 128MB RAM■ 128MB hard disk space■ CD-ROM drive■ Available USB port

Downloading Your Files

1. Connect one end of the USB cable to an available USB port on your computer.
2. Connect the other end of the USB cable to the USB terminal on the camera.
3. Select [PC] using the ▲ / ▼ buttons, and press the OK button.
4. From the Windows desktop, double click on "My Computer".
5. Look for a new "removable disk" icon.

This “removable disk” is actually the memory (or memory card) in your camera. Typically, the camera will be assigned drive letter “e” or higher.

1. Double click on the removable disk and locate the DCIM folder.
2. Double click on the DCIM folder to open it to find more folders.

■ Your recorded images and video clips will be inside these folders.

1. Copy & Paste or Drag-N-Drop image and video files to a folder on your computer.

Close-up of a USB cable connector inserted into a server rack (no visible text or symbols)

Mac users: Double-click the "untitled" or "unlabeled" disk drive icon on your desktop. iPhoto may automatically launch.

HDC-571E Warranty

HITACHI

Hitachi Europe Ltd.

This product is exclusively available through Argos and in the unlikely event of a problem please return the faulty item together with proof of purchase to Argos for repair /replacement.

For further information including obtaining spare parts please contact the Hitachi Digital Camera helpline on: [phone] or mail to [e-mail].
