USER MANUAL HDC-1086E HITACHI

HITACHI Inspire the Next

Model name HDC-1086E

10.0 Mega Pixel High Resolution
3.0" full color TFT LCD Display
3x Optical Zoom
4x Digital Zoom

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Note:

This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the FCC rules.

Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Notice

If static electricity or electromagnetism causes data transfer to discontinue midway (fail), restart the application or disconnect and connect the communication cable (USB, etc.) again.

READ THIS FIRST

Trademark Information

■ Microsoft ^® and Windows ^® are U.S. registered trademarks of Microsoft Corporation.
■ Pentium ^® is a registered trademark of Intel Corporation.
■ Macintosh is a trademark of Apple Inc.
■ SD ^TM is a trademark.
■ SDHC ^TM is a trademark.
■ Other names and products may be trademarks or registered trademarks of their respective owners.

Product Information

■ Product design and specifications are subject to change without notice. This includes primary product specifications, software, software drivers, and user's manual. This User Manual is a general reference guide for the product.
The product and accessories that come with your camera may be different from those described in this manual. This is due to the fact that different retailers often specify slightly different product inclusions and accessories to suit their market requirements, customer demographics, and geographical preferences. Products very often vary between retailers especially with accessories such as batteries, chargers, memory cards, cables, pouches, and language support. Occasionally a retailer will specify a unique product color, appearance, and internal memory capacity. Contact your dealer for precise product definition and included accessories.
■ The illustrations in this manual are for the purpose of explanation and may differ from the actual design of your camera.
■ The manufacturer assumes no liability for any errors or discrepancies in this user manual.

SAFETY INSTRUCTIONS

Read and understand all Warnings and Cautions before using this product.

Warnings

If foreign objects or water have entered the camera, turn the power off and remove the batteries.

Continued use might cause fire or electric shock. Consult the store of purchase.

If the camera has fallen or its case has been damaged, turn the power off and remove the batteries.

Continued use might cause fire or electric shock. Consult the store of purchase.

Do not disassemble, change or repair the camera.

This might cause fire or electric shock. For repair or internal inspection, ask the store of purchase.

Do not use the camera in areas near water.

This might cause fire or electric shock. Take special care during rain, snow, on the beach, or near the shore.

Do not place the camera on inclined or unstable surfaces.

This might cause the camera to fall or tilt over, causing damage.

Keep the batteries out of the reach of children.

Swallowing the batteries might cause poisoning. If the batteries are accidentally swallowed, immediately consult a physician.

Do not use the camera while you are walking, driving or riding a motorcycle.

This might cause you to fall over or result in traffic accident.

Please use batteries with complete external seals.

Do not use batteries from which the seals have been damaged or removed. This may cause leakage, explosion, or injury.

Cautions

Load the batteries paying careful attention to the polarity (+ or −) of the terminals.

Loading the batteries with their polarities inverted might cause fire and injury, or damage to the surrounding areas due to the battery rupturing or leaking.

Do not fire the flash close to anyone's eyes.

This might cause damage to the person's eyesight.

Do not subject the LCD monitor to impact.

This might damage the glass on the screen or cause the internal fluid to leak. If the internal fluid enters your eyes or comes into contact with your body or clothes, rinse with fresh water. If the internal fluid has entered your eyes, consult a physician to receive treatment.

A camera is a precision instrument. Do not drop it, strike it or use excessive force when handling the camera.

This might cause damage to the camera.

Do not use the camera in humid, steamy, smoky, or dusty places.

This might cause fire or electric shock.

Do not remove the batteries immediately after long period of continuous use.

The batteries become hot during use. Touching a hot battery might cause burns.

Do not wrap the camera or place it in cloth or blankets.

This might cause heat to build up and deform the case, resulting in fire. Use the camera in a well-ventilated place.

Do not leave the camera in places where the temperature may rise significantly, such as inside a car.

This might adversely affect the case or the parts inside, resulting in fire.

Before you move the camera, disconnect cords and cables.

Failure to do this might damage cords and cables, resulting in fire and electric shock.

Notes on Battery Usage

When you use the batteries, carefully read and strictly observe the Safety Instructions and the notes described below:

■ Use only the specified batteries.
■ Avoid extremely cold environments as low temperatures can shorten the battery life and reduce camera performance. Therefore Ni-MH rechargeable batteries are highly recommended.
■ When you are using a new rechargeable batteries or rechargeable batteries that have not been used for an extended period of time (the batteries that passed the expiry date are exception), it may affect the number of images that can be captured. Therefore, to maximize their performance and lifetime, we recommend that you fully charge the batteries and discharge them for at least one complete cycle before use.
■ The batteries may feel warm after a long period of continuous use of the camera or the flash. This is normal and not a malfunction.
■ The camera may feel warm after a long period of continuous use. This is normal and not a malfunction.
If the batteries are not to be used for a long period of time, remove them from the camera to prevent leakage or corrosion and store them after no battery power is left. Stored for a long time in a fully charged condition, their performance may be impaired.
■ Always keep the battery terminals clean.
■ There is a risk of explosion if the batteries are replaced by an incorrect type.
■ Dispose of used batteries according to the recycle instructions.
- Charge the rechargeable batteries fully before using for the first time.
■ Never use batteries of different types (together) or mix old and new batteries.
■ Never use manganese batteries.
■ To prevent short-circuiting or fire, keep the batteries away from other metal objects when carrying or storing.

CONTENTS

INTRODUCTION 7

Overview 7

Package Contents ....7

GETTING TO KNOW YOUR CAMERA 8

Front View 8

Rear View 9

LCD Monitor Display 10

GETTING STARTED 12

Preparation 12

CAPTURE MODE ....13

Capturing Images 13

Recording Shots using Face Detection Technology 13

Setting the Scene Mode 14

VIDEO MODE ....16

Recording Video Clips 16

Playing Back Video Clips 16

PLAYBACK MODE ....17

Playing Back Still Images 17

Thumbnail Display 17

MENU OPTIONS ......18

Capture Menu 18

Video Menu 20

Playback Menu 21

Setup Menu 22

SYSTEM REQUIREMENT 23

USING THE CAMERA AS A PC CAMERA 23

Install the PC camera driver 23

SPECIFICATIONS ....24

Connecting to a PictBridge Compatible Printer 25

INTRODUCTION

Overview

Congratulations on your purchase of the new digital camera.

Capturing high-quality digital images is fast and easy with this state-of-the-art smart camera.

Equipped with an 10.0-megapixel sensor, this camera is capable of capturing images with a resolution of up to 3648 x 2736 pixels.

Package Contents

Carefully unpack your camera and ensure that you have the following items:

Common Product Components:

Digital Camera
■ Software CD-ROM
■ User's Manual
USB cable
■ Camera strap
■ Camera pouch
■ 2 x AA size batteries

Common (Optional) Accessories:

■ SD/SDHC memory card

■ Accessories and components may vary by retailer.

GETTING TO KNOW YOUR CAMERA

Front View

① ②③④⑤ ⑥ ⑦

1. Shutter button
2. Power button
3. Status LED
4. Flash
5. Self-timer LED
6. Microphone
7. Lens

Rear View

Diagram of a device control panel with numbered labels pointing to key components like buttons, display, and zoom.

Diagram of a device rear panel with labeled components including ports, buttons, and indicators

a. LCD monitor
b. Strap holder
c. Battery / Memory card cover
d. USB connector
e. Tripod socket

Item	Function
	Capture Mode Video Mode	de Playback Mode
1. ZoomWide Tele	ZoomWide Tele	Zoom
2. Menu Menu
3. Capture Mode Video Mode	Playback Mode
4. FocusAuto> > > ∞	FocusAuto> ∞	Rotation Right○90°
5. FlashA>4>4>4	--	Next Image
6. Self-timerOff>10s>2s>10+2s	Self-timerOff>10s>2s	Delete
7. Compensation>	--	Previous Image
8. SetScene mode	Set	Set

LCD Monitor Display

Capture Mode

1. Scene mode

2. Flash mode

[↓A] Auto Flash
[↓] Red-eye Reduction
[↓] Forced Flash
[⑤] Flash Off

1. Zoom status

2. Battery condition

[74] Full battery power
[☐] Medium battery power
[☐] Low battery power
[□] No battery power

1. Storage media

[INT] Internal memory (no card)
[SD] SD/SDHC memory card

1. CaptureMd.

[Blank] Single

[ ]Cont.

[ ] AEB

[ ] B u r s t

[ ]Cont.flash
[ ] Pre-Shot
[ ]Coupl.shot

1. Image size resolution

[IO M] 10M (3648 x 2736 pixels)
[8M] 8M (3264 x 2448 pixels)
[6M] 6M (2816 x 2112 pixels)
[4M] 4M (2272 x 1704 pixels)
[2M] 2M (1600 x 1200 pixels)
[0.3M] 0.3M (640 x 480 pixels)

1. Image quality

[ ]	F	i	n	e
[ ]	N	o	r	m	a
[ ]	E	c	o	n	o

1. Available number of shots

2. Main focus area

3. Date
4. Self-timer icon

[∅10s] 10 sec.
[∅2s] 2 sec.
[∅10+2s] 10+2 sec.

18 17 16 15 14 13 ISO 100 2008/01/01 10s 10M 00154 32 5 6 7 8 9 12 11 10

1. ISO

2. [☐] Backlight correction

[+] Exposure compensation

1. Slow shutter warning

* Poor lighting conditions. Images will be vulnerable to vibration.

1. Metering

[□□] Average
[□] Spot

1. W.Balance

[Blank] Auto

[-●] Incand.
[甲] FI1
[2] F12
[●] Daylight
[...] Cloudy
[ ]Manual

1. Focus setting

1 [Blank] Auto focus
Face detection
[ ] 'Macro
[ ]infinity

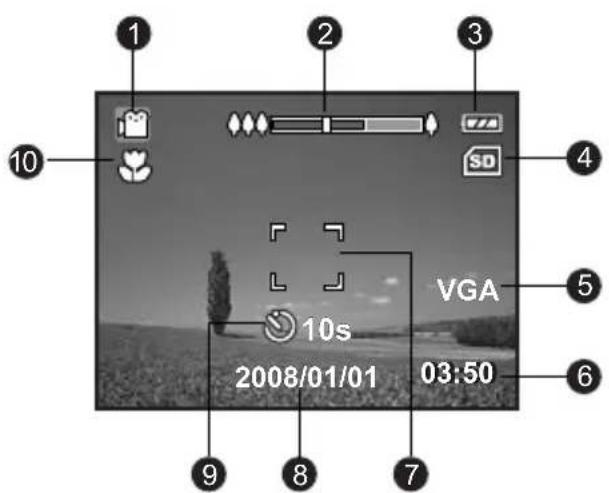

Video mode [💡]

1. Mode icon
2. Zoom status
3. Battery condition
4. Storage media
5. Video resolution
6. Available recording time/Elapsed time
7. Main focus area
8. Date
9. Self-timer icon
10. Focus setting

1 2 3 4 5 6 7 8 9 10 VGA 10s 2008/01/01 03:50

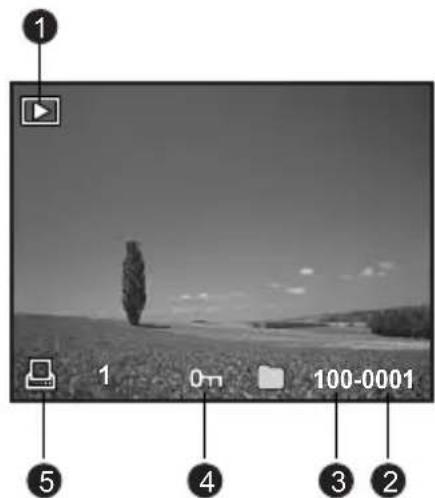

Playback mode [▶] - Still image playback

1. Mode icon
2. File number
3. Folder number
4. Protect icon
5. DPOF icon

1 1 0m 100-0001 2 3 4 5

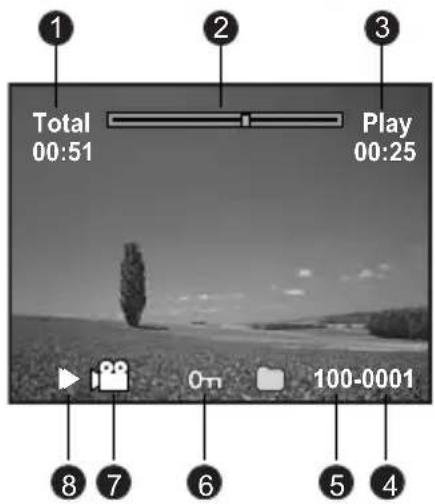

Playback mode [▶] - Video playback

1. Total recorded time
2. Video status bar
3. Elapsed time
4. File number
5. Folder number
6. Protect icon
7. Mode icon
8. Play mode

1 2 3 Total 00:51 Play 00:25 8 7 6 5 4

GETTING STARTED

Preparation

1. Attach the camera strap.

2. Open the battery/memory card cover.

3. Load the supplied batteries with correct orientation as shown.

4. Insert an SD/SDHC memory card (Optional).

The camera has 16MB internal memory (12MB available for image storage), but you can load an SD/SDHC memory card to expand the camera's memory capacity.
■ Be sure to format the memory card with this camera before its initial usage.

1. Close the battery/memory card cover and make sure it is locked securely.

Line drawing of a door panel with a cable inserted into the lock (no text or symbols)

Diagram of a battery assembly with two cylindrical cells and an arrow indicating direction (no text or symbols)

Technical diagram of a mechanical assembly with a monitor and clamped components (no text or symbols visible)

■ To prevent valuable data from being accidentally erased from an SD/SDHC memory card, you can slide the write protect tab (on the side of the SD/SDHC memory card) to "LOCK".
■ To save, edit, or erase data on an SD/SDHC memory card, you must unlock the card.
■ To prevent damaging of an SD/SDHC memory card, be sure to turn off the power when inserting or removing the SD/SDHC memory card. If inserting or removing the SD/SDHC memory card with the power on, the camera will automatically turn off.
■ Be careful not to drop the batteries when opening or closing the battery cover.

LOCK Write-protect tab LOCK Write-protection state

CAPTURE MODE

Capturing Images

Your camera is equipped with a 3.0" full color TFT LCD monitor to help you compose images, playback recorded images/video clips or adjust menu settings.

1. Press the Power button to turn the power on.

■ The status LED lights green and the camera is initiated.

1. Set the camera mode to []

2. Compose your image in the LCD monitor.

3. Pressing the button zooms in on the subject, and enlarges the subject on the LCD monitor.

4. Pressing the button provides a wider angle image.

5. Press the shutter button.

6. Pressing the shutter button down halfway automatically focuses and adjusts the exposure, and pressing the shutter button down fully captures the images.
   ■ The focus area frame turns blue when the camera is in focus and the exposure is calculated.
   ■ When the focus or exposure is not suitable, the frame of the focus area turns yellow.

① Press down halfway ② Press down fully

Recording Shots using Face Detection Technology

Face Detection Technology can identify and focus on the human faces in the image. This advanced function simultaneously detects up to 5 human faces regardless of their position in the scene.

1. Set the camera mode to []

2. Toggle the [icon] button until [icon appears on the LCD monitor.

■ The white frame is identified as the “top priority” face (main focus frame), and gray ones around the other faces.

1. Press the shutter button halfway down to lock the focus.

■ The main focus frame simultaneously turns green.
If the "top priority" face is out of focus, the main focus frame turns red.

1. Press the shutter button down fully to capture your image.

■ Subjects that are not suitable with this function:

a. A person wearing glasses, sunglasses, or face covered with hat or hair.
b. A person turning sideways.

Setting the Scene Mode

By simply selecting one of the following 20 modes, you can capture the image with the most appropriate settings.

1. Set the camera mode to [].

2. Press the SCN/SET button.

3. Select the desired scene mode with the ◀ / ▶ buttons, and press the SCN/SET button.

4. Compose the image and press the shutter button.

MENU MODE SCN / SET

Sports 07/20 Capture fast-moving subjects. MENU:Exit SET:OK

The table below will help you choose the appropriate scene mode:

Scene mode Description
P Program AE	This mode allows you to manually set parameters other than the shutter speed and the aperture value.
Smile Shot Select this mode to automatically capture an image when a smiling face is detected.
Anti-Shake This mode minimizes the influences of hand shaking when you want to capture an image.
Portrait Man Select this mode when you want to capture an image that makes a man stand out against a blurred background.
Portrait Lady Select this mode when you want to capture an image that makes a lady stand out against a blurred background.
▲ Landscape Select this mode when you want to capture an image with infinity focus, hard sharpness and high saturation.
Sports Select this mode when you want to capture fast-moving subjects.
Night Portrait Select this mode when you want to capture people with an evening or night scene background.
Night Scene Select this mode when you want to capture dark scenes such as night views.
Candlelight Select this mode when you want to capture photos of candlelit scene, without spoiling the ambience.
Fireworks Select this mode when you want to capture fireworks clearly with optimal exposure. The shutter speed becomes slower, so using a tripod is recommended.
Text Select this mode when you want to capture an image that contains black and white subjects like printed documents.
Sunset Select	this mode when you want to capture a sunset. This mode helps keep the deep hues in the scene.
Sunrise Select	this mode when you want to capture a sunrise. This mode helps keep the deep hues in the scene.
Splash Water	Select this mode when you want to capture photos of splashing water.
Flow Water Select	select this mode when you want to capture the soft flowing water.
Snow Select th	is mode when you want to capture clear snow scenes without darkened subjects and bluish tint.
Beach Select	this mode when you want to capture bright beach scenes and sunlit water surfaces.
Pets Select this	is mode when you want to capture your pets. Shoot from their eye level.
User Setting	This mode allows you to manually set your favorite parameters and these settings will be memorized.

VIDEO MODE

Recording Video Clips

This mode allows you to record video clips at a resolution of 320 x 240 / 640 x 480 pixels.

Voice can also be recorded.

1. Set the camera mode to [▶].
2. Compose the image.
3. Press the shutter button.

■ The recording of the video clip will start.
- Pressing the shutter button one more time will end the recording of the video clip.
■ The recording time depends on the storage size and the subject of the image to be recorded.
■ The zoom function cannot be used during video recording.

MENU MODE SCN / SET

■ When recording a video clip, the flash cannot be used.
If the write speed of your SD/SDHC memory card is not fast enough for recording video clips in the currently selected size, and then the video recording will stop. In this case, select a video size lower than the current one.

Playing Back Video Clips

You can play back recorded video clips on the camera.

1. Set the camera mode to [▶].
   ■ The last image appears on the screen.
2. Select the desired video clip with the ◀ / ▶ buttons.
3. Press the SCN/SET button.

A press of the ▶ / ◀ buttons during playback allows fast forward play / fast reverse play.
■ To stop video playback, press the ▼ button.
This stops playback and returns to the start of the video clip.
■ To pause video playback, press the SCN/SET button.

This pauses video playback.

To cancel pause, press the SCN/SET button again.

■ Video clips cannot be displayed rotated or enlarged.
This camera does not have a built-in speaker so that you can not play back sound with the camera. To play the video clip back on your computer, you may use either Windows Media Player or Apple "QuickTime Player".
■ QuickTime basic player is available free of charge, compatible with Mac and Windows-computers and can be downloaded from the Apple web site at www.apple.com. For help using QuickTime Player usage, please refer to the QuickTime on-line help for more information.

PLAYBACK MODE

Playing Back Still Images

You can play back the still images on the LCD monitor.

1. Set the camera mode to [▶].
   ■ The last image appears on the screen.
2. The images can be displayed in reverse or forward sequence with the ◀ / ▶ buttons.
   ■ To view the previous image, press the ◀ button.
   ■ To view the next image, press the ▶ button.
   ■ Pressing the ♠ button enlarges the image.
   ■ To return to normal magnification, press the *** button.

Entire image Current position of enlargement x1.5

■ An [💡] icon is displayed with the video data.

Thumbnail Display

This function allows you to view thumbnail images on the LCD monitor so you may search for a particular image/video clip/audio file.

1. Set the camera mode to [▶].

■ The last image appears on the screen.

1. Press the button.

■ 3 thumbnail images are displayed simultaneously.
■ Press the ▲ / ▼ buttons to select the file to be displayed.
■ Press the ◀ / ▶ buttons to go to the previous or the next page.

1. Press the SCN/SET or button to exit from the thumbnail display.

100-0001 100-0002 100-0003 100-0004 100-0005 100-0006 100-0007

MENU OPTIONS

Capture Menu

This menu is for the basic settings to be used when capturing still images.

Capture Size 10M Quality Normal Color Normal W.Blance Auto ISO Auto Metering Average MENU:Exit SET:Adj.

Capture Sharpness Normal Saturation Normal MENU:Exit SET:Adj.

Function CaptureMid. Single Date Print Off Preview Off Bigl zoom Off MENU:Exit SET:Adj.

1. Set the camera mode to [].
2. Press the MENU button, and select the [Capture] / [Function] menu with the ◀ / ▶ button.
3. Select the desired option item with the ▲ / ▼ buttons, and press the SCN/SET button to enter its respective menu.
4. Select the desired setting with the ▲ / ▼ buttons, and press the SCN/SET button.
5. To exit from the menu, press the MENU button.

Size

This sets the size of the image that will be captured.

* [IOM] 10M (3648 x 2736 pixels)
* [8M] 8M (3264 x 2448 pixels)
* [6M] 6M (2816 x 2112 pixels)
* [4M] 4M (2272 x 1704 pixels)
* [2M] 2M (1600 x 1200 pixels)
* [O.3M] 0.3M (640 x 480 pixels)

Quality

This sets the quality (compression) at which the image is captured.

* [ ] Fine
* [ ] Normal
* [ ] Economy

Color

This sets the color of the image that will be captured.

* Normal / Vivid / Sepia / B&W

W. Balance

This sets the white balance for a variety of lighting conditions and permits images to be captured that approach the conditions that are seen by the human eye.

* [ Blank ] Auto
* [ ◆ ] Incand.
* [甲] FI1
* [ 2 ] F12
* [☀] Daylight
* [ ] Cloudy
* [ ] Manual

EN-18

ISO

This sets the sensitivity for capturing images. When the sensitivity is raised (and the ISO figure is increased), photography will become possible even in dark locations, but the more pixelated (grainier) the image will appear.

* Auto / 80 / 100 / 200 / 400 / 800 / 1000

Metering

This sets the metering method for calculating the exposure.

* [☐] Average: The entire area of the screen is measured, and the exposure is calculated.
* [■] Spot: A very small portion of the center of the screen is measured, and the exposure is calculated.

Sharpness

This sets the sharpness of the image that will be captured.

Saturation

This sets the saturation of the image that will be captured.

CaptureMd.

This sets the recording method at the time of capturing images.

* [Blank] Single: Captures one image at a time.
* [ ] Cont.: Permits continuous capture of up to 3 images.
* [ ] AEB: Permits 3 consecutive images in the order of standard exposure, underexposure and overexposure compensation.
* [ ]Burst: Permits continuous photography while pressing holding the shutter button. As long as you hold the shutter button pressed, images are captured until thememory capacity is exhausted.
* [ ]Cont.flash: Permits continuous capture of up to 3 images with flash.
* [ ] Pre-Shot: Lets you capture the background first, then have someone to capture you in front of it.
* [ ]Coupl.shot: Uses separate areas to combine two shots. You can include yourself in the shot.

Date Print

The date of recording can be printed directly on the still images. This function must be activated before the image is captured.

Preview

This sets whether or not to display the captured image on the screen immediately after the image is captured.

Digi. Zoom

This sets whether or not to use digital zoom at the time of photography.

Video Menu

This menu is for the basic settings to be used when recording video clips.

Video Size C40-200 Color Normal MENU:Exit SET:Adj.

1. Set the camera mode to [ ]
2. Press the MENU button.
3. Select the desired option item with the ▲ / ▼ buttons, and press the SCN/SET button to enter its respective menu.
4. Select the desired setting with the ▲ / ▼ buttons, and press the SCN/SET button.
5. To exit from the menu, press the MENU button.

Size

This sets the size of the video clip that will be captured.

* [VGA] 640 x 480
* [QVGA] 320 x 240

Color

This sets the color of the video clip that will be captured.

* Normal / Vivid / Sepia / B&W

Playback Menu

In the [▶] mode, choose which settings are to be used for playback.

Play Fix Red Eyes Next Menu Slide Show 3 sec. DPOF Next Menu Protect Next Menu LCD Bright. 0 Copy to Carc Next Menu MENU:Exit SET:Adj.

1. Set the camera mode to [▶].
2. Press the MENU button.
3. Select the desired option item with the ▲ / ▼ buttons, and press the SCN/SET button to enter its respective menu.
4. Select the desired setting with the ▲ / ▼ buttons, and press the SCN/SET button.
5. To exit from the menu, press the MENU button.

Fix Red Eyes

You can use this function to remove the red-eye effect after an image is taken.

Slide Show

You can play back recorded images in order with a selected interval.

DPOF

DPOF is the abbreviation for Digital Print Order Format, which allows you to embed printing information on your memory card. You can select the images to be printed and how many prints to make with the DPOF menu in the camera and insert the memory card to the card compatible printer. When the printer starts printing, it will read the embedded information on the memory card and print the specified images.

Protect

Set the data to read-only to prevent images from being erased by mistake.

LCD Bright.

Select a brightness level for the LCD monitor.

The LCD becomes brighter with the ▲ button and darker with the ▼ button. The adjustment range is from -5 to 5.

Copy to Card

Allows you to copy your files from the camera's internal memory to an SD/SDHC memory card. Of course, you can only do this if you have a memory card installed and some files in internal memory.

Setup Menu

Set your camera's operating environment.

Setup Boep On Date/Time Next Menu Language English Fr.No.Reset Next Menu LCD Bright. 0 Auto Off 3 Min. MENU:Exit SET:Adj.

Setup Beep On Date/Time Next Menu Language English Fr.No.Reset Next Menu LCD Bright. 0 Auto Off 3 Min. MENU:Exit SET:Adj.

Setup Beep On Format Next Menu Fr.No.Reset Next Menu Media Info. Next Menu Sys. Info. Next Menu Language English MENU:Exit SET:Adj.

1. Set the camera mode to [☐] / [∞] / [▶].
2. Press the MENU button.
3. Select the [Setup] menu with the ▶ button.
4. Select the desired option item with the ▲ / ▼ buttons, and press the SCN/SET button to enter its respective menu.
5. Select the desired setting with the ▲ / ▼ buttons, and press the SCN/SET button.
6. To exit from the menu, press the MENU button.

Beep

This sets whether or not to mute the camera sound each time you press the camera's buttons.

Date/Time

This sets the camera's date and the time.

Language

Specify in which language menus and messages are to be displayed on the LCD monitor.

Fr. No. Reset

This creates a new folder. The captured images are recorded to the newly created folder from number 0001.

LCD Bright.

Refer to section in this manual titled "LCD Bright." in Playback Menu for further details.

Auto Off

If no operation is performed for a specific period of time, the power to the camera is automatically turned off. This feature is useful for reducing battery usage.

Light Freq.

This camera supports different lighting frequencies: 50 Hz and 60 Hz. When photographing under fluorescent lighting, select the correct frequency setting depending in your local area's voltage. This function is only effective if you set the White Balance to Fluorescent setting.

Sys. Reset

This returns all basic settings to the camera's default settings. The time setting will not be reset.

Format

This utility formats the internal memory (or memory card) and erases all stored images and data.

Media Info.

This displays the free capacity of the internal memory or the memory card.

Sys. Info.

This displays the firmware version of the camera.

EN-22

SYSTEM REQUIREMENT

Windows Macintosh
■ Pentium III 800 or equivalent■ Windows 2000/XP/Vista■ 256MB RAM (512 MB recommended)■ 150MB available hard disk space■ CD-ROM drive■ Available USB port	■ PowerPC G3/G4/G5■ OS 9.0 or later■ 256MB RAM (512 MB recommended)■ 128MB available hard disk space■ CD-ROM drive■ Available USB port

USING THE CAMERA AS A PC CAMERA

Your camera can act as a PC camera, which allows you to videoconference with business associates, or have a real-time conversation with friends or family. To use the camera for videoconferencing, your computer system must include the items as below:

■ Microphone
■ Sound card
■ Speakers or headphones
■ Network or Internet connection

Install the PC camera driver

The PC-camera driver included in the CD-ROM is exclusively for Windows. The PC camera function is not supported for Mac platforms.

1. Insert the enclosed CD-ROM into your CD-ROM drive.
2. Follow the on-screen instructions to complete the installation.
3. After the driver installation is completed, restart your computer.

SPECIFICATIONS

Item Description
Image sensor 1/2.33	CCD sensor (10.0 megapixels)
Image resolution	3648 x 2736, 3264 x 2448, 2816 x 2112, 2272 x 1704, 1600 x 1200, 640 x 480640 x 480 (30 fps), 320 x 240 (30 fps)
LCD monitor 3.0" full	color TFT LCD (230K pixels)
Recording media 16	MB internal memory (12MB available for image storage)Supports SD/SDHC memory card (up to 4GB) (optional)
File format DCF, JPEG	(EXIF 2.2), DPOF, Motion-JPEG
Lens 3x optical zoom	lensAperture range: 2.9 (W) - 5.2 (T)Focal length: 5.7mm - 17.1mm(equivalent to 34mm - 102mm on a 35mm camera)
Focus Range Auto Focus	0.5m to infinityMacroWide: 0.10m to infinityTele: 0.35m to infinity
Shutter speed 2 - 1/1	1000 sec.
ISO Sensitivity Auto	80 / 100 / 200 / 400 / 800 / 1000
Digital zoom 4x (Capture mode)	1-4x in 0.5x increment (Playback mode)
Flash effective range	0.5m - 2.4m (Wide)0.5m - 2.1m (Tele)
Terminal USB 2.0
Power supply 2 x AA	size batteries
Dimensions Approx.	97 x 62 x 21mm (without protruding parts)
Weight	Approx. 132g (without batteries and memory card)

* Design and specifications are subject to change without notice.

Connecting to a PictBridge Compatible Printer

Read this section if the model you purchased is included with the PictBridge functions.

If a printer that supports PictBridge is available, images can be printed by connecting the digital still camera directly to the PictBridge-compatible printer without using a computer.

Connecting the camera to the printer

1. Connect one end of the USB cable to your camera.
2. Connect the other end of the USB cable to the USB port on the printer.
3. Turn on your camera.
4. Select [Printer] with the ▲ / ▼ buttons, and press the SCN/SET button.

Printing images

When the camera is properly connected to a PictBridge compliant printer and set to [Printer], the PictBridge menu is displayed on the monitor.

1. Select the item you want to configure with the ▲ / ▼ buttons, and press the SCN/SET button.

■ [Images]: Select whether you want to print specific image or all images. You may also select printing number for specific image.
■ [Date Print]: According to the printer type, select whether you want to print the image with date imprint or not.
■ [Paper Size]: Select the desired paper size according to the printer type.
■ [Layout]: Select the desired printing layout according to the printer type.
■ [Print]: After all settings are configured, select this item to start printing.

1. If you select [Images] in the previous step, the figure shown on the right hand side will appear. Select [Single], [All], [DPOF] with the ▲ / ▼ buttons, and press the SCN/SET button.

2. If you select [Single] in the previous step, the figure shown on the right hand side will appear.

■ Select the image that you want to print with the ◀ / ▶ buttons.
■ Select the [Print Num] (up to 99) with the ▲ / ▼ buttons.
■ After selecting the desired image and printing number, press the SCN/SET button to confirm.

1. Select [Print] with the ▲ / ▼ buttons, and press the SCN/SET button to start printing.

■ The [COMPLETE] will be displayed temporarily, reminding you that the printing procedure is finished.
■ If a print error is detected, the [PRINT ERROR] will be displayed.

PictBridge Images Next Menu Date Print Off Paper Size Default Layout Default Print SET:Enter

Images • Single Next Menu All Next Menu DPOF Ex1 SET:Enter

Single Print Num 00 100-0001 SET:Enter

■ The image printing may be failed if the power to the camera is cut off.

QUICK START GUIDE

This Quick Start Guide is only for quick reference. For more details on advanced functions, you can refer to your user's manual.

Helpline Number: 08704460806

GETTING TO KNOW YOUR CAMERA

Front View

Diagram of a digital camera with numbered parts labeled 1 through 7

1. Shutter button
2. Power button
3. Status LED
4. Flash
5. Self-timer LED
6. Microphone
7. Lens

Rear View

Diagram of a device with labeled ports and buttons, showing front, back, and top views with numbered annotations.

a. LCD monitor
b. Strap holder
c. Battery / Memory card cover
d. USB connector
e. Tripod socket

Item	Function
	Capture Mode Video Mode	de Playback Mode
1. ZoomWide+++ Tele #	ZoomWide+++ Tele #	Zoom
2. Menu Menu Menu
3. Capture Mode Video Mode	Playback Mode
4. FocusAuto> 🎥 > 🎥 > ∞	FocusAuto> 🎥 > ∞	Rotation RightC90
5. FlashA>∅> Ø>∅	--	Next Image
6. Self-timerOff>10s>2s>10+2s	Self-timerOff>10s>2s	Delete
7. Compensation∅>∅	--	Previous Image
8. SetScene mode	Set	Set

GETTING STARTED

Preparation

1. Attach the camera strap.

1. Open the battery/memory card cover.

2. Load the supplied batteries with correct orientation as shown.

Technical line drawing of a mechanical assembly with cylindrical components and a base mount (no text or symbols)

1. Insert an SD/SDHC memory card (Optional).

The camera has 16MB internal memory (12MB available for image storage), but you can load an SD/SDHC memory card to expand the camera's memory capacity.

■ Be sure to format the memory card with this camera before its initial usage.

1. Close the battery/memory card cover and make sure it is locked securely.

Technical line drawing of a mechanical device with an open lid and a monitor, no visible text or symbols

CAPTURE MODE

Capturing Images

Your camera is equipped with a 3.0" full color TFT LCD monitor to help you compose images, playback recorded images/video clips or adjust menu settings.

1. Press the Power button to turn the power on.

■ The status LED lights green and the camera is initiated.

1. Set the camera mode to []

2. Compose your image in the LCD monitor.

- Pressing the button zooms in on the subject, and enlarges the subject on the LCD monitor.

- Pressing the button provides a wider angle image.

1. Press the shutter button

- Pressing the shutter button down halfway automatically focuses and adjusts the exposure, and pressing the shutter button down fully captures the images.

■ The focus area frame turns blue when the camera is in focus and the exposure is calculated.

■ When the focus or exposure is not suitable, the frame of the focus area turns yellow.

Recording Shots using Face Detection Technology

Face Detection Technology can identify and focus on the human faces in the image. This advanced function simultaneously detects up to 5 human faces regardless of their position in the scene.

1. Set the camera mode to []

2. Toggle the [💡] button until [icon appears on the LCD monitor.

■ The white frame is identified as the "top priority" face (main focus frame), and gray ones around the other faces.

1. Press the shutter button halfway down to lock the focus.

■ The main focus frame simultaneously turns green.

If the "top priority" face is out of focus, the main focus frame turns red.

1. Press the shutter button down fully to capture your image.

Setting the Scene Mode

By simply selecting one of the following 20 modes, you can capture the image with the most appropriate settings.

1. Set the camera mode to []
2. Press the SCN/SET button.
3. Select the desired scene mode with the ◀ / ▶ buttons, and press the SCN/SET button.
4. Compose the image and press the shutter button.

The table below will help you choose the appropriate scene mode:

Scene mode Description
P Program AE	This mode allows you to manually set parameters other than the shutter speed and the aperture value.
Smile Shot S	Select this mode to automatically capture an image when a smiling face is detected.
Anti-Shake Th	is mode minimizes the influences of hand shaking when you want to capture an image.
Portrait Man	Select this mode when you want to capture an image that makes a man stand out against a blurred background.
Portrait Lady	Select this mode when you want to capture an image that makes a lady stand out against a blurred background.
Landscape S	Select this mode when you want to capture an image with infinity focus, hard sharpness and high saturation.
Sports Select	this mode when you want to capture fast-moving subjects.
Night Portrait	Select this mode when you want to capture people with an evening or night scene background.
Night Scene	Select this mode when you want to capture dark scenes such as night views.
Candlelight S	Select this mode when you want to capture photos of candlelit scene, without spoiling the ambience.
Fireworks Sel	ect this mode when you want to capture fireworks clearly with optimal exposure. The shutter speed becomes slower, so using a tripod is recommended.

Scene mode Description
Text Select this mode when you want to capture an image that contains black and white subjects like printed documents.
Sunset	Select this mode when you want to capture a sunset. This mode helps keep the deep hues in the scene.
Sunrise	Select this mode when you want to capture a sunrise. This mode helps keep the deep hues in the scene.
Splash Water	Select this mode when you want to capture photos of splashing water.
Flow Water	Select this mode when you want to capture the soft flowing water.
Snow	Select this mode when you want to capture clear snow scenes without darkened subjects and bluish tint.
Beach Select this mode when you want to capture bright beach scenes and sunlit water surfaces.
Pets	Select this mode when you want to capture your pets. Shoot from their eye level.
User Setting	This mode allows you to manually set your favorite parameters and these settings will be memorized.

VIDEO MODE

Recording Video Clips

This mode allows you to record video clips at a resolution of 320 x 240 / 640 x 480 pixels. Voice can also be recorded.

1. Set the camera mode to [■].

2. Compose the image.

3. Press the shutter button.

■ The recording of the video clip will start.

■ Pressing the shutter button one more time will end the recording of the video clip.

■ The recording time depends on the storage size and the subject of the image to be recorded.

■ The zoom function cannot be used during video recording.

MENU MODE SCN / SET

Playing Back Video Clips

You can play back recorded video clips on the camera.

1. Set the camera mode to [▶].

■ The last image appears on the screen.

1. Select the desired video clip with the ◀ / ▶ buttons.

2. Press the SCN/SET button

■ A press of the ▶ / ◀ buttons during playback allows fast forward play / fast

reverse play.

■ To stop video playback, press the ▼ button.

This stops playback and returns to the start of the video clip.

■ To pause video playback, press the SCN/SET button.

This pauses video playback.

To cancel pause, press the SCN/SET button again.

PLAYBACK MODE

Playing Back Still Images

You can play back the still images on the LCD monitor.

1. Set the camera mode to [▶].

■ The last image appears on the screen.

1. The images can be displayed in reverse or forward sequence with the ◀ / ▶ buttons.

■ To view the previous image, press the button.

■ To view the next image, press the ▶ button.

■ Pressing the ♦ button enlarges the image.

■ To return to normal magnification, press the *** button.

Entire Image Current position of enlargement

Thumbnail Display

This function allows you to view 9 thumbnail images on the LCD monitor at the same time, which can let you quickly search for the image that you want.

1. Set the camera mode to [▶].

■ The last image appears on the screen.

1. Press the button.

■ The images are displayed in the thumbnail display.

■ Images that have been selected with the ◀ / ▶ / ▲ / ▼ buttons will be indicated by a yellow frame.

■ When there are ten or more images, scroll the screen with the ▲ / ▼ buttons.

1. Press the ◀ / ▶ / ▲ / ▼ buttons to select the image to be displayed at regular size.

2. Press the SCN/SET button.

■ The selected image is displayed at its regular size.

Language WEEE explanation

English "The mark is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE)." "The mark indicates the requirement NOT to dispose the equipment including any spent or discarded batteries as unsorted municipal waste, but use the return and collection systems available"

French "Le marquage est en conformité avec la directive 2002/96/EC du DEEE (dÈchets d'équipements électriques et électroniques)". "Ce symbole indique l'obligation de ne pas déposer ce produit dans des décharges publiques, mais d'utiliser les systèmes spécifiques de retour et récupération disponibles".

German "Das Symbol ist in Übereinstimmung mit der Richtlinie 2002/96/EG über Elektro- und Elektronik- Altgeräte (Elektro- und Elektronik - Altgeräte Richtlinie). " "Das Symbol weist darauf hin, dass das Gerät einschließlich ge- und verbrauchten Batterien bzw Akkus nicht in den Hausmüll gegeben werden darf, sondern den hierfür bestimmten getrennten Sammelsystemen zugeführt werden muss."

Spanish "La marca es un requisito de la Directiva europea 2002/96/EC (WEEE) acerca de los Residuos de Aparatos Eléctricos y Electrónicos. " "Esta marca indica la obligación de no mezclar dichos aparatos con los residuos domésticos generales, sino que deben utilizarse los sistemas de recogida específicos, disponibles para estos productos."

Italian "Il simbolo è in accordo con la Direttiva 2002/96 EC sui Rifiuti Apparecchiature Elettriche ed Elettroniche (RAEE)". "Il simbolo indica l' obbligo della raccolta separata delle apparecchiature elettriche ed elettroniche, pertanto si raccomanda d'utilizzare i sistemi di raccolta e/o restituzione disponibili nella vostra zona per queste tipologie d'apparecchiature".

Swedish "Märket anger överensstämmelse med "Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE)." "Märket anger kravet på att använda tillgängliga retur- och insamlingssystem och att EJ avyttra utrustningen som osorterat kommunalt avfall."

Norwegian "Symbolet er i samsvar med "Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE)". "Symbolet angir kravet på å anvende tilgjengelige retur og gjenvinningssystem, og ikke benytte vanlige usorterte kommunale avfallsordninger."

Dutch Het symbol is in overeenstemming met de EU-Richtlijn betreffende afgedankte elektrische en elektronische apparatuur (AEEA) 2002/96/EC. Het symbol geeft aan dat de apparatuur NIET mag worden gestort als ongesorteerd stedelijk huisvuil, maar moet worden ingezameld via de voorziene terugname- en inzamelingssystemen.

Greek "To σύμβολο είναι σύμφωνο με την Οδηγία της Ευρωπαϊκής Ένωσης 2002/96/EC περί Απόρριψης Ηλεκτρικών και Ηλεκτρονικών Συσκευών (WEEE)". " To σύμβολο αυτό υποδεικνύει την υποχρέωση να ΜΗΝ απορρίπτετε την συσκευή στους κάδους των οικιακών απορριμμάτων, αλλά να χρησιμοποιείτε το σύστημα επιστροφής και περισυλλογής (ανακύκλωσης) απορριμμάτων".

HDC-1086E Warranty

HITACHI

Hitachi Europe Ltd.

This product is exclusively available through Argos and in the unlikely event of a problem please return the faulty item together with proof of purchase to Argos for repair /replacement.

For further information including obtaining spare parts please contact the Hitachi Digital Camera helpline on:

[phone]

or mail to [e-mail].
