USER MANUAL Ixus 125 HS CANON

Before use, make sure the following items are included in the package. If anything is missing, contact your camera dealer.

Camera Battery Pack NB-11L (with terminal cover)

Battery Charger CB-2LDE

Interface Cable IFC-400PCU

Wrist Strap WS-800*1

Getting Started (This Guide)

DIGITAL CAMERA Manuals Disk ^*2

DIGITAL CAMERA Solution Disk ^4

Warranty System Booklet

*1 For attachment instructions, refer to the Camera User Guide in the DIGITAL CAMERA Manuals Disk.
*2 Contains the Camera User Guide and ImageBrowser EX User Guide.
*3 Contains software used with the camera. For installation instructions, refer to the Camera User Guide, and for instructions on use, refer to the ImageBrowser EX User Guide.

Compatible Memory Cards

A memory card is not included.

The following memory cards (sold separately) can be used, regardless of capacity. For details on the number of shots and recording time per memory card, refer to “Specifications” in the Camera User Guide.

• SD memory cards *
  • SDHC memory cards *
• SDXC memory cards *
• Eye-Fi cards

* Conforms to SD specifications. However, not all memory cards have been verified to work with the camera.

About Eye-Fi Cards

This product is not guaranteed to support Eye-Fi card functions (including wireless transfer). In case of an issue with an Eye-Fi card, please check with the card manufacturer.

Also note that an approval is required to use Eye-Fi cards in many countries or regions. Without approval, use of the card is not permitted. If it is unclear whether the card has been approved for use in the area, please check with the card manufacturer.

Initial Preparations

Charging the Battery

Diagram showing two steps of inserting a device into a physical device, labeled with arrows and numbered annotations.

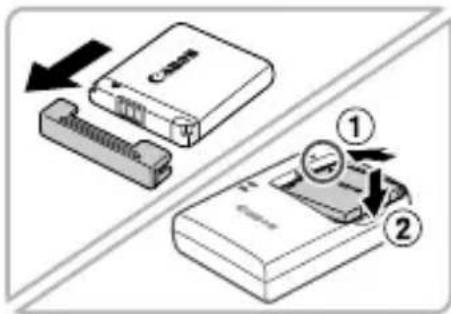

Remove the cover and insert the battery.

After aligning the ▲ marks on the battery and charger, insert the battery by pushing it in ( ) and down ( ). ②

Diagram of a device with an attached plug and a circular component, showing no text or symbols.

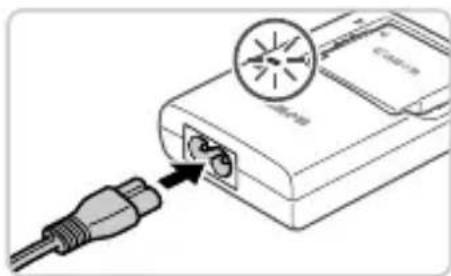

Charge the battery.

- Once you connect the power cord to the charger and plug the cord into a power outlet, the lamp will light up orange. - When charging is finished, the lamp turns green. Remove the battery. - For details on charging time and the number of shots or recording time available with a fully charged battery, refer to “Specifications” in the Camera User Guide.

Inserting the Battery and Memory Card

Diagram showing a mechanical or fluidic component with labeled parts ① and ②, indicating directional movement or flow.

Open the cover.

Slide the cover①) and open it ( )②

Diagram illustrating a device's internal structure with directional arrows and component labels

Insert the battery.

- While pressing the battery lock in the direction of the arrow, insert the battery as shown and push it in until it clicks into the locked position. - To remove the battery, press the battery lock in the direction of the arrow.

Battery LockT

Diagram showing a laptop connected to a wall-mounted device with a magnified inset highlighting the wall-mounted component.

Terminals

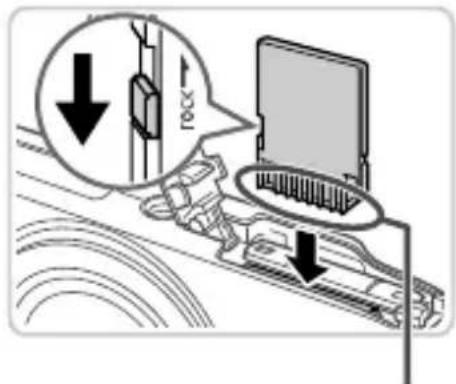

Check the card's write-protect tab and insert the memory card.

Recording is not possible on memory cards with a write-protect tab when the tab is in the locked (downward) position. Slide the tab up until it clicks into the unlocked position.
- Insert the memory card facing as shown until it clicks into the locked position.
To remove the memory card, push it in until you feel a click, and then slowly release it.

Diagram showing a mechanical component with labeled parts ① and ②, indicating directional movement or assembly.

Close the cover.

- Lower the cover( ) and hold it down as you slide it, until it clicks into the closed position (②).

Setting the Date and Time

ON/OFF

Turn the camera on.

• Press the ON/OFF button.

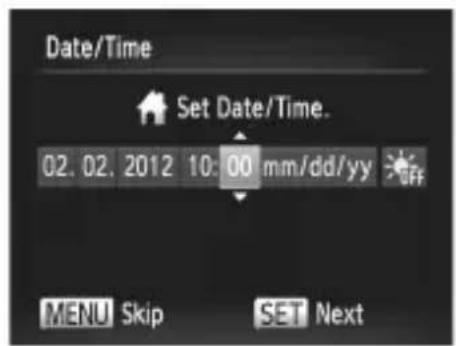

  The Date/Time screen is displayed.

Date/Time Set Date/Time. 02. 02. 2012 10:00 mm/dd/yy MENU Skip SET Next

Set the date and time.

• Press the ◀▶ buttons to choose an option.
• Press the ▲▼ buttons to specify the date and time.
• When finished, press the FUNC SET button.

FUNC EXP DISP.

02.02.2012 10:00 New York MENU Previous SET OK

FUNC SE DISP

3 Set the local time zone.

• Press the ◀▶ buttons to choose your local time zone.
• Press the Ⓗ button when finished. After a confirmation message, the setting screen is no longer displayed.
  To turn off the camera, press the ON/OFF button.

Changing the Date and Time

To adjust the date and time once you have set it, do the following.

1 Press the MENU button.
2 Move the zoom lever to choose the ƒ tab.
3 Press the ▲▼ buttons to choose [Date/Time], and then press the Ⓗ FUNC. SET button.
4 Follow step 2 again to complete the setting.
5 Press the MENU button.

Display Language

DISP. MENU

Enter Playback mode.

- Press the ▶ button.

FUNC 变 DISP. DISP. MENU

Access the setting screen and choose a language.

• Press and hold the FUNC SET button, and then immediately press the MENU button.
• Press the ▲▼◀▶ buttons to choose a language, and then press the Ⓗ️ button.

FUNC SE DISP.

Trying the Camera Out

Shooting

ON/OFF AUTO

Turn the camera on and enter AUTO mode.

• Press the ON/OFF button.
  Set the mode switch to AUTO.

ON/OFF

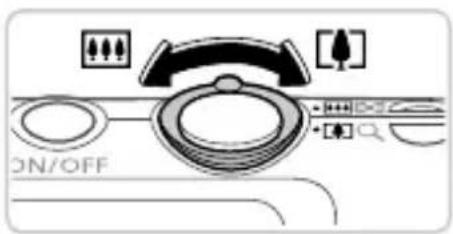

Compose the shot.

To zoom in and enlarge the subject, move the zoom lever toward [▲] (telephoto) as you watch the screen, and to zoom away from the subject, move it toward [▲▲] (wide angle).

Diagram showing two hand positions (① and ②) on a device control panel with ON/OFF labels and a circular dial indicator.

Diagram showing a device with a circular component and an arrow pointing to it, no text or symbols present.

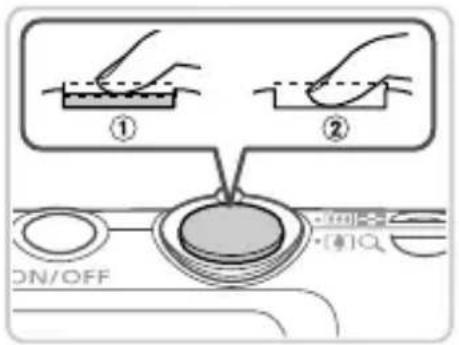

Shoot still images.

• Press the shutter button lightly①.
  The camera beeps twice after focusing, and AF frames are displayed to indicate image areas in focus. Press the shutter button all the way down ( )

Shoot movies.

- Press the movie button to start shooting, and press it again to stop.

Viewing

DISP. MENU

FUNC SET DISP.

FUNC SE DISP.

Enter Playback mode.

- Press the ▶ button.

Browse through your images.

To view the previous or next image, press the ◀▶ buttons.
Movies are identified by a icon. To play movies, go to step 3.

Play movies.

• Press the ⬤️ button, press the ▲▼ buttons to choose , and then press the ⬤️ button again.
  To adjust the volume, press the ▲▼ buttons.
• Playback now begins, and after the movie is finished, SET is displayed.

Erasing the Images

To erase the image you chose in step 2, do the following. Note that erased images cannot be recovered.

Press the Ⓗ️ button, press the ▲▼ buttons to choose ☑, and then press the Ⓗ️ button again.
2 After [Erase?] is displayed, press the ◀▶ buttons to choose [Erase], and then press the ⬣️ button.

Viewing the Manuals

Refer to the manuals on the included DIGITAL CAMERA Manuals Disk for a more in-depth understanding of the camera, or when using software on the DIGITAL CAMERA Solution Disk. Adobe Reader is required to view the PDF manuals. Microsoft Word/Word Viewer can be installed to view the Word manuals (required only for manuals for the Middle East).

Illustration of a laptop connected to an CD/DVD icon (no text or symbols)

Insert the DIGITAL CAMERA Manuals Disk in the computer's CD-ROM drive.
- Follow the instructions displayed to view the manual.

Camera User Guide	Explains how to use all functions of this camera, lists product specifications, and explains procedures for installing the included software.
ImageBrowser EX User Guide	Instructions for the included software

European Union (and EEA) only.

Two identical trash bin symbols crossed with diagonal lines, no text or labels present

These symbols indicate that this product is not to be disposed of with your household waste, according to the WEEE Directive (2002/96/EC), the Battery Directive (2006/66/EC) and/or your national laws implementing those Directives. If a chemical symbol is printed beneath the symbol shown above, in accordance with the Battery Directive, this indicates that a heavy metal (Hg = Mercury, Cd = Cadmium, Pb = Lead)

is present in this battery or accumulator at a concentration above an applicable threshold specified in the Battery Directive.

This product should be handed over to a designated collection point, e.g., on an authorized one-for-one basis when you buy a new similar product or to an authorized collection site for recycling waste electrical and electronic equipment (EEE) and batteries and accumulators. Improper handling of this type of waste could have a possible impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE.

Your cooperation in the correct disposal of this product will contribute to the effective usage of natural resources.

For more information about the recycling of this product, please contact your local city office, waste authority, approved scheme or your household waste disposal service or visit www.canon-europe.com/environment.

(EEA: Norway, Iceland and Liechtenstein)

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO LOCAL REGULATION.

CANON INC.

30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

CANON EUROPA N.V.

Bovenkerkerweg 59-61, 1185 XB Amstelveen, The Netherlands

© CANON INC. 2012 PRINTED IN THE EU
