USER MANUAL 6222 AA SKIL

Black and gray SKIL electric drill with visible blade and handle (no text or symbols)

ME77

GB ORIGINAL INSTRUCTIONS 6
F NOTICE ORIGINALE 8
D ORIGINALBETRIEBSANLEITUNG 11
NL ORIGINELE GEBRUIKSAANWIJZING 15
S BRUKSANVISNING I ORIGINAL 18
DK ORIGINAL BRUGSANVISNING 21
N ORIGINAL BRUKSANVISNING 23
FIN ALKUPERÄISET OHJEET 26
E MANUAL ORIGINAL 29
P MANUAL ORIGINAL 32
I ISTRUZIONI ORIGINALI 35
H EREDETI HASZNÁLATI UTASÍTÁS 38
CZ PŮVODNÍM NÁVODEM K POUŽÍVÁNÍ 42
TR ORİJINAL İŞLETME TALİMATI 44
PL INSTRUKCJA ORYGINALNA 47
RU ПОДЛИННИК РУКОВОДСТВА ПО ЭКСПЛУАТАЦИИ 50

UA ОРИГІНАЛЬНА ІНСТРУКЦІЯ З ЕКСПЛУАТАЦІЇ 54
GR ΠΡΩΤΟΥΠΟ ΟΔΗΓΙΩΝ ΧΡΗΣΗΣ 58
RO INSTRUCTIUNI DE FOLOSIRE ORIGINALE 61
BG ОРИГИНАЛНО РЪКОВОДСТВО ЗА ЕКСПЛОАТАЦИЯ 64
SK PÔVODNÝ NÁVOD NA POUŽITIE 68
HR ORIGINALNE UPUTE ZA RAD 71
SRB ORIGINALNO UPUTSTVO ZA RAD 74
SLO IZVIRNA NAVODILA 76
EST ALGUPÄRANE KASUTUSJUHEND 79
LV ORIGINĀLĀ LIETOŠANAS PAMĀCĪBA 82
LT ORIGINALI INSTRUKCIJA 85
AR دليل الاستعمال 95
④ RAHENMAI AUSLI 93

www.skileurope.com

① 6222

②

E G F 11-13-15-17-19 SKIL C D B A G

③

④ STOP

⑤ SKIL

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows indicating motion or assembly.

Illustration showing two-step instructions for adjusting a mechanical component, with numbered step 7 and directional arrows indicating movement.

8 1·3·5·7 20 1 15·17·19·

9 1 3 5 7 9 F 1 3 5 7 9 LOW 10

11 PLASTICS PHILLIPS POZIDRIV SLOTTED

(12)

Line drawing of a hand holding a power tool with a light bulb nearby (no text or symbols)

14 7EN/NS ZNS

Illustration of a hand using a power tool to clean solar panels, with a light bulb and numbered circle (15) nearby (no text or symbols on the diagram itself)

⑯

GB

Corded drill/driver 6222

INTRODUCTION

• This tool is intended for drilling in wood, metal, ceramic and plastic as well as for screwdriving
• Read and save this instruction manual ③

TECHNICAL SPECIFICATIONS ①

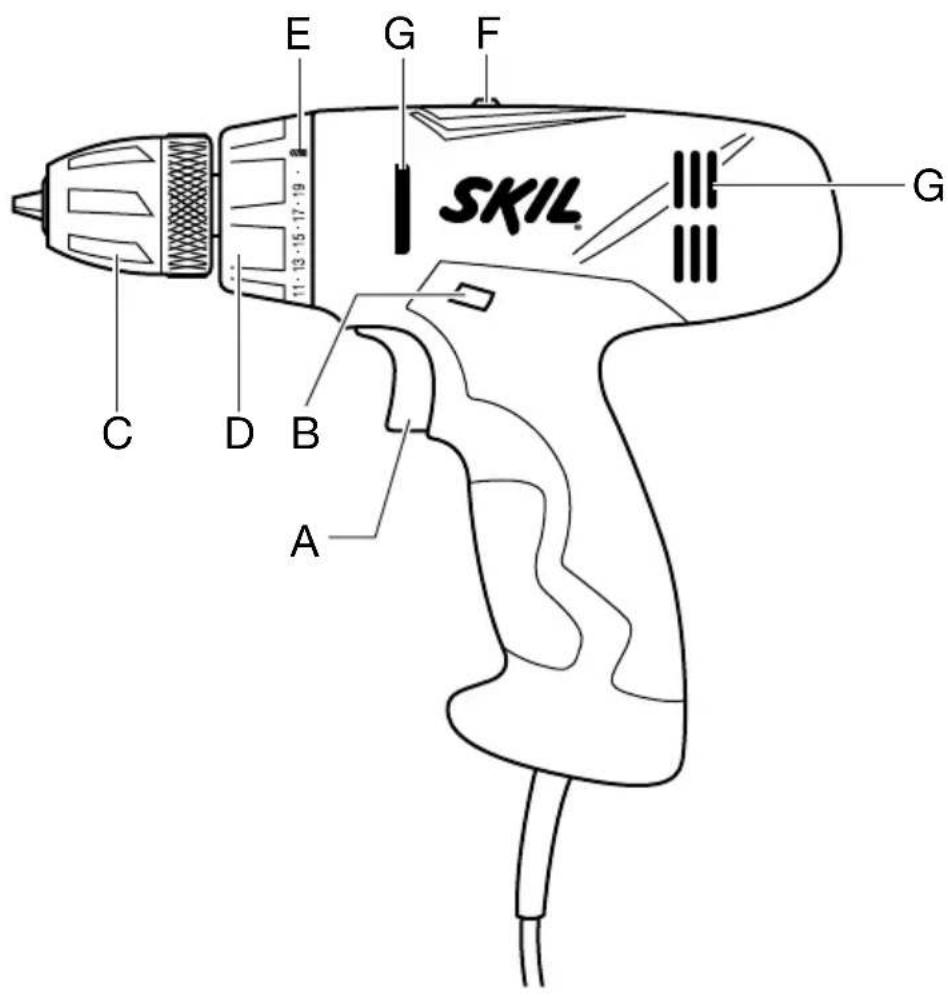

TOOL ELEMENTS ②

A Switch for on/off and speed control
B Switch for changing direction of rotation
C Keyless chuck
D Ring for torque control
E Lock-position (clutch)
F Gear selector
G Ventilation slots

SAFETY

GENERAL SAFETY INSTRUCTIONS

A WARNING! Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use an earth leakage circuit breaker. Use of an earth leakage circuit breaker reduces the risk of electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's

operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

SAFETY INSTRUCTIONS FOR DRILL/DRIVERS

• Avoid damage that can be caused by screws, nails and other elements in your workpiece; remove them before you start working
• Always check that the supply voltage is the same as the voltage indicated on the nameplate of the tool (tools with a rating of 230V or 240V can also be connected to a 220V supply)
• SKIL can assure flawless functioning of the tool only when original accessories are used
• Use only accessories with an allowable speed matching at least the highest no-load speed of the tool
• This tool should not be used by people under the age of 16 years
• Use completely unrolled and safe extension cords with a capacity of 16 Amps (U.K. 13 Amps)
  • Always keep the cord away from moving parts of the tool
• If the cord is damaged or cut through while working, do not touch the cord, but immediately disconnect the plug
• Never use the tool when cord is damaged; have it replaced by a qualified person
• If the drill bit becomes unexpectedly jammed (causing a sudden, dangerous reaction), immediately switch off the tool
• In case of electrical or mechanical malfunction, immediately switch off the tool and disconnect the plug
• Secure the workpiece (a workpiece clamped with clamping devices or in a vice is held more securely than by hand)
• Hold the power tool only by the insulated gripping surfaces when performing an operation where the accessory may contact hidden wiring or its own power cord (contact with a "live" wire will also make exposed metal parts of the power tool "live" and shock the operator)
• Use suitable detectors to find hidden utility lines or call the local utility company for assistance (contact with electric lines can lead to fire or electrical shock; damaging a gas line can result in an explosion; penetrating a water pipe will cause property damage or an electrical shock)
• Do not work materials containing asbestos (asbestos is considered carcinogenic)
• Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful (contact with or inhalation of the dust may cause allergic

reactions and/or respiratory diseases to the operator or bystanders); wear a dust mask and work with a dust extraction device when connectable

• Certain kinds of dust are classified as carcinogenic (such as oak and beech dust) especially in conjunction with additives for wood conditioning; wear a dust mask and work with a dust extraction device when connectable
• Follow the dust-related national requirements for the materials you want to work with
• When you put away the tool, switch off the motor and ensure that all moving parts have come to a complete standstill
• Always disconnect plug from power source before making any adjustment or changing any accessory WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):
• Do not connect the blue (= neutral) or brown (= live) wire in the cord of this tool to the earth terminal of the plug
• If for any reason the old plug is cut off the cord of this tool, it must be disposed of safely and not left unattended

USE

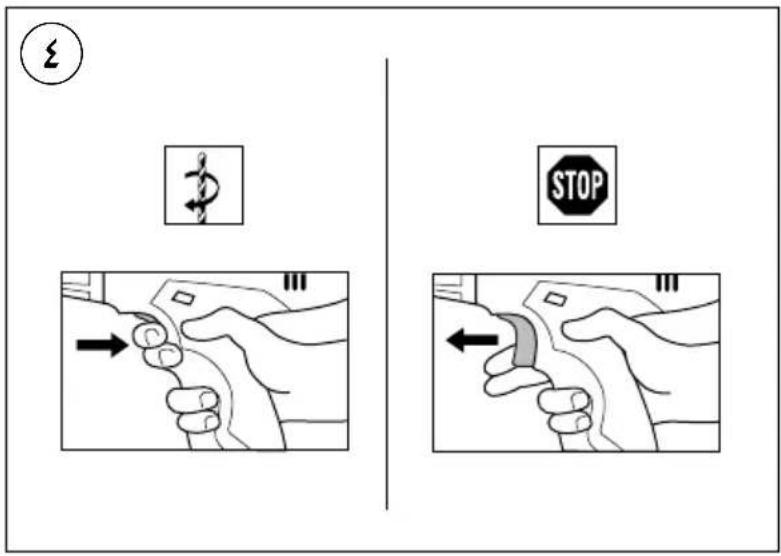

• On/Off ④
  • Speed control for smooth starting ⑤

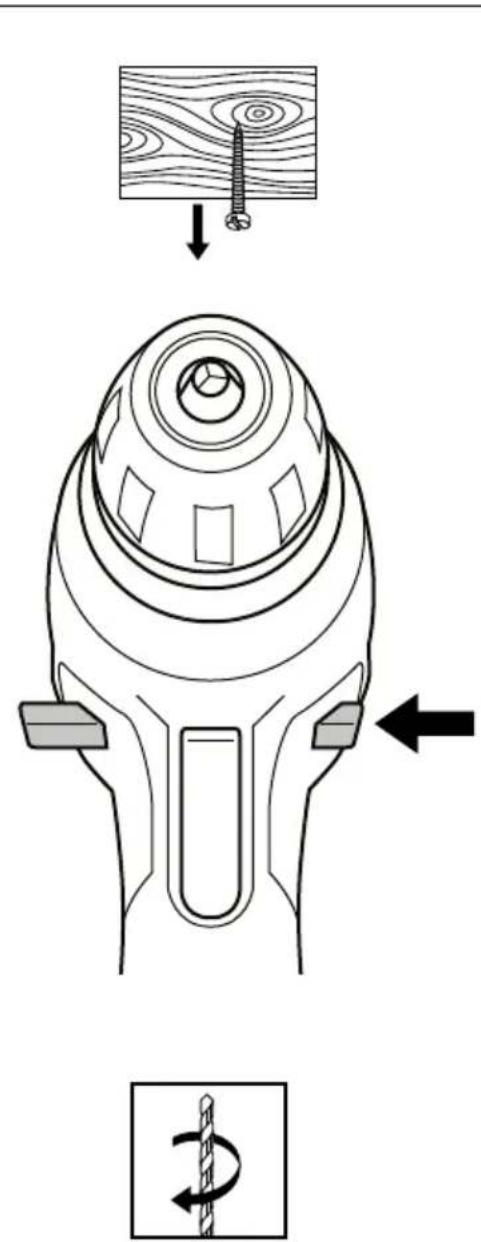

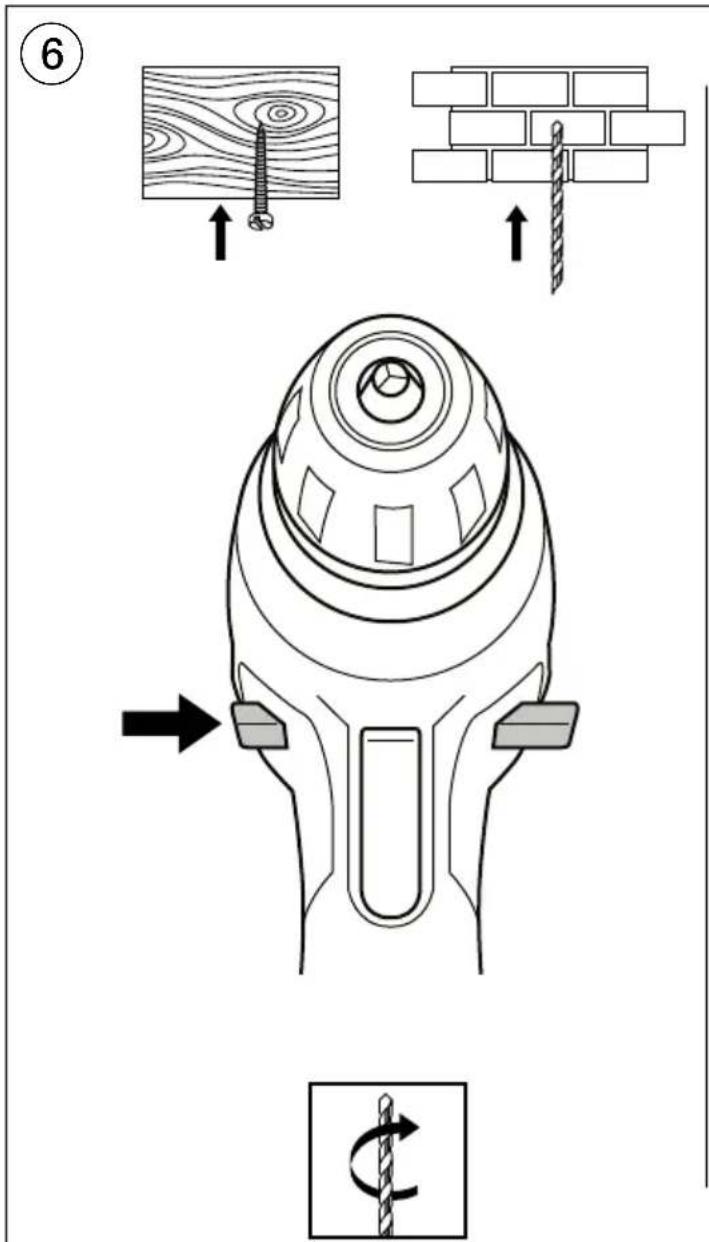

• Changing direction of rotation ⑥

- when not properly set in left/right position, switch A ② cannot be activated

! change direction of rotation only when tool is at a complete standstill

- Changing bits ⑦

• insert the bit as deep as possible in the chuck
  ! do not use bits with a damaged shank

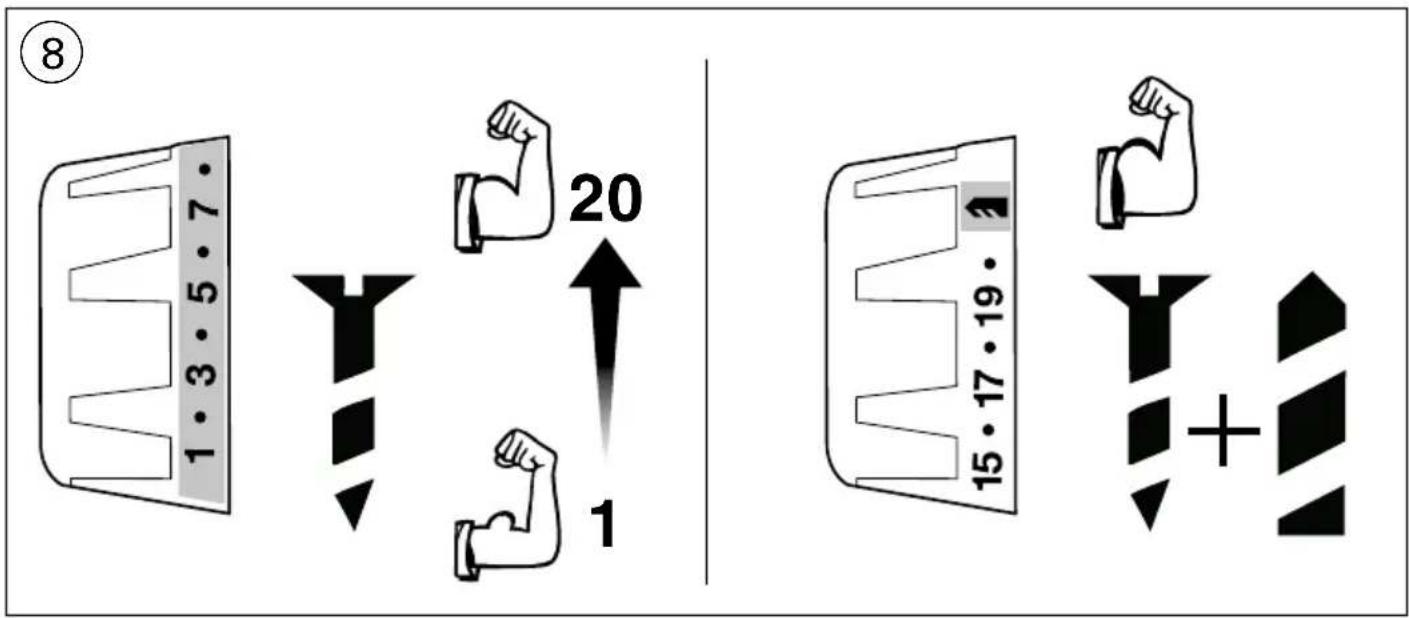

- Torque control (VariTorque) ⑧

• output torque will increase as clutch ring D is rotated from 1 to 20; position E will lock up the clutch to permit drilling or driving heavy duty work
• when turning in a screw, first try VariTorque position 1 and increase until the desired depth has been reached

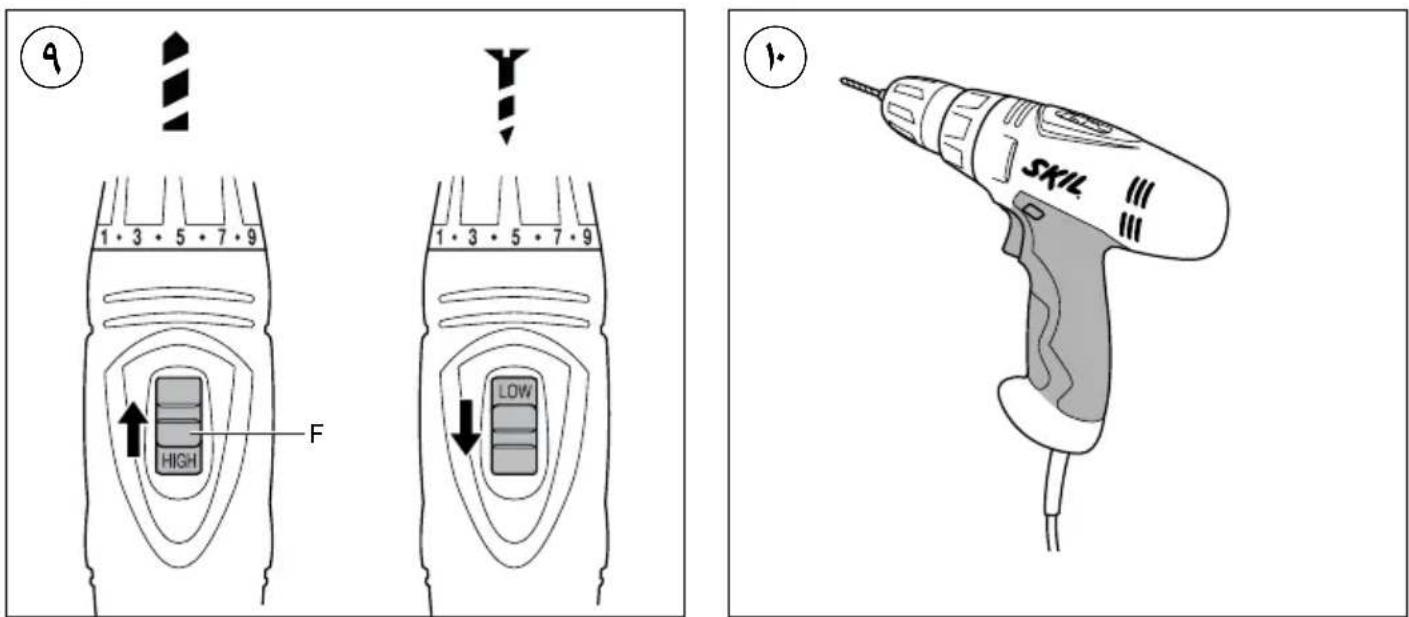

- Mechanical gear selection ⑨

• set selector F to desired speed
  ! actuate the gear selector while tool is running slowly

LOW

• low speed
• high torque
• for screwdriving and drilling large diameters
• for tapping thread

HIGH

• high speed
• lower torque
• for drilling small diameters

- Holding and guiding the tool ⑩

! while working, always hold the tool at the grey-coloured grip area(s)

• keep ventilation slots G ② uncovered
• do not apply too much pressure on the tool; let the tool do the work for you

APPLICATION ADVICE

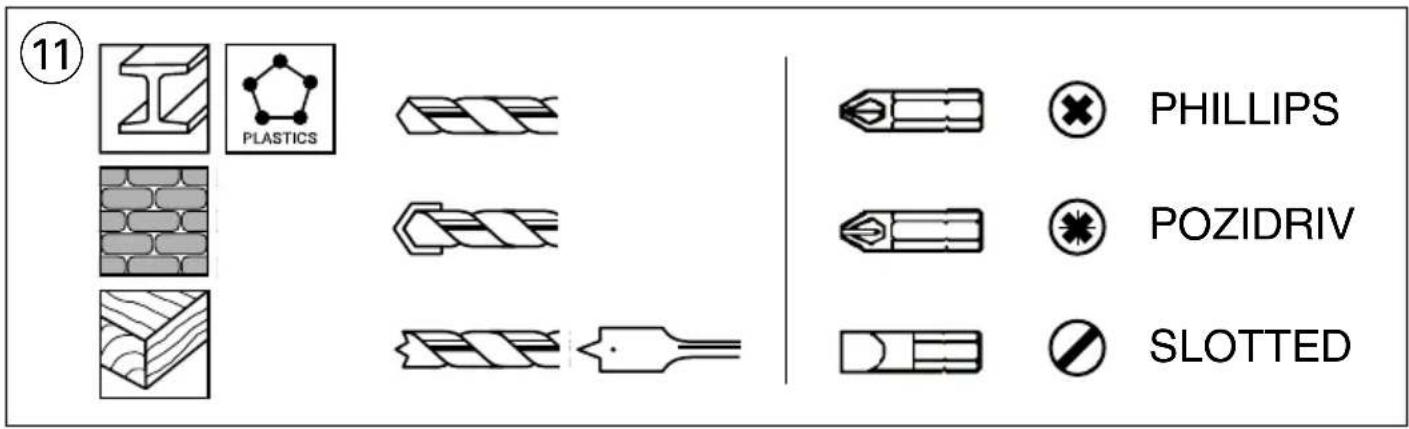

- Use the appropriate bits ⑪

! only use sharp bits

• When drilling ferrous metals
• pre-drill a smaller hole, when a large hole is required
• lubricate drill bit occasionally with oil
• When turning in a screw at/near the cross cut end or an edge of wood, pre-drill a hole in order to avoid cracking of the wood
• For an optimal use of the tool a steady pressure on the screw is required, especially while removing
• When screwdriving in hard wood one should pre-drill a hole

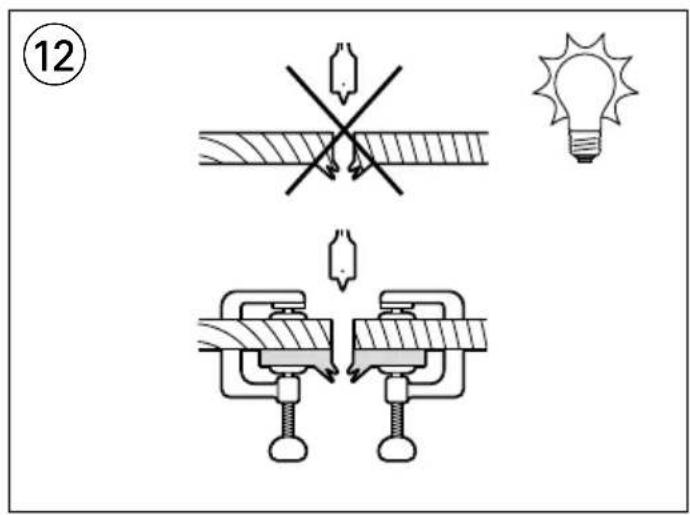

• Splinterfree drilling in wood ⑫

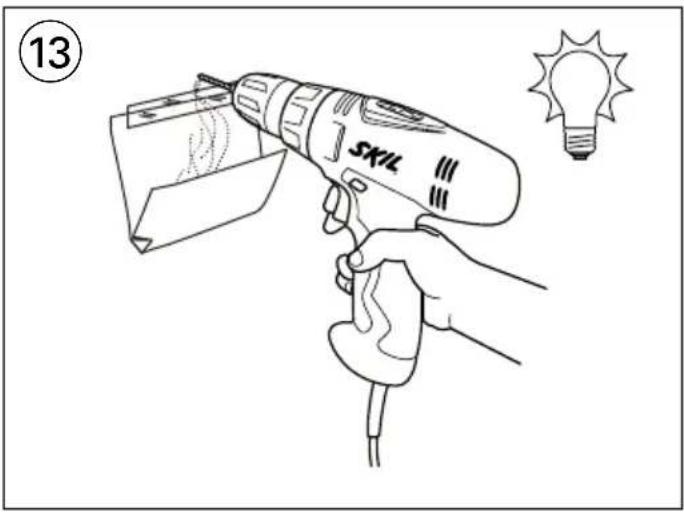

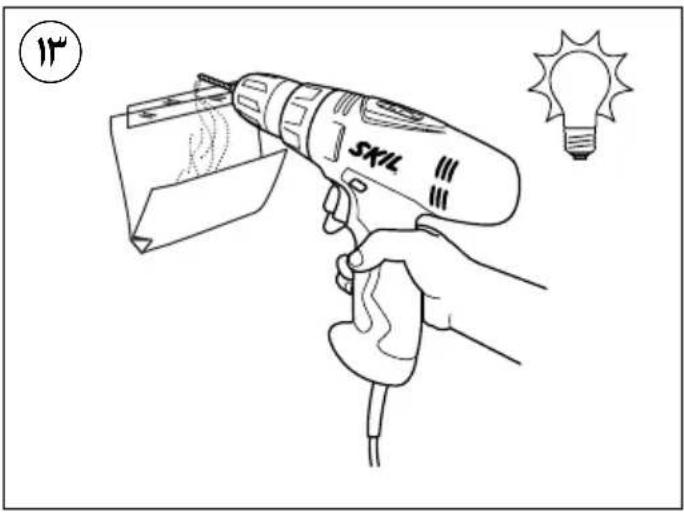

  • Dustfree drilling in walls ⑬

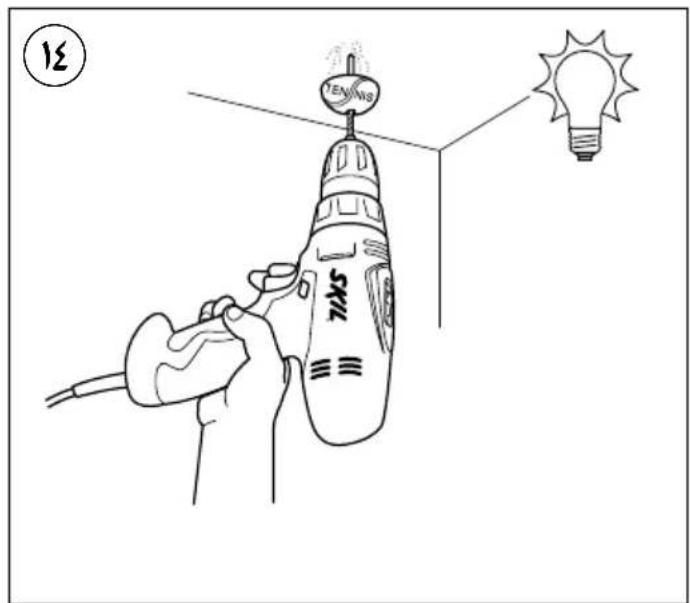

  • Dustfree drilling in ceilings ⑭
• Drilling in tiles without skidding ⑮
• For more tips see www.skileurope.com

MAINTENANCE / SERVICE

- Always keep tool and cord clean (especially the ventilation slots G ②)

! disconnect the plug before cleaning

- If the tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools

- send the tool undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skileurope.com)

ENVIRONMENT

- Do not dispose of electric tools, accessories and packaging together with household waste material (only for EU countries)

- in observance of European Directive 2002/96/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility

- symbol ⑯ will remind you of this when the need for disposing occurs

DECLARATION OF CONFORMITY C€

- We declare under our sole responsibility that this product is in conformity with the following standards or standardized documents: EN 61029, EN 61000, EN 55014, in accordance with the provisions of the directives 2004/108/EC, 2006/42/EC

• Technical file at: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL

Arno van der Kloot

Jan Trommelen

Vice President

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 21.07.2011

NOISE/VIBRATION

• Measured in accordance with EN 60745 the sound pressure level of this tool is < 70 dB(A) (standard deviation: 3 dB) and the vibration *m / s^2 (hand-arm method; uncertainty K = 1.5m / s^2 )
  * when drilling in metal <2.5 m/s ^2
  * when screwdriving <2.5 m/s ^2
• The vibration emission level has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned
• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
• the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level
  ! protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

F

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 21.07.2011

BRUIT/VIBRATION

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV. 4825 BD Breda. NL 21.07.2011

GERÄUSCH/VIBRATION

Operations & Engineering

Approval Manager

d f

SKIL Europe BV, 4825 BD Breda, NL

21.07.2011

GELUID/VIBRATIE

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

21.07.2011

LJUD/VIBRATION

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

21.07.2011

ST∅J/VIBRATION

1) SIKKERHET PÅ ARBEIDSPLASSEN

a) Hold arbeidsområdet rent og ryddig. Rotete arbeidsområder eller arbeidsområder uten lys kan føre til ulykker.

VEDLIKEHOLD / SERVICE

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

21.07.2011

ST∅Y/VIBRASJON

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 21.07.2011

MELU/TÄRINÄ

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 21.07.2011

RUIDOS/VIBRACIONES

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

21.07.2011

RUÍDO/VIBRAÇÕES

Operations & Engineering

Approval Manager

SKIL Europe BV. 4825 BD Breda. NL 21.07.2011

Operations & Engineering

Jan Trommelen

Approval Manager

Handwritten signature or scribble with two characters, likely a signature or official document

SKIL Europe BV, 4825 BD Breda, NL 21.07.2011

ZAJ/REZGÉS

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 21.07.2011

HLUČNOSTI/VIBRACÍ

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 21.07.2011

GÜRÜLTÜ/TİTREŞIM

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 21.07.2011

HAŁASU/WIBRACJE

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 21.07.2011

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 21.07.2011

ШУМ/ВІБРАЦІЯ

Operations & Engineering

Approval Manager

SKIL Europe BV. 4825 BD Breda. NL 21.07.2011

ΘΟΡΥΒΟ/ΚΡΑΔΑΣΜΟΥΣ

Operations & Engineering

Approval Manager

SKIL Europe BV. 4825 BD Breda. NL 21.07.2011

ZGOMOT/VIBRATII

Operations & Engineering

Approval Manager

Handwritten signature with printed characters and a small symbol

SKIL Europe BV, 4825 BD Breda, NL 21.07.2011

ШУМ/ВИБРАЦИИ

Operations & Engineering

Approval Manager

SKIL Europe BV. 4825 BD Breda. NL 21.07.2011

HLUKU/VIBRÁCIÁCH

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 21.07.2011

BUCI/VIBRACIJAMA

- Mjereno prema EN 60745 prag zvučnog tlaka ovog električnog alata iznosi <70 dB(A) (standardna devijacija: 3 dB) a vibracija * m/s² (postupkom na šaci-ruci; nesigurnost K = 1,5 m/s²)

* kod bušenja u metalu <2,5 m/s²
* kod uvijanja vijka <2,5 m/s²

- Razina emitiranja vibracija izmjerena je sukladno normiranom testu danom u EN 60745; ona se može koristiti za usporedbu jedne alatke s drugom, te preliminarnu procjenu izloženosti vibracijama pri uporabi alatke za navedene namjene

OPŠTA UPUTSTVA O SIGURNOSTI

A PAŽNJA! Čitajte sva upozorenja i uputstva. Propusti kod pridržavanja upozorenja i uputstava mogu imati za posledicu električni udar, požar i/ili teške povrede. Čuvajte sva upozorenja i uputstva za budućnost. Pojam upotrebljen u upozorenjima “električni alat” odnosi se na električne alate sa radom na mreži (sa mrežnim kablom) i na električne alate sa radom na akumulator (bez mrežnog kabla).

1) SIGURNOST NA RADNOM MESTU

Operations & Engineering

Approval Manager

Handwritten signature or scribble with two characters, likely a signature or official document

SKIL Europe BV. 4825 BD Breda. NL 21.07.2011

BUKA/VIBRACIJE

• Mereno u skladu sa EN 60745 nivo pritiska zvuka ovog alata iznosi <70 dB(A) (normalno odstupanje: 3 dB) a vibracija * m/s ^2 (mereno metodom na šaci-ruci; nesigurnost K = 1,5 m/s ^2 )
  * pri bušenju metala <2,5 m/s²
  * pri uvrtanju šrafova <2,5 m/s²
• Nivo emisije vibracija izmeren je u skladu sa standardizovanim testom datim u EN 60745; on se može koristiti za upoređenje jedne alatke sa drugom, kao i za preliminarnu procenu izloženosti vibracijama pri korišćenju ove alatke za pomenute namene
• korišćenje alatke u drugačije svrhe ili sa drugačijim ili slabo održavanim nastavcima može značajno povećati nivo izloženosti
• vreme kada je alatka isključena ili kada je uključena, ali se njome ne radi, može značajno smanjiti nivo izloženosti
  ! zaštitite se od posledica vibracija održavanjem alatke i njenih nastavaka, održavajući Vaše ruke toplim i organizovanjem Vaših radnih obrazaca

SLO

Vrtalnik/vijačnik 6222 z električnim kablom

UVOD

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda. NL 21.07.2011

HRUP/VIBRACIJA

ÜLDISED OHUTUSJUHISED

OHUTUSJUHISED TRELL-KRUVIKEERAJA KOHTA

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 21.07.2011

MÜRA/VIBRATSIOON

APKALPOŠANA / APKOPE

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 21.07.2011

TROKSNIS/VIBRĀCIJA

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 21.07.2011

TRIUKŠMINGUMAS/VIBRACIJA

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

21.07.2011

صدالارتعاشات

ال CONDITION/ALABETRAZ

• عند القياس بالتوافق مع ٥٠١٠. Yemen ١٠٠٧. Yemen ٤٥٠٠. Yemen ٢٠٠٨. Yemen ٣٠٠٩. Yemen ٤٠٠٪. Yemen ٥٠١١. Yemen ٦٠٠٫. Yemen ٧٠٠٩. Yemen ٨٠٠٪. Yemen ٩٠٠٫. Yemen ٪٠٠٬. Yemen ٫٠٠٭. Yemen ٥٠١٩. Yemen ٦٠٠ٮ. Yemen ٧٠٠ٯ. Yemen ٨٠٠٩. Yemen ٩٠٠٪. Yemen ٪٠٠٫. Yemen ٥٠١٩. Yemen ٦٠٠٨. Yemen ٧٠٠٩. Yemen ٨٠٠٪. Yemen ٩٠٠٫. Yemen ٥٠١٩. Yemen ٦٠٠٨. Yemen ٥٠١٩. Yemen ٤٠.

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

21.07.2011

Diagram illustrating light bulb installation and mounting process with labeled components and cross-sections

Line drawing of a hand holding a 70K electric drill, next to a light bulb and paper (no text or symbols)

TENNS 12

Illustration showing a hand using a power tool to clean solar panels, with a light bulb and numbered circle in the top-left corner.

17

Illustration showing two-step instructions for adjusting a mechanical component, with arrows indicating the process.

1·3·5·7 20 1 15·17·19·

9 1 3 5 7 9 F 1 3 5 7 9 LOW SKL III

Diagram illustrating two-step hand movement: left panel shows a hand holding a device with a musical note, right panel shows hand pressing a button with a stop sign.

SKIL

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows indicating motion or assembly.

1

6222

1

E G F 11-13-15-17-19 SKIL C D B A G

The image contains a graphical symbol (a stylized figure inside a circle) and no textual content. Therefore, the correct OCR output is an empty string.

Black and gray Skil electric drill with visible blade and handle (no text or symbols)

دليل الاستعمال AR راهنماي اصلی FA
