Brand D-Link
Model DSM-380 Boxee Box
Product type Media player
Connectivity HDMI, SD/MMC card slot, Wi-Fi, Ethernet (RJ-45)
Maximum resolution 1080p
Supported video formats MPEG-2, MPEG-4, H.264, AVI, MKV, WMV, etc.
Supported audio formats MP3, AAC, WMA, OGG, FLAC, etc.
Supported image formats JPEG, PNG, BMP, GIF
Expandable storage SD/MMC card up to 32 GB
Remote control Included, with two faces, CR2032 battery
Power supply 5 V DC power adapter included
Dimensions (W x D x H) 150 x 150 x 30 mm
Weight 300 g
Parental control Yes, configurable
Remote control synchronization By pressing and holding the OK button for 5 seconds
Maintenance and cleaning Clean with a soft, dry cloth
Safety Do not expose to moisture, use in a ventilated area
Spare parts and repairability Contact D-Link support or an authorized center
General information Manual available for download at notice-facile.com

Frequently Asked Questions - DSM-380 Boxee Box D-LINK

How to connect the Boxee Box to my TV?
Use the provided HDMI cable to connect the Boxee Box to your TV. Make sure to select the correct HDMI source on your TV.
How to synchronize the remote control with the Boxee Box?
Move other devices away, place the remote near the Boxee Box and press and hold the OK button for 5 seconds. No visual indication, but synchronization is successful if the remote works.
How to set up parental control?
Go to the Boxee Box settings and enable parental control. You can then set a PIN code and block adult content.
What to do if the remote control does not work?
Check the battery (CR2032) and replace it if necessary. If the problem persists, resynchronize the remote by holding OK for 5 seconds.
How to insert an SD card?
Insert the SD/MMC card into the slot on the Boxee Box case. Files will be accessible through the interface.
Which video formats are supported?
The Boxee Box supports MPEG-2, MPEG-4, H.264, AVI, MKV, WMV and many others.
Can I watch streaming content?
Yes, the Boxee Box allows streaming content via applications like Netflix, YouTube, etc. (depending on availability).
How to update the software?
The Boxee Box automatically checks for updates. You can also check manually in the system settings.
What are the indicators on the case?
The case has a power button with an LED indicator showing on/standby status.
Where to find technical support?
In France, contact D-Link at 0820 0803 03 (€0.12/min) Monday to Friday from 9am to 7pm, or visit www.dlink.fr.

User questions about DSM-380 Boxee Box D-LINK

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Media player in PDF format for free! Find your manual DSM-380 Boxee Box - D-LINK and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DSM-380 Boxee Box by D-LINK.

USER MANUAL DSM-380 Boxee Box D-LINK

natural_image Abstract geometric shape with a green triangle at the base and a small figure inside, against a dark background (no text or symbols)

Install Guide

D-LINK DSM-380 Boxee Box - 1

bar | Year | Value (%) | | :--- | :--- | | 2018 | 35.0 |

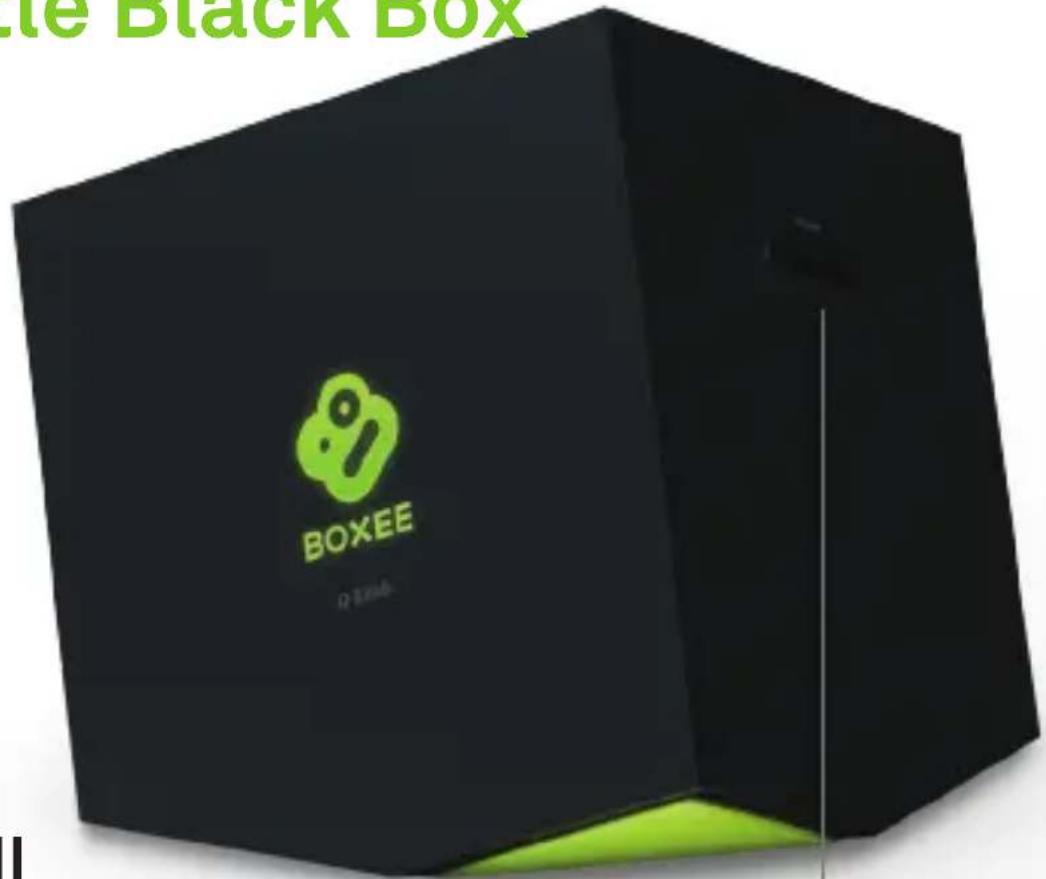

Your Little Black Box
Q Boxee Q Boxee

Power HDMI
D-LINK DSM-380 Boxee Box - 3

natural_image Pure electrical circuit lines without any symbols

SD/MMC card slot

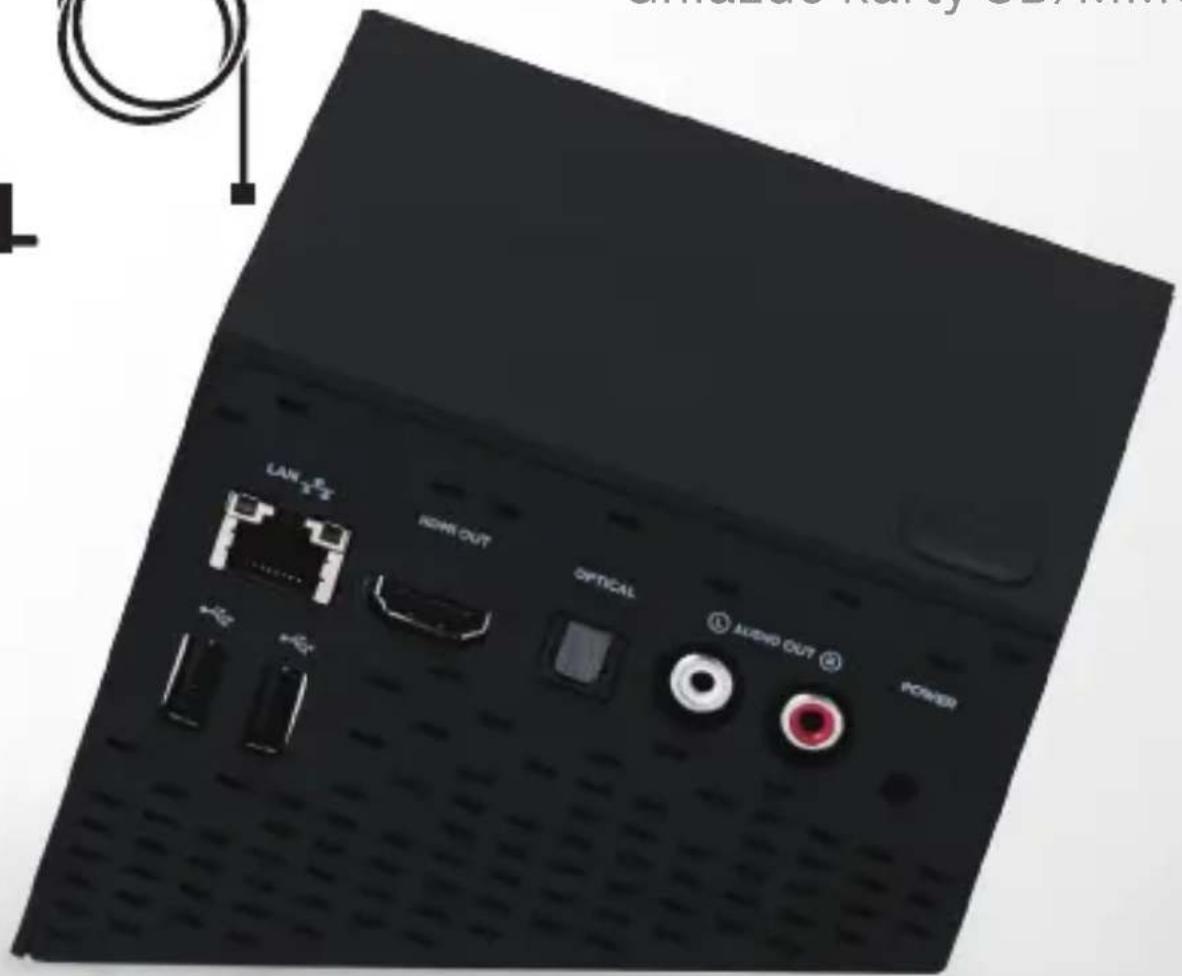

LAN USB OUT OPTICAL AUDIO OUT POWER

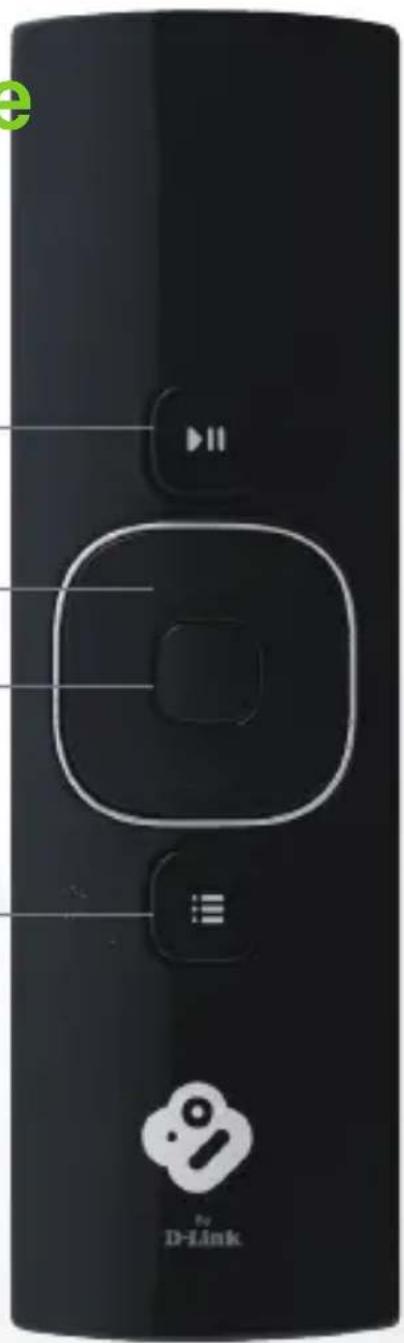

Your Two-Faced Remote

Play/Pause - We know you get it ____

Directional Pad - Navigate your way around ____

Enter Button - Accept the current selection / show playback menu

Menu - Go back / show-main menu

e D-Link

D-LINK DSM-380 Boxee Box - Your Two-Faced Remote - 2

natural_image Black remote control device with standard keyboard keys and a small 'Sable' button (no text or symbols visible on the device body)

D-LINK DSM-380 Boxee Box - Your Two-Faced Remote - 3

natural_image Line drawing of a remote control box with four buttons and a central rotary knob (no text or symbols)

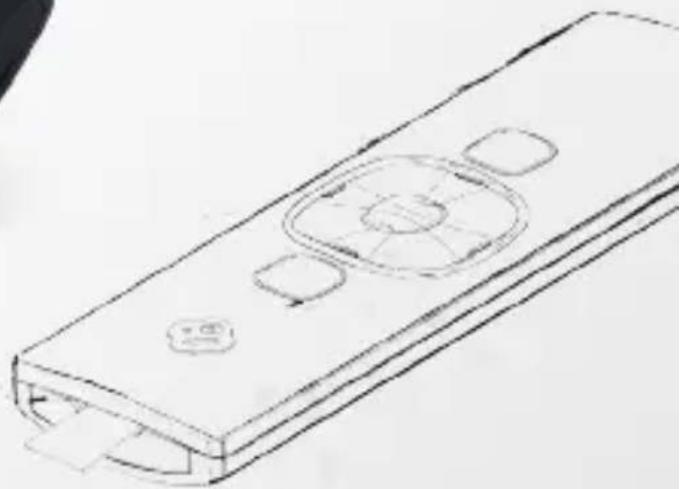

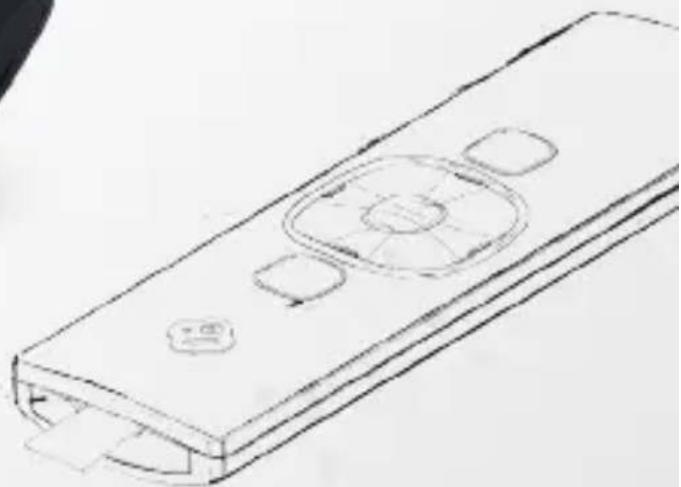

Pull out the plastic tab from the remote to activate the battery.

step 1

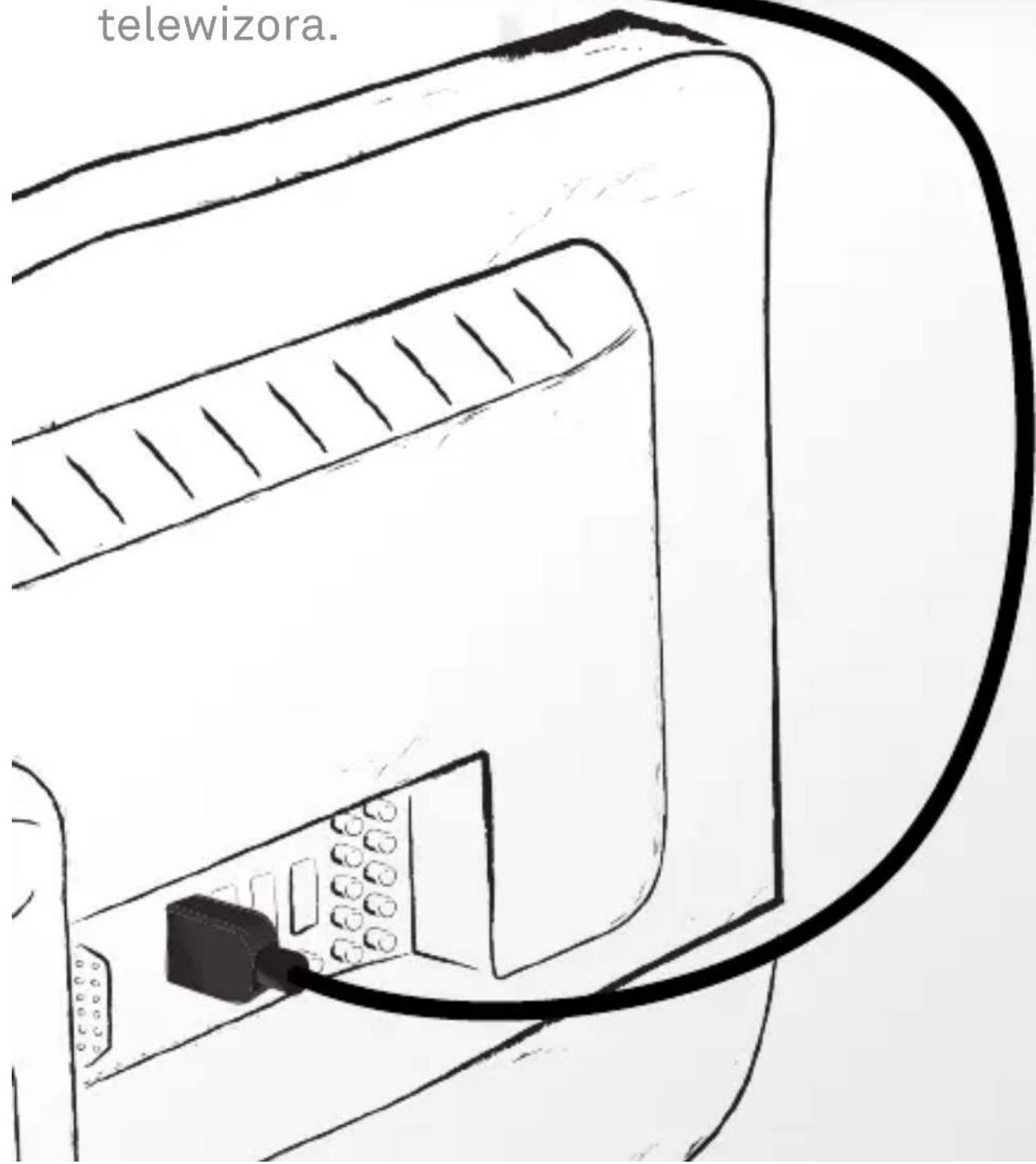

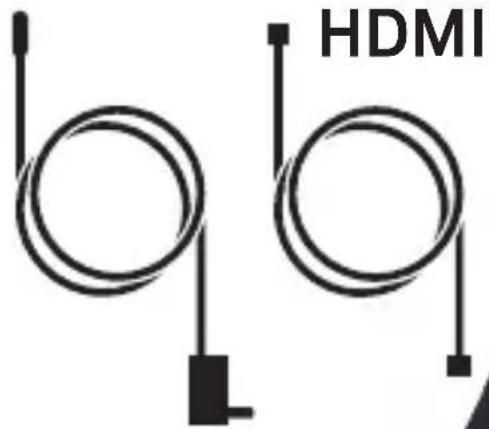

Using the supplied HDMI cable, connect the Boxee Box to your TV.

D-LINK DSM-380 Boxee Box - step 1 - 1

natural_image Black rectangular electronic device with ports and connectors, connected by a black cable (no visible text or symbols)

D-LINK DSM-380 Boxee Box - step 1 - 2

natural_image Line drawing of a computer monitor with an attached cable and ports, no text or symbols present

step 2

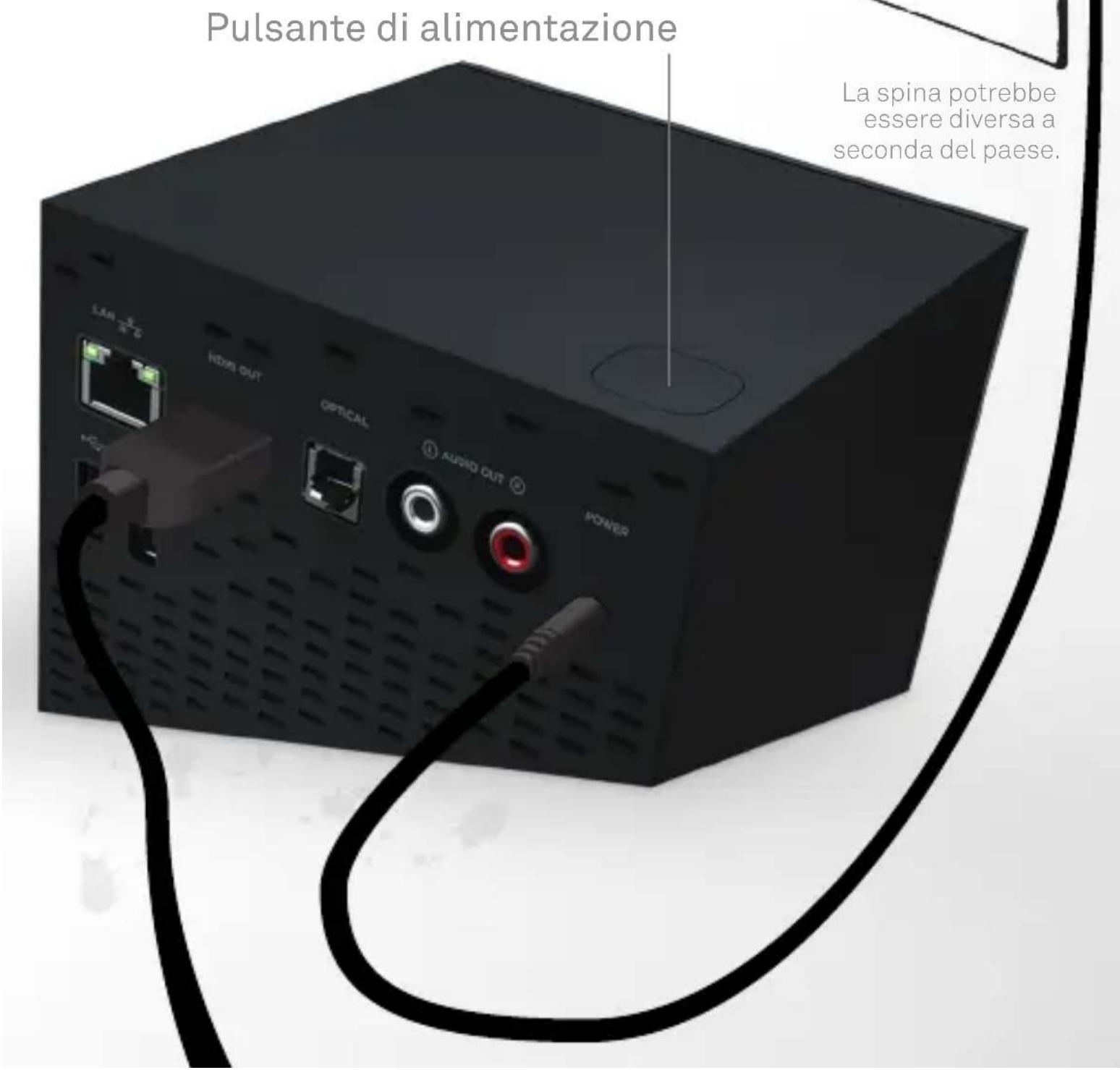

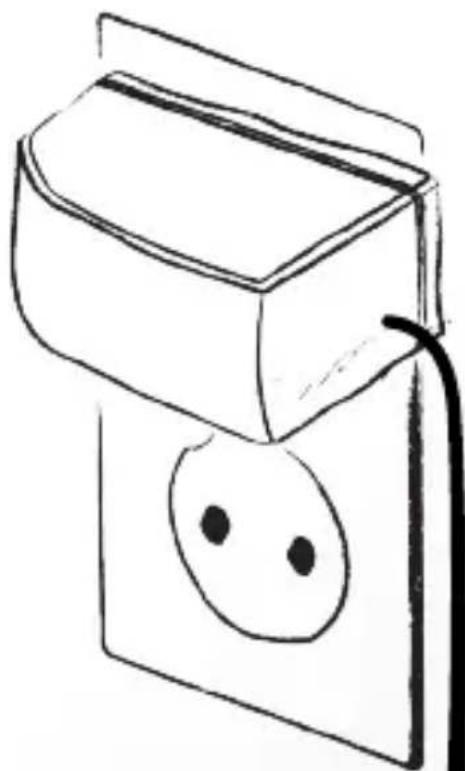

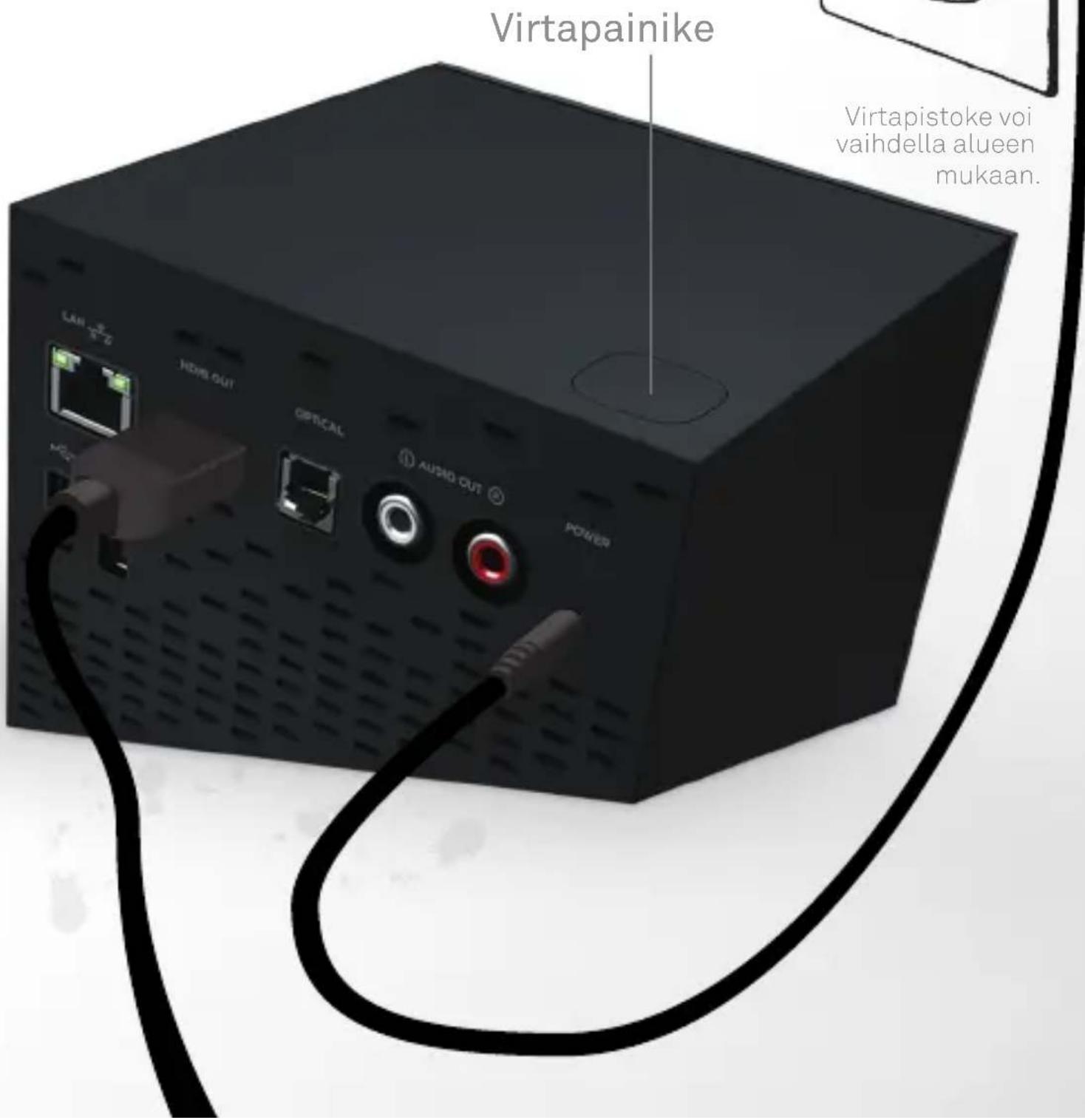

Using the supplied power adapter, plug the Boxee Box into a power source.

D-LINK DSM-380 Boxee Box - step 2 - 1

natural_image Simple line drawing of a wall-mounted electrical socket with two outlets (no text or symbols)

Power Button Power plug may differ by region.

step 3

Turn on your Boxee Box. Then use the TV's remote control to turn on your TV and set it to the correct HDMI input source. You should see the Boxee Box logo smiling at you.

BOXEE

D-LINK DSM-380 Boxee Box - step 3 - 2

natural_image Line drawing of a remote control with buttons and dials (no text or symbols)

Illustration of a computer monitor with green 'SEE' text overlay, likely indicating an app or service.

step 4

Follow the on-screen instructions to configure your new Boxee Box and connect to your network.

D-LINK DSM-380 Boxee Box - step 4 - 1

natural_image Black box-like device with green logo and 'BOXE' text, no readable text or symbols beyond branding

Warning: To block adult content, configure Parental Controls under settings.

D-LINK DSM-380 Boxee Box - step 4 - 2

natural_image Line drawing of a wireless router with two antennas and control buttons (no text or symbols)

Pairing your Boxee Remote to the Boxee Box

Your remote comes from the factory already paired to the Boxee Box. If you are noticing interference with your remote from other devices, you may pair the remote with the Boxee Box in the easy steps below:

  1. Make sure to move other devices away from the Boxee Box (or turn them off)
  2. Put the remote in close proximity with the Boxee Box.
  3. Press and hold the OK key on the simple side of the remote for 5 seconds.
  4. Pairing is complete when you can control the Boxee Box. There is no visual indication of pairing on the device.
  5. You can immediately use the remote control now.

Replacing the Battery

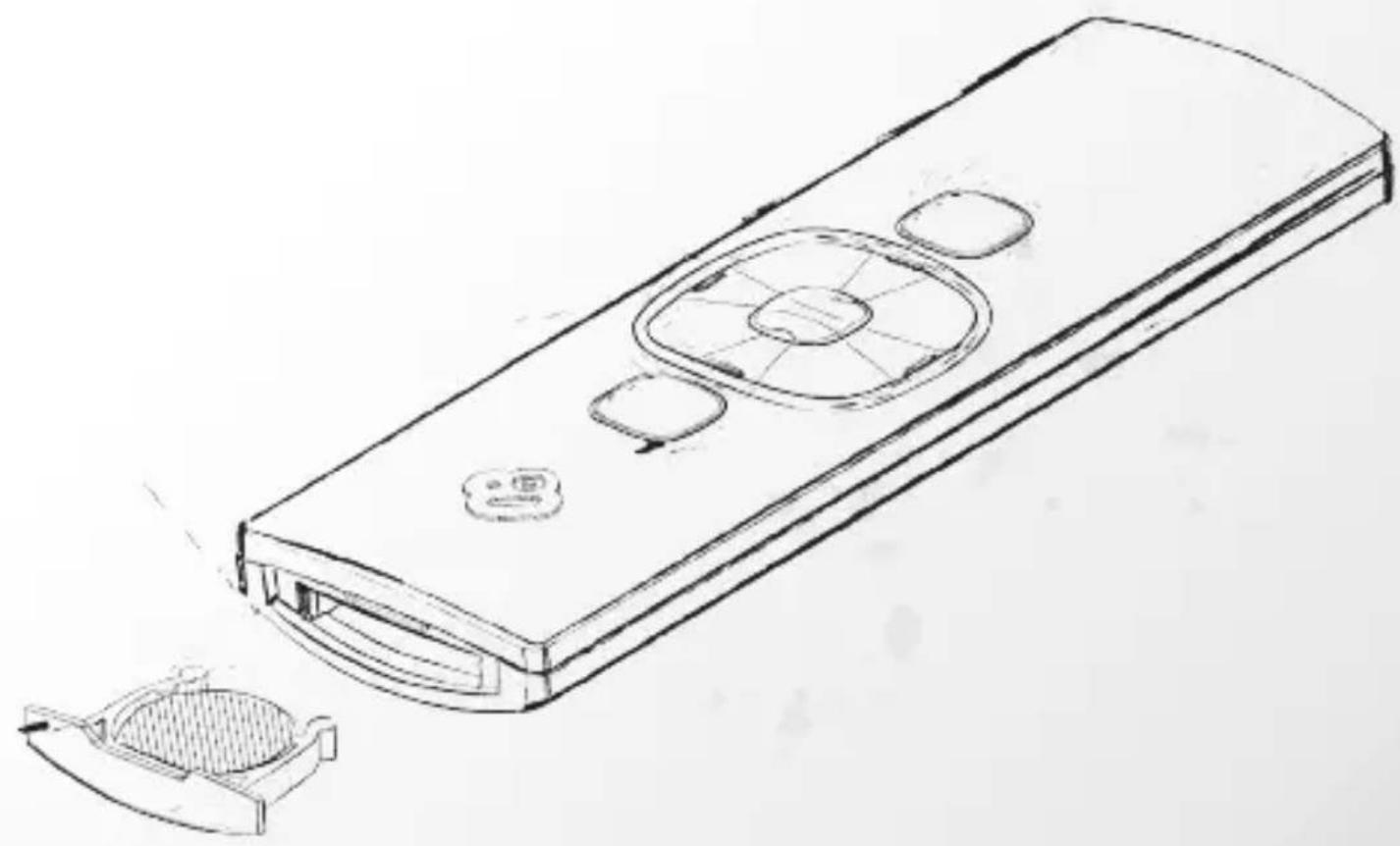

With a coin, remove the battery tray. Insert the battery with the + side face down into the battery tray. Slide the tray back into the remote.

CP2032 3V LITHIUM BATTERY

D-LINK DSM-380 Boxee Box - Replacing the Battery - 2

natural_image Simple line drawing of a circular object with a textured top surface (no text or symbols)

D-LINK DSM-380 Boxee Box - Replacing the Battery - 3

natural_image Technical line drawing of a mechanical component or bracket assembly (no text or symbols)

D-LINK DSM-380 Boxee Box - Replacing the Battery - 4

natural_image Line drawing of a mechanical component with a circular grille and four legs (no text or symbols)

D-LINK DSM-380 Boxee Box - Replacing the Battery - 5

natural_image Line drawing of a mechanical component or housing (no text or symbols)

D-LINK DSM-380 Boxee Box - Replacing the Battery - 6

natural_image Technical line drawing of a mechanical component with a circular base and protruding arms (no text or symbols)

D-LINK DSM-380 Boxee Box - Replacing the Battery - 7

natural_image Line drawing of a remote control box with two circular vent slots and a separate plastic cover (no text or symbols)
