Product Type	Blu-ray Disc Player
Model	BD-D5500 Smart 3D
Dimensions (W x H x D)	Approx. 430 x 45 x 200 mm
Weight	Approx. 2.0 kg
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	Approx. 25 W (standby: < 0.5 W)
Playable Disc Types	BD-ROM, BD-RE/-R, DVD-VIDEO, DVD-RW/-R, DVD+RW/+R, Audio CD (CD-DA), CD-RW/-R
Video Output	HDMI (up to 1080p), Component (up to 1080i), Composite
Audio Output	HDMI, Digital Optical, Analog 2ch
Network Connectivity	Ethernet 10/100BASE-T, Wireless LAN (with optional adapter WIS09ABGN)
Key Features	3D playback, Smart Hub, AllShare, BD-LIVE, USB multimedia playback (DivX, MKV, MP4, MP3, JPEG)
USB Port	Front USB 2.0 for media playback and BD-LIVE storage
3D Support	Yes, via HDMI 1.4 (requires 3D TV and glasses)
Smart Hub	Internet services including Samsung Apps, news, weather, games, and streaming
AllShare	DLNA streaming from PC, NAS, or mobile devices
BD-LIVE	Downloadable bonus content from discs (requires USB storage and internet)
Remote Control	Includes TV control (codes for multiple brands)
Safety	Class 1 Laser product; no user-serviceable parts; refer servicing to qualified personnel
Maintenance	Clean cabinet with dry cloth; disconnect power when cleaning; do not use solvents
Spare Parts / Repairability	Contact Samsung customer care; repair by authorized service only

Frequently Asked Questions - BD-D5500 Smart 3D SAMSUNG

How do I play 3D content on the BD-D5500?

To play 3D content, connect the player to a 3D-compatible TV using a high-speed HDMI cable. Insert a Blu-ray 3D disc, set 3D Settings to Auto or 3D+ in the menu, and wear 3D glasses compatible with your TV. The player outputs 3D signals only through HDMI.

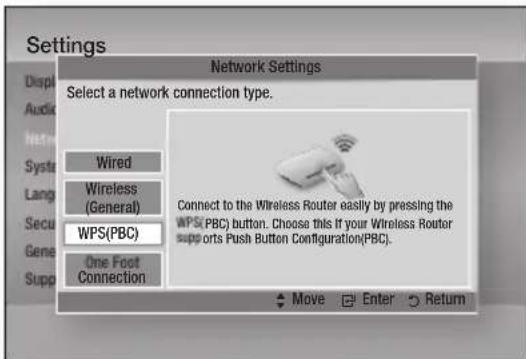

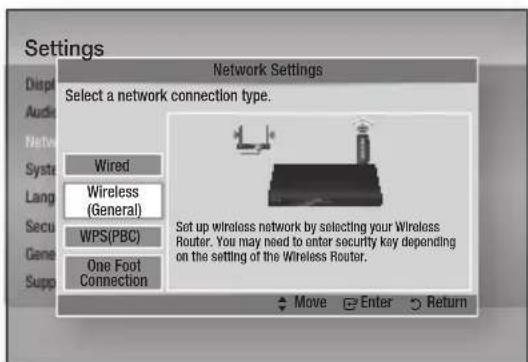

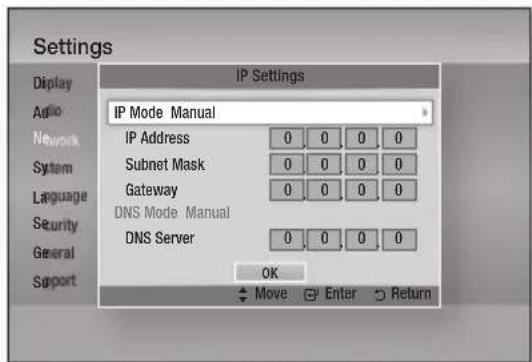

How do I connect the player to my home network?

For wired connection, connect an Ethernet cable from the LAN port on the rear panel to your router. For wireless, insert the optional Samsung Wireless LAN Adapter (WIS09ABGN) into the WIRELESS LAN port, then go to Settings > Network > Network Settings and choose Wireless (General) or WPS(PBC) if your router supports it.

Why is there no picture or sound when I play a disc?

Check that the disc is clean and inserted correctly. Ensure the correct input is selected on your TV (HDMI, Component, or AV). Verify the Resolution setting matches your TV’s capability. If using HDMI, try a different cable or disable Deep Colour. If the issue persists, press and hold STOP on the front panel for 5 seconds to reset.

How do I update the firmware?

Via internet: Go to Settings > Support > Software Upgrade > By Internet. The player will check for updates and download if available. Via USB: Download the latest firmware from Samsung’s website, unzip to a USB flash drive, insert into the front USB port, with disc tray empty, then select By USB in the same menu.

Can I play movies or music from a USB drive?

Yes. Insert a USB drive (FAT16/32 or NTFS) into the front USB port. From the Home menu, select My Contents and navigate to the file. Supported formats: video: DivX, MKV, MP4; audio: MP3, WMA; photo: JPEG. Note: DRM-protected files and some codecs may not play.

How do I set parental controls?

Go to Settings > Security. You can set BD Parental Rating (age) or DVD Parental Rating (numerical). Use the arrow buttons to select a level, then press ENTER. The default password is 0000. To change, select Change Password.

What is Smart Hub and how do I use it?

Smart Hub provides internet services like Samsung Apps, streaming, news, and games. Press Smart Hub on the remote. On first use, accept terms. Navigate using arrow keys. You can download apps from Samsung Apps. A network connection is required.

How do I use AllShare to stream from my PC?

Ensure your player and PC are on the same network. On your PC, enable media sharing (e.g., Windows Media Player 12 or Samsung AllShare software). On the player, go to My Devices and select your PC. Browse and play videos, music, or photos.

How do I clean the player and discs?

For the player cabinet, unplug the power and wipe with a soft dry cloth. Do not use benzene, thinner, or liquids. For discs, wipe gently from center to edge with a soft cloth. Do not use record sprays or antistatic chemicals. Store discs in their cases away from direct sunlight.

What should I do if the remote control does not work?

Check battery polarity (+/-) and replace if drained. Ensure no obstacles block the sensor on the front panel. Fluorescent lighting may interfere. If you are trying to control your TV, re-program the remote using the TV control codes (see manual page 20). If still not working, reset the player by unplugging for 10 seconds.

USER MANUAL BD-D5500 Smart 3D SAMSUNG

Blu-ray™ Disc Player user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service,

please register your product at

www.samsung.com/register

Key features

Blu-ray Discs support the highest quality HD video available in the industry - Large capacity means no compromise on video quality.

The following Blu-ray Disc features are disc dependant and will vary.

Appearance and navigation of features will also vary from disc to disc.

Not all discs will have the features described below.

Video highlights

The BD-ROM format supports three highly advanced video codecs, including AVC, VC-1 and MPEG-2.

HD video resolutions are also supported:

• 1920 x 1080 High Definition

- 1280 x 720 High Definition

For High-Definition Playback

To view high-definition contents on a Blu-ray Disc, you need an HDTV (High Definition Television). Some Blu-ray Discs may require you to use the player's HDMI OUT to view high-definition content.

The ability to view high-definition content on Blu-ray Discs may be limited depending on the resolution of your TV.

BD-LIVE

You can use a Blu-ray Disc that supports BD-LIVE to download content provided by the disc manufacturer through a network connection.

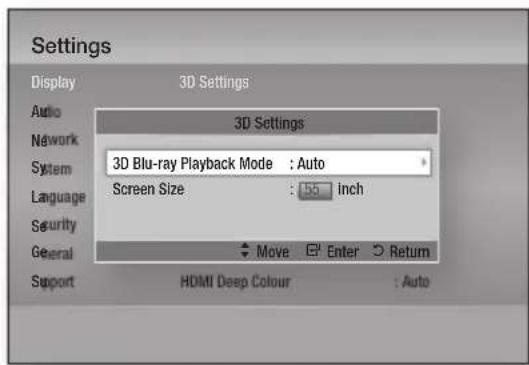

3D

This player can play 3D contents through an HDMI cable.

To implement the 3D effect, connect a 3D device (3D-compliant AV receiver, 3D-compliant TV) to the player using an HDMI cable, and play the 3D content while wearing 3D vision glasses.

Smart Hub

You can download various for pay or free-of-charge applications through a network connection. These applications provide a range of Internet services and content including news, weather forecasts, stock market quotes, games, movies, and music.

AllShare

You can play videos, music, and photos saved on your devices (such as your PC, mobile phones, or NAS) through a network connection.

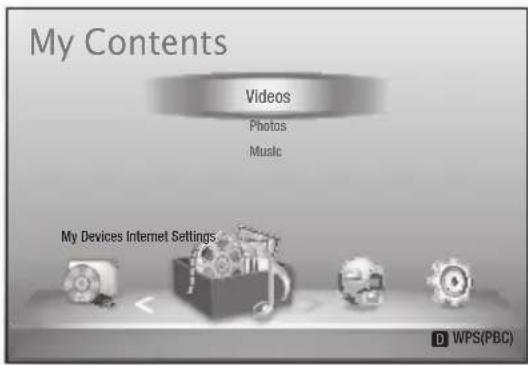

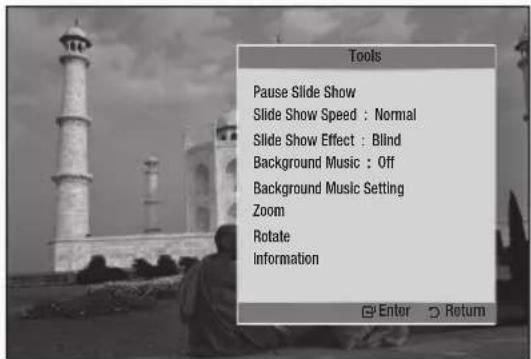

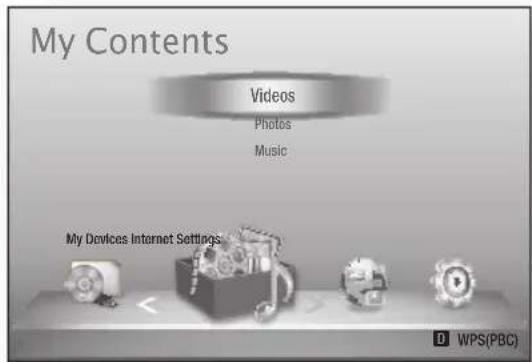

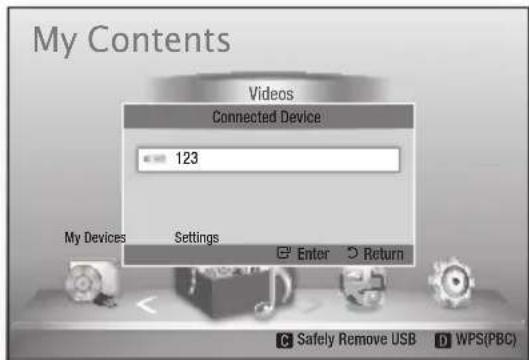

Playing multimedia files

You can use the USB connection to play various kinds of multimedia files (MP3, JPEG, DivX, etc.) located from a USB storage device.

Safety Information

Warning

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury.			CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.		This symbol indicates important instructions accompanying the product.

Do not install this equipment in a confined space such as a bookcase or similar unit.

WARNING

To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture.

CAUTION

Blu-ray Disc Player USES AN INVISIBLE LASER BEAM WHICH CAN CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE Blu-ray Disc Player CORRECTLY AS INSTRUCTED.

CAUTION

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

This product satisfies CE regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections.

IMPORTANT NOTE

The mains lead on this equipment is supplied with a molded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug. If it requires replacing, a fuse approved to BS1362 of the same rating must be used.

Never use the plug with the fuse cover omitted if the cover is detachable. If a replacement fuse cover is required, it must be of the same colour as the pin face of the plug. Replacement covers are available from your dealer.

If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance.

However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a mains jack, as there is a risk of shock hazard from the bared flexible cord.

To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

The product unit accompanying this user manual is licenced under certain intellectual property rights of certain third parties.

Safety Information

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1 LASER product. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

CAUTION :

• CLASS 3B VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO THE BEAM (IEC 60825-1)
• THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVER AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LÁSER CLASE 1

Precautions

Important Safety Instructions

Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below.

Keep these operating instructions handy for future reference.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including AV receivers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Viewing using 3D function

IMPORTANT HEALTH AND SAFETY INFORMATION FOR 3D PICTURES.

Read and understand the following safety information before using the 3D function.

• Some viewers may experience discomfort while viewing 3D TV such as dizziness, nausea, and headaches.
  If you experience any such symptom, stop viewing 3D TV, remove the 3D Active Glasses, and rest.
• Watching 3D images for an extended period of time may cause eye strain. If you feel eye strain, stop viewing 3D TV, remove your 3D Active Glasses, and rest.
• A responsible adult should frequently check on children who are using the 3D function.
  If there are any reports of tired eyes, headaches, dizziness, or nausea, have the child stop viewing 3D TV and rest.
• Do not use the 3D Active Glasses for other purposes (such as general eyeglasses, sunglasses, protective goggles, etc.)
• Do not use the 3D function or 3D Active Glasses while walking or moving around. Using the 3D function or 3D Active Glasses while moving around may cause you to bump into objects, trip, and/or fall, and cause serious injury.

Disc Storage & Management

Disc Handling

Disc Shape

- Use discs with regular shapes. If you use an irregular disc (a disc with a special shape), you can damage the player.

Holding discs

- Avoid touching the surface of a disc where data has been recorded.

Blu-ray Discs

• Do not leave a Blu-ray Disc in the player for long periods of time. Remove the Blu-ray Disc from the player and store it in its case.
• Be careful not to scratch or leave fingerprints on the surface of the Blu-ray Disc.

DVD-VIDEO, Audio CD (CD-DA)

- Wipe off dirt or contamination on the disc with a soft cloth.

Disc Storage

Be careful not to damage the disc because the data on these discs is highly vulnerable to the environment.

• Do not keep under direct sunlight.
• Keep in a cool ventilated area.
• Store vertically.
• Keep in a clean protection jacket.
• If you move your player suddenly from a cold place to a warm place, condensation may occur on the operating parts and lens and cause abnormal disc playback. If this occurs, unplug the player, wait for two hours, and then connect the plug to the power outlet. Then, insert the disc, and try to play back again.

Handling Cautions

• Do not write on the printed side with a ball-point pen or pencil.
• Do not use record cleaning sprays or antistatic sprays to clean discs. Also, do not use volatile chemicals, such as benzene or thinner.
• Do not apply labels or stickers to discs. (Do not use discs fixed with exposed tape adhesive or leftover peeled-off stickers.)
• Do not use scratch-proof protectors or covers.
• Do not use discs printed with label printers available on the market.
• Do not load warped or cracked discs.
• Before connecting other components to this player, be sure to turn them off.

Safety Information

• Do not move the player while it is playing a disc. The disc can be scratched or damaged and the player's internal parts can be damaged.
• Do not put a flower vase filled with water or any small metal objects on the player.
• Be careful not to put your hand into the disc tray.
• Do not place anything other than the disc in the disc tray.
• Interference from exterior sources such as lightening and static electricity can affect the normal operation of this player. If this occurs, turn the player off and on again with the POWER button, or disconnect and then reconnect the AC power cord to the AC power outlet. The player will operate normally.
• Be sure to remove the disc and turn off the player after use.
• Disconnect the AC power cord from the AC outlet when you don't intend to use the player for long periods of time.
• To clean a disc, wipe it in a straight line from the inside to the outside of the disc.
• Do not expose the player to any liquid.
• When the AC plug is connected to a wall outlet, the player will still draw power (standby mode) when it is turned off.
• Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
• The main plug is used as a disconnect device and shall stay readily operable at any time.
• Do not touch the power plug with a wet hand. Otherwise, it can cause an electric shock.
• Do not share one power socket with multiple electric devices. Otherwise, it may cause an overheat, resulting in a fire.

- If you encounter an abnormal noise, burning smell or smoke, turn off the power switch immediately and disconnect the power plug from the wall outlet. Then, contact the nearest customer center for technical assistance. If you still use the product as it is, this may cause an electric shock or fire.

Maintenance of Cabinet

Before you clean the Blu-ray Disc's cabinet, be sure to disconnect the AC power cord from the AC outlet.

• Do not use benzene, thinner, or other solvents for cleaning.
• Wipe the cabinet with a soft cloth.

Restrictions on Playback

- This player may not respond to all operating commands because some Blu-ray Disc, DVD, and CD discs allow specific or limited operation and provide only certain features during playback.

Please note that this is not a defect in the player.

- Samsung cannot guarantee that this player will play every disc bearing the Blu-ray Disc, DVD or CD logo because disc formats evolve, and problems and errors may occur during the creation of Blu-ray Disc, DVD, and CD software and/or the manufacture of discs.

Please contact the SAMSUNG customer care centre if you have questions or encounter difficulty in playing Blu-ray Disc, DVD, or CD discs in this player. Also, refer to rest of this user manual for additional information on playback restrictions.

Contents

KEy FEATURES

2 Blu-ray Disc Features
2 Blu-ray Disc Player Features

SAFETY INFORMATION

3 Warning
4 Precautions
4 Important Safety Instructions
5 Viewing using 3D function
5 Disc Storage & Management
5 Disc Handling

GETTING STARTED

11 Before using the User Manual
11 Disc Types and Contents your player can play
11 Disc types your player cannot play
12 Blu-ray Disc Compatibility
12 Disc Types
13 Region Code
13 Copyright
14 Supported File Formats
16 Logos of Discs the player can play
16 Accessories
17 Front Panel
18 Rear Panel
19 Remote Control
19 Tour of the Remote Control
20 Setting the Remote Control to Operate Your TV

CONNECTIONS

21 Connecting to a TV
21 Case 1 : Connecting to a TV with an HDMI Cable - Best Quality (Recommended)

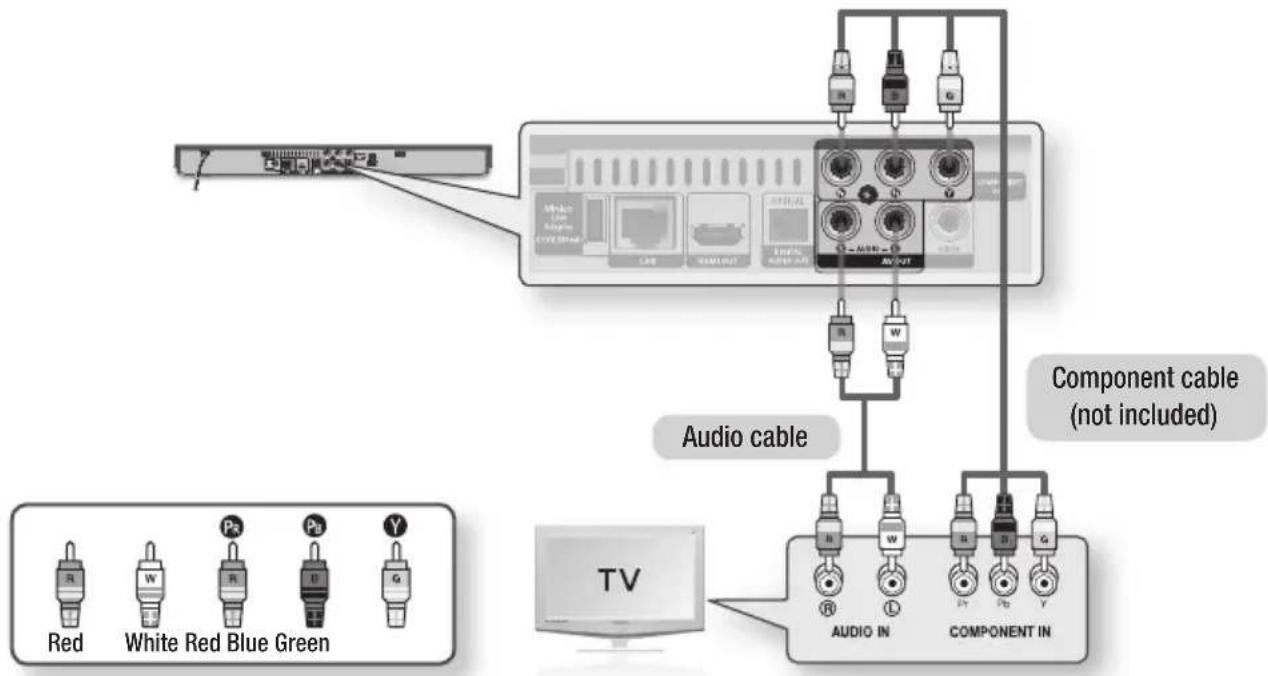

22 Case 2 : Connecting to a TV with a Component Cable - Better Quality
23 Case 3 : Connecting to a TV with an Audio/Video cable - Good Quality

Contents

CONNECTIONS

24 Connecting to an Audio System

24 Case 1 : Connecting to an Audio System (HDMI supported AV receiver) - Best Quality (Recommended)

25 Case 2 : Connecting to an Audio System (AV receiver with Dolby Digital or DTS decoder) - Better Quality

25 Case 3 : Connecting to an Audio System (Stereo Amplifier) - Good Quality

26 Connecting to the Network

26 Cable Network

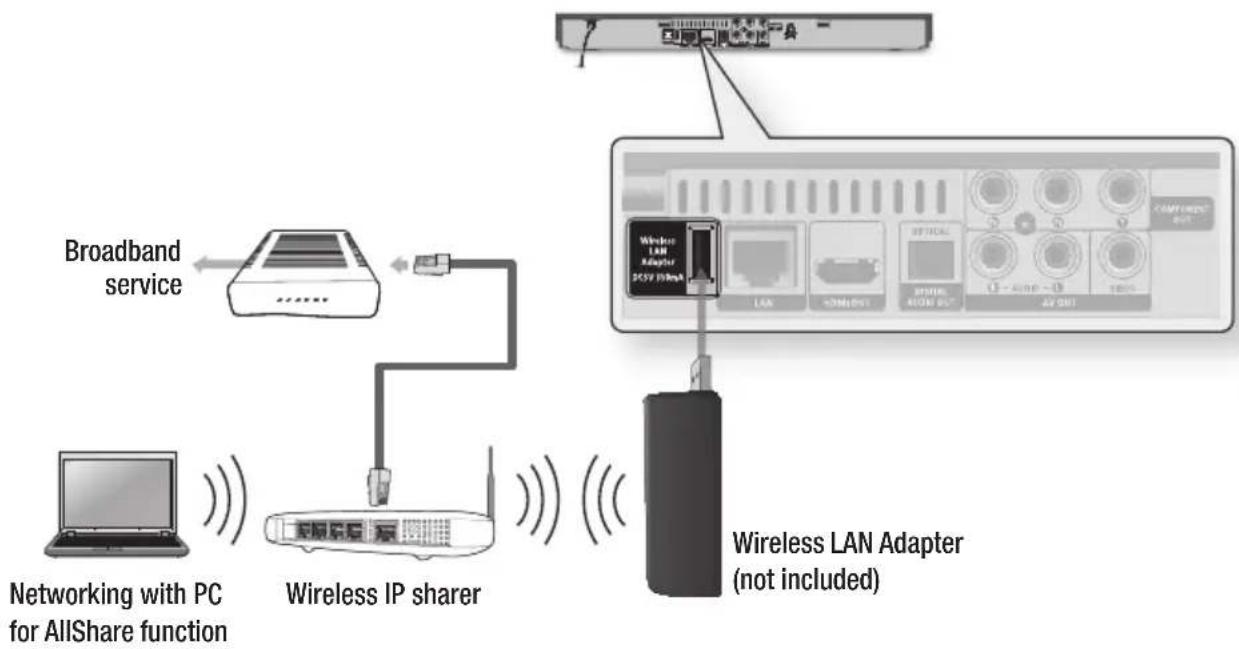

27 Wireless Network

SETUP

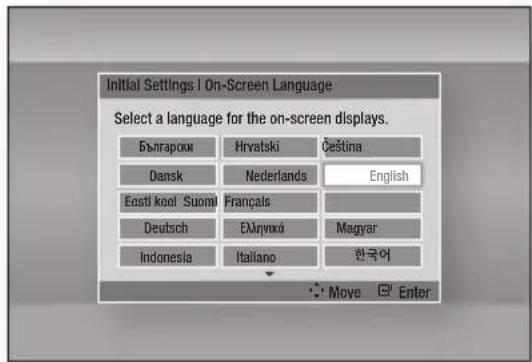

28 Initial Settings

29 Accessing the Settings Menu

30 Display

30 3D Settings

31 TV Aspect

31 Smart Hub Screen Size

31 BD Wise (Samsung Players only)

31 Resolution

33 HDMI Colour Format

33 Movie Frame (24Fs)

34 HDMI Deep Colour

34 Still Mode

34 Progressive Mode

34 Audio

34 Digital Output

36 PCM Downsampling

36 Dynamic Range Control

36 Downmixing Mode

37 Network

37 Network Settings

40 Network Status

41 BD-LIVE Internet Connection

SETUP

41 System

41 Initial Settings

41 Anynet+(HDMI-CEC)

41 BD Data Management

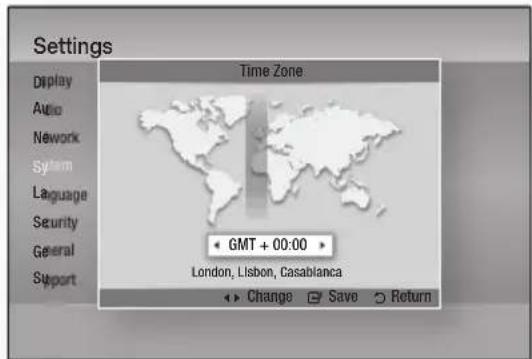

42 Time Zone

42 DivX® Video On Demand

42 Reset

42 Language

42 Security

42 BD Parental Rating

42 DVD Parental Rating

42 Change Password

43 General

43 Front Display

43 Network Remote Control

43 Support

43 Software Upgrade

45 Contact Samsung

BASIC FUNCTIONS

46 Playing a Video

46 Playback

46 Disc Structure

46 Using the Disc Menu/Title Menu/Popup Menu

46 Using the Disc Menu

47 Using the Title Menu

47 Playing the Title List

47 Using the Popup Menu

47 Using the Search and Skip Functions

47 Searching for a Desired Scene

47 Skipping Chapters

48 Repeat Playback

48 Repeat the Title or Chapter

48 Repeat the Section

Contents

BASIC FUNCTIONS

48 Slow Motion Play/Step Motion Play

48 Slow Motion Play

48 Step Motion Play

49 Using the TOOLS button

49 Moving to a Desired Scene Directly

49 Changing to Full Screen

49 Selecting the Picture Settings

49 Selecting the Audio Language

50 Selecting the Subtitle Language

50 Changing the Camera Angle

50 Setting BONUSVIEW

51 Listening to Music

51 Playing an Audio CD (CD-DA)/MP3

51 Repeat an Audio CD (CD-DA)/MP3

51 Playlist

52 Playing back Pictures

52 Playing a JPEG files

52 Using the TOOLS button

53 Playing back a USB Storage Device

NETWORK SERVICES

54 Using Smart Hub

54 Starting Smart Hub for the First Time

57 The Settings Menu - BLUE (D)

59 The Edit Mode Menu - YELLOW (C)

61 The Sort Menu - GREEN (B)

61 Samsung Apps

61 For Pay Apps

63 BD-LIVE™

63 Using the AllShare Function

APPENDIX

64 Troubleshooting

66 Repairs

67 Specifications

Getting Started

Before using the User Manual

Disc Types and Contents your player can play

Tem Logo Icon Definition
VIDEO			Indicates a function available on a BD-ROM or BD-RE/-R disc recorded in the BD-RE format.
			Indicates a function available on a DVD-VIDEO or recorded DVD+RW/DVD-RW(V)/DVD-R/+R discs that have been recorded and finalized.
	-		Indicates a function available in a CD-RW/-R, DVD-RW/-R, BD-RE/-R disc or a USB storage media containing DivX, MKV, MP4 contents.
MUSIC			Indicates a function available on an audio CD-RW/-R (CD-DA format).
	-		Indicates a function available in a CD-RW/-R, DVD-RW/-R, BD-RE/-R disc or a USB storage media containing MP3 or WMA contents.
PHOTO	-		Indicates a function available in a CD-RW/-R, DVD-RW/-R, BD-RE/-R disc or a USB storage media containing JPEG contents.

NOTE

■ The player may not play certain CD-RW/-R and DVD-R because of the disc type or recording conditions.
■ If a DVD-RW/-R disc has not been recorded properly in DVD video format, it will not be playable.
- Your player will not play content that has been recorded on a DVD-R at a bit-rate that exceeds 10 Mbps.
- Your player will not play content that has been recorded on a BD-R or USB device at a bit rate that exceeds 30 Mbps.

Disc types your player cannot play

• HD DVD
  • DVD-ROM/PD/MV-Disc, etc

• DVD-RAM
  • Super Audio CD (except CD layer)

• DVD-RW(VR mode)
• CVD/CD-ROM/CDV/CD-G/CD-I/LD (CD-Gs play audio only, not graphics.)

• 3.9 GB DVD-R Disc for Authoring.

Getting Started

NOTE

■ Some commercial discs and DVDs purchased outside your region may not play on this player.
■ Playback may not work for some types of discs, or when you use specific operations, such as angle change and aspect ratio adjustment. Information about the discs is written in detail on the disc box. Please refer to this if necessary.
- Do not allow the disc to become dirty or scratched. Fingerprints, dirt, dust, scratches or deposits of cigarette smoke on the recording surface may make it impossible to use the disc for playback.
- When you play a BD-J title, loading may take longer than a normal title or some functions may perform slowly.
■ This player may not respond to all operating commands because some Blu-ray Disc, DVD, and CD discs allow specific or limited operation and provide only certain features during playback. Please note that this is not a defect in the player.
Samsung cannot guarantee that this player will play every disc bearing the Blu-ray Disc, DVD or CD logo because disc formats evolve, and problems and errors may occur during the creation of Blu-ray Disc, DVD, and CD software and/or the manufacture of discs.

Please contact the SAMSUNG customer care centre if you have questions or encounter difficulty when playing Blu-ray Disc, DVD, or CD discs in this player. Also, refer to rest of this user manual for additional information on playback restrictions.

Blu-ray Disc Compatibility

Blu-ray Disc is a new and evolving format. Accordingly, disc compatibility issues are possible. Not all discs are compatible and not every disc will play back. For additional information, refer to the Compliance and Compatibility Notice section of this user manual.

Disc Types

BD-ROM

Blu-ray ROM discs can only be played back. This player can play back pre-recorded commercial BD-ROM discs.

BD-RE/-R

Blu-ray RE/-R discs can be recorded on and played back.

This player can play back a BD-RE/-R disc recorded by other compatible Blu-ray Disc recorders.

DVD-VIDEO

• This player can play back pre-recorded commercial DVDs (DVD-VIDEO discs) with movies.
• When switching from the first layer to the second layer of a dual-layered DVD-VIDEO disc, there may be momentary distortion in the image and sound. This is not a malfunction of the player.

DVD-RW/-R/+R

This player can play back a DVD-RW/-R/+R disc recorded and finalized with a DVD video recorder. The ability to play back may depend on recording conditions.

DVD+RW

- This player can play back a DVD+RW disc recorded with a DVD Video recorder. The ability to play back may depend on recording conditions.

Audio CD (CD-DA)

• This player can play back CD-DA format audio CD-RW/-R discs.
• The player may not be able to play some CD-RW/-R discs due to the condition of the recording.

CD-RW/-R

• Use a 700MB (80 minute) CD-RW/-R disc. If possible, do not use an 800MB (90 minute) or larger disc, as the disc may not play back.
• If the CD-RW/-R disc was not recorded as a closed session, you may experience delays when playing back the beginning of the disc or all recorded files may not play.
• Some CD-RW/-R discs may not play on this player, depending on the device which was used to burn them. For contents recorded on CD-RW/-R media from CDs for your personal use, playability may vary depending on the contents and discs.

AVCHD (Advanced Video Codec High Definition)

• This player can play back AVCHD format discs. These discs are normally recorded and used in camcorders.
• The AVCHD format is a high definition digital video camera format.
• The MPEG-4 AVC/H.264 format compresses images with greater efficiency than the conventional image compressing format.
• Some AVCHD discs use the "x.v.Color" format. This player can play back AVCHD discs that use "x.v.Color" format.
  • "x.v.Color" is a trademark of Sony Corporation.
• “AVCHD” and the AVCHD logo are trademarks of Matsushita Electronic Industrial Co., Ltd. and Sony Corporation.

NOTE

• Some AVCHD format discs may not play, depending on the recording condition. AVCHD format discs need to be finalized.
• “x.v.Color” offers a wider colour range than normal DVD camcorder discs.
  ■ Some DivX, MKV and MP4 format discs may not play, depending on the video resolution and frame rate condition.

Region Code

Both players and discs are coded by region.

These regional codes must match for a disc to play. If the codes do not match, the disc will not play.

The Region Number for this player is displayed on the rear panel of the player.

Disc Type	Region Code	Area
Blu-ray Disc		North America, Central America, South America, Korea, Japan, Taiwan, Hong Kong and South East Asia.
		Europe, Greenland, French territories, Middle East, Africa, Australia and New Zealand.
		India, China, Russia, Central and South Asia.
DVD-VIDEO		The U.S., U.S. territories and Canada
		Europe, Japan, the Middle East, Egypt, South Africa, Greenland
		Taiwan, Korea, the Philippines, Indonesia, Hong Kong
		Mexico, South America, Central America, Australia, New Zealand, Pacific Islands, Caribbean
		Russia, Eastern Europe, India, most of Africa, North Korea, Mongolia
		China

Copyright

© 2011 Samsung Electronics Co., Ltd.

All rights reserved; No part or whole of this user's manual may be reproduced or copied without the prior written permission of Samsung Electronics Co., Ltd.

Notes on the USB connection

- Your player supports USB storage media, MP3 players, digital cameras, and USB card readers.

- The player does not support folder or file names longer than 128 characters.

• Some USB/digital camera devices may not be compatible with the player.

- Your player supports the FAT16, FAT32, and NTFS files systems.

- Connect USB devices directly to the player's USB port. Connecting through a USB cable may cause compatibility problems.

- Inserting more than one memory device into a multi-card reader may cause the reader to operate improperly.

• The player does not support the PTP protocol.

- Do not disconnect a USB device during a "loading" process.

- The bigger the image resolution, the longer the image takes to display.

- This player cannot play MP3 files with DRM (Digital Rights Management) downloaded from commercial sites.

- Your player only supports the video that is under 30fps (frame rate).

- Your player only supports USB Mass Storage Class (MSC) devices. Examples of MSC are Thumb drives and USB HDD. (HUB is not supported.)

- A Certain USB HDD Device, multi-card reader and Thumb drives may not be compatible with this product.

- If some devices require excessive power, USB device may be limited by the circuit safety device.

- If the device is disconnected or playback is unstable during contents playback from USB HDD, please supply the power.

If the problem still occurs, contact the USB HDD manufacturer.

- You must remove the USB storage device safely (by performing the “Safely Remove USB” function) in order to prevent a possible damage to the USB memory.

Press the MENU button to move to the home menu, and select the YELLOW (C) button and press the ENTER button.

• SAMSUNG is not responsible for any data file damage or data loss.

Video File Support

File Extension	Container Video	Codec Resolution		Frame rate (fps)	Bit rate (Mbps)	Audio Codec
*.avi	AVI	DivX 3.11/4.x /5.1/6.0	1920x1080 6 ~ 30 8			MP3AC3LPCM DTS Core
		H.264 BP/MP/HP	1920x1080 6 ~ 30 25
		MPEG4 SP/ASP 1	1920x1080	6 ~ 30 8
*.mkv	MKV	DivX 3.11/4.x /5.1/6.0	1920x1080	6 ~ 30 8		MP3AC3LPCM DTS Core
		H.264 BP/MP/HP	1920x1080	6 ~ 30 25
		MPEG4 SP/ASP 1	1920x1080	6 ~ 30 8
*.asf	ASF	DivX 3.11/4.x /5.1/6.0	1920x1080	6 ~ 30 8		MP3AC3LPCM WMA
		H.264 BP/MP/HP 1920x1080		6 ~ 30 25
		MPEG4 SP/ASP 1920x1080		6 ~ 30 8
*.wmv	ASF	Window Media Video v9	1920x1080	6 ~ 30 25 WMA
*.mp4	MP4	H.264 BP/MP/HP 1920x1080		6 ~ 30 25		MP3AAC
		MPEG4 SP/ASP 1920x1080		6 ~ 30 8
*.3gp	3GPP	H.264 BP/MP/HP 1920x1080		6 ~ 30 25		AAC
		MPEG4 SP/ASP 1920x1080		6 ~ 30 8
*.vro	VRO VOB	MPEG2 1920x1080		24/25/30 25		AC3MPEG LPCMMPEG1
				24/25/30 25
*.mpg *.mpeg	PS	MPEG1 1920x1080		24/25/30 25		AC3MPEG LPCM AAC
		MPEG2 1920x1080		24/25/30 25
		H.264 1920x1080		6 ~ 30 25
*.ts *.tp *.trp	TS	MPEG2 1920x1080		24/25/30 25		AC3AACMP3 DD+
		H.264 1920x1080		6 ~ 30 25
		VC1 1920x1080		6 ~ 30 25

- Limitations

• Even when the file is encoded by a supported codec mentioned above, a file might not be played if its content has a problem.
• Normal playback is not guaranteed if the file's container information is wrong or the file itself is corrupted.
• Files having higher Bit rate/frame rate than standard may stutter with sound/video playback.
• Seek (skip) function is not available if the file's index table is damaged.
• When you playback a file remotely through network connection, video playback may stutter depending on established network speed.

■ Video decoder

• Supports up to H.264 Level 4.1
• Does not support H.264 FMO/ASO/RS, VC1 SP/MP/AP L4 and AVCHD
• MPEG4 SP, ASP :

Below 1280 x 720 : 60 frames max

Above 1280 x 720 : 30 frames max

- Does not support GMC 2 or higher

- Audio decoder

• Supports WMA 7, 8, 9 and STD
• Does not support WMA 9 PRO multi-channel if number of channels is more than 2 or lossless audio decoding
• Does not support WMA sampling rate of 22050Hz mono

Getting Started

Supported Divx subtitle file formats

*.ttxt, *.smi, *.srt, *.sub, *.txt

Music File Support

File Extension Container Audio Codec Support Range
*.mp3	MP3	MP3 -
*.wma	WMA	WMA	Compliant with WMA version 10* Sampling rates (in kHz) - 8, 11, 16, 22, 32, 44.1, 48* Bit rates - All bit-rates in the range 5kbps to 384kbps

Logos of Discs the player can play

6 Blu-rayDisc	Blu-ray 3D™	dts-HD Master Audio	DIVX. HD
Blu-ray Disc 3D Blu-ray Disc DTS-HD Master Audio DivX
BD LIVE™	DOLBY. TRUEHD	PAL	Java POWERC
BD-LIVE Dolby TrueHD		PAL broadcast System in U.K., France, Germany, etc.	Java

Front Panel

1 DISC TRAY Opens to accept a disc.

2 POWER BUTTON Turns the player on and off.

3 DISPLAY Displays the playing status, time, etc.

4 STOP BUTTON Stops disc playback.

5 PLAY/PAUSE BUTTON Plays a disc or pauses playback.

6 ENTER BUTTON Selects menu items or starts a disc.

7 OPEN/CLOSE BUTTON Opens and closes the disc tray.

8 REMOTE CONTROL SENSOR Detects signals from the remote control.

9 USB HOST The player is connected to BD-LIVE. You can also use the USB Host for software upgrades and MP3/JPEG/DivX/MKV/MP4 playback.

NOTE

• You can perform software upgrades using the USB Host jack with a USB memory flash stick only.
• When the player displays the Blu-ray Disc menu, you may not start the movie by pressing the Play button on the player or the remote. To play the movie, you must select Play Movie or Start in the disc menu, and then press the ENTER button.

Getting Started

Rear Panel

1	WIRELESS LAN ADAPTER	Connect the optional Wireless LAN Adapter (WIS09ABGN) here to use a Wireless network.
2	LAN	Use for network based services (See pages 54~63), BD-LIVE, and software upgrades using a network connection.
3	HDMI OUT	Using an HDMI cable, connect this HDMI output terminal to the HDMI input terminal on your TV for the best quality picture or to your AV receiver for the best quality sound.
4	COMPONENT OUT Connects to external devices that have Component video input.
5	VIDEO OUT Connects to the video input of external devices using a video cable.
6	AUDIO OUT Connects to the audio input of external devices using audio cables.
7	DIGITAL AUDIO OUT Connects to an AV receiver.

Remote Control

Tour of the Remote Control

Installing batteries

Diagram showing a device being inserted into a battery, with an arrow indicating the process (no text or symbols present)

NOTE

■ If the remote does not operate properly:

• Check the polarity +/- of the batteries.
• Check if the batteries are drained.
• Check if the remote sensor is blocked by obstacles.
• Check if there is any fluorescent lighting nearby.

! CAUTION

■ Dispose of batteries according to local environmental regulations. Do not put them in the household trash.

Getting Started

Setting the Remote Control to Operate Your TV

You can control certain functions of your TV with this remote control.

Button Function
TV POWER Used to switch the television on and off.
TV SOURCE	Used to select an external source connected to the TV.
TV VOL (+/-) Used to adjust the volume of the television.
TV CH (A/V)	Used to select the desired channel.
TV MUTE Used to toggle the sound on and off.

NOTE

■ The functions listed above will not necessarily work on all televisions. If you encounter problems, use the TV remote control.

To determine whether your television is compatible, follow the instructions below.

1. Switch your television on.
2. Point the remote control towards the television.
3. Press and hold the TV POWER button, and then enter the two-figure code in the table to the right that corresponds to the brand of your television by pressing the appropriate number buttons.

If your television is compatible with the remote control, it will switch off.

The remote is now programmed to operate the TV.

NOTE

■ If several codes are listed for your television brand, try each one in turn until you find one that works.
If you replace the remote control's batteries, you must set the brand code again.

TV Control Codes

Brand Code
SAMSUNG	TV POWER+01, +02,+03, +04, +05,+06, +07, +08, +09
AIWA TV POWER+82
ANAM	TV POWER+10, +11,+12, +13, +14,+15, +16, +17, +18
BANG & OLUFSEN	TV POWER+57
BLAUPUNKT TV POWER+71
BRANDT TV POWER+73
BRIONVEGA TV POWER+57
CGE TV POWER+52
CONTINENTAL EDISON	TV POWER+75
DAEWOO	TV POWER+19, +20,+23, +24, +25,+26, +27, +28,+29, +30, +31,+32, +33, +34
EMERSON TV POWER+64
FERGUSON TV POWER+73
FINLUX	TV POWER+06, +49,+57
FORMENTI TV POWER+57
FUJITSU TV POWER+84
GRADIENTE	TV POWER+70
GRUNDIG	TV POWER+49, +52,+71
HITACHI	TV POWER+60, +72,+73, +75
IMPERIAL	TV POWER+52
JVC	TV POWER+61, +79
LG	TV POWER+06, +19,+20, +21, +22, +78
LOEWE	TV POWER+06, +69
LOEWE OPTA	TV POWER+06, +57
MAGNAVOX TV POWER+40
METZ	TV POWER+57
MITSUBISHI	TV POWER+06, +48,+62, +65
MIVAR	TV POWER+52, +77
NEC TV POWER+83
NEWSAN	TV POWER+68

Brand Code
NOBLEX	TV POWER+66
NOKIA	TV POWER+74
NORDMENDE	TV POWER+72, +73, +75
PANASONIC	TV POWER+53, +54, +74, +75
PHILIPS	TV POWER+06, +55, +56, +57
PHONOLA	TV POWER+06, +56, +57
PIONEER	TV POWER+58, +59, +73, +74
RADIOLA	TV POWER+06, +56
RADIOMARELLI	TV POWER+57
RCA TV POWER+45, +46
REX	TV POWER+74
SABA	TV POWER+57, +72, +73, +74, +75
SALORA TV POWER+74
SANYO	TV POWER+41, +42, +43, +44, +48
SCHNEIDER TV POWER+06
SELECO	TV POWER+74
SHARP	TV POWER+36, +37, +38, +39, +48
SIEMENS	TV POWER+71
SINGER	TV POWER+57
SINUDYNE TV POWER+57
SONY	TV POWER+35, +48
TELEAVA	TV POWER+73
TELEFUNKEN	TV POWER+67, +73, +75, +76
THOMSON	TV POWER+72, +73, +75
THOMSON ASIA	TV POWER+80, +81
TOSHIBA	TV POWER+47, +48, +49, +50, +51, +52
WEGA	TV POWER+57
YOKO	TV POWER+06
ZENITH	TV POWER+63

Connecting to a TV

Case 1 : Connecting to a TV with an HDMI Cable - Best Quality (Recommended)

1. Using an HDMI cable, connect the HDMI OUT terminal on the rear of the player to the HDMI IN terminal of your TV.

2. Turn on the player and TV.

3. Press the input selector on your TV remote control until the HDMI signal from the player appears on your TV screen.

- If you have set the remote control to operate your TV (See page 20), press the TV SOURCE button on the remote control and select HDMI as the external source of the TV.

NOTE

- An HDMI cable outputs digital video/audio, so you don't need to connect an audio cable.

- If the player is connected to your TV in the HDMI 720p, 1080i, or 1080p output mode, you must use a High speed (category 2) HDMI cable.

■ HDMI outputs only a pure digital signal to the TV. If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise appears on the screen.

■ Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user manual of your TV.

- When you connect the player to the TV using the HDMI cable for the first time or to a new TV, the HDMI output resolution will be automatically set to the highest supported by the TV.

■ You must have an HDMI connection to enjoy videos with 3D technology.

■ A long HDMI cable may cause a screen noise. If this occurs, set Deep Colour to Off in the menu.

- If you use HDMI-to-DVI cable to connect to your display device, you must also connect the AV Out or Digital Audio Out to your display device or an audio system to hear audio.

Connections

Case 2 : Connecting to a TV with a Component Cable - Better Quality

• You can connect the player to your TV using Component video cables.

• You will enjoy high quality images with accurate colour reproduction. Component video separates the picture element into black and white (Y), blue ( P_B ) and red ( P_R ) signals to present clear and clean images. (Audio signals are delivered through the audio output.)

• Using a Component video cable, connect the COMPONENT OUT terminals on the rear of the player to the COMPONENT IN terminals of your TV.

• Using audio cables, connect the AUDIO OUT (red and white) terminals on the rear of the player to the AUDIO IN (red and white) terminals of your TV.
• Turn on the player and TV.
• Press the input selector on your TV remote control until the "COMPONENT" signal from the player appears on the TV screen.

- If you have set the remote control to operate your TV (See page 20), press the TV SOURCE button on the remote control and select COMPONENT as the external source of the TV.

NOTE

• Depending on the manufacturer, the component terminals on your TV may be marked "R-Y, B-Y, Y" or "Cr, Cb, Y" instead of "P_B, P_R, Y". The number and position of terminals may vary depending on the TV set. Please refer to the user manual of your TV.
• You can select from a variety of resolution settings as 1080i, 720p, 576p/480p, or 576i/480i depending on the contents type. (See pages 31\~33)
• The actual resolution may differ from the setting in the setup menu if you have connected both Component and HDMI cables. The resolution may also be different depending on the contents type. (See pages 31\~33)

Case 3 : Connecting to a TV with an Audio/Video cable - Good Quality

1. Using an Audio/Video cable, connect the VIDEO OUT (yellow) / AUDIO OUT (red and white) terminals on the rear of the player to the VIDEO IN (yellow) / AUDIO IN (red and white) terminals of your TV.
2. Turn on the player and TV.
3. Press the input selector on your TV remote control until the "VIDEO" signal from the player appears on the TV screen.
4. If you have set the remote control to operate your TV (See page 20), press the TV SOURCE button on the remote control and select VIDEO as the external source of the TV.

NOTE

• Noise may be generated if the audio cable is placed too close to the power cable.
  ■ If you want to connect to an AV receiver, please refer to the AV receiver connection pages. (See pages 24\~25)
  ■ The number and position of input terminals may vary depending on your TV set. Please refer to the user manual of your TV.

! CAUTION

- Do not connect the player to your TV through a VCR. Video signals fed through VCRs may be affected by copyright protection systems and the picture will be distorted on the television.

Connections

Connecting to an Audio System

• Please turn the volume down when you turn on the AV receiver. A sudden loud sound may cause damage to the speakers and your ears.
• Set the audio output format according to the capabilities of your AV receiver. (See pages 34\~36)
• The position of HDMI input terminals may vary depending on your AV receiver. Please refer to the user manual of your AV receiver.

Case 1 : Connecting to an Audio System (HDMI supported AV receiver) - Best Quality (Recommended)

1. Using an HDMI cable, connect the HDMI OUT terminal on the rear of the player to the HDMI IN terminal of your AV receiver.
2. Using an HDMI cable, connect the HDMI OUT terminal of the AV receiver to the HDMI IN terminal of your TV.
3. Turn on the player, TV, and AV receiver.
4. Press the input select button of the AV receiver and TV to select the external input to hear sound from the player. Refer to your AV receiver's user manual to set the AV receiver's audio input.

Case 2 : Connecting to an Audio System (AV receiver with Dolby Digital or DTS decoder) - Better Quality

1. Using an optical cable, connect the DIGITAL AUDIO OUT (OPTICAL) terminal on the rear of the player to the DIGITAL AUDIO IN (OPTICAL) terminal of your AV receiver.

2. Using the video signal cable(s), connect the HDMI, COMPONENT, or VIDEO OUT terminals on the rear of the player to the HDMI, COMPONENT, or VIDEO IN terminal of your TV. (See pages 21\~23)

3. Turn on the player, TV, and AV receiver.

4. Press the input select button of the AV receiver to select the external input and hear sound from the player. Refer to your AV receiver's user manual to set the AV receiver's audio input.

5. Press the input selector on your TV remote control to select the video source (HDMI, Component, or Video.)

Case 3 : Connecting to an Audio System (Stereo Amplifier) - Good Quality

1. Using the audio cables, connect the AUDIO OUT (red and white) terminals on the rear of the player to the AUDIO IN (red and white) terminals of your Stereo Amplifier.

2. Using the video signal cable(s), connect the HDMI, COMPONENT, or VIDEO OUT terminals on the rear of the player to the HDMI, COMPONENT, or VIDEO IN terminal of your TV. (See pages 21\~23)

3. Turn on the player, TV and Stereo Amplifier.

4. Press the input select button of the Stereo Amplifier to select the external input in order to hear sound from the player. Refer to your Stereo Amplifier's user manual to set the Stereo Amplifier's audio input.

5. Press the input selector on your TV remote control to select the video source (HDMI, Component, or Video.)

NOTE

- If you use the Digital Audio connection described in Case 2, you will hear only front two speakers with Digital Output setting as PCM.

Connections

Connecting to the Network

This player lets you use network based services (See pages 54\~63) such as Smart Hub and BD-LIVE, and software upgrades when it is connected to a network. We recommend using an AP (Access Point) or IP router for the connection. For more information on router connections, refer to the user manual of the router or contact the router manufacturer for technical assistance.

Cable Network

1. Using the Direct LAN Cable (UTP cable), connect the LAN terminal of the player to the LAN terminal of your modem or router.
2. To set the network options, see pages 37\~41.

Networking with PC for AllShare function

NOTE

• Internet access to Samsung's software update server may not be allowed, depending on the router you use or your ISP's policy. For more information, contact your ISP (Internet Service Provider).
  ■ For DSL users, please use a router to make a network connection.
• To use the AllShare function, you must connect your PC to your network as shown in the figure. The connection can be wired or wireless.

Wireless Network

You can connect to network with a Wireless IP sharer (a router or a modem).

1. A wireless AP/IP router and the Samsung Wireless LAN Adapter is required to make a wireless network connection. Connect the Wireless LAN adapter (not included) to the Wireless LAN Adapter jack on the rear panel of the player. See the diagram below.
2. To set the network options, see pages 37\~41.

NOTE

• Use only the Samsung wireless LAN adapter with this player. (Model name: WIS09ABGN). Do not use this wireless adapter with any third-party players. To purchase the Samsung wireless LAN adapter, visit your Samsung retailer.
• You must use a wireless IP sharer that supports IEEE 802.11 a/b/g/n. (n is recommended for stable operation of the wireless network.)
• Wireless LAN, by its nature, may cause interference, depending on the operating conditions (AP performance, distance, obstacles, interference by other radio devices, etc).
• Set the wireless IP sharer to Infrastructure mode. Ad-hoc mode is not supported.
  ■ The player supports only the following wireless security key protocols: WEP (OPEN/SHARED), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)
  ■ Due to changes in WiFi policy, this player cannot support the TKIP encryption method in the 802.11n mode.
• To use the AllShare function, you must connect your PC to your network as shown in the figure. The connection can be wired or wireless.

Setup

Initial Settings

1. Turn on your TV after connecting the player. When you connect the player to a TV for the first time, player turns on automatically and the Initial Settings screen appears.

1. Press the ▲▼◀▶ buttons to select the desired language, and then press the ENTER button.
2. Press the ENTER button to select Start.
3. Press the ▲▼ buttons to select the desired TV Aspect Ratio, and then press the ENTER button. (See page 31)
4. Press the ▲▼ buttons to select the desired Network Settings : Wired, Wireless (General), WPS(PBC) or One Foot Connection, and then press the ENTER button. If you do not know the details of your Network Settings, press the BLUE (D) button on your remote instead to skip Network Settings here, finish the Initial Settings, and go to the Home menu. If you selected a Network Setting, go to pages 37\~41 for more information about the Network settings. When done, go to Step 6.

5. The Home menu appears. (For more information about the Home menu, please see page 29.)

6. Home Menu


NOTE

• When the player is connected to the TV for the first time, the player turns on automatically. This is not a malfunction.
  ■ The Home menu will not appear if you do not configure the initial settings except as noted below.
• If you press the BLUE (D) button during the network setup, you can access the Home menu even if the network setup is not completed yet.
  ■ If you want to display the Initial Setting screen again to make changes, select the Reset option. (See page 42)
  If you use an HDMI cable to connect the player to an Anynet+(HDMI-CEC)-compliant Samsung TV and 1.) You have set the Anynet+(HDMI-CEC) feature to On in both the TV and the player and 2.) You have set the TV to a language supported by the player, the player will select that language as the preferred language automatically.
• If you leave the player in the stop mode for more than 5 minutes without using it, a screen saver will appear on your TV. If the player is left in the screen saver mode for more than 20 minutes, the power will automatically turn off.

Accessing the Settings Menu

1	MENU Button : Press to move to the Home menu.
2	RETURN Button : Return to the previous menu.
3	ENTER / DIRECTION Button :Move the cursor or select an item.Activate the currently selected item.Confirm a setting.
4	EXIT Button : Press to exit the current menu.

To access the Settings menu and sub-menus, follow these steps:

1. Press the POWER button. The Home Menu appears.

- Home Menu

1	Selects My Devices.
2	Selects My Contents.
3	Selects Internet.
4	Selects Settings.
5	Displays the buttons available.

1. Press the ◀▶ buttons to select Settings, and then press the ENTER button.
2. Press the ▲▼ buttons to select the desired submenu, and then press the ENTER button.
3. Press the ▲▼ buttons to select the desired item, and then press the ENTER button.
4. Press the EXIT button to exit the menu.

NOTE

• When the player is connected to a network, select Smart Hub from the Home menu. Download the desired content from Samsung Apps. (See pages 61–63)
  ■ The access steps may differ depending on the menu you selected.
  ■ The OSD (On Screen Display) may change in this player after you upgrade the software version.

- Settings menu

Above : The Settings menu showing the 3D Settings sub-menu.

The following menu items are on the Settings Menu :

• Display
• Audio
• Network
• System
• Language
• Security
• General
• Support

The menu items are addressed in the order listed above on the following pages, starting with Display.

Setup

Display

You can configure various display options such as the TV Aspect Ratio, Resolution, etc.

3D Settings

Select whether to play a Blu-ray Disc with 3D contents in 3D Mode.

3D Blu-ray Playback Mode

3D Blu-ray Discs are available in two formats: Blu-ray 3D and 3D only. You can choose to watch a Blu-ray 3D disc in 3D or 2D mode before playing the disc.

• Auto : Automatically detect if a connected TV has 3D capability and play a Blu-ray 3D disc in 3D or 2D accordingly or a 3D only disc in 3D if the TV supports 3D. 3D only discs will not be played if your TV does not support 3D.
• 3D+ 3D : Play 3D only and Blu-ray 3D discs in 3D mode at all times.
• 3D→2D: Play Blu-ray 3D discs in 2D mode at all times. 3D only discs will not be played.

NOTE

• For some 3D discs, to stop a movie during 3D playback, press the STOP (☐) button once. The movie stops and the 3D mode option is de-activated. To change a 3D option selection when you are playing a 3D movie, press the STOP (☐) button once. The Blu-ray menu appears. Press the STOP (☐) button again, then select 3D Settings in the Blu-ray menu.
  ■ Depending on the content and the position of the picture on your TV screen, you may see vertical black bars on the left side, right side, or both sides.

Screen Size

Lets you enter the actual screen size of your TV so that the player can adjust the image according to the screen size and display an optimal 3D image. (For 3D displays bigger than 116 inches, simply setting it as 116 is also a safe choice.)

! CAUTION

• If you want to enjoy 3D content, connect a 3D device (3D compliant AV receiver or TV) to the player's HDMI OUT port using a high-speed HDMI cable. Put on 3D glasses before playing the 3D content.
  ■ The player outputs 3D signals only through HDMI cable connected to the HDMI OUT port.
• As the video resolution in 3D play mode is fixed according to the resolution of the original 3D video, you can not change the resolution to your preference.
  ■ Some functions such as BD Wise, screen size adjustment, and resolution adjustment may not operate properly in 3D play mode.
• You must use a high-speed HDMI cable for proper output of the 3D signal.
• Stay at least three times the width of the screen from the TV when watching 3D images. For example, if you have a 46 inch screen, stay 138 inches (11.5 feet) from the screen.

- Place the 3D video screen at eye level for the best 3D picture.

■ When the player is connected to some 3D devices, the 3D effect may not function properly.
■ This player does not convert 2D content into 3D.
■ "Blu-ray 3D" and "Blu-ray 3D" logo are trademarks of the Blu-ray Disc Association.

TV Aspect

Depending on the type of television you have, you may want to adjust the screen size setting.

• 16:9 Original : Select when you connect the player to a 16:9 TV screen. The player will display all content in its original aspect ratio. Content formatted in 4:3 will be displayed with black bars on the left and right.
• 16:9 Full : Select when you connect the player to a 16:9 TV screen. All content will fill the full screen. Content formatted in 4:3 will be stretched.
• 4:3 Letter Box : Select when you connect the player to a 4:3 TV screen. The player will display all content in its original aspect ratio. Content formatted in 16:9 will be displayed with black bars on the top and bottom.
• 4:3 Pan-Scan : Select when you connect the player to a 4:3 TV screen. 16:9 content will have the extreme left and right portions cut off.

NOTE

■ Depending on the disc type, some aspect ratios may not be available.
■ If you select an aspect ratio and option which is different than the aspect ratio of your TV screen, then the picture might appear to be distorted.
■ If you select the 16:9 Original, your TV may display 4:3 Pillarbox (black bars on sides of picture).

Smart Hub Screen Size

Set the Smart Hub Screen to the optimal size.

• Size 1 : Smart Hub screen size will be smaller than default. You may see some black on sides of screen.
• Size 2: This is the default setting for Smart Hub. The player displays the normal Smart Hub screen size.
• Size 3: This will display a larger Smart Hub screen size. The image may be too large for your TV screen.

BD Wise (Samsung Players only)

BD Wise is Samsung's latest inter-connectivity feature.

When you connect a Samsung player and a Samsung TV with BD Wise to each other via HDMI, and BD Wise is on in both the player and TV, the player outputs video at the video resolution and frame rate of the Blu-ray Disc/DVDs.

• Off: The output resolution stays fixed at the resolution you set previously in the Resolution menu, regardless of the resolution of the disc. See Resolution below.
• On : The player outputs video at the original resolution and frame rate of the Blu-ray Disc/DVDs.

NOTE

• When BD Wise is on, the Resolution setting automatically defaults to BD Wise and BD Wise appears in the Resolution menu.
  ■ If the player is connected to a device that does not support BD Wise, you can not use the BD Wise function.
  ■ For proper operation of BD Wise, set the BD Wise menu of both the player and the TV to On.

Resolution

Lets you set the output resolution of the Component and HDMI video signal to Auto, 1080p, 1080i, 720p, 576p/480p, or 576i/480i. The number indicates the number of lines of video per frame. The i and p indicate interlaced and progressive scan, respectively. The more lines, the higher the quality.

• Auto: Automatically sets the output resolution to the connected TV's maximum resolution.
• BD Wise : Automatically sets the resolution to the resolution of the Blu-ray Disc/DVDs if you have connected the player via HDMI to a TV with the BD Wise feature. (The BD Wise menu item appears only if BD Wise is set to On. See BD Wise above.)
  • 1080pOutputs 1080 lines of progressive video.
  • 1080i : Outputs 1080 lines of interlaced video.
  • 720p : Outputs 720 lines of progressive video.
• 576p/480p : Outputs 576/480 lines of progressive video.
  • 576i/480iOutputs 576/480 lines of interlaced video.

Setup

Resolution according to the output mode

• Blu-ray Disc/E-contents/Digital Contents playback

Setup\Output	HDMI / connected HDMI / not connected
	HDMI Mode		Component/VIDEO Mode	Component Mode		VIDEO Mode
	Blu-ray Disc	E-contents/Digital contents		Blu-ray Disc	E-contents/Digital contents
BD Wise	Resolution of Blu-ray Disc	1080p 576i/480i - - -
Auto	Max.Resolution of TV input	Max.Resolution of TV input	576i/480i - - -
1080p 1080p 1080p 576i/480i - -
Movie Frame : Auto (24Fs) 1080p@24F 1080p@24F 480i - - -
1080i	1080i	1080i	576i/480i	576i/480i	576p/480p	576i/480i
720p	720p	720p	576i/480i	576i/480i	576p/480p	576i/480i
576p/480p	576p/480p	576p/480p	576i/480i	576i/480i	576p/480p	576i/480i
576i/480i	-	-	-	576i/480i	576i/480i	576i/480i

• DVD playback

Setup\Output	HDMI / connected HDMI / not connected
	HDMI Mode	Component\VIDEO Mode	Component Mode\VIDEO Mode
BD Wise	576i/480i	576i/480i	-	-
Auto	Max. Resolution of TV input	576i/480i	-	-
1080p	1080p	576i/480i	-	-
1080i	1080i	576i/480i	576p/480p	576i/480i
720p	720p	576i/480i	576p/480p	576i/480i
576p/480p	576p/480p	576i/480i	576p/480p	576i/480i
576i/480i	-	-	576i/480i	576i/480i

NOTE

• If the TV you connected to the player does not support Movie Frame or the resolution you selected, the message “If no pictures are shown after selecting ‘Yes’, please wait for 15 seconds to return to the previous resolution. Do you want to change the resolution?” appears. If you select Yes, the TV’s screen will go blank for 15 seconds, and then the resolution will revert to the previous resolution automatically.
• If the screen stays blank after you have changed the resolution, remove all discs, and then press and hold the STOP (☐) button on the front of the player for more than 5 seconds. All settings are restored to the factory default. Follow the steps on the previous page to access each mode and select the Display Setup that your TV will support.
• When the factory default settings are restored, all stored user BD data is deleted.
  ■ The Blu-ray Disc must have the 24 frame feature for the player to use the Movie Frame (24Fs) mode.
• If both HDMI and Component jacks are connected and you are currently viewing Component output, the resolution is fixed to 576i/480i.
• When the HDMI cable is not connected and video output is component mode, DivX contents with copy protection can only be output 576i/480i.

HDMI Colour Format

Lets you set the colour space format for HDMI output to match the capabilities of the connected device (TV, monitor, etc).

• Auto : Automatically sets the player to the optimum format supported by your device.
- YCbCr (4:4:4) : If your TV supports the YCbCr colour space via HDMI, select this to output the normal YCbCr colour gamut.
- RGB (Standard) : Select this to output the normal RGB colour gamut.
- RGB (Enhanced) : If you have connected the player to a DVI display device such as a monitor, select this to output the enhanced RGB colour gamut.

Movie Frame (24Fs)

Setting the Movie Frame (24Fs) feature to Auto allows you to adjust the player's HDMI output to 24 frames per second for improved picture quality. You can enjoy the Movie Frame (24Fs) feature only on a TV supporting this frame rate. You can select Movie Frame only when the player is in the HDMI 1080i or 1080p output resolution modes.

• Auto : Movie Frame (24Fs) functions work.
• Off : Movie Frame (24Fs) functions are off.

Setup

HDMI Deep Colour

Lets you output video from the HDMI OUT jack with Deep Colour. Deep Colour provides more accurate colour reproduction with greater colour depth.

• Auto : The player outputs video with Deep Colour to a connected TV which supports HDMI Deep Colour.
  • Off : The picture is output without Deep Colour.

Still Mode

Lets you set the type of picture the player displays when you pause DVD playback.

• Auto : Automatically shows the best still picture depending on the content.
• Frame : Select when pausing a scene with a little action.
• Field : Select when pausing a scene with a lot of action.

Progressive Mode

Lets you improve picture quality when viewing DVDs.

• AutoSelect to have the player automatically select the best picture quality for the DVD you're watching.
  • Video : Select for the best picture quality from concert or TV show DVDs.

Audio

Digital Output

You set the Digital Output to match the capabilities of the AV receiver you've connected to the player :

• PCM : Choose if you have connected an HDMI supported AV receiver.
• Bitstream (Unprocessed) : Select if you have connected an HDMI supported AV receiver with Dolby TrueHD and DTS-HD Master Audio decoding capabilities.
• Bitstream (Re-encoded DTS) : Choose if you have connected an AV receiver using a Digital Optical input that can decode DTS.
• Bitstream (Re-encoded Dolby D) : Select if you don't have an HDMI supported AV receiver, but have an AV receiver with Dolby Digital decoding capabilities.

For more details, please refer to the digital output selection table. (See page 35)

Digital Output Selection

Setup PCM				Bitstream (Unprocessed)		Bitstream (Re-encoded DTS)	Bitstream (Re-encoded Dolby D)
Connection		HDMI supported AV receiver	Optical	HDMI supported AV receiver	Optical	HDMI supported AV receiver or Optical	HDMI supported AV receiver or Optical
Audio Stream on Blu-ray Disc	PCM	Up to PCM 7.1ch	PCM 2ch	PCM PCM 2ch	DTS re-encoded		Re-encoded Dolby Digital *
	Dolby Digital	Up to PCM 7.1ch	PCM 2ch	Dolby Digital Dolby Digital DTS	re-encoded		Re-encoded Dolby Digital *
	Dolby Digital Plus	Up to PCM 7.1ch	PCM 2ch	Dolby Digital Plus	Dolby Digital DTS re-encoded		Re-encoded Dolby Digital *
	Dolby TrueHD	Up to PCM 7.1ch	PCM 2ch	Dolby TrueHD Dolby Digital DTS	re-encoded		Re-encoded Dolby Digital *
	DTS	Up to PCM 5.1ch	PCM 2ch	DTS DTS DTS re-encoded			Re-encoded Dolby Digital *
	DTS-HD High Resolution Audio	Up to PCM 5.1ch	PCM 2ch	DTS-HD High Resolution Audio	DTS DTS re-encoded		Re-encoded Dolby Digital *
	DTS-HD Master Audio	Up to PCM 5.1ch	PCM 2ch	DTS-HD Master Audio	DTS DTS re-encoded		Re-encoded Dolby Digital *
Audio Stream on DVD	PCM	PCM 2ch	PCM 2ch	PCM 2ch	PCM 2ch	PCM 2ch	PCM 2ch
	Dolby Digital	Up to PCM 5.1ch	PCM 2ch	Dolby Digital Dolby Digital	Dolby Digital Dolby Digital		Digital
	DTS	Up to PCM 5.1ch	PCM 2ch	DTS DTS	DTS	DTS
Definition for Blu-ray Disc	Any	Decodes the main feature audio and BONUSVIEW audio stream together into PCM audio and adds Navigation Sound Effects.		Outputs only the main feature audio stream so that your AV receiver can decode the audio bitstream. You will not hear BONUSVIEW audio or Navigation Sound Effects.		Decodes the main feature audio and BONUSVIEW audio stream together into PCM audio and adds Navigation Sound Effects, then re-encodes the PCM audio into DTS bitstream.	Decodes the main feature audio and BONUSVIEW audio stream together into PCM audio and adds Navigation Sound Effects, then re-encodes the PCM audio into Dolby digital bitstream or PCM.

* If the Source Stream is 2ch or mono, "Re-encoded Dolby D" Setting are not applied. Output will be PCM 2ch.

Blu-ray Discs may include three audio streams :

• Main Feature Audio : The audio soundtrack of the main feature.
• BONUSVIEW audio : An additional soundtrack such as the director or actor's commentary.
• Navigation Sound Effects : When you choose some menu navigation, Navigation Sound Effects may sound. Navigation Sound Effects are different on each Blu-ray Disc.

Setup

NOTE

■ Be sure to select the correct Digital Output or you will hear no sound or just loud noise.
■ If the HDMI device (AV receiver, TV) is not compatible with compressed formats (Dolby digital, DTS), the audio signal outputs as PCM.
■ Regular DVDs do not have BONUSVIEW audio and Navigation Sound Effects.
■ Some Blu-ray Discs do not have BONUSVIEW audio and Navigation Sound Effects.
- This Digital Output setup does not effect the analogue (L/R) audio or HDMI audio output to your TV. It effects the optical and HDMI audio output when your player is connected to an AV receiver.
■ If you play MPEG audio soundtracks, the audio signal outputs as PCM regardless of your Digital Output selections (PCM or Bitstream).

PCM Downsampling

Lets you set 48kHz and 96kHz PCM down-sampling on or off.

• Off : Select when the AV receiver connected to the player is 96kHz compatible.
• On : Select when the AV receiver connected to the player is not 96kHz compatible. 96kHz signals will be down converted to 48kHz.

NOTE

■ Even when PCM Downsampling is set to Off, some discs will only output downsampled audio through the optical digital outputs.

HDMI

• If your TV is not compatible with compressed multi-channel formats (Dolby Digital, DTS), the player may output PCM 2ch downmixed audio even though you selected Bitstream (either Re-encoded or Unprocessed) in the setup menu.
• If your TV is not compatible with PCM sampling rates over 48kHz, the player may output 48kHz downsampled PCM audio even though you set PCM Downsampling to Off.

Dynamic Range Control

You can listen at low volumes, but still hear dialog clearly.

This is only active if your player detects a Dolby Digital signal.

• Auto : The Dynamic Range Control will be set automatically based on the information provided by the Dolby TrueHD Soundtrack.
• Off: You can enjoy the movie with the standard Dynamic Range.
• On : When Movie soundtracks are played at low volume or through smaller speakers, the system can apply appropriate compression to make low-level content more intelligible and prevent dramatic passages from getting too loud.

Downmixing Mode

Lets you select how the player will downmix multi-channel audio into fewer channels.

• Normal Stereo : Downmixes the multi-channel audio into two channel stereo. Choose when connected to equipment that does not support virtual surround functions such as Dolby Pro Logic.
• Surround Compatible : Downmixes multi-channel audio into surround compatible stereo. Choose when connected to equipment that supports virtual surround functions such as Dolby Pro Logic.

Network

Before you begin, contact your ISP to find out if your IP address is static or dynamic. If it is dynamic, and you are using a wired or wireless connection, we recommend using the Auto procedures. If you are using a wireless connection and your router has the capability, you can use WPS(PBC) or One Foot Connection.

If your IP address is static, you must use the manual set up procedure for both wired and wireless connections.

Network Settings

To begin setting up the network connection for your player, follow these steps:

1. In the Home menu, press the ◀▶ buttons to select Settings, and then press the ENTER button.
2. Press the ▲▼ buttons to select Network, and then press the ENTER button.
3. Press the ▲▼ buttons to select Network Settings, and then press the ENTER button.
4. Press the ▲▼ buttons to select Wired, Wireless (General), WPS(PBC) or One Foot Connection, and then press the ENTER button.
5. If you have a wired network, go to Wired Network below. If you have a wireless network, go to Wireless Network on pages 38\~40.

Wired Network

Setting Up a Wired Connection - Auto

1. Press the ▲▼ buttons to select Wired.

1. Press the ENTER button.

The Network Status screen appears. The player connects to the network after the network connection is verified.

Setting Up a Wired Connection - Manual

If you have a static IP address or the Auto Setting does not work, you'll need to set the Network Settings values manually.

To view your Network Settings values on most Windows computers, follow these steps:

- Windows XP

1. Right click the Network icon on the bottom right of the Windows desktop.
2. In the pop-up menu, click Status.
3. On the dialog that appears, click the Support tab.
4. On the Support tab, click the Details button. The Network settings are displayed.

- Windows 7

1. Click the Network icon on the bottom right of the Windows desktop.
2. In the pop-up menu, click Network and Sharing Centre.

Setup

1. On the dialog that appears, click the Local Area Connection or Wireless Network Connection depending on your network connection.
2. On the Support tab, click the Details button. The Network settings are displayed.

NOTE

■ Depending on your Windows version, the information may differ.

To enter the Network settings into your player, follow these steps:

1. Press the ▲▼ buttons to select Wired, and then press the ENTER button.
2. Press the ◀▶ buttons to select IP Settings, and then press the ENTER button.
3. On the Network Status screen, select Cancel, and then press Enter.

1. Press the ENTER button to select IP Mode.
2. Press the ▲▼ buttons to select Manual, and then press the ENTER button.
3. Press the ▼ button to go to the first entry field (IP Address).
4. Use the number buttons on your remote to enter numbers.
5. When done with each field, press the ▶ button to move successively to the next field. You can also use the other arrow buttons to move up, down, and back.

6. Enter the IP Address, Subnet Mask, and Gateway values.

7. Press the ▼ button to go to DNS Mode.

8. Press the ▼ button to go to the first DNS entry field. Enter the numbers as above.
9. Press the ENTER button to select OK. The Network Status screen appears. The player connects to the network after the network connection is verified.

Wireless Network

You can setup a wireless network three ways:

• Wireless (General)
  • Using WPS(PBC)
  • One Foot Connection

Wireless (General) includes both Automatic and Manual setup procedures.

Setting Up the Wireless Network Connection - Auto

Most wireless networks have an optional security system that requires devices that access the network to transmit an encrypted security code called an Access or Security Key. The Security Key is based on a Pass Phrase, typically a word or a series of letters and numbers of a specified length you were asked to enter when you set up security for your wireless network. If you use this method of setting up the network connection, and have a Security Key for your wireless network, you will have to enter the Pass Phrase during the Auto setup process.

1. Press the ▲▼ buttons to select Wireless (General).

1. Press the ENTER button.

When done, it displays a list of the available networks.

1. Press the ▲▼ buttons to select the desired network, and then press the ENTER button. The Security screen appears.

2. On the Security screen, enter your network's Pass Phrase. Enter numbers directly using your remote control.

To select a letter, press the ▲▼◀▶ buttons to move the cursor, then press the ENTER button.

NOTE

- You should be able to find the Pass Phrase on one of the set up screens you used to set up your router or modem.

1. When done, press the GREEN (B) button on your remote, or press the ▲▼◀▶ buttons to move the cursor to Done, and then press the ENTER button.

The Network Status screen appears. The player connects to the network after the network connection is verified.

Setting Up the Wireless Network Connection - Manual

If the Auto Setting does not work, you need to enter the Network setting values manually.

To view the Network Settings values on most Windows computers, follow these steps:

- Windows XP

1. Right click the Network icon on the bottom right of the Windows desktop.

2. In the pop-up menu, click Status.

3. On the dialog that appears, click the Support tab.

4. On the Support tab, click the Details button. The Network settings are displayed.

- Windows 7

1. Click the Network icon on the bottom right of the Windows desktop.

2. In the pop-up menu, click Network and Sharing Centre.

3. On the dialog that appears, click the Local Area Connection or Wireless Network Connection depending on your network connection.

4. On the Support tab, click the Details button. The Network settings are displayed.

NOTE

■ Depending on your Windows version, the information may differ.

To enter the Network settings into your player, follow these steps:

1. Follow Steps 1 through 4 in the 'Setting Up the Wireless Network Connection - Auto' procedure.

2. When done, press the GREEN (B) button on your remote, or press the ▲▼◀▶ buttons to move the cursor to Done, and then press the ENTER button. The Network Status screen appears.

1. On the Network Status screen, select Cancel, and then press Enter.

2. Press the ◀▶ buttons to select IP Settings, and then press the ENTER button.

3. Press the ENTER button to select IP Mode.

4. Press the ▲▼ buttons to select Manual, and then press the ENTER button.

5. Press the ▼ button to go to the first entry field (IP Address).

Setup

1. Use the number buttons to enter numbers.
2. When done with each field, press the ▶ button to move successively to the next field. You can also use the other arrow buttons to move up, down, and back.
3. Enter the IP Address, Subnet Mask, and Gateway values.
4. Press the ▼ to go to DNS Mode.
5. Press the ▼ button to go to the first DNS entry field. Enter the numbers as above.
6. Press the OK button.
7. The Network Status screen appears. The player connects to the network after the network connection is verified.

WPS(PBC)

The easiest way to set up the wireless network connection is using the WPS(PBC) function or the One Foot Connection function.

If your wireless router has a WPS(PBC) button, follow these steps:

1. Press the ▲▼ buttons to select WPS(PBC).

1. Press the ENTER button.
2. Press the WPS(PBC) button on your router within two minutes. Your player automatically acquires all the network settings values it needs and connects to your network.
3. The Network Status screen appears. The player connects to the network after the network connection is verified.

One Foot Connection

You can set up the wireless connection automatically if you have a Samsung Wireless Router which supports One Foot Connection. To connect using the One Foot Connection function, follow these steps:

1. Press the ▲▼ buttons to select One Foot Connection.

1. Press the ENTER button.
2. Place the Samsung Wireless Router within 25 cm (10 inches) of your player to connect.
3. Wait until the connection is automatically established.

Network Status

Check whether a connection to the network and the Internet have been established.

BD-LIVE Internet Connection

Set to allow or prohibit an Internet connection when you use the BD-LIVE service.

• Allow (All) : The Internet connection is allowed for all BD-LIVE contents.
• Allow (Valid Only) : The Internet connection is allowed only for BD-LIVE contents containing a valid certificate.
• Prohibit: No Internet connection is allowed for any BD-LIVE content.

NOTE

■ What is a valid certificate?
When the player uses BD-LIVE to send the disc data and a request to the server to certify the disc, the server uses the transmitted data to check if the disc is valid and sends the certificate back to the player.
■ The Internet connection may be restricted while you are using BD-LIVE contents.

System

Initial Settings

By using the Initial Settings function, you can set the language, Network Settings, etc. For more information about the Initial Settings function, refer to the Initial Settings section of this user manual. (See pages 28\~45)

Anynet+(HDMI-CEC)

Anynet+ is a convenient function that offers linked operations with other Samsung players that have the Anynet+ feature. To operate this function, connect this player to a Samsung TV with an HDMI cable. With Anynet+ on, you can operate this player using a Samsung TV remote control and start disc playback simply by pressing the PLAY (▶) button on the TV's remote control. For more information, please see the TV user manual.

• Off : Anynet+ functions will not work.
• On : Anynet+ functions will work.

NOTE

■ This function is not available if the HDMI cable does not support CEC.
■ If your Samsung TV has an Anynet+ logo, then it supports the Anynet+ function.
■ Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user manual of your TV.

BD Data Management

Lets you manage the downloaded contents you accessed through a Blu-ray Disc that supports the BD-LIVE service and stored on an attached Flash memory device.

You can check the device's information including the storage size, delete the BD data, or change the Flash memory device.

BD Data Management Screen Information :

• Total Size : Total memory size of the device.
• Available Size : Available memory in the device.

NOTE

• In the external memory mode, disc playback may be stopped if you disconnect the USB device in the middle of playback.
• Only those USB devices formatted in FAT file system (DOS 8.3 volume label) are supported. We recommend you use USB devices that support USB 2.0 protocol with 4 MB/sec or faster read/write speed.
• The Resume Play function may not work after you format the storage device.
  ■ The total memory available to BD Data Management may differ, depending on the conditions.

Setup

Time Zone

You can specify the time zone that is applicable to your area.

DivX® Video On Demand

View DivX® VOD Registration Codes to purchase and play DivX® VOD contents.

Reset

All settings will revert to the default except for the network and Smart Hub settings.

NOTE

■ The default password is 0000.

Language

You can select the language you prefer for the Home menu, disc menu, etc.

• On-Screen Menu : Select the language for the on-screen displays.
• Disc Menu : Select the language for the disc menu displays.
  • Audio : Select the language for disc audio.
• Subtitle : Select the language for disc subtitles.

NOTE

■ The selected language will only appear if it is supported on the disc.

Security

This function works in conjunction with Blu-ray Disc/DVDs that have been assigned an age rating or numeric rating that indicates the maturity level of the content. These numbers help you control the types of Blu-ray Disc/DVDs that your family can watch.

Select an age rating you want to set for the BD Parental Rating and a rating level you want to set for the DVD Parental Rating. The player will only play Blu-ray Discs rated at or below the age rating and DVDs rated below the numeric rating unless the password is entered.

Larger numbers indicate more mature content.

BD Parental Rating

Prevent playback of Blu-ray Discs with specific age ratings unless a password is entered.

DVD Parental Rating

Prevent playback of DVDs with specific numerical ratings unless a password is entered.

Change Password

Change the 4-digit password used to access security functions.

If you forgot your password

1. Remove the disc.
2. Press and hold the STOP ( ☐ ) button on the front panel for 5 seconds or more. All settings will revert to the factory settings.

NOTE

- When the factory default settings are restored, all the user stored BD data will be deleted.

General

Front Display

Change the brightness of the front panel.

• Auto : Dim during playback.
• Dim : Dim the display window.
• Bright : Brighten the display window.

Network Remote Control

The Network Remote Control function lets you control your Blu-ray Disc player from a remote device such as a smart phone through a wireless connection to your local area network.

To use the Network Remote Control function, follow these steps:

1. Select On in the Network Remote Control menu.
2. Install the Samsung network remote control application to control your player on your compatible portable device.
3. Make sure your portable device and your player are connected to the same wireless router.
4. Start the application on your portable device. The application should find your player and display it on a list.
5. Select the player.
6. If this is the first time you are using the function, it will ask you to allow or deny remote control of the player. Select Allow.
7. Follow the instructions that came with the application to control the player.

Support

Software Upgrade

The Software Upgrade menu allows you to upgrade the player's software for performance improvements or additional services.

By Internet

To upgrade by Internet, follow these steps:

1. Select By Internet, and then press the ENTER button. The Connecting to Server message appears.
2. If there is a download available, the Download pop-up appears with a progress bar and the download starts.
3. When the download is complete, the Upgrade Query window appears with three choices: Upgrade Now, Upgrade Later, or Don't Upgrade.
4. If you select Upgrade Now, the player upgrades the software, turns off, and then turns on automatically.
5. If you do not make a selection in one minute or select Upgrade Later, the player stores the new upgrade software. You can upgrade the software later using the Via Download function.
6. If you select Don't Upgrade, the player cancels the upgrade.

NOTE

• Your player must be connected to the Internet to use the By Internet function.
• The upgrade is complete when the player turns off, and then turns on again by itself.
  ■ Never turn the player off or back on manually during the update process.

Setup

Samsung Electronics shall take no legal responsibility for player malfunction caused by an unstable Internet connection or consumer negligence during a software upgrade.
■ If you want to cancel the upgrade while the upgrade software is downloading, press the ENTER button.

By USB

To upgrade by USB, follow these steps:

1. Visit www.samsung.com/bluraysupport.
2. Download the latest USB software upgrade zip archive to your computer.
3. Unzip the zip archive to your computer. You should have a single folder with the same name as the zip file.
4. Copy the folder to a USB flash drive.
5. Make sure the disc tray is empty, and then insert the USB flash drive into the USB port of the player.

6. In the player's menu, go to Settings > Support > Software Upgrade.

7. Select By USB.

NOTE

• The disc tray must be empty when you upgrade the software using the USB Host jack.
• When the software upgrade is done, check the software details in the software Upgrade menu.
• Do not turn off the player during the software upgrade. It may cause the player to malfunction.
  ■ Software upgrades using the USB Host jack must be performed with a USB memory flash stick only.

By Disc

To upgrade by Disc, follow these steps:

1. Visit www.samsung.com/bluraysupport.
2. Download the latest disc software upgrade zip archive to your computer.
3. Unzip the zip archive to your computer. You should have a single folder with the same name as the zip file.

4. Write the folder onto a disc. We recommend a CD-R or DVD-R.

5. Finalize the disc before you remove it from your computer.

6. Insert the disc into player.

7. In the player's menu, go to Settings > Support > Software upgrade.

8. Select By Disc.

NOTE

• When the system upgrade is done, check the software details in the software Upgrade menu.
• Do not turn off the player during the Software Upgrade. It may cause the player malfunction.

Via Download

The Via Download option lets you upgrade using a file the player downloaded earlier but you decided not to install immediately or a file downloaded by the player in Standby Mode (See Download in Standby Mode below).

To upgrade Via Download, follow these steps:

1. If upgrade software has been downloaded, you will see the software version number to the right of Via Download.
2. Select Via Download, and then press the ENTER button.
3. The player displays a message asking if you want to upgrade. Select Yes. The player begins the upgrade.
4. When the update is complete, the player turns off automatically, and then turns on.

NOTE

• When the system upgrade is done, check the software details in the software Upgrade menu.
• Do not turn off the player during the software Upgrade. It may cause the player to malfunction.

Download in Standby Mode

You can set the Download in Standby Mode function so that the player downloads new upgrade software when it is in Standby mode. In Standby mode, the player is off, but its Internet connection is active. This allows the player to download upgrade software automatically, when you are not using it.

To set Download in Standby Mode, follow these steps:

1. Press the ▲▼ buttons to select Download in Standby Mode, and then press the ENTER button.

2. Select On or Off.

3. Off : If you select Off, the player will notify you with a pop up message when new upgrade software is available.

4. On : If you select On, the player will automatically download new upgrade software when it is in Standby mode with the power off. If it downloads new upgrade software, the player will ask you if you want to install it when you turn the player on.

NOTE

■ To use the Download in Standby Mode function, your player must be connected to the Internet.

Contact Samsung

Provides contact information for assistance with your player.

Basic Functions

Playing a Video

Playback

1. Press the OPEN/CLOSE ( ) button to open the disc tray.
2. Place a disc gently into the tray with the disc's label facing up.

Illustration of a hand using a CD to press a disc on a flat surface, with a black arrow indicating rotation (no text or symbols present)

1. Press the OPEN/CLOSE ( ) button to close the disc tray.
2. Press the PLAY ( ▶ ) button.

Playback related buttons

PLAY ( )Starts playback.
STOP ( )	Stops playback.If you press the button once: The stop position is memorized.If you press the button twice: The stop position is not memorized.
PAUSE ( ) Pauses playback.

NOTE

• For some discs, pressing the STOP (☐) button once may not memorize the stop position.
• Video files with high bit rates of 20Mbps or more strain the player's capabilities and may stop playing during playback.

Disc Structure

The content of discs are usually divided as shown below.

• Blu-ray Disc, DVD-VIDEO

• Audio CD (CD-DA)

• MP3, WMA, DivX, MKV and MP4

Using the Disc Menu/Title Menu/ Popup Menu

Using the Disc Menu

1. During playback, press the DISC MENU button on the remote control.
2. Press the ▲▼◀▶ buttons to make a selection, and then press the ENTER button.

NOTE

■ Depending on the disc, the menu items may differ and this menu may not be available.

Using the Title Menu

1. During playback, press the TITLE MENU button on the remote control.

1. Press the ▲▼◀▶ buttons to make the desired selection, then press the ENTER button.

NOTE

■ Depending on the disc, the menu items may differ and this menu may not be available.

Playing the Title List

1. During playback, press the DISC MENU or TITLE MENU button.

1. Press the ▲▼ buttons to select an entry you want to play from the Title List, and then press the ENTER button.

NOTE

■ If your disc has a playlist, press the GREEN (B) button to go to the playlist.

Using the Popup Menu

1. During playback, press the POPUP MENU button on the remote control.

1. Press the ▲▼◀▶ buttons or ENTER button to select the desired menu.

NOTE

■ Depending on the disc, the menu items may differ and this menu may not be available.

Using the Search and Skip Functions

During play, you can search quickly through a chapter or track, and use the skip function to jump to the next selection.

Searching for a Desired Scene

- During playback, press the SEARCH (◀) button. Each time you press the SEARCH (◀◀) button, the playback speed will change as follows:

BD-ROM,BD-RE/-R,DVD-RW/-R,DVD+RW/+R,DVD-VIDEO	▶ 1 → ▶ 2 → ▶ 3 →▶ 4 → ▶ 5 → ▶ 6 → ▶ 7◀ 1 → ◀ 2 → ◀ 3 →◀ 4 → ◀ 5 → ◀ 6 → ◀ 7
DivX, MKV, MP4	▶ 1 → ▶ 2 → ▶ 3◀ 1 → ◀ 2 → ◀ 3

- To return to normal speed playback, press the PLAY (☐) button.

NOTE

■ The player does not play sound in search mode.

Skipping Chapters

- During playback, press the SKIP button.

If you press the SKIP (▶) button, the disc moves to the next chapter.

If you press the SKIP (◀◀) button, the disc moves to the beginning of the chapter. One more press makes the disc move to the beginning of the previous chapter.

Basic Functions

Repeat Playback

Repeat the Title or Chapter

Repeat the disc title or chapter.

Depending on the disc, the Repeat function may not be available.

1. During playback, press the REPEAT button on the remote control.

1. Press the ▲▼ buttons to select Chapter or Title, then press the ENTER button.
2. To return to normal play, press the REPEAT button again.
3. Press the ▲▼ buttons to select Off, the press the ENTER button.

Repeat the Section

1. During playback, press the REPEAT button on the remote control.

1. Press the ▲▼ buttons to select Repeat A-B.
2. Press the ENTER button at the point where you want repeat play to start (A).
3. Press the ENTER button at the point where you want repeat play to stop (B).
4. To return to normal play, press the REPEAT button again.
5. Press the ENTER button.

NOTE

■ If you set point (B) before 5 seconds has lapsed, the prohibition message will appear.
■ Depending on the disc, the menu items may differ and this menu may not be available.

Slow Motion Play/Step Motion Play

Slow Motion Play

• In pause mode, press the SEARCH(→) button.
  Each time you press the SEARCH ( ▶ ) button, the playback speed will change as follows:
  1/8 1/4 1/2
• To return to normal speed playback, press the PLAY (▶) button.

NOTE

■ The player does not play sound in Slow mode.

Step Motion Play

• In pause mode, press the PAUSE (☐) button. Each time you press the PAUSE (☐) button, a new frame appears.
• To return to normal speed playback, press the PLAY (▶) button.

NOTE

■ The player does not play sound in Step mode.

Using the TOOLS button

During playback, you can operate the disc menu by pressing the TOOLS button.

- Tools Menu Screen

NOTE

■ Depending on the disc, the Tools menu may differ.

Moving to a Desired Scene Directly

1. During playback, press the TOOLS button.
2. Press the ▲▼ buttons to select Title Search, Chapter Search, or Time Search.
3. Press the ◀▶ or number button to select desired Title, Chapter or Time, then press the ENTER button.

Changing to Full Screen

1. During playback, press the TOOLS button.
2. Press the ▲▼ buttons to select Full Screen.
3. Press the ◀▶ buttons to select the desired mode.

NOTE

■ This function is available when the TV aspect ratio is 16:9 full. (See page 31)

Selecting the Picture Settings

This function enables you to adjust video quality when the player is connected to a TV.

1. During playback, press the TOOLS button.
2. Press the ▲▼ buttons to select Picture Settings, and then press the ENTER button.
3. Press the ◀▶ buttons to select the desired Picture Settings, and then press the ENTER button.

• Dynamic : Choose this setting to increase Sharpness.
- Normal : Choose this setting for most viewing applications.
- Movie: This is the best setting for watching movies.
- User : Lets you adjust the sharpness and noise reduction function respectively.

NOTE

- When you use BD wise function, this menu will not appear.

Selecting the Audio Language

You can also operate this function by pressing the AUDIO button on the remote control.

1. During playback, press the TOOLS button.
2. Press the ▲▼ buttons to select Audio.
3. Press the ◀▶ buttons to select the desired audio language.

NOTE

- The ◀▶ indicator will not appear on the screen if the BONUSVIEW section does not contain any BONUSVIEW audio settings.

Basic Functions

■ Information about the main feature/BONUSVIEW mode will also appear if the Blu-ray Disc has a BONUSVIEW section.

Press the ◀▶ button to switch between main feature and BONUSVIEW audio modes.

• The languages available through the Audio Language function depend on the languages that are encoded on the disc. This function or certain languages may not be available.
  ■ A Blu-ray Disc can contain up to 32 audio languages and a DVD up to 8.
  ■ Some Blu-ray Discs may allow you to select either the PCM or Dolby digital audio soundtrack in English.
• If you press the AUDIO button on the remote control, Audio bar appears. Press the RETURN button to remove the Audio bar.

Selecting the Subtitle Language

You can also operate this function by pressing the SUBTITLE button on the remote control.

1. During playback, press the TOOLS button.
2. Press the ▲▼ buttons to select Subtitle.
3. Press the ◀▶ buttons to select the desired subtitle language.

NOTE

■ Depending on the Blu-ray Disc / DVD, you may be able to change the desired subtitle in the Disc Menu. Press the DISC MENU button.
■ This function depends on the selection of subtitles that are encoded on the disc and may not be available on all Blu-ray Discs/DVDs.
■ A Blu-ray Disc can contain up to 255 subtitle languages and a DVD up to 32.
■ Information about the main feature/BONUSVIEW mode will also appear if the Blu-ray Disc has a BONUSVIEW section.

■ This function changes both the primary and secondary subtitles at the same time.
■ The total numbers of primary and secondary subtitles are displayed respectively.
- If you press the SUBTITLE button on the remote control, the subtitle bar appears. Press the RETURN button to remove the subtitle bar.

Changing the Camera Angle

When a Blu-ray Disc/DVD contains multiple angles of a particular scene, you can use the ANGLE function.

1. During playback, press the TOOLS button.
2. Press the ▲▼ buttons to select Angle.
3. Press the ◀▶ buttons to select the desired Angle.

Setting BONUSVIEW

The BONUSVIEW feature allows you to view additional content (such as commentaries) in a small screen window while the movie is playing. This function is only available if the disc has the Bonusview feature.

1. During playback, press the TOOLS button.
2. Press the ▲▼ buttons to select BONUSVIEW Video or BONUSVIEW Audio.
3. Press the ◀▶ buttons to select the desired Bonusview.

NOTE

- If you switch from BONUSVIEW Video, BONUSVIEW Audio will change automatically in accordance with BONUSVIEW Video.

Listening to Music

Playing an Audio CD (CD-DA)/MP3

1. Insert an Audio CD (CD-DA) or an MP3 Disc into the disc tray.

2. For an Audio CD (CD-DA), the first track plays automatically.

3. For an MP3 disc, press the ▲▼ buttons to select Music, then press the ENTER button on the connected device popup. Press the ENTER button.

Audio CD (CD-DA)/MP3 Screen Elements

1	Displays the music information.
2	Displays the playlist.
3	Display the current track/total tracks.
4	Displays buttons available.
5	Shows the current play time/total play time.
6	Displays the current playback status.
7	Displays the repeated playback status.

1. Press the ▲▼ buttons to select the track you want to play, and then press the ENTER button.

Repeat an Audio CD (CD-DA)/MP3

1. During the Playlist playback, press the TOOLS button.

1. Press the ▲▼ buttons to select Repeat Mode, and then press the ◀▶ buttons to select the desired repeat mode.
2. Press the ▲▼ buttons to select Shuffle Mode, and then press the ◀▶ buttons to select On or Off.
3. Press the ENTER button.

Off	Songs are played in the order in which they were recorded.
(CD) One Song The current song is repeated.
(CD) All All songs are repeated.
(XX) Shuffle Mode	The random option plays songs in random order. To operate this function, please set the shuffle mode to On.

Playlist

1. Insert an Audio CD (CD-DA) or an MP3 Disc into the disc tray.

2. For an Audio CD (CD-DA), the first track plays automatically.

3. For an MP3 disc, press the ▲▼ buttons to select Music, then press the ENTER button.

4. To move to the Music List, press the STOP (or RETURN button.

The Music List screen appears.

1. Press the YELLOW (C) button.

Basic Functions

1. Press the ▲▼◀▶ buttons to move to a desired track, and then press the ENTER button. A check appears on the track. Repeat this procedure to select additional tracks.

1. To remove a track from the list, move to the track, and then press the ENTER button again. The check on the track is cancelled.
2. When done, press the TOOLS button.
3. Press the ▲▼ buttons to select Play Selected, and then press the ENTER button. The tracks you selected play automatically.

1. To go to the Music List, press the RETURN button.

NOTE

- You can create a playlist with up to 99 tracks on Audio CDs (CD-DA).

Playing back Pictures

Playing a JPEG files

1. Insert a JPEG disc into the disc tray.
2. Press the ▲▼ buttons to select Photos, and then press the ENTER button.
3. Press the ▲▼◀▶ buttons to select the folder you want to play, and then press the ENTER button.
4. Press the ▲▼◀▶ buttons to select the photo you want to play, and then press the ENTER button.

NOTE

- You can't enlarge the subtitle and PG graphic in the full screen mode.

Using the TOOLS button

You can use various function by pressing the TOOLS button.

• Start Slide Show : Select to start the slide show.
• Background Music : Select to listen to music while viewing a picture.

• Background Music Setting : Select to set the background music setting.

• Zoom : Select to enlarge the current picture. (Enlarged up to 4 times)

• Rotate: Select to rotate the picture. (This will rotate the picture either clockwise or counter clockwise.)
  • Information : Shows the picture information including the name and size, etc.

NOTE

- To enable the background music function, the photo file must be in the same storage media as the music file. However, the sound quality can be affected by the bit rate of the MP3 file, the size of the photo, and the encoding method.

Using the Slide Show function

1. Press the TOOLS button.
2. Press the ▲▼ buttons to select Start Slide Show, and then press the ENTER button. The Slide Show starts.
3. To pause the slide show, press the TOOLS button again.

1. Press the ▲▼ buttons to select Pause Slide Show, and then press the ENTER button.
2. You can also set the slide show speed and effect using the same method.

Playing back a USB Storage Device

You can use the USB connection to play multimedia files (MP3, JPEG, DivX, etc) located from a USB storage device.

1. Move to the Home menu.

1. In Stop mode, connect the USB storage device to the USB port on the front panel of the player.

1. Press the ENTER button.
2. Press the ▲▼◀▶ buttons to select the desired Videos, Music, or Photos, and then press the ENTER button.
3. For playing back Video, Music or Photo files, see pages 46\~53.

NOTE

• You must remove the USB storage device safely (by performing the "Safely Remove USB" function) in order to prevent a possible damage to the USB memory. Press the MENU button to move to the Home menu, select the YELLOW (C) button, and then press the ENTER button.
  If you insert a disc when playing a USB storage device, the device mode changes to "DVD or CD" automatically.

Network Services

You can enjoy various network services such as Smart Hub or BD-LIVE by connecting the player to your network.

Read the following instructions before using any network service.

1. Connect the player to the network. (See pages 26\~27)
2. Configure the network settings. (See pages 37\~41)

Using Smart Hub

Using Smart Hub, you can stream movies, videos, and music from the Internet, access various for pay or free-of-charge applications and view them on your TV. Application content includes news, sports, weather forecasts, stock market quotes, maps, photos, and games.

You can also start this function by pressing the SMART HUB button on the remote control.

Starting Smart Hub for the First Time

To start Smart Hub for the first time, follow these steps :

1. Go to the Home menu.

1. Press the ◀▶ buttons to select Internet, and then press the ENTER button.

2. The Smart Hub screen appears. In a few cases, the Country screen appears immediately after.

3. If the Country screen has appeared, press the ▲▼ buttons to select your country, then press the ENTER button.

NOTE

■ Certain applications are available only in certain countries.

1. The Terms of Service Agreement screen appears.

If you want to agree, press the ◀▶ buttons to select Agree, then press the ENTER button.

NOTE

■ Screens can take a few seconds to appear.

1. The Service Update screen appears and installs a number of services and applications. When done, it closes. The applications and services downloaded are displayed on the Smart Hub screen. This may take some time.

NOTE

■ Smart Hub may close momentarily during the installation process.
- A number of screens may appear after installation. You can press the ENTER button to close them or let them close on their own.

1. To start an application, press the ▲▼◀▶ buttons to highlight a widget, then press the ENTER button.

Smart Hub at a Glance

1	Commercial: Displays the Smart Hub Guide, an introduction to the player, and new application introductions.
2	Your Video: Provides recommendations for videos based on your tastes.Lets you see movie recommendations based on your previous preferences.Lets you select a movie, displays a list of VOD (Video on Demand) providers that have the movie, and then lets you choose a provider for streaming. (Streaming is unavailable in some areas.)For instructions to use Your Video, please visit www.samsung.com.
3	Search: Provides an integrated search of your video providers and connected AllShare devices.Usable while using Smart Hub (except when you are watching a Blu-ray Disc).For easy access, use the SEARCH button on the remote control.For instructions to use search function, please visit www.samsung.com.
4	Samsung Apps: You can download various for pay or free-of-charge application services.
5	Recommended: Displays recommended contents managed by Samsung.

6	Navigation Help: Displays the remote control buttons you can use to navigate in Smart Hub.RED (A): To log in to Smart Hub.GREEN (B): To sort the applications.YELLOW (C): To edit the applications.BLUE (D): To change the settings of Smart Hub
7	My Applications: Displays your personal gallery of applications which you can add to, modify, and delete.

NOTE

■ Samsung Electronics takes no legal responsibility for any interruption of the Smart Hub service caused by the service provider for any reason.
- The Smart Hub service downloads and processes data via the Internet so that you can enjoy the Internet contents on your TV screen. If the Internet connection is unstable, the service may be delayed or interrupted. Furthermore, the player may turn off automatically in response to conditions on the Internet. If this occurs, check the Internet connection and try again.
■ Application services may be provided in English only and the contents available may vary, depending on your area.
■ For more information about a Smart Hub service, visit the web site of the applicable service provider.
■ The services provided are subject to change by the Smart Hub service provider without notice.
■ The Smart Hub service contents may differ depending on the player's firmware version.

Network Services

Using the Keypad

Through your remote, you can use the On-Screen Keypad to enter letters, numbers, and symbols.

1	The current keypad.Use to enter letters, numbers, and symbols.
2	Press the SUBTITLE button on the remote control to shift the input mode.: ab, Ab, AB, numbers or icons.
3	Displays the current input mode.
4	Press the GREEN (B) button on the remote control to change the input method. (T9 or ABC)
5	Press the TOOLS button on the remote control to change the language.
6	Press the AUDIO button on the remote control to delete a character.

Entering Text, Numbers and Symbols

To enter text, press the number button on the remote that corresponds to the letter you want to enter. Press the button rapidly to enter a letter that is not the first letter listed on the On-Screen keypad button. For example, if you want to enter the letter b, press the 2 button on your remote rapidly twice. To enter the first letter listed on a button, press, release, and then wait.

To move within the text, use the Arrow buttons. To delete text, move the cursor to the right of the character you want to delete, and then press the AUDIO button. To change case or enter numbers or punctuation, press the SUBTITLE button.

Creating an Account

To establish your own, exclusive, configuration of Smart Hub, create your own Smart TV Account. To create an account, follow these steps:

1. Press the RED (A) button on your remote control. The Create Account screen appears.

1. Press the ▲▼◀▶ buttons to select Create Account, and then press the ENTER button.
2. On the next screen, select Smart TV ID, and then press the ENTER button. An entry screen and keypad appear.
3. Use the keypad to enter your e-mail address. This will serve as your ID.

NOTE

■ The keypad works like the keypad on a cell phone.

1. When done, press the ENTER button to select OK, and then press the ENTER button again. The Create Account screen re-appears.
2. Select Password, and then press the ENTER button. An entry screen and a keypad appear.
3. Use the keypad to enter a password. The password can be any combination of letters, numbers, and symbols.

NOTE

- Press the RED (A) button on your remote to show or hide the password as you enter it.

1. When done, press the ENTER button to select OK, and then press the ENTER button again. The Create Account screen re-appears.
2. Select Confirm password, and then press the ENTER button.
3. Repeat Steps 7 and 8.
4. When the Create Account screen re-appears, select Create Account, and then press the ENTER button. The Confirmation window appears.
5. Select OK, and then press the ENTER button. The Continue to Register Service window appears.
6. Select Go Register, and then press the ENTER button.
7. The Register Service Account Window appears.

- If you have existing accounts with any of the listed providers, you can associate the provider account and the provider account password with your Smart TV Account. Registration makes it easier to access the providers web site. For registration instructions, go to Step 2 in Account Management under the Settings Menu.

- If you don't have existing provider accounts or do not want to register existing accounts at this time, select OK, and then press the ENTER button. You can also let the window close on its own in about a minute.

NOTE

■ You must use an e-mail address as an ID.
■ You can register up to 10 User Accounts.
■ You do not need an account to use Smart Hub.

Account Log In

To log in to your Smart TV Account, follow these steps:

1. With the Smart Hub main screen displayed on your TV, press the RED (A) button on your remote. The Create Account screen appears.

2. Select the Down Arrow next to the Smart TV ID field, and then press the ENTER button.

3. Select your ID from the list that appears, and then press the ENTER button. The Create Account screen re-appears.

4. Select Password, and then press the ENTER button. An entry screen and a keypad appears.
5. Using the keypad and your remote, enter your password. When done, press the ENTER button, select OK, and then press the ENTER button again.

NOTE

If you want Smart Hub to enter your password automatically, select Remember my Smart TV ID and password after you have entered your password, and then press the ENTER button. A check appears. Smart Hub will now enter your password automatically when you select or enter your ID.

The Settings Menu - BLUE (D)

The Settings Menu Screen gives you access to account management, reset, and properties functions.

To access the Settings Menu, and then select a menu item, follow these steps:

1. Press the BLUE (D) button on your remote.
2. Press the ▲▼ to select a menu item, and then press the ENTER button.

The functions on the Settings Menu screen are described below.

NOTE

■ The Service Manager item listed in the Settings Menu is not available for Blu-ray Disc players.

Account Management

The Account Management Menu contains functions that let you register your service provider accounts, change your Smart Hub password, and delete or deactivate your Smart TV Account.

Network Services

Register Service Account

If you have existing accounts with any of the providers listed by the Register Service Account function, you can associate the provider account and the provider account password with your Smart TV Account. If you associate the account, you will be able to log onto the account through Smart Hub easily, without entering your account name or password.

To use the Register Service Account function, follow these steps:

1. In the Account Management menu, select Register Service Account, and then press the ENTER button. The Register Service Account Window appears.
2. Press the ▲▼ buttons to select a Service Provider you want to associate with your Smart TV Account, and then press the ENTER button.

NOTE

If you have a Samsung apps account and you want to use the Samsung Apps function in Smart Hub, you must register your Samsung Apps account here. See pages 61\~63 for more information.

1. Press the ▲▼ buttons to select Register, and then using your remote and the on-screen Keypad, enter your site ID and password. When done, press the ENTER button.

NOTE

■ This is the ID and password you normally use to access your account on this site.

1. If you have entered the ID and password correctly, the Registered Successfully message appears.
2. If you pressed OK, repeat Steps 2 through 4 to associate another Service Provider.
3. When you are done, press the RETURN button.

Change Password

The Change Password function lets you change your Smart Hub password. To change the password, follow these steps:

1. Select Change Password, and then press the ENTER button.
2. Enter your current password. The next screen appears.
3. On the next screen, enter a new password on the first line. Enter it again on the second line to confirm.
4. The Changing Password Complete message screen appears. Press the ENTER button or wait for the screen to close - about 5 seconds.

Remove from TV Account list

The Remove Service Accounts function cancels all your current registered Service Accounts that you registered on the Register Service Account screen.

Deactivate Account

The Deactivate Account function deactivates your Smart TV Account and deletes it and all your account settings entirely from Smart Hub.

Reset

The Reset function initializes all downloaded widgets, erases all user accounts and settings from the player, and resets all Smart Hub settings to the factory default settings. It then restarts Smart Hub as if it were starting for the first time. Your account, however, remains on the Smart Hub server. To log into your account, enter your ID and password on the Create Account screen. To use the Reset function, follow these steps:

1. In the Settings menu, select Reset, and then press the ENTER button. The Reset screen appears.

2. Enter the your Security password. This is the password you entered if you set up a BD or DVD Parental rating (See page 42). If you did not, enter 0000.

3. After a few moments, Smart Hub automatically resets. The screen may go black, then Smart Hub re-appears. In a few moments, it starts the re-initialization procedure.

4. To complete the re-initialization, go to Step 4 in Starting Smart Hub for the First Time. (See page 54)

NOTE

- If you forgot your password, press the STOP (☐) button on the front panel of the player for more than 5 seconds with no disc inserted.

Properties

The Properties menu item lists three functions that display information about Smart Hub :

Detail

Lists information about Smart Hub including version number, the number of services installed, memory usage, and the unique product ID.

Terms of Service Agreement

Displays the Terms of Service Agreement.

The Edit Mode Menu - YELLOW (C)

The functions in the Edit Mode menu let you manipulate the widgets in the My Applications section of the Smart Hub screen. Using these functions, you can lock and unlock access to some widgets, New Folder and move widgets to them, rename folders, delete widgets, and change the position of widgets on the screen.

To access the Edit Mode Menu, and then select a menu item, follow these steps:

1. Press the YELLOW (C) button on your remote. The Edit Mode menu bar appears on the bottom of the screen.
2. Press the ▲▼◀▶ to select a menu item, and then press the ENTER button.

The functions in the Edit Mode Menu bar are described below.

NOTE

• Some menu items may not appear on the screen. To see these items, press the ◀▶ to move to the screen edge, and then press one more time to reveal the items.
• You can close the bar by highlighting the X on the bottom right side, and then pressing the ENTER button.

Move

The Move function lets you change the screen position of a widget. To use the Move function, follow these steps:

1. Press the YELLOW (C) button on your remote.
2. Select a widget, and then press the ENTER button. A check appears above the widget.
3. Press the ▲▼◀▶ to select Move, and then press the ENTER button. A position change icon appears above the widget.
4. Press the ▲▼◀▶ to move the icon. Press the ENTER button when the icon is in the position of your choice. The widget moves to its new location.

Move to Folder

The Move to Folder function lets you move a widget to a folder. To use the Move to Folder function, follow these steps:

1. Press the YELLOW (C) button on your remote.
2. Select a widget, and then press the ENTER button. If you already create a folder, the widget can be moved.
3. Press the ▲▼◀▶ to select Move to Folder, and then press the ENTER button. The Move to Folder window opens.
4. Press the ▲▼◀▶ to select a folder, and then press the ENTER button. The Moved to Folder message appears, and then closes. The widget has been moved to the folder.

Network Services

To Access Widgets in a Folder

1. Close the Edit Mode menu.
2. In My Applications, press the ▲▼◀▶ to select a folder, and then press the ENTER button. The folder opens.
3. Select a widget, and then press the ENTER button. The widget's application or service starts.

To Edit Items in a Folder

Select a folder, and then press the ENTER button. The folder opens.

Press the YELLOW (C) button on your remote. The Edit buttons appear at the bottom of the screen.

These buttons work the same as the Edit Mode menu buttons on the main screen. For example, to move a widget back to the My Applications main screen:

1. Select the widget.
2. Select Move to Folder, and then press the ENTER button. The Move to Folder window appears.
3. Select My Applications, and then press the ENTER button. The Move to Folder window closes and the widget returns to the main My Applications screen.

New Folder

The New Folder function lets you create and name new folders. Once you have created a folder, you can move widgets into it. To use the New Folder function, follow these steps:

1. Press the YELLOW (C) button on your remote.
2. Press the ▲▼◀▶ to move the cursor to New Folder, and then press the ENTER button. The New Folder window and a keypad appear.
3. Use the keypad to enter the name of the folder, and then press the ENTER button. The New Folder screen closes and the New Folder appears on the Smart Hub screen.

Rename Folder

The Rename Folder function lets you rename folders. To use the Rename Folder function, follow these steps:

1. Press the YELLOW (C) button on your remote.
2. Press the ▲▼◀▶ to select a folder, and then press the ENTER button.
3. Press the ▲▼◀▶ to select Rename a Folder, and then press the ENTER button. The Folder Rename window and a keypad appears.
4. Use the keypad to enter a new name, and then press the ENTER button. The Rename window closes and the new name appears below the folder.

Lock

The Lock function lets you lock some widgets in My Applications so they can not be opened without entering the Parental Security Code. To use the Lock function, follow these steps:

1. Press the YELLOW (C) button on your remote.
2. Press the ▲▼◀▶ to select a widget, and then press the ENTER button. If the widget can be locked, the Lock menu item is enabled.
3. Press the ▲▼◀▶ to select Lock, and then press the ENTER button. The Lock Service window appears.
4. Enter your Parental Security Code (See page 42). If you have not created a Parental Security Code, enter 0000.
5. Press the ENTER button. The Lock Service window appears confirming the lock, and then closes. A lock symbol appears next to the widget.

Unlock

1. Press the YELLOW (C) button on your remote.
2. Press the ▲▼◀▶ to select a locked widget, and then press the ENTER button.
3. Press the ▲▼◀▶ to select Unlock, and then press the ENTER button. The Lock Service window appears.
4. Enter the Parental Security Code (See page 42). If you have not created a Parental Security Code, enter 0000.
5. Press the ENTER button. The Lock Service Released window appears confirming the lock has been release, and then closes.

Delete

The Delete function lets you delete widgets from My Applications. To use the Delete function, follow these steps:

1. Press the YELLOW (C) button on your remote.
2. Press the ▲▼◀▶ to select a widget, and then press the ENTER button.
3. Press the ▲▼◀▶ to select Delete, and then press the ENTER button. The message, "Do you want to delete selected item(s)?" appears.
4. Select Yes, and then press the ENTER button. The widget is deleted.

The Sort Menu - GREEN (B)

The functions in the Sort Menu let you sort the widgets in My Applications by Name, Date, Frequency (of use), and Category. If you manually change the position of a widget, the Sort Menu automatically highlights User Defined when you start it. To sort the widgets in My Applications, follow these steps:

1. Press the GREEN (B) button on your remote.
2. Press the ◀▶ to select a sorting method, and then press the ENTER button. Smart Hub sorts the widgets by the method you have chosen.

Samsung Apps

Samsung Apps lets you download for pay or free-of-charge applications and services to your Blu-ray Disc player and view or use them on your TV.

These applications and services include videos, music, photos, games, news, sports, etc. Widgets for the new apps appear in My Applications.

Additional applications and services are added regularly.

For Pay Apps

To download for pay apps, you need to create a Samsung Apps account and add a credit card to the account.

To create a Samsung Apps account, please visit www.samsung.com

NOTE

■ This service may not be provided in some countries.

Accessing the Samsung Apps Screen

To access Samsung Apps, press the ▲▼◀▶ buttons to navigate to the Samsung Apps area on the Smart Hub main screen, and then press the ENTER button. The Samsung Apps screen appears.

NOTE

- If this is the first time you are accessing this screen, the terms of service window appears. If you want to agree, select Agree, and then press the ENTER button.

Network Services

Using the Samsung Apps Screen

To use the Samsung Apps screen, follow these steps:

1. Press the ◀▶ buttons to move to the category list on the left.
2. Press the ▲▼ to highlight a category. In a few seconds, the Samsung Apps screen displays the applications in that category. The Sort tabs appear across the top.
3. Press the ▶ button to move to the displayed applications or services.
4. Press the ▲▼◀▶ buttons to select an application or service, and then press the ENTER button. The Application Details screen appears describing the service or application.
5. Select Download Now, and then press the ENTER button. If the application or service is free, it downloads and runs. If not, and there is a fee, follow the directions on the screen to complete the download.

NOTE

■ Some apps are free to download, but require registration with the provider or a paid account with the provider to use.
- Widgets for applications and services you have downloaded from Samsung Apps appear in My Applications.

Sort By Tabs

You can access the Sort By tabs on the top of the screen using the ▲▼◀▶ buttons. Each tab displays the services or applications in the category you chose, sorted by the criteria on the tab (Recommended, Most Downloaded, Most Recent, Name).

You can also use the BLUE (D) button on your remote to access the Sort By tabs. Each time you press the BLUE (D) button, you change the display from one sort tab to the next.

Samsung Apps by category

The following categories are available:

• What's New? : Displays newly registered applications.
  • Video : Displays various video media such as movies, TV shows, and short length videos.
• Game : Displays various games such as sudoku and chess.

- Sports : Displays various sports media services such as match information, images, and short length videos.

- Lifestyle : Includes various lifestyle media services such as music, personal photo management tools, and social networking such as Facebook and Twitter.

• Information : Includes various information services such as news, stocks, and weather.

• Other : Includes other miscellaneous services.

My Account

My Account gives you access to your Samsung Apps order and download history, and to the My Apps Cash screen. You must have a Samsung Apps account to access this information.

Help

If you have questions about Samsung Apps, check Help first. If none of the tips apply, please visit www.samsung.com.

To use the Help function, follow these steps:

1. Press the ▲▼◀▶ buttons to select Help, and then press the ENTER button.
2. Press the ▲▼ to scroll the Help text.
3. Press the ◀ to exit Help.

Using the coloured buttons on your remote with Samsung Apps

• RED (A) (Login): To log into your Smart TV Account.
• GREEN (B) (Thumbnail View/List View): To toggle applications between Thumbnail and List view.
• BLUE (D) (Sort By): To sort the applications in a category by Recommended, Most Downloaded, Most Recent, or Name.
  • Return : To return to the previous menu.

NOTE

■ The Internet contents services may be added or deleted by providers without notice.

For instructions to use Your Video or Search Function, please visit www.samsung.com

BD-LIVE™

Once the player is connected to the network, you can enjoy various movie-related service contents using a BD-LIVE compliant disc.

1. Attach a USB memory stick to the USB jack on the side of the player, and then check its remaining memory. The memory device must have at least 1GB of free space to accommodate the BD-LIVE services.
2. Insert a Blu-ray Disc that supports BD-LIVE.
3. Select an item from various BD-LIVE service contents provided by the disc manufacturer.

NOTE

■ The way you use BD-LIVE and the provided contents may differ, depending on the disc manufacturer.

Using the AllShare Function

AllShare lets you play music, video, and photo files located in your PC or your DLNA compatible mobile phone or NAS on the player.

To use AllShare with your player, you must connect the player to your network (See pages 26\~27).

To use AllShare with your PC, you must install AllShare software on your PC.

If you have a DLNA compatible mobile phone or NAS, you can use AllShare without any additional software.

You can download the PC software and get detailed instructions for using AllShare from the Samsung.com web site.

Appendix

Troubleshooting

Before requesting service, please check the following.

PROBLEM SOLUTION
No operation can be performed with the remote control.	Check the batteries in the remote control. They may need replacing.Operate the remote control at a distance of no more than 6.1m.Remove batteries and hold down one or more buttons for several minutes to drain the microprocessor inside the remote control to reset it. Reinstall batteries and try to operate the remote control again.
Disc does not play.Ensure that the disc is installed with the label side facing up.Check the region number of the Blu-ray Disc/DVD.
Disc Menu does not appear.Ensure that the disc has disc menus.
The prohibition message appears on the screen.	This message appears when an invalid button is pressed.The Blu-ray Disc/DVD's software doesn't support the feature (e.g., angles).You've requested a title or chapter number or search time that is out of range.
Play mode differs from the Setup Menu selection.	Some of the functions selected in the Setup Menu may not work properly if the disc is not encoded with the corresponding function.
The screen ratio cannot be changed.The	Screen Ratio is fixed on your Blu-ray Disc/DVD.This is not a problem with the player.
No audio.	Make sure you have selected the correct Digital Output in the Audio Options Menu.
The screen is blocked.If the HDMI output is set to a resolution your TV cannot support (for example, 1080p), you may not see a picture on your TV.Press the STOP button (on front panel) for more than 5 seconds with no disc inside. All settings will revert to the factory settings.When the factory default settings are restored, all stored user BD data is deleted.
Forgot password • Press the STOP (	☐) button (on front panel) for more than 5 seconds with no disc inside. All settings including the password will revert to the factory settings.Don’t use this unless absolutely necessary.When the factory default settings are restored, all stored user BD data is deleted.
If you experience other problems.	Go to the contents and find the section of the user manual that contains the explanations regarding the current problem, and follow the procedure once again.If the problem still cannot be solved, please contact your nearest Samsung authorized service centre.
The picture is noisy or distorted • Make sure that the disc is not dirty or scratched.Clean the disc.
No HDMI output. • Check the connection between the TV and the HDMI jack of the player.Check if your TV supports 576p/480p, 720p, 1080i, 1080p HDMI input resolution.
Abnormal HDMI output screen.	If random noise appears on the screen, it means that TV does not support HDCP (High-bandwidth Digital Content Protection).
AllShare function
I can see folders shared through AllShare, but I cannot see the files.	AllShare shows only files corresponding to the Image, Music, and Movie categories. Files that do not correspond to these categories may not be displayed.
Video is played intermittently. • Check if the network is stable.Check if the network cable is properly connected and if the network is not overloaded.The wireless connection between the DLNA compatible device and the player is unstable.Check the connection.
AllShare connection between player and PC is unstable.	The IP address under the same subnetwork should be unique. If they are not, IP interference can cause this phenomenon.Check if you have a firewall enabled.If so, disable the firewall function.

Appendix

PROBLEM SOLUTION
BD-LIVE
I cannot connect to the BD-LIVE server.	Check whether the network connection is successful or not by using the Network Status menu. (See page 40)Check whether the USB memory device is connected to the player.The memory device must have at least 1GB of free space to accommodate the BD-LIVE service.You can check the available size in BD Data Management. (See page 41)Check whether the BD-LIVE Internet Connection menu is set to Allow(All).If all above fails, contact the contents provider or update the player to the latest firmware.
When using the BD-LIVE service, an error occurs.	The memory device must have at least 1GB of free space to accommodate the BD-LIVE service.You can check the available size in BD Data Management. (See page 41)

NOTE

- When the factory default settings are restored, all stored user BD data is deleted.

Repairs

If you contact us to repair your player, an administration fee may be charged if either:

1. An engineer is called out to your home at your request and there is no defect in the product.
2. You bring the unit to a repair centre and there is no defect in the product.

We will provide you with the amount of the administration fee before we make a home visit or begin any work on your player.

We recommend you read this manually thoroughly, search for a solution on line at www.samsung.com, or contact Samsung Customer Care before seeking to repair your player.

Specifications

General	Weight 1.7 Kg
	Dimensions 430 (W) X 210 (D) X 43 (H) mm
	Operating Temperature Range +5°C to +35°C
	Operating Humidity Range 10 % to 75 %
Disc	BD (Blu-ray Disc) Reading Speed: 9.834 m/sec.
	DVD (Digital Versatile Disc)	Reading Speed: 6.98 ~ 7.68 m/sec.
		Approx. Play Time (Single Sided, Single Layer Disc): 135 min.
	CD: 12 cm (COMPACT DISC)	Reading Speed: 4.8 ~ 5.6 m/sec.
		Maximum Play Time: 74 min.
	CD: 8 cm (COMPACT DISC)	Reading Speed: 4.8 ~ 5.6 m/sec.
		Maximum Play Time: 20 min.
Video Output	Composite Video	1 Channel: 1.0 Vp-p (75Ω load)
		Blu-ray/DVDs: 576i/480i
	Component Video	Y: 1.0 Vp-p (75Ω load)PR: 0.70 Vp-p (75Ω load)PB: 0.70 Vp-p (75Ω load)Blu-ray Disc: 576i/480iDVD: 576p/480p, 576i/480i
Video/Audio HDMI		2D: 1080p, 1080i, 720p, 576p/480p3D: 1080p, 720p
		PCM audio, Bitstream audio
Audio Output	2 Channel L(1/L), R(2/R)
	Digital Audio Output Optical
Network	Ethernet 10/100BASE-TX Terminal
	Wireless LAN	Supports when the player is connected with the Samsung Wireless LAN Adapter. (Model Name: WIS09ABGN)
	Security	WEP (OPEN/SHARED)WPA-PSK (TKIP/AES)WPA2-PSK (TKIP/AES)
	WPS(PBC) Supported

- Design and specifications are subject to change without prior notice.

- For the power supply and power consumption, refer to the label attached to the product.

- Weight and dimensions are approximate.

Appendix

Compliance and Compatibility Notice

NOT ALL discs are compatible

• Subject to the restrictions described below and those noted throughout this Manual, including the Disc Type and Characteristics section of this user manual, disc types that can be played are: pre-recorded commercial BD-ROM, DVD-VIDEO, and Audio CD (CD-DA) discs; BD-RE/-R, DVD-RW/-R discs; and CD-RW/-R discs.
• Discs other than the above cannot and/or is not intended to be played by this player. And some of the above discs may not play due to one or more reasons provided below.

• Samsung cannot assure that this player will play every disc bearing the BD-ROM, BD-RE/-R, DVD-VIDEO, DVD-RW/-R, DVD+RW/+R and CD-RW/-R logos, and this player may not respond to all operating commands or operate all features of every disc. These and other disc compatibility and player operation issues with new and existing format discs are possible because:

• Blu-ray is a new and evolving format and this player may not operate all features of Blu-ray Discs because some features may be optional, additional features may have been added to the Blu-ray Disc format after the production of this player, and certain available features may be subject to delayed availability;

• not all new and existing disc format versions are supported by this player;
• new and existing disc formats may be revised, changed, updated, improved and/or supplemented;
• some discs are produced in a manner that allows specific or limited operation and feature during playback;
• some features may be optional, additional features may have been added after the production of this player or certain available features may be subject to delayed availability;
• some discs bearing the BD-ROM, BD-RE/-R, DVD-VIDEO, DVD-RW/-R, DVD+RW/+R and CD-RW/-R logos may still be non-standardized discs;
• some discs may not be played depending on their physical state or recording conditions;
• problems and errors can occur during the creation of Blu-ray Disc, DVD software and/or the manufacture of discs;
• this player operates differently than a standard DVD player or other AV equipment; and/or
• for reasons noted throughout this user manual and for other reason(s) discovered and posted by SAMSUNG customer care centre.

- If you encounter disc compatibility or player operation problems, please contact SAMSUNG customer care centre.

You may also contact SAMSUNG customer care centre for possible updates on this player.

- For additional information on playback restrictions and disc compatibility, refer to the Precautions, Before Reading the user manual, Disc Types and Characteristics, and Before Playing sections of this user manual.

Copy Protection

- Because AACS (Advanced Access Content System) is approved as content protection system for Blu-ray Disc format, similar to use of CSS (Content Scramble System) for DVD format, certain restrictions are imposed on playback, analogue signal output, etc., of AACS protected contents. The operation of this product and restrictions on this product may vary depending on your time of purchase as those restrictions may be adopted and/or changed by AACS after the production of this product. Furthermore, BD-ROM Mark and BD+ are additionally used as content protection system for Blu-ray Disc format, which imposes certain restrictions including playback restrictions for BD-ROM Mark and/or BD+ protected contents. To obtain additional information on AACS, BD-ROM Mark, BD+, or this product, please contact SAMSUNG customer care centre.

• Many Blu-ray Disc/DVDs are encoded with copy protection. Because of this, you should only connect your Player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected Blu-ray Disc/DVDs.
• This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.
• Under the U.S. Copyright laws and Copyright laws of other countries, unauthorized recording, use, display, distribution, or revision of television programs, videotapes, Blu-ray Discs, DVDs, and other materials may subject you to civil and/or criminal liability.
• For Blu-ray Disc Player progressive scan output : CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS product AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE 'STANDARD DEFINITION' OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS product, PLEASE CONTACT OUR CUSTOMER SERVICE CENTRE.

Network Service Disclaimer

All content and services accessible through this device belong to third parties and are protected by copyright, patent, trademark and/or other intellectual property laws. Such content and services are provided solely for your personal noncommercial use. You may not use any content or services in a manner that has not been authorized by the content owner or service provider. Without limiting the foregoing, unless expressly authorized by the applicable content owner or service provider, you may not modify, copy, republish, upload, post, transmit, translate, sell, create derivative works, exploit, or distribute in any manner or medium any content or services displayed through this device.

THIRD PARTY CONTENT AND SERVICES ARE PROVIDED "AS IS." SAMSUNG DOES NOT WARRANT CONTENT OR SERVICES SO PROVIDED, EITHER EXPRESSLY OR IMPLIEDLY, FOR ANY PURPOSE. SAMSUNG EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SAMSUNG DOES NOT GUARANTEE THE ACCURACY, VALIDITY, TIMELINESS, LEGALITY, OR COMPLETENESS OF ANY CONTENT OR SERVICE MADE AVAILABLE THROUGH THIS DEVICE AND UNDER NO CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL SAMSUNG BE LIABLE, WHETHER IN CONTRACT OR TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, ATTORNEY FEES, EXPENSES, OR ANY OTHER DAMAGES ARISING OUT OF, OR IN CONNECTION WITH, ANY INFORMATION CONTAINED IN, OR AS A RESULT OF THE USE OF ANY CONTENT OR SERVICE BY YOU OR ANY THIRD PARTY, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Third party services may be terminated or interrupted at any time, and Samsung makes no representation or warranty that any content or service will remain available for any period of time. Content and services are transmitted by third parties by means of networks and transmission facilities over which Samsung has no control. Without limiting the generality of this disclaimer, Samsung expressly disclaims any responsibility or liability for any interruption or suspension of any content or service made available through this device.

Samsung is neither responsible nor liable for customer service related to the content and services. Any question or request for service relating to the content or services should be made directly to the respective content and service providers.

Appendix

Licence

- Manufactured under licence from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

- Manufactured under licence under U.S. Patent #'s : 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks & DTS Digital Surround and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

DivX

- ABOUT DIVX VIDEO : DivX is a digital video format created by DivX, Inc.

This is an official DivX Certified ^® device that plays DivX video.

Visit www.divx.com for more information and software tools to convert your files into DivX video.

- ABOUT DIVX VIDEO-ON-DEMAND : This DivX Certified device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

- DivX Certified® to play DivX® video up to HD 1080p, including premium content.

- DivX, DivX Certified® and associated logos are trademarks of DivX, Inc. and are used under licence.

- Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274.

- The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

- Oracle and Java are registered trademarks of Oracle and/or its affiliates. Other names may be trademarks of their respective owners

• Open Source Licence Notice

- In the case of using open source software, Open Source Licences are available on the product menu.

- Blu-ray Disc™, Blu-ray™ and the logos are trademarks of the Blu-ray Disc Association.

- This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Area Contact Centre		Web Site
■North America
Canada 1-800-SAMSUNG (726-7864) www.samsung.com
Mexico 01-800-SAMSUNG (726-7864) www.samsung.com
U.S.A 1-800-SAMSUNG (726-7864) www.samsung.com
■Latin America
Argentine 0800-333-3733 www.samsung.com
Brazil 0800-124-421 / 4004-0000 www.samsung.com
Chile 800-SAMSUNG (726-7864) www.samsung.com
Colombia 01-8000112112 www.samsung.com
Costa Rica 0-800-507-7267 www.samsung.com
Dominica 1-800-751-2676 www.samsung.com
Ecuador 1-800-10-7267 www.samsung.com
El Salvador	800-6225	www.samsung.com
Guatemala 1-800-299-0013 www.samsung.com
Honduras 800-7919267 www.samsung.com
Jamaica	1-800-234-7267 www.samsung.com
Nicaragua	00-1800-5077267	www.samsung.com
Panama 800-7267 www.samsung.com
Peru	0-800-777-08	www.samsung.com
Puerto Rico	1-800-682-3180 www.samsung.com
Trinidad & Tobago	1-800-SAMSUNG (726-7864) www.samsung.com
Venezuela	0-800-100-5303 www.samsung.com
■Europe
Albania	42 27 5755	-
Austria	0810 - SAMSUNG (7267864, € 0.07/min)	www.samsung.com
Belgium 02-201-24-18		www.samsung.com/be (Dutch)www.samsung.com/be_fr (French)
Bosnia	05 133 1999	-
Bulgaria 07001 $3 11 www.samsung.com
Croatia 062 SAMSUNG (062 726 7864) www.samsung.com
Czech	800-SAMSUNG (800-726786)	www.samsung.com
	Samsung Zrl., česká organizační složka, Oasis Florenc, Soko-lovská394/17, 180 00, Praha 8
Denmark	70 70 19 70	www.samsung.com
Finland	030 - 6227 515	www.samsung.com
France	01 48 63 00 00	www.samsung.com
Germany	01805 - SAMSUNG (726-7864 € 0,14/Min)	www.samsung.com
Hungary	06-80-SAMSUNG (726-7864) www.samsung.com
Italia	800-SAMSUNG (726-7864) www.samsung.com
Kosovo	[phone]	-
Luxemburg	261 03 710	www.samsung.com
Macedonia	023 207 777	-
Montenegro	020 405 888	-
Netherlands	0900-SAMSUNG (0900-7267864) (€ 0,10/Min)	www.samsung.com
Norway	815-56 480	www.samsung.com
Poland	0 801 1SAMSUNG (172678) / 022-607-93-33	www.samsung.com
Portugal	80820-SAMSUNG (726-7864)	www.samsung.com
Rumania	1. 08010 SAMSUNG (72678) - doar din reteaua Romtelecom, tarif local2. 021.206.01.10 - din orice retea, tarif normal	www.samsung.com

Area Contact Centre		Web Site
Serbia	0700 Samsung (0700 726 7864)	www.samsung.com
Slovakia 0800-SAMSUNG (726-7864) www.samsung.com
Spain 902-1-SAMSUNG (902 172 678) www.samsung.com
Sweden	0771 726 7864 (SAMSUNG)	www.samsung.com
Switzerland	0848-SAMSUNG (7267864, CHF 0.08/min)	www.samsung.com/chwww.samsung.com/ch_fr/(French)
U.K	0330 SAMSUNG (7267864)	www.samsung.com
Eire	0818 717100	www.samsung.com
Lithuania	8-800-77777	www.samsung.com
Latvia	8000-7267	www.samsung.com
Estonia	800-7267	www.samsung.com
CIS
Russia	8-800-555-55-55	www.samsung.com
Georgia 8-800-555-555	-
Armenia	0-800-05-555	-
Azerbaijan	088-55-55-555	-
Kazakhstan	8-10-800-500-55-500(GSM: 7799)	www.samsung.com
Uzbekistan	8-10-800-500-55-500 www.samsung.com
Kyrgyzstan	00-800-500-55-500	www.samsung.com
Tadjikistan	8-10-800-500-55-500	www.samsung.com
Ukraine 0-800-502-000		www.samsung.uawww.samsung.com/ua_ru
Belarus 810-800-500-55-500	-
Moldova	00-800-500-55-500 -
Asia Pacific
Australia	1300 362 603	www.samsung.com
New Zealand	0800 SAMSUNG (0800 726 786)	www.samsung.com
China	400-810-5858 / 010-6475 1880	www.samsung.com
Hong Kong	(852) 3698 4698	www.samsung.com/hkwww.samsung.com/hk_en/
India	3030 8282 / 1800 110011 /1800 3000 8282 / 1800 266 8282	www.samsung.com
Indonesia	0800-112-8888 /021-5699-7777	www.samsung.com
Japan	0120-327-527	www.samsung.com
Malaysia	1800-88-9999	www.samsung.com
Philippines	1-800-10-SAMSUNG(726-7864) /1-800-3-SAMSUNG(726-7864) /1-800-8-SAMSUNG(726-7864) /02-5805777	www.samsung.com
Singapore	1800-SAMSUNG (726-7864) www.samsung.com
Thailand	1800-29-3232 / 02-689-3232	www.samsung.com
Taiwan	0800-329-999	www.samsung.com
Vietnam 1 800 588 889 www.samsung.com
Middle East
Bahrain	8000-4726	www.samsung.com
Egypt 08000-726786 www.samsung.com
Jordan	800-22273	www.samsung.com
Morocco	080 100 2255	www.samsung.com
Oman	800-SAMSUNG (726-7864) www.samsung.com
Saudi Arabia 9200-21230 www.samsung.com
Turkey	444 77 11	www.samsung.com
U.A.E 800-SAMSUNG (726-7864) www.samsung.com
Africa
Nigeria 0800-SAMSUNG (726-7864) www.samsung.com
South Africa	0860-SAMSUNG (726-7864 )	www.samsung.com

SAMSUNG

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

POUR DIMINUER LES RISQUES D'ELECTROCUTION, NE RETIREZ PAS LE COUVERCLE (OU LE CACHEARRIERE).

AUCUN DES ELEMENTS CONTENUS A L'INTERIEUR N'EST REPARABLE PAR L'UTILISATEUR. CONFIEZ L'ENTRETIEN DE CET APPAREIL A UNE PERSONNE QUALIFIEE.

PRODUIT LASER DE CLASSE 1

*.ttxt, *.smi, *.srt, *.sub, *.txt

Mechanical assembly diagram showing a component being inserted into a housing, with no visible text or symbols.

REMARQUE

REMARQUE

Illustration of a hand using a circular tool to press or rotate a disc on a flat surface (no text or symbols)

- The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

CLASS 1 LASER PRODUCT

*.ttxt, *.smi, *.srt, *.sub, *.txt

Diagram showing a mechanical component being inserted into a housing, with an arrow indicating the process (no text or symbols present)

HINWEIS

Illustration of a hand using a tool to press a circular component on a flat surface, with no visible text or symbols.

- The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

LASERPRODUCT VAN KLASSE 1

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUKT

LUOKAN 1 LASER LAITE

KLASS 1 LASER APPARAT

PRODUCTO LÁSER CLASE 1

AVCHD (Advanced Video Codec High Definition)

*.ttxt, *.smi, *.srt, *.sub, *.txt

Diagram showing a device being inserted into a housing, with an arrow indicating the process (no text or symbols present)

OPMERKING

Download in stand-bymodus

Illustration of a hand using a tool to press a circular component on a baseplate, with a black arrow indicating rotation (no text or symbols present)

• MP3, WMA, DivX, MKV en MP4

- The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

www.samsung.com/be (Dutch), www.samsung.com/be_fr (French)

■ GARANTIECONDITIES

www.samsung.com/be (Dutch), www.samsung.com/be_fr (French)

Samsung Electronics Benelux B.V.

limit the use of unauthorized copies of some commercially-produced film and videos and their soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be in interrupted.

More information about Cinavia technology is provided at the Cinavia

Online Consumer Information Center at http://www.cinavia.com.

To request additional information about Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer Information Center, P.O. Box 86851, San Diego, CA, 92138, USA.

This product incorporates proprietary technology under license from Verance Corporation and is protected by U.S. Patent 7,369,677 and other U.S. and worldwide patents issued and pending as well as copyright and trade secret protection for certain aspects of such technology. Cinavia is a trademark of Verance Corporation.

Copyright 2004 - 2010 Verance Corporation. All rights reserved by Verance. Reverse engineering or disassembly is prohibited.

Français

Cinavia Notice : This product uses Cinavia technology to limit the use of unauthorized copies of some commercially-produced film and videos and their soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be interrupted.

More information about Cinavia technology is provided at the Cinavia Online Consumer Information Centre at http://www.cinavia.com. To request additional information about Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, USA.

This product incorporates proprietary technology under licence from Verance Corporation and is protected by U.S. Patent 7,369,677 and other U.S. and worldwide patents issued and pending as well as copyright and trade secret protection for certain aspects of such technology. Cinavia is a trademark of Verance Corporation. Copyright 2004-2010 Verance Corporation. All rights reserved by Verance. Reverse engineering or disassembly is prohibited.

Indonesia
