Brand	Braun
Model	TexStyle 7 730
Product Type	Steam Iron
Power Rating	2400 W (estimated)
Voltage	220-240 V (check device)
Water Tank Capacity	Approx. 300 ml (estimated)
Steam Control	Vario steam from 0 to 6
Extra Steam	Vario plus steam (press regulator)
Precision Shot	Powerful vertical steam burst
Spray Function	Yes
Dry Ironing	Yes (set steam to 0)
Textile Protector	For delicate fabrics (model 730 only)
Anti-Calc System	Built-in
Cleanable Anti-Calc Valve	Yes
Weight	Approx. 1.2 kg (estimated)
Dimensions	Approx. 30 x 12 x 15 cm (estimated)
Warranty	2 years
Country of Origin	Hungary

Frequently Asked Questions - TexStyle 7 730 BRAUN

How do I fill the water tank?

Unplug the iron. Turn the steam regulator to 0. Hold the iron slightly inclined and fill water to the 'max' marking. Use tap water or a mix with distilled water for hard water.

How do I use the Precision Shot function?

Press the Precision Shot button 3-4 times to activate. Then press it in intervals of at least 5 seconds for a powerful steam shot. Ensure temperature selector is in the solid red range. Can be used vertically.

How do I clean the anti-calc valve?

Empty the water tank. Turn the steam regulator clockwise beyond '6' until it lifts. Pull it out vertically. Immerse the lower end in vinegar or lemon juice for at least 30 minutes. Brush off residues and rinse under water. Reinsert and push down until it clicks back to '6'.

Why is there no steam coming out?

Check water level. Ensure steam regulator is not at 0. Clean the anti-calc valve. If still no steam, decalcify the steam chamber.

What type of water should I use?

The iron is designed for tap water. If water is extremely hard, use a 50% tap water and 50% distilled water mixture. Never use distilled water exclusively or additives.

How do I use the Textile Protector?

Attach the Textile Protector to the soleplate. Wait about 1.5 minutes before ironing. Use temperature setting in solid red range to enable all steam functions. Avoid ironing over zippers or metal buttons. Store with protector detached.

How do I decalcify the iron?

Follow steps in manual section H. Turn steam regulator beyond '6' to release hot water and steam. Let cool, clean soleplate. Refill tank, heat iron, press Precision Shot 4 times to rinse.

What should I do if water drops come out of the steam vents?

Reduce steam by turning regulator anti-clockwise. Take longer intervals between Precision Shot presses. Select a higher temperature setting.

Can I use the iron vertically?

Yes, the Precision Shot function can be used vertically to steam hanging clothes. Ensure temperature is in solid red range. Caution: hot steam from nozzles.

How do I store the iron after use?

Unplug iron, turn steam regulator to 0. Empty water tank. Let cool. Store upright on heel rest in a dry place. Detach Textile Protector if used.

USER MANUAL TexStyle 7 730 BRAUN

(Audio Supplies Company Ltd.)

Internet:

www.braun.com

www.service.braun.com

Braun GmbH

D Textile Protector (730 only)

E

F

G Cleaning the anti-calc valve

H Anticalc system

Deutsch

Our products are engineered to meet the highest standards of quality, functionality and design.

We hope you enjoy your new Braun steam iron.

Important Safeguards

• Before using the iron, read the use instructions completely. Keep the use instructions during the entire life of the appliance.
• This appliance is designed for household use only.
• Make sure your voltage corresponds to the voltage printed on the iron.
• Caution: Due to the high power of this steam iron, please make sure that your mains supply is sufficient. Please contact your local electric power company to make sure that the so-called mains impedance is not higher than 0.31 Ohm. Always unplug the iron before filling with water. Always pull the plug, not the cord.
• The cord should never come in contact with hot objects or the sole plate.
• Never immerse the iron in water or other liquids.
• The iron must be used and rested on a stable surface.
• During ironing pauses, always place the iron upright on its heel rest and ensure that the heel rest is placed on a stable surface.
• The iron must not be left unattended while it is connected to the mains supply.
• This appliance is not intended for use by children or persons with reduced physical, sensory or mental capabilities, unless they are given supervision by a person responsible for their safety.
• Keep the iron away from children, especially when using the Precision Shot function. Electric irons combine high temperatures and hot steam that could lead to burns.
• Never iron or dampen clothes while wearing them.
• The iron is not to be used if it has dropped, if there are visible signs of damage or if it is leaking. Regularly check the cord for damage.
• If the appliance (including cord) shows any defect, stop using it and take it to a Braun Service Centre for repair. Faulty or unqualified repair work may cause accidents or injury to the user. Braun electric appliances meet applicable safety standards.

A Description

1 Preconditioning nozzles 2 Spray nozzle 3 Water tank opening

4 Precision Shot button

5 Spray button

6 Steam regulator

7 Temperature selector

8 Temperature pilot light

9 Heel rest

10 Textile Protector (only with 730 model)

B Before starting off

This iron is designed for tap water. If you have extremely hard water, we recommend that you use a mixture of 50% tap water and 50% distilled water. Fill the water tank to the "max" marking. Never use distilled water exclusively. Do not add any additives (e.g., starch). Do not use condensation water from a tumble dryer.

• Before filling with water, turn off the steam regulator ("0" = steam off).
• Holding the iron slightly inclined (as shown in B), fill the water tank up to the "max" marking.
• Place the iron upright on its heel rest and connect it to the mains.

Select the temperature according to the ironing guide on the heel rest of the iron or on the label in your garments.

The pilot light (8) goes off when the desired temperature is reached (after approx. 1 1/2 min.).

C Ironing

Vario steam

You can select the steam quantity by turning the steam regulator (6) in a range from «0» to «6».

The temperature selector (7) has to be set within the red range.

We recommend a medium steam setting for all normal ironing. Only when ironing linen, thick cotton or similar fabrics we recommend the maximum steam setting.

Notice: While ironing, do not turn the steam regulator beyond setting «6».

Vario plus steam

For extra steam, press the steam regulator (6) for max. 30 seconds.

The temperature selector (7) has to be set within the solid red range.

Precision Shot

Prior to use, press the Precision Shot button (4) 3 to 4 times to activate it.

Press the Precision Shot button in intervals of at least 5 seconds for a powerful steam shot with preconditioning steam.

Precision Shot can be activated when dry ironing. However, the temperature selector has to be within the solid red range.

The Precision Shot function can also be used in the vertical position for steaming hanging clothes.

Caution: Hot steam comes out from the preconditioning nozzles.

Spray function

Press the spray button (5).

Dry ironing

Set the steam regulator (6) to position «0» (= steam off).

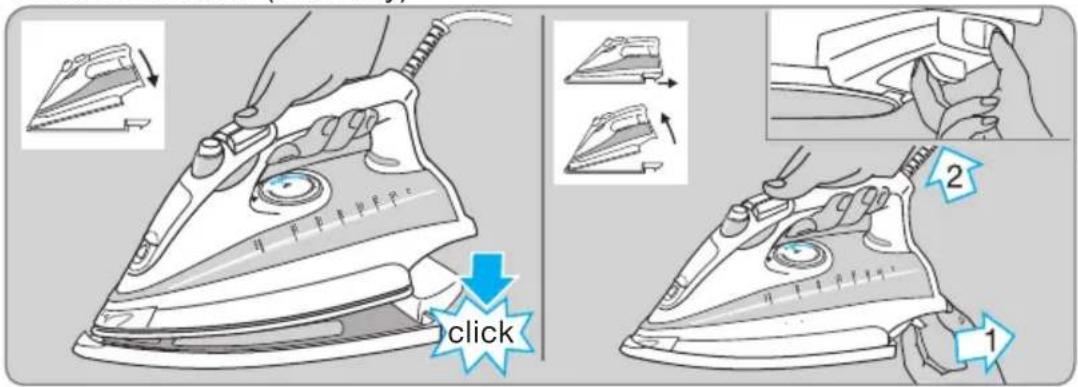

D Textile Protector

(730 model only)

Before attaching the Textile Protector (10) for the first time, iron for approximately 2 minutes without the Textile Protector. The Braun Textile Protector protects delicate fabrics from heat damage and makes it possible to iron most dark fabrics without an intermediate cloth.

A special coating avoids shiny patches. However, in order not to damage the coating, avoid ironing over e.g. zippers, metal buttons/rivets or strass with the Textile Protector attached.

To check the reaction of your fabrics before you start ironing, we recommend that you iron a small section of material on the reverse side. With the Protector, you are able to iron delicate fabrics with the temperature setting within the solid red range so that you can use all steam functions your iron offers.

After having attached the Textile Protector, wait about 1 1/2 minutes before you start ironing. Always store your iron with the Textile Protector detached.

E After ironing

Unplug the iron and turn the steam regulator to position «0». To prolong the life of the iron, empty the water tank. Store the cool iron in a dry place, always standing on its heel rest.

F Maintenance and cleaning

To clean the sole plate, use steel wool. Never use a scouring pad, vinegar or other chemicals.

G Cleaning the anticalc valve

The anticalc valve located on the lower end of the steam regulator has to be decalcified regularly (e.g. whenever steam development is insufficient). For this, the water tank has to be empty.

Removing the steam regulator with the anticalc valve

Turn the steam regulator clockwise towards the steam setting «6». Keep on turning firmly beyond the resistance until the steam regulator is lifted. When

positioned at ●, pull it out vertically. Do not touch the anticalc valve at its lower end. Immerse the anticalc valve in vinegar (not vinegar essence) or lemon juice for a minimum of 30 minutes. Brush off remaining residues and rinse under running water (fig. G, 1-7).

Re-inserting the steam regulator

When re-inserting the steam regulator, make sure the steam regulator base still points on setting ● (fig. G 8). Firmly push down the steam regulator until it turns back to setting «6» (fig. G) where it catches.

Notice: The iron must never be used without steam regulator.

H Decalcifying/anticalc system

In order to clean the steam chamber from residues, decalcify it as shown in picture section H, 1-8.

Caution: Hot water and steam will come out from the sole plate when the steam regulator is turned clockwise beyond setting «6».

Wait for the sole plate to cool down, then clean it as described above. Then refill the tank with water, heat up the iron and press the precision shot button 4 times to rinse the iron before ironing (fig. H, 9-13).

Do not use commercial decalcifiers, they may damage the iron.

Trouble-shooting guide

Problem Remedy

Drops coming out of the steam vents.	Turn the steam regulator anti-clock-wise to reduce the steam or turn it off.Take longer intervals when pressing the Precision Shot button.Select a higher temperature setting.
Less steam develops or no steam at all.	Check water level.Clean the anticalc valve.
Calcium particles coming through the steam vents.	Decalcify the steam chamber.

Subject to change without notice.

This product conforms to the European Directives EMC 2004/108/EC and Low Voltage 2006/95/EC.

Please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country.

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance.

The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre.

For UK only:

This guarantee in no way affects your rights under statutory law.

Français

3 Water reservoir opening

4 Precision Shot button

5 Spray button

6 Steam dose button

[e-mail]

Country of origin: Hungary

Year of manufacture

To determine the year of manufacture, refer to the 3-digit production code located near the type plate. The first digit of the production code refers to the last digit of the year of manufacture. The next two digits refer to the calendar week in the year of the manufacture.

Example: "635" – The product was manufactured in week 35 of 2006.

Made in Hungary

Year of manufacture
