USER MANUAL KS 9893 SEVERIN

Warning symbol of a flame inside a triangle (no text or numbers)

Diagram of an open refrigerator with numbered labels pointing to different compartments

Technical diagram of an electronic device with numbered components for identification

Technical line drawing of a mechanical component with an inset showing a magnified detail (no text or symbols)

Before using the appliance, please read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with all binding CE labelling directives.

- Do not operate this unit by means of a transformer.

- To prevent noise vibration, ensure that the power cord does not touch any part of the rear of the unit

General information

This appliance is a compressor refrigerator, designed for the short-term storage of food in the main cabinet and long-term storage of food in the freezer compartment.

The unit is classified as Climate Class 'N', 'ST' (normal, sub-tropical).

This appliance is intended for domestic or similar applications, such as in

– shops, offices and other similar working environments,

- agricultural areas,

– hotels, motels etc. and similar establishments,

- bed and breakfast type environments.

This appliance is not intended for commercial use, nor for use in the catering business or similar wholesale environments.

No responsibility is accepted if damage results from improper use, or if these instructions are not complied with.

Important safety instructions

- To prevent the risk of personal injury or damage to the unit, it must only be transported while in its original packaging. Two people are required for unpacking and installation.

- This appliance is not intended for use by any persons (including children) with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

● Children should be supervised to ensure that they do not play with the appliance.

- Caution: Keep any packaging materials well away from children: there is a risk of suffocation.

- The cooling circuit in this appliance contains the refrigerant isobutane (R600a), a natural gas with a high level of environmental compatibility, which is nevertheless flammable. Ensure, therefore, that none of the components of the refrigerant circuit become damaged during transportation and installation of the appliance. If damage to the cooling circuit does occur, do not switch on or connect the appliance to the mains

Warning symbol of a flame inside a triangle (no text or numbers)

power. In the case that there is an open fire or any other sources of ignition in the vicinity of the refrigerant gas, make sure it is removed immediately from this area and that the room is then

thoroughly ventilated.

• Warning: Do not damage the cooling circuit. Any escaping refrigerant causes damage to the eyes; there is also a danger of the gas igniting.
• Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Sufficient ventilation must be ensured at all times.
• Warning: Do not use any external device (e.g.; heaters or heating fans) to accelerate de-frosting; follow only the methods recommended in this manual.
• Warning: Do not operate any electrical appliances (e.g. ice makers) inside the storage compartment that are not specifically permitted in these instructions.
• Before it is connected to the mains power, the unit must be thoroughly checked for transport damage, including its power cord. In the event of any such damage being found, the appliance must not be connected to the mains.
• The power cord should be regularly examined for any signs of damage. In the event of such damage being found, the appliance must no longer be used.
• To avoid the risk of fire, do not place any thermo-electric appliances on top of the unit. Do not place liquid containers on top of the unit, to prevent any leaking or escaping liquid damaging the electrical insulation.

● This unit is designed for storing food only.

● Alcoholic substances may be stored only in properly sealed containers and in upright positions.
- This appliance is not designed for the storage of explosive substances such as aerosol cans with a flammable propellant.
● To avoid the risk of food poisoning, do not consume food after its storage time has expired.
- Do not lean or put undue weight on the shelves, compartments, door etc.
- Protect the inside of the refrigerator at all times from open flames and any other sources of ignition.
- Remove the plug from the wall socket

• in case of any malfunction,
• before de-frosting,
• during cleaning,

• before maintenance or repair work is carried out.

• When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.

• In order to comply with safety regulations and to avoid hazards, any repairs or modifications to this unit must be carried out by our authorised service personnel, including the replacement of the power cord.
• We reserve the right to introduce technical modifications.
• If the unit is not used for an extended period of time, we recommend keeping the door open.
• If the unit is sold, handed over to a third party or disposed of at a suitable recycling facility, attention must be drawn to the presence of the insulation agent ‘cyclopentane’ GH_10 as well as to the refrigerant R600a.

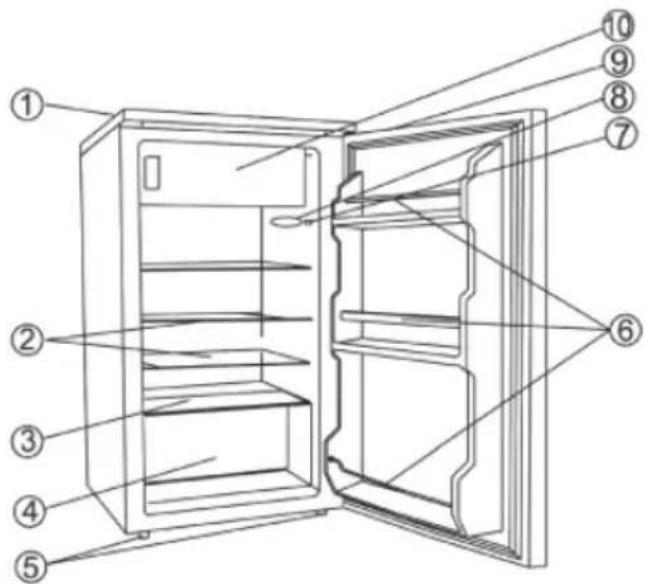

Familiarisation

1. Top cover
2. Glass shelves
3. Glass bottom shelf
4. Vegetable compartment
5. Adjustable feet
6. Storage for bottles etc.
7. Light switch
8. Recessed door grip

9. Freezer compartment

10. Temperature control and interior lighting

Diagram of an open refrigerator with numbered labels pointing to different compartments

There is a freezer compartment in the upper section of the unit that can be closed by a door. The main storage area is under the freezer compartment.

Before using for the first time

• Remove any exterior and interior packaging materials completely, including the adhesive strips.
• Before it is connected to the mains, the unit must be thoroughly checked for transport damage, including its power cord.
  – Clean the unit as described in the section De-frosting and Cleaning.
• To ensure proper functioning, wait for around 2 hours before connecting the unit and switching it on once it has been positioned.
• When the unit is first switched on, a slight smell may be noticed. However, this will disappear once the cooling process has begun.

Installation

The appliance should be set up in a well-ventilated, dry room. It should be operated in an ambient temperature of 16 to 38 °C and a relative humidity of max. 70 %. Do not use the appliance outdoors. Ensure that the plug is accessible and can be removed from the wall socket at any time. Do not expose the appliance to direct sunlight, and do not position it next to any heat sources (radiators, cookers etc). If this cannot be avoided, however, suitable insulation must be installed between the heat source and the unit.

The unit must not be installed inside a cupboard; when positioning the unit, also ensure that it is not placed directly underneath a shelf or any other similar object.

- Ensure that there is sufficient space in front for the door to open to 160^ .

If the floor is uneven, the height-adjustable feet can be used to compensate and ensure optimum stability.

Ventilation

Ensure that there is enough space around the unit so that the air circulation round and behind it is not obstructed. (Rear and sides 5 cm, top 10 cm.)

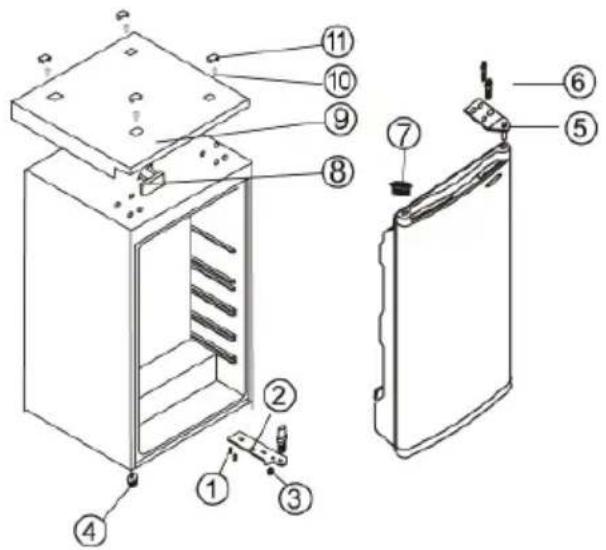

Reversible door

The design provides for the door to be reversed, i.e. for right-hinged (default installation) to become left-hinged.

Warning: Always disconnect the unit from the mains before any maintenance or repair work is carried out.

1. Remove the four screw covers (11) and the screws (10).

2. Remove the top panel (9), and the cover plate (8) from the front.

3. Remove the two screws (6) securing the upper hinge plate (5) on the right-hand side.

4. Carefully lift up the door and place it on a suitable surface to protect it from scratches.

5. Take off the white plug (7) and re-position it in the corresponding hole on the right-hand side, pushing it firmly down.

6. Remove the two screws (1) securing the lower hinge plate (2) on the right-hand side.

7. Take out the adjustable foot (4) and re-position it on the right-hand side.

Technical diagram of an appliance with numbered parts for identification and assembly reference.

1. Mount the lower hinge plate (2) using both screws (1) in its new position on the left. Ensure that the plate is aligned parallel to the side edge of the unit. (Do not fully tighten the screws yet.)

2. Replace the door in its new position. Ensure that the hinge pin of the lower hinge plate is inserted into the guide bushing (hole) in the door.

3. Mount the upper hinge plate (5) using both screws (6) in its new position on the left. Ensure that the hinge pin is inserted into the guide bushing (hole) in the door. (Do not fully tighten the screws yet.)

4. Close the door and ensure that it is properly aligned before fully tightening the screws of the upper and lower hinge plates.

5. Fit the top panel (9) on the unit and – with the door open – replace the cover plate (8) into the opening on the right-hand side of the front.

6. Replace the screws (10) and screw covers (11) on the top panel (9).

7. Put the unit back in its intended position and wait for about two hours before connecting it to the mains.

Temperature control

The unit is activated by connecting it to the mains. It is only switched off completely when the plug is removed from the wall socket.

The temperature in the refrigerator cabinet can be adjusted by setting the temperature control. Turning the control clockwise will decrease the temperature, while turning it anti-clockwise will increase it.

- After switching on, the temperature control should be set to its highest setting.

- After approx. 30 minutes, the temperature should be changed to a medium setting, which is usually sufficient for home or office use. Following a power interruption, or if the unit has been switched off on purpose, it may take 3 to 5 minutes before it switches on again.

Note: In position '0', the cooling function is switched off, though the appliance is still connected to the mains.

Interior lighting

Changing the light bulb:

• Remove the plug from the wall socket.
• Use a suitable screw-driver to remove the screw holding the light cover and take the cover off.
• Take out the defective bulb and fit a new one (max. 15 W., socket type E14).
• Put the cover back into position, replace the screw and tighten it.
• Connect the unit to the mains power. It may take 3 to 5 minutes before it switches on again.

Freezer compartment door

To ensure that frozen food will not de-frost prematurely, the door to the freezer compartment should be kept closed at all times. This will also prevent an undue build-up of ice and frost. Ensure, therefore, that the door is only opened briefly to place food in the freezer compartment or to remove it.

Freezing and storing food

- The temperatures inside the refrigerator cabinet and freezer compartment depend mainly on the ambient temperature, the temperature control setting and the amount of food stored.

Freezer compartment:

• The freezer compartment is designed for deep-freezing and long-term storage of frozen food, and for making ice cubes.
• To ensure that nutritious elements such as vitamins are not lost, fresh food should be deep-frozen right through as quickly as possible. To that effect, the prepared food should be placed into the freezer compartments, properly spaced in one or two rows. Avoid contact with food that has already been frozen. Do not deep-freeze more than 2 kg of fresh food per day. Set the temperature control to Max. After 24 hours, once the food is well frozen, the temperature control can be set back to its original position.
• The time required to freeze food may be shortened by dividing it into smaller portions.
• For short-term storage of food inside the freezer compartment, the temperature control may be set to any suitable position between minimum and medium. For long-term storage, set the temperature control to its maximum position.
• Suitable packaging materials for frozen food are transparent (i.e. non-coloured) plastic wrap or bags, or aluminium foil. The packaging materials should be well aired before use; check that the package is air-tight before freezing the food. We strongly recommend that you label every item stored in the freezer with all relevant information such as type of food, freezing date and use-by date.

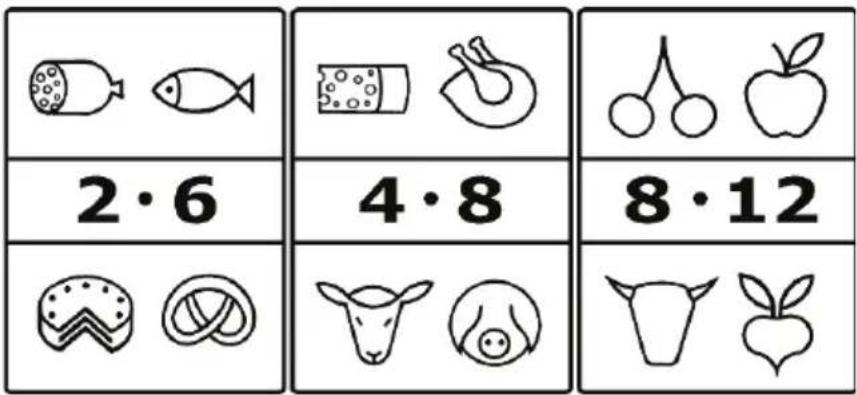

Use-by dates for frozen food are specified (in months) in the table below.

Do not exceed these storage times.

2·6 4·8 8·12

- In the event that the unit remains switched off for an extended period (power failure or short-term malfunctions up to 10 hours), do not open the door; this will help to maintain the lowest possible temperature in the cabinet.

- It should be noted, however, that even a slight rise in the inside temperature will shorten the storage life of the food.

Main cabinet

- Different areas of the refrigerator cabinet are affected differently by the cooling effect. The warmest area is around the door in the higher part of the cabinet, the coldest around the rear wall and in the lower part of the cabinet.

- The food should therefore be stored as follows:

- On main cabinet shelves (from top to bottom): bakery items, ready meals, dairy products, meat, fish and cold meats/sausages.

- In the vegetable compartment: vegetables, salad and fruit.

- In the door (from top to bottom): butter, cheese, eggs, tubes (eg mustard), small bottles, large bottles, milk and fruit-juice tetra-packs.

- Initially, the temperature control should be set to position 4. If the cooling effect is too strong, lower it to position 1-4; if it is insufficient, raise it to 4-7.

If you notice frost on the rear wall, the most likely cause is that the door has been opened for too long, that warm food has been placed inside the refrigerator or that the temperature control has been set too high.

- Liquid or strong-smelling food, or food which is likely to absorb strong odours (e.g. cheese, fish, butter), should be stored separately or in hermetically sealed containers.

- Warm food should be left to cool down to room temperature before being placed in the refrigerator.

- Always ensure that the door is properly closed and that the seal is not obstructed by food stored inside the cabinet or door.

Making ice cubes

A special ice-cube tray is provided for making ice cubes. Fill the tray 34 full with drinking water and place it in the freezer compartment. The ice cubes are easier to remove from the tray if the tray is left standing at room temperature for 5 minutes.

De-frosting and cleaning

- Always remove the plug from the wall socket before cleaning.

• For frequent cleaning we recommend the use of warm water with some mild detergent. To prevent any unpleasant odour within the refrigerator, it should be cleaned about once a month.
• Any accessories should be cleaned separately with soapy water. Do not put them in a dishwasher.
• Do not use abrasives or harsh cleaning solutions or any cleaning agents that contain alcohol.
• After cleaning, thoroughly clean all surfaces again with fresh water before wiping them completely dry. When re-inserting the plug into the wall socket ensure that you have dry hands.
• To save energy, the compressor (at the rear) should be cleaned carefully at least twice a year with a brush or a vacuum cleaner.
• Take care not to remove or damage the rating plate inside the cabinet during cleaning.

De-frosting the freezer compartment:

Once the build-up of ice has reached a thickness of 2-4 mm, the freezer compartment must be de-frosted. It should be cleaned at least twice a year as described below.

• Ensure that the plug has been removed from the wall socket.
• Remove all food from the compartment, wrap it in newspaper and store it in a cool place to keep the temperature down. Note that, even with a slight increase in temperature, the storage life will be shortened and the food should be used as soon as possible.
• Keep the door open. To accelerate defrosting, one or several containers with hot (but not boiling) water may be placed inside the freezer compartment.
  Warning: do not use any external device or other means (e.g. heaters or heating fans) to accelerate de-frosting.
• After cleaning, ensure that the freezer compartment is thoroughly dry; set the temperature control to its maximum position. After 24 hours, the temperature control can be set back to its original position.

Defrosting the refrigerator cabinet

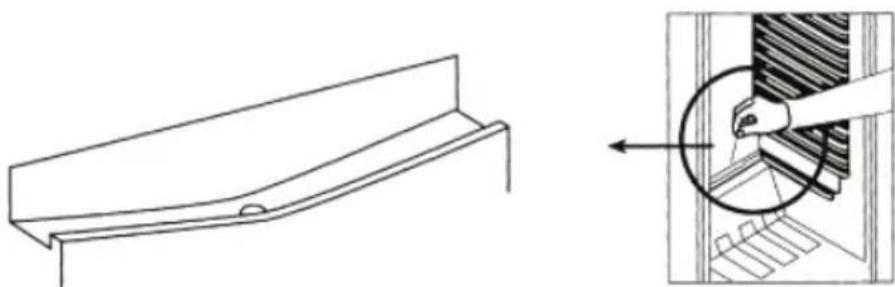

The integral vapouriser is sealed in foam in the rear wall; you may therefore notice a build-up of frost around the rear area. This layer of frost will start melting when the compressor is not working. Through a system of hoses, the melt-water drains into the collection tray below the compressor, where it will be absorbed into the surrounding air. The unit does not therefore require de-frosting, but only proper cleaning instead.

Technical line drawing of a metal bracket with an inset showing a close-up of the internal structure (no text or symbols)

To ensure proper drainage of the melt-water, keep the drain channel and discharge opening in the cabinet free from any obstruction or blockage. A suitable pointed object can be used for clearing or removing a blockage.

Trouble-shooting

Certain typical sounds can be heard when the appliance is switched on. These sounds are caused by:

- the electric motor within the compressor assembly; during compressor start-up the sound level will be slightly higher for a limited period of time.

- the cooling agent flowing through the circuit.

ok Blubb ... Blubb ... Birr ... Birr ...

The following table lists possible malfunctions, their probable causes and solutions. In the event of operational problems, check first whether a solution can be found using this table. If the problem persists, disconnect the appliance from the mains power and contact our Customer Service Department.

Problem Possible cause and solution
The appliance is not working.	- There is a power failure- The main fuse has blown.- The temperature control is set to ‘0’.- The fuse in the wall socket (if applicable) has blown. This can be checked by connecting another electrical device to the socket and checking for function.
The temperature inside the freezer compartment is not low enough.	- Too much food has been stored in the appliance.- The doors are not properly closed.- Insufficient ventilation: the unit is too close to a wall or other structure or object.
The normal operating sound changes or becomes louder.	- Check for proper positioning (uneven floor?).- Are any adjacent objects affected by the running of the cooling unit (i.e. caused to vibrate?)- Are there any objects on top of the unit which might be vibrating?
Water is collecting on the bottom of the unit.	The melt-water drain system is blocked. Remove the blockage and clean the system.

Transporting the appliance

The unit must be transported only in its vertical position.

Do not tilt it any more than 45^ . During transport, ensure that the unit is properly secured and protected against shock, vibration and shifting.

Disposal

This appliance has been manufactured from recyclable materials. After removing the plug from the wall socket, the unit should be rendered unusable by cutting off the power cord before being disposed of through special waste collection points in accordance with local

regulations. The refrigerant and the chemical agent in the insulation foam must be disposed of through a competent agency. Take special care not to damage the cooling circuit before the unit is handed over for competent disposal.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.

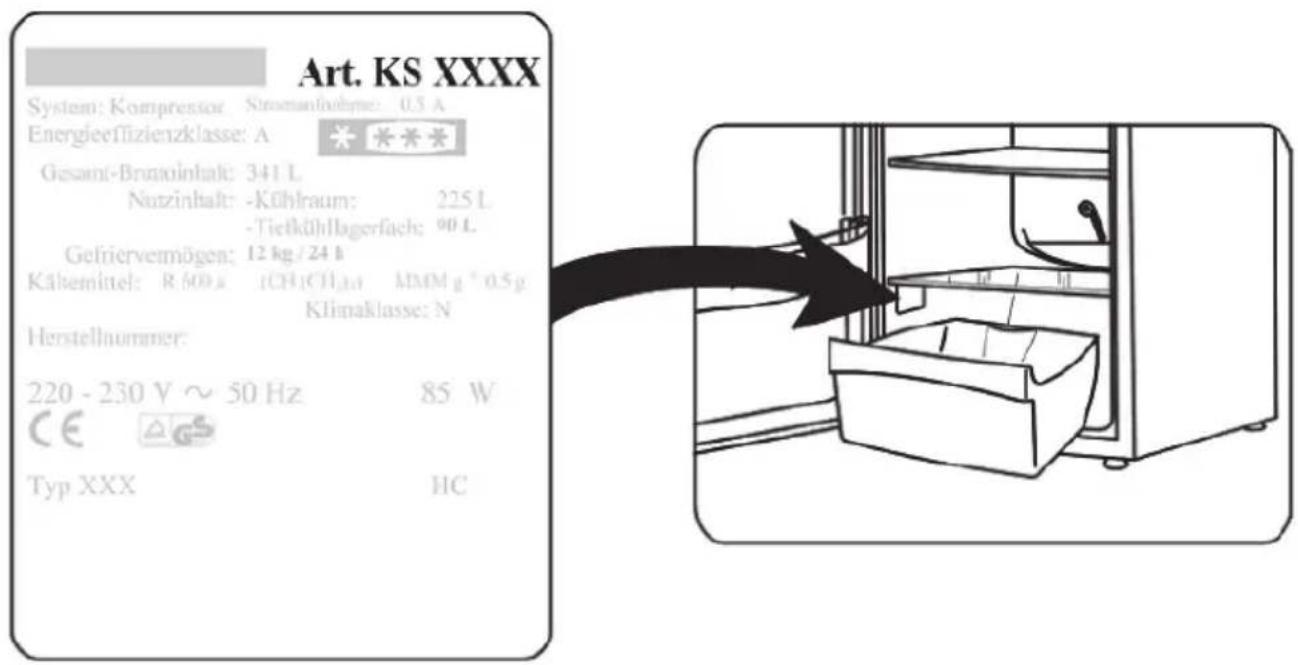

Information needed by the Customer Service

Should repairs to the appliance become necessary, please contact our Customer Service, providing a detailed fault description and quoting the article number KS ... on the rating plate of the appliance (see picture). This information will help us to handle your request efficiently.

In case of any malfunction or other problem, please contact our Customer Services Department. The address can be found in the appendix to this manual.

Product data sheet

Art. no. KS 9893
Product category Refrigerator/Freezer
Energy efficiency classification A+
Energy consumption in kWh/year 173
The actual consumption depends on the pattern of use and the location of the appliance
Usable refrigerator capacity (litres) 86
Usable capacity * *** - Freezer unit (litres)	10
Frost-free : refrigeration unit / freezer unit no / no
Safe storage time in case of malfunction, hrs 10
Freezing capacity, kg/24h 2
Climate classification N,ST
Ambient temperature range, °C 16-38°C
Noise emission 43 dB(a)
Dimensions (H x W x D) in mm 847 x 494 x 494
Weight (kg) 27
Electrical specifications	See rating plate

Chère cliente, Cher client,

Warning symbol of a flame inside a triangle (no text or numbers)

Diagram of an open refrigerator with numbered parts for identification

Technical diagram of an appliance with numbered parts for identification and assembly reference.

Technical line drawing of a structural component with an inset showing a magnified detail of a component (no text or symbols present)

Warning symbol of a flame inside a triangle (no text or numbers)

Diagram of an open refrigerator with numbered labels pointing to different compartments

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

Vriezer compartiment:

Technical line drawing of a metal bracket with an inset showing a hand holding a component (no text or symbols present)

Warning symbol of a flame inside a triangle (no text or numbers)

Diagram of an open refrigerator with numbered labels pointing to different compartments

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

Technical line drawing of a mechanical component with an inset showing a magnified detail (no text or symbols)

Warning symbol of a flame inside a triangle (no text or numbers)

Diagram of an open refrigerator with numbered parts for identification

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

Technical line drawing of a mechanical component with an inset showing a hand holding a circular component (no text or symbols present)

Warning symbol of a flame inside a triangle (no text or numbers)

Diagram of an open refrigerator with numbered labels pointing to different compartments

Technical diagram of an appliance with numbered parts for identification and assembly reference.

Technical line drawing of a mechanical component with an inset showing a hand holding a circular object (no text or symbols present)

-bed-and-breakfastus.

Warning symbol of a flame inside a triangle (no text or numbers)

Diagram of an open refrigerator with numbered labels pointing to different compartments

Technical diagram of an electronic device with numbered components for identification

Technical line drawing of a mechanical component with an inset showing a close-up of a component (no text or symbols present)

Warning symbol of a flame inside a triangle (no text or numbers)

Diagram of an open refrigerator with numbered labels pointing to different compartments

Technical line drawing of a metal bracket with an inset showing a close-up of the internal structure (no text or symbols)

Warning symbol of a flame inside a triangle (no text or numbers)

Diagram of an open refrigerator with numbered labels pointing to different compartments

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

Regulator temperature

Technical line drawing of a metal bracket with an inset showing a magnified detail of the component (no text or symbols)

Warning symbol of a flame inside a triangle (no text or numbers)

Diagram of an open refrigerator with numbered labels pointing to different compartments

Technical diagram of an appliance with numbered parts for identification and assembly reference

Technical line drawing of a mechanical component with an inset showing a hand holding a circular component (no text or symbols present)

Warning symbol of a flame inside a triangle (no text or numbers)

Diagram of a refrigerator with numbered parts for identification

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

Technical line drawing of a mechanical component with an inset showing a hand holding a circular component (no text or symbols present)

Kuressaare: Toomas Teder FIE, Pikk 1B,

tel: [phone]

Philippos Business Center

Agias Anastasias & Laertou, Pilea

Service Post of Thermi

570 01 Thessaloniki, Greece

Tel.: [phone]

Iran

IRAN-SEVERIN KISH CO. LTD.

No. 668, 7th. Floor

Bahar Tower

Ave. South Bahar

TEHRAN - IRAN

Tel.:[phone]

Fax:[phone]

[e-mail]

www.iranseverin.com

Israel

Eatay Agencies

109 Herzel St.

Haifa

Phone: [phone]

Email: [e-mail]

Italia

via Dino Col 52r-54r-56r,

I - 16149 Genova

Green Number: 800240279

Tel.: [phone]

Fax: [phone]

e-mail: [e-mail]

Jordan

F.A. Kettaneh

P.O. Box 485

Amman, 11118, Jordan

Tel: [phone]

e-mail: [e-mail]

Korea

Jung Shin Electronics co., Ltd.

501, Megaventuretower 77-9,

Moonrae-Dong 3ga, Yongdeungpo-Gu

Seoul, Korea

Tel: [phone]\~7

Fax: [phone]

Service Hotline: [phone]

Latvia

SERVO Ltd.

Mr. Janis Pivovarenoks

Tel: [phone]

[e-mail]

Lebanon

Khoury Home

7th Floor, Cité Dora 3 Building, Dora

P.O.Box 70611

Antelias, Lebanon

Telephone [phone], Fax [phone]

eMail: [e-mail]

Internet: www.khouryhome.com

Luxembourg

Ser-Tec

Sc. 2 Et.1, Ap. 27, Sector 1

Bucuresti

Tel: [phone]

[phone]

[phone]

Fax: [phone]

[phone]

E-mail: offi [e-mail]

Web site: www.forbrands.ro

Schweiz

VB Handels Sàrl GmbH

Postfach 306

1040 Echallens

Tel: [phone]

Fax: [phone]

mail: [e-mail]

Serbia

SMIL doo

Pasiceva 28, Novi Sad

Serbia and Montenegro

tel: [phone]

tel: [phone]

fax: [phone]

Slowak Republic

PREMT,s.r.o.

Skladová 1

917 01 Trnava

Tel: [phone]

Finland

Oy Harry Marcell Ab

Rälssitie 6, PL 63

01511 Vantaa

Tel.: 00358 / 2 07 599 860

Fax: 00358 / 2 07 599 803

Svenska

Rakspecialisten HS

Möllevångsgatan 34

214 20 Malmö

Tel.: [phone]

Fax: [phone]

Slovenia

SEVTIS d.o.o.

Smartinska 130

1000 Ljubljana

Tel: [phone]

Fax: [phone]

Stand: 03.2010

SEVERIN
