USER MANUAL Clavinova CVP-405 YAMAHA

IMPORTANT —Check your power supply—

Make sure that your local AC mains voltage matches the voltage specified on the name plate on the bottom panel. In some areas a voltage selector may be provided on the bottom panel of the main keyboard unit near the power cord. Make sure that the voltage selector is set for the voltage in your area. The voltage selector is set at 240V when the unit is initially shipped. To change the setting use a "minus" screwdriver to rotate the selector dial so that the correct voltage appears next to the pointer on the panel.

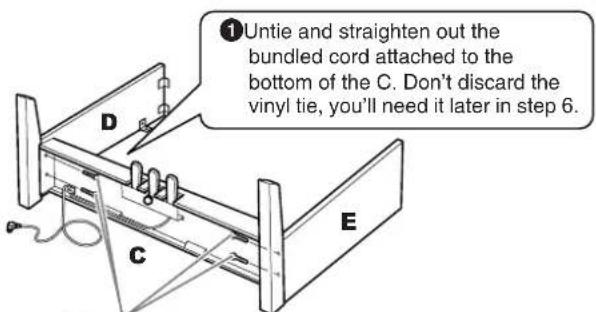

For information on assembling the keyboard stand, refer to the instructions at the end of this manual.

SPECIAL MESSAGE SECTION

PRODUCT SAFETY MARKINGS: Yamaha electronic products may have either labels similar to the graphics shown below or molded/stamped facsimiles of these graphics on the enclosure. The explanation of these graphics appears on this page. Please observe all cautions indicated on this page and those indicated in the safety instruction section.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

See bottom of Keyboard enclosure for graphic symbol markings.

The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

The lightning flash with arrowhead symbol, within the equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock.

IMPORTANT NOTICE: All Yamaha electronic products are tested and approved by an independent safety testing laboratory in order that you may be sure that when it is properly installed and used in its normal and customary manner, all foreseeable risks have been eliminated. DO NOT modify this unit or commission others to do so unless specifically authorized by Yamaha. Product performance and/or safety standards may be diminished. Claims filed under the expressed warranty may be denied if the unit is/has been modified. Implied warranties may also be affected.

SPECIFICATIONS SUBJECT TO CHANGE: The information contained in this manual is believed to be correct at the time of printing. However, Yamaha reserves the right to change or modify any of the specifications without notice or obligation to update existing units.

ENVIRONMENTAL ISSUES: Yamaha strives to produce products that are both user safe and environmentally friendly. We sincerely believe that our products and the production methods used to produce them, meet these goals. In keeping with both the letter and the spirit of the law, we want you to be aware of the following:

Battery Notice: This product MAY contain a small non-rechargeable battery which (if applicable) is soldered in place. The average life span of this type of battery is approximately five years. When replacement becomes necessary, contact a qualified service representative to perform the replacement.

Warning: Do not attempt to recharge, disassemble, or incinerate this type of battery. Keep all batteries away from children. Dispose of used batteries promptly and as regulated by applicable laws. Note: In some areas, the servicer is required by law to return the defective parts. However, you do have the option of having the servicer dispose of these parts for you.

Disposal Notice: Should this product become damaged beyond repair, or for some reason its useful life is considered to be at an end, please observe all local, state, and federal regulations that relate to the disposal of products that contain lead, batteries, plastics, etc.

NOTICE: Service charges incurred due to lack of knowledge relating to how a function or effect works (when the unit is operating as designed) are not covered by the manufacturer's warranty, and are therefore the owners responsibility. Please study this manual carefully and consult your dealer before requesting service.

NAME PLATE LOCATION: The graphic below indicates the location of the name plate. The model number, serial number, power requirements, etc., are located on this plate. You should record the model number, serial number, and the date of purchase in the spaces provided below and retain this manual as a permanent record of your purchase.

CVP-405 CVP-403

Line drawing of a piano with a handle and base, no text or symbols present

Line drawing of a typewriter with a handle and base, labeled CVP-401 (no text or symbols on the device itself)

Model

Serial No.

Purchase Date

PRECAUTIONS

PLEASE READ CAREFULLY BEFORE PROCEEDING

* Please keep this manual in a safe place for future reference.

WARNING

Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical shock, short-circuiting, damages, fire or other hazards. These precautions include, but are not limited to, the following:

Power supply/Power cord

• Only use the voltage specified as correct for the instrument. The required voltage is printed on the name plate of the instrument.
• Check the electric plug periodically and remove any dirt or dust which may have accumulated on it.
• Use only the supplied power cord/plug.
• Do not place the power cord near heat sources such as heaters or radiators, and do not excessively bend or otherwise damage the cord, place heavy objects on it, or place it in a position where anyone could walk on, trip over, or roll anything over it.

Do not open

- Do not open the instrument or attempt to disassemble the internal parts or modify them in any way. The instrument contains no user-serviceable parts. If it should appear to be malfunctioning, discontinue use immediately and have it inspected by qualified Yamaha service personnel.

Water warning

• Do not expose the instrument to rain, use it near water or in damp or wet conditions, or place containers on it containing liquids which might spill into any openings.
• Never insert or remove an electric plug with wet hands.

Fire warning

- Do not put burning items, such as candles, on the unit. A burning item may fall over and cause a fire.

If you notice any abnormality

- If the power cord or plug becomes frayed or damaged, or if there is a sudden loss of sound during use of the instrument, or if any unusual smells or smoke should appear to be caused by it, immediately turn off the power switch, disconnect the electric plug from the outlet, and have the instrument inspected by qualified Yamaha service personnel.

CAUTION

Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the instrument or other property. These precautions include, but are not limited to, the following:

Power supply/Power cord

• When removing the electric plug from the instrument or an outlet, always hold the plug itself and not the cord. Pulling by the cord can damage it.
• Remove the electric plug from the outlet when the instrument is not to be used for extended periods of time, or during electrical storms.
• Do not connect the instrument to an electrical outlet using a multiple-connector. Doing so can result in lower sound quality, or possibly cause overheating in the outlet.

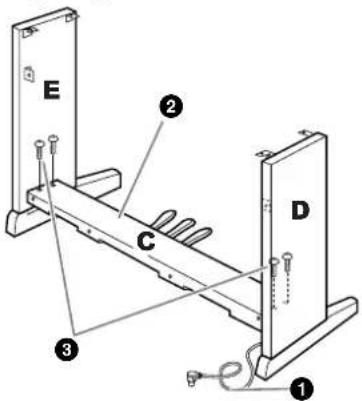

Assembly

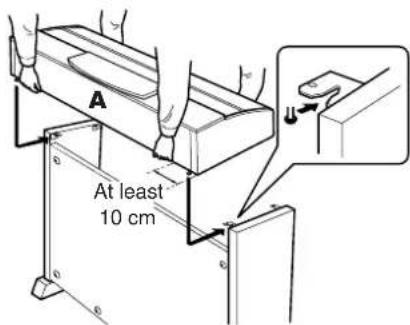

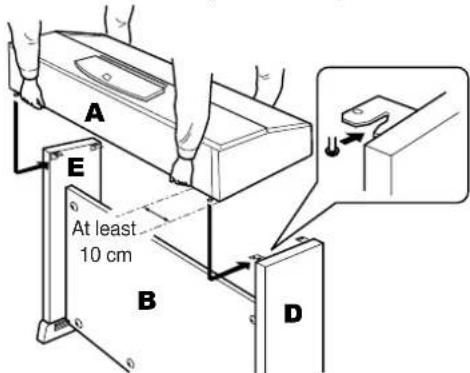

- Read carefully the attached documentation explaining the assembly process. Failure to assemble the instrument in the proper sequence might result in damage to the instrument or even injury.

Location

• Do not expose the instrument to excessive dust or vibrations, or extreme cold or heat (such as in direct sunlight, near a heater, or in a car during the day) to prevent the possibility of panel disfiguration or damage to the internal components.
• Do not use the instrument in the vicinity of a TV, radio, stereo equipment, mobile phone, or other electric devices. Otherwise, the instrument, TV, or radio may generate noise.
• Do not place the instrument in an unstable position where it might accidentally fall over.
• Before moving the instrument, remove all connected cables.
• When setting up the product, make sure that the AC outlet you are using is easily accessible. If some trouble or malfunction occurs, immediately turn off the power switch and disconnect the plug from the outlet. Even when the power switch is turned off, electricity is still flowing to the product at the minimum level. When you are not using the product for a long time, make sure to unplug the power cord from the wall AC outlet.

Connections

- Before connecting the instrument to other electronic components, turn off the power for all components. Before turning the power on or off for all components, set all volume levels to minimum. Also, be sure to set the volumes of all components at their minimum levels and gradually raise the volume controls while playing the instrument to set the desired listening level.

Maintenance

• In the case of a model with a polished finish, gently remove dust and dirt with a soft cloth. Do not wipe too hard since small particles of dirt can scratch the instrument's finish.
• When cleaning the instrument, use a soft, dry or slightly damp cloth. Do not use paint thinners, solvents, cleaning fluids, or chemical-impregnated wiping cloths.

Handling caution

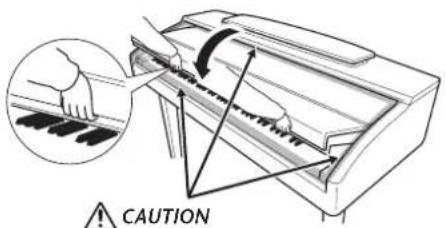

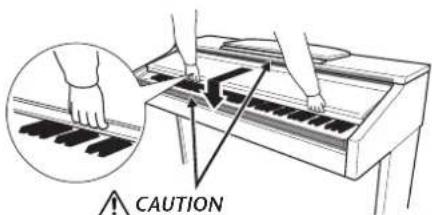

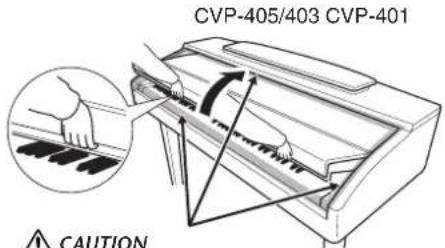

• Take care that the key cover does not pinch your fingers, and do not insert a finger or hand in any gaps on the key cover or instrument.
• Never insert or drop paper, metallic, or other objects into the gaps on the key cover, panel or keyboard. If this happens, turn off the power immediately and unplug the power cord from the AC outlet. Then have the instrument inspected by qualified Yamaha service personnel.
• Do not place vinyl, plastic or rubber objects on the instrument, since this might discolor the panel or keyboard.
• In the case of a model with a polished finish, bumping the surface of the instrument with metal, porcelain, or other hard objects can cause the finish to crack or peel. Use caution.
• Do not rest your weight on, or place heavy objects on the instrument, and do not use excessive force on the buttons, switches or connectors.
• Do not use the instrument/device or headphones for a long period of time at a high or uncomfortable volume level, since this can cause permanent hearing loss. If you experience any hearing loss or ringing in the ears, consult a physician.

Using the bench (If included)

• Do not place the bench in an unstable position where it might accidentally fall over.
• Do not play carelessly with or stand on the bench. Using it as a tool or step-ladder or for any other purpose might result in accident or injury.
• Only one person should sit on the bench at a time, in order to prevent the possibility of accident or injury.
• If the bench screws become loose due to extensive long-term use, tighten them periodically using the included tool.

Saving data

Saving and backing up your data

- The data of the types listed below are lost when you turn off the power to the instrument. Save the data to the USER tab display (page 26), USB storage device (USB flash memory/floppy disk, etc).

• Recorded/Edited Songs (page 42, 139, 154)
- Created/Edited Styles (page 113)
- Edited Voices (page 96)
- Memorized One Touch Settings (page 51)

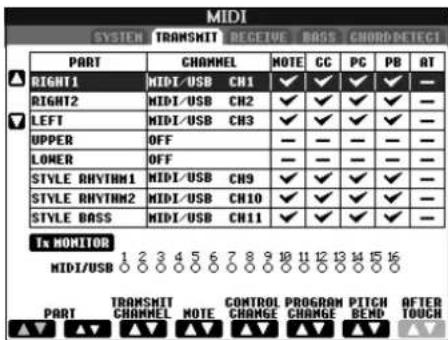

- Edited MIDI settings (page 192)

Moreover, the above-mentioned data can be saved all at once. Refer to page 77.

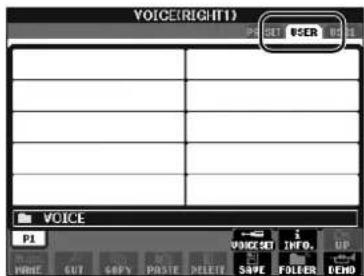

Data in the USER tab display (page 26) may be lost due to malfunction or incorrect operation. Save important data to a USB storage device (USB flash memory/floppy disk, etc).

When you change settings in a display page and then exit from that page, System Setup data (listed in the Parameter Chart of the separate Data List booklet) is automatically stored. However, this edited data is lost if you turn off the power without properly exiting from the relevant display.

Yamaha cannot be held responsible for damage caused by improper use or modifications to the instrument, or data that is lost or destroyed.

Always turn the power off when the instrument is not in use.

Thank you for purchasing this Yamaha Clavinova!

We recommend that you read this manual carefully so that you can fully take advantage of the advanced and convenient functions of the instrument.

We also recommend that you keep this manual in a safe and handy place for future reference.

About this Owner's Manual and Data List

This manual consists of the following sections.

Owner's Manual

Introduction (page 12)...... Please read this section first.

Quick Guide (page 23).... This section explains how to use the basic functions.

Basic Operation (page 63)...... This section explains how to use the basic operations including display-based controls.

Reference (page 79) ...... This section explains how to make detailed settings for the instrument's various functions.

Appendix (page 201).... This section contains additional information such as Troubleshooting and Specifications.

Data List

Voice List, MIDI Data Format, etc.

• The models CVP-405/403/401 will be referred to as the CVP/Clavinova in this Owner's Manual.
• The illustrations and LCD screens as shown in this owner's manual are for instructional purposes only, and may appear somewhat different from those on your instrument.
• The panel illustrations and LCD displays shown in this owner's manual are taken from the CVP-405.
• The example Operation Guide displays shown in this Manual are in English.
• Copying of the commercially available musical data including but not limited to MIDI data and/or audio data is strictly prohibited except for your personal use.
• This device is capable of using various types/formats of music data by optimizing them to the proper format music data for use with the device in advance. As a result, this device may not play them back precisely as their producers or composers originally intended.
• Some of the preset songs have been edited for length or arrangement, and may not be exactly the same as the original.

This product incorporates and bundles computer programs and contents in which Yamaha owns copyrights or with respect to which it has license to use others' copyrights. Such copyrighted materials include, without limitation, all computer software, style files, MIDI files, WAVE data, musical scores and sound recordings. Any unauthorized use of such programs and contents outside of personal use is not permitted under relevant laws. Any violation of copyright has legal consequences. DON'T MAKE, DISTRIBUTE OR USE ILLEGAL COPIES.

• The photos of the harpsichord, bandoneon, hackbrett, music box, dulcimer and cimbalom, shown in the displays of the Clavinova, are courtesy of the Gakkigaku Shiryokan (Collection for Organolgy), Kunitachi College of Music.
• The following instruments, shown in the displays of the Clavinova, are on display at the Hamamatsu Museum of Musical Instruments: balafon, gender, kalimba, kanoon, santur, gamelan gong, harp, hand bell, bagpipe, banjo, carillon, mandolin, oud, pan flute, pungi, rabab, shanai, sitar, steel drum, and tambra.
  • (CVP-405/403) This product is manufactured under license of U.S. Patents No.5231671, No.5301259, No.5428708, and No.5567901 from IVL Audio Inc.
• The bitmap fonts used in this instrument have been provided by and are the property of Ricoh Co., Ltd.

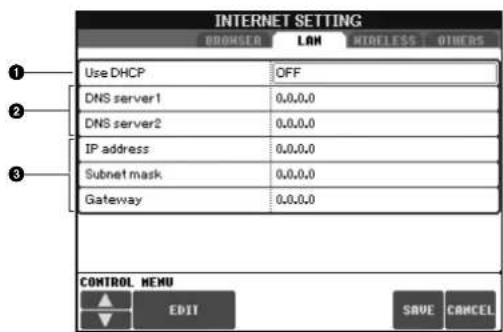

• This product utilizes NF, an embedded Internet browser from ACCESS Co., Ltd. NF is used with the patented LZW, licensed from Unisys Co., Ltd. NF may not be separated from this product, nor may it be sold, lent or transferred in any way. Also, NF may not be reverse-engineered, reverse-compiled, reverse-assembled or copied.
  This software includes a module developed by the Independent JPEG Group.
  ACCESS

Trademarks:

- All other trademarks are the property of their respective holders.

Accessories

□ Guide to Yamaha Online Member Product User Registration
☐ "50 greats for the Piano" Music Book
□ Owner's Manual
□ Data List

The following items may be included or optional, depending on your locale:

□ Bench

Tuning

Unlike an acoustic piano, the instrument does not need to be tuned. It always stays perfectly in tune.

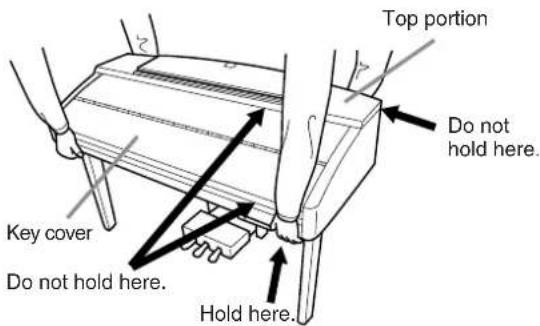

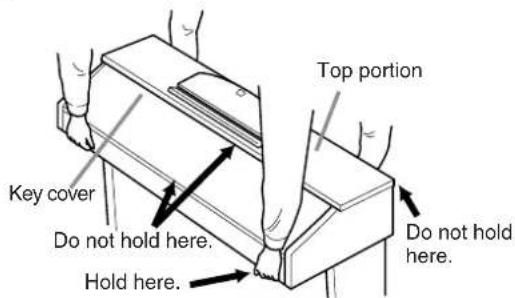

■ Transporting

If you move to another location, you can transport the instrument along with other belongings. You can move the unit as it is (assembled) or you can disassemble the unit down to the condition it was in when you first took it out of the box. Transport the keyboard horizontally. Do not lean it up against a wall or stand it up on its side.

Do not subject the instrument to excessive vibration or shock.

When transporting the assembled instrument, make sure all screws are properly tightened and have not been loosened by moving the instrument.

Introduction

Enhanced Realism and Natural

Expressiveness 10

Panel Controls 12

Playing the Keyboard 14

Setting Up 16

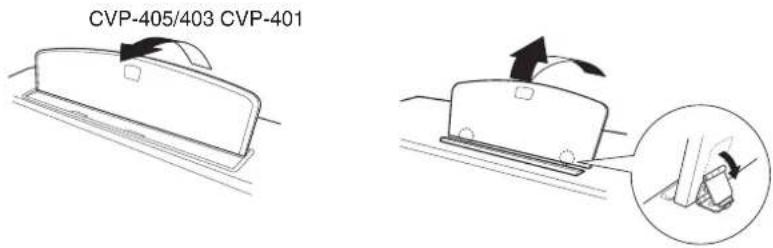

Music Rest 16

Sheet Music Braces (CVP-405/403) 16

Using Headphones 17

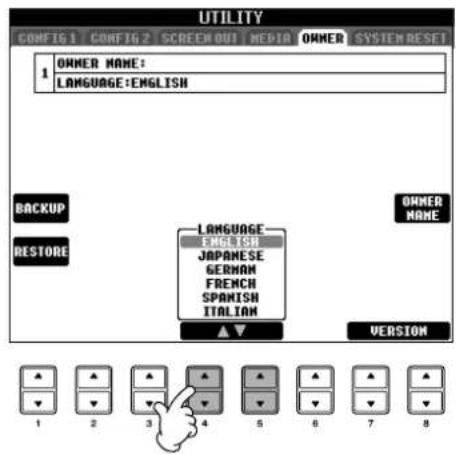

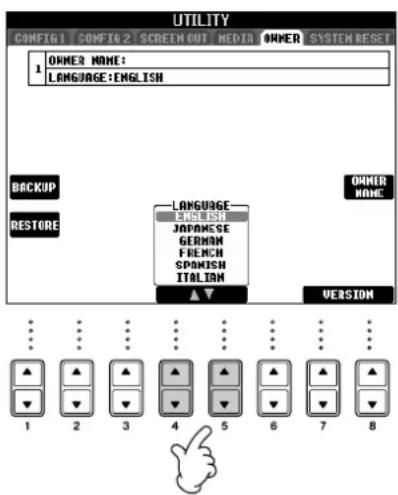

Changing the Display Language 18

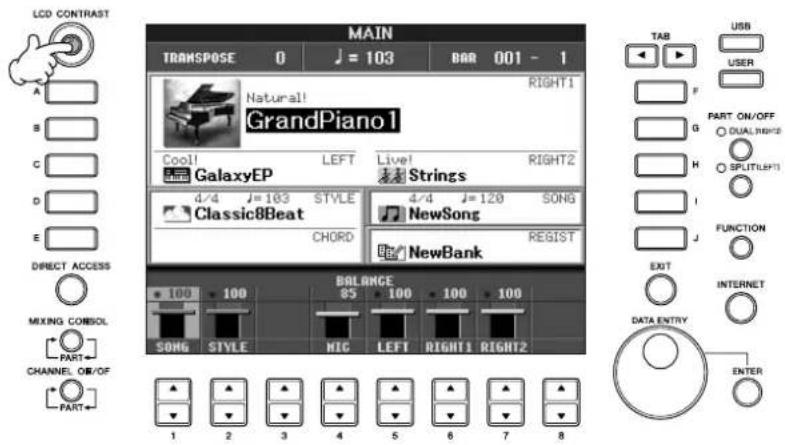

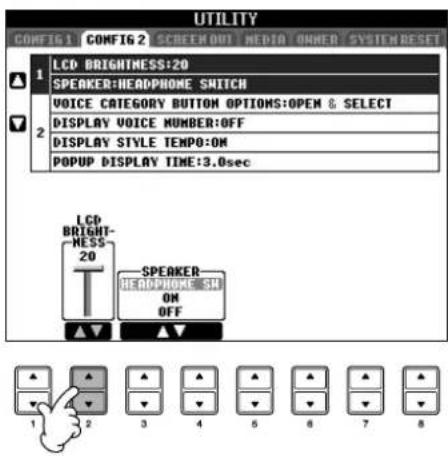

Display Settings 18

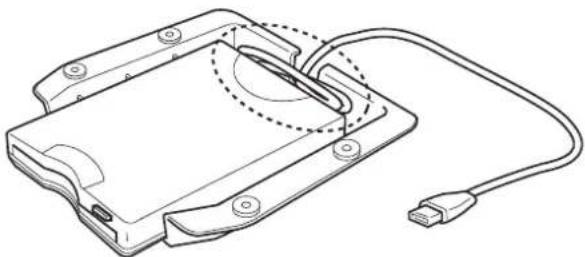

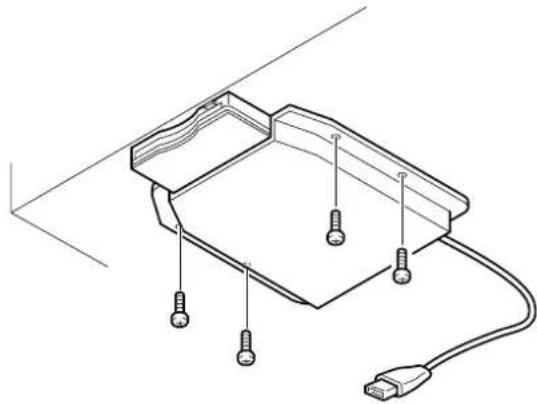

Handling the Floppy Disk Drive (FDD) and

Floppy Disks 21

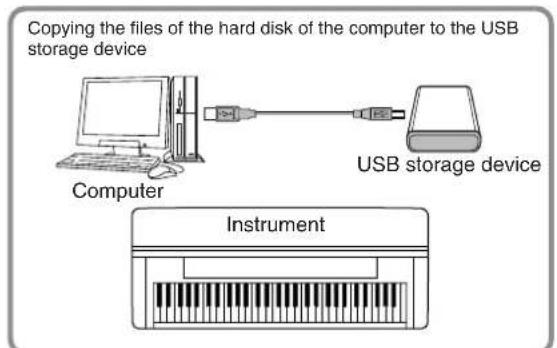

Handling the USB Storage Device

(USB Flash Memory/Floppy Disk, etc) ...... 22

Quick Guide

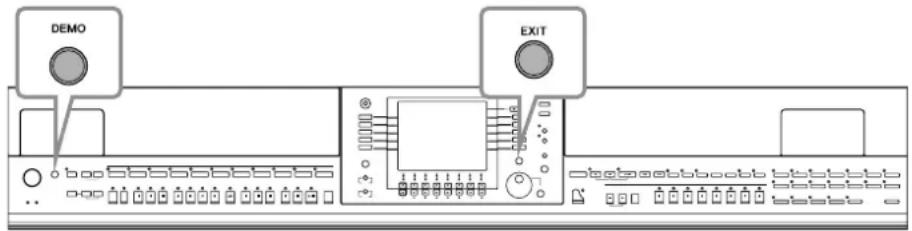

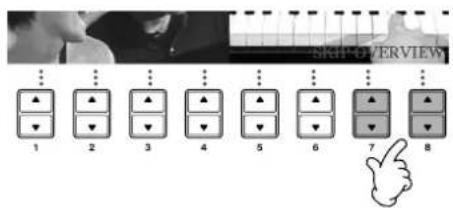

Playing the Demos 23

Operations in the Basic Displays 25

Operation of the Main Display 25

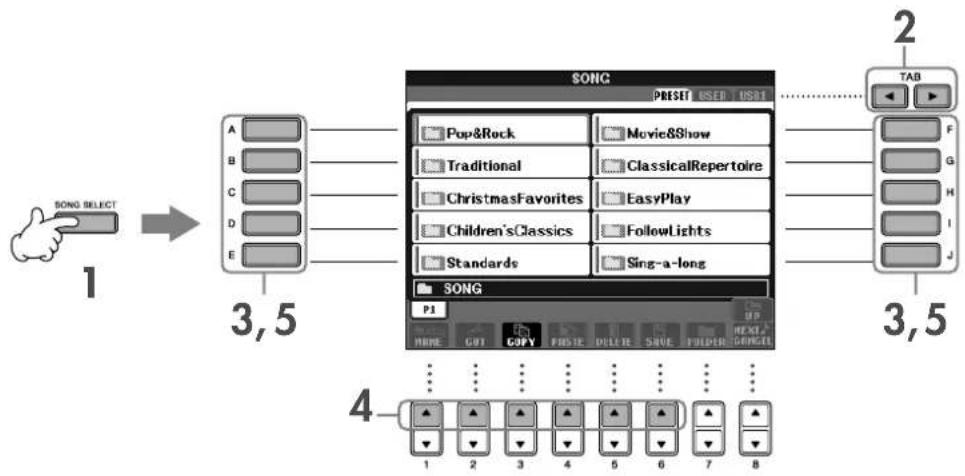

Operation of the File Selection Display 26

Operation of the Function Display 27

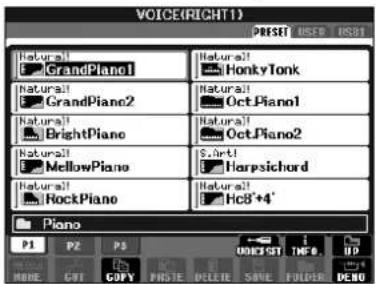

Playing Voices 28

Playing the Piano Voice 28

Playing Various Voices 32

Practicing with the Songs 35

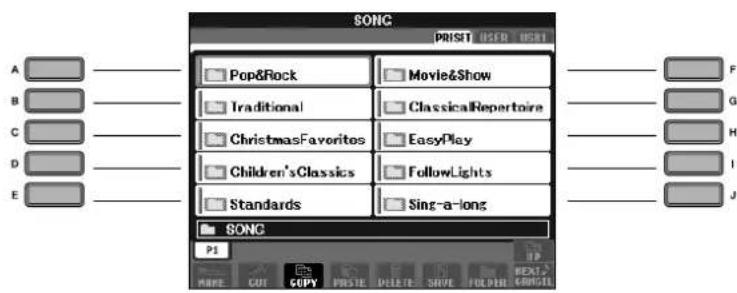

Playing Back Songs Before Practicing 35

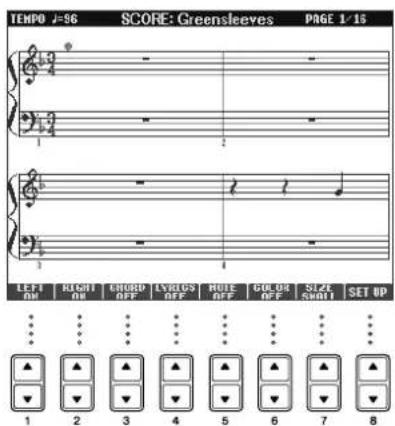

Displaying Music Notation (Score) 38

One-handed Practice with the Guide Lamps ..... 39

Practicing with the Repeat Playback Function ..... 41

Recording Your Performance 42

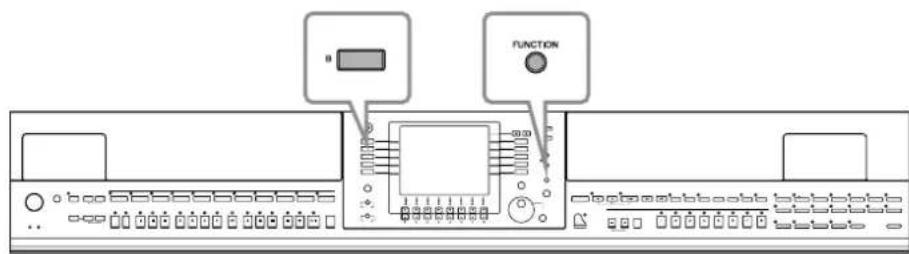

Playing Backing Parts with the performance

assistant Technology 43

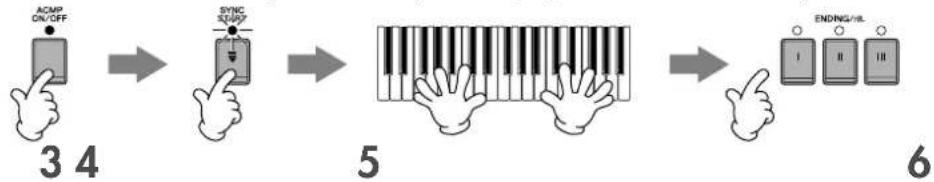

Playing Accompaniment with the Auto

Accompaniment Feature (Style Playback) ..... 44

Playing "Mary Had a Little Lamb" with the Auto

Accompaniment Feature 45

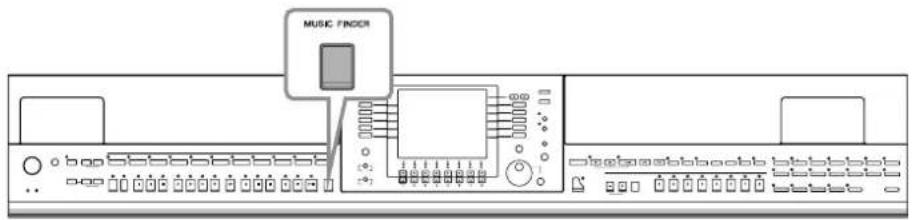

Calling Up Ideal Setups for Each Song

—Music Finder 52

Calling up the panel settings to match the Style

(Repertoire) 53

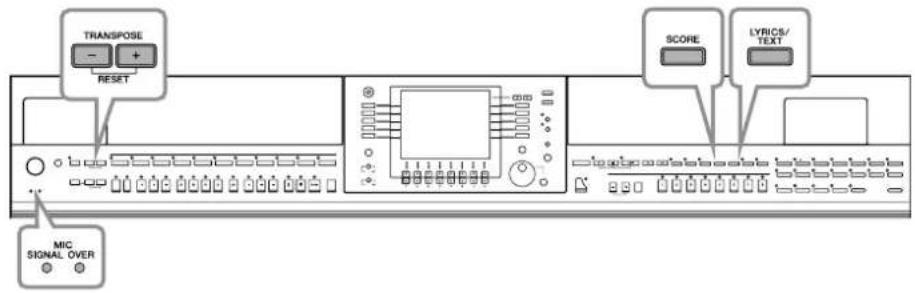

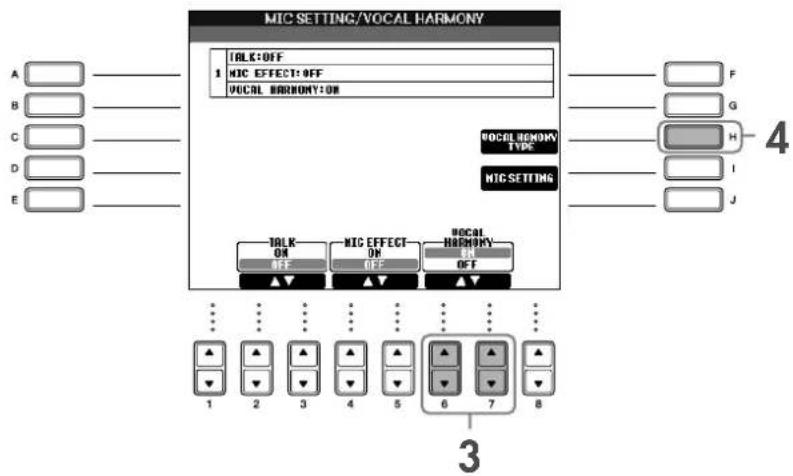

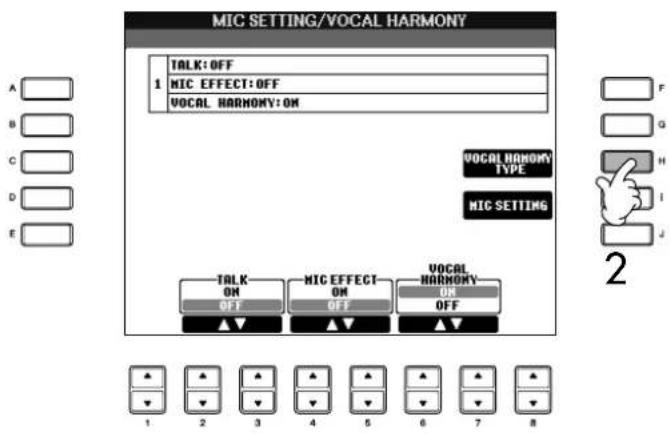

Singing Along with Song Playback (Karaoke)

or Your Own Performance 54

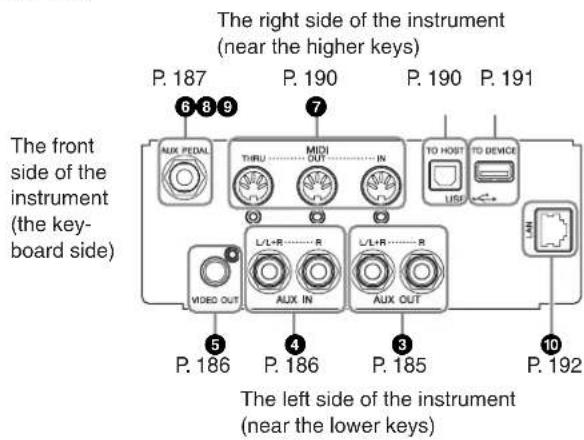

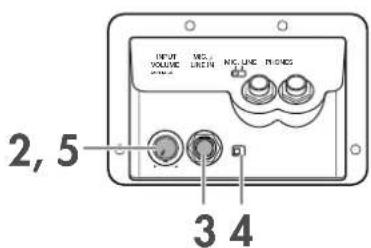

Connecting a Microphone (CVP-405/403) 54

Singing with the Lyrics Display 55

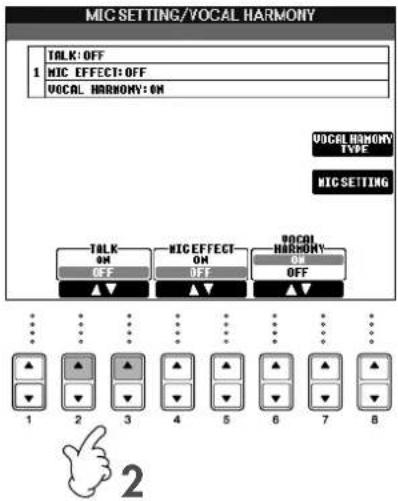

Convenient Functions for Karaoke 56

Convenient Functions for Singing Along with Your

Own Performance 58

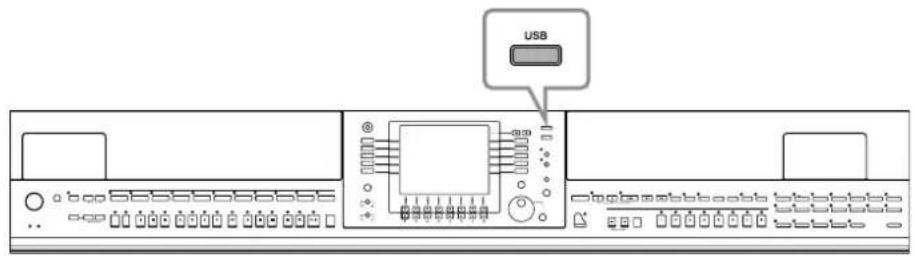

Recording Your Performance as Audio

(USB Audio Recorder) (CVP-405/403) 60

Recording Your Performance as Audio 60

Playing Back the Recorded Performance 62

Basic Operation

Basic Operation ....63

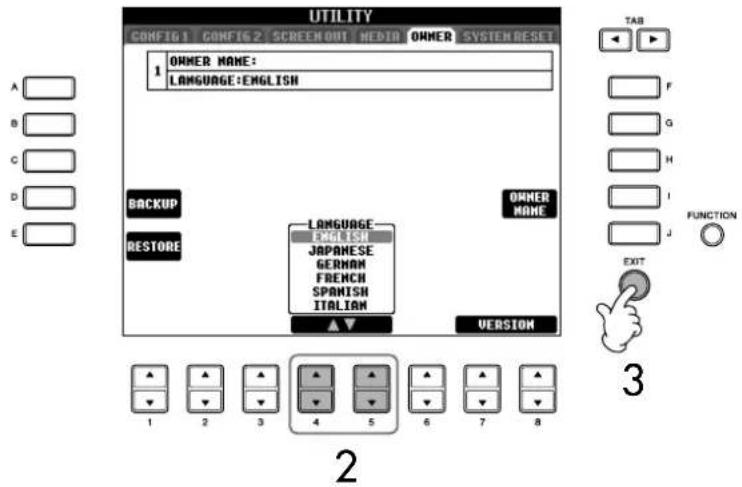

Selecting Message Language 63

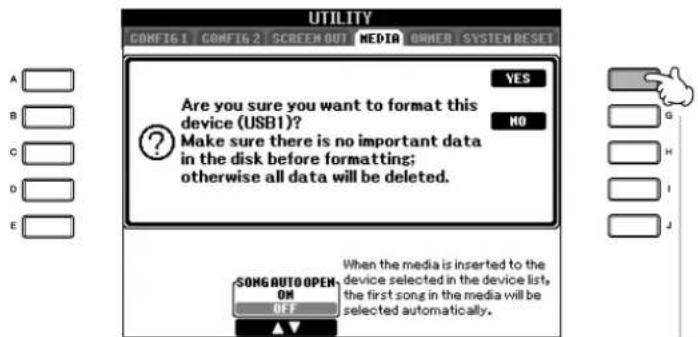

The Messages Shown in the Display 63

Instant Selection of the Displays

—Direct Access 64

Basic Displays (Main Display and File Selection

Display) 65

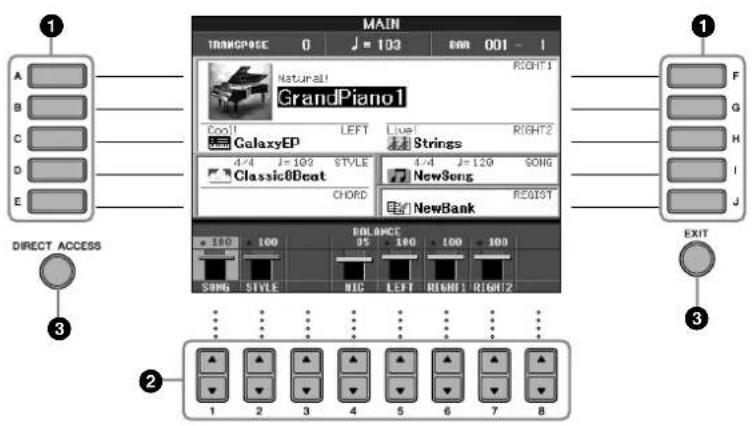

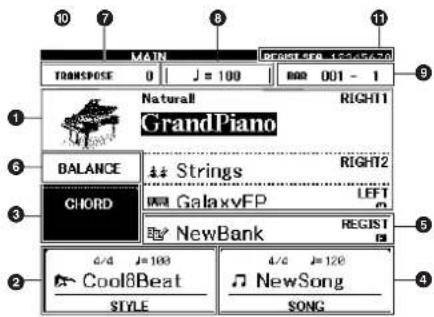

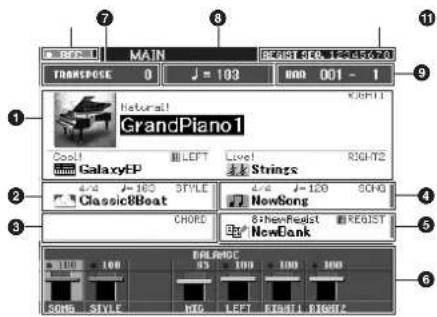

Main Display 65

File Selection Display Configuration and Basic

Operation 66

File/Folder Operations in the File Selection Display ..69

Restoring the Factory-programmed Settings ... 75

Restoring the Factory-programmed System ...... 75

Restoring the Factory-programmed Settings

Independently by Item 76

Saving and Recalling Your Original Settings as a

Single File 76

Data Backup 77

Backup procedure 78

Reference

Using, Creating and Editing Voices ..79

Voice Characteristics 79

Playing Different Voices Simultaneously ..... 80

Keyboard Parts (Right 1, Right 2, Left) 80

Playing Two Voices Simultaneously

(Right 1 and 2 Parts) 81

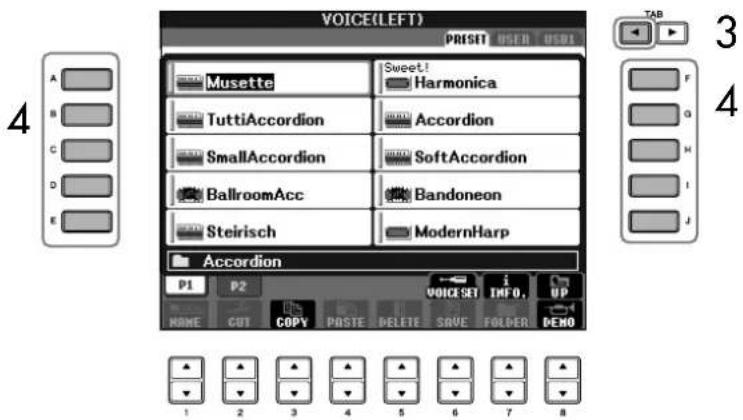

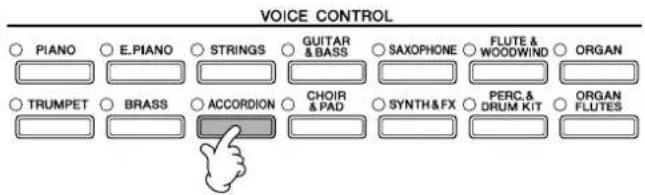

Playing Different Voices with the Left and Right

Hands (Right 1 and Left Parts) 82

Changing Pitch 83

Transpose 83

Fine-tuning the Pitch of the Entire Instrument ..... 83

Scale Tuning 83

Adding Effects to Voices Played on the

Keyboard 85

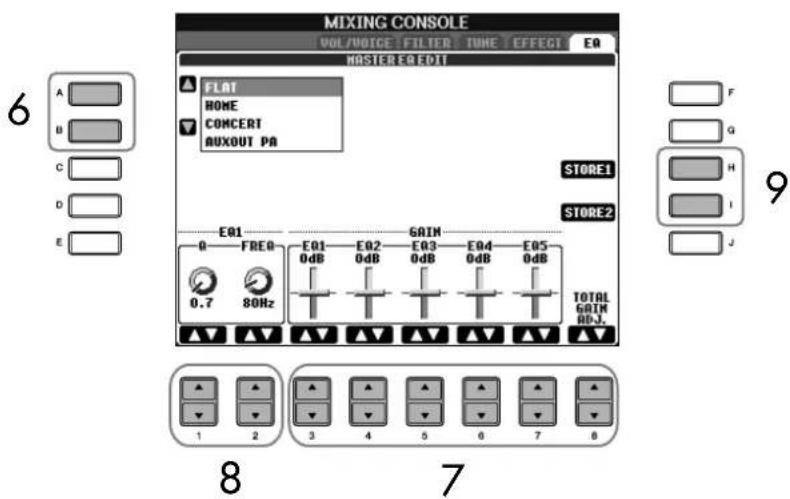

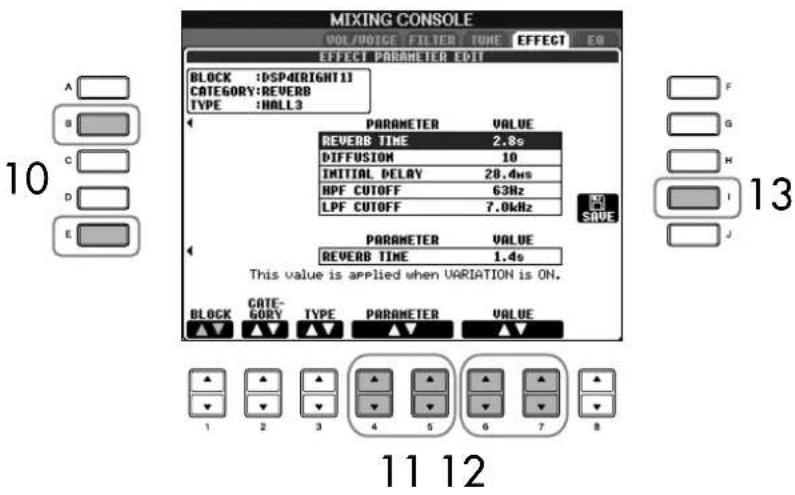

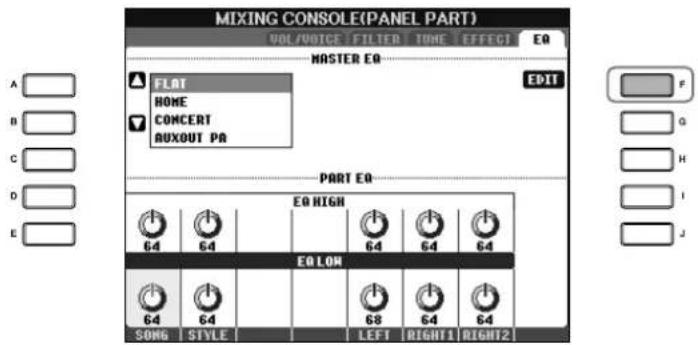

Editing the Volume and Tonal Balance

(MIXING CONSOLE) 87

Basic Procedure 87

Various display pages and menus appear on the LCD display of this instrument, indicating the functions and operations. Throughout this manual, arrows are used in the instructions, indicating in shorthand the process of calling up these functions. The example shorthand below describes a four step operation:

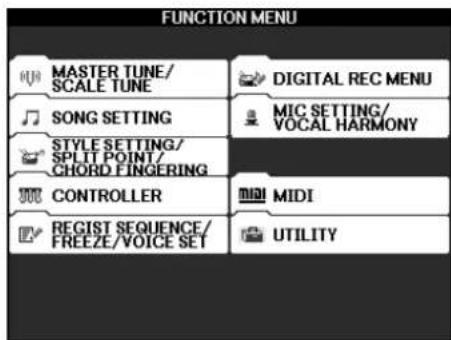

1) press the [FUNCTION] button, 2) press the [D] button to select the Controller page, 3) press the TAB [▶] button to select the Keyboard/Panel page, and 4) press the [A] button to select the Initial Touch parameter.

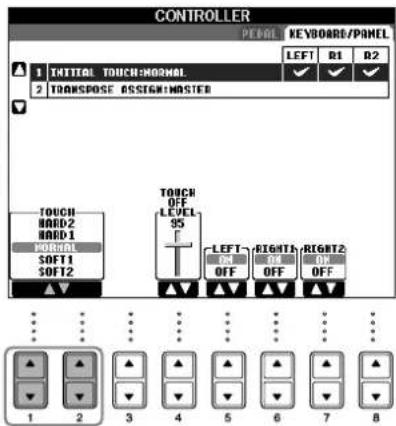

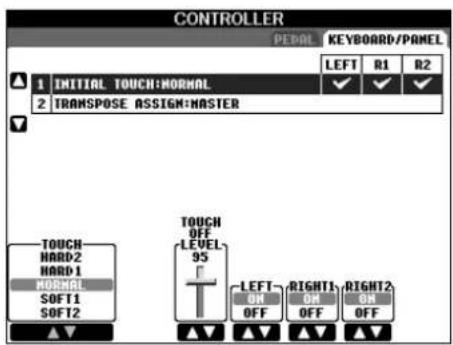

[FUNCTION] → [D] CONTROLLER → TAB |▶| KEYBOARD/PANEL → [A] 1 INITIAL TOUCH

Voice Creating (Sound Creator) 96

Basic Procedure 96

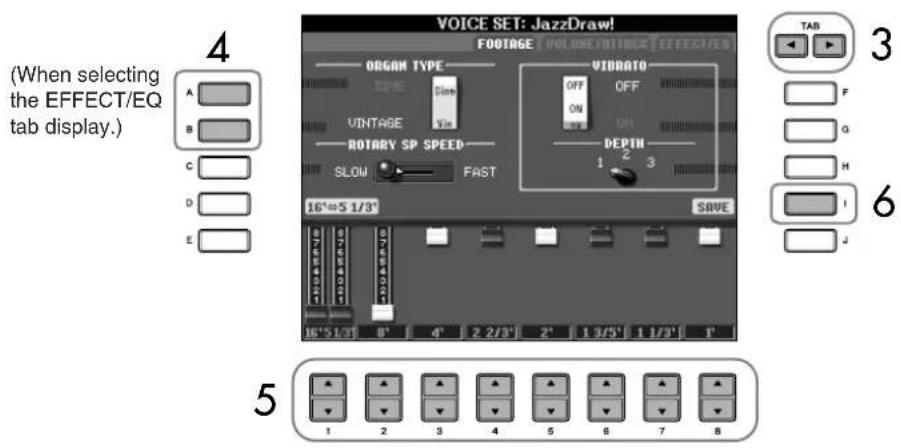

Creating Your Original Organ Flutes Voices ...... 100

Using, Creating and Editing the Auto Accompaniment Styles ....103

Style Characteristics 103

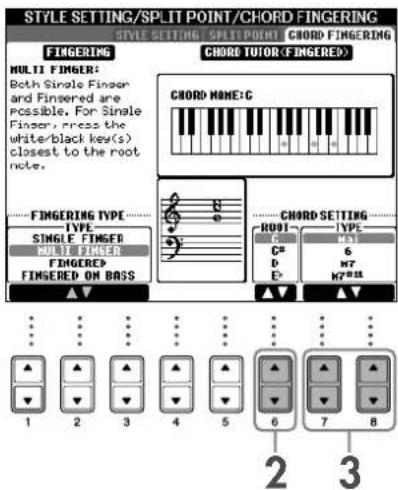

Selecting a Chord Fingering Type 103

Playing Only the Rhythm Channels of a Style 104

Style Playback-related Settings 105

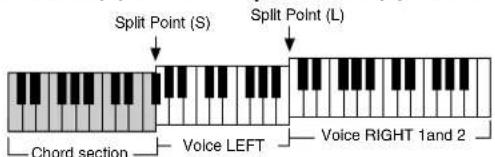

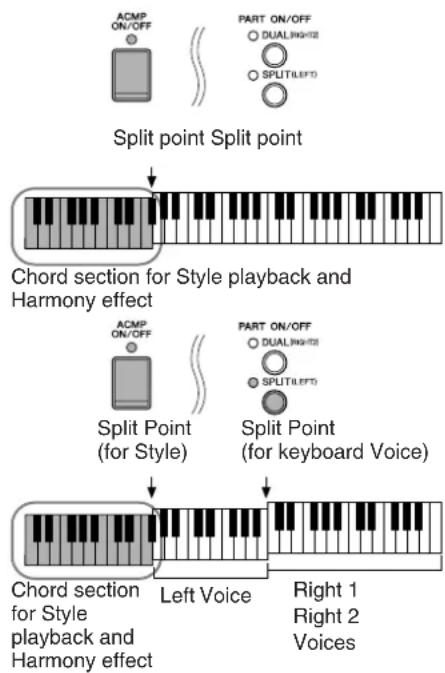

Split Point Settings 107

Editing the Volume and Tonal Balance of the Style (MIXING CONSOLE) 108

Convenient Music Finder feature 108

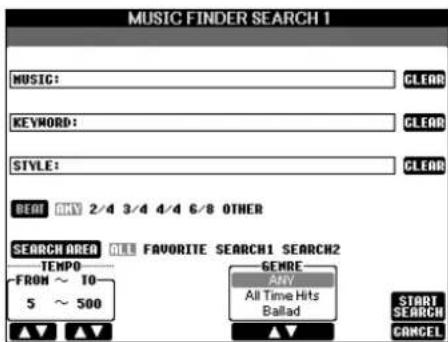

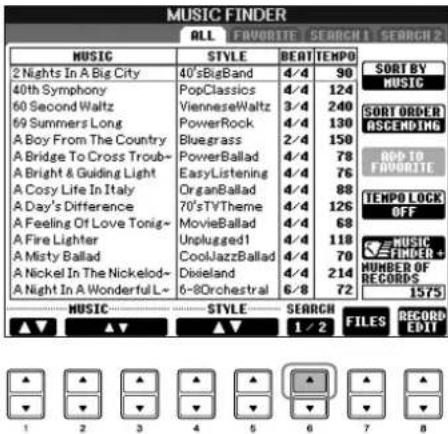

Searching the Records 108

Creating a Set of Favorite Records 110

Editing Records 110

Saving the Record 111

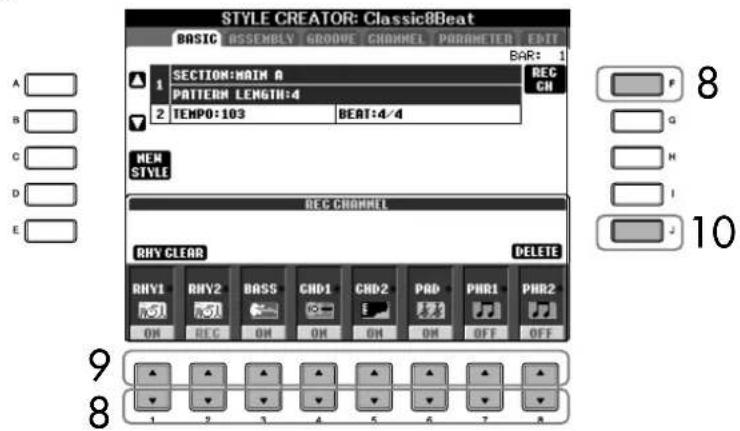

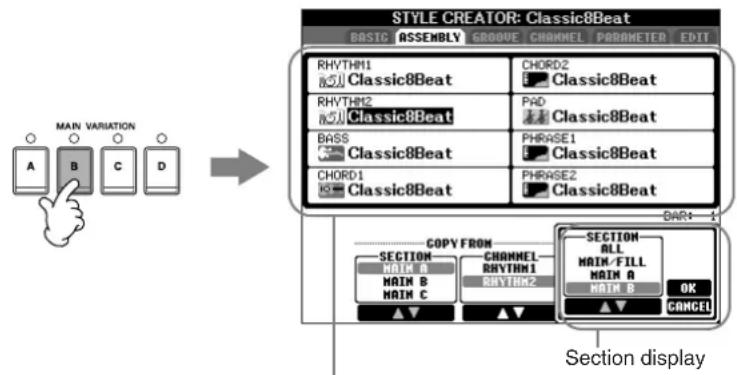

Style Creator 113

Style Structure 113

Creating a Style 114

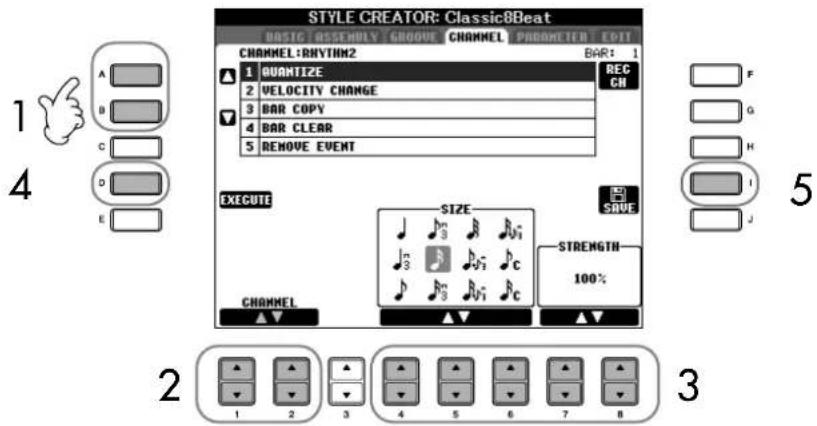

Editing the Created Style 119

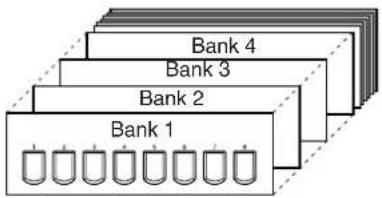

Registering and Recalling Custom Panel Setups —Registration Memory ......127

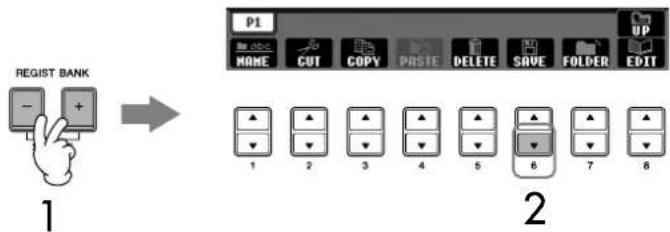

Registering and Saving Custom Panel Setups ...127

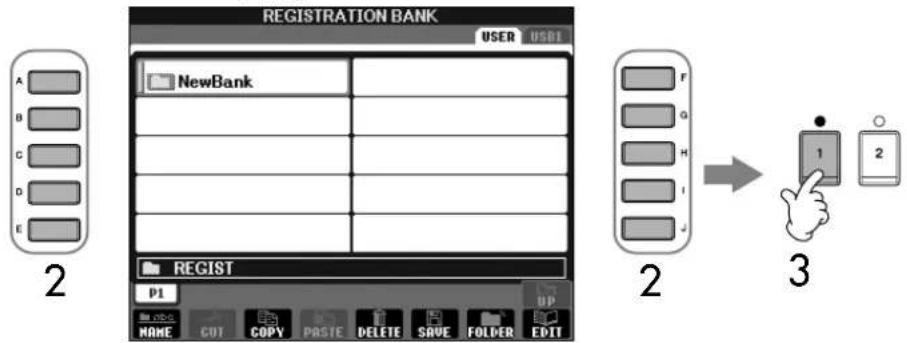

Recalling the Registered Panel Setups ...... 128

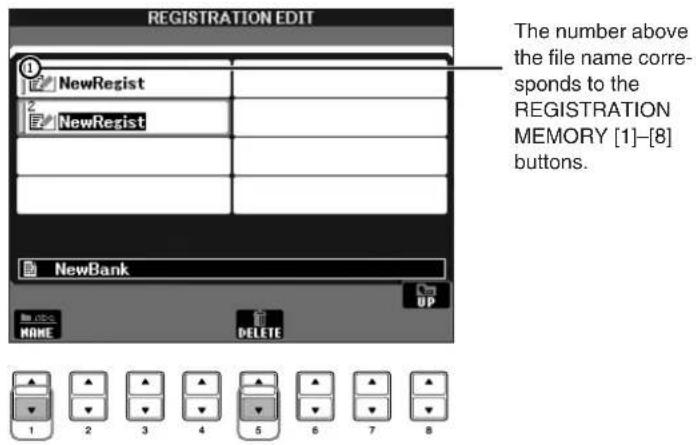

Deleting an Unneeded Panel Setup/Naming a Panel Setup 129

Disabling Recall of Specific Items (Freeze Function) 129

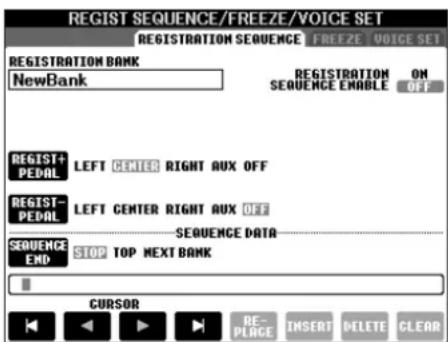

Calling Up Registration Memory Numbers in Order —Registration Sequence 130

Using, Creating and Editing Songs ....132

Compatible Song Types 132

Operations for Song Playback 133

Adjusting the Volume Balance and Voice Combination, etc. (MIXING CONSOLE) ..... 136

Using the Practice Function (Guide) ...... 137 Selecting the Guide Function Type ...... 137

Recording Your Performance 139

Recording Methods .... 139

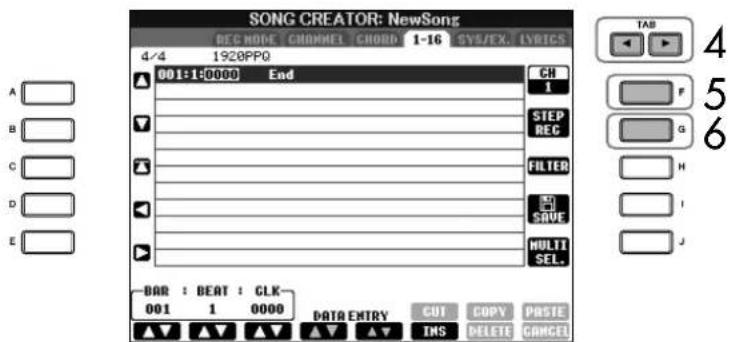

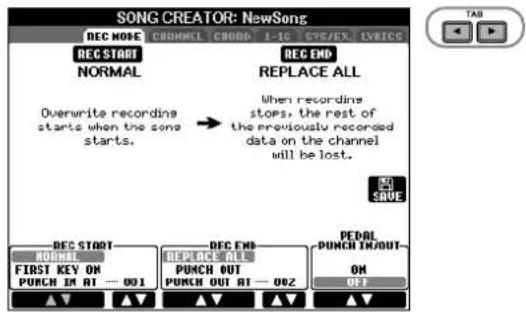

Editing a Recorded Song .... 154

Using a Microphone (CVP-405/403) 163

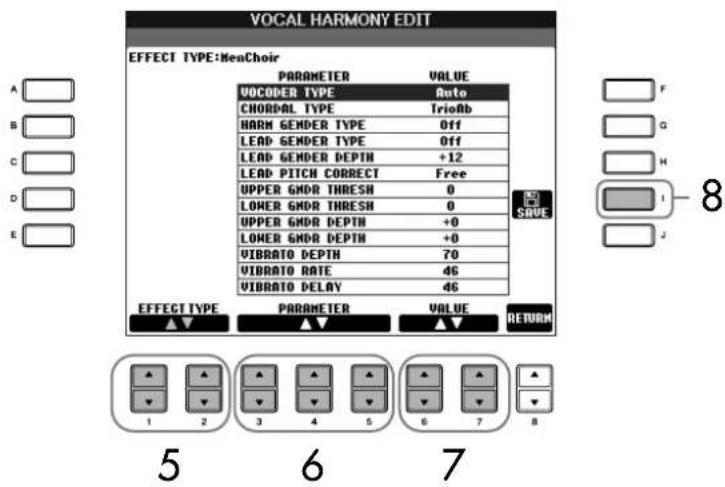

Editing Vocal Harmony Parameters ...... 163

Adjusting the Microphone and Harmony Sound 166

Talk Setting 170

Connecting the Clavinova Directly to the Internet 172

Connecting the Instrument to the Internet ... 172

Accessing the Special Website 173

Operations in the Special Website 173

Scrolling the Display 173

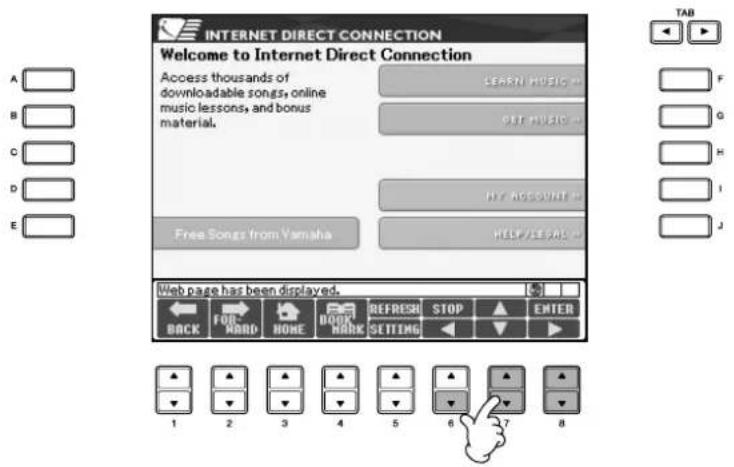

Following Links 174

Entering Characters 174

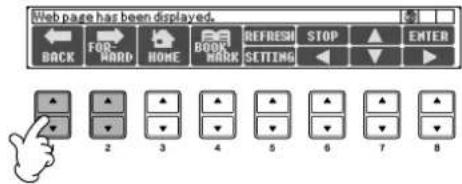

Return to the Previous Web Page 174

Refreshing a Web Page/Canceling Loading of a Web Page 175

Purchasing and Downloading Data 176

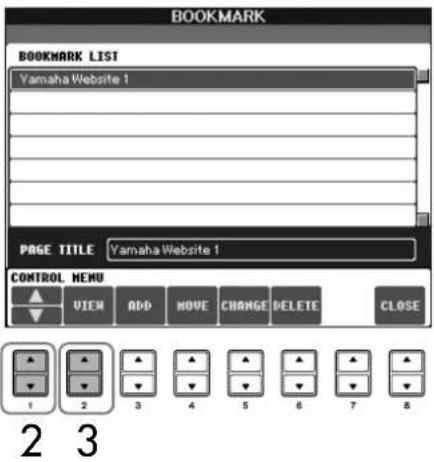

Registering Bookmarks of Your Favorite Pages .... 176

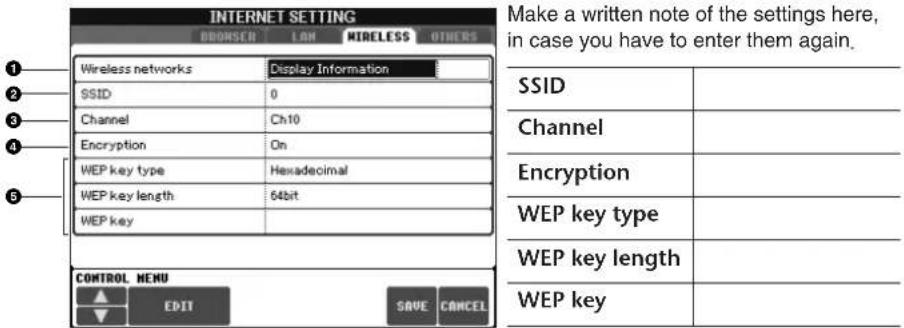

About the Internet Settings Display 179

Changing the Home Page 182

Initializing Internet Settings 183

Glossary of Internet Terms 184

Using Your Instrument with Other Devices ....185

Using Headphones (① [PHONES] jacks) 185

Connecting a Microphone or Guitar (2 [MIC./LINE IN] jack) (CVP-405/403) ..... 185

Connecting Audio & Video Devices (345) .. 185

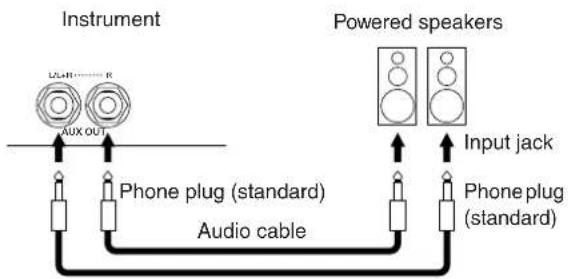

Using External Audio Devices for playback and Recording (3 [AUX OUT] Jacks) 185

Playing External Audio Devices with the Built-in Speakers (4 [AUX IN] Jacks) 186

Showing the Instrument's Display Contents on a Separate TV Monitor

(5 [VIDEO OUT] Terminal) (CVP-405) 186

Using the Footswitch or Foot Controller (6 [AUX PEDAL] jack) 187 Assigning Specific Functions to Each Foot Pedal . 187

Connecting External MIDI Devices (⑦ [MIDI] Terminals) 190

Connecting a Computer, USB Device, or Internet (78910) 190

Connecting a Computer (⑧ [USB TO HOST] and ⑦ [MIDI] Terminals) ..... 190

Connecting to a USB-type LAN Adaptor and USB Storage Device

(9 via the [USB TO DEVICE] Terminal) 191

Connect to the Internet (10 [LAN] Port) 192

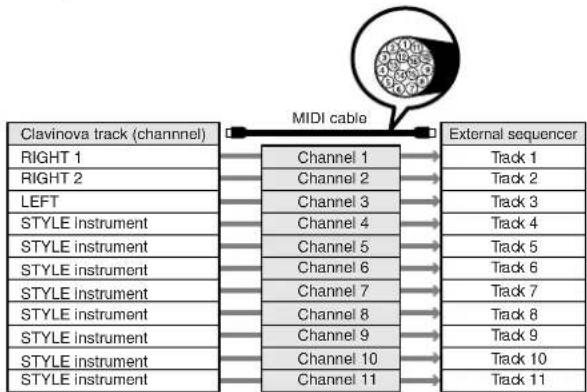

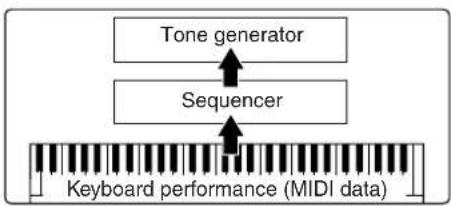

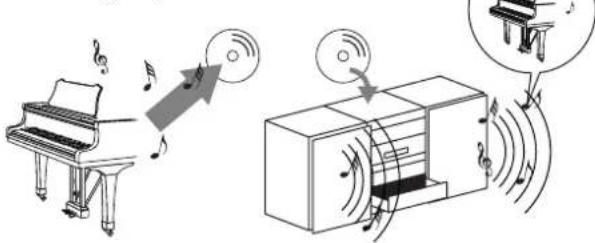

What is MIDI? 192

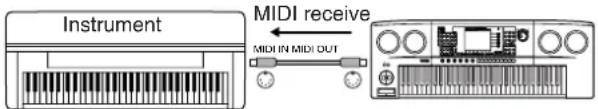

What You Can Do With MIDI 195

MIDI Settings 196

Basic Operation 196

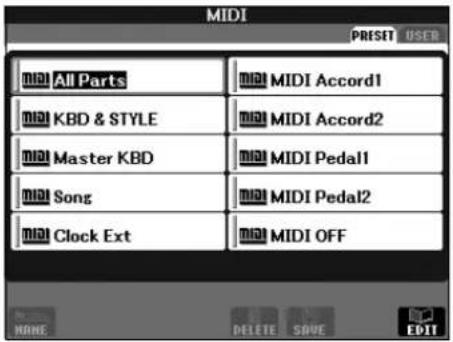

Pre-Programmed MIDI Templates 197

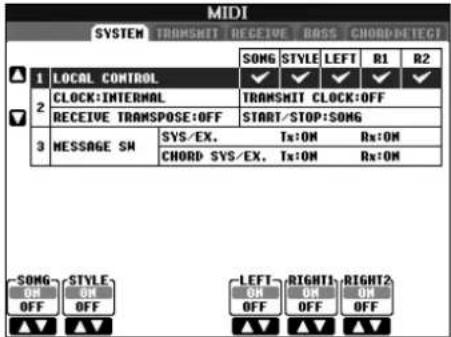

MIDI System Settings 198

MIDI Transmit Settings 198

MIDI Receive Settings.... 199

Setting the Bass Note for Style Playback via MIDI Receive 199

Setting the Chord Type for Style Playback via MIDI Receive 200

Appendix

Troubleshooting 201

CVP-405: Keyboard Stand Assembly 206

CVP-403: Keyboard Stand Assembly 208

CVP-401: Keyboard Stand Assembly 210

Installing the Floppy Disk Drive (Optional) (CVP-405) 212

Specifications 213

Index 215

Panel Button Chart 218

Introduction
Quick Guide
Basic Operation
ReferenceUsing, Creating and Editing Voices
Using, Creating and Editing the Auto Accompaniment Styles
Registering and Recalling Custom Panel Setups
Using, Creating and Editing Songs
Using a Microphone
Connecting the Clavinova Directly to the Internet
Using Your Instrument with Other Devices
Appendix

Authentic Acoustic Piano-like Touch with Graded Hammer (GH) and Graded Hammer 3 (GH3) Keyboard

The Clavinova is the next best thing to a real piano. It features an exceptional natural piano touch and expressive response-thanks to the remarkable Graded Hammer keyboard. Just as on an actual grand piano, the lower keys are heavy in touch and the higher keys are light, with all the natural gradations in between.

The CVP-405/403 features the enhanced, improved Graded Hammer 3 (GH3) technology, providing performance functions and expressive power found only on grand pianos, such as having repeated plays of the same note perfectly articulated, even when playing at high speed or with partial key release.

Audio Recording (CVP-405/403)

Recording Your Performance as Audio......page 60

You can record your performance as audio data to a USB storage device.

Connect a microphone or guitar to the instrument and enjoy recording a guitar and keyboard performance together, or record your singing along with Song playback (in karaoke fashion).

Playing the Instrument

Playing Piano Voices ...... page 28

With just the press of a button, you can reconfigure the entire instrument for optimum piano performance, no matter what settings you've made from the panel. Now you can enjoy performing and practicing with authentic grand piano sounds and response—instantly.

PIANO RESET

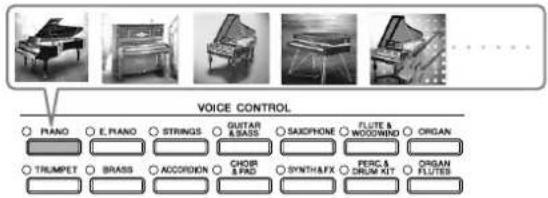

Playing Other Instrument Voices ......page 32

The instrument gives you not only various realistic piano Voices, but also features an exceptionally wide variety of authentic instruments, both acoustic and electronic.

Play along with previously recorded Song data, and fill out your solo performance with the sounds and arrangement of an entire band or orchestra.

Ease in Playing Backing Parts with Songs, —performance assistant technology......page 43

The new performance assistant technology features make it exceptionally easy to play professional-sounding backing parts along with Song playback.

Playing Melodies along with Auto Accompaniment, —Style Playback ......page 44

Use the Style playback features to automatically produce full backing parts and accompaniment, while you play melodies on top. It's like having an expert ensemble playing behind you. Select an accompaniment Style—such as pop, jazz, Latin, etc.—and let the instrument be your backing band!

STYLE CONTROL POPS/ROCK BALLAD DANCE SWINGS/JAZZ P/S COUNTRY LATIN BALLROOM INTERN WORLD PAINST ACMP AUTO ON/OFF FILL IN INTOC MAIN VARIATION IMRAX ENDING/11. SYNC STOP SYNC START START/ STOP MUSIC FINDER I II III A B C D I II II SYNC STOP S&P P/W

Practicing

Displaying and Playing along with the Music Score ......page 59

While playing back a Song, you can have the music score (notation) automatically shown on the display—an exceptionally convenient tool for learning and practicing pieces.

Guide Lamps......page 39

The key guide lamps are also helpful in learning and practicing, since they indicate the notes you should play, when you should play them, and how long you should hold them down.

Recording Your Performance...... page 42

The instrument lets you easily record your own performance and save it to internal memory or a USB storage device. This, too, is an excellent practice tool, letting you listen back to your playing and spot your strong and weak points.

Expand Your Song Collection

Internet Direct Connection......page 172

The instrument also connects directly to the Internet, letting you download Song data from special websites, and save them to internal memory or a USB storage device.

YAMAHA Clavinova Master volume 2 3 4 5 6 7 8 9 STYLE CONTROL MODER METHNICINE ON/OFF TRANSFORM TAP TUMPO TEMP TAMPO MODE SINEMA DOWN 51 10 11 12 13 14 15 16 17 18 19 LCD CONTRAST 20 21 22 23 24 25 DIRECT ACCESS MAIN VISION MAIN VISION/UL STOCK STOP START/ STOP MUSIC PINDER CHANNEL EN/OFF 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

1 [POWER] switch P. 14
② [USB TO DEVICE] Terminal..... P. 22
③ [MASTER VOLUME] dial.... P. 15
4 [DEMO] button.... P. 23

METRONOME

⑤ [ON/OFF] button P. 30

TRANSPOSE

⑥ [-] [+] buttons.... P. 56

TEMPO

⑦ [TAP TEMPO] button.... P. 47
⑧ [-] [+] buttons.... P. 31

STYLE CONTROL

⑨ STYLE category selection buttons.... P. 45
10 [ACMP ON/OFF] button P. 46
11 [AUTO FILL IN] button P. 48
12 INTRO [I]/[II]/[III] buttons P. 47
13 MAIN VARIATION [A]/[B]/[C]/[D] buttons P. 48
14 [BREAK] button.... P. 48
15 ENDING/rit. [I]/[II]/[III] buttons.... P. 48
16 [SYNC STOP] button.... P. 48
17 [SYNC START] button P. 47
18 [START/STOP] button.... P. 47
19 [MUSIC FINDER] button.... P. 52

20 [LCD CONTRAST] knob P. 18
21 [A]-[J] buttons.... P. 25
22 [DIRECT ACCESS] button.... P. 64
23 [MIXING CONSOLE] button.... P. 87
24 [CHANNEL ON/OFF] button P. 105, 139
25 [1▲▼]–[8▲▼] buttons P. 25
26 TAB◀|▶| buttons.... P. 26

27 [EXIT] button.... P. 26
28 [DATA ENTRY] dial P. 67
29 [ENTER] button P. 67
30 [USB] button P. 67
31 [USER] button P. 67

PART ON/OFF

32 [DUAL (RIGHT2)] button P. 80
[SPLIT (LEFT)] button.... P. 80
34 [FUNCTION] button P. 27
35 [INTERNET] button P. 172

SONG CONTROL

[SONG SELECT] button.... P. 35
37 [REC] button P. 42
38 [STOP] button P. 35
39 [PLAY/PAUSE] button P. 35
40 [REW]/[FF] buttons.... P. 134
41 [EXTRA TRACKS] button.... P. 140
42 [TRACK 2 (L)] button.... P. 41
43 [TRACK 1 (R)] button.... P. 39
44 [SCORE] button.... P. 38
45 [LYRICS/TEXT] button (CVP-405) [LYRICS] button (CVP-403/401).... P. 55
46 [GUIDE] button.... P. 39
47 [REPEAT] button P. 41

PIANO Setting

48 [PIANO RESET] button P. 29

REGISTRATION MEMORY

49 REGIST BANK [+] [-] buttons P. 128
50 [MEMORY] button P. 127
51 [1]–[8] buttons P. 127

CVP-405 CVP-403/401 60 57 58 59 57 58 59 26 TA5 30 31 PART DRIP/ 32 33 FUNCTION 34 NEODINET 35 DATA ENTRY 27 ENTER 28 36 37 38 39 BONG OUT 41 42 43 44 45 46 47 BONG SELECT RED STOP PLAY/PULSE NEW 40 IN STRANGE MOUNT LUXED CHILLER COFFAT + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + PAND RESET RESORT BANK MEMORY 1 2 3 4 5 6 7 8 48 49 50 51 52 VOICE CONTROL PAND O F/RAND STENANCE SWITCH PAREY SWITCH SPLIT & SWITCH TRIAMPT MIRASS ACCORDON LINDER SPLIT/LOAD SWITCH ONE TOUCH SETTING 1 2 3 4 5 6 7 8 24 OTS LINK VOICE EFFECT 53 POWER 1

VOICE CONTROL

52 VOICE category selection buttons P. 32
53 [VOICE EFFECT] button P. 85

ONE TOUCH SETTING

54 [1]-[4] buttons.... P. 50
55 [OTS LINK] button P. 51
56 Drum Kit icons...... Data List (Drum/key Assignment List)

Pedals

57 Left pedal.... P. 30
58 Sostenuto pedal P. 30
59 Damper pedal.... P. 30
60 Keyboard guide lamps P. 39
61 Mic signal/over lamps (CVP-405/403).... P. 54

For quick reference, also see the alphabetically sorted "Panel Button Chart" on page 218.

For information on the jacks and connectors located on the bottom left of the instrument, see page 185.

The [USB TO DEVICE] terminal is also located on the bottom left of the instrument. (CVP-405)

Playing the Keyboard

1 Connecting the power cable

First insert the plug of the power cable into the AC connector on the instrument, then plug the other end of the cable into the proper AC outlet on the wall.

Diagram showing connection between a computer and a device with a cable, labeled with number 1

(The shape of the plug and outlet differ depending on locale.)

2 Opening the key cover

CVP-405/403:

Using the hand grip on the front, lift open the key cover.

CVP-401:

Lift the cover slightly, then push and slide it open.

CAUTION

Hold the cover with both hands when opening or closing it. Do not release it until it is fully opened or closed. Be careful to avoid catching fingers (yours or others, especially children's) between the cover and the unit.

CAUTION

Do not place objects such as a piece of metal or paper on top of the key cover. Small objects placed on the key cover may fall inside the unit when the cover is opened and may be nearly impossible to remove. This could cause electric shock, short circuit, fire or other serious damage to the instrument.

CVP-405/403 CVP-401 CAUTION

CAUTION

Be careful to avoid catching your fingers when opening the cover.

CAUTION

CAUTION

Be careful to avoid catching your fingers when opening the cover.

3 Turning the power on

Press the [POWER] switch located on the right of the keyboard to turn the power on. The display located in the center of the front panel and the power indicator located below the left end of the keyboard lights up.

The power indicator lights up.

4 Playing the keyboard

Play the keyboard to produce sound.

Adjusting the volume

While playing the keyboard, adjust the volume level by using the [MASTER VOLUME] located at the left of the panel.

5 Turning the power off

Press the [POWER] switch to turn the power off. The screen and the power indicator turn off.

6 Closing the key cover

CVP-405/403: Grip the metal rim at the top of the panel, and close the key cover. CVP-401: Slide the cover toward you and gently lower the cover over the keys.

CVP-405/403 CVP-401

CAUTION

Be careful to avoid catching your fingers when closing the cover.

CAUTION

Be careful to avoid catching your fingers when closing the cover.

CAUTION

When raising or lowering the music rest, do not release your hands from the music rest until it is all the way up or down.

CAUTION

(CVP-401)

Do not try to use the music rest in a half-raised position.

CAUTION

(CVP-405/403)

Before lowering the music rest, close the sheet music braces (see below).

The music rest will not close unless the sheet music braces are also closed.

Music Rest

To Raise the Music Rest:

CVP-405/403:

Pull the music rest toward yourself as far as it will go.

When raised, the music rest is fixed at a certain angle and cannot be adjusted.

CVP-401:

1 Pull the music rest up and toward yourself as far as it will go.
2 Flip down the two metal supports at the left and right on the rear of the music rest.
3 Lower the music rest so that it rests on the metal supports.

CVP-405/403 CVP-401

To Lower the Music Rest:

CVP-405/403:

Lift the music rest slightly, then turn it back slowly.

CVP-401:

1 Pull the music rest toward yourself as far as it will go.
2 Raise the two metal supports (at the rear of the music rest).
3 Gently lower the music rest backward until it is all the way down.

CVP-405/403 CVP-401 Close the sheet music braces. CAUTION Be careful to avoid catching your fingers.

Sheet Music Braces (CVP-405/403)

These braces are for holding the pages of music books in place.

To Open To Close

Two diagrams showing mechanical or electrical component arrangements with arrows indicating motion (no text or symbols)

Using Headphones

Connect a pair of headphones to one of the [PHONES] jacks located on the bottom left of the instrument.

Two sets of standard stereo headphones can be connected. (If you are using only one pair of headphones, you can plug them into either of these jacks.)

CVP-405/403 CVP-401

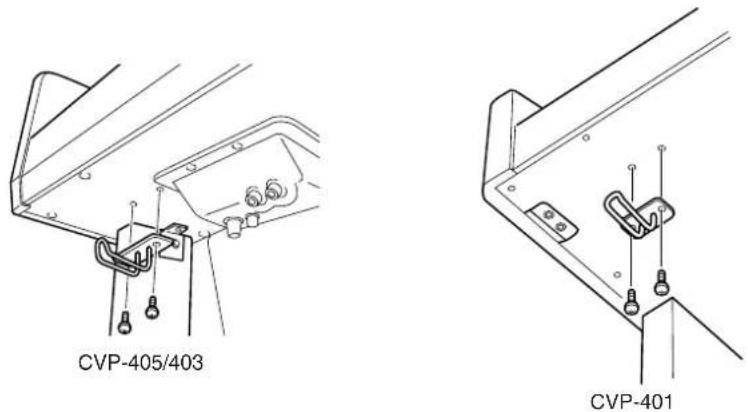

Using the Headphone Hanger

A headphone hanger is included in the instrument package so that you can hang the headphones on the instrument. Install the headphone hanger using included two screws (4 x 10mm) as shown in the figure.

Outputting sound from the speaker while headphones are connected

1 Call up the operation display.

$$ \left| \text { FUNCTION } \right|\rightarrow \left| \text { J } \right| \text { UTILITY } \rightarrow \text { TAB } \left| \blacktriangleleft \right|\left| \blacktriangleright \right| \text { CONFIG 2 } $$

2 Press the [3 ▲▼]/[4 ▲▼] (SPEAKER) button to select "ON."

Outputting sound only from the headphones

From the display called up in step 1 above, press the [3 ▲ ▼]/[4 ▲ ▼] (SPEAKER) button to select "OFF."

When "OFF" is selected, the speakers will not sound and you can only hear the instrument sound via the headphones.

CAUTION

Do not listen with the headphones at high volume for long periods of time. Doing so may cause hearing loss.

CAUTION

Do not hang anything other than the headphones on the hanger. Otherwise, the instrument or the hanger may be damaged.

Changing the Display Language

This determines the language used in the display for messages, file names, and character input.

1 Call up the operation display. [FUNCTION] → [J] UTILITY → TAB[◀|▶] OWNER

2 Press the [4 ▲▼]/[5 ▲▼] button to select a language.

UTILITY 1 OWNER NAME: LANGUAGE:ENGLISH BACKUP RESTORE LANGUAGE JAPANESE GERMAN FRENCH SPANISH ITALIAN OWNER NAME VERSION 1 2 3 4 5 6 7 8

Display Settings

Adjusting the Contrast of the Display

You can adjust the contrast of the display by turning the [LCD CONTRAST] knob located to the left of the display.

LCD CONTRAST A B C D E DIRECT ACCESS MIXING CONSOL PART CHANNEL OR/OF PART+ MAIN TRANSPOSE 0 J = 103 BAR 001 - 1 Natural! GrandPiano1 Cool! GalaxyEP LEFT Live! RIGHT2 4/4 J=103 STYLE 4/4 J=120 SONG Classic8Beat NewSong REGIST CHORD NewBank BALANCE 100 100 65 100 100 100 SONG STYLE NIC LEFT RIGHT1 RIGHT2 TAB USB USER F G H I J EXIT INTERNET DATA ENTRY ENTER 1 2 3 4 5 6 7 8

Adjusting the Brightness of the Display (CVP-405/403)

Adjust the brightness of the display.

1 Call up the operation display. [FUNCTION] → [J] UTILITY → TAB[◀][▶] CONFIG 2

2 Press the [2 ▲▼] button to adjust the brightness of the display.

UTILITY CONFIG 1 CONFIG 2 SCREEN OUT MEDIA OWNER SYSTEM RESET 1 LCD BRIGHTNESS:20 SPEAKER:HEADPHONE SWITCH VOICE CATEGORY BUTTON OPTIONS:OPEN & SELECT 2 DISPLAY VOICE NUMBER:OFF DISPLAY STYLE TEMPO:ON POPUP DISPLAY TIME:3.0sec LCD BRIGHT-MESS-20 SPEAKER HEADPHONE SH ON OFF ▲ ▼ ▲▼ 1 ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ △ 3 4 5 6 7 8

Entering the Owner Name in the Opening Display

You can have your name appear in the opening display (the display that appears when the power is turned on).

CVP-405 Clavinova

1 Call up the operation display.

[FUNCTION] → [J] UTILITY → TAB[◀][▶] OWNER

2 Press the [I] (OWNER NAME) button and call up the Owner Name display. Refer to page 74 for character-entry details.

UTILITY CONFIG 1 CONFIG 2 SCREEN OUT MEFID OWNER SYSTEM RESET 1 OWNER NAME: LANGUAGE:ENGLISH BACKUP RESTORE LANGUAGE ENGLISH ORDERSE OWNER NAME CASE ...01 ABC2 DEF3 GH4 JK5 NM6 OK PORST TUV8 NXYZ9 +-0 SYMBOL DELETE CANCE

Displaying the version number

To check the version number of this instrument, press the [7 ]/[8 ] (VERSION) buttons in the display in step 1 above. Press the [EXIT] button to return to the original display.

Handling the Floppy Disk Drive (FDD) and Floppy Disks

(The floppy disk drive is optional. For instructions on installing the floppy disk drive, see page 212.)

The floppy disk drive lets you save original data you've created on the instrument to floppy disk, and allows you to load data from floppy disk to the instrument.

Be sure to handle floppy disks and treat the disk drive with care. Follow the important precautions below.

Floppy Disk Compatibility

- 3.5" 2DD and 2HD type floppy disks can be used.

Formatting a Floppy Disk

- If you find that you are unable to use new, blank disks or old disks that have been used with other devices, you may need to format them. For details on how to format a disk, see page 69. Keep in mind that all data on the disk will be lost after formatting. Make sure to check beforehand whether or not the disk contains important data.

NOTE

Floppy disks formatted on this device may or may not be useable as is on other devices.

Inserting/Removing Floppy Disks

Inserting a Floppy Disk into the Disk Drive:

- Hold the disk so that the label of the disk is facing upward and the sliding shutter is facing forward, towards the disk slot. Carefully insert the disk into the slot, slowly pushing it all the way in until it clicks into place and the eject button pops out.

NOTE

Never insert anything but floppy disks into the disk drive. Other objects may cause damage to the disk drive or floppy disks.

Removing a Floppy Disk

- After checking that the instrument is not accessing* the floppy disk (checking that the use lamp on the floppy disk drive is off), firmly press the eject button at the upper right of the disk slot all the way in. When the floppy disk is ejected, pull it out of the drive. If the floppy disk cannot be removed because it is stuck, do not try to force it, but instead try pressing the eject button again, or try re-inserting the disk and attempt to eject it again.

* Access of the disk indicates an active operation, such as recording, playback, or deletion of data. If a floppy disk is inserted while the power is on, the disk is automatically accessed, since the instrument checks whether the disk has data.

CAUTION

Do not remove the floppy disk or turn off the instrument itself while the disk is being accessed.

Doing so may result not only in loss of data on the disk but also damage to the floppy disk drive.

- Be sure to remove the floppy disk from the disk drive before turning off the power. A floppy disk left in the drive for extended periods can easily pick up dust and dirt that can cause data-read and -write errors.

Cleaning the Disk Drive Read/Write Head

• Clean the read/write head regularly. This instrument employs a precision magnetic read/write head which, after an extended period of use, will pick up a layer of magnetic particles from the disks used that will eventually cause read and write errors.
• To maintain the disk drive in optimum working order Yamaha recommends that you use a commercially-available dry-type head cleaning disk to clean the head about once a month. Ask your Yamaha dealer about the availability of proper headcleaning disks.

About Floppy Disks

Handle floppy disks with care, and follow these precautions:

• Do not place heavy objects on a disk or bend or apply pressure to the disk in any way. Always keep floppy disks in their protective cases when they are not in use.
• Do not expose the disk to direct sunlight, extremely high or low temperatures, or excessive humidity, dust or liquids.
• Do not open the sliding shutter and touch the exposed surface of the floppy disk inside.
• Do not expose the disk to magnetic fields, such as those produced by televisions, speakers, motors, etc., since magnetic fields can partially or completely erase data on the disk, rendering it unreadable.
• Never use a floppy disk with a deformed shutter or housing.
• Do not attach anything other than the provided labels to a floppy disk. Also make sure that labels are attached in the proper location.

To Protect Your Data (Write-protect Tab):

- To prevent accidental erasure of important data, slide the disk's write-protect tab to the "protect" position (tab open). When saving data, make sure that the disk's write-protect tab is set to the "overwrite" position (tab closed).

Diagram of a floppy disk with a magnified inset showing a square object and a downward arrow (no text or symbols)

Write-protect tab open (protect position)

This instrument features a built-in [USB TO DEVICE] terminal. By connecting the instrument to a USB storage device with a standard USB cable, you can save data you've created to the connected device, as well as read data from the connected device. Be sure to handle USB storage device with care. Follow the important precautions below.

NOTE For more information about the handling of USB storage device, refer to the owner's manual of the USB storage device.

Compatible USB storage devices

• Up to two USB storage devices, such as a floppy disk drive, hard disk drive, CD-ROM drive, flash memory reader/writer, etc., can be connected to the [USB TO DEVICE] terminal. (If necessary, use a USB hub. The number of USB storage devices that can be used with musical instruments simultaneously even when a USB hub is used is a maximum of two.) This instrument can recognize up to four drives in one USB storage device. Other USB devices such as a computer keyboard or mouse cannot be used.
• The instrument does not necessarily support all commercially available USB storage devices. Yamaha cannot guarantee operation of USB storage devices that you purchase. Before purchasing USB storage devices, please consult your Yamaha dealer, or an authorized Yamaha distributor (see list at end of the Owner's Manual) for advice, or visit the following web page: http://music.yamaha.com/homekeyboard

NOTE Although CD-R/RW drives can be used to read data to the instrument, they cannot be used for saving data.

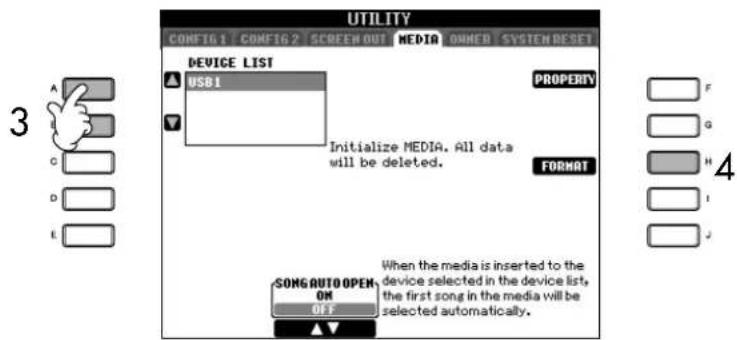

Formatting USB storage media

- When a USB storage device is connected or media is inserted, a message may appear prompting you to format the device/media. If so, execute the Format operation.

CAUTION

The format operation overwrites any previously existing data. Make sure that the media you are formatting does not contain important data. Proceed with caution, especially when connecting multiple USB storage medias.

Using USB Storage Devices

- When connecting a USB storage device to the [USB TO DEVICE], make sure that the connector on the device is appropriate and that it is connected in the proper direction. Before removing the media from the device, make sure that the instrument is not accessing data (such as in the Save, Copy and Delete operations).

CAUTION

- A void frequently turning the power on/off to the USB storage device, or connecting/disconnecting the cable too often. Doing so may result in the operation of the instrument "freezing" or hanging up. While the instrument is accessing data (such as in the Save, Copy and Delete operations), do NOT unplug the USB cable, do NOT remove the media from the device, and do NOT turn the power off to either device. Doing so may corrupt the data on either or both devices.

- When connecting a USB storage device to the [USB TO DEVICE] on the top panel, remove it before closing the key cover. If the key cover is closed with the USB storage device connected, the USB storage device may be damaged.

- T hough there are two [USB TO DEVICE] terminals on the CVP-405 (and one on the CVP-403/401), if you are connecting two or three devices at the same time (such as two USB storage devices and a LAN adaptor), you should use a USB hub device. The USB hub must be self-powered (with its own power source) and the power must be on. Only one USB hub can be used. If an error message appears while using the USB hub, disconnect the hub from the instrument, then turn on the power of the instrument and re-connect the USB hub. - T hough the instrument supports the USB 1.1 standard, you can connect and use a USB 2.0 storage device with the instrument. However, note that the transfer speed is that of USB 1.1.

To protect your data (write-protect):

To prevent important data from being inadvertently erased, apply the write-protect provided with each storage device or media. If you are saving data to the USB storage device, make sure to disable write-protect.

Playing the Demos

The Demos are more than just songs—they also provide helpful, easy-to-understand introductions to the features, functions and operations of the instrument. In a way, the Demos are an interactive “mini-manual”—complete with sound demonstrations and text showing what it can do for you.

DEMO EXIT

1 Select the desired Language.

1 Call up the operation display. [FUNCTION] → [J]UTILITY → TAB[◀][▶] OWNER
2 Press the [4 ▲▼]/[5 ▲▼] buttons to select the desired language.

UTILITY CONFIG 1 CONFIG 2 SCREEN OUT MEDIA OWNER SYSTEM RESET 1 OWNER NAME: LANGUAGE:ENGLISH BACKUP RESTORE LANGUAGE ENGLISH JAPANESE GERMAN FRENCH SPANISH ITALIAN OWNER NONE VERSION 1 2 3 4 5 6 7 8

2 Press the [DEMO] button to start the Demos.

Demos will play back continuously until stopped.

3 Press the [EXIT] button to stop the Demo playback.

When the Demo stops, the display returns to the MAIN display (page 65).

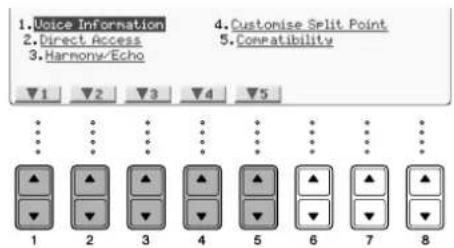

Showing Specific Demo Topics

1 Press the [7▲▼]/[8▲▼] buttons in the Demo display to call up the specific Demo menu.

SKIP OVERVIEW 1 2 3 4 5 6 7 8

2 Press one of the [A]-[I] buttons to show a specific Demo.

NOTE On the CVP-401, "Yamaha Piano Technology" is shown instead of "Ultimate Realism."

To return back to the previous display, press the [J] button.

DEMO Ultimate Realism Home Studio Sound Showcase Internet Services Style Showcase Functions & Features Interactive Features Play Overview Demo A F B G C H D I E J

When the Demo has more than one screen.

Press a [▲▼] button corresponding to the screen number.

1. Voice Information 2. Direct Access 3. Harmony/Echo 4. Customise Split Point 5. Compatibility ▼1 ▼2 ▼3 ▼4 ▼5 ... ... ... ... ... ... ... ... ... ... ... 1 2 3 4 5 6 7 8

3 Press the [EXIT] button to exit from Demo.

Operations in the Basic Displays

To start with, you should know a little about the basic displays that appear in the Quick Guide. There are three basic displays:

Main display ▶ See below.

File selection display ▶ page 26

Function display ▶ page 27

Operation of the Main Display

The Main display shows the basic settings and important information for the instrument (It is the same display that appears when the instrument is turned on.). You can also call up display pages related to the displayed function from the Main display.

A NOTE About information in the Main display See page 65.

①[A]-[J] buttons

The [A|-|] buttons correspond to the settings indicated next to the buttons.

For example, press the [F] button, and the Voice (RIGHT 1) selection display will appear in the display.

②[1 ▲▼]-[8 ▲▼] buttons

The [1 ▲ ▼]–[8 ▲ ▼] buttons correspond to the parameters which are indicated above the buttons. (On the CVP-401, open the volume balance display by pressing the [C] button.) For example, pressing the [1 ▲ ] button will increase the Song (page 35) volume.

③[DIRECT ACCESS] and [EXIT] buttons

Here's a convenient way to return to the Main display from any other display: Simply press the [DIRECT ACCESS] button, then the [EXIT] button.

MAIN TRANSPASE 0 J = 103 EAN 001 - A B C D E Natural! GrandPiano1 Cool: GalaxyEP LEFT Live RIGHT2 4/4 J=102 STYLE 4/4 J=120 SONG Classic8Beat NewSong CHORD REQIST NewBank DIRECT ACCESS SOLNG STYLE NIC LEFT RIGHT1 RIGHT2 100 100 100 100 100 1 2 3 4 5 6 7 8 F G H I J EXIT 3

Operation of the File Selection Display

In the File Selection display, you can select the Voice (page 28)/Song (page 35)/Style (page 44), etc. In the example here, we'll call up and use the Song Selection display.

1 Press the [SONG SELECT] button to call up the Song Selection display.

2 Press the TAB [◀][▶] buttons to select the desired drive (PRESET/USER/USB).

About PRESET/USER/USB

PRESET ....... Internal memory to which the preprogrammed data are installed as preset data.

USER ....... Internal memory that allows both reading and writing of data.

USB .... USB storage device, such as USB flash memory/floppy disk drive, etc., which is connected to the [USB TO DEVICE] terminal.

NOTE Hereafter in this manual, any USB storage device such as USB flash memory/floppy disk, etc. will be referred to as "USB storage device."

3 Select a folder (if necessary).

Several Songs may be together in a folder. In this case, the folder(s) will appear in the display (see the illustration at right). Press one of the [A]–[J] buttons to select a folder.

Press the [8 ▲] (UP) button to call up the next highest level folder.

SONG PRESIT USER DVD1 Pop&Rock Movie&Show

4 Select a page (if the display has several pages).

When the drive contains more than ten Songs, the display is divided up into several pages. The page indications are shown at the bottom of the display. Press one of the [1▲]–[6▲] buttons to select a page.

5 Press one of the [A]–[J] buttons to select a Song.

You can also select a Song by using the [DATA ENTRY] dial, then press the [ENTER] button to execute.

6 Press the [EXIT] button to return to the previous display.

Operation of the Function Display

In the Function display, you can make detailed settings. In the example here, we'll call up and use the keyboard touch sensitivity setting display.

1 Press the [FUNCTION] button.

Categories of detailed settings are shown.

FUNCTION MENU MASTER TUNE/ SCALE TUNE SONG SETTING STYLE SETTING/ SPLIT POINT/ CHORD FINGERING CONTROLLER REGIST SEQUENCE/ FREEZE/VOICE SET DIGITAL REC MENU MIC SETTING/ VOCAL HARMONY MIDI UTILITY

2 Press the [D] button to select the category CONTROLLER.

When the selected category is further divided into sub-categories, the tab(s) will be shown in the display.

CONTROLLER PEDAL KEYBOARD/POWEI SONG STYLE MIG LEFT R1 R2 1 RIGHT:SUSTAIN 2 CENTER:SOSTEMUTO 3 LEFT:SOFT 4 AUX:VOLUME FUNCTION SUSTAIN SOSTEMUTO SOFT GLIDE PORTAMENTO PITCH BEND MOD/S.ART1 HALF PEDOL POINT 0 LEFT ON OFF RIGHT1 ON OFF RIGHT2 ON OFF AUX PEDAL + POLARITY - ▲▼ ▼▼ ▲▼ ▲▼ ▲▼

3 Press the TAB [▶] button to select the KEYBOARD/PANEL tab.

When the setting is further divided into additional settings, a list will be shown in the display.

CONTROLLER PEDAL KEYBOARD/PANEL LEFT R1 R2 1 INITIAL TOUCH:NORMAL 2 TRANSPOSE ASSIGN:MASTER TOUCH HARD2 HARD1 NORMAL SOFT1 SOFT2 TOUCH OFF LEVEL 95 LEFT ON OFF RIGHT1 ON OFF RIGHT2 ON OFF

4 Press the [A] button to select the "1 INITIAL TOUCH."

4 A B C D E CONTROLLER PEEAL KEYBOARD/PANEL LEFT B1 B2 1 TATITOL TOUCH:NORMAL 2 TRANSPOSE ASSIGN:MASTER TOUCH HARD2 HARD1 NORMAL SOFT1 SOFT2 TOCH OFF LEVEL SS LEFT RIGHT1 RIGHT2 OFF OFF OFF 5 1 2 3 4 5 6 7 8

5 Press the [1]/[2] button to select touch sensitivity for the keyboard.

For details on the touch sensitivity settings, see page 29.

Throughout this manual, arrows are used in the instructions, indicating in shorthand the process of calling up certain displays and functions. For example, the instructions above can be indicated in shorthand as: [FUNCTION] → [D] CONTROLLER → TAB [▶] KEYBOARD/PANEL → |A| 1 INITIAL TOUCH.

Playing Voices

The instrument features a variety of Voices, including exceptionally realistic piano Voices.

METRONOME [ON/OFF] button (page 30) VOICE category selection buttons (page 32) VOICE CONTROL PIANO E.PIANO STRINGS GUTAR & BASS SAXPHONE FLUTE & WOODWIND ORGAN TRUMPET BRASS ACCORDON CHOR & PAD SYNTH&FX PERC & DRUM KIT ORGAN FLUTES Piano RESET [PIANO RESET] button (see page 29)

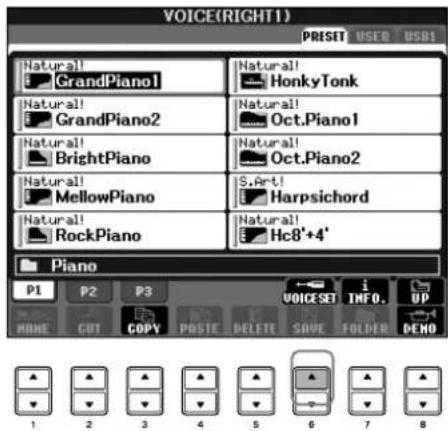

Playing the Piano Voice

Here, we'll call up and play the piano voice. You can play the piano voice using the pedals or metronome.

One-touch Piano Play

This convenient, easy-to-use feature completely and automatically reconfigures the entire instrument for optimum piano performance. No matter what settings you've made from the panel, you can instantly call up the piano settings by a single button press.

Press the piano-shaped [PIANO RESET] button on the lower right of the panel.

Piano Lock Function

The convenient Piano Lock function lets you "lock" the piano so that you don't inadvertently change the settings by pressing another button on the panel. Once locked, the instrument stays in the piano mode, even if other buttons are pressed—preventing you from accidentally starting a Song (page 35) during your piano performance.

1 Press and hold down the [PIANO RESET] button on the lower right of the panel for three seconds or longer, until a message appears prompting you to enable Piano Lock.
2 Press the [F] (OK) button to enable Piano Lock.
3 To turn Piano Lock off, press and hold down the [PIANO RESET] button again for three seconds or longer.

Setting the touch sensitivity of the keyboard

You can adjust the touch response of the instrument (how the sound responds to the way you play the keys). The touch sensitivity type becomes the common setting for all Voices.

1 Call up the operation display: [FUNCTION] → [D] CONTROLLER → TAB [®] KEYBOARD/PANEL → |A| 1 INITIAL TOUCH
2 Press the [1]/[2] buttons to specify the touch response. HARD 2 ..... Requires strong playing to produce high volume. Best for players with a heavy touch.

HARD 1 ..... Requires moderately strong playing for high volume.

NORMAL... Standard touch response.

SOFT 1..... Produces high volume with moderate playing strength.

SOFT 2..... Produces relatively high volume even with light playing strength. Best for players with a light touch.

NOTE • T his setting does not change the weight of the keyboard.
- When you do not want to apply touch sensitivity, set Touch to OFF for the corresponding parts by pressing the [5†]–[7†] buttons. When Touch is set to OFF, you can specify the fixed volume level by pressing the [4π†] button.
• T he touch sensitivity settings may have no effect with certain voices.

CONTROLLER PEAKI KEYBOARD/PANEL LEFT B1 B2 1 INITIAL TOUCH:NORMAL ✓ ✓ ✓ 2 TRANSPOSE ASSIGNING MASTER TOUCH OFF HARD2 LEVEL 95 HARD1 MORIAL SOFT1 SOFT2 LEFT RIGHT1 RIGHT2 OFF OFF OFF ... ... ... ... ... ... ... ... ... 1 2 3 4 5 6 7 8

Using the Pedals

The instrument features three pedals.

CVP-405 CVP-403/401 Left Pedal Damper Pedal Sostenuto Pedal

Left Pedal Damper Pedal Sostenuto Pedal

● Damper Pedal (Right)

The damper pedal performs the same function as the damper pedal on an actual acoustic piano, letting you sustain the sound of the voices even after releasing the keys.

NOTE • Some Voices may sound continuously or have a long decay after the notes have been released while the damper pedal is held.
- Certain Voices in the "PERCUSSION & DRUM KIT," "GM&XG" and "GM2" groups may not be affected by use of the damper pedal.

● Sostenuto Pedal (Center)

If you play a note or chord on the keyboard and press the sostenuto pedal while holding the note(s), the notes will sustain as long as the pedal is held. All subsequent notes will not sustain.

NOTE • Certain Voices, such as [STRINGS] or [BRASS], sustain continuously when the sostenuto pedal is pressed.
- Certain Voices in the "PERCUSSION & DRUM KIT", "GM&XG" and "GM2" groups may not be affected by use of the sostenuto pedal.

● Left Pedal

When the Piano voice is selected, pressing this pedal reduces the volume and slightly changes the timbre of the notes you play. The settings assigned to this pedal may differ depending on the selected Voice.

NOTE The depth of the left pedal effect can be adjusted (page 98).

Musical notation showing treble clef, key signature, and notes with directional arrows indicating motion or rhythm

When you press the damper pedal here, the notes you play before you release the pedal have a longer sustain.

Musical notation with treble clef, notes, and a wavy line indicating pitch or rhythm

When you press the sostenuto pedal here while holding the note(s), the notes will sustain as long as you hold the pedal.

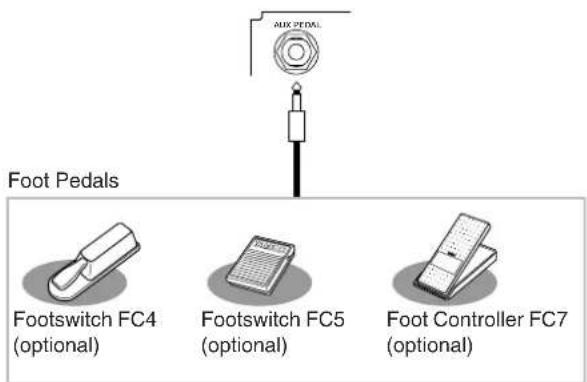

● Foot Controller/Footswitch

An optional Yamaha foot controller (FC7) or footswitch (FC4 or FC5) can be connected to the AUX PEDAL jack and used to control various functions assigned (page 187).

Making Settings for the Pedals

You can assign one of the various functions to the three pedals or an optional foot controller/footswitch, doing things like controlling the Super Articulation voices (page 79) (CVP-405) or starting and stopping the Style (page 187).

Using the Metronome

The metronome provides a click sound, giving you an accurate tempo guide when you practice, or letting you hear and check how a specific tempo sounds.

1 Press the METRONOME [ON/OFF] button to start the metronome.

2 To stop the metronome, press the METRONOME [ON/OFF] button again.

Adjusting the Tempo or Setting the Time Signature of the Metronome Sound

■ Adjusting the Metronome Tempo

1 Press the TEMPO [-]/[+] button to call up the pop-up tempo setting display.

TAP TEMPO - TEMPO + + RESET TEMP0 = 103

2 Press the TEMPO [-]/[+] buttons to set the tempo.

Pressing and holding either button lets you continuously increase or decrease the value.

You can also use the [DATA ENTRY] dial to adjust the value. To reset the tempo, press the TEMPO [-]/[+] buttons simultaneously.

NOTE About the Tempo display

The number in the display indicates how many quarter-note beats there are in one minute. The range is between 5 and 500. The higher the value, the faster the tempo.

3 Press the [EXIT] button to close the Tempo display.

Set the Popup Display Time

1 Call up the operation display. [FUNCTION] → [J] UTILITY → TAB [◀][▶] CONFIG 2
2 Select the [B] (2 POPUP DISPLAY TIME) button, and use the [7▲▼]/[8▲▼] buttons to set the time.

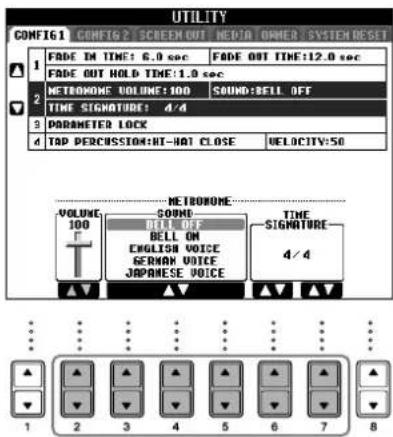

■ Determine the Metronome Time Signature and Other Settings

1 Call up the operation display:

[FUNCTION] → [J] UTILITY → TAB [◀] CONFIG 1 → [B] 2 METRONOME

2 Set the parameters by pressing the [2]-[7] buttons.

VOLUME Determines the level of the metronome sound.
SOUND	Determines which sound is used for the metronome.Bell Off...... Conventional metronomesound, with no bell.Bell On...... Conventional metronomesound, with bell.English Voice ...... Count in EnglishGerman Voice .... Count in GermanJapanese Voice ... Count in JapaneseFrench Voice...... Count in FrenchSpanish Voice ..... Count in Spanish
TIMESIGNATURE	Determines the time signature of the metronomesound.

UTILITY CONFIG1 CONFIG 2 SCREEN OUT MEDIA OWNER SYSTEM RESET FADE ON TIME: 6.0 sec FADE OUT TIME:12.0 sec FADE OUT HOLD TIME:1.0 sec METRONE VOLUME:100 SOUND:BELL OFF TIME SIGNATURE: 4/4 PARAMETER LOCK TAP PERCUSSION:HI-HAT CLOSE VELOCITY:50 METRONE VOLUME 100 SOUND TIME BELL ON ENGLISH VOICE GERMAN VOICE JAPANESE VOICE 4/4 ▲ ▼ ▲ ▼ ▲ ▼ ▲ ▼ ▲ ▼ ▲ ▼ ▲ ▼ ▲ ▼ ▲ ▼ ▲ ▼ ▲ ▼ ▲ ▼ ▲ ▼ ▲ ▼ ▲ ▼ ▲ ▼ ▲ ▼ ▲ ▼ ▲ ▼ ▲ ▼ ▲ ▼ ▲ ▼ ▲ ▼ ▲ ▼ ▲ ▼ ▲ ▼ △ 1 2 3 4 5 6 7 8

Playing Various Voices

The instrument features a variety of Voices such as strings or wind instruments, including exceptionally realistic piano Voices.

Playing Preset Voices

The preset Voices are categorized and contained in appropriate folders. VOICE category selection buttons on the panel correspond to the categories of the preset Voices. For example, press the [PIANO] button to display various piano Voices.

NOTE About the various Voices

Refer to the Voice List in the separate Data List booklet.

1 Use the [A]/[B]/[F]/[G] (RIGHT1) buttons in the Main display to select the RIGHT 1 part.

Make sure the PART ON/OFF [DUAL (RIGHT2)]/[SPLIT (LEFT)] buttons are off. The Voice selected here is the RIGHT 1 part. For the Voice part, see page 80.

MAIN TOMMPOCE 0 J = 103 DAN 001 - 1 Natural! GrandPiano1 Cool LEFT Live! RIGHT2 GalaxyEP Strings 4/4 J = 102 STYLE 4/4 J = 120 SONG Classic:Beat NewSong CHORD REGIST BALANCE SOPG STYLE MIC LEFT RIGHT1 RIGHT2 F G H I J

Determining how the Voice selection display is opened (when one of the VOICE category selection buttons is pressed).

You can select how the Voice selection display is opened (when one of the VOICE category selection buttons is pressed).

1 Call up the operation display.

$$ | F U N C T I O N | \rightarrow | J | U T I L I T Y \rightarrow T A B | \blacktriangleleft | | \blacktriangleright | C O N F I G 2 $$

2 Select the [B] (2 VOICE CATEGORY BUTTON OPTIONS) button, and use the [1]/[2] buttons to change how the Voice selection display is opened.

- OPEN&SELECT: Opens the Voice selection display with the top (first) voice of the voice category automatically selected (when one of the VOICE category selection buttons is pressed). With the default settings, the OPEN&SELECT function is turned on.

- OPEN ONLY: Opens the Voice selection display with the currently selected voice (when one of the VOICE category selection buttons is pressed).

2 Press one of the VOICE category selection buttons to select a Voice category and call up the Voice selection display.

3 Press one of the [A]-[J] buttons to select the desired Voice.

You can call up the information for the selected Voice by pressing the [7▲] (INFORMATION) button.

NOTE The Voice type and its defining characteristics are indicated above the Preset Voice name. For details on the characteristics, see page 79.

VOICE(RIGHT1) PRESIT USBF USB1 Live! Strings DuoetL! Violin Live! Allegro OrchHorns Live! Orchestra OrchFlute Symphonic OrchOboe Strings Tutti Strings P1 P2 P3 P4 VOICE ST THFD HD NAME COPY COPY PREC. CHANGE FOLD IN DEMO

NOTE You can instantly jump back to the original display by "double-clicking" on one of the |A|-|J| buttons.

4 Play the keyboard.

NOTE Restoring the Piano settings

Press the piano-shaped [PIANO RESET] button.

Recalling your favorite Voices easily

The instrument has a huge amount of high-quality Voices, covering an exceptionally broad range of instrument sounds—making it perfect for virtually every musical application. However, the sheer number of Voices may seem overwhelming at first. To easily recall your favorite Voice, there are two methods:

- Save your favorite Voice to the USER display in the Voice Selection display and recall it by using the [USER] button

1 Copy your favorite Voices from the Preset drive to the User drive. Refer to page 71 for details on the copy operation.
2 Call up the selection display. [USER] → [F] VOICE (RIGHT1)
3 Select the desired Voice. Press one of the [A]–[J] buttons to select the Voice.

- Register your favorite Voice to Registration Memory and recall it with the REGISTRATION MEMORY [1]–[8] buttons

Refer to page 127 for details on Registration Memory operations.

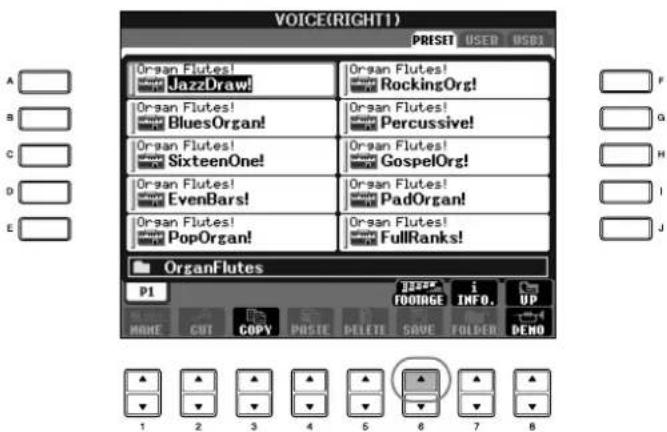

Playing the Voice Demos

To listen to the various Voices and hear how they sound especially in context, listen to the demo songs for each Voice.

In the Voice Selection display (page 33 step 3), press the [8▼] (DEMO) button to start the Demo for the selected Voice.

2 To stop the Demo, press the [8 ▼] (DEMO) button again.

Selecting percussion sounds

When one of the Drum Kit Voices in the [PERCUSSION & DRUM KIT] group is selected, you can play various drums and percussion instrument sounds on the keyboard. Details are given in the Drum Kit List of the separate Data List. To check which "Standard Kit 1" percussion sounds are assigned to each key, look at the icons printed above the keys.

Selecting sound effects

You can play individual sound effects, such as bird chirps and ocean sounds from the keyboard. The sound effects are categorized as "GM&XG"/"GM2."

1 Use the [A]/[B]/[F]/[G] (RIGHT 1) buttons to select the RIGHT 1 part.

2 Press the [8 ▲] (UP) button to call up the Voice categories.

3 Press the [2 ▲] button to display page 2.

4 Press the [E]/[F] button to select "GM&XG"/"GM2."

5 Press the [2 ▲] button to display page 2.

6 Press the [F] button to select "SoundEffect."

7 Press one of the [A]-[J] buttons to select the desired sound effect.

8 Play the keyboard.

Selecting GM/XG/GM2 Voices

NOTE For details on the Voice allocation format, see page 195.

You can select the GM/XG/GM2 Voices directly via the panel operation.

Perform steps 1–4 described above, select the desired category, then select the desired voice.

Playing different Voices simultaneously

The instrument can play different Voices simultaneously (page 80).

• Layering two different Voices

This is useful for creating rich and thick sounds.

- Setting separate Voices for the left and right sections of the keyboard

You can play different Voices with the left and right hands. For example, you can set up the keyboard to play the bass Voice with your left hand and the piano Voice with your right hand.

Practicing with the Songs

On the instrument, performance data is called a "Song."

Playing Back Songs Before Practicing

The instrument includes not only the preset demo Songs, but also many preset Songs. This section covers basic information on playing back the preset Songs or Songs in a CD-ROM.

1 Press the [SONG SELECT] button to call up the Song selection display.

2 Press one of the [A]–[J] buttons to select a Song category.

The preset Songs are categorized and contained in appropriate folders.

SONC PRISIT USER EDIT A B C D E Pop&Rock Movie&Show Traditional ClassicalRepertoire ChristmasFavorites EasyPlay Children'sClassics FollowLights Standards Sing-a-long SONC P1 F G H I J NAME COT COPY PRISC DELETE SAVE FOLDER CIRCLE

3 Press one of the [A]-[J] buttons to select the desired Song.

You can also select the file by using the [DATA ENTRY] dial, then press the [ENTER] button to execute.

NOTE You can instantly jump back to the original display by "double-clicking" on one of the [A]–[J] buttons.

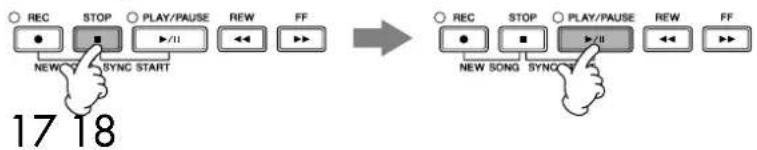

4 Press the SONG [PLAY/PAUSE] button to start playback.

SONG REC STOP PLAY/FAUSE REW FF NEW SONG SYNG/FAUSE

5 Press the SONG [STOP] button to stop playback.

SONG REC STOP PLAY/PAUSE REW FF NEW 30 SYNC START

Playing Songs saved to USER (page 43)

1 Press the [SONG SELECT] button to call up the Song selection display.
2 Press the TAB [ ◀][▶] button to select the USER tab.

SONG PRESIT USER USB1 TAB

3 Press one of the [A]–[J] buttons to select the desired Song.

5. NOTE Select the file to which the data is saved.

You can also select the specified file to which the data is saved by pressing the [USER] button. [USER] → [A] SONG → [A]-[J]

Playing Songs saved to a USB storage device (page 43)

For information on using USB storage devices, see page 22.

1 Connect the USB storage device to the [USB TO DEVICE] terminal.
2 Press the [SONG SELECT] button to call up the Song selection display.
3 Press the TAB | ◀||►| buttons to select the USB tab ("USB1"/"USB2"), corresponding to the USB storage device you inserted in Step 1. The indication "USB1"/"USB2" will be displayed depending on the number of the connected devices.

SONG PRESIT USER USB1 TAB

4 Use the [A]–[J] buttons to select a Song.

5 NOTE Select the file to which the data is saved.

You can also select the specified file to which the data is saved by pressing the [USB] button. [USB] → [A] SONG → [A]-[J]

Playing Songs in sequence

You can play all Songs in a folder continuously.

1 Select a Song in the desired folder.
2 Call up the operation display. [FUNCTION] → [B] SONG SETTING
3 Press the [H] (REPEAT MODE) button to select "ALL."
4 Press the SONG [PLAY/PAUSE] button to start playback. All Songs in the folder play back continuously, in order.
5 Press the SONG [STOP] button to stop continuous playback.
6 To turn off the Song sequence playback, press the [H] button to select "OFF" in the display in step 2.

Boost the volume of the part to be practiced

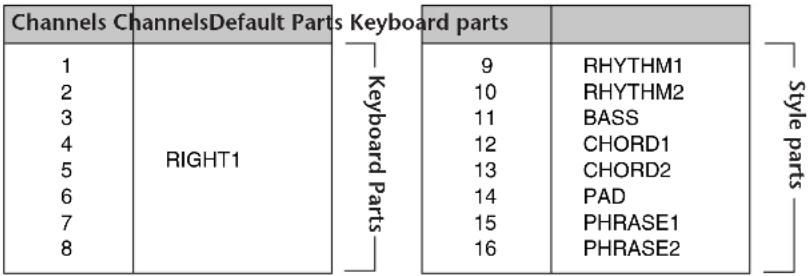

On the instrument, a single Song can contain separate data for up to sixteen MIDI channels. Specify the channel for practicing and increase the playback volume for the channel.

1 Select a Song. The method for selecting a Song is the same as "Playing Back Songs Before Practicing (page 35 step 1–5)."
2 Press the |MIXING CONSOLE| button to call up the MIXING CONSOLE display.

MIXING CONSOLE(PANEL PART) VOL/VOICE FILLED TIME EFFECT E0 SONG AUTO RE VOICE ON OFF SET UP VOICE PAMPOT 64 64 64 64 64 VOLUME 100 100 85 100 100 100 SONG STYLE MLC LEFT RIGHT1 RIGHT2 TAB 3 MIXING CONSOLE 2,4

3 Press the TAB | ◀||►| buttons to select the VOL/VOICE tab.
4 Press the [MIXING CONSOLE] button until "MIXING CONSOLE (SONG CH1-8)" is shown at the top of the display.
5 Press the [E]/[J] button to select "VOLUME."
6 To raise the level of the desired channel(s), press the appropriate buttons [1 ▲▼]–[8 ▲▼]. If the desired channel is not shown in the MIXING CONSOLE (SONG CH1–8) display, press the [MIXING CON- SOLE] button to call up the MIXING CONSOLE (SONG CH9–16) display.

If you don't know which channel's volume to raise:

- Look at the illustrations of the instruments indicated below "VOICE."

SET UP VOICE PANPOP VOLUME

- Look at the channel indicators, which light as the Song plays back. Watching these as you listen can show you which channel you wish to boost.

64 64 64 36 72 64 64 64 VOLUME 79 64 62 27 57 62 100 100 BRY1 BRY2 BASS CHD1 CHD2 PHP PRB1 PRB2

Displaying Music Notation (Score)

You can view the music notation of the selected Song. We suggest that you read through the music notation before starting to practice.

NOTE • The instrument can display the music notation of commercially-available music data or your recorded Songs.

• The displayed notation is generated by the instrument based on the Song data. As a result, it may not be exactly the same as commercially available sheet music of the same song—especially when displaying notation of complicated passages or many short notes.
• The notation functions cannot be used to create Song data by inputting notes. For information on creating Song data, see page 139.

1 Select a Song (page 35).

2 Press the [SCORE] button to display the music notation.

NOTE Look through the entire score before playing back the Song Press the TAB ▶J button to select subsequent pages.

3 Press the SONG [PLAY/PAUSE] button to start playback.

The "ball" bounces along through the score, indicating the current position.

4 Press the SONG [STOP] button to stop playback.

Changing the Notation Display

You can change the notation display as desired to suit your personal preferences.

1 Press the [SCORE] button to display the music notation.
2 Changing the following settings as desired.

● Changing the size of the music notation

Press the [7 ▲ ▼] button to change the size of the music notation.

● Displaying only right-hand part/left-hand part notation

Press the [1 ▲ ▼]/[2 ▲ ▼] button to disable display of the left-hand part/right-hand part.

- Customizing the notation display

• Display the note name at the left of the note

1 Press the [5 ▲▼] (NOTE) button to display the note name.
2 Press the [8 ▲▼] (SET UP) button to call up the detailed setting display.
3 Press the [6 ▼] (NOTE NAME) button to select "Fixed Do."
4 Press the [8 ▲] (OK) button to apply the setting.

• T urn on the note colors (CVP-405)

Press the [6▲▼] button to turn the COLOR on.

NOTE About the note colors

These colors are fixed for each note and cannot be changed.

C: red, D: yellow, E: green, F: orange, G: blue, A: purple, and B: gray

- Increase the number of measures in the display

You can increase the number of measures that will be displayed by decreasing the other items to be displayed (part, lyrics, chords, etc.).

Use the [1 ▲ ▼]–[4 ▲ ▼] buttons to turn off the items you want not to be displayed.

TEMP0 J=56 SCORE: Greensleeves PAGE 1/15 LEFT ON RIGHT ON ENGRD OFF AVIOUS OFF RULE OFF COLOR OFF SIZE SHOT SET UP 1 2 3 4 5 6 7 8

Set the detailed parameters of the view type as desired.

1 Press the [8 ▲▼] (SETUP) button to call up the detailed setting display.
2 Press the [1 ▲▼]–[6▲▼] buttons to set the view type.

LEFT CH/RIGHT CH	Determines which MIDI channel in the Song data is used for the left-hand/right-hand part. This setting returns to AUTO when a different Song is selected.AUTOThe MIDI channels in the Song data for the right- and left-hand parts are assigned automatically—setting the parts to the same channel as the channel which is specified in the [FUNCTION] →[B] SONG SETTING.1–16Assigns the specified MIDI channel (1–16) to each of the left- and right-hand parts.OFF (LEFT CH only)No channel assignment: This disables display of the left-hand key range.
KEY SIGNATURE	This lets you enter key signature changes in the middle of a song, at the stopped position. This menu is useful when the selected Song contains no key signature settings for displaying notation.
QUANTIZE	This gives you control over the note resolution in the notation, letting you shift or correct the timing of all displayed notes so that they line up to a particular note value. Make sure to select the smallest note value used in the song.
NOTE NAME	Selects the type of the note name indicated at the left of the note in the notation from among the following three types. The settings here are available when the NOTE parameter in “Display the note name at the left of the note” step 1 is set to ON.A, B, CNote names are indicated as letters (C, D, E, F, G, A, B).FIXED DONote names are indicated in solfeggio and differ depending on the selected language.The language is specified in LANGUAGE of the OWNER display (page 63).MOVABLE DONote names are indicated in solfeggio according to the scale intervals, and as such are relative to the key. The root note is indicated as Do. For example, in the key of G major the root note of “So” would be indicated as “Do.” As with “Fixed Do,” the indication differs depending on the selected language.

3 Press the [8 ▲] (OK) button to apply the setting.

NOTE Save the notation view settings

The notation view settings can be saved as part of a Song (page 158).

One-handed Practice with the Guide Lamps

The key guide lamps indicate the notes you should play, when you should play them, and how long you should hold them down. You can also practice at your own pace—since the accompaniment waits for you to play the notes correctly. Here, mute the right- or left-hand part and try practicing the part using the guide lamps.

Practicing the Right-hand Part (TRACK 1) Using the Guide Lamps

1 Select a Song (page 35).
2 Turn the [GUIDE] button on.

SONG CONTROL SONG SELECT REC STOP PLAY/FAUSE NEW FF EXTRA TRACK2 TRACK1 IP3 SCORE LYRCS/ TEXT GUIDE REPEAT NEW SONG SYNC START 4 3 2

3 Press the [TRACK 1 (R)] button to mute the right-hand part.

The indicator of the [TRACK 1 (R)] button goes out. You can now play that part by yourself.

NOTE Have the guide lamp flash a lead-in to the music

In the GUIDE LAMP TIMING, select NEXT (page 138).

4 Press the SONG [PLAY/PAUSE] button to start playback.

Practice the muted part using the guide lamps.

NOTE Adjusting the tempo

Refer to page 31.

Quickly changing tempo during a performance (Tap function)

The tempo can also be changed during Song playback by tapping the [TAP TEMPO] button twice at the desired tempo.

5 Press the SONG [STOP] button to stop playback.

6 Turn the [GUIDE] button off.

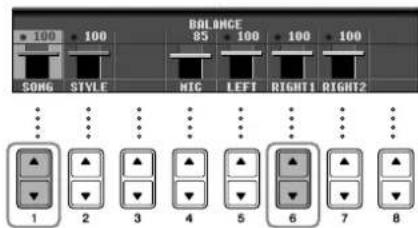

Adjusting the volume balance between the Song and the keyboard

This lets you adjust the volume balance between Song playback and the sound you play on the keyboard.

1 Call up the Main display.

[DIRECT ACCESS] → [EXIT]

NOTE The Balance display is indicated at the bottom of the Main display.

When the Balance display is not indicated, press the [EXIT] button.

(On the CVP-401, open the volume balance display by pressing the [C] button.)

2 To adjust the Song volume, press the [1 ▲▼] button. To adjust the keyboard (RIGHT 1) volume, press the [6▲▼] button.

BALANCE 85 100 + 100 + 100 SONG STYLE MTG LEFT RIGHT1 RIGHT2 ... ... ... ... ... ... ... ... ▲ 1 ▲ 2 ▲ 3 ▲ 4 ▲ 5 ▲ 6 ▲ 7 ▲ 8 ▲

NOTE About keyboard parts (Right 1, Right 2, Left)
See page 80.

Other guide functions

The initial setting "Follow Lights (page 138)" was used in the instructions "One-handed Practice with the Guide Lamps" above. There are additional functions in the Guide feature, as described below. To select a guide function, see page 137.

☐ For keyboard performance

- Any Key

This lets you practice the timing of playing the keys.

□ For Karaoke

• Karao-Key
  This automatically controls the timing of Song playback to match your singing—a convenient feature for singing along with your keyboard performance (page 54).
  • V ocal CueTIME (CVP-405/403)
  This automatically controls the timing of the accompaniment to match the melody (pitch) of your singing—allowing you to practice singing with the correct pitch.

Practicing the Left-hand Part (TRACK 2) Using the Guide Lamps

1,2 Follow the same steps as in "Practice the Right-hand Part (TRACK 1) Using the Guide Lamps" on page 39.

3 Press the [TRACK 2] button to mute the left-hand part.

The indicator of the [TRACK 2 (L)] button goes out. You can now play that part by yourself.

4 Press the SONG [PLAY/PAUSE] button to start playback and practice the muted part using the guide lamps.

5 Press the SONG [STOP] button to stop playback.

6 Turn the [GUIDE] button off.

Practicing with the Repeat Playback Function

The Song Repeat functions can be used to repeatedly play back a Song or a specific range of measures in a Song. This is useful for repeated practicing of difficult-to-play phrases.

Playing Back a Song Repeatedly

1 Select a Song (page 35).
2 Press the [REPEAT] button to turn on Repeat playback.
3 Press the SONG [PLAY/PAUSE] button to start playback. The Song will be played back repeatedly until you press the SONG [STOP] button.
4 Press the SONG [STOP] button to stop playback.
5 Press the [REPEAT] button to turn off Repeat playback.

Specifying a Range of Measures and Playing them Back Repeatedly (A-B Repeat)

1 Select a Song (page 35).
2 Press the SONG [PLAY/PAUSE] button to start playback.
3 Specify the repeat range.
Press the [REPEAT] button at the starting point (A) of the range to be repeated. Press the [REPEAT] button again at the ending point (B). After an automatic lead-in (to help guide you into the phrase), the range from Point A to Point B is played back repeatedly.

NOTE Instantly returning to Point A Regardless of whether the Song is playing back or is stopped, pressing the [STOP] button returns to Point A.

4 Press the SONG [STOP] button to stop playback.

5 Press the [REPEAT] button to turn off Repeat playback.

Other Methods for Specifying the A-B Repeat Range

- Specifying the repeat range while Songs are stopped

1 Press the [FF] button to advance to the Point A location.
2 Press the [REPEAT] button to specify Point A.
3 Press the [FF] button to advance to the Point B location.
4 Press the [REPEAT] button again to specify Point B.

- Specifying the repeat range between Point A and the end of the Song

Specifying only Point A results in repeat playback between Point A and the end of the Song.

Recording Your Performance

Record your performance by using the Quick Recording feature. This is an effective practice tool, allowing you to easily compare your own performance to the original song you are practicing. You can also use it to practice duet pieces by yourself, if you have your teacher or partner record his or her part beforehand.

1 Press the [REC] and [STOP] buttons simultaneously.

A blank Song for recording is automatically set.

2 Select a Voice (page 32). The selected Voice will be recorded.

3 Press the [REC] button.

4 Start recording.

Recording begins automatically as soon as you play a note on the keyboard.

5 Press the SONG [STOP] button to stop recording.

A message prompting you to save the recorded performance appears. To close the message, press the [EXIT] button.

6 Press the SONG [PLAY/PAUSE] button to play back the recorded performance.

7 Save the recorded performance.

1 Press the [SONG SELECT] button to call up the Song selection display.
2 Press the TAB [ ◀][▶] buttons to select the appropriate tab (USER, USB, etc.) to which you want to save the data. Select USER to save the data to internal memory, or select USB to save the data to a USB storage device.
3 Press the [6 ▼] (SAVE) button to call up the file naming display.
4 Enter the file name (page 74).
5 Press the [8 ▲] (OK) button to save the file.

To cancel the Save operation, press the [8▼] (CANCEL) button.

CAUTION

The recorded song will be lost if you change to another Song or you turn the power off without executing the Save operation.

When the following message appears: "Song" changed. Save?/"Song" speichern?/"Song" modifié. Sauv.?/"Song" cambiado. ¿Guardar?/Salvare "'Song'?

The recorded data has not yet been saved. To save the data, press the [G] (YES) button to open the Song selection display and save the data (see above). To cancel the operation, press the [H] (NO) button.

Playing Songs saved to a USER/USB storage device

Refer to page 36.

Playing Backing Parts with the performance assistant Technology

This feature makes it exceptionally easy to play the backing parts along with Song playback.

Diagram showing connection between a network interface with labeled components including a function button and an internal module.

NOTE Before using performance assistant technology

To use the performance assistant technology, the Song must contain chord data. If the Song contains this data, the current chord name will be displayed in the Main display during Song playback, letting you easily check whether the Song contains chord data or not.

1 Select a Song (page 35).

In these example instructions, we recommend that you use the Songs in the "Sing-a-long" folder.

2 Call up the operation display.

[FUNCTION] → [B] SONG SETTING

3 Press the [8▲▼] button to turn the [P.A.T.] (Performance Assistant) on.

4 Press the SONG [PLAY/PAUSE] button to start playback.

5 Play the keyboard.

The instrument automatically matches your performance on the keyboard to the Song playback and chords, no matter what keys you play. It even changes the sound according to the way you play. Try playing in the three different ways below.

● Playing the left and right hand together (method 1).

Play three notes at the same time with your right hand.

● Playing the left and right hand together (method 2).

Play several notes one after the other with different fingers of your right hand.

● Playing the left hand and right hand alternately.

Play three notes at the same time with your right hand.

6 Press the SONG [STOP] button to stop playback.

7 Press the [8▲▼] button to turn the [P.A.T.] (Performance Assistant) off.

Playing Accompaniment with the Auto Accom- paniment Feature (Style Playback)

The Auto Accompaniment features let you produce automatic accompaniment playback simply by playing "chords" with your left hand. This lets you automatically recreate the sound of a full band or orchestra—even if you're playing by yourself. The Auto Accompaniment sound is made up of the rhythm patterns of the Styles. The Styles of the instrument cover a wide range of different musical genres including pop, jazz, and many others.

STYLE CONTROL POP&ROCK BALLAD DANCE SWINGLIAZZ R&B COUNTRY LATIN BALLROOM ENTER-TAINMENT WORLD PIANIST ACMP AUTO ON/OFF FILL IN INTRO MAIN VARIATION BREAK ENDING/IL SYNC STOP SYNC START START/ STOP MUSIC FINDER I II III A B C D I II III ■ ▼ ▼ / ■

Playing "Mary Had a Little Lamb" with the Auto Accompaniment Feature

MARY HAD A LITTLE LAMB

Traditional

Style: Country Pop

C 12 C 2 G 3 C c 2 3 9: c o o o o 1 1 1 4

C 3 2 1 2 3 2 3 2 1 G C Ending 1 1 4 1

1 Press the STYLE CONTROL "COUNTRY" button.

2 Select the |B| (2 DISPLAY STYLE TEMPO) button, and use the |5 ▲▼]/[6 ▲▼] buttons to switch the tempo display on/off.

- ON: Tempo is displayed above the Style name. With the default settings, the Display Style Tempo function is on.

- OFF: Tempo is not displayed above the Style name.

2 Press one of the [A]-[J] buttons to select a Style "CountryPop."

STYLE PRESE USED USB1 A B C D E Pro NewCountry J=119 Pro EasyCountry J= 90 Pro 70'sChartCntry J=184 Pro CountryStrum J=168 Pro CountryHits J=178 Pro Bluegrass J=140 Pro Hoedown J=120 Pro FolkPop J= 91 Pro CountryBallad J= 72 Pro CountryPop J=148 Country P1 P2 P3 DEPER TIME UP MORE GOT COPY MUSIC DUE LE SAVE FOLLOW F G H I J 1 2 3 4 5 6 7 8

• The Style type and its defining characteristics are indicated above the Preset Style name. For details on the characteristics, see page 103.

• When the [7 ▲] (REPERTOIRE) button is pressed after selecting a Style, you can call up the custom panel settings (for voices and tempos, etc.) designed to best match the selected Style. To return to the previous display, press the [EXIT] button.
• You can instantly jump back to the original display by "double-clicking" on one of the [A]-[J] buttons.

3 Press the [ACMP ON/OFF] button to turn on Auto Accompaniment.

Use the left-hand section (lower part) of the keyboard to play the chords for sounding the Auto Accompaniment.

4 Press the [SYNC START] button to set Auto Accompaniment to standby—letting you simultaneously start the accompaniment as soon as you start playing.

5 As soon as you play a chord with your left hand, the Auto Accompaniment starts.

Try playing chords with your left hand and play a melody with your right hand.

NOTE Chord Fingerings

There are seven different fingering methods you can use to specify chords (page 103).

6 Automatically play an appropriate ending by pressing the [ENDING] button, at the point in the score (page 45) indicated by "Ending."

When Ending playback is finished, the Style automatically stops.

• About the various Styles

Refer to the Style List in the separate Data List booklet.

- Quickly changing the Style tempo during a performance (Tap function)

The tempo can also be changed during playback by tapping the [TAP TEMPO] button twice at the desired tempo.

- Specifying the split point (the border between the right- and left-hand range)

See page 107.

- Turns touch response on/off for the Style playback (Style Touch)

See page 106.

Adjusting the volume balance between the Style and the keyboard (page 40)

This lets you adjust the volume balance between Style playback and the sound you play on the keyboard.

1 Call up the Main display. |DIRECT ACCESS| → |EXIT|
NOTE The Balance display is indicated at the bottom of the Main display. If the Balance display is not selected, press the [EXIT] button. (On the CVP-401, open the volume balance display by pressing the [C] button.)
2 To adjust the Style volume, press the [2 ▲▼] button. To adjust the keyboard (RIGHT 1) volume, press the [6▲▼] button.

Pattern Variation

While you play, you can automatically add specially created intros and endings, as well as variations in the rhythm/chord patterns, for more dynamic, professional-sounding performances. There are several different auto accompaniment pattern variations for each situation: starting your performance, during your performance, and ending your performance. Try out the variations and combine them freely.

To Start Playing

METRONOME ON/OFF TRANSPOSE POP&ROCK BALLAD DANCE SWING&JAZZ R&S COUNTRY LATN BALLROOM ENTERTAINMENT WORLD PIANIST TAP TEMPO ACMP AUTO ON/OFF FILL IN INTRO MAIN VARIATION BREAK ENDING/HL SYNC STOP SYNC START START/STOP MUSIC FINDER

- Start/Stop

Styles start playing back as soon as the STYLE CONTROL [START/STOP] button is pressed.

- Intro

This is used for the beginning of the song. Each preset Style features three different intros. When the intro finished playing, accompaniment shifts to the Main section (see "Main" in the "During Style playback" below). Press one of the INTRO [I]–[III] buttons before starting Style playback and press the STYLE CONTROL [START/STOP] button to start Style playback.

● Synchro Start

This lets you start playback as soon as you play the keyboard. Press the [SYNC START] button when Style playback is stopped and play a chord in the chord section of the keyboard to start Style playback.

Tap

Tap out the tempo and automatically start the Style at that tapped speed. Simply tap (press/release) the [TAP TEMPO] button (four times for a 4/4 time signature), and the Style playback starts automatically at the tempo you tapped.

NOTE The particular drum sound and the velocity (loudness) of the sound when the Tap function is used can be selected in the following display. |FUNCTION| → |J| UTILITY → TAB| ◀| CONFIG 1 → |B| 4 TAP

Fade In

For information on the settings, see page 187.
NOTE For details on setting the fade-in and fade-out time, see page 105.

During Style Playback

STYLE CONTROL POF&ROCK BALLAD DANCE SWING&JAZZ R&B COUNTRY LATIN BALLROOM ENTER-TAINMENT WORLD PIANIST ACMP AUTO ON/OFF FILL IN INTRO MAIN VARIATION BREAK ENDING/HL SYNC STOP SYNC START START/STOP MUSIC FINDER I II III A B C D I II III

● Main

This is used for playing the main part of the Song. It plays an accompaniment pattern of several measures, and repeats indefinitely. Each preset Style features four different patterns.

Press one of the MAIN [A]–[D] buttons during Style playback.

● Fill In

The fill-in sections let you add dynamic variations and breaks in the rhythm of the accompaniment, to make your performance sound even more professional.

Turn on the [AUTO FILL IN] button before starting Style playback or during playback. Then, simply press one of the MAIN VARIATION (A, B, C, D) buttons as you play, and the selected fill-in section plays automatically (AUTO FILL), spicing up the auto accompaniment. When the fill-in is finished, it leads smoothly into the selected main section (A, B, C, D). Even when [AUTO FILL IN] button is turned off, pressing the same button of the currently playing section automatically plays a fill-in before returning to the same main section.

Break

This lets you add dynamic breaks in the rhythm of the accompaniment, to make your performance sound even more professional.

Press the [BREAK] button during Style playback.

To Finish Playing

STYLE CONTROL POP&ROCK BALLAD DANCE SWINGSJAZZ R&B COUNTRY LATIN BALLROOM ENTER-TANMENT WORLD PIANIST ACMP AUTO ON/OFF FILL IN INTRO MAIN VARIATION BREAK ENDING/HL SYNC STOP SYNC START START/STOP MUSIC FINDER I II III A B C D I II III = ▼ / ■

- Start/stop

Styles stop as soon as the STYLE CONTROL [START/STOP] button is pressed.

Ending

This is used for the ending of the Song. Each preset Style features three different endings. When the ending is finished, the Style stops automatically.

Press one of the ENDING/rit. [I]–[III] buttons during Style playback. You can have the ending gradually slow down (ritardando) by pressing the same ENDING/rit. button again while the ending is playing back.

NOTE If you press the ENDING/rit. [1] button in the middle of your performance, a fill-in automatically plays before the ENDING/rit. [1].

● Fade Out

For information on the settings, see page 187.

NOTE For details on setting the fade-in and fade-out time, see page 105.

Others

STYLE CONTROL POP&ROCK BALLAD DANCE SWINGS/JAZZ R&B COUNTRY LATIN BALLROOM ENTER-TAINMENT WORLD PIANIST ACMP AUTO ON/OFF FILL IN INTRO MAIN VARIATION BREAK ENDING/HL SYNC STOP SYNC START START/STOP MUSIC FINDER I II III A B C D I II III

● Synchro Stop

When Synchro Stop is on, you can stop and start the Style anytime you want by simply releasing or playing the keys (in the chord section of the keyboard). This is a great way to add dramatic breaks and accents to your performance.

Press the [SYNC STOP] button before starting the Style playback.

NOTE • Enable Synchro Stop by pressing/releasing keys (Synchro Stop Window)

See page 106.

- Fixing the section pattern to either Intro or Main (Section Set)

For example, you can set this function to Intro to conveniently have an Intro play automatically whenever you select a Style (page 106).

About the section button (INTRO/MAIN/ENDING, etc.) lamps

• Green
  The section is not selected.
• Red
  The section is currently selected.
• Off

The section contains no data and cannot be played.

Learning How to Play (Indicate) Chords for Style Playback Learning the Notes to Play for Certain Chords

If know the name of a chord but don't know how to play it, you can have the instrument show you the notes to play (Chord Tutor function).

1 Call up the operation display.

[FUNCTION] → [C] STYLE SETTING/SPLIT POINT/CHORD FINGERING → TAB[◀][▶] CHORD FINGERING

2 Press the [6▲▼] button to select the root note.

STYLE SETTING/SPLIT POINT/CHORD FINGERING STYLE SETTING: SPLIT POINT (CHORD FINGERING) FINGERING MULTI FINGER: Both Single Finger and Finsered are Possible. For Single Finger, press the white/black key(s) closest to the root note. CHORD TUTOR (FINGERED) CHORD NONE:C FINGERING TYPE TYPE SINGLE FINGER MULTI FINGER FINGERED ON BASS CHORD SETTING ROOT TYPE C# 6 M7 M7*11 1 2 3 4 5 6 7 8 2 3

3 Press the [7]/[8] button to select the chord type.

The notes you need to play to make the selected chord are shown in the display.

D NOTE The notes that are displayed correspond to Fingered, no matter which fingering type is selected (page 104).

Checking How to Play Chords with the Guide Lamps

For Songs containing chord data, you can have the individual notes of the chords indicated with the Guide lamps on the instrument.

1 Select a Song (page 35).
2 Press the [FUNCTION] button and press the [B] button to call up the Song Setting display, and make sure that the GUIDE MODE is set to "Follow Lights."
3 Press the [ACMP ON/OFF] button to turn on Auto Accompaniment.
4 Press the [GUIDE] button.
5 Press the SONG [PLAY/PAUSE] button to start playback.

The Guide lamps in the chord section of the keyboard flash according to the chords of the Song. Try practicing the chords, matching the Guide lamps.

Appropriate Panel Settings for the Selected Style (One Touch Setting)

One Touch Setting is a powerful and convenient feature that automatically calls up the most appropriate panel settings (Voices or effects, etc.) for the currently selected Style, with the touch of a single button. If you've already decided which Style you wish to use, you can have One Touch Setting automatically select the appropriate Voice for you.

1 Select a Style (page 46 step 2).
2 Press one of the ONE TOUCH SETTING [1]–[4] buttons.

Not only does this instantly call up all the settings (Voices, effects, etc.) that match the current Style—it also automatically turns on ACMP and SYNC START, so that you can immediately start playing the Style.

ONE TOUCH SETTING 1 2 3 4

3 As soon as you play a chord with your left hand, the selected Style starts.

NOTE Parameter Lock

You can "lock" specific parameters (e.g., effect, split point, etc.) to make them selectable only via the panel controls (page 128).

Helpful hints for using One Touch Setting

● Automatically changing One Touch Settings with the Main sections (OTS Link)

The convenient OTS (One Touch Setting) Link function lets you automatically have One Touch Settings change when you select a different Main section (A–D). To use the OTS Link function, press the [OTS LINK] button.

NOTE Setting the timing for OTS changes

The One Touch Settings can be set to change with the sections in one of two different timings (page 106).

● Memorizing the panel settings to the OTS

You can also create your own One Touch Setting setups.

1 Set up the panel controls (such as Voice, Style, effects, and so on) as desired.
2 Press the |MEMORY| button.
3 Press one of the ONE TOUCH SETTING [1]–[4] buttons. A message appears in the display prompting you to save the panel settings. It is possible to save the panel settings with another file (step 4), so register it in a favorite number from 1 to 4.

4 Press the |F| (YES) button to call up the Style selection display and save the panel settings as a Style file (page 70).

CAUTION

The panel settings memorized to each OTS button will be lost if you change the Style or turn the power off without executing the Save operation.

Calling Up Ideal Setups for Each Song—Music Finder

If you want to play in a certain genre of music but don't know which Style and Voice settings would be appropriate, the convenient Music Finder function can help you out. Simply select the desired music genre from among the Music Finder "Records," and the instrument automatically makes all appropriate panel settings to let you play in that music style.

A new record can be created by editing the currently selected one (page 110).

MUSIC FINGER

NOTE The data (records) of the Music Finder are not the same as Song data and cannot be played back.

1 Press the [MUSIC FINDER] button to call up the MUSIC FINDER display.

MUSIC FINDER ALL FAVORITE SEARCH 1 SEARCH 2 MUSIC STYLE BEAT TEMPO 2 Nights In A Big City 40'sBigBand 4/4 90 40th Symphony PopClassics 4/4 124 66 Second Waltz viernesWaltz 3/4 240 65 Summers Long PowerRock 4/4 130 ABoy From The Country Bluegrass 2/4 150 ABride ToCross Troub PowerBallad 4/4 78 ABright & Guiding Light EasyListening 4/4 76 ACosy Life In Italy OrganBallad 4/4 88 ADay's Difference 70'sTYTheme 4/4 126 AFeeling Of Love Tonig MovieBallad 4/4 68 AFire Lighter Unplugged 4/4 119 AMisty Ballad CoolJazzBallad 4/4 70 ANickel In The Nickelod Divieland 4/4 214 ANight In A Wonderful L-6-8Orchestral $-8 72 MUSIC STYLE SEARCH ▲▼ ▲▼ ▲▼ 1 - 2 FILES RECORD EDIT TAB SORT ORDER ASSEMBLING SHOOT FAVORITE TENDELOCK OFF MUSIC FINDER + NUMBER OF RECORDS 1 2 3 4 5 6 7 8 3

2 Press the TAB [◀] button to select the ALL tab.

The ALL tab contains the preset records.

3 Select the desired record by using the following four search categories. To select a record, press the [2▲▼]/[3▲▼] buttons.

NOTE • You can also select the desired record by using the [DATA ENTRY] dial, then press the [ENTER] button to execute.

• Searching the records

The Music Finder is also equipped with a convenient search function that lets you enter a song title or keyword—and instantly call up all the records that match your search criteria (page 108).

- MUSIC ......Contains the song title or music genre that describes each record, letting you easily find the desired music style.

NOTE Skipping up or down through the song alphabetically

When sorting records by song title, use the [1 ] button to skip up or down through the songs alphabetically. Simultaneously press the [ ] buttons to move the cursor to the first record.

- STYLE......This is the preset Style assigned to the record.

NOTE Skipping up or down through the Style alphabetically

When sorting records by Style name, use the [4]/[5] button to skip up or down through the Styles alphabetically. Simultaneously press the [] buttons to move the cursor to the first record.

• BEAT ......This is the time signature registered to each Record.
• TEMPO ......This is the assigned tempo setting for the record.

4 Play the keyboard.

Notice that the panel settings have been automatically changed to match the music genre of the selected record.

NOTE • Tempo Lock

Tempo Lock function lets you avoid changing the Tempo during Style playback when selecting another record. To turn on the Tempo Lock function, press the [I] (TEMPO LOCK) button in the Music Finder display.

- Parameter Lock

You can "lock" specific parameters (e.g., effect, split point, etc.) to make them selectable only via the panel controls (page 128).

Calling up the panel settings to match the Style (Repertoire)

The convenient Repertoire function automatically calls up the most appropriate panel settings (voice number, etc.) for the currently selected Style.

1 Select the desired Style for which you want to call up the panel settings from the "PRESET"/"USER" tab on Style selection display.

NOTE The Repertoire function is valid for Styles in the "PRESET"/"USER" tab. The Repertoire function cannot be used for Styles saved to a USB storage device. To use the Repertoire function, save the desired Style in "USER" tab.

2 Press the [7 ▲] (REPERTOIRE) button.

The panel settings that match the Style under selection is searched according to the record group of the Music Finder. The list of the search results is shown on the "SEARCH 2" display of the Music Finder.

CAUTION

When the result of searching the record in the "SEARCH 2" display has already been shown, the searched result is lost.

3 Press the [2] – [3] buttons to select the desired panel settings.

Sorting the records

Press the [F] (SORT BY) button to sort the records.

• MUSIC ...... The record is sorted by song title.
• STYLE...... The record is sorted by Style name.
• BEAT .... The record is sorted by beat.
  • TEMPO ...... The record is sorted by tempo.

Changing the order of the records

Press the [G] (SORT ORDER) button to change the order of the records (ascending or descending).

Singing Along with Song Playback (Karaoke) or Your Own Performance

Connect a microphone to the instrument (CVP-405/403) and sing along with Song playback (Karaoke) or your own performance.

The lyrics can be displayed when the Song contains lyric data. Sing with the microphone as you read the lyrics shown in the display. Lyrics can also be displayed with the music score, letting you play and sing while following along with the notation and lyrics.

TRANSPOSE - + RESET SCORE LYRICS/ TEXT MIC SIGNAL OVER ●

Connecting a Microphone (CVP-405/403)

1 Make sure you have a conventional dynamic microphone.
2 Set the [INPUT VOLUME] knob on the bottom panel of the instrument to the minimum position.
3 Connect the microphone to the [MIC./LINE IN] jack.

NOTE Always set the INPUT VOLUME to minimum when nothing is connected to the [MIC/LINE IN] jack. Since the [MIC/LINE IN] jack is highly sensitive, it may pick up and produce noise when nothing is connected.

INPUT VOLUME MOS LINE IN MOS LINE FLOWS 2, 5 3 4

4 Set the [MIC. LINE] switch to "MIC."
5 (For microphones having a power source, turn on the power first.) Adjust the [INPUT VOLUME] knob while singing into the microphone.

Adjust the controls while checking the SIGNAL and OVER lamps. The SIGNAL lamp lights to indicate that an audio signal is being received. Make sure to adjust the INPUT VOLUME so that this lamp is light. The OVER lamp lights when the input level is too high. Make sure to adjust the INPUT VOLUME so that this lamp does not light.

Disconnecting the microphone

1 Set the [INPUT VOLUME] knob on the bottom panel of the instrument to the minimum position.
2 Disconnect the microphone from the [MIC./LINE IN] jack.

D NOTE Set the [INPUT VOLUME] knob to the minimum position before turning off the power.

Singing with the Lyrics Display

Try singing while playing back a Song containing lyric data

1 Select a Song (page 35).

2 Press the [LYRICS/TEXT] (CVP-403/401: [LYRICS]) button to display the lyrics.

When the Text display appears, press the [1▼] (LYRICS) button to display the lyrics.

3 Press the SONG [PLAY/PAUSE] button to start playback.

Sing while following along with the lyrics on the display. The color of the lyrics changes as the Song plays.

4 Press the SONG [STOP] button to stop playback.

NOTE • When the lyrics are unreadable

You may need to change the Lyrics Language setting to "International" or "Japanese" in the Song Setting display ([FUNCTION] [B] SONG SETTING), if the lyrics shown are garbled or unreadable. This setting can be memorized as part of the Song data (page 158).

- Changing the Lyrics Background Picture (CVP-405)

You can change the background picture of the Lyrics display. Press the [7▲▼]/[8▲▼] (BACKGROUND) button in the Lyrics display to call up the Lyrics picture selection display for the available picture files and select the desired one. Press the [EXIT] button to return to the previous display. The lyrics background picture can be saved to the Song (page 158).

- Changing the lyrics

You can change the lyrics as desired (page 162).

Displaying Text (CVP-405)

This feature lets you show text files (created on a computer) in the display of the instrument, enabling various useful possibilities, such as the showing of lyrics, chord names, and text notes.

1 Connect the USB storage device containing the text file to [USB TO DEVICE] terminal.

2 Press the [LYRICS/TEXT] button to display the text. When the lyrics are displayed, press the [1▼] (TEXT) button to display the text.

3 Press the [5 ▲▼]/[6 ▲▼] (TEXT FILE) buttons to call up the Text selection display.

4 Press the TAB [◀][▶] buttons to select the desired TAB.

5 Double-click one of the [A]–[J] buttons to select a text file. If the text is long, use the TAB [◀] | ▶ | buttons to select other pages.

NOTE An optional foot pedal can also be used to turn pages (page 187).

The following additional settings are available in the TEXT display: LYRICS .... Switches the screen to the Lyrics display. CLEAR.... Clears the text from the display (the text data itself is not erased). F (FIXED) 11 pt (point)—

P (PROPORTIONAL) 16 pt.....Determines the text type (fixed or proportional) and font size. TEXT FILE.....Opens the Text selection display.

BACK GROUND....Allows changing of the background picture of the text display, as in the Lyrics display described above. The background setting is common for both the Lyrics display and Text display.

NOTE • T he text file, which is copied in the USER tab can be showed.

- Line feed (or "carriage return") is not automatically performed in the instrument. If a sentence is not displayed in its entirety because of limitations in the screen space, execute the line feed on your computer.

- When the background color is specified in the song data, the BACKGROUND setting cannot be changed.

Displaying the lyrics/text on an external TV monitor (CVP-405)

The lyrics/text indicated on the display can also be output via the VIDEO OUT terminal.

1 Use an appropriate video cable to connect the [VIDEO OUT] connector of the instrument to the Video input connector on the TV monitor.
2 Set the external television/video monitor signal (NTSC or PAL) used by your video equipment, if necessary.

1 Call up the operation display. [FUNCTION] → [J] UTILITY → TAB [◀][▶] SCREEN OUT

2 Press the |1 ▲ ▼| button to select the external television/video monitor signal.

Convenient Functions for Karaoke

Adjusting the tempo ▶ page 31
Transpose ▶ See below.
Applying Effects to Your Voice (CVP-405/403) ▶ page 56
Adding Harmony Vocals to Your Voice (CVP-405/403)	▶ page 57
Practicing Singing with Proper Pitch (Vocal CueTIME) (CVP-405/403)	▶ page 137

Transpose

You can use this to adjust the key of the Song if it is too high or low.

• Transposing the Song key up...... Press the TRANSPOSE [+] button.
• Transposing the Song key down...... Press the TRANSPOSE [–] button.
• Resetting the transposition .... Press the TRANSPOSE [+][-] buttons simultaneously.

Applying Effects to Your Voice (CVP-405/403)

You can also apply various effects to your voice.

1 Call up the operation display.

[FUNCTION] → [G] MIC SETTING/VOCAL HARMONY

2 Press the [4▲▼]/[5▲▼] buttons to turn the effect on.

NOTE Selecting an effect type

You can select the effect type in the Mixing Console (page 91).

Adding Harmony Vocals to Your Voice (CVP-405/403)

You can also automatically apply various harmony vocals to your voice.

1 Select a Song which contains chord data (page 35).

If the Song contains this data, the current chord name will be displayed in the Main display during Song playback, letting you easily check whether the Song contains chord data or not.

2 Call up the operation display.

[FUNCTION] → [G] MIC SETTING/VOCAL HARMONY

3 Press the [6▲▼]/[7▲▼] buttons to turn the harmony vocals (Vocal Harmony) on.

4 Press the [H] button to call up the Vocal Harmony selection display.

5 Press one of the [A]–[J] buttons to select a Vocal Harmony type.

For details on the Vocal Harmony types, refer to the separate Data List.

6 Press the [ACMP ON/OFF] button to turn on Auto Accompaniment.

7 Press the SONG [PLAY/PAUSE] button and sing into the microphone.

The harmony is applied to your voice according to the chord data.

Adjusting the microphone and Song volume (page 40)

You can adjust the volume balance between the Song playback and the microphone.

1 Call up the Main display. [DIRECT ACCESS] → [EXIT]
NOTE The Balance display is indicated at the bottom of the Main display. If the Balance display is not indicated, press the [EXIT] button.
2 To adjust the microphone volume, press the [4 ▲▼] button. To adjust the Song volume, press the [1 ▲▼] button.

Convenient Functions for Singing Along with Your Own Performance

Changing the Key (Transpose) ▶ See below.

Displaying the Music Score on the Instrument and the Lyrics on TV (CVP-405) ▶ page 59

Making Announcements Between Songs (CVP-405/403) ▶ page 59

Controlling Playback Timing by Your Voice (Karao-Key) ▶ page 137

Changing the Key (Transpose)

You can match both the Song and your keyboard performance to a certain key. For example, the Song data is in F, but you feel most comfortable singing in D, and you are accustomed to playing the keyboard part in C. To match up the keys, set the Master Transpose to "0," the Keyboard Transpose to "2," and the Song Transpose to "-3." This brings the keyboard part up and the song data down to your desired singing key.

1 Call up the operation display.

[FUNCTION] → [D] CONTROLLER → TAB [▶] KEYBOARD/PANEL → [B] TRANSPOSE ASSIGN

2 Press the [4]/[5] button to select the desired transpose type.

The following types are available. Select the one most suited to your purpose.

KEYBOARD

Transpose pitch of the keyboard played Voices and Style playback (controlled by what you play in the chord section of the keyboard).

●SONG

Transposes the pitch of Song playback.

●MASTER

Transpose the overall pitch of the instrument.

3 Press the TRANSPOSE [-]/[+] button to transpose.

You can set the value in semitone steps. To reset the transpose value, press the [+][-] buttons simultaneously.

4 Press the [EXIT] button to close the TRANSPOSE display.

Displaying the Music Score on the Instrument and the Lyrics and Text on TV (CVP-405)

This convenient sing-along function lets you have the music score shown on the display of the instrument (for your playing purposes), while only the lyrics are shown on a separate TV (page 56) so your audience can sing along.

1 Call up the operation display.

[FUNCTION] → [J] UTILITY → TAB [◀][▶] SCREEN OUT

2 Press the [3▲]/[4▲] button to select LYRICS.

Making Announcements Between Songs (CVP-405/403)

This function is ideal for making announcements between your singing performances. When singing a song, several effects are usually assigned to the MIC Setup. When speaking to your audience, however, these effects may sound disturbing or unnatural. Whenever the TALK function is turned on, effects are automatically turned off.

1 Call up the operation display.

[FUNCTION] → [G] MIC SETTING/VOCAL HARMONY

2 Press the [2▲]/[3▲] (TALK) button to turn the function on.

NOTE Talk settings can be customized as well, allowing you to add any desired effects to your voice as you speak to your audience (page 170).

MIC SETTING/VOCAL HARMONY 1 TALK: OFF MIC EFFECT: OFF VOCAL HARMONY: ON TALK ON OFF MIC EFFECT ON OFF VOCAL HARMONY ON OFF VOCAL HARMONY TYPE MIC SETTING 1 2 3 4 5 6 7 8

Recording Your Performance as Audio (USB Audio Recorder) (CVP-405/403)

USB

Here you'll learn how to record your performance as audio data to a USB storage device. For example, by connecting a guitar, microphone or other device to the instrument, you can record an ensemble performance of guitar and keyboard together or record yourself singing along with Song playback. The performance data is saved as a WAV file of conventional CD quality (44.1 kHz/16 bit). Since it is possible to play back the file on computer, a listener doesn't need to have the particular instrument in order to hear the performance. This makes it possible to easily share your performances and recordings with your friends via e-mail, record your own CDs, or upload the recordings to websites for many others to enjoy as well.

Recording methods on the instrument include MIDI recording as well as audio recording. For details about the difference between audio and MIDI recording, see page 192. For specific instructions on MIDI recording, refer to page 196.

NOTE In order to record your own original CD, you'll need a CD-R drive (or compatible device). Refer to the manual that came with your specific computer for details.
- When you attach a recorded file in an e-mail message, make sure the file size is small enough to be sent.

The following sounds can be recorded.

• Internal tone generator of the instrument.
  Keyboard parts (Right 1, Right 2, Left), Song parts, Style parts
• Input from a microphone, guitar or other instrument (via the [MIC./LINE IN] jack).
• Input from another audio device, such as a CD player, MP3 player or the like (via the [MIC./LINE IN] jack).

D NOTE Songs protected by copyright, such as preset songs, and the metronome sound cannot be recorded.

The recorded data using this function is saved as:

• Stereo WAV data
  • 44.1 kHz sample rate/16 bit resolution

Recording Your Performance as Audio

Now, try recording a performance of your singing along with Song playback with a connected microphone. The maximum amount of recording time is 80 minutes, though this may differ depending on the capacity of the particular USB storage device.

1 Set the desired Voice, etc. which you want to use for your performance, and connect a microphone. (For information on setting the Voice, see page 28; for connecting a microphone, see page 54.)

Here, you'll also see by example how to sing along with accompaniment/Style playback. To set the Style, go on to step 6 (page 46).

2 Connect the USB storage device to the [USB TO DEVICE] terminal.

• To record your performance by USB Audio Recorder, use the compatible USB flash memory. When the USB flash memory is not compatible, it is not likely to be able to record/playback normally.
- Before using a USB storage device, be sure to read "Handling the USB Storage Device (USB Flash Memory/Floppy Disk, etc)" on page 22.

3 Press the [USB] button.

4 Press the [E] (USB AUDIO RECORDER) button to call up the recording display (USB AUDIO RECORDER display).

5 If necessary, press the [E] (PROPERTY) button to call up the Property display, then check the information of the USB storage device.

USB SONG VOICE (RIGHT 1) STYLE USB AUDIO RECORDER PRO- PERTY RECORDING TIME: 00:00 REC Do not take out the USB for storage device or turn off the instrument during recording. AUDITION 56,7 8

The following information is indicated on the PROPERTY display.

• DRIVE NAME ....Number of the USB storage device (USB 1, USB 2, etc.)
• ALL SIZE.... Size of USB storage device
• FREE AREA...... Available recording space on the USB storage device
• POSSIBLE TIME...... Available time for recording

Press the [F] (OK)/[EXIT] button to close the PROPERTY display.

NOTE The USB storage device of "USB1" is selected as the recording destination when multiple USB storage devices are connected. To check the number of the USB storage device (USB1 and USB2, etc.), press the [A]/[B]/[F] button on the display of step 4, and change the tab. Press the [EXIT] button to return to the previous display.

6 Start recording by pressing the [J] (REC) button, then start your performance.

When recording begins, the "RECORDING" indication on the display changes to red (CVP-405), and the elapsed recording time is displayed.

CAUTION

Avoid frequently connecting/disconnecting the USB storage device, or turning the power on/off too often. Doing so may corrupt the USB storage device data or the recording data.

7 Stop recording by pressing the [J] (STOP) button.

The file name is automatically named (and is always given a new, unique name), and a message indicating the file name is displayed.

NOTE The recording operation continues, even if you close the Recording display by pushing the [EXIT] button. To stop the recording, press the [J] (STOP) button on the Recording display.

Playing Back the Recorded Performance

Play back the recorded performance.

1 Call up the USB AUDIO RECORDER display.

[USB] → [E] (USB AUDIO RECORDER).

2 Press the [7▲▼]/[8▲▼] (AUDITION) button to display the audio files (WAV data) saved to the connected USB storage device.

The file recorded is selected in step 1-7 (page 60). For information about the operation method to change the name of the displayed file or to delete a file, see the section "File/Folder Operations in the File Selection Display" on page 69. However, the operation that copies/moves file/folder to the User tab cannot be done here.

3 Press one of the [A]-[J] buttons corresponding to the file you want to listen to, then press the [8▼] (AUDITION) button.

The song is played back from the beginning, and the display indicates the auditioning process. This display closes automatically when auditioning is stopped. Press the [G] (CANCEL) or [EXIT] button to stop auditioning.

CAUTION

Avoid frequently connecting/disconnecting the USB storage device, or turning the power on/off too often. Doing so may corrupt the USB storage device data or the auditioning data.

NOTE Audio recording is processed internally so that playback volume will be appropriate when played on a computer. Therefore, the playback sound might be distorted if you record at too high a volume. In this case, lower and adjust the volume of each part with Volume Balance display (page 40) and the Mixing Console (page 87), etc., and try recording again.

4 Press the [EXIT] button to return to the USB AUDIO RECORDER display shown in step 4 of "Recording Your Performance as Audio" above.

Selecting Message Language

You can select the desired language of the display messages.

1 Call up the operation display.

$$ [ \text { FUNCTION } ] \rightarrow [ J ] \text { UTILITY } \rightarrow \text { TAB } [ \blacktriangleleft ] [ \blacktriangleright ] \text { OWNER } $$

2 Use [4 ▲▼]/[5▲▼] (LANGUAGE) buttons to select the language.

3 Press the [EXIT] button to return to the previous display.

UTILITY CONFIG 1 CONFIG 2 SCREEN OUT MEDIUM OWNER SYSTEM RESET 1 OWNER NAME: LANGUAGE:ENGLISH BACKUP RESTORE LANGUAGE ENGLISH JAPANESE GERMAN FRENCH SPANISH ITALIAN OWNER MANE OPTION J EXIT 3 1 2 3 4 5 6 7 8 VERSION

The language selected here is also used for various "Messages" shown during operations.

The Messages Shown in the Display

A message (information or confirmation dialog) sometimes appears on the screen to facilitate operation. When the message appears, simply press the appropriate button.

UTILITY CONFIG 1 CONFIG 2 SCREEN OUT MEDIA OWNER SYSTEM RESET A B C D E Are you sure you want to format this device (USB1)? ? Make sure there is no important data in the disk before formatting; otherwise all data will be deleted. YES NO SONG AUTO OPEN ON OFF When the media is inserted to the device selected in the device list, the first song in the media will be selected automatically.

In this example, press the [F] (YES) button to start formatting the MEDIA (USB storage device such as USB flash memory/floppy disk, etc).

Instant Selection of the Displays—Direct Access

With the convenient Direct Access function, you can instantly call up the desired display—with just a single additional button press.

1 Press the [DIRECT ACCESS] button.

A message appears in the display prompting you to press the appropriate button.

2 Press the button corresponding to the desired setting display to instantly call up that display.

Refer to the separate Data List for a list of the displays that can be called up with the Direct Access function.

Example of calling up the Guide function display

Press the [DIRECT ACCESS] button, then press the [GUIDE] button.

MAIN TRANSPOSE 0 J = 103 BAR 001 - 1 Natural! RIGHT1 Pressing a button on the panel or pedal jumps to the relevant setup page of the respective button or pedal. (The button or a pedal works as a shortcut key.) Press [EXIT] to return to the MAIN display. SONG STYLE NIC LEFT RIGHT1 RIGHT2 LYRICS/ TEXT GUIDE REPEAT 2 SONG SETTING Follow Lights GUIDE MODE Any Key Guide lamp indicates the next note to Play. Karoo-Key Playback pauses until you play the correct note. Vocal CueTIME GUIDE LAMP ON OFF OFF SINGLE ALL RANDOM REPEAT MODE GUIDE LAMP MEXT JUST ON OFF PHASE WORK REPEAT CHANNEL SETTING TRACK2-TRACK1 AUTO CYCH SET LYRICS QUICK P.R.I. OFF OFF AUTI INTERNATIONAL ON 1 1 ON INTERNATIONAL JAPANESE OFF OFF 2 OFF

Returning to the Main display

You can conveniently return to the Main display from any other display by simply pressing the [DIRECT ACCESS] button, then the [EXIT] button.

Basic Displays (Main Display and File Selection Display)

There are two basic display types - Main and Selection. Here are explanations of each display segment and its basic operation.

Main Display

The Main display shows the current basic settings of the instrument such as the currently selected Voice and Style, allowing you to see them at a single glance. The Main display is the one you'll usually see when you play the keyboard.

CVP-405/403 CVP-401

MAIN TRANSPOSE 0 J = 103 8mm 001 - 1 Historical! GrandPiano1 Cool! GalaxyEP LEFT Live! RIGHTS 4/4 1/20 STYLE 4/4 1/20 SONG Classic8Beat NewSong CHORD 8:thenReist REGIST NewDank BALANCE SONG STYLE BIG LEFT RIGHT RIGHT SONG STYLE

10 7 8 11 MAIN TRANSPOSE 0 | J = 100 | DDR 001 - 1 Natural GrandPiano RIGHT1 BALANCE # Strings RIGHT2 CHORD GalaxyFP LEFT NewBank REGIST 4/4 J=100 4/6 J=120 CoolBeat NewSong STYLE SONG

①Voice name

• RIGHT 1 (indicated at the right edge): Voice name currently selected for the RIGHT 1 part (page 80).
• RIGHT 2 (indicated at the right edge): Voice name currently selected for the RIGHT 2 part (page 80).
• LEFT (indicated at the right edge): Voice name currently selected for the LEFT part (page 80).

When the Left Hold function is ON, an "H" indication appears (page 85). Pressing one of the [A]–[C] and [F]–[H] buttons calls up the Voice Selection display for each part (page 32). On the CVP-401, one of the [A]–[B] and [F]–[I] buttons calls up the Voice Selection display for each part (page 32).

②Style name and related information

Displays the currently selected Style name, time signature and tempo. On the CVP-405/403, pressing the [D] button calls up the Style Selection display (page 46). On the CVP-401, open the Style Selection display by pressing the [1 ▲ ▼ | - | 4 ▲ ▼ ] buttons.

③Current chord name

If the [ACMP ON/OFF] button is set to On, the chord specified in the chord section of the keyboard will be displayed.

④Song name and related information

Displays the currently selected Song name, time signature and tempo. On the CVP-405/403, pressing the [I] button calls up the Style Selection display (page 46). On the CVP-401, open the Style Selection display by pressing the [5▲▼]-[8▲▼] buttons. If the Song contains the chord data, the current chord name will be displayed in the "CHORD" segment (see ③ above). Pressing the [I] button calls up the Song Selection display (page 35).

⑤Registration Memory Bank name

Displays the currently selected Registration Memory Bank name. Pressing the [J] button calls up the Registration Memory Bank Selection display (page 128). When the Freeze function is ON, an "F" indication appears (page 129).

⑥Volume Balance

Displays the volume balance among the parts. On the CVP-401, open the volume balance display by pressing the [C] button. Adjust the volume balance among the parts by using the [1 ] - [8 ] buttons.

⑦Transpose

Displays the amount of transposition in semitone units (page 56).

Returning to the Main display Here's a convenient way to return to the Main display from any other display: Simply press the [DIRECT ACCESS] button, then the [EXIT] button.

8Tempo

Displays the current tempo of the Song or Style.

⑨BAR (current position of the Song or Style)

Displays the current position of the Song or bar and beat number from playback start of the Style.

10Recording status of USB Audio recorder (CVP-405/403)

While recording, a "REC" indication appears.

⑪Registration Sequence

Appears when the Registration Sequence is active (page 130).

File Selection Display Configuration and Basic Operation

The File Selection display appears when you press one of the buttons shown below. From here you can select Voices, Styles, and other data.

VOICE CATEGORY selection buttons SONG SELECT button VOICE CONTROL Piano E.Piano STRINGS GUTAR & BASS SAXOPHONE FLUTE & WOODWIND ORGAN TRUMPET BRASS ACCORDION CNOUR & PAD SYNTHLFX PERC & DRUM KIT ORGAN FLUTES STYLE category selection buttons REGIST BANK SELECT STYLE CONTROL POP&ROCK BALLAD DANCE SWING&JAZZ R&B COUNTRY LATIN BALLROOM ENTER SAINMENT WORLD PIANIST SELECT

File Selection Display Configuration

- Location (drive) of data

Preset

Location where pre-programmed (preset) data is stored.

VOICEFIGHT PRESIT Piano E.Piano Strings Guitar&Bass Saxophone Flute&Woodwind Organ Trumpet Brass Accordion VOICE P1 P2 Dlty HOT COPY PRET DELETE CHANGE FOLDER END

User

Location where recorded or edited data is saved.

VOICE(RIGHT1) SET USER VOICE PI VICKSET INFO. NAME OUT COPY PRINT DELETE SAVE FOLDER END

USB

Location where data on USB storage device (USB flash memory/floppy disk, etc) is saved.

VOICE(RIGHT1) RESET ON USB1 P1 PHONE GOT COPY PASTE DELETE VOCGET INFO. SAVE FOLDER REMO

Hereafter in this manual, any USB storage device such as USB flash memory/floppy disk, etc. will be referred to as "USB storage device."

• Data files and folders

The data, both pre-programmed and your own original, are saved as "files." You can drop files into a folder.

Folder Folder Icon VOICE(RIGHT1) PRESIT USER USB1 Piano Flute&Woodwind E.Piano Organ Strings Guitar&Bass Saxophone VOICE P1 P2 NAME CUT COPY File VOICE(RIGHT1) PRESIT USER USB1 Natural! GrandPiano1 Natural! HonkyTonk Natural! GrandPiano2 Natural! Oct.Piano1 Natural! BrightPiano Natural! Oct.Piano2 Natural! MellowPiano S.Art! Harpsichord Natural! RockPiano Natural! Hc8'+4' Piano P1 P2 P3 VOICESET INFO UP NAME CUT COPY PASTE DELETE SAVE FOLDER DEMO

File Selection Display Basic Operation

VOICE(RIGHT1) PRiset USER USB1 Naturall GrandPiano1 Naturall GrandPiano2 Naturall BrightPiano Naturall MellowPiano Naturall RockPiano Naturall HonkyTonk Naturall Oct.Piano1 Naturall Oct.Piano2 S.Optl Harpsichord Naturall Hc8'·4' Piano P1 P2 P3 JOVESI INFO. NAME CUT COPY PAGE DELETE SAVE FOLDID DEMO 1 2 3 4 5 6 7 8 1 USB USER F G H I J EXIT DATA ENTRY ENTER 3 2 3

1 Select the tab containing the desired file by using the TAB [ ◀][▶] buttons.
2 Select the page containing the desired file by using the [1 ▲]–[7 ▲] buttons ([1 ▲]–[5 ▲] buttons for Voice, [1 ▲]–[6 ▲] buttons for Song and Style).
3 Select the file. There are two ways to do so.

- Press one of the |A|-|J| buttons.

- Select the file by using the [DATA ENTRY] dial, then press the [ENTER] button to execute.

4 Press the [EXIT] button to return to the previous display.

Select the file to which the data is saved.

You can also select the specified file to which the data is to be saved by pressing the [USB]/[USER] buttons.

|USB]/[USER] → [A] SONG/[B] STYLE/[F] VOICE → [A]-[J]

Closing the current folder and calling up the next highest level folder

To close the current folder and call up the next highest level folder, press the [8 ▲] (UP) button.

Example of the PRESET Voice Selection display

The PRESET Voice files are categorized and contained in appropriate folders.

VOICE(RIGHT1) Preset USED - USB3 Natural1 GrandPiano1 Natural1 GrandPiano2 Natural1 BrightPiano Natural1 MellowPiano Natural1 HockPiano Natural1 HonkyTonk Natural1 OctPiano1 Natural1 OctPiano2 S.Art1 Harpsichord Natural1 Hc8+4* Piano P1 P2 P3 UNITSHT INFO HD MORE COPY PROIE COMPLETE SAVE FOLDER CENO

This display shows the Voice files in a folder.

VOICE(RIGHT1) PRESIT USER USB Piano Flute&Woodwind E.Piano Organ Strings Trumpet Guitar&Bass Brass Saxophone Accordion VOICE P1 P2 VOCISET INFO. NAME CAT GOFY PAGE COMPLETE SAVE FOLDEN DENO

The next highest level—in this case, folder—is shown. Each folder shown in this display contains appropriately categorized Voices.

File/Folder Operations in the File Selection Display

• Saving Files......page 70
• Copying Files/Folders (Copy & Paste)...... page 71
• Moving Files (Cut & Paste)...... page 72
• Deleting Files/Folders...... page 72
• Renaming Files/Folders ...... page 73
• Selecting Custom Icons for Files (shown at the left of file name) ...... page 73
• Creating a New Folder ...... page 73
• Entering characters...... page 74

Formatting USB storage media

When a USB storage device is connected or media is inserted, a message may appear prompting you to format the device/media. If so, execute the format operation.

CAUTION

The format operation deletes any previously existing data. Make sure that the media you are formatting does not contain important data. Proceed with caution, especially when connecting multiple USB storage medias.

1 Insert a USB storage device for formatting into the [USB TO DEVICE].
2 Call up the operation display.
3 Press the [A]/[B] buttons to select the "USB" Tabs (USB1/USB2) connected to the devices in step 1.
4 Press the [H] button to format the media.

$$ [ \text { FUNCTION } ] \rightarrow [ \sharp ] \text { UTILITY } \rightarrow \text { TAB } [ \blacktriangleleft ] [ \blacktriangleright ] \text { MEDIA } $$

UTILITY CONFIG 1 CONFIG 2 SCREEN OUT MEDIA OWNER SYSTEM RESET DEVICE LIST USB1 PROPERTY Initialize MEDIA. All data will be deleted. FORMAT SONG AUTO OPEN ON OFF When the media is inserted to the device selected in the device list, the first song in the media will be selected automatically.

The indications USB 1, USB 2, etc. will be displayed depending on the number of the connected devices.

Internal memory (User tab displays) capacity

The internal memory capacity of the instrument is about 1.4MB (CVP-405/403), or about 560KB (CVP-401). This capacity applies to all file types, including Voice, Style, Song, and Registration data files.

Saving Files

This operation lets you save your original data (such as Songs and Voices you've created) to a file.

1 After you've created a Song or Voice in the relevant SONG CREATOR or VOICE SET display, press the [SAVE] display button.

The File Selection display for the corresponding data appears. Keep in mind that the Save operation is executed from the File Selection display.

VOICE SET: GrandPiano1 PIANO COMMON CONTROLLER SOUND EFFECT/EO HARMONY 1 FILTER BRIGHTNESS:0 HARMONIC CONTENT:0 EG ATTACK:0 DECAY:0 RELEASE:0 VIBRATO DEPTH:0 SPEED:0 DELAY:0 COM- PORE FILTER EG VIBRATO BRIGHT-HARNO. ATTACK-DECAY-RELES. DEPTH-SPEED-DELAY 0 0 0 0 0 0 AV AV AV AV AV AV VOICE(RIGHT1) PRESIT USER USB1 VOICE P1 UP SAVE 1 2 3 4 5 6 7 8

2 Select the appropriate tab (USER/USB) to which you want to save the data by using the TAB [◀][▶] buttons.
3 Press the [6 ▼] (SAVE) button to call up the file naming display.

SAVE GrandPiano1 CASE _+1 ABC2 DEF3 GHI4 JKL5 MNO6 OK ICON PORS7 TUV8 MXYZ9 +-0 SYMBOL DELETE CANCEL

4 Enter the file name (page 74).
5 Press the [8 ▲] (OK) button to save the file.

If you want to cancel the Save operation, press the [8▼] (CANCEL) button. The saved file will be automatically located at the appropriate position among the files in alphabetical order.

Restrictions for protected Songs

Commercially available song data may be copy protected to prevent illegal copying or accidental erasure. They are marked by the indications at the upper left side of the file names. The indications and relevant restrictions are detailed below.

Prot. 1 Indicates Preset Songs saved to the User tab display, Disk Orchestra Collection (DOC) Songs, and Disklavier Piano Soft Songs. These cannot be copied/moved/saved to USB storage device.

Prot. 2 Orig Indicates Yamaha-protection-formatted Songs. These cannot be copied. These can be moved/saved only to the USER tab display and USB storage device.

Prot. 2 Edit Indicates edited “Prot. 2 Orig” Songs. Make sure to save these to the same folder containing the corresponding “Prot. 2 Orig” Song. These cannot be copied. These can be moved/saved only to the USER tab display and USB storage device.

Note for "Prot. 2 Orig" and "Prot. 2 Edit" Song file operation

Make sure to save the "Prot. 2 Edit" Song to the same folder containing its original "Prot. 2 Orig" Song. Otherwise the "Prot. 2 Edit" Song cannot be played back. Also, if you move a "Prot. 2 Edit" Song, be sure to move its original "Prot. 2 Orig" Song to the same location (folder) at the same time.

Copying Files/Folders (Copy & Paste)

This operation lets you copy a file/folder and paste it to another location (folder).

1 Call up the display containing the file/folder you want to copy.
2 Press the [3 ▼] (COPY) button to copy the file/folder.

The pop-up window for the Copy operation appears at the bottom of the display.

3 Press one of the [A]–[J] buttons corresponding to the desired file/folder.

To cancel the selection, press the same [A]–[J] button again.

■ Selecting all files/folders

Press the [6 ▼] (ALL) button to select all files/folders indicated on the current display including the other pages.

To cancel the selection, press the [6 ▼] (ALL OFF) button again.

4 Press the [7 ▼] (OK) button to confirm the file/folder selection.
To cancel the Copy operation, press the [8 ▼] (CANCEL) button.
5 Select the destination tab (USER/USB) to paste the file/folder, by using the TAB [◀][▶] buttons.
6 Press the [4 ▼] (PASTE) button to paste the file/folder.

The folder/file copied and pasted appears on the display at the appropriate position among the files in alphabetical order.

Moving Files (Cut & Paste)

This operation lets you cut a file and paste it to another location (folder).

1 Call up the display containing the file you want to move.

2 Press the [2 ▼] (CUT) button to cut the file.

The pop-up window for the Cut operation appears at the bottom of the display.

3 Press one of the [A]-[J] buttons corresponding to the desired file.

To cancel the selection, press the same [A]–[J] button again.

■ Selecting all files

Press the [6] (ALL) button to select all files indicated on the current display including the other pages.

To cancel the selection, press the [6 ▼] (ALL OFF) button again.

4 Press the [7 ▼] (OK) button to confirm the file selection.

To cancel the Cut operation, press the [8 ▼] (CANCEL) button.

5 Select the destination tab (USER/USB) to which the file is to be pasted, by using the TAB [◀][▶] buttons.

6 Press the [4 ▼] (PASTE) button to paste the file.

The file moved and pasted appears on the display at the appropriate position among the files in alphabetical order.

Deleting Files/Folders

This operation lets you delete a file/folder.

1 Call up the display containing the file/folder you want to delete.

2 Press the [5 ▼] (DELETE) button.

The pop-up window for the Delete operation appears at the bottom of the display.

3 Press one of the [A]-[J] buttons corresponding to the desired file/folder.

To cancel the selection, press the same [A]–[J] button again.

■ Selecting all files/folders

Press the [6▼] (ALL) button to select all files/folders indicated on the current display including the other pages.

To cancel the selection, press the [6 ] (ALL OFF) button again.

4 Press the [7 ▼] (OK) button to confirm the file/folder selection.

To cancel the Delete operation, press the [8 ▼] (CANCEL) button.

5 Follow the on-display instructions.

YES ......Delete the file/folder

YES ALL ......Delete all selected files/folders

NO ......Leave the file/folder as is without deleting

CANCEL......Cancel the Delete operation

Deleting all data in a USB storage device at once

Formatting a USB storage device completely erases all data on the USB storage device (page 69).

Renaming Files/Folders

This operation lets you rename files/folders.

1 Call up the display containing the file/folder you want to rename.
2 Press the [1 ▼] (NAME) button. The pop-up window for the Rename operation appears at the bottom of the display.

3 Press one of the [A]–[J] buttons corresponding to the desired file/folder.
4 Press the [7 ▼] (OK) button to confirm the file/folder selection. To cancel the Rename operation, press the [8 ▼] (CANCEL) button.
5 Input the name (characters) of the selected file or folder (page 74). The renamed folder/file appears on the display at the appropriate position among the files in alphabetical order.
6 Press the [8 ▲] (OK) button to actually enter the new name.

Selecting Custom Icons for Files (Shown at the Left of File Name)

You can select custom icons for files (shown at the left of file name).

1-4 Operations are the same as the above "Renaming Files/Folders" section.
5 Press the [1 ▼] (ICON) button to call up the ICON display.
6 Select the icon by using the [A]–[J] buttons or [3 ▲ ▼]–[5 ▲ ▼] buttons. The ICON display includes several pages. Press the TAB ▶] button to select different pages. To cancel the operation, press the [8 ▼] (CANCEL) button.
7 Press the [8 ▲] (OK) button to apply the selected icon.
8 Press the [8 ▲] (OK) button to actually enter the new name.

Creating a New Folder

This operation lets you create new folders. Folders can be created, named and organized as desired, making it easier to find and select your original data.

1 Call up the page of the File Selection display for which you wish to create a new folder.
2 Press the [7 ▼] (FOLDER) button to call up the naming display for a new folder.

NEW FOLDER CASE _01 ABC2 DEF3 GHI4 JKL5 MMOS OK PQRS7 TUV8 MXYZ9 +-0 SYMBOL DELETE CANCEL

3 Input the name of the new folder (page 74).

A new folder cannot be made in the PRESET tab.

Folder directories for the USER tab display

In the USER tab display, folder directories can contain up to four levels. The maximum total number of files and folders which can be stored is 740 (CVP-405/403), 370 (CVP-401), but this may differ depending on the length of the file names. The maximum number of files/folders which can be stored in a folder in the USER tab is 250.

Depending on the display for character entry you are working in, some types of characters cannot be entered.

Even if you select Japanese as the Language, when you enter the characters in the lyrics editing display (page 162), the Internet Setting display (page 179), or website, the type of characters "CASE"/"case" may be entered.

The following half-size marks cannot be entered for a file/folder name. \/:*?"<>|

Entering password or WEP key of wireless LAN connection in the website, those characters are converted to “*”.

In the case of characters which are not accompanied by special character marks (with the exception of kanakan and half-size katakana), you can call up the mark list by pressing the [6▼] button after selecting a character (before actual entry of a character).

Entering Characters

The instructions that follow show you how to enter characters in naming your files/folders and when entering the Keyword for Music Finder function/website. The method is much the same as entering names and numbers to a conventional mobile phone. Entering characters should be done in the display shown below.

SAVE NewBank CASE _01 ABC2 DEF3 GHI4 JKL5 MMOS OK ICON PARS7 TUV8 MXYZ9 +-0 SYMBOL DELETE CANCEL

1 Change the type of character by pressing the [1 ▲] button.

- If you select a language other than Japanese as the Language (page 63), the following different types of characters are available:

CASE......Alphabet (capital letters, half size), numbers (half size), marks (half size)

case ....Alphabet (lowercase letters, half size), numbers (half size), marks (half size)

- If you select Japanese as the Language (page 63), the following different types of characters and sizes can be entered:

かな漢 (kana-kan) ...Hiragana and Kanji, marks (full size)

カナ (kana) ......Katakana (normal size), marks (full size)

カナ (kana) ......Katakana (half size), marks (half size)

A B C......Alphabet (capital and small letters, full size), numbers (full size), marks (full size)

ABC......Alphabet (capital and small letters, half size), numbers (half size), marks (half size)

2 Use the [DATA ENTRY] dial to move the cursor to the desired position.

3 Press the [2 ▲▼]–[6▲▼] and [7▲] buttons, corresponding to the character you wish to enter.

For details on entering characters, refer to the following section, below instruction step 4.

SAVE PIANO CASE _01 ABC2 DEF3 GHI4 JKL5 MNO6 OK ICON PARS7 TUV8 MXYZ9 +-0 SYMBOL DELETE CANCEL

Several different characters are assigned to each button, and the characters change each time you press the button.

4 Press the [8 ▲] (OK) button to actually enter the new name and return to the previous display.

Entering letters, numerals and symbols can be done by moving the cursor or pressing one of the character entry buttons. Alternately, you can wait for a short time and the characters will be entered automatically.

- Deleting characters

Move the cursor to the character you wish to delete by using the [DATA ENTRY] dial, and press the [7] (DELETE) button. To delete all characters on the line at once, press and hold the [7] (DELETE) button.

- Entering special character marks (Japanese “ & and ”)

Select a character to which a character mark is to be added and press the [6] button before actual entry of the character.

- Entering marks

1 After actually entering a character by moving the cursor, press the [6▼] button to call up the mark list.

2 Use the |DATA ENTRY| dial to move the cursor to the desired mark, then press the [8 ] (OK) button.

- Inserting a Character

1 Move the cursor to the desired position. Use the same operation as in "Deleting Characters" above.

2 Press the [2 ▲▼]–[6▲▼], [7▲] buttons to enter numbers and symbols.

3 Press the [8 ▲] (OK) button to enter characters.

- Entering a Space

1 Move the cursor to the desired position. Use the same operation as in "Deleting Characters" above.

2 Press [6 ▼] button to call up the mark list. 3 Make sure the cursor is at the beginning space (blank) of the mark list, and press the [8▲] (OK) button.

- Entering numbers

First, select one of the following: "A B C" (full-size alphabet), "ABC" "CASE" (half-size capital alphabet) and "case" (half-size lowercase alphabet). Then, press and hold down the appropriate button, [2▲▼]–[5▲▼], [6▲] and [7▲] button, for a while, or press it repeatedly until the desired number is selected.

- Converting into Kanji (Japanese language)

When the entered "hiragana" characters are shown in reverse display (highlighted), press the [1 ▲]/[ENTER] button one or several times to convert the characters into the appropriate kanji. To actually enter the change, press the [8 ▲] (OK) button or enter the next character.

When the entered "hiragana" characters are shown in reverse display (highlighted):

- Re-converting the characters into other kanji Press the [1 ▲]/[ENTER] button.

- Changing the reversed area Use the [DATA ENTRY] dial.

- Changing the converted kanji back to "hiragana" Press the [7 ▼] (DELETE) button.

- Clearing the reversed area at once Press the [8 ▼] (CANCEL) button.

- Entering the "hiragana" itself (without converting it) Press the [8 ▲] (OK) button.

- Canceling the character-entering operation Press the [8 ▼] (CANCEL) button.

Restoring the Factory-programmed Settings

Restoring the Factory-programmed System

While holding the C7 key (right-most key on the keyboard), turn the [POWER] button ON.

This operation has the same result as and is a shortcut for the System Setup restore operation explained in step 2 of the following section.

The operation of restoring the factory-programmed settings does not affect the Internet Settings. To reset the Internet Settings, refer to page 183.

CAUTION

This operation deletes all your original data for the respective item (MIDI SETUP, USER EFFECT, MUSIC FINDER, and FILES&FOLDERS).

Restoring the Factory-programmed Settings Independently by Item

1 Call up the operation display.

[FUNCTION] → [J] UTILITY → TAB[▶]SYSTEM RESET

2 Select items by pressing the [1 ▲▼]–[3▲▼] buttons.

SYSTEM SETUP	Restores the System Setup parameters to the original factory resettings.Refer to the separate Data List booklet for details about which parameters belong to the System Setup.
MIDI SETUP	Restores the MIDI settings including the MIDI templates on the User tab display to the original factory status.
USER EFFECT	Restores the User Effect settings including the user effect types, user master EQ types, and user vocal harmony types (CVP-405/403) created via the Mixing Console display to the original factory resettings.
MUSIC FINDER	Restores the Music Finder data (all records) to the original factory resettings.
FILES&FOLDERS	Deletes all files and folders stored in the User tab display.
REGIST	Temporarily deletes the current Registration Memory settings of the selected Bank. The same can be done also by turning the [POWER] button ON while holding the B6 key (right-most B key on the keyboard).

UTILITY CONFIG 1 CONFIG 2 SCREEN OUT MEDIA OWNER SYSTEM RESET The Factory Reset operation does not reset certain parameters, such as the Language setting and Owner Name. To reset those, load the preset System Setup file. FACTORY RESET EXECUTE FACTORY RESET SYSTEM SETUP MIDI SETUP USER EFFECT MUSIC FINDER FILES&FOLDERS REGIST CAUTION! All User files and folders are lost when 'FILES&FOLDERS' is selected and Factory Reset is executed. 1 2 3 4 5 6 7 8 F G H I J 4 2 3

3 Checkmark the box of the item to be reset to the factory programmed settings by pressing the [4▲] button.
4 Press the [D] button to execute the Factory Reset operation for all checkmarked items.

Saving and Recalling Your Original Settings as a Single File

For the items below, you can save your Original Settings as a Single File for future recall.

1 Make all desired settings on the instrument.
2 Call up the operation display. [FUNCTION] → [J] UTILITY → TAB[▶] SYSTEM RESET

3 Press one of the [F]-[I] buttons to call up the relevant display for saving your data.

SYSTEM SETUP	Parameters set on the various displays such as the [FUNCTION] → UTILITY and microphone setting display (CVP-405/403) are handled as a single System Setup file. Refer to the separate Data List booklet for details on which parameters belong to the System Setup.
MIDI SETUP	The MIDI settings including the MIDI templates on the User tab display are handled as a single file.
USER EFFECT The	User Effect settings including the user effect types, user master EQ types, and user vocal harmony types (CVP-405/403) created via the Mixing Console displays are managed as a single file.
MUSIC FINDER A	I the preset and created records of the Music Finder are handled as a single file.

4 Select one of the tabs (other than the PRESET) by pressing the TAB [◀][▶] buttons.

Note that the file in the PRESET tab display is the file of factory-programmed settings. If you select it, the factory-programmed settings for the respective item will be restored. (This is the same results as on page 75 "Restoring the Factory-programmed Settings Independently by Item".)

5 Save your file (page 70).

6 To recall your file, select the tab and page to which you've saved the file (same tab and page as specified in step 4), and press the corresponding [A]–[J] button.

Data Backup

For maximum data security Yamaha recommends that you copy or save your important data to a USB storage device. This provides a convenient backup if the internal memory is damaged.

Data that can be saved1

1 Song*, Style, Registration Memory Bank and Voice

2 Music Finder Record, Effect**, MIDI Template and System File

* Protected Songs (those with a "Prot.1/Prot.2" indication at the upper left of the file name) cannot be saved. However, Songs with a "Prot.2" indication can be moved (cut-and-paste operation) to a USB flash memory.

**Effect data includes the following: - Edited or saved data in the Mixing Console "EFFECT/EQ." - Edited or saved data of the Vocal Harmony type. (CVP-405/403)

3 All data listed in 1 and 2 above, as well as the Internet settings.

The backup procedure is different for the data types in 1, 2, and 3 above.

Backup procedure

1 Song, Style, Registration Memory Bank and Voice Data

1 Insert/connect the backup USB storage device (destination).

2 Call up the display containing the desired file to be copied.

Song:

Press the [SONG SELECT] button.

Style:

Press the STYLE category selection buttons.

Registration Memory Bank:

Press simultaneously REGISTRATION MEMORY [REGIST BANK] buttons [+][-] .

Voice:

Press one of the VOICE category selection buttons.

3 Select the USER tab by using the TAB [◀][▶] buttons.

4 Press the [3 ▼] (COPY) button to copy the file/folder.

The pop-up window for the Copy operation appears at the bottom of the display.

5 Press the [6 ▼] (ALL) button to select all files/folders indicated on the current display and all other pages.

To cancel the selection, press the [6 ▼] (ALL OFF) button again.

6 Press the [7 ▼] (OK) button to confirm the file/folder selection.

Tocancel the Copy operation, press the [8 ▼] (CANCEL) button.

7 Select the destination USB tab to which the file/folder is to be copied, by using the TAB [◀][▶] buttons.

8 Press the [4 ▼] (PASTE) button to paste the file/folder.

If a message appears indicating data cannot be copied

Protected Songs ("Prot. 1/Prot.2" is indicated at the upper left side of the file names) are included in the copied files. These protected Songs cannot be copied. However, Songs with a "Prot.2" indication can be moved (cut-and-paste operation) to a USB flash memory.

2 Music Finder Record, Effect, MIDI Template and System Data

1 Insert/connect the backup USB storage device (destination).
2 Call up the operation display. [FUNCTION] → [J] UTILITY → TAB [◀][▶] SYSTEM RESET
3 Press one of the [F]–[I] buttons to call up the relevant display for saving your data.
4 Select the appropriate USB tab to which you want to save the data by using the TAB [◀][▶] buttons.
5 Save your data (page 70).

3 All data listed in 1 and 2 above

1 Insert/connect the backup USB storage device (destination).
2 Call up the operation display. [FUNCTION] → [J] UTILITY → TAB [◀][▶] OWNER
3 Press the [D] (BACKUP) button to save the data to the USB storage device.
To restore the data, press the [E] (RESTORE) button in step 3 above.

NOTE • It takes a few minutes to complete the backup/restore operation.
- Backup data which has not been created on the CVP-405/403/401 cannot be restored.

CAUTION

Move the Protected Songs which are saved to the USER display before restoring. If the songs are not moved, the operation deletes the data.

Reference to Quick Guide pages

Playing Voices ...... page 28

Playing the Piano Voice ...... page 28

Playing Various Voices...... page 32

Voice Characteristics

The Voice type and its defining characteristics are indicated above the Preset Voice name.

Natural!	These rich and luscious Voices are comprised mostly of keyboard instrument sounds and are especially intended for playing piano and other keyboard parts. They also take full advantage of Yamaha's advanced sampling technology such as Stereo Sampling, Dynamic Sampling (CVP-405/403), Sustain Sampling (CVP-405/403), and Key-off Sampling (CVP-405/403).
S. Articulation! (CVP-405)	The Super Articulation voices sound remarkably authentic and natural, featuring the unique performance characteristics of each instrument—for example, guitar scratching sounds or the legato phrasing of wind instruments. They provide many of the same benefits as the MegaVoices (see below), but with greater playability and expressive control in real time. To effectively play these natural sounds in performance of certain voices, you may need to use the pedal or footswitch. For details on how to best play each voice, call up the Information window (pressing the |7▲| button in the Voice Selection display).
Mega Voice (CVP-405/403)	The Mega Voices are not intended to be played from the keyboard. They are primarily designed for use with recorded MIDI sequence data (such as songs and styles). Some of the guitar and bass Voices in particular have been created as Mega Voices.What makes Mega Voices special is their use of velocity switching. Normal Voices use velocity switching, too—to make the sound quality and/or level of a Voice according to how strongly or softly you play it. This makes the instrument's Voices sound authentic and natural. However, with Mega Voices, each velocity range (the measure of your playing strength) has a completely different sound. For example, a Mega guitar Voice includes the sounds of various performance techniques. In conventional instruments, different Voices having those sounds would be called up via MIDI and played in combination to achieve the desired effect. However, now with Mega Voices, a convincing guitar part can be played with just a single Voice, using specific velocity values to play the desired sounds. Because of the complex nature of these Voices and the precise velocities need to play the sounds, they're not intended for playing from the keyboard. They are, however, very useful and convenient when creating MIDI data—especially when you want to avoid using several different Voices just for a single instrument part.
Live! These acoustic instrument sounds were sampled in stereo, to produce a truly authentic, rich sound—full of atmosphere and ambience.
Cool! These Voices capture the dynamic textures and subtle nuances of electric instruments—thanks to a huge amount of memory and some very sophisticated programming.
Sweet! These acoustic instrument sounds also benefit from Yamaha's sophisticated technology—and feature a sound so finely detailed and natural, you'll swear you're playing the real thing!
Drums Various drum and percussion sounds are assigned to individual keys, letting you play the sounds from the keyboard.
SFX	Various special effect sounds are assigned to individual keys, letting you play the sounds from the keyboard.
Organ Flutes!	This authentic organ Voice lets you use the Sound Creator to adjust the various footages and craft your own original organ sounds. See page 100 for details.

Mega Voices Compatibility

Mega Voices are unique to the Clavinova and are not compatible with other models. Any song, style data you've created on the Clavinova using the Mega Voices will not sound properly when played back on other instruments.

Playing Different Voices Simultaneously

The instrument keyboard features various functions and performance conveniences that are simply unavailable on an acoustic instrument. It allows you to play several different Voices together in a layer, or play one Voice with your left hand while you play a different Voice (or even two layered Voices!) with your right.

Keyboard Parts (Right 1, Right 2, Left)

Voices can be assigned independently to each keyboard part: Right 1, Right 2, and Left. You can combine these parts by using the PART ON/OFF buttons to create a rich, ensemble sound.

Keyboard Part Combinations

■ Playing a single Voice (Right 1 part)

You can play a single Voice over the entire keyboard range. This is used for normal performance—for example, with the piano Voice.

Make sure the PART ON/OFF [DUAL (RIGHT2)]/[SPLIT (LEFT)] buttons are turned off.

PART ON/OFF COLD/BIND SPUL(FL/PY) Right 1 part

■ Dual: Playing Two Voices Simultaneously (Right 1 and 2 parts)

You can simulate a melody duet or combine two similar Voices to create a thicker sound.

PART ON/OFF EQUALIFRITI RILKELUTTI Right 2 part Right 1 part

Refer to page 81 for Voice selection operations for the Right 2 part.

■ Split: Playing Different Voices with the Left and Right Hands (Right 1 and Left parts)

You can play different Voices with the left and right hands. For example, try playing the bass Voice with your left hand and the piano Voice with your right.

The keyboard lamp will light at the split point of the keyboard.

PART ON/OFF O DUALPANTS SPLIT LEFT Left part Right 1 part

Refer to page 82 for Voice selection operations for the Left part.

■ Dual+Split: Playing Three Different Voices with the Left and Right Hands (Right 1, 2 and Left parts)

You can combine these three parts to create a rich, ensemble sound.

PART ON/OFF O QURU/INT O SPECTRUMPT Left part Right 2 part Right 1 part

Adjusting the volume balance among parts

Adjust the volume balance among the parts in the BALANCE display (page 40).

Specifying the split point (the border between the right-and left-hand range)

See page 107.

Playing Two Voices Simultaneously (Right 1 and 2 Parts)

You can play two Voices simultaneously with the Right 1 and 2 parts by turning Dual on.

1 Press the PART ON/OFF [DUAL (RIGHT2)] button to play two Voices simultaneously with the Right 1 and 2 parts.

2 Press one of the VOICE category selection buttons to call up the Voice selection display for the Right 2 part.

VOICE CONTROL Piano E.PIANO STRINGS GUITAR & BASS SAXOPHONE FLUTE & WOODWIND ORGAN TRUMPET BRASS ACCORDION CHOIR & PAD SYNTH&FX PERC. & DRUM KIT ORGAN FLUTES

3 Press the TAB [ ◀] button to select the PRESET display.

VOICE(RIGHT2) PRISIT USER USB1 Musette Sweet! Harmonica TuttiAccordion Accordion SmallAccordion SoftAccordion BallroomAcc Bandoneon Steirisch ModernHarp Accordion P1 P2 VOICE SET INFO. UP NAME CUT COPY POSTE DELETE SAVE FOLDER DEMO TAB 3 4 A B C D E

4 Press one of the [A]-[J] buttons to select a Voice.
5 Play the keyboard.
6 Press the PART ON/OFF [DUAL (RIGHT2)] button again to turn it off.

For the selected part, a LEFT mark appears at the right of the Voice name in the Main display.

Quickly selecting Voices for Right 1 and 2 parts

You can quickly select the Right 1 and 2 part Voices, just from the VOICE category selection buttons. Press and hold one VOICE category selection buttons, then press another. The Voice of the first pressed button is automatically set for the Right 1 part, while the Voice of the second pressed button is set for the Right 2 part.

Switching the Dual on/off with a pedal

You can use a pedal to switch the Dual on/off (when the PART ON/OFF [DUAL (RIGHT2)] is appropriately assigned; page 187). This is useful for turning the Dual on and off while you play.

For the selected part, a RIGHT mark appears at the left of the Voice name in the Main display.

Switching the Split on/off with a pedal

You can use a pedal to switch the Split on/off (when the PART ON/OFF [SPLIT (LEFT)] is appropriately assigned; page 187). This is useful for turning the Split on and off while you play.

Specifying the split point (the border between the right-and left-hand range)

See page 107.

Playing Different Voices with the Left and Right Hands (Right 1 and Left Parts)

You can play different Voices with the Left and Right Hands (Right 1 and Left parts) by turning Split on.

1 Press the PART ON/OFF [SPLIT (LEFT)] button to play different Voices with the Right and Left Hands (Right 1 and Left parts).

2 Press one of the VOICE category selection buttons to call up the Voice selection display for the Left part.

VOICE CONTROL Piano E.PIANO STRINGS GUITAR & BASS SAXOPHONE FLUTE & WOODWIND ORGAN TRUMPET BRASS ACCORDION CHOIR & PAD SYNTH&FX PERC. & DRUM KIT ORGAN FLUTES

3 Press the TAB [ ◀] button to select the PRESET display.

VOICE(LEFT) MUSette Sweet! Harmonica TuttiAccordion Accordion SmallAccordion SoftAccordion BallroomAcc Bandoneon Steirisch ModernHarp Accordion P1 P2 VOICESET INFO. HOME CUT COPY POSTE DELETE SAVE FOLDER DEMO 1 2 3 4 5 6 7 8 TAB F G H I J 3 4

4 Press one of the [A]-[J] buttons to select a Voice.
5 Play the keyboard.
6 Press the PART ON/OFF [SPLIT (LEFT)] button again to turn it off.

Changing Pitch

Transpose

Transpose the pitch of the keyboard up or down (in semitones).

• T transposing during performance

You can easily set the desired transposition of the overall sound of the instrument by pressing the TRANSPOSE [-|/|+] buttons.

• T ransposing before performance

Change the transpose settings in the MIXING CONSOLE display. You can set the transposition for the keyboard pitch (KBD), song playback (SONG), or overall sound of the instrument (MASTER), respectively.

1 Call up the operation display.
2 Use the [1 ▲▼]–[3 ▲▼] buttons to set the transposition.

$$ [ \text { MIXING CONSOLE } ] \rightarrow \text { TAB } [ \blacktriangleleft ] [ \blacktriangleright ] \text { TUNE } $$

Fine-tuning the Pitch of the Entire Instrument

You can fine-tune the pitch of the entire instrument—useful when you play the instrument along with other instruments or CD music.

1 Call up the operation display.

$$ \begin{array}{l}\text {[F U N C T I O N ]} \rightarrow \text {[A] M A S T E R T U N E / S C A L E T U N E} \rightarrow \text {TAB [◄] MASTER}\\text {TUNE}\end{array} $$

2 Use the [4 ▲▼]/[5 ▲▼] buttons to set the tuning.

Press the 4 or 5's |▲| and |▼| buttons simultaneously to reset the value to the factory resetting of 440.0 Hz.

Scale Tuning

You can select various scales for playing in custom tunings for specific historical periods or music genres.

1 Call up the operation display.

$$ [ \text { FUNCTION } ] \rightarrow [ \text { A } ] \text { MASTER TUNE / SCALE TUNE } \rightarrow \text { TAB } [ \blacktriangleright ] \text { SCALE TUNE } $$

2 Select the desired part for which you want to set the scale by using the [6▲▼]/[7▲▼] buttons.

Checkmark the box by pressing the [8 ▲] button.

3 Use the [A]/[B] buttons to select the desired scale.

The tuning of each note for the currently selected scale is indicated in the keyboard illustration at the upper right of the display.

Please note that the Tune function does not affect the Drum Kit or SFX Kit Voices.

Hz (Hertz):

This unit of measurement refers to the frequency of a sound and represents the number of times a sound wave vibrates in a second.

Cent:

In musical terms a "cent" is 1/100th of a semitone. (100 cents equal one semitone.)

Instantly recalling the desired scale

Register the desired scale to the Registration Memory. Be sure to checkmark the SCALE item when registering (page 127).

4 Change the following settings as necessary.

- Tuning the individual notes of the keyboard (TUNE)

1 Press the [3 ▲▼] button to select the note for tuning.

2 Use the [4 ▲▼]/[5▲▼] buttons to set the tuning in cents.

- Determines the base note for each scale.

Press the [2 ▲▼] button to select the base note.

When the base note is changed, the pitch of the keyboard is transposed, yet maintains the original pitch relationship between the notes.

Preset Scale Types

EQUAL TEMPERAMENT	The pitch range of each octave is divided equally into twelve parts, with each half-step evenly spaced in pitch. This is the most commonly used tuning in music today.
PURE MAJOR PURE MINOR	These tunings preserve the pure mathematical intervals of each scale, especially for triad chords (root, third, fifth). You can hear this best in actual vocal harmonies – such as choirs and a cappella singing.
PYTHAGOREAN	This scale was devised by the famous Greek philosopher and is created from a series of perfect fifths, which are collapsed into a single octave. The 3rd in this tuning are slightly unstable, but the 4th and 5th are beautiful and suitable for some leads.
MEAN-TONE	This scale was created as an improvement on the Pythagorean scale, by making the major third interval more “in tune.” It was especially popular from the 16th century to the 18th century. Handel, among others, used this scale.
WERCKMEISTER KIRNBERGER	This composite scale combines the Werckmeister and Kirnberger systems, which were themselves improvements on the mean-tone and Pythagorean scales. The main feature of this scale is that each key has its own unique character. The scale was used extensively during the time of Bach and Beethoven, and even now it is often used when performing period music on the harpsichord.
ARABIC Use these tunings when playing Arabic music.

Tuning values for Preset Scales (base note: C) (in cents)

	C	C#	#D	E♭	♭E	F	F♯	∅#	A♭	♭A	B♭	♭B
EQUAL TEM-PERAMENT	0	0	0	0	0	0	0	0	0	0	0	0
PURE MAJOR	0	-29.7	3.9	15.6	-14.1	-2.3	-9.4	2.3	-27.3	-15.6	18.0	-11.7
PURE MINOR	0	33.6	3.9	15.6	-14.1	-2.3	31.3	2.3	14.1	-15.6	18.0	-11.7
PYTHAGOREAN	0	14.1	3.9	-6.3	7.8	-2.3	11.7	2.3	15.6	6.3	-3.9	10.2
MEAN-TONE	0	-24.2	-7.0	10.2	-14.1	3.1	-20.3	-3.1	-27.3	-10.2	7.0	-17.2
WERCKMEISTER	0	-10.2	-7.8	-6.3	-10.2	-2.3	-11.7	-3.9	-7.8	-11.7	-3.9	-7.8
KIRNBERGER	0	-10.2	-7.0	-6.3	-14.1	-2.3	-10.2	-3.1	-7.8	-10.2	-3.9	-11.7
ARABIC 1	0	0	-50.0	0	0	0	0	0	0	-50.0	0	0
ARABIC 2	0	0	0	0	-50.0	0	0	0	0	0	0	-50.0

* In the display, the rounded off value is shown.

Adding Effects to Voices Played on the Keyboard

The instrument features a sophisticated multi-processor effect system which can add extraordinary depth and expression to your sound.

1 Call up the operation display. [DIRECT ACCESS] → [EXIT]

2 Select the desired part for which you want to add effects by pressing one of the [A]–[C], [F]–[H] buttons. On the CVP-401, select the desired part for which you want to add effects by pressing one of the [A]–[B] and [F]–[I] buttons.

MAIN TRANSPOSE 0 ↓ = 103 BAR 001 - 1 A B C D E Natural! GrandPiano1 Cool! GalaxyEP LEFT Live! RIGHT2 d/4 J=103 STYLE 4/4 J=128 SONG Classic8Beat NewSong CHORD REGIST BALANCE 100 100 85 100 100 100 SONG STYLE HIC LEFT RIGHT1 RIGHT2

3 Press the [VOICE EFFECT] button to call up the VOICE EFFECT display.

4 Use the buttons at the lower/right part of the display to apply effects to the Voices.

Effect Parameters

LEFT HOLD	This function causes the LEFT part Voice to be held even when the keys are released. Non-decaying voices such as strings are held continuously, while decay-type voices such as piano decay more slowly (as if the sustain pedal has been pressed).
HARMONY/ ECHO	The Harmony/Echo types are applied to the right-hand Voices (page 86).
MONO/POLY	This determines whether the part's Voice is played monophonically (only one note at a time) or polyphonically. Using the MONO mode lets you play single, lead sounds (such as brass instruments) more realistically. It also lets you expressively control the Portamento effect (depending on the selected Voice) by playing legato.
DSP/DSP VARIATION	With the digital effects built into the instrument, you can add ambience and depth to your music in a variety of ways—such as adding reverb that makes you sound like you are playing in a concert hall.T he DSP switch is used to turn the DSP (Digital Signal Processor) effect on or off for the currently selected keyboard part.The DSP Variation switch is used to change between variations of the DSP effect. You could use this while you play, for example, to change the rotating speed (slow/fast) of the rotary speaker effect.

You can use a pedal to turn the Harmony/Echo effects on and off (page 187).

Portamento:

Portamento is a function that creates a smooth transition in pitch from the first note played on the keyboard to the next. The portamento time (the pitch transition time) can be set via the MIXING CONSOLE display (page 89).

DSP:

Stands for Digital Signal Processor (or Processing). DSP changes and enhances the audio signal in the digital realm to produce a wide range of effects.

Canceling the chord sound for the harmony effect

This cancels the sound of the chord played in the chord range of the keyboard—letting you hear only the Harmony effect. Set [ACMP ON/OFF] to On, set [SYNC START] to Off, and select "Off" for the Stop Accompaniment parameter.

Selecting the Harmony/Echo type

You can select the desired Harmony/Echo effect from a variety of types. In order to make the type you've selected here effective, set HARMONY/ECHO to On in the display shown in step 4 above.

1 Call up the operation display by pressing the [J] (TYPE SELECT) button.
2 Use the [1 ▲▼]–[3▲▼] buttons to select the Harmony/Echo type (page 86).
3 Use the [4 ▲▼]–[8▲▼] buttons to select various Harmony/Echo settings (page 87).
The available settings differ depending on the Harmony/Echo type.

Harmony/Echo Types

The Harmony/Echo types are divided into the following groups, depending on the particular effect applied.

Harmony Types

These types apply the harmony effect to notes played in the right-hand section of the keyboard according to the chord specified in the left-hand section of the keyboard. (Note that the "1+5" and "Octave" settings are not affected by the chord.)

Multi Assign Type

This type applies a special effect to chords played in the right-hand section of the keyboard.

TYPE STANDARD DUET STANDARD TRI0 FULL CHORD ROCK DUET COUNTRY DUET COUNTRY TRI0 BLOCK 4-WAY CLOSE1 4-WAY CLOSE2 4-WAY OPEN 1+5 OCTAVE STRUM MULTI ASSIGN ECHO TREMOLO TRILL

Echo Types

These types apply echo effects to notes played in the right-hand section of the keyboard in time with the currently set tempo.

● Harmony Types

When one of the Harmony Types is selected, the Harmony effect is applied to notes played in the right-hand section of the keyboard according to the type selected above and the chord specified in the chord section of the keyboard shown below.

ACMP ON/OFF PART ON/OFF DUAL(HGHT2) SPLIT(LEFT0) Split point Split point Chord section for Style playback and Harmony effect ACMP ON/OFF Split Point (for Style) PART ON/OFF DUAL(HGHT2) SPLIT(LEFT0) Split Point (for keyboard Voice) Chord section for Style playback and Harmony effect Left Voice Right 1 Right 2 Voices

ACMP ON/OFF PART ON/OFF ○ DUAL (RIGHT) ● SPLIT (LEFT) Left Voice and chord section for Harmony effect Right 1 Right 2 Voices

● Multi Assign Type

Multi Assign effect automatically assigns notes played simultaneously in the right-hand section of the keyboard to separate parts (Voices). Both of the keyboard part [RIGHT 1] and [RIGHT 2] should be turned on when using the Multi Assign effect. The Right 1 and Right 2 Voices are alternately assigned to the notes in the order you play.

- Echo Types

When one of the Echo Types is selected, the corresponding effect (echo, tremolo, trill) is applied to the note played in the right-hand section of the keyboard in time with the currently set tempo, regardless of the [ACMP ON/OFF] and the LEFT part on/off status. Keep in mind that Trill works when you hold down two notes on the keyboard simultaneously (last two notes if more than two notes are held), and it plays those notes alternately.

Harmony/Echo Settings

VOLUME	This parameter is available for all types with the exception of “Multi Assign.” It determines the level of the harmony/echo notes generated by the Harmony/Echo effect.
SPEED This parameter is only available when Echo, Tremolo, or Trill is selected in Type above. It determines the speed of the Echo, Tremolo, and Trill effects.
ASSIGN	This parameter is available for all types with the exception of “Multi Assign.” This lets you determine the keyboard part via which the harmony/echo notes will be sounded.
CHORD NOTE ONLY	This parameter is available when one of the Harmony Types is selected. When this is set to “ON,” the Harmony effect is applied only to the note (played in the right-hand section of the keyboard) that belongs to a chord played in the chord section of the keyboard.
TOUCH LIMIT	This parameter is available for all types with the exception of “Multi Assign.” It determines the lowest velocity value at which the harmony note will sound. This allows you to selectively apply the harmony by your playing strength, letting you create harmony accents in the melody. The harmony effect is applied when you play the key strongly (above the set value).

Editing the Volume and Tonal Balance (MIXING CONSOLE)

The Mixing Console gives you intuitive control over aspects of the keyboard parts and Song/Style channels, including volume balance and the timbre of the sounds. It lets you adjust the levels and stereo position (pan) of each Voice to set the optimum balance and stereo image, and lets you set how the effects are applied.

Basic Procedure

1 Press the [MIXING CONSOLE] button to call up the MIXING CON- SOLE display.

MIXING CONSOLE 1,3 4 VOL/VOICE FILTER TUME EFFECT EQ SONG AUTO REVOICE ON OFF SET UP VOICE PANPOP 64 64 64 64 64 VOLUME 101 100 85 100 100 100 SONG STYLE MIC LEFT RIGHT1 RIGHT2 TAB 2 F G H I J 4 5

About Parts See below.

Instantly setting all parts to the same value

Once you've selected a parameter in step 4, you can instantly set the same value to all other parts. To do this, simultaneously hold down one of the [A]–[J] buttons, and use the [1]–[8] buttons or the [DATA ENTRY] dial.

2 Use the TAB [ ◀][▶] buttons to call up the relevant setting display. For information on the available parameters, see the section "Adjustable items (parameters) in the MIXING CONSOLE displays" on page 89.

3 Press the [MIXING CONSOLE] button repeatedly to call up the MIXING CONSOLE display for the relevant parts. The MIXING CONSOLE displays actually consist of several different part displays. The part name is indicated at the top of the display. The various MIXING CONSOLE displays alternate among the following: PANEL PART display → STYLE PART display → SONG CH 1–8 display → SONG CH 9–16 display

4 Press one of the [A]-[J] buttons to select the desired parameter.

5 Use the [1 ▲▼]–[8▲▼] buttons to set the value.

6 Save your MIXING CONSOLE settings.

• Saving the PANEL PART display settings
  Register them to Registration Memory (page 127).
• Saving the STYLE PART display settings
  Save them as Style data.
  1 Call up the operation display. [FUNCTION] → [F] DIGITAL REC MENU → [B] STYLE CREATOR
  2 Press the [EXIT] button to close the RECORD display.
  3 Press the [II] (SAVE) button to call up the Style Selection display for saving your data, then save it (page 70).

- Saving the SONG CH 1–8/9–16 display settings

First register the edited settings as part of the Song data (SET UP), then save the Song.

See the SONG CREATOR → CHANNEL display → SETUP item explanation on page 158.

About Parts

PANEL PART

In the PANEL PART display of the MIXING CONSOLE, you can independently adjust the level balance among the Keyboard parts (RIGHT 1, RIGHT 2 and LEFT), SONG, STYLE, and MIC parts (CVP-405/403). The part components are the same as those that appear in the display when you press the panel [BALANCE] button (page 40).

STYLE PART

A Style consists of eight separate channels. Here you can adjust the level balance among these eight channels or parts. These part components are the same as those that appear in the display when you press the panel [CHANNEL ON/OFF] button to call up the STYLE display.

SONG CH 1-8/9-16

A Song consists of sixteen separate channels. Here you can adjust the level balance among these sixteen channels or parts. These part components are the same as those that appear in the display when you press the panel [CHANNEL ON/OFF] button to call up the SONG display.

Adjustable Items (parameters) in the MIXING CONSOLE Displays

The following explanations cover the available items (parameters) in the MIXING CONSOLE displays.

VOL/VOICE

SONG AUTO REVOICE See page 90.

VOICE Allows you to re-select the Voices for each part. When the Style channels are called up, neither Organ Flutes Voices nor User Voices can be selected. When the Song channels are called up, User Voices cannot be selected.

PANPOT Determines the stereo position of the selected part (channel).

VOLUME Determines the level of each part or channel, giving you fine control over the balance of all the parts.

FILTER

HARMONIC CONTENT Allows you to adjust the resonance effect (page 98) for each part.

BRIGHTNESS Determines the brightness of the sound for each part by adjusting the cutoff frequency (page 98).

TUNE

PORTAMENTO TIME	Portamento is a function that creates a smooth transition in pitch from the first note played on the keyboard to the next. The Portamento Time determines the pitch transition time. Higher values result in a longer pitch change time. Setting this to “0” results in no effect. This parameter is available when the selected keyboard part is set to Mono (page 85).
PITCH BEND RANGE Determines the range of the PITCH BEND in semitones for each keyboard part (when a pedal is assigned to this function).
OCTAVE Determines the range of the pitch change in octaves for each keyboard part.
TUNING Determines the pitch of each keyboard part.
TRANSPOSE Allows you to set the transposition for the keyboard pitch (KEY-BOARD), Song playback (SONG), or overall sound of the instrument (MASTER), respectively.

EFFECT

TYPE Select the desired effect type (page 92). After editing various parameters for the selected effect type, you can save it as an original effect.
REVERB Adjusts the amount of the Reverb sound for each part or channel.
CHORUS	Adjusts the amount of the Chorus sound for each part or channel.
DSP	Adjusts the amount of the DSP sound for each part or channel.

• T he RHY2 channel in the STYLE PART display can only be assigned to Drumkit Voices and SFX kit Voices.
- When playing GM song data, channel 10 (in the SONG CH 9–16 page) can only be used for a Drum Kit Voice.

EQ (Equalizer)

TYPE Select the desired EQ type to suit the type of music and the performance environment (page 94). This affects the overall sound of the instrument.

EDIT For editing the EQ (page 95).

EQ HIGH Determines the center frequency of the high EQ band that is attenuated/boosted for each part.

EQ LOW Determines the center frequency of the low EQ band that is attenuated/boosted for each part.

Song Auto Revoice

This feature lets you use the high-quality sounds of the instrument to full advantage with XG-compatible song data. When you play back any commercially available XG song data or that created on other instruments, you can use Auto Revoice to automatically assign the specially created Voices of the instrument (Natural!, Live!, Cool!, etc.) instead of the conventional XG Voices of the same type.

1-3 Same operation as in the "Basic Procedure" on page 87. In step 2, select the VOL/VOICE tab.
4 Press the [G] (SETUP) button to call up the AUTO REVOICE SETUP display.
5 Use the [1 ▲▼]–[3▲▼] buttons to select the Voice to be replaced.

MIXING CONSOLE(PANEL PART) AUTO REVOICE SETUP VOICE NAME REVOICE TO GRAND PIANO NATURAL! GRAND PH01 BRIGHT PIANO NO REVOICE HOMKYTOMK NO REVOICE EL.PIANO 1 NO REVOICE EL.PIANO 2 NO REVOICE HARPSICHORD NO REVOICE VIBRAPHONE NO REVOICE DRAMBAR ORGAN NO REVOICE ROCK ORGAN NO REVOICE CHURCH ORGAN NO REVOICE REVOICE TO NATURAL! GRAND PH01 NATURAL! GRAND PH02 NATURAL! MELLN PH0 LIVE! GRAND PH0 ALL NO REVOICE ALL NO REVOICE OK CANCEL A F B G C H D I E J VOICE NAME ▲ ▼ ▲ ▼ 5 6 7

6 Use the [4 ▲▼]–[6▲▼] buttons to select the Voice for replacing the XG selected in step 5.

Several different Revoice settings are available by using the [F]/[G]/[I] buttons, for conveniently calling up the recommended Revoice settings in one action.

ALL REVOICE: Replaces all of the replaceable XG Voices with the high-quality Voices of the instrument.

PIANO REVOICE: Replaces only the piano Voices.

BASIC REVOICE: Replaces only the recommended Voices that are suitable for playing back the song.

ALL NO REVOICE: All Voices are returned to the original XG Voices.

7 Press the [8 ▲] (OK) button to apply your Revoice settings. To cancel the Revoice operation, press the [8 ▼] (CANCEL) button.
8 In the VOL/VOICE tab display, press the [F] button to set SONG AUTO REVOICE to ON.

Effect Type

■ Selecting an Effect type

1-3 Same operation as in the "Basic Procedure" on page 87. In step 2, select the EFFECT tab.
4 Press the [F] (TYPE) button to call up the Effect Type selection display.

MIXING CONSOLE(PANEL PART) VOL/VOICE FILTER TUNE EFFECT EQ TYPE REVERB: HALL2 64 64 30 30 0 0 CHORUS: CHORUS3 64 64 0 0 0 0 DSP2->4 T DLY CH03 HALL3 HALL3 30 34 25 46 SONG STYLE NIC LEFT RIGHT1 RIGHT2

5 Use the [1 ▲▼]/[2▲▼] buttons to select the effect BLOCK.

MIXING CONSOLE VOL/VOICE FILTER TUNE EFFECT FO EFFECT TYPE EDIT BLOCK :DSP4(RIGHT1) CATEGORY:REVERB TYPE :HALL3 PARAMETER BLOCK- REVERB CHORUS DSP1 DSP2 DSP3 DSP4 PART OFF RIGHT1 RIGHT2 LEFT CH1 CH2 CH3 CH4 CH5 CH6 CATEGORY REVERB DELAY ER/KARAOKE CHORUS FLANGER PHASER DISTORTION MAN DYNAMIC ROTARY SP TYPE HALL1 HALL2 HALL3 HALL4 HALL5 HALL M HALL L ROOM1 ROOM2 ROOM3 ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ 5 6 7 8

DSP: Stands for Digital Signal Processor (or Processing). DSP changes and enhances the audio signal in the digital realm to produce a wide range of effects.

Effect Block	Effect-applicable parts Effect characteristics
REVERB All	parts Reproduces the warm ambience of playing in a concert hall or jazz club.
CHORUS All	parts Produces a rich "fat" sound as if several parts are being played simultaneously.
DSP1 STYLE	PARTSONG CHANNEL 1–16	In addition to the Reverb and Chorus types, the instrument has special DSP effects, that include additional effects usually used for a specific part, such as distortion and tremolo.
DSP2DSP3	RIGHT 1, RIGHT 2, LEFT, SONG CHANNEL 1–16	Any unused DSP blocks are automatically assigned to the appropriate parts (channels) as needed.
DSP4 RIGHT	1, RIGHT 2, LEFT, SONG CHANNEL 1–16, Microphone sound (CVP-405/403)

6 Use the [3 ▲▼]/[4▲▼] buttons to select the part to which you want to apply the effect.
7 Use the [5 ▲▼]/[6▲▼] buttons to select the effect CATEGORY.
8 Use the [7 ▲▼]/[8▲▼] buttons to select the effect TYPE.

If you want to edit the effect parameters, go on to the next operation.

■ Editing and Saving the effect

9 Press the [F] (PARAMETER) button to call up the display for editing the effect parameters.

MIXING CONSOLE VOL/VOICE FILTER TONE EFFECT TO EFFECT TYPE EDIT BLOCK :DSP4RIGHT11 CATEGORY:REVERB TYPE :HALL3 PARAMETER BLOCK REVERB CHORUS DSP1 DSP2 DSP3 DSP4 PART OFF RIGHT1 RIGHT2 LEFT CH1 CH2 CH3 CH4 CH5 CH6 CATEGORY REVERB DELAY ER/KARAOKE CHORUS FLAMGER PHASER DISTORTION MAN DYNAMIC ROTARY SP TYPE HALL1 HALL2 HALL3 HALL4 HALL5 HALL M HALL L ROOM1 ROOM2 ROOM3

10 If you have selected one of the DSP 2-4 effect blocks in step 5:

You can edit its standard parameters as well as its variation parameter. To select the standard type of parameters, press the [B] button. To select its variation parameter, press the [E] button.

MIXING CONSOLE VOL/VOICE FILTER TIME EFFECT ED EFFECT PARAMETER EDIT BLOCK :DSPARRIGHT11 CATEGORY:REVERB TYPE :HALL3 PARAMETER VALUE REVERB TIME 2.8s DIFFUSION 10 INITIAL DELAY 28.4ms HPF CUTOFF 63Hz LPF CUTOFF 7.0kHz SAVE PARAMETER VALUE REVERB TIME 1.4s This value is applied when VARIATION is ON. BLOCK CATEGORY TYPE PARAMETER VALUE 1 2 3 4 5 6 7 8 11 12

11 Select one of the parameters you want to edit by using the [4 ▲▼]/[5 ▲▼] buttons.

Available parameters differ depending on the selected Effect type.

12 Adjust the value for the selected parameter by using the [6 ▲▼]/[7 ▲▼] buttons. If you have selected the REVERB, CHORUS or DSP1 effect block in step 5:

Adjust the Effect Return Level by pressing [8 ▲ ▼] button.

13 Press the [I] (SAVE) button to call up the display for saving your original effect.

14 Use the [3 ▲▼]–[6▲▼] buttons to select the destination for saving the effect.

The maximum number for effects that can be saved differs depending on the effect block.

MIXING CONSOLE VOL/VOICE FILTER TIME EFFECT EQ USER EFFECT BLOCK :DSP4(RIGHT1) CATEGORY:REVERB TYPE :HALL3 MEMORY USER1 USER2 USER3 USER4 USER5 USER6 USER7 USER8 USER9 USER10 1 2 3 4 5 6 7 8 14 F G H I J SAVE 15

15 Press the [I] (SAVE) button to save the effect (page 70). When recalling the saved effect, use the same procedure as in step 8.

Re-selecting the Effect block, category and type

Use the [1 ▲ ▼]–[3 ▲ ▼] buttons. The re-selected effect configuration is displayed at the upper left side box in the display.

Effect Return Level:

Determines the level or amount of effect applied. This is set for all parts or channels.

EQ (Equalizer)

Equalizer (also called "EQ") is a sound processor that divides the frequency spectrum into multiple bands that can be boosted or cut as required to tailor the overall frequency response. Usually an equalizer is used to correct the sound from speakers to match the special character of the room. For example, you can cut some of the low range frequencies when playing in large spaces where the sound is too "boomy," or boost the high frequencies in rooms and close spaces where the sound is relatively "dead" and free of echoes. The instrument possesses a high-grade five-band digital EQ. With this function, a final effect—tone control can be added to the output of your instrument. You can select one of the five preset EQ settings in the EQ display. You can even create your own custom EQ settings by adjusting the frequency bands, and save the settings to one of two User Master EQ types.

■ Select a Preset EQ type

1-3 Same operation as in the "Basic Procedure" on page 87. In step 2, select the EQ tab.

4 Use the [A]/[B] buttons to select a preset EQ type to suit your performance (music style or environment).

If you want to edit the EQ parameters, go on to the next operation.

■ Editing and Saving the selected EQ

5 Press the [F] (EDIT) button to call up the MASTER EQ EDIT display.

MIXING CONSOLE(PANEL PART) VOL/VOICE FILTER TIME EFFECT EQ MASTER EQ FLAT HOME CONCERT AUXOUT PA EDIT PART EQ EQ HIGH 64 64 EQ HIGH 64 64 64 EQ HIGH 64 64 E E SOMG STYLE LEFT RIGHT1 RIGHT2

6 Use the [A]/[B] buttons to select a preset EQ type.

MIXING CONSOLE VOL/VOICE FILLED TUNE EFFECT EQ MASTERE EDIT FLAT HOME CONCERT AUXOUT PA STORE1 STORE2 E01 FREQ E01 0dB E02 0dB E03 0dB E04 0dB E05 0dB TOTAL GAIN BDJ. 8 7 6 9

7 Use the [3 bands. ▲▼]–[7▲▼] buttons to boost or cut each of the five

Use the [8 ▲ ▼] button to boost or cut all the five bands at the same time.

8 Adjust the Q (bandwidth) and the FREQ (center frequency) of the band selected in step 7.

• Bandwidth (also called "Shape" or "Q")
  Use the |1▲▼|button. The higher the value of Q, the narrower the band width.
  • FREQ (center frequency)
  Use the [2▲▼]button. The available FREQ range is different for each band.

9 Press the [H] or [I] (STORE 1 or 2) button to save the edited EQ type (page 70).

Up to two types of EQ can be created and saved. When recalling the saved EQ type, use the same procedure as in step 6.

Editing the ORGAN FLUTES Voices The editing method is different for the ORGAN FLUTES Voices compared to other Voices. For instructions on editing the ORGAN FLUTES Voices, see page 100.

CAUTION

If you select another Voice without saving the settings, the settings will be lost. If you wish to store the settings here, make sure to save the settings as a User Voice before selecting another Voice or turning the power off.

Voice Creating (Sound Creator)

The instrument has a Sound Creator feature that allows you to create your own Voices by editing some parameters of the existing Voices. Once you've created a Voice, you can save it as a User Voice to the USER/(USB) display for future recall. The editing method is different for the ORGAN FLUTES Voices and for other Voices.

Basic Procedure

1 Select the desired Voice (other than an Organ Flutes Voice) (page 32).

2 Press the [6 ▲] (VOICE SET) button to call up the VOICE SET display.

VOICE(RIGHT1) PRESET USER USB1 Natural! GrandPiano1 Natural! HonkyTonk Natural! GrandPiano2 Natural! Oct.Piano1 Natural! BrightPiano Natural! Oct.Piano2 Natural! MellowPiano S.Art! Harpsichord Natural! RockPiano Natural! Hc8'+4' Piano P1 P2 P3 VOICESET INFO. UP HOME CUT COPY POSTE DELETE SAVE FOLDER DEMO 1 2 3 4 5 6 7 8

3 Use the TAB [ ◀][▶] buttons to call up the relevant setting display. For information on the available parameters, see the "Editable Parameters in the VOICE SET Displays" on page 97.

VOICE SET: GrandPiano1 PIANO | COMMON | CONTROLLER | SOUND | EFFECT/ER | RANOMY 1 | MODULATION | FILTER: 64 | AMPLITUDE: 64 LFO | PHOD: 0 | FMOD: 0 | ANOD: 50 2 | LEFT PEDAL: SOFT | LEFT | R1 | R2 COM- PARE FILTER 64 | AMPLI- TODE 64 | LFO PHOD-0 | FMOD-0 | ANOD-50 SAVE TAB 3 F G H I J 4 6 5 1 2 3 4 5 6 7 8

4 As necessary, use the [A]/[B] buttons to select the item (parameter) to be edited.

5 Use the [1 ▲▼]–[8 ▲▼] buttons to edit the Voice.

6 Press the [D] (COMPARE) button to compare the sound of the edited Voice with the unedited Voice.

7 Press the [I] (SAVE) button to save your edited Voice (page 70).

Editable Parameters in the VOICE SET Displays

The following covers in detail the editable parameters that are set in the displays explained in step 3 of the "Basic Procedure" on page 96. The Sound Creator parameters are organized into five different displays. The parameters in each display are described separately, below. These are also treated as part of the Voice Set parameters (page 102), which are automatically called up when the Voice is selected.

PIANO

This display is available only when the Natural! piano Voice (page 79) is selected.

TUNING CURVE	Determines the tuning curve. Select “FLAT” if you feel the tuning curve of the piano Voice does not quite match that of other instruments Voices.STRETCH Tuning curve particularly for pianosFLAT Tuning curve in which the frequency is octave doubled over the entire keyboard range
KEY OFF SAMPLE (CVP-405/403)	Adjusts the volume of the key-off sound (the subtle sound that occurs when you release a key).
SUSTAIN SAMPLE (CVP-405/403)	Adjusts the depth of sustain sampling for the damper pedal.
STRING RESONANCE (CVP-405)	Adjusts the depth of string resonance.

COMMON

VOLUME Adjusts the volume of the current edited Voice.
TOUCH SENSE Adjusts the touch sensitivity (velocity sensitivity), or how greatly the volume responds to your playing strength. DEPTH Determines the velocity sensitivity, or how much the level of the voice changes in response to your playing strength (velocity). OFFSET Determines the amount by which received velocities are adjusted for the actual velocity effect.
PART OCTAVE Shifts the octave range of the edited Voice up or down in octaves. When the edited Voice is used as any of the RIGHT 1–2 parts, the R1/R2 parameter is available; when the edited Voice is used as the LEFT part, the LEFT parameter is available.
MONO/POLY Determines whether the edited Voice is played monophonically or polyphonically (page 85).
PORTAMENTO TIME	Sets the portamento time when the edited Voice is set to “MONO” above.

CONTROLLER

1. MODULATION

When a pedal function is assigned to MODULATION, the pedal can be used to modulate the parameters below as well as the pitch (vibrato). Here, you can set the degree to which the pedal modulates each of the following parameters.

FILTER Determines the degree to which the pedal modulates the Filter Cutoff Frequency. For details about the filter, see page 98.

AMPLITUDE Determines the degree to which the pedal modulates the amplitude (volume).

LFO PMOD Determines the degree to which the pedal modulates the pitch, or the vibrato effect.

LFO FMOD Determines the degree to which the pedal modulates the Filter modulation, or the wah effect.

LFO AMOD Determines the degree to which the pedal modulates the amplitude, or the tremolo effect.

The available parameters differ depending on the Voice.

Changes to velocity curve according to Touch sensitivity

TOUCH SENSE DEPTH

Changes to velocity curve according to VelDepth (with Offset set to 64)

Actual Velocity

for tone generator

TOUCH SENSE OFFSET

Changes to velocity curve according to VelOffset (with Depth set to 64)

Actual Velocity

for tone generator

Portamento Time:

The Portamento Time determines the pitch transition time. Portamento is a function that creates a smooth transition in pitch from the first note played on the keyboard to the next.

2. LEFT PEDAL

This allows you to select the function to be assigned to the left pedal.

FUNCTION Selects the function to be assigned to the left pedal. For details on the pedal functions, see page 187.
[2▲▼]-[8▲▼] buttons (RIGHT 1, RIGHT 2, LEFT, etc.)	Determines whether the assigned function is effective or not for the respective keyboard part. This also determines the depth for the function. For details, see page 188.

SOUND

FILTER

Filter is a processor that changes the timbre or tone of a sound by either blocking or passing a specific frequency range. The parameters below determine the overall timbre of the sound by boosting or cutting a certain frequency range. In addition to making the sound either brighter or mellower, Filter can be used to produce electronic, synthesizer-like effects.

BRIGHTNESS Determines the cutoff frequency or effective frequency range of the filter (see diagram). Higher values result in a brighter sound.
HARMONIC CONTENT	Determines the emphasis given to the cutoff frequency (resonance), set in BRIGHTNESS above (see diagram). Higher values result in a more pronounced effect.Volume

EG

The EG (Envelope Generator) settings determine how the level of the sound changes in time. This lets you reproduce many sound characteristics of natural acoustic instruments—such as the quick attack and decay of percussion sounds, or the long release of a sustained piano tone.

ATTACK	Determines how quickly the sound reaches its maximum level after the key is played. The lower the value, the quicker the attack.
DECAY Determines how quickly the sound reaches its sustain level (a slightly lower level than maximum). The lower the value, the quicker the decay.
RELEASE Determines how quickly the sound decays to silence after the key is released. The lower the value, the quicker the decay.

Level Sustain level ATTACK DECAY RELEASE Time Key on Key off

● VIBRATO

DEPTH Determines the intensity of the Vibrato effect. Higher settings result in a more pronounced Vibrato.

SPEED Determines the speed of the Vibrato effect.

DELAY Determines the amount of time that elapses between the playing of a key and the start of the Vibrato effect. Higher settings increase the delay of the Vibrato onset.

EFFECT/EQ

REVERB DEPTH Adjusts the reverb (page 92) depth.
CHORUS DEPTH Adjusts the chorus (page 92) depth.
DSP DEPTH Adjusts the DSP (page 92) depth.If you want to re-select the DSP type, you can do so in the DSP menu explained on page 100.
DSP ON/OFF	Determines whether the DSP is on or off.
VIBE ROTOR	This will be displayed only if VIBE VIBRATE is selected for the DSP Type parameter explained on page 92. Determines whether VIBE VIBRATE should be set to on or off when selecting the Voice.

Vibrato:

A quavering, vibrating sound effect that is produced by regularly modulating the pitch of the Voice.

Switching the VIBE ROTOR on/off with a pedal

You can use a pedal to switch the VIBE ROTOR on/off (when the VIBE ROTOR ON/OFF function is properly assigned; page 187).

1. DSP

DSP TYPE Selects the DSP effect category and type. Select a type after select-ing a category.

VARIATION Two variations are provided for each DSP type.Here, you can edit the VARIATION on/off status and variation-parameter value setting.ON/OFFThe factory-programmed assignments are set to variation-off for all Voices (standard variation of DSP is assigned). If you select VARIATION ON here, a variation of the DSP effect is assigned to the Voice. The variation parameter value can be adjusted in the VALUE menu explained below.PARAMETERDisplays the variation parameter.VALUEAdjusts the value of the DSP variation parameter.

1. EQ

EQ LOW/HIGH These determine the Frequency and Gain of the Low and High EQ bands.

HARMONY

Harmony sets the Right 1 and 2 parts together. Select the Right 1 part (page 32, step 1) in the Main display, before you set it.

This has the same settings as the display of "Selecting the Harmony/Echo type" on page 86 in step 1.

Creating Your Original Organ Flutes Voices

The instrument features a variety of lush, dynamic organ Voices that you can call up with the [ORGAN FLUTES] button. It also gives you the tools to create your own original organ sounds by using the Sound Creator function. Just as on a traditional organ, you can create your own sounds by adjusting the levels of the flute footages.

Basic Procedure

1 Select the desired Organ Flutes Voice to be edited (page 32).

2 In the ORGAN FLUTES Voice Selection display, press the [6 ▲] (FOOT-AGE) button to call up the SOUND CREATOR [ORGAN FLUTES] display.

VOICE(RIGHT1) PRESET USED USB3 Organ Flutes! JazzDraw! Organ Flutes! RockingOrg! Organ Flutes! BluesOrgan! Organ Flutes! Percussive! Organ Flutes! SixteenOne! Organ Flutes! GospelOrg! Organ Flutes! EvenBars! Organ Flutes! PadOrgan! Organ Flutes! PopOrgan! Organ Flutes! FullRanks! OrganFlutes P1 FOOTAGE INFO. UP HOME CUT COPY POSTE DELETE SAVE FOLDED DEMO 1 2 3 4 5 6 7 8

3 Use the TAB [ ◀][▶] buttons to call up the relevant setting display. For information on the available parameters, see the following "Editable Parameters in the VOICE SET [ORGAN FLUTES] displays".

(When selecting the EFFECT/EQ tab display.) 4 VOICE SET: JazzDraw! FOOTAGE VOLUME/INTRAGE EFFECT/EO ORGAN TYPE VIBRATO OFF OFF UNTAGE ROTARY SP SPEED DEPTH SLOW FAST 16°5 1/3" SAVE TAB 3 F G H I J 5 1 2 3 4 5 6 7 8

4 If you select the EFFECT/EQ tab display, use the [A]/[B] buttons to select the parameter to be edited.
5 Use the [A]–[D], [F]–[H] and [1 ▲▼]–[8 ▲▼] buttons to edit the Voice.
6 Press the [I] (SAVE) button to save your edited ORGAN FLUTES Voice (page 70).

Editable Parameters in the SOUND CREATOR [ORGAN FLUTES] displays

The following covers in detail the editable parameters that are set in the displays explained in step 3 of the "Basic Procedure" on page 100. The Organ Flutes parameters are organized into three different pages. The parameters in each page are described separately, below. These are also treated as part of the Voice Set parameters (page 102), which are automatically called up when the Voice is selected.

FOOTAGE, VOLUME/ATTACK (common parameters)

ORGAN TYPE Specifies the type of organ tone generation to be simulated: Sine or Vintage.

ROTARY SP SPEED Alternately switches between the slow and fast rotary speaker speeds when a rotary speaker effect is selected for the Organ Flutes (see “EFFECT/EQ” DSP TYPE parameter on page 100), and the Voice Effect DSP (page 100) is turned on (this parameter has the same effect as the Voice Effect VARIATION ON/OFF parameter).

VIBRATO ON/OFF Alternately turns the vibrato effect for the Organ Flutes Voice ON or OFF.

VIBRATO DEPTH Sets the Vibrato depth to one of three levels: 1 (low), 2 (mid), or 3 (high).

CAUTION

If you select another Voice without saving the settings, the settings will be lost. If you wish to store the settings here, make sure to save the settings as a User Voice before selecting another Voice or turning the power off.

Footage:

The term "footage" is a reference to the sound generation of traditional pipe organs, in which the sound is produced by pipes of different lengths (in feet).

FOOTAGE

16'←→5 1/3'

Which footage (16' or 5 1/3') is operated with the [1▲▼] button can be switched by pressing the [D] button.

16'-1'

Determines the basic sound of the organ flutes. The longer the pipe, the lower the pitch of the sound. Hence, the 16' setting determines the lowest pitched component of the Voice, while the 1' setting determines the highest pitched component. The higher the value of the setting, the greater the volume of the corresponding footage. Mixing various volumes of the footages lets you create your own distinctive organ sounds.

VOLUME/ATTACK

VOL Adjusts the overall volume of the Organ Flutes. The longer the graphic bar, the greater the volume.
RESP Affects both the attack and release (page 99) portion of the sound, increasing or decreasing the response time of the initial swell and release, based on the FOOTAGE controls. The higher the value, the slower the swell and release.
VIBRATO SPEED Determines the speed of the vibrato effect controlled by the Vibrato On/Off and Vibrato Depth above.
MODE The MODE control selects between two modes: FIRST and EACH.In the FIRST mode, attack is applied only to the first notes played and held simultaneously; while the first notes are held, any subsequently played notes have no attack applied. In the EACH mode, attack is applied equally to all notes.
4', 2 2/3', 2'	These determine the attack sound volume of the ORGAN FLUTE Voice. The 4', 2-2/3' and 2' controls increase or reduce the volume of attack sound at the corresponding footages. The longer the graphic bar, the greater the attack sound volume.
LENG Affects the attack portion of the sound producing a longer or shorter decay immediately after the initial attack. The longer the graphic bar, the longer the decay.

EFFECT/EQ

Same parameters as in the SOUND CREATOR "EFFECT/EQ" tab display explained on page 99.

Disabling automatic selection of Voice Sets (effects, etc.)

Each Voice is linked to its related parameter settings that are indicated in the SOUND CREATOR displays, including effects and EQ. Usually these settings are automatically called up when a Voice is selected. However, you can also disable this feature by the operation in the relevant display as explained below.

For example, if you want to change the Voice yet keep the same Harmony effect, set the HARMONY/ECHO parameter to OFF (in the display explained below).

You can set these independently by keyboard part and parameter group.

1 Call up the operation display.

[FUNCTION] → [E] REGIST.SEQUENCE/FREEZE/VOICE SET → TAB [▶] VOICE SET

2 Use the [A]/[B] buttons to select a keyboard part.

3 Use the [4 ▲▼]–[8▲▼] buttons to enable/disable automatic calling up of the settings (ON or OFF) independently for each parameter group.

Refer to the separate Data List for a list of parameters contained in each parameter group.

Reference to Quick Guide pages

Playing "Mary Had a Little Lamb" with the Auto

Accompaniment Feature ......page 45

Pattern Variation ...... page 47

Learning How to Play (Indicate) Chords for Style Playback ..... page 49

Appropriate Panel Settings for the Selected Style

(One Touch Setting)...... page 50

Style Characteristics

The Style type and its defining characteristics are indicated above the Preset Style name.

Pro	These Styles provide professional and exciting arrangements combined with perfect playability. The resulting accompaniment exactly follows the chords of the player. As a result, your chord changes and colorful harmonies are instantly transformed into lifelike musical accompaniment.
Session These Styles	provide even greater realism and authentic backing by mixing in original chord types and changes, as well as special riffs with chord changes, with the Main sections. These have been programmed to add “spice” and a professional touch to your performances of certain songs and in certain genres. Keep in mind, however, that the Styles may not necessarily be appropriate—or even harmonically correct—for all songs and for all chord playing. In some cases for example, playing a simple major triad for a country song may result in a “jazzy” seventh chord, or playing an on-bass chord may result in inappropriate or unexpected accompaniment.
Pianist These special	Styles provide piano-only accompaniment. Just by playing the proper chords with your left hand, you can automatically add complicated, professional-sounding arpeggios and bass/chord patterns.

Selecting a Chord Fingering Type

Style playback can be controlled by the chords you play in the chord section of the keyboard. There are seven types of fingerings.

1 Call up the operation display.

|FUNCTION| → |C| STYLE SETTING/SPLIT POINT/CHORD FINGERING →

TAB [▶] CHORD FINGERING

2 Press the [1 ▲▼]–[3 ▲▼] buttons to select a fingering.

STYLE SETTING/SPLIT POINT/CHORD FINGERING STYLE SETTING SPLIT POINT CHORD FINGERING FINGERING CHORD TUTOR (FINGERED) MULTI FINGER: Both Single Finger and Fingered are possible. For Single Finger, press the white/black key(s) closest to the root note. CHORD NAME: C FINGERING TYPE TYPE SINGLE FINGER MULTI FINGER FINGERED FINGERED ON BASS CHORD SETTING ROOT C# D# E# TYPE M71 6 M7 M7*11

1 2 3 4 5 6 7 8

SINGLE FINGER Makes it simple to produceorchestrated accompani-ment using major, seventh,minor and minor-seventhchords by pressing a mini-mum number of keys on theChord section of the key-board. This type is availableonly for Style playback.The abbreviated chord fing-gerings described at right areused:	C	For a major chord,press the root key only.
	Cm	For a minor chord,simultaneously press the rootkey and a black key to its left.
	C7	For a seventh chord,simultaneously press the rootkey and a white key to its left.
	Cm7	For a minor-seventh chord,simultaneously press the root key aboth a white and black key to its le1
MULTI FINGER	Automatically detects Single Finger or Fingered chord fingerings, so youcan use either type of fingering without having to switch fingering types.
FINGERED	Lets you finger your own chords on the Chord section of the keyboard,while the instrument supplies appropriately orchestrated rhythm, bass,and chord accompaniment in the selected Style. The Fingered type rec-ognizes the various chord types which are listed on the separate Data Listbooklet and can be looked up using the Chord Tutor function (page 49).
FINGERED ONBASS	Accepts the same fingerings as the Fingered, but the lowest note playedin the Chord section of the keyboard is used as the bass note, allowingyou to play “on bass” chords (in the Fingered mode the root of thechord is always used as the bass note).
FULL KEYBOARD	ects chords in the entire key range. Chords are detected in a waysimilar to Fingered, even if you split the notes between your left andright hands-for example, playing a bass note with your left hand and achord with your right, or by playing a chord with your left hand and amelody note with your right.
AI FINGERED Basically	the same as Fingered, with the exception that less than threenotes can be played to indicate the chords (based on the previouslyplayed chord, etc.).
AI FULL KEYBOARD	When this advanced fingering type is engaged, the instrument will auto-matically create appropriate accompaniment while you play just aboutanything, anywhere on the keyboard using both hands. You don’t haveto worry about specifying the Style chords. Although the AI Full Key-board type is designed to work with many songs, some arrangementsmay not be suitable for use with this feature. This type is similar to FullKeyboard, with the exception that less than three notes can be played toindicate the chords (based on the previously played chord, etc.). 9th,11th and 13th chords cannot be played. This type is available only forStyle playback.

Al:

Artificial Intelligence

Starting the rhythm with Sync Start

You can also start the rhythm simply by playing the keyboard, if Sync Start is enabled (turn on the [SYNC START] button).

The rhythm does not sound for the Pianist Styles (or other similar Styles). When you want to use any of these Styles, always make sure that ACMP ON/OFF is turned on.

Playing Only the Rhythm Channels of a Style

Rhythm is one of the most important parts of a Style. Try to play the melody along with just the rhythm. You can sound different rhythms for each Style. Keep in mind, however, that not all Styles contain rhythm channels.

1 Select a Style (page 45).
2 Press the [ACMP ON/OFF] to turn Auto Accompaniment off.
3 Press the STYLE CONTROL [START/STOP] button to play back the rhythm channels.
4 Press the STYLE CONTROL [START/STOP] button to stop the rhythm.

Turning channels of the Style on/off

A Style contains eight channels: RHY1 (Rhythm 1) – PHR2 (Phrase 2). You can add variations and change the feeling of a Style by selectively turning channels on/off as the Style plays.

1 Press the [CHANNEL ON/OFF] button to call up the CHANNEL ON/OFF display.

When the STYLE tab is not selected, press the [CHANNEL ON/OFF] button again.

2 Press the [1 ▼]–[8 ▼] buttons to turn the channels on or off.

To listen to only one instrument by itself, hold down the appropriate button for the channel to set the channel to SOLO. To cancel SOLO, simply press the appropriate channel button again.

Playing the chords in free tempo (without Style playback)

You can have the accompaniment chords sound without playing back the Style, by setting [ACMP ON/OFF] to on, and [SYNC START] to off. For example, if MULTI FINGER is selected (page 104), you can perform with your own pace while sounding the chord by pressing the chord section of the keyboard with your one finger.

Setting the fade in/out time

You can set the time of the fade in and fade out (page 133).

1 Call up the operation display.

[FUNCTION] → [J] UTILITY → TAB[◀] CONFIG 1 → [A] FADE IN/OUT/HOLD TIME

2 Set the parameters by using the [3 ▲▼]–[5 ▲▼] buttons.

FADE IN TIME	Determines the time it takes for the volume to fade in, or go from minimum to maximum.
FADE OUT TIME	Determines the time it takes for the volume to fade out, or go from maximum to minimum.
FADE OUT HOLD TIME	Determines the time the volume is held at 0 following the fade out.

Style Playback-related Settings

The instrument has a variety of Style playback functions, which can be accessed in the display, see page 106.

1 Call up the operation display.

|FUNCTION| → |C| STYLE SETTING/SPLIT POINT/CHORD FINGERING → TAB[◀] STYLE SETTING

2 Use the [1 ▲▼]–[8▲▼] buttons for each setting.

STYLE SETTING/SPLIT POINT/CHORD FINGERING STYLE SETTING | SPLIT POINT | CHORD FINGERING 1 STOP ACMP:FIXED OTS LINK TIMING:REAL TIME SYNCHRO STOP WINDOW:OFF STYLE TOUCH:OFF STYLE CHANGE BEHAVIOR SECTION SET:OFF TEMPO:RESET PART ON/OFF:RESET STOP ACMP OIS LINK TIMING SYNCHRO STOP WINDOW:OFF STYLE TOUCH SECTION SET INTRO MAIN A MAIN B MAIN C HOLD RESET PART ON/OFF: OFF STYLE FIXED REAL TIME NEXT BAR ON OFF HOLD RESET STYLE CHANGE BEHAVIOR STOCK SET:OFF TEMPO:RESET PART ON/OFF:RESET 1 2 3 4 5 6 7 8

Data that is recorded when recording a Song

Please note that both the Voice that is sounded and the chord data will be recorded when set to "STYLE," and only the chord data will be recorded when set to "OFF" or "FIXED."

- Stop Accompaniment

When [ACMP ON/OFF] is turned on and [SYNC START] is off, you can play chords in the chord section of the keyboard with the Style stopped, and still hear the accompaniment chord. In this condition—called "Stop Accompaniment"—any valid chord fingerings are recognized and the chord root/type are shown in the display. From the display in page 106, you can determine whether the chord played in the chord section will sound or not in the Stop Accompaniment status.

OFF......The chord played in the chord section will not sound.

STYLE......The chord played in the chord section will sound via the Voices of the selected Style.

FIXED ....The chord played in the chord section will sound via the specified Voice, regardless of the selected Style.

- OTS Link Timing

This applies to the OTS Link function (page 51). This parameter determines the timing in which the One Touch Settings change with the MAIN VARIATION [A]–[D] change. (The [OTS LINK] button must be on.)

Real Time....One Touch Setting is immediately called up when you press a MAIN VARIATION button.

Next Bar ......One Touch Setting is called up at the next measure, after you press a MAIN VARIATION button.

- Synchro Stop Window

This determines how long you can hold a chord before the Synchro Stop function is automatically cancelled. When the [SYNC STOP] button is turned on and this is set to a value other than "OFF," this automatically cancels the Synchro Stop function if you hold a chord for longer than the time set here. This conveniently resets Style playback control to normal, letting you release the keys and still have the Style play. In other words, if you release the keys sooner than the time set here, the Synchro Stop function works.

- Style Touch

Turns touch response for the Style playback on/off. When this is set to "ON," the Style volume changes in response to your playing strength in the chord section of the keyboard.

• Style Change Behavior

There are three types as shown below.

Section Set

Determines the default section that is automatically called up when selecting different Styles (when Style playback is stopped). When set to "OFF" and Style playback is stopped, the active section is maintained even if the different Style is selected.

When any of the MAIN A-D sections is not included in the Style data, the nearest section is automatically selected. For example, when MAIN D is not contained in the selected Style, MAIN C will be called up.

Tempo

This determines whether the tempo changes or not when you change Styles during Style playback.

HOLD ......The tempo setting of the previous Style is maintained.

RESET......The tempo changes to that of the initial default tempo for the selected Style.

Part On/Off

This determines whether the Style Channel On/Off status changes or not when you change Styles during Style playback.

HOLD ......The Style Channel On/Off status of the previous Style is maintained.

RESET......All Style Channels are set to On.

Split Point Settings

These are the settings (there are two Split Points) that separate the different sections of the keyboard: the Chord section, the LEFT part section and the RIGHT 1 and 2 section. The two Split Point settings (below) are specified as note names.

1

Call up the operation display.

[FUNCTION] → [C] STYLE SETTING/SPLIT POINT/CHORD

FINGERING → TAB [◀] | ▶] SPLIT POINT

2

Use the [F]–[H] buttons to set the Split Point (see below).

STYLE SETTING/SPLIT POINT/CHORD FINGERING STYLE SETTING | SPLIT POINT | CHORD FINGERING Hold down one of the right buttons, and use the [DATA ENTRY] dial. RIGHT1 F*2 F*2S STYLE F*2 LEFT F*2 ▲▼ ▲▼

• Split Point (S)—separates the Chord section for Style playback from the section(s) for playing Voices (RIGHT 1, 2 and LEFT)
• Split Point (L)—separates the two sections for playing Voices, LEFT and RIGHT 1–2.

These two settings can be set to the same note (as in the default) or two different notes as desired.

Setting the Split Point (S) and the Split Point (L) to the same note

Split Point (S+L) Chord section + Voice LEFT Voice RIGHT 1and 2

Press the [F] (S+L) button and rotate the [DATA ENTRY] dial.

Setting the Split Point (S) and the Split Point (L) to different notes

Split Point (S) Split Point (L) Chord section Voice LEFT Voice RIGHT 1and 2

Press the [H] (S) button or the [G] (L) button and rotate the [DATA ENTRY] dial.

Split Point (L) cannot be set lower than Split Point (S), and Split Point (S) cannot be set higher than Split Point (L).

Specifying the Split Point by note name

Press the [1 ▲ ▼]–[4 ▲ ▼] buttons. You can specify the Split Point of the Voice and chord section of the keyboard by using STYLE in the display, and you can specify the Split Point of the left and right Voices by using LEFT.

Editing the Volume and Tonal Balance of the Style (MIXING CONSOLE)

You can set various mixing-related parameters of the Style. (See "Adjustable items (parameters) in the MIXING CONSOLE display" on page 89.) Call up the "STYLE PART" display in step #3 of the Basic Procedure in "Editing the Volume Balance and Voice Combination (MIXING CONSOLE)" on page 87, and follow the instructions.

Convenient Music Finder feature

Music Finder (page 52) is a convenient feature that calls up pre-programmed panel settings (for Voices, Styles, etc.) that match the song or type of music you want to play. The records of the Music Finder can be searched and edited.

Searching the Records

You can search the records by specifying a song name or keyword, using the Search function of the Music Finder. You can also save your favorite records in the FAVORITE display.

1 Press the [MUSIC FINDER] button to call up the MUSIC FINDER display.

2 Press the TAB [ ◀] button to select the ALL tab. The ALL tab display contains the preset Records.

3 Press the [6 ▲] (SEARCH 1) button to call up the Search display.

MUSIC FINDER ALL FANOVITI SEARCH 1 SEARCH 2 MUSIC STYLE BEAT TEMPO SORT BY MUSIC 2 Nights In A Big City 40'sBigBand 4/4 90 40th Symphony PopClassics 4/4 124 60 Second Waltz ViennesseWaltz 3/4 240 69 Summers Long PowerRock 4/4 130 A Boy From The Country Bluegrass 2/4 150 A Bridge To Cross Troub~ PowerBallad 4/4 78 A Bright & Guiding Light EasyListening 4/4 76 A Cosy Life In Italy OrganBallad 4/4 88 A Day's Difference 70'sTYTheme 4/4 126 A Feeling Of Love Tonig~ MovieBallad 4/4 68 A Fire Lighter Unplugged1 4/4 118 A Misty Ballad CoolJazzBallad 4/4 70 A Nickel In The Nickelod~ Dixieland 4/4 214 A Night In A Wonderful L~ 6-8Orchestral 6/8 72 MUSIC STYLE SEARCH 1 / 2 FILES RECORD EDIT SORT ORDER ASCENDING ROP TO FANOVITI TEMPO LOCK OFF MUSIC FINDER + NUMBER OF RECORDS 1575

4 Enter the search criteria.

MUSIC FINDER SEARCH 1 MUSIC: CLEAR KEYWORD: CLEAR STYLE: CLEAR BEAT ANY 2/4 3/4 4/4 6/8 OTHER SEARCH AREA ALL FAVORITE SEARCH1 SEARCH2 TEMPOR FROM ~ TO 5 ~ 500 GENRE ANY All Time Hits Ballad START SEARCH CANCEL

Clear the search criteria To clear the entered Music/Keyword/Style, press the [F]/[G]/[H] (CLEAR) button.

- Search by song title or music genre (MUSIC) or keyword

1 Press the [A] (MUSIC)/[B] (KEYWORD) button to call up the character entry display.
2 Enter the song title or music genre, or the keyword (page 73).

- Search by Style name

1 Press the [C] (STYLE) button to call up the Style selection display.
2 Use the [A]–[J] buttons to select a Style.
3 Press the [EXIT] button to return to the search display.

- Adding other Search Criteria

You can specify other search criteria in addition to the song name/keyword/Style name.

BEAT ......Select the beat (time signature) you want to use in your performance by pressing the [D] button. All beat settings are included in the search if you select ANY.
SEARCH AREA ......Select the pages to be included in the search by pressing the [E] button. (These correspond to the tabs at the top of the Music Finder display.)
TEMPO....Set the range of the tempo you want to use in your performance by using the [1 ] / [2 ] (TEMPO) buttons.
GENRE ......Select the desired music genre by using the [5 ▲ ▼]/[6 ▲ ▼] (GENRE) buttons.

5 Press the [8 ▲] (START SEARCH) button to start the search.

The Search 1 display appears, showing the results of the search. To cancel searching, press the [8▼] (CANCEL) button.

Searching other music genres

When you want to search other music genres, press the [6▼] (SEARCH 2) button in the Music Finder display. The search result is displayed in the SEARCH 2 display.

Calling up the panel settings to match the style (REPERTOIRE)

When searching by style name, the same search result is obtained even if the search is done by using the Repertoire function. See page 53 for details.

Entering several different keywords

You can search several different keywords simultaneously by inserting a separator (comma) between each.

Creating a Set of Favorite Records

As convenient as the Search function is in plumbing the depths of the Music Finder records, you may want to create a "folder" of favorite records—so you can quickly call up those Styles and settings you use most often in your performance.

1 Select the desired record from the Music Finder display.
2 Press the [H] (ADD TO FAVORITE) button to add the selected record to the FAVORITE display.

MUSIC FINDER ALL FAVORITE | SEARCH1 | SEARCH2 MUSIC STYLE BEAT TEMPO 2 Nights In A Big City 40'sBigBand 4/4 90 SORT BY MUSIC 40th Symphony PopClassics 4/4 124 SORT ORDER ASCENDING 60 Second Waltz VienneseWaltz 3/4 240 ADD TO FAVORITE 69 Summers Long PowerRock 4/4 130 A Boy From The Country Bluegrass 2/4 150 TEMPO LOCK OFF A Bridge To Cross Troub- PowerBallad 4/4 78 I A Bright & Guiding Light EasyListening 4/4 76 A Cosy Life In Italy OrganBallad 4/4 88 J A Day's Difference 70'sTVTheme 4/4 126 A Feeling Of Love Tonig- MovieBallad 4/4 68 A Fire Lighter Unplugged1 4/4 118 MUSIC FINDER + A Misty Ballad CoolJazzBallad 4/4 70 NUMBER OF RECORDS A Nickel In The Nickelod- Dieland 4/4 214 A Night In A Wonderful L- 6-8Orchestral 6/8 72 1575 MUSIC STYLE SEARCH 1 / 2 FILES RECORD EDIT

3 Call up the FAVORITE display by using the TAB [◀][▶] buttons, and check to see if the record has been added.

Deleting Records from the FAVORITE Display

1 Select the record you want to delete from the FAVORITE display.
2 Press the [H] (DELETE FROM FAVORITE) button.

Editing Records

You can create a new record by editing the currently selected record. The newly created records are automatically saved in the internal memory.

1 Select the desired record to be edited in the Music Finder display.
2 Press the [8 ▲▼] (RECORD EDIT) button to call up the Edit display.

CAUTION You can also change a preset record to create a new one. If you want to keep the original preset, make sure to change the name and register the edited record as a new record (see step 5, page 111).

MUSIC FINDER RECORD EDIT MUSIC:2 Nights In A Big City KEYWORD:standard STYLE:40'sBigBand BEAT 2/4 3/4 6/8 OTHER DELETE RECORD FAVORITE ON OFF TEMPO SECTION GEMRE OFF INTRO 1 → INTRO 2 IntRO 3 IntRO 2 MAIN A Easy Listening Easy Listening GENRE NAME OK 90 ▲▼ ▲▼ ▲▼ ▲▼ Dance Floor Disco Easy Listening GENRE CANCEL

3 Edit the record as desired.

- Editing the song name/keyword/Style name

Input each item in the same way as done in the Search display (page 109).

- Changing the Tempo

Press the [1 ▲ ▼] (TEMPO) button.

• Memorizing the Section (Intro/Main/Ending)

Use the [2]/[4] buttons to select the section that will automatically be called up set when the record is selected. This is useful, for example, when you want to have a selected Style automatically be set up to start with an Intro section.

- Editing the Genre

Select the desired genre by using the [5]/[6] (GENRE) buttons. When creating a new genre, press the [7] (GENRE NAME) button and input the genre name. (page 74)

- Deleting the Currently Selected Record

Press the [I] (DELETE RECORD) button.

- Canceling and Quitting the Edit functions

Press the [8▼] (CANCEL) button.

4 To enter the edited record to the FAVORITE display, press the [E] (FAVORITE) button to turn on the FAVORITE.

5 Enter the edits you've made to the record as described below.

- Creating a new record

Press the [J] (NEW RECORD) button. The record is added to the ALL display. If you've entered the record to the FAVORITE display in step 4 above, the record is added to both the ALL display and the FAVORITE display.

• Overwriting an existing record

Press the [8▲] (OK) button. If you set the record as a Favorite in step 4 above, the record is added to the FAVORITE display. When you edit the record in the FAVORITE display, the record is overwritten.

Saving the Record

The Music Finder feature handles all the Records including the presets and additionally created records as a single file. Keep in mind that individual records (panel setups) cannot be handled as separate files.

1 Call up the Save display. [MUSIC FINDER] → TAB[◀][▶] ALL → [7▲▼] (FILES)

2 Press the TAB [ ◀][▶] buttons to select the location for saving (USER/USB).

3 Press the [6 ▼] button to save the file (page 70). All records are saved together as a single file.

Keep in mind that the Beat setting made here is only for the Music Finder search function; this does not affect the actual Beat setting of the Style itself.

The maximum number of records is 2500 (CVP-405/403) and 1200 (CVP-401), including internal records.

CAUTION

• Selecting "REPLACE" automatically deletes all your original records from internal memory and replaces them with the factory Music Finder data.
• Make sure that all important data has been archived to another location beforehand, when the file to delete all records of the Music Finder is downloaded from the web (page 113) and executed.

Restoring the Music Finder Data

You can restore the instrument's Music Finder to its original factory resettings (page 75).

Calling up Music Finder Records Saved to USER/USB

Tocall up the Music Finder records you've saved to USER/USB, follow the instructions below.

1 Call up the [MUSIC FINDER] display.

|MUSIC FINDER| → TAB |◀||▶| ALL

2 Press the [7 ▲▼] (FILES) button to open the File selection display of the Music Finder.

3 Use the TAB [ ◀][▶] buttons to select USER/USB.

4 Press the [A]–[J] buttons to select the desired Music Finder file.

The message is displayed according to the content of the file when the file is chosen, and the desired button is pressed.

- REPLACE

All Music Finder records currently in the instrument are deleted and replaced with the records of the selected file.

- APPEND

The records called up are added.

Execute the operation to call up the Music Finder file. Select "CANCEL" to abort this operation.

MUSIC FINDER ALL FAVOBIETE SEARCH 1 SEARCH 2 MUSIC STYLE BEAT TEMPO 2 Nights In A Big City 40'sBigBand 4/4 90 40th Symphony PopClassics 4/4 124 60 Second Waltz ViennesetWaltz 3/4 240 69 Summers Long PowerRock. 4/4 130 A Boy From The Country Bluegrass 2/4 150 A Bridge To Cross Troub- PowerBallad 4/4 78 A Bright & Guiding Light EasyListening 4/4 76 A Cosy Life In Italy OrganBallad 4/4 88 A Day's Difference 70'sTVTheme 4/4 126 A Feeling Of Love Tonight- MovieBallad 4/4 68 A Fire Lighter Unplugged1 4/4 118 A Misty Ballad CoolJazzBallad 4/4 70 A Nickel In The Nickelod- Divieland 4/4 214 A Night In A Wonderful L- 6-8Orchestral 6/8 72 1575 MUSIC STYLE SEARCH 1 / 2 FILES RECORD EDIT SORT BY MUSIC SORT ORDER ASCENDINGS ADD TO FAVORITE TEMPO LOCK OFF MUSIC FINDER NUMBER OF RECORDS

4

MUSIC FINDER PRESET | USER | USB1 MusicFinder SYSTEM P1 UP NAME CUT COPY POSTE DELETE SAVE FOLDER

4
3

Viewing information about Music Finder records

Information on the record about which you like in Music Finder is called, and the song of the model is downloaded, or it is possible to add it to musical instruments by downloading the Music Finder record which you like. For more details about this service, refer to the following website. http://music.yamaha.com/idc

1 Make sure that you're connected to the Internet (page 175), press the [MUSIC FINDER] button to call up the MUSIC FINDER display.
2 Use the [1 ▲▼]–[5▲▼] buttons in the display to select the record for which you want to view information on the Web.

You can also use the |DATA ENTRY| dial to make a selection. After using the dial to make a selection, press [ENTER].

3 Press the [J] (MUSIC FINDER +) button to open the Web page.

MUSIC FINDER ALL FAVORITE | SEARCH1 | SEARCH2 | MUSIC STYLE BEAT TEMPO 2 Nights In A Big City 40'sBigBand 4/4 90 40th Symphony PopClassics 4/4 124 60 Second Waltz ViennesseWaltz 3/4 240 69 Summers Long PowerRock 4/4 130 A Boy From The Country Bluegrass 2/4 150 A Bridge To Cross Troub~ PowerBallad 4/4 78 A Bright & Guiding Light EasyListening 4/4 76 A Cosy Life In Italy OrganBallad 4/4 88 A Day's Difference 70'sTVTheme 4/4 126 A Feeling Of Love Tonig~ MovieBallad 4/4 68 A Fire Lighter Unplugged1 4/4 118 A Misty Ballad CoolJazzBallad 4/4 70 A Nickel In The Nickelod~ Dixieland 4/4 214 A Night In A Wonderful L~ 6-8Orchestral 6/8 72 SORT BY MUSIC SORT ORDER ASCENDING ADD TO FAVORITE TEMPO LOCK OFF MUSIC FINDER NUMBER OF RECORDS 1575 MUSIC ▲▼ ▲▼ ▲▼ SEARCH 1 / 2 FILES RECORD EDIT

4 Press the [EXIT] button to exit the browser screen and return to the MUSIC FINDER display.

Style Creator

You can create your own Styles—recording them by yourself or by combining the internal Style data. The created Styles can be edited.

Style Structure

Styles are made up of fifteen different sections and each section has eight separate channels. With the Style Creator feature, you can create a Style by separately recording the channels, or by importing pattern data from other existing Styles.

Style Section Four different Fill-ins are available. AUTO FILL IN INTRO MAIN VARIATION BREAK ENDING/IS Channel RHY1 RHY2 BASS CHD1 CHD2 PAD PHR1 PHR2 OK REC OK OK OK OFF OFF

The available contents of the service described at left are subject to change.

Creating a Style

You can use one of the three different methods described below to create a Style. The created Styles can also be edited (page 119).

■ Realtime Recording ▶ See page 114

This method lets you record the Style by simply playing the instrument. You can select an internal Style that most closely matches your image of the Style you want to create and then re-record parts of the Style as desired, or you can create a new Style from scratch.

■ Step Recording ▶ See page 117

This method is like writing music notation on paper, since it allows you to enter each note or individually, and specify its length. This allows you to create a Style without having to play the parts on the instrument, since you can enter each event manually.

■ Style Assembly ▶ See page 118

This convenient feature lets you create composite Styles by combining various patterns from the internal preset Styles. For example, if you want to create your own original 8-beat Style, you could take rhythm patterns from the "70's 8Beat" Style, use the bass pattern from "60's Rock1" Style and import the chord patterns from the "Cool8Beat" Style—combining the various elements to create one Style.

Realtime Recording (BASIC)

Create a single Style by recording the individual channels one-by-one, using realtime recording.

Realtime Recording Characteristics

- Loop Recording

Style playback repeats the rhythm patterns of several measures in a "loop," and Style recording is also done using loops. For example, if you start recording with a two-measure main section, the two measures are repeatedly recorded. Notes that you record will play back from the next repetition (loop), letting you record while hearing previously recorded material.

• Overdub Recording

This method records new material to a channel already containing recorded data, without deleting the original data. In Style recording, the recorded data is not deleted, except when using functions such as Rhythm Clear (page 116) and Delete (page 116). For example, if you start recording with a two-measure MAIN section, the two measures are repeated many times. Notes that you record will play back from the next repetition, letting you overdub new material to the loop while hearing previously recorded material.

When creating a Style based on an existing internal Style, overdub recording is applied only to the rhythm channels. For all other channels (except rhythm), delete the original data before recording.

When using realtime recording based on the internal Styles:

Overdub recording possible.

RHY1 RHY2 BASS GHD1 GHD2 PAD PHR1 PHR2 OK REC OK OK OK OK OFF OFF

Overdub recording not possible. Delete the data before recording.

1 Select the desired Style to serve as the basis for recording/editing (page 45). When creating a new Style from scratch, press the [C] (NEW STYLE) button from the display shown in step 5 below.
2 Call up the operation display. |FUNCTION| → |F| DIGITAL REC MENU
3 Press the [B] button to call up the Style Creator display.
4 Use the TAB [ ◀][▶] buttons, then select the BASIC tab to call up the RECORD display.
5 Call up the display for selecting sections, etc. by pressing the [EXIT] button.
6 Use the [3 ▲▼]/[4▲▼] buttons to select the section (page 113) to be recorded.

STYLE CREATOR: Classic8Beat BASIC ASSEMBLY GROOVE CHANNEL PARAMETER EDIT BART 1 SECTION:MAIN A PATTERN LENGTH:4 TEMPO:103 BEAT:4/4 REC CH MEN STYLE EXECUTE SAVE SECTION MAIN B MAIN C MAIN D PATTERN LENGTH 1 2 3 4 5 6 7 8 TAB F G H I J 7-2 6 7-1

7 Use the [5 ▲▼]/[6▲▼] buttons to determine the length (number of measures) of the selected section.

Actually enter the specified length for the selected section by pressing the |DI| (EXECUTE) button.

When recording channels BASS-PHR2 based on an internal Style, delete the original data before recording. Overdub recording is not possible on channels BASS-PHR2 (see page 114).

When the RECORD display (channel indication) at the lower part of the STYLE CREATOR display disappears, you can press the [F] (REC CH) button to re-display it.

Muting specific channels during recording

Turn off the desired channels by pressing the [1▼]–[8▼] buttons.

Specifying sections from the panel buttons

You can specify the sections to be recorded by using the Section buttons ([INTRO]/[MAIN]/[ENDING], etc) on the panel. Pressing one of the Section buttons calls up the SECTION display. Change the sections by using the [6▲▼]/[7▲▼] buttons and execute the selection by pressing the [8▲] button.

The INTRO 4/ENDING 4 sections cannot be specified with the panel controls.

8 Specify the channel to be recorded by simultaneously holding down the [F] (REC CH) button and pressing the appropriate numbered button, [1▼]–[8▼].

To cancel the selection, press the appropriate numbered button [1 ▼]–[8 ▼] again.

STYLE CREATOR: Classic8Beat BASIC ASSEMBLY GROOVE CHANNEL PARAMETER EXIT BAR: 1 SECTION:MAIN A PATTERN LENGTH:4 TEMP0:103 BEAT:4/4 REC CH NEW STYLE REC CHANNEL RHY CLEAR DELETE RHY1 RHY2 BASS CHD1 CHD2 PAD PHR1 PHR2 ON REC ON ON ON OFF OFF 9 8

Limits on the recordable Voices

• RHY1 channel: Any except Organ Flute Voice/ S. Articulation Voice
• RHY2 channel: Only drum/SFX kits
- BASS-PHR2 channels: Any except Organ Flute Voice, Drum/SFX kits, and S. Articulation Voice

S. Articulation (Super Articulation) Voices are available on the CVP-405.

Deleting the recorded rhythm channel (RHY 1, 2)

To delete a specific instrument sound, simultaneously hold down the [E] (RHY CLEAR) button (from the display where the recorded channels are shown) and press the appropriate key.

CAUTION

The recorded Style will be lost if you change to another Style or you turn the power off without executing the Save operation (page 70).

9 Call up the Voice Selection display by using the [1 ▲]–[8 ▲] buttons and select the desired Voice for the corresponding recording channels. Press the [EXIT] button to return to the previous display.

10 To delete a channel, simultaneously hold down the [J] (DELETE) button and press the appropriate numbered button, [1▲]–[8▲]. You can cancel the deletion by pressing the same numbered button again, before releasing your finger from the [J] button.

11 Start recording by pressing the Style Control [START/STOP] button. Playback of the specified section starts. Since the accompaniment pattern plays back repeatedly in a loop, you can record individual sounds one by one, listening to the previous sounds as they play. For information on recording to channels other than the rhythm channels (RHY1, 2), refer to the section "Rules when recording non-rhythm channels" (see below).

12 To continue recording with another channel, simultaneously hold down the [F] (REC CH) button and press the appropriate [1▼]–[8▼] button to specify the channel, then play the keyboard.

13 Stop recording by pressing the Style Control [START/STOP] button.

14 Call up the display for selecting sections, etc. by pressing the [EXIT] button.

15 Press the [I] (SAVE) button to call up the Style Selection display to save your data.

Save the data in the Style Selection display (page 70).

Rules when recording non-rhythm channels

• Use only the CM7 scale tones when recording the BASS and PHRASE channels (i.e., C, D, E, G, A, and B).
• Use only the chord tones when recording the CHORD and PAD channels (i.e., C, E, G, and B).

C = Chord notes

C, R = Recommended notes

Using the data recorded here, the auto accompaniment (Style playback) is appropriately converted depending on the chord changes you make during your performance. The chord which forms the basis for this note conversion is called the Source Chord, and is set by default to CM7 (as in the example illustration above). You can change the Source Chord (its root and type) from the PARAMETER display on page 123. Keep in mind that when you change the Source Chord from the default CM7 to another chord, the chord notes and recommended notes will also change. For details on chord notes and recommended notes, see page 124.

Step Recording (EDIT)

The explanation here applies when selecting the EDIT tab in step 4 of "Realtime Recording" (page 115).

STYLE CREATOR: Classic8Beat BASIC ASSEMBLY GODOVE CHANNEL PARAMETER EDIT 4/4 1920PPQ 001:1:0000 Pros 88 CH 001:1:0000 Note C1 80 0000:0020 STEP REC FILTER SAVE MULTIT SEL. 001:1:0000 Note F*1 80 0000:0020 SAVE MULTIT SEL. 001:1:0960 Note F*1 40 0000:0020 001:2:0000 Note C*1 127 0000:0020 001:2:0000 Note F*1 80 0000:0020 001:2:0960 Note C1 60 0000:0020 001:2:0960 Note F*1 40 0000:0020 001:3:0000 Note C1 80 0000:0020 001:3:0000 Note F*1 80 0000:0020 001:3:0960 Note F*1 40 0000:0020 001:4:0000 Note C*1 127 0000:0020 BAR : BEAT : CLK DATA ENTRY CUT COPY POSTE ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ INS DELETE CANCEL STYLE CREATOR: Classic8Beat STEP RECORD 4/4 1920PPQ 001:1:0000 Pros 88 Kbd Vel Nr.m. 88% 001:1:0965 Note F*1 80 66 66 66 Kbd Vel Nr.m. 88% Mkt. DEL. Bar : BEAT : CLK BASIC ASSEMBLY GODOVE CHANNEL PARAMETER EDIT 4/4 1920PPQ

In the EDIT display, you can record notes with absolutely precise timing. This Step Recording procedure is essentially the same as that for Song Recording (page 117), with the exception of the points listed below:

- In the Song Creator, the End Mark position can be changed freely; in the Style Creator, it cannot be changed. This is because the length of the Style is automatically fixed, depending on the selected section. For example, if you create a Style based on a section of four measures length, the End Mark position is automatically set to the end of the fourth measure, and cannot be changed in the Step Recording display.

Any desired chord or chord progression can be used for the INTRO and ENDING sections.

Changing the Source Chord

If you want to record the pattern with a Source Chord other than CM7, set the PLAY ROOT and PLAY CHORD parameters on the PARAMETER page (page 123) before recording.

You cannot select the SECTION INTRO 4/ENDING 4 directly via the panel operation.

CAUTION

The recorded Style will be lost if you change to another Style or you turn the power off without executing the Save operation (page 70).

• Recording channels can be changed in the Song Creator 1–16 tab display; however, they cannot be changed in the Style Creator. Select the recording channel in the BASIC tab display.
• In the Style Creator, the channel data can be entered and System Exclusive data can be edited (delete, copy, or move). You can switch between the two by pressing the [F] button. However, Chord, Lyrics, and System Exclusive data cannot be entered.

Style Assembly (ASSEMBLY)

Style Assembly allows you to create a single Style by mixing the various patterns (channels) from existing internal Styles.

1 Select the basic Style, then call up the display for Style Assembly.

The operation steps are the same as steps 1–4 in "Realtime recording" (page 115). In step 4, select the ASSEMBLY tab.

2 Select the desired section (Intro, Main, Ending, etc.) for your new Style.

Call up the SECTION display by pressing one of the Section buttons ([INTRO]/[MAIN]/[ENDING], etc.) on the panel. Change the section as desired by using the [6▲▼]/[7▲▼] buttons and execute the operation by pressing the [8▲] (OK) button.

Indicates the channels that make up the section.

3 Select the channel for which you wish to replace the pattern by using the [A]–[D] and [F]–[I] buttons. Call up the Style Selection display by pressing the same button again. Select the Style containing the pattern you want to replace in the Style Selection display.

To return to the previous screen, press the [EXIT] button after selecting the Style.

4 Select the desired section of the newly imported Style (chosen in step 3 above) by using the [2▲▼]/[3▲▼] (SECTION) buttons.

5 Select the desired channel for the section (chosen in step 4 above) by using the [4]/[5] (CHANNEL) buttons.

6 Repeat steps 3–5 above to replace the patterns of other channels.

7 Press the [J] (SAVE) button to call up the Style Selection display, and save your data from the display (page 70).

Playing the Style During Style Assembly

While you are assembling a Style, you can play back the Style and select the method of playback. Use the [6 ]/[7 ] (PLAY TYPE) buttons in the Style Assembly display to select the playback method.

• SOLO

Mutes all but the selected channel in the ASSEMBLY tab display. Any channels set to ON in the RECORD display on the BASIC page are played back simultaneously.

• ON

Plays back the selected channel in the ASSEMBLY tab display. Any channels set to something other than OFF in the RECORD display on the BASIC page are played back simultaneously.

• OFF

Mutes the selected channel in the ASSEMBLY tab display.

Editing the Created Style

You can edit the Style you've created by using Realtime recording, Step recording and/or Style Assembly.

Basic Operation for Editing Styles

1 Select a Style to be edited.
2 Call up the operation display.

[FUNCTION] [F] DIGITAL REC MENU

3 Call up the Style Creator/Edit display by pressing the [B] button.
4 Press the TAB[ ◀][▶] button to select a tab.

- Changing the Rhythmic Feel (GROOVE) ▶ See page 120

These versatile features give you a wide variety of tools for changing the rhythmic feel of your created Style.

- Editing Data for each Channel (CHANNEL) ▶ See page 122

The editing features let you delete data as desired and apply quantize settings for each channel in the Style data.

- Making Style File Format Settings (PARAMETER) ▶ See page 123

For playback of your created Style, you can decide how notes will be converted and sounded for the accompaniment when changing chords in the chord section of the keyboard.

5 Edit the selected Style.

Select the file to which the data is saved.

You can also select the specified file to which the data is to be saved by pressing the [USB]/[USER] buttons. [USB]/[USER] → [B] STYLE → [A]–[J]

Changing the Rhythmic Feel (GROOVE)

The explanation here applies when you select the GROOVE tab in step 4 of "Basic Operation for Editing Styles" (page 119).

1 Press the [A]/[B] button to select the edit menu (page 121).

STYLE CREATOR: Classic8Beat BASIC ASSEMBLY GROOVE CHANNEL PARAMETER BAR: 1 1 GROOVE 2 DYNAMICS Groove lets you change the swims feel of the rhythm -- for example, from 8-beat to shuffle. EXECUTE ORIGINAL BEAT 3BEAT 16BEAT 12BEAT 24BEAT BEAT BEAT CONVERTER OFF 12 SWING OFF A B C TIME TIME 2 PUSH A 2 PUSH B 2 PUSH C 1 2 3 4 5 6 7 8

2 Use the [1 ▲▼]-[8▲▼] buttons to edit the data.

For details on editable parameters, see page 121.

3 Press the [D] (EXECUTE) button to actually enter the edits for each display.

After the operation is completed, you can execute the edition and this button changes to "UNDO," letting you restore the original data if you're not satisfied with the Groove or Dynamics results. The Undo function only has one level; only the previous operation can be undone.

4 Press the [I] (SAVE) button to call up the Style Selection display to save your data.

Save the data in the Style Selection display (page 70).

CAUTION

The edited Style will be lost if you change to another Style or you turn the power off without executing the Save operation (page 70).

GROOVE

This lets you add swing to the music or change the "feel" of the beat by making subtle shifts in the timing (clock) of the Style. The Groove settings are applied to all channels of the selected Style.

ORIGINAL BEAT Specifies the beats to which Groove timing is to be applied. In other words, if “8 Beat” is selected, Groove timing is applied to the 8th notes; if “12 Beat” is selected, Groove timing is applied to 8th-note triplets.

BEAT CONVERTER Actually changes the timing of the beats (specified in the ORIGINAL BEAT parameter above) to the selected value. For example, when ORIGINAL BEAT is set to “8 Beat” and BEAT CONVERTER is set to “12,” all 8th notes in the section are shifted to 8th-note triplet timing. The “16A” and “16B” Beat Converter which appear when ORIGINAL BEAT is set to “12 Beat” are variations on a basic 16th-note setting.

SWING Produces a “swing” feel by shifting the timing of the back beats, depending on the ORIGINAL BEAT parameter above. For example, if the specified ORIGINAL BEAT value is “8 Beat,” the Swing parameter will selectively delay the 2nd, 4th, 6th, and 8th beats of each measure to create a swing feel. The settings “A” through “E” produce different degrees of swing, with “A” being the most subtle and “E” being the most pronounced.

FINE Selects a variety of Groove “templates” to be applied to the selected section. The “PUSH” settings cause certain beats to be played early, while “HEAVY” settings delay the timing of certain beats. The numbered settings (2, 3, 4, 5) determine which beats are to be affected. All beats up to the specified beat—but not including the first beat—will be played early or delayed (for example, the 2nd and 3rd beats, if “3” is selected). In all cases, “A” types produce minimum effect, “B” types produce medium effect, and “C” types produce maximum effect.

DYNAMICS

This changes the velocity/volume (or accent) of certain notes in the Style playback. The Dynamics settings are applied to each channel or all channels of the selected Style.

CHANNEL Selects the desired channel (part) to which Dynamics is to be applied.

ACCENT TYPE Determines the type of accent applied—in other words, which notes in the part(s) are emphasized with the Dynamics settings.

STRENGTH Determines how strongly the selected Accent Type (above) will be applied. The higher the value, the stronger the effect.

EXPAND/COMP. Expands or compresses the range of velocity values. Values higher than 100% expand the dynamic range, while values lower than 100% compress it.

BOOST/CUT Boosts or cuts all velocity values in the selected section/channel. Values above 100% boost the overall velocity, while values below 100% reduce it.

Editing Data for Each Channel (CHANNEL)

The explanation here applies when you select the CHANNEL tab in step 4 of "Basic Operation for Editing Styles" (page 119).

1 Press the [A]/[B] button to select the edit menu (see below).

STYLE CREATOR: Classic8Beat BASIC ASSEMBLY GROOVE CHANNEL PARAMETER EDIT CHANNEL: RHYTHM2 BAR: 1 1 QUANTIZE REC 2 VELOCITY CHANGE CH 3 BAR COPY 4 BAR CLEAR 5 REMOVE EVENT EXECUTE SIZE SAVE STRENGTH 100% CHANNEL CHANNEL 1 2 3 4 5 6 7 8 1 F G H I J 2 3 4 5 6 7 8

2 Use the [1 ▲▼]/[2 ▲▼] (CHANNEL) buttons to select the channel to be edited.

The selected channel is shown at the upper left of the display.

3 Use the [4 ▲▼]-[8 ▲▼] buttons to edit the data.

For details on editable parameters, see below.

4 Press the [D] (EXECUTE) button to actually enter the edits for each display.

After the operation is completed, you can execute the edition and this button changes to [UNDO], letting you restore the original data if you're not satisfied with the results of the edit. The Undo function only has one level; only the previous operation can be undone.

5 Press the [I] (SAVE) button to call up the Style Selection display to save your data.

Save the data in the Style Selection display (page 70).

CAUTION

The edited Style will be lost if you change to another Style or you turn the power off without executing the save operation.

QUANTIZE Same as in the Song Creator (page 157), with the exception of the two additional available parameters below. ♪c Eighth notes with swing ♪c Sixteenth notes with swing
VELOCITY CHANGE	Boosts or cuts the velocity of all notes in the specified channel, according to the percentage specified here.
BAR COPY This function allows data to be copied from one measure or group of measures to another location within the specified channel. SOURCE specifies the first (TOP) and last (LAST) measures in the region to be copied. DEST specifies the first measure of the destination location, to which the data is to be copied.
BAR CLEAR	This function clears all data from the specified range of measures within the selected channel.
REMOVE EVENT	This function lets you remove specific events from the selected channel.

Making Style File Format Settings (PARAMETER) Special Parameter Settings Based on Style File Format

Source Pattern

SOURCE ROOT

(Chord Root setting of a Source Pattern) SOURCE CHORD

(Chord Type setting of a Source Pattern)

Chord change via the chord section of the keyboard.

Note Transposition

NTR

(Note Transposition Rule applied to the Chord Root change) NTT

(Note Transposition Table applied to the Chord Type change)

Other Settings

HIGH KEY

(Upper limit of the octaves of the note transposing caused by the Chord Root change)

NOTE LIMIT (Note range in which the note is sounded) RTR

(Retrigger Rules that determine how notes held through chord changes will be handled)

Output

The Style File Format (SFF) combines all of Yamaha's auto accompaniment (Style playback) know-how into a single unified format. By using the Style Creator, you can take advantage of the power of the SFF format and freely create your own Styles.

The chart shown at left indicates the process by which the Style is played back. (This does not apply to the rhythm track.) These parameters can be set via the Style Creator feature.

- Source Pattern

There are a variety of possibilities for Style playback notes, depending on the particular root note and chord type that are selected. The Style data is appropriately converted depending on the chord changes you make during your performance. This basic Style data that you create with the Style Creator is referred to as the "Source Pattern."

• Note Transposition

This parameter group features two parameters that determine how the notes of the Source Pattern are to be converted in response to chord changes.

- Other Settings

Using the parameters of this group, you can fine-tune how Style playback responds to the chords you play. For example, the Note Limit parameter allows you to have the Voices of the Style sound as realistic as possible by shifting the pitch to an authentic range—ensuring that no notes sound outside the natural range of the actual instrument (e.g., very low notes of a piccolo sound).

The explanation here applies when you select the PARAMETER tab in step 4 of "Basic Operation for Editing Styles" (page 119).

1 Press the [A]/[B] button to select the edit menu (page 124).

STYLE CREATOR: Classic8Beat BASIC ASSEMBLY GROOVE CHANNEL PARAMETER EDIT CHANNEL: RHYTHM2 BAR: 1 1 PLAY ROOT :C CHORD:N7 REC 2 MTR:ROOT FIXED 3 MIT: BYPASS 4 HIGH KEY:F# 5 NOTE LIMIT LOM:C-2 HIGH:60 6 RTR:PIITCH SHIFT CHANNEL PLAY ROOT C C# D E# PLAY CHORD- Maj 6 N7 N7*111 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 F G H I J 4

Editing of Style File Format data is related only to note conversion. Editing the rhythm channels has no effect.

CAUTION

The edited Style will be lost if you change to another Style or you turn the power off without executing the Save operation.

Auditioning Your Style with a Specific Chord

Normally in the Style Creator, you can hear your original Style-in-process with the Source Pattern. However, there is a way to hear it played by a specific chord and root. To do this, set NTR to "Root Fixed," NTT to "Bypass," and NTT BASS to "OFF" then change the newly displayed "Play Root" and "Play Chord" parameters to the desired settings.

2 Use the [1 ▲▼]/[2▲▼] (CHANNEL) buttons to select the channel to be edited.

The selected channel is shown at the upper left of the display.

3 Use the [3 ▲▼]–[8 ▲▼] buttons to edit the data.

For details on editable parameters, see below.

4 Press the [I] (SAVE) button to call up the Style Selection display to save your data.

Save the data in the Style Selection display (page 70).

■ SOURCE ROOT/CHORD

These settings determine the original key of the source pattern (i.e., the key used when recording the pattern). The default setting of CM7 (with a Source Root of "C" and a Source Type of "M7"), is automatically selected whenever the preset data is deleted prior to recording a new Style, regardless of the Source Root and Chord included in the preset data. When you change Source Root/Chord from the default CM7 to another chord, the chord notes and recommended notes will also change, depending on the newly selected chord type.

When the Source Root is C:

C = Chord notes C, R = Recommended notes

■ NTR (Note Transposition Rule)

This determines the relative position of the root note in the chord, when converted from the Source Pattern in response to chord changes.

ROOT TRANS(Root Transpose)	When the root note is transposed, the pitch relationship between notes is maintained. For example, the notes C3, E3 and G3 in the key of C become F3, A3 and C4 when they are transposed to F. Use this setting for channels that contain melody lines.	_When playing a C major chord.	When playing an F major chord.
ROOT FIXED The note	is kept as close as possible to the previous note range. For example, the notes C3, E3 and G3 in the key of C become C3, F3 and A3 when they are transposed to F. Use this setting for channels that contain chord parts.	_When playing a C major chord.	When playing an F major chord.

When playing a C major chord. When playing an F major chord.
When playing a C major chord. When playing an F major chord.

■ NTT (Note Transposition Table)

This sets the note transposition table for the source pattern.

BYPASS When NTR is	set to ROOT FIXED, the transposition table used does not do any note conversion. When NTR is set to ROOT TRANS, the table used only converts the root note.
MELODY Suitable for	melody line transposition. Use this for melody channels such as Phrase 1 and Phrase 2.
CHORD	Suitable for chord transposition. Use this for the Chord 1 and Chord 2 channels, especially when they contain piano or guitar-like chordal parts.
MELODIC MINOR	When the played chord changes from a major to a minor chord, this table lowers the third interval in the scale by a semitone. When the chord changes from a minor to a major chord, the minor third interval is raised by a semitone. Other notes are not changed. Use this for melody channels of Sections which respond only to major/minor chords, such as Intros and Endings.
MELODIC MINOR 5th	In addition to the Melodic Minor transposition above, augmented and diminished chords affect the 5th note of the Source Pattern.
HARMONIC MINOR	When the played chord changes from a major to a minor chord, this table lowers the third and sixth intervals in the scale by a semitone. When the chord changes from a minor to a major chord, the minor third and flatted sixth intervals are raised by a semitone. Other notes are not changed. Use this for chord channels of Sections which respond only to major/minor chords, such as Intros and Endings.
HARMONIC MINOR 5th	In addition to the Harmonic Minor transposition above, augmented and diminished chords affect the 5th note of the Source pattern.
NATURAL MINOR	When the played chord changes from a major to a minor chord, this table lowers the third, sixth and seventh intervals in the scale by a semitone. When the chord changes from a minor to a major chord, the minor third, flatted sixth and flatted seventh intervals are raised by a semitone. Other notes are not changed. Use this for chord channels of Sections which respond only to a Major/minor chord such as Intros and Endings.
NATURAL MINOR 5th	In addition to the Natural Minor transposition above, augmented and diminished chords affect the 5th note of the Source pattern.
DORIAN When the played chord changes from a major to a minor chord, this table lowers the third and seventh intervals in the scale by a semitone. When the chord changes from a minor to a major chord, the minor third and flatted seventh intervals are raised by a semitone. Other notes are not changed. Use this for chord channels of Sections which respond only to a Major/minor chord such as Intros and Endings.
DORIAN 5th In addition to the Dorian transposition above, augmented and diminished chords affect the 5th note of the Source pattern.

■ NTT BASS ON/OFF

The channels for which this is set to ON will be played back by the bass root note, when the on-bass chord is recognized by the instrument.

HIGH KEY

This sets the highest key (upper octave limit) of the note transposition for the chord root change. Any notes calculated to be higher than the highest key are transposed down to the next lowest octave. This setting is available only when the NTR parameter (page 124) is set to "Root Trans."

Example—When the highest key is F.

Root changes → CM C#M ... FM F#M ... Notes played → C3-E3-G3 C#3-F3-G#3 F3-A3-C4 F#2-A#2-C#3

NOTE LIMIT

This sets the note range (highest and lowest notes) for voices recorded to the style channels. By judicious setting of this range, you can ensure that the voices sound as realistic as possible—in other words, that no notes outside the natural range are sounded (e.g., high bass sounds or low piccolo sounds). The actual notes that sound are automatically shifted to the set range.

Example—When the lowest note is C3 and the highest is D4.

Root changes → CM C#M ... FM ... Notes played → E3-G3-C4 F3-G#3-C#4 F3-A3-C4 High Limit Low Limit

■ RTR (Retrigger Rule)

These settings determine whether notes stop sounding or not and how they change pitch in response to chord changes.

STOP The notes stop sounding.
PITCH SHIFT The pitch of the note will bend without a new attack to match the type of the new chord.
PITCH SHIFT TO ROOT	The pitch of the note will bend without a new attack to match the root of the new chord.
RETRIGGER	The note is retriggered with a new attack at a new pitch corresponding to the next chord.
RETRIGGER TO ROOT	The note is retriggered with a new attack at the root note of the next chord. However, the octave of the new note remains the same.

The Registration Memory function allows you to save (or "register") virtually all panel settings to a Registration Memory button, and then instantly recall your custom panel settings by pressing a single button. The registered settings for eight Registration Memory buttons should be saved as a single Bank (file).

Registering and Saving Custom Panel Setups

Registering Custom Panel Setups

1 Set up the panel controls (such as Voice, Style, effects, and so on) as desired.

Refer to the separate Data List for a list of parameters that can be registered with the Registration Memory function.

2 Press the REGISTRATION MEMORY [MEMORY] button. The display for selecting the items to be registered appears.

Only the items selected here will be registered.

3 Press the [2 ▲▼]–[7▲▼] buttons to select items.

To cancel the operation, press the [I] (CANCEL) button.

4 Enter or remove the checkmark in the box of the item to determine whether the item should be registered or not, by pressing the [8 ▲▼] button.

5 Press one of the REGISTRATION MEMORY [1]–[8] buttons to register your settings.

It is recommended that you select a button whose lamp is not lit in red or green. Buttons that are lit in red or green, already contain the panel setup data. Any panel setup previously registered to the selected REGISTRATION MEMORY button (lamp lights in green or red) will be erased and replaced by the new settings.

6 Register various panel setups to other buttons by repeating steps #1-#5.

When recalling registration set-ups, you can also select the items to be recalled or not, even if you selected all items when registering (page 129).

About the lamp status:

Off..... no data registered On (green)...data registered, but not currently selected On (red).....data registered, and currently selected

Deleting an unneeded panel setup

See page 129.

Deleting all eight current panel setups

To delete all the eight current panel setups, turn the [POWER] button ON while holding the B6 key (right-most B key on the keyboard).

Registration Memory data compatibility

In general, Registration Memory data (Bank files) is compatible among the models CVP-409/407/405/403/401. However, the data may not be perfectly compatible, depending on the specifications of each model.

About recalling setups from a USB storage device

When recalling the setups including Song/Style file selection from a USB storage device, make sure that the appropriate USB storage device including the registered Song/Style is connected into the [USB TO DEVICE] Terminal.

Saving the Registered Panel Setups

You can save all the eight registered panel setups as a single Registration Memory Bank file.

1 Press simultaneously REGISTRATION MEMORY [REGIST BANK] buttons [+][-] to call up the REGISTRATION BANK Selection Display.

2 Press the [6 ▼] button to save the Bank file (page 70).

REGIST BANK 1 P1 NAME CUT COPY POSTE DELETE SAVE FOLDER UP EDIT 1 2 3 4 5 6 7 8

Recalling the Registered Panel Setups

1 Press simultaneously REGISTRATION MEMORY [REGIST BANK] buttons [+][-] to call up the REGISTRATION BANK Selection Display.

2 Press one of the [A]-[J] buttons to select a bank.

3 Press one of the green-lit numbered buttons ([1]–[8]) in the Registration Memory section.

Parameter Lock

You can "lock" specific parameters (e.g., effect, split point, etc.) to make them selectable only via the panel controls—in other words, instead of via Registration Memory, One Touch Setting, Music Finder, Song or incoming MIDI data, etc. Call up the Parameter Lock display ([FUNCTION] → [J] UTILITY → TAB [◀] CONFIG 1 → [B] 3 PARAMETER LOCK). Select the desired parameter by using the [1▲▼]–[7▲▼] buttons, then lock it with the [8▲] button.

Deleting an Unneeded Panel Setup/Naming a Panel Setup

The panel setups can be deleted or named individually as desired.

1 Press simultaneously REGISTRATION MEMORY [REGIST BANK] buttons [+][-] to call up the REGISTRATION BANK Selection Display.
2 Press one of the [A]-[J] buttons to select a bank to be edited.
3 Press the [8 ▼] (EDIT) button to call up the REGISTRATION EDIT Display.
4 Edit the panel setups.

- Deleting a panel setup

Press the [5▼] button to delete a panel setup (page 72).

- Renaming a panel setup

Press the [1▼] button to rename a panel setup (page 73).

REGISTRATION EDIT NewRegist NewRegist NewBank UP MAKE DELETE The number above the file name corresponds to the REGISTRATION MEMORY [1]–[8] buttons.

5 Press the [8 ▲] (UP) button to return to the REGISTRATION BANK Selection display.

Disabling Recall of Specific Items (Freeze Function)

Registration Memory lets you recall all the panel setups you made with a single button press. However, there may be times that you want certain items to remain the same, even when switching Registration Memory setups. For example, you may want to switch Voices or effect settings while keeping the same accompaniment Style. This is where the Freeze function comes in handy. It lets you maintain the settings of certain items and leave them unchanged, even when selecting other Registration Memory buttons.

1 Call up the operation display. [FUNCTION] → [E] REGIST SEQUENCE/FREEZE/VOICE SET → TAB |◀||▶| FREEZE

CAUTION

Settings in the REGISTRATION FREEZE display are automatically saved to the instrument when you exit from this display. However, if you turn the power off without exiting from this display, the settings will be lost.

2 Press the [2 ▲▼]–[7▲▼] buttons to select items.
3 Enter checkmarks for the items to be "Frozen" (i.e., to remain unchanged), by pressing the [8▲▼] button.
4 Press the [FREEZE] button on the panel to turn the Freeze function on.
5 Press the [EXIT] button to exit from the operation display.

Calling Up Registration Memory Numbers in Order—Registration Sequence

As convenient as the Registration Memory buttons are, there may be times during a performance when you want to quickly switch between settings—without having to take your hands from the keyboard. The convenient Registration Sequence function lets you call up the eight setups in any order you specify, by simply using the TAB [◀]▶ button or the pedal as you play.
1 Select the desired Registration Memory bank to program a sequence (page 128).
2 Call up the operation display.

[FUNCTION] → [E] REGIST SEQUENCE/FREEZE/VOICE SET → TAB [◀][▶] REGISTRATION SEQUENCE

REGIST SEQUENCE/FREEZE/VOICE SET REGISTRATION BANK NewBank REGISTRATION SEQUENCE ENABLE ON OFF REGIST+ PEDAL LEFT CENTER RIGHT AUX OFF REGIST- PEDAL LEFT CENTER RIGHT AUX OFF SEQUENCE DATA END STOP TOP NEXT BANK CURSOR RE- PLACE INSERT DELETE CLEAR

3 If you intend to use a pedal to switch Registration Memory settings, specify here how the pedal will be used—to advance or to reverse through the sequence.

Use the [C] button to select the pedal for advancing through the sequence. Use the [D] button to select the pedal for reversing through the sequence.

4 Use the [E] button to determine how Registration Sequence behaves when reaching the end of the sequence (SEQUENCE END).

STOP ....Pressing the TAB ▶] button or the "advance" pedal has no effect. The sequence is "stopped."

TOP ......The sequence starts again at the beginning.

NEXT BANK......The sequence automatically moves to the beginning of the next Registration Memory Bank in the same folder.

5 Program the Sequence order.

The numbers shown at the lower part of the display correspond to the REG-ISTRATION MEMORY [1]–[8] buttons on the panel. Program the Sequence order from left to right.

Press one of the REGISTRATION MEMORY [1]–[8] button on the panel, then press the [6] (INSERT) button to input the number.

- Replacing the number

Press the [5 ] (REPLACE) button to replace the number at the cursor position with the currently selected Registration Memory number.

- Deleting the number

Press the [7▲▼] (DELETE) button to delete the number at the cursor position.

- Deleting all numbers

Press the [8 ▲ ▼] (CLEAR) button to delete all numbers in the sequence.

6 Press the [F] button to turn the Registration Sequence function on.
7 Press the [DIRECT ACCESS] button, then press the [EXIT] button to return to the Main display and confirm whether the Registration Memory numbers are called up according to the sequence programmed above.

• Use the TAB [▶] button to call up the Registration Memory numbers in the order of the sequence, or use the TAB [◀] button to call them up in reverse order. The TAB [◀] [▶] buttons can only be used for Registration Sequence when the Main display is called up.
• When pedal operation has been set in step 3, you can use a pedal to select the Registration Memory numbers in order. The pedal can be used for Registration Sequence no matter which display is called up (except for the display in step 3 above).

MAIN REGIST SEQ. 12345678 TRANSPOSE 0 ♩ = 103 BAR 001 - 1

The Registration Sequence is indicated at the top right of the Main display, letting you confirm the currently selected number.

Saving the Registration Sequence Settings

The settings for the Sequence order and how Registration Sequence behaves when reaching the end of the sequence (SEQUENCE END) are included as part of the Registration Memory Bank file. To store your newly programmed Registration Sequence, save the current Registration Memory Bank file.

1 Press simultaneously REGISTRATION MEMORY [REGIST BANK] buttons [+][-] to call up the REGISTRATION BANK Selection display.
2 Press the [6 ▼] button to save the Bank file (page 70).

CAUTION

Settings in the REGISTRATION SEQUENCE display are automatically saved to the instrument when you exit from this display. However, if you turn the power off without exiting from this display, the settings will be lost.

Returning to the first

Sequence in one action In the Main display, press the TAB [◀] and [▶] buttons simultaneously. This cancels the currently selected Sequence number (the box indicator at the top right goes out). The first Sequence will be selected by pressing one of the TAB [◀][▶] buttons or by pressing the pedal.

CAUTION

Keep in mind that all Registration Sequence data is lost when changing Registration Memory Banks, unless you've saved it with the Registration Memory Bank file.

Using, Creating and Editing Songs

Reference to Quick Guide Pages

Practicing with the Preset Songs ...... page 35

Playing Back Songs Before Practicing ...... page 35

Displaying Music Notation (Score) ...... page 38

One-handed Practice with the Guide Lamps ...... page 39

Practicing with the Repeat Playback Function ...... page 41

Recording Your Performance...... page 42

Singing Along with Song playback (Karaoke) or Your Own

Performance ......page 54

Connecting a Microphone...... page 54

Singing with the Lyrics Display...... page 55

Displaying Text ...... page 55

Convenient Functions for Karaoke...... page 56

Convenient Functions for Singing Along with Your

Own Performance ...... page 58

Recording Your Performance as Audio ...... page 60

Compatible Song Types

The instrument can play back the following Song types.

Preset Songs

Songs in the Song Selection PRESET display.

Your Own Recorded Songs

These are Songs which you've recorded (page 42, page 139) and saved to the USER/USB display. (USB is available when you connect an USB storage device such as USB flash memory/floppy disk to the instrument.)

Commercially Available Song Data

Song data downloaded from the Yamaha Web site and commercially available Disk Songs are available when you connect the optional floppy disk drive to the instrument. The instrument is compatible with the Song disks (floppy disks) that bear the following marks:

Before using a USB storage device, be sure to read "Handling the USB Storage Device (USB Flash Memory/Floppy Disk, etc)" on page 22.

Before using a floppy disk and the disk slot, be sure to read "Handling the Floppy Disk Drive (FDD) and Floppy Disks" on page 21.

Commercially available music data is subject to protection by copyright laws. Copying commercially available data is strictly prohibited, except for your own personal use.

See page 195 for information on the types of Song data that can be played on the instrument.

Operations for Song Playback

This section explains detailed operations and functions related to Song playback which are not covered in the "Quick Guide."

■ Starting/Stopping a Song

Press the SONG [PLAY/PAUSE] button to start Song playback, and press the SONG [STOP] button to stop. In addition, there are several other convenient ways to start/stop a Song.

Starting Playback

Synchro Start

You can start playback as soon as you start playing the keyboard.

While playback is stopped, simultaneously press the SONG [STOP] and [PLAY/PAUSE] buttons simultaneously.

To cancel the Synchro Start function, simultaneously press the SONG [STOP] and [PLAY/PAUSE] buttons simultaneously once again.

- T ap function

This useful function lets you press the [TAP TEMPO] button to tap out the tempo and automatically start the Song at that tapped speed. Simply tap (press/release) the button (four times for a 4/4 time signature) while the instrument is in Synchro Start standby mode, and the Song playback starts automatically at the tempo you tapped.

Fade In

The Fade In function can be used to produce smooth fade-ins when starting the Song. To produce fade-ins, press the foot pedal which is assigned to Fade In/Out while playback is stopped and then press the SONG |PLAY/PAUSE| button to start playback. For information on the settings, see page 187.

Stopping Playback

Fade Out

The Fade Out function can be used to produce smooth fade-outs when stopping the Song playback. Press the foot pedal which is assigned to Fade In/Out at the beginning of the phrase you want to fade out. For information on the settings, see page 187.

Set the Fade In/Out time

The times of the fade-in and fade-out can be set independently. For details, refer to page 105.

Depending on the particular Song data, the Style will also play back at the same time.

Phrase Mark:

Phrase Mark is a pre-programmed marker in certain Song data, which specifies a certain location (set of measures) in the Song.

The preset Songs in the "Follow Lights" folder contain the Guide settings. These Songs are inappropriate for use with ALL or RANDOM repeat.

■ Top/Pause/Rewind/Fast Forward

Moving to the top position of the Song

Press the SONG [STOP] button, regardless of whether the Song is stopped or playing back.

Pausing the Song

Press the SONG [PLAY/PAUSE] button during Song playback. Press the SONG [PLAY/PAUSE] button again and the Song will resume from the current position.

Moving back and forth (rewind and fast forward)

1 Press the SONG [REW] or SONG [FF] button to move back and forth (rewind and fast forward).

It calls up a pop-up window showing the current measure number in the Main display.

For Songs containing Phrase Marks, you can use the [FF] or [REW] buttons to navigate through the Phrase Marks in the Song. If you don't want to set the Song position by the phrase marks, press the [E] button and select "BAR" in the window showing the Song position.

For Songs not containing

Phrase Marks

For Songs containing

Phrase Mark

2 Press the [EXIT] button to close the pop-up window showing the current measure number (or Phrase Mark number).

■ Repeat Playback/Chain Playback

1 Call up the operation display.

[FUNCTION] → [B] SONG SETTING

2 Set the parameters related to the Repeat Playback by using the [H]/[I] buttons. The available parameters are shown below.

REPEAT MODE OFF	Plays through the selected Song, then stops.SINGLEPlays through the selected Song repeatedly.ALLContinues playback through all the Songs in the folder containing the current Song repeatedly.RANDOMRandomly and repeatedly plays back all Songs in the folder containing the current Song.
PHRASE MARK REPEAT	For Songs containing Phrase Marks, you can set Repeat Playback to “ON” or “OFF.” When this is on, the part corresponding to the specified Phrase Mark number is repeatedly played back. The steps for specifying the Phrase Mark number are the same as in the steps 1–2 of the section “Moving back and forth (rewind and fast forward)” (see above).

■ Queuing the Next Playback Song

While a Song is playing back, you can queue up the next Song for playback. This is convenient for chaining it to the next Song smoothly during stage performance.

Select the Song you want play next in the Song Selection display, while a Song is playing back.

The "NEXT" indication appears at the upper right of the corresponding Song name.

To cancel this setting, press the [8 ▼] (Cancel) button.

■ Using the Auto Accompaniment Features with the Song Playback

When playing back a Song and a Style at the same time, channels 9–16 in the Song data are replaced with style channels—allowing you to play the accompaniment parts of the Song yourself. Try playing chords along with the Song playback as shown in the instructions below. When playing back a Song and a Style at the same time, we recommend that you use the Preset Songs in the "Sing-a-long" folder.

1 Select a Song (page 35).
2 Select a Style (page 45).
3 Press the STYLE CONTROL [ACMP ON/OFF] button to turn on the Auto Accompaniment function.
4 Press the STYLE CONTROL [SYNC START] button to enable standby—letting you simultaneously start the accompaniment as soon as you start playing.

5 Press the SONG [PLAY/PAUSE] button to start playback.

6 Play chords along with the Song.

The chord name is indicated in the Main display. To return to the Main display, press the [DIRECT ACCESS] button, then press the [EXIT] button.

When the Song playback is stopped, the style playback is also stopped at the same time.

- Tempo for playing back a Song and a style at the same time

When playing back a Song and a Style at the same time, the tempo value set in the Song is automatically used.

Playing Songs with the Quick Start function

With the default settings, the Quick Start function is turned on. On some commercially available Song data, certain settings related to the Song (such as voice selection, volume, etc.) are recorded to the first measure, before the actual note data. When Quick Start is set to "ON," the instrument reads all initial non-note data of the Song at the highest possible speed, then automatically slows down to the appropriate tempo at the first note. This allows you to start playback as quickly as possible, with a minimum pause for reading of data. When Quick Start is set to "ON," a Song is played back directly from the first note (which may be in the middle of a measure). If you want to play from the beginning of the measure that has silence prior to the first note, turn Quick Start "OFF."

1 Call up the operation display.
[FUNCTION] → [B] SONG SETTING
2 Press the [7 ▼] (QUICK START) button to turn the Quick Start "OFF."

Parameter Lock

You can "lock" specific parameters (e.g., effect, split point, etc.) to make them selectable only via the panel controls (page 128).

If the Song data does not contain this data, the current chord name will not be displayed in the Main display during Song playback.

About the [SONG CH 1–8]/[SONG CH 9–16] displays A Song consists of 16 separate channels. Separate settings can be made for each of the 16 channels in the MIXING CONSOLE display. Adjust the parameters in the SONG CH 1–8 or SONG CH 9–16 display respectively. Usually, CH 1 is assigned to the [TRACK 1] button, CH 2 is assigned to the [TRACK 2] button, and CH 3–16 are assigned to the [EXTRA TRACKS] button, respectively.

Press the [C]/[H] (VOICE) buttons in step 5 to select the Voice which you want to change. Then, press one of the [1 ▲▼] to [8 ▲▼] buttons to call up the Voice selection display for the channel.

Reading Song data automatically when connecting a USB storage device

You can have the instrument automatically call up the first Song (not contained in a folder) on a USB storage device, as soon as the device is connected in the [USB TO DEVICE] terminal.

1 Call up the operation display.
[FUNCTION] → [J] UTILITY → TAB [◀][▶] MEDIA
2 Press the [3 ▲]/[4▲] (SONG AUTO OPEN) button to select "ON".

Adjusting the Volume Balance and Voice Combination, etc. (MIXING CONSOLE)

You can set the mixing-related parameters of a Song. Refer to the section "Adjustable items (parameters) in the MIXING CONSOLE display" on page 89. Call up the "SONG CH 1–8" or "SONG CH 9–16" display in step 3 of the Basic Procedure in "Editing the Volume Balance and Voice Combination (MIXING CONSOLE)" on page 87. Below are two operation examples.

Adjusting the Volume Balance of Each Channel

1 Select a Song (page 35).
2 Press the [MIXING CONSOLE] button to call up the MIXING CON- SOLE display.
3 Select the [VOL/VOICE] tab by pressing the TAB [ ◀][▶] buttons.
4 Press the [MIXING CONSOLE] button repeatedly to call up the display of "SONG CH 1-8" or "SONG CH 9-16."
5 Press the [J] button to select the "VOLUME."
6 Adjust the volume balance of each channel by using the [1 ▲▼]–[8▲▼] buttons.
7 You can save the volume settings to the Song in the Setup operation of the SETUP (page 158).

Make sure to checkmark the "VOLUME" item in step 2 of the Setup procedure.

Changing Voices

1-4 The operation steps are the same as in the "Adjusting the Volume Balance of Each Channel" (see page 136).
5 Press the [H] button to select the "VOICE".
6 Press one of the [1 ▲▼]–[8▲▼] buttons to call up the Voice selection display for the channel.
7 Press one of the [A]–[J] buttons to select a Voice.
8 You can save the changed Voice selection to the Song in the Setup operation (page 158). Make sure to checkmark the "VOICE" item in step 2 of the Setup procedure.

Using the Practice Function (Guide)

The keyboard guide lamps indicate the notes (location and timing) for you to play. Also, when you sing along with a Song playback using a connected microphone (CVP-405/403), the instrument automatically adjusts the timing of the Song playback to match your vocal performance. To use the practice function, press the [GUIDE] button.

Selecting the Guide Function Type

1 Call up the setting display: |FUNCTION| → |B| SONG SETTING
2 Use the [A]/[B] buttons to select the desired Guide function type. The following types are available.

SONG SETTING Follow Lights Guide MODE Any Key Guide lamp indicates the next note to play. Karoo-Key Playback pauses until you play the correct note. Vocal CueTIME GUIDE LAMP ON OFF OFF SINGLE ALL RANDOM REPEAT MODE GUIDE LAMP TIMING NEXT JUST ON OFF PHRASE MARK REPEAT CHANNEL SETTING AUTO LTRACK2-TRACK1, OUTFO OFF 1 1 ON 2 2 LYRICS LANGUAGE AUTO INTERNATIONAL JAPANESE QUICK START ON OFF P.A.T. OFF F G H I J

Saving the Guide settings in the SONG SETTING display

You can save the Guide settings as a part of the Song data (page 158). For Songs to which Guide settings have been saved, the Guide function will be automatically turned on and the related settings will be recalled when the Song is selected.

Turning the keyboard guide lamps off

Press the [C] (GUIDE LAMP) button in the SONG SETTING display (in step 1 as described at left) to turn the keyboard guide lamps off.

For Keyboard Performance

Follow lights

With this function, the keyboard guide lamps indicate which notes you should play (page 39). Song playback pauses and waits for you to play. When you play the correct notes, Song playback continues.

Any key

With this function, you can play the melody of a Song just by pressing a single key (any key is OK) in time with the rhythm. Song playback pauses and waits for you to play any key. Simply play a key on the keyboard in time with music (any key is OK) and the Song playback continues.

For Karaoke

Karao-key

This function lets you control the Song playback timing with just one finger, while you sing along. This is useful for singing to your own performance.

Song playback pauses, waiting for you to sing. Simply play a key on the keyboard and the Song playback continues.

This function lets you practice singing with the proper pitch.

Song playback pauses, waiting for you to sing. When you sing with proper pitch, Song playback continues.

Determining the timing by which the keyboard guide lamps light (GUIDE LAMP TIMING)

Press the [D] button in the SONG SETTING display in step 1 (page 137) to select the timing by which the keyboard guide lamps light.

JUST...... The guide lamps light in time with the music, at the same timing you should play.

NEXT .... The guide lamps light slightly ahead of the music, indicating the notes you should play next. The guide lamps flash if you fail to play the keys with the correct timing.

If the guide lamps do not light as intended

The guide lamps light according to Song channels recorded to Track 1 and 2 and the chord data in the Song (when such data is included).

If the guide lamps do not light as intended, you may need to assign the appropriate right- and left-hand channels to Track 1 and 2 respectively, by using the [1▲▼]/[2▲▼] buttons in the SONG SETTING display as described in step 1 on the previous page.

Turning playback channels of the Song on and off

A Song consists of 16 separate channels. You can independently turn each channel of the selected Song playback on or off. Usually, CH 1 is assigned to [TRACK 1] button, CH 2 is assigned to [TRACK 2] button, and CH 3–16 are assigned to the [EXTRA TRACKS] button.

1 Press the [CHANNEL ON/OFF] button to call up the Song CHANNEL ON/OFF display.

If the display shown below does not appear, press the [CHANNEL ON/OFF] button again.

SONG	STYLE	CHANNEL ON/OFF
1	2	3	4	5	6	7	8
ON	ON	ON	ON	ON	ON	ON	ON
9	10	11	12	13	14	15	16
ON	ON	ON	ON	ON	ON	ON	ON

2 Use the [1 ▲▼]–[8▲▼] buttons to turn each channel on or off.

If you want to play back only one particular channel (muting all other channels), press and hold down one of the [1 ] - [8 ] buttons corresponding to the desired channel. To cancel solo playback, press the same button again.

Recording Your Performance

You can record your own performances and save them to the User tab display or a USB storage device. Several different recording methods are available:

Quick Recording which lets you record performance conveniently and quickly, Multi track Recording which lets you record several different parts to multiple channels, and Step Recording which lets you enter notes one by one. You can also edit the Songs you've recorded.

For details on MIDI Recording, see page 192.

For details on USB Audio Recording (CVP-405/403), see page 60.

Recording Methods

There are three methods as shown below.

Realtime Recording	Quick Recording ➤ page 140	This convenient and simple recording method lets you quickly record your performance—useful, for example, in recording solo piano pieces. You can record to the [TRACK 1 (R)] or [TRACK 2 (L)] button, and also to the [EXTRA TRACKS (STYLE)] track, which can be used for recording at the same time.
	Multi track Recording ➤ page 141	This lets you record a whole Song including several different instrument parts, to create the sound of a full band or orchestra. Record the performance of each instrument part one by one and create fully orchestrated compositions. You can also record over already-recorded parts of an existing Song (Preset Song or a Song on USB storage device) with your own performance.
Step Recording	Step Recording ➤ page 143	This method lets you compose your performance by “writing” it down one event at a time. This is a non-realtime, manual recording method – similar to writing music notation onto paper. You can input notes, chords and other events one by one (realtime performance is not needed).

You can also edit Songs after they've been recorded (page 154).

For example, you can edit specific notes one by one, or you can use the Punch In/Out function to re-record a specific part.

The microphone input signal can not be recorded.

Internal memory (User tab displays) capacity

The internal memory capacity of the instrument is about 1.4MB (CVP-405/403), or about 560KB (CVP-401). This capacity applies to all file types, including Voice, Style, Song, and Registration data files.

The RIGHT and/or LEFT parts are recorded onto separate tracks.

With Multi Track Recording, you can record RIGHT 2 part individually.

Quick Recording

This lets you conveniently and quickly record your performance.

1 Press the SONG [REC] and SONG [STOP] buttons simultaneously. A blank Song ("New Song") is called up for recording.

2 Make the desired panel settings for your keyboard performance. Below are some example settings you may want to try.

• Recording the RIGHT 1 part
Select the voice for the RIGHT 1 part by calling up the Voice selection display (page 32).
- Recording the Dual voice (RIGHT 1 and 2 parts)
Turn on the PART ON/OFF [DUAL (RIGHT2)] button (page 81). Select the voice for each keyboard part (RIGHT 1, 2) by calling up the Voice selection display (page 32).
• Recording the LEFT part
Turn on the PART ON/OFF [SPLIT (LEFT)] button (page 82). Select the voice for the LEFT part by calling up the Voice selection display (page 32).
- Recording Styles
1 Select a Style (page 45).
2 Set the tempo for recording by pressing the TEMPO [-] [+] buttons, as necessary.
• Using Registration Memory panel setups
Press one of the REGISTRATION MEMORY [1-8] buttons.

3 While holding the SONG [REC] button, press the SONG TRACK buttons to be recorded.

• Recording your performance
Press the SONG [TRACK 1 (R)] button for the right-hand part recording, and/or the SONG [TRACK 2 (L)] button for the left-hand part recording.
- Recording Styles
Press the SONG [EXTRA TRACKS (STYLE)] button.
- Recording your performance and the Style playback simultaneously Press the SONG [TRACK 1 (R)]/[TRACK 2 (L)] buttons and the SONG[EXTRA TRACKS (STYLE)] button.

4 Start recording.

There are several different ways you can start recording.

• Starting by playing the keyboard

If you've selected the SONG [TRACK 1(R)]/[TRACK 2 (L)] buttons in step 3 above, play in the right-hand section of the keyboard (page 80). If you've selected the SONG [EXTRA TRACKS (STYLES)] button in step 3 above, play in the left-hand (chord) section of the keyboard (page 107). Recording begins automatically as soon as you play a note on the keyboard.

- Starting by pressing the SONG [PLAY/PAUSE] button

If you start recording in this way, "empty" data is recorded until you play a note on the keyboard. This is useful for starting a Song with a short one-or two-beat pick-up or lead-in.

- Starting by pressing the STYLE CONTROL [START/STOP] button.

In this case the rhythm parts (channels) of the Style begin playing back and recording starts simultaneously.

5 Press the SONG [STOP] button to stop recording.

When recording is finished, a message prompting you to save the recorded performance data appears. To close the message, press the [EXIT] button. See step 7 for instructions on saving your recording.

6 Listen to your newly recorded performance. Press the SONG [PLAY/PAUSE] button to play back the performance you just recorded.

7 Press the [SONG SELECT] button to call up the Song Selection display for saving your data, then save the data in the Song Selection display (page 70).

Multi Track Recording

A Song consists of 16 separate channels. With this method, you can record data to each channel independently, one by one. Both Keyboard and Style parts can be recorded.

1 Press the SONG[REC] and

SONG[STOP] buttons simultaneously.

A blank Song ("New Song") is called up for recording.

Select Voices for recording the keyboard parts (RIGHT 1, RIGHT 2, and/or LEFT) (page 32, page 81, page 82). Select a Style for recording also, as necessary (page 45).

Example

Recording the keyboard RIGHT 2 part to the channel 2

Turn the PART ON/OFF [DUAL (RIGHT2)] button on. Then, call up Voice Selection display, and select a voice for the RIGHT 2 part (page 81).

Using the metronome

You can record your performance while playing back the metronome (page 30). But the metronome sound is not recorded.

Pausing and restarting your recording

To pause recording, press the SONG [PLAY/PAUSE] button during recording. To restart recording, follow the operations shown below.

- F or recording to [TRACK 1]/[TRACK 2] recording, press the SONG [PLAY/PAUSE] button.

- F or recording to [EXTRA TRACKS (STYLES)] recording, press the STYLE CONTROL [SYNC START] button, then play in the chord section of the keyboard.

CAUTION

The recorded Song data will be lost if you select another Song or turn the power to the instrument off without executing the Save operation (page 70).

About Channels

See page 143.

Setting all of the 9–16 channels to "REC" simultaneously While holding the SONG [REC] button, press the SONG [EXTRA TRACKS (STYLE)] button.

When selecting the MIDI part

- Setting a single channel to MIDI All incoming data received via any of the MIDI channels 1–16 is recorded. When using an external MIDI keyboard or controller to record, this lets you record without having to set the MIDI transmit channel on the external device. - Setting several channels to MIDI When using an external MIDI keyboard or controller to record, this records data only over the set MIDI channel—meaning the external device must also be set to the same channel.

Recording each channel with the same tempo

Use the Metronome function (page 30) to record each channel with the same tempo. Keep in mind that the metronome sound is not recorded.

Pausing and restarting your recording

See page 141.

2 While holding the SONG [REC] button, press the [1▲▼]–[8▲▼] buttons to set the desired channels to "REC".

Normally, the keyboard parts should be recorded to channels 1–8, and the Styles should be recorded to channels 9–16. To cancel the channel selection, press the SONG [REC] button again.

While holding the SONG [REC] button, press the [2 ▲] button to set the channel 2 to "REC".

MAIN TRANSPOSE 0 J = 103 BAR 001 - 1 A B C D E 3 PART (CH: 1) RIGHT1 RIGHT2 LEFT RHYTHM1 RHYTHM2 EP LEFT Live! RIGHT2 #=103 STYLE 4/4 J=103 SONG #8Beat NewSong REGIST CHORD NewBank SONG STYLE CHANNEL ON/OFF 1 2 3 4 5 6 7 8 REC ON ON ON ON ON ON ON ON 9 10 11 12 13 14 15 16 ON ON ON ON ON ON ON ON REC + 2 1 2 3 4 5 6 7 8

3 Use the [C]/[D] buttons to select the desired part for the channel to be recorded.

This determines which part—keyboard or Style (Rhythm 1/2, Bass, etc.)—is recorded to each of the channels selected in step 2. Default channel/part assignments are shown in the section "About Song channels" (page 143). To close PART selection display, press the [EXIT] button.

Press the [D] button to select the "RIGHT2".

4 Start recording.

The method for starting is the same as in step 4 of Quick Recording (page 141).

5 Press the SONG [STOP] button to stop recording.

When recording is finished, a message appears prompting you to save the recorded performance appears. To close the message, press the [EXIT] button. For instructions on saving Song data, see step 8.

6 Listen to your newly recorded performance. Press the SONG [PLAY/PAUSE] button to playback the performance you just recorded.

7 To record another channel, repeat steps 2 through 6.

8

Press the [SONG SELECT] button to call up the Song Selection display for saving your data, then save the data in the Song Selection display (page 70).

About Song channels

Default channel/part assignments are shown below.

About keyboard parts

There are three keyboard parts, RIGHT 1, RIGHT 2 and LEFT. As the default, the RIGHT 1 part is assigned to each of the channels 1–8. Normally, the keyboard parts should be recorded to the channels 1–8.

About Style parts

As the default, each of the Style parts is assigned to the channels 9–16, respectively as shown below. Normally, the Style parts should be recorded to the channels 9–16.

RHYTHM ...... This is the basic part of the Style, containing the drum and percussion rhythm patterns. Usually one of the drum kits is used.

BASS ...... The bass part uses various appropriate instrument sounds to match the style.

CHORD ...... This is the rhythmic chord backing, commonly used with piano or guitar Voices.

PAD ...... This part is used for sustained instruments such as strings, organ, choir, etc.

PHRASE .... This part is used for punchy brass stabs, arpeggiated chords, and other extras that make the accompaniment more interesting.

Step Recording

This method lets you record regular music data such as melodies and chords.

Basic Operations for Step Recording

1

Press the SONG[REC] and SONG[STOP] buttons simultaneously.

A blank Song ("New Song") is called up for recording.

2

Call up the operation display.

[FUNCTION] → [F] DIGITAL REC MENU

CAUTION

The recorded Song data will be lost if you select another Song or turn the power to the instrument off without executing the Save operation (page 70).

3 Press the [A] button to call up the Song Creator display for recording/editing a Song.

3 A B C D E SONG CREATOR STYLE CREATOR DIGITAL REC MENU F G H I J

4 Select the appropriate tab by using the TAB [ ◀][▶] buttons.

For recording melodies ...... Select the [1–16] tab.

For recording chords ...... Select the [CHORD] tab.

SONG CREATOR: NewSong DEC MODE CHANNEL CHORD 1-16 SYS/EX. LYRICS d/4 1920PP0 A B C D E 001:1:0000 End CH I STEP REC FILTER SAVE MULTI SEL. BAR : BEAT : CLK- 001 1 0000 DATA ENTRY CUT COPY PASTIE INS DELETE GANCEL TAB F G H I J

5 If you select the "1-16" tab in step 4, press the [F] button to select the channel for recording.
6 Press the [G] button to call up the STEP RECORD display.
7 Start Step Recording. For recording melodies .... See page 145. For recording chords .... See page 152.

Recording Melodies

This section explains how to step-record notes, using three music score examples.

Example 1

The explanations here apply to step 7 of the section "Basic Operations for Step Recording" on page 144.

3-5 mf 1 2 6 7

* The numbers shown in the notation correspond to the following operation step numbers.

Select the Voice for recording after calling up the Step Record display.

1 Press the [G] button to select " mf."

SONG CREATOR: NewSong STEP RECORD d/4 1920FPO 001:1:0000 End mf Ten. 99% DEL BAR : BEAT : CLK- 001 1 0000 1 2 3 4 5 6 7 8 F G H I J 4

2 Press the [H] button to select "Tenuto."
3 Press the [I] button to select "normal" note type.
4 Press the [6 ▲▼] button to select the quarter-note length.
5 Play the keys C3, D3, E3, F3, G3, and A3 in order, according to the notation example.

Since the music score displayed on the instrument is generated from the recorded MIDI data, it may not appear exactly the same as shown below.

About the items which can be selected via the [G] [H] [I] buttons

See page 147.

6 Press the [6 ▲▼] button to enter a quarter-note rest.

To enter the rest, use the [4 ] – [8 ] buttons. (Press the button once to select the rest value, and once again to actually enter it.) A rest having specified note length will be entered.

1 2 3 4 5 6 7 8

7 Play the C4 key.

8 Press the SONG [STOP] button to move the cursor to the beginning of the Song.

9 Press the SONG [PLAY/PAUSE] button to hear the newly entered notes.

10 Press the [EXIT] button to exit from the Step Record display. If you want, you can also edit already recorded Songs in the same manner (page 154).

11 Press the [I] (SAVE) button to call up the Song Selection display for saving your data, then save the data in the Song Selection display (page 70).

Deleting data

Mistakenly entered notes can be deleted.

1 Use the [A]/[B] buttons in the STEP RECORD display (page 144) to select the data you want to delete.

2 Press the [J] (DELETE) button to delete the selected data.

About items which can be selected via the [G] [H] [I] buttons in the Step Record display

[G] button ...... Determines the velocity (loudness) of the note to be entered.

Items Velocity to be recorded
Kbd.Vel	Actual velocity you play the keyboard with
fff	127
ff	111
f	95
mf	79
mp	63
p	47
pp	31
ppp	15

[H] button ...... Determines the gate time (note length) of the note to be entered.

[I] button ...... Determines the note type to be entered. Pressing the button alternately switches the note selectors (at the bottom of the display) among three basic note values: normal, dotted and triplet.

About velocity

Velocity is determined by how strongly you play the keyboard. The more strongly you play the keyboard, the higher the velocity value and the louder the sound. The velocity value can be specified within a range from 1 to 127. The higher the velocity value, the louder the sound becomes.

Example 2

The explanations here apply to step 7 of the "Basic Operations for Step Recording" on page 144.

2-5 10-4-314-16 mp 1 f 9

* The numbers shown in the sheet correspond to the following operation step numbers.

In this example, keep in mind that one of the steps involves holding down a key on the keyboard while executing the operation.

Select the Voice for recording after calling up the Step Record display.

1 Press the [G] button to select " mp."

SONG CREATOR: NewSong STEP RECORD 4/4 1920FPO End 001:1:0000 A B C D E mP Ten. 99% DEL. BAR : BEAT : CLK- 001 1 0000 1 2 3 4 5 6 7 8 F G H I J 1 2 3 4 5 6 7 8 4

2 Press the [H] button to select "Tenuto."
3 Press the [I] button to select "normal" note type.
4 Press the [5 ▲▼] button to select the half-note length.
5 While holding F3 on the keyboard, press the [7 ▲▼] button. Before you go on to step 6, release the F3 key and the [7▲▼] button.

BAR : BEAT : CLK 001 1 0960 + + + + + + + 7

6 Press the [H] button to select the "Staccato".
7 Press the [7 ▲▼] button to select the eighth-note length.

About the items which can be selected via the [G] [H] [I] buttons

See page 147.

8 Play the keys E3, F3, and A3 in order, according to the notation example.

Illustration showing three-step musical keyboard rotation: finger press, keyframe, and note-taking.

9 Press the [G] button to select " f."

10 Press the [H] button to select "Tenuto."
11 Press the [I] button to select "dotted."
12 Press the [5 ▲▼] button to select the dotted half-note length.
13 Play the A3 key on the keyboard, as specified in the example.
14 Press the [I] button to select "normal" note type.
15 Press the [6 ▲▼] button to select the quarter-note length.
16 Play the F3 key on the keyboard, as specified in the example.
17 Press the SONG [STOP] button to move the cursor to the beginning of the Song.

18 Press the SONG [PLAY/PAUSE] button to hear the newly entered notes.
19 Press the [EXIT] button to exit from the Step Record display. You can also edit the Songs you've recorded as necessary (page 154).
20 Press the [I] (SAVE) button to call up the Song Selection display for saving your data, then save the data in the Song Selection display (page 70).

CAUTION

The recorded Song data will be lost if you select another Song or turn the power to the instrument off without executing the Save operation (page 70).

Example 3

The explanations here apply to step 7 of the "Basic Operations for Step Recording" on page 144.

5 1-4 6 7

* The numbers shown in the sheet correspond to the following operation step numbers.

In this example, keep in mind that one of the steps involves holding down a key on the keyboard while executing the entire operations. Select the Voice for recording after calling up the Step Record display.

1 Press the [H] button to select "Normal."

SONG CREATOR: NewSong STEP RECORD 4/4 1928FP0 001:1:0000 End mf Mrm 80°: DEL BAR : BEAT : CLK- 001 1 0000 1 2 3 4 5 6 7 8 F G H I J 3

2 Press the [I] button to select "normal" note type.

3 Press the [7 ▲▼] button to select the eighth note.

4 While holding C3 key on the keyboard, press the [7 ▲▼] button. Do not release the C3 key yet. Keep holding it while executing the following steps.

5 While holding the C3 and E3 keys on the keyboard, press the [7 ▲▼] button.

Do not release the C3 and E3 keys yet. Keep holding them while executing the following steps.

BAR : BEAT : CLK 001 2 0960 + + + + + + + + + + + + + + + + - KINER KINER KINER KINER KINER KINER KINER KINER KINER KINER KINER KINER KINER KINER KINER KINER KINER KINER KINER KINER KINER KINER KINER KINER KINER KINER KINER KINER KINER KINER KINER KINER KINER KINER KON + ?

6 While holding the C3, E3 and G3 keys on the keyboard, press the [7 ▲▼] button.

Do not release the C3, E3 and G3 keys yet. Keep holding them while executing the following steps.

BAR : BEAT : CLK 001 2 0960 + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + +

7 While holding the C3, E3, G3 and C4 keys on the keyboard, press the [7▲▼] button, and successively press the [5▲▼] button.

After you press the |5 ▲▼| button, release the keys.

BAR : BEAT : CLK- 001 3 0960 + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

8 Press the SONG [STOP] button to move the cursor to the beginning of the Song.

9 Press the SONG [PLAY/PAUSE] button to hear the newly entered notes.

10 Press the [EXIT] button to exit from the Step Record display. If you want, you can also edit already recorded Songs in the same manner (page 154).

11 Press the [I] (SAVE) button to call up the Song Selection display for saving your data, then save the data in the Song Selection display (page 70).

CAUTION

The recorded Song data will be lost if you select another Song or turn the power to the instrument off without executing the Save operation (page 70).

Recording Chords

You can record Chords and Sections (Intro, Main, Ending, and so on) one at a time with precise timing. These instructions show how to record chord changes using the Step Record function.

The explanations here apply to step 7 of the "Basic Operations for Step Recording" on page 144.

1 MAIN A 4 BREAK 7 MAIN B C F G F G7 C 2,3 5,6 8,9

* The numbers shown in the notation correspond to the following operation step numbers.

1 Make sure the STYLE CONTROL [AUTO FILL IN] button is set to OFF, then press the STYLE CONTROL [MAIN VARIATION A] button.

2 Press the [5 ▲▼] button to select the half-note length.
3 Play the chords C, F and G in the chord section of the keyboard.
4 Press the STYLE CONTROL [BREAK] button.

5 Press the [6 ▲▼] button to select the quarter-note length.
6 Play the chords F, and G7 in the chord section of the keyboard.
7 Press the STYLE CONTROL [MAIN VARIATION B] button.

8 Press the [4 ▲▼] button to select the whole-note length.
9 Play the chord C in the chord section of the keyboard.

10 Press the SONG [STOP] button to move the cursor to the beginning of the Song.
11 Press the SONG [PLAY/PAUSE] button to hear the newly entered notes.
12 Press the [EXIT] button to exit from the Step Record display. If you want, you can also edit already recorded Songs in the same manner (page 154).
13 Press the [F] (EXPAND) button to convert the input chord change data into the Song data.
14 Press the [I] (SAVE) button to call up the Song Selection display for saving your data, then save the data in the Song Selection display (page 70).

CAUTION

The recorded Song data will be lost if you select another Song or turn the power to the instrument off without executing the Save operation (page 70).

Deleting data

Mistakenly entered notes can be deleted (page 146).

Entering fill-ins

Turn the STYLE CONTROL [AUTO FILL IN] button to ON, and simply press one of the STYLE CONTROL [MAIN VARIATION (A, B, C, D)] buttons. (The appropriate fill-in section plays and then automatically goes to the selected [MAIN VARIATION (A, B, C, D)] pattern playback.)

Editing a Recorded Song

You can edit the Songs you've recorded with any recording method—Quick Recording, Multi Track Recording, or Step Recording.

Basic Editing Operation

1 Select a Song for editing.

2 Call up the operation display. [FUNCTION] → [F] DIGITAL REC MENU

3 Press the [A] button to call up the SONG CREATOR display to record or edit Songs.

3 A B C D E DIGITAL REC MENU SONG CREATOR STYLE CREATOR F G H I J

4 Select the appropriate tab by using the TAB [ ◀][▶] buttons and edit the Song.

SONG CREATOR: NewSong REC MORE CROUHME CROOD 1-1C SYS/EX LYRICS REC START NORMAL REC END REPLACE ALL Overwrite recording starts when the song starts. When recording stops, the rest of the previously recorded data on the channel will be lost. DEC START DEC END PEDAL PUNCH OUTPUT ON OFF FIRST KEY ON PUNCH OUT PUNCH OUT AT — 001 ▲ ▼ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ ▩ TAB

- Re-Recording a Specific Section —Punch In/Out (REC MODE) ...... page 155 This lets you re-record a specific section of a Song.

- Editing Channel Events (CHANNEL) ...... page 156 This lets you edit the channel events. For example, you can delete data or transpose notes by channel.

- Editing Note or Chord Events (CHORD, 1–16) ...... page 159 This lets you change or delete the recorded notes or chords.

- Editing System Event (SYS/EX.) ...... page 161 This lets you change the tempo or the time signature.

• Editing Lyrics (LYRICS)...... page 162 This lets you change the Song name or lyrics events.

Re-Recording a Specific Section—Punch In/Out (REC MODE)

When re-recording a specific section of an already-recorded Song, use the Punch IN/OUT function. In this method, only the data between the Punch In point and the Punch Out point is overwritten with the newly recorded data. Keep in mind that the notes before and after the Punch In/Out points are not recorded over, although you will hear them play back normally to guide you in the Punch In/Out timing. You can specify the Punch In and Punch Out points as measure numbers beforehand for automatic operation, or manually execute the Punch In/Out recording by using a Foot Pedal or simply by playing the keyboard.

The explanations here apply to the REC MODE display in step 4 of the "Basic Editing Operation" on page 154.

1 Use the [1 ▲▼]–[6▲▼] buttons to determine the settings for re-recording (see below).

2 While holding the SONG [REC] button, press the desired track button.

3 Press the SONG [PLAY/PAUSE] button to start playback. Play the keyboard at the Punch In point and stop recording at the Punch Out point.

4 Press the [I] (SAVE) button to call up the Song Selection display for saving your data, then save the data in the Song Selection display (page 70).

■ PUNCH IN settings

NORMAL Overwrite recording	ng starts when pressing the SONG [PLAY/ PAUSE] button or when you play the keyboard in the Synchro Standby mode.
FIRST KEY ON	The Song plays back normally, then starts overwrite recording as soon as you play the keyboard.
PUNCH IN AT The Song plays	back normally up to the beginning of the indi- cated Punch In measure, then starts overwrite recording at that point. You can set the Punch In measure by pressing the [3▲▼] button.

■ PUNCH OUT settings

REPLACE ALL	This deletes all data after the point at which recording is stopped.
PUNCH OUT The Song position	on at which recording is stopped is regarded as the Punch Out point. This setting maintains all data after the point at which recording is stopped.
PUNCH OUT AT Actual over	write recording continues until the beginning of the specified Punch Out measure (set with the corresponding display button), at which point recording stops and normal playback continues. This setting maintains all data after the point at which recording is stopped. You can set the Punch Out measure by pressing the |6 ▲▼| buttons.

CAUTION

The recorded Song data will be lost if you select another Song or turn the power to the instrument off without executing the Save operation (page 70).

Examples of re-recording with various Punch In/Out settings

This instrument features several different ways you use the Punch In/Out function. The illustrations below indicate a variety of situations in which selected measures in an eight-measure phrase are re-recorded.

■ Pedal Punch In/Out settings

When this is set to ON, you can use the sostenuto pedal to control the punch-in and punch-out points. While a Song is playing back, pressing (and holding) the sostenuto pedal instantly enables Punch In recording, while releasing the pedal stops recording (Punch Out). You can press and release the sostenuto pedal as often as you want during playback, to punch in/out of overwrite recording. Note that the current function assignment of the sostenuto pedal is cancelled when the Pedal Punch In/Out function is set to ON.

Editing Channel Events (CHANNEL)

The explanations here apply to the CHANNEL tab display in the step 4 of the Basic Editing Operation on page 154.

1 Use the [A]/[B] buttons to select the Edit menu (page 157).

2 Use the [1 ▲▼]–[8▲▼] buttons to edit the data.

For information on the available parameters, see page 157.

3 Press the [D] (EXECUTE) button to execute the operation for the current display.

After the operation (with the exception of the SETUP menu display) is completed, this button changes to "UNDO," letting you restore the original data if you are not satisfied with the Operation results. The Undo function only has one level; only the immediate operation can be undone.

4 Press the [I] (SAVE) button to call up the Song Selection display for saving your data, then save the data in the Song Selection display (page 70).

■ QUANTIZE menu

The Quantize function allows you to align the timing of all the notes in a channel. For example, if you record the musical phrase shown at right, you may not play it with absolute precision, and your performance may have been slightly ahead of or behind the precise timing. Quantize is a convenient way of correcting for this.

CHANNEL Determines the channel in the Song to be quantized.

SIZE Selects the quantize size (resolution). For optimum results, you should set the Quantize size to the shortest note value in the channel. For example, if eighth notes are the shortest in the channel, you should use eighth note as the Quantize size.

Musical notation showing a sequence of eighth notes with a downward arrow indicating a reduction or transformation.

After eighth note quantization

Settings

The three Quantize settings marked with asterisks (*) are exceptionally convenient, since they allow you to quantize two different note values at the same time. For example, when the straight eighth notes and eighth notes triplet are contained in the same channel, if you quantize by the straight eighth notes, all notes in the channel are quantized to straight eighth notes—completely eliminating any triplet feel. However, if you use the eighth note + eighth note triplet setting, both the straight and triplet notes will be quantized correctly.

STRENGTH Determines how strongly the notes will be quantized. A setting of 100% produces exact timing. If a value less than 100% is selected, notes will be moved toward the specified quantization beats according to the specified percentage. Applying less than 100% quantization lets you preserve some of the "human" feel in the recording.

Quarter-note length Original data Quantizing strength=100 Quantizing strength=50

■ Deleting the data of the specified channel (DELETE menu)

You can delete the data of the specified channel in the Song. Select the channel whose data to be deleted by using the [1 ] - [8 ] buttons, then press the [D] (EXECUTE) button to execute the operation.

CAUTION

The recorded Song data will be lost if you select another Song or turn the power to the instrument off without executing the Save operation (page 70).

About Quantize size (resolution)

The Quantize size or resolution is the number of clocks per quarter note.

■ Mixing (merging) the data of the specified two channels (MIX menu)

This function lets you mix the data of the two channels and place the results in a different channel. It also lets you copy the data from one channel to another.

SOURCE 1 Selects the channel (1–16) to be mixed. All MIDI events in the selected channel are copied to the destination channel.

SOURCE 2 Selects the channel (1–16) to be mixed. Only note events in the selected channel are copied to the destination channel. In addition to the values 1–16, there is a “COPY” setting that allows you to copy the data from Source 1 to the destination channel. If “COPY” is selected here, the data from Source 1 is copied to the destination channel. (The original channel data is maintained.)

DESTINATION Selects the channel into which the mix or copy results will be placed.

■ CHANNEL TRANSPOSE menu

This allows you to transpose the recorded data of individual channels up or down by a maximum of two octaves in semitone increments.

To display the channels 9–16

Press the [F] button to toggle between the two channel displays—Channels 1–8, and Channels 9–16.

Transposing to the same value for all channels simultaneously

While holding the [G] (ALL CH) button, press one of the [1 ] – [8 ] buttons.

SETUP menu

The current settings of the Mixing Console (page 87) displays and other panel settings can be recorded to the top position of the Song as the Setup data. The Mixing Console and panel settings recorded here are automatically recalled when the Song starts.

■ Setup recording procedure

1 Call up the operation display.

[FUNCTION] → [F] DIGITAL REC MENU → [A] SONG CREATOR → TAB

[◀][▶] CHANNEL → [B] SET UP

2 Use the [1 ▲▼]–[7▲▼] buttons to determine the settings to be automatically called up when the Song starts.

SONG Records the tempo setting and all settings made from the Mixing Console.
KEYBOARD VOICE Records the panel settings including the Voice selection of the keyboard parts (RIGHT1, 2, and LEFT) and their on/off status. Panel settings recorded here are same as the ones memorized to the One Touch Setting. This can be recorded at any point in a Song (the other items in this chart can be recorded only to the top position of the Song).
SCORE SETTING Records the settings in the Score display.
GUIDE SETTING Records the settings of the Guide functions including the Guide ON/OFF setting.
LYRICS SETTING Records the settings in the Lyrics display.
MIC SETTING (CVP-405/403)	Records the microphone and the Vocal Harmony settings in the Mixing Console display (page 87).

3 Checkmark the selected item by pressing the [8 ▲] button.

4 Press the [D] (EXECUTE) button to execute the SETUP recording operation.
5 Press the [I] (SAVE) button to call up the Song Selection display for saving your data, then save the data in the Song Selection display (page 70).

Editing Note or Chord Events (CHORD, 1–16)

The explanations here apply to the CHORD and 1–16 tab displays in step 4 of the Basic Editing Operation on page 154.

1 When the 1–16 tab display is selected, press the [F] button to select the channel to be edited.
2 Move the cursor to the desired data.

To move the cursor up or down ....Use the [A]/[B] button.

To move the cursor to the top data....Press the [C] button.

To move the cursor by Measure/Beat/Clock units ....Use the [1 ▲ ▼]–

[3 ▲ ▼] buttons.

3 Edit the data.

Editing the data line by line

Use the [6▲▼]–[8▲] buttons to cut/copy/paste/insert/delete the events.

Editing each parameter of the data

1 Use the [D]/[E] buttons to select the parameter to be edited.

2 Use the [4 ▲▼]/[5 ▲▼] buttons to edit the parameter value. The [DATA ENTRY] dial can also be used. To actually enter an edited value, simply move the cursor away from the parameter.

To restore the original value, press the [8 ▼] (CANCEL) button before move the cursor.

4 When the CHORD tab display is selected, press the [F] (EXPAND) button to convert the data into Song data.
5 Press the [I] (SAVE) button to call up the Song Selection display for saving your data, then save the data in the Song Selection display (page 70).

CAUTION

The recorded Song data will be lost if you select another Song or turn the power to the instrument off without executing the Save operation (page 70).

Selecting multiple lines of data

While holding the [J] (MULTI SELECT) button, press the [A]/[B] buttons.

Displaying specific types of event (FILTER)

You can select the event types to be displayed in the [CHORD] and [1-16] tab displays. This is convenient, for example, when you wish to have only the note events shown (page 161).

CAUTION

The recorded Song data will be lost if you select another Song or turn the power to the instrument off without executing the Save operation (page 70).

The data recorded by Realtime Recording will not appear on the display and cannot be edited.

About Clock

A unit of note resolution. The Quantize size is the number of clocks per quarter note. On the instrument, one clock is equal to 1/1920th of a quarter note.

About the events shown in the display

SONG CREATOR: NewSong DEC NOPE CHANNEL CHORD 1-16 SYS/EX. LYBIGS 4/4 1920FPO D01:1:0000 Note C3 79 0001:0384 CH D01:1:0000 Note E3 79 0001:0384 1 D01:1:0000 Note G3 79 0001:0384 STEP D01:1:0000 Note C3 79 0001:0384 REC D01:2:0960 Note C3 79 0001:0384 FILTER D01:2:0960 Note E3 79 0001:0384 D01:2:0960 Note C4 79 0001:0384 D01:3:1344 End BAR BEAT : CLK DATA ENTRY CUT COPY POSTE GNGEL 001 2 0960 INS DELETE GANGEL Example 001 : 1 : 1440 Beat Clock Measure number (BAR)

① Indicates the location (position) of the corresponding event. Same as the indication at the lower left of the display.
②Indicates the event types (see below).
③ Indicates the event values.

Event types shown on the 1–16 tab display

Note The individual note	of a Song. Includes the note number which corresponds to the key which was played, plus a velocity value based on how hard the key is played, and the gate time value (the length of a note).
Ctrl (Control Change)	Settings to control the Voice, such as volume, pan, filter and effect depth (edited via the Mixing Console described on page 87), etc.
Prog(Program Change)	MIDI program change number for selecting a Voice.
P.Bnd (Pitch Bend) Data	for changing the pitch of a Voice continuously.
A.T.(Aftertouch) This event is generated when pressure is applied to a key after the note is played.

Event types shown on the CHORD tab display

Style Style
Tempo tempo
Chord chord root, chord type, on bass chord
Sect Accompaniment Style Section (Intro, Main, Fill In, Break, Ending)
OnOff On/off status for each part (channel) of the Accompaniment Style
CH.Vol Volume for each part (channel) of the Accompaniment Style
S.Vol Overall volume of the Accompaniment Style

Displaying Specific Types of Events (FILTER)

In the edit displays various types of events are shown. It may sometimes be difficult to pinpoint the ones you want to edit. This is where the Filter function comes in handy. It lets you determine which event types will be shown in the edit displays.

1 Press the [H] (FILTER) button in the edit displays.
2 Select the event type by using the [2 ▲▼]–[5▲▼] buttons.

3 Checkmark (show) or remove the checkmark for the selected item by using the [6▲▼]/[7▲▼] buttons.

[H] (ALL ON)......Checkmarks for all event types.
[1] (NOTE/CHORD).....Selects only NOTE/CHORD data.
[1] (INVERT) ......Reverses the checkmark settings for all boxes. In other words, this enters checkmarks to all boxes that were previously unchecked and vice versa.

4 Press the [EXIT] button to execute the settings.

Pressing the [C]–[E] buttons calls up the respective Filter displays as shown below.

MAIN ....Call up the Main Filter display.
CTRL CHG ......Call up the Control Change Filter display.
STYLE ......Call up the Accompaniment Style Filter Display.

Editing System Exclusive Events (SYS/EX.)

The explanations here apply to the [SYS/EX] tab display in step 4 of the Basic Editing Operation on page 154.

From this display, you can edit recorded System Exclusive events, which do not belong to a specific channel, such as tempo and beat (time signature). The operations here are basically the same as those in the section “Editing Note or Chord Events” on page 159.

System Events

ScBar (Score Start Bar) Determines the top measure of a Song.
Tempo Determines the tempo value.
Time (Time Signature) Determines the time signature.
Key (Key Signature) Determines the key signature, as well as the major/minor setting, for the music score shown on the display.
XGPrm (XG Parameters) Allows you to make various detailed changes to the XG parameters. Refer to the “MIDI Data Format” in the separate Data List booklet for details.
SysEx (System exclusive) Displays the System Exclusive data in the Song. Keep in mind that you cannot create new data or change the contents of the data here; however, you can delete, cut, copy, and paste the data.
Meta (Meta Event)	Displays the SMF meta events in the Song. Keep in mind that you cannot create new data or change the contents of the data here; however, you can delete, cut, copy, and paste the data.

Press the [I] (SAVE) button to call up the Song Selection display for saving your data, then save the data in the Song Selection display (page 70).

CAUTION

The recorded Song data will be lost if you select another Song or turn the power to the instrument off without executing the Save operation (page 70).

Editing Lyrics (LYRICS)

The explanations here apply to the LYRICS tab display in step 4 of the Basic Editing Operation on page 154. From this display, you can edit the recorded Lyrics events. The operations here are basically the same as in the section "Editing Note or Chord Events" on page 159.

Lyrics Events

Name Allows you to enter the Song name.
Lyrics Allows you to enter lyrics.
Control Codes CR	Enters a line break in the lyrics text.LFUnavailable on the instrument. On some MIDI devices, this event may delete the currently displayed lyrics and display the next set of lyrics.

Inputting and Editing Lyrics

CAUTION

The recorded Song data will be lost if you select another Song or turn the power to the instrument off without executing the Save operation (page 70).

1 Use the [4 ▲▼]/[5▲▼] (DATA ENTRY) buttons to call up the lyrics editing display.

Operations are the same as in the section "Entering Characters" (page 73).

2 Press the [I] (SAVE) button to call up the Song Selection display for saving your data, then save the data in the Song Selection display (page 70).

Reference to Quick Guide pages

Singing Along with Song Playback (Karaoke) or Your Own

Performance...... page 54

Connecting a Microphone...... page 54

Singing with the Lyrics Display ......page 55

Convenient Functions for Karaoke ......page 56

Adjusting the tempo ...... page 31

Transpose...... page 56

Applying effects to Your Voice ...... page 56

Adding Harmony Vocals to Your Voice...... page 57

Practicing Singing with Proper Pitch (Vocal CueTIME)...... page 137

Convenient Functions for Singing Along with Your Own

Performance......page 58

Changing the Key (Transpose)...... page 58

Displaying the Music Score on Instrument and Lyrics on TV .... page 59

Making Announcements Between Songs ...... page 59

Controlling Playback Timing by Your Voice (Karao-Key) ...... page 137

Editing Vocal Harmony Parameters

This section explains briefly how to create your own Vocal Harmony (page 57) types, and lists the detailed parameters for editing. Up to ten Vocal Harmony types can be created and saved.

1 Call up the operation display.

[FUNCTION] → [G] MIC SETTING/VOCAL HARMONY

2 Press the [H] (VOCAL HARMONY TYPE) button to call up the VOCAL HARMONY TYPE selection display.

MIC SETTING/VOCAL HARMONY 1 TALK: OFF MIC EFFECT: OFF VOCAL HARMONY: ON TALK ON OFF MIC EFFECT ON OFF VOCAL HARMONY OFF F G H I J 2

3 Press one of the [A]-[J] buttons to select a Vocal Harmony type to be edited.

VOCAL HARMONY TYPE PRISIT USER CountryQuar Std Duet ClsdMenQuar MenChoir MixAcapQuar ClosedChoir WomenChoir Girl Duet JazzSisters SpdyMouse P1 P2 P3 P4 P5 P6 P7 NONE DELETE SAVE EDIT 1 2 3 4 5 6 7 8 3 3 4

4 Press the [8 ▼] (EDIT) button to call up the VOCAL HARMONY EDIT display.
5 If you want to re-select the Vocal Harmony type, use the [1 ▲▼]/[2▲▼] buttons.

Or you can re-select the Vocal Harmony type by pressing the [8▲▼] (RETURN) button to return to the Vocal Harmony selection display.

VOCAL HARMONY EDIT EFFECT TYPE:MenChoir PARAMETER VALUE VOCODER TYPE Auto CHORDAL TYPE TrioAb HARM GENDER TYPE Off LEAD GENDER TYPE Off LEAD GENDER DEPTH +12 LEAD PITCH CORRECT Free UPPER GNDR THRESH 0 LOWER GNDR THRESH 0 UPPER GNDR DEPTH +0 LOWER GNDR DEPTH +0 VIBRATO DEPTH 70 VIBRATO RATE 46 VIBRATO DELAY 46 EFFECT TYPE PARAMETER VALUE RETURN F G H I J 5 6 7

6 Use the [3 ▲▼]–[5▲▼] buttons to select the parameter (page 165) you want to edit.
7 Set the value of the parameter selected above.
8 Press the [I] (SAVE) button to save your edited Vocal Harmony type (page 70).

CAUTION

The settings here will be lost if you change to another Vocal Harmony type or you turn the power off without executing the save operation.

Editable Parameters in the VOCAL HARMONY EDIT Display

VOCODER TYPE Determines	how the harmony notes are applied to the microphone sound when the Harmony mode (page 169) is set to "VOCODER."
CHORDAL TYPE Determines	how the harmony notes are applied to the microphone sound when the Harmony mode (page 169) is set to "CHORDAL."
HARMONY GENDER TYPE	Determines whether the gender of the harmony sound is changed or not.OffThe gender of the harmony sound is not changed.AutoThe gender of the harmony sound is changed automatically.
LEAD GENDER TYPE Determines	inishes whether and how the gender of the lead vocal sound (i.e., the direct microphone sound) will be changed. Please note that the number of harmony notes differs depending on the selected type. When set to Off, three harmony notes are produced. Other settings produce two harmony notes.OffNo gender change occurs.UnisonNo gender change occurs. You can adjust the LEAD GENDER DEPTH below.MaleThe corresponding gender change is applied to the lead vocal.FemaleThe corresponding gender change is applied to the lead vocal.
LEAD GENDER DEPTH Adjusts	the degree of lead vocal gender change. This is available when the LEAD GENDER TYPE above is set to other than Off.The higher the value, the more "feminine" the harmony voice becomes. The lower the value, the more "masculine" the voice.
LEAD PITCH CORRECT This	parameter is only effective when the LEAD GENDER TYPE above is set to other than Off.When Smooth or Hard is selected, the pitch of the lead vocal is shifted in precise semitone steps.
UPPER GENDER THRESH-OLD	Gender change will occur when the harmony pitch reaches or exceeds the specified number of semitones above the lead vocal pitch.
LOWER GENDER THRESH-OLD	Gender change will occur when the harmony pitch reaches or exceeds the specified number of semitones below the lead vocal pitch.
UPPER GENDER DEPTH Adjusts	the degree of gender change applied to harmony notes higher than the UPPER GENDER THRESHOLD. The higher the value, the more "feminine" the harmony voice becomes. The lower the value, the more "masculine" the voice.
LOWER GENDER DEPTH Adjusts	the degree of gender change applied to harmony notes lower than the LOWER GENDER THRESHOLD. The higher the value, the more "feminine" the harmony voice becomes. The lower the value, the more "masculine" the voice.
VIBRATO DEPTH Sets the depth of vibrato applied to the harmony sound. Also affects the lead vocal sound when the LEAD GENDER TYPE above is set to other than Off.
VIBRATO RATE Sets the speed of the vibrato effect. Also affects the lead vocal sound when the LEAD GENDER TYPE above is set to other than Off.
VIBRATO DELAY Specifies the length of the delay before the vibrato effect begins when a note is produced. Higher values result in a longer delay.
HARMONY1/2/3 VOLUME	Sets the volume of the first (lowest), second, and third (highest) harmony notes.
HARMONY1/2/3 PAN Specifies the stereo (pan) position of the first (lowest), second, and third (highest) harmony notes.RandomThe stereo position of the sound will change randomly whenever the keyboard is played. This is effective when the Harmony mode (page 169) is set to “VOCODER” or “CHORDAL.”L63>R – C – LA setting of L63>R pans the sound hard left, while C is at center, and LA is at hard right.
HARMONY1/2/3 DETUNE	Detunes the first (lowest), second, and third (highest) harmony notes by the specified number of cents.
PITCH TO NOTE When this is set to “ON,” you can “play” the voices of the instrument with your voice. (The instrument tracks the pitch of your voice and converts it to note data for the tone generator. Keep in mind, however, that dynamic changes in your voice do not affect the volume of the tone generator.)
PITCH TO NOTE PART Determines which of the instrument parts will be controlled by the lead vocal when the Pitch to Note parameter is “ON.”

Adjusting the Microphone and Harmony Sound

1 Call up the operation display.

[FUNCTION] → [G] MIC SETTING/VOCAL HARMONY

2 Press the [I] (MIC SETTING) button to call up the MICROPHONE SETTING display.

MIC SETTING/VOCAL HARMONY 1 TALK: OFF MIC EFFECT: OFF VOCAL HARMONY: ON TALK ON OFF MIC EFFECT ON OFF VOCAL HARMONY ON OFF F G H I J 2

3 Press the TAB [ ◀] button to select the OVERALL SETTING tab display.

MICROPHONE SETTING OVERALL SETTING TALK SETTING EQ LON 56Hz -2dB EQ MID 1.2kHz -4dB EQ HIGH 8.0kHz +5dB MOISE GATE SN ON OFF -45dB SN ON OFF -18dB COMPRESSOR RATIO 3.0 OUT 81 MIC MUTE ON OFF VOCAL HARMONY CONTROL MIC VOCOBER CONTROL KBD SONG CHANNEL OFF 1 2 3 OFF UPPER L=H MODE CHORD VOCAL VOL. MUTE CHORD OFF NORM PLAY 1 2 3 UPPER 4 5 6 7 8 1 2 3 4 5 6 7 8 3 TAB F G H I J EXIT 4 6 5

4 Use the [A]–[J] buttons to select the item (parameter) (see below) to be adjusted.
5 Use the [1 ▲▼]-[8 ▲▼] buttons to set the value.
6 Press the [EXIT] button to exit from the MICROPHONE SETTING display.

Adjustable Items (Parameters) in the OVERALL SETTING Tab Display

■ 3BAND EQ

EQ (Equalizer) is a processor that divides the frequency spectrum into multiple bands, which can be boosted or cut as required to tailor the overall frequency response. The instrument features a high-grade three-band (LOW, MID and HIGH) digital equalizer function for the microphone sound.

• Hz
Adjusts the center frequency of the corresponding band.

• dB

Boosts or cuts the level of the corresponding band by up to 12 dB.

NOISE GATE

This effect mutes the input signal when the input from the microphone falls below a specified level. This effectively cuts off extraneous noise, allowing the desired signal (vocal, etc.) to pass.

• SW (Switch)
  This turns the Noise Gate on or off.

• TH. (Threshold)

This adjusts the input level at which the gate begins to open.

CAUTION

Settings in the OVERALL SETTING tab display are automatically saved to the instrument when you exit from the display. However, if you turn the power off without exiting from this display, the settings will be lost.

COMPRESSOR

This effect holds down the output when the input signal from the microphone exceeds a specified level. This is especially useful for smoothing out vocals that have widely varying dynamics. It effectively “compresses” the signal, making soft parts louder and loud parts softer.

- SW (Switch)

This turns the Compressor on or off.

• TH. (Threshold)

This adjusts the input level at which compression begins to be applied.

• RATIO

This adjusts the compression ratio.

• OUT

This adjusts the final output level.

■ VOCAL HARMONY CONTROL

The following parameters determine how the harmony is controlled.

• VOCODER CONTROL

The Vocal Harmony effect in Vocoder mode (page 169) is controlled by note data—the notes you play on the keyboard and/or the notes of the song data. This parameter lets you determine which notes are used to control the harmony.

SONG CHANNEL MUTE/PLAYWhen set to “MUTE,” the channel selected below (to control Harmony) is muted (turned off) during song playback.OFF/Channels 1–16When set to “OFF,” song data control over harmony is turned off. When set to one of the values 1–16, note data (played from a song on the instrument or an external MIDI sequencer) contained on the corresponding channel is used to control the harmony. This setting is linked to the HARMONY CH setting in the SONG SETTING display (page 137).

KEYBOARD OFF

Keyboard control over harmony is turned off.UPPERNotes played to the right of the split point control the harmony.LOWERNotes played to the left of the split point control the harmony.

• BAL.

This lets you set the balance between the lead vocal (your own voice) and Vocal Harmony. Raising this value increases the volume of the Vocal Harmony and decreases that of the lead vocal.

When this is set to LH, only the lead vocal is output.

- MODE

All of the Vocal Harmony types fall into one of three modes, which produce harmony in different ways. The harmony effect is dependent on the selected Vocal Harmony mode, and this parameter determines how the harmony is applied to your voice. The three modes are described below.

AUTO When the [ACMP ON/OFF] or [LEFT] is set to ON and if chord data exists in the song, the mode is automatically set to CHORDAL. In all other cases, the mode is set to VOCODER.

VOCODER The harmony notes are determined by the notes you play on the keyboard and/or song data. You can specify whether the Vocoder effect is controlled by your keyboard performance or by the Song data (page 168).

CHORDAL The harmony notes are determined by the following three types of chord: chords played in the chord section of the keyboard (with the [ACMP] turned on), chords played in the LEFT Voice section of the keyboard (with the [ACMP] turned off and the [LEFT] turned on), and chords contained in song data for controlling the harmony. (Not available if the song does not contain any chord data.)

- CHORD

The following parameters determine which data in a recorded song is used for chord detection.

OFF Chords are not detected from the song data.

XF Chords of XF format are used for the Vocal Harmony.

1-16 Chords are detected from note data in the specified song channel.

- Vocal Range

Set this to obtain the most natural vocal harmony, depending on your voice.

Normal Normal setting
Low Setting for lower	voice. This setting is also appropriate for growl-ing and shouting.
High Setting for higher	voice. This setting is also appropriate for sing-ing close to the microphone.

MIC

The following parameters determine how the microphone sound is controlled.

• MUTE

When set to ON, the microphone sound is turned off.

• VOLUME

Adjusts the output volume of the microphone sound.

Talk Setting

This function lets you have special settings for making announcements between songs, separate from the settings for your singing performance.

1 Call up the operation display. [FUNCTION] → [G] MIC SETTING/VOCAL HARMONY

2 Press the [I] (MIC SETTING) button to call up the MICROPHONE SETTING display.

MIC SETTING/VOCAL HARMONY 1 TALK:OFF MIC EFFECT:OFF VOCAL HARMONY:ON TALK ON OFF MIC EFFECT ON OFF VOCAL HARMONY ON OFF F G H I J 1 2 3 4 5 6 7 8

3 Press the TAB [ ▶] button to select the TALK SETTING tab display.

MICROPHONE SETTING OVERBALL SETTING TALK SETTING VOLUME:85 PAM:C REVERB DEPTH:12 CHORUS DEPTH:0 TOTAL VOLUME ATTENUATOR:0dB DSP MIC:OFF TYPE:E0 TEL DEPTH:127 VOLUME 85 PAM C REVERB DEPTH 12 CHORUS DEPTH 0 TOTAL VOLUME ATTENUATOR 0dB 1 2 3 4 5 6 7 B 3 TAB F G H I J EXIT 6 4 5

4 Use the [A]/[B] buttons to select the item (parameter) (page 171) to be set.

5 Use the [1 ▲▼]-[7▲▼] buttons to set the value.

6 Press the [EXIT] button to exit from the MICROPHONE SETTING display.

CAUTION Settings in the TALK SETTING tab display are automatically saved to the instrument when you exit from the display. However, if you turn the power off without exiting from this display, the settings will be lost.

Adjustable Items (Parameters) in the TALK SETTING Tab Display

VOLUME This determines the output volume of the microphone sound.
PAN This sets the stereo pan position of the microphone sound.
REVERB DEPTH This sets the depth of the reverb effects applied to the microphone sound.
CHORUS DEPTH	This sets the depth of the chorus effects applied to the microphone sound.
TOTAL VOLUME ATTENUATOR	This determines the amount of attenuation to be applied to the overall sound (excepting the microphone input)—allowing you to effectively adjust the balance between your voice and the overall instrument sound.
DSP MIC ON/OFF This turns the DSP effect applied to the microphone sound ON or OFF.
DSP MIC TYPE This selects the type of DSP effect to be applied to the microphone sound.
DSP MIC DEPTH This sets the depth of the DSP effect applied to the microphone sound.

Connecting the Clavinova Directly to the Internet

The special website can be opened when directly connecting the Clavinova to the Internet.

You can purchase and download Song data and other types of data from the special Clavinova website by directly connecting the instrument to the Internet. This section contains terms related to computers and online communications. If there are some terms you are unfamiliar with, refer to the Internet Glossary (page 184).

Depending on the Internet connection, you may not be able to connect to two or more devices (for example, a computer and the instrument), depending on the contract with the provider. This means you cannot connect with the Clavinova. If in doubt, check your contract or contact your provider.

Connecting the Instrument to the Internet

You can connect the instrument to a full-time online connection (ADSL, optical fiber, cable Internet, etc.) via a router or a modem equipped with a router. For specific instructions on connecting (as well as information on compatible LAN adaptors, routers, etc.), refer to the Yamaha website:

http://music.yamaha.com/homekeyboard

Use a computer to connect to the Internet and get online before connecting the instrument, since no modem or router settings can be made from the instrument itself.

To use the Internet connection, you will first need to subscribe to an Internet service or provider.

Connect the LAN cable to the LAN port.

Due to EU regulations, users within Europe should use an STP (shielded twisted pair) cable to prevent electromagnetic interference.

Some types of modems require an optional hub network for simultaneously connecting to several devices (such as computer, musical instrument, etc.).

Connect the LAN cable to the LAN port.

A USB wireless LAN adaptor also can be used.

Connection example 1: Connecting by cable (using a modem without router)

* Here, "modem" refers to an ADSL modem, optical network unit (ONU) or cable modem.

Connection example 2: Connecting by cable (using a modem with router)

Connection example 3: Wireless connection

* Here, "modem" refers to an ADSL modem, optical network unit (ONU) or cable modem.

Accessing the Special Website

From the special website, you can audition and purchase Song data, among other things. To access the site, press the [INTERNET] button, while the instrument is connected to the Internet.

MAIN TRANSPOSE 0 = 103 BAR 001 - 1 A Natural! RIGHT1 B GrandPiano1 Cool! LEFT Live! RIGHT2 GalaxyEP Strings 4/4 j=103 STYLE 4/4 j=120 SONG Classic8Beat NewSong CHORD REGIST BALANCE 95 100 100 100 SONG STYLE NIC LEFT RIGHT1 RIGHT2 TAB F G H I J INTERNET

To close the website display and return to the operation display of the instrument, press the [EXIT] button.

Operations in the Special Website Scrolling the Display

When the size of the web page is too large to be shown at one time in the browser display of the instrument, a scroll bar appears at the right side of the display. Use the [DATA ENTRY] dial to scroll through the display and view those parts of the page that are not shown.

INTERNET DIRECT CONNECTION Keyboard Tips & Tricks <1 Try Auto Accompaniment 2 The Right Tempo Everytime 3 Go Wireless 4 Shortcut To MAIN Screen 5 Performance Assistant 6 Style Tape Parent Use the [Data Entry] dial and [Enter] button to select an item from the list. RETURN TO HELP Scroll bar Web page has been displayed. DATA ENTRY

Following Links

When there is a link in the page, it is shown as a button or in colored text, etc. To select the link, press the [6▼]/[7▲▼]/[8▼] buttons or use the [DATA ENTRY] dial. Press the [8▲] (ENTER) button to actually call up the link destination.

INTERNET DIRECT CONNECTION Welcome to Internet Direct Connection Access thousands of downloadable songs, online music lessons, and bonus material. LEARN MUSIC → GET MUSIC → HY ACCOUNT → FREE SONGS FROM YAMAHA HELP/LEARN → Web page has been displayed. BACK FOR HOOO NOKE BOOK HOOK REFRESH SETTING STOP ENTER 1 2 3 4 5 6 7 8 TAB F G H I J

You can also select and call up links by using the [A]–[J] buttons.

Entering Characters

This section explains how to enter characters within the website, for inputting a password or searching for data, refer to the "Entering Characters" on page 74.

Return to the Previous Web Page

To return to a previously selected web page, press the [1 ▲ ▼] (BACK) button. To return to the page selected before pressing the [1 ▲ ▼] (BACK) button, press the [2 ▲ ▼] (FORWARD) button.

Web page has been displayed. BACK FOR WARD HOME BOOK MARK REFRESH SETTING STOP ▲ ▼ ENTER 2 3 4 5 6 7 8

Refreshing a Web Page/Canceling Loading of a Web Page

To refresh a web page (to make sure you have the latest version of the page, or to try reloading), press the [5▲] (REFRESH) button.

Tocancel loading of a page (if the page is taking too long to open), press the [6 ▲] (STOP) button.

Monitoring the Internet Connection Status

The messages and icons at the bottom right of the Internet display indicate the current Internet connection status.

Message Web page has been displayed. BACK FOR HARD HOME BOOK MARK REFRESH STOP ENTER ① ② ③ ④

The following three messages are displayed according to the loading status of the web page.

"Disconnected"

This appears when the instrument is not connected with the Internet. When this message is displayed, the web page cannot be seen. Icon 1 is displayed.

"Now opening web page..."

The web page is being loaded. Icon 2 flashes.

"Web page has been displayed."

Loading of the web page is completed, and the page is displayed completely. Icon 2 stops flashing. When the displayed web page uses SSL, icon 3 is displayed, and information is encrypted for communication.

Strength of the reception is displayed in 4 when connecting to the Internet by wireless LAN. When reception is weak, move the instrument near the access point to improve reception.

SSL:

SSL (Secure Sockets Layer) is an industry-standard method for protecting web communications by using data encryption and other tools.

CAUTION

The purchased data will be lost if you turn the power to the instrument off during download.

Purchasing and Downloading Data

You can purchase and download Song data (for playback on this instrument) and other types of data from the special website. For details on purchasing and downloading data, refer to the instructions on the site itself.

Operation after purchase and download

When downloading is completed, a message appears asking you whether or not to open the File Selection display. Select "YES" to call up the File Selection display, from which you can select the downloaded data. To return to the Internet display, select "NO" When the File Selection display is open, press the [8▲] (UP) button to call up the next highest level folder.

Download Destination

The download destination depends on the use of storage media, as described below.

• When a USB storage device is connected to the instrument during purchase:
  The downloaded data is saved in the "MyDownloads" folder in the USB tab display of the File Selection display. To close the folder and call up the next highest level folder, press the [8▲] (UP) button in the File Selection display.
• When a USB storage device is not connected to the instrument during purchase:
  The downloaded data is saved in the "MyDownloads" folder in the User tab display of the File Selection display. To close the folder and call up the next highest level folder, press the [8▲] (UP) button in the File Selection display.

Registering Bookmarks of Your Favorite Pages

You can "bookmark" the page you're viewing, and set up a custom link so the page can be instantly called up in the future.

1 With the desired page currently selected, press the [4 ▲▼] (BOOK-MARK) button. The Bookmark display appears, showing a list of the currently registered bookmarks.

The title of the currently selected web page is shown below the list.

2 Call up the display for registering bookmarks by pressing the [3 ▲▼] (ADD) button.

BOOKMARK BOOKMARK LIST PAGE TITLE Yamaha Website 1 CONTROL MENU VIEW ADD HOVE CHANGE DELETE CLOSE 1 2 3 4 5 6 7 8

3 Select the position of the new bookmark by pressing the [1 ▲▼] (▲/▼) button.

BOOKMARK BOOKMARK LIST PAGE TITLE Yamaha Website 1 CONTROL MENU EXECUTE CANCEL 1 2 3 4 5 6 7 8 3 4

4 To register the bookmark, press the [7 ▲▼] (EXECUTE) button, or press the [8▲▼] (CANCEL) button to cancel.
5 To return to the browser, press the [8 ▲▼] (CLOSE) button.

Opening a Bookmarked Page

1 Press the [4 ▲▼] (BOOKMARK) button to call up the Bookmark display.
2 Press the [1 ▲▼] (▲/▼) button to select the desired bookmark.

BOOKMARK BOOKMARK LIST Yamaha Website 1 PAGE TITLE Yamaha Website 1 CONTROL MENU VIEW ADD MOVE CHANGE DELETE CLOSE 1 2 3 4 5 6 7 8 2 3

3 Press the [2 ▲▼] (VIEW) button to open the page of the selected bookmark.

Editing Bookmarks

From the Bookmark display, you can change the names and rearrange the order of your bookmarks, as well as delete unnecessary bookmarks from the list.

BOOKMARK BOOKMARK LIST Yamaha Website 1 PAGE TITLE Yamaha Website 1 CONTROL MENU VIEW ADD HOVE CHANGE DELETE CLOSE 1 2 3 4 5 6 7 A ① ② ③ ④ ⑤ ⑥ ⑦

Moves the selection position in the Bookmark list.

②View

Opens the web page of the selected bookmark.

③Add

Used when registering a bookmark (page 176).

④Move

Changes the order of the bookmarks.

1 Select the bookmark you wish to move, then press the [4 ▲▼] (MOVE) button.
The lower part of the display changes, letting you select the new position for the bookmark.
2 Select the intended position by pressing the [1 ▲▼] (▲/▼) button.
3 Move the bookmark to the selected position by pressing the [7 ▲▼] (EXECUTE) button.

⑤Changing names

Changes the name of the selected bookmark. Pressing the [5 ] (CHANGE) button calls up the display for entering characters. For details on entering characters, see page 74.

⑥Delete

Deletes the selected bookmark from the Bookmark list.

⑦Close

Closes the Bookmark display and returns to the browser display.

About the Internet Settings Display

From the Internet Settings display, you can make various settings related to the Internet connection, including preferences for the menus and displays. The Internet Settings display has four sub-displays: Browser, LAN, Wireless LAN, and Others.

Basic Operation

1 Press the [5 ▼] (SETTING) button to call up the Internet Setting display.
2 Press the TAB [ ◀][▶] buttons to select the desired display.
3 Select the desired item by pressing the [1 ▲▼] (▲/▼) button.

INTERNET SETTING BROWSER LOW RIOLESS OTHERS Encode Western European Home page Yamaha Website 1 Set current page as Home Register Restore default Home Initialize Show images On Time zone U.K. time(GMT) CONTROL MENU EDIT SAVE CANCEL 3 4

4 To call up the relevant Edit display, press the [2 ▲▼]/[3▲▼] (EDIT) button.

For some items, the Edit display may not be shown, but the setting or change may be executed.

5 Press the [2 ▲▼] (▲/▼) button to select the setting or change the value.

This can also be done by using the |DATA ENTRY| dial.

INTERNET SETTING BROWSER LAN WIRELESS OTHERS Encode Western European Home page Yamaha Website 1 Set current page as Home Register Restore default Home Initialize Show images On Time zone UK, time(GMT) Japanese(EUC) Japanese(Shift-JIS) Western European CONTROL MENU ENTER CANCEL 1 2 3 4 5 6 7 8 5 6

Entering Characters

When the character input display is opened, you can enter characters. (Refer to "Entering Characters" on page 174.)

6 To execute the setting, press the [3 ▲] (ENTER) button. To cancel, press the [3 ▼] (CANCEL) button.

7 To actually apply all settings changed in the Internet Settings display, press the [7▲▼] (SAVE) button.

To cancel, press the [8 ▲ ▼] (CANCEL) button.

Browser

INTERNET SETTING BROWSER LAN MINELESS OTHERS Encode Western European Home page Yamaha Website 1 Set current page as Home Register Restore default Home Initialize Show images On Time zone U.K. time(GMT) CONTROL MENU EDIT SAVE CANCEL

①Encode

Selects the character code encoding for the browser.

②Home Page

Shows and allows editing of the web page which is set as the home page.

③Set current page as Home

For details, refer to "Changing the Home Page" on page 182.

④Restore Default Home

Restores the home page setting.

⑤Show images

Image data and pictures in the web page are shown in the browser when this is set to on. Image data is not shown when this is set to off.

6Time zone

This determines the time zone setting for the browser.

LAN

Both the wired LAN and wireless LAN need to be set in this display.

INTERNET SETTING BROHSER LAN MIDLESS OTHERS Use DHCP OFF DNS server1 0.0,0.0 DNS server2 0.0,0.0 IP address 0.0,0.0 Subnet mask 0.0,0.0 Gateway 0.0,0.0 CONTROL MENU EDIT SAVE CANCEL

Make a written note of the settings here, in case you have to enter them again.

Use DHCP
DNS server1
DNS server2
IP address
Subnet mask
Gateway

①Use DHCP

Determines whether or not DHCP is used. If your router is compatible with DHCP, select "ON."

②DNS server 1/DNS server 2

These determine the addresses of the primary and secondary DNS servers. These settings must be made when "Use DHCP" above is set to "ON (set DNS manually)" or "OFF."

③IP address/Subnet mask/Gateway

These settings are available only when DHCP is not used. The settings here are: IP address, subnet mask, and gateway server address. These settings must be made when "Use DHCP" above is set to "OFF."

Wireless LAN

These settings here are only necessary when using a USB wireless LAN adaptor. For a wireless LAN setup, make sure to set both the LAN settings (page 180) and the Wireless LAN settings below.

INTERNET SETTING BROUSSER LAN MIRELESS OTHERS Wireless networks Display Information SSID 0 Channel Ch10 Encryption On WEP key type Hexadecimal WEP key length 64bit WEP key CONTROL MENU EDIT SAVE CANCEL Make a written note of the settings here, in case you have to enter them again. SSID Channel Encryption WEP key type WEP key length WEP key

① Wireless Networks

Determines whether or not Wireless Networks are displayed.

② SSID

Determines the SSID setting.

③Channel

Determines the channel.

④Encryption

Determines whether or not the data is encrypted.

⑤WEP key type/WEP key length/WEP key

These settings are available only when Encryption above is enabled. These set the type and length of the encryption key.

Others

INTERNET SETTING BRONSOR LAN HIDELLESS OTHERS Proxy server Proxy port 8080 Non-proxy server Delete cookies Delete Delete all bookmarks Delete Initialize setup Initialize Connect information Display Information CONTROL MENU EDIT SAVE CANCEL

①Proxy server/Proxy port/Non-proxy server

Determines the proxy server name, port number and the host name for the non-proxy server. The settings here are only necessary when using a proxy server. When using a non-proxy server, enter a separator (comma) between each server name.

②Delete cookies

Deletes the information of all saved cookies.

③ Delete all bookmarks

Deletes all saved bookmarks.

4 Initialize setup

Restores all settings in the Internet Settings displays to their defaults. See "Initializing Internet Settings" on page 183.

⑤Connection information

Shows detailed information on the current connection.

The settings at left are not necessary when using the Wireless Game Adaptor.

Changing the Home Page

In the default condition, the top page of the special website is automatically set to be the Home page for the browser. However, you can specify any desired page on the special website to be the Home page.

1 Open the page you wish to set as your new Home page.

2 Press the [5▼] (SETTING) button to call up the Internet Setting display.

3 Press the TAB [◀] button to select the BROWSER tab.

INTERNET SETTING BRONSER LOM WIRELESS OTHERS Encode Western European Home page Yamaha Website 1 Set current page as Home Register Restore default Home Initialize Show images On Time zone U.K. time(GMT) CONTROL MENU EDIT SAVE CANCEL 1 2 3 4 5 6 7 8 3 F G H I J 4 5 6

4 Press the [1▼] (▼) button to select the setting "Set current page as Home."

5 Use the [2 ▲▼]/[3 ▲▼] (EDIT) buttons to actually set the selected page as your new Home page.

6 To return to the browser, press the [7 ▲▼] (SAVE) button. To cancel, press the [8 ▲▼] (CANCEL) button.

Initializing Internet Settings

The settings of the Internet function are not initialized when using the Initialize operation of the instrument; Internet settings must be initialized separately, as explained here. Initializing will reset to the default values not only the settings of the browser, but also all settings you have made in the Internet Settings displays (except for the cookies and bookmarks), including those related to Internet connection.

1 Press the [5 ▼] (SETTING) button to call up the Internet Settings display.
2 Press the TAB [ ▶] button to select the OTHERS tab.
3 Press the [1 ▲▼] (▲/▼) button to select "Initialize."

INTERNET SETTING DOORSED LOW MIDWLESS OTHERS Proxy server Proxy port 8080 Non-proxy server Delete cookies Delete Delete all bookmarks Delete Initialize setup Initialize Connect information Display Information CONTROL MENU EDIT SAVE CANCEL 1 2 3 4 5 6 7 8 3 4

4 Use the [2 ▲▼]/ [3 ▲▼] (EDIT) buttons to initialize the Internet settings.

Delete cookies/bookmarks

Cookies and bookmarks are still remain after executing the initialize operation above.

Todelete the cookies or bookmarks, use the appropriate operations in the OTHERS tab display (page 181).

Sometimes cookies contain personal information.

Glossary of Internet Terms

Broadband	An Internet connection technology/service (such as ADSL and optical fiber) that allows for high-speed, high-volume data communication.
Browser	The software used to search for, access, and view web pages. For this instrument, this refers to the display that shows the contents of the web pages.
Cookie	A system that records certain information that the user transfers when visiting a website and using the Internet. The function is similar to a preference file in a conventional computer program, in that it "remembers" certain information such as your user name and password, so you don't have to re-enter the information each time you visit the site.
DHCP	This is a standard or protocol by which IP addresses and other low-level network configuration information can be dynamically and automatically assigned each time connection is made to the Internet.
DNS	A system that translates names of computers connected to a network to their corresponding IP addresses.
Download	Transferring data over a network, from a larger "host" system to a smaller "client" system's hard drive or other local storage device—much like copying files from your hard disk drive to a floppy disk. For this instrument, this refers to the process of transferring Song and other data from a website to the instrument.
Gateway	A system which links different networks or systems, and makes possible data transfer and conversion despite differing communications standards.
Home page	The first page shown when opening a browser and connecting to the Internet. This phrase is also used to mean the "front screen" or top page of a website.
Internet	A huge network made up of networks, the Internet allows high-speed data transfer among computers, mobile phones and other devices.
IP address	A string of numbers assigned to each computer connected to a network, and indicating the device's location on the network.
LAN	Short for Local Area Network, this is a data-transfer network that connects a group of computers at a single location (such as an office or home) by means of a special cable.
Link	Location information in other sentences and images, etc. that are under buttons and character strings on a web page. When the place with the link is clicked, the page selection jumps to the relevant link.
Modem	A device which connects and allows data transfer between a conventional telephone line and a computer. It converts the digital signals from the computer to analog audio for sending over the phone line, and vice versa.
NTP	Short for Network Time Protocol, a standard for setting the internal system clock of the computer over a network. For this instrument, the internal clock of the computer is used to specify the valid time/date for cookies and SSL.
Provider	A communications business that offers Internet connection services. In order to connect to the Internet, it is necessary to contract to a provider.
Proxy	A proxy server is a server that all computers on a local network have to go through before accessing information on the Internet. It intercepts all or designated requests to the real server to see if it can fulfill the requests itself. If not, it forwards the request to the real server. Proxy servers are used to improve performance and speed, and to filter requests, usually for security and to prevent unauthorized access to an internal network.
Router	A device for connecting multiple computer networks. For example, a router is necessary when connecting several computers in a house or office, and allow them to all access the Internet and share data. A router is usually connected between a modem and a computer, although some modems have a built-in router.
Server	A hardware system or computer used as a central point for a network, providing access to files and services.
Site	Short for "website," this refers to the group of web pages that are opened together. For example, the collection of web pages whose addresses begin with "http://www.yamaha.com/" is referred to as the Yamaha site.
SSID	This is an identification name for specifying a particular network over a wireless LAN connection. Communi-cation is possible only between terminals with matching SSID names.
SSL	Short for Secure Sockets Layer, a standard for transmitting confidential data such as credit card numbers over the Internet.
Subnet mask	A setting used to divide a large-scale network into several smaller networks.
URL	Short for Uniform Resource Locator, a string of characters used to identify and link to specific websites and pages on the Internet. A complete URL usually starts with the characters "http://."
Web page Refers to each individual page that makes up a website.
Wireless LAN	A LAN connection that allows data transfer through a wireless, cable-free connection.
Wireless Game Adaptor (Wireless Ethernet Converter or Bridge)	Device that allows easy wireless connection with digital consumer electronic devices, printers, and game machines, etc. equipped with LAN ports.

Using Your Instrument with Other Devices

CAUTION

Before connecting the instrument to other electronic components, turn off the power of all the components. Also, before turning any components on or off, make sure to set all volume levels to minimum (0). Otherwise, electrical shock or damage to the components may occur.

CVP-405/403 CVP-401

INPUT VOLUME MIC./ LINE IN MIC. LINE PHONES MIN MAX ② ① PHONES ①

Using Headphones (①[PHONES] jacks)

Connect a pair of headphones to one of the [PHONES] jacks (standard 1/4" phone jacks) located on the leftward underside of the instrument. For details, see page 17.

Connecting a Microphone or Guitar (② [MIC./LINE IN] jack) (CVP-405/403)

By connecting a microphone to the [MIC./LINE IN] jack (standard 1/4" phone jack) located on the left underside of the instrument, you can enjoy singing along with Song playback (KARAOKE) or with your own performance. The instrument outputs your vocals or guitar sounds through the built-in speakers. For instructions on connecting, see page 54. Please note that when connecting devices of high output level, make sure to set the [MIC. LINE] switch to "LINE."

CVP-405

The right side of the instrument (near the higher keys) P. 187 P. 190 P. 190 P. 191 The front side of the instrument (the keyboard side) AUX PEDAL MIDI IN TO HOST TO DEVICE THRU OUT VIDEO OUT L/L+R R L/L+R R AUX IN AUX OUT P. 186 P. 186 P. 185 P. 192 The left side of the instrument (near the lower keys)

CVP-403/401

The right side of the instrument (near the higher keys) P.185 P.186 The left side of the instrument (near the lower keys) R....L/R AUX OUT R....L/HR AUX IN USB TO HOST IC3 IN....OUT MIDI IC3 THRU AUX PEDAL P.192 P.191 P.190 P.187 The front side of the instrument (the keyboard side)

Connecting Audio & Video Devices (345)

NOTE

Use audio cables and adaptor plugs having no (zero) resistance.

Using External Audio Devices for play-back and Recording (③ [AUX OUT] Jacks)

You can connect these jacks to a stereo system to amplify the instrument's sound or to a cassette tape recorder or a digital audio device for recording your performance. The microphone or guitar sound connected to the instrument's [MIC./LINE IN] jack) is output at the same time. Refer to the diagrams below and use audio cables for connection. These jacks are located on the underside jacks panel of the instrument.

CAUTION

When the instrument's sound is output to an external device, first turn on the power to the instrument, then to the external device. Reverse this order when you turn the power off.

Do not route the output from the [AUX OUT] jacks to the [AUX IN] jacks. If you make this connection, the signal input at the [AUX IN] jacks is output from the [AUX OUT] jacks. These connections could result in a feedback loop that will make normal performance impossible, and may even damage both pieces of equipment.

[AUX OUT] Jacks

(Standard phone jacks of [L/L+R] and [R])

When these are connected, you can use the instrument's [MASTER VOLUME] control to adjust the volume of the sound output to the external device.

Connect the instrument's AUX OUT [L/L+R]/[R] jacks and the input jacks of a pair of powered speakers using appropriate audio cables. Use only the [L/L+R] jack for connection with a monaural device.

Playing External Audio Devices with the Built-in Speakers (④ [AUX IN] Jacks)

The stereo outputs from another instrument can be connected to these jacks, allowing the sound of an external instrument to be reproduced via the instrument's speakers. Connect the output jacks (LINE OUT etc.) of an external synthesizer or the tone generator module and the instrument's AUX IN [L/L+R]/[R] jacks using appropriate audio cables.

CAUTION

When the sound of an external device is output to the instrument, first turn on the power to the external device, then to the instrument. Reverse this order when you turn the power off.

NOTE

• Use only the [L / L + R] jack for connection with a monaural device.
• The instrument's [MASTER VOLUME] setting affects the input signal from the [AUX IN] jacks.

Showing the Instrument's Display Contents on a Separate TV Monitor (5 [VIDEO OUT] Terminal) (CVP-405)

Connect the instrument to an external TV monitor, and you can have the current display contents, lyrics (for group sing-alongs and the like) or text files displayed on the TV. For instructions on connecting, see page 56.

Video out settings (CVP-405)

1 Call up the operation display. |FUNCTION| → |J| (UTILITY) → TAB |◀|▶| SCREEN OUT

2 Select the video equipment standard "NTSC" or "PAL" by using the [1▲▼]/[2▲▼] buttons. Select the contents of the Screen Out signal—the current display contents (LCD), or lyrics/text (LYRICS/TEXT)—by using the [3▲▼]/[4▲▼] buttons.

UTILITY CONFIG 1 CONFIG 2 SCREEN OUT MEDIA OWNER SYSTEM RESET Select the desired output monitor type: NTSC or PAL. MONITOR TYPE NTSC PAL SCREEN CONTENT LYRICS/TEXT LCD ▲▼ ▲▼ 1 2 3 4 5 6 7 8

NOTE

• Set the NTSC or PAL to correspond to the standard used by your video equipment.
• When LYRICS/TEXT is selected as the contents of the Screen Out signal, only the lyrics of the song or text files are output via VIDEO OUT, regardless of the display that is called up on the instrument.
• A v oid looking at the television or video monitor for prolonged periods of time since doing so could damage your eyesight. Take frequent breaks and focus your eyes on distant objects to avoid eyestrain.

Using the Footswitch or Foot Controller

(6 [AUX PEDAL] jack)

By connecting a Foot Controller or Footswitch to the [AUX PEDAL] jack, you can have convenient control over various user-assignable functions. For example, connecting the Foot controller FC7 and assigning it the volume control function allows you to add expression to your performance by controlling the volume level of the notes you play. Or by connecting the FC4 or FC5 footswitch and assigning it to the Style playback start/stop function, you can start and stop the Style with your foot. (In this case, the pedal has the same function as the panel STYLE CONTROL [START/STOP] button.) The assignable functions are listed following the instructions below.

Aux Pedal Foot Pedals Footswitch FC4 (optional) Footswitch FC5 (optional) Foot Controller FC7 (optional)

CAUTION

Make sure to connect or disconnect the pedal only when the power is off.

Assigning Specific Functions to Each Foot Pedal

CONTROLLER PEDAL KEYBOARD/PANEL SONG STYLE MIG LEFT R1 R2 1 RIGHT:SUSTAIN 2 CENTER:SOSTENUTO 3 LEFT:SOFT 4 AUX:VOLUME FUNCTION SUSTAIN SOSTENUTO SOFT GLIDE PORTAMENTO PITCH BEND MOD/S.ART1 HALF PEDAL POINT: 0 LEFT ON OFF RIGHT1 ON OFF RIGHT2 ON OFF AUX PEDAL POLARITY -

In addition to the footswitch or foot controller, the three piano pedals installed to the instrument (Right, Center and Left pedals) can also be assigned to various functions here. The following explanations cover the related operations and assignable functions (parameters).

1

Call up the operation display.

[FUNCTION] → [D] CONTROLLER → TAB [◀] PEDAL

2 Use the [A]/[B] buttons to select one of the three pedals or the AUX-connected pedal, to which the function is to be assigned.

3 Use the [1 ▲▼] button to select the functions to be assigned to the pedal specified in step 2. Details on the pedal functions are listed below.

4 Use the [2 ▲▼]-[8 ▲▼] buttons to set the details of the selected functions.

The available parameters differ depending on the function selected in step 3. Details on the parameters are given below.

5 Check that the desired function is controllable with the pedal by actually pressing the pedal.

NOTE When you use a pedal to switch Registration Memory settings (page 130), these settings are invalid.

Set the polarity of the pedal

Pedal on/off operation may differ depending on the particular pedal you've connected to the instrument. For example, pressing down on one pedal may turn the selected function on, while pressing a different make/brand of pedal may turn the function off. If necessary, use this setting to reverse the control. Press the || (AUX PEDAL POLARITY) button to switch the polarity.

Details on the pedal functions are listed here. For functions indicated with “*”, use only the foot controller; proper operation cannot be done with a footswitch.

Assignable Pedal Functions

VOLUME*	Allows you to use a foot controller to control the volume. This function is available only for the pedal connected to the instrument's AUX PEDAL jack.
SUSTAIN	Allows you to use a pedal to control the sustain. When you press and hold the pedal, all notes played on the keyboard have a longer sustain. Releasing the pedal immediately stops (damps) any sustained notes.
SOSTENUTO	Allows you to use the pedal as a sostenuto pedal. In other words, if you play a note or chord on the keyboard and press the pedal while holding the note(s), the notes will sustain as long as the pedal is held. However, all subsequent notes will not sustain. This makes it possible to sustain a chord, for example, while other notes are played staccato.
SOFT Allows you to use a pedal to control	the Soft effect. Pressing this pedal reduces the volume and changes the timbre of the notes you play. This is effective only for certain appropriate Voices.
GLIDE When the pedal is pressed, the pitch changes, and then returns to normal pitch when the pedal is released.
PORTAMENTO	The portamento effect (a smooth slide between notes) can be produced while the pedal is pressed. Portamento is produced when notes are played legato style (i.e., a note is played while the preceding note is still held). Portamento Time can also be adjusted from the Mixing Console (page 89). This function does not affect certain Natural Voices, which would not sound appropriately with this function.
PITCH BEND* Allows you to bend the pitch of notes up or down by using the pedal.
MOD/S.ART1* (CVP-405) MODULATION (CVP-403/401)	Applies a vibrato effect to notes played on the keyboard. Moreover, various effects can be added to the S. Articulation Voice (CVP-405) (page 79). The effect becomes deeper when pressing down the foot controller. You can turn this function on/off for each keyboard part on this display.
MOD/S.ART2 (ALT) (CVP-405)	As a variation on MOD/S.ART1, the effects (waveform) can be switched on/off by the pedal/footswitch. The effects (waveform) is alternately turned on and off each time the pedal/footswitch is pressed. You can turn this function on/off for each keyboard part on this display.
S.ART SW (CVP-405)	When you use a S. Articulation voice that has an effect assigned to the pedal/footswitch, you can enable the effect by pressing the pedal/footswitch. You can turn this function on/off for each keyboard part on this display.
DSP VARIATION Switches Voice Effect DSP VARIATION on and off.
VIBE ROTOR ON/OFF	Switches the VIBRATE SW parameter on and off when the VIBE VIBRATE effect type is selected.
HARMONY/ECHO Switches the HARMONY/ECHO Voice Effect on and off.
VOCAL HARMONY (CVP-405/403)	Switches the Vocal Harmony function on and off.
TALK (CVP-405/403) Switches the MIC SETTING Talk function on and off.
SCORE PAGE+	While the song is stopped, you can turn to the next score page.
SCORE PAGE-	While the song is stopped, you can turn to the previous score page.
LYRICS PAGE+	While the song is stopped, you can turn to the next lyrics page.
LYRICS PAGE-	While the song is stopped, you can return to the last lyrics page.
TEXT PAGE+ (CVP-405)	You can turn to the next text page.
TEXT PAGE- (CVP-405)	You can return to the last text page.
SONG PLAY/PAUSE	Same as the SONG [PLAY/PAUSE] button.
STYLE START/STOP	Same as the STYLE CONTROL [START/STOP] button.
TAP TEMPO	Same as the [TAP TEMPO] button.
SYNCHRO START	Same as the |SYNC START| button.
SYNCHRO STOP	Same as the |SYNC STOP| button.
INTRO1-3 Same as the [INTRO I-III] buttons.
MAIN A-D Same as the [MAIN VARIATION A-D] buttons.
FILL DOWN	Plays a fill-in, which is automatically followed by the Main section of the button on the immediate left.
FILL SELF Plays a fill-in.
FILL BREAK Plays a break.
FILL UP	Plays a fill-in, which is automatically followed by the Main section of the button on the immediate right.
ENDING1-3 Same as the [ENDING/rit. I-III] buttons.
FADE IN/OUT Switches Fade In/Fade Out function on and off.
FINGERED/FING ON BASS	The pedal alternately switches between the Fingered and On Bass modes (page 103).
BASS HOLD	While the pedal is pressed, the Accompaniment Style bass note will be held even if the chord is changed during Style playback. If the fingering is set to “AI FULL KEYBOARD,” the function does not work.
PERCUSSION The pedal plays a percussion instrument selected by the [4 ▲▼]-[8 ▲▼] buttons. You can use the keyboard to select the desired percussion instrument.
DUAL ON/OFF	Same as the PART ON/OFF [DUAL (RIGHT2)] button.
SPLIT ON/OFF Same as the PART ON/OFF [SPLIT (LEFT)] button.
OTS+	Calls up the next One Touch Setting.
OTS-	Calls up the previous One Touch Setting.

NOTE The Sostenuto and Portament functions will not affect the Organ Flute Voices, even they have been assigned to the Foot Pedals.

Adjustable Parameters for Each Function

The parameters below correspond to buttons [2]-[8] , and their availability depends on the selected control type. For example, if SUSTAIN is selected as the type, the parameters "HALF PEDAL POINT," "RIGHT 1," "RIGHT 2" and "LEFT" automatically appear in the display.

SONG, STYLE, MIC (CVP-405/403), LEFT, RIGHT1, RIGHT2	These specify the part(s) that will be affected by the pedal.
HALF PEDAL POINT* (CVP-405/403)	You can specify how far down you should press on the pedal until the damper or soft effect (page 188) starts working.
DEPTH	Determines the depth of the pedal effect.
UP/DOWN	When GLIDE or PITCH BEND is selected, this determines whether the pitch change is raised or lowered.
RANGE	When GLIDE or PITCH BEND is selected, this determines the range of the pitch change, in semitones. Linked to the Mixing Console → Pitch Bend Range (page 89) setting.
ON SPEED	When GLIDE is selected, this determines the speed of the pitch change, when the pedal is pressed.
OFF SPEED	When GLIDE is selected, this determines the speed of the pitch change, when the pedal is released.
KIT	When PERCUSSION is assigned to the pedal, all available drum kits are shown here, letting you select the particular drum kit used for the pedal.
PERCUSSION	When PERCUSSION is assigned to the pedal, all sounds of the selected drum kit (in KIT above) are shown here. This determines the particular instrument sound assigned to the pedal.

Connecting External MIDI Devices (⑦ [MIDI] Terminals)

Use the built-in [MIDI] terminals and standard MIDI cables to connect external MIDI devices.

MIDI IN Receives MIDI messages from an external MIDI device.

MIDI OUT Transmits MIDI messages generated by the instrument.

MIDI THRU Simply relays the MIDI messages received at MIDI IN.

For a general overview of MIDI and how you can effectively use it, refer to the following sections:

• What is MIDI?......page 192
• What You Can Do With MIDI......page 195
• MIDI Settings......page 196

Connecting a Computer, USB Device, or Internet (78910)

Connecting a Computer (⑧ [USB TO HOST] and ⑦ [MIDI] Terminals)

By connecting a computer to the [USB TO HOST] or [MIDI] terminals, you can transfer data between the instrument and the computer via MIDI, and take advantage of sophisticated computer music programs. Keep in mind that you also need to install an appropriate USB-MIDI driver.

The instructions below explain how to connect and use the terminals.

NOTE

If you are using a computer that has a USB interface, we recommend that you connect the computer and the instrument by USB, rather than by MIDI.

NOTE

Driver

A driver is software that provides a data-transfer interface between the computer's operating system and a connected hardware device. You need to install a USB-MIDI driver to connect the computer and the instrument. Refer to the separate Installation Guide (page 4).

This explanation is divided into two parts, covering the two connections: connection to the [USB TO HOST] terminal and connection to the [MIDI] terminal.

- Connecting to the [USB TO HOST] terminal

When connecting the instrument to the computer via USB, use a standard USB cable (having the USB logo) to connect the [USB TO HOST] terminal on the instrument to the USB terminal of the computer. Then, install the USB-MIDI driver.

Instrument USB cable

NOTE

About the [USB TO HOST] and [USB TO DEVICE] terminals There are two different types of USB terminals on the instrument: [USB TO HOST] and [USB TO DEVICE]. Take care not to confuse the two terminals and the corresponding cable connectors. Be careful to connect the proper plug in the proper direction. Explanations on the [USB TO DEVICE] terminal follow in the next section.

CAUTION

Precautions when using the [USB TO HOST] terminal

When connecting the computer to the [USB TO HOST] terminal, make sure to observe the following points. Failing to do so risks freezing the computer and corrupting or losing data. If the computer or the instrument freezes, turn the power to the instrument off and restart the computer.

• Before connecting the computer to the [USB TO HOST] terminal, exit from any power-saving mode of the computer (such as suspended, sleep, standby), and quit any open application software, also turns off the power to the instrument.
• Execute the following before turning the power to the instrument off or unplugging the USB cable to/from the instrument/computer.

- Quit any open application software on the computer.

- Make sure that data is not being transmitted from the instrument. (Data is transmitted only by playing notes on the keyboard or playing back a song.)

- While a USB device is connected to the instrument, you should wait for six seconds or more between these operations: When turning the power of the instrument off then on again, or when alternately connecting/disconnecting the USB cable.

NOTE

• The instrument will begin transmission a short time after the USB connection is made.
• When using a USB cable to connect the instrument to your computer, make the connection directly without passing through a USB hub.
• F or information on setting up your sequence software, refer to the owner's manual of the relevant software.

- Connection by [MIDI] terminals

There are two ways to connect the instrument via MIDI to a computer. If you have a MIDI interface built into your computer, connect the MIDI OUT terminal of the computer interface to the [MIDI IN] terminal of the instrument, and connect the [MIDI OUT] terminal of the instrument to the MIDI IN terminal of the interface.

Instrument MIDI cable [MIDI IN] terminal [MIDI OUT] terminal [MIDI IN] terminal [ MIDI OUT ] terminal [ MIDI OUT ] terminal Computer with MIDI interface installed

The second connection possibility involves a separate, external MIDI interface connected to the computer via a USB port or a serial port (modem or printer terminal). Using standard MIDI cables, connect the MIDI OUT terminal of the external interface to the [MIDI IN] terminal of the instrument, and connect the [MIDI OUT] terminal of the instrument to the MIDI IN terminal of the interface.

Instrument [MIDI IN] terminal [MIDI OUT] terminal MIDI cable MIDI interface USB port or serial port (modem or printer terminal) Computer

NOTE

Make sure to use the appropriate MIDI interface for your computer.

Connecting to a USB-type LAN Adaptor and USB Storage Device

(⑨ via the [USB TO DEVICE] Terminal)

There are two ways of using the [USB TO DEVICE] terminal.

■ By connecting the USB-type LAN adaptor, you can directly access special Internet websites for downloading music data (page 172).
- By connecting the instrument to a USB storage device with a standard USB cable, you can save data you've created to the connected device, as well as read data from the connected device.

NOTE

About the [USB TO HOST] and [USB TO DEVICE] terminals There are two different types of USB terminals on the instrument: [USB TO HOST] and [USB TO DEVICE]. Take care not to confuse the two terminals and the corresponding cable connectors. Be careful to connect the proper plug in the proper direction. Explanations on the [USB TO HOST] terminal can be found in the previous section.

Using USB Storage Devices

This type is used to connect the instrument to a USB storage device, and allows you to save data you've created to the connected device, as well as read data from the connected device. The following description generally explains about how to connect and use them. Before using a USB storage device, be sure to read "Handling the USB Storage Device (USB Flash Memory/Floppy Disk, etc)" on page 22.

1 Connect the USB storage device to the [USB TO DEVICE] terminal with a standard USB cable.
2 After that, exit once from the selection display then return to the display (or press the Tab switch buttons [◀] and [▶] simultaneously from the selection display). The USB tabs (USB 1, USB 2, etc.) are automatically called up, allowing you to save files and play back music data from the devices.

NOTE

Checking remaining memory on the USB storage device You can check this in the display called up by the following operation:

[FUNCTION] → [J] UTILITY → TAB [◀][▶] MEDIA Select the device by using the [A]/[B] buttons in this display and press [F] (PROPERTY).

NOTE

Even with a computer connected to the [USB TO HOST] terminal and a USB storage device connected to the [USB TO DEVICE] terminal, you cannot access the USB storage device from the computer via the instrument.

Formatting USB storage media

For details, see page 69.

CAUTION

Formatting a USB storage media completely erases all data on the media. Make sure that the USB storage media you're formatting does not contain important data!

Backing up your data to a computer

■ Backing up the instrument data to a computer

Once you've saved data to a USB storage device, you can copy the data to the hard disk of your computer, then archive and organize the files as desired. Simply reconnect the device as shown below.

Saves internal data to a USB storage device. Computer USB storage device USB TO DEVICE terminal Instrument

Disconnect the USB storage device from the instrument and connect it to the computer Backing up data to a computer and organizing files/folders Computer USB storage device Instrument

Copying files from a computer hard disk to a USB storage device

Files contained on the hard disk of a computer can be transferred to the instrument by first copying them to the storage media, then connecting/inserting the media to the instrument.

Not only files created on the instrument itself but also Standard MIDI files and Style File-formatted Style files created on other devices can be copied to a USB storage device from the hard disk of the computer. Once you've copied the data, connect the device to the [USB TO DEVICE] terminal of the instrument, and play back the data on the instrument.

Copying the files of the hard disk of the computer to the USB storage device Computer USB storage device Instrument

Disconnect the USB storage device from the computer and connect it to the instrument

Reading files on the USB storage device from the instrument

Computer

USB storage device

TO DEVICE] terminal

Connect to the Internet (10 [LAN] Port)

There are three ways to use the [LAN] port (located on the bottom left of the instrument) to access special Internet websites, and download song data, etc. See page 172 for instructions on connecting.

What is MIDI?

Put simply, MIDI is a data transfer standard that allows easy and comprehensive control among electronic/digital music instruments and other devices. To get a better idea of what MIDI does, let's first consider acoustic instruments, such as a grand piano and a classical guitar. With the piano, you strike a key, and a hammer inside hits some strings and plays a note. With the guitar, you directly pluck a string and the note sounds. But how does a digital instrument go about playing a note?

Acoustic guitar note production

Illustration of an acoustic guitar with motion lines indicating vibration or sound waves (no text or symbols)

Pluck a string and the body resonates the sound.

Digital instrument note production

Based on playing information from the keyboard, a sampling note stored in the tone generator is played through the speakers.

As shown in the illustration above, in an electronic instrument the sampling note (previously recorded note) stored in the tone generator section (electronic circuit) is played based on information received from the keyboard.

Now, let's examine what happens when we playback a recording. When you play back a music CD (for example, a solo piano recording), you're hearing the actual sound (vibration in air) of the acoustic instrument. This

Recording and playing back the performance of an acoustic instrument (audio data)
Recording Playback

Illustration of a grand piano, CD/DVD, and CD/DVD device with musical notes and sound waves (no text or symbols)

In the above example, the actual acoustic sounds of the pianist's performance are captured in the recording as audio data, and this is recorded to CD. When you play back that CD on your audio system, you can hear the actual piano performance. The piano itself is not necessary, since the recording contains the actual sounds of the piano, and your speakers reproduce them.

Recording and play back the performance of a digital instrument (MIDI data)

Recording Playback

NOTE

In the case of digital instruments, the audio signals are sent through output jacks (such as [AUX OUT]) on the instrument.

The "controller" and "tone generator" in the illustration above are equivalent to the piano in our acoustic example. Here, the player's performance on the keyboard is captured as MIDI song data (see illustration below). In order to record the audio performance on an acoustic piano, special recording equipment is needed. However, since the instrument features a built-in sequencer that lets you record performance data, this recording equipment is unnecessary. Instead, your digital instrument—the Clavinova—allows you to both record and play back the data.

However, we also need a sound source to produce the audio, which eventually comes from your speakers. The tone generator of the instrument fills this function. The recorded performance is reproduced by the sequencer, playing back the song data, using a tone generator capable of accurately producing various instrument sounds—including that of a piano. Looked at in another way, the relation of the sequencer and the tone generator is similar to that of the pianist and the piano—one plays the other. Since digital instruments handle playback data and the actual sounds independently, we can hear our piano performance played by another instrument, such as guitar or violin.

NOTE

Even though it is a single musical instrument, the instrument can be thought of as containing several electronic components: a controller, a tone generator, and a sequencer.

Finally, we'll take a look at the actual data that gets recorded and that serves as the basis for playing the sounds. For example, let's say you play a "C" quarter note using the grand piano sound on the instrument's keyboard. Unlike an acoustic instrument that puts out a resonated note, the electronic instrument puts out information from the keyboard such as "with what voice," "with which key," "about how strong," "when was it pressed" and "when was it released." Then each piece of information is changed into a number value and sent to the tone generator. Using these numbers as a basis for sound generation, the tone generator plays the stored sampled note.

Example Keyboard Data

Voice number (with what voice) 01	(grand piano)
Note number (with which key) 60	(C3)
Note on (when was it pressed) andnote off (when was it released)	Timing expressed numerically (quarter note)
Velocity (strength at which it was played)	120 (strong)

Panel operations on the instrument, such as playing the keyboard and selecting voices, are processed and stored as MIDI data. The auto accompaniment Styles and Songs also consist of MIDI data.

MIDI is an acronym that stands for Musical Instrument Digital Interface, which allows electronic musical instruments to communicate with each other, by sending and receiving compatible Note, Control Change, Program Change and various other types of MIDI data, or messages.

The instrument can control a MIDI device by transmitting note related data and various types of controller data. The instrument can be controlled by incoming MIDI messages which automatically determine the tone generator mode, select MIDI channels, voices and effects, change parameter values and of course play the voices specified for the various parts.

NOTE

MIDI data has the following advantages over audio data:

• The amount of data is much less.
- The data can be effectively and easily edited, even to the point of changing voices and transforming the data.

MIDI messages can be divided into two groups: Channel messages and System messages.

Channel Messages

The instrument is an electronic instrument that can handle 16 MIDI channels (or reception of 32 channels for MIDI data reception when using the [USB] terminal). This is usually expressed as "it can play 16 instruments at the same time." Channel messages transmit information such as Note ON/OFF, Program Change, for each of the 16 channels.

Message Name Operation/Panel Setting

Note ON/OFF Messages which are generated when the keyboard is played. Each message includes a specific note number which corresponds to the key which is pressed, plus a velocity value based on how hard the key is played.

Program Change For selecting Voices (with control change bank select MSB/LSB settings)

Control Change Volume, panpot (Mixing Console), etc.

NOTE

The performance data of all Songs and Styles is handled as MIDI data.

MIDI Channels

MIDI performance data is assigned to one of sixteen MIDI channels. Using these channels, 1–16, the performance data for sixteen different instrument parts can be simultaneously sent over one MIDI cable.

Think of the MIDI channels as TV channels. Each TV station transmits its broadcasts over a specific channel. Your home TV set receives many different programs simultaneously from several TV stations and you select the appropriate channel to watch the desired program.

MIDI operates on the same basic principle. The transmitting instrument sends MIDI data on a specific MIDI channel (MIDI Transmit Channel) via a single MIDI cable to the receiving instrument. If the receiving instrument's MIDI channel (MIDI Receive Channel) matches the Transmit Channel, the receiving instrument will sound according to the data sent by the transmitting instrument.

MIDI MIDI Transmit channel 2 MIDI Receive channel 2

NOTE

The instrument's keyboard and internal tone generator are also connected by MIDI. → LOCAL CONTROL (page 198)

For example, several parts or channels can be transmitted simultaneously, including the Style data (as shown below).

Example: Recording a performance with the auto accompaniment (Style playback) sound of the instrument to an external sequencer
        AJ["Track 11"]
    end

As you can see, it is essential to determine which data is to be sent over which MIDI channel when transmitting MIDI data (page 198).

The instrument also allows you to determine how the received data is played back (page 199).

System Messages

This is data that is used in common by the entire MIDI system. These include System Exclusive messages for transferring data unique to each instrument manufacturer and Realtime messages for controlling the MIDI device.

Message Name Operation/Panel Setting
System Exclusive Message	Effect type settings (Mixing Console), etc.
Realtime Messages	Clock setting, Start/stop operation

The messages transmitted/received by the instrument are shown in the MIDI Data Format and MIDI Implementation Chart in the separate Data List.

What You Can Do With MIDI

- Record your performance data (1–16 channels) using the instrument's auto accompaniment features on an external sequencer (or computer with sequencer software). After recording, edit the data with the sequencer, then play it back on the instrument.

When you want to use the instrument as an XG-compatible multi-timbral tone generator, set the receive part for MIDI channels 1–16 to "SONG" in MIDI/USB 1 in MIDI Receive (page 199).

■ Controlling from an external MIDI keyboard

Instrument MIDI receive MIDI IN MIDI OUT

MIDI Data Compatibility

This section covers basic information on data compatibility: whether or not other MIDI devices can playback the data recorded by CVP-405/403/401, and whether or not the CVP-405/403/401 can playback commercially available song data or song data created for other instruments or on a computer. Depending on the MIDI device or data characteristics, you may be able to play back the data without any problem, or you may have to perform some special operations before the data can be played back. If you run into problems playing back data, please refer to the information below.

Sequence Formats

Song data is recorded and stored in a variety of different systems, referred to as "sequence formats."

Playback is only possible when the sequence format of the Song data matches that of the MIDI device. The CVP-405/403/401 is compatible with the following formats.

● SMF (Standard MIDI file)

This is the most common sequence format. Standard MIDI Files are generally available as one of two types: Format 0 or Format 1. Many MIDI devices are compatible with Format 0, and most commercially available software is recorded as Format 0.

• The CVP-405/403/401 is compatible with both Format 0 and Format 1.
• Song data recorded on the CVP-405/403/401 is automatically saved as SMF Format 0.

ESEQ

This sequence format is compatible with many of Yamaha's MIDI devices, including the Clavinova series instruments. This is a common format used with various Yamaha software.

- The CVP-405/403/401 is compatible with ESEQ.

● XF

The Yamaha XF format enhances the SMF (Standard MIDI File) standard with greater functionality and open-ended expandability for the future. The instrument is capable of displaying lyrics when an XF file containing lyric data is played. (SMF is the most common format used for MIDI sequence files. The instrument is compatible with SMF Formats 0 and 1, and records "song" data using SMF Format 0.)

Style File

The Style File Format combines all of Yamaha's auto accompaniment know-how into a single unified format.

Voice Allocation Format

With MIDI, Voices are assigned to specific numbers, called "program numbers." The numbering standard (order of voice allocation) is referred to as the "voice allocation format."

Voices may not play back as expected unless the voice allocation format of the song data matches that of the compatible MIDI device used for playback. The instrument is compatible with the following formats.

NOTE

Even if the devices and data used satisfy all the conditions above, the data may still not be completely compatible, depending on the specifications of the devices and particular data recording methods.

● GM System Level 1

This is one of the most common voice allocation formats.

Many MIDI devices are compatible with GM System Level 1, as is most commercially available software.

● GM System Level 2

"GM System Level 2" is a standard specification that enhances the original "GM System Level 1" and improves Song data compatibility. It provides for increased polyphony, greater voice selection, expanded voice parameters, and integrated effect processing.

● XG

XG is a major enhancement of the GM System Level 1 format, and was developed by Yamaha specifically to provide more Voices and variations, as well as greater expressive control over Voices and effects, and to ensure compatibility of data well into the future. Song data recorded on the CVP-405/403/401 using Voices in the XG category is XG-compatible.

● DOC (Disk Orchestra Collection)

This voice allocation format is compatible with many of Yamaha's MIDI devices, including the Clavinova series instruments.

● GS

GS was developed by the Roland Corporation. In the same way as Yamaha XG, GS is a major enhancement of the GM specifically to provide more Voices and Drum kits and their variations, as well as greater expressive control over Voices and effects.

MIDI Settings

In this section, you can make MIDI-related settings for the instrument. The instrument gives you a set of ten pre-programmed templates that let you instantly and easily reconfigure the instrument to match your particular MIDI application or external device. Also, you can edit the pre-programmed templates and save up to ten of your original templates to the USER display. You can then save all these original templates as a single file to USB storage devices, in the MIDI SETUP selection display (called up by pressing [FUNCTION] → [J] UTILITY → TAB [▶] SYSTEM RESET).

Basic Operation

1 Call up the operation (MIDI template selection) display.

Function → [I] MIDI

MIDI PRISIT USER All Parts MIDI MIDI Accord1 KBD & STYLE MIDI MIDI Accord2 Master KBD MIDI MIDI Pedal1 Song MIDI MIDI Pedal2 Clock Ext MIDI MIDI OFF

2 To use the pre-programmed templates or to edit them

Press the TAB [◀] button to select the PRESET display. Press one of the [A]–[J] buttons to select a MIDI template.

To use the templates already saved to the USER display or to edit them

Press the TAB [▶] button to select the USER display. Press one of the [A]–[J] buttons to select a MIDI template.

3 To edit a template, press the [8 ▼] (EDIT) button to call up the MIDI display for editing.

The individual parameters settings are shown for the selected template. Here you can edit each parameter.

MIDI SYSTEM TRANSMIT RECEIVE BASS CHORD-DETECT 1 2 3 SONG STYLE LEFT R1 R2 LOCAL CONTROL ✓ ✓ ✓ ✓ CLOCK:INTERNAL TRANSMIT CLOCK:OFF RECEIVE TRANSPPOSE:OFF START/STOP:SONG MESSAGE SM SYS/EX. Tx:ON Rx:ON CHORD SYS/EX. Tx:ON Rx:ON SONG STYLE OFF ON OFF LEFT RIGHT1 RIGHT2 OFF OFF OFF

4 Use the TAB [◀]/[▶] buttons to call up the relevant setting display.

SYSTEM display MIDI	System Settings (page 198)
TRANSMIT display MIDI	Transmission Settings(page 198)
RECEIVE display MIDI	Reception Settings (page 199)
BASS display Settings	for the bass note of chordfor Style playback via MIDI reception data (page 199)
CHORD DETECTdisplay	Settings for the chord type for Style playback via MIDI reception data(page 200)

5 When you've finished editing, press the [EXIT] button to return to the MIDI template selection display (PRESET or USER).

6 Select the USER tab display to save the data by using the TAB [◀][▶] buttons (page 70).

Pre-Programmed MIDI Templates

MIDI PRESIT USER All Parts KBD & STYLE Master KBD Song Clock Ext MIDI Accord1 MIDI Accord2 MIDI Pedal1 MIDI Pedal2 MIDI OFF

Template name Description
All Parts	Transmits all parts including the keyboard parts (RIGHT1, 2,and LEFT), with the exception of Song parts.
KBD & STYLE	Basically the same as “All Parts” with the exception of how keyboard parts are managed. The right-hand parts are handled as “UPPER” instead of RIGHT 1 and 2 and the left-hand part is handled as “LOWER.”
Master KBD	In this setting, the instrument functions as a “master” keyboard, playing and controlling one or more connected tone generators or other devices (such as a computer/sequencer).
Song All transmit channels are set to correspond to Song channels 1–16. This is used to playSong data with an external lone generator and to record Song data to an external sequencer.
Clock Ext	Playback (Song or Style) synchronizes with an external MIDI clock instead of the instrument’s internal clock. This template should be used when you wish to set the tempo on the MIDI device connected to the instrument.
MIDI Accord 1	MIDI accordions allow you to transmit MIDI data and play connected tone generators from the keyboard and bass/chord buttons of the accordion. This template lets you play melodies from the keyboard and control Style playback on the instrument with the left-hand buttons.
MIDI Accord 2	Basically the same as “MIDI Accord1” above, with the exception that the chord/bass notes you play with your left hand on the MIDI Accordion are recognized also as MIDI note events.
MIDI Pedal 1	MIDI pedal units allow you play connected tone generators with your feet (especially convenient for playing single note bass parts). This template lets you play/control the chord root in Style playback with a MIDI pedal unit.
MIDI Pedal 2	This template lets you play the bass part for Style playback by using a MIDI pedal unit.
MIDI OFF No MIDI signals are sent or received.

SYSTEM display

MIDI System Settings

The explanations here apply to the SYSTEM display to be called up in step 4 of the "Basic Operation" on page 196.

MIDI SYSTEM TRANSMIT RECEIVE BASIS CHORD-DETECH 1 LOCAL CONTROL 2 CLOCK:INTERNAL 3 RECEIVE TRANSMPOSE:OFF 3 MESSAGE SM SONG STYLE LEFT R1 R2 ✓ ✓ ✓ ✓ ✓ TRANSMIT CLOCK:OFF START/STOP:SONG SYS/EX. Tx:ON Rx:ON CHORD SYS/EX. Tx:ON Rx:ON SONG STYLE OFF ON OFF LEFT RIGHT1 RIGHT2 OFF OFF OFF

■ LOCAL CONTROL

Turns the Local Control for each part on or off. When Local Control is set to "ON," the keyboard of the instrument controls its own (local) internal tone generator, allowing the internal voices to be played directly from the keyboard. If you set Local to "OFF," the keyboard and controllers are internally disconnected from the instrument's tone generator section so that no sound is output when you play the keyboard or use the controllers. For example, this allows you to use an external MIDI sequencer to play the instrument's internal voices, and use the instrument keyboard to record notes to the external sequencer and/or play an external tone generator.

■ Clock setting, etc.

● CLOCK

Determines whether the instrument is controlled by its own internal clock or a MIDI clock signal received from an external device. INTERNAL is the normal Clock setting when the instrument is being used alone or as a master keyboard to control external devices. If you are using the instrument with an external sequencer, MIDI computer, or other MIDI device, and you want to synchronize it to that device, set this parameter to the appropriate setting: MIDI, USB 1, or USB 2. In this case, make sure that the external device is connected properly (e.g., to the instrument's MIDI IN terminal), and that it is properly transmitting a MIDI clock signal. When this is set for control by an external device (MIDI, USB 1 or USB 2), the Tempo is indicated as "Ext." in the Main display.

● TRANSMIT CLOCK

Turns MIDI clock (F8) transmission on or off. When set to OFF, no MIDI clock or Start/Stop data is transmitted even if a Song or Style is played back.

● RECEIVE TRANSPOSE

Determines whether or not the instrument's transpose setting (page 58) is applied to the note events received by the instrument via MIDI.

● START/STOP

Determines whether incoming FA (start) and FC (stop) messages affect Song or Style playback.

MESSAGE SW

● SYS/EX.

The "Tx" setting turns MIDI transmission of MIDI System Exclusive messages on or off. The "Rx" setting turns MIDI reception and recognition of MIDI System Exclusive messages generated by external equipment on or off.

● CHORD SYS/EX.

The "Tx" setting turns MIDI transmission of MIDI chord exclusive data (chord detect, root and type) on or off. The "Rx" setting turns MIDI reception and recognition of MIDI chord exclusive data generated by external equipment on or off.

TRANSMIT display

MIDI Transmit Settings

The explanations here apply to the TRANSMIT display to be called up in step 4 of the "Basic Operation" on page 196. This determines which parts will be sent as MIDI data and over which MIDI channel the data will be sent.

MIDI SYSTEM TRANSMIT RECEIVE BASS CHORD DETECT PART CHANNEL NOTE CC PC PB AT RIGHT1 MIDI/USB CH1 √ √ √ √ — RIGHT2 MIDI/USB CH2 √ √ √ √ — LEFT MIDI/USB CH3 √ √ √ √ — UPPER OFF — — — — — LOWER OFF — — — — — STYLE RHYTHM1 MIDI/USB CH9 √ √ √ √ — STYLE RHYTHM2 MIDI/USB CH10 √ √ √ √ — STYLE BASS MIDI/USB CH11 √ √ √ √ — Tx MONITOR MIDI/USB 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 PART TRANSMIT NOTE CONTROL PROGRAM PITCH AFTER TOUCH △ ▼ ▲ ▼ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ △

Operation

Select the part to be transmitted and the channel via which the selected part will be transmitted. You can also determine the types of data to be sent.

● With the exception of the two parts below, the configuration of the parts is the same as those already explained elsewhere in this manual.

• UPPER

The keyboard part played on the right side of the keyboard from the Split Point for the Voices (RIGHT1 and/or 2).

- LOWER

The keyboard part played on the left side of the keyboard from the Split Point for the Voices. This is not affected by the on/off status of the [ACMP ON/OFF] button.

● Tx MONITOR

The dots corresponding to each channel (1–16) flash briefly whenever any data is transmitted on the channel(s).

NOTE

When different parts are assigned to the same transmit channel If the same transmit channel is assigned to several different parts, the transmitted MIDI messages are merged to a single channel—resulting in unexpected sounds and possible glitches in the connected MIDI device.

NOTE

About the protected Songs

Write-protected Songs cannot be transmitted even if the proper Song channels 1–16 are set to be transmitted.

■ MIDI messages which can be transmitted or received (recognized)

The following MIDI messages can be set on the TRANSMIT/RECEIVE display.

• Note (Note events)......page 160
• CC (CONTROL CHANGE) ......page 160
  • PC (PROGRAM CHANGE)......page 160
• PB (Pitch Bend)......page 160
  • A T (Aftertouch)......page 160

RECEIVE display

MIDI Receive Settings

MIDI SYSTEM | TRANSMIT | RECEIVE | BASS | CHORD-DETECT CHANNEL PART MOTE CC PC PB AT MIDI/USB 1 CH1 SONG ✓ ✓ ✓ ✓ ✓ MIDI/USB 1 CH2 SONG ✓ ✓ ✓ ✓ ✓ MIDI/USB 1 CH3 SONG ✓ ✓ ✓ ✓ ✓ MIDI/USB 1 CH4 SONG ✓ ✓ ✓ ✓ ✓ MIDI/USB 1 CH5 SONG ✓ ✓ ✓ ✓ ✓ MIDI/USB 1 CH6 SONG ✓ ✓ ✓ ✓ ✓ MIDI/USB 1 CH7 SONG ✓ ✓ ✓ ✓ ✓ MIDI/USB 1 CH8 SONG ✓ ✓ ✓ ✓ ✓ Rx MONITOR MIDI/USB1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 USB2 0 0 0 0 0 0 0 0 0 0 0 0 0 0 CHANNEL PART MOTE CONTROL PROGRAM PITCH AFTER << >> >> >> >> >> >> >> >> >> >> >> >> >> >> >> >> >> >> >> >> >> >> >> >> >> >> >> >> >

The explanations here apply to the RECEIVE display to be called up in step 4 of the "Basic Operation" on page 196. This determines which parts will receive MIDI data and over which MIDI channels the data will be received.

Operation

Select the channel to be received and the part via which the selected channel will be received. You can also determine the types of data to be received.

● The instrument can receive MIDI messages over 32 channels (16 channels x 2 ports) by USB connection.
● With the exception of the two parts below, the configuration of the parts is the same as those already explained elsewhere in this manual.
- KEYBOARD

The received note messages control the instrument's keyboard performance.

- EXTRA PART 1–5

There are five parts specially reserved for receiving and playing MIDI data. Normally, these parts are not used by the instrument itself. The instrument can be used as a 32-channel multi-timbral tone generator by using these five parts in addition to the general parts (except for the microphone sound).

● Rx MONITOR

The dots corresponding to each channel (1–16) flash briefly whenever any data is received on the channel(s).

NOTE Parameter Lock

You can "lock" specific parameters (e.g., effect, split point, etc.) to make them selectable only via the panel controls (page 128).

■ MIDI transmission/reception via the USB terminal and MIDI terminals

The relationship between the [MIDI] terminals and the [USB] terminal which can be used for transmitting/receiving 32 channels (16 channels x 2 ports) of the MIDI messages is as follows:

MIDI reception MIDI transmission

BASS display

Setting the Bass Note for Style Playback via MIDI Receive

The explanations here apply to the BASS display to be called up in step 4 of the "Basic Operation" on page 196.

These settings let you determine the bass note for Style playback, based on the note messages received via MIDI. The note on/off messages received at the channel(s) set to "ON" are recognized as the bass note of the chord of Style playback. The bass note will be detected regardless of the [ACMP ON/OFF] or split point settings. When several channels are simultaneously set to "ON," the bass note is detected from merged MIDI data received over the channels.

MIDI SYSTEM TRANSMITI RECEIVE BASS CHORD-DETECT ON BASS NOTE MIDI/USB1 USB2 Rx MONITOR ALL OFF MIDI/USB1 ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○ CHANNEL 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 ON OFF OFF OFF OFF OFF OFF OFF OFF ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ ▩

Operation

Select the channel and set the "ON/OFF" for that channel. Use the All OFF item to set all channels to OFF.

CHORD DETECT display

Setting the Chord Type for Style Play-back via MIDI Receive

The explanations here apply to the CHORD DETECT display to be called up in step 4 of the "Basic Operation" on page 196.

These settings let you determine the chord type for Style playback, based on the note messages received via MIDI. The note on/off messages received at the channel(s) set to "ON" are recognized as the notes for detecting chords in Style playback. The chords to be detected depend on the fingering type. The chord type will be detected regardless of the [ACMP ON/OFF] or split point settings. When several channels are simultaneously set to "ON," the chord type is detected from merged MIDI data received over the channels.

The operation procedure is basically the same as that of the BASS display above.

MIDI SYSTEM | TRANSHIT | RECEIVE | BASS | CHORD-DETECT CHORD DETECT MIDI/USB1 USB2 Rx MONITOR ALL OFF MIDI/USB1 ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○ CHANNEL 1 ON 2 ON 3 ON 4 ON 5 ON 6 ON 7 ON 8 ON OFF OFF OFF OFF OFF OFF OFF ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ ▲▼ ▲●

Displaying the Voice Program Change Number

Determines whether or not the Voice bank and number are shown in the Voice selection display. This is useful when you want to check which bank select MSB/LSB values and program change number you need to specify when selecting the Voice from an external MIDI device.

You can set this in the display called up by the following operations: [FUNCTION] → [] UTILITY → TAB [◀][▶] CONFIG 2. Switch the DISPLAY VOICE NUMBER menu ON and OFF.

UTILITY CONFIG 1 CONFIG 2 SCREEN OUT NEDID OWNER SYSTEM RESET LCD BRIGHTNESS:20 SPEAKER:HEADPHONE SWITCH VOICE CATEGORY BUTTON OPTIONS:OPEN & SELECT DISPLAY VOICE NUMBER:OFF DISPLAY STYLE TEMPO:ON POPUP DISPLAY TIME:3.0sec LCD BRIGHT-MESS-20 SPEAKER HEADPHONE ON OFF

NOTE

• The numbers displayed here start from "1." Accordingly the actual MIDI program change numbers are one lower, since that number system starts from "0."
• F or the GS Voices, this feature is not available (the program change numbers are not shown).

Overall

The instrument does not turn on.

- Securely insert the female plug into the socket on the instrument, and the male plug into a proper AC outlet.

A click or pop is heard when the power is turned on or off.

- Electrical current is being applied to the instrument. This is normal.

Noise is heard from the instrument's speakers.

- Noise may be heard if a mobile phone is used near the instrument or if the phone is ringing. Turn off the mobile phone, or use it further away from the instrument.

The letters in the display cannot be read, because the display is too bright (or dark).

• Use the [LCD CONTRAST] knob to adjust for optimum visibility.
• Adjust the brightness of the display (page 19).

The overall volume is too low, or, no sound is heard.

• The master volume may be set too low. Set it to an appropriate level with the [MASTER VOLUME] dial.
• The volume of the individual parts may be set too low. Raise the volume in the BALANCE display (page 40).
• Make sure the desired channel is set to ON (page 105).
• Headphones are connected, disabling the speaker output. (This happens when the speaker setting is set to "HEADPHONE SW"; page 17.) Unplug the headphones.
• Make sure the speaker setting is set to ON (page 17).
• The Fade-In and Fade-Out function is on, muting the sound. To turn it off, press the pedal to which you assigned the Fade In/Out function.
• Make sure the Local Control function is set to ON (page 198).

Not all simultaneously played notes sound.

- You are probably exceeding the maximum polyphony (page 213) of the instrument. When the maximum polyphony is exceeded, the earliest played notes will stop sounding, letting the latest played notes sound.

The keyboard volume is lower than the Song/Style playback volume.

- The volume of the keyboard parts may be set too low. Raise the volume in the BALANCE display (page 40).

Keys do not sound at the proper pitch.

- Make sure the Performance Assistant function is off on the operation display (page 43).

Certain notes sound at the wrong pitch.

The Scale parameter has probably been set to something other than "Equal," changing the tuning system of the keyboard. Make sure "Equal" is selected as the Scale in the Scale Tune display (page 83).

• There is a slight difference in sound quality among different notes played on the keyboard.
• Some Voices have a looping sound.
• Some noise or vibrato is noticeable at higher pitches, depending upon the voice.
• This is normal and is a result of the instrument's sampling system.

Some Voices will jump an octave in pitch when played in the upper or lower registers.

- This is normal. Some voices have a pitch limit which, when reached, causes this type of pitch shift.

The Main display does not appear even when turning the power on.

- This may occur if a USB storage device has been installed to the instrument. Installation of some USB storage device may result in a long interval between turning the power on and appearance of the Main display. To avoid this, turn the power on after disconnecting the device.

Pedals

The damper, sostenuto and soft functions do not work for the relevant pedals.

• The pedal cord plug is not connected. Securely insert the pedal cord plug into the proper jack (page 207).
  • Each pedal has been assigned to a different function. Make sure that each pedal is properly assigned to SUSTAIN, SOSTENUTO, and SOFT (page 187).
• Make sure the Registration Sequence function is set to OFF (page 131).

Files/Folders

Some characters of the file/folder name are garbled.

- The language settings have been changed. Set the appropriate language for the file/folder name (page 18).

An existing file is not shown.

- The file extension (.MID, etc.) may have been changed or deleted. Manually rename the file, adding the appropriate extension, on a computer.

The data contained in the USB storage device is not shown on the instrument itself.

- Data files with names of more than 50 characters cannot be handled by the instrument. Rename the file, reducing the number of characters to 50 or less.

Demo

How can I stop the demo?

- Press the [EXIT] button.

Voice

The Voice selected from the Voice Selection display does not sound.

• Check whether or not the selected part is turned on (page 80).
• To select the Voice for the right-hand key range, make sure the PART ON/OFF [DUAL (RIGHT2)]/[SPLIT (LEFT)] buttons are off. For the Voice to be layered in the right-hand range, press the PART ON/OFF [DUAL (RIGHT2)] button. To select the Voice for the left-hand key range, press the PART ON/OFF [SPLIT (LEFT)] button.

A strange "flanging" or "doubling" sound occurs. The sound is slightly different each time the keys are played.

- The RIGHT 1 and RIGHT 2 parts are set to "ON," and both parts are set to play the same Voice. Turn off the RIGHT 2 part or change the Voice of one of the parts.

The sound seems strange or different than expected when changing a rhythm Voice (drum kit, etc.) of the Style or Song from the Mixer.

- When changing the rhythm/percussion Voices (drum kits, etc.) of the Style and Song from the VOICE parameter, the detailed settings related to the drum voice are reset, and in some cases you may be unable to restore the original sound. In the case of Song playback, you can restore the original sound by returning to the beginning of the Song and playing back from that point. In the case of Style play, you can restore the original sound by selecting the same Style again.

Tremolo/Trill cannot be applied to the Organ Flute Voice.

- This is normal; Tremolo and Trill settings in the Harmony/Echo display are not effective for Organ Flute Voices.

The Harmony function does not operate.

- Harmony cannot be used with the AI Fingered or AI Full Keyboard fingering modes. Select an appropriate fingering mode (page 103).

When a Voice is changed, the previously selected effect is changed.

- Each Voice has its own suitable preset settings, which are automatically recalled when the corresponding Voice Set parameters are turned on (page 102).

The Voice produces excessive noise.

- Certain Voices may produce noise, depending on the Harmonic Content and/or Brightness settings in the FILTER page of the Mixing Console display (page 89).

The sound is distorted or noisy.

- The volume may be turned up too high. Make sure all relevant volume settings are appropriate.

• This may be caused by certain effects. Try canceling all unnecessary effects, especially distortion-type effects (page 91).
• Adjust the sound using the [8 ▲ ▼] (TOTAL GAIN ADJ.) buttons from the display shown in step 6 of "Editing and Saving the selected EQ" (page 95), if you are using the Master EQ.
• Some filter resonance settings in the VOICE SET display (page 98) can result in distorted sound. Adjust these settings if necessary.
• Noise may occur depending on the settings made in the Filter display of the Mixing Console. Adjust the Harmonic Content or Brightness controls in the Filter display (page 89).

The sound does not change when replacing Voices with the Song Auto Revoice feature.

- Depending on the particular Song data, there are some instances where Song Auto Revoice has no effect, even when replacing Voices.

The sound of the Voice doesn't change, even when editing the Voice.

- Keep in mind that adjustments made to the parameters may not make much change in the actual sound depending on the original settings of the Voice.

Voices other than those in the Preset display cannot be selected for Step recording.

- This is normal.

Style

Style playback does not start.

• Make sure to press the STYLE CONTROL [START/STOP] button.
• MIDI Clock may be set to "EXTERNAL." Make sure this is set to "INTERNAL" (page 198).

Only the rhythm channel plays.

• Make sure the Auto Accompaniment function is turned on; press the [ACMP ON/OFF] button.
• You may be playing keys in the right hand range of the keyboard. Make sure to play keys in the chord range of the keyboard.

Styles cannot be selected.

- If the size of the Style data is large (about 120 KB or greater), the Style cannot be selected because the data is too large to be ready by the instrument.

The desired chord is not recognized or output by the auto accompaniment.

• You may not be playing the correct keys for indicating the chord. Refer to "Chord Types Recognized in the Fingered Mode" of the separate Data List.
• You may be playing the keys according to a different fingering mode, and not the one currently selected. Check the accompaniment mode, and play the keys according to the selected mode (page 104).

Synchro Stop cannot be turned on.

- Synchro Stop cannot be turned on when the fingering mode is set to "Full Keyboard" or "Al Full Keyboard," or when Style On/Off is set to off. Make sure the fingering mode is set to something besides "Full Keyboard" or "Al Full Keyboard" and set Style On/Off to on.

Auto accompaniment chords are recognized regardless of the split point or where chords are played on the keyboard.

- This is normal if the fingering mode is set to "Full Keyboard" or "AI Full Keyboard." If either of these is selected, chords are recognized over the entire range of the keyboard, irrespective of the split point setting. If desired, select a different fingering mode (page 104).

When playing back one Style and selecting another, the newly selected Style doesn't play at the proper Tempo.

- You can select whether the appropriate tempo will be called up automatically or not by using the TEMPO parameter in the STYLE CHANGE BEHAVIOR function.

Starting a Song while playing back a Style stops Style playback.

This is because Song playback has priority. The two ways shown below let you play back a Style and Song simultaneously.

• Set the Song to Synchro Start standby, then start the Style.
• Start the Style playback after playing back a Song.

The level balance of the various Parts becomes wrong or unexpected sounds are output when selecting a Style or a Voice after selecting a Song.

- The level balance of the Parts can change and unexpected sounds can be produced because of the effects applied to each Part.

The "Off" setting is not shown for the Play Type parameter in the Assembly (Style Creator) feature.

- The selected section is set to record enable. Release the recording assignment by pressing the appropriate [1▼]–[8▼] button in the recording channel display (TAB |◀| button → BASIC tab → [F] REC CH).

The channels BASS-PHR2 cannot be edited in Channel Edit.

- This is normal; BASS-PHR2 channels of the Preset Styles cannot be edited.

Registration memory

The Song/Style registered to the Registration Memory cannot be called up.

- If the registered Song/Style is contained on USB storage device and the USB storage device is not inserted or connected to the instrument, the Song/Style cannot be called up. Insert or connect the appropriate USB storage device containing the Song/Style data.

The order for calling up Registration Memory settings is not shown on the Registration Sequence setting display.

- The bank containing the Registration has not been selected. Select the appropriate bank (page 128).

When using the Freeze function of the Registration Memory, the On/Off setting of the Left Part does not change even when changing the Registration Memory setting.

- The Left Part On/Off setting is included in the Style group. Remove the checkmark from "STYLE" in the Freeze setting display (page 129).

Even though a Registration Memory setting containing a User/USB voice is selected, the File Selection display shows a Preset Voice.

- This is normal; even with the Preset Voice shown, the actual sounding Voice is the selected User/USB Voice. When a User/USB Voice is saved to the User/USB drive, the actual data is divided into two separate types: 1) the source Preset Voice itself, and 2) the parameter settings as set in the Sound Creator. When you recall a Registration Memory setting containing a User/USB Voice, the instrument selects the Preset voice (on which the User/USB Voice is based), then applies the relevant parameter settings to it—so that your original User/USB Voice is sounded.

Song

Songs cannot be selected.

• This may be because the language settings have been changed. Set the appropriate language for the Song file name.
• If the size of the Song data is large (about 300 KB or greater), the Song cannot be selected because the data is too large to be read by the instrument.

Song playback does not start.

• "New Song" (a blank Song) has been selected. Make sure to select an appropriate Song in the Song Selection display (page 35).
• Make sure to press the SONG [PLAY/PAUSE] button.
• The Song has been stopped at the end of the Song data. Return to the beginning of the Song by pressing the SONG [STOP] button.
• In the case a Song to which write-protect has been applied ("Prot. 2 Edit" is shown at the upper left of the Song name), the original file may not be in the same folder. It cannot be played back unless the original file (showing "Prot.2 Orig" at the upper left of the Song name) is in the same folder.
• In case of a Song to which write-protect has been applied ("Prot. 2 Edit" is shown at the upper left of the Song name), the original file name may have been changed. Rename the file with the original file name (so that "Prot.2 Orig" is shown at the upper left of the Song name).
• In case of a Song to which write-protect has been applied ("Prot. 2 Edit" is shown at the upper left of the Song name), the file icon may have been changed. Songs to which write-protect has been applied cannot be played back when the file icon of the original has been changed.
• MIDI Clock may be set to "EXTERNAL." Make sure this is set to "INTERNAL" (page 198).

Song playback stops before the Song is finished.

- The Guide function is turned on. (In this case, playback is "waiting" for the correct key to be played.) Press the [GUIDE] button to turn off the guide function.

The Song last selected before turning off the power is no longer available.

- If the Song last selected before turning off the power is contained in USB storage device, you'll need to reinsert/reconnect the same USB storage device to call up the Song again.

The measure number is different from that of the score in the Song Position display, shown by pressing the [REW]/[FF] buttons.

- T his happens when playing back music data for which a specific, fixed tempo is set.

In the AB Repeat function, the B point cannot be set.

- The A point has not been set. Set the B point only after setting the A point.

When playing back a Song, some channels do not play.

- Playback of these channels may be set to "OFF." Turn playback on for those channels that are set to "OFF" (page 139).

A Song to which write-protect has been applied ("Prot. 2 Edit" is shown at the upper left of the Song name) cannot be moved to external media such as a SmartMedia card or floppy disk.

- A Song to which write-protect has been applied cannot be moved to an external media such as SmartMedia/floppy disk, etc. Use the [USB TO DEVICE] terminal to move the song to a USB flash memory device connected to this instrument.

The Tuning Curve of the piano Voice does not quite match that of other instruments' Voices.

- The Tuning Curve designed especially for piano Voices may not sound with the appropriate pitches when used with other instrument Voices. Set the Tuning Curve to "FLAT" (page 97).

Guide

The melody still plays back, even when specifying Track 1 as the part to be muted for one-handed practice.

- A part other than the melody part has been assigned to Track 1. Reassign the channel containing the melody to Track 1 (page 138).

The Guide lamps do not light during Song playback, even after pressing the [GUIDE] button.

• Make sure to turn on the Guide lamps (page 137).
• A ny notes outside of the 88-key range cannot be indicated by the Guide lamps.

The Guide lamps light an octave or two lower/higher than the actual pitch.

- The Guide lamps sometimes light an octave or two lower/higher than the actual pitch depending on the selected Voice.

The lamps in the chord section of the keyboard light.

- The Guide function for chords (page 50) has been enabled. Turn the Style off by pressing the [ACMP ON/OFF] button.

The Guide lamps do not indicate how to play chords.

• Make sure that the Guide Mode is set to "FollowLights" (page 104).
• You cannot check how to play chords with the Guide lamps if the chord fingering method is set to "Single Finger," "Full Keyboard" or "AI Full Keyboard." Select another fingering method (page 104).

Score

When displaying the music score, long notes that have been entered, such as whole notes and ties, are not displayed correctly.

- Long notes, such as whole notes and ties, may not be shown in the music score display exactly as they were entered. Selecting "Tenuto" by pressing the [H] button before inputting each note in the Step Record display (page 145) may solve the problem.

The tempo, beat, measure and music notation is not displayed correctly.

- Some Song data for the instrument has been recorded with special "free tempo" settings. For such Song data, the tempo, beat, measure and music notation will not be displayed correctly.

The note name partially obscures the note in the display.

- When several notes occur close to each other, the note name may obscure the note at left.

The music score of the right-hand/left-hand part is not displayed.

- The appropriate channels have not been assigned to the right-hand and left-hand parts. Set RIGHT and LEFT to the appropriate channels (page 39).

The notation in the display is cut off, with the middle of a measure starting on the next line.

- When all the notes of a measure cannot fit on one line, the remaining notes in the measure are carried over to the next line.

Dotted notes are indicated as rests.

- This is normal; sometimes dotted notes are indicated as rests.

Chords are not displayed.

- If the selected Song does not contain chord data, chords are not displayed.

Lyrics (Karaoke)

Lyrics are not displayed.

- If the selected Song does not contain lyric data, lyrics are not displayed.

Some of the lyrics overlap each other.

• T his happens for Songs containing many lyrics.

The Lyrics Background setting cannot be changed. (CVP-405)

- When the background color is specified in the song data, the Lyrics Background setting cannot be changed.

Performance assistant technology

Performance assistant technology does not work appropriately.

- Press the SONG [STOP] button to stop Song playback, then set the [ACMP ON/OFF] and PART ON/OFF [LEFT] to off. Finally, restart the Song.

Video out (CVP-405)

The instrument display contents cannot be sent via video out and do not show on an external monitor.

- Make sure that the NTSC/PAL setting corresponds to the standard of your particular video equipment (page 56).

Some flashing parallel lines appear in the television or video monitor.

- Occasionally some flashing parallel lines may appear in the television or video monitor. This does not necessarily indicate that the monitor is malfunctioning. For optimum results, try adjusting the color settings on the monitor itself.

The monitor you are using may not show the instrument's display contents as expected.

- Keep in mind that even after adjusting all settings as recommended, the monitor you are using may not show the instrument's display contents as expected (e.g., the display contents may not fit on the screen, the characters may not be completely clear, or the colors may be incorrect).

Microphone/Vocal harmony (CVP-405/403)

The microphone input signal cannot be recorded.

- The microphone input signal cannot be recorded by Song/Style recording. Use the USB Audio Recorder function (page 60). Furthermore, you can connect a recorder to the output terminals [AUX OUT] and record the microphone signal.

Harmony can be heard in addition to the microphone sound.

- Vocal Harmony is set to "ON." Turn Vocal Harmony off (page 57).

The Vocal Harmony effect sounds distorted or out-of-tune.

Your vocal microphone may be picking up extraneous sounds, such as the Style sound from the instrument. In particular, bass sounds can cause mistracking of the Vocal Harmony. To remedy this:

• Sing as closely to the microphone as possible.
• Use a directional microphone.
• Turn down the Master volume, Style volume, or Song volume control (page 40).
• Separate the microphone from the external speakers as much as possible.
• Cut the Low band via the 3 Band EQ function in the MICROPHONE SETTING display (page 167).
• Raise the microphone input level (TH) via the Compressor function in the MICROPHONE SETTING display (page 168).

Appropriate harmony notes are not produced by the Vocal Harmony feature.

- Make sure you are using the appropriate method to specify the harmony notes for the current Vocal Harmony mode (page 169).

USB Audio Recorder (CVP-405/403)

The message "This drive is busy now." appeared, and then the recording was aborted.

• Make sure to use a compatible USB storage device (page 22).
• Make sure that the USB storage device has enough memory (page 191).
• If you are using a USB memory device to which data has already been recorded, check first that no important data remains on the device, then format it (page 69) and try recording again.

CVP-405: Keyboard Stand Assembly

CAUTION

• Be careful not to confuse parts, and be sure to install all parts in the correct direction. Please assemble in accordance with the sequence given below.
• Assembly should be carried out by at least two persons.
• Be sure to use the correct screw size, as indicated below. Use of incorrect screws can cause damage.
• Be sure to tighten up all screws upon completing assembly of each unit.
  • T o disassemble, reverse the assembly sequence given below.

Have a Phillips-head (+) screw- driver ready.

1 Remove all parts from the box. Confirm that all parts shown in the illustration are provided.

Line drawing of a rectangular device with labeled section A (no text or symbols beyond label)

CAUTION To prevent the key cover from accidentally opening during assembly, press down on the key cover, making sure that the sheet (shown) remain in place.

Bundled pedal cord inside

AC power cord

5 × 18 mm fixing screws × 14

2 With the key cover closed and the keyboard side on the bottom, lean A against the wall.

Line drawing of a portable electronic device with a label 'A' and an arrow pointing to it (no text or symbols on the device itself)

CAUTION

Please do not touch the speaker net. Doing so may damage the speaker inside.

Be sure to position the keyboard side on the bottom.

Spread a large soft cloth, such as a blanket, on the floor. Place the unit A on the cloth with the keyboard side on the bottom and lean A against the wall so that it will not fall or slip. Place a soft cloth against the wall to protect the instrument and wall from scratches.

CAUTION

• Be careful not to pinch your fingers.
• The top part of the music rest is not fixed. When you lean the unit against the wall, support the music rest with your hand so that the music rest will not fall.

CAUTION

- Do not place the unit A with the rear side facing down.

Incorrect

- Do not lay the unit A upside-down on the floor.

Incorrect

3 Attach B and C.

① Fix B to the bottom surface of A using two screws.

② Fix B to the speaker box using two screws.

Mechanical assembly diagram showing two labeled components A and B with bolts and rods (no text or symbols beyond labels)

A B

③ Fix C in the same way.

If the screw holes do not align, loosen the other screws and adjust the position of C and D.

4 Attach D.

② Fix D to the speaker box using two screws.

① Fix D to the bottom surface of A using two screws.

Technical diagram showing a mechanical assembly with labeled components A and D, likely for engineering or manufacturing documentation.

If the screw holes do not align, loosen the other screws and adjust the position of D.

5 Raising A to the standing position.

Use the B and C as support to raise A.

CAUTION

• Be careful not to pinch your fingers.
• When you raise A, do not hold the key cover.

Line drawing showing a table and a mechanical device with labeled components (no text or symbols)

6 Installing E.

① Remove the plastic cover from D.

②Untie and straighten out the bundled cord attached to the bottom of E.

Simple line drawing of an electrical testing device with labeled terminals and wires (no text or symbols beyond 'E' and numbers)

D E

③Pass the pedal cord between E and D.

④ Make sure that E lays flat, with no gap between itself and the floor, then affix the E using two screws.

7 Connect the pedal cord.

Technical line drawing of a mechanical assembly with no visible text or symbols

① Insert the pedal cord plug into the pedal connector. Insert the plug with the

arrow-printed side facing front (toward the keyboard side). If the plug will not go in easily, do not force it. Double-check the orientation of the plug, then try again.

Correct Incorrect

② Align the pedal cord into the groove on D, and install the plastic cover onto the groove. Be careful not to insert the cover's attachment strip between the groove wall and the leg.

8 Set the voltage selector and connect the power cord.

(the bottom as seen f

(the bottom of the right side as seen from the front)

Voltage Selector

Before connecting the AC power cord, check the setting of the voltage selector which is provided in some areas. To set the selector for 110V, 127V, 220V or 240V main voltages, use a "minus" screwdriver to rotate the selector dial so that the correct voltage for your region appears next to the pointer on the panel. The voltage selector is set at 240V when the unit is initially shipped.

After the proper voltage has been selected, connect the AC power cord to the AC INLET and an AC wall outlet. A plug adaptor may be also provided in some areas to match the pin configuration of the AC wall outlets in your area.

WARNING

An improper voltage setting can cause serious damage to the instrument or result in improper operation.

9 Set the adjuster.

Rotate the adjuster until it comes in firm contact with the floor surface.

Simple line drawing of a three-pronged door handle with a central knob and scroll, no text or symbols present.

■ After completing the assembly, please check the following.

- Are there any parts left over?

→ Review the assembly procedure and correct any errors.

- Is the instrument clear of doors and other movable fixtures?

→ Move the instrument to an appropriate location.

- Does the instrument make a rattling noise when you shake it?

→ Tighten all screws.

- Does the pedal box rattle or give way when you step on the pedals?

→ Turn the adjuster so that it is set firmly against the floor.

- Are the pedal and power cords inserted securely into the sockets?

→ Check the connection.

- If the main unit creaks or is otherwise unsteady when you play on the keyboard, refer to the assembly diagrams and retighten all screws.

When moving the instrument after assembly, always hold the bottom of the main unit.

CAUTION

Do not hold the key cover or top portion. Improper handling can result in damage to the instrument or personal injury.

Top portion Do not hold here. Key cover Do not hold here. Hold here.

CVP-403: Keyboard Stand Assembly

CAUTION

- Be careful not to confuse parts, and be sure to install all parts in the correct direction. Please assemble in accordance with the sequence given below.

- Assembly should be carried out by at least two persons.

- Be sure to use the correct screw size, as indicated below. Use of incorrect screws can cause damage.

- Be sure to tighten up all screws upon completing assembly of each unit.

• T o disassemble, reverse the assembly sequence given below.

Have a Phillips-head (+) screw- driver ready.

1 Open the package, take out marked "C" in the illustration, take out the styrofoam pads, and place the unit A on top of the pads. Position the pads so that they will protect the headphone jack located underneath the front left corner.

A Phones jacks Styrofoam pads

To prevent the key cover from accidentally opening during assembly, press down on the key cover, making sure that the sheet (shown) remain in place.

B

Bundled pedal cord inside

6 × 16 mm short screws × 4

4 × 12 mm thin screws × 2

4 × 20 mm tapping screws × 4

Cord holders × 2

2 Attach C to D and E.

①Untie and straighten out the bundled cord attached to the bottom of the C. Don't discard the vinyl tie, you'll need it later in step 6.

② Use the four 6 × 25 mm long screws to attach C. First attach one side panel, then attach the other side panel.

3 Attach B.

Depending on the model of digital piano you purchased, the surface color of one side of the rear panel may be different from the other side. In this case, position the rear panel so that the side of the surface color similar to the side panel (left) and the side panel (right) faces the player.

①Place the lower side of B on each foot of D and E, then attach the upper side to D and E.

② Attach the top of B to D and E by finger-tightening the thin screws (4 × 12mm).

③ While pushing the lower part of D and E from outside, secure the bottom ends of B using two tapping screws (4 × 20mm).

4 Insert the other two tapping screws (4 × 20mm) into the other two screw holes to secure B.

⑤ Securely tighten the screws on the top of B that were attached in Step 3-2.

Technical diagram of a mechanical or optical setup with labeled components and directional arrows, including zoomed-in detail and component labels A through E.

4 Mount A.

CAUTION

• Fingers can become pinched between A and C/D/E, be extra careful so as not to drop A.
• Do not hold the keyboard in any position other than the position shown in the illustration.

Be sure to place your hands at least 10 cm from either end of A when positioning it.

A At least 10 cm

5 Fix A.

① Center A to produce equal clearance on the left and right sides.
② Use 6 × 16 mm short screws to secure A from the front.

A A

6 Connect the pedal cord.

Insert the pedal cord plug to the pedal connector from the front. Use a vinyl tie to take up any slack in the pedal cord. Attach the cord holders to D as shown, then clip the cord into the holders.

7 Set the voltage selector and connect the power cord.

Diagram showing cable installation with labeled components and a magnified inset of a device dial indicator.

Voltage Selector

Before connecting the AC power cord, check the setting of the voltage selector which is provided in some areas. To set the selector for 110V, 127V, 220V or 240V main voltages, use a "minus" screwdriver to rotate the selector dial so that the correct voltage for your region appears next to the pointer on the panel. The voltage selector is set at 240V when the unit is initially shipped.

After the proper voltage has been selected, connect the AC power cord to the AC INLET and an AC wall outlet. A plug adaptor may be also provided in some areas to match the pin configuration of the AC wall outlets in your area.

WARNING

An improper voltage setting can cause serious damage to the Clavinova or result in improper operation.

8 Set the adjuster.

Simple line drawing of a three-pronged door handle with a curved arrow indicating rotation (no text or symbols)

Rotate the adjuster until it comes in firm contact with the floor surface.

■ After completing the assembly, please check the following.

• Are there any parts left over?
  → Review the assembly procedure and correct any errors.
• Is the Clavinova clear of doors and other movable fixtures?
  → Move the Clavinova to an appropriate location.
• Does the Clavinova make a rattling noise when you shake it?
  → Tighten all screws.
• Does the pedal box rattle or give way when you step on the pedals?
  → Turn the adjuster so that it is set firmly against the floor.
• Are the pedal and power cords inserted securely into the sockets?
  → Check the connection.
• If the main unit creaks or is otherwise unsteady when you play on the keyboard, refer to the assembly diagrams and retighten all screws.

When moving the instrument after assembly, always hold the bottom of the main unit.

CAUTION

Do not hold the key cover or top portion. Improper handling can result in damage to the instrument or personal injury.

Top portion Key cover Do not hold here. Do not hold Hold here. here.

CVP-401: Keyboard Stand Assembly

CAUTION

- Be careful not to confuse parts, and be sure to install all parts in the correct direction. Please assemble in accordance with the sequence given below.

- Assembly should be carried out by at least two persons.

- Be sure to use the correct screw size, as indicated below. Use of incorrect screws can cause damage.

- Be sure to tighten up all screws upon completing assembly of each unit.

• T o disassemble, reverse the assembly sequence given below.

Have a Phillips-head (+) screw- driver ready.

Open the package, take out marked "C" in the illustration, take out the styrofoam pads, and place the unit A on top of the pads.

Remove all parts from the box. Confirm that all parts shown in the illustration are provided.

A Styrofoam pads B

Bundled pedal cord inside

D E Assembly Parts AC power cord

6 × 20 mm long screws × 4

6 × 16 mm short screws × 4

4 x 20 mm tapping screws × 4

4 × 12 mm thin screws × 2

Cord holders × 2

Attach (finger-tighten) C to D and E.

E ② C D ③ ①

① Untie and straighten out the bundled pedal cord. Don't discard the vinyl tie, you'll need it later in step 7.
②Align D and E with each end of C.
3 Attach D and E to C by finger-tightening the long screws (6 × 20 mm).

Attach B.

Depending on the model of digital piano you purchased, the surface color of one side of the rear panel may be different from the other side. In this case, position the rear panel so that the side of the surface color similar to the side panel (left) and the side panel (right) faces the player.

①Place the lower side of B on each foot of D and E, then attach the upper side to D and E.
② Attach the top of B to D and E by finger-tightening the thin screws (4 × 12mm).
③While pushing the lower part of D and E from outside, secure the bottom ends of B using two tapping screws (4 × 20mm).
4 Insert the other two tapping screws (4 × 20mm) into the other two screw holes to secure B.
⑤ Securely tighten the screws on the top of B that were attached in Step 3-2.

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or assembly.

Securely tighten the screws on C that were attached in Step 2-3.

C Tighten the screw.

Mount A.

CAUTION

• Fingers can become pinched between the unit A and the rear or side panels, be extra careful so as not to drop the A.
• Do not hold the keyboard in any position other than the position shown in the illustration.

Be sure to place your hands at least 10 cm from either end of A when positioning it.

A E At least 10 cm B D

6 Secure A.

1 Adjust the position of A so that the left and right ends of A will project beyond D and E equally when seen from the front.
② Secure A by tightening the short screws (6 × 16mm) from the front.

A ① Center A to produce equal clearance on the left and right sides. ② Use 6x16 mm short screws to secure A from the front.

7 Connect the pedal cord.

Insert the pedal cord plug to the pedal connector from the rear. Use a vinyl tie to take up any slack in the pedal cord. Attach the cord holders to the rear panel as shown, then clip the cord into the holders.

8 Set the voltage selector and connect the power cord.

Diagram showing electrical outlet installation with labeled components and a circular gauge indicating current direction.

Voltage Selector

Before connecting the AC power cord, check the setting of the voltage selector which is provided in some areas. To set the selector for 110V, 127V, 220V or 240V main voltages, use a "minus" screwdriver to rotate the selector dial so that the correct voltage for your region appears next to the pointer on the panel. The voltage selector is set at 240V when the unit is initially shipped. After the proper voltage has been selected, connect the AC power cord to the AC INLET and an AC wall outlet. A plug adaptor may be also provided in some areas to match the pin configuration of the AC wall outlets in your area.

WARNING

An improper voltage setting can cause serious damage to the Clavinova or result in improper operation.

9 Set the adjuster.

Simple line drawing of a three-pronged door handle with a curved arrow indicating rotation (no text or symbols)

Rotate the adjuster until it comes in firm contact with the floor surface.

■ After completing the assembly, please check the following.

• Are there any parts left over?
  → Review the assembly procedure and correct any errors.
• Is the Clavinova clear of doors and other movable fixtures?
  → Move the Clavinova to an appropriate location.
• Does the Clavinova make a rattling noise when you shake it?
  → Tighten all screws.
• Does the pedal box rattle or give way when you step on the pedals?
  → Turn the adjuster so that it is set firmly against the floor.
• Are the pedal and power cords inserted securely into the sockets?
  → Check the connection.
• If the main unit creaks or is otherwise unsteady when you play on the keyboard, refer to the assembly diagrams and retighten all screws.

When moving the instrument after assembly, always hold the bottom of the main unit.

CAUTION

Do not hold the key cover or top portion. Improper handling can result in damage to the instrument or personal injury.

Top portion Key cover Do not hold here. Hold here. Do not hold here.

Installing the Floppy Disk Drive (Optional) (CVP-405)

The floppy disk drive can be installed to the bottom of the instrument by using the included floppy disk drive case and screws. For a list of optional floppy disk drives available for this instrument, see "Optional Accessories" (page 214).

Have a Phillips-head (+) screwdriver ready.

1 Remove the three backing papers from the adhesive tape in the case, and fit the floppy disk drive into the case.

Insert the drive to the case, with the side having the rubber stoppers facing the case.

Diagram of a device with an open circuit board and cable, showing internal components and a downward arrow indicating a process (no text or symbols present)

Dual-sided adhesive tape

2 Fold the USB cable inside the case as shown.

Line drawing of a device with a USB cable and connector, no text or symbols present

3 Attach the drive and case assembly to the left underside of the instrument, using the included four screws (4 mm x 10 mm).

Technical line drawing of a mechanical assembly with screws and a USB connector (no text or symbols)

4 Connect the USB cable to the [USB TO DEVICE] terminal.

			CVP-405 CVP-403	CVP-401
Sound Source AWM Dynamic Stereo Sampling			AWM Stereo Sampling
Keyboard Graded Hammer 3 (GH3) Keyboard					Graded Hammer (GH) Keyboard
Number of keys 88
Display			320 × 240 dots QVGA color 5.7 inch LCD	320 × 240 dots QVGA Monochrome 5.7 inch LCD	320 × 240 dots QVGA Monochrome 4.6 inch LCD
			Music Score, Lyrics YES
			TextYES -
			Wallpaper Customize (Lyrics display)	YES -
Voice	Polyphony (max) 128 96
	Voice Selection		414 voices + 480 XG Voices19 Drum/SFX Kits + GM2 + GS (GS Voices for GS Song playback)	340 voices + 480 XG Voices16 Drum/SFX Kits + GM2 + GS (GS Voices for GS Song playback)	296 voices + 480 XG Voices15 Drum/SFX Kits + GM2 + GS (GS Voices for GS Song playback)
			Natural! Voice 21 21 3
			S. Articulation! Voice	24	-
			Mega Voice	15 10	-
			Live! Voice	20 14 10
			Cool! Voice	26 18 16
			Sweet! Voice	22 13 11
			Organ Flutes!	10
			Regular Voice	276	254
	Sound Creator		YES
Effects	Effect Blocks	Reverb/Chorus/DSP/Master	6
		Microphone	1		-
	Effect Types	Reverb/Chorus/DSP	Reverb: 34 Preset + 3 UserChorus: 29 Preset + 3 UserDSP 1: 191 Preset + 3 UserDSP 2-4: 106 Preset + 10 User
		Master EQ	5 Preset + 2 User
		Part EQ	27 Parts
	Vocal Harmony		60 Preset + 10 User		-
Accompani-ment Style	Accompaniment Styles		344	243	191
			Pro Styles	284	195
			Session Styles	24 12 4
			Pianist Styles	36
	Mega Voice Styles		YES -
	Fingering		Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard
	Style Creator		YES
	OTS(One Touch Setting)		4 for Each Style
	OTS Link		YES
	Music Finder	Preset	YES
		Edit	YES
Song	Preset Songs 120 61
	Guide Follow Lights, Any Key, Karao-Key, Vocal CueTIME			Follow Lights, Any Key, Karao-Key
	Guide Lamp YES
	Performance assistant technology	YES
	Recording Quick Recording, Multi Recording, Step Recording, Song Editing
	Record Channels 16
USB Audio Recorder YES -
Internet Direct Connection		LAN Port, Wireless Game Adaptor (LAN Port), External adaptor (via USB to DEVICE)
Memory Device	USB Flash Memory YES
	Floppy Disk (2HD, 2DD) External adaptor (via USB to DEVICE)
	Hard Disk External adaptor (via USB to DEVICE)
	Flash Memory (Internal)	about 1.4 MB		about 560 KB
	Memory Card (SmartMedia, etc.)	External adaptor (via USB to DEVICE)
Tempo	Tempo Range	5-500, Tap Tempo
	Metronome	YES
	Sound	Bell on/off, Human Voices (5 Languages)
Registration Memory	Buttons	8
	Regist. Sequence/Freeze	YES
Others	Demo	YES
	Language for Display	6 Languages (English, Japanese, German, French, Spanish, Italian)
	Direct Access	YES
	Piano Reset Button (incl. Piano Lock)	YES
	Transpose Keyboard/Song/Master
	Scale Type	9
USB Connection	USB to HOST (Computer)	YES
	USB TO DEVICE (left side of front panel)	YES
	USB TO DEVICE (bottom left panel of the instrument)	YES -
Other Connectors		PHONES X2, MIDI (THRU, OUT, IN), AUX PEDAL, AUX IN (L/L+R, R), AUX OUT (L/L+R, R), LAN
		MIC (INPUT VOLUME, MIC./LINE IN), VIDEO OUT	MIC (INPUT VOLUME, MIC./LINE IN)	-
Pedals	Functions	VOLUME, SUSTAIN, SOSTENUTO, SOFT, GLIDE, S. Articulation (CVP-405), SONG PLAY/PAUSE, STYLE START/STOP, etc.
Amplifiers/ Speakers	Amplifiers	40 W + 40 W		20 W + 20 W
	Speakers	(16 cm + 5 cm) X 2		16 cm X 2
Dimensions [W × D × H] (with the Music Rest)		1430 mm × 609 mm × 890 mm[56-1/2" × 24" × 35-1/8"](1430 mm × 609 mm × 1047 mm)[56-1/2" × 24" × 41-3/8"]	1432 mm × 614 mm × 888 mm[56-1/2" × 24-1/4" × 35"](1432 mm × 614 mm × 1045 mm)[56-1/2" × 24-1/4" × 41-1/4"]	1372 mm × 595 mm × 896 mm[54-1/8" × 23-1/2" × 35-1/4"](1372 mm × 595 mm × 1049 mm)[54-1/8" × 23-1/2" × 41-3/8"]
Weight		79 kg (174 lbs., 2 5/8 oz)	73 kg (160 lbs., 15 oz)	59 kg (130 lbs., 1 oz)
Optional Accessories	Headphones	HPE-160
	Foot Switch	FC 4/FC 5
	Foot Controller	FC 7
	USB-FDD Unit	UD-FD01

* Specifications and descriptions in this owner's manual are for information purposes only. Yamaha Corp. reserves the right to change or modify products or specifications at any time without prior notice. Since specifications, equipment or options may not be the same in every locale, please check with your Yamaha dealer.

Numerics

1-16 144, 154

A

A-B Repeat 41

AI 104

AI FINGERED 104

AI FULL KEYBOARD 104

Any key 138

ARABIC 84

Assembly 206, 208, 210

ASSEMBLY (Style) 118

Audio Recorder 60

Auto Accompaniment Feature 44

AUTO REVOICE SETUP 90

B

Background (Lyrics) 55

Backup 77

BASIC 114

BASS 199

BOOKMARK 176

Brightness 19

Browser 180

C

Chain Playback 134

CHANNEL 122, 154

CHANNEL ON/OFF 105

Characters 74

CHORD 144, 154

CHORD DETECT 200

CHORD FINGERING 103

Chord Tutor function 49

COMMON 97

CONFIG 1 ....31, 47, 105, 128

CONFIG 2 ......17, 19, 200

Contrast 18

CONTROLLER 97

Cool! 79

COPY 71

CUT 72

D

Damper Pedal 30

DELETE 72

Demo 23

Demo (Voice) 34

Direct Access 64

DOC (Disk Orchestra Collection) 195

Drums 79

DSP 85

DSP/DSP VARIATION 85

DUAL 80

E

EDIT 117

Edit (Bookmarks) 178

Edit (Effect) 92

Edit (EQ) 95

Edit (Lyrics) 154

Edit (Music Finder) 110

Edit (OTS) 51

Edit (Song) 154

Edit (Style) 119

Edit (Vocal Harmony) 163

Edit (Voice) 96

EFFECT 89

Effect (microphone) 56

Effect (Voice) 85

Effect Return Level 93

Effect Type 9

EFFECT/EQ 99

Entering characters ....74

Entering Characters (Internet Direct Connection) .....174

EQ (Equalizer) 90

EQUAL TEMPERAMENT 84

ESEQ 195

EXIT 67

F

F 65

Factory Reset 75

Factory-programmed Settings 75

FADE IN/OUT (Song) 133

Fade In/Out time 133

FADE IN/OUT/HOLD TIME 105

Fast forward 134

Favorite 110

File 66

File Selection Display 26, 69

File Selection Display Basic Operation 67

File Selection Display Configuration 66

File/Folder Operations 69

FILTER 89,16

FINGERED 104

FINGERED ON BASS 104

Flash Memory 2

FOLDER 73

Folder 66

Follow lights 138

Foot Controller 30

FOOTAGE 100, 101

Footage 102

Footswitch 30

Format 69

FREEZE 129

FULL KEYBOARD 104

Function display 27

- F or information on the panel controls, see "Panel Controls" on page 12.

- F or information on the jacks and connectors located on the bottom of the instrument, see "Using Your Instrument with Other Devices" on page 185.

- F or Internet-related terms, see "Glossary of Internet Terms" on page 184.

- F or information on the parameters in the tab displays, refer to the tab names in this index.

G

GM System Level 1 195
GM System Level 2 195
GROOVE 120
GS 195
Guide 137
Guide Lamp 39
GUIDE LAMP ON/OFF 137
GUIDE LAMP TIMING ....138

H

H 65
HARMONY 100
HARMONY/ECHO 85
Headphone Hanger 17
Headphones 17
Home Page 182
Hz 83

|

ICON 73
Initialize 75
Initializing Internet Settings 183
Internet Direct Connection 172
Internet Settings 179

K

Karaoke 54
Karao-key 138
key cover 14
Keyboard Parts 80
KEYBOARD/PANEL 29,58
KIRNBERGER 84

L

LAN 180
LAN port 172, 192
Language 18
Left 80
Left Pedal 30
Live! 79
LYRICS 154
Lyrics 55

M

Main Display 25,65
MASTER TUNE 83
MEAN-TONE 84
MEDIA 69,136,191
Mega Voice 79
MELODIC MINOR 125
Messages 63
microphone 54
MICROPHONE SETTING 166
MIDI 192
MIDI Settings 196
MIDI Templates ....197
MIXING CONSOLE 87
MONO/POLY 85

MULTI FINGER 104
Multi track recording ....139
Music Finder 52
Music Rest 16

N

NAME 73
Natural! 79
Notation 38

0

One Touch Setting 50
One-Handed Practice 39
Organ Flutes 100
Organ Flutes! 79
Others 181
OTS Link 51
OTS Link Timing 106
OVERALL SETTING 167
OWNER 18,20
Owner Name 20

P

PANEL PART 88
PARAMETER 123
Part 80
PASTE 71,72
Pause 134
PEDAL 187
pedal polarity ....187
pedals 30
percussion sounds 34
performance assistant technology 43
Phrase Mark 134
PHRASE MARK REPEAT 134
Pianist 103
PIANO 97
Piano Lock 29
Portamento 85
Portamento Time 97
Practice Function 137
PRESET 26
Pro 103
PROPERTY 191
Prot. 1 71
Prot. 2 Edit ....71
Prot. 2 Orig 71
Punch In/Out Recording ....155
PURE MAJOR 84
PURE MINOR 84
PYTHAGOREAN 84

Q

QUANTIZE 122
Quick Recording 139
QUICK START 135

R

RANDOM 134

Realtime Recording 114

REC 66

REC MODE 154

RECEIVE 199

Record (Song) 42, 139

Record (Style) 114

REGISTRATION MEMORY ....127

REGISTRATION SEQUENCE 130

REPEAT MODE 36,134

Repeat Playback ....134

Repeat Playback Function 41

Repertoire 53

Revoice 90

Rewind 134

Right 1 80

Right 2 80

S

S. Articulation! 79

SAVE 70

Save (Music Finder) 111

SCALE TUNE 83

Score 38

Search (Music Finder Records) 108

Section Set 106

Session 103

Set the polarity of the pedal 187

SFX 79

Sheet Music Braces 16

SINGLE FINGER 104

SMF (Standard MIDI file) 195

Song 35

SONG CH 1-8/9-16 88

Song channels 143

Sostenuto Pedal 30

SOUND 98

Sound Creator 96

sound effects 34

Speaker setting 17

SPLIT 80

SPLIT POINT 107

Step Recording 114, 139

Stop ACMP 106

Style 44,106

Style Assembly 114

Style Change Behavior 106

Style Creator 113

Style File 195

STYLE PART 88

Style parts 143

STYLE SETTING/SPLIT POINT 105

Style Structure 113

Style Touch 106

Sweet! 79

Synchro Start (Song) 133

Synchro Start (Style) 47

Synchro Stop 48

Synchro Stop Window 106

SYS/EX. 154

SYSTEM 198

SYSTEM RESET 76

T

TALK 59

TALK SETTING 170

Tap function 133

Text 55

Top 134

TRANSMIT 198

Transpose 56, 58, 83

TUNE 89

U

UP 68

USB Audio Recorder 60

[USB TO DEVICE] Terminal 191

USER 26

V

Vibrato 99

VIDEO OUT ....56

Vocal CueTIME 138

VOCAL HARMONY EDIT 164, 165

VOCAL HARMONY TYPE 163

Voice 28,32,79

VOICE EFFECT 85

Voice Program Change Number 200

VOICE SET 102

VOL/ATTACK 101

VOL/VOICE 89

W

WERCKMEISTER 84

Wireless Game Adaptor 172, 184

Wireless LAN 181

X

XF 195

XG 195

- F or information on the panel controls, see "Panel Controls" on page 12.

- F or information on the jacks and connectors located on the bottom of the instrument, see "Using Your Instrument with Other Devices" on page 185.

- F or Internet-related terms, see "Glossary of Internet Terms" on page 184.

- F or information on the parameters in the tab displays, refer to the tab names in this index.

The position of the button on the panel can be confirmed by the Panel Control (page 12).

Symbol

[-] [+] (TEMPO) 8
[-] [+] (TRANSPOSE) 6

Number

[1]–[4] (ONE TOUCH SETTING) 54
[1]-[8] (REGISTRATION MEMORY)....51
[1 ▲ ▼]–[8 ▲ ▼] ..... 25

A

[ACMP ON/OFF] 10
[AUTO FILL IN] 11
[A]-[J]....21

B

[BREAK]....14

C

[CHANNEL ON/OFF] 24

D

Damper pedal....59
[DATA ENTRY]....28
[DEMO]....4
[DIRECT ACCESS] 22
Drum Kit icons 56
[DUAL (RIGHT2)] 32

E

ENDING/rit. [I]/[II]/[III] 15
[ENTER] 29
[EXIT] 27
[EXTRA TRACKS] 41

F

[FUNCTION] 34

G

[GUIDE] 46

|

[INTERNET] 35

INTRO [I]/[II]/[III] 12

K

Keyboard guide lamps....60

L

[LCD CONTRAST] 20
Left pedal 57
[LYRICS] button (CVP-403/401) 45
[LYRICS/TEXT] button (CVP-405) 45

M

MAIN VARIATION [A]/[B]/[C]/[D] 13
[MASTER VOLUME]....3
[MEMORY] 50
Mic signal/over lamps (CVP-405/403)....61
[MIXING CONSOLE] 23
[MUSIC FINDER]....19

0

[ON/OFF] (METRONOME) 5
[OTS LINK] 55

P

[PIANO RESET] 48
[PLAY/PAUSE] 39
[POWER] 1

R

[REC] 37
REGIST BANK [+] [-] 49
|REPEAT| 47
[REW]/[FF] buttons 40

S

[SCORE] 44
[SONG SELECT]....36
Sostenuto pedal....58
[SPLIT (LEFT)] 33
[START/STOP] 18
[STOP] 38
STYLE category selection buttons....9
[SYNC START] 17
[SYNC STOP] 16

T

TAB [◀][▶] 26
[TAP TEMPO] (TEMPO) 7
[TRACK 1 (R)]....43
[TRACK 2 (L)] 42

U

[USB]....30
[USB TO DEVICE] 2

V

VOICE category selection buttons....52
[VOICE EFFECT] 53

The followings are the titles, credits and copyright notices for fifty seven (57) of the songs pre-installed in this instrument:

Alfie

Theme from the Paramount Picture ALFIE

Words by Hal David

Music by Burt Bacharach

Copyright © 1966 (Renewed 1994) by Famous Music Corporation

International Copyright Secured All Rights Reserved

All Shook Up

Words and Music by Otis Blackwell and Elvis Presley

Copyright © 1957 by Shalimar Music Corporation

Copyright Renewed and Assigned to Elvis Presley Music

All Rights Administered by Cherry River Music Co. and Chrysalis

Songs

International Copyright Secured All Rights Reserved

Beauty And The Beast

from Walt Disney's BEAUTY AND THE BEAST

Lyrics by Howard Ashman

Music by Alan Menken

© 1991 Walt Disney Music Company and Wonderland Music Com-

pany, Inc.

All Rights Reserved Used by Permission

Bésame Mucho (Kiss Me Much)

Music and Spanish Words by Consuelo Velazquez

English Words by Sunny Skylar

Copyright © 1941, 1943 by Promotora Hispano Americana de Musica,

S.A.

Copyrights Renewed

All Rights Administered by Peer International Corporation

International Copyright Secured All Rights Reserved

Blue Hawaii

from the Paramount Picture WAIKIKI WEDDING

Words and Music by Leo Robin and Ralph Rainger

Copyright © 1936, 1937 (Renewed 1963, 1964) by Famous Music

Corporation

International Copyright Secured All Rights Reserved

Blue Moon

Words by Lorenz Hart

Music by Richard Rodgers

© 1934 (Renewed 1962) METRO-GOLDWYN-MAYER INC.

All Rights Controlled by EMI ROBBINS CATALOG INC. (Publishing)

and WARNER BROS. PUBLICATIONS U.S. INC. (Print)

All Rights Reserved Used by Permission

Brazil

Words and Music by Ray Barroso

English lyrics by S. K. Russell

Copyright © 1941 by Peer International Corporation

Copyright Renewed

International Copyright Secured All Rights Reserved

California Girls

Words and Music by Brian Wilson and Mike Love

Copyright © 1965 IRVING MUSIC, INC.

Copyright Renewed

All Rights Reserved Used by Permission

Can You Feel The Love Tonight

from Walt Disney Pictures' THE LION KING

Music by Elton John

Lyrics by Tim Rice

© 1994 Wonderland Music Company, Inc.

All Rights Reserved Used by Permission

Can't Help Falling In Love

from the Paramount Picture BLUE HAWAII

Words and Music by George David Weiss, Hugo Peretti and Luigi Cre-

atore

Copyright © 1961 by Gladys Music, Inc.

Copyright Renewed and Assigned to Gladys Music

All Rights Administered by Cherry Lane Music Publishing Company,

Inc. and Chrysalis Music

International Copyright Secured All Rights Reserved

Chim Chim Cher-ee

from Walt Disney's MARY POPPINS

Words and Music by Richard M. Sherman and Robert B. Sherman

© 1963 Wonderland Music Company, Inc.

Copyright Renewed

All Rights Reserved Used by Permission

Do-Re-Mi

from THE SOUND OF MUSIC

Lyrics by Oscar Hammerstein II

Music by Richard Rodgers

Copyright © 1959 by Richard Rodgers and Oscar Hammerstein II

Copyright Renewed

WILLIAMSON MUSIC owner of publication and allied rights through-

out the world

International Copyright Secured All Rights Reserved

Don't Be Cruel (To A Heart That's True)

Words and Music by Otis Blackwell and Elvis Presley

Copyright © 1956 by Unart Music Corporation and Elvis Presley

Music, Inc.

Copyright Renewed and Assigned to Elvis Presley Music

All Rights Administered by Cherry River Music Co. and Chrysalis

Songs

International Copyright Secured All Rights Reserved

Edelweiss

from THE SOUND OF MUSIC

Lyrics by Oscar Hammerstein II

Music by Richard Rodgers

Copyright © 1959 by Richard Rodgers and Oscar Hammerstein II

Copyright Renewed

WILLIAMSON MUSIC owner of publication and allied rights throughout the world

International Copyright Secured All Rights Reserved

Fly Me To The Moon (In Other Words)

featured in the Motion Picture ONCE AROUND

Words and Music by Bart Howard

TRO - © Copyright 1954 (Renewed) Hampshire House Publishing

Corp., New York, NY

International Copyright Secured

All Rights Reserved Including Public Performance For Profit

Used by Permission

Hey Jude

Words and Music by John Lennon and Paul McCartney

Copyright © 1968 Sony/ATV Songs LLC

Copyright Renewed

All Rights Administered by Sony/ATV Music Publishing, 8 Music

Square West, Nashville, TN 37203

International Copyright Secured All Rights Reserved

Hound Dog

Words and Music by Jerry Leiber and Mike Stoller

Copyright © 1956 by Elvis Presley Music, Inc. and Lion Publishing

Co., Inc.

Copyright Renewed, Assigned to Gladys Music and Universal - MCA

Music Publishing, A Division of Universal Studios, Inc.

All Rights Administered by Cherry Lane Music Publishing Company, Inc. and Chrysalis Music

International Copyright Secured All Rights Reserved

I Just Called To Say I Love You

Words and Music by Stevie Wonder

© 1984 JOBETE MUSIC CO., INC. and BLACK BULL MUSIC

All Rights Reserved International Copyright Secured Used by Permission

I Left My Heart In San Francisco

Words by Douglass Cross

Music by George Cory

© 1954 (Renewed 1982) COLGEMS-EMI MUSIC INC.

All Rights Reserved International Copyright Secured Used by Permission

In The Mood

By Joe Garland

Copyright © 1939, 1960 Shapiro, Bernstein & Co., Inc., New York

Copyright Renewed

International Copyright Secured All Rights Reserved

Used by Permission

Isn't She Lovely

Words and Music by Stevie Wonder

© 1976 JOBETE MUSIC CO., INC. and BLACK BULL MUSIC

All Rights Reserved International Copyright Secured Used by Permission

Let It Be

Words and Music by John Lennon and Paul McCartney

Copyright © 1970 Sony/ATV Songs LLC

Copyright Renewed

All Rights Administered by Sony/ATV Music Publishing, 8 Music

Square West, Nashville, TN 37203

International Copyright Secured All Rights Reserved

Let's Twist Again

Words by Kal Mann

Music by Dave Appell and Kal Mann

Copyright © 1961 Kalmann Music, Inc.

Copyright Renewed

All Rights Controlled and Administered by Spirit Two Music, Inc.

(ASCAP)

International Copyright Secured All Rights Reserved

Linus And Lucy

By Vince Guaraldi

Copyright © 1965 LEE MENDELSON FILM PRODUCTIONS, INC.

Copyright Renewed

International Copyright Secured All Rights Reserved

Love Story

Theme from the Paramount Picture LOVE STORY

Music by Francis Lai

Copyright © 1970, 1971 (Renewed 1998, 1999) by Famous Music

Corporation

International Copyright Secured All Rights Reserved

Lullaby Of Birdland

Words by George David Weiss

Music by George Shearing

© 1952, 1954 (Renewed 1980, 1982) EMI LONGITUDE MUSIC

All Rights Reserved International Copyright Secured Used by Permission

Michelle

Words and Music by John Lennon and Paul McCartney

Copyright © 1965 Sony/ATV Songs LLC

Copyright Renewed

All Rights Administered by Sony/ATV Music Publishing, 8 Music

Square West, Nashville, TN 37203

International Copyright Secured All Rights Reserved

Mickey Mouse March

from Walt Disney's THE MICKEY MOUSE CLUB

Words and Music by Jimmie Dodd

© 1955 Walt Disney Music Company

Copyright Renewed

All Rights Reserved Used by Permission

Mission: Impossible Theme

from the Paramount Television Series MISSION: IMPOSSIBLE

By Lalo Schifrin

Copyright © 1966, 1967 (Renewed 1994, 1995) by Bruin Music Com-

pany

International Copyright Secured All Rights Reserved

Mona Lisa

from the Paramount Picture CAPTAIN CAREY, U.S.A.

Words and Music by Jay Livingston and Ray Evans

Copyright © 1949 (Renewed 1976) by Famous Music Corporation

International Copyright Secured All Rights Reserved

Moon River

from the Paramount Picture BREAKFAST AT TIFFANY'S

Words by Johnny Mercer

Music by Henry Mancini

Copyright © 1961 (Renewed 1989) by Famous Music Corporation

International Copyright Secured All Rights Reserved

Moonlight Serenade

Words by Mitchell Parish

Music by Glen Miller

Copyright © 1939 (Renewed 1967) by ROBBINS MUSIC CORPORATION

All Rights Controlled and Administered by EMI ROBBINS CATALOG INC.

International Copyright Secured All Rights Reserved

My Favorite Things

from THE SOUND OF MUSIC

Lyrics by Oscar Hammerstein II

Music by Richard Rodgers

Copyright © 1959 by Richard Rodgers and Oscar Hammerstein II

Copyright Renewed

WILLIAMSON MUSIC owner of publication and allied rights throughout the world

International Copyright Secured All Rights Reserved

My Way

By Paul Anka, Jacques Revaux, Claude Francois and Giles Thibault

© 1997 by Chrysalis Standards, Inc.

Used by Permission. All Rights Reserved.

The Nearness Of You

from the Paramount Picture ROMANCE IN THE DARK

Words by Ned Washington

Music by Hoagy Carmichael

Copyright © 1937, 1940 (Renewed 1964, 1967) by Famous Music

Corporation

International Copyright Secured All Rights Reserved

Theme From "New York, New York"

Music by John Kander

Words by Fred Ebb

© 1977 UNITED ARTISTS CORPORATION

All Rights Controlled by EMI UNART CATALOG INC. (Publishing) and

WARNER BROS. PUBLICATIONS U.S. INC. (Print)

All Rights Reserved Used by Permission

Ob-La-Di, Ob-La-Da

Words and Music by John Lennon and Paul McCartney

Copyright © 1968 Sony/ATV Songs LLC

Copyright Renewed

All Rights Administered by Sony/ATV Music Publishing, 8 Music

Square West, Nashville, TN 37203

International Copyright Secured All Rights Reserved

Proud Mary

Words and Music by J.C. Fogerty

© 1968 (Renewed) JONDORA MUSIC

All Rights Reserved Used by Permission

Return To Sender

Words and Music by Otis Blackwell and Winfield Scott

Copyright © 1962 by Elvis Presley Music, Inc.

Copyright Renewed and Assigned to Elvis Presley Music

All Rights Administered by Cherry River Music Co. and Chrysalis

Songs

International Copyright Secured All Rights Reserved

The Shoop Shoop Song (It's In His Kiss)

Words and Music by Rudy Clark

Copyright © 1963, 1964 by Trio Music Company, Inc. and Top Of The Charts

Copyright Renewed

All Rights for the United States Controlled and Administered by Trio

Music Company, Inc.

All Rights for the World excluding the United States Controlled and

Administered by Trio Music Company, Inc. and Alley Music Corp.

International Copyright Secured All Rights Reserved

Used by Permission

(Sittin' On) The Dock Of The Bay

Words and Music by Steve Cropper and Otis Redding Copyright © 1968, 1975 IRVING MUSIC, INC.

Copyright Renewed

All Rights Reserved Used by Permission

Smoke Gets In Your Eyes

from ROBERTA

Words by Otto Harbach

Music by Jerome Kern

© 1933 UNIVERSAL - POLYGRAM INTERNATIONAL PUBLISHING, INC.

Copyright Renewed

All Rights Reserved

International Rights Secured. Not for broadcast transmission.

DO NOT DUPLICATE. NOT FOR RENTAL.

WARNING: It is a violation of Federal Copyright Law to synchronize this Multimedia Disc with video tape or film, or to print the Composition(s) embodied on this Multimedia Disc in the form of standard music notation, without the express written permission of the copyright owner.

Somewhere, My Love

Lara's Theme from DOCTOR ZHIVAGO

Lyric by Paul Francis Webster

Music by Maurice Jarre

Copyright © 1965, 1966 (Renewed 1993, 1994) Webster Music Co. and EMI Robbins Catalog Inc.

International Copyright Secured All Rights Reserved

Spanish Eyes

Words by Charles Singleton and Eddie Snyder

Music by Bert Kaempfert

© 1965, 1966 (Renewed 1993, 1994) EDITION DOMA BERT

KAEMPFERT

All Rights for the world, excluding Germany, Austria and Switzerland,

Controlled and Administered by SCREEN GEMS-EMI MUSIC INC.

All Rights Reserved International Copyright Secured Used by Permission

Speak Softly, Love (Love Theme)

from the Paramount Picture THE GODFATHER

Words by Larry Kusik

Music by Nino Rota

Copyright © 1972 (Renewed 2000) by Famous Music Corporation

International Copyright Secured All Rights Reserved

Stella By Starlight

from the Paramount Picture THE UNINVITED

Words by Ned Washington

Music by Victor Young

Copyright © 1946 (Renewed 1973, 1974) by Famous Music Corporation

International Copyright Secured All Rights Reserved

Take The "A" Train

Words and Music by Billy Strayhorn

Copyright © 1941; Renewed 1969 DreamWorks Songs (ASCAP) and Billy Strayhorn Songs, Inc. (ASCAP) for the U.S.A.

Rights for DreamWorks Songs and Billy Strayhorn Songs, Inc. Administered by Cherry Lane Music Publishing Company, Inc.

International Copyright Secured All Rights Reserved

Tears In Heaven

Words and Music by Eric Clapton and Will Jennings

Copyright © 1992 by E.C. Music Ltd. and Blue Sky Rider Songs

All Rights for E.C. Music Ltd. Administered by Unichappell Music Inc.

All Rights for Blue Sky Rider Songs Administered by Irving Music, Inc.

International Copyright Secured All Rights Reserved

That Old Black Magic

from the Paramount Picture STAR SPANGLED RHYTHM

Words by Johnny Mercer

Music by Harold Arlen

Copyright © 1942 (Renewed 1969) by Famous Music Corporation

International Copyright Secured All Rights Reserved

That's Amore (That's Love)

from the Paramount Picture THE CADDY

Words by Jack Brooks

Music by Harry Warren

Copyright © 1953 (Renewed 1981) by Paramount Music Corporation and Four Jays Music

International Copyright Secured All Rights Reserved

Up Where We Belong

from the Paramount Picture AN OFFICER AND A GENTLEMAN

Words by Will Jennings

Music by Buffy Sainte-Marie and Jack Nitzsche

Copyright © 1982 by Famous Music Corporation and Ensign Music Corporation

International Copyright Secured All Rights Reserved

Waltz For Debby

Lyric by Gene Lees

Music by Bill Evans

TRO - © Copyright 1964 (Renewed), 1965 (Renewed), 1966

(Renewed) Folkways Music Publishers, Inc., New York, NY

International Copyright Secured

All Rights Reserved Including Public Performance For Profit

Used by Permission

White Christmas

from the Motion Picture Irving Berlin's HOLIDAY INN

Words and Music by Irving Berlin

© Copyright 1940, 1942 by Irving Berlin

Copyright Renewed

International Copyright Secured All Rights Reserved

A Whole New World

from Walt Disney's ALADDIN

Music by Alan Menken

Lyrics by Tim Rice

© 1992 Wonderland Music Company, Inc. and Walt Disney Music

Company

All Rights Reserved Used by Permission

Yesterday

Words and Music by John Lennon and Paul McCartney

Copyright © 1965 Sony/ATV Songs LLC

Copyright Renewed

All Rights Administered by Sony/ATV Music Publishing, 8 Music

Square West, Nashville, TN 37203

International Copyright Secured All Rights Reserved

You Are The Sunshine Of My Life

Words and Music by Stevie Wonder

© 1972 (Renewed 2000) JOBETE MUSIC CO., INC. and BLACK BULL

MUSIC

All Rights Reserved International Copyright Secured Used by Permission

You Sexy Thing

Words and Music by E. Brown

Copyright © 1975 by Finchley Music Corp.

Administered in the USA and Canada by Music & Media International, Inc.

Administered for the World excluding the USA and Canada by RAK

Music Publishing Ltd.

International Copyright Secured All Rights Reserved

MEMO

IMPORTANT SAFETY INSTRUCTIONS

INFORMATION RELATING TO PERSONAL INJURY, ELECTRICAL SHOCK, AND FIRE HAZARD POSSIBILITIES HAS BEEN INCLUDED IN THIS LIST.

WARNING- When using any electrical or electronic product, basic precautions should always be followed. These precautions include, but are not limited to, the following:

1. Read all Safety Instructions, Installation Instructions, Special Message Section items, and any Assembly Instructions found in this manual BEFORE making any connections, including connection to the main supply.
2. Main Power Supply Verification: Yamaha products are manufactured specifically for the supply voltage in the area where they are to be sold. If you should move, or if any doubt exists about the supply voltage in your area, please contact your dealer for supply voltage verification and (if applicable) instructions. The required supply voltage is printed on the name plate. For name plate location, please refer to the graphic found in the Special Message Section of this manual.
3. This product may be equipped with a polarized plug (one blade wider than the other). If you are unable to insert the plug into the outlet, turn the plug over and try again. If the problem persists, contact an electrician to have the obsolete outlet replaced. Do NOT defeat the safety purpose of the plug.
4. Some electronic products utilize external power supplies or adapters. Do NOT connect this type of product to any power supply or adapter other than one described in the owners manual, on the name plate, or specifically recommended by Yamaha.
5. WARNING: Do not place this product or any other objects on the power cord or place it in a position where anyone could walk on, trip over, or roll anything over power or connecting cords of any kind. The use of an extension cord is not recommended! If you must use an extension cord, the minimum wire size for a 25' cord (or less) is 18 AWG. NOTE: The smaller the AWG number, the larger the current handling capacity. For longer extension cords, consult a local electrician.
6. Ventilation: Electronic products, unless specifically designed for enclosed installations, should be placed in locations that do not interfere with proper ventilation. If instructions for enclosed installations are not provided, it must be assumed that unobstructed ventilation is required.

7. Temperature considerations: Electronic products should be installed in locations that do not significantly contribute to their operating temperature. Placement of this product close to heat sources such as; radiators, heat registers and other devices that produce heat should be avoided.

8. This product was NOT designed for use in wet/damp locations and should not be used near water or exposed to rain. Examples of wet/damp locations are; near a swimming pool, spa, tub, sink, or wet basement.

9. This product should be used only with the components supplied or; a cart, rack, or stand that is recommended by the manufacturer. If a cart, rack, or stand is used, please observe all safety markings and instructions that accompany the accessory product.
10. The power supply cord (plug) should be disconnected from the outlet when electronic products are to be left unused for extended periods of time. Cords should also be disconnected when there is a high probability of lightning and/or electrical storm activity.
11. Care should be taken that objects do not fall and liquids are not spilled into the enclosure through any openings that may exist.
12. Electrical/electronic products should be serviced by a qualified service person when:

a. The power supply cord has been damaged; or
b. Objects have fallen, been inserted, or liquids have been spilled into the enclosure through openings; or
c. The product has been exposed to rain: or
d. The product dose not operate, exhibits a marked change in performance; or
e. The product has been dropped, or the enclosure of the product has been damaged.

1. Do not attempt to service this product beyond that described in the user-maintenance instructions. All other servicing should be referred to qualified service personnel.
2. This product, either alone or in combination with an amplifier and headphones or speaker/s, may be capable of producing sound levels that could cause permanent hearing loss. DO NOT operate for a long period of time at a high volume level or at a level that is uncomfortable. If you experience any hearing loss or ringing in the ears, you should consult an audiologist. IMPORTANT: The louder the sound, the shorter the time period before damage occurs.
3. Some Yamaha products may have benches and/or accessory mounting fixtures that are either supplied as a part of the product or as optional accessories. Some of these items are designed to be dealer assembled or installed. Please make sure that benches are stable and any optional fixtures (where applicable) are well secured BEFORE using. Benches supplied by Yamaha are designed for seating only. No other uses are recommended.

PLEASE KEEP THIS MANUAL

FCC INFORMATION (U.S.A.)

1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT! This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product.
2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.
3. NOTE: This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15 for Class "B" digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of

other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit "OFF" and "ON", please try to eliminate the problem by using one of the following measures: Relocate either this product or the device that is being affected by the interference.

Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s.

In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to co-axial type cable.

If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Corporation of America, Electronic Service Division, 6600 Orangethorpe Ave, Buena Park, CA90620

The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.

* This applies only to products distributed by YAMAHA CORPORATION OF AMERICA. (class B)

IMPORTANT NOTICE FOR THE UNITED KINGDOM

Connecting the Plug and Cord

IMPORTANT. The wires in this mains lead are coloured in accordance with the following code:

BLUE : NEUTRAL

BROWN : LIVE

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured makings identifying the terminals in your plug proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

Making sure that neither core is connected to the earth terminal of the three pin plug.

(2 wires)

- This applies only to products distributed by Yamaha-Kemble Music (U.K.) Ltd.

COMPLIANCE INFORMATION STATEMENT (DECLARATION OF CONFORMITY PROCEDURE)

Responsible Party : Yamaha Corporation of America Address : 6600 Orangethorpe Ave., Buena Park, Calif. 90620

Telephone:[phone]

Type of Equipment : Electronic Piano

Model Name : CVP-405/403/401

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1) this device may not cause harmful interference, and

2) this device must accept any interference received including interference that may cause undesired operation.

See user manual instructions if interference to radio reception is suspected.

This applies only to products distributed by YAMAHA CORPORATION OF AMERICA.

(FCC DoC)

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOCS ÉLEC- TRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.

(polarity)

This product contains a high intensity lamp that contains a small amount of mercury. Disposal of this material may be regulated due to environmental considerations.

For disposal information in the United States, refer to the Electronic Industries Alliance web site: www.eiae.org

YAMAHA CORPORATION OF AMERICA.

(mercury) ^* This applies only

For details of products, please contact your nearest Yamaha representative or the authorized distributor listed below.

Yamaha Canada Music Ltd.

135 Milner Avenue, Scarborough, Ontario,

M1S 3R1. Canada

Tel: [phone]

U.S.A.

Yamaha Corporation of America

6600 Orangethorpe Ave., Buena Park, Calif. 90620,

U.S.A.

Tel: [phone]

CENTRAL & SOUTH AMERICA

MEXICO

PANAMA AND OTHER LATIN

AMERICAN COUNTRIES/

CARIBBEAN COUNTRIES

Yamaha Music Latin America, S.A.

Sherbourne Drive, Tilbrook, Milton Keynes,

MK7 8BL, England

Tel: [phone]

IRELAND

Danfay Ltd.

61D, Sallynoggin Road, Dun Laoghaire, Co. Dublin

Tel: [phone]

GERMANY

Yamaha Music Central Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany

Tel: [phone]

Branch Austria, CEE Department

Schleiergasse 20, A-1100 Wien, Austria

Tel: [phone]

POLAND

Yamaha Music Central Europe GmbH

147 Skiathou Street, 112-55 Athens, Greece

Tel: [phone]

SWEDEN

Yamaha Scandinavia AB

J. A. Wettergrens Gata 1

Box 30053

S-400 43 Göteborg, Sweden

Tel: [phone]

DENMARK

YS Copenhagen Liaison Office

Generatorvej 6A

DK-2730 Herlev, Denmark

Tel: [phone]

FINLAND

F-Musiikki Oy

Kluuvikatu 6, P.O. Box 260,

SF-00101 Helsinki, Finland

Tel: [phone]

NORWAY

OTHER EUROPEAN COUNTRIES

Yamaha Music Central Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany

Tel: [phone]

AFRICA

Yamaha Corporation,

Asia-Pacific Music Marketing Group

Nakazawa-cho 10-1, Naka-ku, Hamamatsu,

Japan 430-8650

Tel: [phone]

MIDDLE EAST

TURKEY/CYPRUS

Yamaha Music Central Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany

Tel: [phone]

OTHER COUNTRIES

Yamaha Music Gulf FZE

LOB 16-513, P.O.Box 17328, Jubel Ali,

Dubai, United Arab Emirates

Tel: [phone]

ASIA

THE PEOPLE'S REPUBLIC OF CHINA

Yamaha Music & Electronics (China) Co., Ltd.

25/F., United Plaza, 1468 Nanjing Road (West),

Jingan, Shanghai, China

Tel: [phone]

HONG KONG

Tom Lee Music Co., Ltd.

11/F., Silvercord Tower 1, 30 Canton Road,

Tsimshatsui, Kowloon, Hong Kong

Tel: [phone]

INDONESIA

PT. Yamaha Music Indonesia (Distributor)

PT. Nusantik

Gedung Yamaha Music Center, Jalan Jend. Gatot

Subroto Kav. 4, Jakarta 12930, Indonesia

Tel: [phone]

KOREA

Yamaha Music Korea Ltd.

8F, 9F, Dongsung Bldg. 158-9 Samsung-Dong,

Kangnam-Gu, Seoul, Korea

Tel: [phone]

MALAYSIA

Yamaha Music Malaysia, Sdn., Bhd.

Lot 8, Jalan Perbandaran, 47301 Kelana Jaya,

Petaling Jaya, Selangor, Malaysia

Tel: [phone]

PHILIPPINES

Yupangco Music Corporation

339 Gil J. Puyat Avenue, P.O. Box 885 MCPO,

Makati, Metro Manila, Philippines

Tel: [phone]

SINGAPORE

Yamaha Music Asia Pte., Ltd.

03-11 A-Z Building

140 Paya Lebor Road, Singapore 409015

Tel: [phone]

TAIWAN

Yamaha KHS Music Co., Ltd.

3F, #6, Sec.2, Nan Jing E. Rd. Taipei.

Taiwan 104, R.O.C.

Tel: [phone]

THAILAND

Siam Music Yamaha Co., Ltd.

891/1 Siam Motors Building, 15-16 floor

Rama 1 road, Wangmai, Pathumwan

Bangkok 10330, Thailand

Tel: [phone]

OTHER ASIAN COUNTRIES

Yamaha Corporation,

Asia-Pacific Music Marketing Group

Nakazawa-cho 10-1, Naka-ku, Hamamatsu,

Japan 430-8650

Tel: [phone]

OCEANIA

AUSTRALIA

Yamaha Music Australia Pty. Ltd.

Level 1, 99 Queensbridge Street, Southbank,

Victoria 3006, Australia

Tel: [phone]

NEW ZEALAND

Music Houses of N.Z. Ltd.

146/148 Captain Springs Road, Te Papapa,

Auckland, New Zealand

Tel: [phone]

COUNTRIES AND TRUST

TERRITORIES IN PACIFIC OCEAN

Yamaha Corporation,

Asia-Pacific Music Marketing Group

Nakazawa-cho 10-1, Naka-ku, Hamamatsu,

Japan 430-8650

Tel: [phone]

YAMAHA

Clavinova Web site

http://music.yamaha.com/homekeyboard/

Yamaha Manual Library
