Product Type	Tanning appliance (solar bench)
Model	Philips HB953
Dimensions (approx.)	Length: 200 cm, Width: 80 cm, Height adjustable from 65 cm (UV filter to body)
Weight	Approximately 45 kg (estimated)
Power Supply	Mains voltage (check rating label), 16A fuse required
Lamps	Philips HPA flexpower 400-600, 750 hours lifetime
UV Filters	Special glass panes, replace if damaged
Tanning Functions	Full body, facial tanning, partial body tanning (types HB952/HB953)
Timer Range	1 to 30 minutes per session
Maximum Tanning Hours per Year	20 hours (1200 minutes)
Recommended Distance	65 cm between UV filters and body
Cooling System	Fans with 3-minute post-cooling
Overheat Protection	Automatic shutdown if vents blocked
Included Accessories	Protective goggles, remote control, measuring tape
Memory Function	Two memory knobs for session tracking (HB953 only)
Cleaning Instructions	Damp cloth, no abrasives; UV filters: soft cloth with methylated spirits
Replacement Parts	Lamps, UV filters, mains cord – authorized service only
Safety Certifications	CE, RoHS compliant
Warranty	Standard Philips warranty (see guarantee leaflet)

Frequently Asked Questions - HB953 PHILIPS

How often should I use the Philips HB953 tanning bed?

For a tanning course, use it once a day for 5 to 10 days. After that, take a break for about a month or maintain with 1-2 sessions per week. Do not exceed 20 hours (1200 minutes) per year.

What is the recommended distance from the UV filters?

The distance between the UV filters and your body must be 65 cm. The distance from the filters to the lying surface should be 85 cm.

How long should my first tanning session be?

The first session should always last 8 minutes, regardless of skin sensitivity. Subsequent sessions range from 10 to 30 minutes depending on your skin type.

What should I do if the appliance does not start?

Check that the plug is fully inserted, there is power, the lamps have cooled for 3 minutes, the vents are not blocked, and the lamp units are in the correct position. If the fuse blows, ensure it is 16A and not overloaded.

How do I clean the tanning bed?

Unplug and let cool. Wipe the outside with a damp cloth. Do not use abrasive cleaners. Clean the UV filters with a soft cloth and methylated spirits.

When should I replace the tanning lamps?

Replace after 750 burning hours. When 'L' appears on the display (HB953), the lamps need replacement. Contact a Philips service center for genuine Philips HPA flexpower 400-600 lamps.

Can I tan just a part of my body?

Yes, on models HB952 and HB953, select the partial body tanning symbol (✦) and choose the appropriate function for the area you want to tan.

What do the error codes mean?

E01: Check lamp unit position, vents, or UV filters (replace if damaged). E02 and higher: Serious problem, stop using and contact a Philips service center.

How do I store the tanning bed?

Let it cool for 15 minutes. Wind the cord, place it in the base with the remote. Fold the lamp units toward each other, tilt the upper part backward, lower it onto the base, and fasten the catches.

Is it safe to use the tanning bed with medications or cosmetics?

Some medications and cosmetics can increase skin sensitivity to UV. Consult your doctor if you are unsure. Remove all cosmetics before use and do not use tanning accelerators or sunscreens.

USER MANUAL HB953 PHILIPS

Technical line drawing of a dual-panel electronic device with cables and control panels (no text or symbols)

Plain beige background with no visible text, symbols, or objects

ENGLISH 6

EESTI 22

LATVISKI 37

LIETUVIŠKAI 52

Introduction

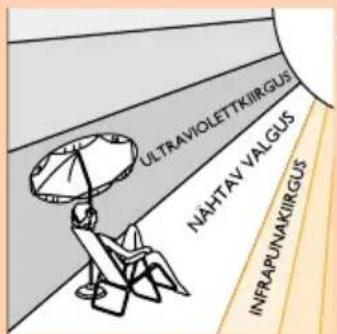

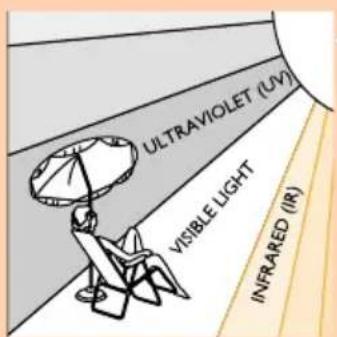

The sun

The sun supplies various types of energy. Visible light enables us to see, ultraviolet (UV) gives us a tan and infrared (IR) in sunrays provides the heat in which we like to bask.

The tanning appliance

With this tanning appliance you can suntan comfortably at home. The tanning lamps emit visible light, heat and ultraviolet, giving you the impression you are sunbathing in real sunlight. The special UV filter only passes the radiation that is required to get a tan.

The tanning lamps emit sufficient infrared to provide a comfortable warmth.

A timer ensures that each session does not last longer than 30 minutes. Just as with natural sunlight, overexposure must be avoided (see chapter 'UV, tanning and your health'.

Important

Check if the voltage indicated on the appliance corresponds to the mains voltage in your home before you connect the appliance.
If the plug has not been inserted properly into the wall socket, it may become hot. Make sure you insert the plug properly into the wall socket.
The appliance must be connected to a circuit that is protected with a 16A standard fuse or an automatic fuse.
▶ Always unplug the appliance after use.
Water and electricity are a dangerous combination! Do not use this appliance in wet surroundings (e.g. in the bathroom or near a shower or swimming pool).
If you have just been swimming or have just taken a shower, dry yourself thoroughly before using the appliance.
Let the appliance cool down after use for approx. 15 minutes before folding it back into transport position and storing it.
Make sure the vents in the lamp units and in the base remain open during use.
The appliance has been fitted with an automatic protection against overheating. If the appliance is insufficiently cooled (e.g. because the vents are covered), the appliance will switch off automatically. Once the cause of overheating has been removed and the appliance has cooled down, the appliance can be switched on again.

The UV filters become very hot when using the appliance. Do not touch them.

The appliance contains hinging parts, so be careful not to get your fingers stuck between these parts.

Never use the appliance when a UV filter is damaged, broken or missing.

▶ Make sure children do not play with the appliance.

Do not exceed the recommended session time and the maximum number of tanning hours (see 'UV tanning sessions: how often and how long?').

Do not take a tanning session if you have a disease and/or if you use a medication or cosmetics that increase the sensitivity of your skin. Be extra careful if you are hypersensitive to UV or IR. Consult your doctor in case of doubt.

Do not tan a particular part of your body more than once a day. Avoid excessive exposure to natural sunlight on the same day.

Consult your doctor if ulcers, moles or persistent lumps develop on the skin.

The appliance is not to be used by people who get sunburnt without tanning when exposed to the sun, by persons suffering from sunburn, by children, or by persons who suffer (or have previously suffered) from skin cancer or who are predisposed to skin cancer.

▶ Always wear the protective goggles provided with the appliance while tanning to protect your eyes from excessive doses of visible light, UV and IR (also see the chapter 'UV, tanning and your health').

Remove creams, lipstick and other cosmetics well in advance of a tanning session.

Do not use any quick-tan lotions or creams meant to speed up the tanning process.

Do not use suncreams or lotions meant to protect your skin against sunburn.

If your skin should feel taut after the tanning session, you may apply a moisturising cream.

To acquire an even tan you should lie directly below the lamp units.

Do not choose a tanning distance of less than 65 cm.

Only move the appliance when it is in transport position. Make sure that the two parts of the appliance have been properly fastened before you move it. Do not attempt to lift the appliance on your own.

Colours may fade under the influence of the sun. The same effect may occur when using this appliance.

Do not expect the appliance to yield better results than the natural sun.

UV, tanning and your health

Just as with natural sunlight, the tanning process will take some time. The first effect will only become visible after a few sessions (see chapter 'UV tanning sessions: how often and how long?').

Overexposure to ultraviolet (natural sunlight or artificial light from your tanning appliance) can cause sunburn.

Besides many other factors, such as overexposure to natural sunlight, incorrect and excessive use of a tanning appliance may increase the risk of skin and eye problems. The degree to which these effects occur is determined by the nature, intensity and duration of the radiation on the one hand and the sensitivity of the person involved on the other hand.

The more the skin and the eyes are exposed to UV, the higher the risk of keratitis, conjunctivitis, damage to the retina, cataracts, premature skin ageing and the development of skin tumours will be. Some medications and cosmetics increase the sensitivity of the skin.

Therefore it is highly important:

▶ that you follow the instructions in chapters 'Important' and 'UV tanning sessions: how often and how long?'.
▶ that the tanning distance (distance between the UV filters and the body) is 65 cm.
▶ that you do not exceed the maximum number of tanning hours per year (i.e. 20 hours or 1200 minutes).
▶ that you always wear the goggles provided while tanning.

UV tanning sessions: how often and how long?

Do not take more than one tanning session per day, over a period of five to ten days.
- Allow an interval of at least 48 hours between the first and the second session.
▶ After this 5- to 10-day course, we advise you to give your skin a rest for a while.
Approximately one month after a course, your skin will have lost much of its tan. You can then start a new course.
If you want to keep your tan, do not stop tanning after the course, but continue taking one or two tanning sessions a week.
Whether you choose to stop tanning for a while or whether you continue tanning on a lower frequency, do remember that you must not exceed the maximum number of tanning hours.
For this appliance the maximum is 20 tanning hours (=1200 minutes) a year.

This maximum also holds if you use the appliance for the tanning of parts of your body (function ⚙ and Ⓔ).

Example

Suppose you take a 10-day tanning course, with a 8-minute session on the first day and a 20-minute session on the nine following days.

The entire course will then last (1 × 8 minutes) + (9 × 20 minutes) = 188 minutes.

This means you can take 6 of these courses in a year, as 6 × 188 minutes = 1128 minutes.

Of course, the maximum number of tanning hours applies to each separate part or side of the body that is tanned (e.g. the back and front of the body).

As is shown in the table, the first session of a tanning course should always last 8 minutes, irrespective of the sensitivity of the skin.

If you think that the sessions are too long for you (e.g. because your skin feels taut and tender after the session), we advise you to reduce the length of the sessions by e.g. 5 minutes.
For a beautiful all-over tan, turn your body slightly during the session so that the sides of your body are better exposed to the tanning rays.

Duration of the tanning session for each separate part of the body	For persons with very sensitive skin	For persons with normal sensitive skin	For persons with less sensitive skin
1st session	8 minutes	8 minutes	8 minutes
rest of at least 48 hours
2nd session	10 minutes	20-25 minutes	30 minutes*
3rd session	10 minutes	20-25 minutes	30 minutes*
4th session	10 minutes	20-25 minutes	30 minutes*
5th session	10 minutes	20-25 minutes	30 minutes*
6th session	10 minutes	20-25 minutes	30 minutes*
7th session	10 minutes	20-25 minutes	30 minutes*
8th session	10 minutes	20-25 minutes	30 minutes*
9th session	10 minutes	20-25 minutes	30 minutes*
10th session	10 minutes	20-25 minutes	30 minutes*

*) or longer, depending on your skin sensitivity.

If your skin feels slightly taut after tanning, you can apply a moisturising cream.

REMARK

If you are only tanning a part of your body, you can also use the tanning schedules mentioned in the table above, together with the information in section 'UV tanning sessions: how often and how long?'

Preparing for use

Line drawing of a person pushing a suitcase (no text or symbols)

The appliance can be easily moved and stored in transport position.

Diagram of a medical procedure showing a device connected to a patient's torso, with no visible text or symbols.

If you want to give your face an extra tan or if you only want to tan a part of your body (i.e. just the legs or the upper half of your body; types HB952 and HB953 only), make sure you place the appliance at the correct side of the bed.

Illustration of a hand holding a tool with a yellow arrow indicating direction (no text or symbols)

Open the appliance by pulling the catches on both sides of the base out as indicated by the arrow.

The upper part of the appliance is now unlocked.

Line drawing of two stacked luggage cases (no text or symbols)

2 The upper part comes slightly up (by itself or with a little help).

Illustration of a person pushing a suitcase with directional arrows indicating motion (no text or symbols)

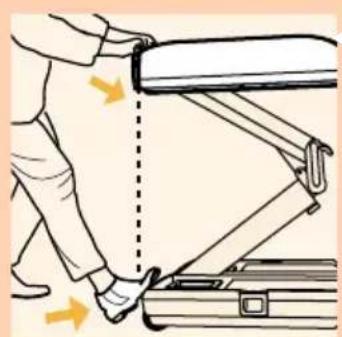

3 Grab the handle with both hands and put one foot against the appliance to prevent it from sliding away. Tilt the upper part by pulling the handle and tracing an arc with it.

Do not tilt the upper part too far.

Illustration of a person using a device to lift a laptop (no text or symbols present)

4 Pull the upper part up and towards you at the same time.

This requires some effort.

Illustration of a person using a walking bridge with directional arrows indicating motion (no text or symbols)

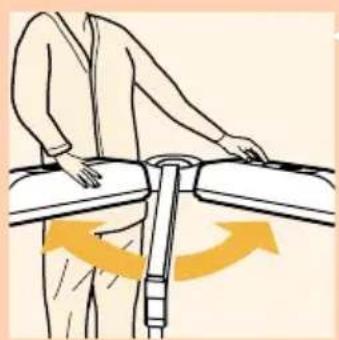

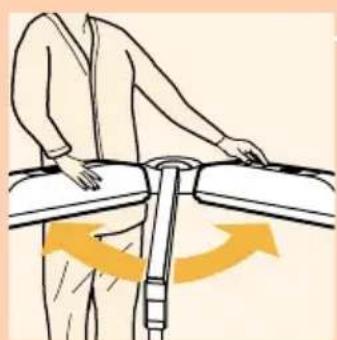

5 Move both lamp units sideways as far as possible, until they are in line with each other.

6 The distance between the UV filters and your body must be 65 cm. The distance between the UV filters and the surface on which you are lying down (e.g. a bed) must be 85 cm.

Illustration of a person using a mechanical device to lift a vehicle (no text or symbols visible)

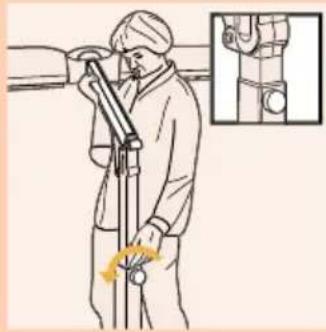

7 Support the upper part of the stand when you set or adjust the height of the appliance.

Loosen knob 'A' by turning it anti-clockwise (two or three turns).

Illustration of a person using a tool on a vertical pole, with an upward arrow indicating motion (no text or symbols present)

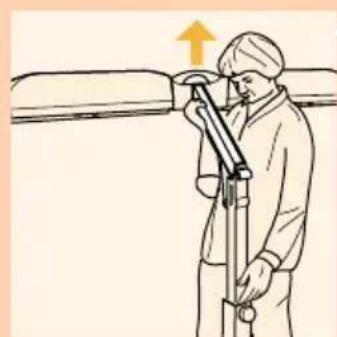

8 Put your hand under the horizontal part of the stand and extend the stand to the required height.

Line drawing of a person using a walking stick to measure a cylindrical object (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Technical line drawing of a mechanical component with a hand operating a tool (no text or symbols)

9 Firmly fasten knob 'A' again and release the stand.

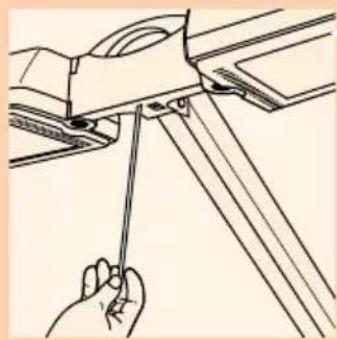

- You can determine whether the appliance has been set to the required height by pulling out the measuring tape.

The measuring tape will automatically rewind if you move the red tab sideways.

The appliance is now ready for use.

Using the appliance

I Fully unwind the mains cord.

2 Put the plug in the wall socket.

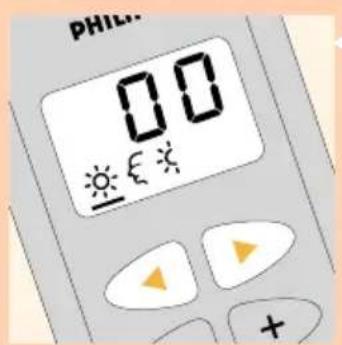

The remote control will show all the functions that need to be adjusted by the user. The tanning time is shown as 00.

Only types HB952 and HB953 show the symbol ☀: the symbol to tan a part of the body.

Adjusting functions

Use the ◀▶ buttons to switch from function to function. The underlined symbol shows the function you are programming

2 Selecting tanning, facial tanning or tanning a part of the body Choose symbol ☺ if you want to tan your whole body.

Choose symbol ⚙ and ℰ if you want to tan your whole body and give your face an extra tan.

Choose ✦ if you want to tan just a part of the body (types HB952 and HB953 only).

Choose symbols and if you want to tan just a part of the body, including an extra facial tanning (types HB952 and HB953 only).

Note: In these directions for use, functions ⚙ ∈ are used as examples of what may be shown on the display.

Setting the time for a tanning session

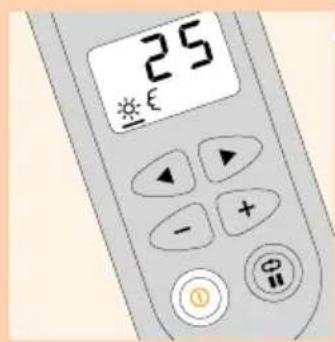

I Set the time of the tanning session by pushing the + button to put the time forward or by pushing the - button to put the time backward.

Keep the button pressed in to adjust the time more quickly.

2 Lie down directly under the lamp units of the appliance to ensure that the sides of your body are also tanned properly.

3 Put on the protective goggles provided.

4 Switch on the tanning lamps by pressing the start button ①.

Note: During start-up the tanning lamps may produce a humming sound. This sound will stop as soon as the lamps are burning properly.
Note: The tanning lamps will start to emit a visibly stronger light after about 20 seconds, which means they are now burning at full power. From this moment onwards you can switch the facial tanner on or off.
▶ Note: If the lamps fail to go on after about 20 seconds, switch the appliance off (①), let the lamps cool down for 3 minutes, set the tanning time and switch the appliance back on again (①).

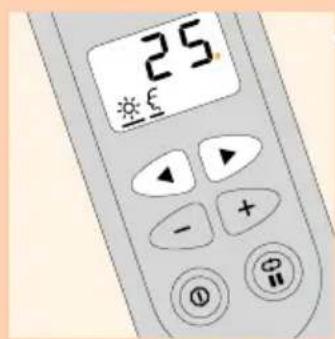

A blinking signal will appear; the set time is shown on the display (25 minutes in this case).

The countdown of the set tanning time will now start.

You can switch the facial tanner (☀️, Ⓔ) on or off during the session without having to switch off the whole appliance.

▶ (This also holds for the extra face tan in combination with ⚙). The chosen symbols stay visible in the display, but the other symbols do not.

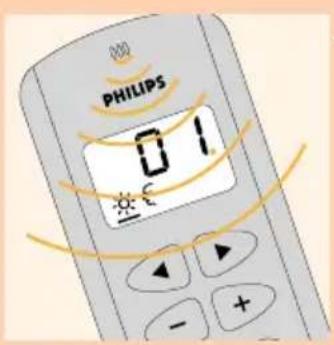

During the last minute of the session you will hear an intermittent beeping sound.

During this minute, you can press the pause/repeat button to repeat the set time.
The display shows the set time and starts to count down. The beeping stops.
It is also possible to set a new time.

By doing this, you can avoid the 3-minute waiting time which is necessary to allow the tanning lamps to cool down after they have been switched off.

5 Set a new time by pushing the + or - buttons. Then push the start button ①.

The beeping stops and the time that has just been set starts counting down.

When you do not repeat the session or set a new time during the last minute of the session, the countdown continues and the appliance will automatically switch off as soon as the set time has passed.

Interrupting the tanning session

Interrupt the tanning session by pushing the pause/repeat button.

The lamps will be switched off, P appears in the display together with the remaining time. For 3 minutes the remaining time will blink. During this time the lamps cool down. When the blinking has stopped, you can switch the appliance back on again by pushing the 📁 button. The remaining time will now be counted down.

Changing the tanning time during a session

When you are tanning, you can change the set time by pushing the ①button. The lamps will be switched off. Then set a new time by pushing the + - buttons. Wait until the set time has stopped blinking (this will take 3 minutes because the lamps have to cool down first) and push the ①button again.

Electrical switch panel with two dials and three terminals (no text or symbols)

After the tanning session

Keep track of the number of sessions you have had by means of the memory knobs (type HB953 only). The appliance has two memory knobs: one for each person.

Cooling

The appliance is cooled by means of fans to prevent materials and parts from becoming too hot. The tanning lamps won't go on if they are too hot (see for instance "Interrupting the tanning session").

After you have switched off the tanning lamps, the fans will continue to work for three more minutes.

This is convenient, because it enables you to use the tanning lamps again only 3 minutes after switching them off.

If you have switched the tanning appliance off by removing the plug from the wall socket, the fans won't provide cooling for three more minutes, of course.
If you have switched the tanning appliance off by removing the plug from the wall socket and another person wishes to use the appliance for a tanning session right away, the newly set time won't blink on the display. This means that the next person will have to keep track of the three-minute cooling-down period himself.

Cleaning

I Always unplug the appliance and let it cool down before you start cleaning it.
2 Clean the outside of the appliance with a damp cloth.

Do not let any water run into the appliance.

3 Do not use any scouring agents or scouring pads.

Never use abrasive liquids like scouring agents, petrol or acetone to clean the appliance.

- You can clean the outside of the UV filters with a soft cloth sprinkled with some methylated spirits.

Storing

Diagram of two identical electrical enclosure setups with wiring and components, no text or symbols present

Illustration of a person using a mechanical device with a magnified inset showing a close-up of the device (no text or symbols present)

Illustration of a person using a mechanical device to adjust or install a component (no text or symbols visible)

Illustration of a person using a walking balance scale with directional arrows indicating movement (no text or symbols)

I Let the appliance cool down for 15 minutes before you put it in transport position and store it.
In the meantime, you can wind up the cord and put it in the base of the appliance together with the remote control.
2 Make sure the cord and remote control are stored properly, as they might otherwise get stuck between parts of the appliance when you put the appliance in transport position.
3 Firmly hold the upper part of the stand with one hand and loosen the height adjustment knob (A) by turning it anticlockwise.
4 Slide in the stand fully.
5 Firmly fasten the height adjustment knob (A) by turning it clockwise.

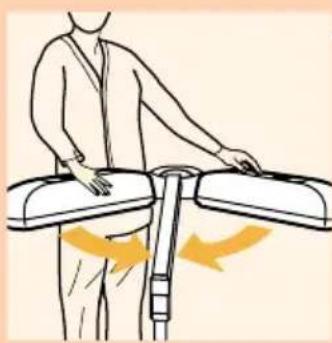

6 Turn the two lamp units towards each other.

Illustration of a person using a laptop to lift a seatbelt, with arrows indicating motion (no text or symbols)

7 Grab the handle with both hands, put one foot against the appliance to prevent it from sliding away and tilt the upper part with the stand backward.

The automatic unlocking system will only work if you tilt the upper part with the stand backward far enough. However, you should be careful not to tilt it backward too far because you might lose your balance if you do.

Illustration of a person using a laptop to lift a tray, with arrows indicating motion (no text or symbols)

8 Push the upper part down.

Illustration of a person adjusting a laptop keyboard with an arrow indicating the change (no text or symbols present)

9Lower it slowly onto the base.

Simple line drawing of a curved surface with a directional arrow, no text or symbols present

10 Fasten the lamp units to the base by pushing both catches in the direction of the arrow.

Replacement

The light emitted by the tanning lamps will become less bright in time (i.e. after a few years in case of normal use). When this happens, you will notice a decrease in the tanning capacity of the appliance. You can solve this problem by setting a slightly longer tanning time or by having the tanning lamps replaced.

▶ Type HB953 only: The remote control of the appliance includes a counter that registers the number of operating hours.

Plain beige background with no visible text, symbols, or objects

Close-up of a gray remote control device with display, function buttons, and a star symbol (no readable text or numbers)

1 Choose function ⚙. Set the time to 00 and hold down the pause/repeat 🔊 button to display the number of operating hours.

The maximum number of hours the counter can display is 999. After it has reached this number, it will continue to count up from 000.

2 When you release the pause/repeat button, the number of operating hours disappears from the display

On the packaging of the tanning lamps there is a symbol indicating that the lamps should be replaced after 750 burning hours. The appliance will tell you that you need to replace the tanning lamps by showing an L on the display of your remote control.

After 750 burning hours, an L will appear on the left-hand side of the display. This means that the tanning power of the appliance has decreased so much that replacement of the tanning lamps is advisable.

Of course, you can choose to postpone replacement for a while by setting a longer tanning time.

3 To remove the L from the display, press the pause/repeat button, with time indication 00 and function symbol on the display. Hold down the pause/repeat button and press first the +button and then the -button and the L will disappear from the display.

The UV filters protect against undesired radiation. It is therefore important to have a damaged or broken filter replaced right away.

Have the tanning lamps (Philips HPA flexpower 400-600), the UV filters and the mains cord replaced by an authorised Philips Service Centre Only they have the knowledge and skills required for this job and the original spare parts for the appliance.

Environment

The lamps of the appliance contain substances that can be harmful to the environment. When you discard the lamps, make sure they are not thrown away with the normal household waste but are handed in at an official collection point.

Information & service

If you need service or information or if you have a problem, please visit the Philips Web site at www.philips.com or contact the Philips Customer Care Centre in your country (you will find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, turn to your local Philips dealer or contact the Service Department of Philips Domestic Appliances and Personal Care BV.

Troubleshooting guide

If the appliance does not work properly, this may be due to a defect. In that case we advise you to contact your dealer or a Philips Service Centre.

The appliance may also fail to work properly because it has not been installed or is not used in accordance with the instructions. In that case you are able to solve the problem yourself by following the troubleshooting tips below. Read the instructions below to check whether you can solve the problem yourself before contacting your dealer or the Philips Service Centre.

Problem	Possible cause
The appliance does not start	The plug has not been (properly) inserted into the wall socket.
	There is a power failure. Check by means of an other appliance.
	The lamps are still too hot to go on. Let them cool down for 3 minutes first.
	The appliance was not sufficiently cooled and the overheating protection switched the appliance off automatically. Remove the cause of overheating (e.g. remove a towel that is blocking one or more vents).Wait for 10 minutes and switch the appliance back on.
	The two lamp units have not been put in the right position (see 'Preparing for use').
The fuse cuts off the power when you switch on the tanning appliance or during use.	Check the fuse of the circuit to which the tanning appliance is connected.The correct fuse type is a 16A standard fuse or an automatic fuse.The fuse may also blow because you have connected too many appliances to the same circuit.
Poor tanning capacity	You are using an extension cord that is too long and/or does not have the correct rating (16A). Consult your dealer. Our general advice is not to use an extension cord.
	You are not following the tanning schedule suitable for your skin type.
	The distance between the lamps and the surface you lie on is larger than prescribed.
	When the lamps have been used for a long time, the UV emitted will decrease.This effect only becomes noticeable after several years.You can solve this problem by selecting a longer tanning time or by having the lamps replaced. After 750 operating hours an L will appear on the display (type HB953 only) telling you that it is advisable to have the lamps replaced.
The appliance cannot be put back into transport position.	You have not pushed the upper part of the appliance backward far enough.Make sure you first push the upper part backward before pushing it down (see 'Storing').
	The appliance fails to unlock automatically. In that case you first have to press unlocking button (B), after which you can fold the appliance back into its transport position in the manner indicated in the chapter 'Storing'. If the appliance fails to unlock several times, contact your dealer or a Philips Service Centre.

Error codes

The display of the remote control may show error codes. Below we will explain what you should do if an error code appears on the display.

Note: E01 appears in the display for 5 seconds and at the same time you hear a beeping sound.

Note: E02 and codes with a higher number remain visible on the display. If these codes appear, the appliance has a serious problem and must not be used any longer.

Error code	Solution
E01	Check whether the two lamp units are in the right position (see 'appliance does not start' in the 'Troubleshooting guide').
	Check the openings of the vents (see 'appliance does not start' in the 'Troubleshooting guide').
	Check the UV filters (the special glass panes that cover the lamps). If these filters are broken, damaged or missing, stop using the appliance and contact your dealer or a Philips Service Centre.
E02 and codes with a higher number	Contact your local dealer or a Philips Service Centre.

Tutvustus

Päike

Line drawing of a person pushing a suitcase (no text or symbols)

Line drawing of a medical procedure with a device and patient positioning (no text or symbols)

Illustration of a hand holding a tool with a yellow arrow indicating direction (no text or symbols)

Line drawing of two stacked luggage cases (no text or symbols)

Illustration of a person pressing down on a suitcase with directional arrows indicating motion (no text or symbols)

Illustration of a person using a laptop to lift a briefcase, with arrows indicating motion (no text or symbols)

Illustration of a person using a walking bridge with directional arrows indicating motion (no text or symbols)

Illustration of a person using a mechanical device to lift a vehicle (no text or symbols visible)

Illustration of a person using a mechanical device to lift a cylindrical component (no text or symbols visible)

Line drawing of a person operating a lift valve (no text or symbols present)

9 Kinnitage nupp 'A' uuesti ja vabastage hoidik.

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Illustration of a hand holding a tool with a yellow arrow indicating direction (no text or symbols)

Simple diagram of two circular switches inside a rectangular frame (no text or symbols)

Two identical test tubes with internal components and connecting wires, no text or symbols visible

Illustration of a person using a pulley system with a magnified inset showing the device (no text or symbols present)

Line drawing of a person using a tool to lift a cylindrical object (no text or symbols)

Illustration of a person using a walking device with directional arrows indicating motion (no text or symbols)

Illustration of a person using a laptop to interact with a device, showing motion arrows (no text or symbols)

Illustration of a person using a laptop to lift a seatbelt, with arrows indicating movement (no text or symbols)

Illustration of a person using a treadmill to adjust the seat area (no text or symbols visible)

Simple line drawing of a curved surface with a triangular object and an arrow indicating direction (no text or symbols)

Line drawing of a person pushing a suitcase (no text or symbols)

Diagram of a medical procedure setup with a device and patient (no text or labels)

Illustration of a hand using a tool to adjust or install a mechanical component, with an arrow indicating motion (no text or symbols present)

Line drawing of two stacked luggage cases (no text or symbols)

Illustration of a person adjusting a treadmill with directional arrows indicating motion (no text or symbols)

Illustration of a person using a laptop to lift a briefcase, showing motion arrows (no text or symbols)

Illustration of a person using a walking barbell with directional arrows indicating movement (no text or symbols)

Illustration of a person using a mobility device with a yellow circular arrow indicating rotation (no text or symbols)

Illustration of a person using a tool on a lift, with an upward arrow indicating motion (no text or symbols present)

Line drawing of a person operating a large industrial machine (no text or symbols present)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Simple electrical switch panel with two circular buttons and two terminals (no text or symbols)

Atdzišana

Diagram of two identical test tubes with internal components and connecting wires, no text or symbols present

Illustration of a person using a mechanical device with a magnified inset showing a close-up of the device (no text or symbols present)

Line drawing of a person using a mechanical device to adjust or install a component (no text or symbols present)

Illustration of a person using a walking balance scale with directional arrows indicating motion (no text or symbols)

Illustration of a person pushing a treadmill with directional arrows indicating movement (no text or symbols)

Illustration of a person using a laptop to lift a device, with arrows indicating motion (no text or symbols)

Illustration of a person using a laptop to press or install a device, with an arrow indicating the process (no text or symbols present)

9 Lēni nolaidiet to uz pamatnes.

Pure diagram of a mechanical component with no text, numbers, or symbols

Line drawing of a person pushing a suitcase (no text or symbols)

Diagram of a medical procedure showing a patient undergoing a leg lift using a stand-mounted device (no text or labels)

Illustration of a hand holding a tool with a yellow arrow indicating direction (no text or symbols)

Line drawing of two stacked luggage cases (no text or symbols)

Illustration of a person adjusting a suitcase with directional arrows indicating motion (no text or symbols)

Illustration of a person using a laptop to lift a device (no text or symbols visible)

Illustration of a person using a walking bridge with directional arrows indicating movement (no text or symbols)

Illustration of a person using a mechanical device to lift a vertical rod (no text or symbols present)

Illustration of a person using a tool on a lift, with an upward arrow indicating motion (no text or symbols present)

Line drawing of a person using a tool on a large cylindrical object (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Simple diagram of two circular switches inside a rectangular frame (no text or symbols)

Diagram of two laboratory test tubes with tubing and connectors, no text or symbols present

Illustration of a person using a mechanical device with a magnified inset showing a close-up of the device (no text or symbols present)

Line drawing of a person using a tool to lift a cylindrical object (no text or symbols)

Illustration of a person using a walking balance scale with directional arrows indicating movement (no text or symbols)

Illustration of a person walking down a treadmill with directional arrows indicating movement (no text or symbols)

Illustration of a person using a laptop to lift a seat, with arrows indicating motion (no text or symbols)

Illustration of a person adjusting a suitcase with an arrow indicating the handle (no text or symbols present)

Diagram of a mechanical component with a yellow arrow indicating direction (no text or symbols)
