USER MANUAL Iron Fist Motörheadphönes

Stylized black-and-white illustration of a fierce, horned monster with chains and claws (no text or symbols)

phönes

Iron Fist

Instruction Manual 02

Professional Headphone for all music lovers

Extended frequency response for accurate reliable sound reproduction To be used with any music player, portable or stationery.

General Description

Iron Fist is a closed-back dynamic headphones. The sound quality meets the demanding professional use, as well as ordinary day-to-day listening. The sound has been special tailored with the help of a team of professional rock/ metal producers and sound engineers. The result is a sound that works listening for long periods of any music in general and but more specifically rock music. The headphones provide long lasting durability even under challenging conditions (like on the road with Motörhead), thanks to its patented sturdy structure. They are light weight and the optimized

mechanical pressure provides long-term wearing comfort. Equipped with 2 straight cables, the short one is 1 meter long for palm size sound source on-the-move applications? The long one is 2.5 meter long for professional monitoring applications. Connect both cables together, for even more distant requires?

Included cable clip can secure detachable cable from pulling out by accident.

Features

• Dynamic, closed-back circumaural headphones
• High noise attenuation
- ∅40 mm high resolution drivers
• Patented self-adjusting headband for great fit and maximum comfort
- Velvet ear pads for best noise isolation and comfortable listening
• Heavy gauge, woven cable for tangle-free use and the best sound
- Detachable, single side cable
- Light weight

Specifications

Acoustic Design

Dynamic, closed-back

Driver

ø40 mm, neodymium

Sensitivity

102 dB SPL (1mW) at 1KHz

Frequency Response

10 - 20,000 Hz

Maximum Input Power

200 mW

Rated Impedance

68 Ω@ 1KHz

Earpad

Velvet

Head Band Pressure

Approx. 5.5 N

Cable

1-meter(3.3 ft.) & 2.5-meter (8.2 ft.)

straight cable, single-sided

Connector

Avoid using headphones with the volume turned up for an extended period of time. Following are guidelines by Occupational Safety and Health Administration and CDC, NIOSH:

dB SPL	Occupational noise exposure 1991	NIOSH and CDC 2002
85	8 hours
88	8 hours (90 dB SPL) 4 hours
91	6 hours (92 dB SPL) 2 hours
94	4 hours (95 dB SPL) 1 hour
97	3 hours 30 min
100	2 hours 15 min
103	1.5 hours (102 dB SPL) 7.5 min
106	1 hour (105 dB SPL) < 4 min
109	30 min (110 dB SPL) < 2 min
112 ~ 1 min
115	15 min	~ 30 sec

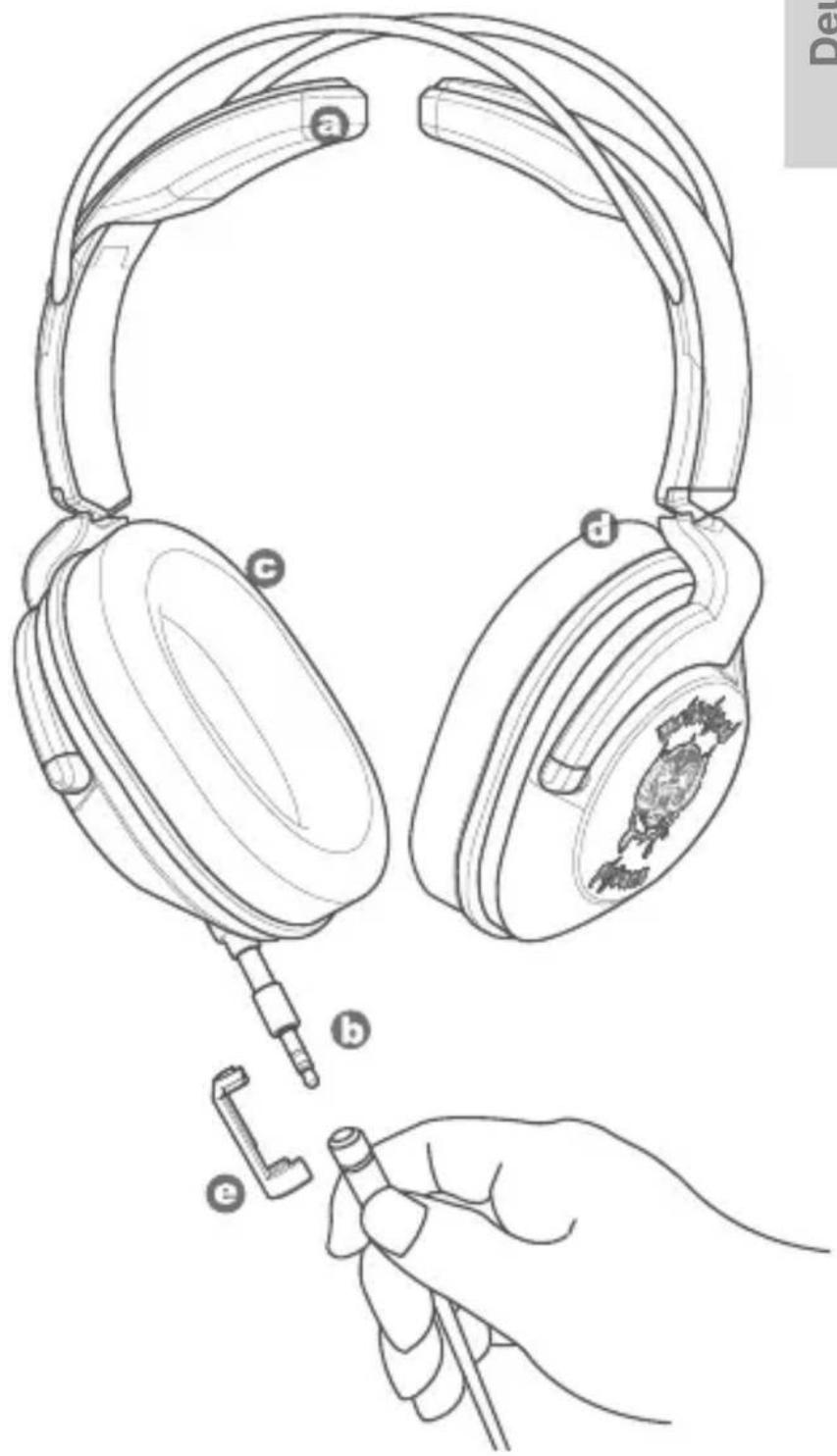

a Patent Structure
b Detachable
Super soft velvet ear pad
d Foam Disk, 1 pair
e Cable Clip

Look for accessories at www.motorheadphones.com

• Replacing the ear pads by simply remove the old one. Restore the new set of pads slowly along the edge of the enclosures.
  • To change the cables, simply unplug the cable at the connectors as the same as headphone jacks. Restore with another compatible cable.
• Put on cable clip to secure detachable cable from pulling out by accident

Diagram showing a mechanical assembly with a bent pipe and two sequential views of a threaded component (no text or symbols)

Technical line drawing showing the installation of an audio headphones with labeled parts (a, b, c, d) and a hand holding a tool.

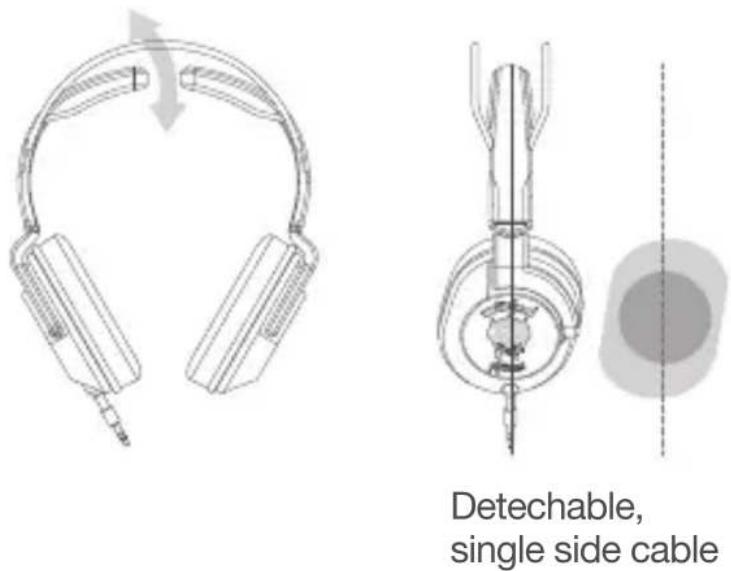

Patented self-adjusting headband for maximum comfort

Detechable, single side cable

Replacing the ear pads

The ear pads have to be replaced from time to time for hygienic reasons.

Cleaning the headphones

To clean the headphones, use a soft damp cloth. If necessary, the headphones can be cleaned with soap water (use a mild cleanser such as washing-up liquid).

Note: Do Not use solvent-containing cleansers!

Included

Simple line drawing of a coiled cable or wire (no text or symbols)

1M straight cable

Coiled cable or wire with no visible text or symbols

2.5M straight cable

Plug adapter

3.5mm to 6.3mm

Cable Clip

Carrying Pouch

Motörheadphönes Limited Warranty Summary

All Motörheadphönes product comes with a Limited Warranty that in normal use the product will be free of any defects in workmanship or materials for a period of two years from its original date of purchase. However, this is not intended as a complete statement of the actual Limited Warranty applicable to any product. The Limited Warranty includes other important terms, conditions, limitations, and exclusions. For the actual Limited Warranty applicable to any product, please refer to our website www.motorheadphones.com

GLOBAL

All registered trademarks belong to their respective owner. Produced and marketed by Krusell International AB ©2012 Motorhead. Under license to Global Merchandising Services Ltd All rights reserved

Contact

Marketing and sales

Motörheadphones

[phone]

[e-mail]

www.motorheadphones.com

Diagram showing a mechanical assembly with a bent pipe and threaded spring (no text or symbols)

Line drawing of a hand using a tool to adjust or install a device, showing components like a circular device and a ring (no text or symbols present)

Deutsch

Technical line drawings of headphones and ear components, showing front and side views with no text or symbols

Simple line drawing of a coiled cable or wire (no text or symbols)

1M Kabel

Simple gray spiral line drawing with no text or symbols

2.5M Kabel

Steckeradapter

3.5mm/6.3mm

Kabelklemme

Tragebeutel

All registered trademarks belong to their respective owner. Produced and marketed by Krusell International AB ©2012 Motorhead. Under license to Global Merchandising Services Ltd All rights reserved

Kontact

102 dB SPL (1mW) at 1KHz

cable rector, unilateral

Conector

Diagram showing a mechanical assembly with a bent pipe and a threaded component, no text or symbols present.

Español

Line drawing of a pair of earpieces with accessories being processed, no text or symbols present

Technical line drawings of headphones and ear components, showing front and side views with no text or symbols

Coiled cable or wire with two leads, no visible text or symbols

Cable plano de 2.5m

Conector Adaptador modelo 3.5mm/6.3mm

Clip para Cables

All registered trademarks belong to their respective owner. Produced and marketed by Krusell International AB ©2012 Motorhead. Under license to Global Merchandising Services Ltd All rights reserved

Contacto

Marketing y ventas

Motörheadphones

[phone]

[e-mail]

www.motorheadphones.com

Iron Fist

Manual

d'instructiones

Iron Fist

Diagram showing a mechanical assembly with a bent pipe and a threaded component, no text or symbols present.

Français

Line drawing of a hand using a tool to adjust or install a device, showing components like a circular device and a ring (no text or symbols present)

Technical line drawings of headphones and ear components, showing front and side views with no text or symbols

Simple gray cable or wire illustration with no text or symbols

All registered trademarks belong to their respective owner. Produced and marketed by Krusell International AB ©2012 Motorhead. Under license to Global Merchandising Services Ltd All rights reserved

Contact

Marketing et Ventes

Motörheadphones

[phone]

[e-mail]

www.motorheadphones.com
