Brand	Bosch
Model	PSA 700 E
Product type	Sabre saw
Rated power input	710 W
No-load stroke rate	0 – 2 700 min⁻¹
Stroke length	20 mm
Max cutting depth in wood	150 mm
Max cutting depth in steel (non-alloy)	10 mm
Max pipe diameter	115 mm
Weight (according to EPTA)	3,1 kg
Protection class	II (double insulation)
Sound pressure level	89 dB(A)
Sound power level	97 dB(A)
Uncertainty K (noise)	5 dB
Vibration (sawing chipboard panels)	13,5 m/s² (K=1,5 m/s²)
Vibration (sawing wooden beams)	15,5 m/s² (K=1,5 m/s²)
Tool holder	SDS
Power supply	Mains (230 V)
Variable speed	Yes (by pressure on switch)
Materials that can be sawn	Wood, plastic, metal, construction materials
Special functions	Plunge cuts, flush cutting (with bimetal blades)
Maintenance and cleaning	Clean the ventilation slots, lubricate the blade holder, replace the cable by a professional
Safety	Switch without lock, double insulation, use of gloves and safety glasses
Spare parts and repairability	Bosch after-sales service, spare parts available at bosch-pt.com

Frequently Asked Questions - PSA 700 E BOSCH

How to change the saw blade?

Push the SDS lever (4) forward, insert the saw blade behind the clamping plate into the blade holder, then release the lever. Check that the blade is properly secured by pulling on it. Wear protective gloves.

What is the maximum cutting depth in wood?

The maximum cutting depth in wood is 150 mm.

Can I perform plunge cuts?

Yes, only in soft materials such as wood or plasterboard. Use short blades, position the base plate on the workpiece and let the blade plunge slowly after starting.

How to adjust the cutting speed?

The cutting speed is continuously variable depending on the pressure on the On/Off switch. Light pressure gives low speed, strong pressure increases speed.

What types of blades can I use?

Use universal 1/2 inch shank saw blades, with a thickness of 0.8 to 1.6 mm. Choose a blade suitable for the material and desired cut.

How to clean and maintain the saw?

Unplug the tool. Clean the ventilation slots with a brush. Clean the blade holder after removing the blade and lubricate it with a suitable lubricant.

What protective equipment is recommended?

Always wear safety glasses, a dust mask (class P2), protective gloves and hearing protection (noise level up to 97 dB(A)).

Can the saw cut metal?

Yes, it can cut non-alloy steel up to 10 mm thick and pipes up to 115 mm in diameter. Use a lubricant or coolant when cutting metal.

How to perform flush cutting against a wall?

Use a flexible bimetal blade and ensure it is longer than the diameter of the workpiece. Place the blade against the wall, bend it slightly and saw with constant lateral pressure.

Where to find spare parts?

Spare parts are available on the website www.bosch-pt.com. You can also contact Bosch after-sales service or order online from the spare parts shop.

USER MANUAL PSA 700 E BOSCH

PSA 700 E

PSA 7100 E

4

A

B

D

German

Safety instructions

www.bosch-pt.com/serviceaddresses

Disposal

General Power Tool Safety Warnings

WARNING

Read all safety warnings, instructions, illustrations and specifications.

tions provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

▶ Keep work area clean and well lit. Cluttered or dark areas invite accidents. ▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. ▶ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. ▶ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. ▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. ▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

▶ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. ▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. ▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Service

Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety instructions for reciprocating saws

Hold the power tool by insulated gripping surfaces when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the workpiece by hand or against your body leaves it unstable and may lead to loss of control. Keep hands away from the sawing area. Do not reach under the workpiece. Contact with the saw blade can lead to injuries. Hold the power tool firmly with both hands and make sure you have a stable footing. The power tool can be more securely guided with both hands. Only bring the power tool into contact with the workpiece when switched on. Otherwise there is danger of kickback if the cutting tool jams in the workpiece. Ensure that the footplate is always resting on the workpiece while sawing. The saw blade can jam and lead to loss of control over the power tool. When the cut is completed, switch off the power tool and then pull the saw blade out of the cut only after it has come to a standstill. In this manner you can avoid kickback and can place down the power tool securely. Always wait until the power tool has come to a complete stop before placing it down. The application tool can jam and cause you to lose control of the power tool. Use only undamaged saw blades that are in perfect condition. Bent or dull saw blades can break, negatively influence the cut, or lead to kickback. Do not brake the saw blade to a stop by applying side pressure after switching off. The saw blade can be damaged, break or cause kickback. Ensure that the material is securely clamped. Do not support the workpiece using your hands or feet. Do not touch any objects or the floor with the saw while it is running. There is a risk of kickback. Use suitable detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property damage or may cause an electric shock.

Products sold in GB only:

Your product is fitted with a BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362). If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an au-

12 | English

thorised customer service agent. The replacement plug should have the same fuse rating as the original plug. The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.

Product Description and Specifications

Read all the safety and general instructions. Failure to observe the safety and general instructions may result in electric shock, fire and/or serious injury.

Please observe the illustrations at the beginning of this operating manual.

Intended Use

The power tool is suitable for sawing wood, plastic, metal and building materials on a firm surface. It is suitable for straight and curved cuts. When using designated suitable bimetal saw blades, flush cutting is also possible. The saw blade recommendations are to be observed.

Product features

The numbering of the product features refers to the diagram of the power tool on the graphics page.

(1) Saw blade ^a) (2) Base plate (3) Saw blade receptacle (4) SDS lever for saw blade release (5) On/off switch (6) Handle (insulated gripping surface) (7) Clamping plate

a) Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range.

Technical data

Reciprocating saw PSA 700 E		PSA 7100 E
Article number		3 603 CA7 0..
Stroke rate control ●
Rated power input W 710
No-load stroke rate n0 min	-1	0-2700
Tool holder SDS
Stroke mm 20
Max. cutting depth
– in wood mm 150
– in steel (unalloyed) mm 10
– Pipe diameter mm 115
Weight according to EPTA-Procedure 01:2014	kg 3.1

Reciprocating saw PSA 700 E

PSA 7100 E

Protection class

The specifications apply to a rated voltage [U] of 230 V. These specifications may vary at different voltages and in country-specific models.

Values can vary depending upon the product and are subject to application and environmental conditions. For further information www.bosch-professional.com/wac.

Noise/vibration information

Noise emission values determined according to EN 62841-2-11.

Typically, the A-weighted noise level of the power tool is: sound pressure level 89 dB(A); sound power level 97 dB(A). Uncertainty K = 5 dB.

Wear hearing protection!

Vibration total values a_h (triax vector sum) and uncertainty K determined according to EN 62841-2-11:

Cutting boards with saw blade S 2345 X HCS:

a_H,B = 13.5 m/s² , K = 1.5 m/s² ,

Cutting wooden beams with saw blade S 2345 X HCS: a_{n, WB} = 15.5 m / s², K = 1.5 m / s² .

The vibration level and noise emission value given in these instructions have been measured in accordance with a standardised measuring procedure and may be used to compare power tools. They may also be used for a preliminary estimation of vibration and noise emissions.

The stated vibration level and noise emission value represent the main applications of the power tool. However, if the power tool is used for other applications, with different accessories or is poorly maintained, the vibration level and noise emission value may differ. This may significantly increase the vibration and noise emissions over the total working period.

To estimate vibration and noise emissions accurately, the times when the tool is switched off or when it is running but not actually being used should also be taken into account. This may significantly reduce vibration and noise emissions over the total working period.

Implement additional safety measures to protect the operator from the effects of vibration, such as servicing the power tool and accessories, keeping their hands warm, and organising workflows correctly.

Assembly

Pull the plug out of the socket before carrying out any work on the power tool.

Inserting/changing the saw blade (Accessory)

When fitting or changing the saw blade, wear protective gloves. Blades are sharp and can become hot when used for prolonged periods of time.

▶ While replacing the saw blade, ensure that the saw blade receptacle is free of material residue, e.g. wood or metal chips.

Selecting the saw blade

You will find an overview of recommended saw blades at the end of these operating instructions. Only use saw blades with a 1/2" universal shank. The saw blade should not be longer than required for the intended cut.

The shank thickness of the saw blade has to be 0.8-1.6 mm.

Inserting the saw blade (see figure A)

Press the SDS lever (4) forward and guide the saw blade (1) behind the clamping plate (7) into the saw blade receptacle (3). Release the SDS lever (4).

▶ Check that it is seated securely by pulling the saw blade. A loose saw blade can fall out and lead to injuries.

For particular jobs, the saw blade (1) can also be flipped 180° (teeth point upwards) and refitted.

Removing the saw blade

▶ Let the saw blade cool down before removing it. There is a risk of injury when touching the hot saw blade. Press the SDS lever (4) forward and pull out the saw blade (1). Release the SDS lever (4).

Dust/Chip Extraction

Dust from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one's health. Touching or breathing-in the dust can cause allergic reactions and/or lead to respiratory infections of the user or bystanders.

Certain dust, such as oak or beech dust, is considered carcinogenic, especially in connection with wood-treatment additives (chromate, wood preservative). Materials containing asbestos may only be worked by specialists.

- Provide for good ventilation of the working place.

- It is recommended to wear a P2 filter-class respirator.

Observe the relevant regulations in your country for the materials to be worked.

Avoid dust accumulation at the workplace. Dust can easily ignite.

Operation

Products that are only sold in AUS and NZ: Use a residual current device (RCD) with a nominal residual current of 30 mA or less.

Starting Operation

Pay attention to the mains voltage. The voltage of the power source must match the voltage specified on the rating plate of the power tool.

Switching on/off

To switch on the power tool, press the on/off switch (5) and keep it pressed.

To switch off the power tool, release the on/off switch (5).

Note: For safety reasons, the on/off switch (5) cannot be locked; it must remain pressed during the entire operation.

Controlling the stroke rate

You can variably adjust the stroke rate of the power tool when it is on by pressing in the on/off switch (5) to varying extents.

Applying light pressure to the on/off switch (5) results in a low stroke rate. Applying increasing pressure to the switch increases the stroke rate.

The required stroke rate is dependent on the material and the work conditions and can be determined using practical tests.

It is recommended that you reduce the stroke rate when placing the saw blade on the workpiece and when sawing plastic and aluminium.

During prolonged periods of use at a low stroke rate, the power tool may heat up significantly. Remove the saw blade and let the power tool run at the maximum stroke rate for around three minutes to cool down.

Working Advice

Pull the plug out of the socket before carrying out any work on the power tool. Switch the power tool off immediately if the saw blade becomes blocked.

Tips

When sawing lightweight materials, take into account the statutory provisions and recommendations of the material manufacturers.

Before sawing into wood, chipboard, building materials, etc., check for any foreign objects such as nails, screws, etc. and use a suitable saw blade.

Switch on the power tool and guide it towards the workpiece you wish to work on. Place the base plate (2) on the surface of the workpiece and saw through the material applying even pressure and feed. Switch the power tool off once you have finished your work.

Switch the power tool off immediately if the saw blade jams. Widen the sawing gap slightly with a suitable tool and pull the power tool out.

Swivelling base plate (see figure B)

Thanks to its mobility, the base plate (2) adopts the required angle position of the surface.

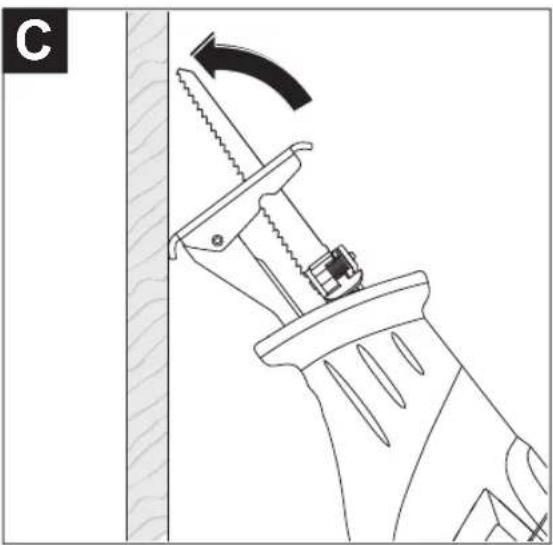

Plunge cutting (see figures C–D)

Plunge cuts may only be applied to soft materials, such as wood, gypsum board, etc. Do not plunge cut metal materials.

For plunge cutting, use only short saw blades.

Place the power tool so that the edge of the base plate (2) rests on the workpiece, without the saw blade (1) touching the workpiece, and switch it on. When using power tools with stroke rate control, select the maximum stroke rate. Press the power tool firmly against the workpiece and allow the saw blade to plunge slowly into the workpiece.

As soon as the base plate (2) rests fully on the workpiece, continue sawing along the required cutting line.

14 | English

For particular jobs, the saw blade (1) can also be fitted after being turned 180° in order to operate the power tool the other way around.

Flush sawing (see figure E)

Protruding components such as water pipes, for example, can be cut directly at the wall using elastic bi-metal saw blades.

Ensure that the saw blade is always longer than the diameter of the workpiece. There is a risk of kickback.

Place the saw blade directly against the wall and bend it slightly by applying lateral pressure to the power tool until the base plate is flush with the wall. Switch on the power tool and saw through the workpiece applying consistent lateral pressure.

Coolant/lubricant

As the material heats up along the cutting line when cutting metal, you should apply coolant or lubricant.

Maintenance and Service

Maintenance and Cleaning

Pull the plug out of the socket before carrying out any work on the power tool. To ensure safe and efficient operation, always keep the power tool and the ventilation slots clean.

In order to avoid safety hazards, if the power supply cord needs to be replaced, this must be done by Bosch or by an after-sales service centre that is authorised to repair Bosch power tools.

Carefully clean the saw blade receptacle with a soft cloth. To do so, remove the saw blade from the power tool. Keep the saw blade receptacle operational using suitable lubricants.

If the power tool becomes very dirty, this can lead to serious faults. For this reason, do not cut materials which generate large quantities of dust from below or overhead.

After-Sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com

The Bosch product use advice team will be happy to help you with any questions about our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

You can find further service addresses at:

www.bosch-pt.com/serviceaddresses

Disposal

The power tool, accessories and packaging should be recycled in an environmentally friendly manner.

Do not dispose of power tools along with household waste.

Only for EU countries:

According to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and its implementation into national law, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

If disposed incorrectly, waste electrical and electronic equipment may have harmful effects on the environment and human health, due to the potential presence of hazardous substances.

Only for United Kingdom:

According to The Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended), products that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

French

Robert Bosch (France) S.A.S.

www.bosch-pt.com/serviceaddresses

www.bosch-pt.com/serviceaddresses

Disposal

www.bosch-pt.com/serviceaddresses

Disposal

www.bosch-pt.com/serviceaddresses

Disposal

Reciprocating saw PSA 700 E

PSA 7100 E

Tool holder SDS

Stroke mm 20

Max. cutting depth

- in wood mm 150

www.bosch-pt.com/serviceaddresses

Waste disposal

Bosch Service Center

Telegrafvej 3

2750 Ballerup

At www.bosch-pt.dk you can order spare parts online or create a repair order.

Service Center phone: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.com/serviceaddresses

Disposal

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Denmark

Tel.: [phone] (within Sweden)

Fax: [phone]

www.bosch-pt.com/serviceaddresses

Waste management

www.bosch-pt.com/serviceaddresses

Deposition

www.bosch-pt.com/serviceaddresses

Disposal

www.bosch-pt.com/serviceaddresses

Disposal

www.bosch-pt.com/serviceaddresses

Disposal

Robert Bosch Morocco SARL

53. شارع الملازم محمد محرود

20300 الدار البيضاء

www.bosch-pt.com/serviceaddresses

Declaration of Conformity

Reciprocating saw Article number

PSA 700 E 3 603 CA7 070

We declare under our sole responsibility that the stated products comply with all applicable provisions of the regulations listed below and are in conformity with the following standards.

Technical file at: Robert Bosch Ltd. (PT/SOP-GB), Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom

The Supply of Machinery (Safety) Regulations 2008

The Electromagnetic Compatibility Regulations 2016

The Restriction of the Use of Certain Hazardous Substances in

Electrical and Electronic Equipment Regulations 2012

EN 62841-1:2015+A11:2022

EN 62841-2-11:2016+A1:2020

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A1:2021

EN 61000-3-3:2013+A1:2019+A2:2021

EN IEC 63000:2018

BOSCH

Vonjy Rajakoba

Managing Director - Bosch UK

Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany represented (in terms of the above regulations) by

Robert Bosch Limited, Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom

Martin Sibley

Head of Sales Operations and Aftersales

Robert Bosch Ltd. Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom, as authorised representative acting on behalf of Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany

Place of issue: Uxbridge Date of issue: 14/10/2023
