USER MANUAL HMT84G461 BOSCH

[en] Instruction manual

[ar] دليل الاستعمال

Installation and connection .... 5

The control panel.... 5

Rotary selector ....5

Types of heating....6

Accessories 6

Before using the appliance for the first time.... 6

Setting the clock 6

Heating up the cooking compartment....6

The microwave 7

Notes regarding ovenware....7

Microwave power settings....7

Setting the microwave....7

Cooling fan....7

Grilling 8

Setting the grill....8

Combined microwave and grill....8

Setting the microwave and grill....8

Memory 9

Saving memory settings 9

Starting the memory....9

Changing the signal duration 9

Care and cleaning....9

Cleaning agents ....10

Malfunction table 10

After-sales service.... 11

E number and FD number 11

Technical data 11

Environmentally-friendly disposal.... 11

Automatic programmes.... 11

Setting a programme ....11

Defrosting using the automatic programmes.... 12

Cooking with the automatic programmes.... 12

Combi-cooking programme.... 13

Tested for you in our cooking studio.... 13

Information regarding the tables.... 13

Defrost.... 13

Defrosting, heating up or cooking frozen food 14

Heating food 14

Cooking food.... 15

Microwave tips.... 15

Tips for grilling....15

Combined grill and microwave 16

Test dishes in accordance with EN 60705 17

Cooking and defrosting with the microwave 17

Additional information on products, accessories, replacement parts and services can be found at www.bosch-home.com and in the online shop www.bosch-eshop.com

⚠️ Important safety information

Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual for future use or for subsequent owners.

Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.

Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under warranty.

This appliance is intended for domestic use only. The appliance must only be used for the preparation of food and drink. The appliance must be supervised during operation. Only use this appliance indoors.

This appliance is intended for use up to a maximum height of 4000 metres above sea level.

This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of

experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards.

Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.

Keep children below the age of 8 years old at a safe distance from the appliance and power cable.

Risk of fire!

■ The appliance becomes very hot. If the appliance is installed in a fitted unit with a decorative door, heat will accumulate when the decorative door is closed. Only operate the appliance when the decorative door is open.

■ Combustible items stored in the cooking compartment may catch fire. Never store combustible items in the cooking

compartment. Never open the appliance door if there is smoke inside. Switch off the appliance and unplug it from the mains or switch off the circuit breaker in the fuse box.

■ The appliance becomes very hot. Never use the top of the appliance as a work top or storage area.
■ The appliance becomes very hot. Pay attention to the information in the section Installation and connection regarding minimum clearances for the appliance. The appliance must not be installed in a fitted unit.
■ Using the appliance for anything other than its intended purpose is dangerous and may cause damage. The following is not permitted: drying out food or clothing, heating slippers, grain or cereal pillows, sponges, damp cleaning cloths or similar. For example, heated slippers and grain or cereal pillows may catch fire, even several hours after they have been heated. The appliance must only be used for the preparation of food and drinks.
- Food may catch fire. Never heat food in heat-retaining packages. Do not leave food heating unattended in containers made of plastic, paper or other combustible materials. Do not select a microwave power or time setting that is higher than necessary. Follow the information provided in this instruction manual. Never use the microwave to dry food. Never defrost or heat food with a low water content, e.g. bread, at too high a microwave power or for too long.
■ Cooking oil may catch fire. Never use the microwave to heat cooking oil on its own.

Risk of explosion!

Liquids and other food may explode when in containers that have been tightly sealed. Never heat liquids or other food in containers that have been tightly sealed.

Risk of serious damage to health!

■ The surface of the appliance may become damaged if it is not cleaned properly. Microwave energy may escape. Clean the appliance on a regular basis, and remove any food residue immediately. Always keep the cooking compartment, door seal,

door and door stop clean; see also section Care and cleaning.

- Microwave energy may escape if the cooking compartment door or the door seal is damaged. Never use the appliance if the cooking compartment door or the door seal is damaged. Contact the after-sales service. - Microwave energy will escape from appliances that do not have any casing. Never remove the casing. For any maintenance or repair work, contact the after-sales service.

Risk of electric shock!

• Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
  ■ The cable insulation on electrical appliances may melt when touching hot parts of the appliance. Never bring electrical appliance cables into contact with hot parts of the appliance.
• Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.
  ■ Penetrating moisture may cause electric shock. Never subject the appliance to intense heat or humidity. Only use this appliance indoors.
  A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
  ■ The appliance is a high-voltage appliance. Never remove the casing.

Risk of serious burns!

■ Accessories and ovenware become very hot. Always use oven gloves to remove accessories or ovenware from the cooking compartment.
■ Alcoholic vapours may catch fire in the hot cooking compartment. Never prepare food containing large quantities of drinks with a high alcohol content. Only use small quantities of drinks with a high alcohol

content. Open the appliance door with care.

• Foods with peel or skin may burst or explode during, or even after, heating. Never cook eggs in their shells or reheat hard-boiled eggs. Never cook shellfish or crustaceans. Always prick the yolk when baking or poaching eggs. The skin of foods that have a peel or skin, such as apples, tomatoes, potatoes and sausages, may burst. Before heating, prick the peel or skin.
• Heat is not distributed evenly through baby food. Never heat baby food in closed containers. Always remove the lid or teat. Stir or shake well after the food has been heated. Check the temperature of the food before it is given to the child.
  ■ Heated food gives off heat. The ovenware may become hot. Always use oven gloves to remove ovenware or accessories from the cooking compartment.
• Airtight packaging may burst when food is heated. Always observe the instructions on the packaging. Always use oven gloves to remove dishes from the cooking compartment.
  ■ The appliance becomes very hot. Never touch the interior surfaces of the cooking compartment or the heating elements. Always allow the appliance to cool down. Keep children at a safe distance.

Risk of scalding!

• When you open the appliance door, hot steam may escape. Open the appliance door with care. Keep children at a safe distance.
  ■ Water in a hot cooking compartment may create hot steam. Never pour water into the hot cooking compartment.
  There is a possibility of delayed boiling when a liquid is heated. This means that the liquid reaches boiling temperature without the usual steam bubbles rising to the surface. Even if the container only vibrates a little, the hot liquid may suddenly boil over and spatter. When heating, always place a spoon in the container. This will prevent delayed boiling.

Risk of injury!

- Scratched glass in the appliance door may develop into a crack. Do not use a

glass scraper, sharp or abrasive cleaning aids or detergents.

■ Unsuitable ovenware may crack. Porcelain or ceramic ovenware can have small perforations in the handles or lids. These perforations conceal a cavity below. Any moisture that penetrates this cavity could cause the ovenware to crack. Only use microwave-safe ovenware.
If using the appliance in microwave mode only, placing cookware and containers made of metal inside the appliance may cause sparks when the appliance is operating. This will damage the appliance. Never use metal containers when using the appliance in microwave mode only. Use only microwave-safe cookware or, alternatively, the microwave in combination with a type of heating.

Causes of damage

Caution!

■ Heavily soiled seal: If the seal is very dirty, the appliance door will no longer close properly during operation. The fronts of adjacent units could be damaged. Always keep the seal clean.
- Operating the microwave without food: Operating the appliance without food in the cooking compartment may lead to overloading. Never switch on the appliance unless there is food in the cooking compartment. An exception to this rule is a short crockery test (see the section "Microwave, suitable crockery").
Microwave popcorn: Never set the microwave power too high. Use a power setting no higher than 600 watts. Always place the popcorn bag on a glass plate. The disc may jump if overloaded.
- Liquid that has boiled over must not be allowed to run through the turntable drive into the interior of the appliance. Monitor the cooking process. Choose a shorter cooking time initially, and increase the cooking time as required.
■ Never use the microwave oven without the turntable.
■ Creation of sparks: Metal - e.g. a spoon in a glass - must be kept at least 2 cm from the oven walls and the inside of the door. Sparks could irreparably damage the glass on the inside of the door.
■ Foil containers: Do not use foil containers in the appliance. They damage the appliance by producing sparks.
■ Cooling with the appliance door open: Only leave the cooking compartment to cool with the door closed. Do not trap anything in the appliance door. Even if the door is only slightly ajar, the fronts of adjacent units may be damaged over time.
■ Condensation in the cooking compartment: Condensation may appear on the door window, interior walls and floor. This is normal and does not adversely affect microwave operation. To prevent corrosion, wipe off the condensation every time you cook.

Installation and connection

This appliance is intended for domestic use only.

Place the tabletop appliance on a firm, level surface (at least 85 cm above the floor). The ventilation slots at the rear, top and bottom of the appliance must not be obstructed. The minimum height of the free space above the surface of the appliance is 30 cm.

300 30 100100

The appliance is fitted with a plug and must only be connected to a properly-installed earthed socket. The fuse protection must be rated at 10 amperes (L or B circuit breakers). The mains voltage must correspond to the voltage specified on the rating plate.

The socket must be installed and the power cable replaced by a qualified electrician only. The appliance plug must always be accessible.

Do not use multiple plugs, power strips or extension leads. Overloading results in a risk of fire.

The control panel

Here, you will see an overview of the control panel. Depending on the appliance model, there may be differences in the particular details.

BOSCH 18:00 Display for clock and cooking time Clock button min. kg Rotary selector for adjusting the clock and cooking time or for setting the automatic programmes Stop button Stop Start Start button Grill button 90 180 360 600 M P 900 Buttons for the microwave power settings 90 watts 180 watts 360 watts 600 watts 900 watts Memory button Buttons for automatic programmes P - programme button □ = weight button Door opener

Rotary selector

The rotary selector is used to alter the default values and set

values.

The rotary selector is retractable. Press on the rotary selector to lock it in or out.

Types of heating

Microwaves

Microwaves are converted to heat inside food. The microwave is ideal for rapid defrosting, heating up, melting and cooking.

Microwave power settings

■ 900 watt - for heating liquids.
■ 600 watts - for heating and cooking food.
■ 360 watts - for cooking meat and heating delicate foods.
■ 180 watts - for defrosting and continued cooking.
■ 90 watts - for defrosting delicate foods.

Grill

You can use this to grill or cook bakes "au gratin".

Combined grill and microwave

This involves simultaneous operation of the grill and the microwave. The combined operation is particularly suitable for cooking bakes and gratins. The food becomes crispy and brown. It is much quicker and saves energy.

Accessories

Caution!

When removing dishes, make sure that the turntable does not move. Make sure that the turntable is properly locked. The turntable can turn left or right.

The turntable

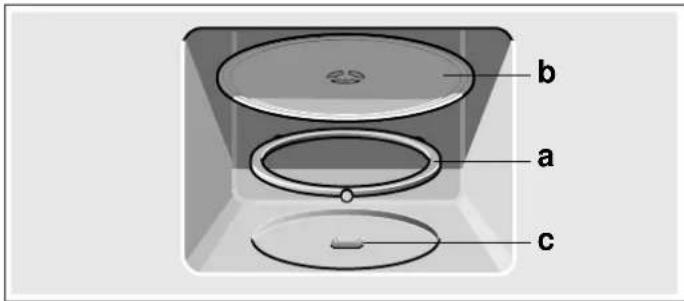

How to fit the turntable:

1. Place the turntable ring a in the recess in the cooking compartment.
2. Let the turntable b slot in place in the drive c in the centre of the cooking compartment floor.

b a c

Note: Do not use the appliance if the turntable is not in place. Ensure that it is properly slotted into place. The turntable can turn clockwise or anti-clockwise.

Wire rack

Wire rack for grilling, e.g. steaks, sausages or for toasting bread, or as a surface, e.g. for shallow dishes.

Note: Place the wire rack on the turntable.

Before using the appliance for the first time

Here you will find everything you need to do before using the microwave to prepare food for the first time. First read the section on Safety information.

Setting the clock

When the appliance is first connected or after a power cut, three zeros will appear in the display panel.

1. Press the Ⓛ button.
   "12:00" and Ⓛ appear in the display.

2. Set the clock using the rotary selector.

1. 2. - + min kg

- min kg

1. Press the Ⓛ button again.

The current time is set.

Hiding the clock

Press the Ⓛ button and then press Stop. The display is blank.

Resetting the clock

Press the ⏻ button.

"12:00" appears in the display. Make settings as detailed in points 2 and 3.

Change the clock, e.g. from summer to winter time

Set as described in point 1 to 3.

Heating up the cooking compartment

Heat the empty cooking compartment with the turntable inserted and the door closed for 10 minutes to remove the new smell. Ensure that no packaging remnants have been left in the cooking compartment.

1. Press the ☐ grill button.
   10:00 min appears in the display

2. Press the Start button.

A signal sounds once the time has elapsed. Press the Stop button or open the appliance door.

The microwave

Microwaves are converted to heat in foodstuffs.

You can set the microwave on its own or in combination with the grill.

You will find information about ovenware and how to set the microwave.

Note: In the Tested for you in our cooking studio section, you will find examples for defrosting, heating, melting and cooking with the microwave oven.

Try out the microwave straight away. You could heat up a cup of water for your tea, for example.

Use a large cup without any decorative gold or silver trim and place a teaspoon in it. Place the cup containing the water on the turntable.

1. Press 900 W.
2. Set 1:30 minutes using the rotary knob.
3. Press the Start button.

After 1 minute 30 seconds, a signal sounds. The water for the tea is hot.

As you are drinking your tea, please take time to read again the safety information that can be found at the front of the instruction manual. This is very important.

Notes regarding ovenware

Suitable ovenware

Suitable dishes are heat-resistant ovenware made of glass, glass ceramic, porcelain, ceramic or heat-resistant plastic. These materials allow microwaves to pass through.

You can also use serving dishes. This saves you having to transfer food from one dish to another. You should only use ovenware with decorative gold or silver trim if the manufacturer guarantees that they are suitable for use in microwaves.

Unsuitable ovenware

Metal ovenware is unsuitable. Metal does not allow microwaves to pass through. Food in covered metal containers will remain cold.

Caution!

Creation of sparks: metal – e.g. a spoon in a glass – must be kept at least 2 cm from the oven walls and the inside of the door. Sparks could destroy the glass on the inside of the door.

Ovenware test

Do not switch on the microwave unless there is food inside. The following ovenware test is the only exception to this rule.

Perform the following test if you are unsure whether your ovenware is suitable for use in the microwave:

1. Heat the empty ovenware at maximum power for 12 to 1 minute.

2. Check the temperature occasionally during that time.

The ovenware should still be cold or warm to the touch.

The ovenware is unsuitable if it becomes hot or sparks are generated.

Microwave power settings

Microwave power	Suitable for setting
90 W Defrosting delicate foods
180 W Defrosting and continued cooking

360 W Cooking meat and heating delicate foods

Microwave power Suitable for setting

600 W Heating and cooking food

900 W Heating liquids

Note: You can set the 900 W microwave power setting for 30 minutes, 600 W for 1 hour, the other power settings for 1 hour and 39 minutes respectively.

Setting the microwave

Example: microwave power setting of 600 watts

1. Press the required microwave power setting.

The selected microwave power setting lights up in the display, and "1:00 min" appears.

1. Set a cooking time using the rotary selector.

1. Stop Start 90 180 360 600 M P

- min kg

1. Press the Start button.

The cooking time counts down in the display.

The cooking time has elapsed

A signal sounds. Open the appliance door or press Stop. The clock reappears.

Changing the cooking time

This can be done at any time. Change the cooking time using the rotary selector.

Pausing

Press the Stop button once, or open the appliance door. Press the START button after closing the door.

Cancelling operation

Press the Stop button twice, or open the door and press the Stop button once.

Note: You can also adjust the cooking time first and then the microwave power setting.

Cooling fan

The appliance is equipped with a cooling fan. The fan may run on even if the oven has been switched off.

Notes

The cooking compartment remains cold during microwave operation. The cooling fan will still switch on. The fan may run on even when microwave operation has ended.
- Condensation may appear on the door window, interior walls and floor. This is normal and does not adversely affect microwave operation. Wipe away the condensation after cooking.

Grilling

A powerful grill ensures an intensive surface heat and even browning of the food.

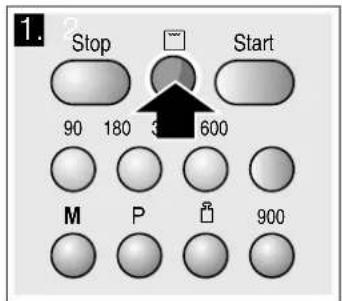

Setting the grill

1. Press the ☐ grill button.

10:00 min and the symbol appear in the display.

1. Set the cooking time using the rotary selector.

1. Stop Start 90 180 3 600 M P 900

- min kg

1. Press the Start button.

The cooking time counts down in the display.

The cooking time has elapsed

A signal sounds. Open the appliance door or press Stop. The clock reappears.

Changing the cooking time

This can be done at any time. Change the cooking time using the rotary selector.

Pausing

Press the Stop button once, or open the appliance door. Press the START button after closing the door.

Correction

You may correct a set cooking time at any time.

Cancelling the setting

Press the Stop button twice, or open the appliance door and press the Stop button once.

Combined microwave and grill

You can set the grill and the microwave at the same time. The food becomes crispy and brown. It is much quicker and saves energy.

You can select any microwave power setting.

Exception: 900 and 600 watt.

Setting the microwave and grill

Example: 360 W, ☐ grill, 5 minutes

1. Press the required microwave power setting.

The selected microwave power setting lights up in the display, and "1:00 min" appears.

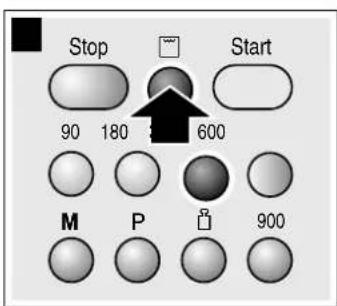

1. Press the ☐ grill button.

1. Stop 90 180 360 600 M P 900

Stop Start 90 180 600 M P 900

1. Set the cooking time using the rotary selector.

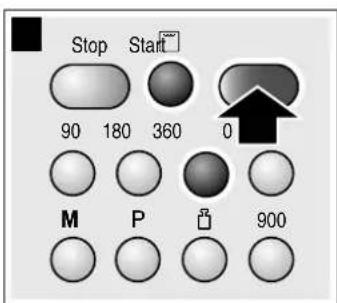

2. Press the Start button.

3. 4. - + min kg

Stop Start 90 180 360 0 M P 900

The cooking time counts down in the display.

The cooking time has elapsed

A signal sounds. Open the appliance door or press Stop. The clock reappears.

Changing the cooking time

This can be done at any time. Change the cooking time using the rotary selector.

Pausing

Press the Stop button once, or open the appliance door. Press the START button after closing the door.

Cancelling operation

Press the Stop button twice, or open the door and press the Stop button once.

Note: You can also adjust the cooking time first and then the microwave power setting.

Memory

You can save the settings for a dish in the memory and call it up again at any time.

The memory is useful for if you frequently prepare a specific dish.

Saving memory settings

Example: 360 W, 25 minutes

1. Press the M button.

"M" appears in the display.

1. Press the required microwave power setting.

"M", the selected power setting and "1:00 min" appear in the display.

1. Set the cooking time using the rotary selector.

2. Stop Start 90 180 360 600 M P 900

3. - + min kg

1. Confirm by pressing the M button.

The clock reappears. The setting is saved.

Notes

■ You can also store grill only or grill combined with microwave.

• You cannot save several microwave power settings one after the other.
  ■ You cannot save automatic programmes.
  ■ You can save the memory settings and start the appliance immediately. When finishing, instead of pressing M, press Start.
  Saving a new setting in the memory: press the Mbutton. The old settings appear. Save the new programme as described in steps 1-4.

Starting the memory

It is very easy to start the saved programme. Place your meal into the appliance. Close the appliance door.

1. Press the M button.

The saved settings are displayed.

1. Press the Start button.

The cooking time counts down in the display.

The cooking time has elapsed

A signal sounds. Open the appliance door or press Stop. The clock reappears.

Pausing

Press the Stop button once, or open the appliance door. Press the START button after closing the door.

Cancelling the setting

Press the Stop button twice, or open the appliance door and press the Stop button once.

Changing the signal duration

You will hear a signal when the appliance is switched off. You can change the duration of the acoustic signal.

Press the Start button for approx. 6 seconds.

The new signal duration is adopted.

The clock reappears.

The following are possible:

Short signal duration - 3 tones

Long signal duration - 30 tones.

Care and cleaning

With careful care and cleaning your microwave oven will retain its looks and remain good order. We will explain here how you should care for and clean your appliance correctly.

Risk of short circuit!

Never use high-pressure cleaners or steam cleaners to clean the oven.

Risk of burns!

Never clean the appliance immediately after switching off. Let the appliance cool down.

Risk of electric shock!

Do not immerse the appliance in water or clean under a jet of water.

Surfaces are different, and damage caused by using the wrong cleaning agent can be avoided by observing the information in the table below.

Do not use

■ sharp or abrasive cleaning agents. The surface could be damaged. If such a substance comes into contact with the front of the appliance, wash it off immediately with water.
■ metal or glass scrapers to clean the glass in the appliance door.
■ metal or glass scrapers for cleaning the seal.
■ hard scouring pads or cleaning sponges. Wash new sponge cloths thoroughly before use.
■ cleaning agents with high concentrations of alcohol.

Cleaning agents

Caution!

Before cleaning, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Clean the outside of the appliance and the cooking compartment with a damp cloth and mild detergent. Dry with a clean cloth.

Area Cleaning agents

Appliance front Hot soapy water:
	Clean with a dish cloth and dry with a soft cloth. Do not use glass cleaners or metal or glass scrapers for cleaning.
Appliance front with stainless steel	Hot soapy water: Clean with a dish cloth and dry with a soft cloth. Remove flecks of limescale, grease, starch and albumin (e.g. egg white) immediately. Corrosion can form under such residues. Special stainless steel cleaning agents can be obtained from the after-sales service or from specialist shops. Do not use glass cleaners or metal or glass scrapers for cleaning.

Area Cleaning agents
Cooking compartment made of stainless steel	Hot soapy water or a vinegar solution: Clean with a dish cloth and dry with a soft cloth. If the oven is very dirty: use oven cleaner, but only when cooking compartment is cold. It is best to use a stainless-steel sponge. Do not use oven spray or other aggressive oven cleaners or abrasive materials. Scouring pads, rough sponges and pan cleaners are also unsuitable. These items scratch the surface. Allow the interior surfaces to dry thoroughly.
Recess in cooking compartment	Damp cloth: Ensure that no water seeps through the turntable drive into the appliance interior.
Turntable and turntable ring	Hot soapy water: When putting the turntable back in place, make sure it slots in correctly.
Wire rack Hot soapy water: Clean using stainless steel cleaning agent or in the dishwasher.
Door panels Glass cleaner: Clean with a dish cloth. Do not use a glass scraper.
Seal Hot soapy water: Clean with a dish cloth, do not scour. Do not use a metal or glass scraper for cleaning.

Malfunction table

Malfunctions often have simple explanations. Please refer to the malfunction table before calling the after-sales service.

If a meal does not turn out exactly as you wanted, refer to the Tested for you in our cooking studio section, where you will find plenty of cooking tips and tricks.

Troubleshooting

Risk of electric shock!

Incorrect repairs are dangerous. Repairs may only be carried out by one of our trained after-sales engineers.

You can take remedial action yourself for some error messages.

Error message Possible cause Remedy/Note

The appliance does not work The plug is not plugged into the mains. Plug the plug in
	Power cut Check whether the kitchen light works.
	Faulty circuit breaker Look in the fuse box and check that the cir-cuit breaker for the appliance is in working order.
	Incorrect operation Switch off the circuit breaker in the fuse box. Reconnect it after approx. 10 seconds.
Three zeros flash in the display. Power cut Reset the time.
The appliance is not in operation. A cooking time appears in the display.	The rotary selector was accidentally pressed. Press the Stop button.
	The Start button was not pressed after the set-ting was made.	Press the Start button or clear the setting by pressing the Stop button.
The microwave does not work.	The door was not fully closed.	Check whether food remains or foreign material is trapped in the door.
	The Start button was not pressed.	Press the Start button.

Error message Possible cause Remedy/Note

The food takes longer than usual to heat up	The microwave power setting was too low. Select a higher microwave power setting.
	You have placed a larger amount of food than normal in the appliance.	Double the amount = double the cooking time.
	The food was colder than usual. Stir or turn the food during cooking
The turntable is making a scratching or grinding noise.	There is dirt or a foreign object in the area around the turntable drive.	Clean the roller ring and recess in the cooking compartment.
Microwave operation has been cancelled for no apparent reason.	The microwave has a fault. If this fault occurs repeatedly, please call the after-sales service.

After-sales service

Our after-sales service is there for you if your appliance needs to be repaired. We will always find the right solution in order to avoid unnecessary visits from a service technician.

E number and FD number

When calling us, please give the product number (E no.) and the production number (FD no.) so that we can provide you with the correct advice. The rating plate bearing these numbers can be found on the right-hand side when you open the appliance door. To save time, you can make a note of the number of your appliance and the telephone number of the after-sales service in the space below, should it be required.

E no.

FD no.

After-sales service

Please note that there will be a fee for a visit by a service technician in the event of a malfunction, even during the warranty period.

Please find the contact data of all countries in the enclosed customer service list.

To book an engineer visit and product advice

GB 0344 892 8979

Calls charged at local or mobile rate.

IE 01450 2655

0.03 € per minute at peak. Off peak 0.0088 € per minute.

Rely on the professionalism of the manufacturer. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your appliances.

This appliance corresponds to the standards EN 55011 and CISPR 11. It is a Group 2, Class B product.

Group 2 means that microwaves are produced for the purpose of heating food. Class B states that the appliance is suitable for private households.

Technical data

Input voltage AC 220-230 V, 50 Hz

Power consumption 1450 W

Maximum output power 900 W

Grill power 1200 W

Microwave frequency 2450 MHz

Fuse 10 A

Dimensions (HxWxD)

- appliance 305 x 513 x 408 mm

- cooking compartment 215 x 337 x 354 mm

VDE approved yes

CE mark yes

Environmentally-friendly disposal

Dispose of packaging in an environmentally-friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Automatic programmes

The automatic programmes enable you to prepare food very easily. You select the programme and enter the weight of your food. The automatic programme makes the optimum setting.

Note: You can choose from 8 programmes.

Setting a programme

Once you have selected a programme, make settings as follows:

1. Press the P button repeatedly until the required programme number appears.

2. Press the 📋 button.

"P" and a default weight appear in the display.

1. Stop Start 90 180 360 600 M P 900

Stop Start 90 180 360 600 M P 900

1. Turn the rotary selector to specify the weight of the dish.

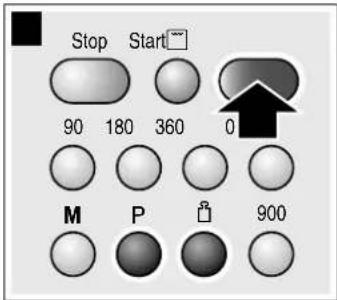

2. Press the Start button.

3. 4. - + min kg

Stop Start 90 180 360 0 M P 900

You will see the cooking time for the programme counting down.

The cooking time has elapsed

A signal sounds. Open the appliance door or press Stop. The clock reappears.

Correction

Press the Stop button twice and reset.

Pausing

Press the Stop button once, or open the appliance door. Press the START button after closing the door.

Cancelling operation

Press the Stop button twice, or open the door and press the Stop button once.

Notes

For some programmes, a signal sounds after a certain time. Open the appliance door and stir the food or turn the meat or poultry. After closing, press the Start button again.
- You can query the programme number and weight using P or 📁. The queried value is shown for 3 seconds in the display.

Defrosting using the automatic programmes

You can use the 4 defrosting programmes to defrost meat, poultry and bread.

Notes

■ Preparing food

Use food that has been frozen at -18 °C and stored in portion-sized quantities that are as thin as possible. Take the food to be defrosted out of all packaging and weigh it. You need to know the weight to set the programme.

- Liquid will be produced when defrosting meat or poultry. Drain off this liquid when turning meat and poultry and under no circumstances use it for other purposes or allow it to come into contact with other foods.

■ Ovenware

Place the food in a microwaveable shallow dish, e.g. a china or glass plate, but do not cover.

Resting time

The defrosted food should be left to stand for an additional 10 to 30 minutes until it reaches an even temperature. Large pieces of meat require a longer standing time than smaller pieces. Flat pieces of meat and items made from minced meat should be separated from each other before leaving to stand.

After this time, you can continue to prepare the food, even though thick pieces of meat may still be frozen in the middle. The giblets can be removed from poultry at this point.

Signal

For some programmes, a signal sounds after a certain time. Open the appliance door and separate the food out or turn the meat or poultry. Close the door and press the Start button.

Programme no. Weight range in kg

Defrost
P 01 Minced meat 0.20 - 1.00
P 02 Pieces of meat 0.20 - 1.00
P 03	Chicken, chicken pieces	0.40 - 1.80
P 04 Bread 0.20 - 1.00

Cooking with the automatic programmes

With the 3 cooking programmes, you can cook rice, potatoes or vegetables.

Notes

■ Ovenware

The food must be cooked in microwaveable cookware with a lid. For rice, you should use a large, deep dish.

■ Preparing food

Weigh out the food. You need to know the weight to set the programme.

Rice:

Do not use boil-in-the-bag rice. Add the required amount of water, as specified on the packaging. This is usually two or three times the quantity of rice.

Potatoes:

For boiled potatoes, cut the fresh potatoes into small, even-sized pieces. Add one tablespoon of water for each 100 g boiled potatoes, and a little salt.

Fresh vegetables:

Weigh out the fresh, trimmed vegetables. Cut the vegetables into small, even-sized pieces. Add a tbsp water for each 100 g vegetables.

Signal

While the programme is running, a signal sounds after some time. Stir the food.

Resting time

Once the programme has finished, stir the food again. You should leave it to stand for another 5 to 10 minutes until it reaches an even temperature.

The cooking result will depend on the quality and consistency of the food.

Programme no. Weight range in kg

Cooking
P 05 Rice 0.05 - 0.2
P 06 Potatoes	0.15 - 1.0
P 07 Vegetables	0.15 - 1.0

Combi-cooking programme

Notes

Ovenware

Cook the food in ovenware which is not too big, and is heat resistant and microwaveable.

■ Preparing food

Take the food out of its packaging and weigh it. If it is not possible to enter the exact weight, you should round it up or down.

Resting time

Once the programme has finished, allow the food to rest for another 5 to 10 minutes so it reaches an even temperature.

Programme no. Weight range in kg
	Combi-cooking programme
P 08	Bake, frozen, up to 0.4 - 0.93 cm in height

Tested for you in our cooking studio

Here you will find a selection of recipes and the ideal settings for them. We show you which microwave power setting is best suited to your dish. There are also tips about ovenware and preparation methods.

Information regarding the tables

The following tables provide you with numerous options and settings for the microwave.

The times specified in the tables are only guidelines. They may vary according to the ovenware used, the quality, temperature and consistency of the food.

Time ranges are often specified in the tables. Set the shortest time first and then extend the time if necessary.

It may be that you have different quantities from those specified in the tables. A rule of thumb can be applied: Double the amount - almost twice the cooking time Half the amount - half the cooking time.

Always place the ovenware on the turntable.

Defrost

Notes

• Place the frozen food in an open container on the turntable.
  Delicate parts such as the legs and wings of chicken or fatty outer layers of roasts can be covered with small pieces of aluminium foil. The foil must not touch the oven walls. You can remove the foil half way through the defrosting time.
• Liquid will be produced when defrosting meat or poultry. Drain off this liquid when turning meat and poultry and under no circumstances use it for other purposes or allow it to come into contact with other foods.
  ■ Turn or stir the food once or twice during the defrosting time. Large pieces of food should be turned several times.
  Leave defrosted items to stand at room temperature for a further 10 to 20 minutes so that the temperature is even throughout. The giblets can be removed from poultry at this point. The meat can still be further prepared, even if it has a small frozen core.

Defrost Weight Microwave power setting in watts, cooking time in minutes		Notes
Whole pieces of meat (beef or veal - on the bone or boned)	800 g 180 W, 15 mins + 90 W, 10-20 mins -
	1 kg 180 W, 20 mins + 90 W, 15-25 mins
	1.5 kg 180 W, 30 mins + 90 W, 20-30 mins
Meat in pieces or slices of beef or veal	200 g 180 W, 2 mins + 90 W, 4-6 mins Separate any defrosted parts when turning
	500 g 180 W, 5 mins + 90 W, 5-10 mins
	800 g 180 W, 8 mins + 90 W, 10-15 mins
Minced meat, mixed 200 g 90 W, 10 mins Freeze food flat if possible		Turn several times, remove any defrosted meat
Poultry or poultry portions 600 g 180 W, 8 mins + 90 W, 10-15 mins -
Fish fillet, fish steak or slices 400 g 180 W, 5 mins + 90 W, 10-15 mins Separate any defrosted parts
Vegetables, e.g. peas	300 g 180 W, 10-15 mins	-
Fruit, e.g. raspberries	300 g 180 W, 7-10 mins	Stir carefully during defrosting and separate any defrosted parts
	500 g 180 W, 8 mins + 90 W, 5-10 mins
Butter, defrosting	125 g 180 W, 1 min. + 90 W, 2-3 mins	Remove all packaging
	250 g 180 W, 1 min + 90 W, 3-4 mins
Loaf of bread	500 g 180 W, 6 mins + 90 W, 5-10 mins	-
	1 kg 180 W, 12 mins + 90 W, 10-20 mins
Cakes, dry, e.g. sponge cake	500 g 90 W, 10-15 mins	Only for cakes without icing, cream or crème pâtissière, separate the pieces of cake
	750 g 180 W, 5 mins + 90 W, 10-15 mins
Cakes, moist, e.g. fruit flan, cheese-cake	500 g 180 W, 5 mins + 90 W, 15-20 mins Only for cakes without icing, cream or gelatine
	750 g 180 W, 7 mins + 90 W, 15-20 mins

Defrosting, heating up or cooking frozen food

Notes

Take ready meals out of the packaging. They will heat up more quickly and evenly in microwaveable ovenware. The different components of the meal may not require the same amount of time to heat up.
- Food which lies flat will cook more quickly than food which is piled high. You should therefore distribute the food so that it is as flat as possible in the ovenware. Different foodstuffs should not be placed in layers on top of one another.

■ Always cover the food. If you do not have a suitable cover for your ovenware, use a plate or special microwave foil.
■ Stir or turn the food 2 or 3 times during cooking.
■ After heating, allow the food to stand for a further 2 to 5 minutes so that it can achieve an even temperature.
■ Always use an oven cloth or oven gloves when removing plates from the oven.
This will help the food retain its own distinct taste, so it will require less seasoning.

Defrosting, heating up or cooking frozen food	Weight Microwave power setting in watts, cooking time in minutes	Notes
Menu, plated meal, ready meal (2-3 components)	300-400 g 600 W, 8-11 mins -
Soup 400 g 600 W, 8-10 mins -
Stews 500 g 600 W, 10-13 mins -
Slices or pieces of meat in sauce, e.g. goulash	500 g 600 W, 12-17 mins Separate the pieces of meat when stirring
Fish, e.g. fillet steaks 400 g 600 W, 10-15 mins Add water, lemon juice or wine as desired
Bakes, e.g. lasagne, cannelloni 450 g 600 W, 10-15 mins -
Side dishes, e.g. rice, pasta 250 g 600 W, 2-5 mins Add a little liquid
	500 g 600 W, 8-10 mins
Vegetables, e.g. peas, broccoli, carrots	300 g 600 W, 8-10 mins Pour water into the dish so that it covers the base
	600 g 600 W, 14-17 mins
Creamed spinach 450 g 600 W, 11-16 mins Cook without additional water

Heating food

Risk of scalding!

There is a possibility of delayed boiling when a liquid is heated. This means that the liquid reaches boiling temperature without the usual steam bubbles rising to the surface. Even if the container only moves a little, the hot liquid can suddenly boil over and spatter. When heating liquids, always place a spoon in the container. This will prevent delayed boiling.

Glass with a black X mark symbol crossed out, representing an incorrect or invalid stance (no text or symbols present)

Caution!

Metal - e.g. a spoon in a glass - must be kept at least 2 cm from the oven walls and the inside of the door. Sparks could irreparably damage the glass on the inside of the door.

Notes

Take ready meals out of the packaging. They will heat up more quickly and evenly in microwaveable ovenware. The different components of the meal may not require the same amount of time to heat up.
■ Always cover the food. If you do not have a suitable cover for your container, use a plate or special microwave foil.
■ Stir or turn the food several times during the heating time. Check the temperature.
■ After heating, allow the food to stand for a further 2 to 5 minutes so that it can achieve an even temperature.
■ Always use an oven cloth or oven gloves when removing plates from the oven.

Heating food Weight	Microwave power setting in watts, cooking time in minutes		Notes
Menu, plated meal, ready meal (2-3 components)	350-500 g	600 W, 4-8 mins	-
Drinks	150 ml	900 W, 1-2 mins	Place a spoon in the glass; do not overheat alcoholic drinks; check during heating
	300 ml	900 W, 3-3 mins
	500 ml	900 W, 3-4 mins
Baby food, e.g. baby bottle	50 ml	360 W, approx. 12 min	No teats or lids. Always shake well after heating. You must check the temperature
	100 ml	360 W, approx. 1 min
	200 ml	360 W, 112 min
Soup 1 cup	200 g	600 W, 2-3 mins	-
Soup, 2 cups 400 g	600 W, 4-5 mins	-
Meat in sauce	500 g	600 W, 8-11 mins	Separate the slices of meat

Heating food Weight Microwave power setting in watts, cooking time in minutes		Notes
Stew 400 g 600 W, 6-8 mins -
	800 g 600 W, 8-11 mins -
Vegetables, 1 portion 150 g 600 W, 2-3 mins add a little liquid
Vegetables, 2 portions 300 g 600 W, 3-5 mins

Cooking food

Notes

- Food which lies flat will cook more quickly than food which is piled high. You should therefore distribute the food so that it is as flat as possible in the ovenware. Different foodstuffs should not be placed in layers on top of one another.

• Cook the food in ovenware with a lid. If you do not have a suitable lid for your ovenware, use a plate or special microwave foil.
  This will help the food retain its own distinct taste, so it will require less seasoning.
  ■ After cooking, allow the food to stand for a further 2 to 5 minutes so that it can achieve an even temperature.
  ■ Always use an oven cloth or oven gloves when removing plates from the oven.

Cooking food Weight Microwave power setting in watts, cooking time in minutes			Notes
Meat loaf 750 g 600 W, 20-25 mins Cook uncovered
Whole chicken, fresh, no giblets 1.2 kg 600 W, 25-30 mins Turn halfway through the cooking time
Fresh vegetables 250 g 600 W, 5-10 mins Cut vegetables into pieces of equal size.
	500 g 600 W, 10-15 mins		Add 1 to 2 tbsp water per 100 g of vegetables. Stir during cooking
Potatoes	250 g 600 W, 8-10 mins		Cut potatoes into pieces of equal size; Add 1 to 2 tbsp water for every 100 g. Stir during cooking
	500 g 600 W, 11-14 mins
	750 g 600 W, 15-22 mins
Rice	125 g 900 W, 5-7 mins + 180 W, 12-15 mins		Add double the quantity of liquid.
	250 g 900 W, 6-8 mins + 180 W, 15-18 mins
Sweet foods, e.g. blancmange (instant)	500 ml 600 W, 6-8 mins		Stir the custard pudding thoroughly 2 to 3 times during cooking using an egg whisk.
Fruit, compote	500 g 600 W, 9-12 mins		-

Microwave tips

You cannot find any information about the settings for the quantity of food you have prepared.	Increase or reduce the cooking times using the following rule of thumb:Double the amount = almost double the cooking timeHalf the amount = half the cooking time
The food has become too dry.	Next time, set a shorter cooking time or select a lower microwave power setting. Cover the food and add more liquid.
When the time has elapsed, the food is not defrosted, hot or cooked.	Set a longer time. Large quantities and food which is piled high require longer times.
When the time has elapsed, the food is overheated at the edge but not done in the middle.	Stir it during the cooking time and next time, select a lower microwave power setting and a longer cooking time.
After defrosting, the poultry or meat is defrosted on the outside but not defrosted in the middle.	Next time, select a lower microwave power setting. If you are defrosting a large quantity, turn it several times.

Condensation

Condensation may appear on the door window, interior walls and floor. This is normal. This does not affect how the microwave operates. Wipe away the condensation after cooking.

Tips for grilling

Notes

■ All the values given are guidelines and can vary depending on the properties of your food.
■ Always grill on the wire rack with the cooking compartment door closed and do not preheat.
■ Always place the wire rack on the turntable.

	Quantity	Accessories	Cooking time in minutes
Bread for toasting (pre-toasting)	2 to 4 slices	Wire rack	1st side: approx. 2 to 42nd side: approx. 2 to 4
Toast with topping	2 to 6 slices	Wire rack	Depending on topping: 7 to 10

Quantity Accessories Cooking time in minutes

Soup with toppings, e.g. onion soup

2 to 4 cups

Turntable approx. 15 to 20

Combined grill and microwave

Notes

■ The combined operation is particularly suitable for cooking bakes and gratins.
■ Always place the dish on the turntable and do not cover the food.
■ Use a high-sided dish for roasting. This keeps the cooking compartment cleaner.
■ Use large flat ovenware for bakes and gratins. Food takes longer to cook in narrow, deep containers and browns more on top.

• Check that your ovenware fits in the cooking compartment. It must not be too large, as the turntable must still be able to turn.
  ■ Always set the maximum cooking time. Check the food after the shorter time specified.
  Leave the meat to rest for another 5 to 10 minutes before cutting it. This allows the meat juices to be distributed evenly so that they do not run out when the meat is cut.
  ■ Bakes and gratins should be left to cook in the appliance for a further 5 minutes after the appliance has been switched off.

	Weight Accesso-ries	Microwave power set-ting in watts	Cookingtime Notes in minutes
Chicken portions, small, e.g. chicken thighs or wings	approx. 800 g Ovenware on the wire grill	360 W + 📋	30-40 mins Place with the skin side up. Do not turn.
Frozen marinated chicken wings	approx. 800 g Ovenware on the wire grill	360 W + 📋	15-25 mins Do not turn.
Pasta bake (using pre-cooked ingredients)	approx.1000 g Turntable	360 W + 📋	25-35 mins Sprinkle with cheese. Maxi-mum of 5 cm in height
Potato gratin (using raw potatoes)	approx.1000 g Turntable	360 W + 📋	30-40 mins Maximum of 4 cm in height
Fish, scalloped approx.400 g Turntable		360 W + 📋	20-25 mins Defrost frozen fish before cook-ing.
Quark bake approx.1000 g Turntable		360 W + 📋	30-35 mins Maximum of 5 cm in height
Vegetable kebab 4-5 pieces Wire rack		180 W + 📋	15-20 mins Use wooden skewers.
Fish kebabs 4-5 pieces Wire rack		180 W + 📋	10-15 mins Use wooden skewers.
Bacon rashers	approx. 8 rash- Wire rack ers	180 W + 📋	10-15 mins

Test dishes in accordance with EN 60705

The quality and correct operation of microwave appliances are tested by testing institutes using these dishes.

In accordance with EN 60705, IEC 60705, DIN 44547 and EN 60350 (2009)

Cooking and defrosting with the microwave

Microwave cooking

Dish Microwave power setting in watts, cooking time in minutes	Note
Egg wash, 750 g 360 W, 12-17 mins+ 90 W, 20-25 mins Pyrex dish, 20 x 25 cm on the turntable.
Sponge 600 W, 8-10 mins Place a pyrex dish with a diameter of 22 cm on the turntable.
Meat loaf 600 W, 20-25 mins Place the pyrex dish on the turntable.

Microwave defrosting

Dish Microwave power setting in watts, cooking time in minutes	Note
Meat 180 W, 5-7 mins+ 90 W, 10-15 mins Place a pyrex dish with a diameter of 22 cm on the turntable.

Combined microwave cooking

Dish Microwave power setting in watts, cooking time in minutes		Note
Potato gratin	grill + 360 W, 35-40 mins	Place a pyrex dish with a diameter of 22 cm on the turntable.

fr

Table des matières

Crossed black-and-white illustration of a glass with a handle, symbolizing toxicity or resistance (no text or symbols present)

Attention!

Simple illustration of a glass with a black X mark crossed out, no text or symbols present.

ل Arithmetic Shape I is a simple diagram of the shape.

.(waste electrical and electronic equipment - WEEE)

مواد التنظيف couples
متنيه:
متنيه:
متنيه:
متنيه:
متنيه:
متنيه:
متنيه:
متنيه:
متنيه:
متنيه:
متنيه.
متنيه.
متنيه.
متنيه.
متنيه.
متنيه.
متنيه.
متنيه.
متنيه.
متنيه.
متنيه, مصاني نعاني نعاني نعاني نعاني نعاني نعاني نعاني نعاني نعاني نعاني نعاني نعاني نعاني نعاني نعاني نعاني نعاني نعاني نعاني نعاني نعاني نعاني نعاني نعاني نعاني نعاني نعاني نعاني نعاني نعاني نعاني نعاني نعاني نع Minority
متنيه مصاني نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Black and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and Black and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White, Black and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White	متنيه مصاني نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع II	متنيه مصاني نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority pug Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog II	متنيه مصاني نع Minority نع Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority pug Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Black and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White (White) (White) (White) (White) (White) (White) (White) (White) (White) (White) (White) (White) (White) (White) (White) (White) (White) (White) (White) (White) (White) (White) (White) (White) (White) (White) (White) (White) (White) (White) (White) (White) (White) (White)
متنيه مصاني نع Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority nog Minority pug Minority nog Black and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and white and white and black and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and black and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and black and white and white and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and white and white and White and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and White and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and White and white and white and White and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and White and white and white and white and White and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and White and White and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and White and White and white and white and White and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and White and White and White and White and White and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and White and White and White and White and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and White and White and White and White and white and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and white and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and white and white and white and white and white and White and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and White and White and White and White and White and White and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and White and White and White and White and White and white and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and white and white and white and white and white and white and black and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and black and white and white and white and white and white and white and black and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and white and White and White and White and White and White and White and White and white and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and White and white	متنيه مصاني نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority nog Black and White	متنيه مصاني نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority nog Black and White	متنيه مصاني نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority nog Black and White
متنيه مصاني نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority nog Black and White	متنيه مصاني نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority nog Black and White	Seattle mgaziaquny##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##m#n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s###	متنيه مصاني نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority نع Minority nog Black #n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s##n##s####

جدول الأعطال
