USER MANUAL XCITY250 YAMAHA

Welcome to the Yamaha world of motorcycling!

As the owner of the VP250, you are benefiting from Yamaha's vast experience and newest technology regarding the design and manufacture of high-quality products, which have earned Yamaha a reputation for dependability.

Please take the time to read this manual thoroughly, so as to enjoy all advantages of your VP250. The owner's manual does not only instruct you in how to operate, inspect and maintain your scooter, but also in how to safeguard yourself and others from trouble and injury.

In addition, the many tips given in this manual will help keep your scooter in the best possible condition. If you have any further questions, do not hesitate to contact your Yamaha dealer.

The Yamaha team wishes you many safe and pleasant rides. So, remember to put safety first!

IMPORTANT MANUAL INFORMATION

EAU34111

Particularly important information is distinguished in this manual by the following notations:

[WYTB]	The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
WARNING	Failure to follow WARNING instructions could result in severe injury or death to the scooter operator, a bystander, or a person inspecting or repairing the scooter.
[WZBC]	A CAUTION indicates special precautions that must be taken to avoid damage to the scooter.
NOTE:	A NOTE provides key information to make procedures easier or clearer.

NOTE:

• This manual should be considered a permanent part of this scooter and should remain with it even if the scooter is subsequently sold.
• Yamaha continually seeks advancements in product design and quality. Therefore, while this manual contains the most current product information available at the time of printing, there may be minor discrepancies between your scooter and this manual. If you have any questions concerning this manual, please consult your Yamaha dealer.

EWA12410

WARNING

PLEASE READ THIS MANUAL CAREFULLY AND COMPLETELY BEFORE OPERATING THIS SCOOTER.

*Product and specifications are subject to change without notice.

EAUM1010

VP250

OWNER'S MANUAL

©2007 by MBK INDUSTRIE

1st edition, January 2007

All rights reserved

Any reprinting or unauthorized use

without the written permission of

MBK INDUSTRIE

is expressly prohibited.

Printed in France.

TABLE OF CONTENTS

SAFETY INFORMATION ......1-1

Further safe-riding points .....1-4

DESCRIPTION 2-1

Left view 2-1

Right view....2-2

Controls and instruments....2-3

INSTRUMENT AND CONTROL

FUNCTIONS 3-1

Main switch/steering lock ....3-1

Indicator and warning lights ....3-2

Speedometer 3-2

Fuel gauge 3-3

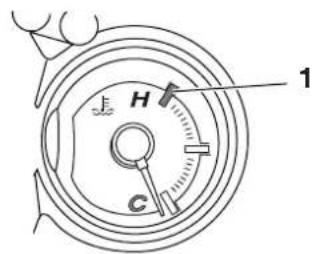

Coolant temperature gauge ....3-3

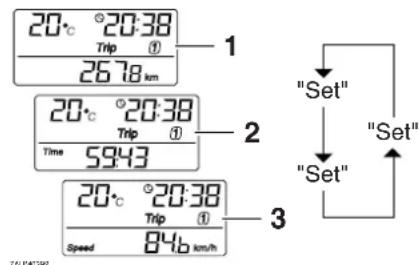

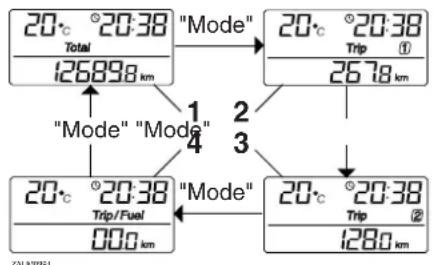

Multi-function display 3-3

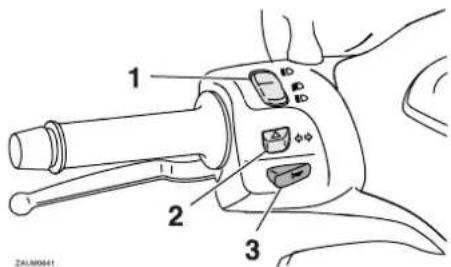

Handlebar switches ....3-6

Front brake lever 3-7

Rear brake lever 3-8

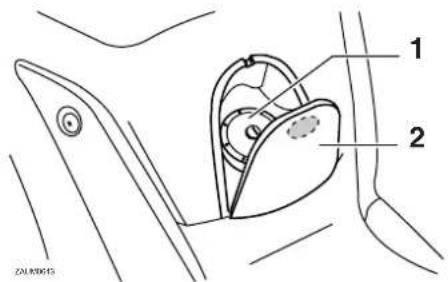

Fuel tank cap 3-8

Fuel 3-8

Catalytic converter 3-9

Seat 3-10

Storage compartment ....3-10

Storage compartment ....3-11

Adjusting the shock absorber assemblies ....3-12

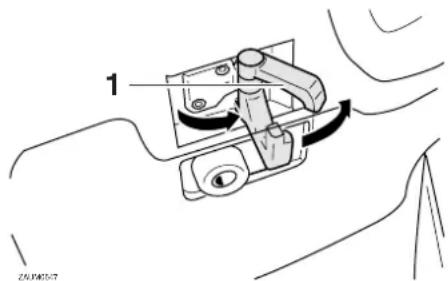

Luggage hook 3-12

Sidestand 3-13

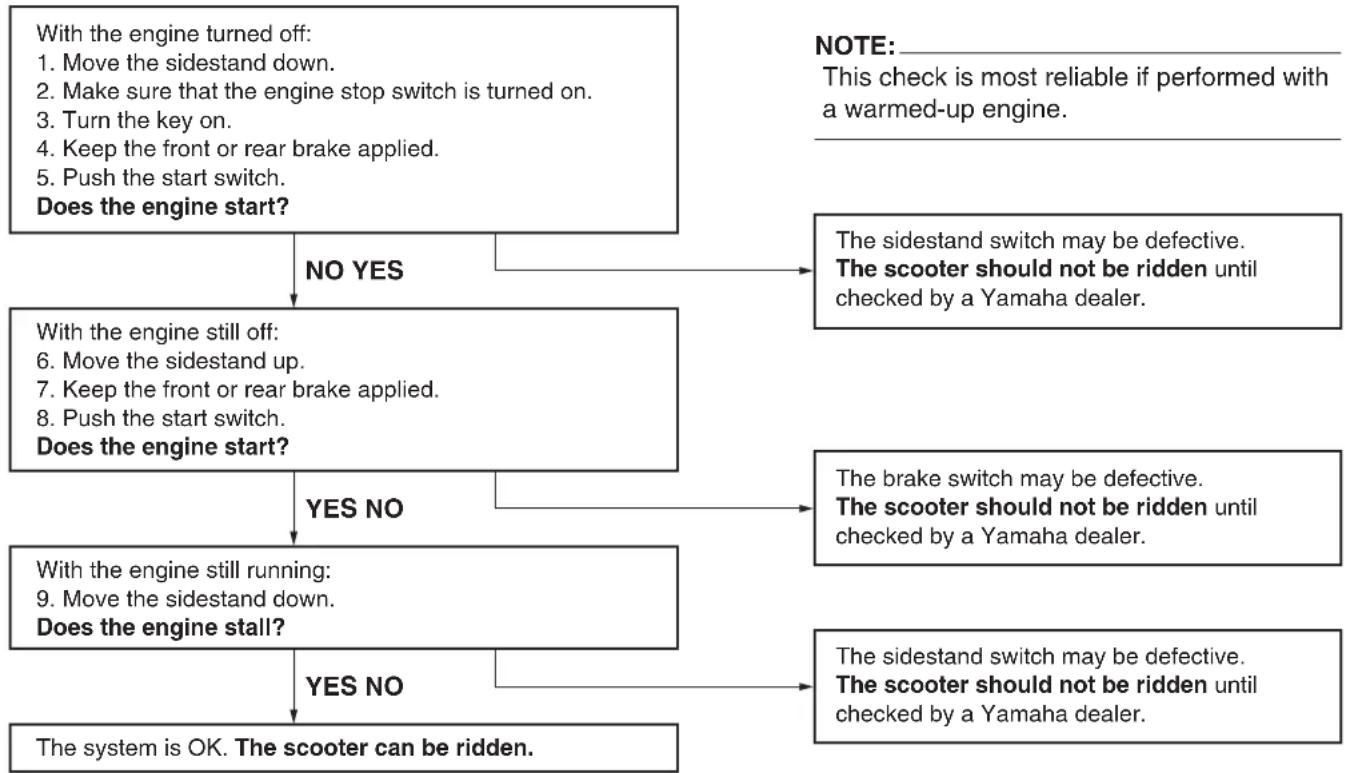

Ignition circuit cut-off system .....3-13

Pre-operation check list 4-2

OPERATION AND IMPORTANT

RIDING POINTS.... 5-1

Starting the engine 5-1

Starting off 5-2

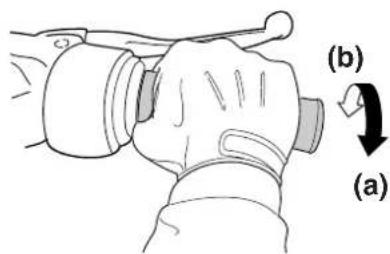

Acceleration and deceleration ..... 5-2

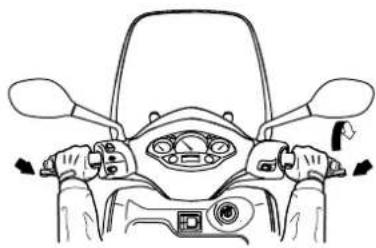

Braking 5-2

Tips for reducing fuel consumption 5-3

Engine break-in 5-3

Parking 5-4

PERIODIC MAINTENANCE AND

MINOR REPAIR 6-1

Owner's tool kit 6-1

Periodic maintenance and lubrication chart 6-2

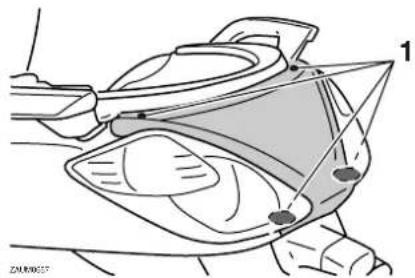

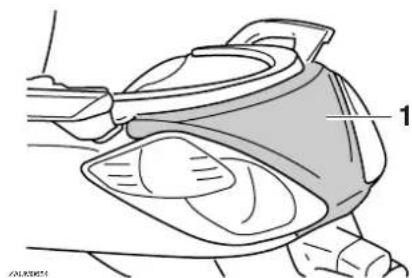

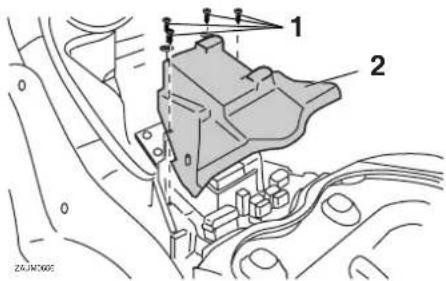

Removing and installing cowlings and panels 6-5

Checking the spark plug 6-6

Engine oil 6-7

Final transmission oil 6-9

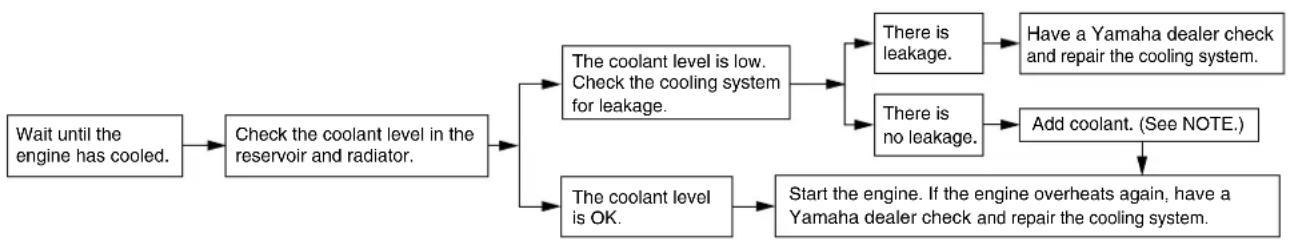

Coolant 6-10

Air filter and V-belt case air filter elements 6-11

Checking the throttle cable free play 6-12

Valve clearance 6-13

Tires 6-13

Cast wheels 6-15

Front and rear brake lever free play 6-15

Checking the front and rear brake pads 6-16

Checking the brake fluid level ..... 6-16

Changing the brake fluid 6-17

Checking and lubricating the cables 6-18

Checking and lubricating the throttle grip and cable 6-18

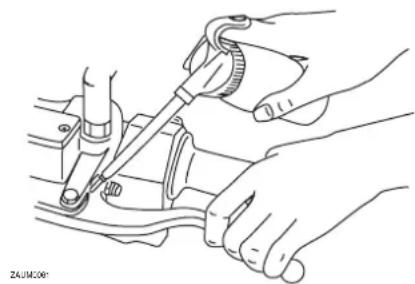

Lubricating the front and rear brake levers 6-18

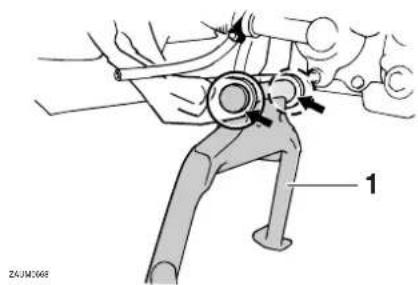

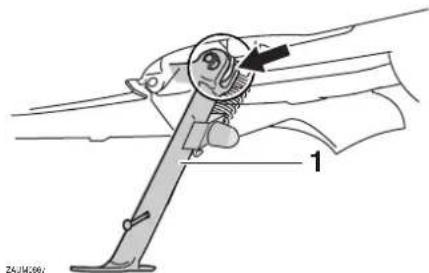

Checking and lubricating the centerstand and sidestand ..... 6-19

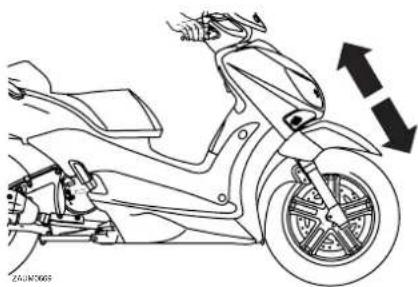

Checking the front fork 6-19

Checking the steering 6-20

Checking the wheel bearings ..... 6-21

Battery 6-21

Replacing the fuses 6-22

Replacing a headlight bulb 6-23

Replacing a front turn signal light bulb 6-25

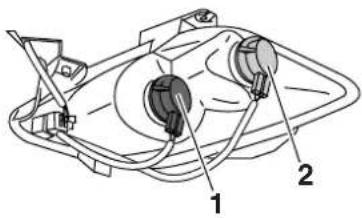

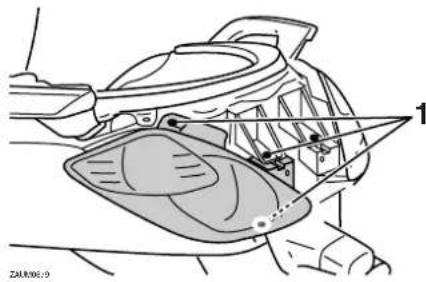

Replacing a tail/brake light bulb or a rear turn signal light bulb ..... 6-26

Replacing the license plate light bulb 6-27

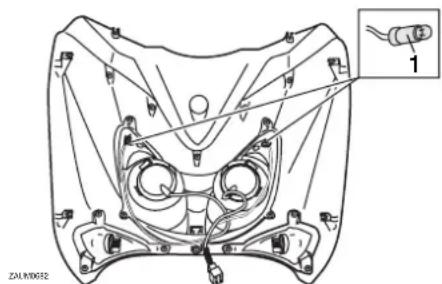

Replacing an auxiliary light bulb 6-27

Troubleshooting 6-27

Troubleshooting charts 6-28

TABLE OF CONTENTS

SCOOTER CARE AND STORAGE ...7-1

Care 7-1

Storage 7-3

SPECIFICATIONS 8-1

CONSUMER INFORMATION......9-1

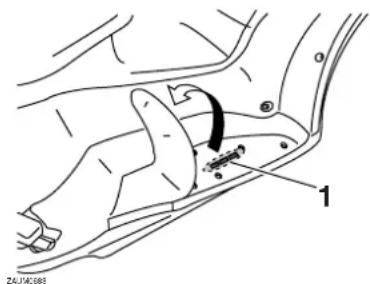

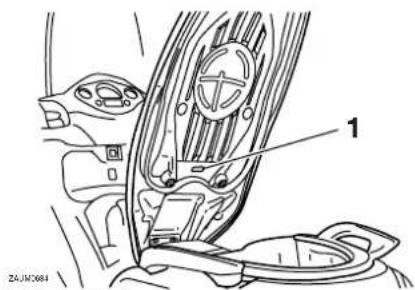

Identification numbers 9-1

SAFETY INFORMATION

EAU10261

SCOOTERS ARE SINGLE TRACK VEHICLES. THEIR SAFE USE AND OPERATION ARE DEPENDENT UPON THE USE OF PROPER RIDING TECHNIQUES AS WELL AS THE EXPERTISE OF THE OPERATOR. EVERY OPERATOR SHOULD KNOW THE FOLLOWING REQUIREMENTS BEFORE RIDING THIS SCOOTER. HE OR SHE SHOULD:

• OBTAIN THOROUGH INSTRUCTIONS FROM A COMPETENT SOURCE ON ALL ASPECTS OF SCOOTER OPERATION.
• OBSERVE THE WARNINGS AND MAINTENANCE REQUIREMENTS IN THE OWNER'S MANUAL.
  ●OBTAIN QUALIFIED TRAINING IN SAFE AND PROPER RIDING TECHNIQUES.
• OBTAIN PROFESSIONAL TECHNICAL SERVICE AS INDICATED BY THE OWNER'S MANUAL AND/OR WHEN MADE NECESSARY BY MECHANICAL CONDITIONS.

Safe riding

●Always make pre-operation checks. Careful checks may help prevent an accident.
●This scooter is designed to carry the operator and passenger.
●The failure of motorists to detect and recognize scooters in traffic is the predominating cause of automobile/scooter accidents. Many accidents have been caused by an automobile driver who did not see the scooter. Making yourself conspicuous appears to be very effective in reducing the chance of this type of accident.

Therefore:

• Wear a brightly colored jacket.
• Use extra caution when approaching and passing through intersections, since intersections are the most likely places for scooter accidents to occur.
• Ride where other motorists can see you. Avoid riding in another motorist's blind spot.

- Many accidents involve inexperienced operators. In fact, many operators who have been involved in accidents do not even have a current driver's license.

• Make sure that you are qualified and that you only lend your scooter to other qualified operators.
• Know your skills and limits. Staying within your limits may help you to avoid an accident.
  • We recommend that you practice riding your scooter where there is no traffic until you have become thoroughly familiar with the scooter and all of its controls.

●Many accidents have been caused by error of the scooter operator. A typical error made by the operator is veering wide on a turn due to EXCESSIVE SPEED or undercornering (insufficient lean angle for the speed).

• Always obey the speed limit and never travel faster than warranted by road and traffic conditions.

• Always signal before turning or changing lanes. Make sure that other motorists can see you.

●The posture of the operator and passenger is important for proper control.

- The operator should keep both hands on the handlebar and both feet on the footboard during operation to maintain control of the scooter.

- The passenger should always hold onto the operator, the seat strap or grab bar, if equipped, with both hands and keep both feet on the passenger footrests.

- Never carry a passenger unless he or she can firmly place both feet on the passenger footrests.

●Never ride under the influence of alcohol or other drugs.

●This scooter is designed for on-road use only. It is not suitable for off-road use.

Protective apparel

The majority of fatalities from scooter accidents are the result of head injuries. The use of a safety helmet is the single most critical factor in the prevention or reduction of head injuries.

●Always wear an approved helmet.

●Wear a face shield or goggles. Wind in your unprotected eyes could contribute to an impairment of vision which could delay seeing a hazard.

●The use of a jacket, substantial shoes, trousers, gloves, etc., is effective in preventing or reducing abrasions or lacerations.

●Never wear loose-fitting clothes, otherwise they could catch on the control levers or wheels and cause injury or an accident.

●Never touch the engine or exhaust system during or after operation. They become very hot and can cause burns. Always wear protective clothing that covers your legs, ankles, and feet.

●Passengers should also observe the above precautions.

Modifications

Modifications made to this scooter not approved by Yamaha, or the removal of original equipment, may render the scooter unsafe for use and may cause severe personal injury. Modifications may also make your scooter illegal to use.

Loading and accessories

Adding accessories or cargo to your scooter can adversely affect stability and handling if the weight distribution of the scooter is changed. To avoid the possibility of an accident, use extreme caution when adding cargo or accessories to your scooter. Use extra care when riding a scooter that has added cargo or accessories. Here are some general guidelines to follow if loading cargo or adding accessories to your scooter:

Loading

The total weight of the operator, passenger, accessories and cargo must not exceed the maximum load limit.

Maximum load:

185 kg (408 lb)

SAFETY INFORMATION

When loading within this weight limit, keep the following in mind:

●Cargo and accessory weight should be kept as low and close to the scooter as possible. Make sure to distribute the weight as evenly as possible on both sides of the scooter to minimize imbalance or instability.
●Shifting weights can create a sudden imbalance. Make sure that accessories and cargo are securely attached to the scooter before riding. Check accessory mounts and cargo restraints frequently.
●Never attach any large or heavy items to the handlebar, front fork, or front fender. Such items can create unstable handling or a slow steering response.

Accessories

Genuine Yamaha accessories have been specifically designed for use on this scooter. Since Yamaha cannot test all other accessories that may be available, you must personally be responsible for the proper selection, installation and use of non-Yamaha accessories. Use extreme caution when selecting and installing any accessories. Keep the following guidelines in mind, as well as those provided under "Loading" when mounting accessories.

●Never install accessories or carry cargo that would impair the performance of your scooter. Carefully inspect the accessory before using it to make sure that it does not in any way reduce ground clearance or cornering clearance, limit suspension travel, steering travel or control operation, or obscure lights or reflectors.

• Accessories fitted to the handlebar or the front fork area can create instability due to improper weight distribution or aerodynamic changes. If accessories are added to the handlebar or front fork area, they must be as lightweight as possible and should be kept to a minimum.
• Bulky or large accessories may seriously affect the stability of the scooter due to aerodynamic effects. Wind may attempt to lift

the scooter, or the scooter may become unstable in cross winds. These accessories may also cause instability when passing or being passed by large vehicles.

- Certain accessories can displace the operator from his or her normal riding position. This improper position limits the freedom of movement of the operator and may limit control ability, therefore, such accessories are not recommended.

- Use caution when adding electrical accessories. If electrical accessories exceed the capacity of the scooter's electrical system an electric failure could result, which could cause a dangerous loss of lights or engine power.

Gasoline and exhaust gas

●GASOLINE IS HIGHLY FLAMMA-BLE:
• Always turn the engine off when refueling.

• Take care not to spill any gasoline on the engine or exhaust system when refueling.
- Never refuel while smoking or in the vicinity of an open flame.

●Never start the engine or let it run for any length of time in a closed area. The exhaust fumes are poisonous and may cause loss of consciousness and death within a short time. Always operate your scooter in an area that has adequate ventilation.

●Always turn the engine off before leaving the scooter unattended and remove the key from the main switch. When parking the scooter, note the following:

• The engine and exhaust system may be hot, therefore, park the scooter in a place where pedestrians or children are not likely to touch these hot areas.
• Do not park the scooter on a slope or soft ground, otherwise it may fall over.

- Do not park the scooter near a flammable source (e.g., a kerosene heater, or near an open flame), otherwise it could catch fire.

- If you should swallow any gasoline, inhale a lot of gasoline vapor, or allow gasoline to get into your eyes, see your doctor immediately. If any gasoline spills on your skin or clothing, immediately wash the affected area with soap and water and change your clothes.

EAU10371

Further safe-riding points

• Be sure to signal clearly when making turns.
  ●Braking can be extremely difficult on a wet road. Avoid hard braking, because the scooter could slide. Apply the brakes slowly when stopping on a wet surface.
  ●Slow down as you approach a corner or turn. Once you have completed a turn, accelerate slowly.
  ●Be careful when passing parked cars. A driver might not see you and open a door in your path.
  ●Railroad crossings, streetcar rails, iron plates on road construction sites, and manhole covers become extremely slippery when wet. Slow down and cross them with caution. Keep the scooter upright, otherwise it could slide out from under you.
  ●The brake pads could get wet when you wash the scooter. After washing the scooter, check the brakes before riding.

SAFETY INFORMATION

●Always wear a helmet, gloves, trousers (tapered around the cuff and ankle so they do not flap), and a bright colored jacket.
- Do not carry too much luggage on the scooter. An overloaded scooter is unstable.

Left view

EAU10410

1 23457

1. Rear storage compartment (page 3-11)

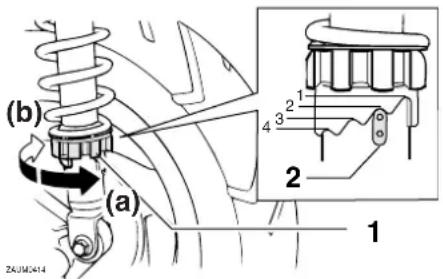

2. Shock absorber assembly spring preload adjusting ring (page 3-12)
3. Final transmission oil filler cap (page 6-9)
4. Air filter element (page 6-11)

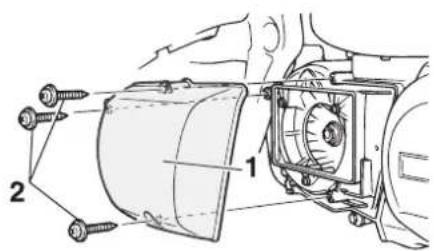

5. V-belt case air filter element (page 6-11)
6. Sidestand (page 3-13, 6-19)
7. Coolant level check window (page 6-10)
8. Front brake pads (page 6-16)

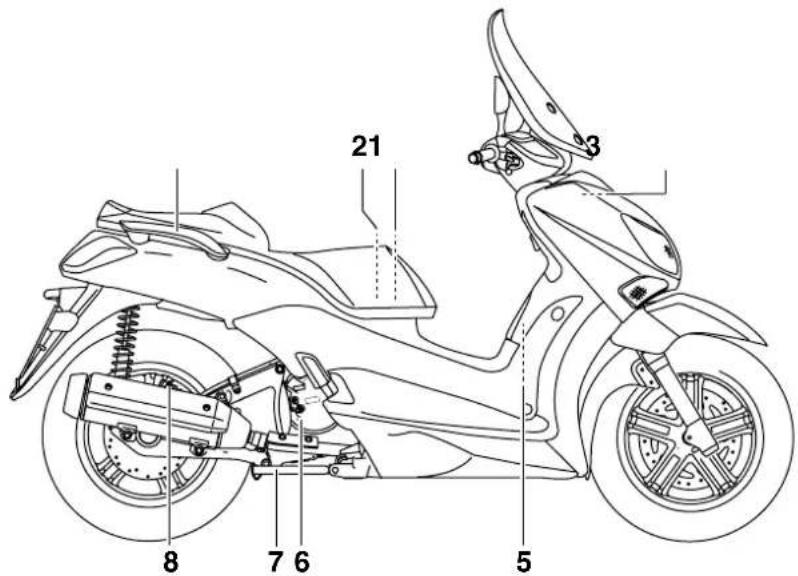

Right view

EAU10420

21 3 8 7 6 5

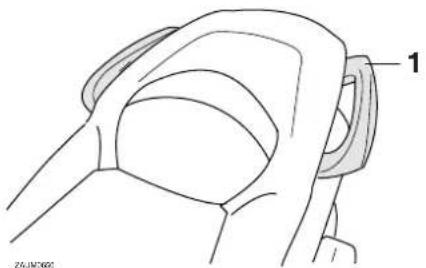

1. Grab bar (page 5-2)
2. Main fuse/fuse box (page 6-22)

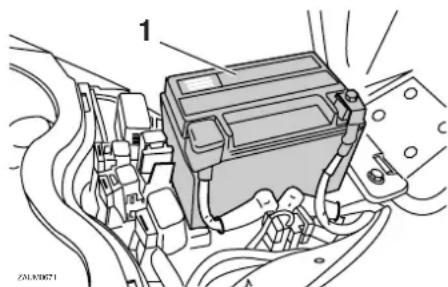

3. Battery (page 6-21)
4. Coolant reservoir cap (page 6-10)
5. Fuel tank cap (page 3-8)
6. Engine oil filler cap (page 6-7)
7. Centerstand (page 6-19)
8. Rear brake pads (page 6-16)

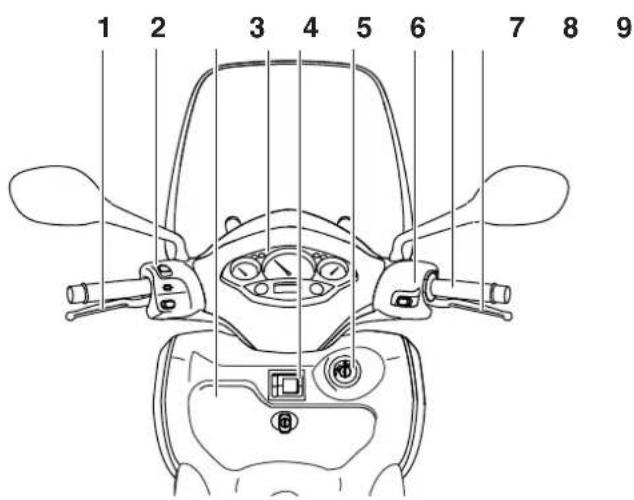

Controls and instruments

EAU10430

1 2 3 4 5 6 7 8 9

1. Rear brake lever (page 3-8)
2. Left handlebar switches (page 3-6)
3. Front storage compartment (page 3-10)
4. Speedometer/Multi-function display (page 3-2/page 3-3)
5. Luggage hook (page 3-12)
6. Main switch/steering lock (page 3-1)
7. Right handlebar switch (page 3-6)

8. Throttle grip (page 6-12)

9. Front brake lever (page 3-7)

INSTRUMENT AND CONTROL FUNCTIONS

Main switch/steering lock

EAU10460

OPEN PUSH

ZHIW3851

The main switch/steering lock controls the ignition and lighting systems, and is used to lock the steering. The various positions are described below.

EAU34121

ON "○"

All electrical circuits are supplied with power; the meter lighting, taillight, license plate light and auxiliary lights come on, and the engine can be started. The key cannot be removed.

NOTE:

The headlights come on automatically when the engine is started and stay on until the key is turned to “☒” or the sidestand is moved down.

EAU10660

OFF "×"

All electrical systems are off. The key can be removed.

EAU10680

LOCK "🔒"

The steering is locked, and all electrical systems are off. The key can be removed.

To lock the steering

1. Turn the handlebars all the way to the left.
2. Push the key in from the “☒” position, and then turn it to “☐” while still pushing it.
3. Remove the key.

To unlock the steering

Push the key in, and then turn it to “☒” while still pushing it.

EWA10060

WARNING

Never turn the key to “☒” or “☐” while the vehicle is moving, otherwise the electrical systems will be switched off, which may result in

loss of control or an accident. Make sure that the vehicle is stopped before turning the key to “☒” or “☐”.

INSTRUMENT AND CONTROL FUNCTIONS

EAU11003

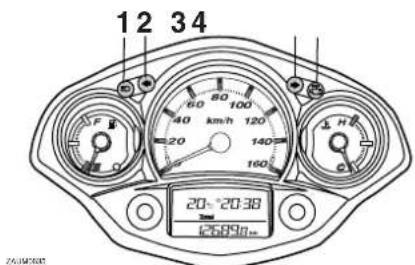

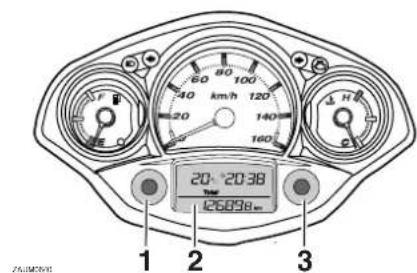

Indicator and warning lights

12 34 60 80 100 40 km/h 120 20 140 160 20~20.38 125.898mm ZAUMENBER

1. High beam indicator light "≡D"
2. Left turn signal indicator light "⇐"
3. Right turn signal indicator light "→"
4. Engine trouble warning light "☐"

EAU11030

Turn signal indicator lights “⇐” and

“→”

The corresponding indicator light flashes when the turn signal switch is pushed to the left or right.

EAU11060

High beam indicator light "≡D"

This indicator light comes on when the high beam of the headlight is switched on.

EAU11480

Engine trouble warning light "☐"

This warning light comes on when an electrical circuit monitoring the engine is defective. When this occurs, have a Yamaha dealer check the self-diagnosis system.

The electrical circuit of the warning light can be checked by turning the key to "○". If the warning light does not come on for a few seconds, then go off, have a Yamaha dealer check the electrical circuit.

EAU11591

Speedometer

1 60 80 100 40 km/h 120 20 140 5 160

1. Speedometer

UK ONLY

1 40 50 60 mph 30 70 20 80 100 10 120 -20 140- 10 90 0 160 100

ZAJW268:
1. Speedometer

The speedometer shows the riding speed.

INSTRUMENT AND CONTROL FUNCTIONS

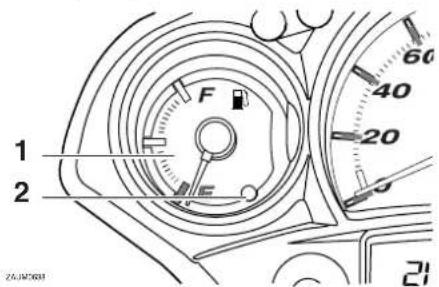

Fuel gauge

1 2 F 60 40 20 3 21

1. Fuel gauge
2. Fuel level warning light

The fuel gauge indicates the amount of fuel in the fuel tank. The needle moves towards "E" (Empty) as the fuel level decreases. When the remaining fuel in the tank reaches approximately 2.7 L (0.72 US gal) (0.60 Imp.gal), the fuel level warning light will come on and the multi-function display will automatically change to the "Trip/fuel" mode. (See page 3-3.) If this occurs, refuel as soon as possible.

NOTE:

Do not allow the fuel tank to empty itself completely.

EAUM1470

Coolant temperature gauge

H C 1

ZUNION
1. Red zone

With the key in the “○” position, the coolant temperature gauge indicates the temperature of the coolant. The coolant temperature varies with changes in the weather and engine load. If the needle reaches or enters the red zone, stop the vehicle and let the engine cool. (See page 6-28.)

ECA10020

CAUTION:

Do not operate the engine if it is overheated.

it is

it is

it is

it is

it is

it is

it is

it is

it is

it is

it is

it is

Multi-function display

20:20.38 125.098km 2 3 ZAUMINONE

1. "MODE" button
2. Multi-function display
3. "SET" button

The multi-function display is equipped with the following:

●an odometer (which shows the total distance traveled)
●two tripmeters (which show the distance traveled since they were last set to zero, the time passed since the tripmeters were set to zero, and the average speed traveled during this time)
●a fuel reserve tripmeter (which shows the distance traveled since the fuel level warning light came on)

EAUM2050

INSTRUMENT AND CONTROL FUNCTIONS

●a clock
●an ambient temperature display
●an oil change indicator (which comes on when the engine oil should be changed)

NOTE:

• For the UK, the distance traveled is displayed in miles and the temperature reading is displayed in °F.
• For other countries, the distance traveled is displayed in kilometers and the temperature reading is displayed in °C.

Odometer and tripmeter modes

Pushing the "MODE" button switches the display between the odometer mode "Total" and the tripmeter modes "Trip" in the following order:

Total → Trip 1 → Trip 2 → Trip/fuel → Total

1. Total
2. Trip 1
3. Trip 2
4. Trip/Fuel

NOTE:

●The Trip/fuel odometer is only activated if the fuel level warning light comes on.
●The Trip 2 odometer is automatically reset after turning the key to “☒” and two hours have passed.

Pushing the "SET" button when in the tripmeter mode switches the display between the different tripmeter functions in the following order:

Trip 1 or Trip 2 → Time 1 or 2 → Average speed 1 or 2 → Trip 1 or Trip 2

20°C 20:38 Trip ① 26.78 km 1 20°C 20:38 Trip ① Time 59.43 3 20°C 20:38 Trip ① Speed 84.0 km/h "Set" "Set" "Set"

1. Distance
2. Time
3. Average speed

If the fuel level warning light comes on (See page 3-3.), the display will automatically change to the fuel reserve tripmeter mode "Trip/fuel" and start counting the distance traveled from that point. In that case, pushing the "MODE" button switches the display between the various tripmeter and odometer modes in the following order:

Trip/Fuel → Trip 1 → Trip 2 → Total → Trip/fuel

INSTRUMENT AND CONTROL FUNCTIONS

20°C 20:38 Trip/Fuel 40.0 km

ZUJW3881 ZAU0095

To reset a tripmeter, select it by pushing the "MODE" button, and then push the "SET" button for at least one second. If you do not reset the fuel reserve tripmeter manually, it will reset itself automatically and the display will return to the prior mode after refueling and traveling 5 km (3 mi).

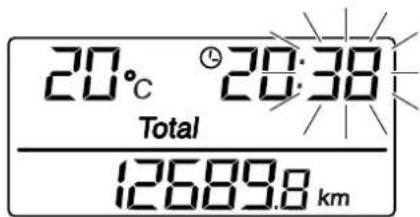

Clock mode

To set the clock:

1. When the display is in the "Total" mode, push the "SET" button for at least two seconds.
2. When the hour digits start flashing, push the "SET" button to set the hours.

20°C 20:38 Total 12689.8 km

1. Push the "MODE" button, and the minute digits will start flashing.
2. Push the "SET" button to set the minutes.
3. Push the "MODE" button and then release it to start the clock. The display will return to the "Total" mode.

20°C 20:38 Total 12689.8 km

ZMUR0316

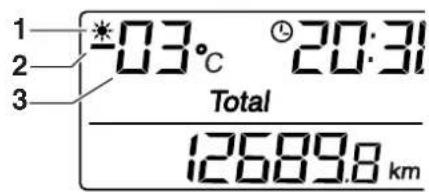

Ambient temperature display

1 2 3 *03°C 20:31 Total 12689.8 km

ZAUM3906
1. Frost warning indicator "★"
2. Minus item
3. Temperature

This display shows the ambient temperature from -30^ (-86^) to 50^ (122^) . The frost warning indicator "★" automatically comes on if the temperature is lower than 3^ (37.4^) .

INSTRUMENT AND CONTROL FUNCTIONS

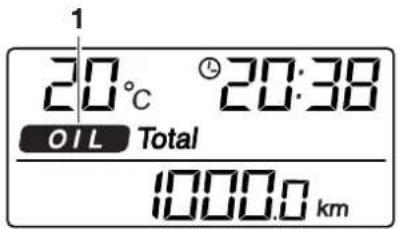

Oil change indicator "OIL"

1 20°C 20:38 OIL Total 1000.0 km

24JMC582

1. Oil change indicator "OIL"

The engine oil should be changed when this indicator comes on. The indicator stays on until it is reset. After changing the engine oil, reset the indicator as follows.

1. While holding the "MODE" and "SET" buttons pushed, turn the key to "○".
2. Continue holding the "MODE" and "SET" buttons pushed for two to five seconds.
3. Release the buttons and the oil change indicator will go off.

NOTE:

●The oil change indicator will come on at the initial 1000 km (600 mi) and every 3000 km (4800 mi) thereafter.
- If the engine oil is changed before the oil change indicator comes on (i.e. before the periodic oil change interval has been reached), the indicator must be reset after the oil change for the next periodic oil change to be indicated at the correct time. After resetting, the indicator will come on for two seconds. If the indicator does not come on, repeat the procedure.

EAU12347

Handlebar switches

Left

1 2 3 ZAUM0641

1. Dimmer "≡D/≡D"/Pass "≡D" switch
2. Turn signal switch "
3. Horn switch "▶"

Right

Technical line drawing of a mechanical component with labeled parts (no text or symbols present)

1. Start switch " ≡"

INSTRUMENT AND CONTROL FUNCTIONS

EAUS1020

ECA10050

Dimmer switch “∅”

CAUTION:

Set this switch to “≡O” for the high beam and to “≡O” for the low beam.

See page 5-1 for starting instructions prior to starting the engine.

With the headlight on low beam, press this switch downwards to flash the headlight.

EAU12460

3

Turn signal switch “◀” →

To signal a right-hand turn, push this switch to “⇨”. To signal a left-hand turn, push this switch to “⇨”. When released, the switch returns to the center position. To cancel the turn signal lights, push the switch in after it has returned to the center position.

EAU12500

Horn switch "▶"

Press this switch to sound the horn.

EAU12720

Start switch “✗”

With the sidestand up, push this switch while applying the front or rear brake to crank the engine with the starter.

EAU12900

Front brake lever

Diagram of a mechanical device with labeled parts and directional arrows (no text or symbols)

1. Front brake lever

The front brake lever is located on the right handlebar grip. To apply the front brake, pull this lever toward the handlebar grip.

INSTRUMENT AND CONTROL FUNCTIONS

EAU12950

EAUM2160

EAU13211

Rear brake lever

1 Z60142083

1. Rear brake lever

The rear brake lever is located on the left handlebar grip. To apply the rear brake, pull this lever toward the handlebar grip.

Fuel tank cap
To open the fuel tank cap

1 2 ZOLR0613

1. Fuel tank cap

2. Fuel tank cap cover

3. Open the fuel tank cap cover by pushing in on the front end of it.

4. Insert the key in the lock and turn it clockwise.

To close the fuel tank cap

1. Align the match marks, and then push the fuel tank cap into the original position.
2. Turn the key counterclockwise and remove it.
3. Close the fuel tank cover.

Fuel

1 2

1. Fuel tank filler tube
2. Fuel level

Make sure that there is sufficient fuel in the tank. Fill the fuel tank to the bottom of the filler tube as shown.

EWA10880

WARNING

●Do not overfill the fuel tank, otherwise it may overflow when the fuel warms up and expands.
●Avoid spilling fuel on the hot engine.

INSTRUMENT AND CONTROL FUNCTIONS

ECA10070

CAUTION:

Immediately wipe off spilled fuel with a clean, dry, soft cloth, since fuel may deteriorate painted surfaces or plastic parts.

EAU13320

Recommended fuel:

REGULAR UNLEADED GASOLINE ONLY

Fuel tank capacity:

10.5 L (2.77 US gal) (2.31 Imp.gal)

Fuel reserve amount:

2.7 L (0.72 US gal) (0.60 Imp.gal)

ECA11400

CAUTION:

Use only unleaded gasoline. The use of leaded gasoline will cause severe damage to internal engine parts, such as the valves and piston rings, as well as to the exhaust system.

Your Yamaha engine has been designed to use regular unleaded gasoline with a research octane number of 91 or higher. If knocking (or pinging) occurs, use a gasoline of a different brand

or premium unleaded fuel. Use of unleaded fuel will extend spark plug life and reduce maintenance costs.

EAU13441

Catalytic converter

This vehicle is equipped with catalytic converters in the exhaust system.

EWA10860

WARNING

The exhaust system is hot after operation. Make sure that the exhaust system has cooled down before doing any maintenance work.

ECA10700

CAUTION:

The following precautions must be observed to prevent a fire hazard or other damages.

• Use only unleaded gasoline. The use of leaded gasoline will cause unrepairable damage to the catalytic converter.
  ●Never park the vehicle near possible fire hazards such as grass or other materials that easily burn.
  ●Do not allow the engine to idle too long.

INSTRUMENT AND CONTROL FUNCTIONS

EAU13932

Seat

To open the seat

1. Place the scooter on the centerstand.
2. Insert the key into the main switch, and then turn it counterclockwise to "OPEN".

1 ZAJIM0644

1. Open.

NOTE:

Do not push inward when turning the key.

1. Fold the seat up.

To close the seat

1. Fold the seat down, and then push it down to lock it in place.

2. Remove the key from the main switch if the scooter will be left unattended.

NOTE:

Make sure that the seat is properly secured before riding.

EAUM1182

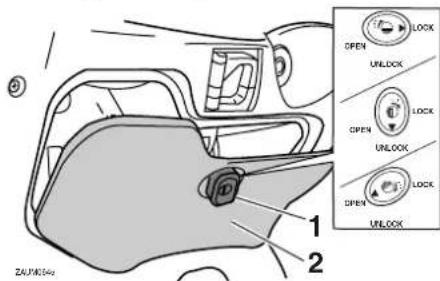

Storage compartment

1 2 ZAUNICE4a OPEN LOCK OPEN LOCK OPEN LOCK OPEN UNLOCK

1. Lock.
2. Front storage compartment

To unlock the storage compartment Insert the key in the lock and turn it 1/4 turn clockwise.

To open the storage compartment when it is unlocked

Turn the knob 1/4 turn clockwise. The knob will return to its original position after released.

To close the storage compartment

Push the lid into the original position.

INSTRUMENT AND CONTROL FUNCTIONS

To lock the storage compartment Insert the key in the lock and turn it 1/4 turn counterclockwise, and then remove the key.

EWA10961

WARNING

●Do not exceed the load limit of 1 kg (2.2 lb) for the storage compartment.
●Do not exceed the maximum load of 185 kg (408 lb) for the vehicle.

Storage compartment

Technical diagram of a car interior showing labeled parts and structural elements

1. Rear storage compartment

There is a storage compartment under the seat. (See page 3-10.)

EWA10961

WARNING

• Do not exceed the load limit of 5 kg (11 lb) for the storage compartment.
  ●Do not exceed the maximum load of 185 kg (408 lb) for the vehicle.

ECA10080

CAUTION:

Keep the following points in mind when using the storage compartment.

ECA10080

●Since the storage compartment accumulates heat when exposed to the sun, do not store anything susceptible to heat inside it.
●To avoid humidity from spreading through the storage compartment, wrap wet articles in a plastic bag before storing them in the compartment.
●Since the storage compartment may get wet while the scooter is being washed, wrap any articles stored in the compartment in a plastic bag.
- Do not keep anything valuable or breakable in the storage compartment.

To store a helmet in the storage compartment, place the helmet with the front facing backward.

NOTE:

●Some helmets cannot be stored in the storage compartment because of their size or shape.
- Do not leave your scooter unattended with the seat open.

INSTRUMENT AND CONTROL FUNCTIONS

EAU14880

Adjusting the shock absorber assemblies

(b) (a) 1 2 3 4 2 1 ZAUM0414

1. Spring preload adjusting ring
2. Position indicator

Each shock absorber assembly is equipped with a spring preload adjusting ring.

ECA10100

CAUTION:

Never attempt to turn an adjusting mechanism beyond the maximum or minimum settings.

EWA10210

WARNING

Always adjust both shock absorber assemblies equally, otherwise poor handling and loss of stability may result.

Adjust the spring preload as follows. To increase the spring preload and thereby harden the suspension, turn the adjusting ring on each shock absorber assembly in direction (a). To decrease the spring preload and thereby soften the suspension, turn the adjusting ring on each shock absorber assembly in direction (b).

NOTE:

Align the appropriate notch in the adjusting ring with the position indicator on the shock absorber.

Spring preload setting:

Minimum (soft):

1

Standard:

2

Maximum (hard):

4

EAUT1070

Luggage hook

1 ZALAWOT7

1. Luggage hook

EWAT1030

WARNING

●Do not exceed the load limit of 3 kg (6.6 lb) for the luggage hook.
- Do not exceed the maximum load of 185 kg (408 lb) for the vehicle.

INSTRUMENT AND CONTROL FUNCTIONS

EAU15301

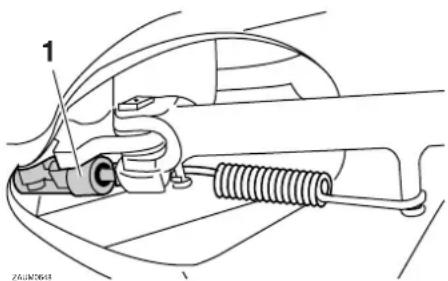

Sidestand

1 ZGJN0648

1. Sidestand switch

The sidestand is located on the left side of the frame. Raise the sidestand or lower it with your foot while holding the vehicle upright.

NOTE:

The built-in sidestand switch is part of the ignition circuit cut-off system, which cuts the ignition in certain situations. (See further down for an explanation of the ignition circuit cut-off system.)

EWA10240

WARNING

The vehicle must not be ridden with the sidestand down, or if the sidestand cannot be properly moved up

(or does not stay up), otherwise the sidestand could contact the ground and distract the operator, resulting in a possible loss of control. Yamaha's ignition circuit cut-off system has been designed to assist the operator in fulfilling the responsibility of raising the sidestand before starting off. Therefore, check this system regularly as described below and have a Yamaha dealer repair it if it does not function properly.

EAU15371

Ignition circuit cut-off system

The ignition circuit cut-off system (comprising the sidestand switch and brake light switches) has the following functions.

• It prevents starting when the side-stand is up, but neither brake is applied.
• It prevents starting when either brake is applied, but the sidestand is still down.
  ●It cuts the running engine when the sidestand is moved down.

Periodically check the operation of the ignition circuit cut-off system according to the following procedure.

EWA10250

WARNING

If a malfunction is noted, have a Yamaha dealer check the system before riding.

INSTRUMENT AND CONTROL FUNCTIONS

The condition of a vehicle is the owner's responsibility. Vital components can start to deteriorate quickly and unexpectedly, even if the vehicle remains unused (for example, as a result of exposure to the elements). Any damage, fluid leakage or loss of tire air pressure could have serious consequences. Therefore, it is very important, in addition to a thorough visual inspection, to check the following points before each ride.

NOTE:

Pre-operation checks should be made each time the vehicle is used. Such an inspection can be accomplished in a very short time; and the added safety it assures is more than worth the time involved.

EWA11150

4

WARNING

If any item in the Pre-operation check list is not working properly, have it inspected and repaired before operating the vehicle.

Pre-operation check list

EAU15605

ITEM CHECKS PAGE
Fuel	Check fuel level in fuel tank.Refuel if necessary.Check fuel line for leakage.	3-8
Engine oil	Check oil level in engine.If necessary, add recommended oil to specified level.Check vehicle for oil leakage.	6-7
Final transmission oil	Check vehicle for oil leakage.	6-9
Coolant	Check coolant level in reservoir.If necessary, add recommended coolant to specified level.Check cooling system for leakage.	6-10
Front brake	Check operation.If soft or spongy, have Yamaha dealer bleed hydraulic system.Check brake pads for wear.Replace if necessary.Check fluid level in reservoir.If necessary, add recommended brake fluid to specified level.Check hydraulic system for leakage.	6-15, 6-16, 6-16
Rear brake	Check operation.If soft or spongy, have Yamaha dealer bleed hydraulic system.Check brake pads for wear.Replace if necessary.Check fluid level in reservoir.If necessary, add recommended brake fluid to specified level.Check hydraulic system for leakage.	6-15, 6-16, 6-16
Throttle grip	Make sure that operation is smooth.Check cable free play.If necessary, have Yamaha dealer adjust cable free play and lubricate cable and grip housing.	6-12, 6-18

ITEM CHECKS PAGE
Wheels and tires	Check for damage.Check tire condition and tread depth.Check air pressure.Correct if necessary.	6-13, 6-15
Brake levers	Make sure that operation is smooth.Lubricate lever pivoting points if necessary.	6-18
Centerstand, sidestand	Make sure that operation is smooth.Lubricate pivots if necessary.	6-19
Chassis fasteners	Make sure that all nuts, bolts and screws are properly tightened.Tighten if necessary.	—
Instruments, lights, signals and switches	Check operation.Correct if necessary.	—
Sidestand switch	Check operation of ignition circuit cut-off system.If system is defective, have Yamaha dealer check vehicle.	3-13

OPERATION AND IMPORTANT RIDING POINTS

EAU15980

EWA10870

WARNING

• Become thoroughly familiar with all operating controls and their functions before riding. Consult a Yamaha dealer regarding any control or function that you do not thoroughly understand.
  ●Never start the engine or operate it in a closed area for any length of time. Exhaust fumes are poisonous, and inhaling them can cause loss of consciousness and death within a short time. Always make sure that there is adequate ventilation.
  ●For safety, always start the engine with the centerstand down.

Starting the engine

EAUM2170

ECA10250

CAUTION:

See page 5-3 for engine break-in instructions prior to operating the vehicle for the first time.

In order for the ignition circuit cut-off system to enable starting, the side-stand must be up.

EWA10290

WARNING

●Before starting the engine, check the function of the ignition circuit cut-off system according to the procedure described on page 3-13.
●Never ride with the sidestand down.

1. Turn the key to “○”.
2. Close the throttle completely.
3. Start the engine by pushing the start switch while applying the front or rear brake.

1

ZNJ40568

1. Rear brake lever
2. Start switch
3. Front brake lever

NOTE:

If the engine does not start, release the start switch, wait a few seconds, and then try again. Each starting attempt should be as short as possible to preserve the battery. Do not crank the engine more than 10 seconds on any one attempt. If the engine does not start, try with the throttle open 1/8 turn.

ECA11040

CAUTION:

For maximum engine life, never accelerate hard when the engine is cold!

OPERATION AND IMPORTANT RIDING POINTS

EAU16760

Starting off

NOTE:

Before starting off, allow the engine to warm up.

1. While pulling the rear brake lever with your left hand and holding the grab bar with your right hand, push the scooter off the centerstand.

Line drawing of a mechanical component with labeled part '1' (no text or symbols beyond label)

1. Grab bar

2. Sit astride the seat, and then adjust the rear view mirrors.

3. Switch the turn signal on.
4. Check for oncoming traffic, and then slowly turn the throttle grip (on the right) in order to take off.
5. Switch the turn signal off.

EAU16780

Acceleration and deceleration

(b) (a)

(21.37:59)

The speed can be adjusted by opening and closing the throttle. To increase the speed, turn the throttle grip in direction (a). To reduce the speed, turn the throttle grip in direction (b).

EAU16792

Braking

1. Close the throttle completely.
2. Apply both front and rear brakes simultaneously while gradually increasing the pressure.

Line drawing of a person's front view of a motorcycle dashboard with steering wheel and dashboard (no text or symbols)

ZAUMC66

EWA10300

WARNING

●Avoid braking hard or suddenly (especially when leaning over to one side), otherwise the scooter may skid or overturn.
●Railroad crossings, streetcar rails, iron plates on road construction sites, and manhole covers become extremely slippery when wet. Therefore, slow

OPERATION AND IMPORTANT RIDING POINTS

down when approaching such areas and cross them with caution.

• Keep in mind that braking on a wet road is much more difficult.
  ●Ride slowly down a hill, as braking downhill can be very difficult.

EAU16820

Tips for reducing fuel consumption

Fuel consumption depends largely on your riding style. Consider the following tips to reduce fuel consumption:

●Avoid high engine speeds during acceleration.
●Avoid high engine speeds with no load on the engine.
●Turn the engine off instead of letting it idle for an extended length of time (e.g., in traffic jams, at traffic lights or at railroad crossings).

EAU16841

Engine break-in

There is never a more important period in the life of your engine than the period between 0 and 1600 km (1000 mi). For this reason, you should read the following material carefully.

Since the engine is brand new, do not put an excessive load on it for the first 1600 km (1000 mi). The various parts in the engine wear and polish themselves to the correct operating clearances.

During this period, prolonged full-throttle operation or any condition that might result in engine overheating must be avoided.

EAUM2010

0–1000 km (0–600 mi)

Avoid prolonged operation above 1/3 throttle.

1000–1600 km (600–1000 mi)

Avoid prolonged operation above 1/2 throttle.

OPERATION AND IMPORTANT RIDING POINTS

ECA11660

CAUTION:

After 1000 km (600 mi) of operation, be sure to replace the engine oil and final transmission oil.

1600 km (1000 mi) and beyond

The vehicle can now be operated normally.

ECA10270

CAUTION:

If any engine trouble should occur during the engine break-in period, immediately have a Yamaha dealer check the vehicle.

EAU17212

Parking

When parking, stop the engine, and then remove the key from the main switch.

EWA10310

WARNING

●Since the engine and exhaust system can become very hot, park in a place where pedestrians or children are not likely to touch them.
- Do not park on a slope or on soft ground, otherwise the vehicle may overturn.

ECA10380

CAUTION:

Never park in an area where there are fire hazards such as grass or other flammable materials.

PERIODIC MAINTENANCE AND MINOR REPAIR

EAU17280

Safety is an obligation of the owner. Periodic inspection, adjustment and lubrication will keep your vehicle in the safest and most efficient condition possible. The most important points of inspection, adjustment, and lubrication are explained on the following pages. The intervals given in the periodic maintenance and lubrication chart should be simply considered as a general guide under normal riding conditions. However, DEPENDING ON THE WEATHER, TERRAIN, GEOGRAPHICAL LOCATION, AND INDIVIDUAL USE, THE MAINTENANCE INTERVALS MAY NEED TO BE SHORT-ENED.

EWA10320

WARNING

If you are not familiar with maintenance work, have a Yamaha dealer do it for you.

EWA10330

WARNING

This scooter is designed for use on paved roads only. If this scooter is operated in abnormally dusty, mud-

dy or wet conditions, the air filter element should be cleaned or replaced more frequently, otherwise rapid engine wear may result. Consult a Yamaha dealer for proper maintenance intervals.

EAU17470

Owner's tool kit

The owner's tool kit is located inside the rear storage compartment. (See page 3-11.)

The service information included in this manual and the tools provided in the owner's tool kit are intended to assist you in the performance of preventive maintenance and minor repairs. However, additional tools such as a torque wrench may be necessary to perform certain maintenance work correctly.

NOTE:

If you do not have the tools or experience required for a particular job, have a Yamaha dealer perform it for you.

EWA10350

WARNING

Modifications not approved by Yamaha may cause loss of performance and render the vehicle unsafe for use. Consult a Yamaha dealer before attempting any changes.

PERIODIC MAINTENANCE AND MINOR REPAIR

Periodic maintenance and lubrication chart

EAU17707

NOTE:

• The annual checks must be performed every year, except if a kilometer-based maintenance is performed instead.
  ●From 50000 km, repeat the maintenance intervals starting from 10000 km.
• Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technical skills.

NO.		ITEM CHECK OR MAINTENANCE JOB	ODOMETER READING (× 1000 km)					ANNUAL CHECK
			1		1	0	2	0
1	*	Fuel line	Check fuel hoses for cracks or damage.		√	√	√	√
2	Spark plug	Check condition.Clean and regap.		√		√
		Replace. √ √
3	Valves	Check valve clearance.Adjust.			√		√
4		Air filter element	Replace.			√		√
5		V-belt case air filter element	Clean.		√	√	√	√
6	Front brake	Check operation, fluid level and vehicle for fluid leakage.	√	√	√	√	√	√
		Replace brake pads.	Whenever worn to the limit
7	Rear brake	Check operation, fluid level and vehicle for fluid leakage.	√	√	√	√	√	√
		Replace brake pads.	Whenever worn to the limit
8	Brake hoses	Check for cracks or damage.		√	√	√	√	√
		Replace.	Every 4 years
9	*	Wheels	Check runout and for damage.		√	√	√	√

PERIODIC MAINTENANCE AND MINOR REPAIR

NO.		ITEM	CHECK OR MAINTENANCE JOB	ODOMETER READING (× 1000 km)					ANNUAL CHECK
				1	10	20	30	40
10	*	Tires	Check tread depth and for damage.Replace if necessary.Check air pressure.Correct if necessary.		√	√	√	√
11	*	Wheel bearings	Check bearing for looseness or damage.		√	√	√	√
12	*	Steering bearings	Check bearing play and steering for roughness.√√	√	√	√
			Lubricate with lithium-soap-based grease. Every 20000 km
13	*	Chassis fasteners	Make sure that all nuts, bolts and screws are properly tightened.		√	√	√	√
14	Sidestand, centerstand		Check operation.Lubricate.		√	√	√	√
15	*	Sidestand switch	Check operation.	√	√	√	√	√	√
16	*	Front fork	Check operation and for oil leakage.		√	√	√	√
17	*	Shock absorber assemblies	Check operation and shock absorbers for oil leakage.		√	√	√	√
18	*	Fuel injection	Check engine idle speed.	√	√	√	√	√	√
19	Engine oil		Change. (See page 3-2.)	√	When the oil change indicator light comes on (every 3000 km)
			Check oil level and vehicle for oil leakage.	Every 3000 km					√
20	*	Engine oil strainer	Clean.	√
21	*	Cooling system	Check coolant level and vehicle for coolant leakage.		√	√	√	√	√
			Change.	Every 3 years
22	Final transmission oil		Check vehicle for oil leakage.	√	√		√
			Change.	√		√		√
23	*	V-belt	Replace.	Every 20000 km

PERIODIC MAINTENANCE AND MINOR REPAIR

NO.		ITEM CHECK OR MAINTENANCE JOB	ODOMETER READING (× 1000 km)					ANNUAL CHECK
			1		1	0	2	0
24	*	Front and rear brake switches	Check operation. √ √ √ √ √		√
25		Moving parts and cables	Lubricate. √ √ √ √ √
26	*	Throttle grip housing and cable	Check operation and free play.Adjust the throttle cable free play if necessary.Lubricate the throttle grip housing and cable.		√	√	√	√
27	*	Lights, signals and switches	Check operation.Adjust headlight beam.	√	√	√	√	√

EAU18670

NOTE:

● The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
●Hydraulic brake service

• Regularly check and, if necessary, correct the brake fluid level.
• Every two years replace the internal components of the brake master cylinders and calipers, and change the brake fluid.
• Replace the brake hoses every four years and if cracked or damaged.

PERIODIC MAINTENANCE AND MINOR REPAIR

EAU18712

Removing and installing cowlings and panels

The cowlings and panels shown need to be removed to perform some of the maintenance jobs described in this chapter. Refer to this section each time a cowling or panel needs to be removed and installed.

1 ZHAJIAO2020

1. Cowling A

1 ZALWDG23

1. Panel A

Medical illustration of a surgical procedure on an eye (no text or symbols present)

1. Panel B

Cowling A

To remove the cowling

1. Remove the cowling screws.

1 2 ZALIFAL2005

1. Cowling A

2. Screw

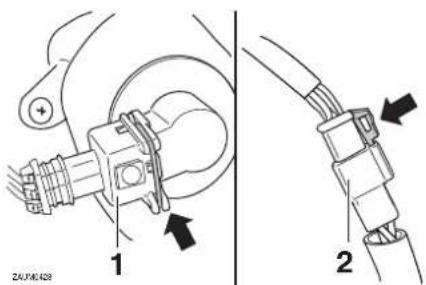

3. Disconnect the headlight coupler and the turn signal couplers.

1 2

1. Turn signal light lead coupler

2. Headlight coupler

3. Pull the cowling off.

PERIODIC MAINTENANCE AND MINOR REPAIR

To install the cowling

1. Connect the headlight coupler and the turn signal couplers.
2. Place the cowling in the original position, and then install the screws.

EAU19481

Panel A

To remove the panel

1. Open the seat. (See page 3-10.)
2. Remove the screws, and then pull the panel off as shown.

Technical diagram of a mechanical assembly with labeled parts 1 and 2, showing components like gears and housing.

1. Screw
2. Panel A

To install the panel

Place the panel in the original position, and then install the screws.

EAU19210

Panel B

To remove the panel

Remove the screws, and then take the panel off.

Medical illustration of a surgical procedure on a patient's shoulder and hip area, showing anatomical structures without any text or labels.

1. Screw

To install the panel

Place the panel in the original position, and then install the screws.

EAU19620

Checking the spark plug

The spark plug is an important engine component, which should be checked periodically, preferably by a Yamaha dealer. Since heat and deposits will cause any spark plug to slowly erode, it should be removed and checked in accordance with the periodic maintenance and lubrication chart. In addition, the condition of the spark plug can reveal the condition of the engine.

The porcelain insulator around the center electrode of the spark plug should be a medium-to-light tan (the ideal color when the vehicle is ridden normally). If the spark plug shows a distinctly different color, the engine could be defective. Do not attempt to diagnose such problems yourself. Instead, have a Yamaha dealer check the vehicle.

If the spark plug shows signs of electrode erosion and excessive carbon or other deposits, it should be replaced.

Specified spark plug: NGK/DPR8EA-9

PERIODIC MAINTENANCE AND MINOR REPAIR

Before installing a spark plug, the spark plug gap should be measured with a wire thickness gauge and, if necessary, adjusted to specification.

1

1. Spark plug gap

Spark plug gap:

0.8–0.9 mm (0.031–0.035 in)

Clean the surface of the spark plug gasket and its mating surface, and then wipe off any grime from the spark plug threads.

Tightening torque:

Spark plug:

17.5 Nm (1.75 m·kgf, 12.5 ft·lbf)

NOTE:

If a torque wrench is not available when installing a spark plug, a good estimate of the correct torque is 1/4–1/2 turn past finger tight. However, the spark plug should be tightened to the specified torque as soon as possible.

EAUM1550

Engine oil

The engine oil level should be checked before each ride. In addition, the oil must be changed at the intervals specified in the periodic maintenance and lubrication chart and when the service indicator light comes on.

To check the engine oil level

1. Place the scooter on the center-stand.

NOTE:

Make sure that the scooter is positioned straight up when checking the oil level. A slight tilt to the side can result in a false reading.

1. Start the engine, warm it up for several minutes, and then turn it off.
2. Wait a few minutes until the oil set- tles, remove the oil filler cap, wipe the dipstick clean, insert it back into the oil filler hole (without screwing it in), and then remove it again to check the oil level.

PERIODIC MAINTENANCE AND MINOR REPAIR

NOTE:

The engine oil should be between the minimum and maximum level marks.

Technical diagram showing a mechanical assembly with labeled parts, including a tool and a close-up of the component.

1. Engine oil filler cap

2. Maximum level mark

3. Minimum level mark

4. If the engine oil is below the minimum level mark, add sufficient oil of the recommended type to raise it to the correct level.

5. Insert the dipstick into the oil filler hole, and then tighten the oil filler cap.

To change the engine oil

1. Start the engine, warm it up for several minutes, and then turn it off.

2. Place an oil pan under the engine to collect the used oil.

3. Remove the engine oil filler cap and the engine oil drain bolt to drain the oil from the crankcase.

1 ZA400018

1. Engine oil drain bolt

2. Check the washer for damage and replace it if necessary.

Technical line drawing of a bolt and washer (no text or symbols)

ZN1950 29

1. Engine oil drain bolt

2. Washer

3. Install the washer and the engine oil drain bolt, and then tighten the drain bolt to the specified torque.

Tightening torque:

Engine oil drain bolt: 20 Nm (2.0 m·kgf, 14 ft·lbf)

NOTE:

Make sure that the washer is properly seated.

1. Add the specified amount of the recommended engine oil, and then install and tighten the oil filler cap.

Recommended engine oil:

See page 8-1

Oil change quantity:

1.20 L (1.27 US qt) (1.06 Imp.qt)

ECA11670

CAUTION:

- Do not use oils with a diesel specification of "CD" or oils of a higher quality than specified. In addition, do not use oils labeled "ENERGY CONSERVING II" or higher.

PERIODIC MAINTENANCE AND MINOR REPAIR

●Be sure no foreign material enters the crankcase.

1. Start the engine, and then let it idle for several minutes while checking it for oil leakage. If oil is leaking, immediately turn the engine off and check for the cause.
2. Reset the oil change indicator. (See page 3-3.)

EAU20061

Final transmission oil

The final transmission case must be checked for oil leakage before each ride. If any leakage is found, have a Yamaha dealer check and repair the scooter. In addition, the final transmission oil must be changed as follows at the intervals specified in the periodic maintenance and lubrication chart.

1. Start the engine, warm up the final transmission oil by riding the scooter for several minutes, and then stop the engine.
2. Place the scooter on the centerstand.
3. Place an oil pan under the final transmission case to collect the used oil.
4. Remove the oil filler cap and drain bolt to drain the oil from the final transmission case.

1 2 ALM0635

1. E:

2. Final transmission oil mill cap

3. Install the final transmission oil drain bolt, and then tighten it to the specified torque.

Technical line drawing of a car interior with mechanical components and a magnified inset showing component 1 (no text or symbols)

1. Final transmission oil drain bolt

Tightening torque:

Final transmission oil drain bolt:

22 Nm (2.2 m·kgf, 15.9 ft·lbf)

PERIODIC MAINTENANCE AND MINOR REPAIR

1. Add the specified amount of the recommended final transmission oil, and then install and tighten the oil filler cap.

Recommended final transmission oil:

See page 8-1.

Oil quantity:

0.25 L (0.26 US qt) (0.22 Imp.qt)

EWA11310

WARNING

●Make sure that no foreign material enters the final transmission case.
●Make sure that no oil gets on the tire or wheel.

1. Check the final transmission case for oil leakage. If oil is leaking, check for the cause.

EAU20070

Coolant

The coolant level should be checked before each ride. In addition, the coolant must be changed at the intervals specified in the periodic maintenance and lubrication chart.

EAUM2101

To check the coolant level

1. Place the vehicle on a level surface and hold it in an upright position.

NOTE:

●The coolant level must be checked on a cold engine since the level varies with engine temperature.
●Make sure that the vehicle is positioned straight up when checking the coolant level. A slight tilt to the side can result in a false reading.

1. Check the coolant level through the check window.

NOTE:

The coolant should be between the minimum and maximum level marks.

⑨ 1 2 ZAUMC000

1. Maximum level mark

2. Minimum level mark

3. If the coolant is at or below the minimum level mark, remove the cowling A. (See page 6-5.)

4. Open the reservoir cap, and then add coolant to the maximum level mark.

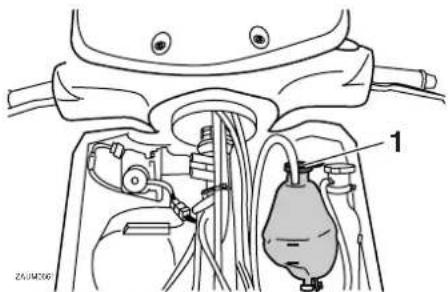

1 ZA042090

1. Coolant reservoir cap

PERIODIC MAINTENANCE AND MINOR REPAIR

Coolant reservoir capacity: 0.20 L (0.21 US qt) (0.18 Imp.qt)

ECA10471

CAUTION:

• If coolant is not available, use distilled water or soft tap water instead. Do not use hard water or salt water since it is harmful to the engine.
• If water has been used instead of coolant, replace it with coolant as soon as possible, otherwise the cooling system will not be protected against frost and corrosion.
• If water has been added to the coolant, have a Yamaha dealer check the antifreeze content of the coolant as soon as possible, otherwise the effectiveness of the coolant will be reduced.

EWA10380

WARNING

Never attempt to remove the radiator cap when the engine is hot.

1. Close the reservoir cap, and then install the cowling.

EAU33030

Changing the coolant

EWA10380

WARNING

Never attempt to remove the radiator cap when the engine is hot.

The coolant must be changed at the intervals specified in the periodic maintenance and lubrication chart. Have a Yamaha dealer change the coolant.

EAUS1333

Air filter and V-belt case air filter elements

The air filter element should be replaced and the V-belt case air filter element should be cleaned at the intervals specified in the periodic maintenance and lubrication chart. Service the air filter elements more frequently if you are riding in unusually wet or dusty areas.

Replacing the air filter element

1. Place the scooter on the centerstand.
2. Remove the air filter case cover by removing the screws.

Technical diagram of a vehicle suspension system with numbered components and labeled parts

1. Air filter case cover
2. Screw
3. Air filter element

PERIODIC MAINTENANCE AND MINOR REPAIR

1. Pull the air filter element out.
2. Insert a new air filter element into the air filter case.
3. Install the air filter case cover by installing the screws.

Cleaning the V-belt case air filter element

1. Remove the V-belt case air filter cover by removing the screws.

Technical diagram of a mechanical assembly with labeled parts 1 and 2, showing bolted connections and internal components.

ZAURSHI

1. V-belt case air filter cover
2. Screw
3. Remove the air filter element, and then blow out the dirt with compressed air as shown.

1 2 ZK400449

1. V-belt case air filter cover

2. V-belt case air filter element

3. Check the air filter element for damage and replace it if necessary.

4. Install the air filter element with the colored side facing outward.
5. Install the V-belt case air filter cover by installing the screws.

ECA10530

CAUTION:

●Make sure that each filter element is properly seated in its case.
●The engine should never be operated without the filter elements installed, otherwise the piston(s) and/or cylinder(s) may become excessively worn.

EAU21382

Checking the throttle cable free play

1

ZAUMOst

1. Throttle cable free play

The throttle cable free play should measure 3.0–5.0 mm (0.12–0.20 in) at the throttle grip. Periodically check the throttle cable free play and, if necessary, have a Yamaha dealer adjust it.

PERIODIC MAINTENANCE AND MINOR REPAIR

EAU21401

Valve clearance

The valve clearance changes with use, resulting in improper air-fuel mixture and/or engine noise. To prevent this from occurring, the valve clearance must be adjusted by a Yamaha dealer at the intervals specified in the periodic maintenance and lubrication chart.

EAUM2040

Tires

To maximize the performance, durability, and safe operation of your vehicle, note the following points regarding the specified tires.

Tire air pressure

Line drawing of a hand holding a dial indicator with motion lines (no text or symbols)

The tire air pressure should be checked and, if necessary, adjusted before each ride.

EWA10500

WARNING

●The tire air pressure must be checked and adjusted on cold tires (i.e., when the temperature of the tires equals the ambient temperature).

●The tire air pressure must be adjusted in accordance with the riding speed and with the total weight of rider, passenger, cargo, and accessories approved for this model.

Tire air pressure (measured on cold tires):

0–90 kg (0–198 lb):

Front:

170 kPa (25 psi) (1.70 kgf/cm²)

Rear:

190 kPa (28 psi) (1.90 kgf/cm²)

90–185 kg (198–408 lb):

Front:

180 kPa (26 psi) (1.80 kgf/cm²)

Rear:

200 kPa (29 psi) (2.00 kgf/cm²)

Maximum load*:

185 kg (408 lb)

* Total weight of rider, passenger, car-go and accessories

EWA11200

WARNING

Because loading has an enormous impact on the handling, braking, performance and safety characteristics of your vehicle, you should keep the following precautions in mind.

PERIODIC MAINTENANCE AND MINOR REPAIR

●NEVER OVERLOAD THE VEHICLE! Operation of an overloaded vehicle may result in tire damage, loss of control, or severe injury. Make sure that the total weight of rider, passenger, cargo, and accessories does not exceed the specified maximum load for the vehicle.
●Do not carry along loosely packed items, which can shift during a ride.
- Securely pack the heaviest items close to the center of the vehicle and distribute the weight evenly on both sides.
- Adjust the tire air pressure with regard to the load.
- Check the tire condition and air pressure before each ride.

Tire inspection

1 2

ZAUR10024
1. Tire tread depth
2. Tire sidewall

The tires must be checked before each ride. If the center tread depth reaches the specified limit, if the tire has a nail or glass fragments in it, or if the sidewall is cracked, have a Yamaha dealer replace the tire immediately.

Minimum tire tread depth (front and rear):

1.6 mm (0.06 in)

NOTE:

The tire tread depth limits may differ from country to country. Always comply with the local regulations.

Tire information

This model is equipped with tubeless tires.

Front tire:

Size:

120/70-16 M/C 57P

Manufacturer/model:

PIRELLI/SPORT DEMON FRONT

Rear tire:

Size:

140/70-15 69P

Manufacturer/model:

PIRELLI/SPORT DEMON

EWA10470

WARNING

●Have a Yamaha dealer replace excessively worn tires. Besides being illegal, operating the vehicle with excessively worn tires decreases riding stability and can lead to loss of control.
●The replacement of all wheel and brake related parts, including the tires, should be left to a Yamaha dealer, who has the necessary professional knowledge and experience.

PERIODIC MAINTENANCE AND MINOR REPAIR

EAU21960

Cast wheels

To maximize the performance, durability, and safe operation of your vehicle, note the following points regarding the specified wheels.

●The wheel rims should be checked for cracks, bends or warpage before each ride. If any damage is found, have a Yamaha dealer replace the wheel. Do not attempt even the smallest repair to the wheel. A deformed or cracked wheel must be replaced.
●The wheel should be balanced whenever either the tire or wheel has been changed or replaced. An unbalanced wheel can result in poor performance, adverse handling characteristics, and a shortened tire life.
- Ride at moderate speeds after changing a tire since the tire surface must first be "broken in" for it to develop its optimal characteristics.

EAU33453

Front and rear brake lever free play

Front

Line drawing of a mechanical device with lever and handle (no text or symbols)

Rear

Line drawing of a hand holding a tool, with no visible text or symbols

There should be no free play at the brake lever ends. If there is free play, have a Yamaha dealer inspect the brake system.

EWA14211

WARNING

A soft or spongy feeling in the brake lever can indicate the presence of air in the hydraulic system. If there is air in the hydraulic system, have a Yamaha dealer bleed the system before operating the vehicle. Air in the hydraulic system will diminish the braking performance, which may result in loss of control and an accident.

PERIODIC MAINTENANCE AND MINOR REPAIR

EAU22390

Checking the front and rear brake pads

The front and rear brake pads must be checked for wear at the intervals specified in the periodic maintenance and lubrication chart.

EAU22420

Front brake pads

Technical diagram of a brake caliper assembly with labeled parts and an inset showing component details

1. Brake pad wear indicator groove

Each front brake pad is provided with a wear indicator groove, which allows you to check the brake pad wear without having to disassemble the brake. To check the brake pad wear, check the wear indicator groove. If a brake pad has worn to the point that the wear

indicator groove has almost disappeared, have a Yamaha dealer replace the brake pads as a set.

EAU22500

Rear brake pads

Technical diagram of a vehicle suspension system with labeled component 1

ZMURD
1. Lining thickness

Check each rear brake pad for damage and measure the lining thickness. If a brake pad is damaged or if the lining thickness is less than 0.8 mm (0.03 in), have a Yamaha dealer replace the brake pads as a set.

EAU22580

Checking the brake fluid level

Front brake

MIN 1 Z4JLM068

1. Minimum level mark

Rear brake

MIN 1 MIN 2015-03-2016

1. Minimum level mark

Insufficient brake fluid may allow air to enter the brake system, possibly causing it to become ineffective.

PERIODIC MAINTENANCE AND MINOR REPAIR

Before riding, check that the brake fluid is above the minimum level mark and replenish if necessary. A low brake fluid level may indicate worn brake pads and/or brake system leakage. If the brake fluid level is low, be sure to check the brake pads for wear and the brake system for leakage.

Observe these precautions:

• When checking the fluid level, make sure that the top of the brake fluid reservoir is level.
• Use only the recommended quality brake fluid, otherwise the rubber seals may deteriorate, causing leakage and poor braking performance.

Recommended brake fluid: DOT 4

●Refill with the same type of brake fluid. Mixing fluids may result in a harmful chemical reaction and lead to poor braking performance.

• Be careful that water does not enter the brake fluid reservoir when refilling. Water will significantly lower the boiling point of the fluid and may result in vapor lock.
  ●Brake fluid may deteriorate painted surfaces or plastic parts. Always clean up spilled fluid immediately.
  ●As the brake pads wear, it is normal for the brake fluid level to gradually go down. However, if the brake fluid level goes down suddenly, have a Yamaha dealer check the cause.

EAU22720

Changing the brake fluid

Have a Yamaha dealer change the brake fluid at the intervals specified in the NOTE after the periodic maintenance and lubrication chart. In addition, have the oil seals of the brake master cylinder and caliper as well as the brake hose replaced at the intervals listed below or whenever they are damaged or leaking.

●Oil seals: Replace every two years.
●Brake hose: Replace every four years.

PERIODIC MAINTENANCE AND MINOR REPAIR

EAU23100

Checking and lubricating the cables

The operation of all control cables and the condition of the cables should be checked before each ride, and the cables and cable ends should be lubricated if necessary. If a cable is damaged or does not move smoothly, have a Yamaha dealer check or replace it.

Recommended lubricant:

Engine oil

EWA10720

6

WARNING

Damage to the outer sheath may interfere with proper cable operation and will cause the inner cable to rust. Replace a damaged cable as soon as possible to prevent unsafe conditions.

EAU23111

Checking and lubricating the throttle grip and cable

The operation of the throttle grip should be checked before each ride. In addition, the cable should be lubricated at the intervals specified in the periodic maintenance chart.

EAU23171

Lubricating the front and rear brake levers

Line drawing of hands using a tool to measure a mechanical component (no text or symbols present)

The pivoting points of the front and rear brake levers must be lubricated at the intervals specified in the periodic maintenance and lubrication chart.

Recommended lubricant:

Lithium-soap-based grease (all-purpose grease)

PERIODIC MAINTENANCE AND MINOR REPAIR

EAU23211

Checking and lubricating the centerstand and sidestand

1 ZAJIM.068

1. Sidestand

1 ZAJMC3668

1. Centerstand

The operation of the centerstand and sidestand should be checked before each ride, and the pivots and metal-to-metal contact surfaces should be lubricated if necessary.

EWA10740

WARNING

If the centerstand or sidestand does not move up and down smoothly, have a Yamaha dealer check or repair it.

Recommended lubricant:

Lithium-soap-based grease (all-purpose grease)

EAU23271

Checking the front fork

The condition and operation of the front fork must be checked as follows at the intervals specified in the periodic maintenance and lubrication chart.

To check the condition

EWA10750

WARNING

Securely support the vehicle so that there is no danger of it falling over.

Check the inner tubes for scratches, damage and excessive oil leakage.

To check the operation

1. Place the vehicle on a level surface and hold it in an upright position.
2. While applying the front brake, push down hard on the handlebars several times to check if the front fork compresses and rebounds smoothly.

PERIODIC MAINTENANCE AND MINOR REPAIR

Line drawing of a scooter with two directional arrows indicating motion or movement (no text or symbols)

ECA10590

CAUTION:

If any damage is found or the front fork does not operate smoothly, have a Yamaha dealer check or repair it.

EAU23280

Checking the steering

Worn or loose steering bearings may cause danger. Therefore, the operation of the steering must be checked as follows at the intervals specified in the periodic maintenance and lubrication chart.

1. Place a stand under the engine to raise the front wheel off the ground.

EWA10750

WARNING

Securely support the vehicle so that there is no danger of it falling over.

1. Hold the lower ends of the front fork legs and try to move them forward and backward. If any free play can be felt, have a Yamaha dealer check or repair the steering.

Diagram of a car wheel assembly with hands holding the rim and arrows indicating clockwise motion (no text or symbols)

PERIODIC MAINTENANCE AND MINOR REPAIR

EAU23290

Checking the wheel bearings

The front and rear wheel bearings must be checked at the intervals specified in the periodic maintenance and lubrication chart. If there is play in the wheel hub or if the wheel does not turn smoothly, have a Yamaha dealer check the wheel bearings.

EAU23390

Battery

Technical diagram of an automotive electrical panel assembly (no text or labels visible)

1. Battery

The battery is located behind panel A. (See page 6-5.)

This model is equipped with a sealed-type (MF) battery, which does not require any maintenance. There is no need to check the electrolyte or to add distilled water.

To charge the battery

Have a Yamaha dealer charge the battery as soon as possible if it seems to have discharged. Keep in mind that the battery tends to discharge more quickly if the vehicle is equipped with optional electrical accessories.

EWA10760

WARNING

●Electrolyte is poisonous and dangerous since it contains sulfuric acid, which causes severe burns. Avoid any contact with skin, eyes or clothing and always shield your eyes when working near batteries. In case of contact, administer the following FIRST AID.

- EXTERNAL: Flush with plenty of water.

- INTERNAL: Drink large quantities of water or milk and immediately call a physician.

• EYES: Flush with water for 15 minutes and seek prompt medical attention.

●Batteries produce explosive hydrogen gas. Therefore, keep sparks, flames, cigarettes, etc., away from the battery and provide sufficient ventilation when charging it in an enclosed space.

PERIODIC MAINTENANCE AND MINOR REPAIR

- KEEP THIS AND ALL BATTERIES OUT OF THE REACH OF CHILDREN.

To store the battery

1. If the model will not be used for more than one month, remove the battery, fully charge it, and then place it in a cool, dry place.
2. If the battery will be stored for more than two months, check it at least once a month and fully charge it if necessary.
3. Fully charge the battery before installation.
4. After installation, make sure that the battery leads are properly connected to the battery terminals.

ECA10630

CAUTION:

●Always keep the battery charged. Storing a discharged battery can cause permanent battery damage.
●To charge a sealed-type (MF) battery, a special (constant-voltage) battery charger is required. Using a conventional battery

charger will damage the battery. If you do not have access to a sealed-type (MF) battery charger, have a Yamaha dealer charge your battery.

EAU23525

Replacing the fuses

Technical diagram of a mechanical assembly with labeled parts (1 and 2), no readable text or symbols present.

1. Main fuse
2. Spare fuse

The main fuse and the fuse box, which contains the fuses for the individual circuits, are located behind panel A. (See page 6-5.)

If a fuse is blown, replace it as follows.

1. Turn the key to “☒” and turn off the electrical circuit in question.
2. Remove the blown fuse, and then install a new fuse of the specified amperage.

PERIODIC MAINTENANCE AND MINOR REPAIR

1 2 3 4 5 6 7 8 9 10 ZA-IMC070

1. Fuse box
2. Radiator fan fuse
3. ECU fuse
4. Backup fuse
5. Signaling system fuse
6. Headlight fuse
7. Ignition fuse
8. Spare fuse
9. Spare fuse
10. Spare fuse

Specified fuses:

Main fuse:

30.0 A

ECU fuse:

5.0 A

Signaling system fuse:

15.0 A

Ignition fuse:

10.0 A

Headlight fuse:

15.0 A

Backup fuse:

5.0 A

Radiator fan fuse:

5.0 A

ECA10640

CAUTION:

Do not use a fuse of a higher amper-age rating than recommended to avoid causing extensive damage to the electrical system and possibly a fire.

1. Turn the key to “○” and turn on the electrical circuit in question to check if the device operates.
2. If the fuse immediately blows again, have a Yamaha dealer check the electrical system.

EAUM2180

Replacing a headlight bulb

This model is equipped with quartz bulb headlights. If a headlight bulb burns out, replace it as follows.

To replace a high beam headlight bulb

1. Remove cowling A. (See page 6-5.)
2. Remove the headlight bulb cover.

1

(24.14087)
1. Headlight bulb cover

1. Unhook the headlight bulb holder by turning it counterclockwise, and then remove the defective bulb.

PERIODIC MAINTENANCE AND MINOR REPAIR

ZAUMCK075 1

1. Headlight bulb holder

EWA10790

WARNING

Headlight bulbs get very hot. Therefore, keep flammable products away from a lit headlight bulb, and do not touch the bulb until it has cooled down.

1. Place a new headlight bulb into position, and then secure it with the bulb holder by turning it clockwise.

ECA10650

CAUTION:

Take care not to damage the following parts:

●Headlight bulb

Do not touch the glass part of the headlight bulb to keep it free from oil, otherwise the transparency of the glass, the luminosity of the bulb, and the bulb life will be adversely affected. Thoroughly clean off any dirt and fingerprints on the headlight bulb using a cloth moistened with alcohol or thinner.

●Headlight lens

Do not affix any type of tinted film or stickers to the headlight lens.

Do not use a headlight bulb of a wattage higher than specified.

1. Install the headlight bulb cover.
2. Install the cowling.
3. Have a Yamaha dealer adjust the headlight beam if necessary.

To replace a low beam headlight bulb

1. Remove cowling A. (See page 6-5.)
2. Remove the headlight bulb cover.

Technical line drawing of a mechanical component with no visible text or symbols

1. Headlight bulb cover

2. Disconnect the headlight coupler.

3. Unhook the headlight bulb holder, and then remove the defective bulb.

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or flow.

1. Headlight bulb
2. Headlight coupler

PERIODIC MAINTENANCE AND MINOR REPAIR

EWA10790

WARNING

Headlight bulbs get very hot. Therefore, keep flammable products away from a lit headlight bulb, and do not touch the bulb until it has cooled down.

1. Place a new headlight bulb into position, and then secure it with the bulb holder.

ECA10650

CAUTION:

Take care not to damage the following parts:

●Headlight bulb

Do not touch the glass part of the headlight bulb to keep it free from oil, otherwise the transparency of the glass, the luminosity of the bulb, and the bulb life will be adversely affected. Thoroughly clean off any dirt and fingerprints on the headlight bulb using a cloth moistened with alcohol or thinner.

●Headlight lens

Do not affix any type of tinted film or stickers to the headlight lens.

Do not use a headlight bulb of a wattage higher than specified.

Technical line drawing of a mechanical component with no visible text or symbols

1. Do not touch the glass part of the bulb.

2. Connect the headlight coupler.

3. Install the headlight bulb cover.
4. Install the cowling.
5. Have a Yamaha dealer adjust the headlight beam if necessary.

EAUT1260

Replacing a front turn signal light bulb

ECA10670

CAUTION:

It is advisable to have a Yamaha dealer perform this job.

1. Place the scooter on the center-stand.
2. Remove cowling A. (See page 6-5.)
3. Remove the socket (together with the bulb) by turning it counterclockwise.

Technical diagram showing mechanical assembly with labeled component '1' and directional arrow indicating rotation or motion

1. Turn signal light bulb socket
2. Remove the defective bulb by pushing it in and turning it counterclockwise.

PERIODIC MAINTENANCE AND MINOR REPAIR

1. Insert a new bulb into the socket, push it in, and then turn it clockwise until it stops.
2. Install the socket (together with the bulb) by turning it clockwise.
3. Install the cowling.

EAUM2190

Replacing a tail/brake light bulb or a rear turn signal light bulb

1. Place the vehicle on the centerstand.
2. Remove panel B. (See page 6-5.)
3. Remove the tail/brake light unit by removing the screws.

Medical illustration of a surgical procedure with labeled anatomical structures (no text or symbols present)

1. Screw

2. Remove the socket (together with the bulb) by turning it counterclockwise.

Technical diagram of a mechanical device with labeled parts 1 and 2

ZAUMO80

1. Tail/brake light bulb socket

2. Turn signal light bulb socket

3. Remove the defective bulb by pushing it in and turning it counterclockwise.

4. Insert a new bulb into the socket, push it in, and then turn it clockwise until it stops.
5. Install the socket (together with the bulb) by turning it clockwise.
6. Install the screws and the tail/brake light unit.
7. Install the panel.

PERIODIC MAINTENANCE AND MINOR REPAIR

EAUM2200

Replacing the license plate light bulb

1. Remove the socket (together with the bulb) by pulling it out.

1 ZuLiMn3m

1. License plate light bulb socket

2. Remove the defective bulb by pulling it out.

3. Insert a new bulb into the socket.
4. Install the socket (together with the bulb) by pushing it in.

EAUM2210

Replacing an auxiliary light bulb

This model is equipped with two auxiliary lights. If an auxiliary light bulb burns out, replace it as follows.

1. Remove cowling A. (See page 6-5.)
2. Remove the socket (together with the bulb) by pulling it out.

1 ZA4.M0632

1. Auxiliary light bulb socket

2. Remove the defective bulb by pulling it out.

3. Insert a new bulb into the socket.
4. Install the socket (together with the bulb) by pushing it in.
5. Install the cowling.

EAU25880

Troubleshooting

Although Yamaha scooters receive a thorough inspection before shipment from the factory, trouble may occur during operation. Any problem in the fuel, compression, or ignition systems, for example, can cause poor starting and loss of power.

The following troubleshooting charts represent quick and easy procedures for checking these vital systems yourself. However, should your scooter require any repair, take it to a Yamaha dealer, whose skilled technicians have the necessary tools, experience, and know-how to service the scooter properly.

Use only genuine Yamaha replacement parts. Imitation parts may look like Yamaha parts, but they are often inferior, have a shorter service life and can lead to expensive repair bills.

PERIODIC MAINTENANCE AND MINOR REPAIR

Troubleshooting charts

Starting problems or poor engine performance

EAU42130

WARNING

EWA10840

Keep away open flames and do not smoke while checking or working on the fuel system.

Check the fuel level in the fuel tank.
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
The engine does not start. Check the compression.
Operate the electric starter.
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer check the vehicle.
Remove the spark plug and check the electrodes.
Wipe off with a dry cloth and correct the spark plug gap, or replace the spark plug.
Operate the electric starter.
Have a Yamaha dealer check the vehicle.
The engine does not start. Check the battery.
Operate the electric starter.
The engine turns over quickly.
The engine turns over slowly.
The battery is good.
Check the battery lead connections, and charge the battery if necessary.
The engine does not start. Have a Yamaha dealer check the vehicle.

PERIODIC MAINTENANCE AND MINOR REPAIR

Engine overheating

EWA10400

WARNING

• Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.
• After removing the radiator cap retaining bolt, place a thick rag, like a towel, over the radiator cap, and then slowly rotate the cap counterclockwise to the detent to allow any residual pressure to escape. When the hissing sound has stopped, press down on the cap while turning it counterclockwise, and then remove the cap.

NOTE:

If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended coolant as soon as possible.

EAU26091

Care

While the open design of a scooter reveals the attractiveness of the technology, it also makes it more vulnerable. Rust and corrosion can develop even if high-quality components are used. A rusty exhaust pipe may go unnoticed on a car, however, it detracts from the overall appearance of a scooter. Frequent and proper care does not only comply with the terms of the warranty, but it will also keep your scooter looking good, extend its life and optimize its performance.

Before cleaning

1. Cover the muffler outlet with a plastic bag after the engine has cooled down.
2. Make sure that all caps and covers as well as all electrical couplers and connectors, including the spark plug cap, are tightly installed.
3. Remove extremely stubborn dirt, like oil burnt onto the crankcase, with a degreasing agent and a brush, but never apply such prod-

ucts onto seals, gaskets and wheel axles. Always rinse the dirt and degreaser off with water.

Cleaning

ECA10781

CAUTION:

●Avoid using strong acidic wheel cleaners, especially on spoked wheels. If such products are used on hard-to-remove dirt, do not leave the cleaner on the affected area any longer than instructed. Also, thoroughly rinse the area off with water, immediately dry it, and then apply a corrosion protection spray.
- Improper cleaning can damage plastic parts such as cowlings, panels, windshields, headlight lenses, meter lenses, etc. Use only a soft, clean cloth or sponge with mild detergent and water to clean plastic.
- Do not use any harsh chemical products on plastic parts. Be sure to avoid using cloths or sponges which have been in contact with strong or abrasive

cleaning products, solvent or thinner, fuel (gasoline), rust removers or inhibitors, brake fluid, antifreeze or electrolyte.

• Do not use high-pressure washers or steam-jet cleaners since they cause water seepage and deterioration in the following areas: seals (of wheel and swing-arm bearings, fork and brakes), electric components (couplers, connectors, instruments, switches and lights), breather hoses and vents.
• For scooters equipped with a windshield: Do not use strong cleaners or hard sponges as they will cause dulling or scratching. Some cleaning compounds for plastic may leave scratches on the windshield. Test the product on a small hidden part of the windshield to make sure that it does not leave any marks. If the windshield is scratched, use a quality plastic polishing compound after washing.

After normal use

Remove dirt with warm water, a mild detergent, and a soft, clean sponge, and then rinse thoroughly with clean water. Use a toothbrush or bottlebrush for hard-to-reach areas. Stubborn dirt and insects will come off more easily if the area is covered with a wet cloth for a few minutes before cleaning.

After riding in the rain, near the sea or on salt-sprayed roads

Since sea salt or salt sprayed on the roads during winter are extremely corrosive in combination with water, carry out the following steps after each ride in the rain, near the sea or on salt-sprayed roads.

NOTE:

Salt sprayed on roads in the winter may remain well into spring.

1. Clean the scooter with cold water and a mild detergent after the engine has cooled down.

ECA10790

CAUTION:

Do not use warm water since it increases the corrosive action of the salt.

1. Apply a corrosion protection spray on all metal, including chrome- and nickel-plated, surfaces to prevent corrosion.

After cleaning

1. Dry the scooter with a chamois or an absorbing cloth.
2. Use a chrome polish to shine chrome, aluminum and stainless-steel parts, including the exhaust system. (Even the thermally induced discoloring of stainless-steel exhaust systems can be removed through polishing.)
3. To prevent corrosion, it is recommended to apply a corrosion protection spray on all metal, including chrome- and nickel-plated, surfaces.

4. Use spray oil as a universal cleaner to remove any remaining dirt.

5. Touch up minor paint damage caused by stones, etc.

6. Wax all painted surfaces.
7. Let the scooter dry completely before storing or covering it.

EWA10940

WARNING

●Make sure that there is no oil or wax on the brakes or tires. If necessary, clean the brake discs and brake linings with a regular brake disc cleaner or acetone, and wash the tires with warm water and a mild detergent.
●Before operating the scooter test its braking performance and cornering behavior.

ECA10800

CAUTION:

• Apply spray oil and wax sparingly and make sure to wipe off any excess.
  ●Never apply oil or wax to any rubber and plastic parts, but treat them with a suitable care product.

SCOOTER CARE AND STORAGE

●Avoid using abrasive polishing compounds as they will wear away the paint.

NOTE:

Consult a Yamaha dealer for advice on what products to use.

EAU36560

Storage

Short-term

Always store your scooter in a cool, dry place and, if necessary, protect it against dust with a porous cover.

ECA10820

CAUTION:

●Storing the scooter in a poorly ventilated room or covering it with a tarp, while it is still wet, will allow water and humidity to seep in and cause rust.
●To prevent corrosion, avoid damp cellars, stables (because of the presence of ammonia) and areas where strong chemicals are stored.

Long-term

Before storing your scooter for several months:

1. Follow all the instructions in the "Care" section of this chapter.

2. Fill up the fuel tank and add fuel stabilizer (if available) to prevent the fuel tank from rusting and the fuel from deteriorating.

3. Perform the following steps to protect the cylinder, piston rings, etc. from corrosion.

a. Remove the spark plug cap and spark plug.
b. Pour a teaspoonful of engine oil into the spark plug bore.
c. Install the spark plug cap onto the spark plug, and then place the spark plug on the cylinder head so that the electrodes are grounded. (This will limit sparking during the next step.)
d. Turn the engine over several times with the starter. (This will coat the cylinder wall with oil.)
e. Remove the spark plug cap from the spark plug, and then install the spark plug and the spark plug cap.

EWA10950

WARNING

To prevent damage or injury from sparking, make sure to ground the spark plug electrodes while turning the engine over.

1. Lubricate all control cables and the pivoting points of all levers and pedals as well as of the side-stand/centerstand.
2. Check and, if necessary, correct the tire air pressure, and then lift the scooter so that both of its wheels are off the ground. Alternatively, turn the wheels a little every month in order to prevent the tires from becoming degraded in one spot.
3. Cover the muffler outlet with a plastic bag to prevent moisture from entering it.
4. Remove the battery and fully charge it. Store it in a cool, dry place and charge it once a month. Do not store the battery in an excessively cold or warm place [less than 0 °C (30 °F) or more than 30 °C (90 °F)]. For more information on storing the battery, see page 6-21.

NOTE:

Make any necessary repairs before storing the scooter.

Dimensions:

Overall length:

2175 mm (85.6 in)

Overall width:

785 mm (30.9 in)

Overall height:

1460 mm (57.5 in)

Seat height:

790 mm (31.1 in)

Wheelbase:

1470 mm (57.9 in)

Ground clearance:

165 mm (6.50 in)

Minimum turning radius:

2400 mm (94.5 in)

Weight:

With oil and fuel:

173.0 kg (381 lb)

Engine:

Engine type:

Liquid cooled 4-stroke, SOHC

Cylinder arrangement:

Forward-inclined single cylinder

Displacement:

249.8 cm³

Bore × stroke:

69.0 × 66.8 mm (2.72 × 2.63 in)

Compression ratio:

10.00:1

Starting system:

Electric starter

Lubrication system:

Wet sump

Engine oil:

Type:

SAE10W30, SAE10W40, SAE15W40,

SAE20W40 or SAE20W50

-20 -10 0 10 20 30 40 50 °C SAE 10W-30 SAE 10W-40 SAE 15W-40 SAE 20W-40 SAE 20W-50

Recommended engine oil grade:

API service SG type or higher, JASO standard MA

Engine oil quantity:

Periodic oil change:

1.20 L (1.27 US qt) (1.06 Imp.qt)

Final transmission oil:

Type:

SAE10W30 type SE motor oil

Quantity:

0.25 L (0.26 US qt) (0.22 Imp.qt)

Cooling system:

Coolant reservoir capacity (up to the maximum level mark):

0.20 L (0.21 US qt) (0.18 Imp.qt)

Radiator capacity (including all routes):

1.02 L (1.08 US qt) (0.90 Imp.qt)

Air filter:

Air filter element:

Oil-coated paper element

Fuel:

Recommended fuel:

Regular unleaded gasoline only

Fuel tank capacity:

10.5 L (2.77 US gal) (2.31 Imp.gal)

Fuel reserve amount:

2.7 L (0.72 US gal) (0.60 Imp.gal)

Fuel injection:

Throttle body:

Manufacturer:

AISAN

Type/quantity:

EFI / 1

Spark plug (s):

Manufacturer/model:

NGK/DPR8EA-9

Spark plug gap:

0.8–0.9 mm (0.031–0.035 in)

Clutch:

Clutch type:

Dry, centrifugal automatic

Transmission:

Primary reduction system:

Helical gear

Primary reduction ratio:

40/15 (2.666)

Secondary reduction system:

Helical gear

Secondary reduction ratio:

42/14 (3.000)

Transmission type:

V-belt automatic

Operation:

Centrifugal automatic type

Chassis:

Frame type:

Steel tube underbone

Caster angle:

26.00°

Trail:

96.0 mm (3.78 in)

Front tire:

Type:

Tubeless

Size:

120/70-16 M/C 57P

Manufacturer/model:

PIRELLI/SPORT DEMON FRONT

Rear tire:

Type:

Tubeless

Size:

140/70-15 69P

Manufacturer/model:

PIRELLI/SPORT DEMON

Loading:

Maximum load:

185 kg (408 lb)

(Total weight of rider, passenger, cargo and

accessories)

Tire air pressure (measured on cold

tires):

Loading condition:

0–90 kg (0–198 lb)

Front:

170 kPa (25 psi) (1.70 kgf/cm²)

Rear:

190 kPa (28 psi) (1.90 kgf/cm²)

Loading condition:

90–185 kg (198–408 lb)

Front:

180 kPa (26 psi) (1.80 kgf/cm²)

Rear:

200 kPa (29 psi) (2.00 kgf/cm²)

Front wheel:

Wheel type:

Cast wheel

Rim size:

16 M/C x MT3.00

Rear wheel:

Wheel type:

Cast wheel

Rim size

15 M/C x MT4.00

Front brake:

Type:

Single disc brake

Operation:

Right hand operation

Recommended fluid:

DOT 4

Rear brake:

Type:

Single disc brake

Operation:

Left hand operation

Recommended fluid:

DOT 4

Front suspension:

Type:

Telescopic fork

Spring/shock absorber type:

Coil spring/oil damper

Wheel travel:

100.0 mm (3.94 in)

Rear suspension:

Type:

Unit swing

Spring/shock absorber type:

Coil spring/oil damper

Wheel travel:

105.0 mm (4.13 in)

Electrical system:

Ignition system:

Transistorized coil ignition (digital)

Charging system:

AC magneto

Battery:

Model:

GTX9-BS

Voltage, capacity:

12 V, 8.0 Ah

Headlight:

Bulb type

Halogen bulb

Bulb voltage, wattage × quantity:

Low beam headlight:

12 V, 55.0 W × 1

High beam headlight:

12 V, 55.0 W × 1

Tail/brake light:

12 V, 5.0 W/21.0 W × 2

SPECIFICATIONS

Front turn signal light:

12 V, 10.0 W × 2

Rear turn signal light:

12 V, 10.0 W × 2

Auxiliary light:

12 V, 5.0 W × 2

License plate light:

12 V, 5.0 W × 1

Meter lighting:

LED

High beam indicator light:

LED

Turn signal indicator light:

LED x 2

Fuel level warning light:

LED

Engine trouble warning light:

LED

Immobilizer system indicator light:

LED

Fuses:

Main fuse:

30.0 A

Headlight fuse:

15.0 A

Signaling system fuse:

15.0 A

Ignition fuse:

10.0 A

Radiator fan fuse:

5.0 A

ECU fuse:

5.0 A

Backup fuse:

5.0 A

EAU26351

Identification numbers

Record the key identification number, vehicle identification number and model label information in the spaces provided below for assistance when ordering spare parts from a Yamaha dealer or for reference in case the vehicle is stolen.

KEY IDENTIFICATION NUMBER:

Empty white rectangle with black border (no text or symbols)

VEHICLE IDENTIFICATION NUMBER:

Empty white rectangle with black border (no text or symbols)

MODEL LABEL INFORMATION:

Key identification number

1

ZALM0070
1. Key identification number

The key identification number is stamped into the key tag. Record this number in the space provided and use it for reference when ordering a new key.

EAU26381

Vehicle identification number

EAU26410

Technical diagram showing a mechanical assembly with labeled parts and an arrow indicating motion or force direction.

1. Vehicle identification number

The vehicle identification number is stamped into the frame.

NOTE:

The vehicle identification number is used to identify your vehicle and may be used to register it with the licensing authority in your area.

CONSUMER INFORMATION

EAU26490

Model label

1 20JN684

1. Model label

The model label is affixed to the bottom of the seat. (See page 3-10.) Record the information on this label in the space provided. This information will be needed when ordering spare parts from a Yamaha dealer.

A

Acceleration and deceleration 5-2

Air filter and V-belt case air filter elements.... 6-11

Auxiliary light bulb, replacing 6-27

B

Battery 6-21

Brake fluid, changing 6-17

Brake fluid level, checking 6-16

Brake lever, front 3-7

Brake lever, rear 3-8

Brake levers, lubricating 6-18

Braking 5-2

C

Cables, checking and lubricating.... 6-18

Care....7-1

Catalytic converter.... 3-9

Centerstand and sidestand, checking and lubricating.... 6-19

Coolant 6-10

Coolant temperature gauge.... 3-3

Cowlings and panels, removing and installing.... 6-5

D

Dimmer switch 3-7

Display, multi-function 3-3

E

Engine break-in 5-3

Engine oil.... 6-7

Engine trouble warning light 3-2

F

Final transmission oil 6-9

Front and rear brake lever free play ..... 6-15

Front and rear brake pads, checking.... 6-16

Front fork, checking....6-19

Fuel 3-8

Fuel consumption, tips for reducing .....5-3

Fuel gauge 3-3

Fuel tank cap....3-8

Fuses, replacing....6-22

H

Handlebar switches....3-6

Headlight bulb, replacing....6-23

High beam indicator light....3-2

Horn switch ....3-7

|

Identification numbers 9-1

Ignition circuit cut-off system....3-13

Indicator and warning lights ....3-2

K

Key identification number....9-1

L

License plate light bulb, replacing ......6-27

Luggage hook 3-12

M

Main switch/steering lock 3-1

Model label....9-2

P

Parking....5-4

Part locations ......2-1

Periodic maintenance and lubrication chart....6-2

Pre-operation check list....4-2

s

Safe-riding points 1-4

Safety information 1-1

Seat....3-10

Shock absorber assemblies, adjusting 3-12

Sidestand.... 3-13

Spark plug, checking 6-6

Specifications.... 8-1

Speedometer 3-2

Starting off 5-2

Starting the engine.... 5-1

Start switch 3-7

Steering, checking 6-20

Storage 7-3 Storage compartment 3-10, 3-11

T

Tail/brake light bulb or rear turn signal light bulb, replacing.... 6-26

Throttle cable free play, checking ..... 6-12

Throttle grip and cable, checking and lubricating.... 6-18

Tires.... 6-13

Tool kit 6-1

Troubleshooting 6-27

Troubleshooting charts 6-28

Turn signal indicator lights 3-2

Turn signal light bulb (front), replacing 6-25

Turn signal switch 3-7

V

Valve clearance 6-13

Vehicle identification number.... 9-1

w

Wheel bearings, checking.... 6-21

Wheels.... 6-15

YAMAHA

YAMAHA MOTOR CO., LTD.

PRINTED IN FRANCE

2007.01 (E)
