Cables and Adapter

Close-up of two black USB connectors with blue connectors, shown against a white background (no text or symbols visible)

• Compliant with USB 3.0 specification.
• Double shielded
  • Gold-plated contact
• REACH compliant

A/M

B/M

A/F

Micro

Close-up of two black USB connectors with white insulation (no text or symbols visible)

• Compliant with USB 2.0 specification.
• Double shielded
  • Gold-plated contact
• REACH compliant

A/M

B/M

A/F

Micro

Mini 5pin

Mini 4pin

USB 3.0 Cable

USB 3.0 Connection Cable, A/M to A/M Color Length PN

A/M	A/M	Blue	1.0	128294
1.8			128295
3.0			128296
Black			1.0	128394
1.8			128395
3.0			128396

USB 3.0 Connection Cable, A/M to B/M

A/M	B/M	Blue	1.0	128291
1.8			128292
3.0			128293
Black	1.0		128391
1.8			128392
3.0			128393

USB 3.0 Extension Cable, A/M to A/F

A/M	A/F	Blue	2.0	128298
	3.0	128299
	Black	2.0	128398
	3.0	128399

USB 3.0 Connection Cable, A/M to Micro

A/M Micro Blue 1.8 128297

Black 1.8 128397

USB 2.0 Cable

USB 2.0 Connection Cable, A/M to A/M Color Length PN

A/M	A/M	Black	1.8	128870
3.0	128871
5.0	128872

USB 2.0 Connection Cable, A/M to B/M

A/M	B/M	Black	1.0	128863
1.8		128860
3.0		128861
5.0		128862
Transparent Silver				1.0 128653
1.8		128650
3.0		128651
5.0		128652

USB 2.0 Extension Cable

A/M	A/F	Black	1.8	128850
3.0	128851
5.0	128852
Transparent Silver				1.8 128750
3.0	128751
5.0	128752

USB 2.0 Connection Cable, A/M to Mini

A/M Mini 4pin	Black 1.8 128520
A/M Mini 5pin	1.8 128521

USB 2.0 Connection Cable, A/M to Micro

A/M Micro Black 1.8 128523
Retractable	1.0 128594
1.0 128595

Two black and red HDV connectors with gold connector, shown against white background (no text or symbols)

• Supports Ethernet channel
• 3D over HDMI and Audio Return channel
• True Dolby HD and DTS-HD Master Audio compatible
- Resolution up to 1080p for HDTV, UXGA for computer and 4k x 2k for digital theater
• Transfer rate to 10.2Gbps (340MHz)
- Gold-plated plugs

HighSpeed HDMI Cable with Ethernet

HighSpeed HDMI Cable with Ethernet Length PN
Type A Type A 1.0 119341
2.0 119342
3.0 119343
Swivel 1.0 119361
Swivel 2.0 119362
Swivel 3.0 119363
5.0 119345
7.5 119348
10.0 119349
20.0 119320
Type A Type C 1.0 119306
2.0 119307
Type A Type D 1.0 119308
2.0 119309

Type A

Type C

Type D

Close-up of two black USB connectors with metallic leads, shown against a white background (no text or symbols visible)

• Compliant with DisplayPort standard
• Double shielded
  • Carries both video and audio signals
  • Supports resolution up to 2560 x 1600

DisplayPort Cable

DisplayPort Cable		Color	Length PN
DP	DP	Black	1.0 119331
		2.0 119332
		3.0 119333
Mini DisplayPort Cable
Mini DP	DP	White	2.0 119334
Mini DP	Mini DP	2.0 119335

DP

Mini DP

Two black DVI cables with gold connectors, shown against a white background (no text or symbols visible)

• Supports resolutions up to 2560 x 1600
- Double-shielded
• Gold-plated contact

DVI-D Dual Link Cable

DVI-D Dual Link Cable Length PN
DVI-D Male DVI-D Male 1.8 118932
3.0 118933
5.0 118935
10.0 118937
DVI-D Dual Link Extension Cable
DVI-D Male DVI-D Female 1.8 118972
3.0 118973

DVI-D Male

DVI-D Female

Close-up of two metallic DVI connectors with black cable (no text or symbols visible)

• High quality metal shells
• 3 x coax and 7 x copper wires
• Built with knurled screws
- Double shielded

Premium SVGA Cable

SVGA Cable Length PN
HDB15 Male HDB15 Male 1.8 118860
3.0 118861
5.0 118862
10.0 118864
15.0 118865
20.0 118866
30.0 118867
SVGA Extension Cable
HDB15 Male HDB15 Female 1.8 118850
3.0 118851
5.0 118852
10.0 118854
15.0 118855
20.0 118856

HDB15 Male

HDB15 Female

Close-up of a black DVI cable with gold connector, shown against white background (no text or symbols)

• Adapts different video interfaces
• Double shielded

Video Adapter Cable

HDMI to DVI Adapter Cable			Length	PN
HDMI A/M	DVI/M	2.0	119322
			3.0	119323
			5.0	119325
			10.0	119329
DVI to VGA Adapter Cable
DVI/M	VGA/F		1.8	118943

• Adapts different video interfaces
• Double shielded

Video Adapter

HDMI Adapter PN
HDMI A/M HDMI A/F	Flat Angled	118910
Foldable 118911
Swivel 118912
HDMI C/M HDMI A/F	118914
HDMI D/M HDMI A/F	118915
HDMI to DVI Adapter
DVI/Male HDMI A/F	118908
HDMI A/M DVI/F		118909
DisplayPort Adapter
DP/M	Mini DP/F	118916
Mini DP/M DP/F		118917

Close-up of two black hard drive cables with red leads, no text or symbols visible

SATA 6G Internal Connection Cable

• Snap-in mounting
• SATA 7pin to SATA 7pin
• With metal latch
• Foil shielded
• UL certified

0.5m 111900

1.0m 111901

0.5m, angled 111902

1.0m, angled 111903

Two red and black fiber optic cables with connector slots (no text or symbols visible)

SATA Internal Connection Cable

• SATA 7pin to SATA 7pin
• With metal latch
• Foil shielded
• UL certified

0.5m 111800

1.0m 111801

0.3m, angled 111809

0.5m, angled 111802

1.0m, angled 111804

Close-up of a metallic hard drive with red cable connectors (no text or symbols visible)

eSATA Cable Adapter with Bracket

• With metal latch
• 1 x SATA to 1 x eSATA
• SATA II compliant
• Foil shielded
• UL certified

111825

White USB flash drive with multiple ports and cables (no visible text or labels)

USB 2.0 Adapter Cable with Bracket

• 2 x USB 5pin to 2 x USB Type A Female
- USB 2.0 compliant
- Foil shielded
- UL certified

128132

Coiled black and red electrical connector with terminal ports (no text or symbols visible)

Internal Power Supply Cable

• 1 x MOLEX Male to 2 x MOLEX Female
0.2m
- UL certified

112030

Coiled black and red plastic electrical connector with white and black terminal connectors (no text or symbols visible)

SATA Power Supply Cable

1 x MOLEX Male to SATA 15pin, 0.15m 112050
1 x MOLEX Male to SATA 15pin + MOLEX Female, 0.3m 112052
1 x SATA 15pin to MOLEX + SATA 7pin, 0.5m 112054
1 x MOLEX Male to SATA 15pin, angled, 0.15m 112055
1 x MOLEX Female to 1 x SATA 15pin Female, 0.15m 112058

Two black electrical power connector cables with terminal connectors (no text or symbols visible)

High Quality Power Cord

• IEC C13 to C14
  • 1.8m
• Reach compliant

112100

Two black electrical power plug connectors with metal leads, shown against white background (no text or symbols visible)

High Quality Power Cord

• IEC C13 to Schuko 90^
  • 1.8m
• Reach compliant

112120

Close-up of a black electrical outlet plug with two metallic pins (no text or symbols visible)

High Quality Power Cord

• IEC C5 to Schuko
  • 1.8m
• Reach compliant

112150

Two black electrical power plugs with terminal leads, shown against a white background (no text or symbols visible)

High Quality Power Cord

• IEC C7 to 2pin Euro
• 1.8m
- Reach compliant

112160

Coiled black electrical connector with two connectors (no text or symbols visible)

High Quality Power Cord

• 2 x IEC C14 to 1 x IEC C13
  • 1.6m
• Reach compliant

112210

Coiled black electrical connectors with two connectors and a terminal connector (no text or symbols visible)

High Quality Power Cord

• 2 x IEC C13 to 1 x Schuko 90°
  • 1.8m
• Reach compliant

112220

Two yellow and blue VGA connectors with metallic casing (no text or symbols visible)

DB9 Gender Changer

• DB9 Male to Male, metal

124300

• DB9 Female to Female, metal

124301

Two identical yellow and silver VGA connectors with metallic contacts (no visible text or symbols)

HDB15 Gender Changer

• HDB15 Male to Male, metal

124320

• HDB15 Female to Female, metal

124321

Two white VGA connectors with blue 16-pin connectors, shown side by side (no text or symbols visible)

Nullmodem Cable

- Serial data transfer

- Shielded

- Knurled screws

1.8m 115060

3.0m 115061

Close-up of two white USB cable connectors with black connector pins (no text or symbols visible)

PS/2 Keyboard / Mouse Cable

- Shielded

• Color: white

- Pin out 1:1

1.8m, M/F 118070

3.0m, M/F 118071

5.0m, M/F 118072

10.0m, M/F 118074

Two white VGA connectors with blue leads, shown side by side (no text or symbols visible)

Monitor / Mouse Cable

• DB9 Male to Female

- Shielded

• 1:1 pin out

- Knurled screws

1.8m 118100

3.0m 118101

5.0m 118102

6/6pin 128050

Close-up of two black USB connectors with metallic connector ends (no text or symbols visible)

FireWire IEEE 1394a Cable

- Double shielded

- Length: 1.8m

6/6pin 128050

6/4pin 128060

4/4pin 128070

Blister Series

equip USB 5.0 CONNECTION CABLE GRID Drawing: C4000 New & Other Top/lead/Play 10. • All rights reserved for the power • Use Windows to install a computer unit (2.5 Litter / 2.5 GHz) • Use Windows to install a network • Use Windows to install a network device • Use Windows to install a network device with a network device • Use Windows to install a network device with a network device Supplementary Services

UXGA Cable

218080 HDB 15 Male to Male, 1.8m

218130 HDB 15 Male to Female, 1.8m

Two black DVI connectors with gold fuses, labeled 'to Female, 1.8m' (no additional text or symbols visible)

HighSpeed HDMI Cable with Ethernet

119241 Type A to Type A, 1.0m

119242 Type A to Type A, 2.0m

119243 Type A to Type A, 3.0m

119245 Type A to Type A, 5.0m

119247 Type A to Type C, 2.0m

119248 Type A to Type D, 2.0m

Close-up of two red and black USB connectors (no text or symbols visible)

USB 3.0 Cable

128232 A Male to B Male, 1.8m

128233 A Male to B Male, 3.0m

128224 A Male to Micro 10pin, 1.8m

Male, 1.0m Male, 3.0m Micro 10pin, 1.8m

HDMI to DVI Adapter Cable

119222 HDMI Male to DVI (18+1) Male, 2.0m

119223 HDMI Male to DVI (18+1) Male, 3.0m

119225 HDMI Male to DVI (18+1) Male, 5.0m

Close-up of a male DVI cable with gold connector, no text or symbols visible on the cable itself.

USB 2.0 Cable

128215 A Male to B Male, 1.8m

128217 A Male to B Male, 3.0m

128780 A Male to A Female, 1.8m

128781 A Male to A Female, 3.0m

128223 A Male to Mini 5pin, 1.8m

128225 A Male to Mini 5pin, 3.0m

128226 A Male to Micro 5pin, 1.8m

Close-up of two USB connectors with gold connectors, no text or symbols visible

DVI-D Dual Link Cable

118967 DVI (24+1) Male to Male, 1.8m

118968 DVI (24+1) Male to Male, 3.0m

118969 DVI (24+1) Male to Male, 5.0m

Close-up of two black DVI cables with gold connectors, no visible text or symbols on the cables themselves.

Cat.5e Patch Cord

235417 0.5m

235410 1.0m

235411 2.0m

235412 3.0m

235414 5.0m

235416 10.0m

Close-up of two white USB cable connectors with gold connectors (no text or symbols visible)

DisplayPort Cable

119232 DisplayPort Male to Male, 2.0m

119233 DisplayPort Male to Male, 3.0m

133437 DisplayPort Male to DVI (24+1) Male, 3.0m

e, 3.0m (24+1) Male, 3.0m

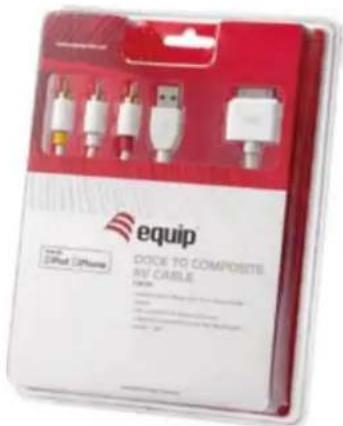

equip DOCK TO COMPOSITE AV CABLE VACIPL

Dock Connector to USB Cable

134100 Dock 30pin to USB A Male, 1.2m

Close-up of two white USB cables with metallic connectors (no text or symbols visible)

Dock to Composite AV Cable

134101 Dock 30pin to Composite + USB A Male, 1.8m

Coiled white cable with connectors and a small connector (no text or symbols visible)

equip Tuning Design, AC/AC/DC CDS-AC/DC SUNO TUG 10 Play-in-Pip Rearout-Pip

Mini DisplayPort Adapter

133432 Mini DisplayPort Male to HDB-15 Female

133433 Mini DisplayPort Male to DVI (24+1) Female

133434 Mini DisplayPort Male to HDMI Female

Close-up of a white USB cable with port and connector (no visible text or symbols)

DisplayPort to VGA Adapter

133435 DisplayPort Male to HDB-15 Female

equip 10 T. Smart Audio to RCA AUDIO ADAPTER Taking one

DisplayPort Adapter

133430 DisplayPort Male to HDMI Female

133431 DisplayPort Male to DVI (24+5) Female

Two black USB connectors with port labels, one with a white connector icon (no visible text or symbols)

HDMI / DVI Adapter

118902 HDMI Female to Female

118903 HDMI Male to Female

118904 HDMI C Male to A Female

118905 HDMI D Male to A Female

118988 DVI (24+1) Male to HDMI Female

118998 HDMI Male to DVI (24+1) Female

119945 DVI (12+5) Male to HDB-15 Female

Audio Adapter

149272 3.5mm Stereo Plug to 2 x 3.5mm Stereo Jack

149275 3.5mm Stereo Plug to RCA Jack

Two black and gold D-sub connector devices (no text or symbols visible)

Hubs and Splitters

White electronic device with four small dots on the side, no visible text or symbols.

4-Port USB 3.0 Hub

• Data transfer rate up to 5Gbps
- 1 x upstream and 4 x down-stream ports
• Overvoltage protection
• USB bus-powered or self-powered
• LED indicator for each port
- With 5V / 3A power adapter

128947

Exterior view of a silver-colored USB device labeled 'equip' (no additional text or symbols visible)

4-Port USB 2.0 Slim Hub

• Highspeed USB standard
- 1 x upstream and 4 x down-stream ports
• 2m USB cable for extensive access
- Ultra-slim form factor

128950

128951 with power adapter

Exterior view of a silver wireless router device with multiple ports and green indicator lights (no visible text or symbols)

7-Port USB 2.0 Hub

• Highspeed USB standard
- 1 x upstream and 7 x down-stream ports
• Overvoltage protection
• USB bus-powered or self-powered
• LED indicator for each port
- With 5V / 4A power adapter

128927

White electronic device with a closed lid and three ports (no visible text or symbols)

2-Port HDMI Splitter

• Distributes one video image to two displays
• Supports 3D format video transmission
- Powered from HDMI source
• Supports 480i, 480p, 720i, 720p, 1080i and 1080p
• Supports VGA, SVGA, XGA, UXGA mode
- HDCP ready
- Plug-and-play

332712

4-Port HDMI Splitter

• Distributes one video image to four displays
• Supports 3D format video transmission
• Supports 480i, 480p, 720i, 720p, 1080i and 1080p
• Supports VGA, SVGA, XGA, UXGA mode
- HDCP ready
- Plug-and-play
- With 5V / 2A power adapter

332714

8-Port HDMI Splitter

• Distributes one video source to eight displays
  • Built with signal amplifier
  • Supports 480i, 480p, 720i, 720p, 1080i and 1080p
  • Supports VGA, SVGA, XGA, UXGA mode
• HDCP ready
• Plug-and-play
• With 5V / 4A power adapter

332718

Switches

Close-up of a black USB drive with two ports and cables (no visible text or labels)

2-Port VGA Cable Splitter

• Distributes one video signal into two displays
• Cascadable up to 4 layers
  • Additional USB port for input device
  • Supports SVGA, VGA, XGA and multisync monitors
  • Bandwidth 450 MHz
  • High VGA resolution: 2048 x 1536 / 85Hz
  • Supports wide screen displays
  • Power supply via USB-Y-cable (0,40m)
• Plug-and-play

332521

Exterior view of a silver rectangular electronic device (no visible text or symbols)

2/4/8-Port VGA Splitter

• Distributes one video signal to two / four / eight displays
• Cascadable up to 4 layers
  • Video bandwidth 450MHz
  • High VGA resolution: 2048 x 1536 / 85Hz
  • Supports wide screen displays
• Max cable length 55m (built-in signal amplifier)
• Metal housing for better electromagnetic compatibility
  • Power adapter included
• Plug-and-play

332542 (2-Port)

332544 (4-Port)

332548 (8-Port)

USB 3.0 Share Switch

• Data transfer rate up to 5Gbps
• Sharing USB device between 2 PCs
- USB bus-powered
- Plug-and-play

128549

Exterior view of a silver wireless device labeled 'Equipa' with three ports (no additional text or symbols visible)

USB 2.0 Share Switch

• Sharing USB device among up to 4 PCs
• Highspeed data rate up to 480Mbps
- Switching via push button or hot-key (PC only)
• LED indicators for selected PC
- USB bus-powered
- Plug-and-play

128542 (2 PCs)

128544 (4 PCs)

Exterior view of a silver integrated device labeled 'equip' with two ports and a circular logo (no readable text beyond branding)

USB 2.0 Matrix Switch

• Sharing up to 3 USB devices between 2 PCs
  • Highspeed data rate up to 480Mbps
• Switching via push button
  • LED indicators for selected PC
• USB bus-powered
• Plug-and-play

128548

Black HDV cable with a USB port, shown against a white background (no text or symbols visible)

HDMI Switch

• Sharing 1 HDMI display among up to 3 sources
• Supports 12bit per channel (36bit all channel) deep color
• Supports 250MHz/2.5Gbps per channel (7.5Gbps all channel) bandwidth
- Multifunctional on switching: intelligent or manually
• Supports full HD 1080p video streams
• Supports uncompressed audio such as LPCM and compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)

332702 (2-Port)

332703 (3-Port)

Dual Monitor 4-Port Combo KVM Switch

• Controls 4 dual-video enabled computers from a single console
  • Supports PS/2 and USB keyboard / mouse
  • 2 USB downstream ports shared by 4 PCs
• Switching via push button or hot keys
  • LED display for easy status monitoring
  • Supports WUXGA resolutions up to 1920 x 1200 @ 60HZ
  • Supports Windows 98/98SE/2000/ME/XP/VISTA/7, Linux, Mac OS9/OSX, SUNMICRO Solaris 8 or later
  • Auto-scan with adjustable interval

331544

Row of connected USB and switch cables (no visible text or labels)

2-Port USB Cable KVM Switch

• Supports VGA resolutions up to 2048 x 1536 / 85Hz
• Supports wide screen displays
• Supports DDC, DDC2, DDC2B
• LED indicator for selected PC
- USB bus-powered

331522

Exterior view of a silver computer interface device with ports and cables (no visible text or labels)

USB Pocket KVM Switch with Audio

• Supports high resolution up to 2048 x 1536 / 85Hz
• Supports wide screen displays
- Ultra compact case
- Switching via push buttons or hot hey
- Adjustable auto scan interval
- Independent/-simultaneous audio & PC switching
• LED indicator for selected PC
- Includes KVM cable sets
• No power supply required

331512 (2 PCs)

331514 (4 PCs)

Computer Peripherals

White electronic device with 'equip' branding and ventilation slots (no readable text beyond branding)

USB 3.0 All-in-One Card Reader

• Data transfer rate up to 5Gbps
- 5 Slots: CF/MD, SD/mini SD/MMC/RS-MMC, MS/MS-Duo, Micro-SD/M2, xD
• Supports Slot-to-Slot Read / Write
• Supports latest SDXC and Cfast formats
- Icon-display utility for easy recognition
• USB bus-powered, plug-and-play

Exterior view of a white and red electronic device (no visible text or symbols)

USB 2.0 All-in-One Card Reader

• Data transfer rate up to 480Mbps
- 6 Slots: CF/MD, SD/mini SD/MMC/RS-MMC, MS/MS-Duo, Micro-SD/M2, xD
• Supports Slot-to-Slot Read / Write
- Icon-display utility for easy recognition

128554

Two transparent USB flash drives, one open and one closed, shown against a white background (no text or symbols visible)

USB 2.0 Mini Card Reader

• Data transfer rate up to 480Mbps
• 3 Slots: SD/mini SD/MMC/RS-MMC, MS/MS-Duo, Micro-SD/M2
• USB bus-powered, plug-and-play
- Pocket size design with protection cap

128506

128553

USB 2.0 6-in-1 Card Reader

• Data transfer rate up to 480Mbps
• 3 Slots: SD/mini SD/MMC/RS-MMC, MS/MS-Duo, Micro-SD/M2
• USB bus-powered, plug-and-play

128505

Exterior view of a beige internal drive with ports and connectors (no visible text or labels)

USB 3.0 3.5" Internal Card Reader

• Data transfer rate up to 5Gbps
• 5 Slots: CF/MD, SD/mini SD/MMC/RS-MMC, MS/MS-Duo, Micro-SD/M2, xD
• One USB 3.0 pass-through port
• Supports slot-to-slot read / write
• Supports latest SDXC and CFast formats
- Icon-display utility for easy recognition
• USB bus-powered, plug-and-play
• Silver bezel for replacement

128580

Exterior view of a gray internal computer drive unit with two ports and indicator lights (no visible text or labels)

USB 2.0 3.5" Internal Card Reader

• Data transfer rate up to 480Mbps
• 4 Slots: CF/MD, SD/mini SD/MMC/RS-MMC, MS/MS-Duo, SM/xD
• One USB 2.0 pass-through port
• Supports slot-to-slot read / write
• LED indicator for data access
- Easy to mount, USB bus-powered

128581

Black electronic device with a triangular top and circular side, featuring a small white logo on the front panel (no readable text or symbols)

eSATA/-USB 2.0 Docking Station

• eSATA and USB dual Interface
• Supports both 2.5" and 3.5" SATA HDD
• Highspeed USB data rate up to 480Mbps
• SATA transfer rate up to 3Gbps
- Dust protection cap
- Includes 12V / 2A power adapter

128574

Black remote control device with red scroll and USB flash unit (no visible text or symbols)

Wireless Presenter (Red Laser)

• PowerPoint presentation control, laser pointer and 360° mouse function combined with a remote control
• Operating range up to 30m indoor and 100m outdoor
  • Working range of laser pointer: 40m
  • Frequency area: 2400 - 2483 MHz
  • 16 channels
• Includes USB receiver and batteries
  • Supports OS: Windows 98SE/ME/2000/XP/Vista/7, Mac OS 10 or higher

610023

Black remote control device with green circular button and USB tag, resting on black cushion (no text or symbols visible)

Wireless Presenter (Green Laser)

• PowerPoint presentation control, laser pointer and 360° mouse function combined with a remote control
• Operating range up to 30m indoor and 100m outdoor
  • Working range of laser pointer: 200m
• Green laser point visible under bright and dark environments
  • Frequency area: 2400 - 2483 MHz
  • 16 channels
• Includes USB receiver, batteries, and carry bag
  • Supports OS: Windows 98SE/ME/2000/XP/Vista/7, Mac OS 10 or higher

610026

Black remote control device with a small USB flash unit attached (no visible text or symbols)

Wireless Presenter with Flashlight

• Built in flashlight
- Operating range up to 30m indoor and 100m outdoor
• Working range of laser pointer: 40m
• Frequency area: 2400 - 2483 MHz
• 16 channels
- Includes USB receiver and batteries
• Supports OS: Windows 98SE/ME/2000/XP/Vista/7, Mac OS 10 or higher

610027

Black wired computer mouse with a cable, isolated on white background (no text or symbols)

Wired Office Mouse

• 1000dpi optical sensor
• Left / right buttons and scroll wheel
• Ergonomic design for both hands

245100

Black computer mouse with a small USB port, shown against a white background (no text or symbols visible)

Wireless Optical Mouse

• 2.4Ghz wireless
• 1600dpi optical sensor with dpi switch button
  • USB nano receiver with store slot
  • Effective distance up to 10m

245101

Add-on Cards

Close-up of a beige PCI expansion card with internal components (no visible text or symbols)

SATA III PCIe Combo Card

• One internal SATA port and one eSATA port
- Compliant with 5Gbps PCI Express 2.0 and serial ATA specifications 3.0
• Compatible with SATA I / SATA II / SATA III
- Hot swap capability
• Supports Native Command Queuing (NCQ)
- Low profile PCI form factor
- Two pin headers on board for LED connection

111920

Close-up of a green PCI expansion card with four Ethernet ports (no visible text or labels)

4-Port USB 3.0 PCIe Card

• Supports Low-speed (1.5 Mbps) / Fullspeed (12 Mbps) / High-Speed (480 Mbps) / Super-Speed (5 Gbps) data rate
• Supports USB legacy function
• Compliant with PCI Express base Specification
• Over-current protection
• Supports WIN XP/Vista/7
• External power socket for 900mA per Port

128285

Close-up of a PCI expansion card with multiple ports and connectors (no visible text or labels)

5-Port USB 2.0 PCI Card

• Four external and one Internal USB Ports
• Auto detect speed of connected devices
- Hot swap capability

128281

Exterior view of a black and white electronic device with red and white bands (no visible text or symbols)

SATA III 2-Port Express Card

• Two eSATA ports
• Compliant with 5Gbps PCI Express 2.0 and serial ATA specifications 3.0
  • Compatible with SATA I / SATA II / SATA III
• Hot swap capability
  • Supports Native Command Queuing (NCQ)

111910

Exterior view of a black USB flash drive with red and white casing (no visible text or symbols)

2-Port USB 3.0 Express Card

• Supports Low-speed (1.5Mbps) / Fullspeed (12Mbps) / High-Speed (480Mbps) / Super-Speed (5Gbps) data rate
  • Supports USB legacy function
• Compliant with Express Card Standard rev. 1.0
  • Over-current protection
  • Supports WINXP/Vista/7

Exterior view of a USB flash drive (no visible text or labels)

eSATA / USB 2.0 Express Card

• One eSATA port and one USB Port
• SATA II transfer rate up to 3.0 Gbps
• USB 2.0 data rate up to 480 Mbps
• Express Card/34 form factor
• Supports Win 2000/XP/Vista/7
- Includes eSATA cable 0.3m

111828

Exterior view of a black USB flash drive with red and white labels (no readable text or symbols)

2-Port USB 2.0 Express Card

• Two USB Ports
  • Highspeed USB up to 480Mbps
• Bus fault detection
  • Over-current protection
  • Express Card/34 form factor

111827

Exterior view of a black USB flash drive with a red label and logo (no readable text or symbols beyond branding)

2-Port eSATA II Express Card

• Two eSATA ports
  • Compliant with Express Specification 1.0a
• Two self-contained channels
• SATA II Specification, data transfer rate up to 3Gbps
  • Supports SATA Port-multiplier
  • Supports Windows 2000/XP/Vista/7, Mac OS 10.4 or above
  • supports Legacy Command Queuing (LCQ) and Native Command Queuing (NCQ)

Exterior view of a USB flash drive (no visible text or labels)

RS232 Serial Port Express Card

• Fully compliant with Express Card specification 1.0
• Express Card/34 form factor module
- Provides 1 x DB9 RS-232 serial port
• Supports transmission rate up to 230 Kbps
• Compatible with Windows 2000/XP/Vista7

111829

111818

Converters and Extenders

Close-up of two USB connectors with black cable, no visible text or symbols

Black USB connector with USB cable, no visible text or symbols

Close-up of a black USB device with a white connector, shown against a white background (no text or symbols visible)

USB 2.0 Datalink Cable

• Transfer / share files by simple drag and drop
  • Bi-directional data link
• LED indicator
  • Supports Windows 2000/XP/Vista/7

Data Transfer Cable 133338

ODD Sharing Cable 133339

Dual PC Bridge Cable 133351

All-in-One Cable 133355

MHL to HDMI Adapter

• MHL (Mobile High-Definition Link) compliance
• Transmits 1080P HD Video and 7.1 digital surround sound.
- Simultaneous charging by additional Micro USB port
• Supports RCP (Remote Control Protocol)

134103

USB 3.0 to SATA Converter Cable

• Data Transfer Rate up to 5Gbps
- Hot-swappable
• One button backup function
• Supports Windows XP/Vista/7
• Including power adapter and SATA cable

133379

Close-up of a black USB and DNA connector with two ports (no text or symbols visible)

Close-up of a black USB cable with two ports, no visible text or symbols

Two black USB connectors with I/O ports, connected by a USB cable (no text or symbols visible)

USB 3.0 Active Extension Cable

• Compliant to USB 3.0 specifications
- Plug-and-play
- USB bus-powered
• Supports Windows XP/Vista/7

133405 (5M) 133410 (10M)

USB 2.0 Active Extension Cable

• Compliant to USB 2.0 specifications
- Plug-and-play
- USB bus-powered
- Cascadable up to 3 layers

133336 (5M)

133310 (10M)

133311 (15M)

133335 (20M)

USB Extender

• USB extension via network cable up to 60m
- Plug-and-play
- USB bus-powered

133344

Close-up of a black DVI connector with 10-pin V-8 (no text or symbols visible)

USB 2.0 to Serial Converter

• Compliant to USB 2.0 specifications
• Supports all common RS232 serial port
• Automatic USB protocol handling
• Supports remote wake-up and power management
- USB bus-powered

133382

White USB flash drive with red logo (no visible text or symbols beyond branding)

USB 2.0 Display Extension Kit

• Supports resolution up to 1920 x 1200 (WUXGA)
- Connects up to 6 displays
- Driver auto installation
- Hot-swappable
• Operation mode: extension, mirror, primary
- Including DVI to VGA adapter and DVI to HDMI adapter

128450

White rectangular electronic device with a logo and ports, no visible text or symbols on the body.

USB 2.0 to HDMI Converter

• Fit to TV auto screen fine-tuning
• Supports full HD 1080p video streams
- Connects up to 6 displays
- Hot-swappable

128451

Close-up of a black USB cable with a blue D-sub connector, no visible text or symbols

USB to Parallel Converter Cable

• USB Type A male to CN36 male
- Compatible with USB printer device classic spec
• Supports Windows 98/2000/ME/XP/Vista/7

133313

Close-up of a black DVI cable with two USB connectors (no text or symbols visible)

USB to Serial Converter Cable

• USB Type A male to DB9/25 male
• Supports Windows 98/2000/ME/XP/Vista/7, Mac OS 8.6 or above

133315

Close-up of a USB connector with three colored USB port connectors (green, purple, black) shown in connection to its left side.

USB to PS/2 Converter Cable

• USB Type A male to 2 x PS/2 female
- Connects two PS/2 devices simultaneously
• Supports Windows 98/2000/ME/XP/Vista/7, Mac OS 8.6 or above

133326

Monitor Brackets

Mechanical device with a star-shaped pointer and lever mechanism (no text or symbols visible)

Desktop Bracket, Tilt and Rotate

• Supports 33-58cm (13"-23") displays
- -15°/+15° up and down tilt
- 360^ rotatable
• Supports VESA mount standards: 75 x 75, 100 x 100
• Max. arm reach: 266mm
- Load capacity: 8kg (17.6lbs)

650110

Mechanical device with articulated arms and a black clip, no visible text or symbols

Dual Monitor Desktop Bracket, Tilt and Rotate

• Supports 33-58cm (13"-23") displays
- -15°/+15° up and down tilt
- 360^ rotatable
• Supports VESA mount standards: 75 x 75, 100 x 100
• Max. arm reach: 858mm
- Load capacity: 8kg (17.6lbs) per mount

650111

Mechanical component with four arms and a central lock, no visible text or symbols

Projector Ceiling Mount

• Composed of aluminum and steel
• 10^ / + 10^ up and down tilt
• 360^ rotatable
  • Anti-theft design (padlock required)
• Quick and easy installation
• Load capacity: 20kg

650410

Vertical metallic cylindrical structure with four cross-bracing, no visible text or symbols

Projector Ceiling Mount, Cable

Management

• Height adjustable: 40 - 60cm
• Arm length adjustable: 16 - 33cm
- -15°/+15° up and down tilt
- 360^ rotatable
• Anti-theft design (padlock required)
- Tool-less cable guide design for easy managing and hiding cables
- Load capacity: 20kg

Universal Flat Panel Bracket

• Supports 33-178cm (13"-70") displays
• Distance from TV to wall: 14.5mm
• Supports VESA mount standards: 100 x 100 / 200 x 200 / 400 x 400 / 600 x 600 / 800 x 800mm
- Load Capacity: maximum 50kg (110lbs)
- Mounting onto solid brick, concrete or hard wood batten/studs wall

Black metal panel with four white circular indentations and mounting holes (no text or symbols)

LCD Wall Bracket, Fixed

• Vesa mount standard
• Material: steel
• Mounting onto solid brick, concrete or hard wood batten/studs wall

650100 25-81cm (10"-32")

650411

650400

Exterior view of a metal shelving unit with two vertical supports and horizontal plates (no text or symbols)

LCD Wall Bracket, Fixed

• Vesa mount standard
• Material: steel
• Mounting onto solid brick, concrete or hard wood batten/studs wall

650200 58-94cm (23"-37")

Black metal shelving unit with vertical supports and horizontal beams (no text or symbols)

LCD Wall Bracket, Fixed

• Vesa mount standard
• Material: steel
• Mounting onto solid brick, concrete or hard wood batten/studs wall

650300 81-160cm (32"-63")

Black metal-framed electrical panel with mounting holes and a small green indicator light (no text or symbols visible)

LCD Wall Bracket, Tilt

• Vesa mount standard
• Material: steel
• Flexible tilt function
• Mounting onto solid brick, concrete or hard wood batten/studs wall

650201 58-94cm (23"-37")

650301 81-160cm (32"-63")

Mechanical component with a shaft and flange assembly (no visible text or symbols)

LCD Wall Bracket, Cable Management

• Vesa mount standard
• Material: steel
• Flexible Tilt and Swivel
• Mounting onto solid brick, concrete or hard wood batten/studs wall
• Tool-less cable guide design for easy managing and hiding cables

650102 25-81cm (10"-32")

Black metal mechanical component with mounting holes and a central slot (no text or symbols visible)

LCD Wall Bracket, Tilt and Swivel

• Vesa mount standard
• Material: steel
• Flexible tilt and swivel function
• Mounting onto solid brick, concrete or hard wood batten/studs wall

650101 25-81cm (10"-32")

Mechanical bracket assembly with mounting holes and structural beams (no text or symbols visible)

LCD Wall Bracket, Tilt and Swivel

• Vesa mount standard
• Material: steel
  • Flexible tilt and swivel function
• Mounting onto solid brick, concrete or hard wood batten/studs wall

650202 58-94cm (23"-37")

Exterior view of a black metal-framed mechanical housing or enclosure (no text or symbols visible)

LCD Wall Bracket, Tilt and Swivel

• Vesa mount standard
• Material: steel
  • Flexible tilt and swivel function
• Mounting onto solid brick, concrete or hard wood batten/studs wall

650302 81-160cm (32"-63")

Mechanical device with articulated arms and a circular head (no text or symbols visible)

Foldable DVD Holder

• Compact foldable design
• Load capacity: 8kg
• Includes safety holder
• Mounting onto solid brick, concrete or hard wood batten/studs wall

650500

Black rectangular object with a silver tab, possibly a wall-mounted device or support panel (no text or symbols visible)

Splendid DVD Holder

• Elegant glass surface
• Sturdy aluminum holder
• Load capacity: 8kg
• Mounting onto solid brick, concrete or hard wood batten/studs wall

650501

equip life 2 - 21

equip pro

Copper Patch Cords 23

Optical Fiber Patch Cords 28

Installation Cables 31

Patch Panels 34

Outlets 38

Tools and Testers 40

Cabling Accessories 42

Cabinet System 49

Technical Glossary 70 - 79

Child's feet holding a small metallic key against a blue sky with clouds (no text or symbols visible)

Copper Patch Cords

Cat.6A STP Flat Patch Cord

• 32 AWG
- 600 MHz
- OD: 6.0 x 1.9mm
- stranded
- gold plated pins
- molded boot
- strain relief
• with cable length printing on plug
- UL/CUL,TIA/EIA certified
• Typical Application: IEEE 802.3: 10Base-T;

100Base-T; 1000Base-T; 10GBASE-T

IEEE 802.5 16 MB; ISDN; TPDDI; ATM

white
0.5m 607817
1m 607810
2m 607811
3m 607812
5m 607814
10m 607816

Two white Ethernet cables with gold connectors, one labeled '10G CAT.6A' in red oval (no other text or symbols)

Cat.6A S/FTP Patch Cord

• 26 AWG
- 500 MHz
- stranded
• PIMF (pairs in metal foil)
- halogenfree LSZH
- gold plated pins
- molded boot
- strain relief
• with cable length printing on plug
• UL/CUL, TIA/EIA, 3P certified
• Typical Application: IEEE 802.3: 10Base-T;

100Base-T; 1000Base-T; 10GBASE-T

IEEE 802.5 16 MB; ISDN; TPDDI; ATM

Two white fiber optic cables with metallic connectors, isolated on white background (no text or symbols)

white red	blue green	yellow grey	orange	black	purple
0.5m	605617	605627	605637	605647	605667	605607	605677	605697	605657
1m	605610	605620	605830	605840	605660	605600	605670	605690	605650
2m	605611	605621	605631	605641	605661	605601	605671	605691	605651
3m	605612	605622	605632	605642	605662	605602	605672	605692	605652
5m	605614	605624	605634	605644	605664	605604	605674	605694	605654
10m	605616	605626	605636	605646	605666	605606	605676	605696	605656
15m	605618	605628	605638	605648	605668	605608	605678	605698	605658
20m	605619	605629	605639	605649	605669	605609	605679	605699	605659

Cat.6 U/UTP Patch Cord

• 26 AWG
• 250 MHz
- stranded
- unshielded
- gold plated pins
- molded boot
- strain relief
• with cable length printing on plug
• UL/CUL, TIA/EIA, ETL certified
• Typical Application: IEEE 802.3: 10Base-T;

100Base-T; 1000Base-T

IEEE 802.5 16 MB; ISDN; TPDDI; ATM

Close-up of two white Ethernet cables with connector pins (no text or symbols visible)

	beige	red	blue	green	yellow	white	orange	black	pink	purple
0.25m	805513	805523	805533	805543	805563	805503	805573	805593	805583	805553
0.5m	805517	805527	805537	805547	805567	805507	805577	805597	805587	805557
1m	805510	805520	805570	805580	805560	805505	805575	805595	805585	805555
2m	805511	805521	805531	805541	805561	805501	805571	805591	805581	805551
3m	805512	805522	805532	805542	805562	805502	805572	805592	805582	805552
5m	805514	805524	805534	805544	805564	805504	805574	805594	805584	805554
7.5m	805515	805525	805535	805545	805565	815505	815575	815595	815585	815555
10m	805516	805526	805536	805546	805566	805506	805576	805596	805586	805556
15m	805518	805528	805538	805548	805568	805508	805578	805598	805588	805558
20m	805519	805529	805539	805549	805569	805509	805579	805599	805589	805559

Cat.6 U/UTP Patch Cord Halogen Free

• 24 AWG
• 250 MHz
- stranded
- unshielded
- halogenfree LSZH
- gold plated pins
- molded boot
- strain relief
• with cable length printing on plug
• UL/CUL, TIA/EIA, ETL certified
• Typical Application: IEEE 802.3: 10Base-T;

100Base-T; 1000Base-T

IEEE 802.5 16 MB; ISDN; TPDDI; ATM

Two white USB cable connectors with metallic leads, isolated on white background (no text or symbols)

beige red	blue green	yellow orange	black
0.5m 805617
1m 805610
2m	805611	805621	805631	805641	805661	805671	805691
3m		805622	805632	805642	805662	805672	805692
5m	805614	805624	805634	805644	805664	805674	805694

Cat.6 U/UTP Flat Patch Cord

• 30 AWG
• 250 MHz
- stranded
- OD: 6.2 x 1.5mm
- unshielded
- gold plated pins
- molded boot
- strain relief
• with cable length printing on plug
- UL/CUL, TIA/EIA certified
- Typical Application: IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T

IEEE 802.5 16 MB; ISDN; TPDDI; ATM

Close-up of two white Ethernet cables with connector pins (no text or symbols visible)

white
0.5m 805817
1m 805810
2m 805811
3m 805812
5m 805814
10m 805816

Cat.6 S/FTP Patch Cord

• 26 AWG
• 250 MHz
- stranded
• PIMF (pairs in metal foil)
- halogenfree LSZH
- gold plated pins
- molded boot
- strain relief
• with cable length printing on plug
• UL/CUL, TIA/EIA, GHMT certified
- Typical Application: IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T

IEEE 802.5 16 MB; ISDN; TPDDI; ATM

Two white fiber optic cables with connectors, isolated on white background (no text or symbols)

white red	blue green	yellow grey	orange black	pink purple
0.25m	605513	605523	605533	605543	605563	605503	605573	605593	605583	605553
0.5m	605517	605527	605537	605547	605567	605507	605577	605597	605587	605557
1m	605510	605520	605630	605640	605560	605500	605570	605590	605580	605555
2m	605511	605521	605531	605541	605561	605501	605571	605591	605581	605551
3m	605512	605522	605532	605542	605562	605502	605572	605592	605582	605552
5m	605514	605524	605534	605544	605564	605504	605574	605594	605584	605554
7.5m	605515	605525	605535	605545	605565	605505	605575	605595	605585	615555
10m	605516	605526	605536	605546	605566	605506	605576	605596	605586	605556
15m	605518	605528	605538	605548	605568	605508	605578	605598	605588	605558
20m	605519	605529	605539	605549	605569	605509	605579	605599	605589	605559

* 30/40/50m in white also available

Cat.5e U/UTP Patch Cord

• 26 AWG
• 100 MHz
- stranded
- unshielded
- gold plated pins
- molded boot
- strain relief
• with cable length printing on plug
• UL/CUL, ETL, TIA/EIA certified
• Typical Application: IEEE 802.3: 10Base-T;

100Base-T; 1000Base-T

IEEE 802.5 16 MB; ISDN; TPDDI; ATM

Two gray Ethernet cable connectors with metallic leads, shown against white background (no text or symbols)

beige red	blue green	yellow
0.25m 805	413 805423	805433 805	443 805463
0.5m 8054	17 805427	805437 8054	47 805467
1m 805410	805420 805430	805440	805460
2m 805411	805421 805431	805441	805461
3m 805412	805422 805432	805442	805462
5m 805414	805424 805434	805444	805464
7.5m 8054	15 805425	805435 8054	45 805465
10m 8054	16 805426	805436 8054	46 805466
15m 8054	18
20m 8054	19 805429	805439 8054	49 805469

Cat.5e F/UTP Patch Cord

• 26 AWG
• 100 MHz
- stranded
- foil shielded
- golded plated pins
- molded boot
- strain relief
• with cable length printing on plug
• UL/CUL, TIA/EIA, GHMT certified
• Typical Application: IEEE 802.3: 10Base-T;
100Base-T; 1000Base-T
IEEE 802.5 16 MB; ISDN; TPDDI; ATM

Two Ethernet cable connectors shown in metallic white plastic, no text or symbols visible

	beige	red	blue	green	yellow	black crossover
0.25m 205413	205523	205533	205543	205463
0.5m 205417	205427	205437	205447	205467	205917
1m 205410	205420	205430	205440	205460	205910
2m 205411	205421	205431	205441	205461	205911
3m 205412	205422	205432	205442	205462	205912
5m 205414	205424	205434	205444	205464	205914
7.5m 205415	205425	205435	205445	205465
10m 205416	205426	205436	205446	205466	205916
15m 205418	205428	205438	205448	205468
20m 205419	205429	205439	205449	205469	205919

Cat.5e SF/UTP Patch Cord

• 26 AWG
• 100 MHz
- stranded
- double shielded
- gold plated pins
- molded boot
- strain relief
• with cable length printing on plug
• UL/CUL, TIA/EIA, GHMT certified
• Typical Application: IEEE 802.3: 10Base-T;

100Base-T; 1000Base-T

IEEE 802.5 16 MB; ISDN; TPDDI; ATM

Two white Ethernet cable connectors with metallic leads, no visible text or symbols

beige red	blue green	yellow black	crossover
0.25m 705413	705429	705439	705449	705469
0.5m 705417	705427	705437	705447	705467
1m 705410	705420	705430	705440	705460	705910
2m 705411	705421	705431	705441	705461	705911
3m 705412	705422	705432	705442	705462	705912
5m 705414	705424	705434	705444	705464	705914
7.5m 705415	705425	705435	705445	705465
10m 705416	705426	705436	705446	705466	705916
15m 705418	705428	705438	705448	705468
20m 705419	705423	705433	705443	705463

* 30/40/50m in beige also available

Optical Fiber Patch Cords

LC/LC Optical Fiber Patch Cord

• LC / LC connection
• connector: ceramic-ferrule
• cladding: low smoke and zero halogen
  • cable specification: I-VH 2 x 1E
  (singlemode) / I-VH 2 x 1G (multimode)
  • each cable packed with measure protocol
• REACH compliance

OS2 OM1	OM2 OM3	OM4
core diameter	9/125μm 62	5/125μm 50	125μm 50	125μm 50/1	25μm
coating color	yellow orange	orange tur	rquoise violette
0.5m			254419	255419	255519
1m	254431	254421	254411	255411	255511
2m	254432	254422	254412	255412	255512
3m	254433	254423	254413	255413	255513
5m	254435	254425	254415	255415	255515
10m	254436	254426	254416	255416	255516
15m	254437	254427	254417	255417	255517
20m	254438	254428	254418	255418	255518

Two orange fiber optic cables with metallic connectors, shown against a white background (no text or symbols visible)

SC/SC Optical Fiber Patch Cord

• SC / SC connection
• connector: ceramic-ferrule
• cladding: low smoke and zero halogen
  • cable specification: I-VH 2 x 1E
  (singlemode) / I-VH 2 x 1G (multimode)
  • each cable packed with measure protocol
• REACH compliance

OS2 OM1	OM2 OM3	OM4
core diameter	9/125μm 62	5/125μm 50	125μm 50/125μm 50/125μm 50/125μm 50/125μm 50/125μm 50/125μm 50/125μm 50/125μm 50/125μm 50/125μm 50/125μm 50/
coating color	yellow orange	orange tur	rquoise violette
0.5m			253319	255329	255529
1m	253331	253321	253311	255321	255521
2m	253332	253322	253312	255322	255522
3m	253333	253323	253313	255323	255523
5m	253335	253325	253315	255325	255525
10m	253336	253320	253310	255326	255526
15m	253337	253327	253316	255327	255527
20m	253338	253328	253318	255328	255528

Two gray fiber optic cables with orange and red connectors, shown against a white background (no text or symbols visible)

ST/ST Optical Fiber Patch Cord

• ST / ST connection
• connector: ceramic-ferrule
• cladding: low smoke and zero halogen
  • cable specification: I-VH 2 x 1E
  (singlemode) / I-VH 2 x 1G (multimode)
  • each cable packed with measure protocol
• REACH compliance

OS2 OM1	OM2
core diameter	9/125μm 62.5/125μm 50/125μm
coating color	yellow orange orange
1m 252231	252221 252211
2m 252232	252222 252212
3m 252233	252223 252213
5m 252335	252225 252215
10m 252236	252226 252216
15m 252237	252227 252217
20m 252238	252228 252218

Two identical optical fiber optic cables with orange and pink connectors (no text or symbols visible)

LC/SC Optical Fiber Adapter Cable

• LC / SC connection
• connector: ceramic-ferrule
• cladding: low smoke and zero halogen
  • cable specification: I-VH 2 x 1E
  (singlemode) / I-VH 2 x 1G (multimode)
  • each cable packed with measure protocol
• REACH compliance

OS2 OM1	OM2	OM3 OM4
core diameter	9/125μm 62	.5/125μm 50	/125μm 50	/125μm 50	/125μm
coating color	yellow orange orange		turquoise	violette
0.5m			254319	255319	255539
1m 254331	254321 254311 255311		255531
2m 254332	254322 254312 255312		255532
3m 254333	254323 254313 255313		255533
5m 254335	254325 254315 255315		255535
10m 254336	254326 254316 255316		255536
15m 254337	254327 254317 255317		255537
20m 254338	254328 254318 255318		255538

Close-up of two optical fiber optic cables with metallic connectors and orange leads (no text or symbols visible)

LC/ST Optical Fiber Adapter Cable

• LC / ST connection
• connector: ceramic-ferrule
• cladding: low smoke and zero halogen
• cable specification: I-VH 2 x 1E (singlemode) / I-VH 2 x 1G (multimode)
  • each cable packed with measure protocol
• REACH compliance

OS2 OM1	OM2 OM3	OM4
core diameter	9/125μm 62	5/125μm 50	125μm 50/125μm 50/125μm 50/125μm 50/125μm 50/125μm 50/125μm 50/125μm 50/125μm 50/125μm 50/125μm 50/125μm 50/
coating color	yellow orange	orange tur	rquoise violette
0.5m	254219	255219	255549
1m	254231	254221	254211	255211	255541
2m	254232	254222	254212	255212	255542
3m	254233	254223	254213	255213	255543
5m	254235	254225	254215	255215	255545
10m	254236	254226	254216	255216	255546
15m	254237	254227	254217	255217	255547
20m	254238	254228	254218	255218	255548

Close-up of three types of optical fiber optic cables (no text or symbols visible)

SC/ST Optical Fiber Adapter Cable

• SC / ST connection
• connector: ceramic-ferrule
• cladding: low smoke and zero halogen
• cable specification: I-VH 2 x 1E (singlemode) / I-VH 2 x 1G (multimode)
  • each cable packed with measure protocol
• REACH compliance

OS2 OM1	OM2
core diameter	9/125μm 62	.5/125μm 50	125μm
coating color	yellow orange	orange
1m	252331	252321	252311
2m	252332	252322	252312
3m	252333	252323	252313
5m	252335	252325	252315
10m	252336	252326	252316
15m	252337	252327	252317
20m	252338	252328	252318

Close-up of two orange fiber optic cables with black and red connectors (no text or symbols visible)

Installation Cables

Close-up of a metallic electrical plug with multiple leads and a central orange section (no text or symbols visible)

TIN/TEA RUB CATHS WITH HABRY

Cat.7 S/FTP Installation Cable

• 23 AWG
- 900 MHz
- solid
- PIMF (pairs in metal foil)
- halogenfree LSZH
• color: orange
• only available in Europe

100m 407431

500m 407435

500m - duplex 407432

Cat.6A S/FTP Installation Cable

• 23 AWG
- 500 MHz
- solid
- double shielded
- PIMF (pairs in metal foil)
• UL/CUL, TIA/EIA certified
• color: beige

100m - PVC 401491

305m - PVC 401493

100m - LSZH 401492

305m - LSZH 401494

Cat.6 SF/UTP Installation Cable

• 23 AWG
• 250 MHz
- solid
- double shielded
- UL/CUL, TIA/EIA certified
• color: beige

100m - PVC 401481

305m - PVC 401483

100m - LSZH 401482

305m - LSZH 401484

Close-up of a multi-core cable with visible internal wires (no text or symbols)

Close-up of a multi-core cable with colorful insulation bands (no text or symbols visible)

Close-up of a multi-core cable with exposed wires and insulation (no text or symbols visible)

Cat.6 F/UTP Installation Cable

• 23 AWG
- 250 MHz
- solid
- single shielded
- UL/CUL, TIA/EIA certified
• color: beige

100m - PVC 401471

305m - PVC 401473

100m - LSZH 401472

305m - LSZH 401474

Cat.6 U/UTP Patch Cable

• 24 AWG
- 250 MHz
- stranded
- unshielded
- PVC
• UL/CUL, TIA/EIA, 3P certified
• color: beige

100m 100461

305m 100463

Cat.6 U/UTP Installation Cable

• 23 AWG
• 250 MHz
- solid
- unshielded
- UL/CUL, TIA/EIA certified
• color: beige

100m - PVC 401461

305m - PVC 401463

100m - LSZH 401466

305m - LSZH 401467

Close-up of a multi-core cable with colorful insulation bands (no text or symbols visible)

Close-up of a multi-core cable with exposed wires and insulation (no text or symbols visible)

Close-up of a multi-core cable with visible color bands (no text or symbols)

Cat.5e U/UTP Patch Cable

• 26 AWG
• 100 MHz
- stranded
- unshielded
- PVC
- UL/CUL, TIA/EIA certified
• color: beige

100m 100431

305m 100432

Cat.5e U/UTP Installation Cable

• 24 AWG
• 100 MHz
- solid
- unshielded
- PVC
• UL/CUL, TIA/EIA, 3P certified
• color: beige

100m 401411

305m 401413

Cat.5e F/UTP Patch Cable

• 26 AWG
• 100 MHz
- stranded
- single shielded
- PVC
• UL/CUL, TIA/EIA certified
• color: beige

100m 401431

305m 401432

Close-up of a gray cable with exposed internal wires and colored insulation (no text or symbols visible)

Cross-section of a multi-core cable showing colored insulation layers (no text or symbols visible)

Cross-section of a multi-core electrical cable showing exposed copper, wires, and insulation layers (no text or symbols visible)

Cat.5e F/UTP Installation Cable

• 24 AWG
• 100 MHz
- solid
- single shielded
- PVC
- UL/CUL, TIA/EIA certified
• color: beige

100m 403421

305m 403429

Cat.5e SF/UTP Patch Cable

• 26 AWG
• 100 MHz
- stranded
- double shielded
- PVC
- UL/CUL, TIA/EIA certified
• color: beige

100m 402431

Cat.5e SF/UTP Installation Cable

• 24 AWG
• 100 MHz
- solid
- double shielded
• PVC
• UL/CUL, TIA/EIA certified
• color: beige

100m 402421

305m 402423

Cat.5e F/UTP Outdoor Installation Cable

• 24 AWG
• 100 MHz
- solid
- single shielded
• double jacket (PVC + PE)
- UL/CUL, TIA/EIA certified
• color: black

305m 403460

500m 403461

Cat.5e F/UTP Outdoor Installation Cable

• 24 AWG
• 100 MHz
- solid
- single shielded
- single jacket (PE)
• UL/CUL, TIA/EIA certified
- color: black

305m 403440

500m 403441

Telephone Installation Cable

• 4 wires
• unshielded
• flat cable
• UL/CUL, TIA/EIA certified
  • color: black

100m 117006

Patch Panels

Black rectangular electronic component with metallic frame and mounting holes (no visible text or symbols)

Cat.6A (Class EA) Patch Panel - Shielded

• fully shielded RJ45 Port with dust cover
• Class E_A according to ISO/IEC 11801 with better NEXT than TIA/EIA standard
- backward compatible with 10G Ethernet, Cat.6, Cat.5e performance
• 45° dual IDC (LSA and 110) compatible
- incl. support bar
• incl. earthing cable green/yellow
- incl. cable ties
• 19" 1U

color: light grey (RAL 7035)

326524

color: black

326624

Exterior view of a multi-chamber electronic device with multiple ports and connectors (no visible text or labels)

Cat.6 (Class E) Patch Panel - Shielded

• Class E according to ISO/IEC 11801 and EN50173
• 45° dual IDC (LSA and 110) compatible
• sheet steel housing with cable entry
- fully shielded
• 19" 1U

color: light grey (RAL 7035)

48-port 326348

color: black

48-port 326448

Cat.6 (Class E) Patch Panel - Shielded

• Class E according to ISO/IEC 11801 and EN50173
• 45° dual IDC (LSA and 110) compatible
• sheet steel housing with cable entry
- fully shielded
• 19" 1U

color: light grey (RAL 7035)

16-Port 326316

24-Port 326324

color: black

16-Port 326416

24-Port 326424

Front panel of a network switch with multiple ports and indicator lights (no visible text or labels)

Cat.6 (Class E) Patch Panel - Unshielded

• Class E according to ISO/IEC 11801 and EN50173
• 45° dual IDC (LSA and 110) compatible
• sheet steel housing with cable entry
• 19" 1U

color: black

24-port 135424

Front view of a network switch device with multiple Ethernet ports (no visible text or labels)

Cat.6 (Class E) Patch Panel - Shielded

• Class E according to ISO/IEC 11801 and EN50173
• 45° dual IDC (LSA and 110) compatible
- fast and easy installation
- shielded components
- compact design
- 10" 1U

color: light grey (RAL 7035)

12-port 208014

Front view of a network switch device (no visible text or labels)

Cat.6 (Class E) Desktop Patch Panel

• Class E according to ISO/IEC 11801 and EN50173
• 45° dual IDC (LSA and 110) compatible
- suitable for desktop or wall mounting
• metal chassis with cable feed

color : light grey (RAL 7035)

8-port 227368

12-port 227362

Cat.6 (Class E) Patch Panel:

326316 / 326416	326324 / 326424	326348 / 326448	135424 208014	227362 227368
16-port 24-port	48-port 24-port	12-port 12-port	8-port
Shielded	Shielded	Shielded	Unshielded	Shielded	Shielded	Shielded
19" 1U	19" 1U	19" 1U	19" 1U	10" 1U	Desktop / Wallmount	Desktop / Wallmount
Grey / Black	Grey / Black	Grey / Black	Black	Grey	Grey	Grey

Black rectangular electronic device with multiple ports and connectors (no visible text or symbols)

Cat.5e Patch Panel - Shielded

• 45^ dual IDC (LSA and 110) compatible
  • sheet steel housing with cable entry
• fully shielded
  • 19" 1U

color: light grey (RAL 7035)

16-port 327316

24-port 327324

color: black

24-port 327424

Front panel of a network switch or rack device (no visible text or labels)

Cat.5e Patch Panel - Unshielded

• 45^ dual IDC (LSA and 110) compatible
  • numbered RJ45 Ports, label fields
  • color coded LSA terminals clamps according to EIA/TIA 568A/B
  • 19° 1U

color: black

16-port 235316

24-port 235324

Black rectangular electronic device with multiple Ethernet ports and a green cable (no visible text or labels)

Cat.5e Patch Panel - Shielded

• 45^ Krone IDC compatible
  • sheet steel housing with cable entry
• fully shielded
  • 19" 1U

color: light grey (RAL 7035)

48-port 327348

color: black

48-port 327448

Front view of a network switch device with multiple Ethernet ports (no visible text or labels)

Cat.5e 12-Port Patch Panel

• 45° dual IDC (LSA and 110) compatible
- fast and easy installation
- compact design
- 10" 1U

color: light grey (RAL 7035)

Shielded 208012

Unshielded 208005

Cat.5e Desktop Patch Panel

• 45° dual IDC (LSA and 110) compatible
- suitable for desktop or wall mounting
• metal chassis with cable feed

color: light grey (RAL 7035)

8-port 227308

12-port 227312

Cat.3 Telephone Patch Panel

• telephone distribution panel
- unshielded
• 19" 1U

color: light grey (RAL 7035)

25-port 125292

50-port 125293

color: black

25-port 125294

50-port 125295

Cat.5e Patch Panel:

327316 327	324 / 327424 327	348 / 327448 235	316 235324 208	012 227312 227	308
16-port 24-port 48-port 16-port 24-port 12-port 12-port 8-port
Shielded	Shielded	Shielded	Unshielded	Unshielded	Shielded	Shielded	Shielded
19" 1U	19" 1U	19" 1U	19" 1U	19" 1U	10" 1U Desktop / Wallmount	Desktop / Wallmount
Grey	Grey / Black	Grey / Black	Black	Black	Grey	Grey	Grey

Black rectangular electronic device with multiple ports and connectors (no visible text or symbols)

Cat.6A Keystone Patch Panel - Shielded

• snap-in mounting
• incl. support bar
  • incl. earthing cable green/yellow
• incl. cable ties
• suitable for shielded keystone jack: 767221
• without jacks
  • 19" 1U

color: black

24-port 769324

Black rectangular electronic device with multiple ports and connectors (no visible text or symbols)

Cat.6 ^A Keystone Patch Panel - Unshielded

• snap-in mounting
• incl. support bar
• suitable for unshielded keystone jack: 769221
• without jacks
  • 19" 1U

color: black

24-port 769225

Black rectangular electronic component with grid pattern, no visible text or symbols

Cat.6 Keystone Patch Panel - Shielded

• snap-in mounting
• incl. support bar
  • incl. earthing cable green/yellow
• incl. cable ties
• suitable for shielded keystone jack: 767210, 767211
• without jacks
  • 19" 1U

color: light grey (RAL 7035)

24-port 767124

color: black

24-port 769124

Black rectangular electronic component with multiple square slots arranged in a grid pattern (no visible text or symbols)

Cat.6 Keystone Patch Panel - Unshielded

• snap-in mounting
• incl. support bar
• suitable for unshielded keystone jack: 769210, 769211
• without jacks
  • 19" 1U

color: black

24-port 769224

Black rectangular electronic component with grid pattern (no visible text or symbols)

Cat.6 Keystone Patch Panel - Shielded

• snap-in mounting
• incl. support bar
  • incl. earthingcable green/yellow
• incl. cable ties
• suitable for shielded keystone jack: 767210, 767211
• without jacks
  • 19" 2U

color: black

48-port 769349

Black rectangular electronic component with multiple slots and mounting holes (no visible text or symbols)

Cat.6 Keystone Patch Panel - Unshielded

• snap-in mounting
• incl. support bar
• suitable for unshielded keystone jack: 769210, 769211
• without jacks
  • 19" 2U

color: black

48-port 769249

Keystone Patch Panel:

769324 769225	769349 769249	767124 769124	769224 769248
24-port 24-port	48-port 48-port	24-port 24-port	24-port 48-port
Shielded Unshielded Shielded Shielded Shielded Unshielded Unshielded
1U	1U	2U	2U	1U	1U	1U	1U
Cat.6, Cat.6, Cat.5e	Cat.6, Cat.6, Cat.5e	Cat.6, Cat.5e	Cat.6, Cat.5e	Cat.6, Cat.5e	Cat.6, Cat.5e	Cat.6, Cat.5e	Cat.6, Cat.5e

Front panel of a network hard drive (no visible text or labels)

HD Keystone Patch Panel - Unshielded

• snap-in mounting
• incl. support bar
• incl. cable ties
• suitable for unshielded keystone jack: 769212
• without jacks
  • 19" 1U
  • color: black

48-port 769248

Front view of a black rack-mounted server unit (no visible text or labels)

Fiber Optic Patch Panel

• fits 24 x LC duplex adapters or 24 x SC simplex adapters
  • 19" 1U
  • including screw pack

157180

Passive POE Patch Panel

• Passive PoE application
• Data: pin 1/2&3/6; power: 4/5(+) & 7/8(-)
• Over-current protection
- Fast ethernet connection
• color: black

12-port 328112

16-port 328116

Black rectangular electronic charger with attached cable and power plug (no visible text or symbols)

Power Supply Unit

• switching power adapter for PoE patch panel
  • over current / voltage protection
• short circuit protection
  • power cord included

120W 328120

160W 328160

Outlet

125775 125772

125762125765

125725125722

Cat.6A (Class EA) German Modular

Faceplate

• 2-port 45°/angled jack with dust cover
- Class E_A according to ISO/IEC 11801 and EN50173
- LSA terminals
• horizontal cable feed
- fully shielded
- selling unit: 5pcs/box

color: pearl white (RAL 1013)

125775

color: pure white (RAL 9010)

125772

Cat.6 (Class E) German Modular Faceplate

- 2-port 45^ /angled jack

• Class E according to ISO/IEC 11801 and EN50173

- LSA terminals

- horizontal cable feed

- fully shielded

- selling unit: 5pcs/box

color: pearl white (RAL 1013)

125765

color: pure white (RAL 9010)

125762

Cat.5e German Modular Faceplate

• 2-port 45°/angled jack
- LSA terminals
• horizontal cable feed
- fully shielded
- selling unit: 5pcs/box

color: pearl white (RAL 1013)

125722

color: pure white (RAL 9010)

125725

Cat.6 (Class E) German Modular Outlet Set

- Retail

• 2-port 45^ /angled jack
  • Class E according to ISO/IEC 11801 and EN50173
• LSA terminals
  • horizontal cable feed
• fully shielded
• incl. back box
• retail packing

color: pearl white (RAL 1013)

125763

color: pure white (RAL 9010)

125761

White plastic enclosure with mounting holes and a circular cutout (no text or symbols)

Cat.5e German Modular Outlet Set - Retail

• 2-port 45°/angled jack
- LSA terminals
• horizontally cable feed
- fully shielded
- incl. back box
- retail packing

color: pearl white (RAL 1013)

125723

color: pure white (RAL 9010)

125721

761304760304

3-Port German Faceplate - Keystone

System

• German surface faceplate for surface mounting box
- 80 x 80mm for three keystone jacks
- incl. modular insert and frame

color: pearl white (RAL 1013)

760304

color: pure white (RAL 9010)

761304

German Faceplate - Keystone System

• German surface faceplate for surface mounting box
• 80 x 80mm for two keystone jacks
  • incl. modular insert and frame

color: pearl white (RAL 1013)

760303

color: pure white (RAL 9010)

761303

Universal Faceplate - Keystone System

• universal surface faceplate for surface mounting box
• 80 x 80mm for two keystone jacks
  • incl. 45° modular insert and frame
• selling unit: 5pcs/box

color: pearl white (RAL 1013)

760301

color: pure white (RAL 9010)

761301

White plastic electrical outlet component with mounting holes and a circular cutout (no text or symbols visible)

Surface Mounting Back Box

For modular faceplate

color: pearl white (RAL 1013)

125560

color: pure white (RAL 9010)

125561

For keystone system

color: pearl white (RAL 1013)

760302

color: pure white (RAL 9010)

761302

French Modular Faceplate - Window

• 80.5 x 80.5mm
• 45 x 45mm window
  • color: pure white (RAL 9010)

125461

French Modular Faceplate - Insert

• fits 1 x keystone jack
• with dust cover
  • color: pure white (RAL 9010)

45 x 45mm 125471

45 x 22.5mm 125474

761311125471

761312125474

French Modular Faceplate - Angled Insert

• 45 x 45mm
• with dust cover
  • color: pure white (RAL 9010)

1-port 761311

2-port 761312

Tools and Testers

Close-up of a black crimping tool with two handles and metal contacts (no visible text or symbols)

Economy Crimping Tool

• crimps modular connectors 8P/8C
• with stripping and cutting function
• with round cable stripper

129401

Red and black wire crimping tool with no visible text or symbols

Universal Crimping Tool

• crimps modular connectors 6P/4C, 6P/6C, and 8P/8C
  • with stripping and cutting function
  • with round cable stripper

129403

Close-up of a blue and gray wire crimping tool with a screwdriver nearby (no text or symbols visible)

Professional Modular Crimping Tool

• crimps 4P/2C, 4P/4C, 6P/4C, 6P/6C, 8P/8C, and DEC connectors
• with stripping and cutting function
• with stripping function for round cable
• with ratchet function

129404

Green and black crimping tool (no text or symbols visible)

Crimping Tool for Hirose Connectors

• crimps shielded Hirose connectors Cat.5e and Cat.6
- simultaneous crimping of connector (8P/8C) and the strain-relief
• with ratchet function

Close-up of a mechanical clamp or crimping tool with no visible text or symbols

Universal Stripping Tool

• for dismantling of UTP, STP, ISDN, telephone and data cables up to max. 9mm

129102

Close-up of a black electronic device casing with a circular hole and a small square component, no visible text or symbols.

Fixing Aid

• for keystone jack punch down installation
- plastic

760400

129110

Krone LSA/IDC Punch Down Tool

• press in and punch down function
• cut off function
  • for IDC & LSA connector
  • only available in Europe

129109

Close-up of a silver A1000 power tool with metal terminals and a terminal block (no visible text or symbols)

equip LSA/IDC Punch Down Tool

• press in and punch down function
• cut off function
  • for IDC & LSA connector

129119

Network / Modular / USB Cables Tester

• master and remote unit
- tests shielding, transmission, short circuit and wiring errors
- extensive diagnostic display for pin-out and pair display for 10BaseT, 100BaseTX, 10Base2, USB
- tests 4/6/8 pin patch cables (RJ11/12/45) as well as installed cables up to 100m

129964

Black electronic device with integrated circuit boards and a cable (no visible text or symbols)

Network Tool Case

• 1 x punch down tool
• 1 x LAN cable tester
• 1 x cable stripper
• 1 x RJ45 crimping tool

129503

Open electrical crimping tool kit with multiple tools and components (no visible text or labels)

Professional Tool Box

• for UTP, STP and telephone cabling
- 1 x crimping tool professional, model no.129404
- 1 x fixing aid for keystone jacks, model no.760400
- 1 x LSA punch down tool
- 1 x universal stripping tool, model no.129102
• 1 x screw driver for crimping tool
• 20 x unshielded Cat.6 RJ45 plug
- 20 x antikink boot in black, model no. 151158

129504

Cabling Accessories

Three metallic Ethernet connectors shown from different angles (no text or symbols visible)

Cat.6A Shielded Keystone Jack Toolless

• Class EA according to ISO/IEC 11801 with better NEXT than TIA/EIA standard
- fully shielded
- tool free connector
• EIA/TIA 568 coded
- snap-in mounting
• suitable for keystone patch panel 769324
- suitable for wall mounting outlet: 760301, 760303, 761301, 761303
- selling unit: 8 pcs/bag

767221

Three black industrial Ethernet connectors shown from different angles (no text or symbols visible)

Cat.6A Unshielded Keystone Jack Toolless

• Class E _A according to ISO/IEC 11801 with better NEXT than TIA/EIA standard
• unshielded
• tool free connector
  • EIA/TIA 568 coded
• snap-in mounting
• suitable for keystone patch panel 769225
• suitable for wall mounting outlet: 760301, 760303, 761301, 761303
• selling unit: 8 pcs/bag

769221

Cat.6 Shielded Keystone Jack LSA

• fully shielded
• LSA connector
  • EIA/TIA 568 coded
• snap-in mounting
• suitable for keystone patch panel 767124, 769124, 769349
• suitable for wall mounting outlet 760301, 761301, 760303, 761303
• selling unit: 8pcs/bag

767210

Three black and white electronic component blocks with no visible text or symbols

Cat.6 Unshielded Keystone Jack LSA

• unshielded
• LSA connector
• EIA/TIA 568 coded
• snap-in mounting
• suitable for keystone patch panel 769224, 769249
• suitable for wall mounting outlet 760301, 761301, 760303, 761303
• selling unit: 8pcs/bag

769210

Three different types of Ethernet connectors shown from different angles (no text or symbols visible)

Cat.6 Unshielded Keystone Jack LSA, Slim

Type

• unshielded
• LSA connector
  • EIA/TIA 568 coded
• snap-in mounting
• suitable for keystone patch panel 769248
• suitable for wall mounting outlet: 760304, 761304
• selling unit: 8pcs/bag

769212

Close-up of a metallic industrial device with internal components and a separate rectangular component (no visible text or symbols)

Cat.6 Shielded Keystone Jack Toolless

• fully shielded
• tool free connector
• EIA/TIA 568 coded
• snap-in mounting
• suitable for keystone patch panel 767124, 769124, 769349
• suitable for wall mounting outlet 760301, 761301, 760303, 761303
• selling unit: 8pcs/bag

767211

Three white and black electronic linkers with connectors, shown from different angles (no text or symbols visible)

Cat.6 Unshielded Keystone Jack Toolless

• unshielded
• tool free connector
  • EIA/TIA 568 coded
• snap-in mounting
• suitable for keystone patch panel 769224, 769249
• suitable for wall mounting outlet 760301, 761301, 760303, 761303
• selling unit: 8 pcs/bag

769211

Cat.6A Shielded Modular Inline Coupler

• fully shielded
• 2 x RJ45 jack
• pin configuration: 1:1

221169

Cat.6A Shielded Keystone Inline Coupler

• 2 x RJ45 jack
• pin configuration 1:1
• snap-in mounting
• suitable for Cat.6A keystone patch panel 769324
• suitable for wall mounting outlet 760301, 761301, 760303, 761303
• selling unit: 8 pcs/bag

125596

Cat.6 Shielded Modular Inline Coupler

• fully shielded
• 2 x RJ45 jack
• pin configuration: 1:1

121169

White wireless router with black connector (no visible text or symbols)

Cat.6 Shielded Keystone Inline Coupler

• 2 x RJ45 jack
• pin configuration 1:1
• snap-in mounting
• suitable for Cat.6 keystone patch panel 767124, 769124, 769349
• suitable for wall mounting outlet 760301, 761301, 760303, 761303
• selling unit: 8 pcs/bag

125589

Black CAT6 Ethernet switch component (no visible text or symbols beyond branding)

Cat.6 Unshielded Keystone Inline Coupler

• 2 x RJ45 jack
• pin configuration 1:1
• snap-in mounting
• suitable for Cat.6 keystone patch panel 769224, 769249
• suitable for wall mounting outlet 760301, 761301, 760303, 761303
• selling unit: 8 pcs/bag

125579

Cat.5e Shielded Modular Inline Coupler

• fully shielded
• 2 x RJ45 jack
• pin configuration: 1:1

221159

Two metallic electronic device enclosures, one with white terminal blocks and the other a gray enclosure (no visible text or symbols)

Cat.6 (Class E) Shielded Junction Box

• Class E according to ISO/IEC 11801 and EN50173
• shielded
• Cat.6 FTP, SFTP installation cables can be extended or reconnected after damage with this module via LSA terminals
• compatible with 110/Krone punch down tools

135620

Two metallic electronic components with internal wiring, one showing terminal connectors (no visible text or symbols)

Cat.5e Shielded Junction Box

• shielded
• Cat.5e FTP, SFTP installation cables can be extended or reconnected after damage with this module via LSA terminals
• compatible with 110/Krone punch down tools

135420

Cat. de Junction Box

Cat.5e Unshielded Junction Box

• unshielded
• Cat.5e UTP installation cables can be extended or reconnected after damage with this module via LSA terminals
• compatible with dual IDC (LSA and 110) punch down tools

135410

Close-up of a white wireless router switch with two ports and a transparent cable (no visible text or symbols)

Cat.5e RJ45 Modular Adapter

• shielded
  • RJ45 plug to 2 x RJ45 jack
• split 1 x RJ45 port with 15cm cable into 2 x 10/100Base-T
• connection two units are necessary

127603

Cable Boot

• antikink boot for RJ45 plug
• plastic
• selling unit: 100pcs
• color: black

151178

RJ11/12/45 Modular Plug

• for telephone and modem flat cable
- unshielded
- selling unit: 100pcs/bag

4P4C 121111

6P4C 121121

6P6C 121131

8P8C 121151

Close-up of a transparent plastic electronic component (no visible text or symbols)

RJ45 Modular Plug

• for round cable
• unshielded
  • 8P8C
• selling unit: 100pcs/bag

Cat.6 without boot 121143

Three white plastic electrical connectors with internal structure, shown from different angles (no text or symbols visible)

RJ45 Plug Set

• for round cable
• selling unit: 100 sets

unshielded

Cat.6 with boot, insert bar 121175

shielded

Cat.6 with boot, insert bar 121178

Socket Protector

• dust protection
• plastic
  • color: black
• selling unit: 100pcs/bag

RJ45 socket protector 151179

Blind Insert

• suitable for keystone patch panel: 767124, 769124, 769224
• selling unit: 100pcs/bag
• color: black

760402

Black Ethernet router adapter with four ports (P1–P4) and a cable, no visible text or symbols on the device body.

ISDN Telephone Splitter

• RJ45 plug to 4 x RJ11 jack
- cable length: 175mm
- gold-plated contact
• including double-sided adhesive tape
- color: black

124260

RJ45 Modular Adapter

• RJ45 jack to RJ45 jack
• gold-plated contact
  • color: white
• selling unit: 100pcs/bag

121252

235211

235212

Cat.6 (Class E) Surface Mounted Box

• unshielded
  • according to EIA/TIA 568A/B
• IDC/LSA terminals
  • color: pure white (RAL 9010)

• Class E according to ISO/IEC 11801 and EN50173

1-Port 235211

2-Port 235212

235112235111

Cat.5e Surface Mounted Box

• unshielded
  • according to EIA/TIA 568A/B
• IDC/LSA terminals
  • color: pure white (RAL 9010)

1-Port 235111

2-Port 235112

125121

125122

Surface Mounted Box - Keystone System

• unshielded
  • color: pure white (RAL 9010)
• with dust cover

1-Port 125121

2-Port 125122

White wireless router device with five ports, isolated on white background (no text or symbols visible)

Keystone Box

• modular construction
• plastic housing with up to 12 x keystone jack
• without jacks
• size: 170 x 112 x 38mm
  • color: white

125460

Two black and beige RF switch connectors with gold connector pins, isolated on white background (no text or symbols)

Optical Fiber Keystone Adapter

• snap-in mounting
• suitable for keystone patch panel 769224, 769112, 769249
• suitable for equip wall-mount outlets - keystone system
  • pre-assembled with optical fiber coupler
• selling unit: 8pcs

LC duplex 125570

ST simplex 125571

SC simplex 125572

Close-up of red cylindrical connectors with metal fittings and metal rings (no text or symbols visible)

ST Adapter/Coupler

• standard adapter for panels and outlets
- suitable for multimode connection
• phosphor bronze sleeve
- snap-in or thread type
• metal sleeve, metal housing

156100

Close-up of a teal-colored electronic component with multiple black connectors (no text or symbols visible)

SC Adapter/Coupler

• standard adapter for panels and outlets
- duplex
- phosphor bronze sleeve
- snap-in or thread type
- metal sleeve
- selling unit: 12pcs

singlemode, blue 156131

OM1/OM2, beige 156145

OM3, turquoise 156143

Close-up of a white optical fiber connector with two side connectors (no text or symbols visible)

LC Adapter/Coupler

• standard adapter for panels and outlets
• suitable for multimode connection
- duplex
- phosphor bronze sleeve
- snap-in or thread type
- metal sleeve
- selling unit: 12pcs

156150

Close-up of a green and black electronic component with connectors (no text or symbols visible)

SC/APC Adapter

• standard adapter for panels and outlets
- suitable for singlemode connection
- zirconia sleeve
- snap-in or thread type
- selling unit: 12pcs

156144

Close-up of a metallic connector with a black plastic end, showing internal structure and part spread (no text or symbols visible)

ST Connector

• metal case
  • suitable for multimode connection
• zirconia ceramic ferrule
• anti-kink black boot
• selling unit: 12pcs

156010

Close-up of three gray plastic connectors with white plastic caps, no text or symbols visible

LC Connector

• polymer housing
• suitable for multimode connection
• beige boot
• selling unit: 12pcs

156021

Close-up of three types of connectors: a metallic cylindrical body, a blue plastic connector, and a small white tip (no text or symbols visible)

SC Connector

• polymer housing
  • zirconia ceramic ferrule
• selling unit: 12pcs

singlemode, blue 156023

SC Connector

• polymer housing
  • zirconia ceramic ferrule
• selling unit: 12pcs

multimode, beige 156020

Cabinet System

Black server cabinet with vertical slots (no visible text or labels)

Blue rectangular electronic device with two circular ports, no visible text or symbols

Interior view of an open industrial electrical cabinet with visible wiring and components (no text or labels)

Standing Cabinet

• comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494: part 1, DIN41494: part 7, ETSI standard
• material: SPCC cold rolled steel
- thickness: mounting profile 2.0mm, mounting angle 1.5mm, others 1.2mm.
- front door: tempered glass with spring lock; rear door: steel with round lock
- blue zinc mounting profile
- lockable cable entry on top cover and bottom panel
- removable side panels
- shipped in flat packs
• color: black (RAL 9004)
* models other than those listed are on demand

600 x 600mm

18U 896618

27U 896627

42U 896642

600 x 800mm

18U 896818

27U 896827

42U 896842

600 x 1000mm

18U 896118

27U 896127

42U 896142

800 x 800mm

18U 898818

27U 898827

42U 898842

47U 898847

800 x 900mm

18U 898918

27U 898927

42U 898942

47U 898947

800 x 1000mm

18U 898118

27U 898127

42U 898142

47U 898147

Wall Mount Cabinet

• comply with ANSI/EIA RS-310-D, IEC297-2, DIN41497: part 1, DIN41494: part 7, GB/T3047.2-92
• material: SPCC cold rolled steel
- thickness: mounting profile 1.5mm, others 1.2mm.
- front door: tempered glass with round lock
- welded frame
• wall mount or standing installation
- knock out hole as cable entry on top cover and bottom panel
- removable side panels
• color: black (RAL 9004)

Single Section (600 x 450mm)

6U 896406

9U 896409

12U 896412

Double Section (600 x 550mm)

6U 896506

9U 896509

12U 896512

Flat Pack Cabinet

• comply with ANSI/EIA RS-310-D, IEC297-2, DIN41497: part 1, DIN41494: part 7
• material: SPCC cold rolled steel
• thickness: mounting profile 1.5mm, side panels: 0.8mm, others 1.2mm.
• front door: tempered glass with round lock
• wall mount or standing installation
- knock out hole as cable entry on top cover and bottom panel
- removable side panels
• color: black (RAL 9004)

10" (280 x 310mm)
4U 892304
6U 892306
9U 892309
12U 892312
19" (520 x 450mm)
4U 895404
6U 895406
9U 895409
12U 895412

Three vertical black metal bars mounted on a base, no text or symbols visible

Open Rack

• comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494: part 1, DIN41494: part 7
- modular design
- easy to assemble and disaeemble
• color: black (RAL 9004)

42U 890042

47U 890047

19" 9-Bay Power Distribution Unit

• 1U horizontal installation
- 9-socket
• power cord specification: 3 x 1.5 mm ^2 x 1.8m
- 16A/250V, max. 3500W
- plastic shell
- color: black

German type (CEE 7/4) 333282

French type (CEE 7/5) 333284

19" 8-Bay Power Distribution Unit with Switch

• 1U horizontal installation
- 8-socket
- with on/off switch
• power cord specification: 3 × 1.5 mm^2 × 1.8m
• 16A/250V, max. 3500W
- plastic shell
- color: black

German type (CEE 7/4) 333283

French type (CEE 7/5) 333285

Front view of a rack-mounted server unit with multiple fans (no visible text or labels)

19" 9-Bay Power Distribution Unit, Aluminium Shell

• 1U horizontal installation
- 9-socket
• power cord specification: 3 × 1.5 mm^2 × 1.8m
• 16A/250V, max. 3500W
- aluminium shell
• color: silver

German type (CEE 7/4) 333292 French type (CEE 7/5) 333294

Front view of a rack-mounted server unit with multiple ports (no visible text or labels)

19" 8-Bay Power Distribution Unit with Switch, Aluminium Shell

• 1U horizontal installation
- 8-socket
- with on/off switch
• power cord specification: 3 x 1.5 mm² x 1.8m
• 16A/250V, max. 3500W
- aluminium shell
• color: silver

German type (CEE 7/4) 333293

French type (CEE 7/5) 333295

19" 8-Bay Power Distribution Unit, Surge Protection

• 1U horizontal installation
- 8-socket
- with on/off switch
• power cord specification: 3 × 1.5 mm^2 × 1.8m
• 16A/250V, max. 3500W
• surge protection: 10KA, 250 Joules
- aluminium shell
• color: silver

German type (CEE 7/4) 333296

19" Master-Slave Power Distribution Unit

• 1U horizontal installation
• 1 master + 5 slave sockets
• power cord specification: 3 x 1.5 mm² x 1.8m
• 16A/250V, max. 3500W
- aluminium shell
• color: silver

Front view of a rack-mounted server unit with multiple ports and connectors (no visible text or labels)

19" Power Distribution Unit with Cable Lock

• 1U horizontal installation
- 7-socket
• power cord specification: 3 × 1.5 mm^2 × 1.8m
• 10A/250V, max. 3500W
- aluminium shell
• color: silver

IEC type (IEC 60320 C13) 333300

10" 3-Bay Power Distribution Unit

• 1U horizontal installation
- 3-socket
• power cord specification: 3 x 1.5 mm² x 1.5m
• 16A/250V, max. 3500W
- plastic shell
• color: black

German type (CEE 7/4) 333299

Black electrical plug with four pins and a cable, isolated on white background (no text or symbols visible)

Power Strip

• outlet standard: CEE 7/4
• 1.80m power cord with C14 IEC320 plug
- max. 2200W
• color: black

3-Bay 333280

4-Bay 333281

Digital Temperature Controller

• metal
  • built in sensor
• fan units on demand
• 2-way output
  • intelligent control on cabinet inner temperature
  • alarm mechanism for abnormal temperature
  • color: RAL9004

892201

Black rectangular electronic device with four ventilation slots and mounting bracket (no visible text or symbols)

Rackmount Cooling Unit

• metal
• input: 220V / 50-60Hz
  • fan speed: 1600 RPM
  • color: RAL 9004

2-fan 892202

3-fan 892203

4-fan 892204

cooling unit with thermostat

2-fan 892212

3-fan 892213

4-fan 892214

Two white rectangular electronic devices with visible wiring, no text or symbols present

Energy Saving Light Tube

• 19" 1U horizontal installation
• power consumption: 8W
• with 1.8m power cord

for standing cabinet: 892410

for wall-mount cabinet: 892411

Two black rectangular electronic equipment tabs with mounting holes, shown from different angles (no text or symbols visible)

Blank Panel

• 19"

- metal

color: light grey (RAL 7035)

1U	327502
2U	327522

color: black

1U	327501
2U	327511

Cable Management Panel

• metal
  • with 5 plastic cable holders
  • 19" 1U

color: light grey (RAL 7035)

327312

color: black

327311

Brush Panel

• metal
• incl. support bar
  • 19" 1U

color: light grey (RAL 7035)

327412

color: black

327411

Black perforated metal tray with side grout (no text or symbols)

Fixed Shelf

• SPSS cold rolled steel
• perforated
• load capacity: 60kg; load capacity of heavy duty: 100kg
  • color: black

600-depth 892060

800-depth 892080

900-depth 892090

1000-depth 892100

600-depth, heavy duty 892061

800-depth, heavy duty 892081

900-depth, heavy duty 892091

1000-depth, heavy duty 892101

Black rectangular electronic device with perforated top and side slots (no text or symbols visible)

Sliding Shelf

• SPSS cold rolled steel
• perforated
  • sliding range: 210mm
• load capacity: 20kg
  • color: black

600-depth 892062

800-depth 892082

900-depth 892092

1000-depth 892102

Black metal shelf support structure with perforated edges and mounting feet (no text or symbols)

Cantilever Shelf

• SPSS cold rolled steel
  • perforated
• load capacity: 20kg
  • color: black

600-depth 892063

800-depth 892083

1000-depth 892103

Black hard drive component with two slots and a central slot (no text or symbols visible)

Keyboard Tray

• SPSS cold rolled steel
  • sliding range: 210mm
• load capacity: 20kg
  • color: black

600-depth 892116

800-depth 892118

900-depth 892119

1000-depth 892120

Close-up of a black metal cabinet or rack unit with a handle extending from its side (no visible text or symbols)

Keyboard Tray with Mouse Panel

• 19" 2U
- SPSS cold rolled steel
• sliding range: 220mm
- load capacity: 20kg
• color: black

892112

Blue metal drawer with a handle and internal compartments (no text or symbols visible)

Storage Drawer

• SPSS cold rolled steel
  • with lock and 2 keys
• depth: 360mm

2U 892122

3U 892123

4U 892124

5U 892125

Black square frame with a hollow center and mounting holes (no text or symbols)

Cabinet Plinch

• SPSS cold rolled steel
- fixing and lifting up the standing cabinet
- height: 100mm
- removable side panels
- rear panel with cable entry

600 x 600mm 892466

600 x 800mm 892468

800 x 800mm 892488

800 x 900mm 892489

800 x 1000mm 892480

Castor

• orchid zinc
• with brake
• load capacity: 150kg

2" castor 892452

3" castor 892453

Five black cylindrical objects arranged in a scattered pattern (no text or symbols visible)

Adjustable Feet

• stabilizes the cabinet
- material: steel
- load capacity: 600kg

892454

Close-up of a black plastic mechanical component with multiple slots and grooves (no text or symbols visible)

Cable Management Slot

- SPSS cold rolled steel

color: black

18U 892418

27U 892427

42U 892442

47U 892447

Three parallel metallic structural beams with cutouts, shown in isometric view (no text or symbols)

Supporting Rail

• SPSS cold rolled steel
• mounted to support equipments

600-depth 892160

800-depth 892180

900-depth 892190

1000-depth 892200

Three identical metallic paperclip designs arranged in a row (no text or symbols)

Metal Cable Ring

• SPSS cold rolled steel
• cable management ring

left-side 892455

right-side 892456

Cabinet System

19" Network Cabinet DELTA S

The equip 19" free standing network cabinet with IP 30 protection has a robust welded construction. High quality processing and the newest technologies ensure a long operating life time. The hinge system enables almost 180^ wide opening of the door. The door can be easily removed and mounted for a change of the door opening direction. The vertical 19" rails can be adjusted freely in any depth of the cabinet. This simplifies the mounting of the devices and the configuration of connecting cables. The equip network cabinet offers a welded frame and removable side panels. These panels are standardly fixed to the frame using a lock with unified key in the same way as the rear cover.

Black server cabinet with open doors and internal compartments (no visible text or labels)

Cabinet Rear Cover

Removable side and rear covers are secured with key-operated locks same as the front cover.

Exterior view of a white industrial cabinet with open doors and internal compartments (no text or symbols visible)

Breakout-type Blanking Panels

The large opening with breakout-type blanking panel allows the assembly and disassembly of a fan plate from the outside, without using any screws. The entry openings for cables in the rear part of the cabinet are covered with breakout-type blanking panels too. It is possible to use a blanking panel with a brush in a cable opening to avoid dust penetration. A plastic frame serves to protect cables from damages (both are parts of the package).

Interior view of a room with furniture and fixtures (no visible text or symbols)

Electrical wiring diagram showing three colored wires (red, blue, black) connected to a black rectangular component (no text or symbols visible)

Special doors for ventilation units

For this network cabinet a special type of steel sheet door for installation of ventilation units are ordered.

Exterior view of a white industrial electrical cabinet with multiple circular components and wiring (no visible text or labels)

Key Features

• solid construction made of sheet steel
- front door made of tempered safety glass / 180° pivoting, door hinges changeable from right to left
• perforated or full metal door available on request
- lockable handle
- easy removable sides and backplane, lockable
- 2 pairs depth adjustable vertical mounting profiles, galvanized
- cable ducts in backplane, top and bottom with a break-out blanking panel (incl. brush insert)
• slots for ventilation in top and bottom
• perforation in upper and lower parts for optimal ventilation
- mounted grounding system
• height adjustable base (castors pls. see accessories)
- brush insert and mounting material included
• color: RAL 7035 light grey or RAL 9005 black

Door variants

All equip network cabinets come standard with a glass door from 4mm toughened safety glass. Upon request, the cabinets can be supplied with a perforated or solid sheet metal door. In addition, there is the possibility to deliver all of these doors as a two-wing doors.

Exterior view of a white server cabinet with two vertical panels showing internal structure (no text or symbols visible)

E 350 270 420 A B C D

E D 320 A

equip item no.	equip item no.	A	B C D	E			U	weight net kg	max. load (recommended) kg
grey	black	mm
Delta S 600x 600
906615 99661	5 770 668 487	600 600 15	33,5						300 906618 996618 900
906622 99662	2 1080 978	600 600 22	42,5
906632 99663	2 1525 1423	600 600 32	58,1						400
906642 99664	2 1970 1868	600 600 42	71,7
Delta S 600x 800
906815 99681	5 770 668 487	600 800 15	39,1						300 906818 996818 900
906822 99682	2 1080 978	600 800 22	49,1
906832 99683	2 1525 1423	600 800 32	66,4						400
906842 99684	2 1970 1868	600 800 42	81,5
Delta S 600x 900
906918 99691	8 900 798 487	600 900 18	47,5 300
906932 91693	2 1525 1423	600 900 32	73,9						400
906942 91694	2 1970 1868	600 900 42	90,8
Delta S 600x 1000
906132 99613	2 1525 1423	600 100 32	78						400
906142 99614	2 1970 1868	600 100 42	95,6
Delta S 800x 800
908815 99881	5 770 668 687	800 800 15	48,3						300 908818 998818 900
908822 99882	2 1080 978	600 800 22	59,3
908832 91883	2 1525 1423	600 800 32	78,2						400
908842 91884	2 1970 1868	600 800 42	94,7
Delta S 800x 900
908922 99892	2 1080 978	600 900 22	64,7 300
908927 99892	7 1300 1198	600 900 27	77						400
908932 99893	2 1525 1423	600 900 32	86,3
908937 99893	7 1750 1648	600 900 37	95,5
908942 99894	2 1970 1868	600 900 42	104,5
Delta S 800x 1000
908022 99802	2 1080 978	600 1000 22	68,4						300 908027 998027 1300
908032 99803	2 1525 1423	600 1000 32	90,8
908137 99803	7 1750 1648	600 1000 37	100,4						400
908042 99804	2 1970 1868	600 1000 42	110
Delta S 800x 1200
908232 99823	2 1525 1423	600 1200 32	101.3						400
908242 99824	2 1970 1868	600 1200 42	119.9

Other configurations and special designs on request

Accessories for 19" Network Cabinet DELTA S

Base for 19" Network Cabinet DELTA S
item no		WxHxD in mm
grey black
922266	992266	600 x120	x600
922268	992268	600 x120	x800
922269	992269	600 x120	x900
922060	992261	600 x120	x1000
922288	992288	800 x120	x800
922289	992289	800 x120	x900
922290	982289	800 x120	x1000
922282	992282	800 x120	x1200

White plastic electronic device casing with internal components and a black tab (no text or symbols visible)

Accessories for 19" Network Cabinet DELTA S
item no.	Fan units for base or top cover installation
922447	Stabilizers for Delta S network cabinets, tilt prevention, mounted on the base. 4pcs, RAL 7035 light grey
992447	Stabilizers for Delta S network cabinets, tilt prevention, mounted on the base. 4pcs, RAL 9005 black
922427	4pcs Set of castors, 2pcs with brake, max. load of 4 castors 200kg minus cabinet weight
922437	4pcs Set of castors, 2pcs with brake, max. load of 4 castors 800kg minus cabinet weight

Three product images showing mechanical parts and accessories (no visible text or symbols)

19" wall-mounted Cabinet DELTA 4S

The fully welded wall-mounted cabinet is a classic for medium size installations.

Exterior view of a white electrical cabinet with visible internal wiring and mounting tabs (no text or symbols)

The one-sectioned 19" wall-mounted cabinet with IP 30 protection has a robust welded construction. High quality processing and the newest technologies ensure a long operating life time. The cabinet door is glass standardly but it can be replaced by steel or perforated doors if required. The hinge system enables almost 180° wide opening of the door. The door can be easily removed and mounted for a change of the door opening direction. The vertical 19" rails (1x pair) can be adjusted freely in any depth of the cabinet. This simplifies the mounting of the devices and the configuration of connecting cables.

Breakout-type Blanking Panels

The cable openings are covered with breakout-type blanking panels are ready in the top, bottom and rear part of the cabinet. Use a plastic frame and a blanking panel with a brush, which is a part of the packaging, to seal the cabinet opening against dust penetration.

Interior view of an open electrical cabinet with visible wiring and mounting brackets (no text or symbols)

Key Features

• solid welded steel construction
• 4 removable cable entries
• slots for passive ventilation
- lockable 5 mm safety hardened glass door
• depth adjustable profile rails
- sheet steel enclosure, color: light grey RAL 7035 or black RAL 9005
- incl. grounding set, brush insert and mounting material
- WxD 600x395mm
• installation depth: max. 340mm

E 70 300 B A C 5 10

R1 300 R2

equip item no.	equip item no.	A	B C D E	R1 R2					weight net kg	max. load (recommended) kg
grey black	mm
906404 9964	04 280 175	490 600 395	234 420 12,4							30
906406 9964	06 370 265	490 600 395	324 420 14,5
906409 9964	09 500 395	490 600 395	454 420 17,4
906412 9964	12 635 530	490 600 395	589 420 20,5
906415 9964	15 770 665	490 600 395	724 420 23,6
906418 9964	18 900 795	490 600 395	854 420 26,6

Other configurations and special designs on request

White rectangular electronic device with two internal compartments and mounting holes (no visible text or symbols)

Close-up of a black plastic door latch mounted on a white cabinet (no text or symbols visible)

Exterior view of a white cabinet or enclosure with ventilation grilles and a recessed door (no text or symbols visible)

19" wall-mounted Cabinet DELTA 5D

This cabinet is a very successful version of two-sectioned cabinets. Opening parts of the cabinet enable an easy access to the rear of devices.

White rectangular electronic cabinet with transparent glass doors and black connectors (no visible text or symbols)

The two-sectioned 19" wall-mounted cabinet with IP 30 protection has a robust welded construction. High quality processing and the newest technologies ensure a long operating life time. The cabinet door is glass standardly but it can be replaced by steel or perforated doors if required. The hinge system enables almost 180° wide opening of the door. The door can be easily removed and mounted for a change of the door opening direction. The vertical 19" rails (1x pair) can be adjusted freely in any depth of the cabinet. This simplifies the mounting of the devices and the configuration of connecting cables.

Easy Access

Opening parts of the cabinet enable an easy access to the rear cabinet section. You can easily remove the front part of the cabinet after unlocking chain shackles. All parts are interconnected and earthed.

Two open white server cabinets with ventilation grilles, one closed and one open, showing internal structure (no text or symbols visible)

Breakout-type Blanking Panels

The cable openings are covered with breakout-type blanking panels are ready in the top, bottom and rear part of the cabinet. Use a plastic frame and a blanking panel with a brush, which is a part of the packaging, to seal the cabinet opening against dust penetration.

Key Features

• solid welded steel construction
• 4 removable cable entries
• slots for passive ventilation
- lockable 5 mm safety hardened glass door
- depth adjustable profile rails
- sheet steel enclosure, color: light grey RAL 7035 or black RAL 9005
- incl. grounding set, brush insert and mounting material
- WxD 600x515mm
• installation depth: max. 440mm

E 120 D 70 300 H C C M M

R1 R2 R3

equip item no.	equip item no.	A	B C D E	R1 R2					weight net kg	max. load (recommended) kg
grey black	mm
906504 996504 280 175	490 600 515	234 420 15,9								20
906506 996506 370 265	490 600 515	324 420 17,9
906509 996509 500 395	490 600 515	454 420 21,4								25
906512 996512 635 530	490 600 515	589 420 25,1
906515 996515 770 665	490 600 515	724 420 28,7								30
906518 996518 900 795	490 600 515	854 420 32,1

Other configurations and special designs on request

19" Flat Pack Cabinet

This wall-mounted cabinet represents the conception of "flat pack", which means a demountable cabinet that is supplied disassembled.

This 19" wall-mounted cabinet with IP 30 protection offers a high quality processing and the newest technologies to ensure a long operating life time. This cabinet is supplied only with a glass door and a lock. The hinge system enables almost 180^ wide opening of the door. The door can be easily removed and mounted for a change of the door opening direction. The vertical 19" rails (1x pair) can be adjusted freely in any depth of the cabinet. This simplifies the mounting of the devices and the configuration of connecting cables.

Flat-Pack Concept

Reduce costs of transportation and storage. Together with a unique construction, it contributes to the attractive price while keeping all functional characteristics.

Key Features

• 19" flat pack box
  • demountable, compact packing measures
• easy for shipping
• plastic pins are used to join all parts of the cabinet
• the assembly procedure takes only a couple of minutes
  • the maximal loading capacity is up to 25kgs
  • with lockable glass door
  • door for left or right opening
• break out cable entries are located in the top and bottom as well as in the middle of the back side
• all metallic parts of the cabinet are mutually earth connected
  • available in RAL 7035 light grey and RAL 9005 black

Interior view of a black server room with visible circuitry and wiring (no text or labels)

Interior view of an open industrial control panel with visible wiring and components (no text or labels)

Technical drawing of a mechanical assembly with labeled dimensions and components

R1 30 R2

equip item no.	equip item no.	A	B C D E	R1 R2					weight net kg	max. load (recommended) kg
grey black		mm
901004 991	004 230 180	505 550 400	180 435 11							25
901006 991	006 320 270	505 550 400	270 435 21,4
901009 991	009 410 360	505 550 400	360 435 25,1
901012 991	012 580 530	505 550 400	530 435 28,7

19" fan units

Fan units for 19" network cabinets

The increasing thermal stress in 19 "network cabinets also requires efficient fan units. Equip offers customized solutions for every application as well.

Key features

• suitable for installation in all equip network and server cabinets
  • temperature control from 5 to 55°C via thermostat
• thermostat and mounting material included
• Power connection with power cord (item 112120, not included)
  • nominal voltage 230V, 50 Hz
• nominal data per ventilator: 230V, 15W, 50Hz, 0,09A, 160m3/h, 120x120mm
• sheet steel enclosure with on/off switch and safety grid

Black rectangular electronic device with four fans and connected cables (no visible text or symbols)

Exterior view of a white industrial cooling unit with six fans and connected cables (no text or symbols visible)

19" horizontal fan units

Key features

• suitable for installation in all equip network and server cabinets
  • temperature control from 5 to 55°C via thermostat
• thermostat and mounting material included
• Power connection with power cord (item 112120, not included)
  • nominal voltage 230V, 50 Hz
• nominal data per ventilator: 230V, 15W, 50Hz, 0,09A, 160m3/h, 120x120mm
• sheet steel enclosure with on/off switch and safety grid

19" horizontal fan units
item no.			U Description
grey black
922102 9921	02	2	2	fans
922104 9921	04	2	4	fans

Black industrial power supply unit with fans and connected cables (no visible text or symbols)

Exterior view of a power supply unit with four fans and a black cable, no visible text or symbols

item no.	fan-/temperature control
922110	5-60°C Thermostat
112120	power cord 1.8m,angled Schuko plug

White industrial device labeled 'TEPTON' with ventilation grilles and a blue indicator light (no readable text beyond branding)

19" sheves

19" shelves

• perforated for ventilation
• solid sheet steel, easy mounting
- incl. mounting material

19" shelves
item no.				U depth mm max. load kg
grey black
922215	9922	15	1 150 15
922225	9922	25	1 250 15
922435	9924	35	1 350 50
922445	9922	45	1 450 80
922455	9924	55	1 550 80
922465	9924	65	1 650 80
922475	9924	75	1 750 80

Metallic electronic device casing with mounting brackets and mounting holes (no visible text or symbols)

19" heavy duty shelves

• heavy load up to 150kg
  • perforated for ventilation
  • solid sheet steel, easy mounting
• incl. mounting material

19" heavy duty shelves
item no.		U depth mm max. load kg
grey black
922555 9925	55 1 550		150
922565 9925	65 1 650		150
922575 9925	75 1 750		150

Black rectangular electronic device with ventilation slots and two small metallic connectors at the bottom (no visible text or symbols)

19" Sliding shelves

• perforated for ventilation
• solid sheet steel, easy mounting
- incl. mounting material

19" Sliding shelves
item no.		U	depth mm	max. depth mm	max. load kg
grey black
922335	922335 1		350 260	30
922345	992245 1		450 260	30
922355	992355 1		550 550	30
922365	992365 1		650 650	30

Exterior view of a silver hard drive with ventilation slots and connectors (no text or symbols visible)

19" Drop-down shelf for keyboard

• drop-down
  • solid sheet steel, easy mounting
• incl. mounting material

item no.	Lüfter-/ Temperaturregler
922224	204mm depth, 1 U RAL7035 light grey
992224	204mm depth, 1 U RAL9005 black

Black plastic metal bracket with mounting holes (no text or symbols visible)

19" accessories mounting angles for 19" network cabinets

• support installation of heavy components
  • 1 pair
  • 2U

19" mounting angles
item no			DxWxH mm	Description
grey black
922601	992601	368x70x88 for 800mm depth cabinets
922801	992801	568x70x88 for 900mm depth cabinets
922901	992901	668x70x88 for 1000mm depth cabinets

Two black rectangular electronic components with perforated top surfaces, no visible text or symbols

cable management rings

• Made of polished stainless steel
- For attachment to the 19 "rail
- Improves cable management

cable management rings item no. WxD mm
front opening, central fixing 922344 40 x 40
front opening, central fixing 922384 80 x 40
front opening, central fixing 922388 80 x 80
front opening, side fixing 922444 40 x 40
front opening, side fixing 922484 80 x 40
front opening, side fixing 922488 80 x 80
side opening, side fixing 922544 40 x 40
side opening, side fixing 922548 80 x 40
side opening, side fixing 922588 80 x 80

Close-up of a metal rack with two circular components mounted on a vertical stand (no text or symbols visible)

Close-up of a metallic door handle with circular components, mounted on a metal shelf (no text or symbols visible)

Close-up of a metal bracket with a circular knob and attached frame (no text or symbols visible)

Mounting material

• M6 screws, captive nut and plastic washer

item	Mounting material
no922415	4pcs Set
922423	20pcs Set
922424	50pcs Set

Collection of mechanical components including bolts, seals, and washers (no text or symbols visible)

Other accessories on request

19" keyboard drawer 1U

Key features

• very solid keyboard-drawer, painted metal, for 19" cabinet racks
  • ball bearing sliding rails
  • security lock with two keys
• solid metal handle
• incl. screw-set for installing keyboard-drawer at the front frame of 19" cabinet racks
• optional: two additional mounting rails for installing the keyboard-drawer at the back
• frame of 19" cabinet racks (please see optional accessory below)

Exterior view of a silver rack-mounted server with a black keyboard and handle (no text or symbols visible)

19" keyboard drawer 1U
item no		Description
grey black
260410 2604	20 • no keyboard• space for keyboard with max dimensions 423 (W) x 151 (D) mm
260611 2606	21 German Layout• "normal" sized keys, with integrated Numerical keypad, with Windows-function keys• 2m connection cable• optical trackball 14mm, high resolution, with 2 mouse buttons, integrated in the keyboard• PS2- and USB-connectors
260612 2606	22 US Layout• "normal" sized keys, with integrated Numerical keypad, with Windows-function keys• 2m connection cable• optical trackball 14mm, high resolution, with 2 mouse buttons, integrated in the keyboard• PS2- and USB-connectors
260910 2609	20 Two mounting-rails incl. screw-set for additional installing of the keyboard-drawer at the back frame of the 19" cabinet rack, fitting for 19" cabinet racks with installation depth 600-900mm (adjustable).

Black server rack with keyboard and ventilation slots (no visible text or labels)

19" Rackmount Server Chassis 4U

Key features

• Lacquered solid steel panel in excellent premium quality
- Robust front-handles and lockable front-door with grey glass for dust proof and security
- One ball bearing 12cm in the front with removable dust filter (hot plug-in)
• Space for two additional 8cm-fans in the back
- Fan-Alarm-Controller-Kit acoustical and LED warning when fan fails
• LED-indicator for power and HDD access
- Shock resistant drive bracket
- Hold-down clamps to protect plug-in cards from vibration
- Suitable for ATX und AT-Mainboards

Black server rack with ventilation fan and drive unit (no visible text or symbols)

Black internal computer case with visible drive fuses and ventilation slots (no text or symbols)

19" Rackmount Server Chassis 4U

item no		description
grey black
100539 1009	39 without power supplyappropriate bezel for mounting astandard AT(X) power supply isincluded with the chassisHDD Slots:3x 5.25" open1x 3.5" open (with bolted metalpanels)1x 3.5" internal
100544 1009	44 HQ Server-power supply 400W ATX,PFC, P4, 8cm-fan NoNo se; 230VAC,with Universal-ATXPlug 20/24pinHDD Slots:3x 5.25" open1x 3.5" open (with bolted metalpanels)1x 3.5" internal

10" networking components

10" box

The cabinet is often used for the realization of small projects such as home networks or small company networks (SOHO).

The 10" cabinet has a robust welded construction. High quality processing and the newest technologies ensure a long operating life time. The cabinet door is glass standardly but it can be replaced by steel or perforated doors if required. The hinge system enables a comfortable access.

Application

Ideal solution for installation of 10" components. The cabinet is often used in realizations of small projects such as home networks or small company networks (SOHO). It is a popular accessory of standard 19" cabinets.

Key Features

• pre-installed as modular 10" system
  • door with safety glass
• easy and quick installation
• compact design
  • W 295 mm / D 260 mm

Exterior view of a white industrial electrical cabinet with glass doors and ventilation slots (no visible text or symbols)

White electrical cabinet with open door and internal compartments (no visible text or symbols)

ε 4D 200 A B C D

R1 200 70° R2

equip item no	equip item no	A	B C D E	R1 R2					weight net kg	max. load (recommended) kg
grey black		mm
907040 997040 248 169		255 310 260	212 212 5,4							20 907060 997060
907090 997090 470 391		255 310 260	434 212 8,3

10" Accessories

10" shelves

• perforated for ventilation
• solid sheet steel, easy mounting
- incl. mounting material
- 150mm depth

item no		Description
grey black
908000 998000 10" shelf, 1U, 150mm depth

Exterior view of a white metal enclosure with mounting flanges and a central slot (no text or symbols)

10" Blanking panel

• solid sheet steel, easy mounting
- incl. mounting material

item no		Description
grey black
908001 998001 10" Blanking panel, 1U

Black rectangular electronic component with mounting holes and a small series of small circular components on a plain background (no text or symbols visible)

10" Cable management panel

• 3 small rings
  • 1U

item no		Description
grey black
908002 998002 10" Cable management panel, 1U

Black rectangular metal bracket with three looped rings and a small inset image of metallic components (no text or symbols visible)

equip life 2 - 21

equip pro 22 - 69

Technical Glossary

Copper Patch Cords 71

Optical Fiber 74

USB 77

Video Interface 78

Digital globe with Earth and a pen on a desk, silhouettes of business people in the background (no text or symbols visible)

Copper Patch Cords

The copper patch cords are composed of four twisted pair of bare copper wires which conduct the electronic pulses smoothly. The eight wires of the patch cords are color-coded according to TIA/EIA 568A or TIA/EIA 568B standard. A cable with T568A at one end and T568B at the other is called a crossover cable, which is catering to connect two computing devices together directly without using a switch or a hub and also used to connect two hubs or two switches on their upstream ports.

TIA/EIA-568 T568A termination TIA/EIA-568 T568B termination

Pin Pair	Wire Color
1 3 tip	white/green
2 3 ring	green
3 2 tip	white/orange
4 1 ring	blue
5 1 tip	white/blue
6 2 ring	orange
7 4 tip	white/brown
8 4 ring	brown

Pin Pair	Wire Color
1 2 tip	white/orange
2 2 ring	orange
3 3 tip	white/green
4 1 ring	blue
5 1 tip	white/blue
6 3 ring	green
7 4 tip	white/brown
8 4 ring	brown

Pin Position 1 2 3 4 5 6 7 8

Category and Class

"Category" means something completely different than "Class". The category applies only on a single component e.g. a cable or an outlet, the component is verified by the labs of the manufacturer or independent verification labs. The class as such always applies to the installed link. The installed link is always tested according to classes.

The international standard ISO/IEC 11801 defines several classes of twisted-pair copper interconnects, which differ in the maximum frequency for which a certain channel performance is required:

Class D: up to 100 MHz using elements category 5e

Class E: up to 250 MHz using elements category 6

Class EA: up to 500 MHz using elements category 6A

Class F: up to 600 MHz using elements category 7

Class F A : up to 1000 MHz using elements category 7 A

The comparison of two different routes of cabling is drawn below:

Channel Link Permanent Link PC Patch cable Outlet Installation cable Patchfield Patch cable Switch

The Permanent Link covers the horizontal installation which includes the installation cable, patch panel, and the outlet or junction box at the other end. The Channel Link covers the patch cords as well as the components of permanent link. A set of measurements is defined in the ISO/IEC standard to unify the quality of structured cabling.

- Return Loss (RL)

The Return Loss is the measurement of the amount of signal that is reflected back toward the transmitter. The reflection of the signal is caused by the variations of impedance in the connectors and cable and is usually attributed to a poorly terminated wire. The greater the variation in impedance, the greater the return loss reading is.

• Attenuation-to-Crosstalk Ratio (ACR)

Attenuation-to-Crosstalk ratio (ACR) is the difference between the signal attenuation produced and NEXT. The ACR indicates how much stronger the attenuated signal is than the crosstalk at the destination (receiving) end of a communications circuit.

• Power Sum ACR (PSACR)

The difference from the ACR is PSACR used PSNEXT in the calculation rather than NEXT.

• Near-End Cross Talk (NEXT)

It is the difference in amplitude (in dB) between a transmitted signal and the crosstalk received on other cable pairs at the same end of the cabling. Higher NEXT values correspond to better cabling performance.

• Power Sum NEXT (PSNEXT)

Power Sum NEXT (PSNEXT) is the sum of NEXT values from 3 wire pairs as they affect the other wire pair.

• Far-End Crosstalk (ELFEXT)

FEXT is very similar to NEXT, but happens at the receiver side of the connection.

• Equal Level Far End Crosstalk (ELFEXT)

Equal Level Far End Crosstalk (ELFEXT) is a length-independent value for the transmission quality, which defines the ratio of the crosstalk output level to the actual output level. The second pair of wires strewn on the noise level is compared to the starting level.

• Power Sum ELFEXT (PSELFEXT)

Power Sum ELFEXT (PSELFEXT) is the sum of ELFEXT values from 3 wire pairs as they affect the other wire pair.

The Construction of Cable

XX/XTP TP: Twisted Pair Pair Shielding: U = Unshielded F = Foil Shielded Over all Shielding: F = Foil Shielded S = Braiding SF = Foil Shielding and Braiding

U/UTP

Diagram of blood cells inside a circular structure, showing red and green cell clusters (no text or labels)

cable without any shielding

SF/UTP

Cross-sectional diagram of a multi-layer cable or tube with colored circular elements (no text or symbols)

cable with over all foil shielding and braiding

F/UTP

Circular diagram with colored circles inside, no text or symbols present

cable with over all foil shielding

S/FTP

Cross-sectional diagram of a multi-core cable with colored circles indicating different components (no text or labels)

cables with over all braiding and pairs in metal foil (PIMF)

The equip ^® copper patch cords are composed of bare copper which is sustainable under the most strict environments. The aluminum foil and braiding further secure the signals from electromagnetic disturbances and guarantee the quality of transmission. The material of cable jacket can be PVC or LSZH (Low Smoke, Zero Halogen) compound. The level of flame standard is defined by UL organization:

Class Phrase Test

CMP Communications Plenum Steiner Tunnel Test

CMR

Communications

Riser

Riser

Flame

Test

CM Communications General purpose Vertical Tray Flame Test

CMG Communications Vertical Tray Flame Test

CMX Communications Residential Vertical Wire Flame Test

The equip patch cords are compliant to or above CM level.

Optical Fiber

An optical fiber system transmits the data using light pulses down the fiber lines instead of electronic pulses as the copper connections do. This means of communication is gradually replacing copper networking due to the relative low maintenance cost. The light travels through the fiber lines easily because of the principle known as the total internal reflection, which indicates that when the angle of incidence exceeds a critical value, light cannot get out of the glass; instead, the light bounces back in.

The way the ray disperses varies with the diameter of the glass fiber. In the thicker fiber line (50-100 m), the light is reflected in a zigzag patter, and thus a higher attenuation occurs. The connection can be divided into two types based on the core of fiber line.

Single Mode Cable is constructed of a single strand of glass fiber with a diameter of 8.3 to 10μm. The smaller core eliminates the distortion of light wave and causes less attenuation. Therefore, it carries a higher bandwidth and sustains a longer distance (>1000m) than a multimode fiber cable does, but the cost is higher as well.

"Single mode fiber" single path through the fiber

Simple graphic with a sun and two parallel orange bars separated by a double arrow (no text or symbols)

Multi Mode Cable has, on the other hand, a thicker core normally between 50 to 100μm. Typical core diameters of optical fiber patch cords are 50μm (OM2, OM3, OM4) and 62.5μm (OM1). The multi mode optical fibers feature attenuation is higher compared to the single mode cables but are able to offer a high bandwidth within a medium distance. As a result, the multi mode cables are more preferable in the deployments with a short range

"Multimode fiber" multiple paths through the fiber

Diagram showing a sun symbol and a geometric pattern with arrows, no text or labels present.

Multi Mode Single Mode
OM1 OM2 OM3 OM4 OS1 / OS2
Core Diameter (μm) 62.5 50		50 50 9
Cladding Diameter (μm) 125		125		125 125		125
Wavelength (nm)		850	1310	850	1310	850	1310	850	1310	1310	1550
Max. Attenuation (dB/km)		2.9	0.7	2.4	0.7	2.5	0.7	2.4	0.6	0.34	0.19
Max. Transmission	1Gbps	300m	500m	500m	500m	1000m	500m	1000m	500m	10km	50km
	10Gbps	30m	220m	80m	220m	300m	220m	500m	220m	10km	40km

Construction of Optical Fiber Cable

Fiber Optic Cable Construction

Core Coating Cladding Strengthening Fibers Cable Jacket

Core Cladding Coating Jacket

Types of Optical Fiber Cables

There are types of cables used in different application. Please contact us for those not listed in this catalog.

- Pigtails

Normally applied to the connection between outdoor cables and indoor splicing boxes, the pigtail is constructed with a Simplex fiber core of 900 m buffered with one assembled connector to an open end.

Close-up of multiple gray USB connectors with colorful wires extending outward (no visible text or symbols)

- Patch Cords

The patch cords are assembled with a connector at each end, ready for direct snap-in.

Close-up of two orange fiber optic cables with metallic connectors (no text or symbols visible)

- Breakout Cables

Two simplex cables covered in one sheath, suitable for indoor installation with duct and conduit.

Cross-sectional view of a multi-core cable showing layered structure (no text or symbols)

- Outdoor Cables

Covered by UV-resistant, rodent resistant, and waterproof material, the cable is suitable for underground deployment.

Connector Type of Optical Fiber Patch Cords

The most commonly used connectors are LC, SC, and ST, especially the LC connector due to its compact size. The other types of connectors, however, are utilized in different scenarios.

Cross-sectional view of a multi-layered cable with colored insulation layers (no text or symbols visible)

Name	MTRJ	LC	SC	ST
Ferrule Diameter	2.45×4.4 mm	1.25 mm	2.5 mm	2.5 mm
StandardTypical Application	IEC 61754-18Duplex multimode connections	IEC 61754-20High-density connections,SFP transceivers,XFP transceivers	IEC 61754-4Datacom and telcom;GBIC	IEC 61754-2Multimode, rarely single-mode

USB

Universal Serial Bus (USB) is an industrial standard that defines the cables, connectors and communication protocols used for connection, communication and power supply between computers and electronic devices.

Along with the introduction of USB specifications, the connections of computer peripherals such as mouse, keyboards, printers, and external storages have been standardized. Several connectors have also been developed to adapt the application on different devices, for examples, the smart phones and digital cameras.

Here are the connectors most commonly used:

USB 2.0 / 1.1

A/M

B/M

A/F

Micro

Mini 5pin Mini 4pin

USB 3.0

A/M

B/M

A/F

Micro

USB 3.0 is the state-of-the-art technology that increases the maximum transmission rate to 5Gbps and raises the power supply up to 900mA, fulfilling the demand for higher data rate and charging USB peripherals.

	USB 3.0	USB 2.0
Bandwidth	SuperSpeed (5Gbps) / Hi-Speed (480Mbps) / Full Speed (12Mbps) / Low Speed (1.5Mbps)	Hi-Speed (480Mbps) / Full Speed (12Mbps) / Low Speed (1.5Mbps)
Data Interface	Simultaneous bi-directional data flow	Unidirectional data flow with negotiated directional bus transfer
Bus power	Up to 900mA	Up to 500mA
Cable Signal Count	6. 4 for SuperSpeed and 2 for non-SuperSpeed path	2

Active USB Datalink

equip PN
133338 Data Transfer Cable •
133339 ODD Sharing Cable •
133351 Dual PC Bridge Cable • •
133355 All-in-One Cable • • •

The equip Datalink cables feature a simple drag-and-drop function for two PCs to share files, input devices, and/or optical drives. With no need to install a driver, a window pops up when the cable is connected and meanwhile these sharing functions are ready to use. This cable is especially suitable for those who have one PC and one netbook / tablet which is seldom equipped with an optical drive and lower storage capacity. Simply have two computers connected, the user can access to both devices easily.

Video Interface

HDMI

HDMI (High-Definition Multimedia Interface) is a digital interface transmitting both video and audio signals. HDMI 1.4 was released in 2009 and the most significant features introduced in the latest version include a higher resolution of 4k x 2k, an HDMI Ethernet Channel (HEC) which allows two HDMI devices to share one internet connection, an Audio Return Channel (ARC), 3D over HDMI, and a new micro connector specifically for mobile equipments.

Along with the release of HDMI 1.4, the version number is no longer applicable for the product description but instead a set of naming rule is followed:

• Standard HDMI Cable – supports up to 1080i and 720p
• High Speed HDMI Cable – supports 1080p, 4k x 2k, 3D and Deep Color
• Standard HDMI Cable with Ethernet – supports up to 1080i and 720p and HEC
• High Speed HDMI Cable with Ethernet– supports 1080p, 4k x 2k, 3D and Deep Color and HEC

As the latest standard raised the maximum resolution up to 4096 x 2160p@24Hz, which can be used with digital theaters, the application and penetration of HDMI is growing quickly and solutions to connect with the previous standards are needed. HDMI is compatible to the other digital video interfaces such DVI-D, DVI-I and DisplayPort, yet needs an active component to convert the analog signal, like VGA.

HDMI Connectors

Type Application
A TV, Monitor, Protector, BD/DVD	Player, PC
C Digital Camera, Camcorder, Tablet
D Mobile Phone, Tablet

DVI

DVI (Digital Video Interface) is the only widespread standard that includes both analog and digital video data via one connector. Like HDMI, it carries uncompressed video data yet is partially compatible because it doesn't transmit audio signal. There are 3 versions:

• DVI-I for both digital and analog signals, dual-link (24+5) and single-link (18+5)
• DVI-D for digital signal only, dual-link (24+1) and single-link (18+1)
• DVI-A for analog signal only (12+5)

The bandwidth of dual-link is higher but de-facto limited by the copper wire. Here is the nominal bandwidth of these two specifications.

Single-link	HDTV (1,920 × 1,080) @ 60 Hz
• UXGA (1,600 × 1,200) @ 60 Hz
• WUXGA (1,920 × 1,200) @ 60 Hz
• SXGA (1,280 × 1,024) @ 85 Hz
• WXGA+ (1440 × 900) @ 60 Hz
• WQUXGA (3,840 × 2,400) @ 17 Hz
Dual-link	QXGA (2,048 × 1,536) @ 75 Hz
• HDTV (1,920 × 1,080) @ 85 Hz
• WUXGA (1,920 × 1,200) @ 120 Hz
• WQXGA (2,560 × 1,600) @ 60 Hz
• WQXGA (2,560 × 1,600) @ 60 Hz
• WQXGA (2,560 × 1,600) @ 60 Hz
• WQUXGA (3,840 × 2,400) @ 33 Hz

DVI-I (Single Link)

DVI-I (Dual Link)

DVI-D (Single Link)

DVI-D (Dual Link)

DVI-A

VGA

The VGA (Video Graphics Array) connector is a 3-rowed 15pin connector that carries analog video signal. It is also called D-Sub, DE-15, DB-15, HD-15(High Density) and HDB-15. The resolution a VGA cable supports ranges from 640×400 @70 Hz to 2048×1536 @85 Hz, depending on the bandwidth and cable quality.

VGA is the most commonly used video interface but was announced a phase-out by 2015. Intel and AMD are going to cease supporting VGA and accelerate the adoption of DisplayPort and HDMI.

DisplayPort

The DisplayPort standard is developed by Video Electronic Standards Association (VESA) and it carries both video and audio signals. It is designed to replace the DVI and VGA interfaces. The interoperability of DisplayPort and HDMI allows the users to connector these two interfaces with a simple passive adapter or cable.

The maximum resolution DisplayPort supports is WQUXGA (3840 x 2400), though it is actually depending on the bandwidth and graphic.

In the latest graphic cards version 1.2, the Apple Inc.'s Mini DisplayPort connector was formerly listed for the compatibility.

This compact connector is widely used in Apple laptops and further announced as the physical interface of latest transmission standard – thunderbolt, which features a bidirectional data transfer rate up to 10Gbps and power supply up to 10 watts.

DP Mini DP

equip®

Better Connections

Digital Data Communications Group

www.equip-info.net

Global Headquarters:

Digital Data Communications GmbH, Germany

Global Offices:

Germany, Taiwan, Australia, Belgium, Brasil, Colombia, Denmark, Greece,

Italy, Kenya, the Netherlands, Portugal, Slovenia, Spain, U.A.E
