USER MANUAL 46LED7110CW SALORA

Bijlage E: Software upgrade 33

Eigenschappen 34

Digitale ontvangst (DVB-T) 34

Digitale ontvangst (DVB-C) 34

Functions

Safety warning symbol showing a faucet above a monitor with crossed-out lines indicating prohibition or exclusion.

Weather warning diagram showing solar heating and rain impact on a monitor, with icons for sun, rain, and water.

Diagram of a battery inside a housing with an arrow indicating rotation (no text or symbols)

Voer PIN in

14±2mm 06-05-10 13:37:52 PAL B/G

Voer PIN in

Bijlage E: Software upgrade

Symbol of a trash bin crossed with a diagonal line, representing waste or discharge (no text or labels)

Producten

Symbol of a trash bin crossed with a diagonal line, representing waste sorting or restriction (no text present)

Batterij

PAL/SECAM B/G D/K K' I/I' L/L'

KANELEN ONTVANGEN

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

AANTAL VOORINGESTELDE KANALEN

1000

KANAALINDICATOR

Safety Precautions 37

Package Contents 38

Environmental Information 39

Repair Information 39

Remote Control Buttons 40

LED TV and Operating Buttons 41

Viewing the Back side Connections 41

Viewing the Connections - Side Connectors ..... 42

Aerial Connection 42

Aerial & Cable Connection.... 42

Using Digital Multimedia Connectors.... 43

USB Memory Connection 43

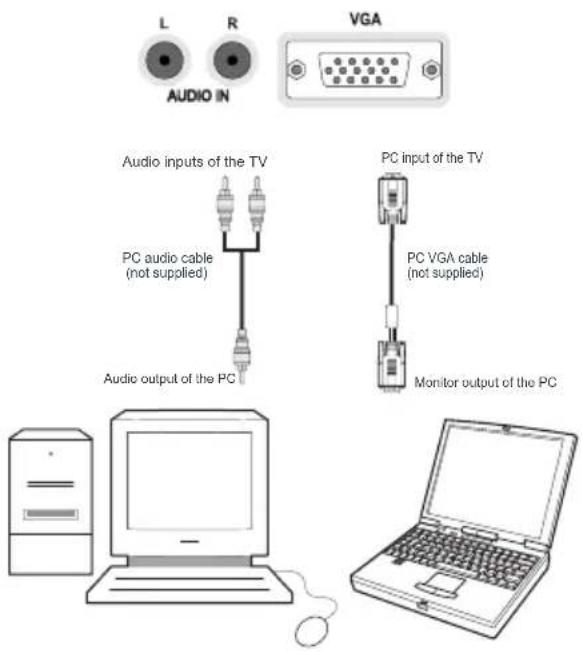

Connecting the LED TV to a PC 43

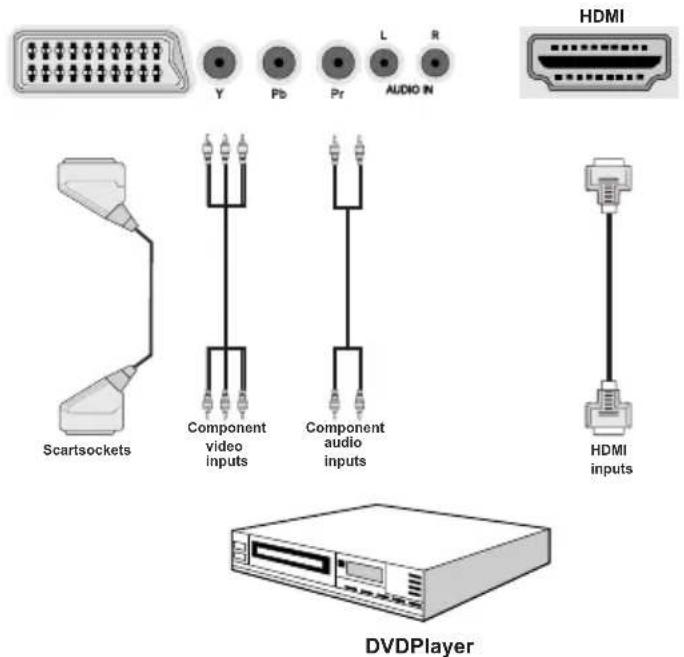

Connecting to a DVD Player.... 44

Using Side AV Connectors 44

Using Other Connectors 44

Remote Control Handset 45

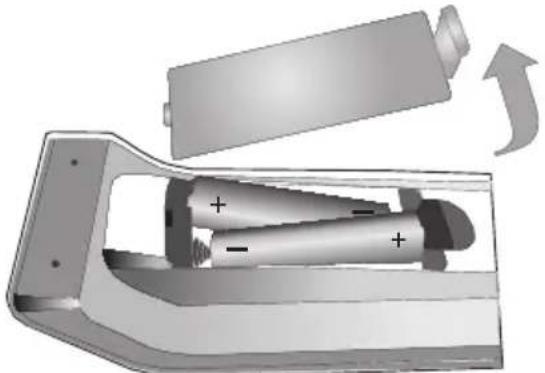

Inserting Batteries 45

Switching On/Off 45

To Switch the TV On 45

To Switch the TV Off 45

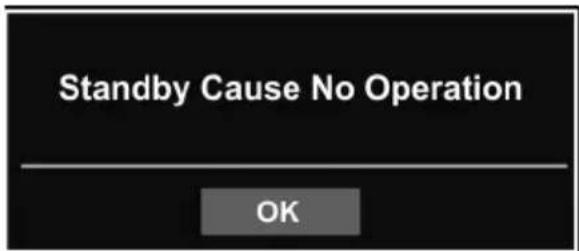

Standby Notifications 45

Digital Teletext ( ^** for UK only) 45

Analogue Teletext 45

Input Selection 46

Operation with the Buttons on the TV 46

Volume Setting 46

Programme Selection 46

Viewing Main Menu 46

AV Mode 46

Operation with the Remote Control 46

Volume Setting 46

Programme Selection (Previous or Next

Programme) 46

Programme Selection (Direct Access) ...... 46

Viewing Electronic Programme Guide (EPG) ..... 46

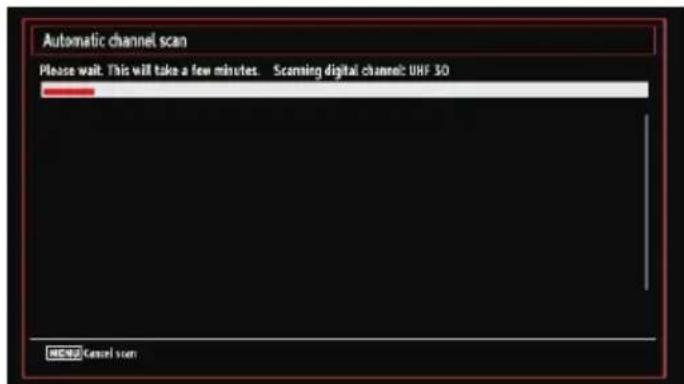

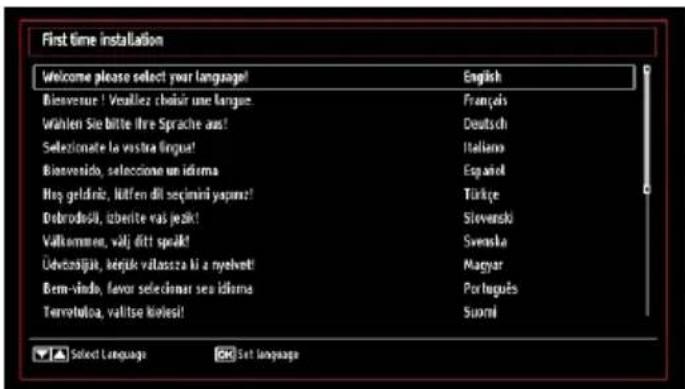

First Time Installation.... 47

Auto Tuning 48

Auto Channel Scan Menu Operation 49

Manual Tuning 49

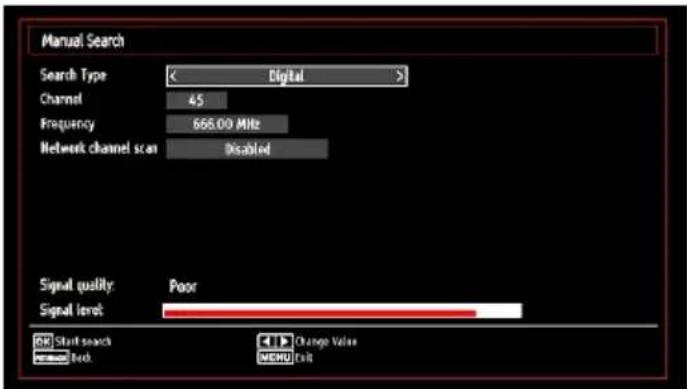

Digital Aerial Manual Search.... 49

Digital Cable Manual Search 49

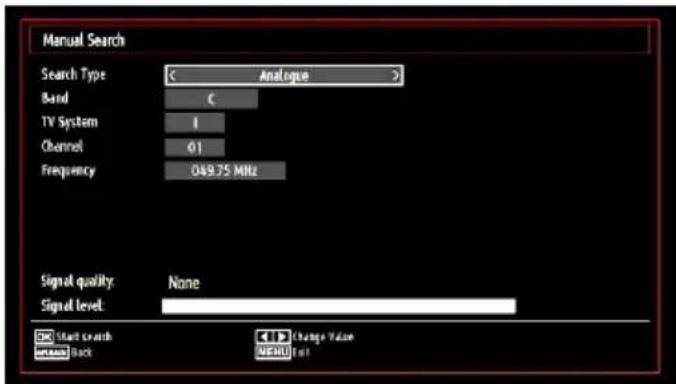

Analogue Manual Search 49

Analog Fine Tune.... 49

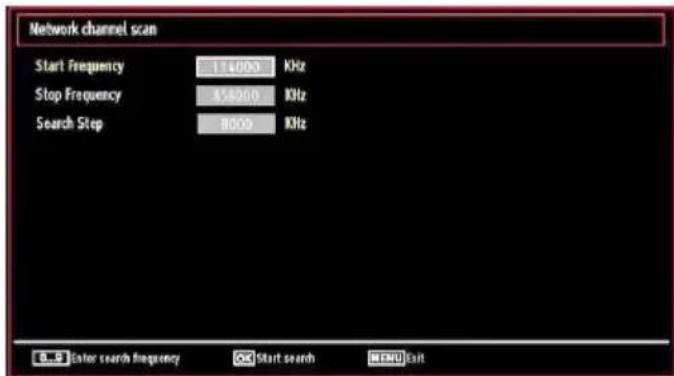

Network Channel Scan 49

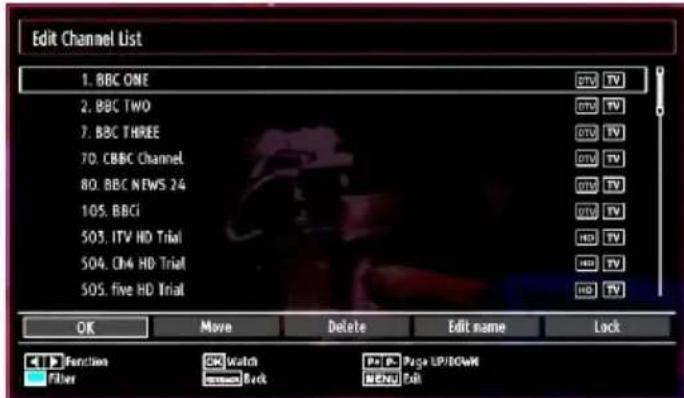

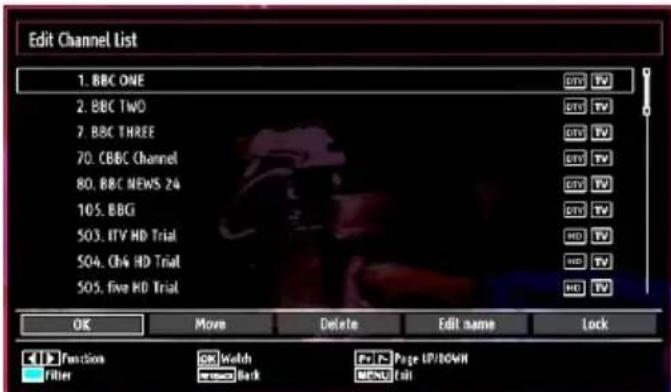

Managing Stations: Channel List 50

Operating the Channel List 50

Moving a Channel 50

Deleting a Channel 50

Renaming a Channel 50

Locking a Channel 51

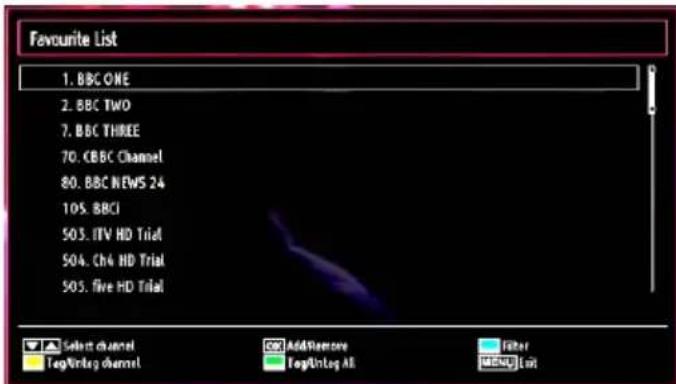

Managing Stations: Favourites 51

Button Functions 51

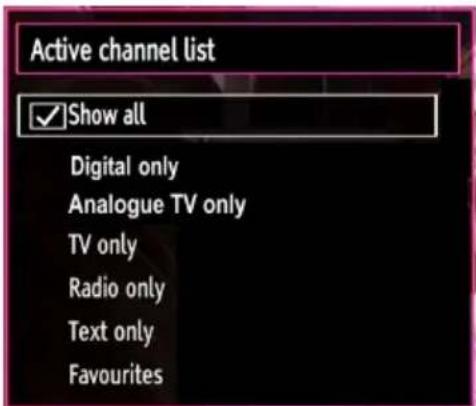

Managing Stations: Sorting Channel List ...... 51

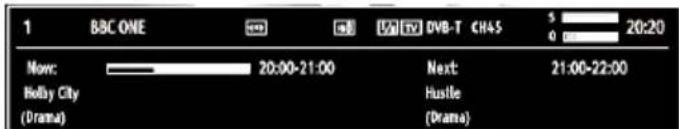

On-Screen Information 51

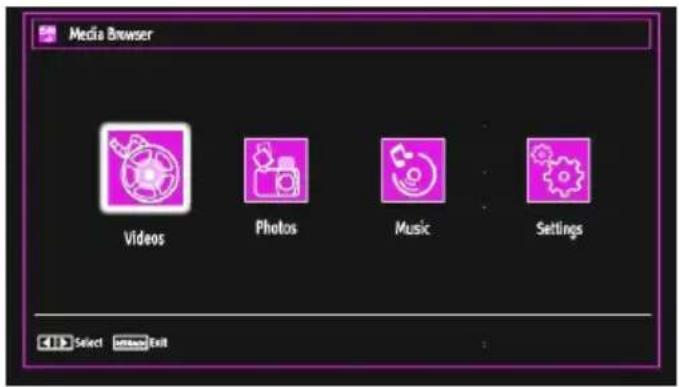

Media Playback Using Media Browser 52

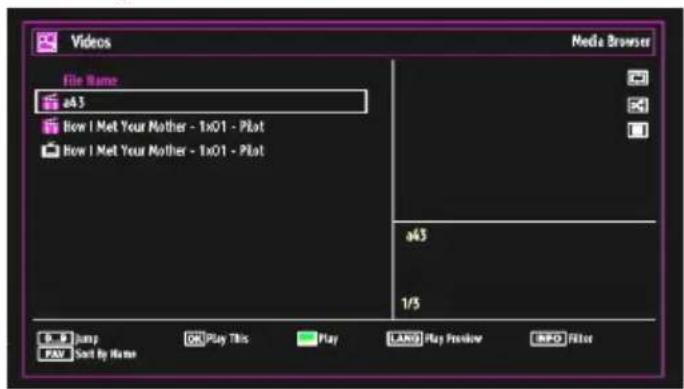

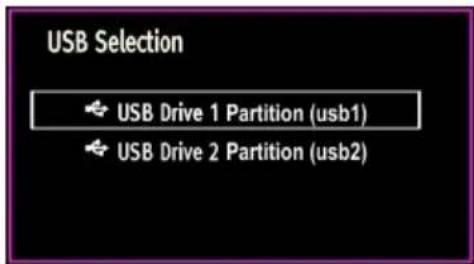

Viewing Videos via USB 52

Viewing Photos via USB 52

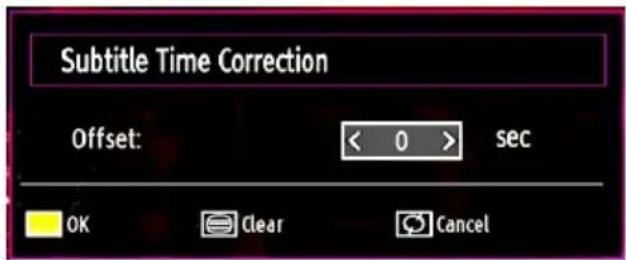

Media Browser Settings 53

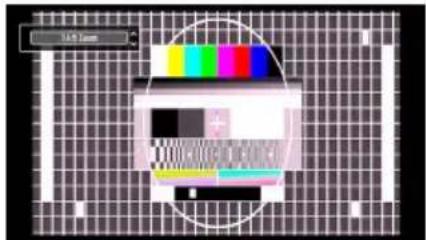

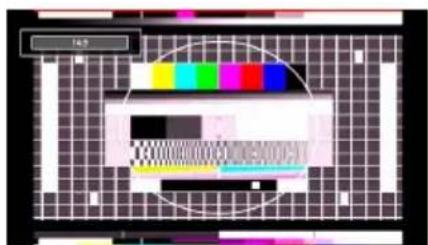

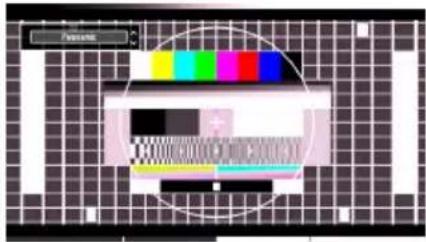

Changing Image Size: Picture Formats 53

Configuring Picture Settings 54

Operating Picture Settings Menu Items 55

Picture Settings Menu Items 55

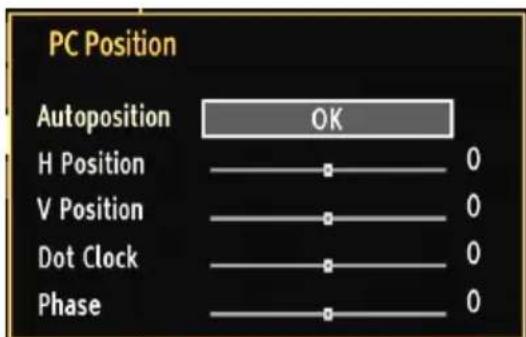

PC Picture Settings Operation 55

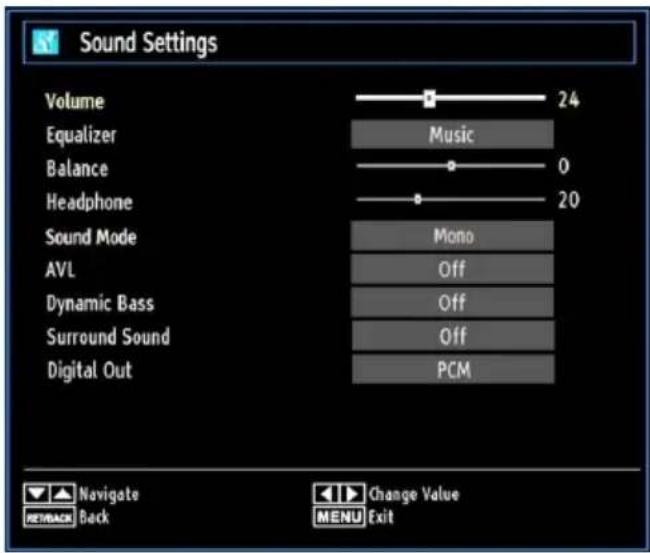

Configuring Sound Settings 56

Operating Sound Settings Menu Items 56

Sound Settings Menu Items.... 56

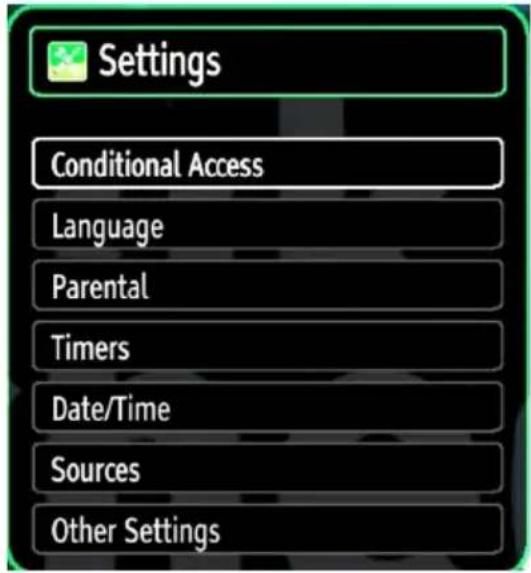

Configuring Your TV's Settings 56

Operating Settings Menu Items 56

Settings Menu Items 56

Using a Conditional Access Module 57

Viewing Conditional Access Menu (*) 57

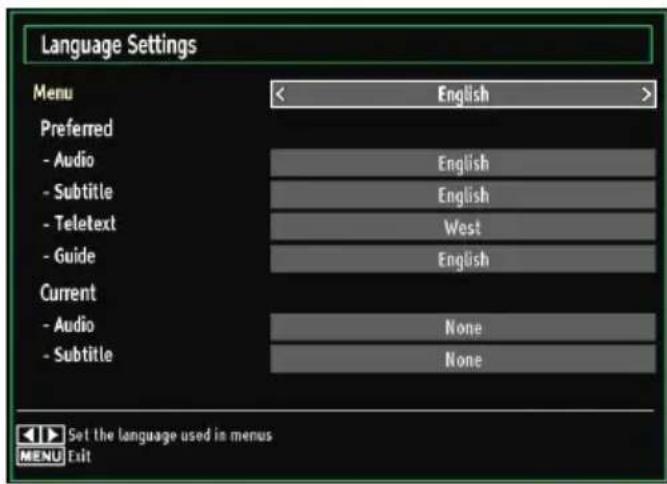

Configuring Language Preferences 57

Language Settings 58

Parental Control.... 58

Parental Settings Menu Operation (*) 58

Timers 59

Setting Sleep Timer 59

Setting Programme Timers 59

Editing a Timer 59

Deleting a Timer 59

Configuring Date/Time Settings 59

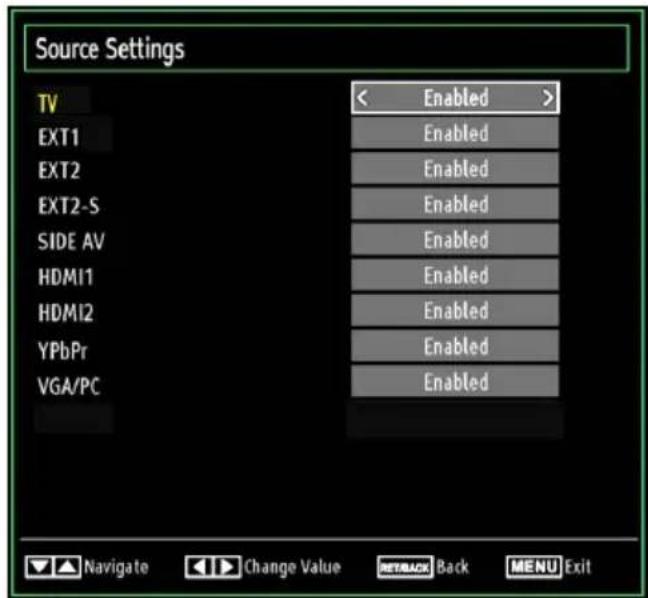

Configuring Source Settings 59

Configuring Other Settings 60

Operation 60

Other Features 61

Teletext 61

Tips 62

Appendix A: PC Input Typical Display Modes ..... 63

Appendix B: AV and HDMI Signal Compatibility (Input Signal Types) 63

Appendix C: Supported DVI Resolutions...... 64

Appendix D: Supported File Formats for USB

Mode....65

Appendix E: Software Upgrade 66

Specifications 67

Digital Reception (DVB-T) 67

Digital Reception (DVB-C) 67

Features

Remote controlled colour LED TV.

Fully integrated digital-cable TV (DVB-TC - MPEG2) (DVB-TC - MPEG4).

HDMI connectors for digital video and audio. This • connection is also designed to accept high definition signals.

USB input.

1000 programmes (analogue+digital).

OSD menu system.

Integrated tuner DVB-T-C HD, MPEG2 / MPEG4 compatible.

Scart socket for external devices (such as video, • video games, audio set, etc.).

Stereo sound system. (German+Nicam)•

Teletext, fastext, TOP text.

Headphone connection.

Automatic programming system.

Forward or backward manual tuning.

Sleep timer / Child lock.

• Automatic sound mute when no transmission.
- NTSC playback.
• AVL (Automatic Volume Limiting).
- Auto power down.
- PLL (Frequency Search).
- PC input.

Plug&Play for Windows 98, Windows 7, ME, 2000, XP, Vista.

• Game Mode.
  • 100 Hz (Movie Sense).

Introduction

Please read the corresponding instructions of this handbook prior to the first usage of the device, even when the usage of electronic devices is familiar to you. Notice especially the chapter SAFETY PRECAUTIONS. Carefully keep the handbook as future reference. When selling the device or giving it away, absolutely give these direction for use.

Thank you for choosing this product. This manual will guide you for the proper operation of your TV. Before operating the TV, please read this manual thoroughly. Please do keep this manual in a safe place for future references.

This device is intended to receive and display TV programs. The different connection options make an additional expansion of the reception and display sources possible (receiver, DVD player, DVD recorder, VCR, PC etc.). This device is only suitable for the operation in dry interiors. This appliance is intended solely for private domestic use and may not be used for industrial and commercial purposes. We exclude liability in principle, if the device is not used as intended, or unauthorized modifications have been made. To operate your LED TV in extreme ambient conditions may cause the damage of the device.

Preparation

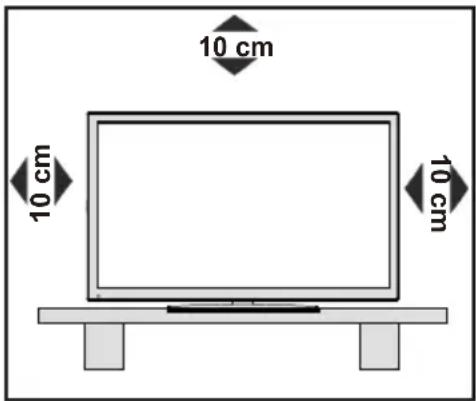

For ventilation, leave a free space of at least 10 cm all around the set. To prevent any fault and unsafe situations, please do not place any objects on top of the set. Use this device in moderate climates.

10 cm 10 cm 10 cm

Safety Precautions

Read the following recommended safety precautions carefully for your safety.

Power Source

The TV set should be operated only from a 220-240 V AC, 50 Hz outlet. Ensure that you select the correct voltage setting for your convenience.

Power Cord

Do not place the set, a piece of furniture, etc. on the power cord (mains lead) or pinch the cord. Handle the power cord by the plug. Do not unplug the appliance by pulling from the power cord and never touch the power cord with wet hands as this could cause a short circuit electric shock. Never make a knot in the cord or tie it with other cords. The power cords should be placed in such way that they are not likely to be stepped on. A damage power cord can cause fire or give you an electric shock. When it is damaged and needs to be replaced, it should be done by qualified personnel.

Moisture and Water

Do not use this device in a humid and damp place (avoid the bathroom, the sink in the kitchen, and near the washing machine). Do not expose this device to rain or water, as this may be dangerous and do not place objects filled with liquids, such as flower vases, on top. Avoid from dripping or splashing.

Safety warning symbol showing a faucet above a tablet screen with crossed-out lines indicating prohibition or exclusion.

If any solid object or liquid falls into the cabinet, unplug the TV and have it checked by qualified personnel before operating it any further.

Cleaning

Before cleaning, unplug the TV set from the wall outlet. Do not use liquid or aerosol cleaners. Use soft and dry cloth.

Ventilation

The slots and openings on the TV set are intended for ventilation and to ensure reliable operation. To prevent overheating, these openings must not be blocked or covered in anyway.

Heat and Flames

The set should not be placed near to open flames and sources of intense heat such as an electric heater. Ensure that no open flame sources, such as lighted candles, are placed on top of the TV. Batteries should not be exposed to excessive heat such as sunshine, fire or the like.

Lightning

In case of storm and lightning or when going on holiday, disconnect the power cord from the wall outlet.

Replacement Parts

When replacement parts are required, make sure that the service technician has used replacement parts, which are specified by the manufacturer or have the same specifications as the original one. Unauthorized substitutions may result in fire, electrical shock or other hazards.

Servicing

Please refer all servicing to qualified personnel. Do not remove the cover yourself as this may result in an electric shock.

Waste Disposal

Instructions for waste disposal:•

Packaging and packaging aids are recyclable and should principally be recycled. Packaging materials, such as foil bag, must be kept away from children. Batteries, including those which are heavy metal-free, should not be disposed of with household waste. Please dispose of used battery in an environment friendly manner. Find out about the legal regulations which apply in your area.

- Don't try to recharge batteries. Danger of explosion. Replace batteries only with the same or equivalent type.

This symbol on the product or on its packaging means that your electrical and electronic device should be disposed at the end of its service life separately from your household wastes. There are separate collection systems for recycling in EU. For more information, please contact the local authority or the dealer where you purchased the product.

Disconnecting the Device

The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable.

Headphone Volume

Excessive sound pressure from earphones and headphones can cause hearing loss.

Installation

To prevent injury, this device must be securely attached to the wall in accordance with the installation instructions when mounted to the wall (if the option is available).

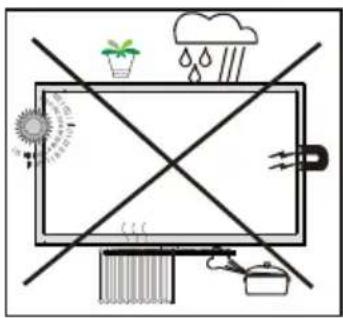

LCD Screen

The LCD panel is a very high technology product with about a million thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green or red point. Please note that this does not affect the performance of your product.

Warning! Do not leave your TV in standby or operating mode when you leave your house.

Diagram illustrating weather and water circulation with icons for sun, rain, cloud, and household appliances

The Standby / On button doesn't separate this device completely from mains. Moreover the device consumes power in the standby operation. In order to separate the device completely from mains, the mains plug has to be pulled from the mains socket. Because of that the device should be set up in a way, that an unobstructed access to mains socket is guaranteed, so that in case of emergency the mains plug can be pulled immediately. To exclude the danger of fire, the power cord should principally be separated from the mains socket prior to a longer period of non-usage, i.e. during vacations.

Electrical device not in the hands of children

Never let children use electrical device unsupervised. Children can't always recognize properly the possible dangers. Batteries / accumulators can be life threatening when swallowed. Store batteries unreachable for small children. In case of swallowing a battery medical aid has to be sought immediately. Also keep the packaging foils away from children There is danger of suffocation.

Connection to a Television Distribution System (Cable TV etc.) from Tuner

Device connected to the protective earthing of the building installation through the mains connection or through other apparatus with a connection to protective earthing-and to a television distribution system using coaxial cable, may in some circumstances create a fire hazard.

Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11).

Package Contents

Remote Control	LED TV
	Batteries: 2 X AAA
	Instruction Book
1 X Audio & Video connection cable

Note: You should check the accessories after purchasing. Make sure that each accessory is included.

Environmental Information

• This television is designed to consume less energy to save environment.

You not only help to save the environment but also you can save money by reducing electricity bills thanks to the energy efficiency feature of this TV. To reduce energy consumption, you should take the following steps:

- You can use Power Save Mode setting, located in the Picture Settings menu. If you set Power Save Mode as On, the TV will switch to energy-saving mode and luminance level of TV set will be decreased to optimum level.

Note that some picture settings will be unavailable to be changed when the TV is in Power Save Mode.

Power Save Mode

Off

• When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.
• Disconnect power when going away for longer time.
• Note that annually, using the TV set in Power Save Mode has more power efficiency than disconnecting the TV from the mains plug instead of keeping stand-by mode. Therefore disconnect the TV from the mains plug to save energy when you do not use. However it is highly recommended to activate Power Save Mode setting to reduce your annual power consumption.
• Please help us to save environment by following these steps.

Repair Information

Please refer all servicing to qualified personnel. Only qualified personnel must repair the TV. Please contact your local dealer, where you have purchased this TV for further information.

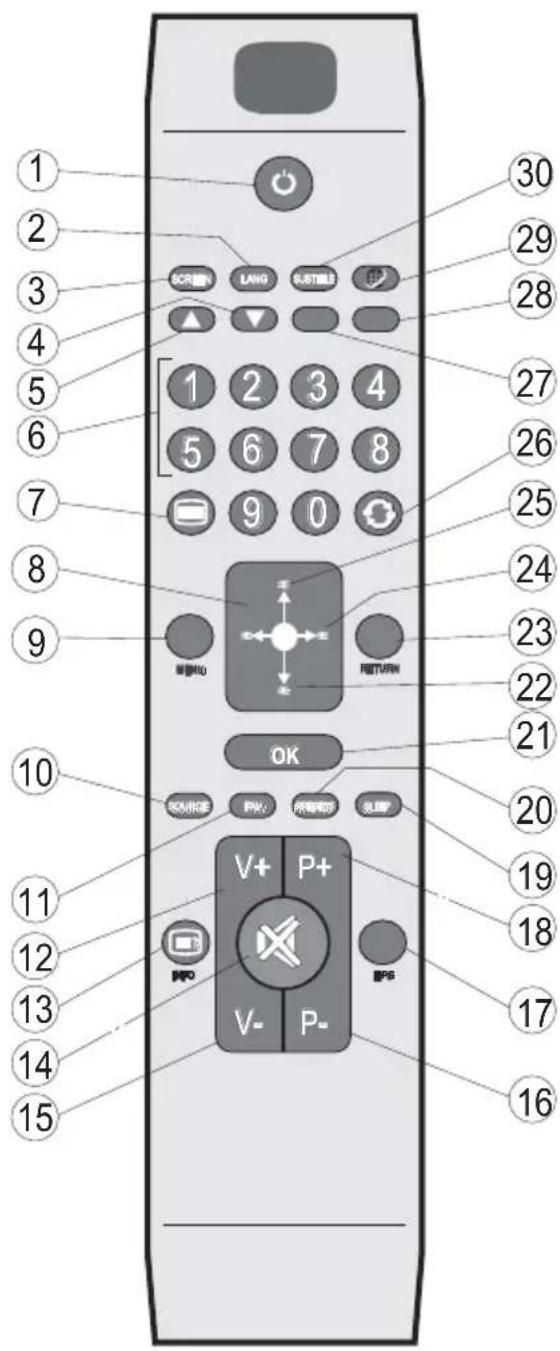

Remote Control Buttons

Standby1.

Mono/Stereo - Dual I-II / Current language2.

Image size / Expand (in TXT mode)3.

Green button4.

Red button 5.

Numeric buttons6.

Teletext - Mix7.

Cursor left8.

Menu on/off9.

AV / Source10.

Favourite mode selection11.

Volume up12.

Info / Reveal (in TXT mode)13.

Mute14.

1. Volume down

2. Programme down / Page up

3. Electronic Programme Guide (EPG)

4. Programme up / Page down

5. Sleep timer

6. Picture mode selection

7. OK / Select / Hold (in TXT mode) / Channel list

8. Cursor down

9. Return / Index page (in TXT mode)

10. Cursor right / Subpage (in TXT mode)

11. Cursor up

12. Previous programme

Yellow button27.

1. Blue button

2. No function (*)

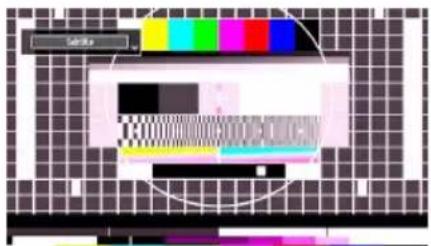

3. Subtitle on-off / TXT subtitle (analogue TV mode) / Subtitle (in Media Browser mode)

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 SCREEN LANG SUBTITLE 1 2 3 4 5 6 7 8 9 0 OK V+ P+ V- P- RETURN RHO RHO RHO RHO RHO RHO RHO RHO RHO RHO RHO RHO RHO RHO RHO RHO RHO RHO RHO RHO RHO RHO RHO RHO RHO RHO RHO RHO RHO RHO RHO RHO RHO RHO

These buttons change according to the model:

29_ / Web Browser (optional) (*) or Pip / Pip function (optional) (*)

LED TV and Operating Buttons

FRONT and REAR VIEW	Control switch VIEW	Control Switch
		Up direction1.Down direction2.Programme/Volume / AV 3. / Standby-On selection switchNote:You can move the switch, upward or downward to change the volume. If you want to change channels, press the middle of the switch once (Position 3) and then move upward or downward. If you press the middle of the switch once more, source OSD will be displayed. If you press the middle of the switch and hold about a few seconds, the TV will switch to standby mode. Main menu OSD cannot be displayed via control buttons.

Viewing the Back side Connections

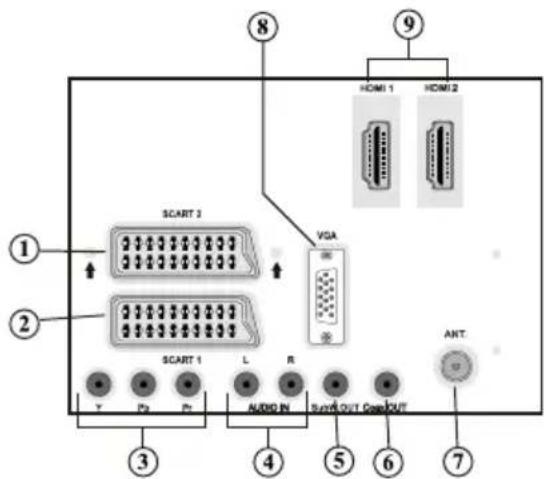

SCART 3 VGA HDMI 1 HDMI 2 SCART 1 L R AUDIO IN SCART OUT Comp OUT ANT. ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

SCART 21. inputs or outputs for external devices.

1. SCART 1 input or output for external devices. Connect the SCART cable between SCART socket on TV and SCART socket on your external device (such as a decoder, a VCR or a DVD player).

Note: If an external device is connected via the SCART socket, the TV will automatically switch to AV mode.

Note: When receiving DTV channels (Mpeg4 H.264) or while in Media Browser mode, output will not be available via the scart socket.

Component Video Inputs (YPbPr)3. are used for connecting component video.

You can connect the component video and audio sockets with a device that has component output. Connect the component video cables between the COMPONENT VIDEO INPUTS on on the TV and the component video outputs of your device. While connecting, be sure that the letters on your TV, "Y", "Pb", "Pr" correspond with your device's connectors.

1. PC/YPbPr Audio Inputs are used for connecting audio signals of a PC or a device that connects to the TV via YPbPr. Connect the PC audio cable between the AUDIO INPUTS on the TV and audio output of your PC to enable PC audio. Connect the audio cable between AUDIO INPUTS on the TV and audio outputs of your device to enable component audio.

2. Subwoofer Out is for connecting an external, active subwoofer to the set to give a much deeper bass effect. Use an appropriate RCA cable to connect the TV set to a subwoofer unit.

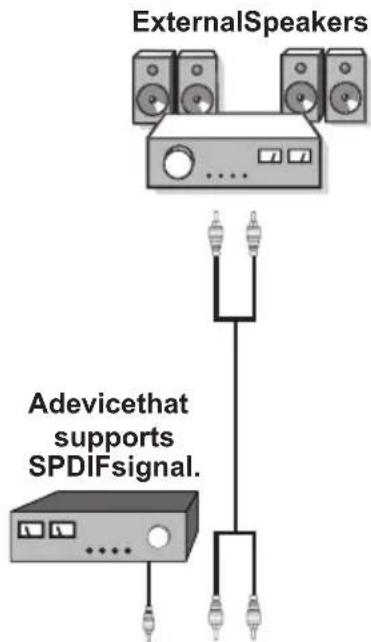

SPDIF Coaxial Out6. outputs digital audio signals of the currently watched source.

Use an SPDIF coaxial cable to trasfer audio signals to a device that has SPDIF input.

RF Input7. connects to an aerial antenna system.

Note that if you use a decoder or a media recorder, you should connect the aerial cable through the device to the television with an appropriate antenna cable, as shown in the illustration in the following pages.

PC Input8. is for connecting a personal computer to the TV set.

Connect the PC cable between the PC INPUT on the TV and the PC output on your PC.

1. HDMI Inputs are for connecting a device that has an HDMI socket. Your LED TV is capable of displaying High Definition pictures from devices such as a High Definition Satellite Receiver or DVD Player. These devices must be connected via the HDMI sockets or Component Socket. These sockets can accept either 720p or 1080p signals. No sound connection is needed for an HDMI to HDMI connection.

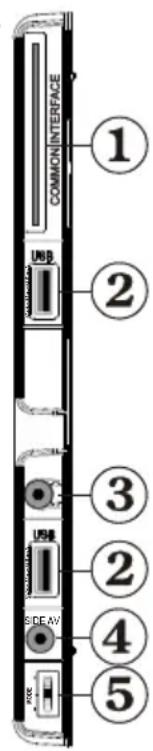

Viewing the Connections - Side Connectors

CI Slot is used for inserting a CI card. A CI card allows you to view all the channels that 1. you subscribe to. For more information, see "Conditional Access" section.

Side USBs2.

Headphone jack is used for connecting an external headphone to the system. Connect 3. to the HEADPHONE jack to listen to the TV from headphones (optional).

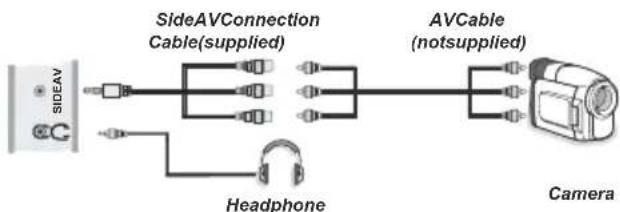

1. Side audio-video connection input is used for connecting video and audio signals of external devices. To make a video connection, you must use the supplied AV connection cable for enabling connection. First, plug singular jack of the cable to the TV's Side AV socket. Afterwards, insert your video cable's (not supplied) connector into the YELLOW input (located on the plural side) of the supplied AV connection cable. Colours of the connected jacks should match.

To enable audio connection, you must use RED and WHITE inputs of the side AV connection cable. Afterwards, insert your device's audio cable's connectors into the RED and WHITE jack of the supplied side AV connection cable. Colours of the connected jacks should match.

Note: You should use audio inputs of side AV connection cable (RED & WHITE) to enable sound connection when connecting a device to your TV by using PC or COMPONENT VIDEO input.

COMMON INTERFACE ① ② ③ ② ④ ⑤

1. Volume/ Programme/ Source and Standby-On switch.

Aerial Connection

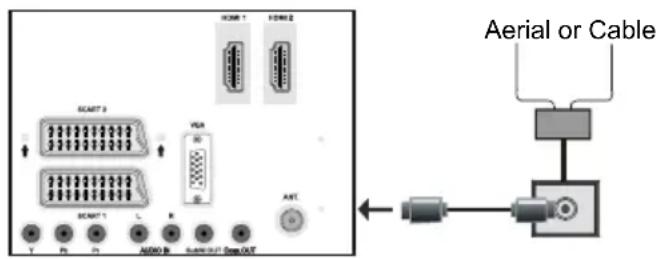

- Connect the aerial to the AERIAL INPUT socket located at the rear of the TV.

Aerial or Cable SCART 3 VGA SCART 1 L R AUDIO B SAR/OUT DOUT

Aerial & Cable Connection

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz.

- After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.

Using Digital Multimedia Connectors

You can connect USB devices to your TV by using the USB inputs of the TV. This feature allows you to display/play JPG, MP3 and video files stored in a USB stick.

It is possible that certain types of USB devices (e.g. MP3 Players) may not be compatible with this TV.

You may back up your files before making any connections to the TV set in order to avoid any possible data loss. Note that manufacturer will not be responsible for any file damage or data loss.

Do not pull out USB module while playing a file.

CAUTION: Quickly plugging and unplugging USB devices, is a very hazardous operation. Especially, do not repeatedly quickly plug and unplug the drive. This may cause physical damage to the USB player and especially the USB device itself.

SIDE VIEW

USB MEMORY

USB

USB Memory Connection

IMPORTANT: The TV should be switched off while plugging or unplugging a USB device. Plug your USB device to the USB inputs of the TV. You can connect two usb device to your TV by using the USB inputs of the TV at the same time.

Note: It is possible certain types of hard disk drives are not supported.

Connecting the LED TV to a PC

For displaying your computer's screen image on your LED TV, you can connect your computer to the TV set. Power off both computer and display before making any connections. Use 15-pin D-sub display cable to connect a PC to the LED TV. When the connection is made, switch to PC source. See "Input selection" section. Set the resolution that suits your viewing requirements. Resolution information can be found in the appendix parts.

L R AUDIO IN VGA Audio inputs of the TV PC audio cable (not supplied) Audio output of the PC PC input of the TV PC VGA cable (not supplied) Monitor output of the PC

Note: If you connect a PC to the TV using HDMI connection, radio interference may occur. Therefore this type of connection is not recommended. You should use VGA connection instead.

Connecting to a DVD Player

If you want to connect a DVD player to your LE TV, you can use connectors of the TV set. DVD players may have different connectors. Please refer to your DVD player's instruction book for additional information. Power off both the TV and the device before making any connections.

Note: Cables shown in the illustration are not supplied.

If your DVD player has an HDMI socket, you can connect via HDMI. When you connect to DVD player as illustrated below, switch to HDMI source. See, "Input Selection" section.

- Most DVD players are connected through COMPONENT SOCKETS. Use a component video cable to connect video input. For enabling audio, use a component audio cable as illustrated below. When the connection is made, switch to YPbPr source. See, "Input selection" section.

You may also connect through the SCART 1 or SCART 2. Use a SCART cable as shown below.

Note: These three methods of connection perform the same function but in different levels of quality. It is not necessary to connect by all three methods.

HDMI Y Pb Pr L R AUDIO IN Scartsockets Component video inputs Component audio inputs HDMI inputs DVDPlayer

Using Side AV Connectors

You can connect a range of optional equipment to your LED TV.

For connecting a camcorder or camera, you should use SIDE AV socket (side). To do this, you must use the supplied video/audio connection cable. First, plug single jack of the cable to the TV's AV IN socket (side). Afterwards, insert your camera cable's (not supplied) connectors into the plural part of the video/audio connection cable. Colours of the connected jacks should match. See illustration below.

- Afterwards, you should switch to Side AV source. See the section Input selection in the following sections for more information.
    subgraph_SideAVConnection["Cable(supplied)"]
        B1[" "] --> B2[" "]
        B2[" "] --> B3[" "]
        B3[" "] --> B4[" "]
        B4[" "] --> B5[" "]
        B5[" "] --> B6[" "]
        B6[" "] --> B7[" "]
    end

To listen the TV sound from headphones, connect to the HEADPHONE jack of theTV.

Using Other Connectors

You can connect a range of optional equipment to your LED TV. Possible connections are shown below. Note that cables shown in the illustration are not supplied.

For connecting a to a device that has SPDIF support, use an appropriate SPDIF cable to enable sound connection.

ExternalSpeakers Adevicethat supports SPDIFsignal.

Remote Control Handset

Inserting Batteries

Remove the battery cover located on the back of the handset by gently pulling backwards from the indicated part.

- Insert two AAA/R3 or equivalent type batteries inside. Observe the correct polarity (+/-) when inserting batteries and replace the battery cover.

Diagram of a battery inside a housing with an arrow indicating rotation (no text or symbols)

Note: Remove the battery from remote control handset when it is not to be used for a long period. Otherwise it can be damaged due to any leakage of batteries. Remote range is approximately 7m/23ft.

Switching On/Off

To Switch the TV On

Connect the power cord to the 220-240V AC, 50 Hz.

Press STANDBY touch button. Then the standby • LED lights up.

To switch on the TV from standby mode either:•

Press the “⏻” button, P+ / P- or a numeric button on the remote control.

Press the control switch right side of the TV. The TV will then switch on.

Note: If you switch on your TV via P+ / P- buttons on the remote control or on the TV set, the programme that you were watching last will be reselected.

By either method the TV will switch on.

To Switch the TV Off

Press the "button" button on the remote control or hold the control switch on the Tv until shut down, so the TV will switch to standby mode.

To power down the TV completely, unplug the power cord from the mains socket.

Note: When the TV is switched to standby mode, standby LED can blink to indicate that features such a Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.

Standby Notifications

If the TV switches off while in No Signal mode, the following on-screen message will be displayed on the next switch-on:

Standby Cause No Signal OK

If the TV switches off owing to the auto power down feature, the following on-screen message will be displayed on the next switch-on:

Standby Cause No Operation OK

Digital Teletext ( ^** for UK only)

Press the "

"button.

- The digital teletext information appears. Operate it with the coloured buttons, cursor buttons and OK button.

The operation method may differ depending on the contents of the digital teletext.

Follow the instructions displayed on digital teletext screen.

- When Press "SELECT" button or similar message appears on the screen, press the OK button. - When the "☐" button is pressed, the TV returns to television broadcasting.

At With digital terrestrial broadcasting (DVB-T), in • addition to digital teletext broadcasting together with the normal broadcasting, there are also channels with just digital teletext broadcasting.

The aspect ratio (picture shape) when watching a channel with just digital teletext broadcasting is the same as the aspect ratio of the picture viewed previously.

- When you press the “☐” button again, the digital teletext screen will be displayed.

Analogue Teletext

Use of teletext and its functions are identical to the analogue text system. Please do refer to the "TELETEXT" explanations.

Input Selection

Once you have connected external systems to your TV, you can switch to different input sources. Press "SOURCE" button on your remote control consecutively for directly changing sources.

Sources list TV EXT1 EXT2 EXT2-S SIDE AV HDMI1 HDMI2 YPbPr VGA/PC

You can operate your TV using both the remote control and onset buttons.

Operation with the Buttons on the TV

Volume Setting

You can move the control switch upward or downward for changing the volume. To increase volume, please move the switch upward. Move the switch downward to decrease the volume. A volume level scale (slider) will be displayed on the screen.

Programme Selection

First press the control switch once to change • channel. You can move the switch upward to select the next programme or move it downward to select the previous programme.

Viewing Main Menu

Menu screen cannot be displayed by using the control switch.

AV Mode

Press the control switch consecutively until the source OSD is displayed on the screen.

Operation with the Remote Control

The remote control of your TV is designed to control all the functions of the model you selected. The functions will be described in accordance with the menu system of your TV.

Volume Setting

- Press "V+" button to increase the volume. Press "V-" button to decrease the volume. A volume level scale (slider) will be displayed on the screen.

Programme Selection (Previous or Next Programme)

• Press "P-" button to select the previous programme.
• Press "P+" button to select the next programme.

Programme Selection (Direct Access)

Press numeric buttons on the remote control to select • programmes between 0 and 9. The TV will switch to the selected programme. To select programmes between, press the numeric buttons consecutively. When the pressing time is due for the second numeric button, only the first digit programme will be displayed. Press directly the programme number to reselect single digit programmes.

Viewing Electronic Programme Guide (EPG)

You can view the electronic programme guide (EPG) to view information about available programmes. To view the EPG menu please press EPG button on the remote control.

• Press “▼”/“▲” buttons to navigate through channels.
• Press “◀”/“▶” buttons to navigate through the programme list.
• EPG menu displays available information on all channels.

Please note that event information is updated • automatically. If there are no event information data available for channels, EPG will be displayed with blanks.

Programme Guide Thu 07/06 20:29 Channels Current Event Next Event 1. BBC ONE Folly City Hustle 2. BBC TWO Springwatch Mary, Queen of Shops 7. BBC THREE Filly Rich and Homeless Bust My Ass This is CBC! This Is CBC! 80. BBC NEWS 24 BBC News BBC News 105. BBG BBG BBG 503. ITV HD Trial No Information No Information No Information No Information No Information 504. Ch4 HD Trial No Information No Information No Information 505. live HD Trial No Information No Information 800. Sky News No Information No Information 801. CNBC Europe No Information No Information 802. TV5MONDE EUROPE No Information No Information Navigate Options Timeline Schedule INFO Event Details Unit Schedule Filter

OK (Options): Displays programme options including "Select Channel" option.

- INFO (Event Details): Displays the programmes in detail.

Green button: Programme schedule will be listed

Yellow button: Display EPG data in accordane with timeline schedule

Blue button (Filter): Views filtering options.

Programme Guide Thu 27/07 12:57 BBC ONE Thu 27/07, 12:00-14:00 1. BBC ONE 19:00 on the City 20:00 Hustle 2. BBC TWO BBC THREE 70. CBBC Channel BBC NEWS 24 105. BBCI S03. ITV HD Trial S04. Ch4 HD Trial S05. Five HD Trial 800. Sky News B01. CNBC Europe B02. TV5MONDE EUROPE Navigate Prev. Time Slice Next Time Slice Prev. Day Next day Open Options Filter INFO Event Details

Red button (Prev Time Slice): Displays the programmes of previous time slice.

Green button (Next Time Slice): Displays the programmes of the next time slice.

Yellow button (Prev Day): Displays the programmes of previous day.

Blue button (Next day): Displays the programmes of the next day.

Numeric buttons (Jump): Jumps to the preferred channel directly via numeric buttons.

OK (Options): Displays programme options including "Select Channel" option.

"button (Filter): Views filtering options.

INFO (Details): Displays the programmes in detail.

Programme Guide The 07/06 20:29 Thu 07/06 20:00 21:00 22:00 1. BBC ONE 2. BBC TWO 3. BBC THREE 4. BBC Channel 5. BBC NEWS 24 6. BBC 7. BBC 8. BBC HD Trial 9. BBC HD Trial 10. five HD Trial 11. Sky News 12. CNBC Europe 13. TV5MONDE BL... Holly City Springwatch Fifty Rich and Homeless This is CBC! BBC News BBC New day Next day Zoom Filter INFO Event Details Open Options Search Select Game Now

Red button (Prev Day): Displays the programmes of previous day.

Green button (Next day): Displays the programmes of the next day.

Yellow button (Zoom): Expands programme information.

Blue button (Filter): Views filtering options.

INFO (Details): Displays the programmes in detail.

Numeric buttons (Jump): Jumps to the preferred channel directly via numeric buttons.

OK (Options): Displays programme options including "Select Channel" option.

“” (Search): Displays “Guide Search” menu.

SUBTITLE: Press SUBTITLE button to view Select Genre menu. Using this feature, you can search the

programme guide database in accordance with the genre. Info available in the programme guide will be searched and results matching your criteria will be listed.

© (Now) : Shows the current programme.

First Time Installation

IMPORTANT: Ensure that the aerial is connected and a Common Interface module is not inserted before switching on the TV for the first time installation.

When the TV is operated for the first time, installation • wizard will guide you through the process. First, language selection screen will be displayed:

First time installation Welcome please select your language! English Bienvenue! Vealliez choisir une langue! Français Wählen Sie bitte ihre Sprache aus! Deutsch Selectionate la vostré linguat! Italiano Bisnevesido, seleccione un iderna. Español Hsç geldriez, lüfen dit seçimini yapazı! Türke Debrodošil, izbenite vai jesik! Slovenski Välkommen, välj ditt speik! Svenska Udvožnăjuk, kejisk valassza ki a nyelvet! Magyar Bem-vindo, favor seleccionar seu iderna Português Terrotutoa, valitse kiviesi! Suomi Select Language Set Language

- Use “▼” or “▲” buttons to select your language and press OK button to set selected language and continue.

- After selecting the language, "Welcome!" screen will be displayed, requiring you to set Country, Search Type, Teletext Language and Scan Encrypted options.

First time installation Welcome! Country < UK > Search Type Digital only Teletext Language West Scan Encrypted Yes Select Setting Choose your country Start search

- By pressing “◀” or “▶” button, select the country you want to set and press “ ” button to highlight Search Type option. Use “◀” or “▶” to set the desired search type. Available search types are Digital and analog, digital only and analog only.

- When set, press “▼” to select Teletext Language. Use “◀” or “▶” to select the desired Teletext Language.

- Press OK button on the remote control to continue and the following message will be displayed on the screen:

Do you want to start an automatic channel scan? Yes No

To select the "Yes" or "No" option, highlight the item by using "◀or "▶buttons and press OK button.

Afterwards, the following OSD will be displayed on the screen:

Please Select Digital Search Type Aerial Cable

If you select CABLE option, the following screen will be displayed:

Network channel scan Start Frequency 114000 KHz Stop Frequency 858300 KHz Search Step 8020 KHz E_9 Enter search frequency OK Start search MENU Exit

You can select frequency ranges from this screen. For highlighting lines you see, use ▼ or “▲” button. You can enter the frequency range manually by using the numeric buttons on the remote control. Set Start and Stop Frequency as desired by using numeric buttons on the remote control. After this operation, you can set Search Step as 8000 KHz or 1000 KHz. If you select 1000 KHz, the Tv will perform search process in a detailed way. Searching duration will thus increase accordingly. When finished, press OK button to start automatic search.

If you select AERIAL option from the Search Type screen, the television will search for digital and analogue TV broadcasts.

Automatic channel scan Please wait: This will take a few minutes. Scaming digital channel: UHF 30 NEW Cancel scan

Note: You can press "MENU" button to cancel.

Choose region Multiple regional variants have been detected. Please choose your preferred region. Country UK Primary region Any Secondary region Any Tertiary region Any OK

End of the search process, Choose Region menu screen will be displayed (if any multiple region variants are detected). Please select country and region choice then press OK to continue.

After all the available stations are stored, Channel List will be displayed on the screen. If you like the sort channels, according to the LCN (optional), please select "Yes" and then press OK.

Edit Channel List 1. BBC ONE 2. BBC TWO 7. BBC THREE 70. CBBC Channel 80. BBC NEWS 24 105. BBG 503. ITV HD Trial 504. Chs HD Trial 505. Five HD Trial OK Move Delete Edit name Lock Function GoWatch FPTPage UP/DOWN Filter Back MENU full

- Press OK button to quit channel list and watch TV.

Auto Tuning

HINT: Auto tuning feature will help you to retune the TV set in order to store new services or stations.

Press "MENU" button on the remote control and select Installation by using "◀" or "▶" button. Press OK button and the following menu screen will be displayed.

Installation Automatic channel scan (Retune) Manual channel scan Network channel scan Analogue fine tune First time installation Clear Service List*

Select Automatic Channel Scan by using “▼”/“▲” button and press OK button. Automatic Channel Scan options will be displayed. You can select Digital Aerial, Analog or Digital Aerial-Analogue tuning using “▼”/“▲” and OK buttons.

Auto Channel Scan Menu Operation

Digital Aerial: Searches and stores aerial DVB stations.

Digital Cable: Searches and stores cable DVB stations.

Analogue: Searches and stores analogue stations.

Digital Aerial & Analogue: Searches and stores both analogue and aerial DVB stations.

Digital Cable & Analogue: Searches and stores both analogue and cable DVB stations.

Whenever you select an automatic search type and press OK button, a confirmation screen will appear on the screen. To start installation process, select Yes, to cancel select No by using . "◀" or "▶" and OK button.

After auto channel scan type is set and selected • and confirmed, installation process will start and progress bar will move along. Press “M” button to cancel process. In such a case, located channels are not stored.

Manual Tuning

HINT: This feature can be used for direct broadcast entry.

• Select Manual Channel Scan from the Installation menu by using “▼”/“▲and OK buttons. Manual Scan options screen will be displayed.
• Select the desired Search Type using “◀” or “▶” button. Manual search options will change accordingly. Use “▼/” ▶ button to highlight an item and then press “◀” or “” ▶ button to set an option. You can press “MENU” button to cancel.

Digital Aerial Manual Search

Manual Search Search Type: < Digital > Channel 45 Frequency 666.00 MHz Network channel scan Disabled Signal quality: Poor Signal level: Start search Change Value Deck MSNU Exit

In manual channel scan, the number of the multiplex or frequency are entered manually and only that multiplex or frequency are searched for the channels. After selecting search type as Digital, you can enter the multiplex or frequency number using the numeric buttons and press OK button to search.

Digital Cable Manual Search

In cable manual scan, you can enter frequency, modulation, symbol rate and network channel scan options. After selecting search type as Digital Cable, you can set the desired options and press OK button to search.

Manual Search Search Type: < Digital Cable > Frequency 114.00 MHz Modulation AUTO Symbol Rate 6900 Network channel scan Disabled Signal quality: None Signal level: Start search Change Value Back MENU Exit

Analogue Manual Search

Manual Search Search Type < Analogue > Band C TV System 1 Channel 01 Frequency 049.75 MHz Signal quality None Signal level: Start search C Change Value Back WMENU Full

After selecting search type as analogue, you can use "▼/” ▲ button to highlight an item and then press “◀” or “▶” button to set an option.

Enter the channel number or frequency using the numeric buttons. You can then press OK button to search. When the channel is located, any new channels that are not on the list will be stored.

Analog Fine Tune

• Select Analog Fine Tune from the Installation menu by using “◀” or “▶” and OK buttons. Analog fine tune screen will be displayed. Analog Fine Tune feature will not be available if there are no analog channels, digital channels and external sources stored.
• Press OK button to proceed. Use “◀” or “▶” button to set Fine Tune. When finished, press OK button again

Network Channel Scan

Select Network Channel Scan from the installation menu by using “▼ or “” and OK buttons. Network Channel Scan selection screen will be displayed. Select Digital Aerial or Digital Cable and press OK button to continue. The following message will be asked. Select Yes to continue or select No to cancel.

Do you want to start network search? Your previous channel list will be replaced. Yes No

If you start Digital Aerial scan process, automatic scanning will start. You can press "MENU" button to cancel.

If you start Digital Cable scan process, the following screen will be displayed.

Network channel scan Start Frequency 114000 KHz Stop Frequency 858000 KHz Search Step 8600 KHz Enter search frequency OK Start search MENU Edit

You can select frequency ranges from this screen. For highlighting lines you see, use ▼ or “” button. You can enter the frequency range manually by using the numeric buttons on the remote control. Set Start and Stop Frequency as desired by using numeric buttons on the remote control. After this operation, you can set Search Step as 8000 KHz or 1000 KHz. If you select 1000 KHz, the Tv will perform search process in a detailed way. Searching duration will thus increase accordingly. When finished, press OK button to start automatic search. Automatic searching screen will be displayed during the process.

Note: If you select an extended gap between Start and Stop frequency rate, automatic search duration will take a longer time..

Managing Stations: Channel List

The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options.

- Press "MENU" button to view main menu. Select Channel List item by using "◀" or "▶" button. Press OK to view menu contents.

Channel list Edit Channel List Favourites Active channel list

Select Edit Channel List to manage all stored channels. Use "◀or " ▶ and OK buttons to select Edit Channel List.

Operating the Channel List

Edit Channel List 1. BBC ONE 2. BBC TWO 7. BBC THREE 70. CBC Channel 80. BBC NEWS 24 105. BBCI 503. ITV HD Trial 504. DM HD Trial 505. five HD Trial OK Move Delete Edit name Lock ▶ Function SK Watch Po Pk Page LP/OWN Filter Back Menu Edit

Press “▼” or “▲” button to select the channel that will be processed. Press “◀” or “▶” button to select a function on Channel List menu.

• Use P+ / P- buttons to move page up or down.
• Press BLUE button to view filtering options.
• Press "MENU" button to exit.

Note: The channels listed are mixed at the channel list. Channel types can be differentiated by the icons next to them: DTV (digital tv), HD (HD TV), ATV (Analogue TV), TV (TV), RD (Radio), encrypted, lock, and at the favourite list.

Listed channels can also be sorted by using the active channel list filter.

Moving a Channel

First select the desired channel. Select Move option in the channel list and press OK button.

Edit Number screen will be displayed. Enter the desired channel number by using the numeric buttons on the remote control. If there is a previously stored channel on that number, a warning screen will be displayed. Select Yes if you want to move the channel and press OK.

- Press OK button to process. Selected channel is now moved.

Deleting a Channel

You can press GREEN button to tag/untag all channels; YELLOW button to tag/untag channel.

Select the channel that you want to delete and select Delete option. Press OK button to continue.

- A warning screen will appear. Select YES to delete, select No to cancel. Press OK button to continue.

Renaming a Channel

Select the channel that you want to rename and select Edit Name option. Press OK button to continue.

Pressing “◀” or “▶” button moves to the previous/ next character. Pressing “▼” or “▲” button toggles the current character, i.e., ‘b’ character becomes ‘a’ by “▼” and ‘c’ by “▲” Pressing the numeric buttons ‘0...9’ replaces the highlighted character with the characters printed above the button one by one as the button is pressed.

- When finished, press OK button to save. Press "MENU" to cancel.

Locking a Channel

You can press GREEN button to tag/untag all channels; YELLOW button to tag/untag a single channel.

Select the channel that you want to lock and select Lock option. Press OK button to continue.

You will be asked to enter parental control PIN. Default PIN is set as 0000. Enter the PIN number.

Enter PIN

- Press OK button when the desired channel is highlighted to lock/unlock the channel. Lock symbol will be displayed next to the selected channel.

Managing Stations: Favourites

You can create a list of favourite programmes.

• Press "MENU" button to view main menu. Select Channel List item by using "◀" or "▶" button. Press OK to view menu contents.
• Select Favourites to manage favourite list. Use “▼”/“▲and OK buttons to select Favourites.
• You can set various channels as favourites so that only the favourite channels are navigated.

Favourite List 1. BBC ONE 2. BBC TWO 7. BBC THREE 70. CBC Channel 80. BBC NEWS 24 105. BBCI 503. ITV HD Trial 504. Ch4 HD Trial 505. five HD Trial Select channel Tag/Unlog channel Add Remove Tag/Unlog All Filter MENCLuit

- Select a channel by using “▼” or “▲” button. Press OK button to add selected channel to favourites list. Press OK button again to remove.

Button Functions

- OK: Add/remove a station.

• YELLOW: Tag/untag a channel.
  • GREEN: Tag/untag all channels.
• BLUE: Displays filtering options.

Managing Stations: Sorting Channel List

You can select broadcasts to be listed in the channel list. To display specific types of broadcast, you should use Active channel list setting.

Select Active channel list from the Channel list menu by using “▼” /“▲button. Press OK button to continue.

Active channel list ✓Show all Digital only Analogue TV only TV only Radio only Text only Favourites

You can select a broadcast type option from the list by using “▼/” ▲nd OK buttons.

On-Screen Information

You can press "INFO" button to display on-screen information. Details of the station and current programme will be displayed on the information banner.

1 BBC ONE 20:00-21:00 Next 21:00-22:00 Holly City (Drama) Hustle (Drama)

The information banner gives information on the channel selected and the programmes on it. The name of the channel is displayed, along with its channel list number.

Hint: Not all channels broadcast the programme data. If the name and time of the programme are not available, then information banner will be displayed with blanks.

If the selected channel is locked, you must enter the correct four-digit numeric code to view the channel (default code is 0000). "Enter PIN" will be displayed on the screen in such a case:

Media Playback Using Media Browser

If the USB stick is not recognized after power off/on or First Time Installation, first, plug the USB device out and power off/on the TV set. Plug the USB device in again.

To display Media Browser window, press either "MENU" button on the remote control and then select Media Browser by pressing "◀" or "▶" button. Press OK button to continue. Media Browser menu options will be displayed.

Also, when you plug USB devices, media browser screen will be displayed automatically:

Media Browser Videos Photos Music Settings Select Exit

You can play music, picture and video files from the connected USB memory stick. Use "◀ or "▶ button to select Videos, Photos, Music or Settings.

You can connect two USB devices to your TV. If both USB devices include music, picture or video files, USB selection osd will be displayed on the screen. The first USB device connected to the TV will be named as USB Drive1.

USB Selection USB Drive 1 Partition (usb1) USB Drive 2 Partition (usb2)

Select a device by using "▼ or " " button and press OK.

Viewing Videos via USB

Videos File Name a43 How I Met Your Mother - 1x01 - Plot How I Met Your Mother - 1x01 - Plot Media Browser a43 1/5 Jump OK Play This Play LANO Play Preview INFO Filter PAP Sort by Name

When you select Videos from the main options, available video files will be filtered and listed on this screen. You can use ▼ or “▲button to select a video file and press OK button to play a video. If you select a subtitle file and press OK button, you can select or deselect that subtitle file. The following menu will be displayed while playing a video file:

Now I Met Your Mother - 1x01 - Pilot.avi x1 00m50s 22m04s Play Stop OK Pause Rewind Forward LANG Subtitle/Audio Jump... Subtitle Time Correction Back

Play (RED button): Starts the video playback.

Stop (BLUE button): Stops the video playback.

Pause (OK button): Pause the video playback.

Rewind (◀ button): Goes backward.

Forward (▶ button): Goes forward.

Subtitle/Audio (LANG. button): Sets subtitle/Audio.

Yellow: Opens subtitle time correction menu

Subtitle Time Correction Offset: < 0 > sec OK Clear Cancel

Press RETURN (Exit) button to switch back to previous menu.

Viewing Photos via USB

When you select Photos from the main options, available image files will be filtered and listed on this screen.

Photos Media Browser File Name Date/Time 0001. barpe 0002. nu2go 0003. Picture_001 0004. Picture_002 0005. Picture_003 12.11.2007 22:12... 0006. Picture_004 12.11.2007 22:11... 0007. Picture_005 13.11.2007 00:5... 0008. Picture_006 00:00.0000 00:0... 0009. Picture_007 30.12.2007 13:1... barpe 957 KB 1/21 Jump View in full screen Slideshow Loop/Shelfife IMPO Filter FAX Sort By Date Thunebralls

Jump (Numeric buttons): Jump to selected file using the numeric buttons.

OK: Views the selected picture in full screen.

Slideshow (GREEN button): Starts the slideshow using all images.

Loop/Shuffle (BLUE button): Press once to enable Loop. Press again to enable both Loop and Shuffle.

Press once more to enable only Shuffle. Press again

to disable all. You can follow the disabled functions with the change of the icons.

FAV: Sorts files by date.

: Views images in thumbnails.

INFO: Changes filter options.

Slideshow Options

2010+NISAN+18+024.jpg 1024x683 18.04.2010 11:46:17 278 KB Zoom Rotate Continue Back to File List Pause Help Loop/Shuttle Previous/Next

Pause (YELLOW button): Pauses the slideshow.

Continue (GREEN button): Continues the slideshow.

Zoom (RED button): Zooms picture.

Note: If a picture is zoomed out/displayed in full screen, you cannot navigate the picture by using Up/Down/Left/Right buttons.

Previous/Next (Left/Right buttons): Jumps to previous or next file on slideshow.

Rotate (Up/Down buttons): Rotates the image using up/down buttons.

Loop/Shuffle (BLUE button): Press once to disable Loop. Press again to disable both Loop and Shuffle. Press once more to enable only Shuffle. Press again to enable all. You can follow the disabled functions with the change of the icons.

RETURN: Back to file list.

INFO: Displays help screen.

Music Title Artist Albums 01 Violin Concerto... 02 Violin Concerto... 03 Violin Concerto... 04 Violin Concerto... 05 Violin Concerto... 06 Violin Concerto... 07 Synfonia Conce... 08 Synfonia Conce... 09 Synfonia Conce... Media Browser 01 Violin Concerto No.2,KV 211,1 All 1/9 Jump Sop Play Pose Loop/Shuffle BPO Floor TAV Sort Play.This Previous/Next

0..9 (Numeric buttons): The TV will jump to the file starting with the letter you input via the numeric buttons on your remote control.

Play This (OK button): Plays the selected file.

Play (GREEN button): Plays all media files starting with the selected one.

Stop (RED button): Stops playback.

Pause (YELLOW button): Pauses the selected playback.

Previous/Next (Left/Right buttons): Jumps to previous or next file to play.

FAV: Sorts files by Title, Artist or Album.

Note: If the Viewing Style is set to Folder in Media Browser Settings, Music folder will be displayed as sorted and there is no need to sort files again by pressing FAV button.

INFO: Changes filter options.

Loop/Shuffle (Blue button): Press once to disable Loop. Press again to disable both Loop and Shuffle. Press once more to enable only Shuffle. Press again to enable all. You can follow the disabled functions with the change of the icons.

Media Browser Settings

Settings View Style Slide Show Interval Show Subtitle SubTitle Language SubTitle Position SubTitle Font Size Flat view style displays all files in removable device. Folder view style displays files in selected folder. Select Navigate Exit

You can set your Media Browser preferences by using the Settings dialog. Press “▼ or “ ”▲ button to highlight an item and use “◀ or “ ”▶ button to set.

View Style: Sets default browsing mode.

Slide Show Interval: Sets slide show interval time.

Show Subtitle: Sets subtitle enabling preference.

Subtitle Position: Sets subtitle position as up or down.

Subtitle Font Size: Sets subtitle font size (max. 54pt).

Changing Image Size: Picture Formats

Programmes can be watched in different picture formats, depending on the transmission received.

You can change the aspect ratio (image size) of the TV for viewing the picture in different zoom modes.

Press “SCREEN” button repeatedly to change the image size. Available zoom modes are listed below.

Auto

When a WSS (Wide Screen Signalling) signal, which shows the aspect ratio of the picture, is included in the broadcast signal or the signal from an external device, the TV automatically changes the ZOOM mode according to the WSS signal.

- When the AUTO mode does not function correctly due to poor WSS signal quality or when you want to change the ZOOM mode, change to another ZOOM mode manually.

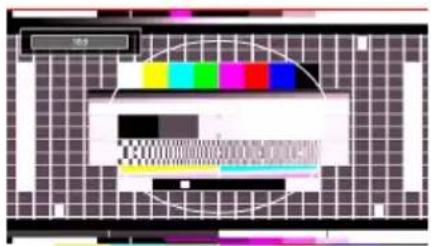

16:9

This uniformly stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the wide TV screen.

Digital display screen with a color calibration bar and Chinese UI elements

For 16:9 aspect ratio pictures that have been • squeezed into a normal picture (4:3 aspect ratio), use the 16:9 mode to restore the picture to its original shape.

Subtitle

This zooms up the wide picture (16:9 aspect ratio) with subtitles to the full screen.

Color calibration interface with a grid background and a color palette for calibration

Note: You can shift to screen up or down by pressing "▼/ " " buttons while picture zoom is selected as panaromic, 14:9 Zoom, Cinema or Subtitle.

14:9

This zooms up the wide picture (14:9 aspect ratio) to the upper and lower limits of the screen.

Digital display screen showing a color calibration interface with a grid of test squares and a color palette overlay.

14:9 Zoom

OK OK OK

This option zooms to the 14:9 picture.

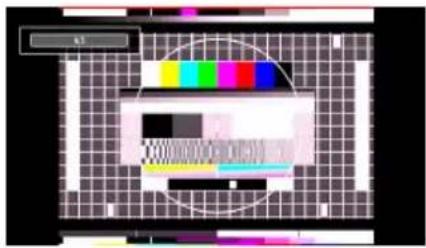

4:3

Use to view a normal picture (4:3 aspect ratio) as this is its original size.

Randomly Tested

Panoramic

This stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the screen, without making the picture appear unnatural.

Positive Positive

The top and bottom of the picture are slightly cut off.

Cinema

This zooms up the wide picture (16:9 aspect ratio) to the full screen.

Clear 100%

Configuring Picture Settings

You can use different picture settings in detail.

Press "MENU" button and select the Picture icon by using "◀" or "▶" button. Press OK button to view Picture Settings menu.

Picture Settings Mode - Contrast - Brightness - Sharpness - Colour Power Save Mode Backlight Noise Reduction Advanced Settings Reset Dynamic 63 32 24 40 Off Medium Medium OK OK

Operating Picture Settings Menu Items

Press "▼" or "▲button to highlight a menu item.

Use “◀” or “▶” button to set an item.

Press • “MENU” button to exit.

Picture Settings Menu Items

Mode: For your viewing requirements, you can set various screen modes. The Picture mode can be set to one of these options: Cinema, Game, Dynamic and Natural.

Contrast: Sets the lightness and darkness values of the screen.

Brightness: Sets the brightness value for the screen.

Sharpness: Sets the sharpness value for the objects displayed on the screen.

Colour: Sets the colour value, adjusting the colors.

Power Save Mode: Use “▼” or “▲button to select Power Save Mode. Press “◀” or “▶” button to set Power Save Mode as On or Off. See the section, “Environmental Information” in this manual for further information on Power Save Mode.

Note: Backlight function will be invisible if Power Save Mode is set to on.

Backlight (optional): This setting controls the backlight level and it can be set to Auto, Maximum, Minimum, Medium and Eco Mode (optional).

Noise Reduction: If the broadcast signal is weak and the picture is noisy, use Noise Reduction setting to reduce the noise amount. Noise Reduction can be set to one of these options: Low, Medium, High or Off.

Advanced Settings

• Colour Temp: Sets the desired colour tone. Setting Cool option gives white colours a slight blue stress. For normal colours, select Normal option. Setting Warm option gives white colours a slight red stress.
  • Picture Zoom: Sets the picture size to Auto, 16:9, Subtitle, 14:9, 14:9 Zoom, 4:3, Panoramic or Cinema.
• HDMI True Black (optional): While watching from HDMI source, this feature will be visible in the Picture Settings menu. You can use this feature to enhance blackness in the picture. You can set this feature as "On" for activating HDMI True Black mode.

- Movie Sense: Press “▼”/“▲” button to select Movie Sense. Use “◀”/“▶” to set Movie Sense Low, Med, High or Off. While Movie Sense is active, it will optimize the TV’s video settings for motional images to acquire a better quality and readability. When Movie Sense option is set to Low, Med or High, Movie Sense demo option will be available. If one of these options is selected and if you press OK button, then the demo mode starts. While demo mode is active, the screen will be divided into two

sections, one displaying the movie sense activity, the other displaying the normal settings for TV screen.

• Film Mode (optional): Films are recorded at a different number of frames per second to normal television programmes. Press “▼” or “▲” buttons to select Film mode. Press “◀” or “▶” buttons to set this feature Auto or Off. Tum this feature to Auto when you are watching films to see the fast motion scenes clearly.
  • Colour Shift: Adjust the desired colour tone.

Reset: Resets the picture settings to factory default settings.

While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.

PC Picture Settings Operation

For adjusting PC picture items, do the following:

Press “◀” or ▶” button to select Picture icon. Picture menu appears on the screen.

Contrast, Brightness, Colour, Colour Temp and Picture Zoom, Reset settings in this menu are identical to settings defined in TV picture settings menu. Sound, Settings and Source settings are identical to the settings explained in the main menu system.

PC Position: Select this to display PC position menu items.

PC Position Autoposition OK H Position 0 V Position 0 Dot Clock 0 Phase 0

Autoposition: Automatically optimizes the display. Press OK to optimize.

H Position: This item shifts the image horizontally to right hand side or left hand side of the screen.

V Position: This item shifts the image vertically towards the top or bottom of the screen.

Dot Clock: Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.

Phase: Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method.

Configuring Sound Settings

Sound settings can be configured according to your personal preferences.

Press "MENU" button and select the first icon by using "◀" or "▶" button. Press OK button to view Sound Settings menu.

Sound Settings Volume 24 Equalizer Music Balance 0 Headphone 20 Sound Mode Mono AVL Off Dynamic Bass Off Surround Sound Off Digital Out PCM Navigate REBACK Back Change Value MENU Exit

Operating Sound Settings Menu Items

Press “▼” or “▲button to highlight a menu item.

Use “◀” or “▶” button to set an item.

Press • “MENU” button to exit.

Sound Settings Menu Items

Volume: Adjusts volume level.

Equalizer: Press OK button to view equalizer submenu.

Equalizer Settings Mode < Music > 120Hz —— ● 4 500Hz —— ● 2 1.5KHz —— ● -2 5.0KHz —— ● 3 10.0KHz —— ● 5

In equalizer menu, the preset can be changed to Music, Movie, Speech, Flat, Classic and User. Press the "MENU" button to return to the previous menu.

Note: Equalizer menu settings can be changed manually only when the Equalizer Mode is in User.

Balance: This setting is used for emphasizing left or right speaker balance.

Headphone: Sets headphone volume.

Sound Mode: You can select Mono, Stereo, Dual I or Dual II mode, only if the selected channel supports that mode.

AVL: Automatic Volume Limiting (AVL) function sets the sound to obtain fixed output level between programmes (For instance, volume level of advertisements tend to be louder than programmes).

Dynamic Bass: Dynamic Bass is used to increase bass effect of the TV set.

Surround Mode: Surround mode can be change as On or Off.

Digital Out: Sets digital out audio type.

Configuring Your TV's Settings

Detailed settings can be configured to suit your personal preferences.

Press "MENU" button and select Settings ikon by using "◀" or "▶" button. Press OK button to view Settings menu.

Settings Conditional Access Language Parental Timers Date/Time Sources Other Settings

Operating Settings Menu Items

Press “▼” or “▲button to highlight a menu item.

Press • OK button to select an item.

Press • “MENU” button to exit.

Settings Menu Items

Conditional Access: Controls conditional access modules when available.

Language: Configures language settings.

Parental: Configures parental settings.

Timers: Sets timers for selected programmes.

Date/Time: Sets date and time.

Sources: Enables or disables selected source options.

Other Settings: Displays other setting options of the TV set.

Using a Conditional Access Module

IMPORTANT: Insert or remove the CI module only when the TV is SWITCHED OFF.

In order to watch certain digital channels, a • conditional access module (CAM) can be necessary. This module must be inserted in the CI slot of your TV.

Obtain the Conditional Access Module (CAM) and the viewing card by subscribing to a pay channel company, then insert those to the TV using the following procedure.

Insert the CAM and then the viewing card to the slot that is located in the terminal cover at the rear side of the TV.

The CAM should be correctly inserted, it is • impossible to insert fully if reversed. The CAM or the TV terminal may be damaged if the CAM is forcefully inserted.

Connect the TV to the mains supply, switch on and then wait for few moments until the card is activated.

When no module is inserted, “• No Commo Interface module detected” message appears on the screen.

Refer to the module instruction manual for details of the settings.

Viewing Conditional Access Menu (\*)

(*) These menu settings may change depending on the service provider.

Press "MENU" button and select the icon by using "◀" or "▶" button. Press OK button to view Settings menu. Use "▼" or "▲" button to highlight Conditional Access and press OK to view menu items.

Configuring Language Preferences

You can operate the TV's language settings using this menu.

Press "MENU" button and select the fifth icon by using "◀" or "▶" button. Press OK button to view Settings menu. Use "◀" or "▶" button to highlight Language and press OK to continue:

Language Settings Menu English Preferred - Audio English - Subtitle English - Teletext-West - Guide English Current - Audio None - Subtitle None Set the language used in menus MENU Exit

Use "▼or " " button to set an item. Settings are stored automatically.

Menu: displays the system language.

Preferred

These settings will be used if available. Otherwise the current settings will be used.

Audio• : Sets the preferred audio language.

• Subtitle: Sets the subtitle language. Selected language will be seen in subtitles.
• Teletext: Sets teletext language.

Guide• : Sets the preferred Guide language.

Current (\*)

(*) These settings can be changed if only the broadcaster supports. Otherwise, settings will not be available to be changed.

Audio: Changes the audio language for the current channel.

- Subtitle: Sets the subtitle language for the current channel.

Note: If the Country option is set to Denmark, Sweden, Norway or Finland, the Language Settings menu will function as described below:

Language Settings

Language Settings Preferred Menu English > Primary Audio Language English Secondary Audio Language Swedish Primary Subtitle Language English Secondary Subtitle Language Swedish Primary Teletext Language Finnish Secondary Teletext Language Swedish Guide Finnish Set the language used in menus MENU Exit

In the configuration menu, highlight the Language Settings item by pressing “▼or “” Buttons. Press OK and Language Settings submenu will be displayed on the screen:

Use “▼” or “▲buttons to highlight the menu item that will be adjusted and then press ◀” or “▼” button to set.

Notes:

System Language determines the on-screen menu language.

Audio Language is used for selecting the soundtrack of a channels.

Primary settings are the first priority when multiple choices are available on a broadcast. Secondary settings are the alternatives when the first options are not available.

Parental Control

To prohibit viewing of certain programmes, channels and menus can be locked by using the parental control system.

This function enables or disables the menu protection system and allows the PIN code to be changed.

Press "MENU" button and select the icon by using "◀" or "▶" button. Press OK button to view Settings menu. Use "▼" or " " " button to highlight Parental and press OK to continue:

Enter PIN

To display parental lock menu options, PIN number should be entered. Factory default PIN number is 0000. After coding the correct PIN number, parental settings menu will be displayed:

Parental Settings Menu lock << Off > Maturity Lock Off Child Lock Off Set PIN **** Select Setting Change Value RETBACK Back MENU Exit

Parental Settings Menu Operation (\*)

Select an item by using “▼” or “▲button.”

Use “◀” or “▶” button to set an item.

Press• OK button to view more options.

(*) If you set Country option as UK in the first time installation, Maturity Lock option will not be visible. This setting is available only for EU countries.

Menu Lock (optional): Menu lock setting enables or disables the menu access. You can disable access to the installation menu or the whole menu system.

Maturity Lock (optional): When set, this option gets the maturity information from the broadcast and if this maturity level is disabled, disables access to the broadcast.

Child Lock (optional): When Child Lock is set, the TV can only be controlled by the remote control. In this case the control panel buttons will not work, except for the Standby/On button. When Child Lock is activated you are able to switch the TV into Standby mode with the Standby/On button. To switch the TV on again, you need the remote control. Hence, if one of those buttons is pressed, Child Lock Is On will be displayed on the screen when the menu screen is not visible.

Set PIN: Defines a new PIN number. Use numeric buttons to enter a new pin number. You will need to code your new pin a second time for verification purposes.

IMPORTANT: The factory default pin number is 0000, if you change the pin number make sure you write it down and keep it safe.

Timers

To view Timers menu, press "MENU" button and select Settings icon by using◀" or ▶" button. Press OK button to view Settings menu. Use "▼" or "▲" button to highlight Timers and press OK to continue:

Setting Sleep Timer

This setting is used for setting the TV to turn off after a certain time.

Highlight Sleep Timer by using “▼” or “▲button.”

Use “◀” or ▶” button to set. The timer can be programmed between Off and 2.00 hours (120 minutes) in steps of 30 minutes.

Setting Programme Timers

You can set programme timers for a particular programme using this feature.

• Press YELLOW button on the remote control to add a timer.
• Note: YELLOW button works only when the TV is in digital mode.

Timer Type: This feature is unavailable to be set.

Channel: Changes channel by using “◀” or “▶”.

Date: Enter a date using the numeric buttons.

Start: Enter a starting time using the numeric buttons.

End: Enter an ending time using the numeric buttons.

Duration: Displays duration between the starting and ending time.

Repeat: Sets a timer to be repeated as Once, Daily or Weekly. Use “◀” or “▶” buttons to select an option.

Change/Delete: Controls parental settings on timers.

- Press GREEN button to save the timer. Press RED button to cancel.

Editing a Timer

• Select the timer you want to edit by pressing “▼” or “▲button.
• Press GREEN button. Edit Timer menu screen will be displayed.
• When finished with editing, press GREEN button to save. You can press "MENU" button to cancel.

Deleting a Timer

• Select the timer you want to delete by pressing “▼” or “▲button.
• Press RED button.
• Select YES by using “◀” or ▶ buttons to delete the timer. Select NO to cancel.

Configuring Date/Time Settings

Select Date/Time in the Settings menu to configure Date/Time settings. Press OK button.

Date/Time Settings Date 07/06/2007 Time 20:26 Time Settings Mode < Auto > Time Zone GMT + 01:00 Change Value REBACK Back MENU Exit

- Use “▼” or “▲” buttons to highlight Date/Time.

Date, Time, Time Settings Mode and Time Zone Setting will be available.

Use “▲” or “▼” buttons to highlight the Time Settings Mode. Time Settings Mode is set using “” or “” buttons. It can be set to AUTO or MANUAL.

When AUTO is selected, Date/Time and Time Zone options will not be available to be set. If MANUAL option is selected as the Time Zone can be altered:

- By pressing “▲” or “▼buttons select Time Zone.

Use “◀” or ▶” buttons to change the Time Zone between GMT-12 or GMT+12. Date/Time on the top of the menu list will then change according to the selected Time Zone.

- Changes are automatically stored. Press "MENU" to exit.

Configuring Source Settings

You can enable or disable selected source options. The TV will not switch to the disabled source options when "SOURCE" button is pressed.

Source Settings TV EXT1 EXT2 EXT2-S SIDE AV HDMI1 HDMI2 YPbPr VGA/PC < Enabled > Enabled Enabled Enabled Enabled Enabled Enabled Enabled Enabled Navigate < Change Value RETBACK Back MENU Exit

- Select Sources in the Settings menu and press OK button.

Press▼▼ or "▲buttons to select a source.

Use “◀” or “▶” button to enable or disable the selected source. Changes are automatically stored.

Configuring Other Settings

To view general configuration preferences, select Other Settings in the Settings menu and press OK button.

Other Settings Menu Timeout 60 sec > Scan Encrypted Channels Yes Blue Background Off Software upgrade V.0.2.7 Application Version V.0.2.7 Hard Of Hearing Off Audio Description Off Auto TV OFF 4 h Broadcast Type Digital Aerial Standby Search Off Country : UK Change Value MENU Exit

Operation

Press “▼” or “▲buttons to select an item.

Use “◀” or “▶” button to set an option.

- Press OK button to view a sub-menu.

Menu Timeout: Changes timeout duration for menu screens.

Scan Encrypted Channels: When this setting is set as YES, search process will locate the encrypted channels as well. If it is set as NO, encrypted channels will not be located in automatic search or manual search.

Blue Background: Activates or deactivates blue background system when the signal is weak or absent.

Software Upgrade: To ensure that your TV always has the most update information, you can use this setting. In order for the proper operation, please ensure that the TV is set to standby mode.

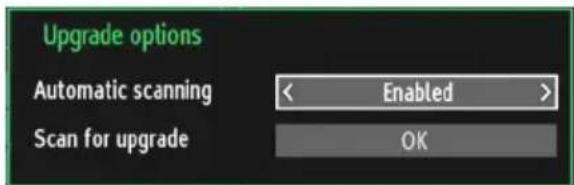

Upgrade options Automatic scanning < Enabled > Scan for upgrade OK

You can enable or disable automatic upgrade by setting Automatic Scanning option.

You can manually search for new software by selecting Scan for upgrade.

Application version: Displays the current application version.

Hard of Hearing: If the broadcaster enables any special signal concerning the audio, you can set this setting as On to receive such signals.

Audio Description: Audio description refers to an additional narration track for blind and visually impaired viewers of visual media, including television and movies. The description narrator talks through the presentation, describing what is happening on the screen during the natural pauses in the audio (and sometimes during dialogue, if deemed necessary). You can use this feature, only if the broadcaster supports that additional narration track.

Audio Description Audio Description << Off > Available Languages eng Preferred Language English Relative Volume 50

Auto TV Off: You can set the timeout value of auto off feature. After the timeout value is reached and the Tv is not operated for selected time, the TV will go off.

Broadcast Type:

When you set the desired broadcast type by using "or ▶" button, the TV will display the related channel list. If the related source has does not include any stored channels, "No channels for this type have been found." message will be displayed on the screen.

Standby Search (optional): Use “▼” or “▲button to select Standby Search and then press◀” or “▶” button to set this setting as On or Off. If you change Standby Search to Off, this function will be unavailable. To use Standby search please make sure that you select Standby Search as On.

Other Features

Displaying TV Information: Programme Number, Programme Name, Sound Indicator, time, teletext, channel type and resolution information is displayed on the screen when a new programme is entered or "INFO" button is pressed.

Mute Function: Press "×" button to disable sound. Mute indicator will be displayed in the upper side of the screen. To cancel mute, there are two alternatives: the first one is pressing the × button and the second one is increasing the volume level.

Picture Mode Selection: By pressing PRESETS button, you can change Picture Mode settings in accordance with your viewing requirements. Available options are Dynamic, Natural, Cinema and Game.

Displaying Subtitles: If there is any subtitle information available in the broadcast, you can enable subtitles by pressing the SUBTITLE button of the remote control. Press LANG button to select subtitle language and press SUBTITLE button to display available subtitles.

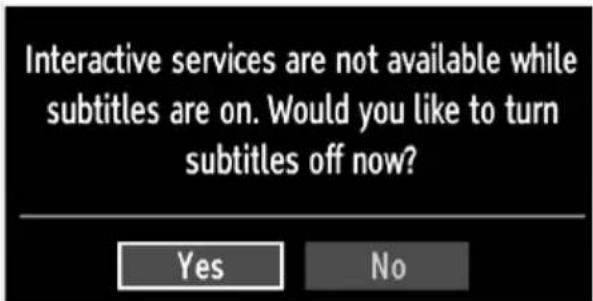

If "Subtitle" is On, pressing the ☐ button causes the following warning message display on the screen (** for UK only)

Interactive services are not available while subtitles are on. Would you like to turn subtitles off now? Yes No

Teletext

Teletext system transmits information such as news, sports and weather on your TV. Note that is the signal degrades, for example in poor/adverse weather conditions, some text errors may occur or the teletext mode may be aborted.

Teletext function buttons are listed below:

“=” Teletext / Mix: Activates teletext mode when pressed once. Press again to place the teletext screen over the programme (mix).Pressing again will quit the teletext mode.

"RETURN" Index: Selects the teletext index page.

"INFO" Reveal: Shows hidden information (e.g. solutions of games).

"OK" Hold: Holds a text page when convenient. Press again to resume.

“◀”/“▶” Subcode Pages: Selects subcode pages if available when the teletext is activated.

P+ / P- and numbers (0-9): Press to select a page.

Note: Most TV stations use code 100 for their index pages.

Coloured Buttons (RED/GREEN/YELLOW/BLUE)

Your TV supports both FASTEXT and TOP text systems. When these systems are available, the pages are divided into groups or topics. When FASTEXT system is available, sections in a teletext page will become colour-coded and can be selected by pressing the coloured buttons. Press a coloured button that corresponds to with your needs. The coloured writings will appear, showing you which coloured buttons to use when TOP text transmission is present. Pressing “▼” or “▲” commands will request the next or previous page respectively.

Tips

Screen Care: Clean the screen with a slightly damp, soft cloth. Do not use abrasive solvents as they may damage the coating layer of the TV screen. For your safety, unplug the mains plug when cleaning the set. When moving the TV, hold it properly from the bottom part.

Image Persistence: Please note that ghosting may occur while displaying a persistent image.LED TVs' image persistence may disappear after a short time. Try turning off the TV for a while.

To avoid this, do not leave the screen in still picture for extended periods.

No Power: If your TV system has no power, please check the main power cable and connection to the mains socket outlet.

Poor Picture: Have you selected the correct TV system? Is your TV set or house aerial located too close to a non-earthed audio equipment or neon lights, etc.? Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial. Is the picture or teletext unrecognisable? Check if you have entered the correct frequency. Please retune the channels. The picture quality may degrade when two peripherals are connected to the TV at the same time. In such a case, disconnect one of the peripherals.

No Picture: Is the aerial connected properly? Are the plugs connected tightly to the aerial socket? Is the aerial cable damaged? Are suitable plugs used to connect the aerial? If you are in doubt, consult your dealer. No Picture means that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more. Also make sure the correct input source has been selected.

Sound: You can not hear any sound. Did you perhaps interrupt the sound, pressing the "X" button? Sound is coming from only one of the speakers. Is the balance set to one extreme? See Sound Menu.

Remote Control: Your TV no longer responds to the remote control. Perhaps the batteries are exhausted. If so you can still use the local buttons on the TV.

Input Sources: If you cannot select an input source, it is possible that no device is connected. Check the AV cables and connections if you have tried to connect a device.

Appendix A: PC Input Typical Display Modes

The display has a maximum resolution of 1920 x 1200. The following table is an illustration of some of the typical video display modes. Your TV may not support different resolutions. Supported resolution modes are listed below. If you switch your PC to an unsupported mode, a warning OSD will appear on the screen.

Index	Resolution	Frequency
1	640x400	70Hz
2	640x480	60Hz
3	640x480	72Hz
4	640x480	75Hz
5	800x600	56Hz
6	800x600	60Hz
7	800x600	70Hz
8	800x600	72Hz
9	800x600	75Hz
10	1024x768	60Hz
11	1024x768 70Hz
12	1024x768	72Hz
13	1024x768	75Hz
14	1152x864	75Hz
15	1280x768	60Hz
16	1360x768	60Hz
17	1280x768	75Hz
18	1280x960	60Hz
19	1280x960	75Hz
20	1280x1024	60Hz
21	1280x1024	75Hz
22	1400x1050	60Hz
23	1600x1200	60Hz
24	1920x1080	60Hz
25	1920x1200	60Hz

Appendix B: AV and HDMI Signal Compatibility (Input Signal Types)

Source	Supported Signals		Available
EXT-1(SCART-1)	PAL 50/60 O
	NTSC 60 O
	RGB 50 O
	RGB 60 O
EXT-2(SCART-2)	PAL 50/60 O
	NTSC 60 O
	RGB 50 X
	RGB 60 X
SIDE AV	PAL 50/60 O
	NTSC 60 O
YPbPr	480I 60Hz O
	480P 60Hz O
	576I 50Hz O
	576P 50Hz O
	720P 50Hz O
	720P 60Hz O
	1080I 50Hz O
	1080I 60Hz O
	1080P 50Hz O
	1080P 60Hz O
HDMI1HDMI2	480I 60Hz O
	480P 60Hz O
	576I 50Hz O
	576P 50Hz O
	720P 50Hz O
	720P 60Hz O
	1080I 50 Hz O
	1080I 60 Hz O
	1080P 50Hz O
	1080P 60Hz O
	1080P 24Hz O

(X: Not Available, O: Available)

In some cases a signal on the LED TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

Appendix C: Supported DVI Resolutions

When connecting devices to your TV's connectors by using DVI converter cables (not supplied), you can refer to the following resolution information.

Index	Resolution	Frequency
1	640x400	70Hz
2	640x480	60Hz
3	640x480	72Hz
4	640x480	75Hz
5	800x600	56Hz
6	800x600	60Hz
7	800x600	70Hz
8	800x600	72Hz
9	800x600	75Hz
10	1024x768	60Hz
11	1024x768	70Hz
12	1024x768	72Hz
13	1024x768	75Hz
14	1152x864	75Hz
15	1280x768	60Hz
16	1360x768	60Hz
17	1280x768	75Hz
18	1280x960	60Hz
19	1280x960	75Hz
20	1280x1024	60Hz
21	1280x1024	75Hz
22	1400x1050	60Hz
23	1600x1200	60Hz
24	1920x1080	60Hz
25	1920x1200	60Hz
26	480p 60Hz
27	576p 50Hz
28	720p 50Hz
29	720p 60Hz
30	1080i 50Hz
31	1080i 60Hz
32	1080p 24Hz
33	1080p 25Hz
34	1080p 30Hz
35	1080p 50Hz
36	1080p 60Hz

Appendix D: Supported File Formats for USB Mode

Media	File Extension	Format		Remarks
		Video	Audio	(Maximum resolution/Bit rate etc.)
Movie	.mpg, .mpeg	MPEG1, 2 MPEG Layer 1/2/3		MAX 1920x1080 @ 30P 20Mbit/sec
	.dat MPEG1, 2		MPEG2
	.vob MPEG2
	.mkv H.264, MPEG1,2,4 EAC3 / AC3
	.mp4	MPEG4, Xvid 1.00,Xvid 1.01, Xvid 1.02, Xvid 1.03,Xvid 1.10-beta1/2 H.264	PCM/MP3
	.avi	MPEG2, MPEG4 PCM/MP3		MAX 1920x1080 @ 30P 20Mbit/sec
		Xvid 1.00, Xvid 1.01, Xvid 1.02,Xvid 1.03, Xvid 1.10-beta1/2H.264	PCM
Music .mp3 - MPEG 1 Layer 1 / 2 (MP3)				32Kbps ~ 320Kbps(Bit rate)32KHz ~ 48KHz(Sampling rate)
Photo	.jpg .jpeg	Baseline JPEG max WxH = 15360x8640		4147200bytes
		Progressive JPEG max WxH = 1024x768		6291456bytes
	.bmp - max WxH = 9600x6400 3840000bytes
Subtitle	.sub	-		-
	.srt

Appendix E: Software Upgrade

• Your TV is capable of finding and updating new software upgrades over broadcast channels.
• For broadcast channels search, TV looks the available channels stored in your settings. So before software upgrade search, it is advised to auto search and update all available channels.

1) Software upgrade search via user interface

• It is possible manually to check if there is a new software upgrade for your TV set.
• Simply navigate on your main menu. Choose Settings and select Other Settings menu. In Other Settings menu navigate on to the Software Upgrade item and press OK button to open Upgrade Options menu.
• In Upgrade Options menu select Scan for upgrade and press OK button.
• If a new upgrade is found, it starts to download the upgrade. A progress bar indicates the remaining download progress. When download completes with success a message is displayed for reboot to activate new software. Press OK to continue with the reboot operation.

2) 3.AM search and upgrade mode

- If Automatic scanning in Upgrade Options menu is enabled, TV wakes up at 03:00 and searches broadcast channels for new software upgrade. If new software is found and downloaded successfully, with next power up TV opens with new software version.

Note on reboot operation: Reboot is the last step in software upgrade operation if download of new software is finished successfully. During reboot TV makes final initializations. In reboot sequence panel power is closed and front led indicates the activity with blinking. Around 5 minutes later TV restarts with new software activated.
- If your TV fails to restart in 10 minutes, unplug power for 10 minutes and re-plug again. TV should open with new software safely. If you still can not get TV working, please kindly repeat unplug and plug sequence a few times more. If your set still can not operate, please call the service personnel to fix the problem for you.

Caution: While led is blinking during reboot do not unplug your TV's power. Doing this may cause your TV not to re-open again and can only be fixed by service personnel.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Products

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Battery

Information for Users on Disposal of Old Equipment and Batteries

[European Union only]

These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

Specifications

TV BROADCASTING

PAL/SECAM B/G D/K K' I/I' L/L'

RECEIVING CHANNELS

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

NUMBER OF PRESET CHANNELS

1000

CHANNEL INDICATOR

On Screen Display

RF AERIAL INPUT

75 Ohm (unbalanced)

OPERATING VOLTAGE

220-240V AC, 50 Hz.

AUDIO

German + Nicam Stereo

AUDIO OUTPUT POWER ( W_RMS. ) (10% THD)

2×8

POWER CONSUMPTION (W)

135 W (max)

PANEL

16:9 display, 46" Screen Size

DIMENSIONS (mm)

DxLxH (With foot): 221,5 x 1089 x 695

Weight (Kg): 17,75

DxLxH (Without foot): 40 x 1089 x 658

Weight (Kg):16,00

Digital Reception (DVB-T)

Transmission Standards:

DVB-T, MPEG2, DVB-T, MPEG4 HD

I. DEMODULATION

Symbol rate: COFDM with 2K/8K FFT mode.

Modulation: 16-QAM - 64-QAM FEC for all DVB • modes (automatically found)

MHEG-5 ENGINE compliant with ISO/IEC 13522-5 • UK engine Profile (UK only)

Object carousel support compliant with ISO/IEC • 135818-6 and UK DTT profile(UK only)

Frequency range: 474-850 MHz for UK models•

II. VIDEO

H.264 (MPEG-4 part 10) main and high profile level • 4.1/MPEG-2 MP@HL video decoder.

HD display multi format capable (1080i, 720p, •576p)

CVBS analogue output.(In HD channels, this will not be available

III. AUDIO

MPEG-1 layer I/II, MPEG-2 layer II, AAC, HEAAC, AC3, E-AC3

Sampling frequencies supported are 32, 44.1 & • 48 kHz

Digital Reception (DVB-C)

Transmission Standards:

DVB-C, MPEG2, DVB-C, MPEG4

I. DEMODULATION

Symbolrate: 4.0 Msymbols/s to 7.2 Msymbols/s•

Modulation: 16-QAM, 32-QAM, 64-QAM, 128-QAM and 256-QAM

II. VIDEO

All MPEG2 MP@ML formats with up-conversion and filtering to CCIR601 format.

CVBS analogue output•

III. AUDIO

All MPEG1 Layer 1 and 2 modes•

Sampling frequencies supported are 32, 44.1 & • 48 kHz.

Table des matières

Fonctions 69

Introduction 69

Préparation 69

Safety warning symbol showing a faucet above a tablet screen with crossed-out lines indicating prohibition or exclusion.

Ventilation

Weather and household climate diagram showing solar, rain, and heating elements with directional arrows

Close-up of a black, yellow, and red audio/video cable with two connectors (no text or symbols visible)

3D diagram of a battery inside a mechanical housing with an arrow indicating rotation (no text or symbols)

Sine Bias SINCHINESE TEST

Color test monitor with grid background and a circular overlay showing a color swatch (no readable text or symbols)

14:9 Zoom

145.7mm 0.00000000000

Computer monitor displaying a grayscale color calibration interface with a circular overlay of a color swatch (no readable text or symbols)

Panoramique

Ferrant C

Pure electrical circuit lines without any symbols

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Produits

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Batterie

PAL/SECAM B/G D/K K' I/I' L/L'

RÉCEPTION DE CANAUX

VHF (BANDE I/III)

UHF (BANDE U)

HYPERBANDE

NOMBRE DE CANAUX PRÉRÉGLÉS

1000

INDICATEUR DE CHAÎNE

Affichage à l'écran

ENTRÉE D'ANTENNE RF

German + Nicam Stéréo

PUISSANCE DE SORTIE AUDIO (WRMS.) (10% THD)

2×8

CONSOMMATION ÉLECTRIQUE (W)

135 W (max)

PANNEAU

Blank document page with a barcode bar at the bottom right corner, containing machine-readable data.
