USER MANUAL STR-DE485 SONY

FM Stereo FM-AM Receiver

Operating Instructions

GB

Owner's Record

The model and serial numbers are located on the rear panel. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product.

Model No. STR-DE585/DE485E/DE485 Serial No.

STR-DE585 STR-DE485E STR-DE485

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To prevent fire, do not cover the ventilation of the apparatus with newspapers, table-cloths, curtains, etc. And don't place lighted candles on the apparatus.

To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.

Don't throw away the battery with general house waste, dispose of it correctly as chemical waste.

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

For customers in the United States

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (ON BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

CAUTION

You are cautioned that any changes or modification not expressly approved in this manual could void your authority to operate this equipment.

Note to CATV system installer:

This reminder is provided to call CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

For customers in Canada

CAUTION

TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS POLARIZED AC PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

ENERGY STAR ^® is a U.S. registered mark.

As an ENERGY STAR ^® partner, Sony Corporation has determined that this product meets the ENERGY STAR ^® guidelines for energy efficiency.

This receiver incorporates Dolby* Digital and Pro Logic Surround and the DTS** Digital Surround System.

* Manufactured under license from Dolby Laboratories.

“Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.

**“DTS” and “DTS Digital Surround” are registered trademarks of Digital Theater Systems, Inc.

Table of Contents

List of Button Locations and Reference Pages

Main unit 5

Hooking Up the Components

Required cords 6

Antenna hookups 7

Audio component hookups 8

Video component hookups 9

Digital component hookups...... 10

Multi channel input hookups ^1) ..... 11

Other hookups 12

Hooking Up and Setting Up the Speaker System

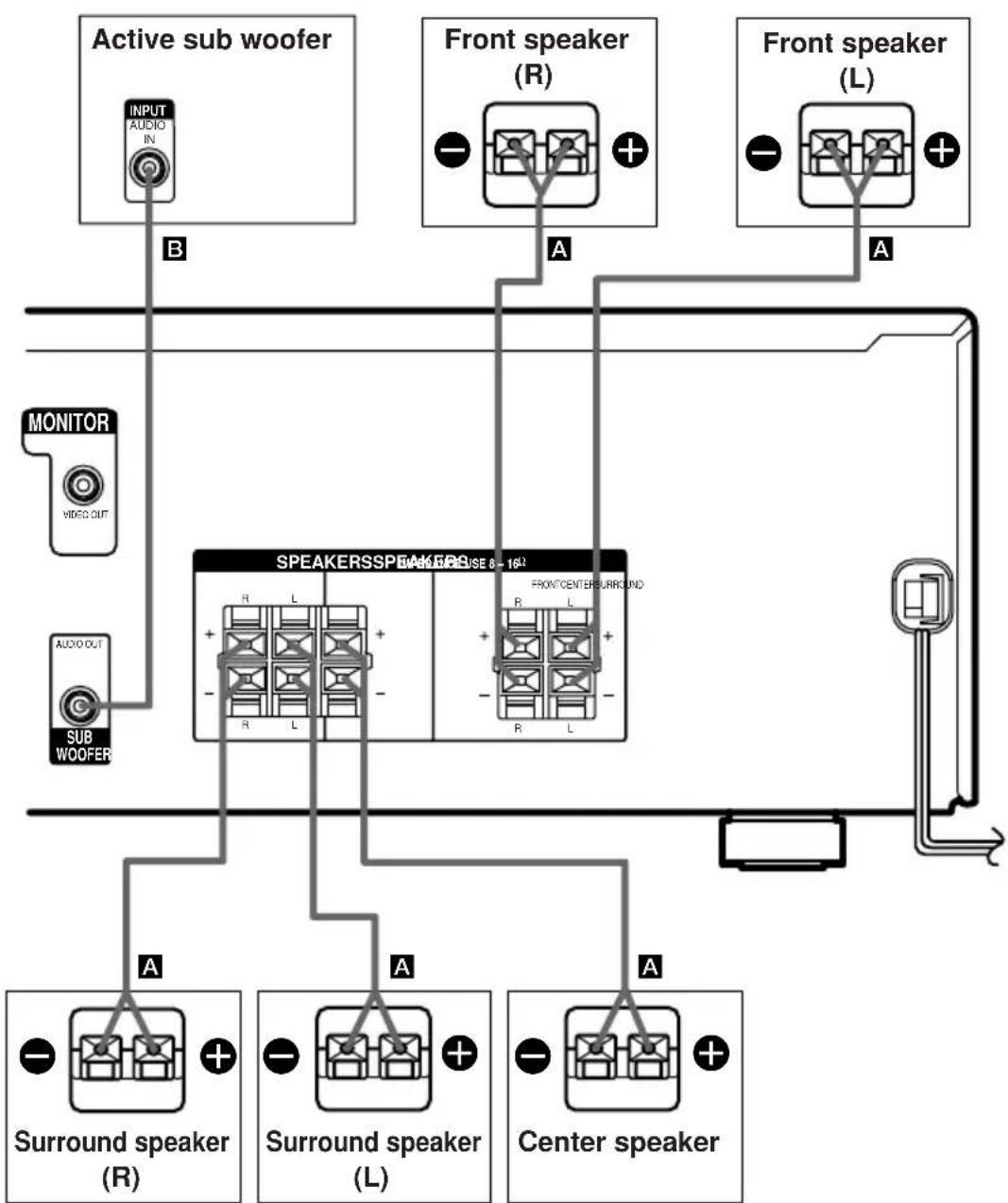

Speaker system hookups 13

Performing initial setup operations ..... 15

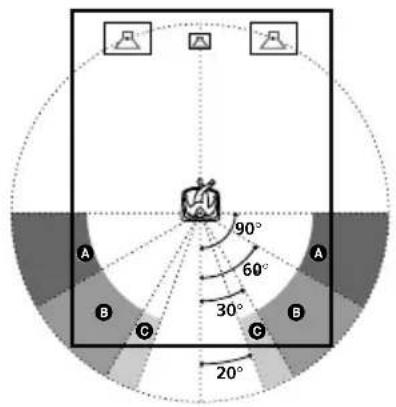

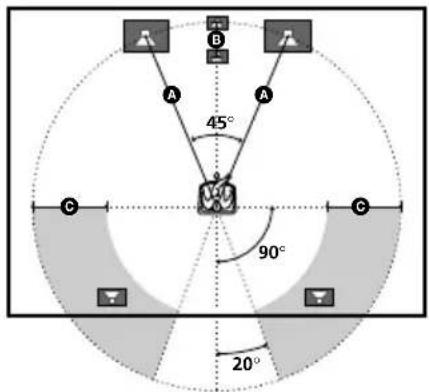

Multi channel surround setup ...... 15

Checking the connections ...... 20

Basic Operations

Selecting the component 21

Changing the display 22

Enjoying Surround Sound

Automatically decoding the input audio signal 23

Selecting a sound field 23

Using only the front speakers (2 Channel Stereo).... 25

Enjoying stereo sound in multi channel (Dolby Pro Logic II).... 25

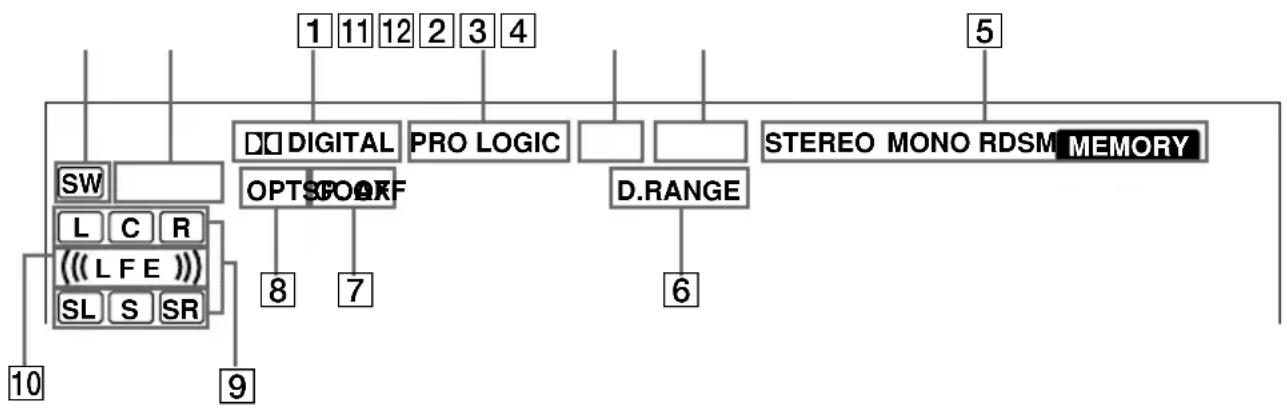

Understanding the multi channel surround displays 26

Customizing sound fields 27

Receiving Broadcasts

Storing FM stations automatically (AUTOBETICAL) ^2) ..... 30

Direct tuning 30

Automatic tuning 31

Preset tuning 31

Using the Radio Data System (RDS) ^2) .... 33

Other Operations

Naming preset stations and program sources .... 35

Recording 35

Using the Sleep Timer 36

Adjustments using the SET UP button 36

Operations Using the Remote RM-PP506 ^3)

Before you use your remote 38

Remote button description.... 38

Selecting the mode of the remote ..... 41

Programming the remote 42

Operations Using the Remote RM-U306 ^4)

Before you use your remote 45

Remote button description...... 45

Changing the factory setting of a function button 48

Additional Information

Precautions 49

Troubleshooting.... 49

Specifications 52

Tables of settings using SURR, LEVEL, SET UP, BASS and TREBLE buttons 54

Adjustable parameters for each sound field 55

^1) STR-DE585 and STR-DE485 only
^2) Models of area code CEL, CEK only.
^3) For STR-DE585 area code CA only.
^4) Except for STR-DE585 area code CA.

About This Manual

The instructions in this manual are for models STR-DE585, STR-DE485E and STR-DE485. Check your model number by looking at the lower right corner of the front panel. In this manual, the STR-DE585 is used for illustration purposes unless stated otherwise. Any difference in operation is clearly indicated in the text, for example, "STR-DE485E only".

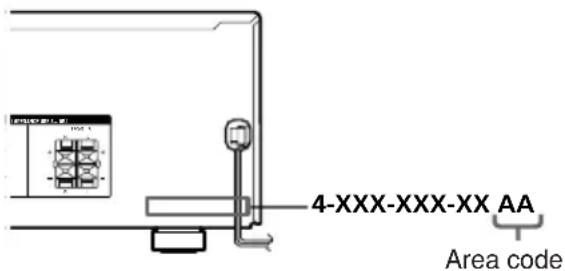

About area codes

The area code of the receiver you purchased is shown on the lower portion of the rear panel (see the illustration below).

4-XXX-XXX-XX AA Area code

Any differences in operation, according to the area code, are clearly indicated in the text, for example, “Models of area code AA only”.

Tip

The instructions in this manual describe the controls on the receiver. You can also use the controls on the supplied remote if they have the same or similar names as those on the receiver. For details on the use of your remote, see

• pages 38-44 for RM-PP506 (STR-DE585 area code CA only)
• pages 45-48 for RM-U306 (except for STR-DE585 area code CA)

Note for the supplied remote

For RM-PP506 (STR-DE585 area code CA only)

The VIDEO 3, TV/SAT, AUX, PHONO, AUDIO SPLIT, NIGHT MODE, EQ/TONE, ON SCREEN, /10, /11, /12, 3RD, 2ND ROOM and SOURCE buttons on the remote are not available.

For RM-U306 (STR-DE485E only)

The MULTI CH button on the remote is not available.

Demonstration Mode

The demonstration will activate the first time you turn on the power. When the demonstration starts, the following message appears in the display:

"NOW DEMONSTRATION MODE IF YOU FINISH DEMONSTRATION PLEASE PRESS POWER KEY WHILE THIS MESSAGE APPEARS IN THE DISPLAY THANK YOU"

To cancel the demonstration

Press I/⏻ to turn the receiver off while the above message is being displayed. The next time you turn the receiver on, the demonstration will not appear.

To view the demonstration

Hold down SET UP and press I/⏻ to turn on the power.

Notes

• Running the demonstration will clear the receiver's memory. For details on what will be cleared, see “Clearing the receiver's memory” on page 15.
• There will be no sound when the demonstration mode is activated.
• You cannot cancel demonstration if you did not press I/While the above message is being displayed. To cancel demonstration after the above message appears, press I/twice to activate the demonstration again. Then, press I/twhile the above message is being displayed.

How to use this page

Use this page to find the location of buttons that are mentioned in the text.

Illustration number

NAME

8 (35)

Name of button/part

↑

Reference page

Main unit

ALPHABETICAL ORDER

0 - 9

2 CH 26 (25)

A - D

A.DEC 28 (23-25)

AM (Except for models of area code CEL, CEK) 32 (30, 31)

BASS + / - 25 (29, 54)

CD 19 (21)

CINEMA STUDIO EX A, B, C 9 (23, 24)

Digital Cinema Sound (indicator) 12 (23)

DIMMER 37 (22)

DISPLAY 2 (22, 33, 51)

Display 11 (22)

DVD/LD 21 (21)

E-L

ENTER 29 (35)

FM (Except for models of area code CEL, CEK) 33 (30, 31)

FM/AM (Models of area code CEL, CEK only) 32 (30, 31)

FM MODE (Models of area code CEL, CEK only) 33, (Except for models of area code CEL, CEK) 34 (31)

INPUT MODE 15 (21)

IR (receptor) 4 (38, 45, 51)

LEVEL 10 (20, 27, 55)

M

MASTER VOLUME 23 (20, 49)

MD/TAPE 17 (21)

MEMORY 36 (30, 32)

MENU +/− 30 (16, 27, 35, 36)

MENU</>31(16,27,35,36)

MODE 27 (24, 50)

MULTI CHANNEL DECODING (indicator) (Except for STR-DE485E) 7 (21)

MULTI CH IN (Except for STR-DE485E) 14 (21)

MUTING 24 (21, 49)

N-S

NAME 8 (35)

PHONES (jack) 38 (21)

PRESET/PTY SELECT +/- (Models of area code CEL, CEK only) 3 (32, 33)

PRESET TUNING +/- (Except for models of area code CEL, CEK) 3 (32, 53)

PTY (Models of area code CEL, CEK only) 34 (33)

SET UP 6 (4, 16, 36, 54)

SHIFT 35 (32)

SLEEP (STR-DE485E only) 14 (36)

SURR 13 (27, 54)

T-Z

TREBLE +/- 16 (29, 54)

TUNER 22 (21, 30-32, 35)

TUNING +/- 5 (31)

VIDEO 1 18 (21)

VIDEO 2 20 (21)

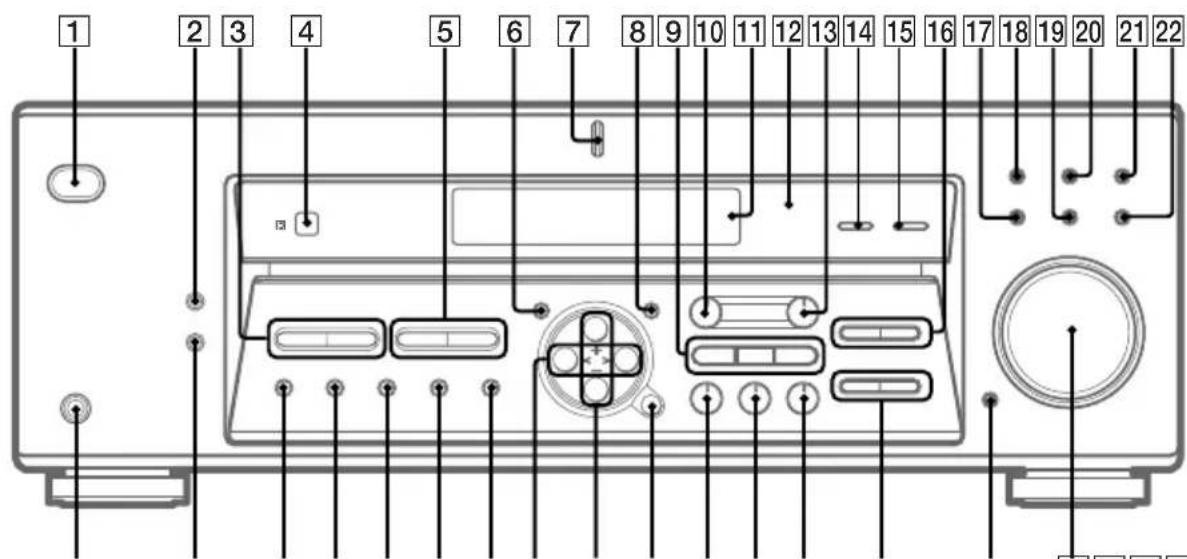

BUTTON DESCRIPTIONS

I/ ↓ (power) 1 (4, 15, 20, 29, 30, 53)

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

23 24 26 27 28 29 32 33 34 35

Required cords

A Audio cord (not supplied)

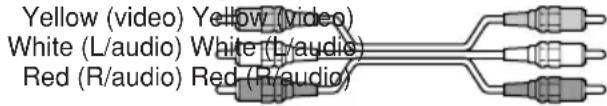

B Audio/video cord (not supplied)

Yellow (video) Yellow (video) White (L/audio) White (L/audio) Red (R/audio) Red (R/audio)

CVideo cord (not supplied)

DOptical digital cord (not supplied)

E Coaxial digital cord (not supplied)

F Monaural audio cord (not supplied)

Before you get started

• Turn off the power to all components before making any connections.
• Do not connect the AC power cord until all of the connections are completed.
• Be sure to make connections firmly to avoid hum and noise.
• Do not bend or tie the optical digital cord.

- When connecting an audio/video cord, be sure to match the color-coded pins to the appropriate jacks on the components: yellow (video) to yellow; white (left, audio) to white; and red (right, audio) to red.

- When you connect optical digital cords, insert the cord plugs straight in until they click into place.

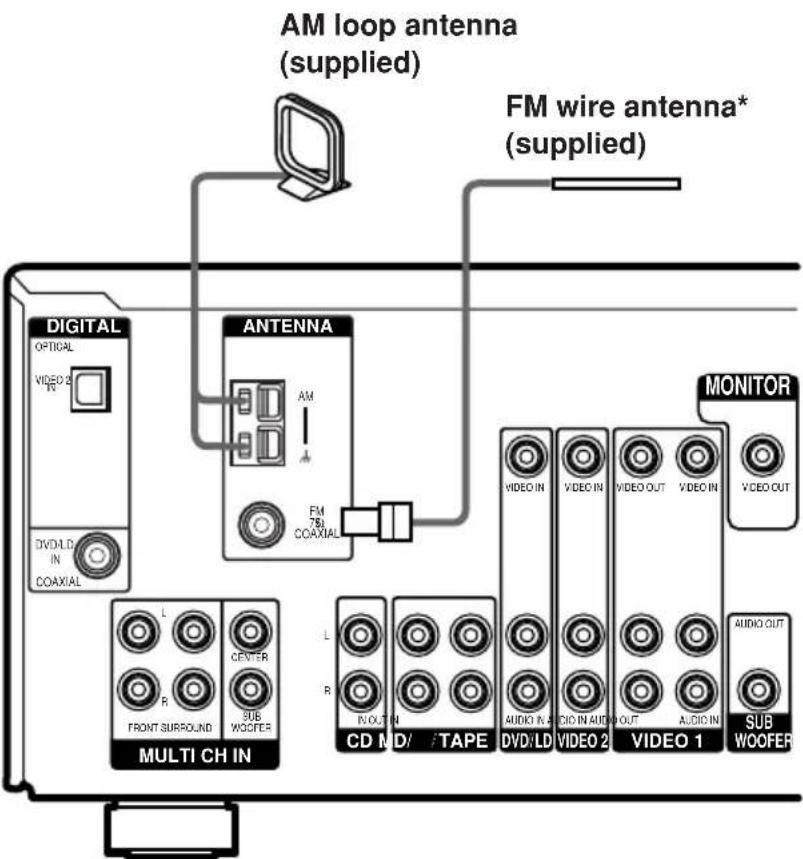

Antenna hookups

* The shape of the connector varies depending on the area code.

Notes on antenna hookups

• To prevent noise pickup, keep the AM loop antenna away from the receiver and other components.
- Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it as horizontal as possible.

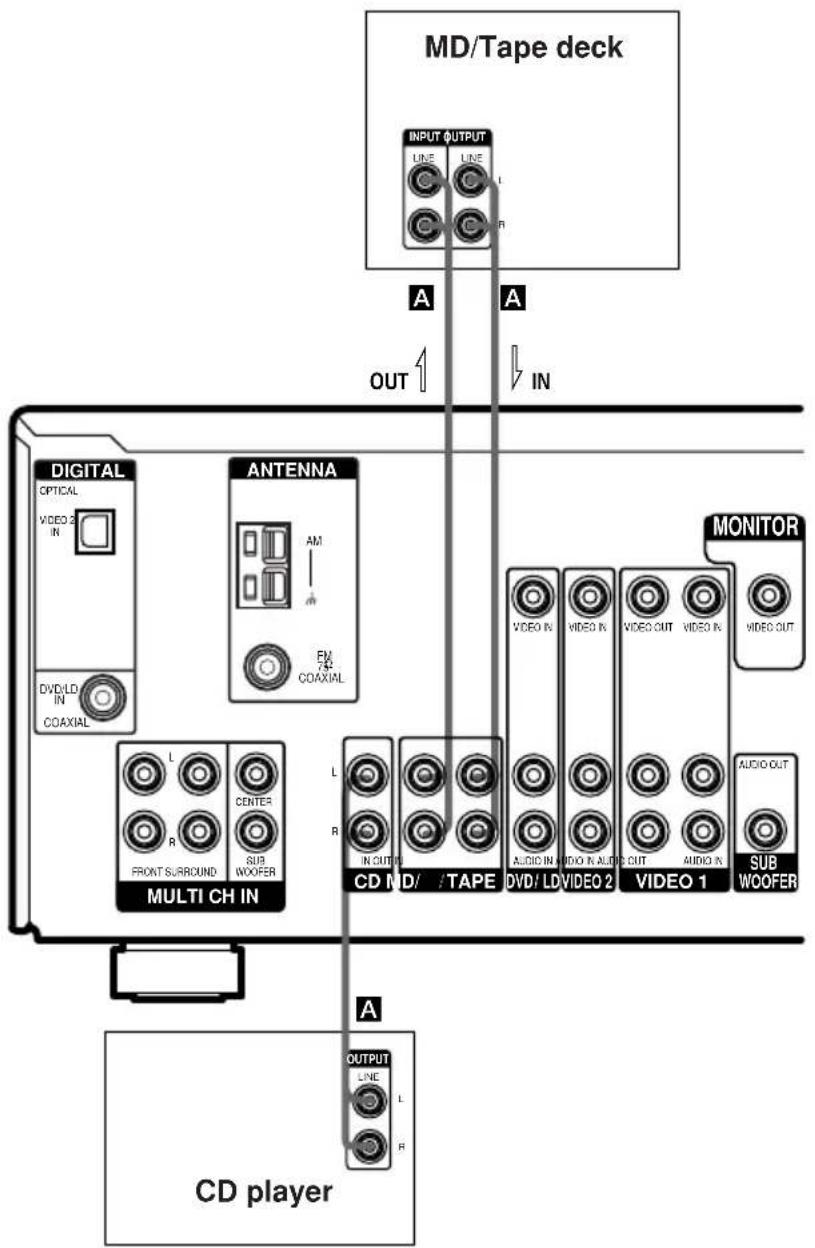

Audio component hookups


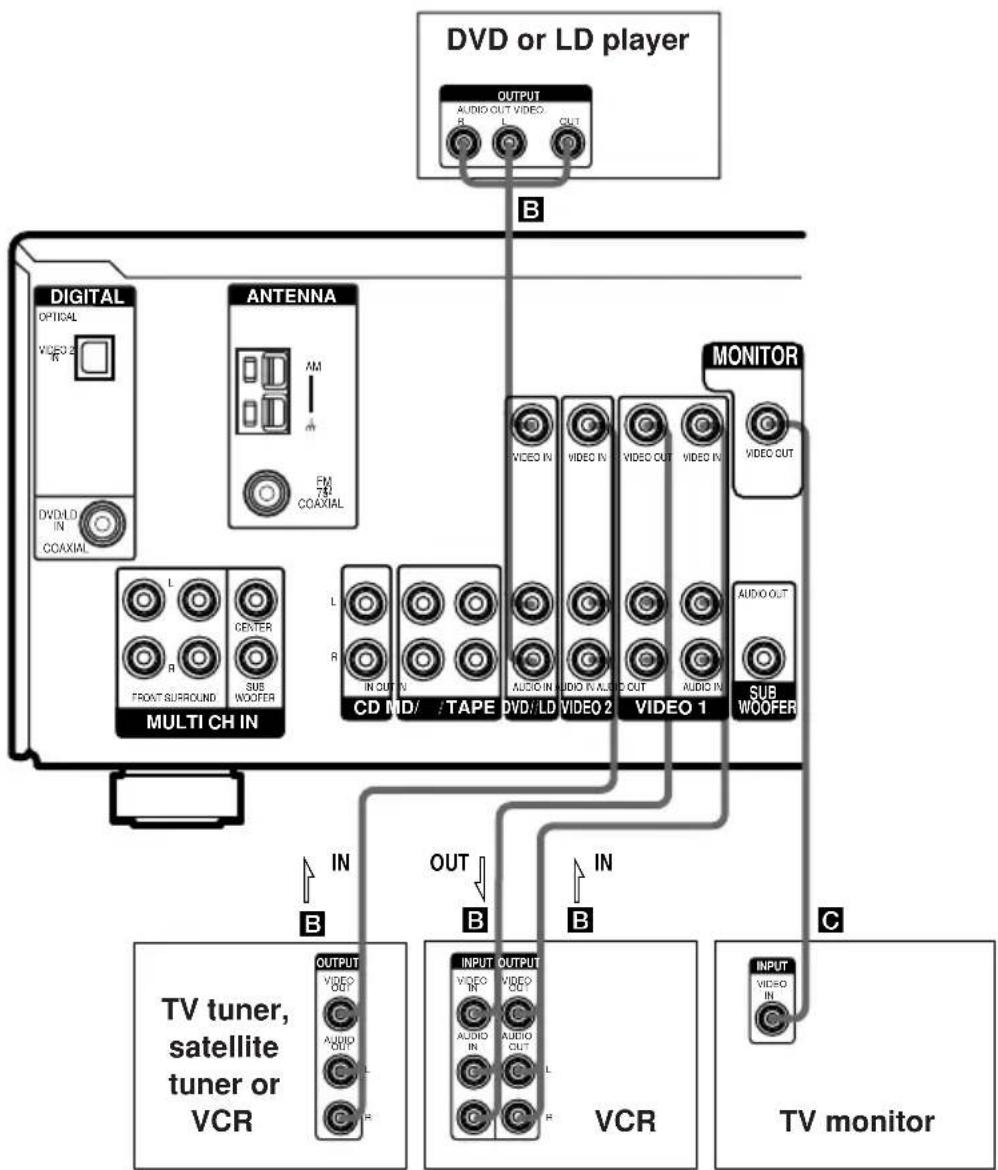

Video component hookups

Note on video component hookups

You can connect your TV's audio output jacks to the VIDEO 2 AUDIO IN jacks on the receiver and apply sound effects to the audio from the TV. In this case, do not connect the TV's video output jack to the VIDEO 2 VIDEO IN jack on the receiver. If you are connecting a separate TV tuner (or satellite tuner), connect both the audio and video output jacks to the receiver as shown above.

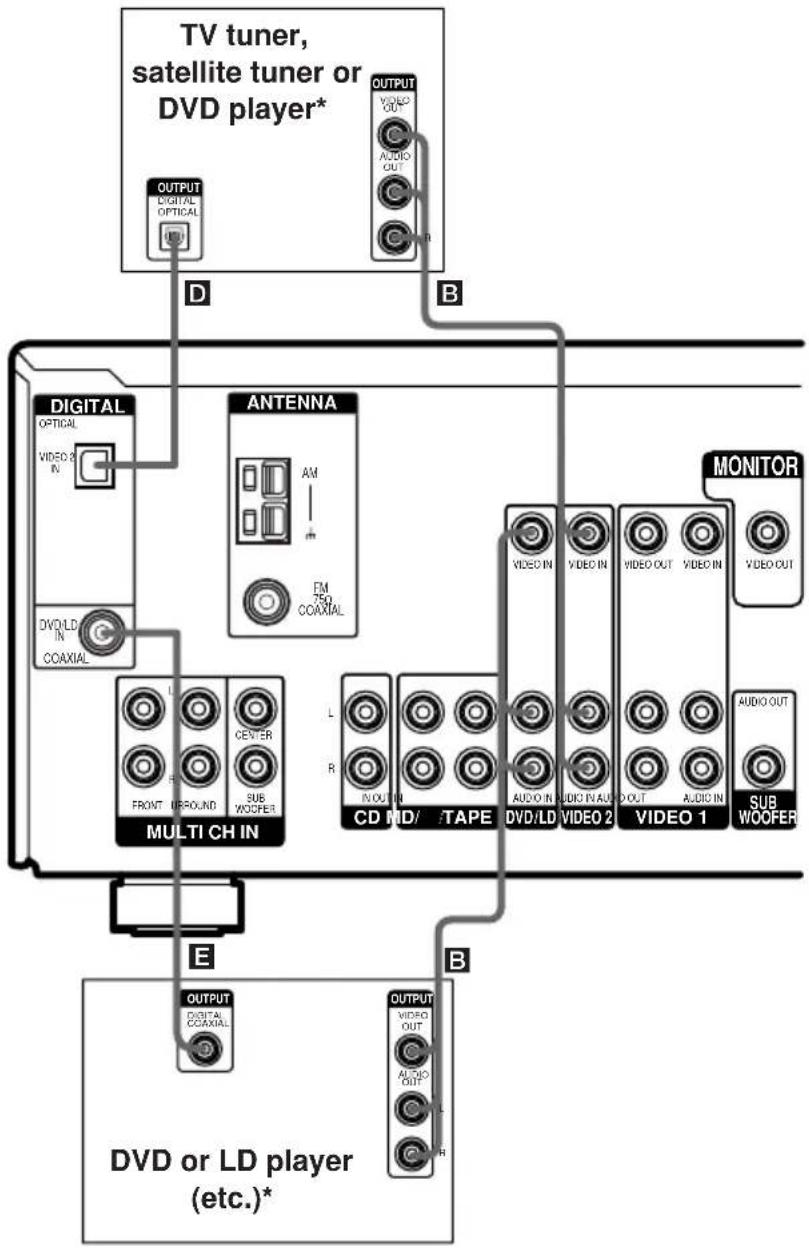

Digital component hookups

Connect the digital output jacks of your DVD player and satellite tuner (etc.) to the receiver's digital input jacks to bring the multi channel surround sound of a movie theater into your home. To fully enjoy multi channel surround sound, five speakers (two front speakers, two surround speakers, and a center speaker) and a sub woofer are required. You can also connect an LD player with an RF OUT jack via an RF demodulator, like the Sony MOD-RF1 (not supplied).

Notes

• You cannot connect an LD player's DOLBY DIGITAL RF OUT jack directly to this unit's digital input jacks. You must first convert the RF signal to either an optical or coaxial digital signal. For details, see "Troubleshooting" on page 49.
• All the OPTICAL and COAXIAL jacks are compatible with 96 kHz, 48 kHz, 44.1 kHz and 32 kHz sampling frequencies.

* Make either coaxial or optical connections. We recommend making coaxial connections instead of optical connections.

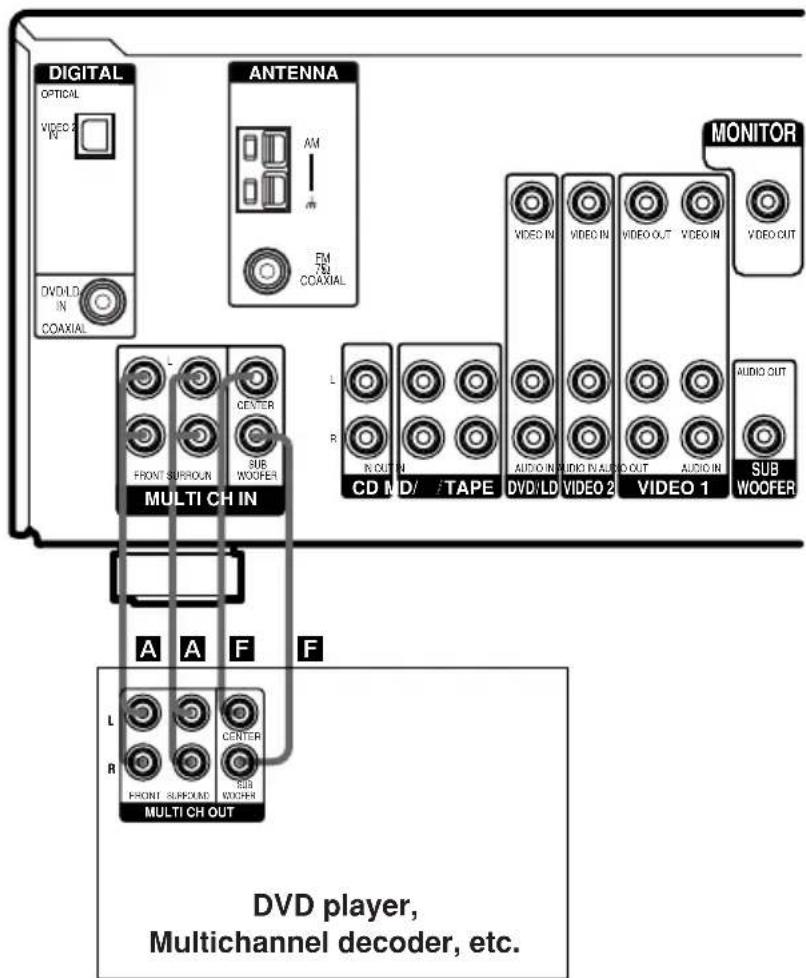

Multi channel input hookups

STR-DE585 and STR-DE485 only

Although this receiver incorporates a multi channel decoder, it is also equipped with multi channel input jacks. These connections allow you to enjoy multi channel software encoded in formats other than Dolby Digital and DTS. If your DVD player is equipped with multi channel output jacks, you can connect them directly to the receiver to enjoy the sound of the DVD player's multi channel decoder. Alternatively, the multi channel input jacks can be used to connect an external multi channel decoder.

To fully enjoy multi channel surround sound, five speakers (two front speakers, two surround speakers, and a center speaker) and a sub woofer are required. Refer to the operating instructions supplied with your DVD player, multi channel decoder, etc., for details on the multi channel hookups.

Notes

- When using the connections described below, adjust the level of the surround speakers and sub woofer from the DVD player or multi channel decoder.

• See page 13 for details on speaker system hookup.

DIGITAL OPTICAL VIDEO IV DVD/LO IN COAXIAL ANTENNA AM FM 70 COAXIAL MONITOR VIDEO IN VIDEO IN VIDEO OUT VIDEO IN VIDEO OUT R OUT R OUT CD MD/TAPE AUDIO IN AUDIO IN AUDIO OUT AUDIO IN AUDIO OUT SUB WOOFER A A F F L R FRONT SURROUND CENTER SUB WOOFER MULTI CH IN VIDEO 2 VIDEO 1 DVD/LD DVD/LO VIDEO 1 MULTI CH OUT L R FRONT SURROUND CENTER SUB WOOFER DVD player, Multichannel decoder, etc.

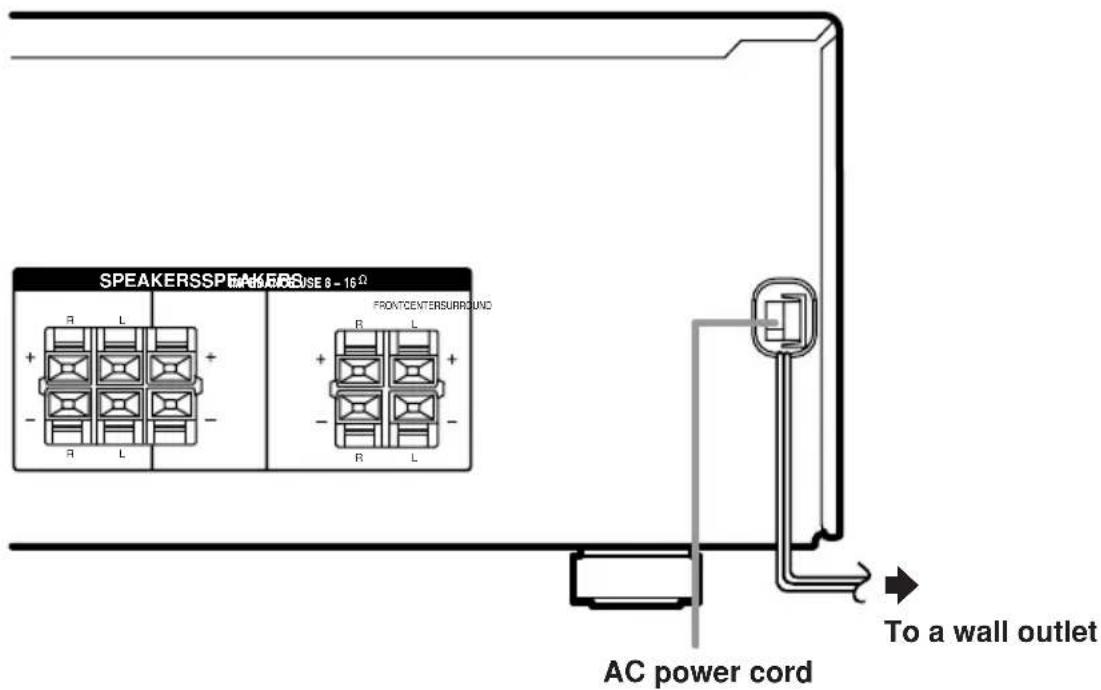

Other hookups

SPEAKERSSPEAKER AC Power Cord Use 8 - 16 Ω FRONT/CENTSURROUND R L R L R L R L AC power cord To a wall outlet

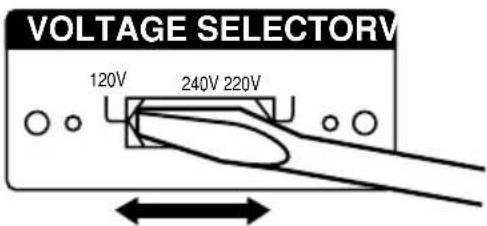

Setting the voltage selector

If your receiver has a voltage selector on the rear panel, check that the voltage selector is set to the local power supply voltage. If not, use a screwdriver to set the selector to the correct position before connecting the AC power cord to a wall outlet.

VOLTAGE SELECTORV 120V 240V 220V

Connecting the AC power cord

Before connecting the AC power cord of this receiver to a wall outlet, connect the speaker system to the receiver (page 13).

Connect the AC power cord(s) of your audio/video components to a wall outlet.

Speaker system hookups

Required cords

A Speaker cords (not supplied)
(+)
(一)

(+)
(一)

B Monaural audio cord (not supplied)
Black

Black

continued

Speaker system hookup (continued)

Notes

- Twist the stripped ends of the speaker cords about 10 mm (2/3 inch). Be sure to match the speaker cord to the appropriate terminal on the components: + to + and - to -. If the cords are reversed, the sound will be distorted and will lack bass.

- If you use speakers with low maximum input rating, adjust the volume carefully to avoid excessive output on the speakers.

To avoid short-circuiting the speakers

Short-circuiting of the speakers may damage the receiver. To prevent this, make sure to take the following precautions when connecting the speakers.

Make sure the stripped ends of each speaker cord does not touch another speaker terminal, the stripped end of another speaker cord, or the metal parts of the receiver.

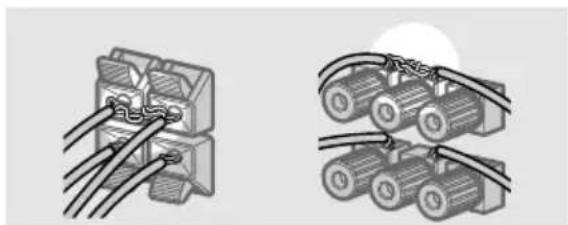

Examples of poor conditions of the speaker cord

Two diagrams showing cable termination in a connector block and connected to battery packs (no text or symbols)

Stripped speaker cord is touching another speaker terminal.

Two mechanical components with wires, one fixed and one with multiple cylindrical casings (no text or symbols visible)

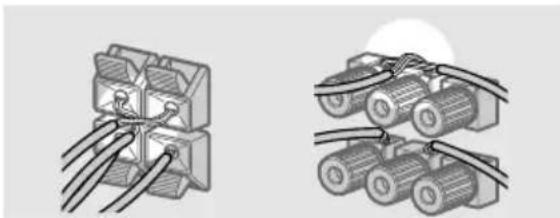

Stripped cords are touching each other due to excessive removal of insulation.

After connecting all the components, speakers, and AC power cord, output a test tone to check that all the speakers are connected correctly. For details on outputting a test tone, see page 20.

If no sound is heard from a speaker while outputting a test tone or a test tone is output from a speaker other than the one whose name is currently displayed on the receiver, the speaker may be short-circuited. If this happens, check the speaker connection again.

To avoid damaging your speakers

Make sure that you turn down the volume before you turn off the receiver. When you turn on the receiver, the volume remains at the level you turn off the receiver.

Performing initial setup operations

Once you have hooked up the speakers and turned on the power, clear the receiver's memory. Then specify the speaker parameters (size, position, etc.) and perform any other initial setup operations necessary for your system.

Tip

To check the audio output during settings (to set up while outputting the sound), check the connection (page 20).

Clearing the receiver's memory

Before using your receiver for the first time, or when you want to clear the receiver's memory, do the following.

This procedure is not necessary if the demonstration activates when you turn on the power.

1 Turn off the receiver.

2 Hold down I/⏻ for 5 seconds.

The demonstration starts (page 4) and all of the following items are reset or cleared:

• All preset stations are reset or cleared.
• All sound field parameters are reset to their factory settings.
• All index names (of preset stations and program sources) are cleared.
• All SET UP parameters are reset to their factory settings.
• The sound field memorized for each program source and preset stations are cleared.
• The master volume is set to VOL MIN.

Performing initial setup operations

Before using your receiver for the first time, adjust SET UP parameters so that the receiver correspond to your system. For the adjustable parameters, see the table on page 54. See pages 16–20 for speaker settings and pages 36-37 for other settings.

Multi channel surround setup

For the best possible surround sound, all speakers should be the same distance from the listening position (A).

However, the receiver lets you place the center speaker up to 1.5 meters (5 feet) closer (B) and the surround speakers up to 4.5 meters (15 feet) closer (C) to the listening position.

The front speakers can be placed from 1.0 to 12.0 meters (3 to 40 feet) from the listening position (A).

You can place the surround speakers either behind you or to the side, depending on the shape of your room (etc.).

When placing surround speakers to your side

A B 45° A C 90° 20°

continued

Multi channel surround setup (continued)

When placing surround speakers behind you

A B A 45° C 90° 20°

Note

Do not place the center speaker farther away from the listening position than the front speakers.

Normal Speaker and Micro Satellite Speaker

If you are using Select

Normal Speakers NORM. SP.

Micro Satellite Speakers MICRO SP.

The speaker size and the sub woofer selection has been preset to NORM. SP. You can adjust the speaker size and sub woofer selection when you select NORM. SP. (pages 17-18)

To select MICRO SP., turn off the power, then turn on again while pressing LEVEL. (To reset to NORM. SP., do the same procedure.)

When you select MICRO SP., the speaker size and sub woofer selection has been configured as follows:

Speaker Settings

FRONT SMALL

CENTER SMALL

SURROUND SMALL

SUB WOOFER YES

You cannot change the configuration if you select MICRO SP.

Tip

The setting for Micro Satellite Speaker (MICRO SP.) has been programmed to optimize the sound balance. If you use Sony's Micro Satellite Speakers, select MICRO SP.

Caution

When you use Micro Satellite Speakers and the speaker size is set to "LARGE", you may not obtain the correct soundstage. The speaker may also be damaged at high volume position.

Specifying the speaker parameters

1 Press SET UP.
2 Press MENU <or MENU to select the parameter you want to adjust.
3 Press MENU + or MENU – to select the setting you want.

The setting is entered automatically.

4 Repeat steps 2 and 3 until you have set all of the parameters that follow.

Initial settings

Parameter Initial setting
L	R (FRONT) LARGE
C	(CENTER) LARGE
SL	SR (SURROUND) LARGE
SW	(SUB WOOFER) S.W. XXX YES
L	R DIST. XX.X m (ft.) 5.0 m (16 ft.)
C	DIST. XX.X m (ft.) 5.0 m (16 ft.)
SL	SR DIST. XX.X m (ft.) 3.5 m (11 ft.)
SL	SR PL. XXX BEHD.
SL	SR HGT. XXX LOW

* You can set this parameter only when you select NORM. SP.
** Models of area code U, CA only.

■Front speaker size (

• If you connect large speakers that will effectively reproduce bass frequencies, select "LARGE". Normally, select "LARGE".
• If the sound is distorted, or you feel a lack of surround effects when using multi channel surround sound, select “SMALL” to activate the bass redirection circuitry and output the front channel bass frequencies from the sub woofer.
• When the front speakers are set to “SMALL”, the center and surround speakers are also automatically set to “SMALL” (unless previously set to “NO”).

■Center speaker size (

• If you connect a large speaker that will effectively reproduce bass frequencies, select "LARGE". Normally, select "LARGE". However, if the front speakers are set to "SMALL", you cannot set the center speaker to "LARGE".
• If the sound is distorted, or you feel a lack of surround effects when using multi channel surround sound, select “SMALL” to activate the bass redirection circuitry and output the center channel bass frequencies from the front speakers (if set to “LARGE”) or sub woofer.* ^1
• If you do not connect a center speaker, select "NO". The sound of the center channel will be output from the front speakers. ^2

■Surround speaker size (

• If you connect large speakers that will effectively reproduce bass frequencies, select "LARGE". Normally, select "LARGE". However, if the front speakers are set to "SMALL", you cannot set the surround speakers to "LARGE".
• If the sound is distorted, or you feel a lack of surround effects when using multi channel surround sound, select “SMALL” to activate the bass redirection circuitry and output the surround channel bass frequencies from the sub woofer or other “LARGE” speakers.
• If you do not connect surround speakers, select "NO": ^*3

Tip

*1-*3 correspond to the following Dolby Pro Logic modes
*1 NORMAL
*2 PHANTOM
*3 3 STEREO

Tip

Internally, the LARGE and SMALL settings for each speaker determine whether the internal sound processor will cut the bass signal from that channel.

When the bass is cut from a channel, the bass redirection circuitry sends the corresponding bass frequencies to the sub woofer or other "LARGE" speakers.

However, since bass sounds have a certain amount of directionality, it is best not to cut them, if possible.

Therefore, even when using small speakers, you can set them to "LARGE" if you want to output the bass frequencies from that speaker. On the other hand, if you are using a large speaker, but prefer not to have bass frequencies output from that speaker, set it to "SMALL".

If the overall sound level is lower than you prefer, set all speakers to "LARGE". If there is not enough bass, you can use the BASS +/- to boost the bass levels. To adjust the bass, see page 29.

continued

Multi channel surround setup (continued)

■Sub woofer selection ( SW S.W. XXX)

• If you connect a sub woofer, select "YES".
• If you do not connect a sub woofer, select “NO”. This activates the bass redirection circuitry and outputs the LFE signals from other speakers.
• In order to take full advantage of the Dolby Digital bass redirection circuitry, we recommend setting the sub woofer's cut off frequency as high as possible.

■Front speaker distance ( L R DIST. XX.X m (ft.))

Set the distance from your listening position to the front speakers (A on page 15).

■Center speaker distance (C) DIST. XX.X m (ft.)

Set the distance from your listening position to the center speaker. Center speaker distance should be set from a distance equal to the front speaker distance (A on page 15) to a distance 1.5 meters (5 feet) closer to your listening position (B on page 15).

■Surround speaker distance (SL SR DIST. XX.X m (ft.))

Set the distance from your listening position to the surround speakers. Surround speaker distance should be set from a distance equal to the front speaker distance (A on page 15) to a distance 4.5 meters (15 feet) closer to your listening position (C on page 15).

Tip

The receiver allows you to input the speaker position in terms of distance. However, it is not possible to set the center speaker further than the front speakers.

Also, the center speaker cannot be set more than 1.5 meters (5 feet) closer than the front speakers.

Likewise, the surround speakers can not be set further away from the listening position than the front speakers. And they can be no more than 4.5 meters (15 feet) closer.

This is because incorrect speaker placement is not conducive to enjoy surround sound.

Please note that, setting the speaker distance closer than the actual location of the speakers will cause a delay in the output of the sound from that speaker. In other words, the speaker will sound like it is farther away.

For example, setting the center speaker distance 1\~2 m (3\~6 feet) closer than the actual speaker position will create a fairly realistic sensation of being “inside” the screen. If you cannot obtain a satisfactory surround effect because the surround speakers are too close, setting the surround speaker distance closer (shorter) than the actual distance will create a larger sound stage.

Adjusting these parameter while listening to the sound often results in much better surround sound.

Give it a try!

■Surround speaker position ( SL SR PL. XXX)\*

This parameter lets you specify the location of your surround speakers for proper implementation of the Digital Cinema Sound surround modes. Refer to the illustration below.

• Select "SIDE" if the location of your surround speakers corresponds to section A.
• Select "MID" if the location of your surround speakers corresponds to section B.
• Select "BEHD." if the location of your surround speakers corresponds to section ©.

A B C 90° 60° 30° 20° A B C B

■Surround speaker height ( SL SR HGT. XXX)\*

This parameter lets you specify the height of your surround speaker(s) for proper implementation of the Digital Cinema Sound surround modes. Refer to the illustration below.

• Select "LOW" if the location of your surround speakers corresponds to section A.
• Select "HIGH" if the location of your surround speakers corresponds to section B.

B A 60° 30° A B

* These parameters are not available when "Surround speaker size (SL SR)" is set to "NO".

Tip

The surround speaker position parameter is designed specifically for implementation of the Digital Cinema Sound modes with virtual elements.

With the Digital Cinema Sound modes, speaker position is not as critical as other modes. All modes with virtual elements were designed under the premise that the surround speaker would be located behind the listening position, but presentation remains fairly consistent even with the surround speakers positioned at a rather wide angle. However, if the speakers are pointing towards the listener from the immediate left and right of the listening position, the sound fields with virtual elements will not be effective unless the surround speaker position parameter is set to "PL. SIDE".

Nevertheless, each listening environment has many variables, like wall reflections, and you may obtain better results using "PL. BEHD." or "PL. MID" if your speakers are located high above the listening position, even if they are to the immediate left and right.

Therefore, although it may result in a setting contrary to the “Surround speaker position” explanation, we recommend that you playback multi channel surround encoded software and listen to the effect each setting has on your listening environment. Choose the setting that provides a good sense of spaciousness and that best succeeds in forming a cohesive space between the surround sound from the surround speakers and the sound of the front speakers. If you are not sure which sounds best, select “PL. BEHD.” and then use the speaker distance parameter and speaker level adjustments to obtain proper balance.

continued

Multi channel surround setup (continued)

Adjusting the speaker level

Use the remote while seated in your listening position to adjust the level of each speaker.

Note

The receiver incorporates a new test tone with a frequency centered at 800 Hz for easier speaker level adjustment.

1 Press I/⏻ to turn on the receiver.
2 Press TEST TONE on the remote.

“T. TONE” appears in the display and you will hear the test tone from each speaker in sequence.

3 Adjust the LEVEL parameters so that the level of the test tone from each speaker sounds the same when you are in your main listening position.

Press LEVEL to adjust the balance and level of speakers. For details on the LEVEL menu, see pages 27 and 28.

While adjusting, the test tone is output from the speaker whose adjustment is performed.

4 Press TEST TONE again to turn off the test tone.

Tip

You can adjust the level of all speakers at the same time. Turn MASTER VOLUME on the main unit or press MASTER VOL +/- on the remote.

Notes

• The test tone cannot be output when the receiver is set to MULTI CH IN (STR-DE585 and STR-DE485 only).
• The adjusted value are shown in the display during adjustment.
• Although these adjustments can also be made via the front panel using the LEVEL menu (when the test tone is output, the receiver switches to the LEVEL menu automatically), we recommend you follow the procedure described above and adjust the speaker levels from your listening position using the remote.

Checking the connections

After connecting all of your components to the receiver, do the following to verify that the connections were made correctly.

1 Press I/⏻ to turn on the receiver.
2 Turn on the component that you connected (e.g., CD player or tape deck).
3 Press the function button to select the component (program source).
4 Start playing.

If you do not obtain normal sound output after performing this procedure, see “Troubleshooting” on page 49 and take the appropriate measures to correct the problem.

Basic Operations

Selecting the component

Function buttons

Press the function button to select the component you want to use.

To select Press

VCR VIDEO 1 or VIDEO 2

TV tuner or satellite tuner VIDEO 2

DVD or LD player DVD/LD

MD or Tape deck MD/TAPE

CD player CD

Built in tuner TUNER

After turning on the component you selected, select the component and play the program source.

- After selecting VCR, DVD player, or LD player, turn on the TV and set the TV's video input to match the component you selected.

INPUT MODE

Press INPUT MODE to select the input mode for your digital components.

Each time you press the button, the input mode of the currently selected component switches.

Select To

AUTO IN Give priority to digital signals when there are both digital and analog connections. If there are no digital signals, analog is selected.

COAX IN Specify the digital audio signals input to the DIGITAL COAXIAL input jacks.

Select To

OPT IN Specify the digital audio signals input to the DIGITAL OPTICAL input jacks.

ANALOG Specify the analog audio signals input to the AUDIO IN (L/R) jacks.

Note

If 96 kHz digital signal is input, the tone, sound field and surround parameters do not function.

MULTI CH IN

(STR-DE585 and STR-DE485 only)

Press MULTI CH IN to enjoy the audio source connected to the MULTI CH IN jacks. You can adjust balance and level of all the speakers. When this function is on, the tone and surround effects are turned off.

MULTI CHANNEL DECODING Indicator

(STR-DE585 and STR-DE485 only)

This indicator lights up when the unit is decoding signals recorded in a multi channel format.

MUTING

Press MUTING to mute the sound. The muting function is canceled when you turn the power on or turn the MASTER VOLUME clockwise to turn the volume up.

PHONES

Use to connect headphones.

- When the headphones are connected, speaker output is automatically canceled and "SP. OFF" lights up in the display.

Changing the display

DISPLAY

Each time you press DISPLAY, the display changes cyclically as follows:

Index name of the component* → Selected component → Sound field applied to the program source

When the tuner is selected

Index name of the preset station* or program station name** → Frequency → Program type indication** → Radio text** → Current time** → Sound field applied to the band or the preset station

* Index name appears only when you have assigned one to the component or preset station (page 35). Index name does not appear when only blank spaces have been entered, or it is the same as the function.
** During RDS reception only. (Models of area code CEL, CEK only. See page 33).

DIMMER

Press DIMMER repeatedly to adjust the brightness of the display (3 steps). However, when you press any button, the display becomes the brightest setting temporary.

Enjoying Surround Sound

You can take advantage of surround sound simply by selecting one of the receiver's pre-programmed sound fields. They bring the exciting and powerful sound of movie theaters and concert halls into your home. You can also customize the sound fields to obtain the sound you want by changing the surround parameter. To fully enjoy surround sound, you must register the number and location of your speakers. See “Multi channel surround setup” starting from page 15 to set the speaker parameters before enjoying surround sound.

Automatically decoding the input audio signal

Press A.DEC.

"AUTO DEC." appears in the display.

This mode automatically detects the type of audio signal being input (Dolby Digital, DTS, or standard 2 channel stereo) and performs the proper decoding if necessary. This mode presents the sound as it was recorded/encoded, without adding any effects (e.g. reverberation). However, if there are no low frequency signals (Dolby Digital LFE, etc.) it will generate a low frequency signal for output to the sub woofer.

Selecting a sound field

You can enjoy surround sound simply by selecting one of the pre-programmed sound fields according to the program you want to listen to.

Sound field Display

Normal Surround NORM.SURR.

Cinema Studio EX A C.ST.EX ADCS

Cinema Studio EX B C.ST.EX BDCS

Cinema Studio EX C C.ST.EX CDCS

Hall HALL

Jazz Club JAZZ

Live Concert CONCERT

Game GAME

About DCS (Digital Cinema Sound)

The sound fields with DCS mark use DCS technology. When these sound fields are selected, “Digital Cinema Sound” indicator in the display lights up.

In collaboration with Sony Pictures Entertainment, Sony measured the sound environment of their studios and integrated the data of the measurement and Sony's own DSP (Digital Signal Processor) technology to develop “Digital Cinema Sound”. In a home theater, “Digital Cinema Sound” simulates an ideal movie theater sound environment based on the preference of the movie director.

Enjoying movies with Cinema Studio EX

Cinema Studio EX is ideal for enjoying the movie software encoded with multi channel format, such as the Dolby Digital DVD. This mode reproduces the sound characteristics of Sony Pictures Entertainment's studios.

Press CINEMA STUDIO EX A, B or C.

The selected sound field is indicated in the display.

continued

Selecting a sound field (continued)

■C.ST.EX A (Cinema Studio EX A)

Reproduces the sound characteristics of the Sony Pictures Entertainment “Cary Grant Theater” cinema production studio. This is a standard mode, great for watching most any type of movie.

■C.ST.EX B (Cinema Studio EX B)

Reproduces the sound characteristics of the Sony Pictures Entertainment “Kim Novak Theater” cinema production studio. This mode is ideal for watching science-fiction or action movies with lots of sound effects.

■C.ST.EX C (Cinema Studio EX C)

Reproduces the sound characteristics of the Sony Pictures Entertainment scoring stage. This mode is ideal for watching musicals or classic films where music is featured in the soundtrack.

About Cinema Studio EX

Cinema Studio EX consists of the following three elements.

• Virtual Multi Dimension
Creates 5 sets of virtual speakers surrounding the listener from a single pair of actual surround speakers.
- Screen Depth Matching
In a movie theater, sound seems to come from inside the image reflected on the movie screen. This element creates the same sensation in your listening room by shifting the sound of the front speakers “into” the screen.
• Cinema Studio Reverberation
Reproduces the reverberations peculiar to a movie theater.

Cinema Studio EX is the integrated mode which operates these elements simultaneously.

Tip

You can select Cinema Studio EX by pressing MODE repeatedly.

Notes

• The effects provided by the virtual speakers may cause increased noise in the playback signal.
• When listening with sound fields that employ the virtual speakers, you will not be able to hear any sound coming directly from the surround speakers.

Selecting other sound fields

Press MODE repeatedly to select the sound field you want.

The current sound field is indicated in the display.

■NORM.SURR. (Normal Surround)

Software with multi channel surround audio signals is played back according to the way it was recorded. Software with 2 channel audio signals is decoded with Dolby Pro Logic to create surround effects.

HALL

Reproduces the acoustics of a rectangular concert hall.

■JAZZ (Jazz Club)

Reproduces the acoustics of a jazz club.

■CONCERT (Live Concert)

Reproduces the acoustics of a 300-seat live concert.

GAME

Obtains maximum audio impact from video game software.

To turn the surround effect off

Press A.DEC or 2CH.

Tips

• The receiver lets you apply the last selected sound field to a program source whenever it is selected (Sound Field Link). For example, if you listen to CD with “JAZZ” as the sound field, change to a different program source, then return to CD, “JAZZ” will be applied again.
• You can identify the encoding format of program software by looking at its packaging.

Dolby Digital discs are labeled with the ☐ Dolby digital logo, and Dolby Surround encoded programs are labeled with the ☐ Dolby Surround PROLOGIC

- When sound signals with a sampling frequency of 96 kHz are input, the sound signals are output in stereo automatically, and the sound field is turned off.

Using only the front speakers (2 Channel Stereo)

Press 2CH.

"2CH ST." appears in the display.

This mode outputs the sound from the front left and right speakers only. Standard 2 channel (stereo) sources completely bypass the sound field processing. Multi channel surround formats are downmixed to 2 channel.

Notes

• No sound is output from the sub woofer when “2CH ST.” is selected. To listen to 2 channel (stereo) sources using the front left and right speakers and a sub woofer, press A.DEC to select “AUTO DEC.”
• When you select “Micro Satellite Speaker” (page 16), internal sound processor will automatically redirect bass sound to sub woofer. If you want to listen to two channel (stereo) sources under this setting, we recommend that you choose “AUTO DEC.” mode so that you can take advantage of your sub woofer to obtain the correct bass signal.

Enjoying stereo sound in multi channel (Dolby Pro Logic II)

(STR-DE585 only)

The receiver can reproduce the stereo sound in multi channel through Dolby Pro Logic II. You can activate the decoder using the SET UP menu. For details, see pages 36-37.

Understanding the multi channel surround displays

1 DIGITAL: Lights up when the receiver is decoding signals recorded in the Dolby Digital format.
②PRO LOGIC: Lights up when the receiver applies Pro Logic processing to 2 channel signals in order to output the center and surround channel signals. However, this indicator does not light if the center and surround speakers are set to “NO”, and “AUTO DEC.” or “NORM.SURR.” is selected.

Note

Pro Logic decoding does not function for MPEG format signals.

3 DTS: Lights up when DTS signals are input.

Note

When playing a DTS format disc, be sure that you have made digital connections and that INPUT MODE is NOT set to “ANALOG” (page 21).

④MPEG: Lights up when MPEG signals are input.

Note

Only the front 2 channels are compatible with MPEG format. Multi channel surround sound is downmixed and output from the front 2 channels.

5 Tuner indicators: Lights up when using the receiver to tune in radio stations, etc. See pages 30–34 for tuner operations.

Note

“RDS” only appears for models of area code CEL, CEK only.

6D.RANGE: Lights up when dynamic range compression is activated. See page 28 to adjust the dynamic range compression.
⑦COAX: Lights up when the source signal is a digital signal being input through the COAXIAL terminal.
⑧OPT: Lights up when the source signal is a digital signal being input through the OPTICAL terminal.
9Playback channel indicators: The letters (L, C, R, etc.) indicate the channels being played back. The boxes around the letters vary to show how the receiver downmixes the source sound (based on the speakers settings). When using sound fields like “C.ST.EX”, the receiver adds reverberation based on the source sound.

L (Front Left), R (Front Right), C (Center (monaural)), SL (Surround Left), SR (Surround Right), S (Surround (monaural or the surround components obtained by Pro Logic processing)).

Example:

Recording format (Front /Surround): 3/2 Output channel: Surround speakers absent Sound Field: AUTO DEC.

L C R

SL SR

10 (《《LFE》): Lights up when the disc being played back contains the LFE (Low Frequency Effect) channel and when the sound of the LFE channel signal is actually being reproduced.
11 SW: Lights up when sub woofer selection is set to “YES” (page 18) and the audio signal is output from the SUB WOOFER jacks.
12 SP. OFF: Lights up when headphones are inserted.

Customizing sound fields

By adjusting the surround parameters and the tone characteristics of the front speakers, you can customize the sound fields to suit your particular listening situation.

Once you customize a sound field, the changes are stored in the memory indefinitely. You can change a customized sound field any time by making new adjustments to the parameters.

See the tables on page 55 for the parameters available in each sound field.

To get the most from multi channel surround sound

Position your speakers and do the procedures described in “Multi channel surround setup” starting from page 15 before you customize a sound field.

Adjusting the surround parameter

The SURR menu contains parameter that let you customize various aspects of the current sound field. The settings are stored individually for each sound field.

1 Start playing a program source encoded with multi channel surround sound.
2 Press SURR.

The button lights up and the first parameter is displayed.

3 Press MENU + or MENU – to select the setting you want.

The setting is entered automatically.

Initial settings

Parameter Initial setting

EFFECT (depends on the sound field)

Effect level (EFFECT)

Lets you adjust the “presence” of the current surround effect.

Adjusting the level parameters

The LEVEL menu contains parameters that let you adjust the balance and volumes of each speaker. The settings are applied to all sound fields.

1 Start playing a program source encoded with multi channel surround sound.
2 Press LEVEL.
The button lights up and the first parameter is displayed.
3 Press MENU <or MENU to select the parameter you want to adjust.
4 Press MENU + or MENU – to select the setting you want.

The setting is entered automatically.

continued

Customizing sound field (continued)

Initial settings

* The parameters can be adjusted separately for MULTI CH IN (STR-DE585 and STR-DE485 only).

Front balance ( L R BAL. L/R XXX)

Lets you adjust the balance between front left and right speakers.

Lets you adjust the level of the center speaker.

Surround left level (SUR.L. XXX dB)

Lets you adjust the level of the surround left speaker.

Surround right level (SUR.R. XXX dB)

Lets you adjust level of the surround right speaker.

Lets you adjust the level of the sub woofer.

LFE (Low Frequency Effect) mix level (L.F.E. XXX dB)

Lets you attenuate the level of the LFE (Low Frequency Effect) channel output from the sub woofer without effecting the level of the bass frequencies sent to the sub woofer from the front, center or surround channels via the Dolby Digital or DTS bass redirection circuitry.

• For LFE mix level, “0 dB” outputs the full LFE signal at the mix level determined by the recording engineer.
• To mute the sound of the LFE channel from the sub woofer, select “OFF”. However, the low frequency sounds of the front, center, or surround speakers are output from the sub woofer according to the settings made for each speaker in the speaker setup (pages 15–18).

Dynamic range compressor (D. RANGE COMP. XXX)

Lets you compress the dynamic range of the sound track. This may be useful when you want to watch movies at low volumes late at night. We recommend using the “MAX” setting.

• To reproduce the sound track with no compression, select "OFF".
• To reproduce the sound track with the dynamic range intended by the recording engineer, select "STD".
• To compress the dynamic range in small steps to achieve the sound you desire, select “0.1”–“0.9”.
• To reproduce a dramatic compression of the dynamic range, select “MAX”.

Note

Dynamic range compression is possible with Dolby Digital sources only.

Adjusting the bass and treble

The BASS +/- and TREBLE +/- button lets you adjust the tone (bass or treble) of the front speakers for optimum sound. You can adjust the tone for each separate sound field.

1 Start playing a program source encoded with multi channel surround sound.

2 Press BASS +/- or TREBLE +/- to adjust the tone.

The setting is stored automatically.

Initial settings

Parameter Initial setting

BASS 0 dB

TREB. 0 dB

BASS (Bass)

Lets you adjust the bass tone.

TREB. (Treble)

Lets you adjust the treble tone.

Resetting customized sound fields to the factory settings

1 If the power is on, press I/⏻ to turn off the power.
2 Hold down MODE and press I/⏻.

“SF. CLR.” appears in the display and all sound fields are reset at once.

Receiving Broadcasts

Before receiving broadcasts, make sure you have connected FM and AM antennas to the receiver (page 7).

Storing FM stations automatically (AUTOBETICAL)

(Models of area code CEL, CEK only)

This function lets you store up to 30 FM and FM RDS stations in alphabetical order without redundancy. Additionally, it only stores the stations with the clearest signals.

If you want to store FM or AM stations one by one, see “Presetting radio stations” on page 32.

1 Press I/⏻ to turn off the receiver.
2 Hold down MEMORY and press I/⏻ to turn the receiver back on.

"AUTO-BETICAL SELECT" appears in the display and the receiver scans and stores all the FM and FM RDS stations in the broadcast area.

For RDS stations, the tuner first checks for stations broadcasting the same program, then stores only the one with the clearest signal. The selected RDS stations are sorted alphabetically by their Program Service name, then assigned a 2-character preset code. For more details on RDS, see page 33. Regular FM stations are assigned 2-character preset codes and stored after the RDS station.

When done, “FINISH” appears in the display momentarily and the receiver returns to the normal operation.

Notes

• Do not press any button on the receiver or supplied remote during autobetical operation.
• If you move to another area, repeat this procedure to store stations in your new area.
• For details on tuning the stored stations, see page 32.
• If you move the antenna after storing stations with this procedure, the stored settings may no longer be valid. If this happens, repeat this procedure to store the stations again.

Direct tuning

You can enter a frequency of the station you want directly by using the numeric buttons on the supplied remote. For details on the buttons used in this section, see pages 38–44 for remote RM-PP506 and pages 45–48 for remote RM-U306.

1 Press TUNER on the remote. The last received station is tuned in.
2 Press FM* or AM* to select the FM or AM band.
3 Press D. TUNING on the remote.
4 Press the numeric buttons to enter the frequency.

Example 1: FM 102.50 MHz

Example 2: AM 1350 kHz (You don't have to enter the last "0" when the tuning scale is set to 10 kHz.)

If you cannot tune in a station and the entered numbers flash

Make sure you've entered the right frequency. If not, repeat steps 3 and 4. If the entered numbers still flash, the frequency is not used in your area.

5 If you've tuned in an AM station, adjust the direction of the AM loop antenna for optimum reception.
6 Repeat steps 2 to 5 to receive another station.

Tips

• If you do not remember the precise frequency, press TUNING + or TUNING – after entering the value close to the frequency you want. The receiver automatically tunes in the station you want. If the frequency seems to be higher than the entered value, press TUNING +, and if the frequency seems to be lower than the entered value, press TUNING –.
• If “STEREO” flashes in the display and the FM stereo reception is poor, press FM MODE to change to monaural (MONO). You will not be able to enjoy the stereo effect, but the sound will be less distorted. To return to stereo mode, press FM MODE again.

The tuning scale differs depending on the area code as shown in the following table. For details on area codes, see page 4.

Area code FM AM

U, CA 100 kHz 10 kHz*

AU, SP, CEL, CEK, TW 50 kHz 9 kHz

E2/E3, MX, AR 50 kHz 9 kHz*

* The AM tuning scale can be changed (page 53).

Automatic tuning

If you don't know the frequency of the station you want, you can let the receiver scan all available stations in your area.

1 Press TUNER.

The last received station is tuned in.

2 Press FM** or AM** to select the FM or AM band.
3 Press TUNING + or TUNING -.

Press TUNING + to scan from low to high; press TUNING - to scan from high to low. The receiver stops scanning whenever a station is received.

When the receiver reaches either end of the band

Scanning is repeated in the same direction.

4 To continue scanning, press TUNING + or TUNING – again.

** For models of area code CEL, CEK: FM/AM.

Preset tuning

After you have tuned in stations using Direct Tuning or Automatic Tuning, you can preset them to the receiver. Then you can tune in any of the stations directly by entering its 2-character preset code using the supplied remote. Up to 30 FM or AM stations can be preset. The receiver will also scan all the stations that you have preset.

Before tuning to preset stations, be sure to preset them by performing steps on “Presetting radio stations” (page 32).

continued

Preset tuning (continued)

Presetting radio stations

1 Press TUNER.

The last received station is tuned in.

2 Tune in the station that you want to preset using Direct Tuning (page 30) or Automatic Tuning (page 31).
3 Press MEMORY.

“MEMORY” appears in the display for a few seconds.

Do steps 4 to 6 before “MEMORY” goes out.

4 Press SHIFT to select a memory page (A, B or C).

Each time you press SHIFT, the letter “A”, “B”, or “C” appears in the display.

5 Press PRESET TUNING +* or PRESET TUNING -* to select a preset number.

If “MEMORY” goes out before you press the preset number, start again from step 3.

6 Press MEMORY again to store the station.

If “MEMORY” goes out before you can store the station, start again from step 3.

7 Repeat steps 2 to 6 to preset another station.

* For models of area code CEL, CEK: PRESET/PTY SELECT + or PRESET/PTY SELECT -.

To change a preset number to another station

Do steps 1 to 6 to preset a new station to the number.

Tuning to preset stations

You can tune the preset stations by either of the following two ways.

Scanning the preset stations

1 Press TUNER.

The last received station is tuned in.

2 Press PRESET TUNING +* or PRESET TUNING -* repeatedly to select the preset station you want.

Each time you press the button, the receiver tunes in one preset station at a time, in the corresponding order and direction as follows:

* For models of area code CEL, CEK: PRESET/PTY SELECT + or PRESET/PTY SELECT -.

Using the preset codes

Use the supplied remote to perform the following operations. For details on the buttons used in this section, see pages 38-44 for remote RM-PP506 and pages 45-48 for remote RM-U306.

1 Press TUNER on the remote. The last received station is tuned in.

2 Press SHIFT to select a memory page (A, B, or C), then press the preset number of the station you want using the numeric buttons.

Using the Radio Data System (RDS)

(Models of area code CEL, CEK only)

This receiver also allows you to use RDS (Radio Data System), which enables radio stations to send additional information along with the regular program signal. You can use the following convenient RDS features:

– Displaying RDS information
- Scanning preset stations by program type

Note that RDS is operable only for FM stations.*

* Not all FM stations provide RDS service, nor do they provide the same types of services. If you are not familiar with the RDS services in your area, check with your local radio stations for details.

Receiving RDS broadcasts

Simply select a station on the FM band using direct tuning (page 30), automatic tuning (page 31), or preset tuning (page 31).

When you tune in a station that provides RDS services, the RDS indicator lights up and the program station name normally appears in the display.

Note

RDS may not work properly if the station you tuned to is not transmitting the RDS signal properly or if the signal strength is weak.

Displaying RDS information

While receiving an RDS station, press DISPLAY.

Each time you press the button, RDS information on the display changes cyclically as follows:

Program Station name → Frequency →

Program Type indication ^a) →

Radio Text indication ^b) → Current Time indication (in 24-hour system) → Sound field currently applied

a) Type of program being broadcast (page 34).

b) Text messages sent by the RDS station.

Notes

• If there is an emergency announcement by government authorities, “ALARM” flashes in the display.
• When the message consists of 9 characters or more, the message scrolls across the display.
• If a station does not provide a particular RDS service, “NO XXX” (such as “NO PTY”) appears in the display.

Scanning preset stations by program type

You can tune in preset stations according to a program type that you specify. The receiver scans for stations in its preset memory currently broadcasting the specified program type.

1 Press PTY.
2 Press PRESET/PTY SELECT + or PRESET/PTY SELECT – to select the program type.

See the table below for the information on each program type.

3 Press PTY.

While the receiver is scanning stations, "SEARCH" and the programme type are displayed alternately.

When the receiver finds a station, the receiver stops scanning. When the receiver could not find any preset stations currently broadcasting the specified program type, "NO PTY" appears in the display.

continued

Using the Radio Data System (RDS) (continued)

Description of program types

Program type Description indication
NEWS News programs
AFFAIRS Topical programs that expand on current news
INFO Programs offering information on a wide spectrum of subjects, including consumer affairs and medical advice
SPORT Sports programs
EDUCATE Educational programs, such as “how-to” and advice programs
DRAMA Radio plays and serials
CULTURE Programs about national or regional culture, such as language and social concerns
SCIENCE Programs about the natural sciences and technology
VARIED Other types of programs such as celebrity interviews, panel games, and comedy
POP M Popular music programs
ROCK M Rock music programs
EASY M Easy Listening
LIGHT M Instrumental, vocal, and choral music
CLASSICS Performances of major orchestras, chamber music, opera, etc.
OTHER M Music that does not fit into any categories above, such as Rhythm & Blues and Reggae
WEATHER Weather information
FINANCE Stock market reports and trading, etc.
CHILDREN Programs for children
SOCIAL	Programs about people and the things that affect them
RELIGION	Programs of religious content

Program type Description indication
PHONE IN Programs where members of the public express their views by phone or in a public forum
TRAVEL Programs about travel. Not for announcements that are located by TP/TA
LEISURE Programs on recreational activities such as gardening, fishing, cooking, etc.
JAZZ Jazz programs
COUNTRY	Country music programs
NATION M	Programs featuring the popular music of the country or region
OLDIES	Programs featuring oldies music
FOLK M Folk music programs
DOCUMENT	Investigative features
NONE	Any programs not defined above

Other Operations

Naming preset stations and program sources

You can enter a name (index name) of up to 8 characters for preset stations and program sources. These names (for example, “VHS”) appear in the receiver’s display when a station or program source is selected. Note that no more than one name can be entered for each preset station or program source. This function is useful for distinguishing components of the same kind. For example, two VCRs can be specified as “VHS” and “8MM”, respectively. It is also handy for identifying components connected to jacks meant for another type of component, for example, a second CD player connected to the MD/TAPE jacks.

1 To name a preset station Press TUNER.

The last station you received is tuned in. If you are not familiar with how to tune in preset stations, see “Tuning to preset stations” on page 32.

To name a program source Select the program source (component) to be named.

2 Press NAME.

3 Create an index name by using MENU + or MENU - and MENU

Press MENU + or MENU - to select a character, then press MENU > to move the cursor to the next position.

To insert a space

Press MENU + or MENU - until a blank space appears in the display.

If you've made a mistake

Press MENU <or MENU repeatedly until the character to be changed flashes, then press MENU + or MENU - to select the right character.

4 Press ENTER.

5 Repeat steps 2 to 4 to assign index name for another station or program source.

Note (Models of area code CEL, CEK only)

You cannot change the name of an RDS station.

Recording

Before you begin, make sure you've connected all components properly.

Recording on an audio tape or MiniDisc

You can record on a cassette tape or MiniDisc using the receiver. See the operating instructions of your cassette deck or MD deck if you need help.

1 Select the component to be recorded.

2 Prepare the component for playing. For example, insert a CD into the CD player.

3 Insert a blank tape or MD into the recording deck and adjust the recording level, if necessary.

4 Start recording on the recording deck, then start playback on the playback component.

Notes

• Sound adjustments do not affect the signal output from the MD/TAPE OUT jacks.
• When MULTI CH IN is selected, the analog audio signals of the current function is output from the REC OUT jack (STR-DE585 and STR-DE485 only).

continued

Recording (continued)

Recording on a video tape

You can record from a VCR, a TV, a DVD player or an LD player using the receiver. You can also add audio from a variety of audio sources when editing a video tape. See the operating instructions of your VCR or LD player if you need help.

1 Select the program source to be recorded.
2 Prepare the component for playing.
For example, insert the laser disc you want to record into the LD player.
3 Insert a blank video tape into the VCR (VIDEO 1) for recording.
4 Start recording on the recording VCR, then start playing the video tape or laser disc you want to record.

Tip

You can record the sound from any audio source onto a video tape while copying from a video tape or laser disc. Locate the point where you want to start recording from another audio source, select the program source, then start playback. The audio from that source will be recorded onto the audio track of the video tape instead of the audio from the original medium. To resume audio recording from the original medium, select the video source again.

Notes

• Make sure to make both digital and analog connections to the VIDEO 2 and DVD/LD inputs. Analog recording is not possible if you make only digital connections.
• When MULTI CH IN is selected analog audio signals of the current function is output from the REC OUT jacks (STR-DE585 and STR-DE485 only).

Using the Sleep Timer

You can set the receiver to turn off automatically at a specified time.

Press SLEEP on the front panel (STR-DE485E only) or on the remote while the power is on.

Each time you press the button, the display changes cyclically as follows:

$$ \begin{array}{l} 2 - 0 0 - 0 0 \longrightarrow 1 - 3 0 - 0 0 \longrightarrow 1 - 0 0 - 0 0 \longrightarrow 0 - 3 0 - 0 0 \ \longrightarrow \text { OFF } \end{array} $$

The display dims after you have specified the time.

Tips

• You can freely specify the time. After pressing SLEEP, specify the time you want using the MENU < / > or MENU + / - on the receiver. The sleep time changes in 1 minute intervals. You can specify up to 5 hours.
• To check the remaining time before the receiver turns off, press SLEEP. The remaining time appears in the display.

Adjustments using the SET UP button

The SET UP button allows you to make the following adjustments.

1 Press SET UP.
2 Press MENU <or MENU to select the parameter you want to adjust.
3 Press MENU + or MENU – to select the setting you want.
The setting is entered automatically.
4 Repeat steps 2 and 3 until you have set all of the parameters that follow.

Initial settings

Parameter Initial setting
C.MODE.AVX AV2
PRO LOGIC*	II MOVIE

* STR-DE585 only

■ Selecting the command mode of the remote (C.MODE.AVX)

Lets you select the command mode of the remote. Change the command mode when you use 2 Sony receivers in the same room.

■ 2ch decode mode (PRO LOGIC)

Lets you specify the type of decoding for the 2 channel source. This receiver incorporates with Dolby Pro Logic II which has movie mode and music mode, and the receiver can reproduce the 2 channel sound in 5.1 channel through Dolby Pro Logic II.

• When set to “DOLBY PL”, the receiver performs the Pro logic decoding. The source recorded in 2 channel is decoded into 4 channels.
• When set to “II MOVIE”, the receiver performs the Pro Logic II movie mode decoding. This setting is ideal for the movies encoded in Dolby Surround. Besides, this mode can reproduce the sound in 5.1 channel when watching the videos of old movies or in the dubbed language.
• When set to “II MUSIC”, the receiver performs the Pro Logic II music mode decoding. This setting is ideal for the normal stereo sources, such as CDs.

Note

Dolby Pro Logic II does not function for DTS or MPEG format signals.

For STR-DE585 area code CA only

You can use the remote RM-PP506 to operate the components in your system.

Before you use your remote

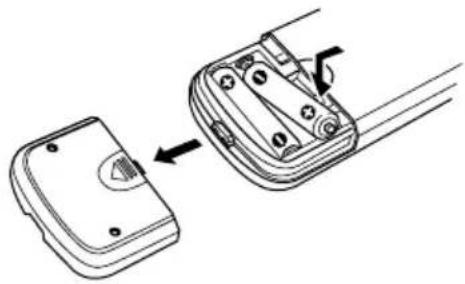

Inserting batteries into the remote

Insert R6 (size-AA) batteries with the + and - properly oriented in the battery compartment. When using the remote, point it at the remote sensor on the receiver.

Diagram showing a device being inserted into a housing, with no visible text or symbols

Tip

Under normal conditions, the batteries should last for about 6 months. When the remote no longer operates the receiver, replace all batteries with new ones.

Notes

• Do not leave the remote in an extremely hot or humid place.
• Do not use a new battery with an old one.
• Do not expose the remote sensor to direct sunlight or lighting apparatuses. Doing so may cause a malfunction.
• If you don't use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.

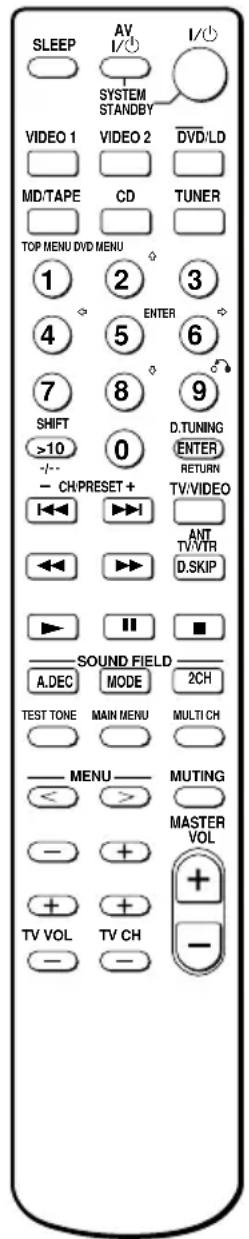

Remote button description

SLEEP USE MODE AVI / ⏻ SYSTEM STANDBY I / ⏻ VIDEO 1 VIDEO 2 VIDEO 3 DVD/LD TV/SAT AUX MD/TAPE CD/SACD TUNER PHONO MONITOR AV1 AV2 3RD 2ND ROOM TV/VIDEO 1 2 3 (SOURCE) SEARCH MODE 4 5 6 INPUT MODE VIDE 7 8 9 AUDIO SPLIT CLEAR SHIFT 0 ANT TV/VTR - - - >10 -10 DISC D.TUNING -11 -12 JUMP - SUB CH + POSITION SWAP + - VOL + MUTING P IN P D. SKIP/ CH/PRESET - SOUND FIELD AUTO DEC MODE 2CH PRESET AV TEST + 2CH DISPLAY TONE TONE EQ/ MULTI/2CH TITLE/ NIGHT MODE TONE A. DIRECT GUIDE AV ON MUTING ENTER/ MENU SCREEN MUTING ENTER/ EXEC > MAIN MENU MASTER VOL EXIT/ RETURN -

The tables below show the settings of each button.

Remote Operations Function Button

SLEEP Receiver Activates the sleep function and the duration which the receiver turns off automatically.

I/ Receiver

Turns the receiver on or off.

Remote Operations Function Button

VIDEO 1 Receiver To watch VCR. (VTR mode 3)

VIDEO 2 Receiver To watch VCR. (VTR mode 1)

VIDEO 3 Receiver To watch VCR. (VTR mode 2)

DVD/LD Receiver To watch DVD or laser disc.

TV/SAT Receiver To watch TV programs or satellite receiver.

AUX Receiver To listen to an audio equipment.

MD/TAPE Receiver To listen to Minidisc or audio tape.

CD/SACD Receiver To listen to compact disc.

TUNER Receiver To listen to radio programs.

PHONO Receiver To listen to turntable.

INPUT Receiver Selects input mode for MODE your digital components.

AUDIO Receiver To assign the audio input SPLIT for each function.

SHIFT Receiver Press repeatedly to select a memory page for presetting radio stations or tuning to preset stations.

D.TUNING Receiver Tuner station direct key-in-mode.

AUTO DEC Receiver Selects AUTO DECODING mode.

MODE +/- Receiver Selects sound field mode.

2CH Receiver Selects 2CH mode.

PRESET Receiver Selects preset sound field (e.g. Cinema Studio EX A, B, C)

TEST TONE Receiver Press to output test tone.

Remote Operations Function Button
NIGHT Receiver Press to select NIGHT MODE MODE.
EQ/TONE	Receiver	EQ ON/OFF.
MULTI/ Receiver Selects MULTI CH IN.2CH A.DIRECT
ON SCREEN	Receiver	To display the menus of the receiver on the TV screen.
MUTING Receiver Mutes the sound from the receiver.
A/V	Receiver Selects a menu item.
	Receiver Makes adjustment or change the setting.
MAIN MENU repeatedly to select one of the four cursor modes: SURR, LEVEL, SET UP and NAME.
MASTER Receiver	Adjusts the master volume of the receiver.
VOL +/-
AV I/TV/VCR/ Turns the audio and CD player/ video components on or VCD player/ off.LD player/DVD player/MD deck/DAT deck
SYSTEM STANDBY (Press AV I/CD player/ and I/CD player/ at the same time)	Receiver/ TV/VCR/ other Sony audio/videoSatellite tuner/ components.LD player/DVD player/MD deck/DAT deck/Tape deck	Turns off the receiver and

continued

Remote Button Description (continued)

Remote Operations Function Button

0-9 Receiver Use with “SHIFT” button to select tuner preset station numeric input during DIRECT TUNING or MEMORY mode.

CD player/ Selects track numbers. VCD player/ 0 selects track 10. LD player/ MD deck/ DAT deck

TV/VCR/ Selects channel numbers. Satellite tuner

ENTER TV/VCR/ After selecting a channel,
Satellite tuner/	disc or track using the
VCD player/	numeric buttons, press to
LD player/	enter the value.
MD deck/
DAT deck/
Tape deck

>10 CD player/ Selects track numbers

VCD player/ over 10.

LD player/

MD deck/

Tape deck

CD player/ Searches tracksVCD player/ (forward or backward).DVD player/

VCR/ Fastforwards orLD player/ rewinds.MD deck/DAT deck/Tape deck

IVCR/ Skips tracks.

CD player/

VCD player/

LD player/

DVD player/

MD deck/

DAT deck/

Tape deck

Remote Operations Function Button

D.SKIP / Receiver Scans and selects preset CH/ stations.

PRESET TV/VCR/ Selects preset channels. +/- Satellite tuner

CD player/ Skips discs (multi-disc VCD player/ changer only). DVD player/ MD deck

▶VCR/ Starts play.

CD player/

VCD player/

LD player/

DVD player/

MD deck/

DAT deck/

Tape deck

IVCR/ Pauses play or record.
CD player/ (Also starts recording
VCD player/	with components in
LD player/	record standby.)
DVD player/
MD deck/
DAT deck/
Tape deck

■VCR/ Stops play.

CD player/

VCD player/

LD player/

DVD player/

MD deck/

DAT deck/

Tape deck

AV TV/VCR/ Selects information
DISPLAY	VCD player/LD player/DVD player	displayed on the TV screen.
TITLE/GUIDE	VCR/Satellite tuner/DVD player	Displays title and guide.
AV VCR/Satellite Displays menu.
MENU	tuner/DVD player
//<>	VCR/Satellite tuner/DVD player	Selects a menu item.
Remote Operations Function Button
ENTER/ VCR/Satellite Enters the selection.EXEC tuner/DVD player
EXIT/ VCR/Satellite Returns to the previous RETURN	tuner/DVD player	menu or exits the menu.
	Tape deck Starts play on the reverse side.
ANT TV/ VTR	VCR	Selects output signal from aerial terminal: TV signal or VCR program.
DISC	CD player/VCD player	Selects discs (multi-disc changer only).
	VCD player	Press to go back to the previous menu.
TV/VIDEO	TV/VCR Selects input signal: TV input or video input.
-/--	TV/VCR	Selects the channel entry mode, either one or two digit.
SEARCH DVD player MODE		Selects searching mode.
CLEAR	DVD player	Press if you made a mistake when you press the number button.
MONITOR	TV Press to activate TV control buttons. Press again to restore original category.
WIDE	TV Selects the wide picture mode.
JUMP	TV Toggles between the previous and the current channels.
SUB CH+/-*	TV Selects preset channels for the small picture.
POSITION*	TV Changes the position of the small picture.
SWAP*	TV Swaps the small and the large picture.
VOL +/-*	TV Adjusts the volume of the TV.

Remote Operations Function Button

MUTING TV Mutes the sound from (with TV. PAUSE)

P IN P* TV Activates the picture-in-picture function.

USE Remote Use to program the MODE remote.

AV 1 Remote Selects the mode of the remote.

AV 2

3RD

2ND ROOM

SOURCE Remote Selects 2ND AV output.

* Only for Sony TVs with the picture-in-picture function.

Notes

• Some functions explained in this section may not work depending on the model of the receiver.
• The above explanation is intended to serve as an example only.
  Therefore, depending on the component the above operation may not be possible or may operate differently than described.
• The VIDEO 3, TV/SAT, AUX, PHONO, AUDIO SPLIT, NIGHT MODE, EQ/TONE, ON SCREEN, /10, /11, /12, 3RD, 2ND ROOM and SOURCE functions are not available for set operation.

Selecting the mode of the remote

Set the remote mode using the USE MODE button and the remote mode buttons.

Selecting the command mode

You can switch the command mode (AV1 or AV2) of the remote. If the command mode of the receiver and the remote is different, you cannot use the remote to operate the receiver.

Press 1 (AV1) (or 2 (AV2)) while pressing down USE MODE

The indicator lights once (twice for AV2), then the command mode switches.

continued

Selecting the mode of the remote (continued)

To check the mode of the remote

Press USE MODE. You can check the remote by the indicator.

Mode Indicator lights

AV1 once

AV2 twice

To reset the remote to factory settings

Press I/∅, AV I/∅, and MASTER VOL – at the same time.

The indicator lights 3 times, then goes off.

Programming the remote

You can program the remote to control non-Sony components by changing the code. Once the control signals have been memorized, you can use those components as part of your system.

Furthermore, you can also program the remote for Sony components that the remote is unable to control. Note that the remote can only control components that accept infrared wireless control signals.

Note

When you assign a component to the MONITOR button, you can operate the programmed component without changing the function of the receiver.

1 Press AV I/While pressing down USE MODE.

The indicator lights.

2 Press the function button (including MONITOR) for the component you want to control.

For example, if you are going to control a CD player, press CD/SACD.

3 Press the numeric buttons to enter the numeric code (or one of the codes if more than one code exists) corresponding to the component and the maker of the component you want to control.

See the tables on pages 43 and 44 for information on the numeric code(s) corresponding to the component and the maker of the component (the first digit and the last two digits of the numeric code correspond to the category and the maker's code respectively.)

4 Press ENTER.

Once the numeric code has been verified, the indicator slowly flashes twice and the remote automatically exits the programming mode.

5 Repeat steps 1 to 4 to control other components.

To cancel programming

Press USE MODE during any step. The remote automatically exits the programming mode.

To activate the function after programming.

Press the programmed button to activate the function you want.

If programming is unsuccessful, check the following:

• If the indicator does not light up in step 1, the batteries are weak. Replace both batteries.
• If the indicator flashes 4 times in quick succession while entering the numeric code, an error has occurred. Start again from step 1.

Notes

• The indicator turns off while a valid button is pressed.
• In step 2, if several function buttons are pressed, only the last pressed button is valid.
• In step 3, if a function button is pressed, the new function is selected and the programming procedure returns to the beginning of step 3.
• For the numeric codes, only the first three numbers entered are valid.

To clear the memory of the remote

To clear all programmed and learned signals, do the following to reset the remote to factory settings.

Press I/∅, AV I/∅ and MASTER VOL – at the same time.

The indicator flashes 3 times, then goes off.

The numeric codes corresponding to the component and the maker of the component

Use the numeric codes in the tables below to control non-Sony components and also Sony components that the remote is normally unable to control. Since the remote signal that a component accepts differs depending on the model and year of the component, more than one numeric code may be assigned to a component. If you fail to program your remote using one of the codes, try using other codes.

Notes

• The numeric codes are based on the latest information available for each brand. There is a chance, however, that your component will not respond to some or all of the codes.
• All of the functions on this remote may not be available when used with your particular component.

To control a CD player

Maker Code(s)

SONY 101, 102, 103

DENON 104, 123

JVC 105, 106, 107

KENWOOD 108, 109, 110

MAGNAVOX 111, 116

MARANTZ 116

ONKYO 112, 113, 114

PANASONIC 115

PHILIPS 116

PIONEER 117

TECHNICS 115, 118, 119

YAMAHA 120, 121, 122

To control a DAT deck

Maker Code(s)

SONY 203

PIONEER 219

To control an MD deck

Maker Code(s)

SONY 301

DENON 302

JVC 303

KENWOOD 304

To control a tape deck

Maker Code(s)

SONY 201, 202

DENON 204, 205

KENWOOD 206, 207, 208, 209

NAKAMICHI 210

PANASONIC 216

PHILIPS 211, 212

PIONEER 213, 214

TECHNICS 215, 216

YAMAHA 217, 218

To control an LD player

Maker Code(s)

SONY 601, 602, 603

PIONEER 606

To control a video CD player

Maker Code(s)

SONY 605

continued

Programming the remote (continued)

To control a VCR

Maker Code(s)
SONY 701, 702, 703, 704, 705, 706
AIWA 710, 750, 757, 758
AKAI 707, 708, 709, 759
BLAUPUNKT 740
EMERSON 711, 712, 713, 714, 715, 716, 750
FISHER 717, 718, 719, 720
GENERAL ELECTRIC 721, 722, 730
GOLDSTAR 723, 753
GRUNDIG 724
HITACHI 722, 725, 729, 741
ITT/NOKIA 717
JVC 726, 727, 728, 736
MAGNAVOX 730, 731, 738
MITSUBISHI/MGA 732, 733, 734, 735
NEC 736
PANASONIC 729, 730, 737, 738, 739, 740
PHILIPS 729, 730, 731
PIONEER	729
RCA/PROSCAN	722, 729, 730, 731, 741, 747
SAMSUNG	742, 743, 744, 745
SANYO 717, 720, 746
SHARP	748, 749
TELEFUNKEN	751, 752
TOSHIBA	747, 755, 756
ZENITH	754

To control a DVD player

Maker Code(s)
SONY 401
PANASONIC 402, 406
PHILIPS 407
PIONEER	403
TOSHIBA	404
DENON	405

To control a TV

Maker Code(s)
SONY	501
DAEWOO	504, 505, 506, 507, 515, 544
FISHER 508
GOLDSTAR 503, 511, 512, 515, 534, 544
GRUNDIG 517, 534
HITACHI 513, 514, 515, 544
ITT/NOKIA 521, 522
JVC 516
MAGNAVOX 503, 518, 544
MITSUBISHI/MGA 503, 519, 544
NEC 503, 520, 544
PANASONIC 509, 524
PHILIPS 515, 518
PIONEER	509, 525, 526, 540
RCA/PROSCAN	510, 527, 528, 529, 544
SAMSUNG	503, 515, 531, 532, 533, 534, 544
SANYO 508, 545
SHARP	535
TELEFUNKEN	523, 536, 537, 538
THOMSON	530, 537, 539
TOSHIBA	535, 540, 541
ZENITH	542, 543

To control a satellite tuner or cable box

Maker	Code(s)
SONY	801, 802, 803
JERROLD/G.I.	806, 807, 808, 809, 810, 811, 812, 813, 814
PANASONIC 818
RCA	804, 805
S. ATLANTA	815, 816, 817

Except for STR-DE585 area code CA

You can use the remote RM-U306 to operate the components in your system.

Before you use your remote

Inserting batteries into the remote

Insert R6 (size-AA) batteries with the + and - properly oriented in the battery compartment. When using the remote, point it at the remote sensor on the receiver.

Diagram of a battery switch mechanism with positive and negative terminals (no text or symbols)

Tip

Under normal conditions, the batteries should last for about 6 months. When the remote no longer operates the receiver, replace all batteries with new ones.

Notes

• Do not leave the remote in an extremely hot or humid place.
• Do not use a new battery with an old one.
• Do not expose the remote sensor to direct sunlight or lighting apparatuses. Doing so may cause a malfunction.
• If you don't use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.

Remote button description

SLEEP AV I/ SYSTEM STANDBY VIDEO 1 VIDEO 2 DVD/LD MD/TAPE CD TUNER TOP MENU DVD MENU ① ② ③ ENTER ④ ⑤ ⑥ SHIFT ⑦ ⑧ ⑨ >10 0 D.TUNING ENTER RETURN - CH/PRESET + TV/VIDEO ANT TV/VTR D.SKIP SOUND FIELD A.DEC MODE 2CH TEST TONE MAIN MENU MULTI CH MENU MUTING < > > MASTER VOL + + + + TV VOL TV CH - -

The tables below show the settings of each button.

Remote Operations Function Button

SLEEP Receiver Activates the sleep function and the duration which the receiver turns off automatically.
Remote Operations Function Button
VIDEO 1	Receiver To watch VCR. (VTR mode 3)
VIDEO 2	Receiver To watch VCR. (VTR mode 1)
DVD/LD	Receiver To watch DVD or laser disc.
MD/TAPE	Receiver To listen to Minidisc or audio tape.
CD	Receiver To listen to compact disc.
TUNER	Receiver To listen to radio programs.
SHIFT	Receiver Press repeatedly to select a memory page for presetting radio stations or tuning to preset stations.
D.TUNING	Receiver Tuner station direct key-in-mode.
A.DEC	Receiver Select AUTO DECODING mode.
MODE	Receiver Selects sound field mode.
2CH	Receiver Selects 2CH mode.
TEST TONE	Receiver Press to output test tone.
MAIN MENU	Receiver Press this button repeatedly to select one of the four cursor modes: SURR, LEVEL, SET UP and NAME.
MULTI CH	Receiver Selects MULTI CH IN source.
MENU <>	Receiver Selects a menu item.
MENU +/-	Receiver Makes adjustment or change the setting.
MUTING	Receiver Mutes the sound from the receiver.

Remote Operations Function Button
MASTER Receiver Adjusts the master VOL +/- volume of the receiver.
AV I/↓ TV/VCR/ Turns the audio and CD player/ video components on or VCD player/ off. LD player/ DVD player/ MD deck/ DAT deck
SYSTEM Receiver/TV/ Turns off the receiver and STANDBY VCR/Satellite other Sony audio/video (Press AV tuner/ components I/↓ and CD player/ I/↓ at VCD player/ the same LD player/ time) DVD player/ MD deck/ DAT deck/ Tape deck
0-9		Receiver Use with “SHIFT” button to select tuner preset station numeric input during DIRECT TUNING or MEMORY mode.
		CD player/ Selects track numbers. VCD player/ 0 selects track 10. LD player/ MD deck/ DAT deck
		TV/VCR/ Selects channel numbers. Satellite tuner
>10		CD player/ Selects track numbers VCD player/ over 10. LD player/ MD deck/ Tape deck
ENTER		TV/VCR/ After selecting a channel, Satellite tuner/ disc or track using the LD player/ numeric buttons, press to MD deck/ enter the value. DAT deck/ Tape deck
RETURN VCD player		Go back to previous menu.
CH/ PRESET stations. +/-	Receiver Scans and selects preset stations.
	TV/VCR/ Satellite tuner	Selects preset channel.
|◄◄/►►|	VCR/ CD player/ VCD player/ LD player/ DVD player/ MD deck/ DAT deck/ Tape deck	Skips tracks.
◄◄/►►	CD player/ VCD player/ or backward) DVD player	Searches tracks (forward or backward)
	VCR/ LD player/ MD deck/ DAT deck/ Tape deck	Fastforwards or rewinds.
►VCR/	Starts play.
	CD player/ VCD player/ LD player/ DVD player/ MD deck/ DAT deck/ Tape deck
■	VCR/ CD player/ (Also start recording VCD player/ with components in LD player/ DVD player/ MD deck/ DAT deck/ Tape deck	Pauses play or record.
		record standby.)
■	VCR/ CD player/ VCD player/ LD player/ DVD player/ MD player/ DAT deck/ Tape deck	Stops play.

Remote Operations Function Button
ANT VCR Selects output signalTV/VTR from the aerial terminal:TV signal or VCR program.
D.SKIP	CD player/ Skips discs (multi-disc VCD player/ changer only).DVD player/MD deck
TOP DVD player Displays DVD title. MENU
DVD DVD player Displays DVD menu. MENU
ENTER DVD player Enters the selection.
DVD player Returns to the previous menu or exits the menu.
+/↓/←/→	DVD player Selects a menu item.
-/-TV Selects the channel entry mode, either one or two digit.
TV/VIDEO	TV Selects input signal: TV input or video input.
TV VOL +/- TV	TV Adjusts the volume of the
TV CH +/- channels.	TV Selects preset TV

Notes

• When you press the function buttons (VIDEO 1, VIDEO 2, DVD/LD), the input mode of the TV might not switch to the corresponding input mode that you want. In this case, press the TV/VIDEO button to switch the input mode of the TV.
• Some functions explained in this section may not work depending on the model of the receiver.
• The above explanation is intended to serve as an example only. Therefore, depending on the component the above operation may not be possible or may operate differently than described.
• The MULTI CH function is not available for set operation (STR-DE485E only).

Changing the factory setting of a function button

If the factory settings of the FUNCTION buttons do not match your system components, you can change them. For example, if you have a tape deck and you do not have an MD deck, you can assign the MD/TAPE button to your tape deck.

Note that the settings of the TUNER button cannot be changed.

1 Hold down the Function button whose function you want to change (for example, MD/TAPE).
2 Press the corresponding button of the component you want to assign to the Function button (for example, 4 – Tape deck).

The following buttons are assigned to select the functions:

To operate Press
CD player 1
DAT deck 2
MD deck 3
Tape deck A 4
Tape deck B 5
LD player 6
VCR (command mode VTR 1*) 7
VCR (command mode VTR 2*) 8
VCR (command mode VTR 3*) 9
TV	0
DSS (Digital Satellite Receiver) >10
DVD ENTER
VCD player ◀◀◀

* Sony VCRs are operated with a VTR 1, 2 or 3 setting. These correspond to Beta, 8mm and VHS respectively.

Now you can use the MD/TAPE button to control the tape deck.

To reset a button to its factory setting

Repeat the above procedure.

To reset all the function buttons to their factory setting

Press I/ 1 , AV I/ 1 and MASTER VOL – at the same time.

Precautions

On safety

Should any solid object or liquid fall into the cabinet, unplug the receiver and have it checked by qualified personnel before operating it any further.

On power sources

• Before operating the unit, check that the operating voltage is identical with your local power supply. The operating voltage is indicated on the nameplate at the rear of the receiver.
• The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the receiver itself has been turned off.
• If you are not going to use the receiver for a long time, be sure to disconnect the receiver from the wall outlet. To disconnect the AC power cord, grasp the plug itself; never pull the cord.
• (Models of area code U, CA only) One blade of the plug is wider than the other for the purpose of safety and will fit into the wall outlet only one way. If you are unable to insert the plug fully into the outlet, contact your dealer.
• AC power cord must be changed only at the qualified service shop.

On heat buildup

Although the unit heats up during operation, this is not a malfunction. If you continuously use this unit at a large volume, the cabinet temperature of the top, side and bottom rises considerably. To avoid burning yourself, do not touch the cabinet.

On placement

• Place the receiver in a location with adequate ventilation to prevent heat buildup and prolong the life of the receiver.
• Do not place the receiver near heat sources, or in a place subject to direct sunlight, excessive dust or mechanical shock.
• Do not place anything on top of the cabinet that might block the ventilation holes and cause malfunctions.

On operation

Before connecting other components, be sure to turn off and unplug the receiver.

On cleaning

Clean the cabinet, panel and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

If you have any question or problem concerning your receiver, please consult your nearest Sony dealer.

Troubleshooting

If you experience any of the following difficulties while using the receiver, use this troubleshooting guide to help you remedy the problem. Also, see “Checking the connections” on page 20 to verify that the connections are correct. Should any problem persist, consult your nearest Sony dealer.

There is no sound or only a very low-level sound no matter which component is selected.

• Check that the speakers and components are connected securely and correctly.
• Check that both the receiver and all components are turned on.
• Check that the MASTER VOLUME control is not set at VOL MIN.
• Press MUTING to cancel the muting function.
• Check that the headphones are not connected.
• The protective device on the receiver has been activated because of a short circuit (“PROTECT” flashes). Turn off the receiver, eliminate the short-circuit problem and turn on the power again.

continued

Troubleshooting (continued)

There is no sound from a specific component.

• Check that the component is connected correctly to the audio input jacks for that component.
• Check that the cord(s) used for the connection is (are) fully inserted into the jacks on both the receiver and the component.
• Check that you have selected the correct component on the receiver.

There is no sound from one of the front speakers.

Connect a pair of headphones to the PHONES jack to verify that sound is output from the headphones (page 21).

If only one channel is output from the headphones, the component may not be connected to the receiver correctly. Check that all the cords are fully inserted into the jacks on both the receiver and the component.

If both channels are output from the headphones, the front speaker may not be connected to the receiver correctly. Check the connection of the front speaker which is not outputting any sound.

The left and right sounds are unbalanced or reversed.

• Check that the speakers and components are connected correctly and securely.
• Adjust balance parameters in the LEVEL menu.

There is severe hum or noise.

• Check that the speakers and components are connected securely.
• Check that the connecting cords are away from a transformer or motor, and at least 3 meters away from a TV set or fluorescent light.
• Move your TV away from the audio components.
• The plugs and jacks are dirty. Wipe them with a cloth slightly moistened with alcohol.

There is no sound or only a very low level sound is heard from the center or/and surround speaker.

• Make sure the sound field function is on (press MODE).
• Select a sound field containing the word "C.ST.EX" (pages 24).
• Adjust the speaker level (page 20).
• Make sure the center or/and surround speaker size parameter is set to either “SMALL” or “LARGE” (page 17).

There is no sound from the active sub woofer.

There is no sound output from the SUB WOOFER terminal depending on the sound field (page 55).

The surround effect cannot be obtained.

Make sure the sound field function is on (press MODE).

Dolby Digital or DTS multi channel sound is not reproduced.

• Check that the playing DVD, etc. is recorded in Dolby Digital or DTS format.
• When connecting the DVD player, etc. to the digital input jacks of this receiver, check the audio setting (settings for the audio output) of the connected component.

Recording cannot be done.

• Check that the components are connected correctly.
• Select the source component with function buttons.
• Make sure that INPUT MODE is set to “ANALOG” (page 21) before recording from a digital component connected to the analog MD/TAPE terminals.

To connect an LD player via an RF demodulator.

Connect the LD player to the RF demodulator, then connect the RF demodulator's optical or coaxial digital output to the receiver's jack. When making this connection, be sure to set INPUT MODE manually (page 21). The receiver may not operate correctly if INPUT MODE is set to "AUTO IN".

For details on DOLBY DIGITAL RF hookups, see the operating instructions supplied with your RF demodulator.

The FM reception is poor.

Use a 75-ohm coaxial cable (not supplied) to connect the receiver to an outdoor FM antenna as shown below. If you connect the receiver to an outdoor antenna, ground it against lightning. To prevent a gas explosion, do not connect the ground wire to a gas pipe.

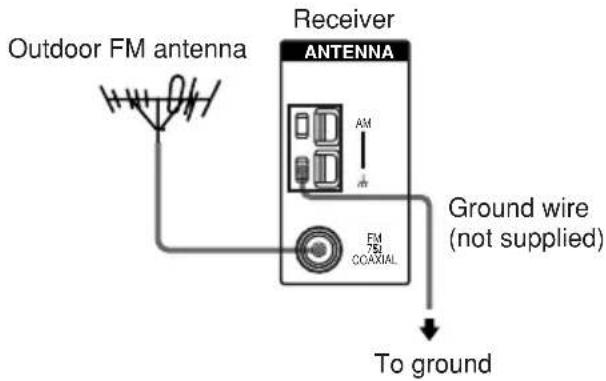

Outdoor FM antenna Receiver ANTENNA AM FM 750 COAXIAL Ground wire (not supplied) To ground

Radio stations cannot be tuned in.

• Check that the antennas are connected securely. Adjust the antennas and connect an external antenna if necessary.
• The signal strength of the stations is too weak (when tuning in with automatic tuning). Use direct tuning.
• Make sure you set the tuning interval correctly (when tuning in AM stations with direct tuning).
• No stations have been preset or the preset stations have been cleared (when tuning by scanning preset stations). Preset the stations (page 32).
• Press DISPLAY so that the frequency appears in the display.

RDS does not work.\*

• Make sure that you're tuned to an FM RDS station.
• Select a stronger FM station.

The RDS information that you want does not appear.\*

Contact the radio station and find out whether they actually provide the service in question. If so, the service may be temporarily out of order.

There is no picture or an unclear picture appears on the TV screen or monitor.

• Select the appropriate function on the receiver.
• Set your TV to the appropriate input mode.
• Move your TV away from the audio components.

The remote does not function.

• For RM-PP506 (STR-DE585 area code CA only).
  The VIDEO 3, TV/SAT, AUX, PHONO, AUDIO SPLIT, NIGHT MODE, EQ/TONE, ON SCREEN, /10, /11, /12, 3RD, 2ND ROOM and SOURCE on the remote are not available
  • For RM-U306 (STR-DE485E only)
  The MULTI CH button on the remote is not available.
• Point the remote at the remote sensor on the receiver.
• Check that the mode of the remote corresponds to that of the receiver (pages 36 and 41) (RM-PP506 only).
• Check that you select AV2 as the command mode of the receiver (page 36) (RM-U306 only).
• Remove any obstacles in the path between the remote and the receiver.
• Replace both batteries in the remote with new ones, if they are weak.
• Make sure you select the correct function on the remote.
• If the remote is set to operate the TV only, use the remote to select a source or component other than TV before operating the receiver or other component.

* Models of area code CEL, CEK only.

Clearing the receiver's memory

To clear See

All memorized settings page 15

Customized sound fields page 27

Specifications

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC DISTORTION:

With 8 ohm loads, both channels driven, from 40 – 20,000 Hz; rated 80 watts per channel minimum RMS power, with no more than 0.09 % total harmonic distortion from 250 milliwatts to rated output (STR-DE485 area code U only).

Amplifier section

POWER OUTPUT

Models of area code U, CA

Rated Power Output at Stereo Mode

(8 ohms 40 Hz - 20 kHz, THD 0.09 %)

STR-DE585*: 100 W + 100 W

STR-DE485: 80 W + 80 W

Reference Power Output

* Models of area code CA only.

Models of area code CEL, CEK Rated Power Output at Stereo Mode

Models of other area code Rated Power Output at Stereo Mode

1) Depending on the sound field settings and the source, there may be no sound output.

2) Measured under the following conditions:

Area code Power requirements

E2/E3, AU 240 V AC, 50 Hz

SP, CEL, CEK, AR 230 V AC, 50 Hz

TW 110 V AC, 60 Hz

MX 120 V AC, 60 Hz

Frequency response

MULTI CH IN(STR-DE 585 and STR-DE485 only),CD, MD/TAPE, DVD/LD, VIDEO 1, 2

10 Hz – 50 kHz+0.5/-2 dB (with sound field, and tone bypassed)

Inputs (Analog)

MULTI CH IN (STR-DE 585 and STR-DE485 only), CD, MD/TAPE, DVD/LD,VIDEO 1,2

Sensitivity: 250 mV Impedance: 50 kilohms S/N3): 96 dB (A, 250 mV4)

3) INPUT SHORT (with sound field and tone bypassed).

4) Weighted network, input level.

Inputs (Digital)

DVD/LD (Coaxial)	Sensitivity: –Impedance: 75 ohmsS/N: 100 dB(A, 20 kHz LPF)
VIDEO 2 (Optical)	Sensitivity: –Impedance: –S/N: 100 dB(A, 20 kHz LPF)

Outputs

MD/TAPE (OUT),VIDEO 1(AUDIO OUT)	Voltage: 250 mVImpedance: 10 kilohms
SUB WOOFER	Voltage: 2 VImpedance: 1 kilohms

Tone

Gain levels: ±6 dB, 1 dB step

FM tuner section

Tuning range 87.5 - 108.0 MHz

Antenna terminals 75 ohms, unbalanced

Intermediate Frequency

10.7 MHz

Sensitivity

Mono: 18.3 dBf, 2.2 μV/75 ohms

Stereo: 38.3 dBf, 22.5 V/75 ohms

Usable sensitivity 11.2 dBf, 1 V/75 ohms

S/N

Mono: 76 dB

Stereo: 70 dB

Harmonic distortion at 1 kHz

Mono: 0.3%

Stereo: 0.5%

Separation 45 dB at 1 kHz

Frequency response 30 Hz – 15 kHz,

+0.5/-2 dB

Selectivity 60 dB at 400 kHz

AM tuner section

Tuning range

Models of area code U, CA

With 10-kHz tuning scale: 530 - 1710 kHz ^5)

With 9-kHz tuning scale: 531 - 1710 kHz ^5)

Models of area code E2/E3, MX, AR

With 10-kHz tuning scale: 530 - 1610 kHz ^5)

With 9-kHz tuning scale: 531 - 1602 kHz ^5)

Models of area code AU, SP, CEL, CEK, TW

With 9-kHz tuning scale: 531 - 1602 kHz

Antenna Loop antenna

Intermediate Frequency

450 kHz

Usable sensitivity 50 dB/m (at 1,000 kHz or

999 kHz)

S/N 54 dB (at 50 mV/m)

Harmonic distortion 0.5 % (50 mV/m, 400 Hz)

Selectivity

At 9 kHz: 35 dB

At 10 kHz: 40 dB

5) You can change the AM tuning scale to 9 kHz or 10 kHz. After tuning in any AM station, turn off the receiver. Hold down PRESET TUNING + and press I/⏻. All preset stations will be erased when you change the tuning scale. To reset the scale to 10 kHz (or 9 kHz), repeat the procedure.

Video section

Inputs

Video: 1 Vp-p, 75 ohms

Outputs

Video: 1 Vp-p, 75 ohms

General

Power requirements

Area code Power requirements
U, CA, MX	120 V AC, 60 Hz
CEL, CEK	230 V AC, 50/60 Hz
SP, AR	220 – 230 V AC, 50/60 Hz
E2/E3	120/220/240 V AC, 50/60 Hz
TW	110 V AC, 50/60 Hz
AU	240 V AC, 50Hz

Power consumption

Area code Power consumption
U, MX	STR-DE485: 180 W
CA	STR-DE585: 300 VASTR-DE485: 260 VA
CEL, CEK	STR-DE585: 180 WSTR-DE485E: 155 W
AU, SP, E2/E3, AR	STR-DE485: 155 W
TW	STR-DE485: 400 W

Power consumption (during standby mode) 0.5 W

Dimensions

430 × 145 × 298 mm

(16 7/8 × 5 6/8 × 11 6/8 in.)

including projecting parts and controls

Mass (Approx.)

7.0 kg (15lb 7 oz)

Supplied accessories

FM wire antenna (1)

AM loop antenna (1)

• STR-DE585 only

- Models of area code CA Remote commander RM-PP506 (1) R6 (size-AA) batteries (2)

- Models of area code CEL, CEK Remote commander RM-U306 (1) R6 (size-AA) batteries (2)

• STR-DE485E/DE485 only Remote commander RM-U306 (1) R6 (size-AA) batteries (2)

For details on the area code of the component you are using, see page 4.

Design and specifications are subject to change without notice.

Tables of settings using SURR, LEVEL, SET UP, BASS and TREBLE buttons

You can make various settings using the LEVEL, SURR, SET UP, MENU +/-, and MENU < > buttons. The tables below show each of the settings that these buttons can make.

Press	Press MENU < or MENU > to select	Press MENU + or MENU – to select	Page
SURR EFFECT depends on the sound field (15 steps) 27
LEVEL	L R BAL. L/R XXX L +8 to R +8 (1 steps) 28
	CTR XXX dB -10 dB to +10 dB (1 dB steps)
	SUR.L. XXX dB -10 dB to +10 dB (1 dB steps)
	SUR.R. XXX dB -10 dB to +10 dB (1 dB steps)
	S.W. XXX dB -10 dB to +10 dB (1 dB steps)
	L.F.E. XXX dB OFF, -20 dB to 0 dB (1 dB steps)
	D. RANGE COMP. XXX	OFF, 0.1 to 0.9 (0.1 steps), STD, MAX
SET UP	L R (FRONT)	LARGE, SMALL	16
	C (CENTER)	LARGE, SMALL, NO
	SL SR (SURROUND)	LARGE, SMALL, NO
	SW (SUB WOOFER) S.W. XXX	YES, NO
	L R DIST. XX.X m	between 1.0 meters and 12.0 meters(0.1 meters steps) ^1)
	C DIST. XX.X m	between L R DIST. and 1.5 meters(0.1 meters steps) ^2)
	SL SR DIST. XX.X m	between L R DIST. and 4.5 meters(0.1 meters steps) ^3)
	SL SR PL. XXX	SIDE, MID, BEHD.
	SL SR HGT. XXX	HIGH, LOW
	C.MODE.AVX	AV1, AV2	37
	PRO LOGIC ^4)	DOLBY PL, II MOVIE, II MUSIC

1) For models of area code U, CA: 3 feet to 40 feet (1 foot steps)

2) For models of area code U, CA: between L R DIST. and 5 feet (1 foot steps)

3) For models of area code U, CA: between L R DIST. and 15 feet (1 foot steps)

4) STR-DE585 only.

You can make various settings using the BASS +/- and TREBLE +/- buttons. The tables below show each of the settings that these buttons can make.

Press To select		Page
BASS +/-	- 6 dB to + 6 dB (1dB steps)	29
TREBLE +/-	- 6 dB to + 6 dB (1dB steps)	29

Adjustable parameters for each sound field

The adjusted SURR, BASS and TREBLE parameters are stored in each sound field.

	<EURR>	<BASS>	<TREBLE>
	EFFECTLEVEL
2CH ST.		●	●
AUTO DEC.		●	●
NORM.SURR.		●	●
C.ST.EX A	●	●	●
C.ST.EX B	●	●	●
C.ST.EX C	●	●	●
HALL	●	●	●
JAZZ	●	●	●
CONCERT	●	●	●
GAME	●	●	●
MULTI CH IN1)
PCM 96K

The adjusted LEVEL parameters are applied to all the sound fields.

< LEVEL >
	FRONT CENTER SUR.L. SUR.R. S.WOOFER LFE D.RANGE BAL LEVEL LEVEL LEVEL LEVEL MIX					2)	COMP2)
2CH ST. ●					●
AUTO DEC. ●	●	●	●		●	●
NORM.SURR. ●	●	●	●		●	●
C.ST.EX A	●	●	●	●		●	●
C.ST.EX B	●	●	●	●		●	●
C.ST.EX C	●	●	●	●		●	●
HALL	●	●	●	●	3)	●	●
JAZZ	●	●	●	●	3)	●	●
CONCERT	●	●	●	●	3)	●	●
GAME	●	●	●	●		●	●
MULTI CH IN1)	●	●	●	●		●
PCM 96K	●

1) STR-DE585 and STR-DE485 only.

2) These parameters may not operate depending on the source or adjustments. For details, see each item in “Adjusting the level parameters” (page 27).

3) When these sound fields are selected, there is no sound output from the sub woofer if the front speaker size is set to "LARGE". However, sound will be output from the sub woofer if the digital input signal contains L.F.E. signals.
