USER MANUAL Jeans 3210 ELNA

-elna SWISS DESIGN Creative

Studio

CoolGuide

Sewing Machines and Accessories

Cool

Collection

SewFun

2100

2300

2600

2800

SuperCool

Collection

3210

Cool Sewing Guide

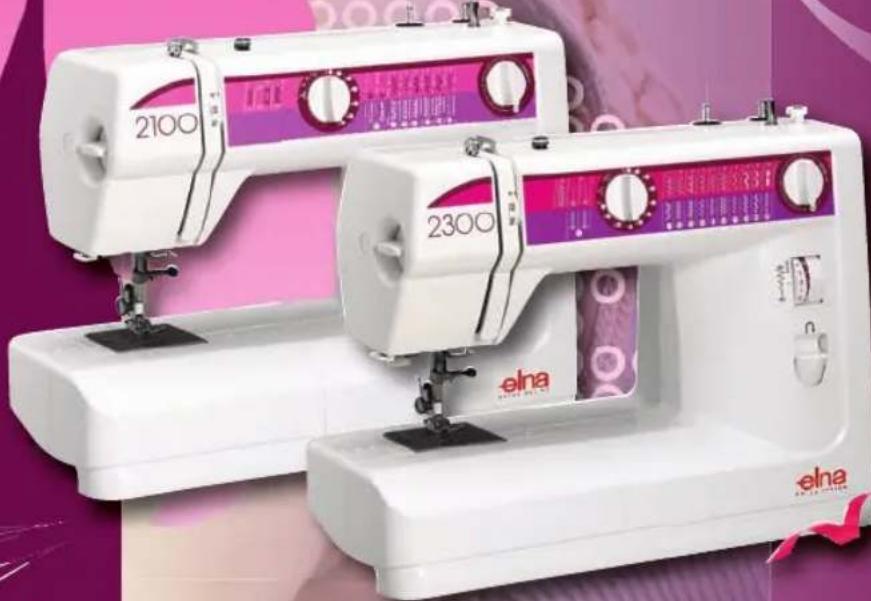

Exterior view of two white sewing machines labeled 2100 and 2300, with no visible text or symbols on the machines themselves.

The Coolest Sewing Machines on the Planet today

The fabulous

Elna Cool Collection

sewing machines to choose from

Sew Fun

14 True stitches

4 step buttonhole

Carry Handle

Elna 2100

14 True stitches

4 Step Buttonhole

Circular Pivot Points

Twin Needle Sewing

Elna 2300

22 True stitches

One Step Buttonhole

Powerful Motor

Stretch Stitches

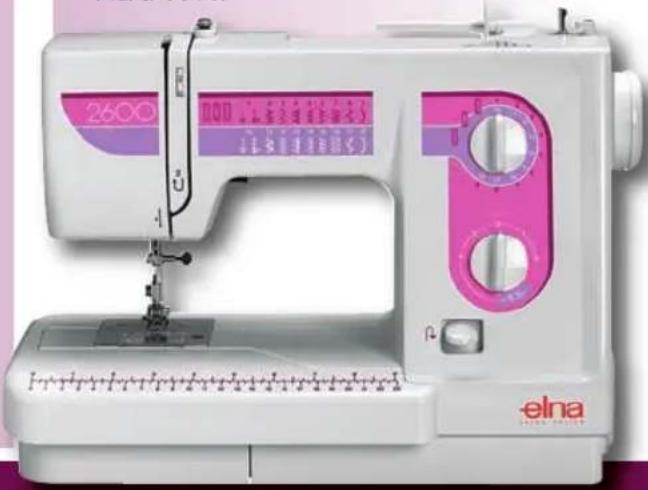

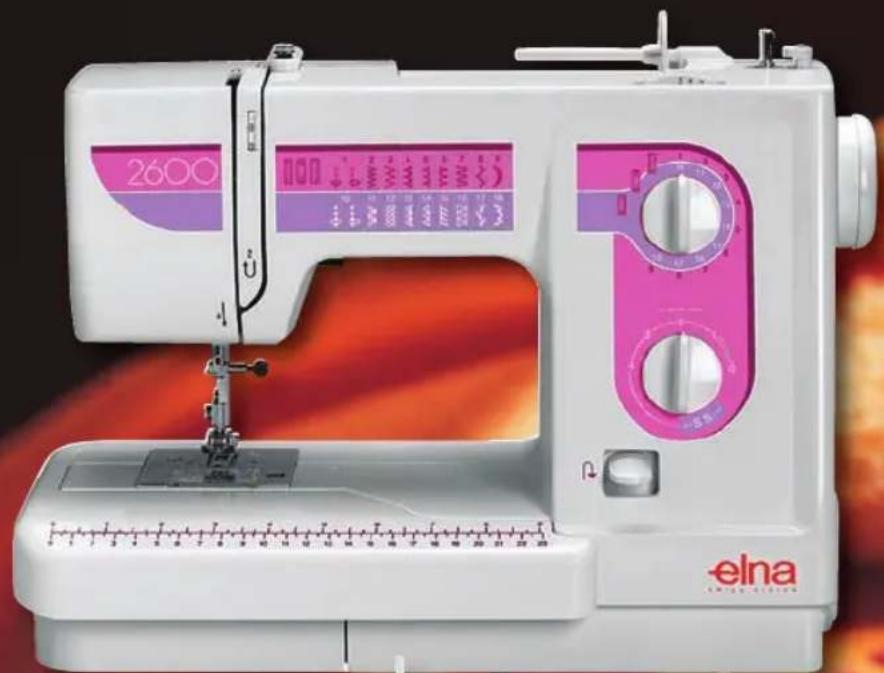

Elna 2600

18 True stitches

4 Step Buttonhole

Easy Maintenance

2 speed foot control

4 piece feed

mechanism

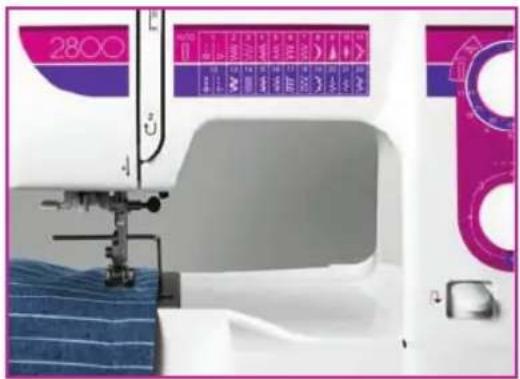

Elna 2800

22 True stitches

One Step Buttonhole

Easy Maintenance

Easy Needle Threader

2 Speed Foot Control

4 Piece Feed

Mechanism

The fabulous

Elna Cool Collection

Which one is right for YOU?

Any sewing machine from the COOL Collection guarantees sewing proficiency for your sewing tasks!

And the ultimate SuperCool model in the collection is the fabulously sleek and stylish Elna 3210. So Cool it's SuperCool.

White sewing machine with red and pink buttons, no visible text or symbols on body

White sewing machine with purple and white buttons, no visible text or symbols on body

White sewing machine with purple control panel and brand logo (no visible text or symbols on body)

White sewing machine with purple and pink buttons, no visible text or symbols on body

White sewing machine with purple and pink buttons (no visible text or symbols)

White sewing machine with blue control panel and brand logo (no visible text or symbols on body)

Super Cool

Jade

Choosing

a sewing

machine

from

Elna's

Cool

Collection

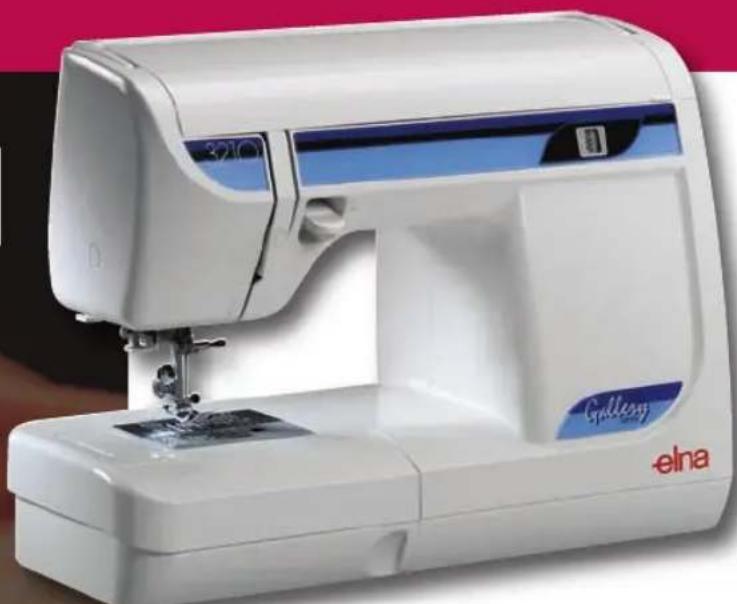

Elna 3210

19 True stitches

One Step Buttonhole

Powerful Motor

Superior 7 Piece

Feed Mechanism

Needle Threader

Stretch Stitches

-eln a

SWISS DESIGN

PAGES

The Elna Cool Collection

Models Sew Fun, 2100, 2300, 2600 and 2800

SPECIFICATIONS

This is a list of all model accessories provided free with your machine and all of those accessories that are optional for you to purchase

Elna Cool Guide 1

Elna Cool Collection - 5 models 2

Elna Cool Collection Menu 3

IMPORTANT

Generic Accessories

The Elna sewing machine accessory is sometimes compatible with the Janome model. Sewing machine parts are manufactured by Janome for many well known brands on today's high street.

The Janome accessory part number is different to that given to Elna, but when used, will work satisfactorily for both machines.

You may find that a dual branded accessory is provided and you may now compare the part numbers using our listing here under Full Specifications. We are providing dual accessory numbers for you.

SewFun - Features - Summary - Specifications 4 - 6

2100 and 2300 7

2100 - Summary - Features - Specifications 8 - 10

2300 - Summary - Features - Specifications 11 - 13

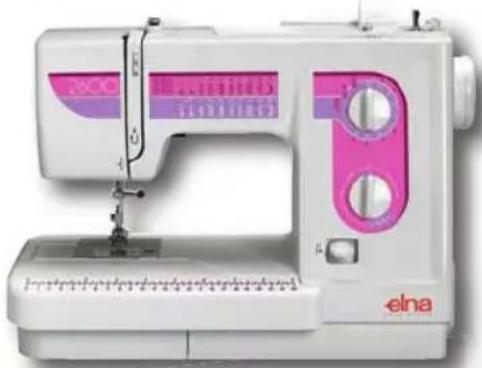

Elna 2600 and 2800 14

2600 - Summary - Features - Specifications 15 - 17

2800 - Summary - Features - Specifications 18 - 20

SPECIFICATIONS

Accuracy and Reference

Elna UK have taken every care to provide accurate specifications on all the models featured within the Cool Collection series, but can not be held responsible for any actual inaccuracies due to human error.

The Elna

Super Cool Collection

Elna 3210 21

Features 22

Specifications 23

In everyone's interest....

we are grateful for customer advice in regard to specifications so invite anyone to supply any suggested corrections through the Internet website www.elna.com which we can then consider for reprinting.

Elna UK Glossary Reference 24

Elna UK

Southside, Bredbury,

Stockport, CHESHIRE. SK6 2SP

Elna Sew Fun

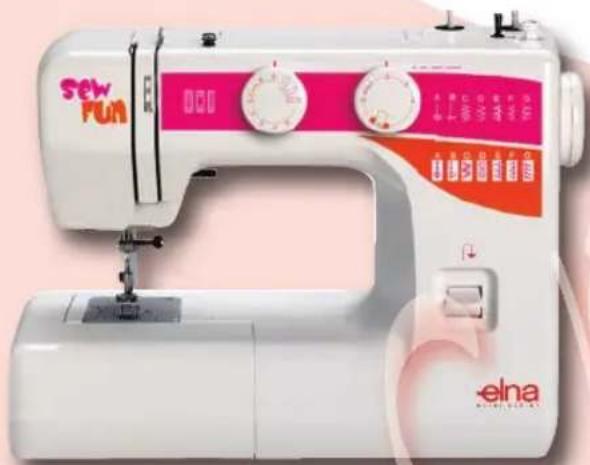

SEW much FUN for Mum & Daughter Sew Fun 14 True stitches 4 step buttonhole

Extra Lift on Presser Foot

(to get those thicker

fabrics underneath)

Blind Hem Stitch

Carry Handle

Straight stitch

and triple straight stitch

with 2 needle positions

variable between

left and centre

White sewing machine with pink and red branding, no visible text or symbols on the device body

IDEAL

for MUM,

DAUGHTER

and STUDENTS

PERFECT for

CARD MAKING & CRAFT

Here is a sewing machine that is fun to use and is within a limited budget. For real value for money it will be hard to beat. Remember inside the Sew Fun is a very serious machine capable of surprising results.

Three women smiling and holding books together, no visible text or symbols

Elna Sew Fun

Jackie says...

The Elna SEW FUN is exactly that - a sewing machine that is really such great FUN to use!

With wonderfully Bright Colours and an Easy Stitch Selection you can really get into sewing in a FABULOUSLY FUN way!

Weighing no more than 6 kilos, the magical SEW FUN is very portable and ideal for taking to sewing classes or just round to your friends house for one of those 'girly sewing sessions'.

Choosing the stitches is simple! The easy grip dials Lock the Stitch into place once selected.

No worries when threading the machine either. The thread path has Numbered Arrows for you to follow so there's no danger of you going in the wrong direction.

Take the extension off at the front and you have a Handy Free Arm to help with those tricky jobs such as shortening jeans or sleeves etc.

It really is a great fun machine to have around and I think, Terrific Value for Money.

For young ones starting out on their first sewing venture or just a handy machine for all those household jobs that crop up, the Elna SEW FUN is the one for me!

Woman smiling while holding a sewing machine with books in the background (no visible text or symbols on the machine itself)

Elna Sew Fun

SPECIFICATIONS

Mechanical Sewing Machine

Vertical Oscillating Hook

Free Arm / Flat Bed Conversion

Front Loading – Category A

Machine Size:

W370×D150×H280mm

Approximate Weight: 5.9kg

Built in Stitches: 15

plus 4-step Buttonhole

Maximum Sewing Speed:

650 s.p.m. (appx)

Maximum Stitch Length: 4mm

Maximum Stitch Width: 5mm

Snap on Feet

Manual Tension

Vertical Type Spool Pin

(2 x Retractable)

Twin Needle Facility

Power Switch

Carry Handle

Soft Vinyl Cover

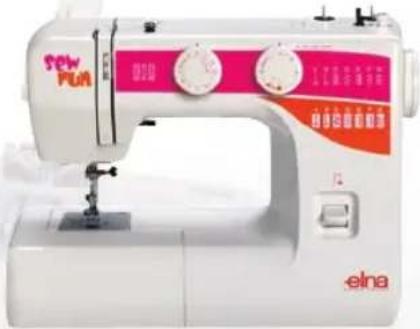

White sewing machine with pink and red buttons, no visible text or symbols on body

Elna Sew Fun has modern styling with bright colouring and looks. Aimed at youngsters and entry-level sewing enthusiasts. The easy-grip dials will lock the stitch into place making using the Sew Fun safe and secure.

N/A - No Alternative

Elna Sew Fun

Part of the Elna Cool Collection

ELNA JANOME ACCESSORY DESCRIPTION
STANDARD ACCESSORIES - SUPPLIED WITH YOUR MACHINE

940340000	820801005 Buttonhole foot (plastic)
735801008	N/A Darning Plate
395710-13	200133009 Seam Ripper
395710-03	301612003 Standard Foot
395712-81	C-2022 Foot Control
N/A	102261103 Bobbins x 3
395742-25 Set of Needles

OPTIONAL ACCESSORIES - AVAILABLE FOR YOUR MACHINE

395771-17	200130006 Blind Hem Foot (adjustable)
395771-19	200131007 Button Sewing Foot
395771-14	200128001 Hemmer Foot
395719-57	200132008 Overedge Foot
395771-61	200330008 1⁄4" Seam Foot
395771-16	200129002 Satin Stitch Foot
395771-18	200125008 Straight Stitch Foot
395771-15	200342003 Zipper Foot (narrow)
395719-55	200310002 Walking / Even Feed Foot
395710-08	647515006 Replacement Bobbin Case

Please note:

This model does not have a drop feed facility - however it will be supplied with a Darning Plate.

PLEASE NOTE: ELNA / JANOME - GENERIC ACCESSORIES

The Elna sewing machine accessory is sometimes compatible with the Janome model, as sewing machine parts are manufactured by Janome for many well known brands on today's high street. The Janome accessory part number is different to that given to Elna, but used, will work perfectly satisfactorily for both machines. You may find a dual branded accessory provided and you can now compare the part numbers using our list here.

Elna 2100 and 2300

Be Your Own Dress Designer

Cool Collection

sewing machines

Customise ready made clothes or alter them for your own pleasure! sewing machines Elna Design Beautifully simple clean lines with very attractive colouring and that so

Elna Design

Beautifully simple clean lines with very attractive colouring and that so easy-to-read front stitch panel graphic.

Elna Choice

A choice of two really reliable and easy-to-use sewing machines.

Elna 2100 & 2300

Are part of the new Elna Cool Collection.

front stitch 2100 2300 elna elna

My Favourite

Elna 2100

Elaine says...

The Elna 2100 is part of the new Elna Cool Collection and my goodness, what a really 'cool' machine this is!

Light and Portable yet strong and sturdy, the 2100 is capable of tackling all your little sewing projects around the home. Designed for absolute simplicity it has a large easy-to-view stitch display, an easy direct dial stitch selection and the option to vary the stitch width & length which accommodates all of your sewing needs.

And there's just no problem with buttonholes either as these are sewn in 4-easy-steps using the special clip-on foot supplied.

And for those very tricky stretch fabrics, this great Elna machine has an amazing range of stretch stitches to cope with all of them.

A free-arm conversion, adjustable foot pressure, and easy threading system are all part of the features of this Elna 2100. Whether starting out on your sewing journey or a more advanced sewing enthusiast, try the Elna 2100 for yourself

and see just how 'Cool' it really is!

1... the new Elna goodness, chine this is! strong and sturdy, ackling all your ound the home. implicity it has ch display, in selection ne stitch width modates . lem with ese are ng the plied. / stretch machine f with em es 2100 elna

Elna 2100 and 2300

Features

2100 2300

Large, easy to view stitch display	√	√
Instant reverse lever	√	√
Easy declutch for bobbin winding	√	√
Drop feed mechanism	√	√
Clip-on presser feet	√	√
Adjustable foot pressure	√	√
Extra high presser foot lift	√	√
Front loading oscillating hook system	√	√
2 vertical spool pins	√	√
Built-in thread cutter	√	√
Sewing light	√	√
Circular sewing pivot points	√	√
Free arm	√	√
Metric and inch measurements	√	√
Carrying handle	√	√
Vinyl dust cover	√	√
Number of true stitches	14+1	22+1
One step buttonhole		√
Four-step buttonhole	√
Maximum stitch width	5 mm	5 mm
Maximum stitch length	4 mm	4 mm
Adjustable stitch width	√	√
Needle position variable between left and centre	√	√

STYLISH You can create Accessories to match your style. Accessory storage compartment Standard accessories include presser feet, zipper foot, blind hem foot, bobbins, needles, screwdriver and seam ripper Optional accessories include Elna exclusive pivot pin, fagoting plate and elastic gatherer.

The Elna 2100 and the 2300 are both capable of beautiful, creative sewing.

And perfect for those everyday household tasks such as repairs, and revamping upholstery, craft work, and clothes alterations.

These two great sewing machines will give you every opportunity to explore your sewing interest.

elna SWISS DESIGN 2300 Cao

elna SWISS DESIGN

Elna 2100

14 True stitches

Automatic Buttonhole

More powerful motor

(than earlier models)

Circular Pivot points

Twin Needle Sewing - pin tucking

Easy Adjustable Foot Pressure

to accommodate all fabrics

3 piece Feed Mechanism

Extra High Pressure Foot

Stretch Stitches (ideally suited

for today's modern fabrics)

Overcasting Stitch

Clip on Feet

Elna 2100

SPECIFICATIONS

Mechanical Sewing Machine

Vertical Oscillating Hook

Free Arm / Flat Bed Conversion

Front Loading – Category A

Machine Size:

W390×D150×H280mm

Approximate Weight: 6.1kg

Built in Stitches: 14

plus 4-step Buttonhole

Maximum Sewing Speed:

800 s.p.m. (appx)

Maximum Stitch Length: 4mm

Maximum Stitch Width: 5mm

Snap on Feet

Drop Feed

Vertical Type Spool Pin (Retractable)

Manual Tension

Power Switch

Twin Needle Facility

Soft Cover

Carry Handle

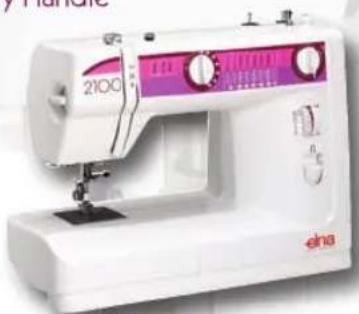

White sewing machine with purple control panel and red 'elna' branding (no visible text or symbols on body)

The Elna 2100 has modern styling with attractive colouring and looks.

White sewing machine with purple and pink buttons, no visible text or symbols on body

The dials and patterns have clear easy to read numerals and graphics.

N/A - No Alternative

Elna 2100

Part of the Elna Cool Collection

ELNA JANOME ACCESSORY DESCRIPTION

STANDARD ACCESSORIES - SUPPLIED WITH YOUR MACHINE

395719-85

395710-18

395710-09

395710-10

395710-13

395710-03

395731-87

395712-81

N/A

395742-25

740801004 Automatic Buttonhole Foot (R)

200130006 Blind Hem Foot (Adjustable)

820832005 Screwdriver (winged)

366413003 Screwdriver (Small)

200133009 Seam Ripper

301612003 Standard Foot

200342003 Zipper Foot (adjustable)

C-2022 Foot Control

102261103 Bobbins x 4

Set of Needles

OPTIONAL ACCESSORIES - AVAILABLE FOR YOUR MACHINE

395712-96

494660-20

395712-97

495396-20

495840-20

495520-20

395712-99

495565-20

495335-20

395731-69

395719-56

395719-58

395719-57

395731-67

487390-20

395719-61

395731-66

395719-59

426620-30

395719-60

395719-55

737801015

395710-08

200140009 Bias Binder Foot

N/A

Braiding Foot

200131007 Button Sewing Foot

N/A

Elastic Gatherers (8mm / 1/4")

N/A

Elastic Gatherers (10mm / 3/8")

N/A

Elastic Gatherers (13mm / ½")

200127000 Embroidery / Darning Foot

N/A

Fagoting Plates (narrow 2.5mm)

N/A

Fagoting Plates (wide 5mm)

N/A

Fringe / Looping Foot

200124007 Gathering Foot

200128001 Hemmer Foot

200132008 Overedge Foot

200328003 Pintuck Foot (narrow)

N/A Pivot Pin

200330008 1/4" Seam Foot

200142001 Roller Foot

943100000 Ruffler Foot

N/A

Seam Guide

200125008

Straight Stitch Foot

200310002 Walking / Even Feed Foot

200129002 Satin Stitch Foot

647515006 Replacement Bobbin Case

Please note: Elna / Janome - GENERIC ACCESSORIES

The Elna sewing machine accessory is sometimes compatible with the Janome model, as sewing machine parts are manufactured by Janome for many well known brands on today's high street. The Janome accessory part number is different to that given to Elna, but used, will work perfectly satisfactorily for both machines. You may find a dual branded accessory provided and you may now compare the part numbers using our list here.

My Favourite

Elna 2300

Diane says....

The Elna 2300 is Perfect for both beginners and experienced sewers. With its Cool colour, compact design and practical features it really is great value for your money.

Well able to cope with today's modern fabrics, it has a large array of both practical utility and decorative stitches including a fully automatic one-step buttonhole. Just place the button into the special foot supplied, select your stitch, and you can sew a perfect buttonhole every time!

Now that's Cool!

Thick or multiple-layers of fabric are no problem as the 2300 has an adjustable pressure dial, plus an extra lift on the presser foot to accommodate those real heavy tasks.

And look at some of the other great features, Easy clip-on feet, built-in sewing light, free-arm conversion and a very handy carry handle.

The Cool Elna 2300 could be your perfect sewing companion.

for both ed sewers. mpact design really is ey. today's arge tility including p e button lied, ! of fabric 00 re dial, date 2300 elna

Elna 2100 and 2300

Features

2100 2300

Large, easy to view stitch display	√	√
Instant reverse lever	√	√
Easy declutch for bobbin winding	√	√
Drop feed mechanism	√	√
Clip-on presser feet	√	√
Adjustable foot pressure	√	√
Extra high presser foot lift	√	√
Front loading oscillating hook system	√	√
2 vertical spool pins	√	√
Built-in thread cutter	√	√
Sewing light	√	√
Circular sewing pivot points	√	√
Free arm	√	√
Metric and inch measurements	√	√
Carrying handle	√	√
Vinyl dust cover	√	√
Number of true stitches	14+1	22+1
One step buttonhole		√
Four-step buttonhole	√
Maximum stitch width	5 mm	5 mm
Maximum stitch length	4 mm	4 mm
Adjustable stitch width	√	√
Needle position variable between left and centre	√	√

Accessory storage compartment

Standard accessories include presser feet, zipper foot, blind hem foot, bobbins, needles, screwdriver and seam ripper

Optional accessories include Elna exclusive pivot pin, fagoting plate and elastic gatherer.

IMPORTANT OPTIONAL ACCESSORIES

Pivot Pin Elna exclusive! Sew perfect circles

Close-up of a metallic mechanical component against a purple background (no text or symbols visible)

Fagoting Plate Join two folded edges

Close-up of a blue plastic clip attached to a white surface with a serrated edge (no text or symbols visible)

Elastic Gatherer Evenly apply elastic directly to fabric

The Elna 2100 and the 2300 are both capable of beautiful, creative sewing.

And perfect for those everyday household tasks such as repairs, and revamping upholstery, craft work, and clothes alterations.

These two great sewing machines will give you every opportunity to explore your sewing interest.

Close-up of a sewing machine stitching a textured fabric piece on a white table (no visible text or symbols)

The Free Arm of the 2100 and 2300 makes sewing sleeves and cuffs so much easier.

Decorative pink fabric bow with black trim and yellow candy beads (no text or symbols)

Elna 2300

Enchanting Gift created using Elna's optional fagoting plate.

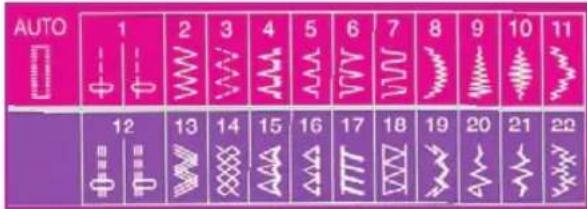

22 True stitches

One Step Buttonhole

More powerful motor (than earlier models)

Circular Pivot points

Twin Needle Sewing - pin tucking

Easy Adjustable Foot Pressure

to accommodate all fabrics

3 piece Feed Mechanism

Extra High Pressure Foot

Stretch Stitches (ideally suited

for today's modern fabrics)

Knit Stitch-

Overcasting Stitch

Clip on Feet

Buttonholes are now stunning.

Portrait of a young woman in a pink polka-dot frame (no text or symbols visible)

The decorative scallop stitch adding nostalgic charm. Created using Elna's optional circular sewing accessory.

Close-up of a red lipstick with black and silver casing (no visible text or symbols)

it's a girl thing

Elna 2300

SPECIFICATIONS

Mechanical Sewing Machine

Vertical Oscillating Hook

Free Arm / Flat Bed Conversion

Front Loading – Category A

Machine Size:

W390×D150×H280mm

Approximate Weight: 6.1kg

Built in Stitches: 22

plus 1-step Buttonhole

Maximum Sewing Speed:

800 s.p.m. (appx)

Maximum Stitch Length: 4mm

Maximum Stitch Width: 5mm

Snap on Feet

Drop Feed

Vertical Type Spool Pin (Retractable)

Manual Tension

Power Switch

Twin Needle Facility

Soft Cover

Carry Handle

White sewing machine with purple and pink buttons, no visible text or symbols on body

The Elna 2300 has modern styling with attractive colouring and looks.

White sewing machine with purple and pink buttons, no visible text or symbols on body

The dials and patterns have clear easy to read numerals and graphics.

N/A - No Alternative

Elna 2300

Part of the Elna Cool Collection

ELNA JANOME ACCESSORY DESCRIPTION

STANDARD ACCESSORIES - SUPPLIED WITH YOUR MACHINE

395719-30

395710-18

737801015

395710-09

395710-10

395710-13

395710-03

395731-87

395712-81

N/A

395742-25

753801004 Automatic Buttonhole Foot (R)

200130006 Blind Hem Foot (Adjustable)

200129002 Satin Stitch Foot

820832005 Screwdriver (winged)

366413003 Screwdriver (Small)

200133009 Seam Ripper

301612003 Standard Foot

200342003 Zipper Foot (adjustable-unhinged)

C-2022 Foot Control

102261103 Bobbins x 4

Set of Needles

OPTIONAL ACCESSORIES - AVAILABLE FOR YOUR MACHINE

395712-96

494660-20

395712-97

495396-20

495840-20

495520-20

395712-99

495565-20

495335-20

395731-69

395719-56

395719-58

395719-57

395731-67

487390-20

395719-61

395731-66

395719-59

426620-30

395719-60

395719-55

395710-08

200140009 Bias Binder Foot

N/A Braiding Foot

200131007 Button Sewing Foot

N/A Elastic Gatherers (8mm / 1/4")

N/A | Elastic Gatherers (10mm / 3/8")

N/A Elastic Gatherers (13mm / ½")

200127000 Embroidery / Darning Foot

N/A Fagoting Plates (narrow 2.5mm)

N/A Fagoting Plates (wide 5mm)

N/A Fringe / Looping Foot

200124007 Gathering Foot

200128001 Hemmer Foot

200132008 Overedge Foot

200328003 Pintuck Foot (narrow)

N/A Pivot Pin

200330008 1/4" Seam Foot

200142001 Roller Foot

943100000 Ruffler Foot

N/A | Seam Guide

200125008 Straight Stitch Foot

200310002 Walking / Even Feed Foot

647515006 Replacement Bobbin Case

Please note: Elna / Janome - GENERIC ACCESSORIES

The Elna sewing machine accessory is sometimes compatible with the Janome model, as sewing machine parts are manufactured by Janome for many well known brands on today's high street. The Janome accessory part number is different to that given to Elna, but used, will work perfectly satisfactorily for both machines. You may find a dual branded accessory provided and you may now compare the part numbers using our list here.

Elna 2600 and 2800

Elna Cool Collection sewing machines

Made for Performance

Elna Design

Beautifully simple clean lines with very attractive colouring and that so easy-to-read front stitch panel graphic.

Elna Choice

A choice of two really reliable, extremely well made for performance and easy-to-use sewing machines.

White sewing machine with pink and purple branding, emitting a flame effect (no visible text or symbols on the device body)

White sewing machine with purple and pink buttons, placed on a red fabric background (no visible text or symbols on the machine body)

Creative Artistry

My Favourite

Elna 2600

Tina says.... My

Whether your thinking of trying your hand at dressmaking or brightening up your home with new furnishings, the fabulous Elna Cool Collection, will have a machine that's just right for you!

For a compact, portable machine with lots of easy-to-use features and simple operation, take a look at the Elna 2600.

It's designed with a 4-piece feed mechanism for easier feeding of a wide range of fabrics. Synthetics to silks, damask to denim, linens to leather the Elna 2600 can cope with them all.

It has a twin needle facility for pin-tucks and top stitching, drop feed for free-hand stitching and the exclusive Elna pivot points for accurate circular stitching. Big on design too, it has a handy pull out storage compartment for your sewing accessories, a very useful imperial / metric measurement on the sewing bed and essential free-arm for easier sewing of sleeves, cuffs and trousers etc.

It has a very handy sewing light, reverse stitching and an on / off switch, all of which adds to its smart design. With built-in carry handle and a hard cover, the Elna 2600 is always ready to go, thus making it the right choice for sewing classes.

Elna is great for taking to classes

2000 elna

Elna 2600 and 2800

Features

2600 2800

Large, easy to view stitch display	√	√
Built-in Needle Threader		√
Instant reverse lever	√	√
Strong Needle Penetration on all fabrics	√	√
Easy declutch for bobbin winding	√	√
Drop-in Bobbin	√	√
Drop feed mechanism	√	√
Clip-on presser feet	√	√
Adjustable foot pressure	√	√
Extra high presser foot lift	√	√
1 vertical spool pins (detachable)	√	√
Built-in thread cutter	√	√
Sewing light	√	√
Free arm	√	√
Metric and inch measurements on base	√	√
Metric and inch measurements on the needle plate	√	√
Square corner guide on needle plate	√	√
Carrying handle	√	√
Stitch Features	√
Number of stitch programs	21	23
One step buttonhole		√
Four-step buttonhole	√
Maximum stitch width	5 mm	5 m
Maximum stitch length	4 mm	4 m
Adjustable stitch width	√	√
Needle position variable between left and centre	√	√

Large accessory storage compartment Standard accessories include presser feet, zipper foot, blind hem foot, bobbins, needles, screwdriver and seam ripper

Optional accessories include Elna exclusive pivot pin, fagoting plate and elastic gatherer.

White plastic medical device with a red logo on the front panel, against a pink background (no text or symbols visible)

Strong Protective Hard Cover provided for 2600 and the 2800

Easy-Access Drop-in Bobbin Full rotary hook Not a separate bobbin case to misplace. And you'll always be able to see how much thread is left.

Close-up of a blue circular object with measurement markings (1/8, 2/8, 5/8) and a tool interacting with it (no readable text or symbols)

Close-up of a sewing machine needle stitching a white fabric (no visible text or symbols)

Dropping the Feed Dog when you want to quickly sew on buttons or do free motion work (stippling or thread painting) just move the handy lever located on the back of the free arm.

Elna 2600

18 True stitches

Automatic 4 Step Buttonhole STRONGER MOTOR

(for that extra needle penetration)

SELF OILING for easy maintenance

Anti Jam proof mechanism

Clear see-through bobbin cover

Handy Imperial/Metric measurement on sewing bed

Pull-out compact storage compartment Metric/Imperial measure on needleplate (for exact seaming and straight stitching, great for patchwork and dressmaking).

Horizontal spool pin

(for smoother distribution

of the sewing thread).

Built in Carry Handle.

2 Speed Foot Control

4 piece feed mechanism

Hard cover

2600 eina

Elna 2600

SPECIFICATIONS

Mechanical Sewing Machine Horizontal Full Rotary Hook Free Arm / Flat Bed Convertible Top Loading – Category B

Machine Size: W410 x D170 x H290 mm Approximate Weight: 6.5kg Built in Stitches: 21 plus 4-step B/hole Maximum Sewing Speed: 820 s.p.m. (appx)

Maximum Stitch Length: 4mm Maximum Stitch Width: 5mm Snap on Feet Drop Feed Extra Lift on Pressure Foot Manual Thread Tension Control Power Switch Twin Needle Facility Horizontal Type Spool Pin Hard Cover Carry Handle

White sewing machine with pink and purple buttons, no visible text or symbols on body

The Elna 2600 has modern styling with attractive colouring and looks.

The dials and patterns have clear easy readable numerals and graphics.

PLEASE NOTE:

ELNA / JANOME - GENERIC ACCESSORIES

The Elna sewing machine accessory is sometimes compatible with the Janome model, because sewing machine parts are manufactured by Janome for many well known brands on today's high street. And although the Janome accessory part number is different to that given to Elna, when used, you will find works perfectly satisfactorily for both machines. You may therefore find a dual branded accessory provided and you are able to compare the part numbers using our list here.

N/A - No Alternative

Elna 2600

Part of the Elna Cool Collection

ELNA JANOME ACCESSORY DESCRIPTION

STANDARD ACCESSORIES - SUPPLIED WITH YOUR MACHINE
395731-76	820801005 Buttonhole Foot (plastic)
395719-35	820817015 Blind Hem Foot (Adjustable)
395719-36	802424004 Lint Brush (small)
395710-14	Needles
395710-09	820832005 Screwdriver (winged)
395710-13	200133009 Seam Ripper
395741-74	732802000 Sliding Buttonhole Foot
395719-38	822019004 Spool Cap (small)
395719-39	822020307 Spool Cap (large)
395719-42	625031005 Spool Pin (spare)
395719-41	102403109 Spool Felt (Red)
395719-29	832523007 Standard Foot
395719-64	829801002 Zipper Foot (E)
395724-60	C-2023 Foot Control (2 speed)
N/A	102261103 Bobbins x 4
395750-80	Instruction Manual
395741-73	479713205 Hard Cover

OPTIONAL ACCESSORIES - AVAILABLE FOR YOUR MACHINE

395741-96	200318000 1/4" Foot
395731-98	202023001 Appliqué Foot
395719-11	200313005 Bias Binder Foot
395719-78	200136002 Button Sewing Foot
395721-56	200024109 Circular Sewing Device
495390-20	N/A	Elastic Gatherers (8mm / 1⁄4")
495845-20	N/A	Elastic Gatherers (10mm / 3/8")
495525-20	N/A	Elastic Gatherers (13mm / 1⁄2")
395719-08	200349000 Embroidery/Darning Foot (standard)
N/A	200340001 Embroidery/Darning Foot (open-Toe)
495560-20	N/A	Fagoting Plates (narrow 2.5mm)
495330-20	N/A	Fagoting Plates (wide 5mm)
495851-20	N/A	Fringe / Looping Foot
395719-12	200315007 Gathering Foot
395719-54	820809014 Hemmer Foot
495440-20	200345006 Multi Cord Foot
495120-20	822804004 Satin Stitch Foot (standard)
395741-65	200137003 Satin Stitch Foot (open toe)
495320-20	2 Piece Set Pintuck Foot (narrow)
495400-20	200317009 Pintuck Foot (wide)
395719-90	200311003 Walking / Even Feed Foot (standard)
395731-81	200339007 Walking / Even Feed Foot (open Toe)
495480-20	200314006 Piping Foot
395719-40	802422002 Quilt Guide / Bar
495860-20	200332000 Ribon / Sequin Foot
395719-19	200316008 Roller Foot
395719-28	943100000 Ruffler Foot
395719-51	N/A	Seam Guide
395719-23	202006008 Special Bobbin Case
395719-20	200331009	Straight Stitch Foot
395719-21	200329004 Teflon Foot
395719-52	200333001 Zipper Foot (invisible)
395719-31	829801002 Zipper Foot (two sided)
395719-16	2 Piece Set Pin Tuck Cord Guide (narrow)
395719-17	200324009 Pin Tuck Cord Guide (wide)
395713-33	627569003	Replacement Bobbin Case

My Favourite

Elna 2800

Miranda says the Elna 2800 is her

Best Friend

I was looking for a new sewing machine that was both practical and creative. Designed to cope with every sewing challenge from minor alterations to major new creations and the Elna 2800 is the top-of-the-range machine in the famous Cool Collection.

With its smart compact design and cool colour, it has a range of practical features and stitches to suit all of your sewing requirements!

The Elna 2800 has it all, from the effortless one-step buttonhole and the drop-feed facility for free motion quilting and embroidery to the horizontal spool pin design for much smoother distribution of the thread.

With a strong motor for extra needle penetration on heavier fabrics, a drop-in bobbin and anti-jam mechanism for trouble free sewing as well as being self oiling for easy maintenance.

Also, the Elna 2800 has a handy imperial and metric measurement on the needle plate for exact seaming & straight stitching, which is essential for dressmaking and patchwork.

Handy needle threader, 2 speed foot control and a hard cover add up to a top of the range machine!

ection. and cool colour, es and stitches to ents! e effortless one- op-feed facility mbroidery to the much smoother pin 2800 E u elna

Elna 2600 and 2800

Really Great Stitch Package

of practical and decorative stitches

AUTO 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

IMPORTANT OPTIONAL ACCESSORIES

Three abstract geometric shapes: a pink circular ring, a purple gear-like structure with two wheels, and a blue segmented object on a white background (no text or symbols)

Pivot Pin
Elna exclusive! Sew perfect circles
Join two folded edges
Evenly apply elastic directly to fabric
The free arm and sewing guide makes keeping seams straight simple, even when you are sewing tubular.

Fagoting Plate

Elastic Gatherer

Sewing Guide

Close-up of a sewing machine needle stitching fabric, with no visible text or symbols on the machine itself.

Close-up of a sewing machine needle and fabric (no visible text or symbols)

NEEDLE THREADER
The automatic needle threader available only on the Eina 2800.

Elna 2800

22 True stitches

ONE STEP BUTTONHOLE

4 PIECE FEED MECHANISM

(Helps through heavier fabrics)

STRONGER MOTOR

(for extra needle penetration)

Smooth running

SELF OILING for easy maintenance

Anti Jam proof mechanism

Clear see-through bobbin cover

Handy Imperial/Metric measure on sewing bed

Pull-out compact storage compartment

Metric/Imperial measurement on needleplate

(for exact seaming and straight stitching,

which is great for patchwork and dressmaking).

Horizontal spool pin

(for smoother distribution

of the sewing thread).

Built in Carry Handle.

2 Speed Foot Control

Hard Cover

Close-up of a sewing machine stitching blue and white striped fabric (no text or symbols visible)

Stretch Fabrics
Stretchy Fabrics require stretch stitches. Both the Elna 2600 and the 2800 offer a wonderful selection.
Easy conversion for drop feed for free motion sewing, quilting and everyday mending.

Drop Feed Mechanism

Close-up of blue circular buttons on a white fabric surface with wooden texture (no text or symbols visible)

Perfect Finish
Perfect buttonholes in the blink of an eye. The Eina 2600 has a four step buttonhole and the 2800 a one step buttonhole. Both options will give you perfection.

Horizontal spool pin (for smoother distribution of the sewing thread). Built in Carry Handle. 2 Speed Foot Control Hard Cover

Elna 2800

SPECIFICATIONS

Mechanical Sewing Machine

Horizontal Full Rotary Hook

Free Arm / Flat Bed Convertible

Top Loading – Category B

Machine Size: W420 x D170 x H280 mm

Approximate Weight: 6.8 kg

Built in True Stitches: 22

One Step Buttonhole

Maximum Sewing Speed:

820 s.p.m. (appx)

Maximum Stitch Length: 4mm

Maximum Stitch Width: 5mm

Needle Threader

Snap on Feet

Drop Feed

Manual Thread Tension Control

Power Switch

Twin Needle Facility

Horizontal Type Spool Pin

Hard Cover

Carry Handle

White sewing machine with purple and pink buttons, no visible text or symbols on body

The Elna 2800 has modern styling with attractive colouring and looks.

The dials and patterns have clear easy readable numerals and graphics.

PLEASE NOTE:

ELNA / JANOME - GENERIC ACCESSORIES

The Elna sewing machine accessory is sometimes compatible with the Janome model, because sewing machine parts are manufactured by Janome for many well known brands on today's high street. And although the Janome accessory part number is different to that given to Elna, when used, you will find works perfectly satisfactorily for both machines. You may therefore find a dual branded accessory provided and you are able to compare the part numbers using our list here.

N/A - No Alternative

Elna 2800

Part of the Elna Cool Collection 20

ELNA JANOME ACCESSORY DESCRIPTION
STANDARD ACCESSORIES - SUPPLIED WITH YOUR MACHINE

395719-30	753801004	Auto Buttonhole Foot
395719-35	820817015	Blind Hem Foot (Adjustable)
395731-76	820801005	Buttonhole Foot (Clear Plastic)
395719-36	802424004	Lint Brush (small)
395719-46	822801001	Overedge Foot with brush
395719-40	802422002	Quilting Guide / Bar
395710-09	820832005	Screwdriver (winged)
395710-13	200133009	Seam Ripper
395719-38	822019004	Spool Cap (small)
395719-39	822020307	Spool Cap (large)
395719-42	625031005	Spool Pin (spare)
395719-41	102403109	Spool Felt (Red)
395719-29	832523007	Standard Foot
395719-64	829801002	Zipper Foot
395724-60	C-2023	Foot Control (2 speed)
N/A	102261103	Bobbins x 4
395750-80		Instruction Manual
395710-14		Needles
395741-73	479713205	Hard Cover

OPTIONAL ACCESSORIES - AVAILABLE FOR YOUR MACHINE

395741-96	200318000 1/4" Foot
395731-98	202023001 Appliqué Foot
395719-11	200313005 Bias Binder Foot
395719-78	200136002 Button Sewing Foot
395721-56	200024109 Circular Sewing Device
495390-20	N/A	Elastic Gatherers (8mm / 1⁄4")
495845-20	N/A	Elastic Gatherers (10mm / 3/8")
495525-20	N/A	Elastic Gatherers (13mm / 1⁄2")
395719-08	200349000 Embroidery/Darning Foot (standard)
N/A	200340001 Embroidery/Darning Foot (open-Toe)
495560-20	N/A	Fagoting Plates (narrow 2.5mm)
495330-20	N/A	Fagoting Plates (wide 5mm)
495851-20	N/A	Fringe / Looping Foot
395719-12	200315007 Gathering Foot
395719-54	820809014 Hemmer Foot
495440-20	200345006 Multi Cord Foot
495120-20	822804004 Satin Stitch Foot (standard)
395741-65	200137003 Satin Stitch Foot (open toe)
495265-20	200321006 Pearl / Bead Foot (2mm-4mm) set
495320-20	2 Piece Set Pintuck Foot (narrow)
495400-20	200317009 Pintuck Foot (wide)
395719-90	200311003 Walking / Even Feed Foot (standard)
395731-81	200339007 Walking / Even Feed Foot (open Toe)
495480-20	200314006 Piping Foot
495860-20	200332000 Ribbon / Sequin Foot
395719-19	200316008 Roller Foot
395719-28	943100000 Ruffler Foot
495120-20	822804004 Satin Stitch Foot
395719-51	N/A	Seam Guide
395719-23	202006008 Special Bobbin Case
395719-20	200331009 Straight Stitch Foot
395719-21	200329004 Teflon Foot
395719-52	200333001 Zipper Foot (invisible)
395719-16	2 Piece Set Pin Tuck Cord Guide (narrow)
395719-17	200324009 Pin Tuck Cord Guide (wide)
395713-33	627569003 Replacement Bobbin Case
395739-07	755643002 Replacement Needle Threader Pin

Elna 3210

SuperCool

19 Stitches

One Step Buttonhole

Adjustable Stitch Width

Variable Needle Positions

Fine Tuning Adjustments

Stitch Selection Display

Reverse Key

Built-in Needle Threader

Strong Needle Penetration on all fabrics

Maximum Stitch Width 6.5 mm

Maximum Stitch Length 4 mm

Rotary Horizontal Hook

with transparent bobbin cover

Automatic Declutch bobbin winder

Built-in Thread Cutter

Drop Feed Dog

Adjustable Foot Pressure

Extra Presser Foot lift

Clip on Presser Feet

Metric/inch measurements

on the needle and

bobbin cover plate

Free Arm

Carrying Handle

Vinyl Dust Cover

Accessories

2 Accessory Storage Areas

Standard accessories include:

Presser feet, bobbins, needles,

quilt guide, additional spool pin, spool pin felt, spool stand,

large and small spool holders, lint brush, screwdriver, seam ripper.

Many optional accessories available.

Creative

White sewing machine with blue control panel and '3210' label, no visible text or symbols on device body

Any surface will do!

Luxurious towels, a cozy bathrobe, whimsical slippers, flowing curtains, a practical laundry bag, alluring lingerie. With the Elna 3210, any fabric from delicate silk to rugged canvas is sewn with ease.

Stitches galore!

Everything from the most basic, like a straight stitch, to the practical stretch stitches, to the more ornate, like satin stitch scallops. This models even offers the very desirable appliqué stitch, so requested by quilters. And the 3210 has the classic one step buttonhole.

Display our stitch!

A simple turn of the dial changes the stitch on the machine. The 3210 clearly displays only the selected stitch number.

Outstanding Features!

The needle threader is so automated that all you need do is pull it down and position the thread. Remove the extension table to access the free arm, indispensable for hard-to-reach circular areas (cuffs, pant legs etc). And with the horizontal rotary hook, it's just a matter of dropping in the bobbin. No more bobbin case.

Elna Design!

The recessed dials display the settings for stitch width/needle position and stitch length? What could be more precise? On the front side of the free arm is the easy-to-reach feed dog lever. Drop the feed dog to sew on buttons or create lovely free-motion embroidery.

A full compliment of standard accessories is stored in the lower accessory storage box and upper foot compartment.

Artistry

Elna SuperCool 3210

Ami says

Making new clothes or customising old ones, altering or repairing, home furnishing or quilting, the Elna 3210 is a marvel that can cope with all of your sewing requirements!

From straight stitch to stretch stitch, satin stitch to scallops, the Elna 3210 offers you a choice of 19 super stitches including an easy one-step buttonhole. With a variable maximum stitch width of 6.5 mm it's great for wider buttonholes and for overcasting when using thicker fabrics. That's 1.5 mm wider than a standard basic machine! Designed with a built-in and flip-top storage compartment to accommodate the extra presser feet, it also has a handy stitch chart and reference guide. A free-arm facility for those tricky areas such as sleeves and trouser legs and an automatic needle thread are all part of the user friendly design of the 3210. There's a drop feed facility for free-motion embroidery and quilting. Weighing approximately 8 kgs its compact and stylish design make the Elna 3210 the perfect choice for all sewing tasks and taking to classes.

Close-up of folded fabric with red and white surfaces, no text or symbols visible

White sewing machine with blue and white design, no visible text or symbols on body

11 12 13 14 15 16 17 18 19 WXXWXX WXXWXX WXXWXX WXXWXX WXXWXX WXXWXX WXXWXX WXXWXX WXXWXX WXXWXX WXXWXX WXXWXX WXXWXX WXXWXX WXXWXX WXXWXX WXXWXX WXXWXX WXXWXX WXXWXX WXXWXXX WXXWXXX WXXWXXX WXXWXXX WXXWXXX WXXWXXX WXXWXXX WXXWXXX WXXWXXX WXXWXXX WXXWXXX WXXWXXX WXXWXXX WXXWXXX WXXWXXX WXXWXXX WXXWXXX WXXWXXX WXXWXXX WXXWXXX WXXWXXXX WXXWXXXX WXXWXXXX WXXWXXXX WXXWXXXX WXXWXXXX WXXWXXXX WXXWXXXX WXXWXXXX WXXWXXXX WXXWXXXX WXXWXXXX WXXWXXXX WXXWXXXX WXXWXXXX WXXWXXXX WXXWXXXX WXXWXXXX WXXWXXXX WXXWXXXX WXXWXXX WXXWXXX WXXWXXX WXXWXXX WXXWXXX WXXWXXX WXXWXXX WXXWXXX WXXWXXX WXXWXXX WXXWXXX WXXWXXX WXXWXXX WXXGXXXXX A0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

FLIP TOP STITCH CHART

ne! Designed -top storage modate the p has a handy nce guide. A e tricky areas user legs and hreader iendly Any Surface

Close-up of a sewing machine needle and workpiece (no visible text or symbols)

EASY NEEDLE THREADING

Close-up of a sewing machine needle stitching fabric on a sewing machine (no visible text or symbols)

THICK FABRICS

Close-up of a sewing machine needle stitching fabric (no visible text or symbols)

APPLIQUÉ ACCENT

Any Surface will do...

Luxurious towels, bathrobes, whimsical slippers, flowing curtains, a practical laundry bag or alluring lingerie. With the Elna 3210, any fabric from delicate silk to rugged canvas is sewn with ease.

Close-up of a sewing machine needle stitching fabric, no visible text or symbols

FREE ARM SEWING

Elna 3210

SPECIFICATIONS

Mechanical Sewing Machine

Horizontal Full Rotary Hook

Free Arm / Flat Bed Convertible

Top Loading – Category B

Machine Size: W410 x D190 x H310 mm

Approximate Weight: 8.4 kg

Built in True Stitches: 18

One Step Buttonhole

Superior 7 Piece Feed Mechanism

Maximum Sewing Speed:

700 s.p.m. (appx)

Maximum Stitch Length: 4 mm

Maximum Stitch Width: 6.5 mm

Needle Threader

Snap on Feet

Drop Feed

Manual Thread Tension Control

Power Switch

Twin Needle Facility

Horizontal Type Spool Pin

Auto De Clutch Bobbin Winder

Reverse Lever

Soft Cover

Carry Handle

White sewing machine with blue label 'eina' and red logo, no visible text or symbols on body

The Elna 3210 has modern styling with attractive colouring and looks.

PLEASE NOTE:

ELNA / JANOME - GENERIC ACCESSORIES

The Elna sewing machine accessory is sometimes compatible with the Janome model, because sewing machine parts are manufactured by Janome for many well known brands on today's high street. And although the Janome accessory part number is different to that given to Elna, when used, you will find works perfectly satisfactorily for both machines. You may therefore find a dual branded accessory provided and you are able to compare the part numbers using our list here.

N/A - No Alternative

Elna 3210

Part of the Elna SuperCool Collection

ELNA JANOME ACCESSORY DESCRIPTION

STANDARD ACCESSORIES - SUPPLIED WITH YOUR MACHINE

395719-30

395719-35

395743-67

395719-36

395719-34

395719-33

495120-20

395710-09

395710-13

395719-63

395719-41

395719-38

395719-39

395719-42

395719-29

395719-64

395719-40

395712-82

N/A

395750-80

395710-14

753801004 Auto Buttonhole Foot

820817015 Blind Hem Foot (Adjustable)

820801016 Buttonhole Foot

802424004 Lint Brush (small)

822801001 Overedge Foot with brush

820809014 Hemmer Foot

822804004 Satin Stitch Foot

820832005 Screwdriver (winged)

200133009 Seam Ripper

829803004 Spool Base / Stand

102403109 Spool Pin Felt (Red)

822019004 Spool Cap (small)

822020307 Spool Cap (large

625031005 Spool Pin (spare)

832523007 Standard Foot

829801002 Zipper Foot

802422002 Quilting Bar / Guide

C-2022 Foot Control

102261103 Bobbins x 4 (plastic)

Instruction Manual

Needles

OPTIONAL ACCESSORIES - AVAILABLE FOR YOUR MACHINE

395741-96

395731-98

395719-11

395719-78

395791-56

495395-20

495846-20

495526-20

395719-08

N/A

395731-58

395731-59

495851-20

395719-12

395719-54

495440-20

495265-20

495320-20

495400-20

395719-90

395731-81

495480-20

395719-16

395719-17

495860-20

395719-19

395719-28

395741-65

395719-51

395741-84

395719-23

395719-20

395719-21

395719-52

395713-33

395745-32

200318000 1/4" Foot

202023001 Appliqué Foot

200313005 Bias Binder Foot

200136002 Button Sewing Foot

200304003 Circular Sewing Device

N/A Elastic Gatherers (8mm / 1/4")

N/A | Elastic Gatherers (10mm / 3/8")

N/A Elastic Gatherers (13mm / ½")

200349000 Embroidery/Darning Foot (standard)

200340001 Embroidery/Darning Foot ( open-Toe)

N/A Fagoting Plates (narrow 2.5mm)

N/A | Fagoting Plates (wide 5mm)

N/A Fringe / Looping Foot

200315007 Gathering Foot

820809014 | Hemmer Foot

200345006 Multi Cord Foot

200321006 Pearl / Bead Food (2mm-4mm) set

2 Piece Set Pintuck Foot (narrow)

200317009 Pintuck Foot (wide)

200311003 Walking / Even Feed Foot (standard)

200339007 Walking / Even Feed Foot (open Toe)

200314006 Piping Foot

2 Piece Set Pin Tuck Cord Guide (narrow)

200324009 Pin Tuck Cord Guide (wide)

200332000 Ribbon / Sequin Foot

200316008 Roller Foot

943100000 Ruffler Foot

200137003 | Satin Stitch Foot open toe

N/A | Seam Guide

N/A Sewing / Quilting Table

202006008 Special Bobbin Case

200331009 | Straight Stitch Foot

200329004 Teflon Foot

200333001 Zipper Foot (invisible)

627569003 | Replacement Bobbin Case

755643002 Replace Needle Threader Pin

Elna Quilting Association

The Elna Quilting Association is for Elna owners only. It provides two newsletters per year (Spring and Autumn) which allow Elna owners to interact with each other and share information. Contributions are always welcome and owners should send their information to: The Association Editor, Elna UK, Southside, Bredbury, Stockport, Cheshire, SK6 2SP. Telephone [phone].

Elna Customer Award Programme

Elna's Customer Award Programme is a system of awards / incentives for Elna customers available with their sewing machines. Consumers are invited to visit www.elna.com and search under 'Customer Award Programme' banner to assess the current offers. Awards are 'claimed' by using the 'Claim-form' and sending this to Elna UK together with their registration card for their guarantee period - within 30 days of purchase. Claim-forms are available from your retailer or downloadable from the website.

Elna Heritage Centres

We celebrate 70 years of the Elna sewing machine. Elna sewing machines typify the Swiss Technology that is so renowned for precision engineering and reliable performance. The Elna sewing machine has played a part in generations of sewing enthusiasts's life. Many wish to maintain their sewing machine for as long as possible. To this end, we have a select list of ELNA HERITAGE CENTRES identified using the www.elna.com website. Also listed is the Elna UK timeline of support which identifies Elna machines supported by Elna UK.

Elna Creative Studios

Elna sewing machines are used by many experts in the sewing industry. We have many Elna Creative Studios in the UK where you will find tutors providing a range of specialist courses using Elna sewing machines. Please visit www.elna.com and search under the Elna Creative Studio banner for more information.

Elna Warranty

Elna sewing machines and overlockers are supported with our standard TWO years Free Warranty, which will cover both parts and labour, just in case. Please make sure that you register your new machine with us (within 30 days of purchase) so that we can begin the service support straight away. Also, in this time, you are able to extend this guarantee period up to five years by adding either one, two or three year periods to your standard cover. Visit www.elna.com under CustomerCare banner to read of your options and download a registration form.

Elna Quilting Associate Retailers

The Elna Quilting Associate Retailer are fellow members of the Elna Quilting Association. Here you will find all three models in the Elna Quilter's Touch series on display. Visit www.elna.com and search under stockists for your nearest specialist EQAR.

E.Q.A.

The Elna UK Official Quilting Association 2010

CUSTOMER

Award PROGRAMME

elna INTERNATIONAL HERITAGE

elna SWISS DESIGN Creative Studio

Customer Care

Elna Warranty Elna Sewing Machines & Overlockers

E.Q.A.R

www.elna.com

Elna UK, Southside, Bredbury, Stockport, Cheshire, SK6 2SP Telephone [phone]
