NTG-2 Instruction Manual

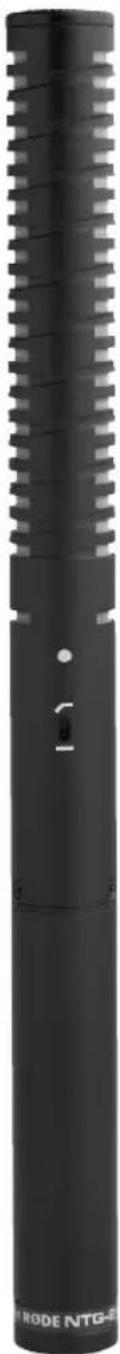

Black cylindrical device with threaded top and labeled 'MODE NTG-2' at bottom (no other text or symbols visible)

www.rodemic.com

I want to thank you for your purchase of the R∅DE NTG-2 shotgun microphone.

The design brief for this microphone was to build a shotgun that could be used in profe film and live stage applications where low noise, a wide frequency response and tightly controlled polar patterns are vital.

I am sure that once you have used your new mic, yo will agree we achieved our aim.

Like all RODE mics, the NTG-2 is manufactured using the fi nest surface mount electronic components available, and has a body machined of high grade aluminium which is fi nished in hard wearing epoxy paint.

The heart of any microphone is the capsule, and with the NTG-2, we have designed and incorporated what we believe to be one of the best transducers in its class.

The NTG-2 has many uses; It can be mounted on video cameras using either the on-board camera mic mounts or the optional shock mount. The NTG-2 is also suitable as a boom mounted mic for film and video use where it is desirable to get closer to the sound source yet still be out of the shot. Another area where the NTG-2 excels is in a live sound situation, used to great effect as a 'crowd mic' when doing a live band recording. The ability to power the mic by 48V phantom or an internal AA 1.5v battery is also a great feature.

The NTG-2 comes complete with a heavy duty microphone holder and a wind cover for 'moderate' outdoor applications. RODE has also design series of products which include the Dead Cat wind sock (for high wind applications) and boom pole as well as various cables and adaptors. Details of these units are available on the website www.rodemic.com

Also while on our website please take the time to register your microphone for a full ten year warranty.

Cefriedman

Peter Freedman

R∅DE Microphones

Sydney, Australia

Specifications

Acoustic Line plus gradient

Principle:

Directional Super-Cardioid

Pattern: (see graph)

Frequency 20Hz \~ 20kHz selectable

Range: HPF@80Hz/12dB octave (see graph)

Output 250Ω - phantom power

Impedence: 350Ω - battery power

Sensitivity: -36dB re 1V/Pa @ 1kHz

(15mV @ 94dB SPL)

±2dB @ 1kHz

Equivalent Noise: 18dBA SPL

(per IEC651)

Maximum +6.9dBu

Output: (@ 1kHz, 1% THD into 1kΩ)

Dynamic Range: 113dB (per IEC651)

Maximum SPL: 131dB

(@ 1kHz, 1% THD into 1kΩ)

Signal/Noise: 76dB SPL

(@ 1kHz, rel 1Pa per IEC651)

Power Phantom P48

Requirement: or 1.5V Alkaline 'AA' Battery

Current 2.0mA (P48)

Consumption: 0.18mA (1.5V AA)

Output 3-pin XLR, balanced output

Connection: between pin 2 (+), 3 (-)

and pin 1 (ground)

Net Weight: 161g

Specifications

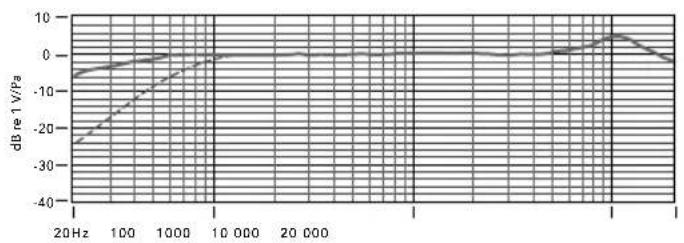

Frequency Response

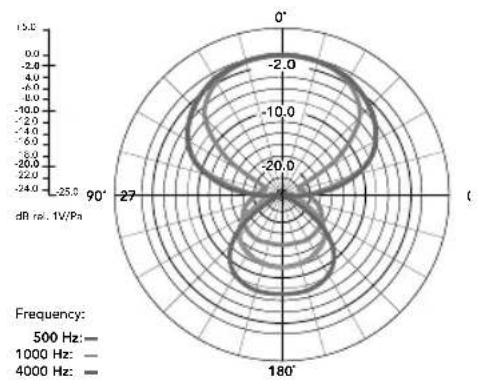

Polar Response

Accessories

RM5 Stand mount

ZP1 Zip pouch

WSVM Wind shield

Features

• Broadcast sound quality
• Low noise circuitry
  • Condenser transducer
  • Rugged metal construction
• Battery or phantom power operation
• Low handling noise
• Includes stand mount, zip pouch and windshield
• Designed & manufactured in Australia
  • Full 10 year guarantee*

Mounting the NTG-2

• The NTG-2 comes complete with a heavy duty stand mic holder for mounting the microphone on any compatible stand with a 3/8" or 5/8" thread.
• Install by pushing the mic in, on an angle coming from the back. You will notice the holder is quite firm, and this is intentional so that the NTG-2 will not come out easily, which could damage the mic.
• It is very important that you do not block the slots on the side of the microphone, as blocking these will affect the sound quality and the polar pattern (directional qualities).

*Online product registration required.

Supplying Power

• The NTG-2 requires power to operate. This needs to be supplied via P48V phantom power supply which is available from most professional video cameras or mixing consoles. Additionally you have the option of using an internal 1.5V AA battery.
• To insert a battery, turn the base of the microphone anti-clockwise to unscrew.

Close-up of hands holding a black cylindrical device with metallic components (no visible text or symbols)

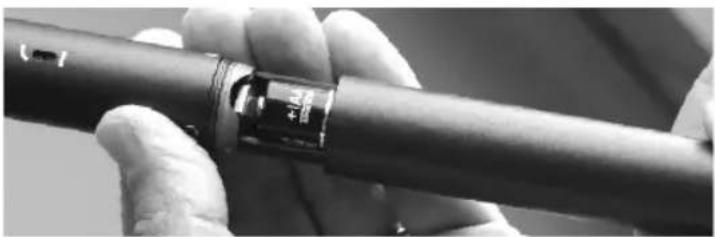

- Slide the cover down to reveal the battery compartment (the cover will not come off the end of the mic so do not force it). Insert the battery 'bottom first', checking the polarity using the sticker diagram as a guide.

Close-up of a hand holding a black cylindrical electronic device with a 1.5V power label and LED, no visible text or symbols on the device itself.

- Close the battery cover and retighten the end barrel by screwing clockwise until it is reasonably tight.

Close-up of hands holding a cylindrical electronic device with a black connector and a small metallic component (no visible text or symbols)

- It is recommended that you remove the battery from the NTG-2 when the microphone is not in use as current is drawn whenever a battery is installed.

Using the NTG-2

- The NTG-2 incorporates a switchable high pass fi Iter set at 80 Hz. This can be used when you wish to remove low frequency noise that is not part of your intended sound source. Remember however the tonal characteristics will be affected by this, so it is important that you listen to the sound with and without the HPF in circuit before deciding if it is appropriate for the source.

- The HPF activated by the recessed switch shown to the right. A small screwdriver or pen will be required as the switch is designed to prevent accidental toggling.

High Pass Filter ON

High Pass Filter OFF/Flat

Close-up of a mechanical component with no visible text or symbols

- The NTG-2 is supplied with a foam windshield. This windshield should be used even in the slightest breeze, as this can cause sound interference.

- When using the mic outside in heavy winds you may need to purchase a more specialised wind shield, such as the R∅DE Dead Cat, which will provide additional protection from adverse wind conditions.

Warranty

All RODE phones are warranted for one year from date of purchase. You can extend that to a full ten years if you register online at www.rodemic.com.

The warranty covers parts and labour that may be required to repair the microphone during the warranty period. The warranty excludes defects caused by normal wear and tear, modification, shipping damage, or failure to use the microphone as per the instruction guide.

If you experience any problem, or have any questions regarding your RODE microphone, first contact the dealer who sold it to you. If the microphone requires a factory authorised service, return will be organised by that dealer.

We have an extensive distributor/dealer network, but if you have difficulty getting the advice or assistance you require, do not hesitate to contact us directly.

R∅DE Microphones

International

PO Box 6685

Silverwater NSW 2128 Australia

Ph: [phone]

Fax: [phone]

USA

P.O. Box 4189

Santa Barbara, CA 93140-4189

Ph: 805 566 7777

Fax: [phone]

Technical Support

For information and technical support questions contact:

[e-mail]

In the United States and Puerto Rico, contact

[e-mail] or call 805 566 7777

In Australia, contact [e-mail] or call [phone]

Anywhere except Australia, the United States and Puerto Rico,

contact [e-mail] or call [phone]
