USER MANUAL AU-11CD CYP

QSM HDMI Out Optical L R Bitstream TV TIP NCH UPCM Power

AU-11CD

HDMI Audio De-Embedder (5.1) with Built-in Repeater

OPERATION MANUAL

DISCLAIMERS

The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use.

CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document. CYP (UK) Ltd also makes no commitment to update or to keep current the information contained in this document.

CYP (UK) Ltd reserves the right to make improvements to this document and/or product at any time and without notice.

COPYRIGHT NOTICE

No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or any of its part translated into any language or computer file, in any form or by any means—electronic, mechanical, magnetic, optical, chemical, manual, or otherwise—without express written permission and consent from CYP (UK) Ltd.

© Copyright 2019 by CYP (UK) Ltd.

All Rights Reserved.

Version 1.1

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this equipment:

• Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any openings or empty slots in the unit, as you may damage parts inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged.
• Do not allow anything to rest on the power cabling or allow any weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or openings in the unit housing that provide ventilation and allow for sufficient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE SUMMARY OF CHANGE

v2.00 09/07/2019 Updated format/diagrams

CONTENTS

1. Introduction......6
2. Applications ......6
3. Package Contents ......6
4. System Requirements ......6
5. Features....7
6. Operation Controls and Functions......8

6.1 Top Panel 8
6.2 Right Panel 9
6.3 Left Panel....9
6.4 Front Panel 10
6.5 Rear Panel....10

1. Connection Diagram ...... 11
2. Specifications......12
3. Acronyms......13

1. INTRODUCTION

The HDMI Audio Extractor allows you to extract audio signals from your HDMI source. When connecting to a TV or display you don't always get the best audio, or in the case of a PC monitor, no audio at all. So with this Audio Extractor you can take your original HDMI audio signal and convert it to digital optical or analogue Stereo (L/R) audio. This means that you can output your audio signal to external speakers or extend your audio signal pathway.

2. APPLICATIONS

Audio extraction for video only displays
■ Extend your audio signal
Audio extraction for non-HDMI AV receivers or wider audio systems

3. PACKAGE CONTENTS

HDMI Audio Extractor
5 V/1.2 A Power Adaptor
Operation Manual

4. SYSTEM REQUIREMENTS

HDMI equipped source device and display (TV/monitor) and/or amplifier/active speakers with connection cables.

5. FEATURES

Compliant with HDMI, HDCP 1.2 and DVI 1.0
■ Supports HDMI audio sampling rates up to 192 kHz
■ Supports Optical S/PDIF sampling rates up to 48 kHz
■ Supports TMDS clock frequency rate 225 MHz
■ Supports high-bit-rate (HBR) audio
No HDMI output connection is required to receive audio at the analogue and optical outputs
Maximum input and output HDMI cable length can run up to 15 metres at 1080p at 8-bit resolution
Low power consumption
Supports EDID management for audio formats, can switch between built-in EDID (LPCM 2CH/Bitstream) and external EDID (TV)
Supports 3D signal

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Top Panel

CYP Power Link 1 2

1 Power LED: The Power LED will illuminate in blue when the unit is connected to the power supply and switched on.
2 Link LED: The Link LED will illuminate in green when both the source and the display are connected and have established a link. This LED will also blink once while the power is turned on.

6.2 Right Panel

Bitstream TV 2CH LPCM Power 1 2

1 TV/Bitstream/2CH LPCM: This switch allows users to select the source's audio EDID.

TV Mode: Switch to TV mode for the HDMI source to output audio per the EDID of connected TV or AV receiver, supports up to LPCM 7.1 channels.

Bitstream Mode: Switch to Bitstream mode for the HDMI source to output Bitstream audio per the built-in EDID, supports up to compressed audio 5.1 channels.

2CH LPCM Mode: Switch to 2CH LPCM mode for the HDMI source to output LPCM 2 channels audio per the built-in EDID.

Note: Depending on the input audio format, the unit may not output audio through all output port., For example, the L/R analogue output port will have no audio when the input audio format is other than LPCM 2CH.

2 Power: Switches the unit ON or puts the device into standby mode.

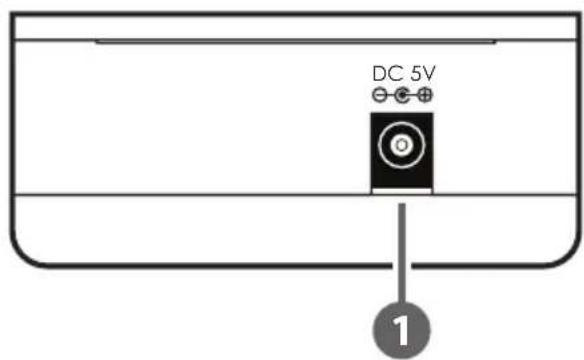

6.3 Left Panel

DC 5V 1

1 DC 5V: Connect to the 5V DC power supply into the unit and plug the adaptor to an AC wall outlet.

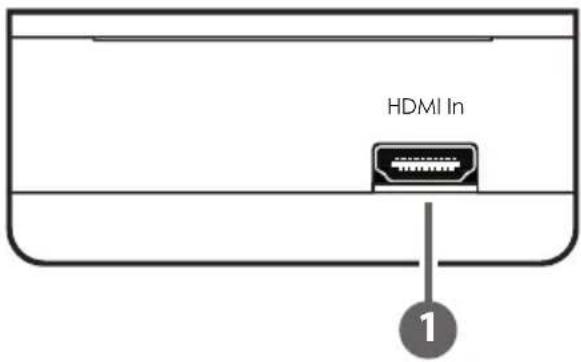

6.4 Front Panel

HDMI In 1

1 HDMI In: Connect to a source device such as a DVD/Blu-ray player with an HDMI cable.

6.5 Rear Panel

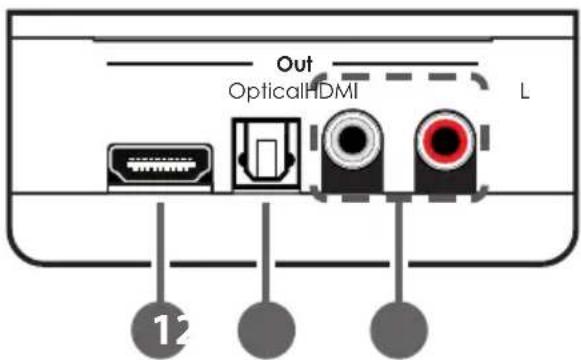

Out OpticalHDMI L 12

1 HDMI Out: Connect to the display (TV/monitor) with an HDMI cable for video and audio signal output. No HDMI output connection is required to send audio through the analogue and optical outputs.
2 Optical Out: Connect to audio equipment such as an amplifier or Hi-Fi system with an optical cable for digital audio output. Supports up to bitstream audio 5.1CH and LPCM 2CH.
3 L/R Out: Connect to audio equipment such as an amplifier or active speakers with a stereo RCA cable for audio output. Supports analogue stereo output only.

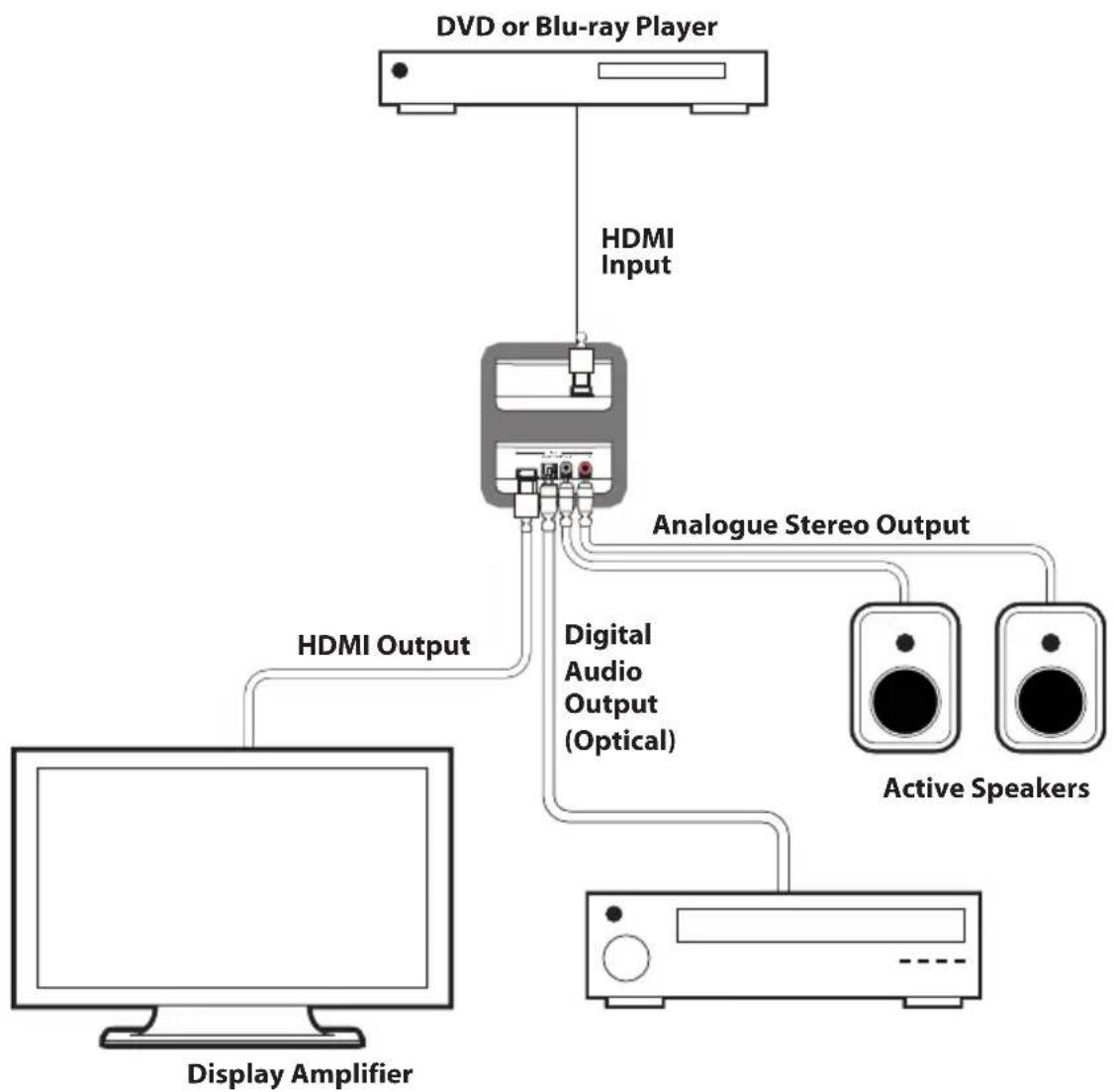

7. CONNECTION DIAGRAM

8. SPECIFICATIONS

Input Port 1×HDMI

HDMI Audio Sampling Rate Up to 192 kHz

Optical Audio Sampling Rate Up to 48 kHz

Output Ports 1×HDMI, 1×Optical, 1×L/R

HDMI Audio Format LPCM 2/5.1/7.1CH, Dolby 5.1, DTS 5.1,

DD+, D-TrueHD & DTS-HD

Optical Audio Format LPCM 2CH, Dolby 5.1 & DTS 5.1

L/R Audio Format Analogue Stereo 2CH

Power Supply 5 V/1 A linear power adaptor (US/EU

Standards, CE/FCC/UL Certified) Or

5 V/1.2 A switching power adaptor

(with universal plug, CE/FCC/UL

certified)

ESD Protection Human body model:

± 8kV (air-gap discharge)

± 6kV (contact discharge)

Dimensions 90.7 mm (W)×85.8 mm (D)×34 mm (H)

Weight 107 g

Chassis Material Plastic

Silkscreen Color White

Operating Temperature 0 °C\~40 °C/32 °F\~104 °F

Storage Temperature -20 °C\~60 °C/-4 °F\~140°F

Relative Humidity 20 \~ 90 % RH (non-condensing)

Power Consumption 2.1 W

9. ACRONYMS

ACRONYM COMPLETE TERM

HDCP High-bandwidth Digital Content Protection

HDMI High-Definition Multimedia Interface

CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA

Tel: [phone] | Fax: [phone]

Email: [e-mail]

www.cypeurope.com
