USER MANUAL VVX 100 DELONGHI

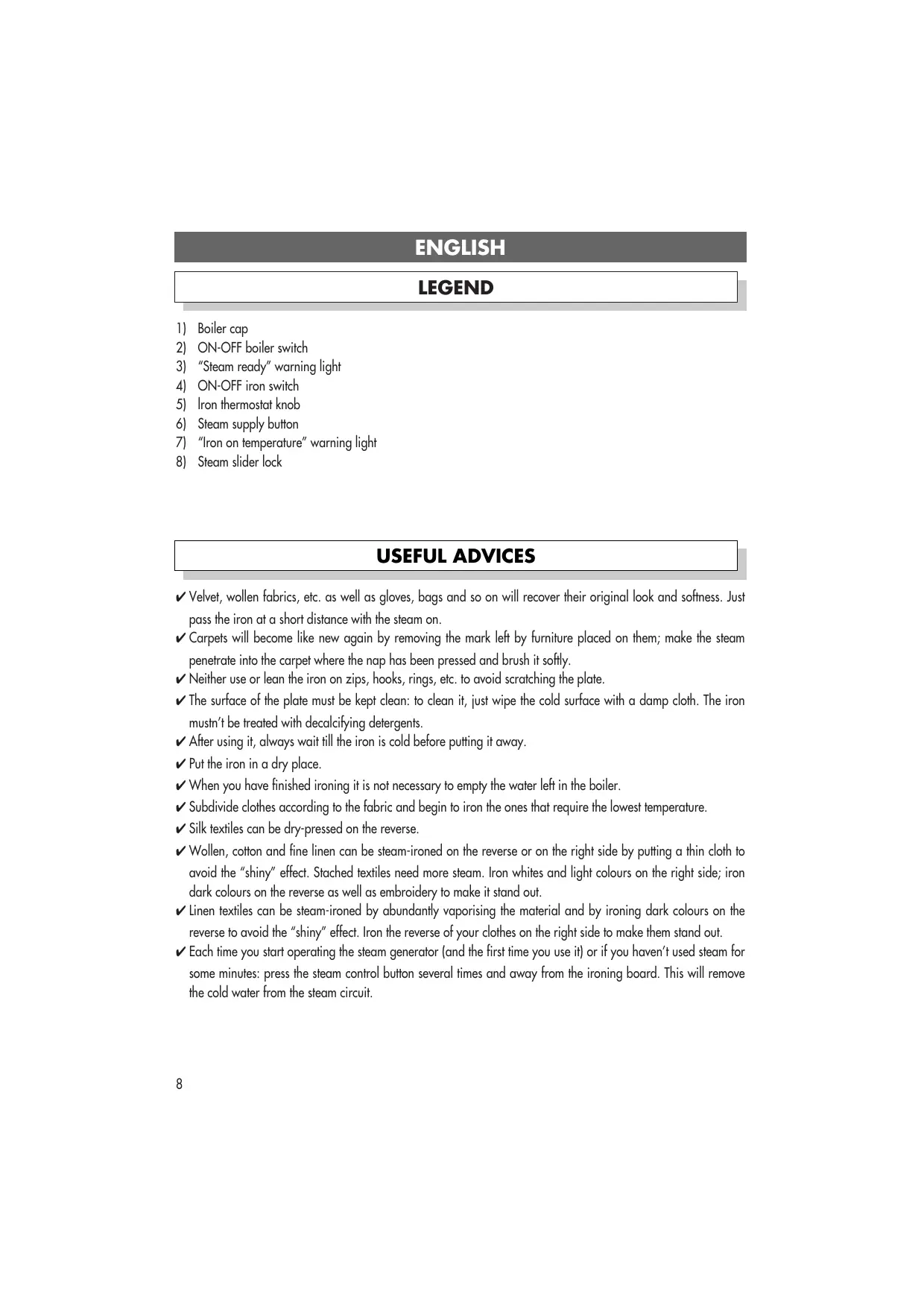

Boiler cap ON-OFF boiler switch “Steam ready” warning light ON-OFF iron switch lron thermostat knob Steam supply button “Iron on temperature” warning light Steam slider lock USEFUL ADVICES ✔ Velvet, wollen fabrics, etc. as well as gloves, bags and so on will recover their original look and softness. Just pass the iron at a short distance with the steam on. ✔ Carpets will become like new again by removing the mark left by furniture placed on them; make the steam penetrate into the carpet where the nap has been pressed and brush it softly. ✔ Neither use or lean the iron on zips, hooks, rings, etc. to avoid scratching the plate. ✔ The surface of the plate must be kept clean: to clean it, just wipe the cold surface with a damp cloth. The iron mustn’t be treated with decalcifying detergents. ✔ After using it, always wait till the iron is cold before putting it away. ✔ Put the iron in a dry place. ✔ When you have finished ironing it is not necessary to empty the water left in the boiler. ✔ Subdivide clothes according to the fabric and begin to iron the ones that require the lowest temperature. ✔ Silk textiles can be dry-pressed on the reverse. ✔ Wollen, cotton and fine linen can be steam-ironed on the reverse or on the right side by putting a thin cloth to avoid the “shiny” effect. Stached textiles need more steam. Iron whites and light colours on the right side; iron dark colours on the reverse as well as embroidery to make it stand out. ✔ Linen textiles can be steam-ironed by abundantly vaporising the material and by ironing dark colours on the reverse to avoid the “shiny” effect. Iron the reverse of your clothes on the right side to make them stand out. ✔ Each time you start operating the steam generator (and the first time you use it) or if you haven’t used steam for some minutes: press the steam control button several times and away from the ironing board. This will remove the cold water from the steam circuit.

IMPORTANT Carefully read this handbook before using the appliance in order to obtain the best results and for maximum safety in use. Preserve this handbook for future reference. SAFETY PRECAUTIONS Carefully read the following instructions.

• Before using the appliance, check that the mains supply voltage corresponds to the one indicated on the appliance label. Only connect the appliance to a power supply and to sockets with a minimum current rating of 10 A and provided with an earth connection.
• If the socket and mains lead plug are incompatible, the socket should be changed by qualified personnel only.
• The safety of this appliance is guaranteed only if it is correctly connected to a proper and effective earth connection as provided by the regulations in force on electrical safety. The manufacturer cannot be considered responsible for damages caused by the absence of an earth connection on the power supply line. If in doubt, consult an expert.
• Never leave the appliance filled with water in a room where it will be subject to a temperature below or equal to 0°C.
• After removing the packing, make sure that the appliance is not damaged. If in doubt, do not use the appliance and consult an expert.
• The packing elements (plastic bags, polystyrene foam, etc.) should be kept out of the reach of children as they are a safety hazard.
• Adapters, multi-pin sockets and/or extensions should not be used. If their use is necessary, only adapters, multi-pin sockets and extensions that comply with current safety regulations should be used, taking care not to exceed the power limit indicated on the adapter.
• This appliance is intended for household use only. Any other use is considered inappropriate and consequently dangerous.
• In the models with a steel tank, heating and cooling the boiler may make noises due to the normal dilatation of the stainless steel the tank is made of.
• For any repairs and for the replacement of the power cable, if damaged, contact an authorised service centre, so as to ensure the effectiveness of your appliance and the validity of the guarantee. The manufacturer cannot be considered responsible for damages caused by inappropriate, incorrect or irresponsible use or for damages resulting from repairs carried out by non-qualified personnel.
• In the event of damage to the plug, to the hydraulic and electric system, only qualified personnel should replace the component parts with original spare parts. The use of all electrical appliances implies the observance of some fundamental rules. IN PARTICULAR:
• Never touch the appliance with wet or damp hands or feet. Never place the appliance in water.
• Never use the appliance in bathrooms.
• Never pull the mains lead or the appliance with wet or damp hands or feet.
• Never let children or the disabled use the appliance without supervision.
• Do not leave the iron unsupervised when plugged into the power socket.
• Always disconnect the plug before filling the boiler tank, or before carrying out any maintenance work on the actual appliance itself, or before cleaning it.
• If the appliance should become faulty and/or not work properly, contact a Customer Service Centre appointed by the manufacturer and ask for original spare parts. Non-compliance with this warning can compromise the safety of the appliance.
• When the appliance is to be discarded, after unplugging it, the mains lead should be cut to make the appliance unusable.
• The mains lead of this appliance should not be changed by the user. If it is damaged or needs replacing, contact a Customer Service Centre appointed by the manufacturer.
• Never fill the appliance under running water.
• Absolutely avoid contact between the hot base and cables.
• If the thermistor is activated, the appliance switches off automatically. To use the appliance again, it must be serviced by qualified personnel.
• Do not direct the steam jet toward people as this could be dangerous.
• Do not use the iron on clothes that are still very wet.
• ONLY use the iron pad supplied; in the event of loss (or damage), only use the ORIGINAL spare part.
• Do not store the iron if the base is hot.
• Do not use mixtures of stain removers or similar products.
• Unplug the appliance when it is not being used. Do not leave it plugged in if it not to be used.
• During use, the boiler should not be moved.
• DO NOT OPEN THE CAP WHEN USING THE APPLIANCE OR UNTIL THE APPLIANCE HAS RUN OUT OF WATER. The latter occurs when no more steam is released from the iron or the accessories. To add water, unplug the appliance, and wait around 15 minutes to avoid rapid changes in temperature. Place a cloth on the cap and gradually unscrew it, allowing any residual steam to be released slowly.
• The boiler should be placed on a flat surface that is particularly resistant to high temperatures. This appliance complies with the directive 89/336/EEC on radio interference suppression.

INSTRUCTIONS FOR USE

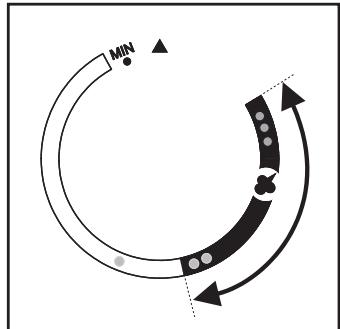

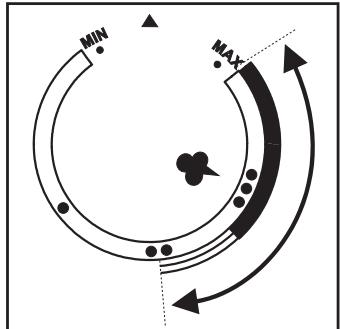

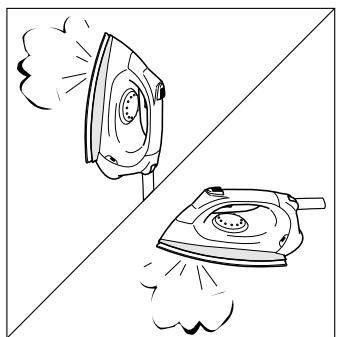

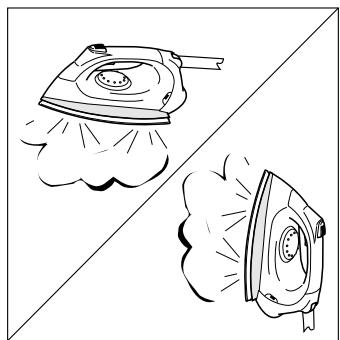

Before steam ironing, make sure the fabric is suitable for this kind of ironing. The machine works with tap water. In case of very hard water (hardness above 27°F) we suggest using half distilled water and half tap water. Do not use chemicals or detergents (e.g. perfumed water, fragrances, scale removers, etc.). Boiler filling and connection to the electric net Make sure the appliance is unplugged. Remove the cap of the boiler (1) and fill the tank with water. Some models are provided with a double safety cap which can’t be unscrewed if there’s still steam in the boiler. Screw back the cap (1) and plug the switch in. Attention: never unscrew the cap (1) with the boiler under pression. Functioning Press switch (2) to power the boiler. The warning light (3) and, if present, the lamp in the switch will light up. Press switch (4) to power the iron. If present, the lamp in the switch will light up. Important: When in use for the first time, the iron may give off some smell and a particular odour due to the heating and subsequent drying out of the sealants used to assemble the steam generator and the iron. This will stop in a few minutes. It is advisable to ventilate the room. Place the iron thermostat knob (5) in the area shown in pictures 1 (model A), 2 (models B), according to the kind of material to be ironed (picture 5). Wait till the "steam ready" light (3) and the "iron on temperature" light (7) go out before starting to iron. N.B.: both warning lights will go on and out during the ironing, according to the temperature reached by the boiler and the iron. This is part of the normal functioning of the iron and you needn’t worry about it. To obtain the supply of steam, press the steam button (6) placed on the iron. Note: For greater practicality when using the ‘A’ type iron, choose to use the upper button rather than the lower, or vice-versa. Steam button slide lock (8) This device allows a continuous output of steam to be obtained by mechanically keeping the steam button pressed, thus avoiding the need to do so manually. To activate it, just slide it backwards after pressing the button (6). To unlock the button push the slide lock forwards to its original place. The iron A is provided with a special device which allows you to have a steam supply “on the whole plate” or “concentrated on the tip”. If you want a steam supply “on the whole plate”, press the steam supply button (6) with the iron in a horizontal position. If you keep the button (6) pressed and move the iron in a vertical position, the steam supply will continue “on the whole plate” (picture 3). If you want a steam supply “concentrated on the tip”, press the steam supply button (6) with the iron in a vertical position. If you keep the button (6) pressed and move the iron in a horizontal position, the steam supply will continue “concentrated on the tip” (picture 4).

WARNING: the iron-steam generator connecting hose may become hot.

Refilling of water into the boiler When the boiler tank runs out of water the steam emission stops. To refill the boiler follow these instructions. Turn the boiler off using the switch (2). Let the remaining steam off by pushing the button (6) piaced on the iron handle. Turn the iron off using the switch (4). Unplug the appliance. Allow the appliance to cool down for a few minutes. Refill the boiler as indicated in the “boiler filling” paragraph. Subject to changes
