Product type	Electric radiator
Brand	DELONGHI
Model	TRR 0715
Power supply	110/120 V ~ 60 Hz, polarized plug
Minimum power	800 W
Maximum power	1500 W
Temperature setting	Adjustable thermostat with anti-freeze function (approx. 5°C)
Safety	Minimum distance of 90 cm from flammable materials, do not cover, automatic shut-off via thermostat
Cleaning	Soft damp cloth, no abrasive detergents
Warranty	1 year from date of purchase
After-sales service (U.S.)	1-800-322-3848 or www.delonghi.com
Spare parts (U.S.)	1-800-865-6330 or www.delonghi.com
Wheel system	Easy Wheel (on equipped models)
Anti-freeze function	Thermostat on *, switch on II: maintains approx. 5°C
Switches	ON/OFF to select min power (800 W) or max (1500 W)
Plug type	Polarized plug (corresponding wide blade)

Frequently Asked Questions - TRR 0715 DELONGHI

How to turn on the Delonghi TRR 0715 radiator?

Plug the appliance into a 110/120 V outlet. Turn the thermostat to the maximum position, then set the switch to I (800 W) or II (1500 W) depending on the desired power.

How to adjust the temperature?

Turn the thermostat knob clockwise to increase the temperature, counterclockwise to decrease it. When the room reaches the desired temperature, slowly turn the knob counterclockwise until you hear a click to automatically maintain that temperature.

What does the anti-freeze function mean?

Set the thermostat to the * position and the switch to II. The appliance will maintain the room at approximately 5°C to prevent freezing, with reduced energy consumption.

What safety distances must be observed?

All flammable materials (furniture, curtains, bedding) must be at least 90 cm from the top, front, sides, and edge of the radiator.

Can I use an extension cord?

It is not recommended to use an extension cord. If necessary, it must have a minimum gauge of 14 AWG and a power rating of at least 1875 W, and power only the radiator.

How to clean the radiator?

Unplug the appliance and let it cool down. Clean it with a soft damp cloth. Do not use detergents or abrasive products.

What to do in case of oil leakage?

If you notice an oil leak, immediately stop the appliance and contact support (www.delonghi.com or the nearest repair center). Do not attempt to repair it yourself.

What is the warranty for this radiator?

The warranty is 1 year from the date of purchase, covering defects in materials and workmanship. It applies to the original purchaser and for use in accordance with the instructions.

Where to find spare parts?

For spare parts, contact De'Longhi parts service at 1-800-865-6330 (USA) or visit www.delonghi.com.

What to do if the appliance does not heat?

Check that the plug is properly connected and that the thermostat is not in the minimum position. Make sure the switches are set to I or II. If the problem persists, contact after-sales service.

USER MANUAL TRR 0715 DELONGHI

SAVE THESE INSTRUCTIONS

OIL-FILLED RADIATOR

INSTRUCTION MANUAL

SAVE THESE INSTRUCTIONS

OIL-FILLED RADIATOR

Register this product on-line and receive a free trial issue of Cook's Illustrated.

Visit www.prodregister.com/delonghi.

Visit www.delonghi.com for a list of service centers near you. (U.S. Only)

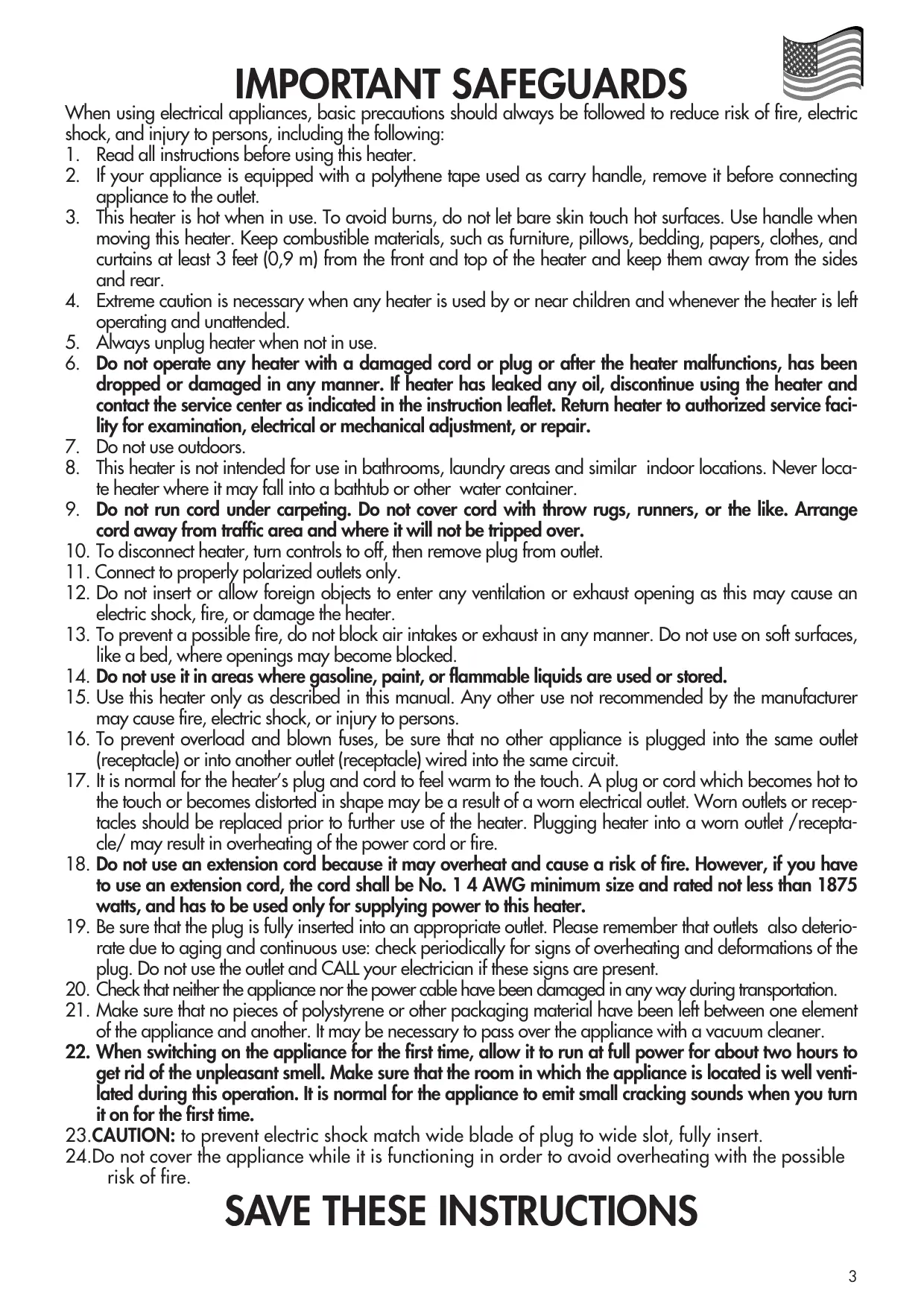

When using electrical appliances, basic precautions should always be followed to reduce risk of fire, electric shock, and injury to persons, including the following:

1. Read all instructions before using this heater.
2. If your appliance is equipped with a polythene tape used as carry handle, remove it before connecting appliance to the outlet.
3. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Use handle when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front and top of the heater and keep them away from the sides and rear.
4. Extreme caution is necessary when any heater is used by or near children and whenever the heater is left operating and unattended.
5. Always unplug heater when not in use.
6. Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. If heater has leaked any oil, discontinue using the heater and contact the service center as indicated in the instruction leaflet. Return heater to authorized service facility for examination, electrical or mechanical adjustment, or repair.
7. Do not use outdoors.
8. This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never locate heater where it may fall into a bathtub or other water container.
9. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or the like. Arrange cord away from traffic area and where it will not be tripped over.
10. To disconnect heater, turn controls to off, then remove plug from outlet.
11. Connect to properly polarized outlets only.
12. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock, fire, or damage the heater.
13. To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
14. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored.
15. Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
16. To prevent overload and blown fuses, be sure that no other appliance is plugged into the same outlet (receptacle) or into another outlet (receptacle) wired into the same circuit.
17. It is normal for the heater's plug and cord to feel warm to the touch. A plug or cord which becomes hot to the touch or becomes distorted in shape may be a result of a worn electrical outlet. Worn outlets or receptacles should be replaced prior to further use of the heater. Plugging heater into a worn outlet /receptacle/ may result in overheating of the power cord or fire.
18. Do not use an extension cord because it may overheat and cause a risk of fire. However, if you have to use an extension cord, the cord shall be No. 14 AWG minimum size and rated not less than 1875 watts, and has to be used only for supplying power to this heater.
19. Be sure that the plug is fully inserted into an appropriate outlet. Please remember that outlets also deteriorate due to aging and continuous use: check periodically for signs of overheating and deformations of the plug. Do not use the outlet and CALL your electrician if these signs are present.
20. Check that neither the appliance nor the power cable have been damaged in any way during transportation.
21. Make sure that no pieces of polystyrene or other packaging material have been left between one element of the appliance and another. It may be necessary to pass over the appliance with a vacuum cleaner.
22. When switching on the appliance for the first time, allow it to run at full power for about two hours to get rid of the unpleasant smell. Make sure that the room in which the appliance is located is well ventilated during this operation. It is normal for the appliance to emit small cracking sounds when you turn it on for the first time.
23. CAUTION: to prevent electric shock match wide blade of plug to wide slot, fully insert.
24. Do not cover the appliance while it is functioning in order to avoid overheating with the possible risk of fire.

SAVE THESE INSTRUCTIONS

1. GENERAL FEATURES

Remove the appliance from the packaging, and rest on the polystyrene tape handle.

Check that neither the appliance nor the power cable has been damaged in any way during transportation. Do not operate the appliance if damaged.

2. EASY WHEEL SYSTEM

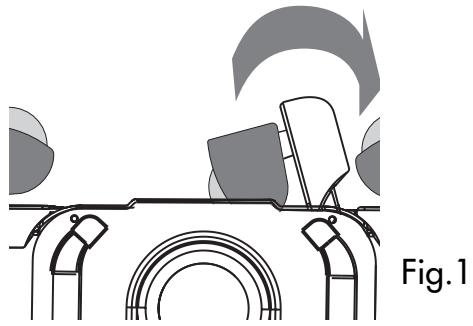

1. Turn the radiator upside-down on a rug or a soft surface in order to prevent damaging the paint finish. Fully unfold the castors by turning them outwards (Fig.1).

Turn the radiator back to its upright position.

Fig.1

IMPORTANT

When in use, the radiator should always be kept vertical (wheels at the bottom, controls at the top). Any other position could be dangerous!

ON/OFF switches

MIN 800 Watts

OFF

MAX 1500 Watts

ECONOMIZER

For more economical use, utilize the Min position.

3. CONNECTION

The radiator must be connected to a properly polarized A/C 110/120 V household outlet in perfect working conditions. Keep loose clothing or bedding, furniture and flammable materials away from the wall outlet where the heater plug is fitted in.

4. OPERATION AND USE

TURNING ON

Plug the appliance into the mains socket and turn the thermostat knob to maximum. Turn the appliance on as follows:

• Place the switch in the I position to select minimum power.
• Place the switch in the II position to select maximum power.

The lights on the switches remain on independent of the cycling of the thermostat. When the room reaches the desired temperature, turn the thermostat knob counterclockwise very slowly and carefully until you hear a "click". This will automatically set your unit to cycle on and off at that desired heat setting.

REMARK

To completely shut the unit off, the ON/OFF switches must be placed in the OFF position.

5. USE OF THERMOSTAT

The thermostat operates on room air temperature and not radiator temperature. Counterclockwise direction - lower number, lower temperature. Clockwise direction - higher number, higher temperature.

Antifreeze function

With the thermostat in the position and the switch in the II position, the appliance maintains the room at a temperature of about 5°C, preventing freezing with minimum energy consumption.

Your product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet.

Do not defeat the safety purpose of the polarized plug.

6. MAINTENANCE AND SERVICE

Always remove the plug from the power socket and allow the radiator to cool. Wipe the radiator with a soft damp cloth; do not use detergents or abrasives.

If the radiator is not used for an extended period, wind the cable around the holder and store it in a dry place (see figure on the front page).

This appliance has been built to provide many years of trouble-free service.

In case of malfunction or doubt, do not attempt to repair the heater yourself: it may result in fire hazard or electric shock. Contact the nearest Service Center (visit www.delonghi.com for a list of service centers near you (U.S. Only)).

LIMITED WARRANTY

This warranty applies to all products with De'Longhi or Kenwood brand names.

What does the warranty cover?

We warrant each appliance to be free from defects in material and workmanship. Our obligation under this warranty is limited to repair at our factory or authorized service center of any defective parts or part thereof, other than parts damaged in transit. In the event of a product replacement or return, the unit must be returned transportation prepaid. The repaired or new model will be returned at the company's expense.

This warranty shall apply only if the appliance is used in accordance with the factory directions that accompany it, and on an alternating current (AC) circuit.

How long does the coverage last?

This warranty runs for one year (1) from the purchase date found on your receipt and applies only to the original purchaser for use.

What is not covered by the warranty?

The warranty does not cover defects or damage of the appliance that result from repairs or alterations to the appliance outside our factory or authorized service centers, nor shall it apply to any appliance that has been subject to abuse, misuse, negligence, or accidents. Also, consequential and incidental damage resulting from the use of this product or arising out of any breach of contract or breach of this warranty are not recoverable under this warranty. Some states do not allow the exclusion or limitation of incidental or consequential damage, so the above limitation may not apply to you.

How do you get service?

If repairs become necessary, see contact information below:

U.S. Residents:

Please contact our toll free hotline at 1-800-322-3848 or log onto our website at www.delonghi.com. For all accessories, spare parts or replacement parts, please contact our parts division at 1-800-865-6330.

Residents of Canada: Please contact our toll free hotline at 1-888-335-6644 or log onto our website at www.delonghi.com.

Residents of Mexico: Please refer to the Limited Warranty statement for Mexico.

Please refer to the back page of the manual for De'Longhi addresses.

The above warranty is in lieu of all other express warranties and representations. All implied warranties are limited to the applicable warranty period set forth above. This limitation does not apply if you enter into an extended warranty with De'Longhi. Some states do not allow limitations on how long an implied warranty lasts, so the above exclusions may not apply to you. De'Longhi does not authorize any other person or company to assume for it any liability in connection with the sale or use of its appliance.

How does state law apply?

This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.

IMPORTANT SAFETY INSTRUCTIONS
