USER MANUAL ARMPIVOTE2 StarTech.com

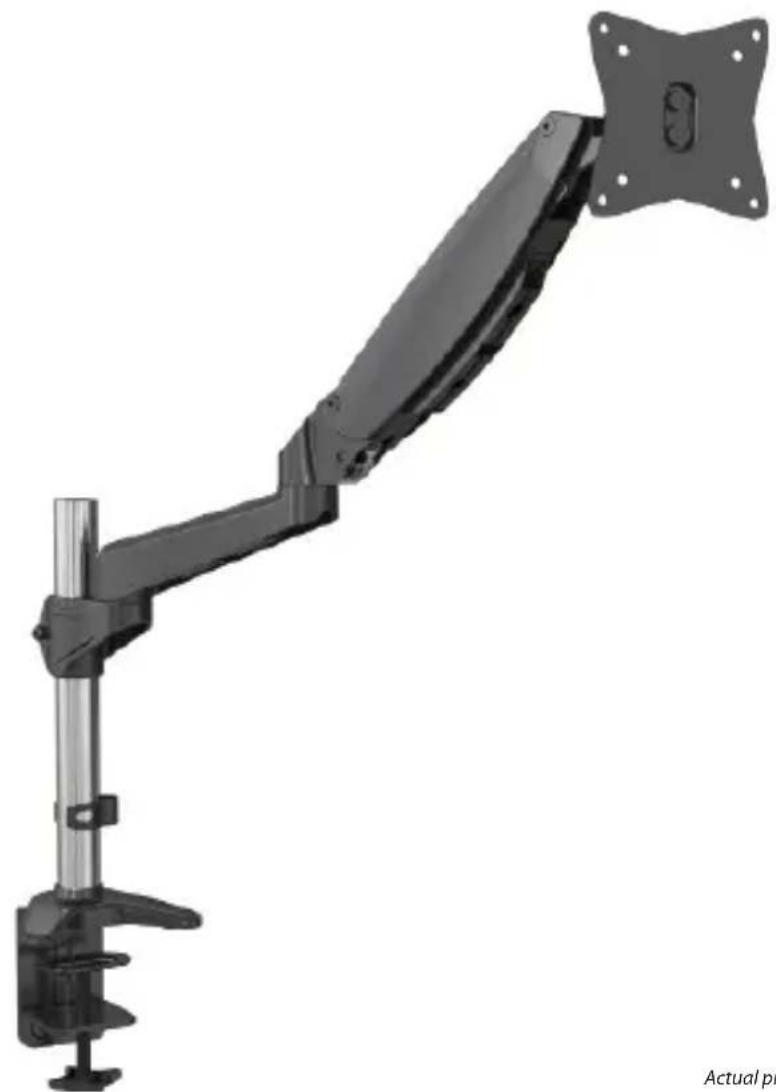

Desk Mount Articulating Arm with Cable Management and Spring Assisted Height Adjustment

Mechanical arm with articulated joints and vertical shaft, no visible text or symbols

Actual product may vary from photos

User Manual

SKU: ARMPIVOTE2

Compliance Statements

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

PHILLIPS® is a registered trademark of Phillips Screw Company in the United States or other countries.

Safety Statements

Safety Measures

- Product installation and/or mounting should be completed by a certified professional as per the local safety and building code guidelines.

Mesures de sécurité

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Warning Statements

• Assemble this product according to the instructions.
• Read the entire manual and ensure the instructions are fully understood before assembling and/or using this product.
• Do not exceed the weight capacity of this product. Overloading this product might result in injury or property damage.
  • Weight capacity of the monitor mount: 17.6 lb (8 kg).
• Do not allow children to climb on this product, or use this product without proper supervision.
• This product is intended for indoor use only and should not be used outdoors.
• Do not over-tighten the screws. If any resistance is encountered, stop tightening.
• Assembling this product is a two-person task. Do not attempt to assemble this product and install equipment without assistance.
• Before adding equipment to this product, ensure the product has been properly assembled, and that the product can support the weight of the added equipment.
  • Make sure all of the equipment has been properly secured before adjusting this product.
• Stored Energy Hazard! This product contains a spring mechanism which can cause the assembly and/or mounted equipment to move forcibly, and quickly, upwards. Always exercise caution when handling, or in close proximity to, the spring arm(s). Do not remove the mounted equipment unless the spring arm is moved to the highest position or (if possible) the spring force is adequately lowered to remove any danger posed. Failure to do so may result in property damage and/or serious personal injury.
• Pinch hazard! Keep your fingers clear from moving components.

Varningsmeddelanden

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Safety Statements....ii

Warning Statements......iii

Product Diagram....1

Product Information....2

Requirements 2

Tools....2

Package Contents .... 3

Installation 5

Desk Mounting 8

Attach the Arm Assembly 12

Attach the VESA Mount....13

Operation 16

Adjusting the Tilt Resistance....16

Adjusting the Swivel Resistance....16

Adjusting the Arm Tension 17

Cable Management....18

Warranty Information....19

Limitation of Liability 19

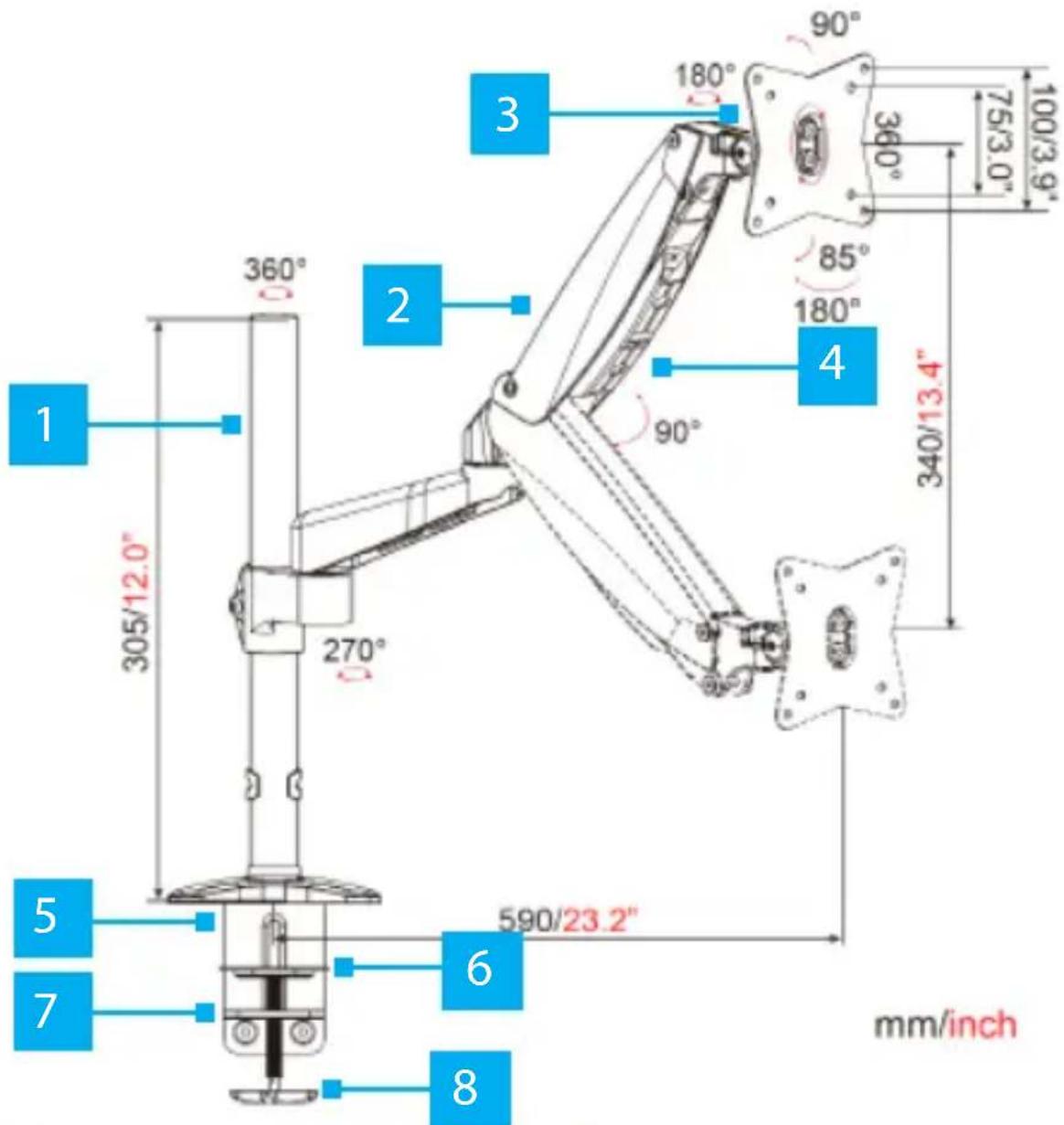

Product Diagram

1 360° 2 3 90° 180° 90° 360° 75/3.0" 100/3.9" 340/13.4" 270° 305/12.0" 5 6 590/23.2" 7 8 mm/inch

1	Pole Assembly	5	Desk Clamp
2	Arm Assembly	6	Pressure Plate
3	VESA Mount	7	Bottom Plate
4	Cable Management Attachment	8	Hand Screw

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Product Information

Requirements

For the latest product information, technical specifications, manuals, and Declarations of Conformance, please visit: www.StarTech.com/ARMPIVOTE2

Tools

• Phillips Head Screwdriver x 1

Package Contents

Pole AssemblyQty: 1	Arm AssemblyQty: 1	VESA MountQty: 1	M4 x 12 mmScrewsQty: 4
M4 x 30 mmScrewsQty: 4	SpacersQty: 4	CableManagementClipQty: 1	3 mm Hex KeyQty: 1
4 mm Hex KeyQty: 1	5 mm Hex KeyQty: 1	M5 x 6 mmScrewsQty: 3	CableManagementAttachmentQty: 1

Simple line drawing of a rectangular object with circular holes and a flat base (no text or symbols)

Grommet Plate

Qty: 1

StarTech.com and the business? Financial Solutions for improving and improving Life Management and Spring Stabilized Strength Adjustment. Our Manual info-solutions.

User Manual

Qty: 1

Installation

Grommet Mounting

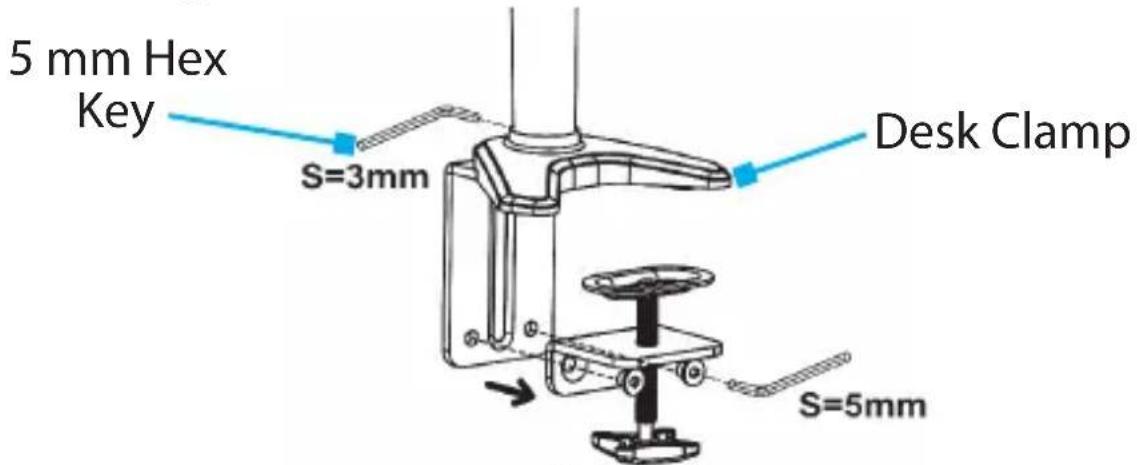

1. Remove the Screws (x2), located at the bottom of the Desk Clamp, using the 5 mm Hex Key, and remove the Bottom Plate. (Figure 1)

5 mm Hex Key S=3mm Desk Clamp S=5mm

Figure 1

1. Remove the Screw from the Pressure Plate, using a Phillips Head Screwdriver. (Figure 2)

Screw Pressure Plate Washer Bottom Plate Hand Screw

Figure 2

1. Detach the Pressure Plate and Washer from the Hand Screw.
2. Detach the Hand Screw from the Bottom Plate.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

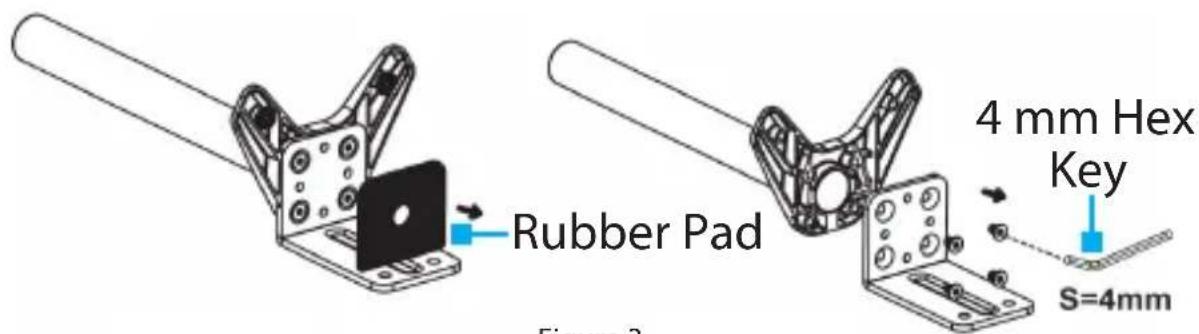

1. Remove the Rubber Pad, located at the base of the Desk Clamp. (Figure 3)

Rubber Pad 4 mm Hex Key S=4mm Figure 3

Figure 3

1. Remove the Screws (x4), located at the base of the Desk Clamp, using the 4mm Hex Key, and remove the Desk Clamp.
2. Align the holes in the Grommet Plate with the holes in the Pole Assembly.
3. Insert the Screws (x4), removed in step 6, through the Grommet Plate and into the Pole Assembly and tighten, using the 4 mm Hex Key. (Figure 4)

S=4mm

Figure 4

1. Affix the Rubber Pad to the Grommet Plate to complete the Grommet Mount Pole Assembly.

2. Position the Grommet Mount Pole Assembly over a Grommet Hole.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

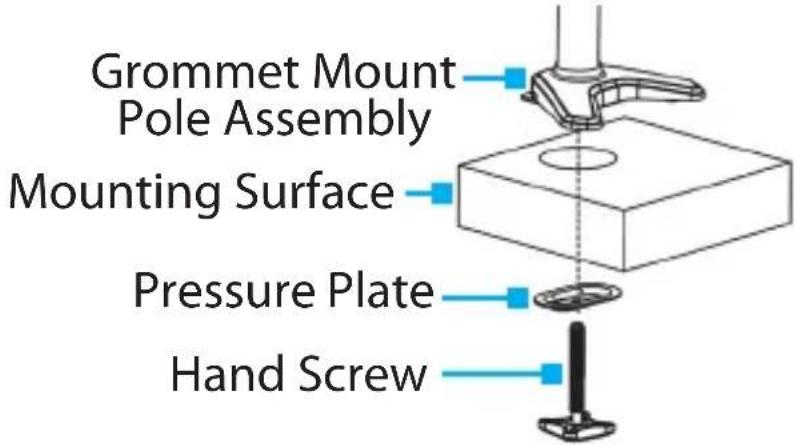

1. Hold the Pressure Plate against the bottom of the Grommet Hole.
2. Insert the Hand Screw through the Pressure Plate and up into the Grommet Mount Pole Assembly. (Figure 5)

Grommet Mount Pole Assembly Mounting Surface Pressure Plate Hand Screw

Figure 5

1. Tighten the Hand Screw until hand-tight.

Desk Mounting

Mounting Surfaces Less Than 2.36 Inches Thick

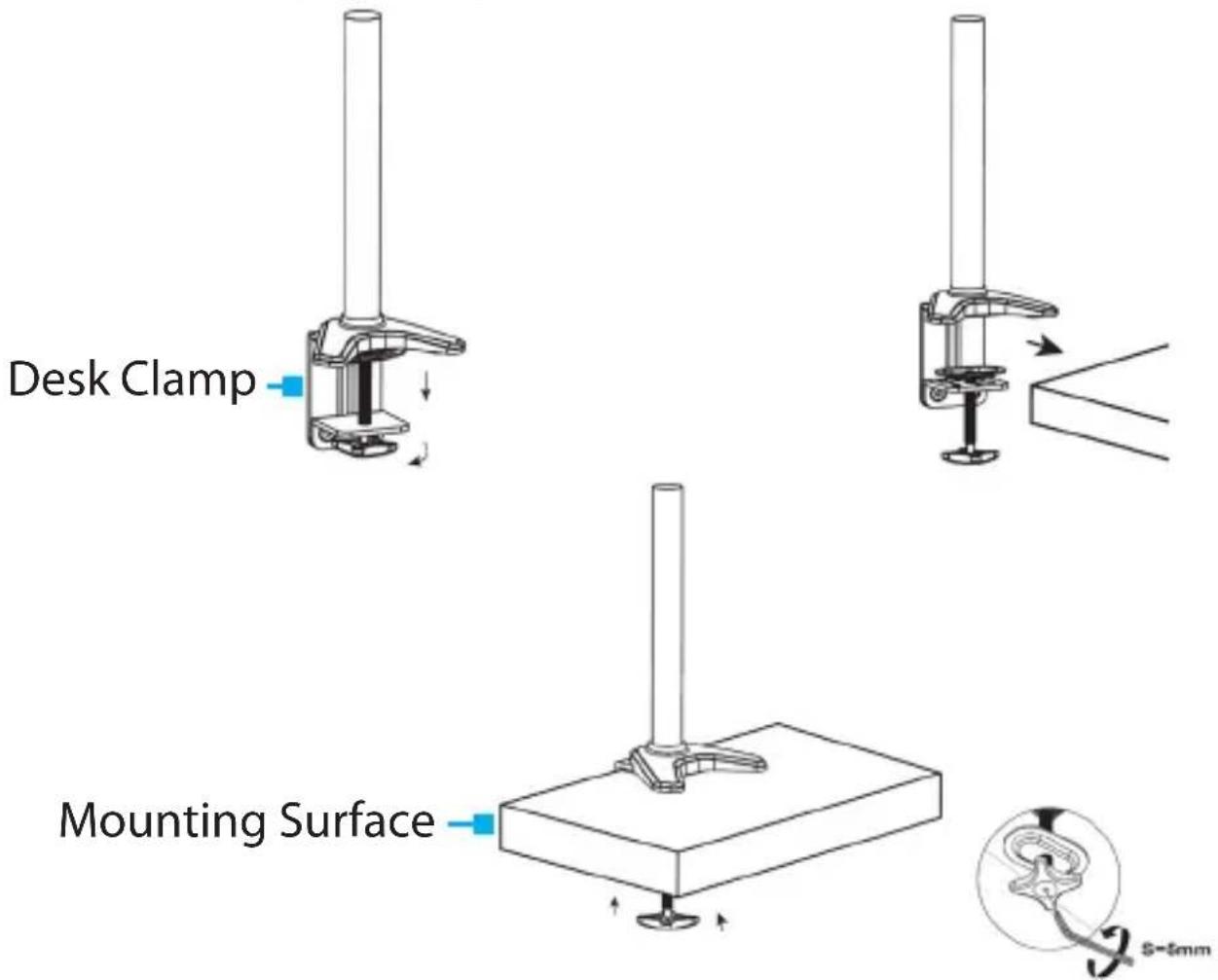

1. Loosen the Hand Screw, located on the Pole Assembly, until the Desk Clamp is wider than the thickness of the Mounting Surface (e.g. Desk or Table).
2. Slide the Pole Assembly Clamp onto the Mounting Surface. (Figure 6)

Desk Clamp Mounting Surface S=5mm

Figure 6

1. Tighten the Hand Screw, located on the Pole Assembly, by hand or by using the 5mm Hex Key, until hand-tight.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Mounting Surfaces More Than 2.36 Inches Thick

For Mounting Surfaces with a thickness of more than 2.36 inches (60 mm) and less than 3.35 inches (85 mm), the Bottom Plate must be flipped and installed upside-down.

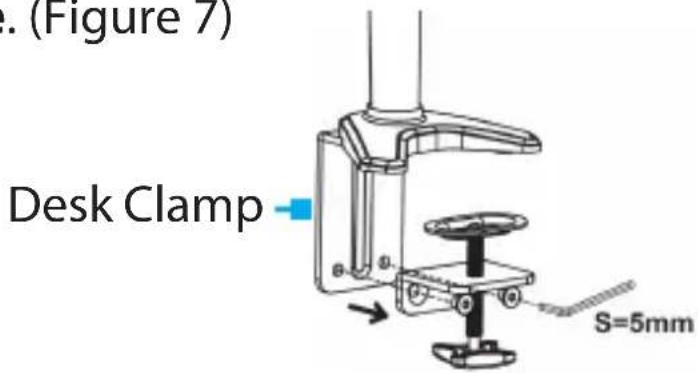

1. Remove the Screws (x2), located at the bottom of the Desk Clamp, using the 5 mm Hex Key, and remove the Bottom Plate. (Figure 7)

E. (Figure 7) Desk Clamp S=5mm

Figure 7

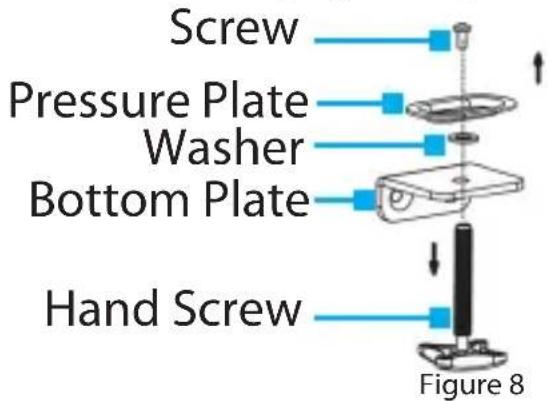

1. Remove the Screw from the Pressure Plate, using a Phillips Head Screwdriver. (Figure 8)

Screw Pressure Plate Washer Bottom Plate Hand Screw Figure 8

1. Detach the Pressure Plate and Washer from the Hand Screw.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. Detach the Hand Screw from the Bottom Plate, flip the Bottom Plate upside down, and reinsert the Hand Screw into the Bottom Plate. (Figure 9)

Exploded view diagram of a mechanical assembly with no visible text or symbols

Figure 9

1. Place the Washer and Pressure Plate atop the Hand Screw.

2. Insert the Screw, removed in step 2, through the Pressure Plate and Washer and into the Hand Screw and tighten, using a Phillips Head Screwdriver.

3. Align the holes in the Bottom Plate with the holes in the Pole Assembly.

4. Insert the Screws (x2), removed in step 1, through the Bottom Plate and into the Pole Assembly and tighten, using the 5 mm Hex Key.

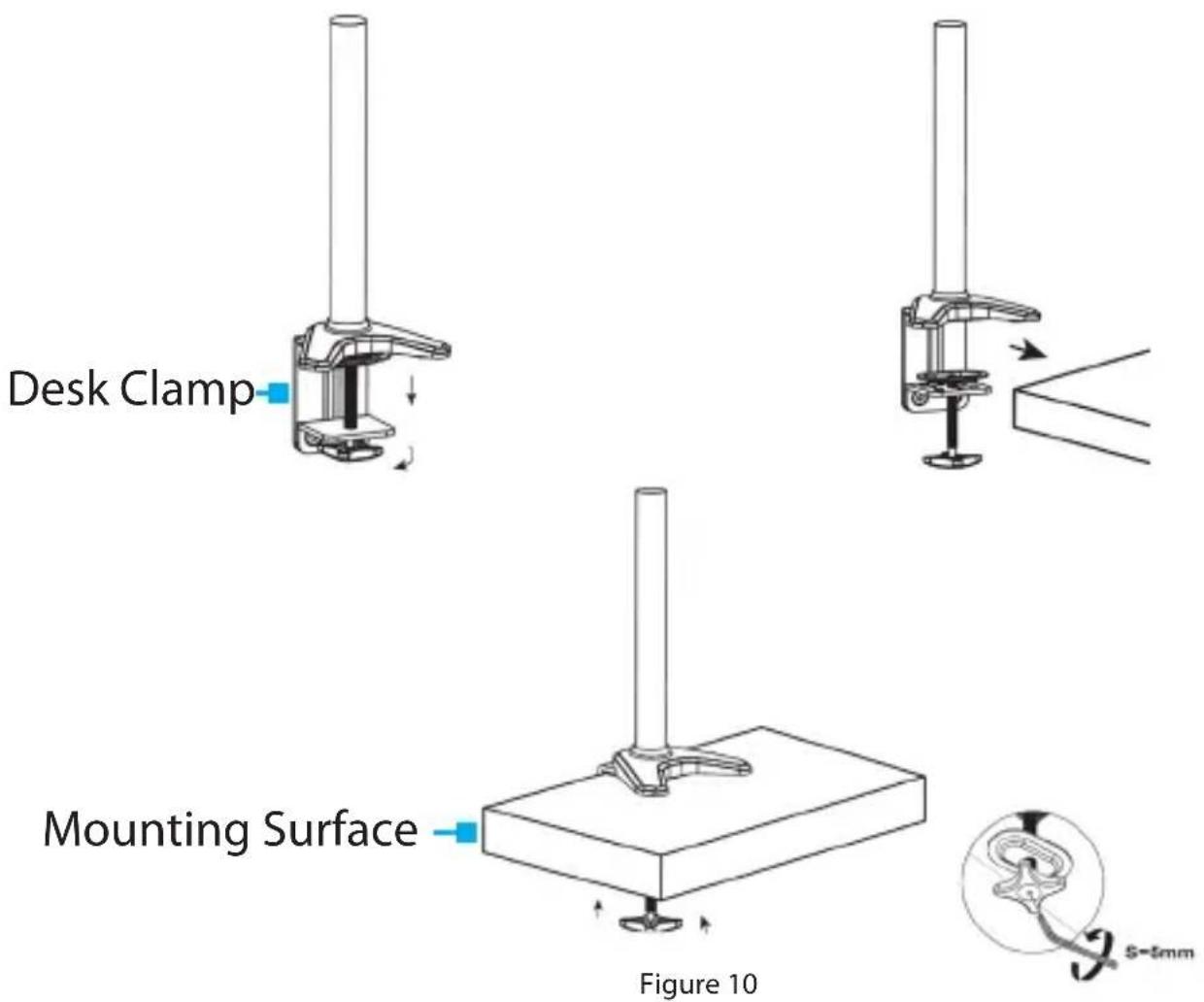

5. Loosen the Hand Screw, located on the Desk Clamp, until the Desk Clamp is wider than the thickness of the Mounting Surface (e.g. Desk or Table).

6. Slide the Desk Clamp onto the Mounting Surface. (Figure 10)

Desk Clamp Mounting Surface Figure 10 S=5mm

1. Tighten the Hand Screw, located on the Desk Clamp, by hand or by using the 5mm Hex Key, until hand-tight.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Attach the Arm Assembly

1. Slide the Arm Assembly onto the Pole Assembly, hold at the desired mounting height, and tighten the built-in 5 mm Hex Screw, using the 5 mm Hex Key. (Figure 11)

Arm Assembly 5 mm Hex Screw Pole Assembly S=5mm

Figure 11

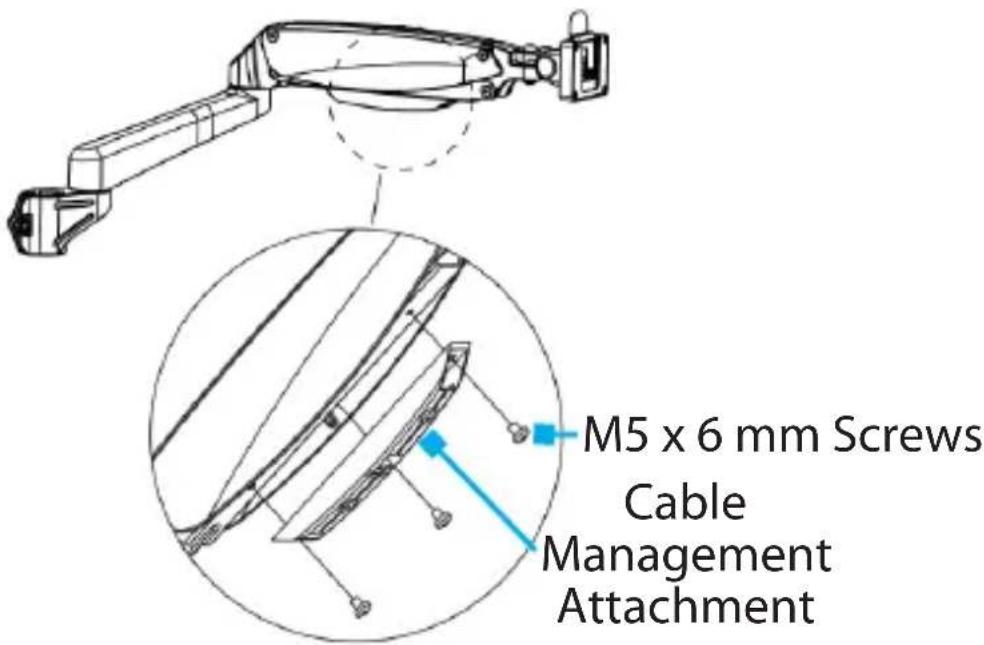

1. Fit the Cable Management Attachment into the base of the uppermost portion of the Arm Assembly and hold in place. (Figure 12)

M5 x 6 mm Screws Cable Management Attachment

Figure 12

1. Thread three M5 x 6 mm Screws through the Cable Management Attachment and into the Arm Assembly and tighten, using a Phillips Head Screwdriver.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Attach the VESA Mount

Warning! Ensure the Arm Assembly Hex Screw is tightened sufficiently to support the weight of the Arm Assembly and Monitor.

1. Place the Monitor screen side down on a flat, clean surface.
2. Remove any Screws or Place Holders from the VESA Mounting Holes on the back of the Monitor.

Note: Be careful not to remove any of the Screws holding the Monitor's Casing together.

1. (For Monitors with recessed VESA Mounting Holes) Align the Spacers with the VESA Mounting Holes, located on the back of the Monitor.

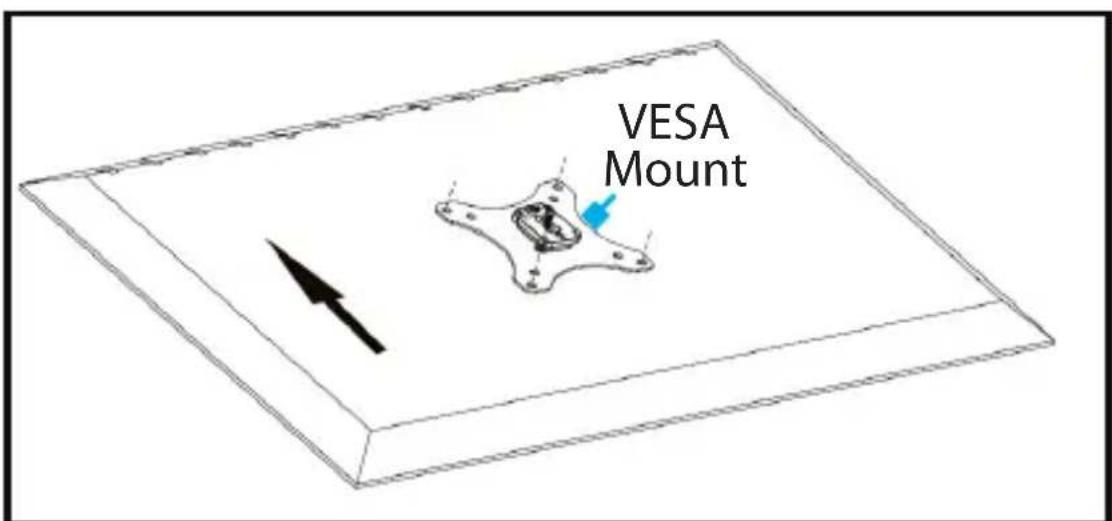

2. Align the Screw Holes on the VESA Mount with the VESA Mounting Holes on the back of the Monitor. The VESA Mount can support a 75 x 75 or 100 x 100 mounting pattern. (Figure 13)

Note When attached, the Arrow on the VESA Mount should be pointing toward the top of the Monitor.

VESA Mount

Figure 13 Aligning the VESA Mount with Monitor

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. Select the appropriate hardware for mounting the VESA Mount to the back of the Monitor (either M4 x 12 mm, M4 x 30 mm, or customer sourced screws).
2. Insert the appropriate Screws through the Screw Holes on the VESA Mount, the (Optional) Spacers, and into the VESA Mounting Holes on the back of the Monitor and tighten, using a Phillips Head Screwdriver.

Note: Do not over-tighten the Screws. If you encounter resistance while you're tightening the Screws, stop tightening. Failure to do so could result in damage to the Monitor.

Note: It is recommended that two people mount the Monitor.

1. Pull the VESA Clip on the VESA Holder back towards the Arm Assembly. (Figure 14)

Note: The VESA Clip on the VESA Holder should be at the top of the VESA Holder before mounting the Monitor.

Mounting Plate VESA Holder

Figure 14 Pulling back the VESA Clip

1. While holding the VESA Clip and supporting the weight of the Monitor, align the Mounting Plate, located on the VESA Mount, with the VESA Holder, located on the Arm Assembly.

2. Slide the Mounting Plate down into the VESA Holder.

3. While holding the Monitor in place, release the VESA Clip.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Operation

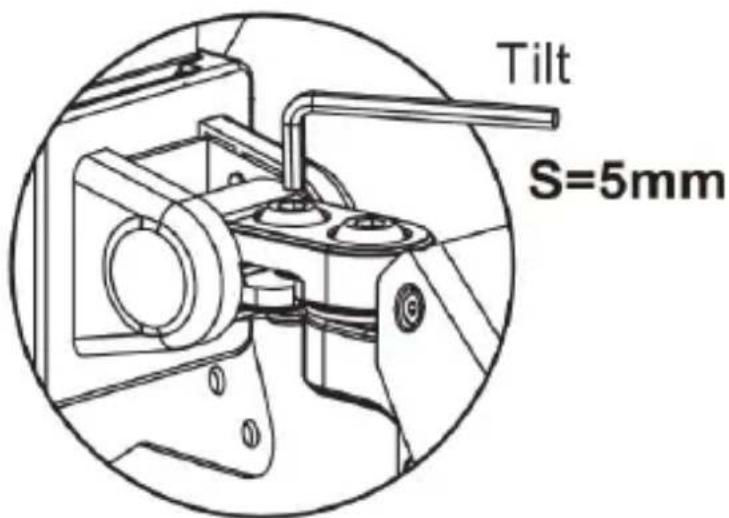

Adjusting the Tilt Resistance

Adjust the tilt resistance, using the 5 mm Hex Key. Turn the 5 mm Tilt Screw counterclockwise to decrease the resistance and clockwise to increase it. (Figure 15)

Tilt S=5mm

Figure 15

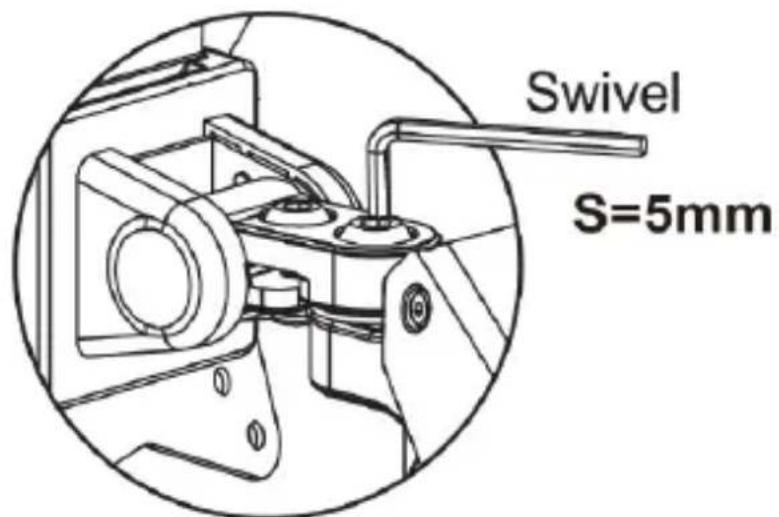

Adjusting the Swivel Resistance

Adjust the swivel resistance, using the 5 mm Hex Key. Turn the 5 mm Swivel Screw counterclockwise to decrease the resistance and clockwise to increase it. (Figure 16)

Swivel S=5mm

Figure 16

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Adjusting the Arm Tension

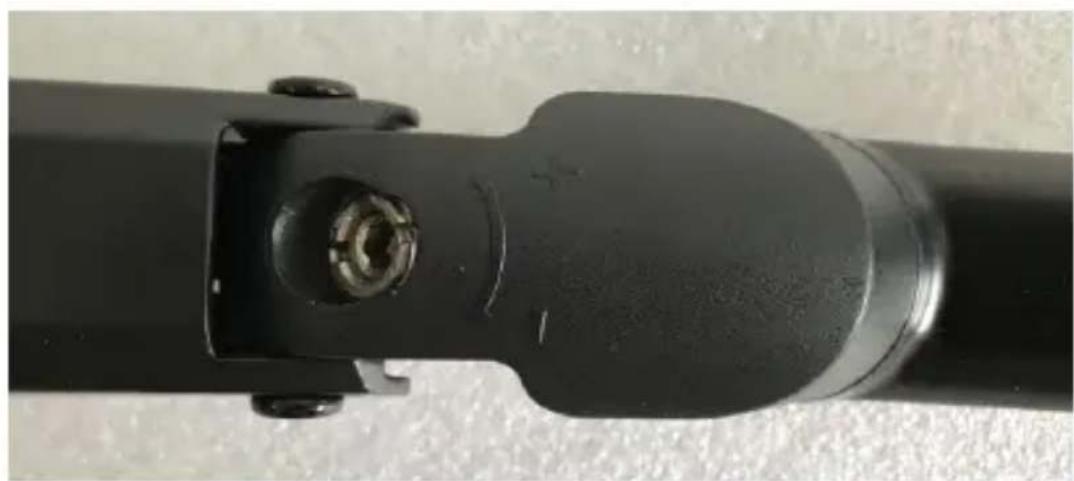

Adjust the arm tension, using the delivered Hex Key. There is a gas spring tension adjustment which allows the arm to lift the monitor up. (Figure 17)

Figure 17 90°

Close-up of a black mechanical component with a bolt and flange (no visible text or symbols)

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Cable Management

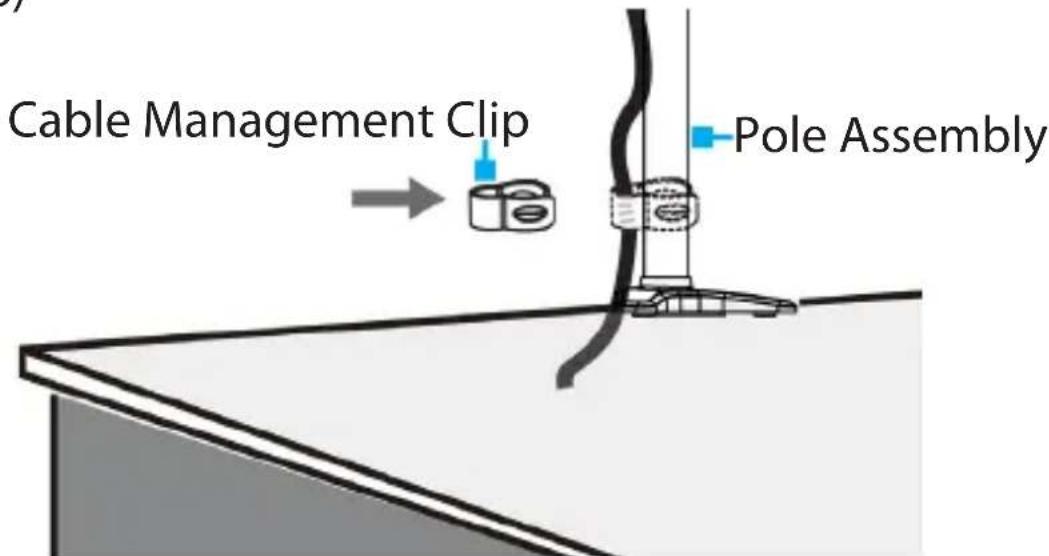

1. Affix the Cable Management Clip over the Pole Assembly. (Figure 18)

Cable Management Clip Pole Assembly

Figure 18

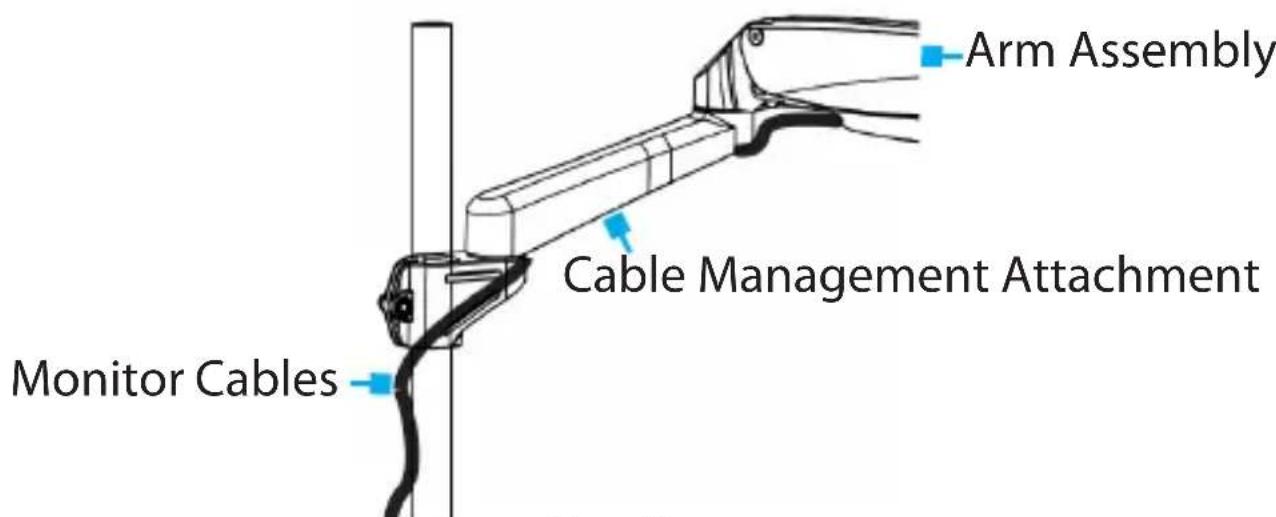

1. Route the Monitor Cables through the Cable Management Attachment, through the lower portion of the Arm Assembly, through the Cable Management Clip, and to the Power/Video Sources. (Figure 19)

Arm Assembly Cable Management Attachment Monitor Cables

Figure 19

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Warranty Information

This product is backed by a five-year warranty.

For further information on product warranty terms and conditions, please refer to www.startech.com/warranty.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
