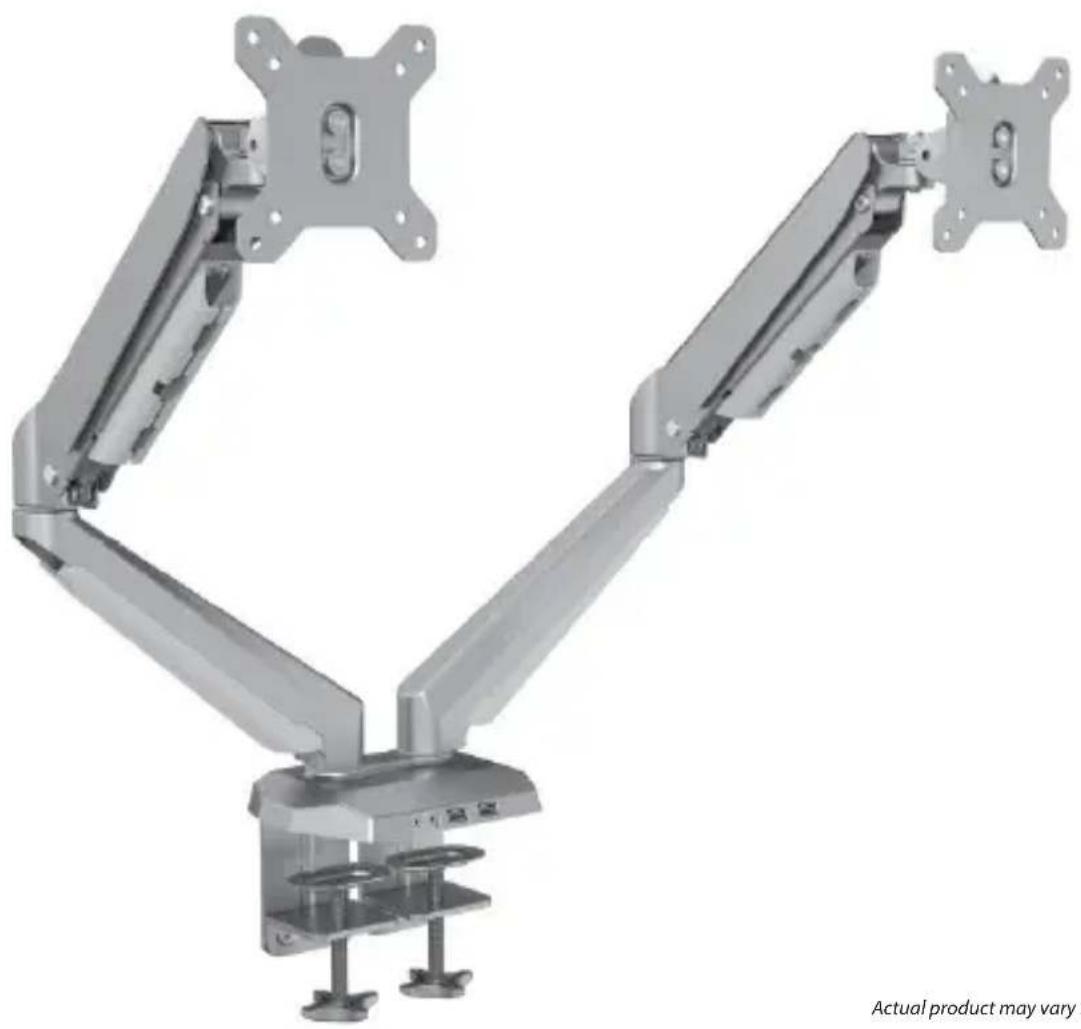

Product Diagram

1 2 4 3 5 6 7

1 VESA Holder Lower Arm
2 Upper Spring Arm	USB Ports and 3.5 mm Audio Ports
3 Cable Cover C-Clamp
4 Cable Clip

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

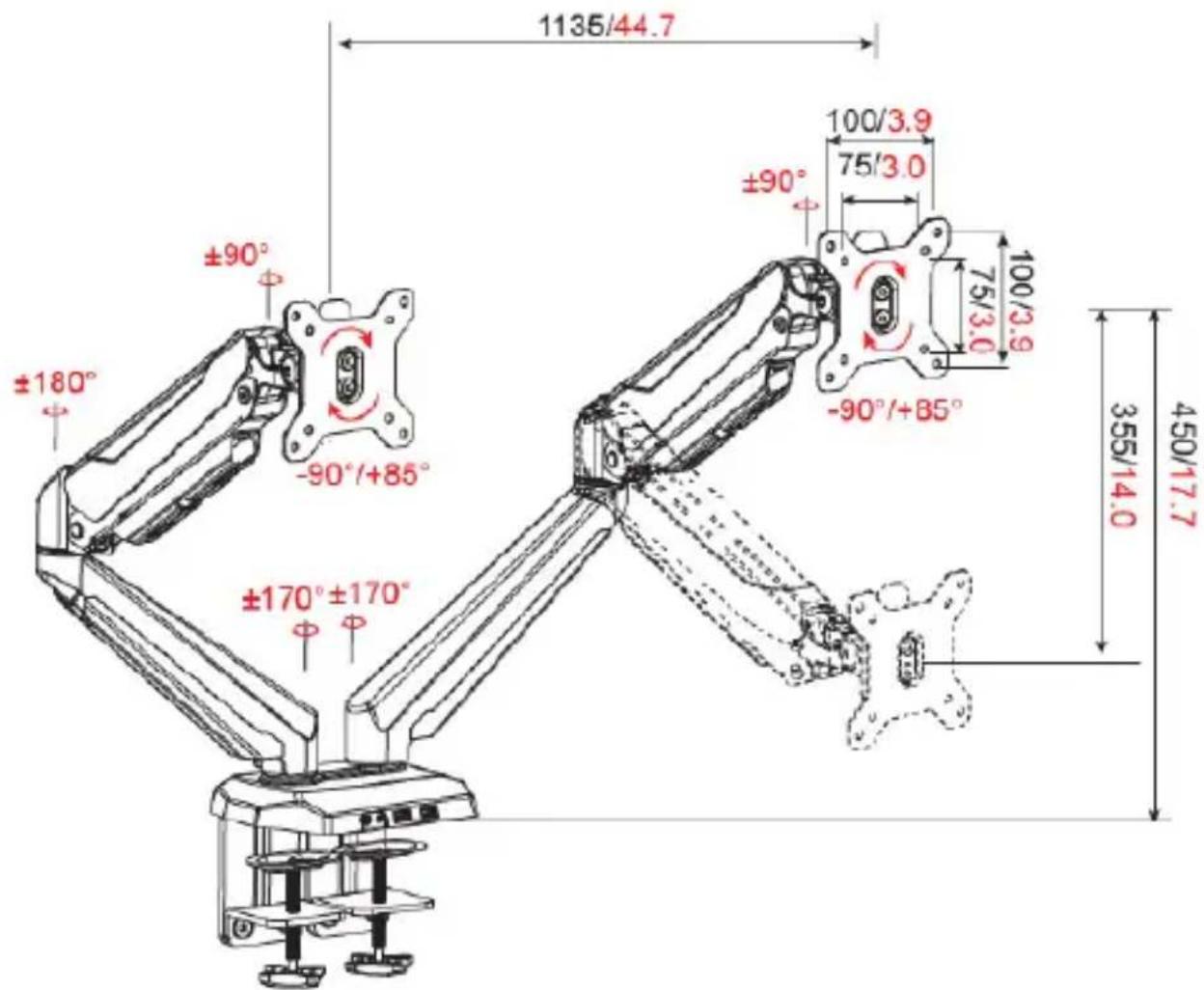

Product Dimensions

±180° ±90° -90°/+85° ±170°±170° 1136/44.7 ±90° 100/3.9 75/3.0 ±90° -90°/+85° 100/3.9 75/3.0 355/14.0 450/17.7

Note: The measurements displayed are maximum measurements and are in mm/inches, unless otherwise specified.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Product Information

Package Contents

Arm AssemblyQty: 1	Upper ClampsQty: 2
Lower ClampsQty: 2	VESA MountsQty: 2

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

3D rendering of a square metal plate with a central hole (no text or symbols)

Rubber Pads Qty: 2

Simple line drawing of a screw with a central fastener (no text or symbols)

M4 x 12 mm Screws Qty: 8

Simple line drawing of a screw with a central fastener (no text or symbols)

M4 x 30 mm Screws Qty: 8

Simple line drawing of a cylindrical object with a hollow top (no text or symbols)

Plastic Spacers Qty: 8

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Simple black L-shaped line drawing on white background (no text or symbols)

4 mm Hex Key Qty: 1

Simple black L-shaped line drawing on white background (no text or symbols)

5 mm Hex Key Qty: 1

Simple line drawing of a mechanical component with a cylindrical body and flanged end (no text or symbols)

M6 x 12 mm Screws Qty: 8

Simple line drawing of a mechanical component with a central hexagonal nut (no text or symbols)

M8 x 12 Screws Qty: 4

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Product Specifications

VESA	75 x 75100 x 100
Rotation	-360 ^o to + 360 ^o
Tilt	-90 ^o to + 85 ^o
Total Weight (two monitors)	17.6 lb (2 x 8 kg)

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Screen Size	15" to 32"
Swivel	-90° to +90°

Requirement

Tools

• Phillips Head Screwdriver x 1

Displays

- 15" to 32" Displays x 2

Optional

• USB Cables x 2
  • USB Compatible Devices x 2
• 3.5 mm Headset

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Assembling the Monitor Mount

1. Align the four Screw Holes on the top of the Upper Clamps with the four Screw Holes on the bottom of the Base of the Arm Assembly.

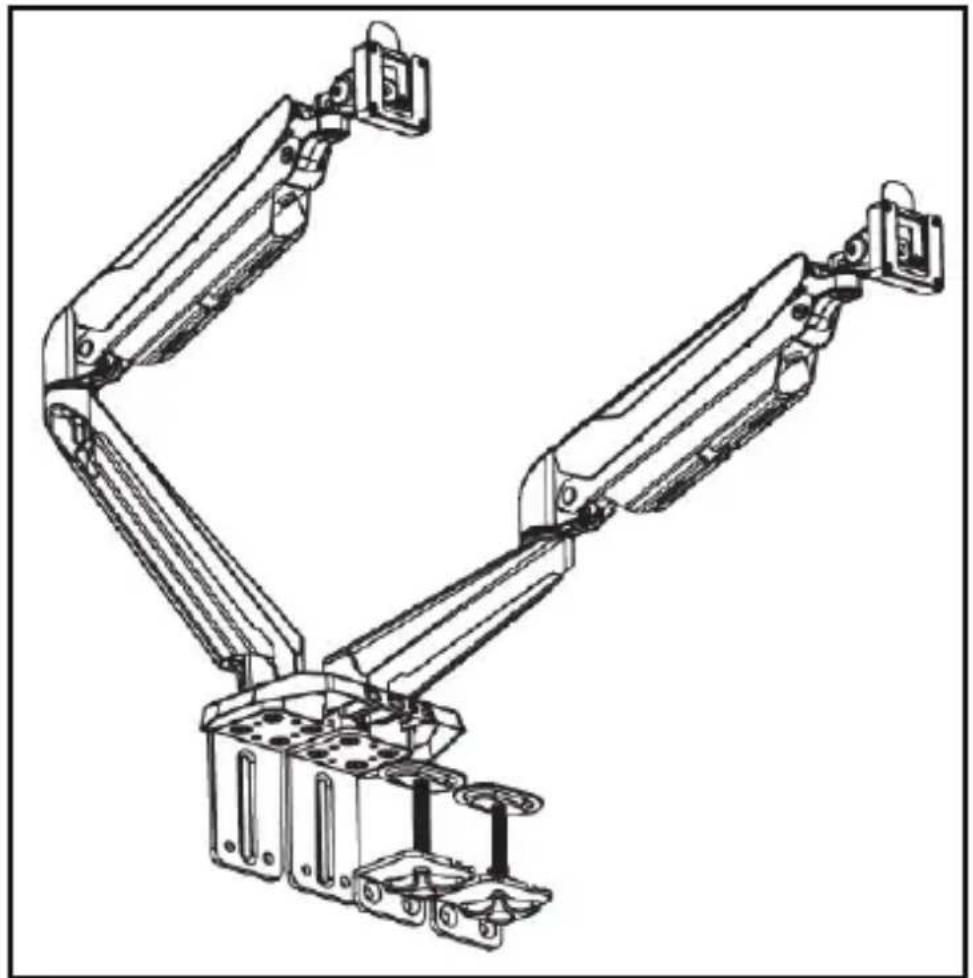

Technical line drawing of a robotic arm with articulated joints and mounting brackets (no text or symbols)

Installing the Upper Clamps

1. Insert eight M6 x 12 mm Hex Screws through the Screw Holes on the Upper Clamps and into the Screw Holes on the bottom of the Base.

2. Using the 4 mm Hex Key, tighten the M6 x 12 mm Screws, being careful not to over-tighten.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical diagram of a mechanical assembly with multiple components and a pipe connection (no text or symbols)

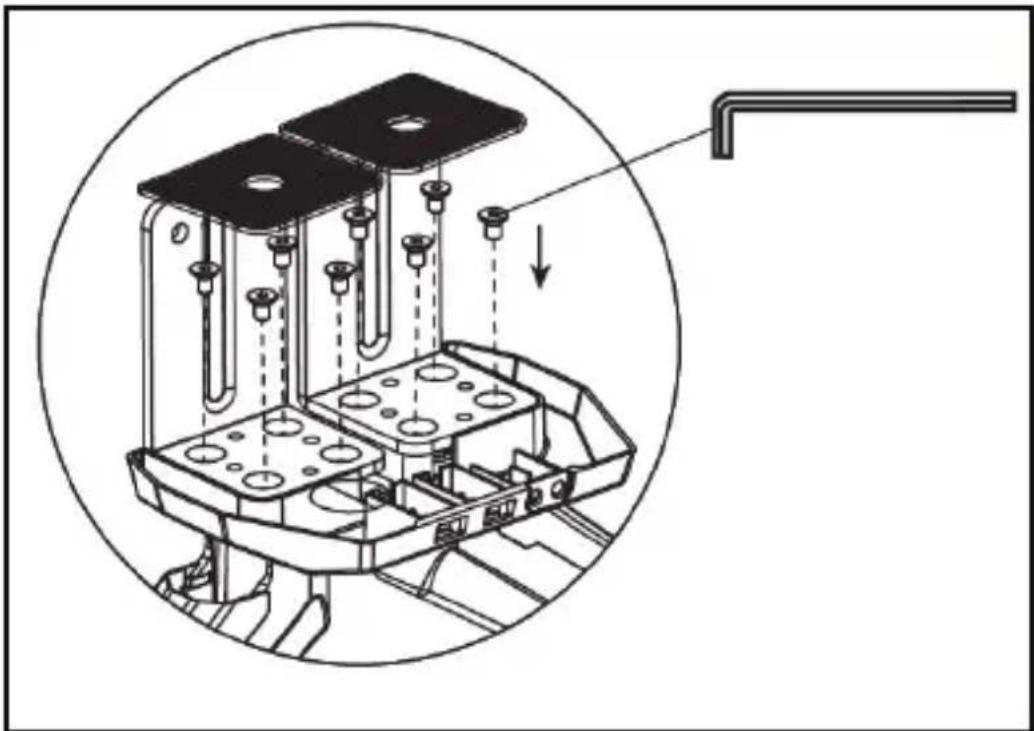

Installing the M6 x 12 mm Screws

1. Remove the backing from the Rubber Pads.

2. Apply the adhesive side of the Rubber Pads onto the bottom of the Upper Clamps covering the M6 x 12 mm Screws.

3. Align the two Screw Holes on the Lower Clamps with two Screw Holes on the bottom of the Upper Clamps.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical line drawing of a robotic arm with articulated joints and mounting brackets (no text or symbols)

Installing the Lower Clamps

1. Insert four M8 x 12 mm Screws through the Screw Holes on the Lower Clamps and into the Screw Holes in the Upper Clamps.
2. Using the 5 mm Hex Key, tighten the M8 x 12 mm Screws, being careful not to over-tighten.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical line drawing of a mechanical assembly inside a circular frame, showing components like gears and levers (no text or symbols)

Tightening the M8 x 12 mm Screws

1. Align the C-Clamp Assembly with the edge of the Mounting Surface.

2. Slide the C-Clamp Assembly over the edge of the Mounting Surface.

3. From underneath the Mounting Surface, tighten the two Thumb Screws at the bottom of the C-Clamp Assembly. Tighten the Thumb Screws until the C-Clamp Plate is pressed tightly against the bottom of the Mounting Surface.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

For desks with a thickness of more than 2.36 inches (60 mm) and less than 3.35 inches (85 mm), the Lower Clamps (x2) need to be removed and installed upside-down.

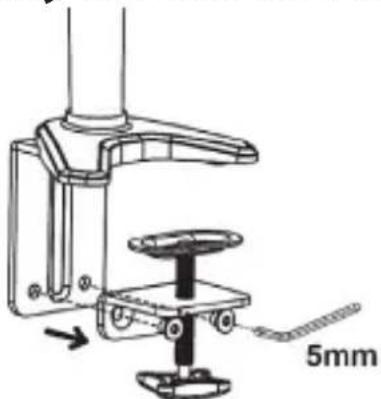

1. Remove the Screws (x2) at the bottom of the Upper Clamp with the 5mm Hex Key to remove the Lower Clamp.

5mm

1. Remove the Screw (x1) from the Pressure Plate using a Phillips Head Screwdriver, and detach the Pressure Plate from the Hand Screw. Next, separate the Hand Screw from the Lower Clamp.

Mechanical assembly diagram showing a rotating component with arrows indicating motion direction (no text or symbols)

1. Rotate the Lower Clamp upside-down. Using a Phillips Head Screwdriver, reinstall the Pressure Plate onto the Hand Screw using the same Screw from Step 2. Reverse Step 1 to reinstall the Lower Clamp.

Exploded view diagram of a mechanical assembly with no visible text or symbols

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

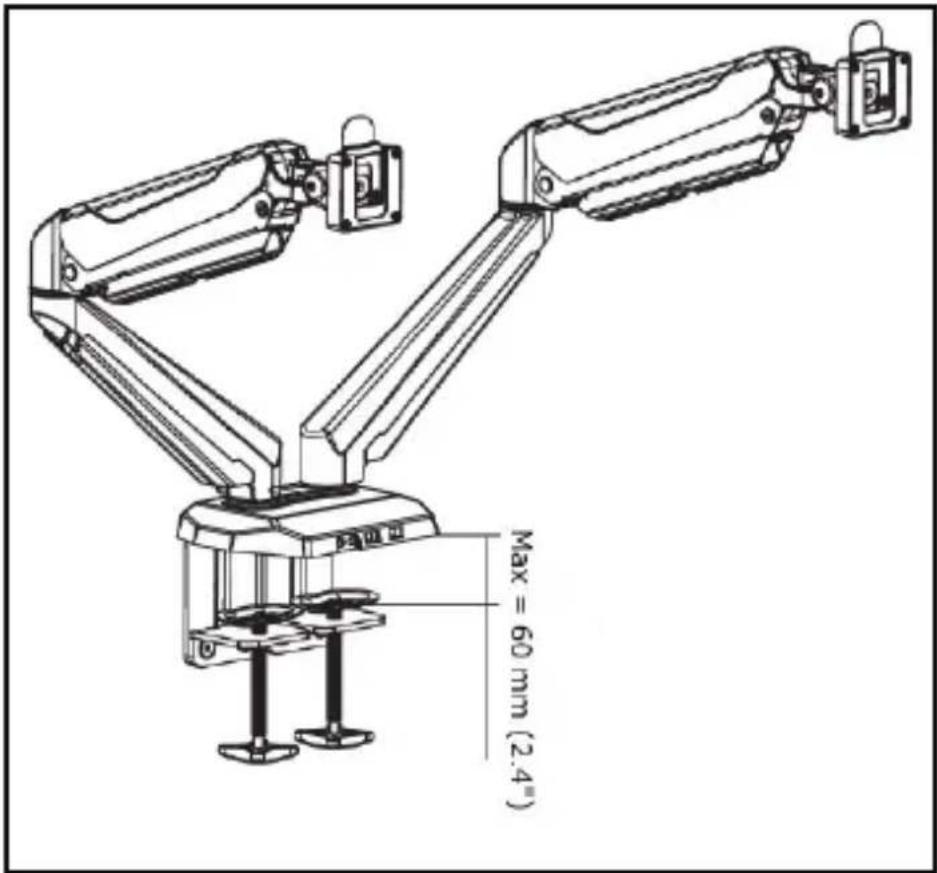

Max = 60 mm (2.4")

C-Clamp Dimensions

Mounting the Monitors

1. Place the Monitor screen side down on a flat, clean surface.
2. (Optional) Remove any Screws or Place Holders from the VESA Mounting Holes on the back of the Monitor.

Note: Be careful not to remove any of the Screws holding the Monitor's Casing together.

1. Align the Screw Holes on the VESA Mount with the VESA Mounting Holes on the back of the Monitor. The VESA Mount can support 75 x 75 or 100 x 100 mounting pattern.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Note When attached, the Arrow on the VESA Mount should be point upward.

Technical diagram of a mechanical assembly with mounting brackets and a central bracket, enclosed in a circular frame (no text or symbols)

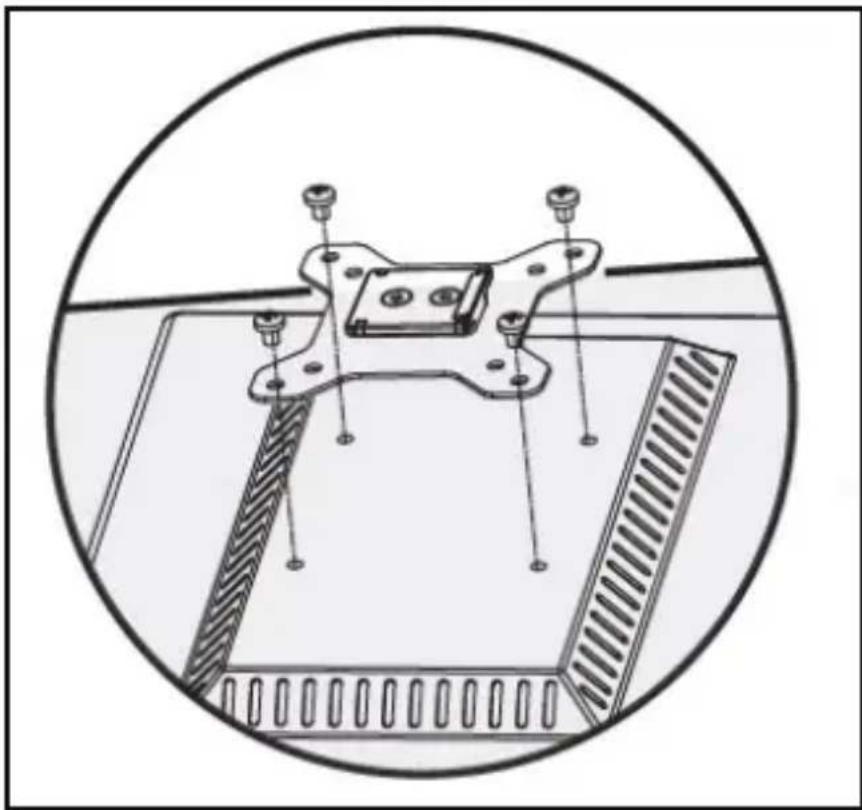

Aligning the VESA Mount with Monitor

1. Select the appropriate hardware for mounting the VESA Mount to the back of the Monitor either M4 x 12 mm, M4 x 30 mm, or customer sourced screws.

2. Insert the appropriate Screws through the Screw Holes on the VESA Mount and into the VESA Mounting Holes on the back of the Monitor.

3. (Optional) For recessed surface mounting, align the four Spacers with the VESA Mounting Holes on the back on the Monitor, prior to securing the VESA Mount to the Monitor.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. Using a Phillips Head Screwdriver (or appropriate screwdriver) tighten the screws.

Note: Do not over-tighten the Screws. If you encounter resistance while you're tightening the Screws, stop tightening. Failure to do so could result in damage to the Monitor.

1. Repeat steps 1 - 7 to install the VESA Mount of the second Monitor.

Note: It is recommended that two people mount the Monitors.

1. Pull the VESA Clip on the VESA Holder back towards the Spring Arm.

Illustration of a hand using a tool to adjust or install a mechanical component, showing a device with a handle and a circular arrow indicating process (no text or symbols present)

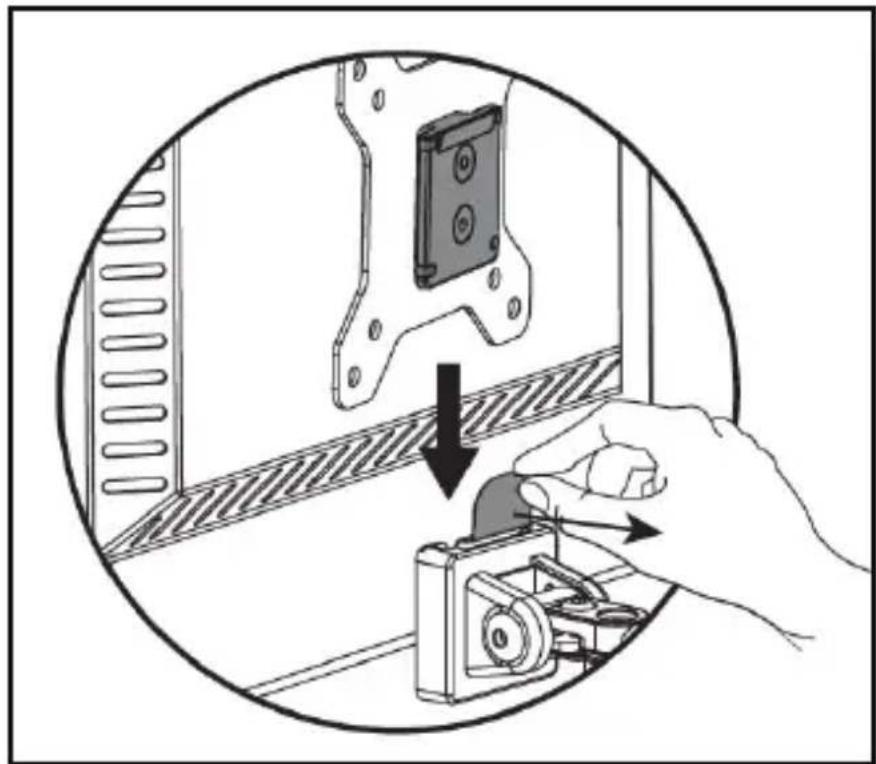

Pulling back the VESA Clip

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Note: The VESA Clip on the VESA Holder should be upright before mounting the Monitor.

1. While holding the VESA Clip and supporting the weight of the Monitor, align the Mounting Plate of the VESA Mount with the VESA Holder on the Spring Arm.

2. Slide the Mounting Plate on the VESA Mount down into the VESA Holder until the Mounting Plate is sitting on the bottom of the VESA Holder and the VESA Clip, once released will hold the top of the Mounting Plate in place.

3. While holding the Monitor in place, release the VESA Clip, securing the Monitor in place.

4. Repeat steps 9 - 12 to mount the second Monitor.

Adjusting the Monitor Mount

Adjusting the Spring Arm Tension

1. Using your hand push downward on the Spring Arm and hold it in place.

2. The Spring Arm should only be placed in a horizontal position.

3. Use the 5 mm Hex Key to rotate the Adjustment Screw located at the base of the Spring Arm, clockwise (decreasing tension) or counter clockwise (increasing tension).

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical line drawing of a mechanical component inside a circular frame (no text or symbols)

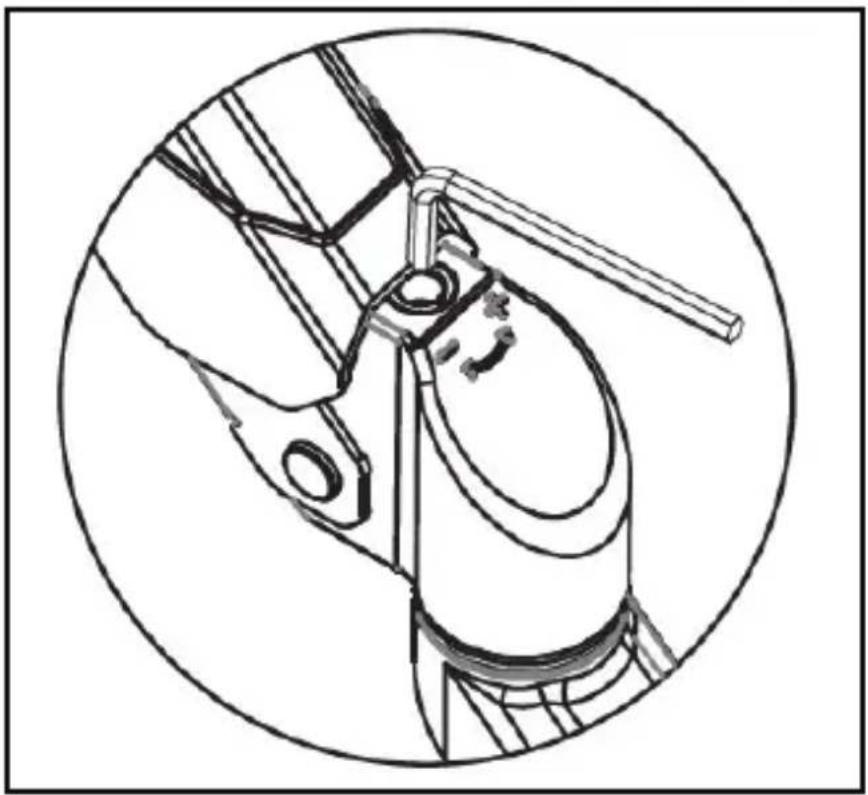

Adjusting the Spring Arm Tension

Three circular diagrams showing no-pin electrical outlets with a checkmark, indicating prohibition or disapproval.

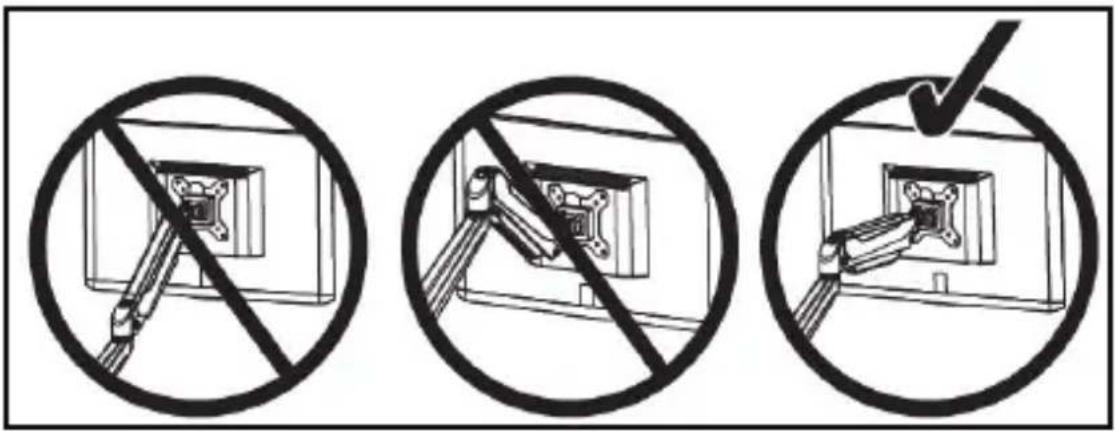

Correct Spring Arm Position

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Adjusting the Tilt

1. Use the 5 mm Hex Key to loosen the Tilt Adjustment Screw located at the back of the VESA Holder (the hex screw closest to the back of the Monitor).

Technical line drawing of a mechanical assembly inside a circular frame (no text or symbols)

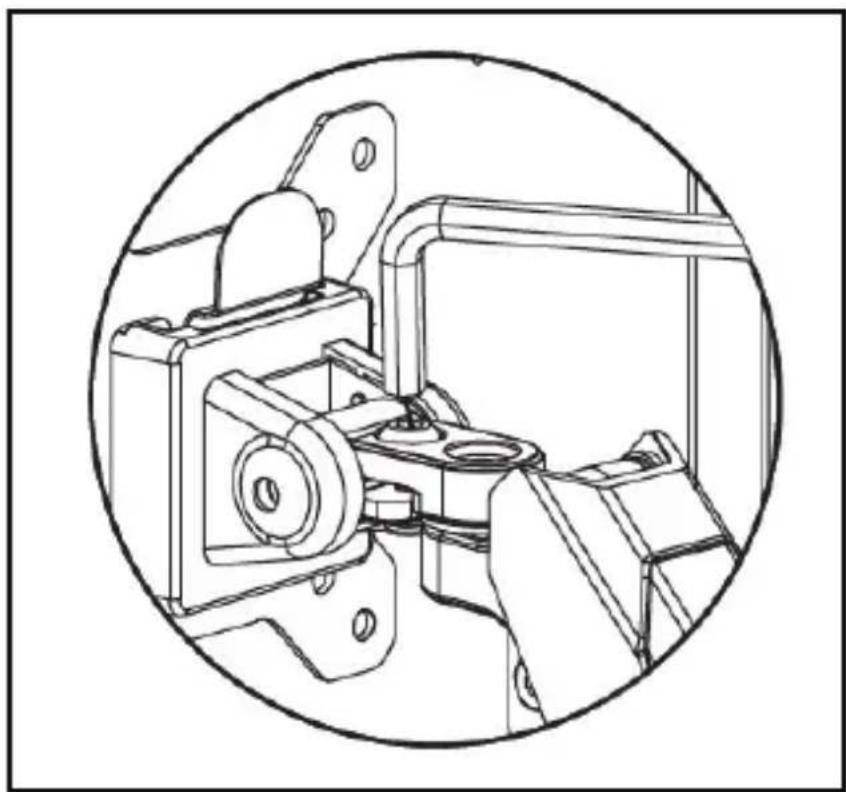

Loosening the Tilt Adjustment Screw

1. Use your hand to adjust the tilt of the Monitor.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

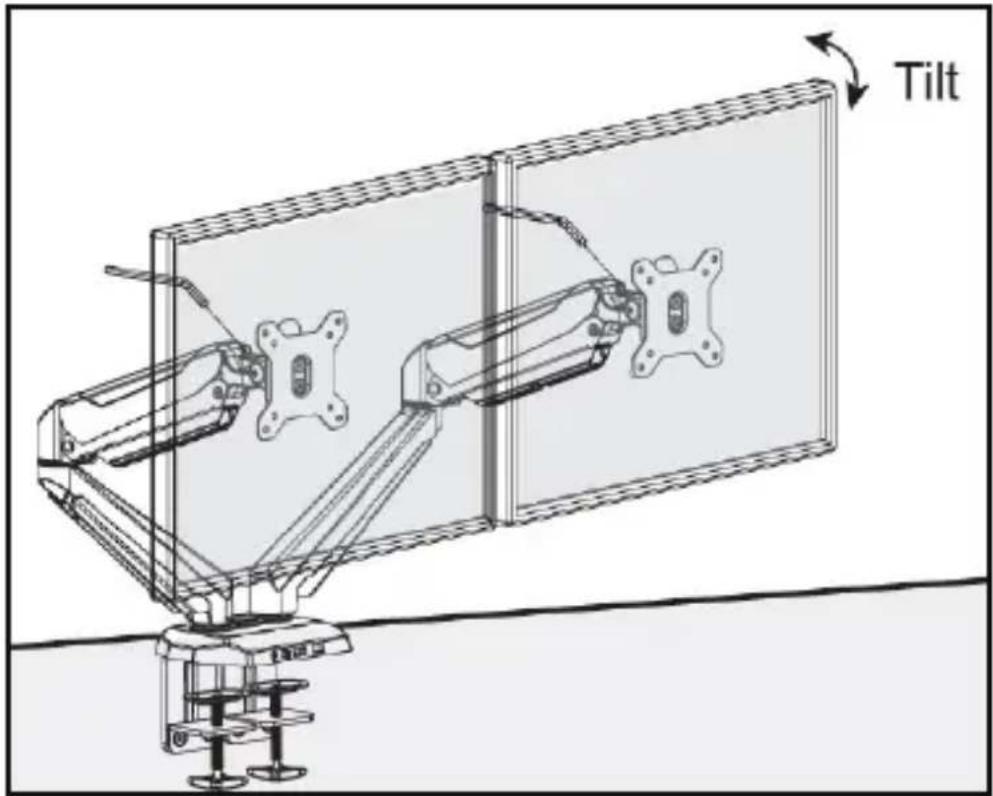

Tilt

Adjusting the Monitor Tilt

1. When you have achieved the desired tilt, hold the Monitor in that position and tighten the Tilt Adjustment Screw.

Adjusting the Swivel

1. Use the 5 mm Hex Key to loosen the Swivel Adjustment Screw located at the back of the VESA Holder (the hex screw closest to the Spring Arm).

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical line drawing of a mechanical assembly inside a circular frame (no text or symbols)

Loosening the Swivel Adjustment Screw

1. Use your hand to adjust the swivel of the Monitor.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Swivel

Adjusting the Monitor Swivel

1. When you have achieved the desired swivel, hold the Monitor in that position and tighten the Swivel Adjustment Screw.

Routing the Cables

1. Run the Monitor Cables along the inside of the Spring Arm.

2. Gently push the Monitor Cables into the Cable Clip located along the inside of the Spring Arm.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical line drawing of a mechanical assembly inside a circular frame, showing internal components and a directional arrow (no text or symbols)

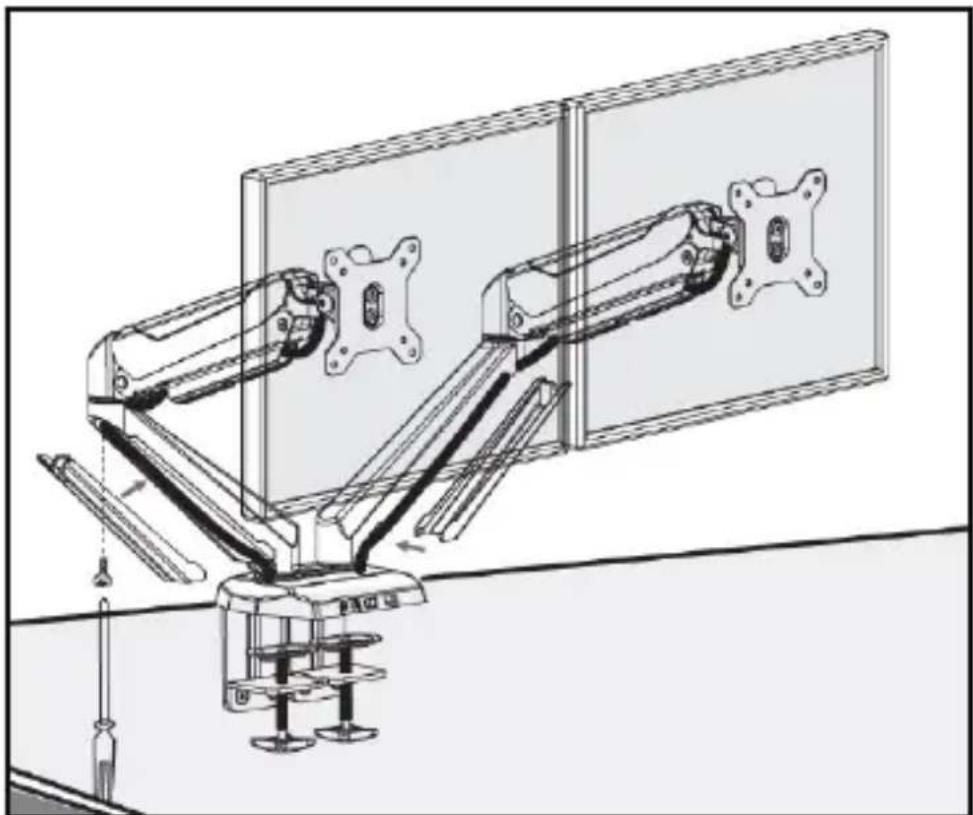

Routing the Monitor Cables Along the Spring Arm

1. Run the Monitor Cable through the joint between the Upper Spring Arm and the Lower Arm. Make sure that you leave enough slack in the Monitor Cable to compensate for arm movement and adjustments.
2. Using a Phillips Head Screwdriver, remove the Screw from the Cable Cover, located on the outside of the Lower Arm, detaching the Cable Cover from the Lower Arm.
3. Route the Monitor Cables down the Lower Arm, on either side of the Screw Hole on the Cable Cover.
4. Replace the Screw removed in step 4, securing the Cable Cover to the Lower Arm, being careful not to pinch the Monitor Cable between the Cable Cover and Lower Arm.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical line drawing of a mechanical arm assembly with articulated arms and a wall-mounted panel (no text or symbols)

Removing the Cable Covers

Using the USB Passthrough Ports

1. Plug the two USB Cables on the back of the Base into USB Ports on the Host Computer.

2. Connect a USB Cable to the USB Ports on the front of the Base and the other end to a compatible USB Device.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Using the 3.5 mm Audio Port

Headset or Speakers

1. Plug the Audio Cable (green) located at the back of the Monitor Mount Base into the appropriate Audio Port on the Host Computer.
2. Plug the Audio Cable from the Headset or Speakers into the Audio Port (green) on the base of the Monitor Mount.

Microphone

1. Plug the Microphone Cable (pink) located at the back of the Monitor Mount Base into the Microphone Port on the Host Computer.

2. Plug the Cable from the Microphone into the Microphone Port (pink) on the base of the Monitor Mount.

Warranty Information

This product is backed by a two-year warranty.

For further information on product warranty terms and conditions, please refer to www.startech.com/warranty.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Hard-to-find made easy. At StarTech.com, that isn't a slogan. It's a promise.

StarTech.com is your one-stop source for every connectivity part you need. From the latest technology to legacy products — and all the parts that bridge the old and new — we can help you find the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need to go. Just talk to one of our tech advisors or visit our website. You'll be connected to the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.

Reviews

Share your experiences using StarTech.com products, including product applications and setup, what you love about the products, and areas for improvement.

StarTech.com Ltd.	StarTech.com LLP	StarTech.com Ltd.	StarTech.com Ltd.
45 Artisans Crescent London, Ontario	4490 South Hamilton Road Groveport, Ohio	Unit B, Pinnacle 15 Gowerton Road Brackmills,	Siriusdreef 17-27 2132 WT Hoofddorp
N5V 5E9 Canada	43125 U.S.A.	Northampton NN4 7BW United Kingdom	The Netherlands
