USER MANUAL ARMPIVOTV2 StarTech.com

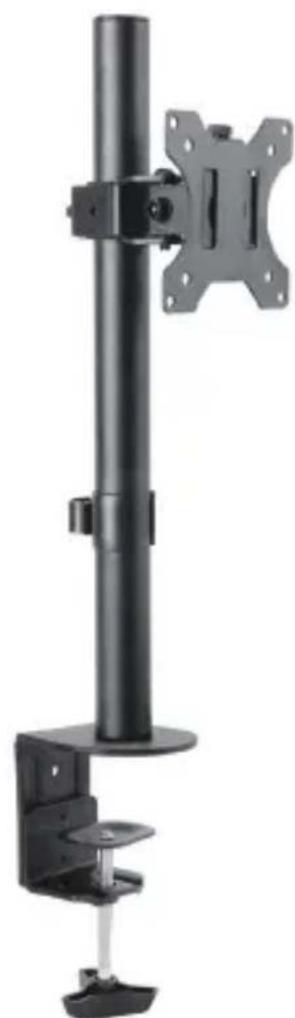

Single-Monitor Desk Mount

ARMPIVOTV2

Black vertical adjustable shelf with mounting bracket and clamping mechanism (no text or symbols visible)

*actual product may vary from photos

For the latest information, technical specifications, and support for this product, please visit www.StarTech.com/ARMPIVOTV2.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

PHILLIPS ^® is a registered trademark of Phillips Screw Company in the United States or other countries.

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Warning statements

Make sure to assemble this product according to the instructions. Failure to do so might result in personal injury or property damage.

Make sure that the weight of the monitor doesn't exceed the weight capacity of this product. If you exceed the weight capacity, you might experience personal injury or damage to the equipment. This product can support the following weight: 8 kg (17.6 lb.).

Never operate this product if parts are missing or damaged.

Varningsmeddelanden

Product dimensions....2

Technical specifications .... 3

Package contents....4

Requirements 7

Assembly 7

Attach the ARMPIVOTV2 to your mounting surface 7

Attach the VESA pole clamp....11

Attach a monitor to the VESA monitor mount 12

Attach the monitor to the VESA pole clamp 14

Adjust the tilt angle of your monitor 15

Organize your cables 16

Adjust the angle of your monitor....16

Technical support....17

Warranty information....17

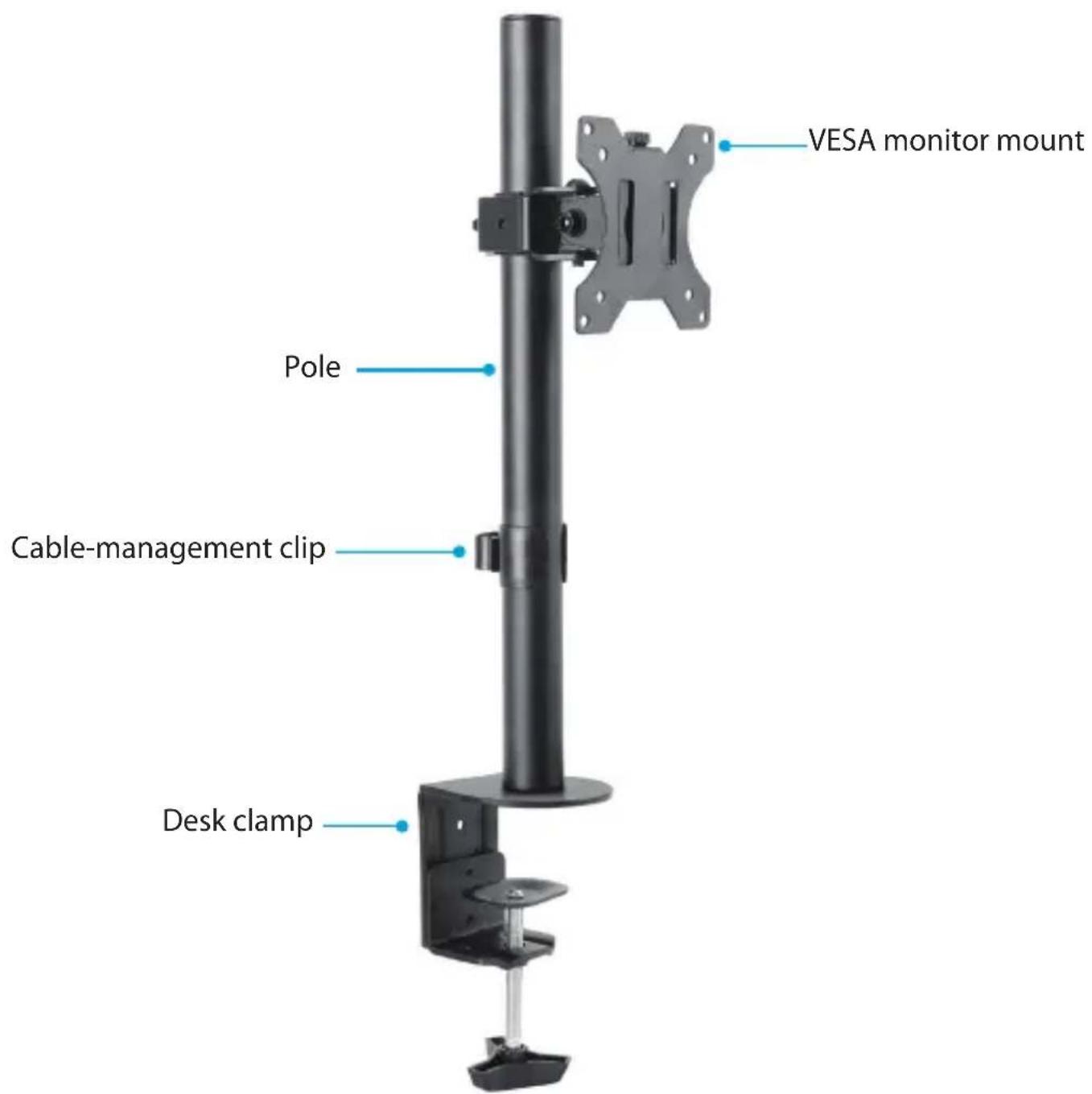

Introduction Product diagram

VESA monitor mount Pole Cable-management clip Desk clamp

Product dimensions

105 mm 443 mm 38 mm 50 mm ±90° min 10 mm to max 88 mm ±180° 114 mm 100 mm 75 mm 75 mm 100 mm 114 mm ±45°

Technical specifications

Type of measurement Measurement

VESA mounting hole pattern	75x75100x100
Weight capacity	Up to 8 kg (17.6 lb.)
Tilt	+45° to -45°
Screen size	Between 330 mm and 813 mm(13 in. and 32 in.)
Rotate	+180° to -180°
Swivel	+90° to -90°

Package contents

1

Pure mechanical component diagram with symmetrical slots and mounting holes (no text or symbols)

VESA monitor mount

Qty: One

3

Empty rectangular frame with no text, symbols, or markings

Pole

Qty: One

5

Technical line drawing of a mechanical assembly with no visible text or symbols

Desk clamp

Qty: One

2

Technical line drawing of a mechanical device with no visible text or symbols

VESA pole clamp

Qty: One

4

Pole screws

Qty: Three

6

Grommet plate

Qty: One

- 1 x instruction manual

Requirements

• A monitor or display that is compatible with one of the VESA mounting hole patterns ARMPIVOTV2 supports
  • A Phillips screwdriver

Requirements are subject to change. For the latest requirements, please visit www.StarTech.com/ARMPIVOTV2.

Assembly

Attach the ARMPIVOTV2 to your mounting surface

You can use either the desk clamp or grommet mount to attach the ARMPIVOTV2 to your mounting surface.

Use the desk clamp to attach the ARMPIVOTV2

Warning! Make sure that the weight of the monitor doesn't exceed the weight capacity of this product. If you exceed the weight capacity, you might experience personal injury or damage to the product. This product can support the following weight: Up to 8 kg (17.6 lb.).

1. Remove the backing from the five rubber pads and affix them to the underside of the desk clamp. (figure 1)

figure 1

Rubber pad Desk clamp

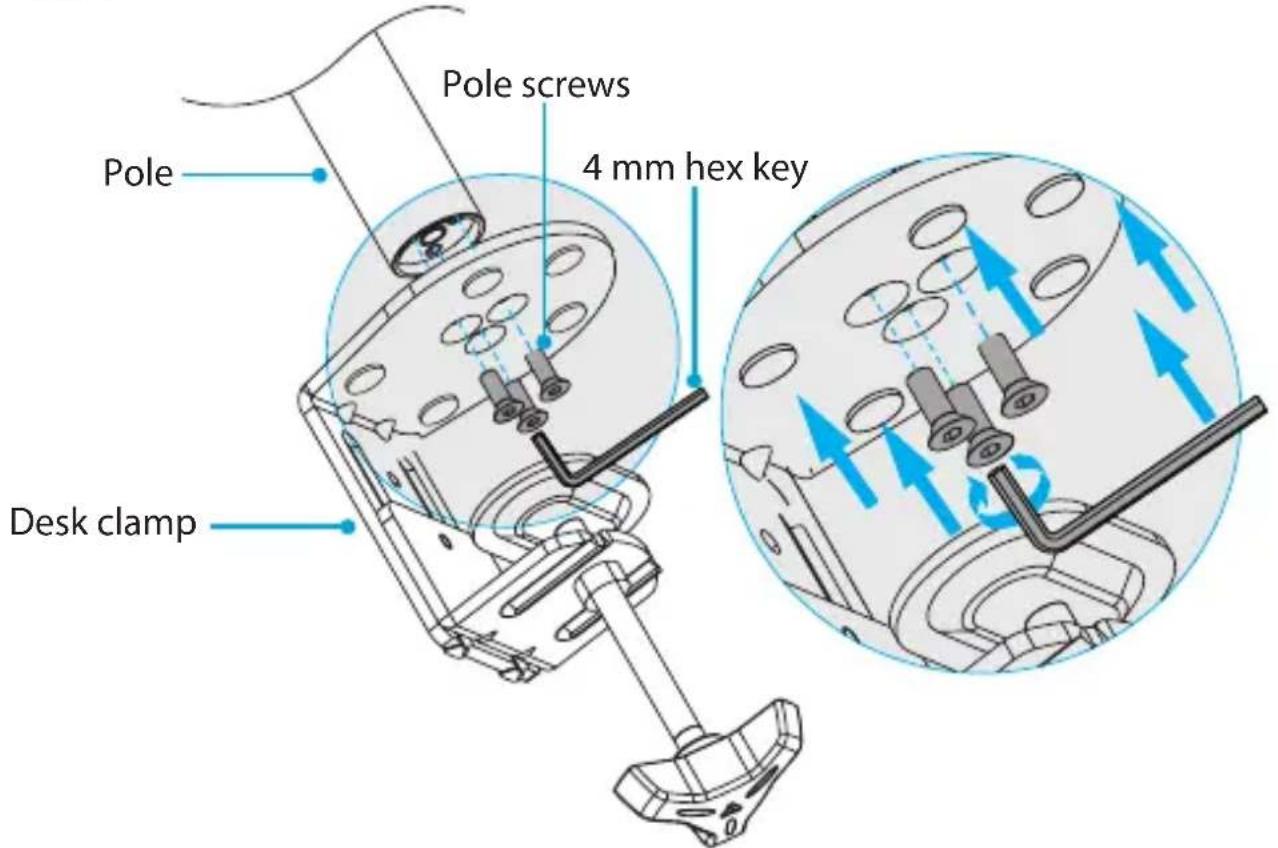

1. Position the pole over the top of the desk clamp and insert the three pole screws through the desk clamp and into the pole.
2. Use the 4 mm hex key to tighten the pole screws. (figure 2)

figure 2

Pole Pole screws 4 mm hex key Desk clamp

1. Turn the knob on the desk clamp until you reach the thickness of the mounting surface that you're attaching the ARMPIVOTV2 to.
2. Slide the desk clamp over the edge of the desk or table.
3. Turn the knob to tighten the desk clamp. (figure 3)

figure 3

10t88mm Sk

Use the grommet mount to attach the ARMPIVOTV2

Warning! Make sure that the weight of the monitor doesn't exceed the weight capacity of this product. This product can support the following weight: Up to 8 kg (17.6 lb.).

Using the grommet mount to attach the ARMPIVOTV2 requires the assistance of a second person.

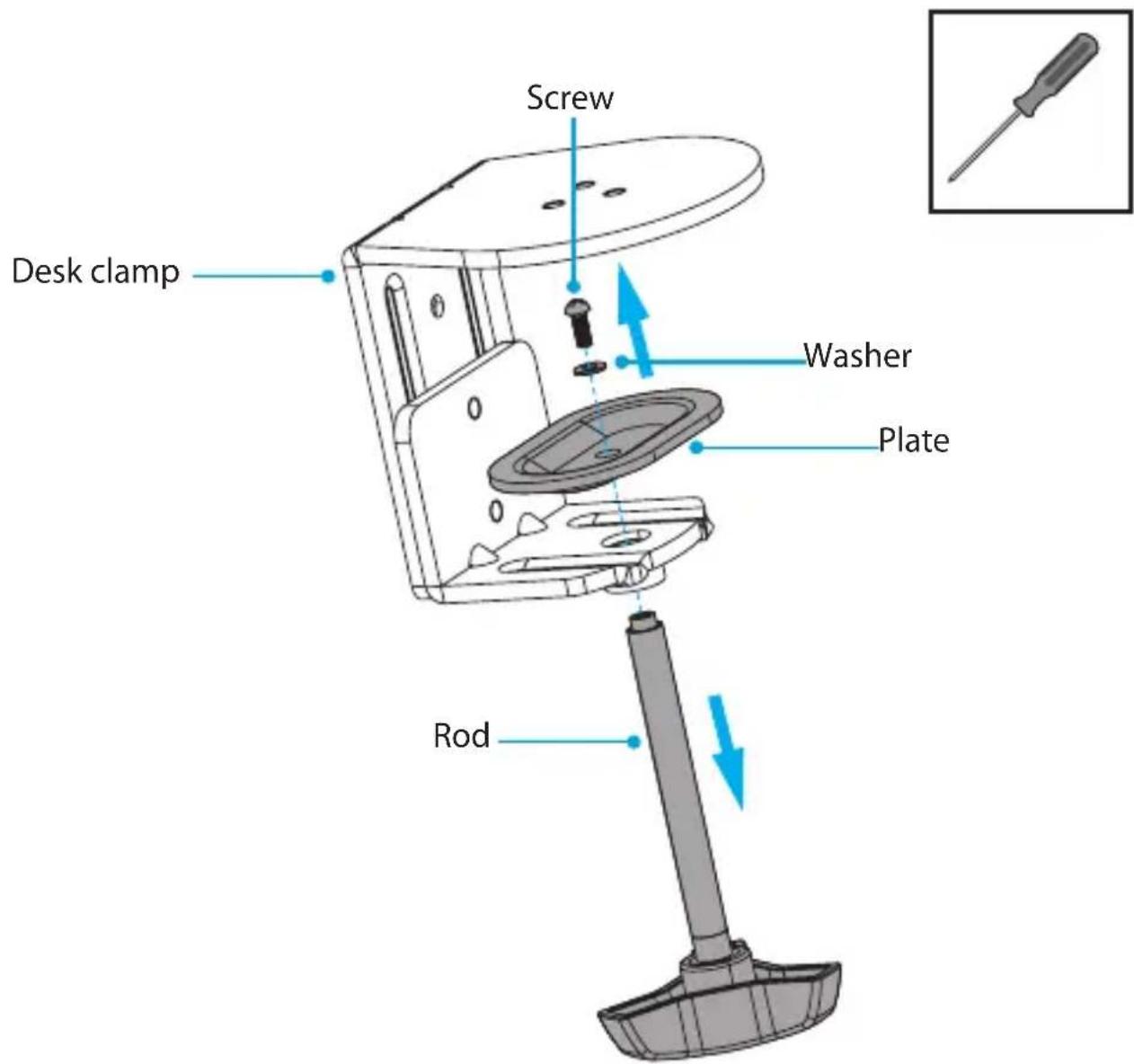

1. Use a Phillips screwdriver to unscrew the screw and washer from the plate and rod.
2. Remove the rod from the bottom of the desk clamp. (figure 4)

Tip! Keep the screw, washer, plate, and rod in a safe place so that you can use them again if you want to switch back to the desk clamp.

figure 4

Screw Desk clamp Washer Plate Rod

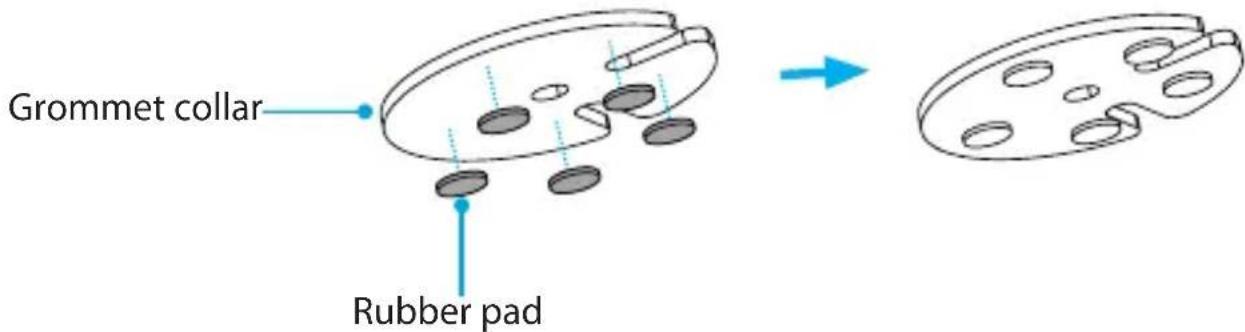

1. Remove the backing from the five rubber pads and affix them to the underside of the grommet collar. (figure 5)

figure 5

Grommet collar Rubber pad

1. Position the grommet collar over the grommet hole in the mounting surface, and position the pole over the grommet collar so that the projection on the grommet collar fits into one of the two holes on the pole. (figure 6)

figure 6

Pole Projection Grommet collar

1. Thread the grommet plate onto the rod.
2. While another person holds the pole and the grommet collar upright, on the underside of the mounting surface, thread the rod up through the grommet hole and into the pole.
3. Turn the knob clockwise to tighten the grommet mount. (figure 7)

figure 7 Pole 10 to 75 mm Grommet plate Rod

Attach the VESA pole clamp

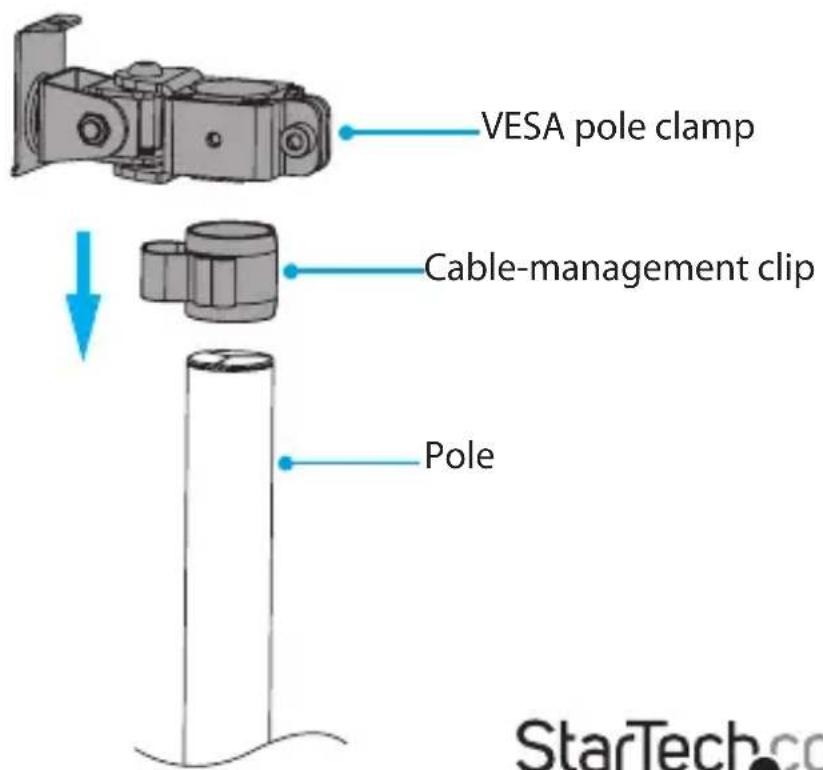

1. Slide the cable-management clip and the VESA pole clamp down the pole. (figure 8)

figure 8

VESA pole clamp Cable-management clip Pole StarTech

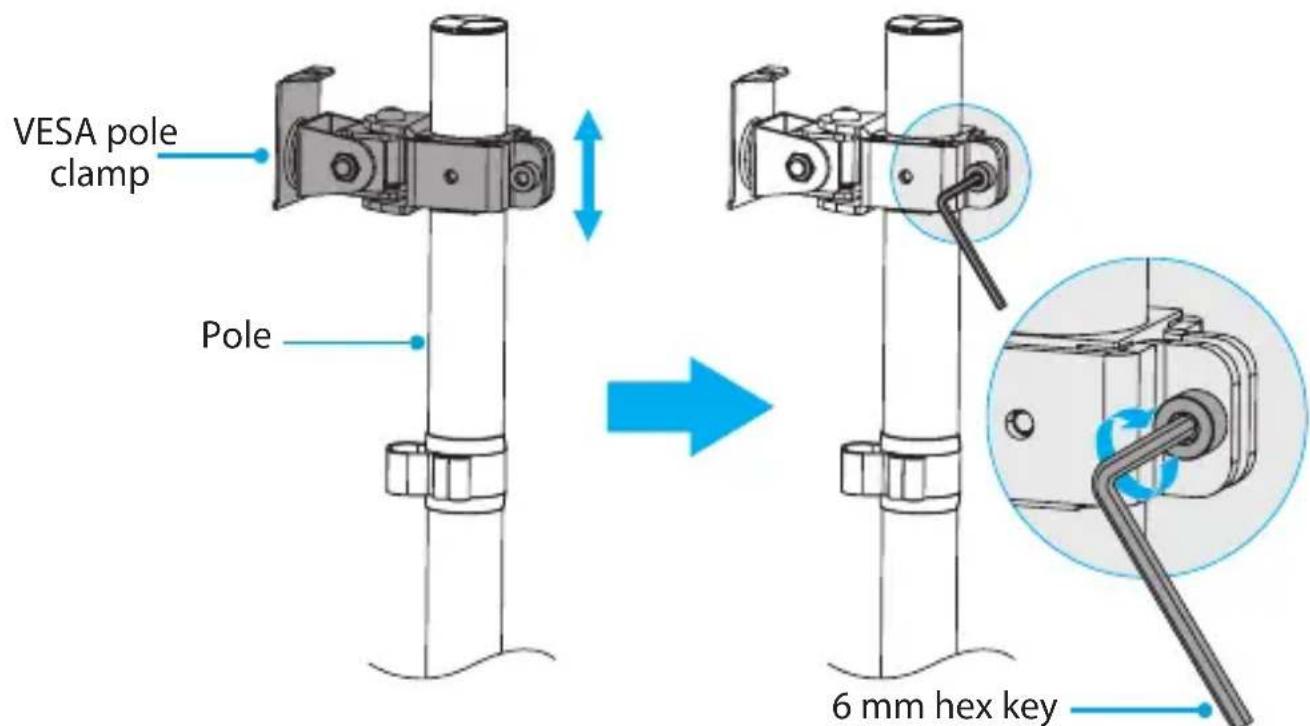

1. When the VESA pole clamp is at the desired height, use the 6 mm hex key to tighten the screw in the VESA pole clamp. (figure 9)

figure 9

VESA pole clamp Pole 6 mm hex key

Attach a monitor to the VESA monitor mount

To accommodate different monitor sizes, the ARMPIVOTV2 comes with four sets of screws that are different lengths and diameters, and a set of spacers.

To decide if the spacers are necessary and to select the appropriate screws for the type of monitor that you're using, complete the following:

• Determine the depth of the mounting holes on the monitor.
• Determine the diameter of the mounting holes on the monitor.

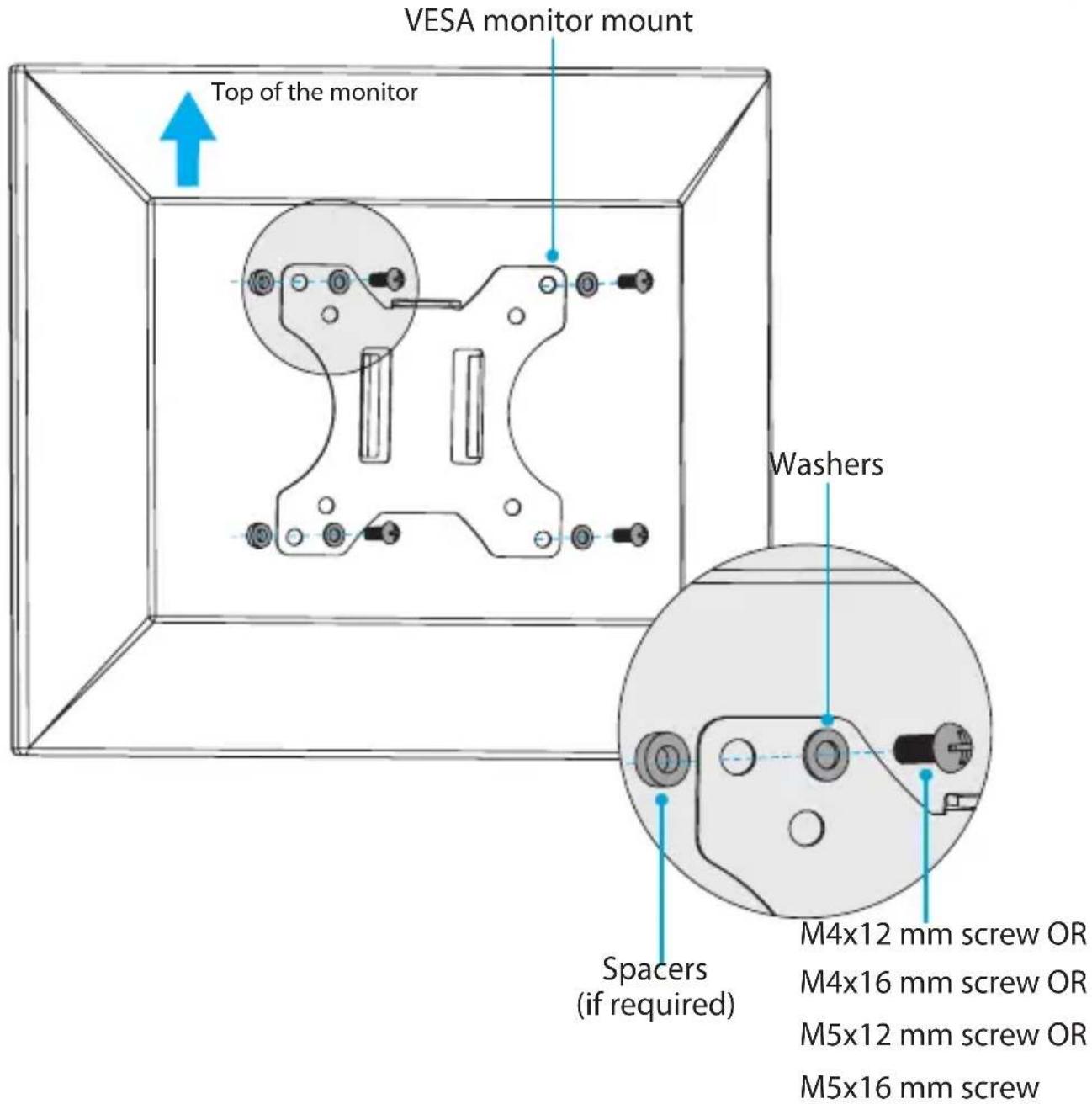

1. If required, place the spacers over the mounting holes on your monitor.
2. Place the VESA monitor mount over the mounting holes on your monitor.
3. Place the washers over the mounting holes on the VESA monitor mount.

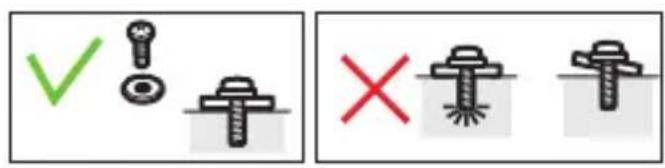

4. Insert the M4x12 mm screws, M4x16 mm screws, M5x12 mm screws, or the M5x16 mm screws through the washers, the VESA monitor mount, and into the back of the monitor. (figure 10)
5. Use a Phillips screwdriver to tighten the screws.

Warning! Do not over-tighten the screws. If you encounter resistance while you're tightening the screws, stop tightening. Failure to do so could result in damage to the monitor.

figure 10

Diagram showing checkmark and cross symbols for screw installation or repair instructions

Simple illustration of a screwdriver with a flat blade (no text or symbols)

VESA monitor mount Top of the monitor Washers Spacers (if required) M4x12 mm screw OR M4x16 mm screw OR M5x12 mm screw OR M5x16 mm screw

Attach the monitor to the VESA pole clamp

Warning! Attaching a monitor is a two-person job. Do not attempt to complete this task by yourself.

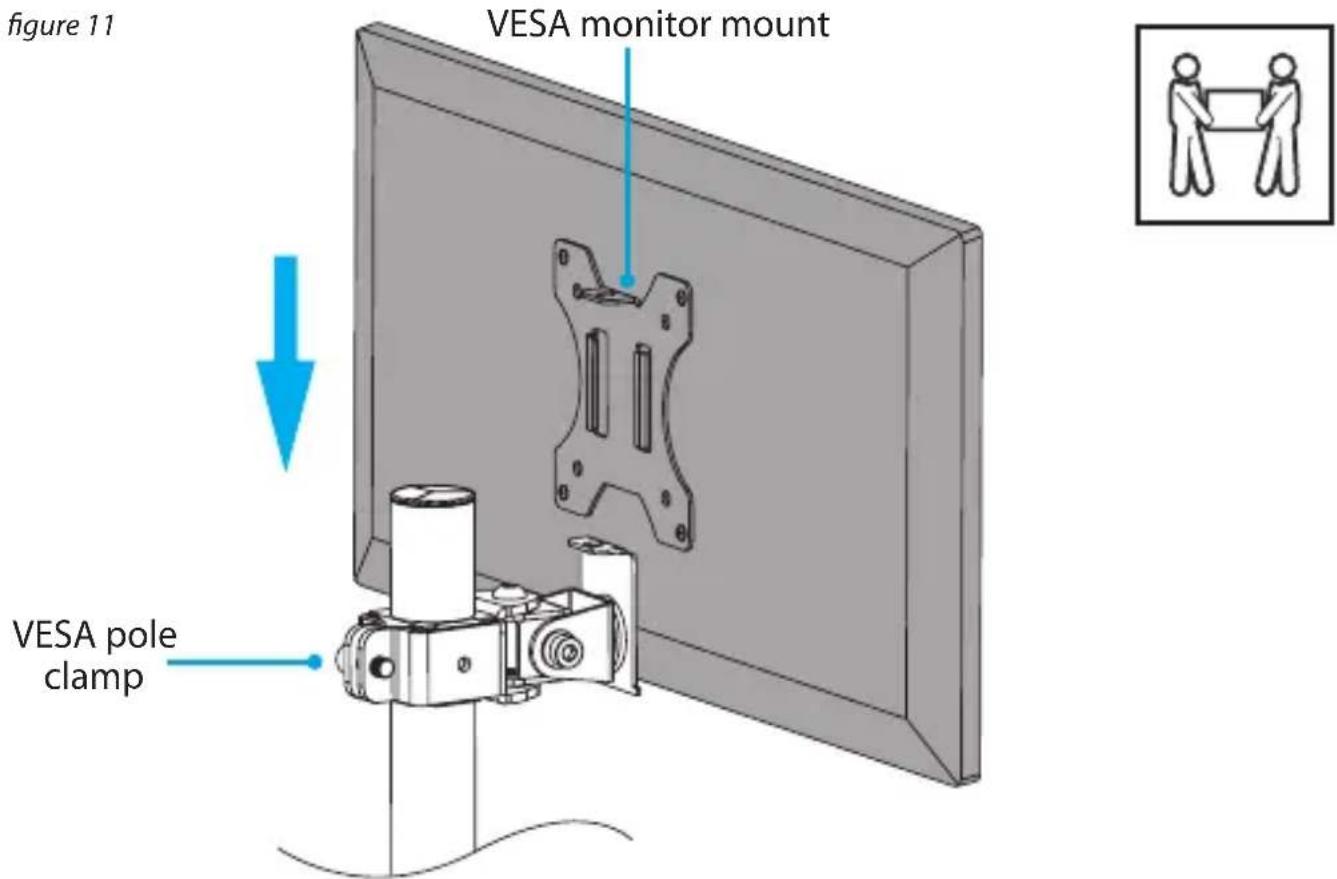

1. Carefully lift up the monitor and slide the VESA monitor mount on the back of the monitor into the VESA pole clamp attached to the pole. (figure 11)

figure 11 VESA monitor mount VESA pole clamp

1. Screw the thumbscrew through the top of the VESA monitor mount and into the VESA pole clamp. (figure 12)

figure 12 Thumbscrew VESA monitor mount VESA pole clamp

Adjust the tilt angle of your monitor

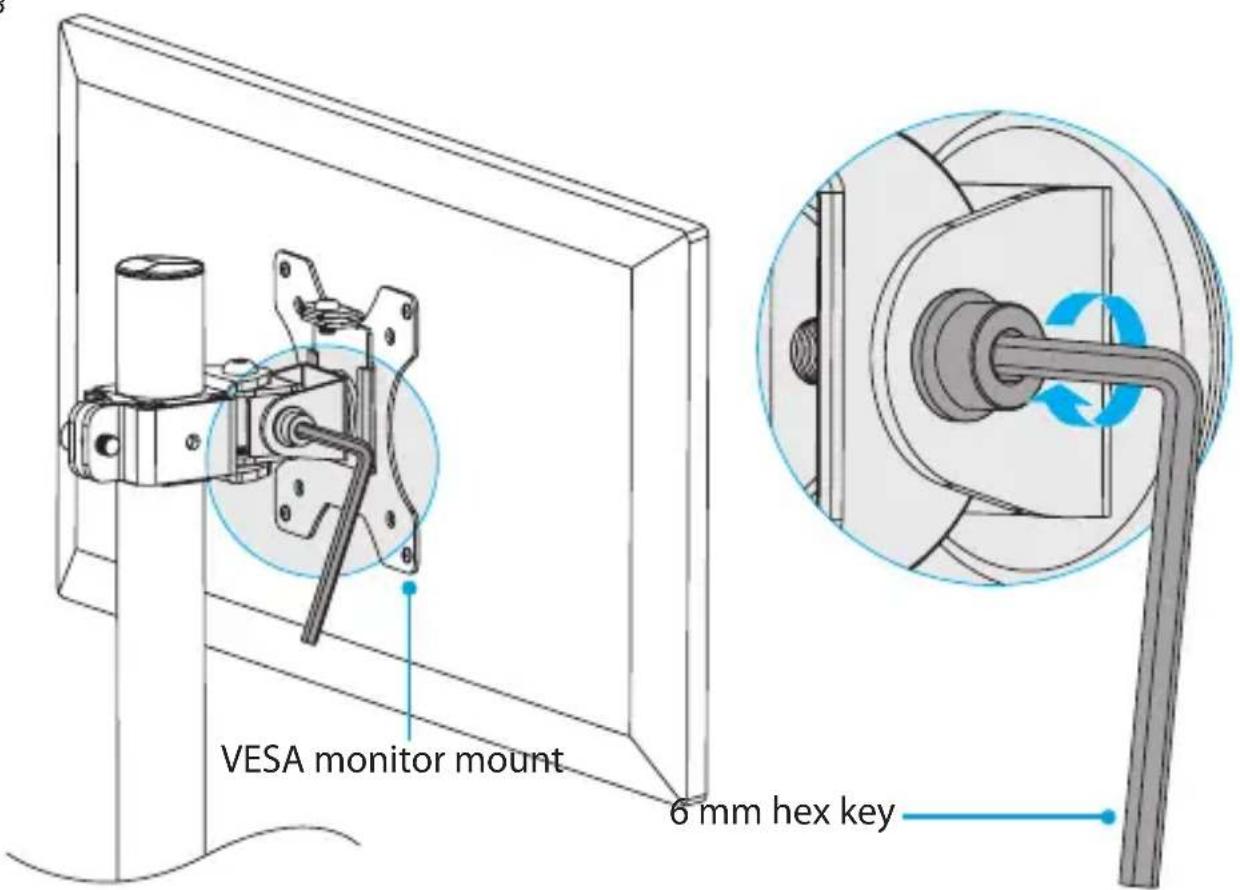

1. To change the angle that the monitor is tilted at, use the 6 mm hex key to turn the screw in the side of the VESA monitor mount counterclockwise.

2. When the screw is loose, position the monitor at the angle that works best for you.

3. Use the 6 mm hex key to turn the screw clockwise to tighten it. (figure 13)

figure 13

VESA monitor mount 6 mm hex key

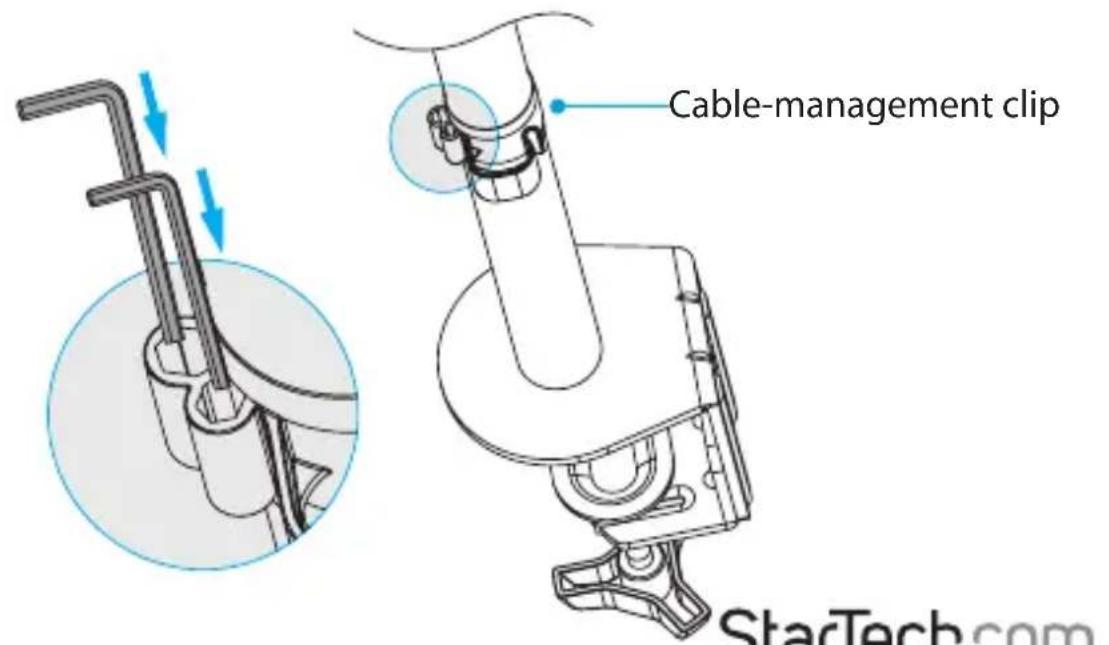

1. When you're done adjusting the tilt angle, you can store the hex keys in the hex key holder in the cable-management clip. (figure 14)

figure 14

Cable-management clip StarTech.com

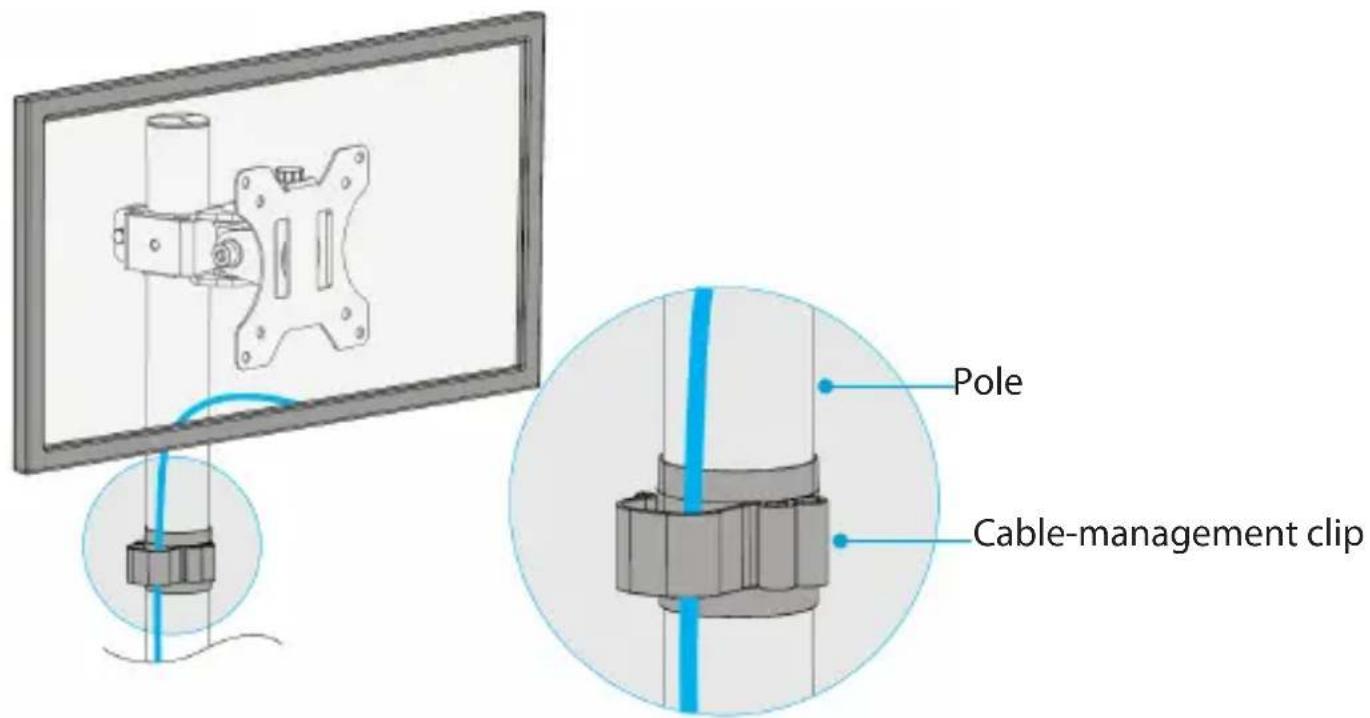

Organize your cables

- Run your cables along the pole and through the cable-management clip. (figure 15) figure 15

Pole Cable-management clip

Adjust the angle of your monitor

180° 360° +45° -45°

Technical support

StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty information

This product is backed by a five-year warranty.

StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.
