User Manual

SKU#: ARMPIVOT2USB3

For the latest information and specifications visit

www.startech.com/ARMPIVOT2USB3

Compliance Statements

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Warning Statements

• Make sure that you assemble this product according to the instructions.
- Do not exceed the weight capacity of this product. Overloading this product might result in injury or property damage. This product can support the following weight: 17.6 lb. (8 kg).
- This product is intended for indoor use only and should not be used outdoors.

Varningsmeddelanden

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Safety Statements

Safety Measures

- Cables (including power and charging cables) should be placed and routed to avoid creating electric, tripping or safety hazards.

Mesures de sécurité

Compliance Statements....1

Warning Statements....2

Safety Statements....4

Product Diagram....6

Product Dimensions....7

Product Rotation 8

Product Information....9

Pack Contents....9

Product Specifications....13

Requirements 15

Assembling the Monitor Mount Using the C-Clamp 16

Assembling the Monitor Mount Using the Grommet Clamp .....24

Mounting the Monitor....33

Adjusting the Monitor Mount 36

Adjusting the Spring Arm Tension 36

Adjusting the Tilt 37

Routing the Cables....39

Using the 3.0 USB Passthrough Ports......41

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

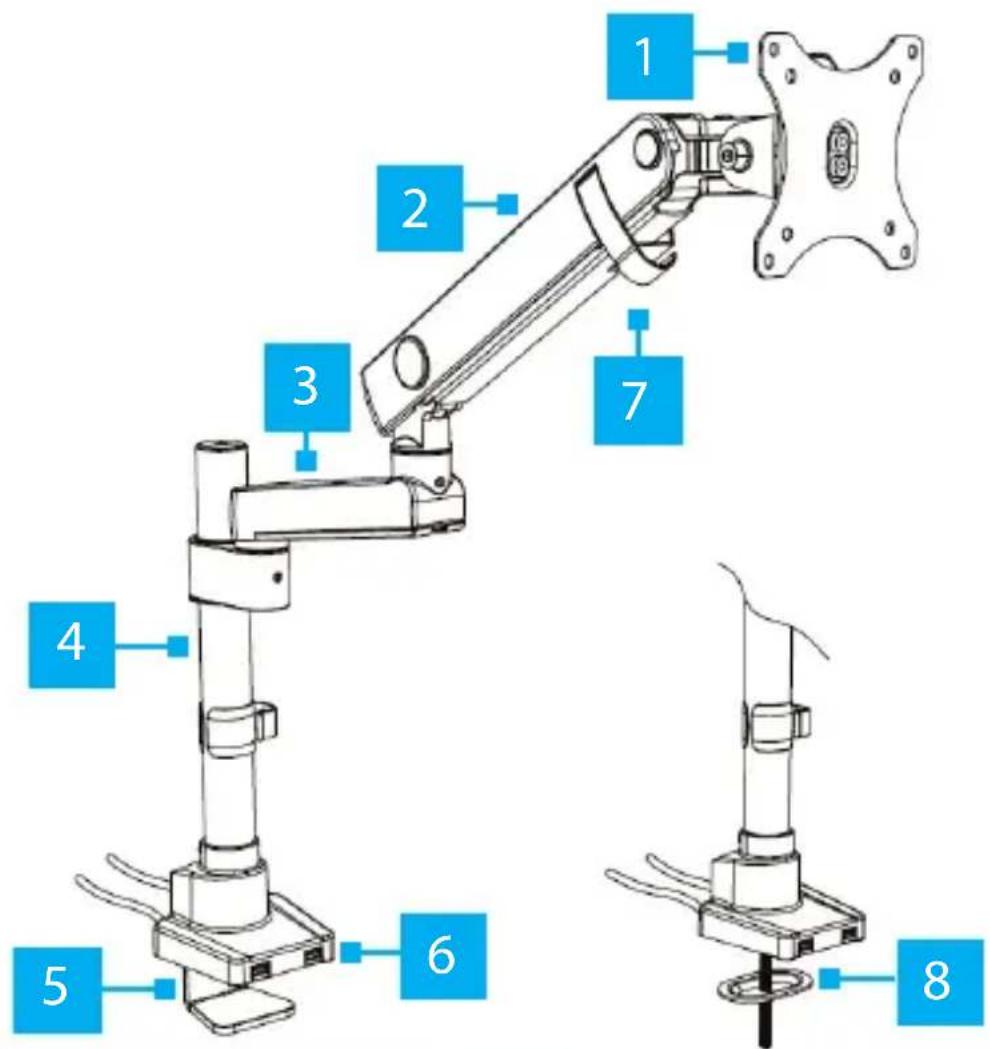

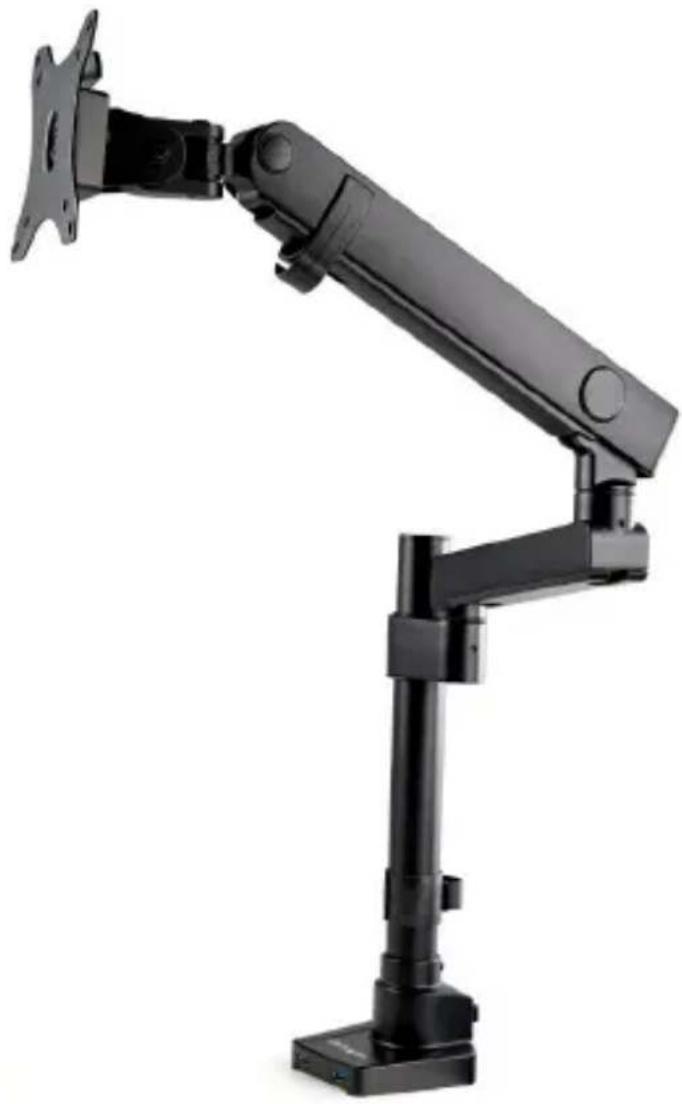

Product Diagram

1 2 3 7 4 5 6 8

1	VESA Mount C-Clamp
2	Upper Arm USB Ports
3	Lower Arm Cable Clip
4	Pole Grommet Clamp

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

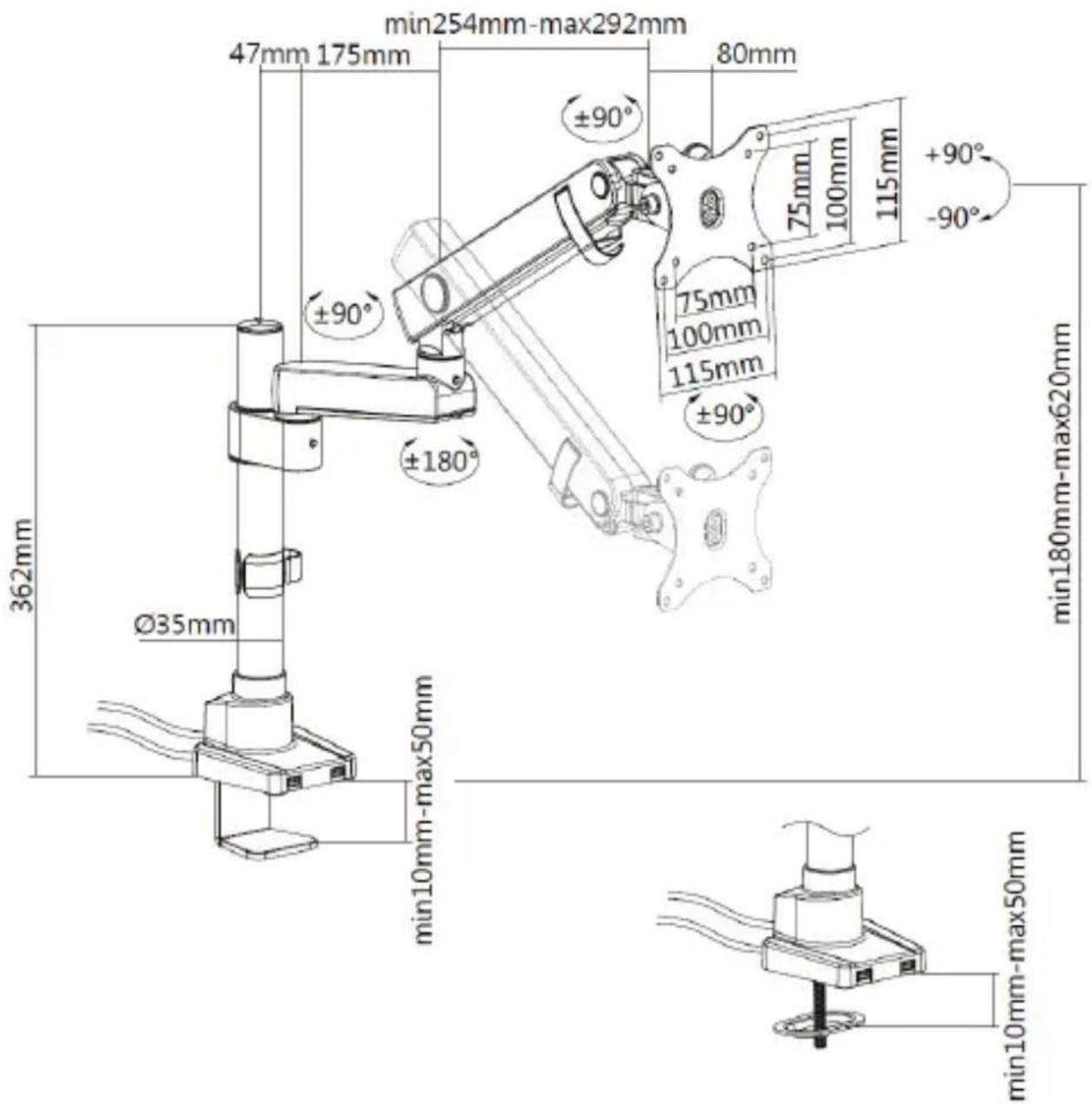

Product Dimensions

min254mm-max292mm 47mm 175mm ±90° 80mm 75mm 100mm 115mm +90° -90° 362mm ±180° 75mm 100mm 115mm ±90° min180mm-max620mm Ø35mm min10mm-max50mm min10mm-max50mm

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Product Rotation

±90° ±180° +90° -90° ±90°

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Product Information

Pack Contents

Technical line drawing of a mechanical component with no visible text or symbols

Base Clamp Assembly
Qty: 1

Technical line drawing of a mechanical linkage or bracket assembly (no text or symbols)

Upper Arm
Qty: 1

Technical line drawing of a mechanical support or lever component (no text or symbols)

Lower Arm
Qty: 1

Simple line drawing of a four-pronged star-shaped object with a central oval and bolt holes (no text or symbols)

VESA Mount
Qty: 1

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Pure mechanical component diagram without any text, numbers, or symbols

Tool Clip

Qty: 1

Simple line drawing of an oval-shaped mechanical component with a central hole (no text or symbols)

Grommet Plate

Qty: 1

Grommet Screw

Qty: 1

Simple line drawing of a bent pipe or support structure (no text or symbols)

3 mm Hex Key

Qty: 1

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Pure geometric L-shaped line drawing without any text, numbers, or symbols

6 mm Hex Key Qty: 1

Technical line drawing of a hexagonal bolt (no text or symbols)

M4 x 12 mm Screws Qty: 4

Technical line drawing of a bolt with threaded shaft and circular head (no text or symbols)

M5 x 12 mm Screws Qty: 4

Simple line drawing of a two concentric ring (no text or symbols)

Washers Qty: 4

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical line drawing of a mechanical clamp or lever assembly (no text or symbols)

Arm Shoulder

Qty: 1

Simple line drawing of a mechanical component with no text or symbols

Cable Clip

Qty: 1

Simple line drawing of a cylindrical object with threaded ends (no text or symbols)

Pole

Qty: 1

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Product Specifications

VESA	75 x 75100 x 100
Rotation	-90° to +90°
Tilt	-90° to +90°
Weight	17.6 lb. (8 kg)

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Screen Size	15" to 34"
Swivel	-90° to +90°

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Requirements

Tools

• Phillips Head Screwdriver x 1

Displays

- 15" to 34" Display x 1

Optional

• USB Cables x 2
  • USB Compatible Devices x 2

Assembling the Monitor Mount Using the C-Clamp

1. Using the 6 mm Hex Key loosen the C-Clamp Screw, opening the C-Clamp to the thickness of the Mounting Surface you wish to mount the Monitor Mount to. The C-Clamp Screw is located in the center of the Mounting Peg on the Base Clamp Assembly.

Technical line drawing of a mechanical device with rotating arm and base, showing internal components and directional arrows (no text or symbols)

Loosening the C-Clamp Screw

1. Align the C-Clamp with the edge of the Mounting Surface.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

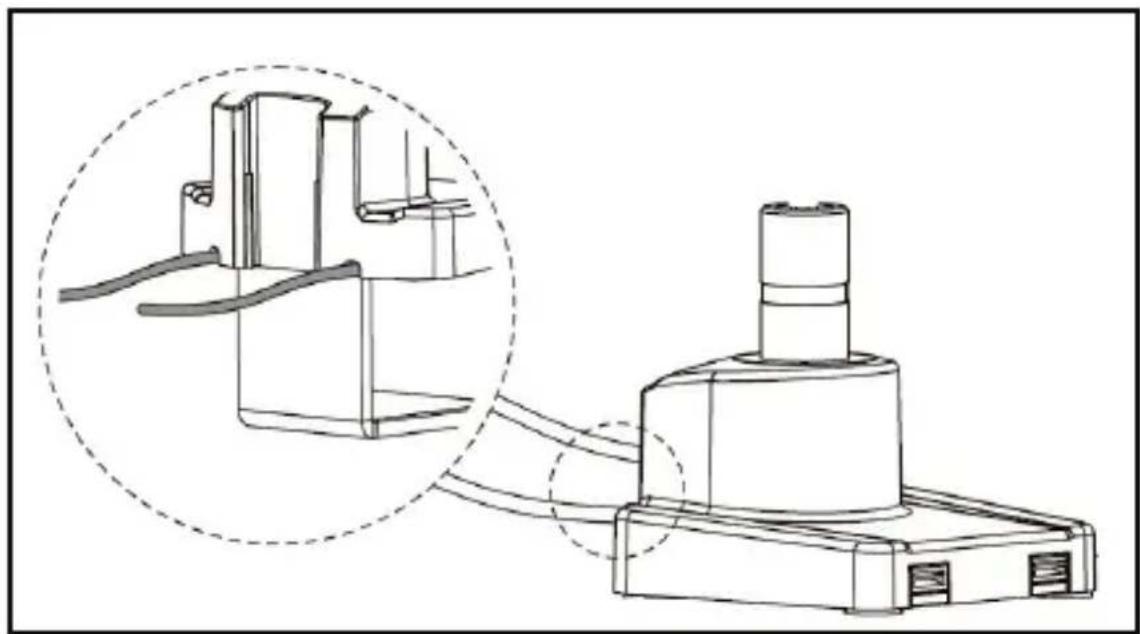

1. Gently push the USB Cables coming out of the back of the Base Clamp Assembly into the two Cable Grooves on the back of the Base Clamp Assembly.

Technical line drawing of a mechanical component with an inset close-up showing internal structure (no text or symbols)

Routing the USB Cables Through the Cable Grooves

1. Slide the C-Clamp over the edge of the Mounting Surface. The C-Clamp accommodates ranges from 10 mm (.3") to 50 mm (1.9").

2. While supporting the C-Clamp under the Mounting Surface, use the 6 mm Hex Key to tighten the C-Clamp Screw until the C-Clamp Plate is pressed tightly against the bottom of the Mounting Surface.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

10 mm (.3") to 50 mm (1.9")

Tightening the C-Clamp Screw

1. Align the Pole with the Mounting Hole on the Base Clamp Assembly.

2. Using your hand, screw the Pole into the Base Clamp Assembly.

3. Using the 3 mm Hex Key, tighten the small screw located on the Neck of the Mounting Hole on the Base Clamp Assembly to secure the Pole.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical diagram showing a mechanical assembly with rotating shaft and base, plus a magnified inset illustrating the process (no text or symbols)

Mounting the Pole to the Base Clamp Assembly

1. Slide the Cable Clip over-top of the Pole, sliding it down into position.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical line drawing of a mechanical testing setup with a vertical column, base, and clamps (no text or symbols)

Sliding the Cable Clip over-top of the Pole

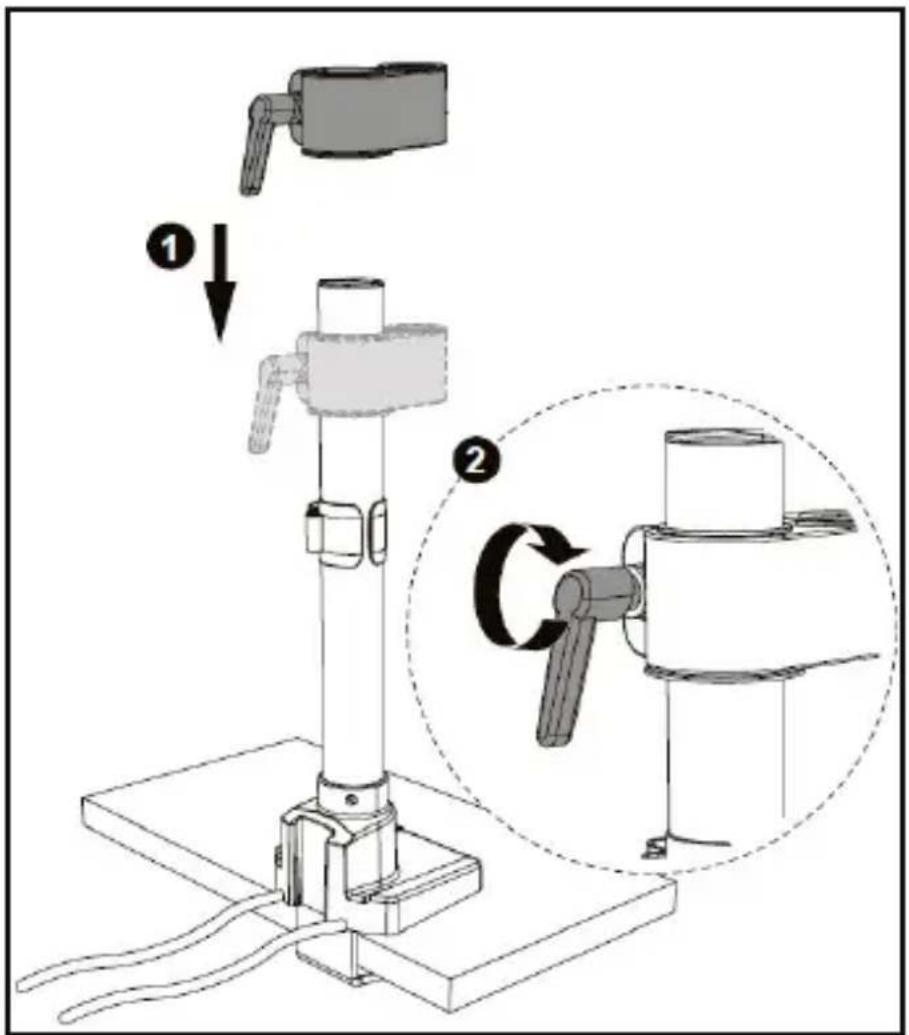

1. Slide the Arm Shoulder over-top of the Pole, sliding it down into position.
2. Turn the Locking Lever on the Arm Shoulder clock-wise, securing the Arm Shoulder into place.

Note: The Locking Lever may require multiple turns in order to properly secure the Arm Shoulder in place.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical diagram showing a mechanical device with labeled steps and a circular inset view of the device's rotation.

Installing the Arm Shoulder

1. Align the Mounting Peg on the bottom of the Lower Arm with the Mounting Hole on the Arm Shoulder.

2. Slide the Mounting Peg on the Lower Arm into the Mounting Hole on the Arm Shoulder.

3. Using the 3 mm Hex Key, tighten the small screw located on the Arm Shoulder to secure the Lower Arm.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical illustration of a mechanical assembly with an arrow indicating force or movement, showing a shaft and housing (no text or symbols present)

Installing the Lower Arm

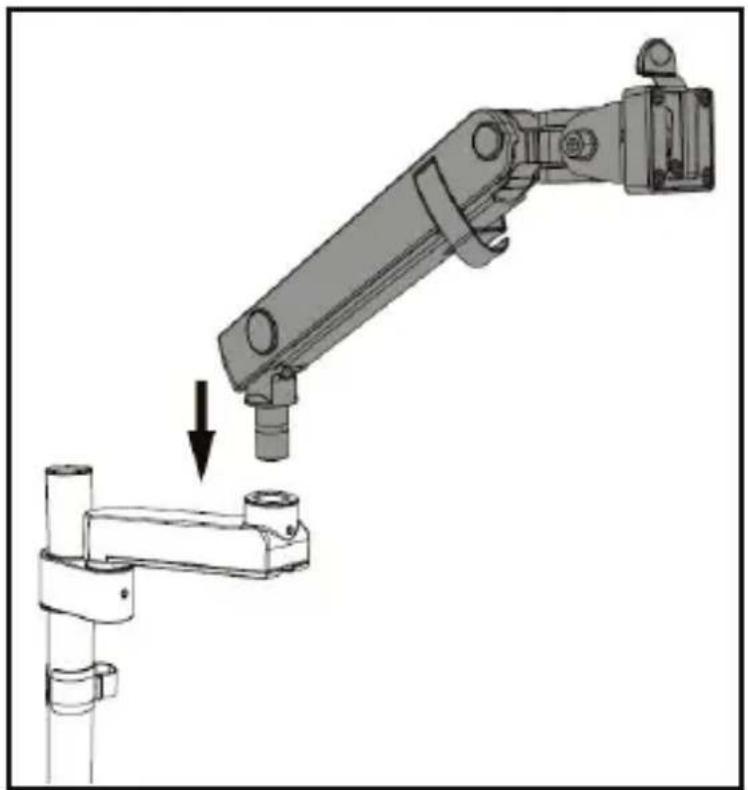

1. Align the Mounting Peg on the bottom of the Upper Arm with the Mounting Hole on the top of the Lower Arm.

2. Slide the Mounting Peg on the Upper Arm into the Mounting Hole on the Lower Arm.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Mechanical robotic arm performing a downward motion on a pipe joint (no text or symbols visible)

Mounting the Upper Arm to the Lower Arm

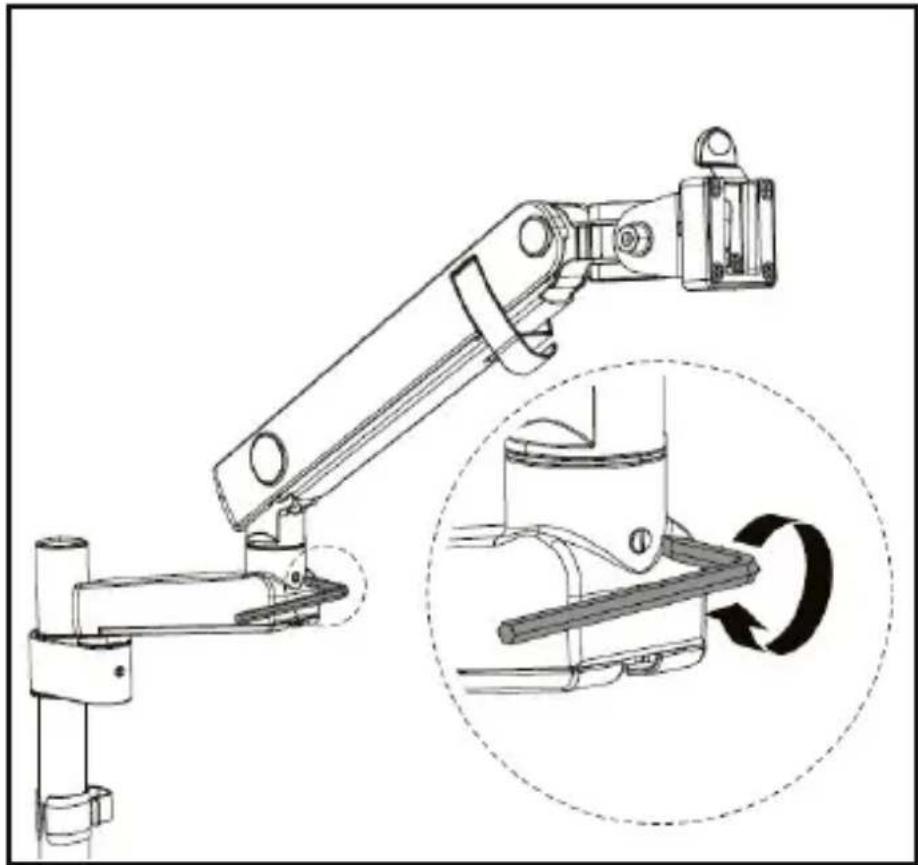

1. Using the 3 mm Hex Key to tighten the Screw on the Lower Arm securing it to the Upper Arm.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical line drawing of a robotic arm with a magnified inset showing rotational motion (no text or symbols)

Tightening the Screw on the Lower Arm

Assembling the Monitor Mount Using the Grommet Clamp

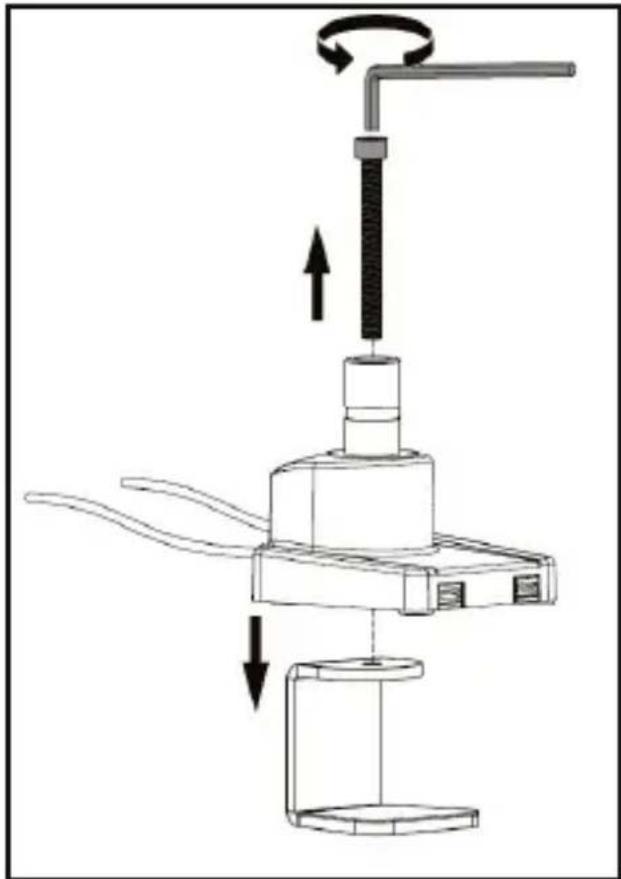

1. While holding the C-Clamp, use the 6 mm Hex Key to loosen the C-Clamp Screw and remove it from the Base Clamp Assembly. The C-Clamp Screw is located in the center of the Mounting Peg on the Base Clamp Assembly.

2. Once the C-Clamp Screw is removed the C-Clamp will also detach from the Base Clamp Assembly.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Mechanical assembly diagram showing a pressor mechanism with rotating arm and directional arrows (no text or labels)

Removing C-Clamp Screw and C-Clamp

1. Align the Grommet Hole on the Base Clamp Assembly with the Grommet Hole on the Mounting Surface.

2. Insert the Grommet Screw through the center of the Mounting Peg on the Base Clamp Assembly and out the Grommet Hole on the Mounting Surface.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical line drawing of a mechanical assembly with a base platform and central component (no text or symbols)

Inserting the Grommet Screw

1. Underneath the Mounting Surface, thread the Grommet Hole on the Grommet Plate onto the Grommet Screw.

Diagram of a mechanical assembly with a hand holding a circular component and a force arrow indicating upward motion (no text or symbols)

Aligning the Grommet Plate

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

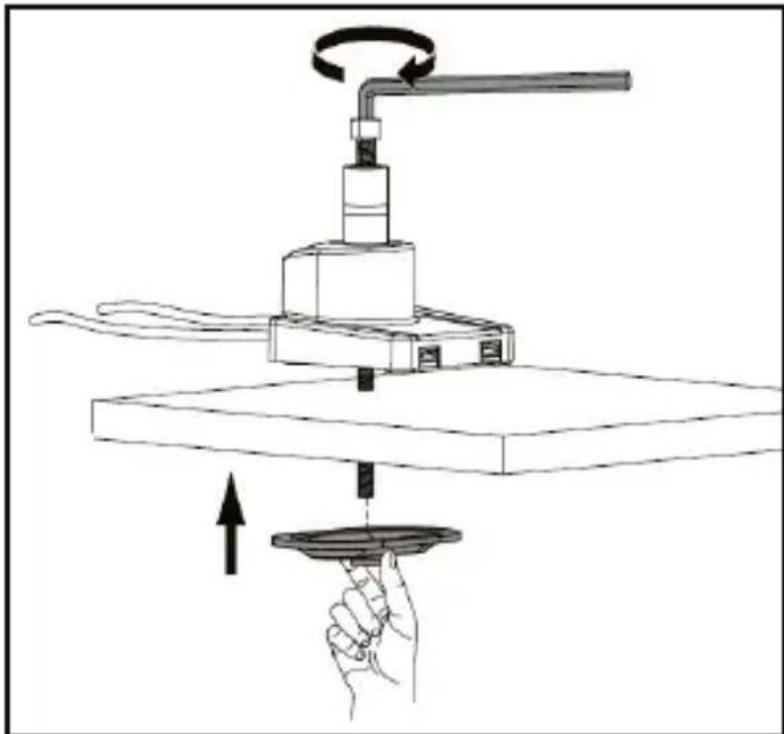

1. While holding the Grommet Plate, use the 6 mm Hex Key, tighten the Grommet Screw, securing the Base Clamp Assembly to the Mounting Surface.

Diagram of a mechanical device with rotating arm and force application, showing hand holding a circular component (no text or symbols)

Tightening the Grommet Screw

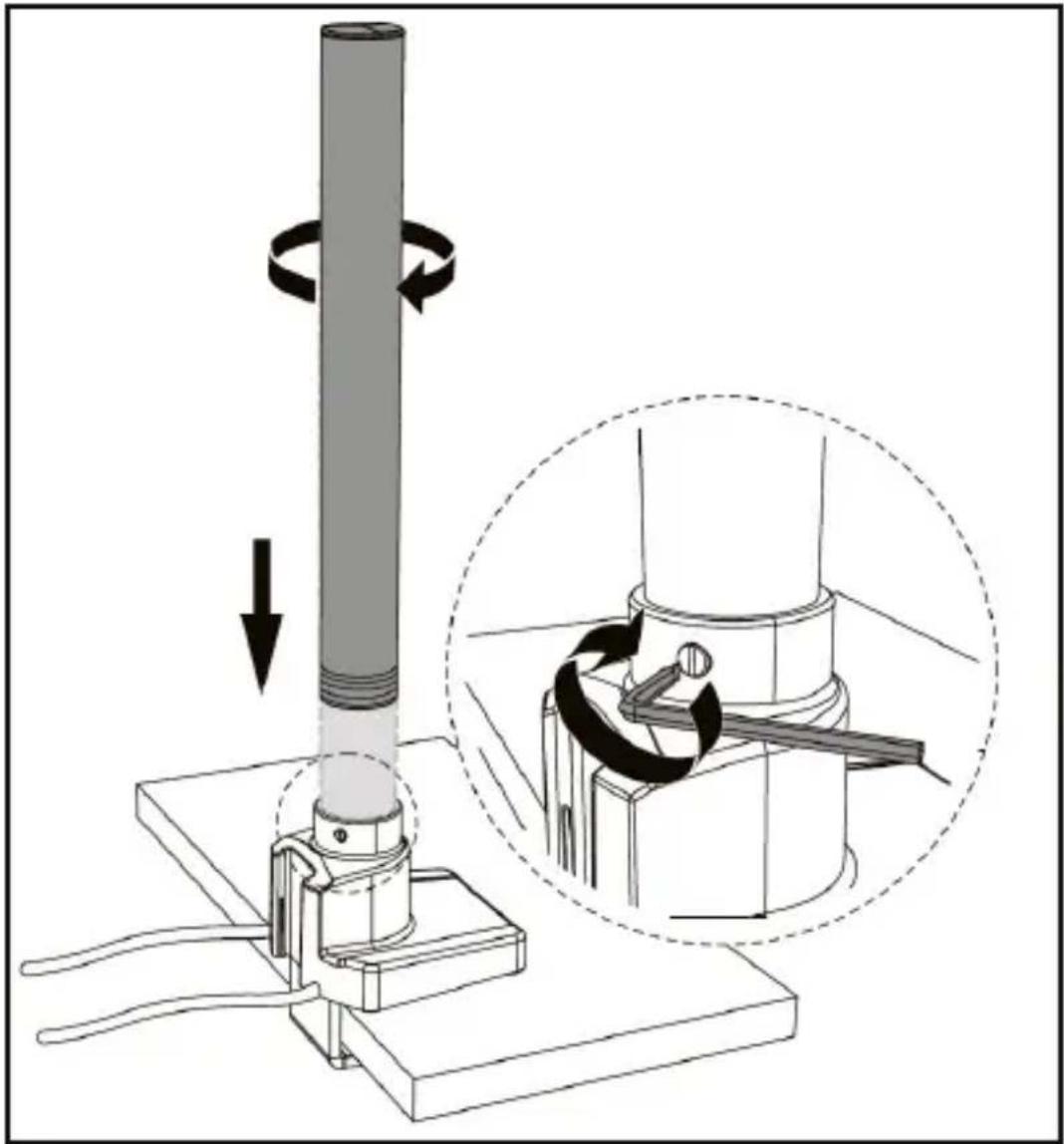

1. Align the Pole with the Mounting Hole on the Base Clamp Assembly.

2. Using your hand screw the Pole into the Base Clamp Assembly.

3. Using the 3 mm Hex Key, tighten the small screw located on the Neck of the Mounting Hole on the Base Clamp Assembly to secure the Pole.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical diagram showing a mechanical assembly with rotating shaft and base, plus a magnified inset illustrating the process (no text or symbols)

Mounting the Pole to the Base Clamp Assembly

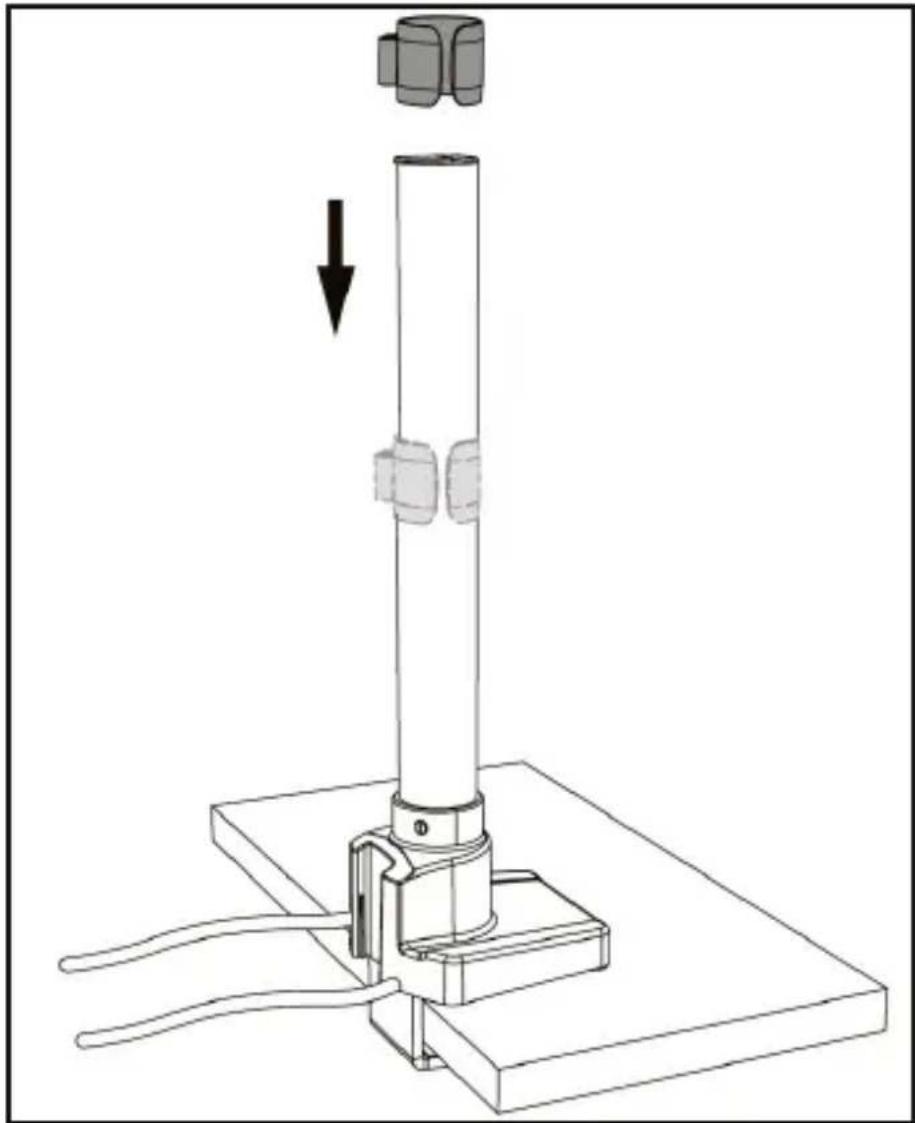

1. Slide the Cable Clip over-top of the Pole, sliding it down into position.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical line drawing of a mechanical testing setup with a vertical column and base, showing a downward force arrow (no text or symbols)

Sliding the Cable Clip over-top of the Pole

1. Slide the Arm Shoulder over-top of the Pole, sliding it down into position.
2. Turn the Locking Lever on the Arm Shoulder clock-wise, securing the Arm Shoulder into place.

Note: The Locking Lever may require multiple turns in order to properly secure the Arm Shoulder in place.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical diagram showing a mechanical device with labeled steps and a circular inset view of the device's rotation.

Installing the Arm Shoulder

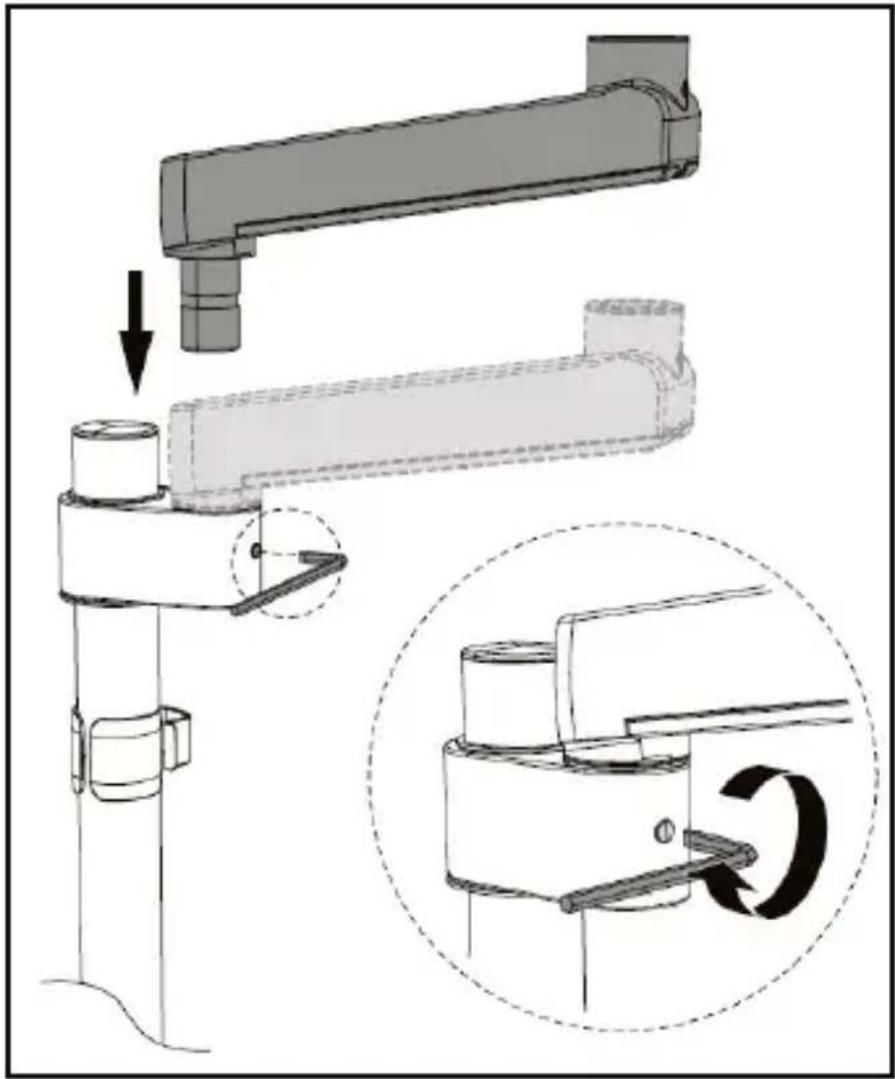

1. Align the Mounting Peg on the bottom of the Lower Arm with the Mounting Hole on the Arm Shoulder.

2. Slide the Mounting Peg on the Lower Arm into the Mounting Hole on the Arm Shoulder.

3. Using the 3 mm Hex Key, tighten the small screw located on the Arm Shoulder to secure the Lower Arm.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical illustration of a mechanical assembly with an arrow indicating force application, showing a shaft and housing (no text or symbols present)

Installing the Lower Arm

1. Align the Mounting Peg on the bottom of the Upper Arm with the Mounting Hole on the top of the Lower Arm.

2. Slide the Mounting Peg on the Upper Arm into the Mounting Hole on the Lower Arm.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Mechanical robotic arm performing a downward motion on a mechanical assembly (no text or symbols visible)

Mounting the Upper Arm to the Lower Arm

1. Using the 3 mm Hex Key, tighten the Screw on the Lower Arm securing it to the Upper Arm.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical line drawing of a robotic arm with a magnified inset showing rotational motion (no text or symbols)

Tightening the Screw on the Lower Arm

Mounting the Monitor

1. Place the Monitor screen side down on a flat, clean surface.
2. (Optional) Remove any Screws or Place Holders from the VESA Mounting Holes on the back of the Monitor.

Note: Be careful not to remove any of the Screws holding the Monitor's Casing together.

1. Align the Washers (included) with the VESA Mounting Holes on the back of the Monitor.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. Align the Screw Holes on the VESA Mount with the VESA Mounting Holes on the back of the Monitor. The VESA Mount can support a 75 x 75 or 100 x 100 mounting pattern.

Note When attached, the Arrow on the VESA Mount should be pointing toward the top of the Monitor.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Aligning the VESA Mount with Monitor

1. Select the appropriate hardware for mounting the VESA Mount to the back of the Monitor either M4 x 12 mm, M5 x 12 mm, or customer sourced screws.
2. Insert the appropriate Screws through the Screw Holes on the VESA Mount and into the VESA Mounting Holes on the back of the Monitor.
3. Using a Phillips Head Screwdriver (or appropriate screwdriver) tighten the screws.

Note: Do not over-tighten the Screws. If you encounter resistance while you're tightening the Screws, stop tightening. Failure to do so could result in damage to the Monitor.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Note: It is recommended that two people mount the Monitors.

1. Pull the VESA Clip on the VESA Holder back towards the Spring Arm.

Illustration of a hand using a tool to adjust or install a mechanical component, showing a device with a handle and a circular arrow indicating process (no text or symbols present)

Pulling back the VESA Clip

Note: The VESA Clip on the VESA Holder should be at the top of the VESA Holder before mounting the Monitor.

1. While holding the VESA Clip and supporting the weight of the Monitor, align the Mounting Plate of the VESA Mount with the VESA Holder on the Spring Arm.

2. Slide the Mounting Plate on the VESA Mount down into the VESA Holder until the Mounting Plate is sitting on the bottom of the VESA Holder.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. While holding the Monitor in place, release the VESA Clip, securing the Monitor in place.

Adjusting the Monitor Mount

Adjusting the Spring Arm Tension

1. Using your hand push downward on the Spring Arm and hold it in place.
2. The Spring Arm should only be placed in a horizontal position or tilted downwards.

Three circular safety symbols with Chinese text, indicating no protection, anti-protective, or anti-mudication measures.

Correct Spring Arm Position

1. Use the 6 mm Hex Key to rotate the Adjustment Screw located at the back of the Spring Arm, just above the joint. Rotate clockwise to increase tension or counter clockwise to decrease tension.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Adjusting the Spring Arm Tension

Note: Be careful not to pinch your hand when making adjustments to the Monitor.

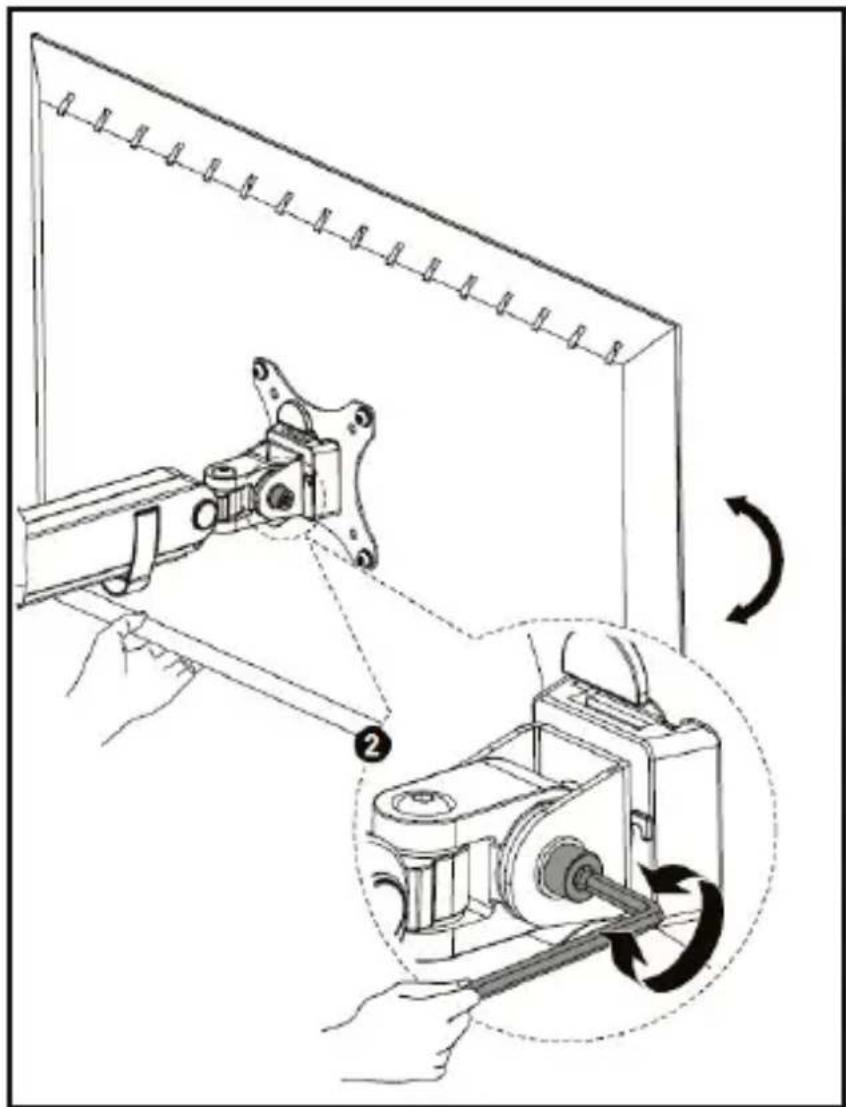

Adjusting the Tilt

1. Use the 6 mm Hex Key to loosen the Tilt Adjustment Screw located at the side of the VESA Holder.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical diagram illustrating mechanical assembly steps with labeled components and rotation arrows

Loosening the Tilt Adjustment Screw

1. Use your hand to adjust the tilt of the Monitor.

Note: Be careful not to pinch your hand when making adjustments to the Monitor.

1. When you have achieved the desired tilt, hold the Monitor in that position and tighten the Tilt Adjustment Screw.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

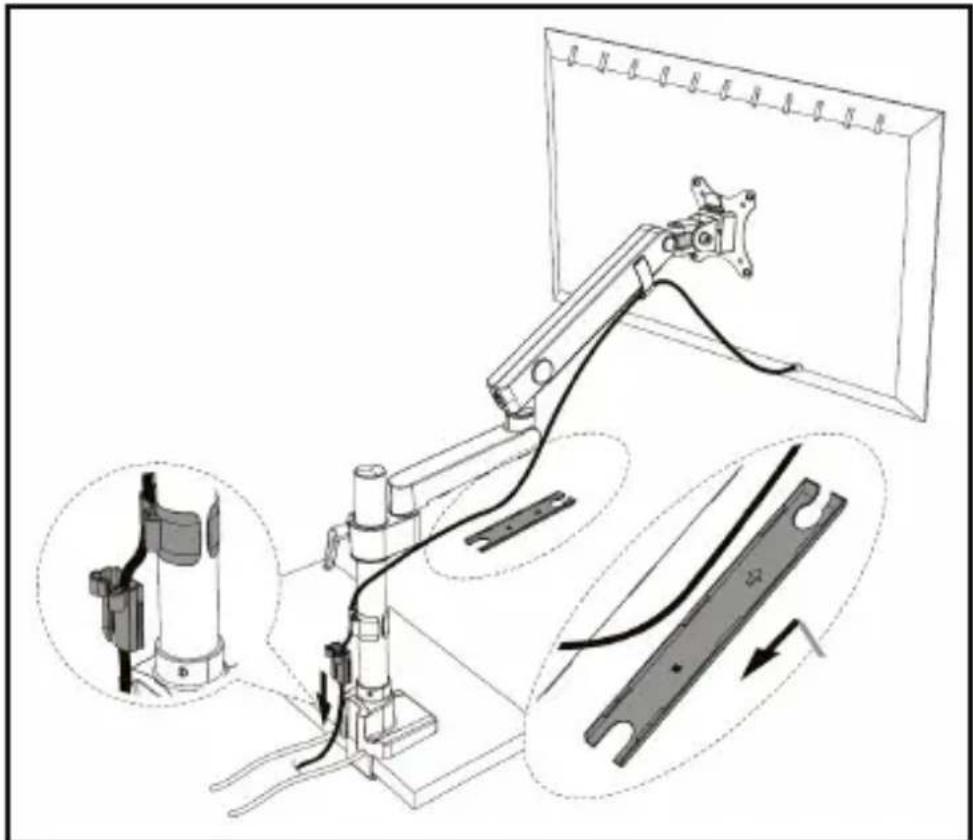

Routing the Cables

1. Slide the Cable Cover on the Lower Arm upward to remove the Cable Cover. The Cable Cover is located along the bottom of the Lower Arm.

Technical diagram showing mechanical assembly steps with labeled components and directional arrows indicating movement or assembly.

Removing the Cable Cover

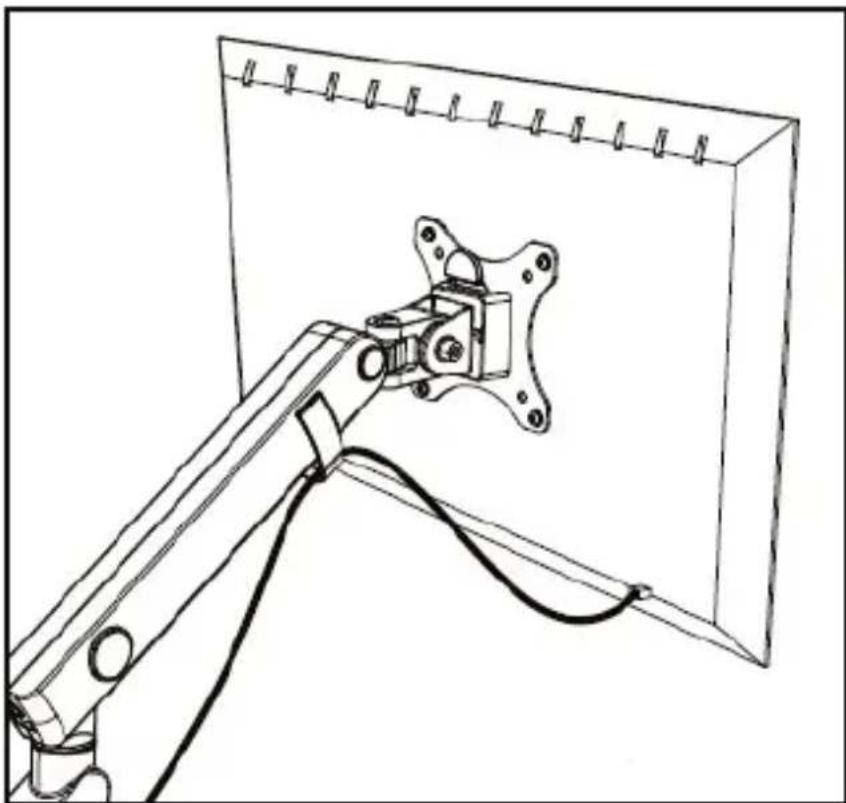

1. Run the Monitor Cables along the inside of the Upper Arm.

2. Gently push the Monitor Cables into the Cable Clip located on the inside of the Upper Arm.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical line drawing of a mechanical assembly with a bracket and mounting bracket (no text or symbols)

Routing the Monitor Cables Along the Upper Arm

1. Route the Monitor Cables down the Lower Arm and through the Tool Clip on the back of the Base Clamp Assembly. Make sure that you leave enough slack in the Monitor Cable to compensate for arm movement and adjustments.

2. Replace the Cable Cover removed in step 1 by sliding it down the Lower Arm, securing the Cable Cover to the Lower Arm. Be careful not to pinch the Monitor Cable between the Cable Cover and Lower Arm.

3. Run the Monitor Cable down the Pole and through the Cable Clip.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical diagram of a mechanical arm assembly with close-up insets showing internal components (no text or labels)

Routing the Monitor Cables

Using the 3.0 USB Passthrough Ports

1. Plug the two USB Cables on the back of the Base into USB Ports on the Host Computer.

2. Connect a USB Cable to the USB Ports on the front of the Base and the other end to a compatible USB Device.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Warranty Information

This product is backed by a two-year warranty.

For further information on product warranty terms and conditions, please refer to www.startech.com/warranty.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Hard-to-find made easy. At StarTech.com, that isn't a slogan. It's a promise.

StarTech.com is your one-stop source for every connectivity part you need. From the latest technology to legacy products — and all the parts that bridge the old and new — we can help you find the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need to go. Just talk to one of our tech advisors or visit our website. You'll be connected to the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.

Reviews

Share your experiences using StarTech.com products, including product applications and setup, what you love about the products, and areas for improvement.

StarTech.com Ltd.

45 Artisans Cres.

London, Ontario

N5V 5E9

Canada

StarTech.com LLP

2500 Creekside Pkwy.

Lockbourne, Ohio

43137

U.S.A.

StarTech.com Ltd.

Unit B, Pinnacle

15 Gowerton Rd., Brackmills

Northampton

NN4 7BW

United Kingdom

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp
