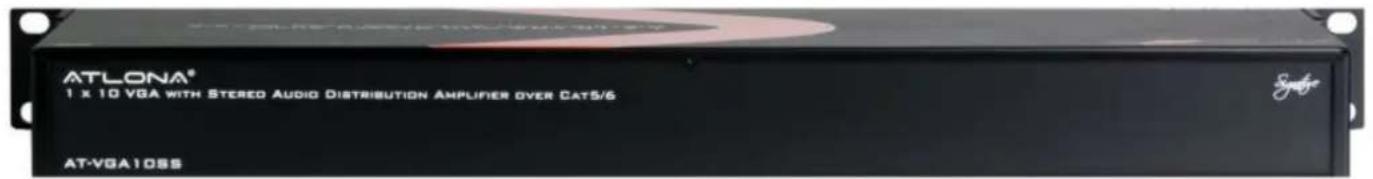

ATLONA® 1 x 10 VGA WITH STEREO AUDIO DISTRIBUTION AMPLIFIER OVER CAT5/6 AT-VGA10SS

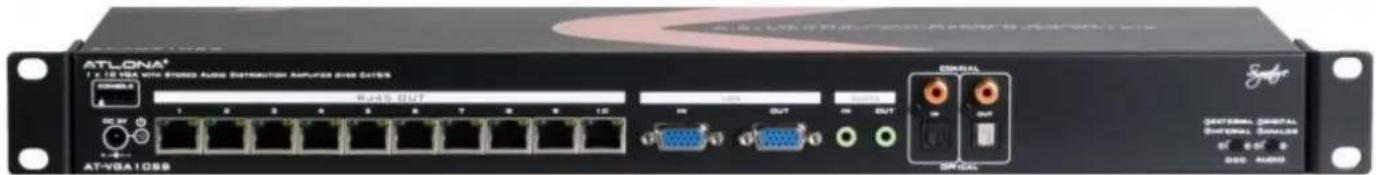

ATLONA® 1.4.12 VGA WITH STANEO AUXIE DISTRIBUTION AUDIO EXE ENTES R45 OUT H OUT M OUT AT-VGA1088 SIGNAL SIGNAL SIGNAL SIGNAL SIGNAL SIGNAL SIGNAL SIGNAL SIGNAL SIGNAL SIGNAL SIGNAL SIGNAL SIGNAL SIGNAL SIGNAL SIGNAL SIGNAL SIGNAL SIGNAL SIGNAL SIGNAL SIGNAL SIGNAL SIGNAL SIGNAL SIGNAL SIGNAL SIGNAL SIGNAL SIGNAL SIGNAL SIGNAL SIGNAL

TABLE OF CONTENTS

1. Introduction 2
2. Package Contents 2
3. Features 2
4. Connection and Operation 2
5. Specification 3
6. PJ45 Pin Configuration 3
7. Troubleshooting 4
8. LED Indicators 5
9. DIP Switch 5
10. Safety Information 6
11. Warranty 7
12. Atlona Product Registration 8

INTRODUCTION

The Atlona AT-VGA10SS is 1 x 10 VGA with Audio Distribution Amplifier designed to accept a video and audio feed from VGA source such as computer, media player or digital signage player and distribute the same feed to 10+ locations. The VGA10SS is featured with 1 x VGA/Audio input and 10 x CAT5/6/7 outputs which could be connected with Atlona AT-VGA300RL receiving modules up to 1000ft away.

The VGA10SS is also featured with local VGA and audio outputs, meant to either connect to a local display for monitoring or daisy chaining to another VGA10SS amplifier.

Note: Receiving models AT-VGA300RL are a required accessory

PACKAGE CONTENTS

• 1 x AT-VGA10SS (transmitter module)
• 1 x 5v Power supplies (Universal 110/240V)
• 1 x Set of Wall Mounting Ears
• 1 x Instructions manual

FEATURES

• Transmits VGA with Stereo Audio up to 1000ft away to 10+ locations
• Supports Full HD Video with resolutions up to 1920x1200
• Supports high resolution Video VESA: 640x480, 800x600, 1024x768, 1280x800, 1280x768, 1280x1024, 1680x1050, 1600x1200, 1920x1080, 1920x1200
- Compatible with receiving modules: a. AT-VGA300RL (VGA + Stereo Audio up to 1000ft)
- DDC adjustments (Internal and Extender modes can be used)
- Supports all VESA formats which is perfect when used with specialized projectors or commercial LCD panels.
- Local VGA/Audio output for local monitoring display or daisy chaining ability to go to another VGA10SS
- Rack Mountable - 1U

1. Connect the VGA Source e.g., Computer, Video Codec, switch to the AT-VGA10SS (transmitting unit)
2. Connect the VGA Display e.g., Projector, LCD/LED or a switch to (receiving unit) – (receiving unit is sold separately)
3. Terminate the CAT5, 6 or 7 wire with 568B termination and use a tester to make sure all pins are wired correctly before connect it to the VGA10SS transmitter.
4. Connect the power supplies to both transmitter and receiver and the video and in a few seconds the video should appear on the display.

SPECIFICATIONS

Inputs	1 x HD15 and 1 x Stereo Audio (1/8-inch)
Outputs	10 x RJ45, 1 x HD15 and 1 x Stereo Audio (1/8-inch)
Supported Resolutions	all VESA up to 1920x1200
Video bandwidth	550MHz(-3dB)-loop out and 370Mhz Cat5/6
EDID Compliant	Yes (internal and external)
Supports high resolution Video VESA	640x480, 800x600, 1024x768, 1280x800, 1280x768, 1280x1024, 1680x1050, 1600x1200, 1920x1080, 1920x1200
Distance	1920x1200 @400ft; 1600x1200 @ 950ft; 1280x1024 @1050ft;1024x768@1100ft
Power Consumption (max.)	1.5A
VGA Connector	HD15 female
Audio Connector	1/8-inch (3.5mm)
Power Supply	5V/2A (110/240 universal)
Dimensions (inch)	18.97×6.96×1.73 (Lx W x H) (1U)
Weight	4.1 lb
Operating Temperature Range	-5 to +35°C (-41 to +95 °F)
Operating Humidity Range	5 to 90 % RH (no condensation)

RJ45 PIN CONFIGURATION

1. Orange-white	Video Blue –
2. Orange	Video Blue +
3. Green-white	Video Green -
4. Blue	Audio +
5. Blue-white	Audio -
6. Green	Video Green +
7. Brown-white	Video Red -
8. Brown	Video Red +

TROUBLESHOOTING

1. No Signal or it is going in and out:

a. Please test your RJ45 cables with a Fluke or similar tester to make sure that all the wires are connected and the distance is within the limits.
b. If you are using patch panel or and RJ45 wall plates, the distance will be reduced, please do a direct connection bypassing all additional equipment.
c. Please try to re-terminate your CAT5/6/7 wire to 568B
d. Change the resolution on the computer to 800x600 or 1024x768
e. Change frequency to 60Hz
f. Try using STP Cable

2. Image is tilted:

a. Change the resolution on the computer to 800x600 or 1024x768
b. Change frequency to 60Hz
c. Try using STP Cable

3. No Video Signal on the Display or Signal is going in and Out:

a. Please test your RJ45 cables with a Fluke or similar tester to make sure that all the wires are connected and the distance is within the limits.
b. If you are using patch panel or and RJ45 wall plates, the distance will be reduced, please do a direct connection bypassing all additional equipment.
c. Please try to re-terminate your CAT5/6/7 wire to 568B
d. If your sources is a computer (laptop or desktop), please enable the VGA output.

- Windows computers: Select Properties → Select Display resolutions → Select Detect Display → Select second Display → Select Extended Display check box → Select most appropriate resolution (most basic would be 1024x768)

- Mac Computers: Select Settings → Select Displays → Select Detect Display → Select Arrangement → Select Mirror Displays → Select most appropriate resolution (most basic would be 1024x768)

4. Ghosting effect

a. Some lower end CAT5/6 cables may have a different twist for internal cables which will result different signals arrive at the destination at different time and therefore cause Ghosting effect. The ghosting effect is basically letters doubling up or incorrect colors. We include 2 x Skew adapters in the package, it is recommended to use them.

Transmitter Total Distance 1/2 Distance 1/2 Distance Skew adapter Skew adapter Short cable to the receiver Receiver

LED INDICATORS

BLUE	Power ON/OFF.
RJ45 Green color	ON/OFF Video Signal
Flash	Not-Detected Input Source
RJ45 Yellow	ON/OFF Digital Audio Signal
Flash	Audio input distortion

DIP SWITCH

DDC ← Use external (Loop Out) DDC.

Use Internal default EDID.

If external mode is selected, please make sure that you had a display connected to the local VGA output.

After 1min, the VGA10SS will auto-save EDID of the monitor and therefore the monitor can be disconnected if needed to be by the application.

AUDIO ← select digital audio input (disabled currently)

select analog audio input

Compatible with following receiver module:

AT-VGA300RL
