USER MANUAL MTBS-10R Gabor

Line drawing of a simple electronic device with a circular top and base (no text or symbols)

MTBS-10, MTBS-20, MTBS-10R, MTBS-20R/ MAGNETIC TABLET STAND

User Manual

Thank you for choosing Gabor.

MTBS-10/MTBS-20

Magnetic area Tilt/rotation Cable pass-through

MTBS-10R/MTBS-20R

Magnetic area Tilt/rotation Height adjustment

Specifications

Load Capacity: 13 lb. (5.9 kg)

Compatibility: 10-17 in. laptops

Parts List

10 mm hex wrench

Compatibility

MTBS-10/10R: iPad Air® 4th Gen

11 in. iPad Pro® 1st, 2nd, 3rd generations

MTBS-20/20R: 12.9 in. iPad Pro® 3rd, 4th, and 5th generations

Height MTBS-10/20

Line drawing of a mechanical device with a vertical support and mounting base (no text or symbols)

MTBS-10: 9.5 in. (241 mm)
MTBS-20: 9.6 in. (245 mm)

Height Adjustment for MTBS-10R/20R

9.8 in 7.3 in

Max: 9.8 in. (250 mm)
Min: 7.3 in. (185 mm)

Attaching the iPad

Align the iPad® with the magnetic area of the stand. Follow the image below and the sticker on the stand for correct and safe placement. (Model MTBS-10/20 shown)

Line drawing of three stacked electronic devices on a stand, no text or symbols present

Simple line drawing of a door with a handle and lock, no text or symbols present

Diagram of a door lock mechanism with a switch and lock, no text or symbols present

Simple line drawing of a device with a handle and a switch, no text or symbols present

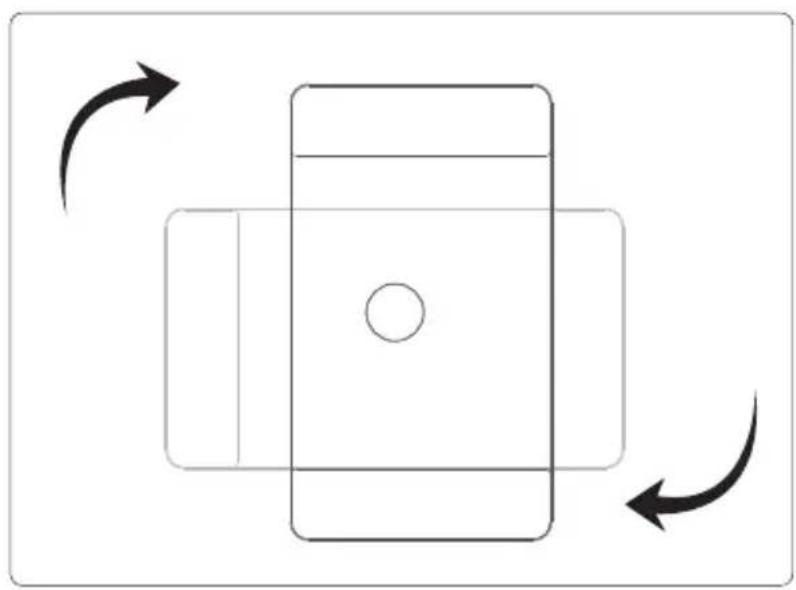

360° Rotation

Simple line drawing of a smartphone with directional arrows indicating rotation or refresh (no text or symbols)

360° Tilt

Diagram of a mechanical device with rotating arm and directional arrow (no text or symbols)

iPad® and iPad Air® are trademarks of Apple Inc., registered in the U.S. and other countries and regions.

One-Year Limited Warranty

This Gabor product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Gabor Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Gabor along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense.

For more information or to arrange service, visit www.madebygabor.com or call Customer Service at 212-594-2353.

Product warranty provided by the Gradus Group.

www.gradusgroup.com

GABOR®

A Gradus Group Brand

Gabor is a registered trademark of the Gradus Group.

© 2023 Gradus Group LLC. All Rights Reserved.

All images are for illustrative purposes only.
