Product Type	Mac Mini Mount (Wall/Desk/VESA)
Brand	Gabor
Model	MMV-10B
Material	Steel
Weight	1.9 lb (0.8 kg)
VESA Mounting Patterns	75×75 mm and 100×100 mm
Mounting Options	Wall, Under Desk, Rear of Monitor
Security Lock	Security Lock Bar included
Anti-Scratch Padding	Yes
Tools Required	Drill, Level, Screwdriver (not included)
Included Hardware	Locking Bar, Screws ST4.2×16, M4×12, T 4.2×30, 7 mm Wrench, Mounting Plate
Compatibility	Apple Mac Mini (all models with VESA mount option)
Weight Capacity	Up to 5 lbs (2.3 kg) based on typical Mac Mini weight
Warranty	1 Year Limited Warranty
Customer Service	212-594-2353 or www.madebygabor.com
Country of Origin	Not specified, likely China

Frequently Asked Questions - MMV-10B Gabor

What devices is the Gabor MMV-10B compatible with?

The Gabor MMV-10B is designed for Apple Mac Mini computers. It can mount the Mac Mini to a wall, under a desk, or on the rear of a computer monitor. It supports VESA patterns 75×75 mm and 100×100 mm, so it can also be attached to VESA-compatible monitors.

Does the mount include all necessary hardware for installation?

Yes, the package includes a locking bar, mounting plate, screws (ST4.2×16, M4×12, T 4.2×30), and a 7 mm wrench. You will need additional tools like a drill and level for wall mounting.

What is the weight capacity of the MMV-10B?

While the official weight capacity is not stated, the Mac Mini typically weighs around 2.8 lbs (1.3 kg). The steel construction suggests it can safely support at least 5 lbs (2.3 kg).

Can I mount this on a wall without a VESA plate?

Yes, the mount can be directly attached to a wall using the included hardware. You will need to drill pilot holes and use wall anchors (not included) for secure installation.

How do I attach the Mac Mini to the mount?

First, attach the mounting plate to the Mac Mini using the provided screws. Then, slide the Mac Mini onto the mount base and secure it with the locking bar to prevent accidental detachment.

Does the mount have anti-scratch protection?

Yes, the mount features anti-scratch padding to protect your Mac Mini from scratches during installation and use.

Can I use this mount to attach my Mac Mini to a monitor with VESA holes?

Absolutely. The mount supports VESA 75×75 mm and 100×100 mm patterns, making it easy to attach to the back of most monitors for a clean all-in-one setup.

What is the warranty period for the Gabor MMV-10B?

Gabor offers a one-year limited warranty against defects in materials and workmanship. Contact customer service at 212-594-2353 or visit www.madebygabor.com for warranty claims.

Is the mount made of plastic or metal?

The mount is constructed from steel, providing durability and strength to securely hold your Mac Mini.

Can I install this mount under a desk?

Yes, the mount can be mounted under a desk following the same steps as wall mounting. Ensure the desk surface is sturdy and use appropriate screws (not included for desk mounting).

USER MANUAL MMV-10B Gabor

Thank you for choosing Gabor.

This Gabor Mac Mini VESA/Wall Mount allows you to mount your Mac Mini computer to a wall, under a desk, or on the rear of your computer monitor.

The mount offers anti-scratch padding, a security lock bar, and VESA mounting patterns from 75×75 to 100×100 mm.

Create more space on your desktop or hide the computer under the desk and out of sight. You can attach the mount to your computer monitor for an all-in-one system.

If you have safety concerns about installing this product, or if this product is missing hardware or there are defective parts, visit www.madebygabor.com or call Customer Service at 212-594-2353.

Specifications

VESA Mounting Patterns

75 × 75 mm

100×100 mm

Material

Steel

Weight

1.9 lb. (0.8 kg)

Parts Included

A		1X	B 1XLocking BarMac Mini VESA / Wa
C 4X	D 4X[WSWY]	E 2XST 4.2×16M4M4×12
F 2X	G 2X∅	H 1X7 mm Wrench6×305T 4.2×30

7 mm Wrench6×305T 4.2×30

Required Tools

Illustration of four different types of electrical tools: a drill, a level indicator, a screwdriver, and a plus sign (no text or symbols present)

Mounting on a Wall

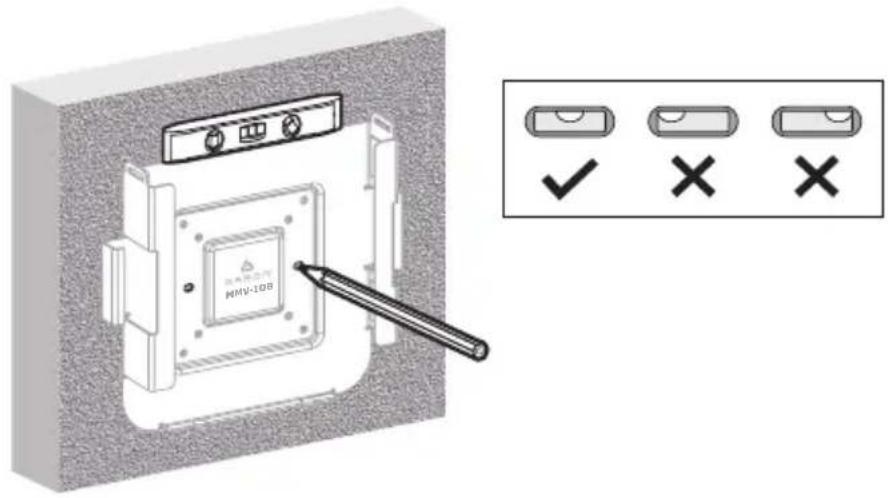

Step 1

Step 2

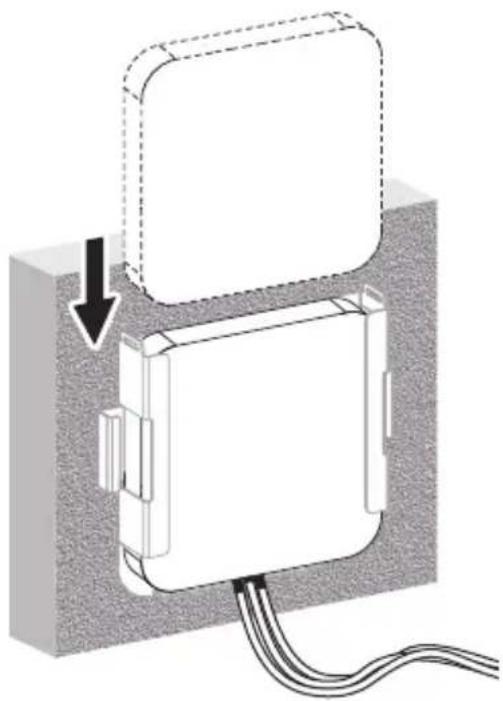

Mounting on a Wall (cont.)

Step 3

Diagram of a mechanical or electrical component with a dashed outline and arrow indicating force or movement (no text or symbols present)

Step 4

Diagram of a mechanical or electrical component with wires and a directional arrow, no visible text or symbols

Mounting Under a Desk

Step 1

Technical line drawing of a mechanical assembly with screwdriver and cylindrical component (no text or symbols)

Step 2

VESA Mounting

Using a VESA Plate

Mounting on a Computer Monitor

One-Year Limited Warranty

This Gabor product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Gabor Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Gabor along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense.

For more information or to arrange service, visit www.madebygabor.com or call Customer Service at 212-594-2353.

Product warranty provided by the Gradus Group.
